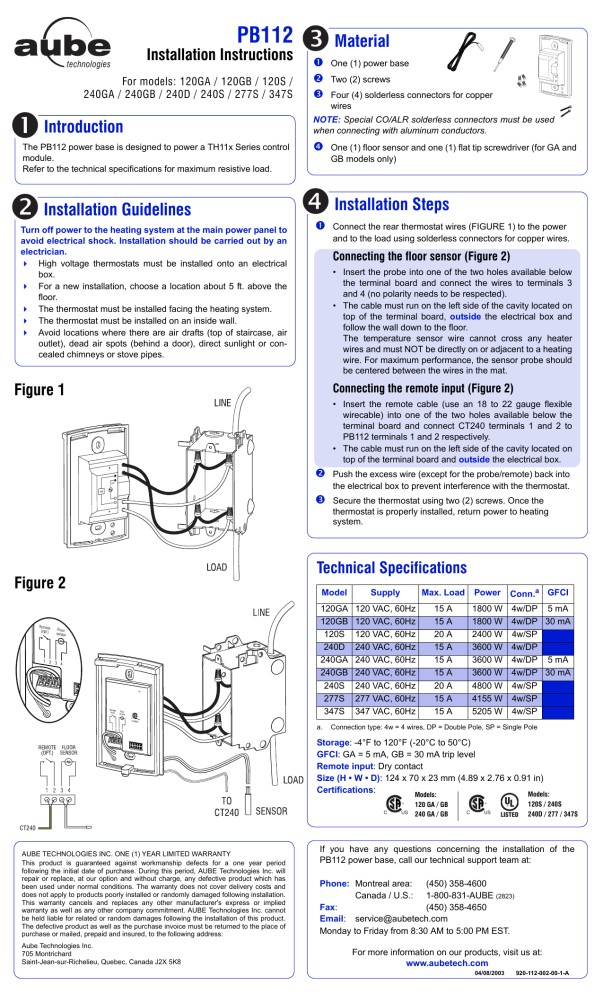

PB112
Installation Instructions
For models: 120GA / 120GB / 120S /
240GA / 240GB / 240D / 240S / 277S / 347S
Introduction
The PB112 power base is designed to power a TH11x Series control
module.
Refer to the technical specifications for maximum resistive load.
Installation Guidelines
Turn off power to the heating system at the main power panel to
avoid electrical shock. Installation should be carried out by an
electrician.
High voltage thermostats must be installed onto an electrical
box.
For a new installation, choose a location about 5 ft. above the
floor.
The thermostat must be installed facing the heating system.
The thermostat must be installed on an inside wall.
Avoid locations where there are air drafts (top of staircase, air
outlet), dead air spots (behind a door), direct sunlight or concealed chimneys or stove pipes.
Material
n
o
p
One (1) power base
Two (2) screws
Four (4) solderless connectors for copper
wires
NOTE: Special CO/ALR solderless connectors must be used
when connecting with aluminum conductors.
q
One (1) floor sensor and one (1) flat tip screwdriver (for GA and
GB models only)
Installation Steps
n
Connect the rear thermostat wires (FIGURE 1) to the power
and to the load using solderless connectors for copper wires.
Connecting the floor sensor (Figure 2)
• Insert the probe into one of the two holes available below
the terminal board and connect the wires to terminals 3
and 4 (no polarity needs to be respected).
• The cable must run on the left side of the cavity located on
top of the terminal board, outside the electrical box and
follow the wall down to the floor.
The temperature sensor wire cannot cross any heater
wires and must NOT be directly on or adjacent to a heating
wire. For maximum performance, the sensor probe should
be centered between the wires in the mat.
Figure 1
Connecting the remote input (Figure 2)
• Insert the remote cable (use an 18 to 22 gauge flexible
wirecable) into one of the two holes available below the
terminal board and connect CT240 terminals 1 and 2 to
PB112 terminals 1 and 2 respectively.
• The cable must run on the left side of the cavity located on
top of the terminal board and outside the electrical box.
Figure 2
o
Push the excess wire (except for the probe/remote) back into
the electrical box to prevent interference with the thermostat.
p
Secure the thermostat using two (2) screws. Once the
thermostat is properly installed, return power to heating
system.
Technical Specifications
Model
Supply
Max. Load
Power
Conn.a GFCI
120GA
120GB
120S
240D
240GA
240GB
240S
277S
347S
120 VAC, 60Hz
120 VAC, 60Hz
120 VAC, 60Hz
240 VAC, 60Hz
240 VAC, 60Hz
240 VAC, 60Hz
240 VAC, 60Hz
277 VAC, 60Hz
347 VAC, 60Hz
15 A
15 A
20 A
15 A
15 A
15 A
20 A
15 A
15 A
1800 W
1800 W
2400 W
3600 W
3600 W
3600 W
4800 W
4155 W
5205 W
4w/DP 5 mA
4w/DP 30 mA
4w/SP
4w/DP
4w/DP 5 mA
4w/DP 30 mA
4w/SP
4w/SP
4w/SP
a.
Connection type: 4w = 4 wires, DP = Double Pole, SP = Single Pole
Storage: -4°F to 120°F (-20°C to 50°C)
GFCI: GA = 5 mA, GB = 30 mA trip level
Remote input: Dry contact
Size (H • W • D): 124 x 70 x 23 mm (4.89 x 2.76 x 0.91 in)
Certifications:
Models:
Models:
R
C
AUBE TECHNOLOGIES INC. ONE (1) YEAR LIMITED WARRANTY
This product is guaranteed against workmanship defects for a one year period
following the initial date of purchase. During this period, AUBE Technologies Inc. will
repair or replace, at our option and without charge, any defective product which has
been used under normal conditions. The warranty does not cover delivery costs and
does not apply to products poorly installed or randomly damaged following installation.
This warranty cancels and replaces any other manufacturer's express or implied
warranty as well as any other company commitment. AUBE Technologies Inc. cannot
be held liable for related or random damages following the installation of this product.
The defective product as well as the purchase invoice must be returned to the place of
purchase or mailed, prepaid and insured, to the following address:
Aube Technologies Inc.
705 Montrichard
Saint-Jean-sur-Richelieu, Quebec, Canada J2X 5K8
US
120 GA / GB
240 GA / GB
R
C
US
120S / 240S
240D / 277 / 347S
If you have any questions concerning the installation of the
PB112 power base, call our technical support team at:
Phone: Montreal area:
(450) 358-4600
Canada / U.S.: 1-800-831-AUBE (2823)
Fax:
(450) 358-4650
Email: [email protected]
Monday to Friday from 8:30 AM to 5:00 PM EST.
For more information on our products, visit us at:
www.aubetech.com
04/08/2003
920-112-002-00-1-A
TH115 A/F/AF
Owner’s Guide
Thank you for choosing the Aube TH115, a
programmable thermostat that provides both energy
savings and comfort.
TH115 Description
n On/Stand By Switch
GFCI Warning Light and Test Button
SW3
current time.
o Press DAY to set current day.
For AF and F models: one of the two
following messages may be displayed
if the installation is incorrect:
LO: The floor temperature is below
32°F (0°C), or the temperature
sensor is defective, or not connected.
The heating indicator
is displayed and the relay is closed
(energized).
HI: The floor temperature is above
140°F (60°C), or the temperature sensor is defective.
SW1
Day & Clock Settings
a.
Programming Mode
b.
Mode Selection/Exit Programming
DN
°F
°C
Early Start b
Disable
Enable
Time format
12-hour
24-hour
Temperature format
Control module
If you switch from °F to °C or vice versa, the
, and
setpoints
may need to be redefined.
When using AUTO mode, the thermostat calculates the optimum start
time to obtain the desired temperature by the set time. The heating
system could be started a few hours prior to set time when required.
Current Mode and Setpoint
Current Program Number
Setpoint definition/Pre-defined Setpoints
Increase/Decrease Temperature
The GFCI monitors the electrical flow for
any loss of current; if there is one, the
thermostat will cut off power to the heating
system. We recommend you test the GFCI
immediately after installing the control
module, and once a month thereafter to
ensure it is operating properly. To test:
Switches are
located on the
rear of the control
module.
To modify any
setting, switch
UP or DN.
heating indicator
• Successful: the TEST warning light is ON and
power to heating system is cut off.
• Unsucessful: the TEST warning light is OFF. Cut
power to heating system from the main power
panel and call customer service.
p When successful, reset thermostat (Stand By/On) to
power the heating system.
NOTE: If the test warning light comes ON during normal
operation, cut power to heating system from the main
power panel and have an electrician verify the installation.
NOTE: Keep the thermostat's air vents clean and free
from obstructions.
Temperature Setpoint
Operating Modes
The following temperature setpoints are pre-programmed:
Symbol
Description
Default
A/AF
F
Comfort (when at home)
70°F
82°F
Economy (when asleep/
away from home)
64°F
68°F
50°F
50°F
Vacation (during
until the
is displayed.
o Press TEST:
Power base
NOTE: The screw cannot be removed completely.
n Increase the temperature
Incorrect
UP
a
Align the bracket tabs on the control module with the
holes located on top of the power base.
Room OR Floor Temperature
GFCI Test (GA & GB power base only)
n Press HOUR - MIN to set the
Function
SW2
A Controls the Ambient temperature.
AF Controls the Ambient temperature and Floor temperature limit.
F Controls the Floor temperature.
Correct
#
Use this switch to put the thermostat in sleep mode
when its use is no longer required (e.g. summer).
This will not affect the clock or programming.
Models
When power is applied for the first
time, the LCD displays: 0:00, MO
(Monday),
and temperature (room/
floor).
Control Module Installation
This thermostat is factory-set to the following values:
Buttons and symbols
o
p
q
r
s
t
u
v
w
First Power ON
Switch Selection
prolonged absence)
New
Automatic
—Executes the schedule.
n Press MODE until
is displayed. The current program number is displayed.
You can temporary bypass the current program by setting a specific temperature
or
by pressing on a pre-defined setpoint button (
).
The new setpoint will be maintained until the beginning of the next program.
To modify a setpoint:
n Set the desired temperature using
o Press and Hold the or or
.
button until symbol is displayed.
p Press RET to exit.
and hold
while switching from
ON to Stand By then
back to On.
—Maintains a constant temperature.
n Press MODE until
o Set temperature
is displayed.
or press (
) to use
pre-defined setpoint.
Floor temperature limit—The floor temperature limit is
82°F. To modify this limit:
n Press
Manual
o Set temperature
p Press RET to exit.
To avoid damaging your floor, we
recommend
you
follow
the
supplier’s instructions.
Vacation
—Maintains the Vacation setpoint
during a prolonged absence.
Press
until the icon is displayed.
920-115-007-00-1-A
Pre-programmed Schedule
Modify the Schedule
The TH115 programmable thermostat is pre-programmed
with the following schedule:
Notes:
You can program up to 4 different programs per day.
Each day can have different programs.
It is sometimes faster to program the same schedule
for the entire week and then to modify the exception
days.
To modify:
n Press PGM to access the programming mode
o Press DAY to select the day to be programmed (hold
for 3 seconds to select all days of the week).
Time you
wake up and
desired
temperature
Programs
Time you
leave and
temperature
during your
absence
Time you
return home
and desired
temperature
Time you go
to bed and
overnight
temperature
MO
TU
WE
TH
FR
SA
SU
6:00
6:00
6:00
6:00
6:00
6:00
6:00
8:30
8:30
8:30
8:30
8:30
--:--
--:--
16:00 16:00 16:00 16:00 16:00
--:--
--:--
p Press PGM to select the program number.
q Press HOUR and MIN to set the time or press
Custom Grid
Remote Input
Use this blank grid to record your new schedule.
Prog
Setpoint
MO
TU
WE
TH
FR
SA
SU
† F † AF
Temperature display: † °F † °C
Time display: † 12hrs † 24hrs
Model: † A
The TH115 is equipped with a remote input which allows
connection of a telephone controller (accessory
Aube CT240) or any other remote control system.
When a signal is received through this input, the TH115
will automatically switch from normal operating mode to
Vacation mode ( ), and vice versa when the signal is
removed.
Activating the Vacation mode
There are two ways to activate the Vacation mode:
n From the thermostat, see “Operating Modes” above.
o From a telephone (remote location). For details on
how to activate using a telephone, refer to the CT240
Instruction Manual.
CLEAR to clear the time (--:-- is disregarded).
r Repeat steps 2 to 4 for remaining programs.
s When completed, press RET to exit mode.
WARNING: When the Vacation mode is activated
remotely, it must be deactivated remotely.
NOTE: After 60 seconds of inactivity, the thermostat will
automatically exit programming mode.
23:00 23:00 23:00 23:00 23:00 23:00 23:00
Temperature Control
Technical Specifications
Warranty
The TH115 thermostat works differently than conventional
electromechanical thermostats.
It is equipped with a proportional integral adaptive (P.I.A.)
controller which determines heating cycles by analyzing
the temperature behavior history within the room.
The P.I.A. controller reduces temperature variations
providing an accurate temperature control while
increasing user comfort.
The controller determines the amount of power required
by the heating system to maintain the setpoint
temperature.
Model: TH115 A / AF / F
AUBE TECHNOLOGIES INC. ONE (1) YEAR LIMITED WARRANTY
Display range: 32°F to 140°F (0°C to 60°C)
Setting range (ambient): 40°F to 86°F (5°C to 30°C)
Setting range (floor limit): 40°F to 104°F (5°C to 40°C)
Pre-programmed temperature setpoints:
Comfort:
Economy: A/AF: 64°F (18°C) and F: 68°F (20°C)
A/AF: 70°F (21°C) and F: 82°F (28°C)
Vacation: A/F/AF: 50°F (10°C)
Floor limit:AF: 82°F (28°C)
Accuracy:± 0.9°F (0.5°C)
1 to 20%
21 to 40%
41 to 60%
61 to 80%
81 to 100%
Storage:-4°F to 120°F (-20°C to 50°C)
Temperature control: Proportional integral adaptive,
15-minute or 15-second heating cycles according to the
application and power base.
Memory backup: In the event of a power failure, an
internal circuit will maintain the programming. Only the
time will have to be set if the power failure is more than
two (2) hours. The thermostat will return to the same
operating mode as set before the power failure.
This product is guaranteed against workmanship defects for a
one year period following the initial date of purchase. During this
period, AUBE Technologies Inc. will repair or replace, at our
option and without charge, any defective product which has been
used under normal conditions.
The warranty does not cover delivery costs and does not apply to
products poorly installed or randomly damaged following
installation.
This warranty cancels and replaces any other manufacturer's
express or implied warranty as well as any other company
commitment. AUBE Technologies Inc. cannot be held liable for
related or random damages following the installation of this
product.
The defective product as well as the purchase invoice must be
returned to the place of purchase or mailed, prepaid and insured,
to the following address:
If you have any questions concerning the
installation or programming of the TH115
programmable thermostat, call our technical
support team at:
Phone: Montreal area:(450) 358-4600
Canada / U.S.:1-800-831-AUBE (2823)
Fax:
(450) 358-4650
Email: [email protected]
Monday to Friday from 8:30 AM to 5:00 PM EST
For more information on our products, visit us at:
www.aubetech.com
Aube Technologies Inc.
705 Montrichard
Saint-Jean-sur-Richelieu, Quebec, Canada J2X 5K8
®
As an ENERGY STAR partner, Aube Technologies has
determined that this product meets the ENERGY STAR
guidelines for energy efficiency.
04/08/2003 920-115-007-00-1-A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
