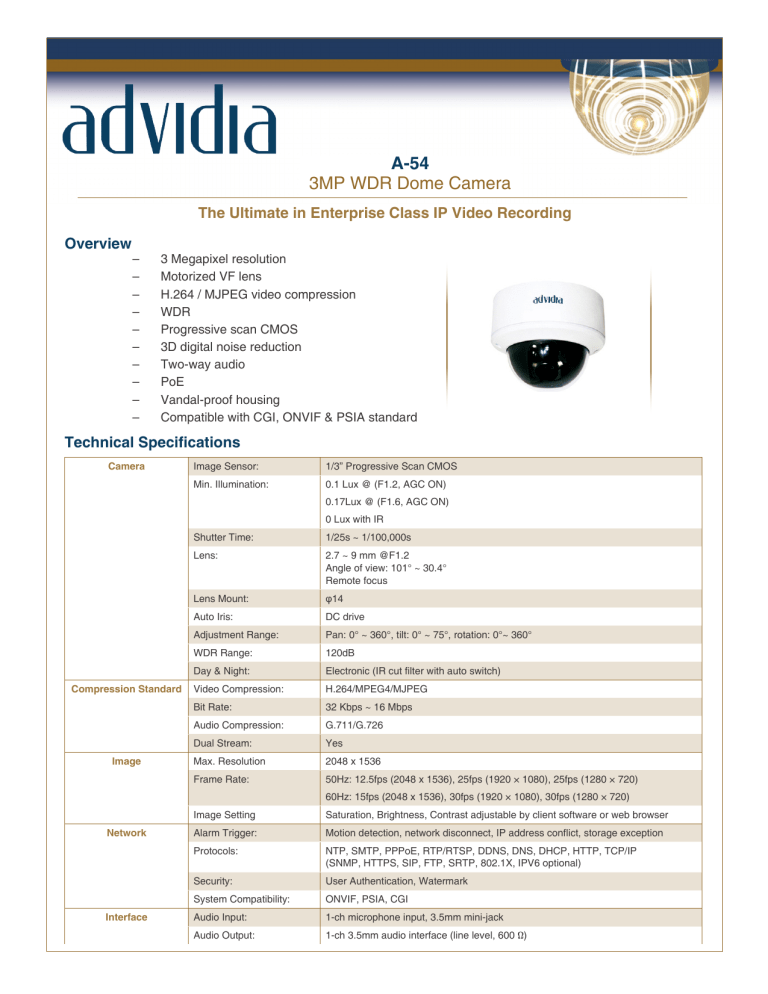

A-54 3MP WDR Dome Camera

A-54 3MP WDR Dome Camera
A-54
3MP WDR Dome Camera
The Ultimate in Enterprise Class IP Video Recording
Overview
––
––
––
––
––
––
––
––
––
––
3 Megapixel resolution
Motorized VF lens
H.264 / MJPEG video compression
WDR
Progressive scan CMOS
3D digital noise reduction
Two-way audio
PoE
Vandal-proof housing
Compatible with CGI, ONVIF & PSIA standard
Technical Specifications
Camera
Image Sensor:
1/3” Progressive Scan CMOS
Min. Illumination:
0.1 Lux @ (F1.2, AGC ON)
0.17Lux @ (F1.6, AGC ON)
0 Lux with IR
Compression Standard
Shutter Time:
1/25s ~ 1/100,000s
Lens:
2.7 ~ 9 mm @F1.2
Angle of view: 101° ~ 30.4°
Remote focus
Lens Mount:
φ14
Auto Iris:
DC drive
Adjustment Range:
Pan: 0° ~ 360°, tilt: 0° ~ 75°, rotation: 0°~ 360°
WDR Range:
120dB
Day & Night:
Electronic (IR cut filter with auto switch)
Video Compression:
H.264/MPEG4/MJPEG
Bit Rate:
32 Kbps ~ 16 Mbps
Audio Compression:
G.711/G.726
Dual Stream:
Yes
Max. Resolution
2048 x 1536
Frame Rate:
50Hz: 12.5fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 × 720)
60Hz: 15fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 × 720)
Network
Interface
Image Setting
Saturation, Brightness, Contrast adjustable by client software or web browser
Alarm Trigger:
Motion detection, network disconnect, IP address conflict, storage exception
Protocols:
NTP, SMTP, PPPoE, RTP/RTSP, DDNS, DNS, DHCP, HTTP, TCP/IP
(SNMP, HTTPS, SIP, FTP, SRTP, 802.1X, IPV6 optional)
Security:
User Authentication, Watermark
System Compatibility:
ONVIF, PSIA, CGI
Audio Input:
1-ch microphone input, 3.5mm mini-jack
Audio Output:
1-ch 3.5mm audio interface (line level, 600 Ω)
Technical Specifications Cont.
General
Communication Interface:
1 RJ45 10 / 100 ethernet interface and 1 RS-485 interface
Alarm Input:
2
Alarm Output:
2
Video Output:
1Vp-p Composite Output (750hm, RCA)
Local Storage:
Built-in SD / SDHC slot, up to 32 GB
Reset Button:
Yes
Operating Conditions:
-10° C ~ 60° C (14° F ~ 140° F)
Humidity 90% or less (non-condensing)
Power Supply:
12 VDC ± 10%, PoE (802.3af)
Power Consumption:
5.5W~10.5W
(IR: 2W,Motorized VF lens: 3W)
Impact Protection:
IEC60068-2-75Eh, 50J, EN50102, up to IK10
IR Range:
Approx 10 to 20 meters (32.8-65.6ft)
Dimensions:
Φ140mm×114mm (Φ5.51”×4.49”)
Weight:
3.09 lbs
www.advidia.com
Copyright 2013, Advidia. All rights reserved.
Specifications are subject to change without notice.
