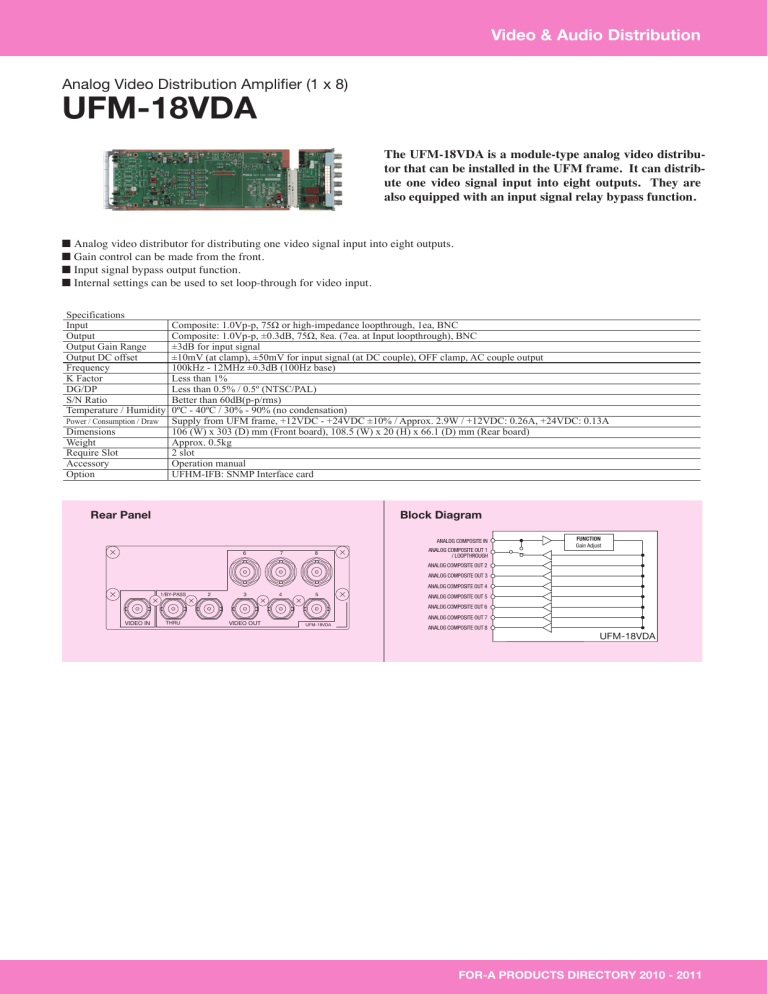

UFM-18VDA Analog Video Distribution Amplifier

UFM-18VDA Analog Video Distribution Amplifier
Video & Audio Distribution
Analog Video Distribution Amplifier (1 x 8)
UFM-18VDA
The UFM-18VDA is a module-type analog video distributor that can be installed in the UFM frame. It can distribute one video signal input into eight outputs. They are
also equipped with an input signal relay bypass function.
■ Analog video distributor for distributing one video signal input into eight outputs.
■ Gain control can be made from the front.
■ Input signal bypass output function.
■ Internal settings can be used to set loop-through for video input.
Specifications
Input
Output
Output Gain Range
Output DC offset
Frequency
K Factor
DG/DP
S/N Ratio
Temperature / Humidity
Power / Consumption / Draw
Dimensions
Weight
Require Slot
Accessory
Option
Composite: 1.0Vp-p, 75Ω or high-impedance loopthrough, 1ea, BNC
Composite: 1.0Vp-p, ±0.3dB, 75Ω, 8ea. (7ea. at Input loopthrough), BNC
±3dB for input signal
±10mV (at clamp), ±50mV for input signal (at DC couple), OFF clamp, AC couple output
100kHz - 12MHz ±0.3dB (100Hz base)
Less than 1%
Less than 0.5% / 0.5º (NTSC/PAL)
Better than 60dB(p-p/rms)
0ºC - 40ºC / 30% - 90% (no condensation)
Supply from UFM frame, +12VDC - +24VDC ±10% / Approx. 2.9W / +12VDC: 0.26A, +24VDC: 0.13A
106 (W) x 303 (D) mm (Front board), 108.5 (W) x 20 (H) x 66.1 (D) mm (Rear board)
Approx. 0.5kg
2 slot
Operation manual
UFHM-IFB: SNMP Interface card
Rear Panel
Block Diagram
ANALOG COMPOSITE IN
6
7
8
ANALOG COMPOSITE OUT 1
/ LOOPTHROUGH
FUNCTION
Gain Adjust
ANALOG COMPOSITE OUT 2
ANALOG COMPOSITE OUT 3
ANALOG COMPOSITE OUT 4
1/BY-PASS
2
3
4
5
ANALOG COMPOSITE OUT 5
ANALOG COMPOSITE OUT 6
VIDEO IN
THRU
VIDEO OUT
ANALOG COMPOSITE OUT 7
UFM-18VDA
ANALOG COMPOSITE OUT 8
UFM-18VDA
FOR-A PRODUCTS DIRECTORY 2010 - 2011
