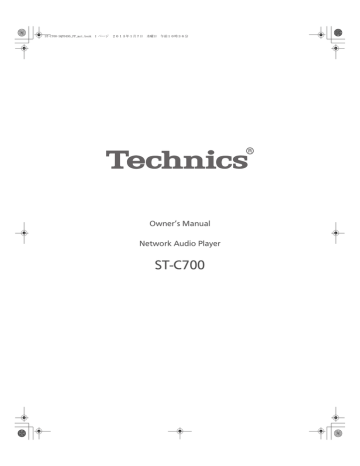

Owner’s Manual
Network Audio Player
ST-C700
ST-C700-SQT0495_PP_mst.book 2 ページ
2015年1月7日 水曜日 午前10時36分
ST-C700-SQT0495_PP_mst.book 3 ページ
2015年1月7日 水曜日 午前10時36分
Music is borderless and timeless,
touching people’s hearts across cultures and generations.
Each day the discovery of a truly emotive experience
from an unencountered sound awaits.
Let us take you on your journey to rediscover music.
ST-C700-SQT0495_PP_mst.book 4 ページ
2015年1月7日 水曜日 午前10時36分
Thank you for purchasing this product.
Please read these instructions carefully before using this product, and save this manual for future use.
If you have any questions, visit:
U.S.A.: www.panasonic.com/support
Canada: www.panasonic.ca/english/support
Register online at www.panasonic.com/register (U.S. customers only)
∫ Features of this unit
This unit offers the following features:
Digital Noise Isolation Architecture
Since most digital content storage media are intended for use with PCs, they are not designed with consideration for low noise,
which is critical to pure audio reproduction. To overcome this challenge, this unit employs a thorough measure against jitter and
outstanding noise blocking technology for each of its interfaces, delivering clear sound.
Virtual Battery Operation
Virtual Battery Operation prevents power supply noise, a factor that causes “turbidity” in sound, from mixing into the audio signal.
The result is an improvement in sound localization performance and spatial expression.
Ultra Low Distortion Oversampling Digital Filter
High-precision oversampling eliminates distortion and enhances the sound quality of music sources, thus reproducing sound rich
with spatial expression.
∫ Recommended devices
We recommend using Technics devices (optional) for superior audio quality.
Product name
Model number
Speaker System
SB-C700
Compact Disc Player
SL-C700*
Stereo Integrated Amplifier
SU-C700
* This product is set to be released in July 2015.
4
ST-C700-SQT0495_PP_mst.book 5 ページ
2015年1月7日 水曜日 午前10時36分
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the
safety instructions on the unit and the applicable safety instructions listed
below. Keep these operating instructions handy for future reference.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding-type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
WARNING
Unit
≥ To reduce the risk of fire, electric shock or product damage,
– Do not expose this unit to rain, moisture, dripping or splashing.
– Do not place objects filled with liquids, such as vases, on this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to qualified service
personnel.
– Do not place heavy items on this unit.
AC power supply cord
≥ The power plug is the disconnecting device.
Install this unit so that the power plug can be unplugged from the socket
outlet immediately.
CAUTION
Unit
≥ Do not place sources of naked flames, such as lighted candles, on this unit.
Placement
≥ To reduce the risk of fire, electric shock or product damage,
– Do not install or place this unit in a bookcase, built-in cabinet or in another
confined space. Ensure this unit is well ventilated.
– Do not obstruct this unit’s ventilation openings with newspapers,
tablecloths, curtains, and similar items.
≥ Keep your speakers at least 10 mm (13/32z) away from the system for proper ventilation.
≥ Do not lift or carry this unit by holding any of its levers. Doing so may cause
this unit to fall, resulting in personal injury or malfunction of this unit.
Battery
≥ Danger of explosion if battery is incorrectly replaced. Replace only with the
type recommended by the manufacturer.
≥ Mishandling of batteries can cause electrolyte leakage and may cause a fire.
– Remove the battery if you do not intend to use the remote control for a
long period of time. Store in a cool, dark place.
– Do not heat or expose to flame.
– Do not leave the battery(ies) in a car exposed to direct sunlight for a long
period of time with doors and windows closed.
– Do not take apart or short circuit.
– Do not recharge alkaline or manganese batteries.
– Do not use batteries if the covering has been peeled off.
– Do not mix old and new batteries or different types at the same time.
≥ When disposing of the batteries, please contact your local authorities or
dealer and ask for the correct method of disposal.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION :
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
Conforms to UL STD 60065.
Certified to CAN/CSA STD C22.2 No.60065.
Product Identification Marking is located on the rear panel of the unit.
THE FOLLOWING APPLIES IN THE U.S.A. AND CANADA
This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference, including interference that
may cause undesired operation of this device.
FCC ID: ACJ-ST-C700
IC: 216A-STC700
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
This equipment complies with FCC/IC radiation exposure limits set forth for an
uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF)
Exposure rules. This equipment has very low levels of RF energy that is deemed to
comply without maximum permissive exposure evaluation (MPE). But it is desirable
that it should be installed and operated keeping the radiator at least 20 cm (7 7/8q) or
more away from person’s body (excluding extremities: hands, wrists, feet and ankles).
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
FCC Note:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
≥ Reorient or relocate the receiving antenna.
≥ Increase the separation between the equipment and receiver.
≥ Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
≥ Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, follow the attached
installation instructions and use only shielded interface cables when
connecting to peripheral devices.
Any unauthorized changes or modifications to this equipment would void
the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Declaration of Conformity
Trade Name: Technics
Model No.: ST-C700
Responsible Party:
Panasonic Corporation of North America
Two Riverfront Plaza, Newark, NJ 07102-5490
Support Contact: http://www.panasonic.com/contactinfo
Information on Disposal in other Countries outside
the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local
authorities or dealer and ask for the correct method of disposal.
ST-C700
THE FOLLOWING APPLIES ONLY IN CANADA
CAN ICES-3(B)/NMB-3(B)
5
ST-C700-SQT0495_PP_mst.book 6 ページ
2015年1月7日 水曜日 午前10時36分
Table of contents
IMPORTANT SAFETY INSTRUCTIONS ............................ 5
Accessories ....................................................................... 6
Control reference guide.................................................... 7
Getting started ................................................................... 9
HOME menu and basic operations ................................ 11
Network settings .............................................................12
Playing back music files on the DLNA server .............. 13
Using iPhone/iPad/iPod ..................................................14
Using AirPlay ...................................................................15
Using USB device............................................................ 15
Using PC, etc. ..................................................................17
Using Bluetooth® .............................................................18
Sound adjustment ...........................................................20
Others ...............................................................................21
Troubleshooting ..............................................................23
Unit care ...........................................................................26
Specifications ..................................................................27
Limited Warranty (ONLY FOR U.S.A.) ............................31
Limited Warranty (ONLY FOR CANADA) .......................32
About descriptions in this Owner’s Manual
≥ Pages to be referred to are indicated as “> ±±”.
≥ The illustrations shown may differ from your unit.
≥ Unless otherwise indicated, operations are described using the remote control.
Accessories
∏ 1 AC power supply cord
(K2CB2YY00098)
∏ 1 System connection cable
(K2KYYYY00233)
∏ 2 Batteries for remote control
∏ 1 Coaxial digital cable
(K2KYYYY00251)
∏ 1 Remote control
(N2QAYA000096)
(ONLY FOR CANADA)
The enclosed Canadian French label sheet corresponds to the English display on the unit.
≥ Product numbers provided in this Owner’s Manual are correct as of December 2014. These may be subject to change.
≥ Do not use AC power supply cord with other equipment.
∫ Using the remote control
Insert the battery so the terminals (i and j)
match those in the remote control.
Point it at the remote control signal sensor on this
unit. (> 7)
≥ Keep the batteries out of reach of children to
prevent swallowing.
2
1
R03/LR03, AAA
(Alkaline or manganese batteries)
6
ST-C700-SQT0495_PP_mst.book 7 ページ
2015年1月7日 水曜日 午前10時36分
Control reference guide
This unit
∫ Front


∫ Rear




1 Power switch lever
Turn on/off this unit.
≥ The remote control do not operate when the power switch
lever is in the lowered position.
2 Port for iPhone/iPad/iPod and USB devices (> 14, 15)
3 Remote control signal sensor
Distance: Within approx. 7 m (23 ft) directly in front
Angle: Approx. 30o left and right


   

7 Product identification marking
The model number is indicated.
8 Analog audio output terminal [LINE OUT] (> 9)
9 Digital audio output terminal [COAX OUT] (> 9)
: Digital audio output terminal [OPT OUT] (> 9)
; Digital audio input terminal [PC] (> 17)
For connecting to a PC, etc.
4 Display
< System terminal [CONTROL] (> 9)
5 Basic control switches
These switches work just by touching the marks. Each
time you touch the switch, there will be a beep sound.
(> 11)
= LAN port [LAN] (> 12)
> AC IN terminal [AC IN T] (> 10)
≥ When playback information is not shown on the display
(except in NFC registration standby mode (> 18)), you can
perform the following operations on the touch panel:
:
3 (Up)
9
4 (Down)
1/;
OK (OK)
∫
RETURN (Return)
HOME (Touch and hold)
MENU (Enter menu)
6 NFC touch area (> 18)
The NFC touch area sheet is attached to this area at the
time of purchase.
7
ST-C700-SQT0495_PP_mst.book 8 ページ
2015年1月7日 水曜日 午前10時36分
Remote control
∫ Buttons that work for this unit





≥ The remote control do not operate when the power switch
lever is in the lowered position.




1 [NWP Í]: Standby/on switch
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.



2 [AMP]/[NWP]/[CD]: Select the device to be operated
3 [N INPUT O]: Select the input source
4 [DIMMER]: Adjust the brightness of the display, etc.
(> 11)
5 [HOME]: Display HOME menu (> 11)
6 [INFO]: View content information
Press this button to display the track, artist, and album names,
file type, sampling frequency, and other information.
7 [3, 4, 2, 1]/[OK]: Selection/OK
8 [RETURN]: Return to the previous display
9 [MENU]: Enter menu (> 18, 19, 21)
: [DIRECT]: Turn on/off Direct mode (> 20)




; [RE-MASTER]: Turn on/off Re-master (> 20)
< Basic playback control buttons
= Numeric buttons, etc.
≥ To select a 2-digit number
Example:
16: [S10] > [1] > [6]
≥ To select a 4-digit number
Example:
1234: [S10] > [S10] > [S10] > [1] > [2] > [3] > [4]
≥ [CLEAR]: Clear the entered value.



∫ Buttons that work for the SU-C700/SLC700


8
The remote control of this unit also works for the SUC700/SL-C700.
For information on the operations of the SU-C700/SL-C700,
please also refer to their operating instructions.
Standby/on switch for the SU-C700
Standby/on switch for the SL-C700
Select the device to be operated
Select the input source of the SU-C700
Adjust the brightness of the display, etc.
Measure the characteristics of the amplifier and correct
its output
7 Adjust the volume
8 Mute the sound
1
2
3
4
5
6
ST-C700-SQT0495_PP_mst.book 9 ページ
2015年1月7日 水曜日 午前10時36分
Getting started
≥ Turn off all equipment before connection and read the appropriate operating instructions.
≥ Do not connect the AC power supply cord until all other connections are complete.
≥ Insert the plugs of the cables to be connected all the way in.
≥ Do not bend cables at sharp angles.
System control connection to an SU-C700
≥ You can output digital audio signals from this unit and play back music.
≥ You can automatically link this unit with the SU-C700 and operate them easily with the remote control. (> 23)
Coaxial digital cable
(supplied)
System connection cable
(supplied)
SU-C700
This unit
(rear)
≥ Do not use any other system connection cables or coaxial digital cables except the supplied one.
≥ Connect the system connection cable to the system terminal [CONTROL1] of the SU-C700.
≥ Connect the coaxial digital cable to the digital audio input terminal [COAX1 IN] of the SU-C700.
Connecting to an amplifier and a D/A converter
You can output analog or digital audio signals from this unit and play back music files.
e.g.,
This unit
(rear)
Audio cable
(not supplied)
Optical digital audio cable
(not supplied)
Amplifier
D/A converter
9
ST-C700-SQT0495_PP_mst.book 10 ページ
2015年1月7日 水曜日 午前10時36分
AC power supply cord connection
Connect only after all other connections are completed.
This unit
(rear)
Insert the AC power supply cord up to A, a point
just before the round hole.
AC power supply cord
(supplied)
To a household AC outlet
≥ This unit consumes a small amount of AC power (> 27) even the power switch lever is in the [OFF] position. Remove the plug from the main
electrical outlet if you will not be using the unit for an extended period of time. Place the unit so the plug can be easily removed.
10
ST-C700-SQT0495_PP_mst.book 11 ページ
2015年1月7日 水曜日 午前10時36分
HOME menu and basic operations
Major functions of this unit can be operated from the HOME
menu.
Preparation
≥ Prepare the music that you want to play back.
≥ Turn on the connected device (amplifier, etc.) and lower its
volume.
1 Raise the power switch lever of this unit to
the [Í/I] position.
Adjusting the volume
Adjust the volume of the connected device (amplifier, etc.).
Display brightness
The brightness of this unit’s display and the basic control
switches can be changed.
2 Press [NWP].
Press [DIMMER] repeatedly.
3 Press [HOME].
ラヰヮユ
≥ When the display is turned off, it will light up only when you
operate this unit.
Before the display turns off again, “Display Off” will be displayed
for a few seconds.
ヒバブ
ロモワ
ヶヴャ
Operation sound setting
You can turn the beep sound on/off.
4 Press [3, 4] to select an item and then
≥ The factory default is “On”.
press [OK].
1 Press [NWP].
≥ If there are any other items, repeat this step.
LAN
Connects this unit to a network and
plays back music over it. (> 13)
USB
Plays back music stored on a USB
device or an iPhone/iPad/iPod.
(> 14, 15, 16)
PC
Plays back music stored on a PC,
etc. (> 17)
Bluetooth
Connects this unit to a Bluetooth
device and plays back music stored
on it. (> 18, 19)
®
SETUP
3 Press [3, 4] repeatedly to select “SETUP”
and then press [OK].
4 Press [3, 4] repeatedly to select “Beep”
and then press [OK].
5 Press [3, 4] to select “On”/“Off” and then
press [OK].
(> 11, 12, 20, 21, 22, 23)
5 Start play.
∫ To display HOME menu
Press [HOME].
2 Press [HOME].
Operations using the
dedicated app “Technics
Music App”
If you install the dedicated app “Technics Music App” (free of
charge) on your tablet/smartphone, you can control this unit
and the SU-C700 using a wide variety of functions.
For details, visit:
www.technics.com/support/
11
ST-C700-SQT0495_PP_mst.book 12 ページ
2015年1月7日 水曜日 午前10時36分
Network settings
You can stream music from an iOS device
(iPhone/iPad/iPod), an Android™ device or a PC
(Mac/Windows) to this unit by using the AirPlay or DLNA
feature. (> 13, 15)
To use these features, this unit must join the same network
as the AirPlay compatible device or the DLNA compatible
device.
To make network-related
settings
You can change this unit’s name on the network (Friendly
Name), and use specific IP address, subnet mask, default
gateway, primary DNS, etc.
≥ Do not play back music while changing these settings.
Wired LAN connection
Normally, just connecting a LAN cable will complete the
setup.
1
2
3
5
6
7
8
Press [NWP].
Press [HOME].
Press [3, 4] repeatedly to select “SETUP” and then
press [OK].
Press [3, 4] repeatedly to select “Network” and then
press [OK].
Select and input the details.
Press [OK] to apply the settings.
Press [RETURN] repeatedly to exit the settings.
Press [NWP Í] to turn the unit to standby mode.
9
Perform “Wired LAN connection”. (> left)
4
This unit
(rear)
≥ Wait until “Please Wait” disappears.
Broadband router, etc.
≥ Use category 7 or above straight LAN cables (STP) when
connecting to peripheral devices.
≥ Inserting any cable other than a LAN cable in the LAN port can
damage the unit.
≥ If you try to change the network settings immediately after turning
on this unit, it may take some time until the network setup screen
is displayed.
PC, etc.
A: LAN cable (not supplied)
1 Disconnect the AC power supply cord.
2 Connect this unit to a broadband router, etc.
using a LAN cable.
3 Connect the AC power supply cord to this
unit, and raise the power switch lever to the
[Í/I] position. (> 10)
12
ST-C700-SQT0495_PP_mst.book 13 ページ
2015年1月7日 水曜日 午前10時36分
Playing back music files on the DLNA server
You can share music files stored in the DLNA Certified media
server (PC, smartphone, etc.) connected to your home
network, and enjoy the contents with this unit.
≥ About supported format, refer to “File format” (> 29)
Preparation
≥ Complete the network settings. (> 12)
≥ Connect the device to be used to the same network as this
unit.
≥ Add the contents and folder to the libraries of the Windows
Media® player 11 or 12, or a smartphone, etc.
– Playlist of Windows Media® player can play back only the
contents that are stored in the libraries.
– To use Windows Media® Player for streaming, you need to
configure it in advance.
∫ Random repeat playback
Press [RND].
Each time you press the button:
On
All tracks in a folder are repeated
randomly.
≥ “RND `” is displayed.
Off
Turns off random repeat mode.
∫ Repeat playback
Press [`].
Each time you press the button:
Playing back content stored
on the DLNA server by
controlling it from this unit
You can play back music stored on the DLNA server on this
unit (DMP—Digital Media Player) by controlling the DLNA
server with this unit.
1 Press [NWP].
2 Press [N INPUT O] below [NWP] repeatedly
to select “LAN”.
≥ The server selection screen will be displayed.
3 Press [3, 4] to select a DLNA server on the
network, and then press [OK].
≥ The folder/content selection screen will be displayed.
≥ Folders/content may be displayed in different order
from the order on the server, depending on its
specifications.
4 Press [3, 4] to select an item and then
press [OK].
≥ If there are any other items, repeat this step.
Operations on the remote control
Stop
Pause
Skip
Search
1-Track
All
Off
Only plays the selected track.
≥ “1 `” is displayed.
All tracks in a folder are repeated.
≥ “`” is displayed.
Turns off repeat mode.
Playing back content stored
on the DLNA server by
controlling it from a DMC
By controlling a DMC (Digital Media Controller) compatible
device, you can play back music stored on the DLNA server
on this unit (DMR—Digital Media Renderer).
1 Raise the power switch lever of this unit to
the [Í/I] position.
2 Operate the DMC compatible device and
connect to this unit.
≥ The device name of this unit will be displayed as
“Technics ST-C700 _ _ _ _ _ _”*1, 2.
≥ For details on how to use DMC compatible devices,
refer to the operating instructions of the devices or the
software.
Press [∫].
Press [1/;].
≥ Press again to restart play.
Press [:] or [9] to skip track.
≥ If you press either of these buttons during
pause, playback will restart.
During play or pause, press and hold
[6] or [5].
≥ On the unit: press and hold [:] or [9].
≥ You cannot use random repeat playback in combination with other
playback modes.
≥ When you operate DMC, playback of other audio sources will stop
and DLNA output will have priority.
≥ Depending on the contents and the connected equipment,
operations or playback may not be possible.
*1 “ _ ” stands for a digit that is unique to each set.
*2 The device name can be changed from “To make networkrelated settings”. (> 12)
13
ST-C700-SQT0495_PP_mst.book 14 ページ
2015年1月7日 水曜日 午前10時36分
Using iPhone/iPad/iPod
Connect your iPhone/iPad/iPod, and you can play back
music stored on iPhone/iPad/iPod or charge
iPhone/iPad/iPod.
∫ Compatible iPhone/iPad/iPod
iPhone 6 Plus / iPhone 6 / iPhone 5s / iPhone 5c /
iPhone 5 / iPhone 4s / iPhone 4 / iPhone 3GS /
iPhone 3G
iPad Air / iPad (3rd and 4th generation) / iPad 2 / iPad /
iPad mini 2 / iPad mini
Listening to music stored on
an iPhone/iPad/iPod
1 Connect iPhone/iPad/iPod to the unit.
2 Press [NWP].
3 Press [N INPUT O] below [NWP] repeatedly
to select “USB”.
iPod touch (2nd through 5th generation)
iPod nano (3rd through 7th generation)
(as of November 2014)
4 Start play.
Operations on the remote control
≥ Compatibility depends on the software version. Update your
iPhone/iPad/iPod to the latest software before using it with this
unit.
≥ Please be aware that Panasonic accepts no responsibility for the
loss of data and/or information.
≥ Do not connect the following models to the port:
– iPod classic, iPod [4th (color display), and 5th (video)
generation], iPod nano (1st generation)
Unexpected behavior may occur.
≥ Operation results may vary depending on the iPhone/iPad/iPod
models or the iOS version.
Stop
Pause
Press [∫].
Press [1/;].
≥ Press again to restart play.
Skip
Press [:] or [9] to skip track.
Search
During play or pause, press and hold
[6] or [5].
≥ On the unit: press and hold [:] or [9].
≥ It may be necessary to select the album, artist, etc. on the
iPhone/iPad/iPod.
≥ Depending on the iPhone/iPad/iPod models, operations on the
remote control may not be possible.
Connecting an
iPhone/iPad/iPod
When connecting an iPhone/iPad/iPod, use the dedicated
USB cable (not supplied).
e.g.,
Charging an iPhone/iPad/iPod
During unit on, charging starts when an iPhone/iPad/iPod is
connected to this unit.
iPhone, etc.
This unit
(front)
USB cable
(not supplied)
14
≥ Charging is not possible when this unit is turned off.
≥ Make sure the unit is turned on when you start charging.
– When charging an iPhone/iPad/iPod whose battery is depleted,
do not turn this unit to standby mode until the iPhone/iPad/iPod
becomes operational.
≥ Check the iPhone/iPad/iPod to see if the battery is fully charged.
Once fully charged, remove the iPhone/iPad/iPod.
≥ Charging stops when the battery is fully charged. The battery will
deplete naturally.
ST-C700-SQT0495_PP_mst.book 15 ページ
2015年1月7日 水曜日 午前10時36分
Using AirPlay
Using USB device
AirPlay works with iPhone, iPad, and iPod touch with iOS
4.3.3 or later, Mac with OS X Mountain Lion or later, and PC
with iTunes 10.2.2 or later.
You can play back music stored on a USB device.
Listening to music with AirPlay
Preparation
≥ Complete the network settings. (> 12)
≥ Connect the iOS device or PC to the same network as this
unit.
1
[iOS_device]
[PC]
: Start the “Music” (or iPod) app.
: Start “iTunes”.
2 Select “Technics ST-C700 _ _ _ _ _ _”*1, 2
from the AirPlay
icon.
≥ Check the volume settings before starting the playback.
(When AirPlay is used for the first time, the volume may
be output at the maximum setting.)
≥ This unit does not guarantee connection with all USB devices.
≥ FAT16 and FAT32 file systems are supported.
≥ This unit supports USB 2.0 high speed.
≥ USB devices may not be recognized by this unit when connected
using the following:
– a USB hub
– a USB extension cable
≥ It is not possible to use USB card reader/writers.
≥ This unit cannot record music to a USB device.
≥ About supported format, refer to “File format” (> 29)
Listening to music stored on a
USB device
1 Connect a USB device to the unit.
e.g.,
This unit
(front)
3 Start play.
≥ The playback will start with a slight delay.
Operations on the remote control
Stop
Pause
Skip
Press [∫].
USB device
Press [1/;].
≥ Press again to restart play.
Press [:] or [9] to skip track.
≥ Playback of other audio sources will stop and AirPlay output will
have priority.
≥ With some iOS and iTunes versions, it may not be possible to
restart the AirPlay playback if the selector is changed or the unit is
turned off, during the AirPlay playback.
In this case, select a different device from the AirPlay icon of the
Music app or iTunes and then re-select this unit as the output
speakers.
≥ AirPlay will not work when playing back videos on iTunes.
*1 “ _ ” stands for a digit that is unique to each set.
*2 The device name can be changed from “To make networkrelated settings”. (> 12)
2 Press [NWP].
3 Press [N INPUT O] below [NWP] repeatedly
to select “USB”.
4 Press [3, 4] to select an item and then
press [OK].
≥ If there are any other items, repeat this step.
Operations on the remote control
Stop
Pause
Skip
Search
Press [∫].
Press [1/;].
≥ Press again to restart play.
Press [:] or [9] to skip track.
≥ If you press either of these buttons during
pause, playback will restart.
During play or pause, press and hold
[6] or [5].
≥ On the unit: press and hold [:] or [9].
≥ This operation may not be available for
some formats.
15
ST-C700-SQT0495_PP_mst.book 16 ページ
2015年1月7日 水曜日 午前10時36分
∫ Random repeat playback
Press [RND].
Each time you press the button:
On
All tracks in a folder are repeated
randomly.
≥ “RND `” is displayed.
Off
Press [`].
Off
Preparation
≥ It is not possible to program tracks by moving folders.
Move all the tracks you want to program to a single folder
in advance.
1 Press [PGM] in the stop mode.
≥ “Program Mode” screen will be displayed.
2 Press [OK] to display the programming
Each time you press the button:
All
This function allows you to program up to 24 tracks.
Turns off random repeat mode.
∫ Repeat playback
1-Track
Program playback
Only plays the selected track.
≥ “1 `” is displayed.
All tracks in a folder are repeated.
≥ “`” is displayed.
Turns off repeat mode.
≥ You cannot use random repeat playback in combination with other
playback modes.
≥ You can use repeat playback in combination with program
playback.
screen.
3 Press [3, 4] to select the desired track.
4 Press [OK].
≥ Do steps 3 through 4 again to program other tracks.
5 Press [1/;] to start playback.
≥ To return to the “Program Mode” screen, press [∫].
Operations on the remote control
Stop
Press [∫].
≥ Programed content is maintained.
Check the
programed
order
Press [2, 1] in the stop mode.
Add tracks
Do steps 3 through 4 in the stop mode.
Clear the last
track
Press [CLEAR] in the stop mode.
≥ To return to the “Program Mode” screen,
press [RETURN].
≥ It is not possible to select and clear the
desired programed track.
1 Press [PGM] in the stop mode.
Cancel
program mode
≥ “Program Clear” is shown.
2 Press [3, 4] to select “Yes” and
then press [OK].
≥ The program memory will be cleared.
≥ Programed content is maintained as long as the input source is set
to “USB”.
≥ The program memory will be cleared:
– When the USB device is disconnected.
– When the unit is turned to standby or off mode.
≥ You can use program playback in combination with repeat
playback.
16
ST-C700-SQT0495_PP_mst.book 17 ページ
2015年1月7日 水曜日 午前10時36分
Using PC, etc.
You can connect the digital audio input terminal [PC] and a
PC, etc. with a USB cable and play back music on the PC,
etc. with this unit.
≥ About supported format, refer to “File format” (> 29)
Connecting to a PC
Before connecting to a PC, follow the steps below.
≥ Refer to the following for the recommend OS versions for your
PC:
– Windows Vista, Windows 7, Windows 8, Windows 8.1
– OS X 10.7, 10.8, 10.9, 10.10
1 Download and install the dedicated driver to the PC.
(Only for Windows OS)
Download and install the driver from the website below.
www.technics.com/support/
Listening to audio from a PC,
etc.
1 Disconnect the AC power supply cord.
2 Connect this unit and a PC, etc.
e.g.,
This unit
(rear)
2 Download and install the dedicated app “Technics
Audio Player” (free of charge) on your PC. (Common
to both Windows OS and OS X)
Download and install the app from the website below.
www.technics.com/support/
Type B
(as of November 2014)
USB 2.0 cable
(not supplied)
Type A
USB
PC, etc.
3 Connect the AC power supply cord to this
unit, and raise the power switch lever to the
[Í/I] position. (> 10)
4 Press [NWP].
5 Press [N INPUT O] below [NWP] repeatedly
to select “PC”.
6 Operate the PC, etc. for playback.
17
ST-C700-SQT0495_PP_mst.book 18 ページ
2015年1月7日 水曜日 午前10時36分
Using Bluetooth®
You can listen to the sound from the Bluetooth® audio device from this unit wirelessly.
≥ Refer to the operating instructions of the Bluetooth® device for details.
≥ If you intend to use an NFC (Near Field Communication)-compatible Bluetooth® device, proceed to “Connecting by NFC”.
Connecting via Bluetooth®
menu
Preparation
≥ Turn on the Bluetooth® feature of the device and place the
device near this unit.
1 Press [NWP].
2 Press [N INPUT O] below [NWP] repeatedly
to select “Bluetooth”.
3 Press [MENU].
4 Press [3, 4] repeatedly to select “Pairing”
and then press [OK].
5 Press [3, 4] to select “Yes” and then press
[OK].
≥ “Pairing” is indicated on the display.
6 Select “ST-C700” from the Bluetooth®
device’s Bluetooth® menu.
≥ The name of the connected device is indicated on the
display.
≥ If prompted for the passkey, input “0000”.
≥ You can register up to 8 devices with this unit. If a 9th device is
paired, the device that has not been used the longest will be
replaced.
Connecting by NFC
For NFC-compatible Bluetooth® devices (Android™
devices with version 4.1 or later) only
With the touch of an NFC (Near Field Communication)compatible Bluetooth® device to this unit, you can complete a
series of steps from registering a Bluetooth® device to
connecting it to this unit.
Preparation
≥ Turn on the NFC feature of the device.
1 Press [NWP].
2 Press [N INPUT O] below [NWP] repeatedly
to select “Bluetooth”.
3 Press [MENU].
4 Press [3, 4] repeatedly to select “NFC” and
then press [OK].
5 Press [3, 4] to select “Yes” and then press
[OK].
6 Touch and hold your device on the NFC
touch area of this unit within 20 seconds.
(> 7)
≥ Do not move the Bluetooth® device until it displays a
message or reacts in some way.
Once the Bluetooth® device has reacted, move the
device away from this unit.
– When the connection of the Bluetooth® device is complete,
the name of the connected device is indicated on the
display.
– The location of the NFC touch area differs depending on the
device. When a connection cannot be established even if
your Bluetooth® device has touched the NFC touch area of
this unit, change the position of the device.
≥ If you connect another NFC-compatible Bluetooth® device, the
previously connected device will be disconnected automatically.
≥ When the connection is established, playback may start
automatically depending on the type of device being used.
≥ Connecting by NFC may not work properly depending on the type
of device being used.
≥ Do not make an NFC connection in any other way than instructed
in the Owner’s Manual. Doing so may cause malfunction.
18
ST-C700-SQT0495_PP_mst.book 19 ページ
2015年1月7日 水曜日 午前10時36分
Listening to music stored on a
Bluetooth® device
1 Press [NWP].
2 Press [N INPUT O] below [NWP] repeatedly
to select “Bluetooth”.
≥ “Ready” is indicated on the display.
≥ If you press [1/;], this unit will try and connect to the
last connected Bluetooth® device.
– “Linking” is indicated on the display.
3 Select “ST-C700” from the Bluetooth®
device’s Bluetooth® menu.
≥ The name of the connected device is indicated on the
display.
4 Start playback on the Bluetooth® device.
Operations on the remote control
Stop
Pause
Press [∫].
Bluetooth® transmission mode
You can change the transmission mode to prioritize
transmission quality or sound quality.
1 Press [NWP].
2 Press [N INPUT O] below [NWP] repeatedly
to select “Bluetooth”.
≥ If a Bluetooth® device is already connected, disconnect
it.
3 Press [MENU].
4 Press [3, 4] repeatedly to select
“Link Mode” and then press [OK].
5 Press [3, 4] to select the mode and then
press [OK].
Mode 1
Emphasis on connectivity
Mode 2
Emphasis on sound quality (default)
Press [1/;].
≥ Press again to restart play.
Skip
Press [:] or [9] to skip track.
≥ Select “Mode 1” if the sound is interrupted.
Search
During play or pause, press and hold
[6] or [5].
≥ On the unit: press and hold [:] or [9].
≥ This unit can only be connected to one device at a time.
≥ To use this unit’s remote control with a Bluetooth® device, the
Bluetooth® device must support AVRCP (Audio Video Remote
Control Profile).
Depending on the status of the device, some controls may not
work.
Disconnecting a Bluetooth®
device
1 Press [NWP].
2 Press [MENU].
3 Press [3, 4] repeatedly to select
“Disconnect?” and then press [OK].
4 Press [3, 4] to select “Yes” and then press
[OK].
≥ The Bluetooth® device will be disconnected if a different audio
source is selected.
19
ST-C700-SQT0495_PP_mst.book 20 ページ
2015年1月7日 水曜日 午前10時36分
Sound adjustment
The following sound effects can be added to the audio output.
Listening to more naturalsounding audio (Re-master)
Re-mastering expands the playback band and achieves a
higher bit depth to reproduce natural and expansive sound
close to original music.
≥ The factory default is “Off”.
Disabling audio output
Disabling the audio output of unused terminals minimizes
noise and allows playback in higher audio quality.
≥ The factory default is “On”.
1 Press [NWP].
1 Press [NWP].
2 Press [HOME].
2 Press [RE-MASTER] to select “On”/“Off”.
3 Press [3, 4] repeatedly to select “SETUP”
Direct mode
This unit can transmit input signals without performing digital
signal processing (DSP). This enables faithful and high
quality reproduction of original sound.
≥ The factory default is “Off”.
1 Press [NWP].
2 Press [DIRECT] to select “On”/“Off”.
and then press [OK].
To disable the digital audio output:
Press [3, 4] repeatedly to select “Digital Output” and
then press [OK].
To disable the analog audio output:
Press [3, 4] repeatedly to select “Analog Output” and
then press [OK].
4 Press [3, 4] to select “Off” and then press
[OK].
≥ To enable the output again, select “On”.
Setting the sampling
frequency
You can set an upper limit on the output sampling frequency
range. Please note that the range that can be processed
differs depending on the amplifier or D/A converter. For
details, refer to the operating instructions of the connected
device.
≥ The factory default is “32kHz-192kHz”.
Preparation
≥ Set “Digital Output” to “On”.
1 Press [NWP].
2 Press [HOME].
3 Press [3, 4] repeatedly to select “SETUP”
and then press [OK].
4 Press [3, 4] repeatedly to select “D.Output
fs” and then press [OK].
5 Press [3, 4] to select an item and then
press [OK].
≥ You can select a sampling frequency of 96 kHz or 192 kHz.
20
≥ Depending on the music source that you play back, the applied
setting may be less effective.
≥ Depending on the music source that you play back, it may not be
possible to achieve the desired audio quality and sound field
effect. In such cases, turn off this function.
≥ Both Re-master and Direct mode cannot be set to “On”.
≥ When “Digital Output” and “Analog Output” are set to “Off”, no
sound will be output.
≥ It may take some time to output audio when you have adjusted the
audio quality.
ST-C700-SQT0495_PP_mst.book 21 ページ
2015年1月7日 水曜日 午前10時36分
Others
Sleep timer
The sleep timer can switch the unit to standby mode after a
set time.
Network standby
This unit can turn on automatically from standby mode when
this unit is selected as the AirPlay/DLNA player.
≥ The factory default is “Off”.
1 Press [NWP].
2 Press [MENU].
3 Press [3, 4] repeatedly to select “SLEEP”
and then press [OK].
4 Press [3, 4] to set the time (in minutes) and
then press [OK].
“30 minutes” ,-. “60 minutes” ,-. “90 minutes” ,-. “120 minutes”
^""""""""""""". “Off” !"""""""""""""J
1 Press [NWP].
2 Press [HOME].
3 Press [3, 4] repeatedly to select “SETUP”
and then press [OK].
4 Press [3, 4] repeatedly to select
“Network Standby” and then press [OK].
5 Press [3, 4] to select “On” and then press
[OK].
Auto off function
This unit is designed to conserve its power consumption and
save energy. The unit will turn to standby mode automatically
if there is no sound and it is not being used for approximately
20 minutes.
≥ If this function is set to “On” the standby power consumption will
increase.
≥ The factory default is “On”.
To cancel this function
1 Press [NWP].
2 Press [HOME].
3 Press [3, 4] repeatedly to select “SETUP”
and then press [OK].
4 Press [3, 4] repeatedly to select
“AUTO OFF” and then press [OK].
5 Press [3, 4] to select “Off” and then press
[OK].
≥ The auto off function works unless you turn it off, even if you turn
off and on this unit.
≥ If “Network Standby” is set to “On”, this function will also be set to
“On”. To change the setting, set “Network Standby” to “Off”. (> 21)
Language
Select English or French for the display.
≥ The factory default is “English”.
1 Press [NWP].
2 Press [HOME].
3 Press [3, 4] repeatedly to select “SETUP”
and then press [OK].
4 Press [3, 4] repeatedly to select
“Language” and then press [OK].
5 Press [3, 4] to select “English”/“Français”
and then press [OK].
21
ST-C700-SQT0495_PP_mst.book 22 ページ
2015年1月7日 水曜日 午前10時36分
Firmware updates
Remote control code
Occasionally, Panasonic may release updated firmware for
this unit that may add or improve the way a feature operates.
These updates are available free of charge.
When other equipment responds to the supplied remote
control, change the remote control code.
Preparation
≥ Connect this unit to the network. (> 12)
Point the remote control at this unit, and press
and hold [OK] and the numeric button for at least
4 seconds.
– Make sure that the network is connected to the Internet.
1 Press [NWP].
2 Press [HOME].
3 Press [3, 4] repeatedly to select “SETUP”
≥ The factory default is “Mode 1”.
≥ When the remote control code is changed, the new code
will appear on the display for a few seconds.
[OK] + [1]
Set the code to “Mode 1”
[OK] + [2]
Set the code to “Mode 2”
and then press [OK].
4 Press [3, 4] repeatedly to select “F/W
Update” and then press [OK].
5 Press [3, 4] to select “Yes” and then press
≥ When the SU-C700/SL-C700 is connected via the system control
function, change its remote control code as well as the remote
control code for this unit.
[OK].
Do not disconnect the AC power supply cord or lower
the power switch lever to the [OFF] position while one
of the following messages is displayed.
“Linking” or “Updating”
≥ During the update process, no other operations can be
performed.
≥ When the update has finished successfully, “Success” is
displayed.
6 Disconnect the AC power supply cord and
reconnect it after 3 minutes.
≥ If there are no updates, “No Need” is displayed after step 5.
≥ Downloading will require several minutes. It may take longer or
may not work properly depending on the connection environment.
Changing the character
encoding
You can change the character encoding of track names,
artist names and other information when they are not
displayed as they should be.
≥ The factory default is “Type 1( 日本 )”.
1 Press [NWP].
2 Press [HOME].
3 Press [3, 4] repeatedly to select “SETUP”
and then press [OK].
4 Press [3, 4] repeatedly to select “E Asian
Character” and then press [OK].
∫ Checking the firmware version
1
Press [NWP].
2
Press [HOME].
3
Press [3, 4] repeatedly to select “SETUP” and then
press [OK].
4
Press [3, 4] repeatedly to select “F/W Version” and
then press [OK].
≥ Press [OK] to exit.
22
5 Press [3, 4] to select
“Type 1( 日本 )”/“Type 2( 简体字 )” and then
press [OK].
Type 1( 日本 )
Priority is given to Japanese.
Type 2( 简体字 )
Priority is given to Chinese
(Simplified).
ST-C700-SQT0495_PP_mst.book 23 ページ
2015年1月7日 水曜日 午前10時36分
Troubleshooting
Using the system control
function
Before requesting service, make the following checks. If you
are uncertain about some of the check points, or if the
solutions indicated in the following guide does not resolve
the issue, then consult your dealer for instructions.
You can automatically link this unit with the SU-C700 and
operate them easily with the remote control.
Preparation
1 Connect this unit and the SU-C700 with a system
connection cable and a coaxial digital cable. (> 9)
2 Set the power switch lever of this unit and the SU-C700
to the [Í/I] position.
∫ Switching this unit and the SU-C700 to
on/standby simultaneously
≥ If you point the remote control at this unit and press
[NWP Í] when this unit and the SU-C700 are in standby
mode, this unit and the SU-C700 will be turned on
simultaneously.
≥ When both this unit and the SU-C700 are turned on and
the input source of the SU-C700 is set to “COAX1”, you
can set them to automatically enter standby mode using
the sleep-timer. (> 21)
∫ Switching the SU-C700’s input source
automatically
When you perform an operation such as playback on this
unit, the input source of the SU-C700 will be automatically
switched to “COAX1”.
Heat buildup of this unit.
≥ This unit becomes warm when used for a long time. This is
not a malfunction.
Do you have the latest firmware installed?
≥ Panasonic is constantly improving the unit’s firmware to
ensure that our customers are enjoying the latest
technology. (> 22)
To return all settings to the factory defaults
When the following situations occur, reset the memory:
≥ There is no response when buttons are pressed.
≥ You want to clear and reset the memory contents.
1 Press [NWP].
2 Press [HOME].
3 Press [3, 4] repeatedly to select “SETUP” and then
press [OK].
4 Press [3, 4] repeatedly to select “Initialization” and
then press [OK].
5 Press [3, 4] to select “Yes” and then press [OK].
6 Press [3, 4] to select “Yes” and then press [OK]
again.
General
∫ Adjusting Bass/Middle/Treble
You can adjust the tone of the SU-C700 with this unit. Each
tonal range (Bass/Middle/Treble) can be adjusted.
1
Press [NWP].
2
Press [HOME].
3
Press [3, 4] repeatedly to select “SETUP” and then
press [OK].
4
Press [3, 4] repeatedly to select “Tone Control” and
then press [OK].
5
Press [3, 4] to select “On (adjustment)” and then press
[OK].
6
Press [3, 4] to select “BASS” (Bass), “MID” (Middle) or
“TREBLE” (Treble).
7
Press [2, 1] to adjust the level and then press [OK].
≥ Each level can be adjusted between “s10” and “r10”.
A “humming” sound can be heard during
playback.
≥ An AC power supply cord or fluorescent light is near the
cables. Keep other appliances and cords away from the
cables of this unit.
No sound.
≥ Check the volume of the connected device (amplifier, etc.).
≥ Check to see if the cable connections to the input and
output terminals are incorrect. If this is the case, turn off
this unit and reconnect the cables correctly.
≥ Check to see if the correct input source is selected.
≥ Insert the plugs of the cables to be connected all the way
in.
≥ When “Digital Output” and “Analog Output” are set to “Off”,
no sound will be output. Change the setting of the output
terminal to be used to “On”. (> 20)
≥ Playback of multi-channel content is not supported.
≥ For information on the operations of the SU-C700, please also
refer to its operating instructions.
23
ST-C700-SQT0495_PP_mst.book 24 ページ
2015年1月7日 水曜日 午前10時36分
The sound is interrupted.
≥ Depending on your environment, the audio may be
interrupted during playback. Check the operating
instructions of the connected device and the connection to
the device.
Playback does not start.
≥ Depending on your environment or connected devices, it
may take some time.
The system control function is not working.
≥ Connect the system connection cable to the system
terminal [CONTROL1] of the SU-C700.
≥ Connect the coaxial digital cable to the digital audio input
terminal [COAX1 IN] of the SU-C700.
iPhone/iPad/iPod
Cannot operate.
≥ Select “USB” as the input source.
≥ Check that the iPhone/iPad/iPod is connected properly.
≥ Connect the iPhone/iPad/iPod again or try to restart the
iPhone/iPad/iPod.
≥ The battery of the iPhone/iPad/iPod is depleted. Charge
the iPhone/iPad/iPod, and then operate again.
iPhone/iPad/iPod does not charge.
≥ Make sure the unit is turned on when you start charging.
– When charging an iPhone/iPad/iPod whose battery is depleted,
do not turn this unit to standby mode until the iPhone/iPad/iPod
becomes operational.
USB
The unit turns off automatically.
The USB drive or its contents cannot be read.
≥ Is the auto off function turned on? (> 21)
≥ If the SU-C700 is connected to this unit via the system
control function, this unit may automatically enter standby
mode when the SU-C700 enters standby mode. (> 9, 23)
≥ The USB drive format or its contents is/are not compatible
with the unit. (> 29)
AirPlay/DLNA
No response when [1/;] is pressed.
≥ Disconnect the USB device and then reconnect it.
Alternatively, turn the unit off and on again.
Cannot connect to the network.
≥ Confirm the network connection and settings. (> 12)
Cannot connect to the unit.
≥ Make sure that the multicast function on the wireless router
is enabled.
≥ Make sure that the device and the unit are connected to
the same network. (> 12)
≥ Reconnect the compatible device to the network and then
connect to this unit again.
≥ Set “Network Standby” to “Off” (> 21), turn this unit off and
on, and then connect to this unit again.
Playback does not start.
The sound is interrupted.
≥ Simultaneous use with other 2.4 GHz devices, such as
microwaves, cordless telephones, etc., may result in
connection interruptions.
Increase the distance between the wireless router and
these devices.
≥ If several wireless devices are simultaneously using the
same wireless network as this unit, try turning off the other
devices or reducing their wireless network usage.
≥ If the playback stops, check the playback status on the
device.
24
Slow operation of the USB flash drive.
≥ Large file size or high memory USB flash drive takes longer
time to read.
PC
The PC does not recognize this unit.
≥ Check your operating environment. (> 17)
≥ Restart the PC, turn off and on this unit, and then
reconnect the USB cable.
≥ Use another USB port of the connected PC.
≥ Install the dedicated driver if using a PC with Windows.
Cannot find music files stored on the PC.
≥ When you play back music files over a network, those that
are not registered to its network server are not displayed.
For details, refer to the operating instructions for your
server.
ST-C700-SQT0495_PP_mst.book 25 ページ
2015年1月7日 水曜日 午前10時36分
Bluetooth®
Pairing cannot be completed.
Messages
≥ Check the Bluetooth® device condition.
The following messages or service numbers may appear
on the unit’s display.
The device cannot be connected.
“AUTO OFF”
≥ The pairing of the device was unsuccessful or the
registration has been replaced. Try re-pairing the device.
≥ This unit might be connected to a different device.
Disconnect the other device and try re-pairing the device.
≥ The unit has been left unused for about 20 minutes and will
enter standby mode within a minute. Press any button to
cancel it.
“Checking Connection”
The device is connected, but audio cannot be
heard through this unit.
≥ The unit is checking the connected iPhone/iPad/iPod or a
USB device.
≥ For some built-in Bluetooth® devices, you have to set the
audio output to “ST-C700” manually. Read the operating
instructions for the device for details.
“Download Error”
NFC is not working.
≥ Make sure the NFC feature of the device are turned on.
≥ When you try again, change the angle at which the
Bluetooth® device touches the NFC touch area.
≥ Turn on the NFC feature of this unit when you connect a
device using NFC. (> 18)
Remote control
≥ The firmware download has failed. Press any button to exit.
Please try again later.
≥ The server cannot be found. Press any button to exit. Make
sure that the network is connected to the Internet.
“Empty”
≥ The selected folder is empty. Move tracks into the folder
and retry the operation.
≥ The server is not found on the network. Check to see if the
server is connected to the same network as this unit, and
retry the connection to this unit. (> 13)
The remote control does not work properly.
≥ To avoid interference, please do not put any objects in front
of signal sensor. (> 7)
≥ Change the remote control code if other products react to
this remote control. (> 22)
≥ If the SU-C700/SL-C700 is selected for the device to be
operated, press [NWP] and retry the operation. (> 8)
“Error”
≥ Incorrect operation is performed. Read the instructions and
try again.
“F” (“  ” stands for a number.)
≥ There is a problem with this unit.
Pressing [DIMMER] changes the display, the light
and the indicator brightness of the SU-C700/SLC700.
≥ [DIMMER] works for the SU-C700/SL-C700 as well as this
unit. Turn off the device that you want to maintain the
brightness level of, and press [DIMMER].
– Is the volume extremely high?
If so, lower the volume.
– Is this unit placed in an extremely hot place?
If so, move this unit to a cooler place and wait a few moments
and then try to turn it on again.
If the problem persists, write down the displayed number,
disconnect the AC power supply cord and consult your
dealer.
“No Network Connection”
≥ This unit is not connected to the network.
Check the network connection. (> 12)
25
ST-C700-SQT0495_PP_mst.book 26 ページ
2015年1月7日 水曜日 午前10時36分
Unit care
“Not Conditional”
≥ The function you have tried to use is not available with the
current settings. Check the steps and settings.
“PGM Full”
≥ The number of programed tracks is more than 24.
“Please Wait”
≥ This is displayed, for example, when this unit is turned
on/off. (For up to 1 minute and 30 seconds)
“Remote ” (“ ” stands for a number.)
≥ The remote control and this unit are using different codes.
Change the code on the remote control.
– When “Remote 1” is displayed, press and hold [OK] and [1] for
at least 4 seconds.
– When “Remote 2” is displayed, press and hold [OK] and [2] for
at least 4 seconds.
“Searching”
≥ The unit is checking the DLNA server on the network.
“Unlocked”
≥ “PC” is selected, but a PC is not connected. Check the
connection with the PC. (> 17)
≥ Audio signals, such as sampling frequency components,
are not input correctly.
– About supported format, refer to “File format” (> 29)
“USB Over Current Error”
≥ The iPhone/iPad/iPod or USB device is drawing too much
power. Disconnect the iPhone/iPad/iPod or USB device
and turn the unit off and on again.
“Hub Device Not Supported”
“Unrecognizable Device”
“Unsupported”
“Unsupported USB Device”
≥ You have connected an iPhone/iPad/iPod or USB device
that is not supported.
– If the iPhone/iPad/iPod is compatible, turn it on and connect it
correctly.
≥ The format of the file on the iPhone/iPad/iPod or USB
device is not supported.
– About supported format, refer to “File format” (> 29)
26
Pull out the AC power supply cord from the outlet before
maintenance. Clean this unit with a soft cloth.
≥ When dirt is heavy, wring a wet cloth tightly to wipe the dirt, and
then wipe it with a soft cloth.
≥ Do not use solvents including benzine, thinner, alcohol, kitchen
detergent, a chemical wiper, etc. This might cause the exterior
case to be deformed or the coating to come off.
ST-C700-SQT0495_PP_mst.book 27 ページ
2015年1月7日 水曜日 午前10時36分
Specifications
∫ GENERAL
Power supply
AC 120 V, 60 Hz
Power consumption
26 W
Power consumption in standby mode*
1
(When “Network Standby” is off)
Approx. 0.2 W
(When “Network Standby” is on)
Approx. 4 W
Power consumption in off mode
Dimensions (WkHkD)
Mass (Weight)
Approx. 0.2 W
340 mmk78 mmk295 mm (13 3/8qk3 1/16qk11 5/8q)
Approx. 4.0 kg (8.8 lbs)
Operating temperature range
0 oC to r40 oC (r32 oF to r104 oF)
Operating humidity range
35 % to 80 % RH (no condensation)
∫ TERMINALS SECTION
Analog output
LINE OUT
Pin jack
Digital output
Optical digital output
Optical terminal
Coaxial digital output
Pin jack
System port
System control
‰3.5 mm (1/8q) jack
USB
Front USB
Support memory capacity
Maximum number of folders (albums)
Maximum number of files (songs)
File system
USB port power
Type A connector
2 TB (max)
800
8000
FAT16, FAT32
DC OUT 5 V 2.1 A (max)
PC
Rear USB
Type B connector
Ethernet interface
LAN
10 Base-T/100 Base-TX
∫ FORMAT SECTION
USB-A
USB Standard
USB 2.0 high-speed
USB Mass Storage class
USB-B
USB Standard
USB Audio Class specification
DSD control mode
USB 2.0 high-speed
USB Audio Class 2.0, Asynchronous mode
ASIO Native mode, DoP mode
DSD64/DSD128 playback
27
ST-C700-SQT0495_PP_mst.book 28 ページ
2015年1月7日 水曜日 午前10時36分
∫ ANALOG OUTPUT SECTION
Channel
2 ch
Output level
LINE OUT
2.0 Vrms
Frequency response
2 Hz to 90 kHz (s3 dB)
THD+N
0.0012 % (1 kHz, 0 dB)
S/N
112 dB (IHF-A)
Dynamic range
112 dB (IHF-A)
∫ BLUETOOTH®/NFC SECTION
Bluetooth®
Bluetooth® system specification
Wireless equipment classification
Supported profiles
Supported codec
Frequency band
Operating distance
≥ Specifications are subject to change without notice.
≥ Mass and dimensions are approximate.
*1 When the iPhone/iPad/iPod is not charging
*2 Prospective communication distance
Measurement environment: Temperature 25 oC (77 oF) / Height 1.0 m (3.3 ft)
Measure in “Mode 1”
28
Bluetooth® Ver.3.0
Class 2 (2.5 mW)
A2DP/AVRCP
aptX® Low Latency, AAC, SBC
2.4 GHz band FH-SS
About 10 m (33 ft) Line of sight*2
ST-C700-SQT0495_PP_mst.book 29 ページ
2015年1月7日 水曜日 午前10時36分
∫ File format
This unit supports the following file formats.
≥ This unit does not support the playback of copy-protected music files.
≥ Playback of all files in formats supported by this unit is not guaranteed.
≥ Playback of a file in a format not supported by this unit may cause choppy audio or noise. In such cases, check to see if this unit
supports the file format.
≥ This unit does not support VBR (Variable Bit Rate) playback.
≥ Some of the connected devices (servers) may be capable of converting files in formats not supported by this unit and output
them. For details, refer to the operating instructions for your server.
≥ File information (sampling frequency, etc.) shown by this unit and playback software may differ from each other.
USB-A
File format
Extension
Sampling frequency
Bit rate
Number of quantization bits
MP3
.mp3
32/44.1/48 kHz
16 kbps to 320 kbps
AAC
.m4a/.aac
32/44.1/48/88.2/96 kHz
16 kbps to 320 kbps
WMA
.wma
32/44.1/48 kHz
16 kbps to 320 kbps
WAV
.wav
32/44.1/48/88.2/96/176.4/192 kHz
16/24 bit
FLAC
.flac
32/44.1/48/88.2/96/176.4/192 kHz
16/24 bit
AIFF
.aiff
32/44.1/48/88.2/96/176.4/192 kHz
16/24 bit
ALAC
.m4a
32/44.1/48/88.2/96 kHz
16/24 bit
DSD
.dff/.dsf
2.8224/5.6448 MHz
Extension
Sampling frequency
Bit rate
Number of quantization bits
32/44.1/48/88.2/96/176.4/192 kHz
16/24/32 bit
PC (USB-B)*1
File format
LPCM
DSD
.dff/.dsf
2.8224/5.6448 MHz
Extension
Sampling frequency
LAN (DLNA)*2
File format
Bit rate
Number of quantization bits
MP3
.mp3
32/44.1/48 kHz
16 kbps to 320 kbps
AAC
.m4a/.aac
32/44.1/48/88.2/96 kHz
16 kbps to 320 kbps
WMA
.wma
32/44.1/48 kHz
16 kbps to 320 kbps
WAV
.wav
32/44.1/48/88.2/96/176.4/192 kHz
16/24 bit
FLAC
.flac
32/44.1/48/88.2/96/176.4/192 kHz
16/24 bit
AIFF
.aiff
32/44.1/48/88.2/96/176.4/192 kHz
16/24 bit
ALAC
.m4a
32/44.1/48/88.2/96 kHz
16/24 bit
DSD
.dff/.dsf
2.8224/5.6448 MHz
*1 If you download and install the dedicated app, you can play back files in wide-ranging formats. (> 17)
For details, refer to the operating instructions of the app.
*2 Whether or not each music file can be played back over your network is determined by the network server even if the format of the file is listed
above. For example, if you are using Windows Media® Player 11, not all music files on the PC are playable. You can play back only those
added to the library of Windows Media® Player 11.
29
ST-C700-SQT0495_PP_mst.book 30 ページ
2015年1月7日 水曜日 午前10時36分
∫ About Bluetooth®
Panasonic bears no responsibility for data and/or
information that is compromised during a wireless
transmission.
Frequency band used
≥ This system uses the 2.4 GHz frequency band.
Certification of this device
≥ This system conforms to frequency restrictions and has
received certification based on frequency laws. Thus, a
wireless permit is not necessary.
≥ The actions below are punishable by law in some
countries:
– Taking apart or modifying the system.
– Removing specification indications.
Restrictions of use
≥ Wireless transmission and/or usage with all Bluetooth®
equipped devices is not guaranteed.
≥ All devices must conform to standards set by Bluetooth
SIG, Inc.
≥ Depending on the specifications and settings of a device, it
can fail to connect or some operations can be different.
≥ This system supports Bluetooth® security features. But
depending on the operating environment and/or settings,
this security is possibly not sufficient. Transmit data
wirelessly to this system with caution.
≥ This system cannot transmit data to a Bluetooth® device.
Range of use
≥ Use this device at a maximum range of 10 m (33 ft). The
range can decrease depending on the environment,
obstacles or interference.
Interference from other devices
≥ This system may not function properly and troubles such as
noise and sound jumps may arise due to radio wave
interference if this system is located too close to other
Bluetooth® devices or the devices that use the 2.4 GHz band.
≥ This system may not function properly if radio waves from
a nearby broadcasting station, etc. is too strong.
Intended usage
≥ This system is for normal, general use only.
≥ Do not use this system near an equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals, laboratories,
etc).
30
“Made for iPod”, “Made for iPhone”, and “Made for iPad” mean that an
electronic accessory has been designed to connect specifically to iPod,
iPhone, or iPad, respectively, and has been certified by the developer to
meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards.
Please note that the use of this accessory with iPod, iPhone, or iPad may
affect wireless performance.
AirPlay, iPad, iPhone, iPod, iPod nano, and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other countries.
iPad Air and iPad mini are trademarks of Apple Inc.
Mac and OS X are trademarks of Apple Inc., registered in the U.S. and
other countries.
Android is a trademark of Google Inc.
aptX® software is copyright CSR plc or its group companies. All rights
reserved.
The aptX® mark and the aptX logo are trademarks of CSR plc or one of its
group companies and may be registered in one or more jurisdictions.
The Bluetooth® word mark and logos are registered trademarks owned by
the Bluetooth SIG, Inc. and any use of such marks by Panasonic
Corporation is under license.
Other trademarks and trade names are those of their respective owners.
DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service
marks, or certification marks of the Digital Living Network Alliance.
“Direct Stream Digital”, DSD and their logos are trademarks of Sony
Corporation.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and
Thomson.
Windows and Windows Vista are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other
countries.
Windows Media and the Windows logo are trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other
countries.
This product is protected by certain intellectual property rights of Microsoft
Corporation and third parties. Use or distribution of such technology outside
of this product is prohibited without a license from Microsoft or an
authorized Microsoft subsidiary and third parties.
FLAC Decoder
Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008,
2009 Josh Coalson
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
– Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
– Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
– Neither the name of the Xiph.org Foundation nor the names of its
contributors may be used to endorse or promote products derived from
this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
ST-C700-SQT0495_PP_mst.book 31 ページ
2015年1月7日 水曜日 午前10時36分
Limited Warranty (ONLY FOR U.S.A.)
Technics Products – Limited Warranty
Limited Warranty Coverage
(For USA Only)
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Corporation of North America (referred to as “the
warrantor”) will, for the length of the period indicated on the chart below, which
starts with the date of original purchase (“warranty period”), at its option either (a)
repair your product with new or refurbished parts, (b) replace it with a new or a
refurbished equivalent value product, or (c) refund your purchase price. The
decision to repair, replace or refund will be made by the warrantor.
Product or Part Name
Parts
Labor
Technics Stereo Integrated Amp
Technics Network Audio Player
3 (three) years
3 (three) years
2 (two) years
2 (two) years
Technics Speaker System
Technics Compact Disc Player
During the “Labor” warranty period there will be no charge for labor. During the
“Parts” warranty period, there will be no charge for parts. This Limited Warranty
excludes both parts and labor for non-rechargeable batteries, antennas, and
cosmetic parts (cabinet). This warranty only applies to products purchased and
serviced in the United States. This warranty is extended only to the original
purchaser of a new product which was not sold “as is”.
Mail-In Service--Online Repair Request
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the
servicer, loss of or damage to media or images, data or other memory or
recorded content. The items listed are not exclusive, but for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY
OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED
WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts, so
the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state. If a problem with this product develops during or
after the warranty period, you may contact your dealer or Service Center. If the
problem is not handled to your satisfaction, then write to:
Consumer Affairs Department
Panasonic Corporation of North America
661 Independence Pkwy
Chesapeake, VA 23320
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
Online Repair Request
To submit a new repair request and for quick repair status visit our Web Site at
www.panasonic.com/support.
When shipping the unit, carefully pack, include all supplied accessories listed in
the Owner’s Manual, and send it prepaid, adequately insured and packed well in
a carton box. When shipping Lithium Ion batteries please visit our Web Site at
www.panasonic.com/BatteryHandling as Panasonic is committed to
providing the most up to date information. Include a letter detailing the complaint,
a return address and provide a daytime phone number where you can be
reached. A valid registered receipt is required under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF
OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND
PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR
OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
Limited Warranty Limits and Exclusions
This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which occurred in
shipment, or failures which are caused by products not supplied by the
warrantor, or failures which result from accidents, misuse, abuse, neglect,
mishandling, misapplication, alteration, faulty installation,
set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, introduction of
sand, humidity or liquids, commercial use such as hotel, office, restaurant, or
other business or rental use of the product, or service by anyone other than a
Factory Service Center or other Authorized Servicer, or damage that is
attributable to acts of God.
for all your Technics gear
Go to
www.panasonic.com/accessories
Get everything you need to get the most out of
your Technics products
Accessories & Parts for your Camera, Phone, A/V
products, TV, Computers & Networking, Personal
Care, Home Appliances, Headphones, Baeries,
Backup Chargers & more…
Customer Services Directory
For Product Informaon, Operang Assistance,
Parts, Owner’s Manuals, Dealer and Service info
go to www.panasonic.com/support
For the hearing or speech impaired TTY: 1- 877-833-8855
As of October 2014
User memo:
The model number and serial number of this product can be
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for
future reference.
MODEL NUMBER
SERIAL NUMBER
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
ST-C700
TELEPHONE NUMBER
31
ST-C700-SQT0495_PP_mst.book 32 ページ
2015年1月7日 水曜日 午前10時36分
Limited Warranty (ONLY FOR CANADA)
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
TECHNICS PRODUCT – LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a
period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or
refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The
decision to repair, replace or refund will be made by Panasonic Canada Inc.
Technics Stereo Integrated Amp
3 (three) years parts and labour
Technics Network Audio Player
3 (three) years parts and labour
Technics Speaker System
3 (three) years parts and labour
Technics Compact Disc Player
2 (two) years parts and labour
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Technics brand
product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product
was not sold “as is”, and which product was delivered to you in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER
PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and
tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are
caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect,
mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as
hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than an Authorized Servicer, or
damage that is attributable to acts of God.
Dry cell batteries are also excluded from coverage under this warranty.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL
PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING
FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As
examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or
images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the
exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific
legal rights and you may have other rights which vary depending on your province or territory.
WARRANTY SERVICE
For product operation, repairs and information assistance, please visit our Support page on:
www.panasonic.ca/english/support
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
32
ST-C700-SQT0495_PP_mst.book 33 ページ
2015年1月7日 水曜日 午前10時36分
ST-C700-SQT0495_PP_mst.book 34 ページ
2015年1月7日 水曜日 午前10時36分
ST-C700-SQT0495_PP_mst.book 35 ページ
2015年1月7日 水曜日 午前10時36分
ST-C700-SQT0495_PP_mst.book 34 ページ
2015年1月7日 水曜日 午前10時36分
Panasonic Corporation of North America
Panasonic Canada Inc.
Two Riverfront Plaza, Newark, NJ 07102-5490
5770 Ambler Drive,
Mississauga, Ontario,
L4W 2T3
http://www.panasonic.com
www.panasonic.com
p
C Panasonic Corporation 2015
Printed in Malaysia
SQT0495
F0115BM0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
