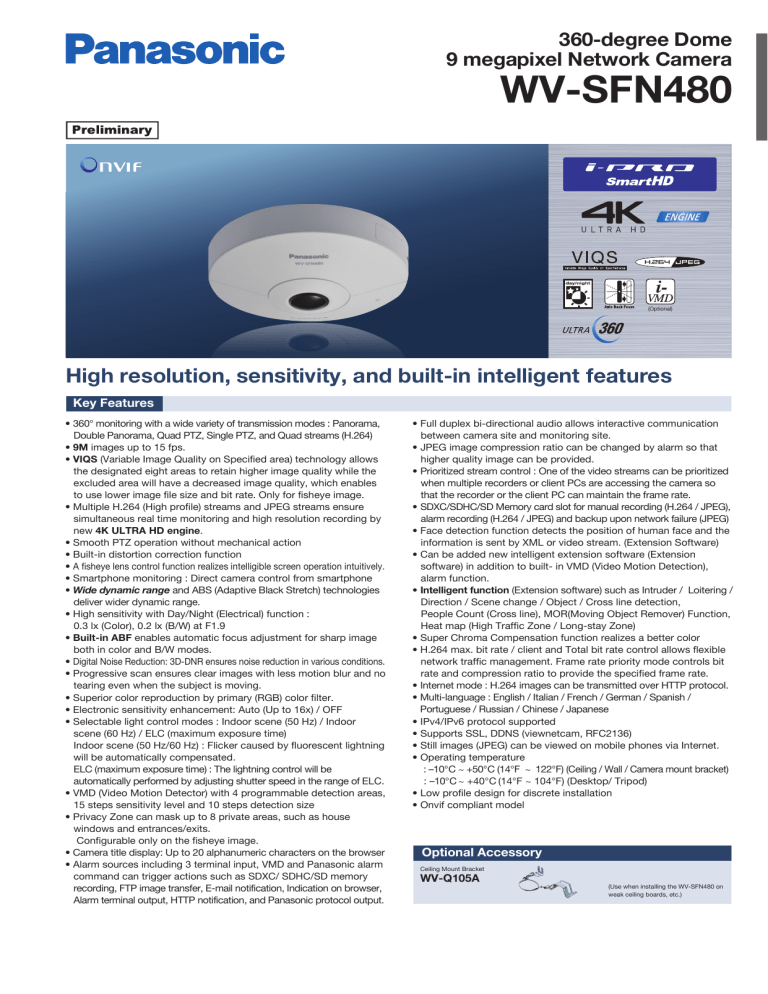

360-degree Dome
9 megapixel Network Camera
High resolution, sensitivity, and built-in intelligent features
Key Features
• 360° monitoring with a wide variety of transmission modes : Panorama,
Double Panorama, Quad PTZ, Single PTZ, and Quad streams (H.264)
• 9M images up to 15 fps.
• VIQS (Variable Image Quality on Specified area) technology allows
the designated eight areas to retain higher image quality while the
excluded area will have a decreased image quality, which enables
to use lower image file size and bit rate. Only for fisheye image.
• Multiple H.264 (High profile) streams and JPEG streams ensure
simultaneous real time monitoring and high resolution recording by
new 4K ULTRA HD engine.
• Smooth PTZ operation without mechanical action
• Built-in distortion correction function
• A fisheye lens control function realizes intelligible screen operation intuitively.
• Smartphone monitoring : Direct camera control from smartphone
• Wide dynamic range and ABS (Adaptive Black Stretch) technologies
deliver wider dynamic range.
• High sensitivity with Day/Night (Electrical) function :
0.3 lx (Color), 0.2 lx (B/W) at F1.9
• Built-in ABF enables automatic focus adjustment for sharp image
both in color and B/W modes.
• Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.
• Progressive scan ensures clear images with less motion blur and no
tearing even when the subject is moving.
• Superior color reproduction by primary (RGB) color filter.
• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF
• Selectable light control modes : Indoor scene (50 Hz) / Indoor
scene (60 Hz) / ELC (maximum exposure time)
Indoor scene (50 Hz/60 Hz) : Flicker caused by fluorescent lightning
will be automatically compensated.
ELC (maximum exposure time) : The lightning control will be
automatically performed by adjusting shutter speed in the range of ELC.
• VMD (Video Motion Detector) with 4 programmable detection areas,
15 steps sensitivity level and 10 steps detection size
• Privacy Zone can mask up to 8 private areas, such as house
windows and entrances/exits.
Configurable only on the fisheye image.
• Camera title display: Up to 20 alphanumeric characters on the browser
• Alarm sources including 3 terminal input, VMD and Panasonic alarm
command can trigger actions such as SDXC/ SDHC/SD memory
recording, FTP image transfer, E-mail notification, Indication on browser,
Alarm terminal output, HTTP notification, and Panasonic protocol output.
• Full duplex bi-directional audio allows interactive communication
between camera site and monitoring site.
• JPEG image compression ratio can be changed by alarm so that
higher quality image can be provided.
• Prioritized stream control : One of the video streams can be prioritized
when multiple recorders or client PCs are accessing the camera so
that the recorder or the client PC can maintain the frame rate.
• SDXC/SDHC/SD Memory card slot for manual recording (H.264 / JPEG),
alarm recording (H.264 / JPEG) and backup upon network failure (JPEG)
• Face detection function detects the position of human face and the
information is sent by XML or video stream. (Extension Software)
• Can be added new intelligent extension software (Extension
software) in addition to built- in VMD (Video Motion Detection),
alarm function.
• Intelligent function (Extension software) such as Intruder / Loitering /
Direction / Scene change / Object / Cross line detection,
People Count (Cross line), MOR(Moving Object Remover) Function,
Heat map (High Traffic Zone / Long-stay Zone)
• Super Chroma Compensation function realizes a better color
• H.264 max. bit rate / client and Total bit rate control allows flexible
network traffic management. Frame rate priority mode controls bit
rate and compression ratio to provide the specified frame rate.
• Internet mode : H.264 images can be transmitted over HTTP protocol.
• Multi-language : English / Italian / French / German / Spanish /
Portuguese / Russian / Chinese / Japanese
• IPv4/IPv6 protocol supported
• Supports SSL, DDNS (viewnetcam, RFC2136)
• Still images (JPEG) can be viewed on mobile phones via Internet.
• Operating temperature
: –10℃ ~ +50℃ (14°F ~ 122°F) (Ceiling / Wall / Camera mount bracket)
: –10℃ ~ +40℃ (14°F ~ 104°F) (Desktop/ Tripod)
• Low profile design for discrete installation
• Onvif compliant model
Optional Accessory
Ceiling Mount Bracket
(Use when installing the WV-SFN480 on
weak ceiling boards, etc.)
Part Names and Functions
Unit: mm(inches)
