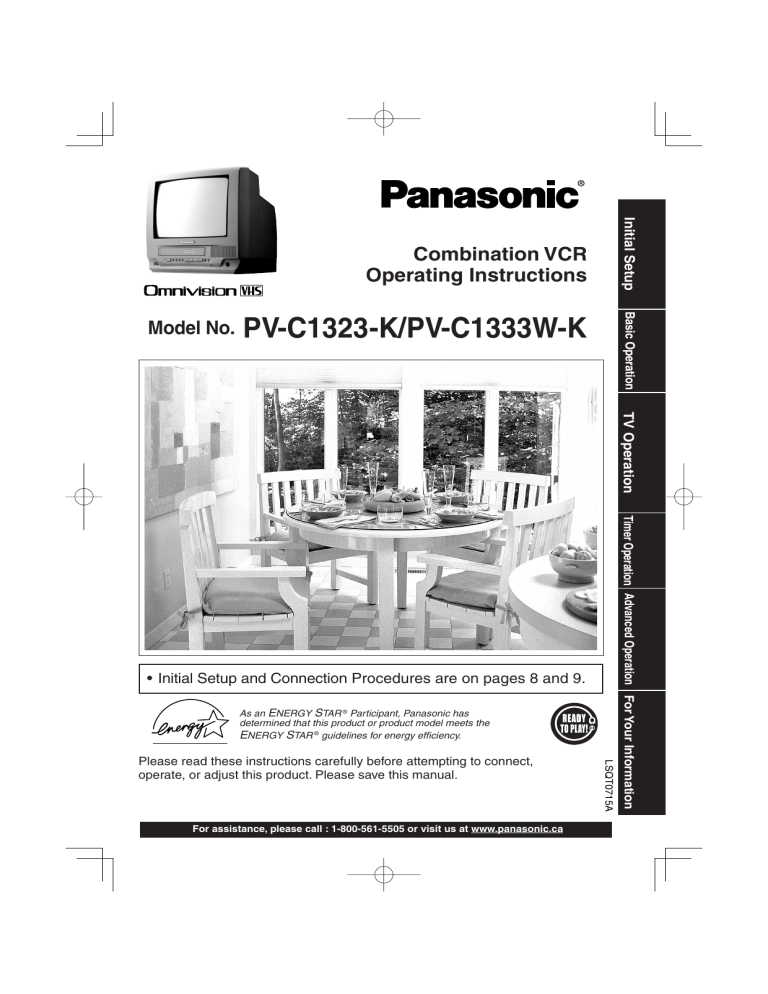

Combination VCR

Operating Instructions

Model No.

PV-C1323-K/PV-C1333W-K

• Initial Setup and Connection Procedures are on pages 8 and 9.

As an

E

NERGY

S

TAR

®

Participant, Panasonic has determined that this product or product model meets the

E

NERGY

S

TAR

®

guidelines for energy effi ciency.

Please read these instructions carefully before attempting to connect, operate, or adjust this product. Please save this manual.

For assistance, please call : 1-800-561-5505 or visit us at www.panasonic.ca

2

Important Safeguards and Pre cau tions

READ AND RETAIN ALL SAFETY AND OP-

ERATING INSTRUCTIONS. HEED ALL WARN-

INGS IN THE MANUAL AND ON UNIT

INSTALLATION

1 POWER SOURCE CAUTION

Operate only from power source indicated on unit or in this manual. If uncertain, have your Electric Utility

Service Company or Video Products Dealer verify your home power source.

2 POWER CORD PLUG

For safety, this unit has a polarized type plug (one wide blade), or a three-wire grounding type plug.

Always hold the plug fi rmly and make sure your hands are dry when plugging in or unplugging the AC power cord. Regularly remove dust, dirt, etc. on the plug.

POLARIZED PLUG CAUTION:

The plug fi ts into outlet one way. If it cannot be fully inserted, try reversing it. If it still will not fi t, have an electrician install the proper wall outlet. Do not tamper with the plug.

GROUNDING PLUG CAUTION:

The plug requires a three-hole grounding outlet.

If necessary, have an electrician install the proper outlet.

Do not tamper with the plug.

3 POWER CORD

To avoid unit malfunction, and to protect against electrical shock, fi re or personal injury:

- Keep power cord away from heating appliances and walking traffi c. Do not rest heavy objects on, or roll such objects over the power cord.

- Do not tamper with the cord in any way.

- An extension cord should have the same type plug

(polarized or grounding) and must be securely connected.

- Overloaded wall outlets or extension cords are fi re hazards.

- Frayed cords, damaged plugs, and damaged or cracked wire insulation are hazardous and should be replaced by a qualifi ed electrician.

4 DO NOT BLOCK VENTILATION HOLES

Ventilation openings in the cabinet release heat generated during operation. If blocked, heat build-up may result in a fi re hazard or heat damage to cassettes.

For your protection:

a. Never cover ventilation slots while unit is ON, or operate unit while placed on a bed, sofa, rug, or other soft surface.

b. Avoid built-in installation, such as a book case or rack, unless properly ventilated.

5 AVOID EXTREMELY HOT LOCATIONS OR

SUDDEN TEMPERATURE CHANG ES

Do not place unit over or near a heater or ra di a tor, in di rect sunlight, etc. If unit is sud den ly moved from a cold place to a warm place, mois ture may condense in unit and on the tape caus ing damage.

6 TO AVOID PERSONAL INJURY

• Never place unit on support or stand that is not fi rm, level, and adequately strong.

The unit could fall causing serious injury to a child or adult and damage to the unit.

• Move any appliance and cart combination with care. Quick stops, excessive force, and uneven surfaces may cause objects to overturn.

• Carefully follow all operating instructions.

OUTDOOR ANTENNA INSTALLATION

1 SAFE ANTENNA AND CABLE CONNECTION

An outside antenna or cable system must be properly grounded to provide some protection against built up static charges and voltage.

Section 810 of the National Electrical Code, ANSI/NFPA 70 (in Canada, part 1 of the Canadian Electrical

Code) provides information regarding proper grounding of the mast and supporting

NEC - NATIONAL

ELECTRICAL CODE

GROUND

CLAMP

ANTENNA LEAD

IN WIRE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding

ELECTRIC

SERVICE

EQUIPMENT

GROUNDING

CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE

GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

conductors, location of antenna discharge unit, con nec tion to grounding electrodes, and requirements for the grounding electrode.

2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE POWER LINES OR

CIRCUITS

Locate an outside antenna system well away from power lines and electric light or power circuits so it will never touch these power sources should it ever fall. When installing antenna, absolutely never touch power lines, circuits or other power sources as this could be fatal.

USING THE UNIT

Before unit is brought out of storage or moved to a new location, refer again to the INSTALLATION section of these safe guards.

1 KEEP UNIT WELL AWAY FROM WATER OR MOISTURE, such as vases, sinks, tubs, etc.

2 IF EXPOSED TO RAIN, MOISTURE, OR STRONG IMPACT,

unplug unit and have it inspected by a qualifi ed service technician before use.

3 ELECTRICAL STORMS

During a lightning storm, or before leaving unit unused for extended periods of time, disconnect all equipment from the power source as well as the antenna and cable system.

4 WHEN UNIT IS PLUGGED IN

• DO NOT OPERATE IF:

- liquid has spilled into unit.

- unit was dropped or otherwise damaged.

- unit emits smoke, malodorous, or noises.

Immediately unplug unit, and have it inspected by a service technician to avoid potential fi re and shock hazards.

• Never drop or push any object through openings in unit.

Touching internal parts may cause electric shock or fi re hazard.

• Keep magnetic objects, such as speakers, away from unit to avoid electrical interference.

5 USING ACCESSORIES

Use only accessories recommended by the manufacturer to avoid risk of fi re, shock, or other hazards.

6 CLEANING UNIT

Unplug unit. Use a clean, dry, chemically untreated cloth to gently remove dust or debris. DO NOT USE cleaning fl uids, aerosols, or forced air that could over-spray, or seep into unit and cause electrical shock. Any substance, such as wax, adhesive tape, etc. may mar the cabinet surface. Exposure to greasy, humid, or dusty areas may adversely affect internal parts.

SERVICE

1 DO NOT SERVICE PRODUCT YOURSELF

If, after carefully following detailed operating in struc tions, the unit does not operate properly, do not attempt to open or remove covers, or make any adjustments not described in the manual.

Unplug unit and contact a qualifi ed service tech ni cian.

2 REPLACEMENT OF PARTS

Make sure the service technician uses only parts specifi ed by the manufacturer, or have equal safety char ac ter is tics as original parts. The use of unauthorized substitutes may result in fi re, electric shock, or other hazards.

3 SAFETY CHECK AFTER SERVICING

After unit is serviced or repaired, request that a through safety check be done as described in the manufacturer’s service literature to ensure video unit is in safe operating condition.

Safety Precautions

Warning : To prevent fi re or shock hazard, do not expose this equipment to rain or mois ture.

Caution : To prevent electric shock, match wide blade of plug to wide slot, fully insert.

This video recorder, equipped with the HQ (High Quality) System, is compatible with existing VHS equipment. Only use those tapes with the mark. It is recommended that only cassette tapes that have been tested and inspected for use in 2, 4, 6, and 8 hour VCR machines be used. This television receiver provides display of television closed captioning.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL

This symbol warns the user that uninsulated voltage within the unit may have suffi cient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

This symbol alerts the user that important literature concerning the operation and main te nance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries

Alliance: <http://www.eiae.org.>

Congratulations

On your purchase of one of the most sophisticated and reliable products on the market today. Used properly, it will bring you and your family years of enjoyment. Please fi ll in the information below. The serial number is on the tag located on the back of your unit.

Accessories

Remote Control

LSSQ0382

(PV-C1323-K)

LSSQ0383

(PV-C1333W-K)

Date of Purchase

Dealer Purchased From

Dealer Address

Dealer Phone No.

Model No.

Serial No.

Batteries 2 “AA”

Loading the Batteries Prevent Accidental Tape Erasure

Break off the tab to prevent recording.

To record again.

Battery replacement caution

• Do not mix old and new batteries.

• Do not mix alkaline with manganese batteries.

Record

Tab

Screwdriver

Cover the hole with cellophane tape.

3

Unit Information

Head Cleaning

Playing older or damaged tapes may eventually cause video heads to become clogged.

Head Clog Sensor

During playback this screen appears if clogging is detected. To clear message from screen, press PLAY on the remote or unit.

V I DEO HEADS MAY

NEED CLEAN I NG

PL EASE I NSERT HEAD

CLEAN I NG CASSETTE

OR REFER TO MANUAL

END : PLAY

Use “dry” type head

cleaning cassette only.

(Part No. NV-TCL30PT is recommended.)

• Follow cleaning tape directions carefully.

Excessive use of head cleaning tape can shorten the video head life.

Features for a Quality Picture

Digital Auto Tracking

Continuously analyzes the signal and adjusts for optimum picture quality.

Manual Tracking Control (to reduce picture noise)

Use during Playback and Slow Motion mode to reduce picture noise. Press the 3 or 6 number key on the remote control or CH on the unit until the picture clears up. To return to Auto Tracking, press POWER off, then on again a few seconds later.

Specifi cations

Display

Picture Tube

13 inch measured diagonal 90° defl ection Picture Tube

VCR

Video Recording

System

Audio Track

Tuner

2 rotary heads helical scanning system

1 track

Broad cast Channels VHF 2 ~ 13, UHF 14 ~ 69

CA BLE Channels

Midband A through I (14 ~ 22)

Superband J through W (23 ~

36) Hyperband AA ~ EEE (37

~ 64) Lowband A-5 ~ A-1 (95

~ 99) Spe cial CABLE chan nel

5A(01) Ultraband 65 ~ 94, 100

~ 125

FM Radio

Band Range

General

Power Source

Power

Consumption

Power

On

Power

Off

Television System

Speak er

Op er at ing

Temperature

Op er at ing Humidity

Weight

Di men sions

(W x H x D)

87.5 MHz ~ 108.1 MHz

120 V AC, 60 Hz

Approx. 69 W

Approx. 2.5 W

EIA Standard NTSC colour

1 pieces

5 °C ~ 40 °C (41 °F ~ 104 °F)

10 % ~ 75 %

12 K g (26.4 lbs.)

386 mm (15-3/16

) x 385 mm

(15-3/16

) x 374 mm (14-3/4

)

Note

Designs and spec i fi ca tions are sub ject to change without no tice.

Record/Playback Time

Only use tapes with the mark in this unit.

Tape Speed

Setting

SP

(Standard

Play)

LP

(Long Play)

SLP

(Super Long

Play)

Type of Video Cassette

T60

1 Hour

2 Hours

3 Hours

T120

2 Hours

4 Hours

6 Hours

T160

2 Hours

40 Minutes

5 Hours

20 Minutes

8 Hours

DST (Daylight Saving Time)

Unit auto adjusts clock for DST (Daylight Saving

Time.)

Spring (First Sunday in April)

DST: ON

Sets clock ahead one hour.

Autumn (Last Sunday in October)

DST: ON

Turns clock back one hour.

• If your area does not observe Daylight Saving Time, select DST: OFF.

• Keep these time changes in mind when programming the unit for timer recordings.

Table of Contents

Important Safeguards and Precautions ................................................ 2

Safety Precautions .................................................................................. 3

Unit Information....................................................................................... 4

Location of Controls ............................................................................... 6

Connections/Initial Setup (Ready to Play) ............................................ 8

Reset Language, Channels, Clock, Time Zone Adjust....................... 10

Playback a Tape..................................................................................... 12

Record On a Tape.................................................................................. 12

Copy Your Tapes (Dubbing) ................................................................. 13

TV Operation .......................................................................................... 14

Picture Adjustment................................................................................ 15

TV Timer Features ................................................................................. 16

Closed Caption System ........................................................................ 18

FM Radio ................................................................................................ 20

Timer Recording .................................................................................... 22

Tape Operation ...................................................................................... 24

Special VCR Features ........................................................................... 27

V-Chip Control Feature ......................................................................... 28

On-Screen Display (OSD) ..................................................................... 33

Before Requesting Service................................................................... 34

Limited Warranty/Servicentre List ....................................................... 35

Index ....................................................................................................... 36

Location of Controls

Remote Control Buttons

EJECT

Ejects tape.

POWER

Turns unit on or off.

DISPLAY

Displays the VCR status and clock.

TAPE POSITION

Finds out present tape position and amount of tape remaining.

COUNTER RESET

Resets to “0:00:00” at the desired position.

RAPID TUNE

Displays the last channel you were watching.

MUTE

Mutes the sound instantly.

CHANNEL UP/DOWN

Selects a channel.

SELECT UP/DOWN

Controls navigation around on-screen menu.

ACTION

Displays Main Menu.

STOP

Stops recording or playback.

REC

Records the program.

REWIND/SEARCH

Rewinds tape, and searches reverse scene.

PLAY

Begins playback.

FM/TV

Receives FM radio signal.

NIGHT

Colour and picture intensity level are adjusted during night time use.

SLEEP

Turns off the unit automatically.

TRACKING UP/DOWN

Reduces picture noise during

Playback and Slow Motion.

NUMBER Keys

Selects a channel directly.

ADD/DELETE

Adds or deletes a channel.

SEARCH

Goes directly to the desired re cord ing. Locates end point of recording.

VOLUME UP/DOWN

Adjusts volume.

SET/BACK SPACE

Sets a selected menu, or goes back to correct.

PROGRAM

Displays SET PROGRAM screen. You can set Timer

Program and On-Timer.

FAST FORWARD/SEARCH

Fast forwards tape, and searches forward scene.

CM SKIP/ZERO SEARCH

In Stop mode, goes to the counter “0:00:00.“ In Play mode, skips over 1 to 3 minutes of tape.

SPEED

Selects recording speed.

PAUSE/SLOW

Pauses and slow motion and frame advance picture.

Note

• When EJECT is pressed, the tape is ejected from Cassette Compartment.

If EJECT is pressed during recording, the unit will not respond to the command.

Front View of the Unit and Indicators

POWER VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC TIMER/FM

REC ON TIMER PROG TIMER

ACTION

VIDEO IN AUDIO IN

AUDIO VIDEO IN Jack

For dubbing.

POWER

Turns unit on or off.

VOLUME UP/DOWN

Adjusts volume.

SET/BACK SPACE

Sets a selected menu, or goes back to correct.

CHANNEL UP/DOWN

Selects a channel.

TRACKING UP/DOWN

Reduces picture noise during Playback and Slow

Motion.

SELECT UP/DOWN

Controls navigation around on-screen menu.

STOP

Stops recording or playback.

EJECT

Ejects tape.

ACTION

Press together with REW.

Rear View of the Unit

REWIND/SEARCH

Rewinds tape, and searches reverse scene.

ACTION

Press together with STOP.

PLAY

Begins playback.

REPEAT

Repeats a recording.

FAST FORWARD/SEARCH

Fast forwards tape, and searches forward scene.

REC

Records the program.

TIMER/FM

Sets a timer alarm up 60 min.

Enables FM Radio.

Built-In

Speaker

PHONES Jack

Connect an earphone or headphones.

PROG TIMER

Indicator

Lights when the unit is set for

Timer Recording.

ON TIMER

Indicator

Lights when the

On-Timer is set.

REC Indicator

Lights during recording.

Remote Sensor

Easy Grip-Handle

Use when transporting the unit.

AC Power Plug

When plugged into an AC outlet, the unit consumes 2.5 W of electric power in OFF condition.

VHF/UHF

VHF/UHF Antenna Input Terminal

In from your Antenna or Cable (See page 8).

Connections/Initial Setup

(Ready to Play)

Please make all cable or antenna connections before power on.

Connecting

For ANT./Cable

Connect the cable from Antenna/Cable to the VHF/UHF terminal on the unit.

UNIT (rear view)

For DSS/Cable Box

Connect the OUT jack on your cable box to the VHF/UHF terminal on the unit with a RF cable.

UNIT (rear view)

Cable TV

Converter Box

VHF/UHF

VHF/UHF

VHF/UHF

IN from

ANT./CABLE

VHF/UHF

VHF/UHF

VHF/UHF

WARNING:

Overtightening “Nut type” RF coaxial cables may damage jacks. Finger tighten only.

IN from

ANT./CABLE

Initial Setup (Ready to Play)

Press COMBO on the remote for Combo mode.

1

Plug the unit power cord into AC wall outlet.

2

Press POWER on the remote or unit.

Press CH to select English.

OR

Press CH to select French

(Français).

OR

Press VOL+ to select Spanish

(Español).

4

Settings are made automatically. When

setup is done, this screen appears.

2 / 6 / 2003 THU 12 : 00PM

DST : ON

SETT I NG : CH 1 0

AUTO CLOCK SET

COMPLETED

If AUTO

CLOCK SET IS

INCOMPLETE screen appears, set the clock using

MANUAL CLOCK

SET procedure on next page.

AUTO CLOCK SET

IS INCOMPLETE

PLEASE SET CLOCK BY

PRESSING ACTION KEY

3

The unit comes on and auto channel and clock set starts.

CH AUTO SET PROCEEDING

• If you use a cable box, turn it on and set it to the Public

Broadcasting Service

(PBS) channel in your time zone. If you use a DSS receiver, it must be turned off .

AUTO CLOCK SET

PROCEEDING

CANCEL : STOP

Notes

• Function buttons are inoperative during Initial

Setup.

• To remove a cassette during Auto Set, press

EJECT twice on the remote or STOP twice on the unit. In this case, settings must be made manually. (See page 10.)

• Depending on conditions, Auto Clock Set may take longer than 30 minutes. If so, press STOP to stop setup and perform settings manually.

(See page 10.)

Manual Clock Set

If AUTO CLOCK SET was incomplete, manually set the clock as follows.

1

Press ACTION

on the remote to display

SET CLOCK Menu screen.

1 / /

SET CLOCK

:

DST : ON

Reset all unit Memory Functions

When moving unit to a new location, or if a mistake was made in the Initial Setup section.

• Make sure a tape is not inserted in the unit.

SELECT : SET :

END : ACT I ON

2

Press to select the month and

press

to set. In the same manner, select and set the date, year, time, and

DST. (Daylight Saving Time)

2 / 6 /

SET CLOCK

:

DST : ON

SET COMPLETED

SET :

START : ACT I ON

3

Press ACTION twice to start CLOCK and exit.

VIDEO IN AUDIO IN

VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC

TIMER/FM

ACTION

REC ON TIMER PROG TIMER

1

Turn the unit

Power on.

2

Press and hold both

PLAY/REPEAT and FF on the unit for more than 5 sec onds.

• The power will shut off.

• Please ignore “NO CASSETTE” warning.

3

Do “Initial Setup” on page 8.

POWER

ACTION

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

Note to CABLE System Installer

This reminder is provided to call the CABLE

(Cable TV) System Installers attention to Article

820-40 of the NEC that provides guidelines for proper grounding and, in par tic u lar, specifi es that the cable ground shall be con nect ed to the grounding system of the building, as close to the point of cable entry as practical.

Reset Language, Channels, Clock,

M A I N MENU

1

Press ACTION

to display

MAIN MENU.

T V LOCK LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

2

Language

1) Press to select language icon.

M A I N MENU

Channels

1) Press to select “CH.”

M A I N MENU

Clock

1) Press to select “CLOCK.”

M A I N MENU

T V LOCK LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

2) Press ACTION.

T V LOCK LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

2) Press ACTION.

T V LOCK LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

2) Press ACTION repeatedly.

MENU PR I NC I PAL

HO L A

T V BLOQUEO IDIOMA

CANAL REL OJ

ELEG I R :

F I JAR : ACT I ON

SAL I R

For Spanish

MENU

BONJOUR

TELE BLOCAGE

LANGUE

CANAL HORLOGE

SEL. :

REGLER : ACT I ON

SORT I E

For French

M A I N MENU

HELLO

T V LOCK LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

For English

3) Press

to select “EXIT.”

Press ACTION to exit.

SET UP CHANNEL

ANTENNA : CABLE

AUTO SET

WEAK S I GNAL D I SPLAY : OFF

SELECT : SET :

END : ACT I ON

3) Press to select

“ANTENNA,” then

press to set your

antenna system

(“TV” or “CABLE”).

4) Press to select

“AUTO SET,” then

press .

• After Channel Auto Set is fi nished, Clock Auto Set will be performed. (If clock is set manually, Clock Auto

Set will not be performed.)

SET CLOCK

AUTO CLOCK SET

MANUAL

T I ME ZONE ADJUST : 0

SELECT : SET :

END : ACT I ON

(“TIME ZONE ADJUST” appears only when auto clock is set.)

3) Press to select

“MANUAL” or “AUTO

CLOCK SET” and

press .

• For Auto Clock Set, select

“AUTO CLOCK SET,” then press .

SET CLOCK

2 / 6/

:

DST : ON

SELECT : SET :

START : ACT I ON

4) Press and press

to select and set the month, date, year, time, and DST (Daylight Saving

Time).

5) Press ACTION twice to start the clock and exit this mode.

Time Zone Adjust

POWER

Time Zone Adjust

(Only when Auto Clock is set.)

1) Press to select “CLOCK.”

M A I N MENU

T V LOCK LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

2) Press ACTION.

SET CLOCK

AUTO CLOCK SET

MANUAL

T I ME ZONE ADJUST : 0

SELECT : SET :

END : ACT I ON

3) Press to select TIME ZONE

ADJUST and

press repeatedly to select mode .

(See below.)

0

-

1

+

1

SET CLOCK

AUTO CLOCK SET

MANUAL

T I ME ZONE ADJUST : +1

SELECT : SET :

END : ACT I ON

4) Press ACTION twice to exit.

ACTION

NUMBER Keys

ADD/DLT

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

ACTION key on the unit

STOP/EJECT REW/

Using keys

VOL CH

ACTION

On Unit

You can operate the menu screen using unit buttons. To display the menu, press

STOP/EJECT and

REW together with no tape inserted. To exit the menu, repeat above with or without tape inserted until normal screen appears.

On Remote

On Unit

: CH UP

: CH DOWN

: VOLUME UP

: VOLUME DOWN

Whenever the menu or program screen is displayed, CHANNEL

UP/DOWN function as and

VOLUME UP/DOWN function as only.

Add or Delete a Channel

To add channel:

Select channel with number keys and press ADD/DLT.

To delete channel:

Select channel with

CH or number keys and press ADD/DLT.

CHANNEL 08 ADDED

CHANNEL 08 DELE TED

Playback a Tape Record On a Tape

Check List

Cable or antenna is connected.

Power cord is plugged in.

1

Insert a cassette.

• The unit power comes on automatically.

Record tab

To prevent tape jam,

remove loose or peeling labels from tapes.

2

Press PLAY.

• Playback begins if cassette has no record tab.

Forward/ Reverse scene search

Press FF or REW

Press PLAY to release.

Still (Freeze) picture

Press PAUSE/SLOW

Press PLAY to release.

Slow Motion picture

Hold down PAUSE/SLOW in

Still mode

Press PLAY to release.

Frame by Frame picture

Press PAUSE/SLOW in Still mode

Press PLAY to release.

Notes

• These features work best in SLP mode.

• After the unit is in Still or Slow mode for 3 minutes, it will switch to Stop mode automatically to protect the tape and the video head.

■ ➞

Press STOP

Rewind tape

Press REW in Stop mode

Fast forward tape

Press FF in Stop mode

■ ➞

Press EJECT on the remote or STOP/EJECT on the unit

EJECT

DISPLAY

NUMBER

Keys

1

Insert a cassette with record tab

• The unit power comes on automatically.

2

Press CH

or number keys to select a channel.

• For “LINE” input, see bottom of next page.

3

Press SPEED to select recording speed (see page 4).

SP = Standard Play

LP = Long Play

SLP= Super Long Play

• Selected speed is displayed.

4

Press REC to start recording.

• To edit out unwanted portions, press

PAUSE/SLOW to pause and resume recording.

• You cannot view another channel during recording.

Stop

Press STOP

One Touch Recording (OTR)

Press REC repeatedly

Normal Rec to set the recording length (30 min. - 4 hours).

4:00 3:00

0:30

2:00

1:00

1:30

• The unit stops recording at a preset time.

• PROG TIMER indicator lights on the unit.

Notes

• After the unit has been in Rec Pause mode for 5 minutes, it will stop automatically to protect the tape and the video head.

• The remaining recording time of an OTR can be displayed by pressing DISPLAY.

TRACKING

You can operate using the buttons on the unit

CH

Insert a cassette.

PLAY

REC

ACTION

STOP

REW

ADD/DLT

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

FF

PLAY

SPEED

POWER VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC TIMER/FM

REC ON TIMER PROG TIMER

ACTION

VIDEO IN AUDIO IN

Press to stop and/or eject tape.

REC Indicator

REC

PAUSE/

SLOW

e

Copy Your Tapes (Dubbing)

Connections you’ll need to make.

Recording (Editing) unit

Playing (Source) VCR

OUT

AUDIO VID EO IN FROM ANT.

OUT TO TV

IN

VIDEO IN AUDIO IN

2

3

Playback (Source)

1

4

Insert pre-recorded tape.

Recording (Editing) unit

Insert blank tape with record tab.

• Dubbing tapes protected with

Copy Guard will have poor quality results.

Select “LINE” mode.

See “Selecting Input Mode” below.

Press PLAY then

PAUSE at starting

point to put in

Standby mode.

Press REC, then

PAUSE/SLOW

immediately to put in

Standby mode.

(Perform operation of steps 4 and 5 on both units at same time.)

Press PLAY

to start dubbing.

Press PAUSE/SLOW

to start dubbing.

5

Press STOP

to stop dubbing.

Press STOP

to stop dubbing.

STOP

Caution

Unauthorized exchanging

and/or copying of copyrighted recordings may be copyright infringement.

Selecting Input Mode

Method 1:

Press CH . The display will change as follows.

1 2 3

LINE

(CABLE)

125 or

(TV)

69

Method 2:

a Press ACTION for MAIN MENU.

b Press to select “TV,” then press

ACTION for SET UP TV screen.

c Press to select “INPUT SELECT,” and then press to select “TUNER” or “LINE.”

d Press ACTION twice to exit this mode.

TV Operation

1

Press POWER

on the remote or unit.

2

CH 08

or number

keys to select a channel.

Check List

Cable or antenna is connected.

Power cord is plugged in.

3

Press VOL + or

VOL - to adjust volume.

VOL + / VOL-

24

NIGHT Mode

Color and picture intensity levels are adjusted so the screen is easier on your eyes during night time use.

NIGHT

Press NIGHT to

set NIGHT mode.

• NIGHT mode may be selected when watching

TV or playing a tape.

VIDEO IN AUDIO IN

VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC TIMER/FM

REC ON TIMER PROG TIMER

ACTION

CH

PHONES

Jack

POWER

Press NIGHT to

cancel.

• Previous settings are restored.

• NIGHT mode is cancelled when power is turned off or power failure occurs.

Using the 100 key

When selecting CABLE channels 100 to 125 with the number keys, fi rst press the 100 key, and then enter the remaining two digits.

Rapid Tune

Press R-TUNE to display the last channel you were watching.

Audio Mute

Press MUTE to instantly mute the sound. Press again to restore the previous sound level.

Phones

Connect an earphone (not supplied) or headphones (not supplied) to the Phones Jack.

POWER

100 Key

RAPID

TUNE

MUTE

VOL UP/

DOWN

Picture Adjustment

1

Press ACTION to display MAIN MENU.

NIGHT

NUMBER

Keys

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

CH

2

T V

M A I N MENU

LOCK LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

1) Press

to select “TV.”

2) Press ACTION

to display SET

UP TV screen.

3

SET UP TV

CAPT I ON

I NPUT SELECT : TUNER

V I DEO ADJUST

FM ANTENNA : EXT

SELECT : SET :

END : ACT I ON

1) Press to select VIDEO

ADJUST.

2) Press to display screen.

ACTION

4

COLOR

T I NT

BR I GHTNESS

P I CTURE

SHARPNESS

NORMAL

END : ACT I ON

1) Press to select an adjustment item. (See below left.)

2) Press

to adjust.

COLOR

T I NT

BR I GHTNESS

P I CTURE

SHARPNESS

NORMAL

SELECT : SET :

END : ACT I ON

To Reset Picture Controls, press

and to select and set “NORMAL.”

All controls return to their factory settings.

Picture Adjustment

COLOR Control

Adjust colour intensity.

TINT Control

Adjust for natural fl esh tones.

BRIGHTNESS Control

Adjust picture brightness.

PICTURE Control

Adjust picture intensity by adjusting both contrast and colour level in the proper balance.

SHARPNESS Control

Adjust picture sharpness.

5

Press ACTION three times to exit.

TV Timer Features

ON-TIMER with Alarm

This unit can be set to automatically power on in one of 3 modes (TV, Playback, or FM radio).

You can also combine the On-Timer with a one minute alarm that gradually increases in volume.

1

Press PROG to display SET PROGRAM screen.

2

SET PROGRAM

T I MER PROGRAMMING

ON TIMER

1) Press

to select “ON

TIMER.”

2) Press to display ON

TIMER screen.

SELECT : SET :

END : PROG

3

ON T I MER

6:--AM CH --

ALARM : ON

1) Press to select desired settings.

2) Press to set the

ON-TIMER TIME or

ON-TIMER mode.

SELECT : SET :

END : PROG

• Make sure a tape is inserted if Playback mode is selected.

• See “FM Radio” on pages 20 and 21 for instructions on how to preset FM stations.

CH02 CH03

CH01

FM9 FM8

CH125

VCR

FM1

• ON-TIMER mode selection order

4

ON T I MER

6:00AM CH08

ALARM : ON

Press to select

ALARM “ON” or “OFF.”

Check List

The clock is set to the correct time.

VIDEO IN AUDIO IN

VOL CH STOP/EJECT REW/

PLAY/REPEAT FF/ REC

TIMER/FM

REC ON TIMER PROG TIMER

ACTION

CH

TIMER/FM

ON TIMER indicator

CANCEL : ADD / DLT

SELECT : SET :

END : PROG

When “ON” is selected, an alarm will gradually increase in volume for one minute or until cancelled by pressing any button (including VOL + -).

To Make Corrections, use and to move back and correct.

5

Press PROG to set ON TIMER.

• “ON TIMER SET” is displayed.

• ON TIMER Indicator lights on the unit.

To Cancel ON-TIMER,

Repeat steps 1 and 2. Then, press ADD/DLT to clear the time in step 3. Now, press PROG to end.

“ON TIMER END” briefl y appears on-screen.

Note

• If no button on the remote or unit

(including a button used to turn off the alarm) is pressed within 60 minutes after unit turns itself on, it will turn itself back off.

00:00

1:00 (one minute)

2:00

3:00

One-minute increase until 10:00

9:00

10:00

15:00

20:00

25:00

30:00

Five-minute increase until 30:00

40:00

50:00

Ten-minute increase until 60:00

60:00 (Max)

SLEEP

DISPLAY

ADD/DLT

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

PROG

Sleep Timer

This unit can be set for auto power off.

Press SLEEP repeatedly to set SLEEP TIMER.

Pressing DISPLAY with sleep timer set displays remaining time.

Press SLEEP repeatedly until

“SLEEP TIMER 00” appears to cancel.

SLEEP TIMER 30

SLEEP TIMER 60

SLEEP TIMER 90

SLEEP TIMER 00

Instant Alarm

You can set a timer alarm up to 60 min. Useful when you are cooking, etc.

1

Press TIMER/FM

on the unit to display the instant alarm CANCEL/SET screen.

2

5 : 20PM

Press CH on the unit with CANCEL/SET screen displayed to set alarm.

(Time changes in the order shown left.)

CANCEL : ADD / DLT 02 : 00

SET : CH KEY ON UN I T

Remaining Time

• Pressing TIMER/FM

repeatedly on the unit will change display as follows.

TV

(or LINE)

INSTANT ALARM

Screen Display

TV(or LINE)

FM

INSTANT ALARM

Screen Display

FM

Note

• While timer function is in progress, you can change channels on the unit with

CH while “CANCEL/SET” screen is not displayed.

To cancel, press TIMER/FM then press ADD/DLT on the remote while CANCEL/SET screen is displayed.

To increase timer in progress, repeat step 2. Time will be rounded up to next 1, 5, or 10 minute interval.

(See chart left.)

<Example>

• If current time remaining is 12:15, countdown will restart from 15:00.

• If current time remaining is 9:15, countdown will restart from 10:00.

3

Alarm will sound at 0:00.

Press any button to stop.

• The volume of the alarm gradually increases for one minute and then continues to beep until any button is pressed.

Closed Caption System

Closed Caption is ...

This multi-use system not only allows the hearing impaired to enjoy selected programs, but also makes useful information from TV stations available to everyone.

Closed Caption Mode Feature

1

Press ACTION to display MAIN MENU.

2

T V

M A I N MENU

LOCK LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

1) Press

to select “TV.”

2) Press ACTION to display SET UP TV screen.

3

SET UP TV

CAPT I ON

I NPUT SELECT : TUNER

V I DEO ADJUST

FM ANTENNA : EXT

1) Press to select

“ CAPTION .”

2) Press to display

CAPTION screen.

SELECT : SET :

END : ACT I ON

4

CAPT I ON

CAPT I ON MODE : CAP C1

CC ON MUTE : CAP C1

SELECT : SET :

END : ACT I ON

TEXT C2

OFF

CAP C2

CAP C1

TEXT C1

1) Press to select

CAPTION MODE.

2) Press repeatedly to select mode.

(See left.)

5

Press ACTION three times to return to the normal screen.

Closed Caption Mode

Selections

Caption Mode: CAP C1 or C2

A narration of selected

TV programs is displayed.

Check TV program listings for CC

(Closed Caption) broadcasts.

Caption Mode: TEXT C1 or C2

The lower half of the screen will be blocked out. When the TV station broadcasts information, such as program listings, it will appear in this space.

Caption Mode: OFF

Closed Caption / Text narration will not be displayed.

NOTES :

• The closed caption or text signal may be broadcast over C1, C2, or both. Also, text contents can vary so you may wish to try different settings.

• While recording one station and watching another, Captioning will not be displayed.

Recording and Playing Back a Closed Caption/Text Program

Record: Record normally.

Closed Caption/ Text signal, if present, is recorded automatically.

Playback: Start playback. Do above steps to select desired caption mode.

Caption On Mute Feature

Closed Caption narration, if available, is displayed when

MUTE button is pressed.

1

Press ACTION to display MAIN MENU.

2

T V

M A I N MENU

LOCK LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

1) Press

to select “TV.”

2) Press ACTION to display SET UP TV screen.

MUTE

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

ACTION

3

SET UP TV

CAPT I ON

I NPUT SELECT : TUNER

V I DEO ADJUST

FM ANTENNA : EXT

SELECT : SET :

END : ACT I ON

1) Press to select

“CAPTION.”

2) Press to display

CAPTION screen.

4

CAPT I ON

CAPT I ON MODE : OFF

CC ON MUTE : CAP C1

1) Press to select

CAPTION MODE.

2) Press

repeatedly to select “OFF.”

SELECT : SET :

END : ACT I ON

5

SELECT : SET :

END : ACT I ON

1) Press

to select

CC ON MUTE.

2) Press

repeatedly to select desired mode.

• Each press of will change the display as shown left.

• The caption may be broadcast over CAP C1 or C2.

NO CAP C1

CAP C2

6

Press ACTION three times to return to the normal screen.

7

Press MUTE to mute the sound and display closed captioning.

• To cancel, press MUTE again.

FM Radio

FM Radio is ...

This unit has an FM radio with built-in antenna, 9 station preset, and a band range of 87.5 ~ 108.1 MHz.

You can set the On-Timer (page 16) to wake up to your favourite radio station.

FM Radio Setup

1

Press FM/TV on the remote or press

TIMER/FM twice on the unit to display FM radio mode.

FM ANTENNA Setup

Make sure FM tuning is done correctly

(see FM Radio Setup).

1

Press ACTION to display MAIN MENU.

2

1 2 : 0 0PM

Press a number

key (1~9) to select the FM number.

FM 1 87. 5MHz

2

T V

M A I N MENU

LOCK LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

1) Press

to select “TV.”

2) Press ACTION

to display SET

UP TV screen.

3

1 2 : 0 0PM

FM 1 8 7. 7MHz

MEMORY : PRESS ADD / DLT KEY

1 2 : 0 0PM

1) Press CH

to select the desired radio station. (Each press changes frequency

0.2 MHz.)

2) Press

ADD/DLT to set the radio station.

FM 1 8 7. 7MHz

MEMOR I ZED

Hold down CH

or for a few seconds, then release to quickly scan for FM stations in your area.

• To cancel, press

CH or while in search mode.

3

4

SET UP TV

CAPT I ON

INPUT SELECT : TUNER

V I DEO ADJUST

FM ANTENNA : I NT

SELECT : SET :

END : ACT I ON

For cable TV users

“INT”

For antenna users

“EXT”

1) Press to select FM

ANTENNA.

2) Press

to select “INT

(INTERNAL)” or “EXT

(EXTERNAL)” whichever sounds the best.

Press ACTION twice to end setup.

To Make Corrections,

select station with a number key, then do step 3 again.

To exit FM mode,

press FM/TV on the remote or

TIMER/FM twice on the unit.

CH

ACTION

FM/TV

VIDEO IN AUDIO IN

VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC TIMER/FM

REC ON TIMER PROG TIMER

ACTION

TIMER/FM

NUM BER

Keys

ADD/DLT

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

How to use the FM radio

1

Press FM/TV on the remote or press

TIMER/FM twice on the unit to display FM radio mode.

2

1 2 : 0 0PM

FM 1 87. 5MHz

Press a Number

key (1~9) to select a preset FM number (see “FM

Radio Setup” on page 20).

To cancel, press FM/TV on the remote or

TIMER/FM twice on the unit.

Notes

• FM radio cannot be recorded on a Video cassette.

• You may get better reception by repositioning the unit.

• You cannot select FM Radio mode during playback or record, or while a blue back screen (PROG, ACTION,

MENU) is displayed.

• Once stations are set, the selected station and current time are displayed when FM Radio mode is entered.

To remove time, press DISPLAY. If DISPLAY is pressed again, the unit status screen appears.

Timer Recording

You can set up to 8 programs to be recorded while you are away.

1

Press PROG to display SET PROGRAM screen.

2

SET PROGRAM

T I MER PROGRAMMING

ON TIMER

SELECT : SET :

END : PROG

1) Press to select

TIMER

PROGRAMMING.

2) Press to display screen.

• If a program is already in memory, press , and to select an unused program number.

3

DATE

TODAY

START STOP CH

7 FR I --:-- --:-- --

SP

- - - - - - - - -- - - - - - - -- - - - - - -

SELECT : SET :

END : PROG

Press to select and or

to set the recording DATE.

• 1~31 = One time

• DAILY = MON~FRI

• WEEKLY SUN~SAT

= Same time once a week

Example

Today’s

Date

7

8 9

31 1

2

SELECT / Selection Order

6

WEEKLY

(SAT)

WEEKLY

(MON)

WEEKLY

(SUN)

DAILY

Repeat step 3 to set:

• Start time, Stop time

• Channel (or LINE for outside source)

• Speed (SP, LP, SLP)

4

P DT START STOP CH SPD

1 day 9 : 00 p 12 : 00a 08 SP

2 -- -- : -- -- : -- -- --

3 -- -- : -- -- : -- -- --

4 -- -- : -- -- : -- -- --

Press PROG to end the program.

CANCEL : ADD / DLT

SELECT : SET :

END : PROG

To Enter More Programs, press to select and to set a blank program number, and then repeat step 3.

5

Press PROG twice to exit this mode.

• If you’re using a cable box, make sure that it is tuned to the desired channel and the power is left on for timer recording.

• PROG TIMER indicator lights on the unit.

Check List

Cable or antenna is connected.

Power cord is plugged in.

The clock is set to correct time.

The tape is long enough.

The record tab is in place.

VIDEO IN AUDIO IN

VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC TIMER/FM

REC ON TIMER PROG TIMER

ACTION

PROG TIMER indicator

Cancel a Timer Recording:

(Recording is in progress)

Hold down STOP for a few seconds to cancel the Timer

Recording.

• Any future daily or weekly recordings will be performed as programmed.

Review, Replace or Clear Program

Contents :

(Recording is not in progress)

1

Repeat steps 1 and 2 on page 22.

2

P DT START STOP CH SPD

1 day 9 : 00p 12 : 00a 08 SP

2 8 10 : 00a 12 : 00p 125 SP

3 10 8 : 00p 9 : 00p 10 SP

4 SU 9 : 00p 10 : 00p L LP

Press

to select the desired program.

CANCEL : ADD / DLT

SELECT : SET :

END : PROG

ADD/DLT

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

PROG

STOP

3

To Replace program...

DATE START STOP CH

8 SAT 9:00P 12: 00A 08

TODAY

SP

----------------------------------------------

1) Press to display.

2) Press to select and

press

or to set new program contents.

3) Press PROG.

SELECT : SET :

END : PROG

To Clear program...

P DT START STOP CH SPD

1 -- -- : -- -- : -- -- --

2 8 10 : 00p 12 : 00a 125 SP

3 10 8 : 00p 9 : 00p 10 SP

4 SU 9 : 00p 10 : 00p L LP

Press ADD/DLT.

CANCEL : ADD / DLT

SELECT : SET :

END : PROG

4

Press PROG twice to exit this mode.

Notes

• 2 minutes before Timer recording is performed, “PLEASE

PREPARE FOR TIMER REC” appears and/or the PROG

TIMER Indicator fl ashes. Be sure a cassette with record tab is loaded and the unit is in Stop mode.

• If the start times of two programs overlap, the lower numbered program will have priority.

• If the start time for a Timer Recording comes up during a normal recording or One Touch Recording (page 12), the Timer

Recording will not be performed.

• If there is a power interruption of more than one minute, the recording may not be performed or continued.

• If “INCOMPLETE” appears after all items have been set, check all entries and make necessary corrections.

Tape Operation

Search System is ...

Each time a recording is made, an invisible index mark is placed on the tape. When timer recordings are made, program index and information are also included. These index marks can be used to access or scan recordings.

Index Search

Go directly to the desired recording.

1

I NDEX SEARCH

ENTER I NDEX NUMBER : 1

US I NG 1- 9 KEYS

FORWARD SEARCH : FF

REVERSE SEARCH : REW

EX I T : SEARCH

Press SEARCH in

Playback or Stop mode to display

INDEX SEARCH screen, and then

press number keys to select the recording number.

• To calculate number, see below.

Press FF or REW to start search.

NUMBER Keys

SEARCH

FF

REW

2

I NDEX SEARCH

FORWARD SEARCH : FF

REVERSE SEARCH : REW

Play begins at search end.

To search forward or back 1 index,

press FF or REW

while screen left is displayed

(10 sec.).

To cancel, press

PLAY.

To calculate the Index Number

Example 1:

To go to rec. 2 from rec. 4, enter 3 and press REW.

1 2 3 4 5 6 7

Example 2:

To go to rec. 6 from rec. 2, enter 4 and press FF.

1 2 3 4 5 6 7

NOTE: indicates start points of each recording.

Note

• If Index Search is started very close to an index mark, that index mark may not be counted in the search.

VIDEO IN AUDIO IN

VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC TIMER/FM

REC ON TIMER PROG TIMER

ACTION

REW

FF

Auto Operation Functions

Auto Shut Off

No broadcast signal in TV (Only when

Weak Signal Display is set to OFF), blank tape is Played for 5 minutes

Power turns off

• This feature is cancelled if any button is pressed during above mode.

Auto Playback

Insert a tape in Power off mode

Power turns on

• Playback begins if tape has no record tab.

Auto Rewind

Tape reaches its end

Rewind

Stop

Playback Auto Eject

(Repeat Play is “OFF”)

Tape with no record tab reaches its end

Rewind

Stop

Eject

TAPE

POSITION

Tape Position Display

To fi nd out present tape position.

Tape position is displayed for VHS-C Cassettes type, tapes under 30 minutes, and some other tapes, but the position is not correct.

1

Press TAPE POSITION to detect current tape position.

DETECT I NG TAPE POS I T I ON

• “DETECTING TAPE

POSITION” only appears the fi rst time a cassette is inserted and it takes several seconds for correct indication to appear.

• The present tape position indication is displayed.

BEG I N END

2

Press TAPE POSITION (or wait 5 seconds) to return to the normal screen.

Tape Operation (continued)

Zero Search

To quickly return to a specifi c tape counter location.

1

Press COUNTER RESET during playback to display the Counter.

2

0 : 00 : 00

Press COUNTER

RESET at the desired position to reset to “0:00:00.”

Repeat Play

Set to see a recording over and over.

PLAY

REPEAT ON

PLAY

REPEAT OFF

In PLAY mode,

press

PLAY/REPEAT on the unit to turn “ON.”

Repeat above to turn “OFF.”

3

Continue playback, rewind, or fast forward.

4

Press STOP.

5

1 : 23 : 45

Press CM/ZERO in stop mode to start

ZERO SEARCH.

Note

• Playback repeats when tape end is reached or unrecorded portion over 30 seconds is detected.

DISPLAY

COUNTER

RESET

• Unit goes into FF or REW mode and stops at the last point the Counter was set to 0:00:00.

REW

STOP

PLAY

FF

CM/ZERO

Commercial Skip

By pressing the CM/ZERO button in Playback mode you can skip over 1 to 3 minutes of recorded tape in just a few seconds.

Press CM/ZERO repeatedly to select skip time in Play mode.

• No indication appears.

VIDEO IN AUDIO IN

VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC TIMER/FM

REC ON TIMER PROG TIMER

ACTION

PLAY/REPEAT

Special VCR Features

Weak Signal Display ON/OFF

When “ON” is selected, the picture is displayed even when a broadcast signal is weak or non-existent.

1

Press ACTION to display MAIN MENU.

2

T V

M A I N MENU

LOCK

LANGUAGE

1) Press

to select “CH.”

2) Press ACTION to display SET UP

CHANNEL screen.

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

3

SET UP CHANNEL

ANTENNA : CABLE

AUTO SET

WEAK S I GNAL D I SPLAY : OFF

1) Press to select

WEAK SIGNAL

DISPLAY .

2) Press

to set “ON” or

“OFF.”

SELECT : SET :

END : ACT I ON

Notes

• “ON” = Picture is displayed regardless of signal condition, and may not always be clearly visible.

“OFF” = Screen turns solid blue when signal is absent or weak.

• If unit is connected to equipment which has blue back feature, selecting “ON” will have no effect on the other equipment.

4

Press ACTION twice to return to the normal screen.

VCR Lock

All operations are prohibited except Timer recording and tape eject. Useful for families with small children.

VCR LOCK ACT I VATED

VCR LOCK OFF

In stop mode, hold

down REC on the unit without a cassette inserted for 7 seconds to turn “ON.”

Please ignore NO

CASSETTE warning.

Repeat above with or without cassette to turn

“OFF.”

• VCR Lock is cancelled automatically after about 24 hours if clock is set.

VIDEO IN AUDIO IN

VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC

TIMER/FM

REC ON TIMER PROG TIMER

ACTION

REC

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

ACTION

V-Chip Control Feature

Process of V-Chip Control Feature

Enter Code

Setup Blocking

V-Chip Control Feature is...

This unit has a built-in V-Chip Control which allows you to block unwanted TV usage based on US MOVIES, US TV

PROGRAMS Ratings, Canadian English

Language Ratings and Canadian French

Language Ratings.

Enter Secret Code

A 4-digit code must be entered to view a blocked program or change rating settings.

1

Press ACTION to display MAIN MENU.

2

T V

M A I N MENU

LOCK LANGUAGE

1) Press to select

“LOCK.”

2) Press ACTION to display screen.

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

NUMBER Keys

ADD/DLT

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

3

LOCK

ENTER 4-D I G I T CODE

---

1) Press NUMBER keys

to enter your secret code.

2) Enter same code again for confi rmation.

ENTER : 0

-

9

END : ACT I ON

To Make Corrections

Press repeatedly to move the cursor. Press number keys to make the correction.

• Step 2) not necessary when changing rating or secret code.

• Take care that you are not observed entering the secret code.

ACTION

4

LOCK

CONF I RM 4-D I G I T CODE

****

RECOGN I ZED

CHANGE CODE : ADD / DLT

CONT I NUE :

END : ACT I ON

Press to display LOCK menu

(see page 29-32).

Or

Press ACTION

twice to exit.

Changing your secret code

• You will need your current code. Do steps 1 ~ 3.

In step 4, press ADD/DLT to clear current code.

Repeat steps 3 and 4 to enter new code.

Notes

• DO NOT forget your secret code.

• Once ratings are set, restricted tapes or programs cannot be accessed unless the secret code is entered.

If LOCK menu is not displayed, do “Enter Secret

Code” steps on page 28.

Setup US MOVIES Ratings

1

LOCK

US MOVIES : OFF

CHANGE SETT I NGS

US TV PROGRAMS : OFF

CHANGE SETT I NGS

NEXT PAGE

SELECT : SET :

END : ACT I ON

1) Press

to select US

MOVIES.

2) Press to set

“ON” or “OFF.”

“ON”

V-Chip Control is activated.

“OFF”

V-Chip Control is deactivated.

Process of V-Chip Control Feature

Enter Code

Setup

Blocking

Setup US TV PROGRAMS Ratings

1

LOCK

US MOVIES : OFF

CHANGE SETT I NGS

US TV PROGRAMS : OFF

CHANGE SETT I NGS

NEXT PAGE

1) Press to select US TV

PROGRAMS.

2) Press to set

“ON” or “OFF.”

SELECT : SET :

END : ACT I ON

“ON”

V-Chip Control is activated.

“OFF”

V-Chip Control is deactivated.

2

LOCK

US MOVIES : OFF

CHANGE SETT I NGS

US TV PROGRAMS : OFF

CHANGE SETT I NGS

NEXT PAGE

SELECT : SET :

END : ACT I ON

1) Press

to select

CHANGE

SETTINGS.

2) Press to display screen.

2

LOCK

US MOVIES : OFF

CHANGE SETT I NGS

US TV PROGRAMS : OFF

CHANGE SETT I NGS

NEXT PAGE

SELECT : SET :

END : ACT I ON

1) Press to select

CHANGE

SETTINGS.

2) Press to display screen.

3

V I EW NR PROGRAMS? : YES

G

PG

UNLOCKED

PG-13

R

NC-17

X

CONTA I NS NO RAT I NG

SELECT : SET :

END : ACT I ON

1) Press

to select

VIEW NR

PROGRAMS?.

2) Press to set

“YES” or “NO.”

NR (Not Rated) PROGRAMS

Some movies, such as old movies or foreign movies usually have no ratings.

3

V I EW NR PROGRAMS? : YES

TV-Y

TV-Y7 FV

UNLOCKED

TV-G

TV-PG

TV-1 4

TV-MA

V S L D

V S L D

V S L

CONTA I NS NO RAT I NG

SELECT : SET :

END : ACT I ON

1) Press to select

VIEW NR

PROGRAMS?.

2) Press to set

“YES” or “NO.”

NR (Not Rated) PROGRAMS

Some TV shows, such as news, sports, weather, bulletins, emergency information usually have no ratings.

4

V I EW NR PROGRAMS? : YES

G UNLOCKED

PG

PG-13

R

NC-17

X

GENERAL AUD I ENCE

SELECT : SET :

END : ACT I ON

Press

to select and to set ratings to be blocked. (See page 31.)

5

Press ACTION to redisplay LOCK menu and continue with US TV PROGRAMS

Ratings Setup (this page). Or, press

ACTION three times to exit.

4

V I EW NR PROGRAMS? : YES

TV-Y

TV-Y7

FV

UNLOCKED

TV-G

TV-PG

TV-1 4

TV-MA

V S L D

V S L D

V S L

FOR ALL CH I LDREN

SELECT : SET :

END : ACT I ON

Note

• You may select from standard TV ratings (chart

1), or customize to a specifi c content rating (chart 2).

Press to select and to set ratings to be blocked. (See page 31.)

• Ratings highlighted in Green will be blocked. Ratings in white letters will not be blocked.

5

Press ACTION three times to exit this mode.

V-Chip Control Feature (continued)

If LOCK menu is not displayed, do “Enter

Secret Code” steps on page 28.

Canadian English Language Ratings

1

LOCK

US MOVIES : OFF

CHANGE SETT I NGS

US TV PROGRAMS : OFF

CHANGE SETT I NGS

NEXT PAGE

SELECT : SET :

END : ACT I ON

1) Press to select NEXT

PAGE.

2) Press to display screen.

2

LOCK

1) Press to select

CANADIAN

ENGLISH.

2) Press to set

“ON” or “OFF.”

SELECT : SET :

END : ACT I ON

“ON”

V-Chip Control is activated.

“OFF”

V-Chip Control is deactivated.

3

1) Press select

to

CHANGE

SETTINGS.

2) Press to display screen.

SELECT : SET :

END : ACT I ON

Process of V-Chip Control Feature

Enter Code

Setup

Blocking

Canadian French Language Ratings

1

LOCK

US MOVIES : OFF

CHANGE SETT I NGS

US TV PROGRAMS : OFF

CHANGE SETT I NGS

NEXT PAGE

1) Press to select NEXT

PAGE.

2) Press to display screen.

SELECT : SET :

END : ACT I ON

2

LOCK

CANADIAN ENGLISH : OFF

CHANGE SETT I NGS

CANADIAN FRENCH : OFF

CHANGE SETT I NGS

PREVIOUS PAGE

SELECT : SET :

END : ACT I ON

1) Press to select

CANADIAN

FRENCH.

2) Press to set

“ON” or “OFF.”

“ON”

V-Chip Control is activated.

“OFF”

V-Chip Control is deactivated.

3

LOCK

CANADIAN ENGLISH : OFF

CHANGE SETT I NGS

CANADIAN FRENCH : OFF

CHANGE SETT I NGS

PREVIOUS PAGE

SELECT : SET :

END : ACT I ON

1) Press to select

CHANGE

SETTINGS.

2) Press to display screen.

4

V I EW E PROGRAMS? : YES

C

UNLOCKED

C8+

G

PG

1 4+

1 8+

EXEMPT

SELECT : SET :

END : ACT I ON

1) Press to select VIEW E

PROGRAMS?.

2) Press to set

“YES” or “NO.”

4

V I EW E PROGRAMS? : YES

G

UNLOCKED

8 ANS+

13 ANS+

16 ANS+

18 ANS+

EXEMPT

SELECT : SET :

END : ACT I ON

1) Press to select VIEW E

PROGRAMS?.

2) Press to set

“YES” or “NO.”

E (Exempt) PROGRAMS

Some TV shows, such as news, sports, weather, bulletins, and emergency information usually have no ratings.

5

V I EW E PROGRAMS? : YES

SELECT : SET :

END : ACT I ON

Press to select and to set ratings to be blocked. (See ratings chart on next page.)

E (Exempt) PROGRAMS

Some TV shows, such as news, sports, weather, bulletins, and emergency information usually have no ratings.

5

V I EW E PROGRAMS? : YES

G

UNLOCKED

8 ANS+

13 ANS+

16 ANS+

18 ANS+

GENERAL AUD I ENCE

SELECT : SET :

END : ACT I ON

Repeatedly press

to select and

to set ratings to be blocked. (See ratings chart on next page.)

6

Press ACTION to redisplay LOCK menu and continue with Canadian French

Language Ratings Setup. Or, press

ACTION four times to exit.

6

Press ACTION four times to exit this mode.

US MOVIES RATINGS

G

PG

PG-13

R

NC-17

X

GENERAL AUDIENCE:

All ages admitted.

PARENTAL GUIDANCE:

Some material may not be suitable for children.

PARENTS CAUTIONED:

Some material may be inappropriate for children under 13.

RESTRICTED:

Children under 17 must be accompanied by a parent or adult.

OVER AGE 17 ONLY:

No one 17 and under admitted.

ADULTS ONLY:

US TV PROGRAMS RATINGS:Chart 1

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

FOR ALL CHILDREN:

Content specifi cally geared to young viewers ages 2-6.

FOR AGE 7 AND OLDER:

May contain mild physical or comedic violence which may frighten children under 7.

GENERAL AUDIENCE:

Contains little or no violence, strong language, or sexual dialogue or situations.

PARENTAL GUIDANCE:

May contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations.

PARENTS CAUTIONED:

May contain sophisticated themes, sexual situations, strong language, and more intense violence.

MATURE AUDIENCE:

May contain mature themes, profane language, graphic violence, and sexual situations.

US TV PROGRAMS RATINGS: Chart 2

FV

V

S

L

D

Fantasy Violence

Violence

Sexual Situations

Adult Language

Sexually Suggestive Dialogue

Canadian French Language RATINGS

G General

8 ANS + Not recommended for young children

13 ANS +

Programming may not be suitable for children under the age of 13

16 ANS +

Programming is not suitable for children under the age of 16

18 ANS + Programming restricted to adults

Canadian English Language RATINGS

C Children

C8+ Children 8 years and older

G General Audience

PG Parental Guidance

14+ Viewers 14 years and older

18+ Adult Programming

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

ACTION

V-Chip Control Feature (continued)

Process of V-Chip Control Feature

Enter Code Setup

Blocking

Blocking Message

<When V-Chip Control is activated>

• If a program or movie exceeds the ratings you have set, a message will appear on a black background and sound is muted.

CH08 CH08

DISPLAY

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

ACTION

PROGRAM RAT I NG EXCEEDED

RAT I NG : 1 3ANS+

ACCESS CODE ----

ENTER : 0-9

<Canadian Rating>

PROGRAM RAT I NG EXCEEDED

RAT I NG : PG-1 3

ACCESS CODE ----

ENTER : 0-9

<US Rating>

To View a Blocked Program / Movie

[Temporarily Deactivate V-Chip Control]

Enter your secret code (ACCESS CODE) in the

Blocking Message screen.

• V-Chip Control is reactivated when power is turned off or power failure occurs.

[Deactivate V-Chip Control]

Enter your secret code (steps 1-3 page 28).

Then, set US MOVIES and/or US TV PROGRAMS and/or CANADIAN ENGLISH LANGUAGE and/or

CANADIAN FRENCH LANGUAGE to “OFF” using and .(Ratings set on pages 29, 30 are retained and will be in effect when V-Chip Control is activated again.)

• If DISPLAY is pressed, even when V-Chip control is deactivated, rating is displayed on-screen.

STOP 1 1 : 0 0AM

CH08

0 : 1 2 : 3 4

SP

RAT I NG : 13 ANS+

STOP 1 1 : 0 0AM

CH08

0 : 1 2 : 3 4

SP

RAT I NG : PG-1 3

<Canadian Rating> <US Rating>

• If DISPLAY is pressed, even when no V-Chip data, “NO

V-CHIP DATA” is displayed on-screen.

STOP 1 1 : 0 0AM

CH08

0 : 1 2 : 3 4

SP

NO V-CH I P DATA

On-Screen Display (OSD)

VCR Status & Clock Display

Press DISPLAY to display or remove

the overlay.

Blue Screen Display

Whenever a blank section of a tape comes up in

Play mode, or when the selected channel has no broadcast signal with the Weak Signal Display set to “OFF” (see page 27), the screen will turn solid blue.

Channel

Function Status

Current Time Counter

Rec Time

Remaining

(OTR mode only, see page

12.)

REC 1 2 : 0 0PM

0 : 25

CH08

-0 : 1 2 : 3 4

SP

NO V-CHIP DATA

Tape Speed

Channel & Function Display

When a function button is pressed (PLAY, FF, etc.) or you change channels, the unit mode or channel number will be displayed.

CH 08

Warning and Instruction Displays

OSD

PLEASE SET CLOCK BY

PRESSING ACTION KEY

These displays will alert you to a missed operation or provide further instructions.

CAUTION Page

If you attempt to set or review a Timer Recording, or set the On-Timer and the Clock is not set...

8 - 11

CHECK CASSETTE RECORD TAB

If you press REC, and a cassette is inserted with no record tab...

TO CANCEL TIMER REC HOLD

DOWN STOP KEY FOR APPROX 3

SEC

If you press STOP during a Timer Recording...

NO CASSETTE

If you press PLAY, FF, REW, or REC without a cassette inserted...

3, 12

23

12

PLEASE PREPARE FOR TIM ER

REC

If the unit is not in Stop mode or a cassette with record tab is not inserted two minutes before a Timer

Recording is about to begin...

VIDEO HEADS MAY NEED

CLEANING PLEASE INSERT HEAD

CLEANING CASSETTE OR REFER

TO MANUAL END: PLAY

If head cleaning becomes necessary while playing back a tape...

22 - 23

4

VCR LOCK ACTIVATED

If you press a function button other than STOP/EJECT or

POWER while the unit is in VCR Lock mode...

27

Before Requesting Service

Check the following points once again if you are having trouble with your unit.

Power

No power…

CORRECTION

• Completely insert Power Plug into an AC outlet.

• Set POWER button to ON.

CORRECTION Monitor

No picture or sound...

Poor picture with normal sound...

TV programs cannot be watched...

Channel cannot be selected...

• Make sure your antenna system (TV or CABLE), is correctly set. (P.8)

• Completely insert Power Plug into an AC outlet.

• Set POWER button to ON.

• Adjust BRIGHTNESS, SHARPNESS, and PICTURE controls in the SET UP TV menu. (P.15)

Poor sound with normal picture... • Adjust VOLUME control. (P.14)

Poor TV reception...

• Adjust SHARPNESS and PICTURE controls in the SET UP TV menu. (P.15)

No colour or poor color...

Ghost (multiple) images...

• Adjust TINT and COLOUR controls in the SET UP TV menu. (P.15)

• Install a directional antenna.

• Make sure the selected channel is in unit’s memory. (P.10)

• Only the channel being recorded can be viewed on this unit.

VCR

TV program cannot be recorded...

Timer recording cannot be performed…

CORRECTION

• Make sure your antenna system (TV or CABLE), is correctly set. (P.8)

• Make sure cassette record tab is intact. (P.3)

• Check that clock is set to current time and date.

• Make sure DSS/CABLE box (if used) is left on and tuned to channel to be recorded.

• Set recording Start/Stop times correctly. (P.22-23)

• Timer recording may not be performed or continued if a power interruption of more than 1 minute occurs before or during a Timer Recording, even after power is restored.

No playback picture, or the playback picture is noisy or contains streaks...

• Adjust TRACKING control in either direction. (P.4)

• Try Head Cleaning. (P.4)

VCR cannot be controlled...

Remote Control

Unit cannot be controlled...

• Make sure VCR LOCK is set to off. (P.27)

• Make sure unit is not in a Timer Record operation.

CORRECTION

• Aim remote at remote sensor on unit (P.7) so that signal is unobstructed.

• Inspect the remote batteries. (P.3)

• Make sure VCR LOCK is set to off. (P.27)

• Exposing unit remote sensor to direct fl uorescent or outdoor light may cause signal interference.

ACTION, PROG and FM/TV buttons cannot be selected...

• Check remote batteries.

Miscellaneous

Video cassette cannot be inserted...

CORRECTION

• Insert the cassette window side up; record tab facing you.

Video cassette cannot be removed...

Tape cannot be ejected or inserted...

• Completely insert Power Plug into an AC outlet.

• Try ejecting or inserting the tape again after turning POWER off, then back on.

Video cassette ejects when a recording is started, or the power is turned off for timer recording...

• Make sure cassette record tab is intact. (P.3)

In Stop mode, the VCR motor

(CYLINDER) continues to rotate...

VCR cannot be controlled...

• To enable Quick Play mechanism, the VCR cylinder will rotate for about 3 minutes. This reduces response time from Stop to Play mode and from Play to

Rewind Search mode.

• Make sure VCR LOCK is set to off. (P.27)

Limited Warranty/Servicentre List

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.

COMBINATION VHS VCR TV / VCR DVD TV:

21

and under

Carry-in Service

Only

One (1) year, parts (including Picture Tube) and labour

22

and over In-home Service

One (1) year, parts (including Picture Tube) and labour

In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized

Panasonic service facility.

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this warranty.

This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR

IMPLIED, EXCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE.

IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR

CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

WARRANTY SERVICE

For product operation and information assistance, please contact your Dealer or our Customer Care

Centre at: Telephone #: (905) 624-5505 Fax #: (905) 238-2360 Web: www.panasonic.ca

For product repairs, please contact one of the following:

• Your Dealer who will inform you of an authorized Servicentre nearest you.

• Our Customer Care Centre at (905) 624-5505 or www.panasonic.ca

• A Panasonic Factory Servicentre listed below:

Richmond, British Columbia

Panasonic Canada Inc.

12111 Riverside Way

Richmond, BC V6W 1K8

Tel: (604) 278-4211

Fax: (604) 278-5627

Calgary, Alberta

Panasonic Canada Inc.

6835-8 th

St. N. E.

Calgary, AB T2E 7H7

Tel: (403) 295-3955

Fax: (403) 274-5493

Mississauga, Ontario

Panasonic Canada Inc.

5770 Ambler Dr.

Mississauga, ON L4W 2T3

Tel: (905) 624-8447

Fax: (905) 238-2418

Lachine, Québec

Panasonic Canada Inc.

3075, rue Louis A. Amos

Lachine, QC H8T 1C4

Tel: (514) 633-8684

Fax: (514) 633-8020

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

Index

A

Accessories ...............................................................3

Audio Mute ..............................................................14

Auto Operation Functions........................................25

B

Before Requesting Service......................................34

Blocking Message ...................................................32

Blue Screen Display ................................................33

C

Canadian English Language Ratings ......................30

Canadian French Language Ratings.......................30

Caption On Mute Feature ........................................19

Channel & Function Display ....................................33

Channel (SET UP CHANNEL).................................10

Clock (SET CLOCK)................................................10

Closed Caption Mode Feature.................................18

Commercial Skip .....................................................26

Connections...............................................................8

Copy Your Tapes (Dubbing)....................................13

D

DST (Daylight Saving Time) ......................................4

E

Eject Tape ...............................................................12

Enter Secret Code ...................................................28

F

Fast Forward ...........................................................12

Features for a Quality Picture....................................4

FM Radio ...........................................................20–21

Forward Search .......................................................12

Frame by Frame Advance .......................................12

Front Panel Indicators ...............................................7

H

Head Cleaning...........................................................4

I

Important Safeguards and Precautions .....................2

Index Search ...........................................................24

Initial Setup................................................................8

Instant Alarm ...........................................................17

L

Language ................................................................10

Limited Warranty/Servicentre List............................35

Loading the Batteries.................................................3

Location of Controls...............................................6–7

M

Manual Clock Set ......................................................9

N

NIGHT Mode ...........................................................14

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario L4W 2T3

(905) 624-5010 www.panasonic.ca

O

ON-TIMER with Alarm .............................................16

One Touch Recording .............................................12

P

Phones ....................................................................14

Picture Adjustment ..................................................15

Playback ..................................................................12

R

Rapid Tune ..............................................................14

Record .....................................................................12

Record/Playback Speed Settings ..............................4

Remote Control Buttons ............................................6

Repeat Play .............................................................26

Reset all unit Memory Functions ...............................9

Reverse Search.......................................................12

Rewind.....................................................................12

S

Selecting Input Mode...............................................13

Sleep Timer .............................................................17

Slow Motion .............................................................12

Special VCR Features .............................................27

Specifi cations ............................................................4

Still (Freeze) Picture ................................................12

Stop .........................................................................12

T

Tape Erasure Prevention...........................................3

Tape Position Display..............................................25

Timer Program Review, Replace, Clear ..................23

Timer Recording ......................................................22

Timer Recording Cancellation .................................23

Time Zone Adjust ....................................................11

TV Operation ...........................................................14

TV Timer Features.............................................16–17

U

Unit, Front View .........................................................7

Unit, Rear View..........................................................7

Using the 100 key....................................................14

US MOVIES RATINGS............................................31

US TV PROGRAMS RATINGS ...............................31

V

V-Chip Control Feature......................................28–31

VCR Lock ................................................................27

VCR Status & Clock Display....................................33

W

Warning and Instruction Displays ............................33

Weak Signal Display ON/OFF .................................27

Z

Zero Search.............................................................26

Montréal:

3075 Louis A. Amos, Lachine, Québec H8T 1C4 (514) 633-8684

Toronto:

5770 Ambler Drive, Mississauga, Ontario L4W 2T3 (905) 624-8447

Calgary:

6835 - 8th Street N.E., Calgary, Alberta T2E 7H7 (403) 295-3955

Vancouver:

12111 Riverside Way, Richmond, BC V6W 1K8 (604) 278-4211

K

Printed in Indonesia

LSQT0715A

S0203-0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
