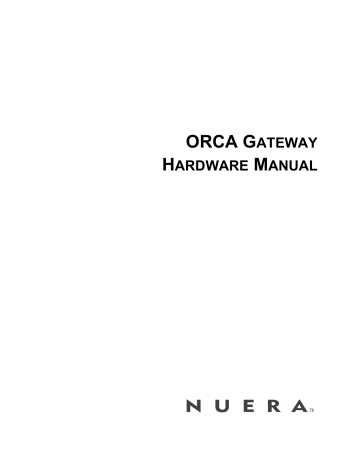

ORCA G

ATEWAY

H

ARDWARE

M

ANUAL

299-335-103

ORCA Gateway Hardware Manual

Nuera Communications, Inc.

January, 2003

Third Edition (January, 2003)

This edition applies to the Nuera Communications, Inc. ORCA RDT-8v release 7.1, ORCA GX release 8.0, ORCA RDT-8v release 7.0, ORCA RDT-

8g release 7.0, and ORCA BTX -8 release 1.0 gateways. The licensed product described in this document and all licensed materials that are available for it are provided by Nuera under terms of the agreement for

Nuera licensed products. Nuera periodically makes additions, deletions, or changes to the information in this document. Before you use this document, consult Nuera or your distributor for the most recent Nuera edition.

The author and publisher have made reasonable efforts to ensure the accuracy and timeliness of the information in this book. However, neither the author nor the publisher shall have any liability with respect to loss or damage caused or alleged to be caused by reliance on any information in this book.

Nuera may have patents or pending patent applications covering material in this document. Furnishing this document does not of itself constitute a grant of any license or immunity under any patents, patent applications, trademarks, copyrights, or other rights of Nuera, or of any third party, or any right to refer to Nuera in any advertising or other marketing activities. Nuera assumes no responsibility for any infringement of patents or other rights of third parties that may result from use of the material in this document or for the manufacture, use, lease, or sale of machines or software programs described herein, outside of any responsibilities assumed in the original or subsequent purchase or lease agreements.

This document may contain information about, or make reference to,

Nuera products, programming, or services that are not available in your country. This information must not be construed to mean that Nuera intends to make available such products, programs, or services in your country.

A form for your comments is provided at the back of this document. If the form has been removed, address your comments to: Nuera Communications, Inc., Information Development Group, 10445 Pacific Center Court,

San Diego, CA 92121.

Nuera may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.

No part of this publication may be reproduced in any manner without the written permission of Nuera, Inc. For information, write to: Nuera Communications, Inc., Legal Office, 10445 Pacific Center Court, CA 92121.

© 2001, 2003 by Nuera Communications, Inc.

Important Notices

Warnings!

See the “Regulatory Information” appendix in this book for specific regulations for various localities.

These are Class A products. In a domestic environment, these products may cause radio interference, in which case the user may be required to take adequate measures. The domestic environment is an environment where the use of broadcast radio and television receivers may be expected within a distance of 10 meters of the apparatus concerned.

This product is a Class 1 Laser product.

Nuera Communications, Inc.

10445 Pacific Center Court, San Diego, CA 92121 (858) 625-2400; FAX (858) 625-2422

ORCA User Library

All books that support the ORCA product line are provided on a compact disc (CD) in Adobe Acrobat format. Included on the CD is the appropriate version of Adobe Acrobat Reader.

This section lists the titles of all the books in the ORCA library. To order any of these books, contact your distributor or Nuera directly. To make comments or suggestions regarding any of these books, direct your correspondence to

[email protected]

.

Number Book

299-225-4nn

ORCA SSC Softswitch User’s Guide

This book presents conceptual information about the use and functionality of the ORCA SSC

Softswitch. It also provides information about installing and configuring SSC for use with other equipment.

299-193-5nn

ORCA GX-Series Software Manual

This book is designed for the system integrator/system administrator who needs to configure

ORCA GX gateways at an end-user site. Its purpose is to guide this individual through the configuration steps required to get the ORCA GX gateway correctly configured using network management software.

299-297-5nn

ORCA RDT-8g Software Manual

This book is designed for the system integrator/system administrator who needs to configure

ORCA RDT8g gateways at an end-user site. Its purpose is to guide this individual through the configuration steps required to get the ORCA RDT8g gateway correctly configured using network management software.

299-298-5nn

ORCA RDT-8v Software Manual

This book is designed for the system integrator/system administrator who needs to configure

ORCA RDT8v gateways at an end-user site. Its purpose is to guide this individual through the configuration steps required to get the ORCA RDT8v gateway correctly configured using network management software.

299-252-5nn

ORCA BTX-8 Software Manual

This book is designed for the system integrator/system administrator who needs to configure

ORCA BTX-8 gateways at an end-user site. Its purpose is to guide this individual through the configuration steps required to get the ORCA BTX-8 gateway correctly configured using network management software.

299-335-1nn

ORCA Gateway Hardware Manual

This book presents conceptual information about the use, functionality, and specifications of the

ORCA gateways, including installation steps and information.

Additional ORCA books are available in hard copy form from Nuera. For information regarding pricing and availability, contact a sales representative at:

Nuera Communications, Inc.

10445 Pacific Center Court

San Diego, CA 92121

858-625-2400

Trademarks Used in This Manual

The following list contains trademarks that are used in this manual. In the United States, these trademarks are registered trademarks; in World Trade countries, these trademarks are not registered.

Trademark

Access Plus F50/F50ip/F100/

F120/F200/F200D/F200ip

Amphenol

ANSI

Cisco

CS-ACELP

E-CELP

IBM

Microsoft

OpenView

ORCA

Teflon

UNIX

Trademark Owner

Nuera Communications, Inc.

Amphenol, Inc.

American National Standards

Institute

Cisco Systems, Inc.

Lucent, SiproLab, and NTT

Nuera Communications, Inc.

International Business Machines, Inc.

Microsoft Corporation, Inc.

Hewlett-Packard Company

Nuera Communications, Inc.

E. I. duPont de Nemours and

Company

The Open Group

Trademark

VT100

Windows 95/98/NT/2000

Procomm Plus

Trademark Owner

Compaq Digital Equipment

Corporation

Microsoft Corporation, Inc.

Symantec Corporation

T

ABLE OF

C

ONTENTS

About This Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

Who Should Use This Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

How To Use This Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

Conventions Used in This Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii

How Numbers Are Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii

Replaceable Input Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Textual Callouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi

Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi

Last Resort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxii

Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxii

Chapter 1. Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

ORCA GX-Series Release 8.0 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

ORCA RDT-8g Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

ORCA Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Feature Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

ORCA RDT-8v Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

ORCA Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Feature Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

ORCA BTX-8 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

ORCA Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Feature Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Chapter 2. Chassis and Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Chassis Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Intercard Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

PCI Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Power Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Fan Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

21-Slot Base Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

8-Slot Base Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Chapter 3. ORCA Gateway Card Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Front Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

CM Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

CM3 Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

HST Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

HUB2 Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

UPM3 Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

UPM4 Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 ix

ORCA Gateway Hardware Manual

Transition (Back) Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

CMX Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

HSTX Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

HSTX Bridge Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

HUB2X Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Load Transition Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

UPMX Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Module Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Control Clusters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

HST Clusters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Chapter 4. Installing the ORCA 21-Slot Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Installation Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Site Environment Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Necessary Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Installing the Chassis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Power Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Connecting Main Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Grounding the ORCA 21-Slot Chassis. . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Connecting DC Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Connecting AC Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Power Cable Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Applying Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Power-On Self-Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Signal Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Connecting the HSTX Bridge Card Cables . . . . . . . . . . . . . . . . . . . . . . . . 83

Chapter 5. Installing the ORCA 8-Slot Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Unpacking the 8-Slot Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Opening the Carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Installing the ORCA Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Connecting Main Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Signal Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Chapter 6. Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

The Console Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Console Port Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

SNMP Community String Commands . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Packet Sniffing Debug Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Ethernet Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Help Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Password Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Quit Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Shelf ID Show Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Storage Initialization Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Version Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Nuera Configurator and NueraView . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 x

Table of Contents

Chapter 7. ORCA Gateway Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Power Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Gateway Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Card LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Power Module LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Fan Module LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Power Module Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

21-Slot Chassis Power Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

8-Slot Chassis Power Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Fan Module Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

21-Slot Chassis Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

8-Slot Chassis Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Card Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Installing Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Removing Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Swapping CM Cards Between Gateways . . . . . . . . . . . . . . . . . . . . . . . . 129

Hot-Swapping Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Upgrading an ORCA Gateway. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Upgrading the Embedded Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Upgrading Card Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Chapter 8. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

System LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Card Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

ORCA Power Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

ORCA Fan Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

System Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Last Resort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Appendix A. Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

21-slot Chassis Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

8-slot Chassis Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Appendix B. Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Replacement Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Power Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

ORCA Connecting Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

DS3/HST Redundancy Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

CMX Card Console Port Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Appendix C. Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

CMX Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Alarm Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

HUB2X Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

RJ-45 Ethernet Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 xi

ORCA Gateway Hardware Manual

Optical Ethernet Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

HSTX Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

BNC Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

UPMX Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Telco Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Appendix D. Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

United States FCC Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Industry Canada Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Bibliography . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Hardware Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Network Management Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

Hewlett Packard Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Reader’s Comment Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199 xii

L

IST OF

F

IGURES

Figure 1. ORCA Gateway Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 2. ORCA SSC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 3. ORCA Gateway 21-Slot chassis, Front View (Cover Removed). . . . . . . . . . . . 45

Figure 4. ORCA Gateway 21-Slot chassis, Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Figure 5. ORCA Gateway 8-Slot chassis, Front View (Cover Removed). . . . . . . . . . . . . 49

Figure 6. ORCA Gateway 8-Slot chassis, Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Figure 7. CMX Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Figure 8. HSTX Module Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Figure 9. HSTX Bridge Module Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Figure 10. HUB2X-1000Base-SX Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Figure 11. HUB2X-100Base-T Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Figure 12. UPMX Card Ports and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Figure 13. ORCA 21-Slot Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Figure 14. ORCA Gateway Power Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Figure 15. Power Module Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Figure 16. Power Module Locking Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Figure 17. ORCA 21-Slot Chassis Ground Terminal Posts . . . . . . . . . . . . . . . . . . . . . . . 75

Figure 18. ORCA 21-Slot Gateway DC Power Terminal Posts . . . . . . . . . . . . . . . . . . . . 76

Figure 19. ORCA DC Power Cabling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Figure 20. Fastening Cable Clamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Figure 21. AC Terminal Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Figure 22. AC Screw Terminals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Figure 23. Attaching Terminal Lugs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Figure 24. Applying Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Figure 25. The Bridge Card Connected to the Protected (standby) and Working (active)

HSTX Modules.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Figure 26. ORCA 8-Slot Gateway Shipping Carton and Contents . . . . . . . . . . . . . . . . . 87

Figure 27. ORCA 8-Slot Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Figure 28. 8-Slot Ground Terminal Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Figure 29. DC Power Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Figure 30. Connecting DC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Figure 31. AC Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Figure 32. Connecting AC Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Figure 33. Applying Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Figure 34. Help Command Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Figure 35. ORCA Power Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Figure 36. Servicing the Power Supply Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Figure 37. 8-Slot Chassis Filter Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Figure 38. ORCA Fan Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Figure 39. Fan Tray Replacement, 8-Slot Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Figure 40. Ejector Tabs in Unlocked Position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Figure 41. Aligning Card in Guide Slot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Figure 42. Card Slots (Showing ESD Clips) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Figure 43. Aligning Guide Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 xiii

ORCA Gateway Hardware Manual

Figure 44. Ejector Tabs in Locked Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Figure 45. Locating Upper and Lower Captive Screws (Lower Shown) . . . . . . . . . . . . 128

Figure 46. Removing Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Figure 47. CMX Card Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Figure 48. CMX Console Port Connector Pin Assignments . . . . . . . . . . . . . . . . . . . . . . 163

Figure 49. CMX Console Port Connector Pin Assignments . . . . . . . . . . . . . . . . . . . . . . 163

Figure 50. DB9 (F) DTE-to-DB25 (F or M) DTE, RS232 (500-074/075) . . . . . . . . . . . . 165

Figure 51. DB9 (F) DTE-to-DB25 (F or M) DCE, RS232 (500-078/079) . . . . . . . . . . . . 165

Figure 52. DB9 (F) DTE-to-DB9 (F) DTE, RS232, Null Modem (500-252) . . . . . . . . . . 166

Figure 53. DB9 (F) DTE-to-DB25 (M) DCE, RS232 to RS485 (501-350). . . . . . . . . . . . 166

Figure 54. CMX Console Alarm Port Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Figure 55. CMX Alarm Port Connector Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . 168

Figure 56. DB15 (M)-to-DB15 (M), CMX Alarm Cable (504-149) . . . . . . . . . . . . . . . . . 169

Figure 57. HUB2X-100Base-T Card Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Figure 58. HUB2X-100Base-T Card RJ-45 Connector and Pin Assignments . . . . . . . 171

Figure 59. 100Base-T Standard, Straight RJ45 (504-172). . . . . . . . . . . . . . . . . . . . . . . 172

Figure 60. HUB2X1000Base-SX Card Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Figure 61. HUB2X Card Optical Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Figure 62. HSTX Card Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Figure 63. HSTX DS3 BNC Port Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Figure 64. DS3 BNC 75-ohm Cable (504-264) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Figure 65. UPMX Card Ports and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Figure 66. UPMX Card DB25 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Figure 67. UPMX Card DB25 T1 Interface Pin Assignments . . . . . . . . . . . . . . . . . . . . 179

Figure 68. ORCA DB25 (F)-to-RJ45 (M) (4x) (504-121) . . . . . . . . . . . . . . . . . . . . . . . . . 181

Figure 69. ORCA DB-25 (F) Telco Straight-to-Open (504-124) . . . . . . . . . . . . . . . . . . . 182

Figure 70. ORCA DB25 (F)-to-ORCA DB25 (F) (504-146) . . . . . . . . . . . . . . . . . . . . . . 183

Figure 71. ORCA DB25 (F) to RJ45 Adaptor (504-087) . . . . . . . . . . . . . . . . . . . . . . . . . 184 xiv

L

IST OF

T

ABLES

Table 1. Front Card Usage Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Table 2. Back Card Usage Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Table 3. Power Cable Color Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Table 4. AC Power Cable Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Table 5. LEDs: All Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Table 6. LEDs: Error Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Table 7. LEDs: Power Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Table 8. LEDs: Fan Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Table 9. 21-Slot Chassis Supported Voice Compression Algorithms . . . . . . . . . . . . . . 144

Table 10. 8-Slot Chassis Supported Voice Compression Algorithms. . . . . . . . . . . . . . . 150

Table 11. Replacement Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Table 12. Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Table 13. Connecting Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Table 14. DS3/HST Redundancy Kit Part Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Table 15. CMX Card Console Port Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Table 16. Console Port Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Table 17. Alarm Port Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Table 18. RJ-45 Ethernet Port Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Table 19. 75-ohm BNC Port Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Table 20. DB25 Port Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Table 21. Out of Warranty Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Table 22. Extended Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197 xv

ORCA Gateway Hardware Manual

xvi

A

BOUT

T

HIS

B

OOK

This book presents information that explains the concepts behind the design and operation of the Open Reliable Communications Architecture (ORCA) telephony gateway. Specifically, this book provides information on the RDT-8v release 7.1 gateway, the GX release 8.0 gateway, the RDT-

8v release 7.0 gateway, the RDT-8g release 7.0 gateway, and the BTX-8 release 1.0 gateway. It provides system design and application information, and product features. The purpose of this information is to help you install, use, and maintain an ORCA gateway.

Who Should Use This Book

This book is for product distributors, systems integrators, systems analysts, and network administrators who design, install, configure, and maintain wide area networks (WANs) and large-scale communications applications. It contains conceptual and practical information about how to use the

ORCA gateway within your network.

How To Use This Book

If the ORCA gateway is new to you, you should read all the chapters in this book to familiarize yourself with all of the

product features and functions. In addition, see "ORCA User

Library" on page vi for an annotated list of books in the

ORCA library.

If your network is already functional, you can use the ORCA

Hardware Manual to install a gateway, and then use the included software manual, (e.g., ORCA GX-Series Software

ORCA Gateway Hardware Manual

Manual) to learn how to use the Nuera network management software to configure the gateway. If you need more information to help you integrate an ORCA gateway into your network, refer to the manuals that support your network components.

Conventions Used in This Book

This book uses specific conventions to show the following types of information:

• Number usage

• Replaceable input values

• Messages

Read the following sections to learn more about how this information is shown in the rest of the book.

How Numbers Are Used

When numbers are shown in this book, they can appear as descriptive values or as data to be manipulated internally.

Decimal values are used frequently; however, alternate number bases are useful when internal data is shown.

Large Decimal Numbers

Numbers greater than 9999 display in SI metric style, where whole numbers that contain more than four digits are broken into groups of three digits that are separated by spaces. For example, the number sixteen thousand three hundred eighty three is shown as 16 383. This avoids confusion between American and European punctuation conventions.

xviii

About This Book

However, a number that is internally manipulated by a computer is shown without punctuation or spaces. For example, notice how the value 65 535 appears in the following instruction without a space or a thousands separator within the number:

Specify 65535 as a maximum value

Numbers with Different Bases

All numbers shown in this book are decimal values unless the number base is binary or hexadecimal. There are two ways to show a number with a different base:

• An identifier can precede a binary or hexadecimal number. The following expressions use an identifier:

• the value of binary 1010

• the value of hex 4F

• A type-format indicator can precede a binary or hexadecimal number that is enclosed in single quotation marks.

The following expressions use the binary and hexadecimal indicators:

• B’1010’

• X’4F’

Replaceable Input Values

In some cases, you can insert user-defined values into commands or you can specify local paths and filenames. These variable values are shown in italic typeface.

For example, you might be asked to specify the name of your server in this path:

A:\LOGIN\LOGIN servername

The italic typeface shows that you need to replace server-

name with your local server name. xix

ORCA Gateway Hardware Manual

When you are prompted for variable input that is represented by lower-case letters, follow these conventions:

Substitute This Value n x b h

When You See This

Variable Value

Any binary digit

Any hexadecimal digit

Any decimal digit

Any alphabetic value, such as:

Multiple letters

x:\DOS

where you substitute the correct drive letter for x

A series of digits, such as:

FIRST 2 HEX BYTES: hhhh

where you substitute four hexadecimal digits for hhhh

When you are prompted for variable input with embedded decimal points, replace the variable digits and let the decimal points remain to separate 32-bit dotted-decimal address segments. For example, you might be prompted to supply a

32-bit, dotted-decimal address in this format:

nnn.nnn.nnn.nnn

where nnn is a decimal value from 0 through 255. Leading zeros are not required.

Textual Callouts

This book uses two distinct symbols displayed in the textual margins to call the reader’s attention to information that is of particular interest.

xx

Note

About This Book

These callouts are presented and described below:

This callout indicates that the information presented may be of particular use when operating an ORCA gateway or accompanying devices.

Caution

This callout indicates that the information presented may prevent damage to an ORCA gateway or accompanying device when operating the equipment or may prevent personal injury when installing, operating, or maintaining an

ORCA gateway or accompanying devices.

Getting Help

If after installing and configuring your Nuera equipment, you cannot establish communications to or from the unit, carefully review the information in this book and in the other ORCA books prior to calling Technical Assistance Center (TAC).

Checklist

Ensure that you have checked the following possibilities:

1. Configuration of the console port. Check that the baud rate of your terminal matches the preset settings of the

Nuera units being installed.

2. Reset the equipment. When cycling power, be sure to leave the power off for a minimum of 30 seconds before reapplying power to the unit.

3. Review the ORCA gateway commands. See the Configuration chapter of the ORCA Gateway Hardware Manual.

4. Check your software version. To ensure that all our customers have the latest enhancements and product feaxxi

ORCA Gateway Hardware Manual

tures, Nuera ships every new or factory-upgraded unit with the latest software version. Therefore, whenever you are installing or reinstalling units into your system, check each unit to verify that all units are equipped with identical software versions.

Last Resort

If after carefully reviewing the information in this book and in the other ORCA books, your problem persists, contact either your product representative or a service representative at Nuera’s Technical Assistance Center. Prior to calling, ensure that you have assembled all the pertinent data that will assist in resolving your problem. These items include:

• A detailed description of your problem

• A complete listing of your system components and configuration. Include your unit’s serial number and the software version number it is running

• A narrative of the actions you performed prior to the problem

• A list of all system messages posted by your unit.

Your Nuera service representative will advise you as to the appropriate course of action.

Contacts

Address:

Nuera Communications, Inc.

10445 Pacific Center Court

San Diego, CA 92121 USA [email protected]

Telephone:

1-858-625-9220, Extension 1391

1-800-966-8372, Extension 1391 xxii

1

O

VERVIEW

This overview is a high-level introduction to the ORCA gateway hardware components. ORCA gateways provide highdensity voice transmission that enables high-quality, costefficient telecommunications service. This chapter explains the gateway design and the ORCA network design.

ORCA GX-Series Release 8.0

Overview

Currently, only the 21-slot chassis supports ORCA GX release 8.0.

An ORCA 21-slot gateway has the capacity to support up to

2016 channels of packetized voice over IP packets. It is able to interact with an external softswitch, such as Nuera’s SSC

Softswitch, for a switched network solution.

Design

This section presents high-level information about the design philosophy of the ORCA gateway platform. The

ORCA gateway has been designed to serve carrier-grade environments that require:

23

ORCA Gateway Hardware Manual

• Open architecture

• High reliability

• High scalability

• Hot-swap capability

• Interoperability

• NEBS compliance

Open Architecture

The open architecture of the ORCA gateway facilitates interoperability with third-party softswitches, gateways, integrated access devices, and enhanced services platforms.

High-Reliability

The ORCA gateway’s robust platform provides sufficient redundancy to guarantee high availability. Because ORCA gateways carry large amounts of revenue-producing voice traffic, hardware or software faults are contained and not permitted to affect other system resources.

The ORCA gateway design enables distributed execution of control and processes, while its hot-swap capability enables all cards to be easily replaced in case of failure. These modules do not require special tools to perform field replacement.

Control processes and signaling are backed up by a dual- processor configuration that has access to all the internal buses.

Scalability

The ORCA 21-slot chassis release 8.0 supports between 1 and 3 DS3s of voice traffic. This enables emerging carriers to enter the market with a relatively low cost entry level product, which can easily be expanded as their business continues to grow.

24

Overview

Hot-Swap Capability

The gateway’s voice processing is performed by replaceable components that can be hot-swapped in the event of a failure. Control and switching modules are backed up by a dualprocessor configuration that accesses all internal buses. In addition, power and fan modules are also redundant and hot-swappable.

Interoperability

The ORCA gateway products are based upon an open architecture and protocols common to both legacy and evolving voice/data networks. These include voice compression algorithms such as G.729, signaling systems, packet formats

(IP), and networking protocols (MGCP and SIP). Because the architecture is software intensive, it is easy to select specific features for a given application in order to maximize performance and minimize cost.

ORCA gateways also interoperate with third-party gateways and softswitches, as well as with Nuera’s own SSC softswitch. Nuera’s gateways support the industry standard

MGCP; Nuera’s SSC supports MGCP and SIP.

NEBS Compliance

The ORCA gateway products are certified to be Network

Equipment Building System (NEBS) Level-3 compliant. The rack depth of an ORCA gateway series chassis, for example, is suitable for mounting in a NEBS 24-inch-frame floor plan.

For complete information regarding NEBS, see “Network

Equipment Building System Generic Equipment Requirements”, TR-NWT-000063, Issue 4, July, 1991.

Networking

The ORCA gateway product family is a networking system that provides highly efficient and reliable transmission of voice, voice band data (VBD), modem, and facsimile (fax) signals across a broad range of digital transmission facili-

25

ORCA Gateway Hardware Manual

ties. It uses advanced signal processing techniques to characterize and compress signal sources into data packets that are compatible with IP or leased-line wide-area networks

(WANs).

The ORCA gateway can be employed as a trunking gateway between both local and/or toll switches, or as an access gateway.

ORCA Gateway

The cornerstones of an ORCA network are the ORCA Gateway components–the ORCA voice/media gateways. ORCA gateways create a telephone switching platform that provides network access for as many as 84 digital T1 subscriber interfaces on the 21-slot chassis. The associated voice channels originating from these interfaces are compressed, packetized, and routed across IP network backbones.

Ethernet connectivity and support functions, such as network management systems (NMS) connect to an ORCA gateway through one of the redundant 100Base-T or

1000BaseSX connections on the unit’s HUB2X card. See Figure 1 on page 27.

26

Overview

Digital DS3

Telephony

Connections

ORCA Gateway

Internet Connection (IP)

NMS Connection (IP)

W

A

N

Figure 1. ORCA Gateway Connections

ORCA SSC Softswitch

The ORCA SSC softswitch provides the call processing and call control for one or more GX-Series gateways. The SSC is built on Hewlett-Packard server platforms.

The ORCA SSC centralizes and simplifies dynamic switching, routing, management, and call processing feature operations. While providing the network call processing and routing abilities, the SSC also provides a portal to enhanced services such as Interactive Voice Response (IVR), and voice/ fax messaging.

The SSC and GX-Series gateways communicate using the

Media Gateway Control Protocol (MGCP), enabling creation of geographically distributed softswitches. Using the MGCP protocol, the SSC controls the GX-Series units within its domain and thereby provides the functionality of a traditional telecommunications switch. The relationship between the GX-Series voice gateway and the ORCA SSC is that of client and server, respectively.

27

ORCA Gateway Hardware Manual

Primary Functions

The main tasks performed by the ORCA SSC are:

• Communicating with other network domains using signaling protocols such as SIP signaling protocol

• Providing signaling services such as MGCP and SS7 to the ORCA GX-Series gateway

• Routing calls to and from the ORCA SSC-managed network from other networks

• Managing call-related resources such as ports, trunks, and routes

• Recording call accounting data

Figure 2 shows the relationship of the ORCA SSC softswitch

to the ORCA Gateway.

MGCP

ORCA

SSC

Figure 2. ORCA SSC

ORCA SSC Configuration

The ORCA SSC can be deployed individually or in redundant pairs to provide maximum network reliability.

A single SSC can support a network of up to twenty-five

ORCA voice gateways. SSCs can also be deployed regionally and operate together to provide the call processing and switching structure for large scale networks.

28

Overview

ORCA RDT-8g Overview

Currently, only the 8-slot chassis supports ORCA RDT release 7.0.

Nuera's ORCA (Open Reliable Communications Architecture) RDT (Remote Digital Terminal) product is designed to bridge the gap between traditional, circuit-based Public

Switched Telephone Networks (PSTNs) and the emerging packet-switched networks (i.e., cable telephony). The ORCA

RDT provides an excellent solution for merging digital broadband access networks with the legacy telephone network in a seamless, reliable manner. To accomplish this, the

ORCA RDT supports Network Call Signaling (NCS), Packet-

Cable’s version of Media Gateway Control Protocol (MGCP) that defines a signaling connection between Voice-over-IP

(VoIP) network devices. The RDT series also supports the

GR-303 standard, which defines an interface between a digital switch that provides local service and an access concentrator.

ORCA Design

This section presents high-level information about the design philosophy of the ORCA RDT platform. The ORCA

RDT has been designed to serve carrier-grade environments that require:

• Open architecture

• High availability with redundancy

• High scalability

• Hot-swap capability

• NEBS compliance

Open Architecture

The internal open architecture of the ORCA RDT facilitates third-party software development or integration of off-the-

29

ORCA Gateway Hardware Manual

shelf applications. By implementing a software version change, the ORCA RDT becomes capable of interfacing with an external, third-party soft switch.

High-Reliability

The ORCA RDT’s robust platform provides sufficient fault tolerance and redundancy to guarantee high availability.

Because ORCA RDTs carry large amounts of revenue-producing voice traffic, hardware or software faults are contained and not permitted to affect other system resources.

The ORCA RDT design enables distributed execution of control and processes, while its hot-swap capability enables all cards to be easily replaced in case of failure. These modules require no special tools or training to perform field replacement.

Control processes and signaling are backed up by a dual- processor configuration that has access to all the internal buses.

Scalability

The ORCA RDT supports between 1 and 16 T1s per chassis, using uncompressed, G.711 or G.726-32k packetized Voiceover-IP (VoIP) with GR-303 and NCS protocols. This enables emerging carriers to enter the market with a relatively low cost entry level product, which can easily be expanded as their business continues to grow.

Hot-Swap Capability

The RDT’s voice processing is performed by resource cards that can be hot-swapped out in the event of failure. Control and switching modules are backed up by a dual-processor configuration that accesses all internal buses. In addition, power and fan modules are also hot-swappable.

30

Overview

NEBS Compliance

The ORCA RDT product is certified Network Equipment

Building System (NEBS) Level-3 compliant. The rack depth of an ORCA RDT series chassis, for example, is suitable for mounting in a NEBS 24-inch-frame floor plan. For complete information regarding NEBS, see “Network Equipment

Building System Generic Equipment Requirements”, TR-

NWT-000063, Issue 4, July, 1991.

Feature Summary

This section provides an overview of the ORCA RDT’s features.

Voice Processing

• Built in adaptive echo cancellation with automatic convergence from 0–54 milliseconds

• Adaptive jitter buffer from 10–750 msec

• Advanced lost packet recovery (LPR)

Protocol Support

The ORCA RDT supports the following industry protocols:

GR-303

GR-303 defines an interface between a local digital switch (Central Office) and a remote digital terminal

(RDT). GR-303 is a legacy PSTN protocol that has been in use since the early 90s. The PSTN forms temporary circuits, apportioning a dedicated, private channel between two speakers. GR-303 is used to define an access telephony network in front of a local exchange switched network. GR-303 protocol supports call processing and OAM&P functions required by the switches that are in the local exchange switched network.

31

ORCA Gateway Hardware Manual

Network Call Signaling (NCS)

NCS is PacketCable’s version of Media Gateway Control

Protocol (MGCP). Using NCS, the ORCA RDT can communicate directly with cable modems to establish a voice call. PacketCable is the industry consortium for definition and standardization of cable telephony networking.

Fax and Modem Support

The ORCA RDT supports Group III fax protocols V.17, V.21,

V.27 and V.29 at baud rates up to 14.4 Kbps as well as high speed modem standards such as V.34. The fax and modem signals will be passed through the ORCA RDT with no degradation of performance.

Maintainability

The following list describes the salient maintainability features of the ORCA RDT:

• Hot-standby redundant capability on all control and switching modules. Live insertion and extraction of all modules

• Built-in test capability to identify and isolate failed modules

• Maintenance and configuration functions are performed remotely through the ORCA network management system

ORCA RDT-8v Overview

Currently, only the 8-slot chassis supports ORCA RDT releases 7.0 and 7.1.

Nuera's ORCA (Open Reliable Communications Architecture) RDT-8v (Remote Digital Terminal) product is designed to bridge the gap between traditional, circuit-based Public

Switched Telephone Networks (PSTNs) and the emerging packet-switched cable telephony networks. The ORCA RDT-

32

Overview

8v provides an excellent solution for merging digital broadband access networks with the legacy telephone network in a seamless, reliable manner.

The ORCA RDT-8v is programmed to use and convert three different protocols that together make routing voice packets over different networks possible. The first set of protocols are G.711 PCM and G.726-32k ADPCM, which make the voice packets ready for transmission through IP networks.

Both are standards for converting speech into discrete packets. The ORCA RDT also supports Network Call Signaling

(NCS), PacketCable's version of Media Gateway Control

Protocol (MGCP) that defines a signaling connection between Voice-over-IP (VoIP) network devices. Finally, the

RDT-8v supports the V5.2 standard, which defines an interface between a digital switch that provides local service and an access concentrator.

The ORCA RDT-8v converts information in real time between all three protocols, forming IP packets from the

PSTN PCM speech and sending them to a cable modem; or stripping off the encapsulation from the IP packets, reassembling the speech packets, and sending the PCM equivalent to the switch.

ORCA Design

This section presents high-level information about the design philosophy of the ORCA RDT-8v platform. The

ORCA RDT-8v has been designed to serve carrier-grade environments that require:

• High availability with redundancy

• High scalability

• Hot-swap capability

• NEBS compliance

33

ORCA Gateway Hardware Manual

High-Reliability

The ORCA RDT-8v’s robust platform provides sufficient fault tolerance and redundancy to guarantee high availability. Because ORCA RDT-8vs carry large amounts of revenue-producing voice traffic, hardware or software faults are contained and not permitted to affect other system resources.

The ORCA RDT-8v design enables distributed execution of control and processes, while its hot-swap capability enables all cards to be easily replaced in case of failure. These modules require no special tools or training to perform field replacement.

Control processes and signaling are backed up by a dual- processor configuration that has access to all the internal buses.

Scalability

The ORCA RDT-8v release 7.1 supports between 2 and 16

E1s per chassis, using uncompressed, G.711 or compressed

G.726-32k packetized Voice-over-IP (VoIP) and V5.2/NCS protocols. This enables emerging carriers to enter the market with a relatively low cost entry level product, which can easily be expanded as their business continues to grow.

Hot-Swap Capability

The RDT-8v’s voice processing is performed by resource cards that can be hot-swapped out in the event of failure.

Control and switching modules are backed up by a dual-processor configuration that accesses all internal buses. In addition, power and fan modules are also hot-swappable.

NEBS Compliance

The ORCA RDT-8v product is certified Network Equipment

Building System (NEBS) Level-3 compliant. The rack depth of an ORCA RDT series chassis, for example, is suitable for mounting in a NEBS 24-inch-frame floor plan. For complete

34

Overview

information regarding NEBS, see “Network Equipment

Building System Generic Equipment Requirements”, TR-

NWT-000063, Issue 4, July, 1991.

Feature Summary

This section provides an overview of the ORCA RDT-8v’s features.

Voice Processing

• Built in adaptive echo cancellation with automatic convergence from 0–54 milliseconds

• Adaptive jitter buffer from 10–750 msec

• Advanced lost packet recovery (LPR)

Protocol Support

The ORCA RDT-8v supports the following industry protocols:

V5.2

In order to produce a stable, high performance application, the ORCA RDT-8v uses third-party V5.2 stack software provided by Aztek Engineering, Inc. This stack, selected for its reliability and proven interoperability with various switches (including Nortel DMS 100) and country requirements, meets ETSI specifications for the

V5.2 protocol, and provides the application software for the Access Network (AN) side of the V5.2 interface. In addition, the V5.2 protocol may use up to sixteen 2,048 kbit/s links on one interface. It supports concentration using a dedicated protocol called the Bearer Channel

Connection (BCC), it has a communication channel protection function when the interface uses more than one

2,048 kbit/s link, and it includes a link control protocol to manage multiple links.

More information regarding the V5.2 protocol can be found on ETSI’s web site at http://www.etsi.com/.

35

ORCA Gateway Hardware Manual

Network Call Signaling (NCS)

NCS is PacketCable's version of Media Gateway Control

Protocol (MGCP). Using NCS, the ORCA RDT-8v can communicate directly with cable modems to establish a voice call. PacketCable is the industry consortium for definition and standardization of cable telephony networking.

Fax and Modem Support

The ORCA RDT supports Group III fax protocols V.17, V.21,

V.27 and V.29 at baud rates up to 14.4 Kbps as well as high speed modem standards such as V.34. The fax and modem signals will be passed through the ORCA RDT with no degradation of performance.

Maintainability

The following list describes the salient maintainability features of the ORCA RDT-8v:

• Hot-standby redundant capability on all control and switching modules. Live insertion and extraction of all modules

• Built-in test capability to identify and isolate failed modules

• Maintenance and configuration functions are performed remotely through the ORCA network management system

ORCA BTX-8 Overview

Currently, only the 8-slot chassis supports ORCA BTX release 1.0.

Nuera's ORCA (Open Reliable Communications Architecture) BTX (Broadband Telephony Exchange) product is designed to bridge the gap between traditional, circuit-based

Public Switched Telephone Networks (PSTNs) and the

36

Overview

emerging packet-switched networks. The ORCA BTX provides an excellent solution for merging digital broadband access networks with the legacy telephone network in a seamless, reliable manner. To accomplish this, the ORCA

BTX supports PacketCable standards.

ORCA Design

This section presents high-level information about the design philosophy of the ORCA BTX platform. The ORCA

BTX has been designed to serve carrier-grade environments that require:

• Open architecture

• High availability with redundancy

• High scalability

• Hot-swap capability

• NEBS compliance

Open Architecture

The internal open architecture of the ORCA BTX facilitates third-party software development or integration of off-theshelf applications. The ORCA BTX is capable of interfacing with an external, third-party soft switch.

High-Reliability

The ORCA BTX’s robust platform provides sufficient fault tolerance and redundancy to guarantee high availability.

Because ORCA BTXs carry large amounts of revenue-producing voice traffic, hardware or software faults are contained and not permitted to affect other system resources.

The ORCA BTX design enables distributed execution of control and processes, while its hot-swap capability enables all cards to be easily replaced in case of failure. These modules require no special tools or training to perform field replacement.

37

ORCA Gateway Hardware Manual

Control processes and signaling are backed up by a dual- processor configuration that has access to all the internal buses.

Scalability

The ORCA BTX supports between 1 and 16 T1s per chassis, using uncompressed, G.711 packetized Voice-over-IP (VoIP).

This enables emerging carriers to enter the market with a relatively low cost entry level product, which can easily be expanded as their business continues to grow.

Hot-Swap Capability

The BTX’s voice processing is performed by resource cards that can be hot-swapped out in the event of failure. Control and switching modules are backed up by a dual-processor configuration that accesses all internal buses. In addition, power and fan modules are also hot-swappable.

NEBS Compliance

The ORCA BTX product is certified Network Equipment

Building System (NEBS) Level-3 compliant. The rack depth of an ORCA BTX series chassis, for example, is suitable for mounting in a NEBS 24-inch-frame floor plan. For complete information regarding NEBS, see “Network Equipment

Building System Generic Equipment Requirements”, TR-

NWT-000063, Issue 4, July, 1991.

Feature Summary

This section provides an overview of the ORCA BTX’s features.

Voice Processing

• Built in adaptive echo cancellation with automatic convergence from 0–54 milliseconds

• Adaptive jitter buffer from 10–750 msec

38

Overview

• Advanced lost packet recovery (LPR)

Protocol Support

The ORCA BTX supports the following industry protocols:

• MGCP

• TGCP

• ISDN

TGCP

The PSTN Trunking Gateway Call Signaling Protocol

1.0 is a profile of MGCP derived from MGCP Version 1.0

IETF RFC 2705. The TGCP profile defines naming conventions, the usage of the session description protocol

(SDP), and the procedures that compose TGCP.

ISDN

Integrated Services Digital Network (ISDN) is a digital, worldwide public standard for sending voice and data packets over the public switched telephone network.

ISDN networks extend from the local telephone exchange to the remote user and include all of the telecommunications and switching equipment in between.

PacketCable Compliance

PacketCable is a project conducted by Cable Television Laboratories, Inc. (CableLabs) and its member companies. The

PacketCable project defines interface specifications to be used to develop interoperable equipment capable of providing packet-based voice, video and other high-speed multimedia services over hybrid fiber coax (HFC) cable systems using the DOCSIS 1.1 protocol.

The BTX-8 fulfills the role of a Media Gateway between the packet network and the PSTN. PacketCable qualification is achieved by successfully completing an Acceptance Test

Plan (ATP). ATPs consist of Compatibility Test Plans

(CTPs). The Media Gateway ATP consists of three (3) CTPs:

TGCP, Codec and Security. Two (2) CTPs are complete and

39

ORCA Gateway Hardware Manual

released: TGCP and Codec. The BTX-8 release 1.0 supports the functionality to comply with all aspects of the TGCP and

Codec CTPs.

Fax and Modem Support

The ORCA BTX supports Group III fax protocols V.17, V.21,

V.27 and V.29 at baud rates up to 14.4 Kbps as well as high speed modem standards such as V.34. The fax and modem signals will be passed through the ORCA BTX with no degradation of performance.

Maintainability

The following list describes the salient maintainability features of the ORCA BTX:

• Hot-standby redundant capability on all control and switching modules. Live insertion and extraction of all modules

• Built-in test capability to identify and isolate failed modules

• Maintenance and configuration functions are performed remotely through the ORCA network management system

40

2

C

HASSIS AND

C

OMPONENTS

This chapter presents the functional architecture of the

ORCA 21- and 8-slot gateways. It introduces the major gateway components, their functions, and inter-activities.

All chassis logic modules, power supplies, and the fan modules reside in a 21-slot, compact PCI (cPCI) chassis. Each slot permits the installation of a front and a rear card module separated by a midplane, which is functionally equivalent to a backplane. For more information on the ORCA

gateway logic modules, see "ORCA Gateway Card Modules" on page 51. The 8-slot gateway uses the same logic modules

and midplane design as a 21-slot chassis.

Chassis Overview

Dimensions

The 21-slot chassis encloses a card cage, two power supply modules at the bottom of the chassis, and two fan modules at the top. The chassis, which is made in compliance with the cPCI specification, fits into an Electronics Industry

Association (EIA) standard 19-inch rack and houses 21 single-width cards. The chassis is 28 inches tall.

41

ORCA Gateway Hardware Manual

The 8-slot chassis encloses a card cage, four power supply modules at the top of the chassis, and two fan trays on either side of the chassis. The chassis is also made in compliance with the cPCI specification and the EIA 19-inch standard racks. The BTX-8 chassis is 10.5 inches tall and houses

8 single-width cards.

Intercard Signals

Many intercard signals can be grouped as busses described as follows:

H.110 Bus

This is the ECTF standard PCM highway. It provides 32

8.192 MHz highways for a total capacity of 4096 64Kbps channels.

100Base-T LANs A/B

These are two independent, 100Base-T ethernet LAN segments per slot supported by redundant, switched

HUB2 modules.

Auxiliary Bus

This bus provides miscellaneous interconnects. Signal functions include: power-supply monitor and control, system resets, power, fan monitor and control, temperature monitor, alarms, and hot-swap status and control.

PCI Standards

The ORCA hardware system implements the industry standard compact PCI (cPCI) specification. cPCI enables the porting of IBM PC architecture to an industrial-grade platform. The PCI bus used by most Pentium-based PCs is the core of the cPCI electrical specification.

The backplane PCI bus has a high-speed, impedance-controlled design.

42

Chassis and Components

Power Supplies

The two power supplies are accessible from two drawers at the bottom front of the ORCA 21-slot chassis. On the 8-slot chassis, the four power supplies are accessible from the front top of the chassis. All modules operate in parallel with each other and are hot-swappable. If any power supply fails, sufficient power continues to be available from any remaining supplies.

Power modules are equipped with single line inputs to support two separate power grids. Input line power is not bussed.

For information on how to hot-swap the power modules, see

"21-Slot Chassis Power Modules" on page 112 for the 21-slot

chassis, or see "8-Slot Chassis Power Modules" on page 117

for the 8-slot chassis.

Fan Modules

In the ORCA 21-slot chassis, cooling is provided by two fans installed in side-by-side hot-swappable trays located at the top of the enclosure. The fans draw air into the bottom of the unit. It then traverses upward past the card modules and exits from the top rear of the unit.

In the ORCA BTX-8, cooling is provided by two hot-swappable fan trays installed on each side of the unit. The fan trays draw air from the air inlet located on the right side of the unit to the exhaust vent located on the left rear side of the unit.

The ORCA gateway system detects fan operational status through a tachometer reading. If fan output is compromised by failure or loss of rotational speed, an alarm condition is reported by the CM module. The failed module can then be replaced while the ORCA gateway is powered on, thereby restoring full cooling capacity to the gateway.

43

ORCA Gateway Hardware Manual

For information on hot-swapping the fan modules, see "21-

Slot Chassis Ventilation" on page 117 for the 21-slot chassis,

or see "8-Slot Chassis Ventilation" on page 119 for the 8-slot

chassis.

21-Slot Base Unit

Front View

Figure 3 on page 45 shows the front view of an ORCA 21-slot chassis gateway with the front cover removed. At the top of the unit are two removable fan modules. The front card cage is directly below the fans. For the GX-Series release 8.0, placement of the CM, HUB2, and UPM3 cards must match the placement in the following list:

• Slot 1: HUB2

• Slot 2: CM

• Slots 3-4: UPM3 cards

• Slot 5: HST

• Slots 6-11: UPM3 cards

• Slot 12: HST

• Slot 13: HUB2

• Slot 14: CM

• Slots 15-20: UPM3 cards

Note

The quantity and placement of the UPM3 cards in the chassis is dependent upon the required vocoder groups and number of DS3s needed. For more information on GX-Series release 8.0 DS3 channel mapping, please see the accompanying software manual.

44

Chassis and Components

Directly below the card cage is the air intake area. Air is drawn upward by the fans above. At the bottom of the unit are two power supply modules, each with an air intake fan.

All cards can be hot-swapped.

LEDs

Fan Modules (2)

Thumb-Latch Releases

Front

Card Bay

(21 Slots)

LEDs

Thumb-Latch Releases

Slot 1 Slot 21

Air Intake

ESD

Power

Supply

Modules (2)

Power Supply

Power Supply

LEDs

Figure 3. ORCA Gateway 21-Slot chassis, Front View (Cover Removed)

Back View

Figure 4 on page 47 shows a view of an ORCA gateway 21slot chassis from the back. At the top of the unit is an air exhaust area. Air, which is drawn in at the bottom front of the unit by the dual fans, is expelled here. The rear card cage is located directly below the air exhaust outlet.

45

ORCA Gateway Hardware Manual

For the GX-Series release 8.0, placement of the CMX,

HUB2X, HSTX, and Bridge cards, which provide interfaces to external units, must match the placement in the list below. All cards in all releases must be installed in the same rear slot number as their respective front card:

• Slot 1: HUB2X

• Slot 2: CMX

• Slot 5: HSTX

• Slots 7-10: Bridge card

• Slot 12: HSTX

• Slot 13: HUB2X

• Slot 14: CMX

Below the card cage and to the left of the unit is an electrostatic discharge (ESD) connector. Dual AC and dual DC power connections are at the bottom of the unit. All components can be hot-swapped. See Figure 4 on page 47.

46

Slot 21

Chassis and Components

Air Exhaust

Slot 1

Thumb-Latch

Releases

Rear

Card Bay

(21 Slots)

LEDs

Thumb-Latch

Releases

ESD

Power

Connectors

AC

~ ~

DC (A)

DC (B)

+

-

DC Ground

AC

~ ~

Air Exhaust

Figure 4. ORCA Gateway 21-Slot chassis, Back View

47

ORCA Gateway Hardware Manual

8-Slot Base Unit

Front View

Figure 5 on page 49 shows the front view of an ORCA 8-slot

gateway with the front cover removed. At the top of the unit are four removable power supply modules. The front card cage is directly below the power supplies. At the sides of the unit are two removable fan trays. Placement of the CM,

HUB2, and UPM cards must match the following list:

• Slot 1: HUB2

• Slot 2: CM

• Slots 3-6: UPM3/UPM4

• Slot 7: HUB2

• Slot 8: CM

Note

Currently, the UPM4 module is only available for use with the RDT-8v (V5.2) gateway. All other gateways use the

UPM3 module.

To the right of the card cage is the air intake area. Air is drawn inward by the intake fan module. Air is exhausted from the rear of the chassis by the exhaust fan module located at the left front of the chassis.

All cards and fan trays can be hot-swapped.

48

Chassis and Components

Power

Supply

Modules (4)

8

Front

Card Bay

(8 Slots)

ESD

ESD

1

Exhaust Fan

Module

Thumb-Latch Releases

Intake Fan

Module

Air Intake

Figure 5. ORCA Gateway 8-Slot chassis, Front View (Cover Removed)

Back View

Figure 6 on page 50 shows a view of an ORCA gateway 8-

slot chassis from the back. At the right of the unit is an air exhaust area. Air which is drawn in at the left front of the unit by the intake fan module is expelled here. The rear card cage is located directly to the left of the air exhaust outlet.

Placement of the CMX, HUB2X, and UPMX cards, which provide interfaces to external units, must match the list below. All cards must be installed in the same rear slot number as their respective front card:

• Slot 1: HUB2X

• Slot 2: CMX

• Slots 3-6: UPMX

49

ORCA Gateway Hardware Manual

• Slot 7: HUB2X

• Slot 8: CMX

At the top left of the rear of the unit is an electrostatic discharge (ESD) connector. Dual AC power connections and switches are located at the top center of the unit. All compo-

nents can be hot-swapped. See Figure 6 below.

Power Connectors and Switches

ESD

8

C/D

Rear

Card Bay

(8 Slots)

A/B

DC Ground

1

Thumb-Latch Releases

Air Exhaust

Figure 6. ORCA Gateway 8-Slot chassis, Back View

50

3

ORCA G

ATEWAY

C

ARD

M

OD

-

ULES

This chapter describes the function, features, and hardware connections of every ORCA gateway card module.

Front Cards

GX-21 R. 8.0

RDT-8g R. 7.x

RDT-8v R. 7.x

BTX-8 R. 1.0

X

X

This section describes the various cards that occupy the

ORCA gateway front card cage. The front cards, which include the CM, CM3, HUB2, HST, UPM3 and UPM4 modules, perform the majority of the unit’s logical operations.

They are accessed from the card cage in the front of the unit.

The following table lists the cards as they are used in each product release:

CM CM3

X

HST

X

HUB2

X

X

X

X

UPM3

X

X

X

UPM4

X

Table 1. Front Card Usage Matrix

ORCA Gateway Hardware Manual

CM Module

The control module (CM) controls and coordinates all resources within an ORCA chassis. All configuration and control processes pass through the active CM before being distributed to other boards.

To avoid the failure of system control, two identical control clusters are used to control two LANs. Each control cluster consists of two pairs of modules (CM/CMX and HUB/HUBX) which independently control a LAN. The control clusters are labeled either A or B in association with the two LANs, also labeled A and B. The labels do not imply primary/secondary or online/offline operation.

In the event the active cluster fails, the system switches automatically to the offline (standby) cluster. This hand-off of control provides continuous system operation in the event of a control cluster failure. The failed (newly offline) cluster can then be replaced.

CM3 Module

The CM3 module is an updated version of the CM module, designed with the processing power to handle the higher traffic load of multiple DS3 connections found in the GX-

Series release 8.0 product. The CM3 is available only for that product.

HST Module

The High Speed Telecom (HST) module, together with the

HSTX module, provide the high-speed interface for the

ORCA gateway. Its function is to perform multiplexing on the incoming DS3 channels. The HST splits out the 2016 bidirectional PCM channels and delivers the payload to the various UPM3 modules for processing and packetization

52

ORCA Gateway Card Modules

using the H.110 interface. The HST also performs inverse multiplexing and framing for outgoing signals.

HUB2 Module

The HUB2 module is an ethernet switch with segments to all other modules. The internal LANs enable the CM, UPMs,

HSTs, and the external LAN to transfer control, status, and payload data with each other. A gateway chassis has two

HUB2s, each servicing one of the two internal LANs.

The HUB2 is a switched hub; it divides its transmit and receive time between any number of concurrent connections, allowing data to pass through the HUB2 rapidly and efficiently. The HUB2 also supports simultaneous two-way traffic with full and half duplex modes and supports the HUB2X which has a gigabit or a 100 Mbps ethernet interface.

UPM3 Module

The Universal Processor Module (UPM3) is the payload processing module of the gateway. It is responsible for processing and packetization of the traffic on the voice channels within the ORCA gateway.

The UPM3 is processor intensive, having multiple digital signal processors (DSPs) controlled by a high-capacity microprocessor. It supports:

• Ethernet LAN segments (2)

• DSPs (8)

• H.110 interface

UPM4 Module

The UPM4 module is an updated version of the UPM3 module, designed with a faster processor to handle the higher

53

ORCA Gateway Hardware Manual

traffic load of multiple E1 connections found in the RDT-8v product. The UPM4 is currently available only for the RDT-

8v.

54

Transition (Back) Cards

ORCA Gateway Card Modules

GX-21 r. 8.0

RDT-8g r. 7.0

RDT-8v r. 7.0

BTX-8 r. 1.0

The back cards, or transition modules, provide all of the interfaces to equipment outside of the unit.

The following table lists the cards as they are used in each product release:

X

X

X

X

CMX HSTX

X

HSTX

Bridge

X

HUB2X

1000SX

X

HUB2X

100T

X

X

X

Table 2. Back Card Usage Matrix

LoadX

X

CMX Module

UPMX

X

X

X

The mating back slot card for the CM is the CM Transition module (CMX).

55

ORCA Gateway Hardware Manual

CMX

DB9 (M)

DB15 (F)

Figure 7. CMX Ports

Primary Functions

The CMX performs the following tasks:

Hot swap status and control

Handles all signals required for high-availability hot swapping of all ORCA gateway modules.

56

ORCA Gateway Card Modules

Alarms

Supports contact closure alarm generation and detection with three levels of severity.

Fan monitor

Receives status of cooling fans.

Power monitoring

Monitors power supply status lines in order to sense problems in either input or output voltages. Provides power status interface to the CM card.

Connectors

The CMX has the following ports:

• One console port, which is available for basic unit configuration through a DB9 (M) connector. Only

RS232 electrical levels are supported for this port.

• One alarm port, which is available through a DB15

(F) connector, providing three output closures and three closure-detection inputs.

HSTX Module

The High Speed Telecom Transition module (HSTX) provides the connection between the DS3 interface and the

57

ORCA Gateway Hardware Manual

HST. It also provides clock jitter attenuation functions on incoming traffic.

HSTX

DS3

Ports

Figure 8. HSTX Module Ports

The HSTX performs the following task:

Telco Interfaces

The HSTX has three 75 ohm BNC-type connectors. Each connector serves as the interface to an independent DS3 line.

HSTX Bridge Module

The bridge module is a passive card that provides system redundancy. It is a flat panel that spans the width of four card slots between the two HSTX modules. The module has

BNC connectors set in a column in the middle of the module; they link the DS3 trunks to the gateway. The module has six more sets of Tx/Rx BNC connectors that, once connected to each HSTX, split each DS3 trunk into two identical trunks,

58

ORCA Gateway Card Modules

routing one to the active HSTX and the other to the standby

HSTX, thereby ensuring system redundancy.

HSTX Bridge

75 Ohm BNC

Figure 9. HSTX Bridge Module Ports

HUB2X Modules

The HUB2X is a straightforward interconnect card. There are two versions of the HUB2X card: the 1000Base-SX model and the 100Base-T model.

59

ORCA Gateway Hardware Manual

HUB2X-1000Base-SX

HUB2X-1000Base-SX

RJ45

OPTICAL

Figure 10. HUB2X-1000Base-SX Ports

Primary Functions

The HUB2X 1000Base-SX (21-slot chassis compatible only) model performs the following tasks:

1000Base-SX Interconnection

Routes a 1000Base-SX link from the HUB2 card to one optical gigabit ethernet connector, thereby enabling a

1000Base-SX external LAN connection to the internal buses.

100Base-T Configuration Port

The 100Base-T port is also provided for a 100Base-T connection from an external LAN to the internal buses.

Connectors

The single optical connector provides a 1000Base-SX connection, and a RJ45 connector provides a 100Base-T

60

ORCA Gateway Card Modules

ethernet connection. The two ports cannot be used simultaneously.

HUB2X-100Base-T

HUB2X-100Base-T

RJ-45

Figure 11. HUB2X-100Base-T Ports

Primary Functions

100Base-T Interconnection

Routes a single 100Base-T link from the HUB2 card to an ethernet connector, thereby enabling external LAN connections to the internal buses.

Connectors

The single RJ45 connector provides a 100Base-T ethernet connection.

Load Transition Module

One LoadX card is shipped with every 21-slot system and is used on the 21-slot chassis only. The LoadX card is required to satisfy the power supplies’ minimum load requirement when the gateway is not fully loaded. The LoadX card is fac-

61

ORCA Gateway Hardware Manual

tory-installed or is shipped as a spare when the system is purchased with a full compliment of cards. The LoadX card should be installed into any back slot intended for UPMX cards whenever the 21-slot chassis is not fully loaded.

UPMX Module

The Universal Processor Transition module (UPMX) provides the connection between the T1/E1 interface and the

UPM3/UPM4.

UPMX

DB25 (M)

DB26 (F)

DB26 (F)

Figure 12. UPMX Card Ports and Connectors

Primary Functions

The UPMX performs the following task:

Telco Interfaces

Serves as an interface to a T1/E1 trunk.

Dual serial ports exist on the card, but are not supported.

62

ORCA Gateway Card Modules

Module Redundancy

The ORCA gateway is designed to allow for a distributed execution of control and processes to minimize service loss due to module failure. In the event of module failure, components can be hot-swapped, thereby permitting the gateway to continue in operation.

Voice processing is performed by resource cards that can logically be swapped out in the event of a failure. Control processes are backed up by a dual-processor configuration that has access to all of the internal buses.

Control Clusters

Central to the ORCA gateway design are functional groups of plug-in modules called control clusters. A control cluster consists of related CM, CMX, HUB2, and HUB2X modules.

ORCA gateway design provides two control clusters; one cluster is a redundant backup for the other.

In normal operation, the active CM monitors operational status of its cluster (HUB2, HUB2X, CMX) by monitoring individual cluster members. It also polls all UPM3 and HST modules through the ORCA internal bus system.

The standby CM monitors activity in the active cluster and its own cluster, mirroring activity in the active cluster without assuming control of the bus system. The standby CM also monitors activity of all UPM3 and HST modules.

In the event of a failure, or a loss of performance in the active control cluster, the ORCA gateway can automatically notify the NMS and switch control to its standby control cluster, thereby maintaining the system in service.

The ORCA gateway then continues operation under control of the redundant control cluster indefinitely, until a failure or loss of performance again initiates switchover. (This can

63

ORCA Gateway Hardware Manual

Note

also be activated by issuing the appropriate command from the Nuera Configurator.)

After a switchover, the now inactive control cluster can be diagnosed and repaired and returned to a “warm” standby state.

The standby control cluster does not respond to console commands.

HST Clusters

A HST cluster consists of related HST and HSTX modules.

ORCA gateway design provides two HST clusters; one cluster is a redundant backup of the other. In normal operation, the active CM monitors the operational status of both HST clusters as well as the DS3 alarm status. In the event of a failure, either on the card or on a DS3 port, the active CM can switch the active HST cluster.

If the CM sees the same DS3 port alarms on both HST clusters, it will not switch the active HST cluster. This redundancy feature allows active calls to proceed with minimal disruption when a fault to one of the HST clusters occurs.

64

4

I

NSTALLING THE

ORCA 21-

S

LOT

C

HASSIS

An ORCA gateway ships with all of its cards installed, making on-site hardware installation a simple process. The hardware installation section contains a list of necessary equipment and step by step instructions.

Nuera provides a sophisticated graphical user interface

(GUI) for system configuration, monitoring, and troubleshooting. These functions are performed by one of two solutions: the Nuera Configurator or NueraView. See the software manual (e.g., GX or RDT) for more information.

Installation Preparation

There are numerous preparations that should be performed prior to installing a gateway. The following information should allow you to prepare the installation site to met the gateway’s requirements and guidelines.

ORCA Gateway Hardware Manual

Site Environment Guidelines

Power Requirements

The site must provide either:

• 100- 250V

~

(VAC), 50/60Hz, 15A max.,

• or -42 to -62.5 V

– – –

(VDC), 30A max.

main power to each power supply module installed in the gateway. Each power feed must deliver 1.2 Kilowatts minimum power per gateway. Nuera recommends redundant power supply feeds to ensure the continuous operation of the gateway.

AC units should be wired using 14 AWG wire. DC units should be connected using 10 AWG wire. For more details on

the power requirements, see "Specifications" on page 143.

Space Allocation Guidelines

The gateway can be installed in an open rack, or in an enclosed cabinet as required by the site. The following installation options are currently supported:

• Open rack (provided by the site): EIA standard 19” rack used in an interior installation only. The 21-slot chassis can be front-mounted or center mounted in the rack. A single gateway requires 26.25” of vertical rack space, and 20” of rack depth.

• Enclosed environmental cabinet supplied by the site.

• A 23” Open rack can be used with adaptor mounts.

Airflow Requirements

Each 21-slot gateway is equipped with dual fan modules capable of providing 500 CFM of forced-air ventilation. The air intake is located on the lower front and side sections of the chassis, just above the power supplies. To prevent overheating, the air intake must not be obstructed. The exhaust

66

Installing the ORCA 21-Slot Chassis

vent is located on the upper 3.5” section on the rear of the gateway. The ambient temperature of the installation site must not exceed 50 C.

The gateway produces heat at a maximum of 4500 BTUs per hour. The facility air conditioning system must be capable of handling system cabinet heat to reduce the system cabinet air temperature to an acceptable level for proper operation.

The air conditioning system specifications should provide this information. Also, Nuera recommends that the limit for ambient dust content per cubic foot of air is 7,000 particles of one-micron size or larger. The air conditioning system specifications should provide this information as well.

Necessary Tools

ORCA Gateway Components

Before installing a 21-slot ORCA gateway into your network, make sure that in addition to this guide, your shipping package contains the following items:

• Pre-assembled ORCA gateway 21-slot chassis (with card modules installed)

• Locking front door

• Two power supply modules

• Cable kit (optional)

• all ORCA gateway documentation and software

Tools

Depending on the type of installation, you may require the following tools:

• Punch tool

• Digital multimeter

• Telephone test set

• A set of hand tools (such as cordless screwdriver, #2

Phillips screwdriver, 5/16” flat blade screwdriver,

SAE wrenches)

67

ORCA Gateway Hardware Manual

• Standard crimper tool

• Transmission test set (DS3 applications)

Safety Precautions

Caution

• The ORCA 21-slot chassis with power modules removed weighs approximately 110 lbs. Ensure that adequate manpower is available before attempting to remove the chassis from its shipping crate.

• For DC-powered gateways, connection to the -48 VDC power supply must be made with AWG 10 wires optionally supplied with the ORCA gateway. These AWG 10 wires must be secured by the cable clamps on the gateway and to the shelf (or rack) every 6 inches (15.24 CM3) thereafter.

• For AC-powered gateways, connection to the AC line must be made with AWG 14 wires optionally supplied with the

ORCA gateway. These AWG 14 wires must be secured by the cable clamps on the gateway and to the shelf (or rack) every 6 inches (15.24 CM3) thereafter.

• When installing or modifying telephone lines:

• Never install telephone wiring during a lightning storm.

• Never install telephone jacks in wet locations.

• Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.

• Before connecting an ORCA gateway to a data communications or telecommunications network, ensure that a qualified professional verify that the gateway is connected to a safety/earth ground both through the

AC mains connector and directly through the terminal at the rear of the chassis.

68

Installing the Chassis

Installing the ORCA 21-Slot Chassis

The ORCA 21-slot shipping crate is sealed with approximately 17 lag bolts. Use a 7/16” SAE socket wrench with a ratchet handle or other appropriate tool to remove the bolts.

Ensure that the shipping crate is in its upright position prior to removing the lag bolts.

The front panel can then be removed, providing access to the

ORCA 21-slot chassis and ancillary equipment.

When choosing the location to physically install the ORCA gateway and the mounting racks, it must be in a restricted access location, where access can be gained only by service personnel or by users who have been instructed in the precautions that must be taken. Also, proper security measures should be taken into consideration.

The ORCA 21-slot chassis is shipped with system front and rear card modules and fan modules installed. It is positioned within the shipping crate in its upright position. A blank panel is mounted over the two power supply bays to maintain the card cage in a rigid state during shipment. See Figure 13:

69

ORCA Gateway Hardware Manual

70

1 21

Blank Support Panel

Figure 13. ORCA 21-Slot Chassis

Caution

The ORCA 21-slot chassis with power modules removed weighs approximately 110 lbs (50kg). Ensure that adequate manpower is available before attempting to remove the chassis from its shipping crate.

1. Remove the ORCA 21-slot chassis from its shipping container. Ensure that ten rack-mount screws appropriate in size for your rack are immediately available. (Typically #10-32, or #10-24. Check your rack for proper screw size.)

2. The ORCA 21-slot chassis is shipped with its rack mount ears positioned for front (flush) mounting. To center mount the chassis, use a #2 Phillips screwdriver to remove the seven #10-32 screws affixing each rack mount ear. Reposition the rack mount ears to the center mount position. Replace all screws.

3. Lift the chassis and position it in the rack. The rack has keyhole cutouts for ease of installation. Ensure that all

Note

Installing the ORCA 21-Slot Chassis

holes in the mounting ears align with holes in the rack.

Quickly install one screw in the top corner of each side using an appropriate tool. Allow the installed screws to support the weight of the chassis while installing the remaining eight screws.

All ten screws must be installed.

For racks with equipment shelves installed, lift the ORCA

21-slot chassis and position it on the shelf. Install the ten mounting screws.

Power Module Installation

Once the chassis is mounted in the rack, you must install the power module into the chassis.

Caution

1. Installation must be performed by a qualified service person skilled in the installation and connection of power distribution systems, and is knowledgeable of applicable municipal electrical code requirements.

2. Before initiating this procedure, ensure that the main power cord(s) or cable(s) are not connected to the main power source and cannot carry a voltage potential until after this procedure is complete.

Caution

Electric shock risk may exist at the rear of the power bay. Do not touch or otherwise service this area unless all AC or DC power mains input voltages have been removed from the chassis.

71

ORCA Gateway Hardware Manual

The ORCA 21-slot chassis is shipped with two individually packaged power supply modules. Each power module weighs approximately 20 lbs (9kg).

Each ORCA 21-slot gateway power module is equipped with a spring-loaded, locking handle, which locks the module in position and releases the module from a locked position (see

Figure 14).

1 0 1 0

AC POWER

Locking Handle

Figure 14. ORCA Gateway Power Module

1. Remove the blank support panel from the ORCA gateway chassis which is attached by eight screws. Reserve two screws if installing two power modules; reserve five screws if installing a single power module.

2. Remove the power modules from their packaging.

Ensure that the power switches on the ORCA gate-

way chassis are in the “0” (Off) position. If the power switch is not in the off position, the power supply breaker may be damaged during the installation.

3. Align a power module in its upright position into the guide rails in an available power module bay. Slide the power module inward halfway as shown in Figure 15 on page 73.

72

Installing the ORCA 21-Slot Chassis

1 21

1 0 1 0

AC POWER

Figure 15. Power Module Installation

4. Disengage the spring-loaded locking handle by pushing the top of the handle vertically downward to release the locking mechanism. Rotate the handle outward, releasing the power module locking mechanism as shown in

Figure 16.

1 0 1 0

AC POWER

1 0 1 0

AC POWER

Figure 16. Power Module Locking Handle

5. With its locking handle disengaged, slide the power module inward to engage its rear guide pins.

6. Engage the locking handle.

73

ORCA Gateway Hardware Manual

7. Use a #2 Phillips screwdriver to install a screw previously saved from the support panel removal (Step 1) into the bottom center of the power module’s front panel.

Caution

The anchor screw at the base of the power module front panel must be installed to inhibit non-service personnel from gaining access to the power bay.

8. Repeat this procedure for the second power module. If you are not installing a second power module, cover the opening of the second power bay with the power supply cover plate provided. Mount the cover plate using four previously-saved screws (Step 1).

Connecting Main Power

Caution

The ORCA 21-slot gateway is configured for either DC power or AC power. Equipment sites must provide two independently fault current protected -48 VDC power feeds, or two independently fault current protected 110/220 VAC power feeds, or one of each. DC power feeds should be fault current protected at 30 Amps. AC feeds should be fault current protected at 15 Amps.

1. Installation must be performed by a qualified service person who is skilled in the installation and connection of power distribution systems, and is knowledgeable of applicable municipal electrical code requirements.

2. If the ORCA 21-slot gateway is to be configured for two redundant DC power modules, the installation site should provide two independent -48 VDC power mains circuits to provide redundancy in the power mains source. Should one -

48VDC power mains circuit fail, the other circuit and its associated power module will continue to provide power to the ORCA gateway.

74

Installing the ORCA 21-Slot Chassis

Grounding the ORCA 21-Slot Chassis

Caution

Before connecting the AC or DC power mains, a separate ground strap (which is connected to a centralized ground network in the installation site) must be connected to the ground terminals at the rear of the power shelf assembly. The strap used for this purpose must be 10 AWG in size or larger. A dual 1/4” hole ring lug must be securely crimped to the end of the wire that connects to the ORCA gateway ground terminal.

1. Place the two-hole ring lug of the ground strap over the threaded studs of the ground terminal.

2. Fasten a 1/4” lock washer and a 1/4”-20 nut on each threaded stud. Tighten each nut to a torque of 6 ft/lbs

(0.83 kg/m). See Figure 17.

10 AWG Grounding Strap

Earth Ground

Figure 17. ORCA 21-Slot Chassis Ground Terminal Posts

Connecting DC Power

Caution

The two-wire cable used for connecting the DC terminals at the rear of the ORCA chassis must be of type STO (or equivalent) and 10 AWG in size or larger. Ring terminal lugs 1/4”

ID in size must be securely attached to the ends of the wires that attach to the DC terminals.

75

ORCA Gateway Hardware Manual

1. Use a #2 Phillips to remove the four screws affixing the

DC terminal cover. Remove the terminal cover to allow access to terminal posts. (See Figure 18).

DC INPUT A

+

_

Caution

+

_

DC INPUT B

Figure 18. ORCA 21-Slot Gateway DC Power Terminal Posts

2. From a fault current protected –48VDC power feed, run an appropriate length of insulated color-coded 10 AWG

(minimum) stranded cable for –48V, and –48V return to the ORCA gateway. Use cable run and bend radius information gathered during the site survey.

Before initiating this procedure, ensure that the main power cord(s) or cable(s) are not connected to the main power source and cannot carry a voltage potential until after this procedure is complete.

3. Make power connections at the rear of the ORCA gateway chassis. Terminate each power cable with a 1/4” x 10

AWG crimp-on solder-less lug-type connector. Allow no frayed ends or exposed uninsulated wire. See Figure 19.

76

Installing the ORCA 21-Slot Chassis

Figure 19. ORCA DC Power Cabling

4. Two pairs of threaded studs are provided at the DC terminal block. Each set is labeled + and – as shown in Figure 18 on page 76. The DC power mains wire providing

–48VDC must be attached to the stud labeled – and the wire providing the return for –48VDC must be attached to the stud labeled +.

The 1/4” ring lug on each wire must be securely attached to the associated DC terminal stud with a 1/4” lock washer and a 1/4”-20 nut. Tighten each nut to a torque of

6 ft/lbs (0.83 Kg/M).

5. Use a #2 Phillips screw driver to remove the strain relief clamp located along the bottom of the unit by removing its mounting screw (See Figure 20). Spread and place the strain relief clamp over each cable.

DC Terminal Block Earth Ground

Cable Clamps

Figure 20. Fastening Cable Clamps

6. Use a #2 Phillips screw driver to reattach the strain relief clamps. Reposition the cable clamps and cables on chassis as necessary for optimal cable routing.

77

ORCA Gateway Hardware Manual

7. Use a #2 Phillips screw driver to replace the terminal cover.

Connecting AC Power

Caution

1. Installation must be performed by a qualified service person who is skilled in the installation and connection of power distribution systems, and is knowledgeable of applicable municipal electrical code requirements.

2. If the ORCA 21-slot chassis is to be configured for two redundant power modules, the installation site should provide two independent AC power mains circuits to provide redundancy in the power mains source. Should one AC power mains circuit fail, the other circuit and its associated power module will continue to provide power to the ORCA gateway.

3. For US/Canada installations, when connecting an ORCA gateway to a 100–127VAC service, use Nuera cable assembly

249-025 or equivalent. When connecting an ORCA gateway to a 220–250VAC service, use Nuera cable assembly 504-167 or equivalent.

4. For installations in the United Kingdom, use the 504-153

BS 1363 plug power cord (13A/250VAC); for all other international installations, use the 504-154 CEE 7/7 “Schuko” power cord (16A/220-230VAC) or the 504-159 unterminated power cord.

5. Use only single-phase, line-to-neutral AC voltage for power input.

Power Cable Requirements

The three-wire cable used for connection to the AC terminals at the rear of the ORCA 21-slot chassis (see Figure 21) must be:

• Type STO

• 14 AWG

78

Installing the ORCA 21-Slot Chassis

• Less than 14.75 feet (4.5 meters)

Ring terminal studs (14 AWG x #10) must be securely attached to the ends of the wires that are used to connect to the AC terminal block.

For US/Canada installations, use connector type NEMA 5-

15P for 100–120VAC applications, or connector type NEMA

L6-30 for 220–250VAC applications.

For international installations, power cables are not supplied with connectors. Power connectors must be provided by the installation site, or the international power cable must be hard-wired to a junction box.

The wire used must be color coded and connected as shown in Table 3.

Table 3. Power Cable Color Codes

AC Terminal

Line

Neutral

Ground

US/Canada

Black

White

Green/yellow or

Green

International

Brown

Blue

Green/yellow

1. Use a #2 Phillips screwdriver to remove the mounting screws affixing the AC terminal cover. Remove the terminal cover to allow access to screw terminals. See Figure 21.

AC

INPUT A

~ ~

Line Neutral Earth Ground

Figure 21. AC Terminal Block

2. Use a #2 Phillips screw driver to remove the strain relief clamp directly under the AC terminal by removing its mounting screw.

79

ORCA Gateway Hardware Manual

3. From an AC power mains source, run an appropriate length of color-coded AWG 14 stranded cable for earth ground, AC line (L), and neutral (N) to the ORCA chassis. Use cable run and bend radius information gathered during the site survey.

Caution

1. Before initiating this procedure, ensure that the main power cord(s) or cable(s) are not connected to the main power source and cannot carry a voltage potential until after this procedure is complete.

2. The ground wire of the AC cable should be attached first to the terminal marked with this international ground symbol.

4. The contacts on the AC terminal block are labeled L, N, and the international ground symbol. Insert the screw provided through the ring lug of the ground wire of the

AC cable. Use a flat blade screw driver to attach the screw to the terminal of the AC terminal block labeled with an international ground symbol.

5. Connect the terminal lugs to the AC power connectors and firmly tighten screws. The power cables should be anchored at regular lengths of 6 inches. See Figure 22.

AC

INPUT B L

~

Figure 22. AC Screw Terminals

6. Spread and place the strain relief clamp over each cable.

Use a #2 Phillips screw driver to reattach the strain relief clamps. Reposition the cable clamps and cables on chassis as necessary for optimal cable routing.

7. Replace the AC terminal cover and tighten mounting screws.

80

Caution

Installing the ORCA 21-Slot Chassis

Custom Length AC Power Cables

Should the power cables available from Nuera be of inappropriate length for your installation, use the following information to construct a power cable of custom length. Observe

the requirements listed in “Power Cable Requirements” on page 78.

1. Installation must be performed by a qualified service person skilled in the installation and connection of power distribution systems to ORCA-class equipment who is knowledgeable of applicable municipal electrical code requirements.

2. Before initiating this procedure, ensure that the main power cord(s) or cable(s) are not connected to the main power source and cannot carry a voltage potential until after this procedure is complete.

1. From an AC power mains source, run an appropriate length and gauge of color-coded AWG stranded cable for earth ground, AC line (L), and neutral (N) to the ORCA gateway. Use cable run and bend radius information gathered during the site survey.

2. Make power connections at the rear of the ORCA chassis. Terminate each power cable with a crimp-on solderless lug-type connector. Allow no frayed ends or exposed uninsulated wire. See Figure 23.

10–12 AWG x #10

Figure 23. Attaching Terminal Lugs

81

ORCA Gateway Hardware Manual

Applying Power

Caution

Power should only be applied to the ORCA gateway after a thorough inspection of all connections made. Allow no frayed ends or exposed uninsulated wire. Ensure that the ORCA gateway power switches are in the Off (0) position.

Energize the DC or AC power mains by moving the respective circuit breaker actuators to their On (1) position.

Apply power to the ORCA 21-slot gateway by moving power switches for both power modules to their On (1) position.

Observe that the ORCA gateway’s fan modules and power modules indicate green LEDs. The ORCA gateway’s poweron self-test (POST) initiates. See Figure 24 on page 82.

1 0 1 0

ON (1) Position

1 0 1 0

AC POWER

AC POWER

Ganged Power Switches

Figure 24. Applying Power

Power-On Self-Test

The ORCA 21-slot gateway’s power-on self-test is a ROMbased program that ensures proper initialization of the gateway. Status indicating LEDs present on each system module transition in sequence from blue, blinking yellow (Power On

Self Test), to green (online).

82

Installing the ORCA 21-Slot Chassis

If a slot configuration exists for each installed module, the module is programmed automatically. Use the ORCA NMS

(either NueraView for ORCA or the Configurator) to configure the slot and place the module online. See the online help for information.

Signal Cables

ORCA cables are optionally provided with the ORCA gateway. Connector types vary depending on the ORCA gateway configuration and existing ancillary equipment types.

ORCA 21-slot gateway connector types include DB-9M, DB-

15F, DB-25M, BNC, and RJ-45F connectors.

Ancillary equipment connector types can vary with the application. Use cables with appropriate connector types to suit required interface types. For specific information about

available ORCA gateway cables, see "Cables and Connectors" on page 161.

All gateway signal cables connect at the rear of the ORCA chassis. Use cable run and bend radius information gathered during the site survey to run appropriate lengths of signal cables between the ORCA gateway and ancillary equipment. Be sure to fasten cable anchor screws and clamps.

Connecting the HSTX Bridge Card

Cables

The HSTX Bridge card consists of twelve BNC connectors to terminate up to three DS3 circuits. The center column of the

BNC connector array terminates coaxial cables connecting the gateway to the carrier demarcation point. Each DS3 circuit requires two coaxial cables: one to transmit, and one to receive.

83

ORCA Gateway Hardware Manual

Passive electronic components of the HSTX/Bridge split the

DS3 circuits to the outer two columns of BNC connectors.

The outer two columns of BNC connectors are then connected to the HSTX cards via coaxial cables as shown below

in Figure 25.

Coaxial cable-pairs connect carrier-provided DS3 circuits to

HSTX cards via HSTX/Bridge

Coaxial cable-pairs of carrier-provided DS3 circuits term inate on Center Colum n

T

R

T

R

T

R

T

R

T

R

T

R

T

R

T

R

T T T

R R

T

H

S

T

X

R

HSTX/Bridge

21 20 19 18 17 16 15 14 13 12 11 10 9 8

R

7 6

H

S

T

X

T

R

T

R

T

R

5 4 3

Protected

HSTX Module

2 1

W orking

HSTX Module

Figure 25. The Bridge Card Connected to the Protected (standby) and

Working (active) HSTX Modules.

Connect twelve coaxial cables from the Bridge to the HSTX modules. Make sure to match up transmit (Tx) and receive

(Rx) connectors on the Bridge module to the Tx and Rx connectors on the HSTX modules.

84

5

I

NSTALLING THE

ORCA 8-

S

LOT

C

HASSIS

An ORCA gateway ships with all of its cards installed, making on-site hardware installation a simple process. The hardware installation section contains a list of necessary equipment and step by step instructions.

Nuera provides a sophisticated graphical user interface

(GUI) for all system configuration, monitoring, and troubleshooting. These functions are performed by one of two solutions: ORCA Configurator or NueraView for ORCA. See the software manual (e.g., GX or RDT) for more information.

Before You Start

Tools

Depending on the type of installation, you may require the following tools:

• Punch tool

• Digital meter

• Telephone test set

• A set of hand tools (such as cordless screwdriver, #2

85

ORCA BTX-Series ORCA Gateway Hardware Manual

Phillips screwdriver, 5/16” flat blade screwdriver,

SAE wrenches)

• Standard crimper tool

• Transmission test set (E-1/T-1 applications)

Unpacking the 8-Slot Chassis

The ORCA 8-slot gateway is shipped with all required accessories. The contents include:

• Pre-assembled ORCA 8-slot chassis (with card modules, fans, and power supplies installed)

• Front panel

• Connecting cables (optional)

• ORCA software and documentation

86

Installing the ORCA 8-Slot Chassis

Opening the Carton

See Figure 26 for shipping carton contents.

Figure 26. ORCA 8-Slot Gateway Shipping Carton and Contents

Prior to unpacking, ensure that the shipping carton is in its upright position to avoid damaging the unit.

Installing the ORCA Chassis

The ORCA 8-slot chassis is shipped with system front and rear card modules, fan trays, and power supply modules

87

ORCA BTX-Series ORCA Gateway Hardware Manual

installed. It is positioned within the shipping carton in its

upright position. See Figure 27.

88

Figure 27. ORCA 8-Slot Chassis

Caution

The ORCA 8-slot chassis with power modules installed weighs approximately 45.3 lbs (20.55 kg). Ensure that adequate manpower is available before attempting to remove the chassis from its shipping container.

The gateway is intended only for installation in a restricted access location. The recommended maximum operating temperature is 50 C. When installing the chassis in a multi-unit rack assembly or in proximity to other operating equipment, measures should be taken to ensure that the maximum operating temperature of the gateway is not exceeded. Likewise, measure should be taken to ensure that airflow is not compromised.

3. Remove the 8-slot chassis from its shipping container.

4. The 8-slot chassis is shipped with its rack-mount ears positioned for front (flush) mounting. To center mount the chassis, use a #2 Phillips screwdriver to remove the five #6-32 screws affixing each rack-mount ear. Reposition the rack-mount ears to the center mount position.

Replace all screws. Take care that the rack is correctly mounted, so that a hazardous condition is not created due to an uneven mechanical load.

5. Ensure that eight rack-mount screws appropriate in size for your rack are immediately available. (Typically #10-

32, or #10-24. Check your rack for proper screw size.)

Note

Installing the ORCA 8-Slot Chassis

6. Lift the chassis and position it in the rack. Ensure that all holes in the mounting ears align with holes in the rack. Install one screw in the bottom corner of each side using an appropriate tool. Allow the installed screws to support the weight of the chassis while installing the remaining six screws.

All eight screws must be installed.

For racks with equipment shelves installed, lift the 8-slot chassis and position it on the shelf. Install the eight mounting screws.

Remember to check the nameplate rating to ensure that there is no overloading of the supply circuits. Also, reliable earthing of rack-mounted equipment should be maintained.

Supply connections other than direct connections to the branch circuit should be given careful attention.

Connecting Main Power

8-slot gateways are configured for either DC or AC power. If the gateway is redundant, both power supply pairs are designed to accept separate power feeds. ORCA sites must provide either two independently fault current protected -48

VDC power feeds or two independently fault current protected 110–240 VAC power feeds. DC power feeds should be fault current protected at 15 Amps. AC feeds should be fault current protected at 7 Amps minimum.

Grounding the ORCA Unit

Caution

Installation must be performed by a qualified service person who is skilled in the installation and connection of power distribution systems to ORCA-class equipment and is knowl-

89

ORCA BTX-Series ORCA Gateway Hardware Manual edgeable of applicable municipal electrical code requirements.

Caution

Before connecting the AC or DC power mains, a separate ground strap (which is connected to a centralized ground network in the installation site) must be connected to the ground terminals at the rear of the 8-slot unit. The strap used for this purpose must be 10 AWG in size or larger. A dual #10 hole ring lug must be securely crimped to the end of the wire that connects to the gateway ground terminal.

1. Place the two-hole ring lug of the ground strap over the threaded studs of the ground terminal.

2. Fasten a #10 lock washer and a 10-32 nut on each threaded stud. Tighten each nut to a torque of 29.7 in/lbs

(0.34 kg/m). See Figure 28.

Earth Ground

10 AWG

Grounding Strap

Figure 28. 8-Slot Ground Terminal Posts

DC Power Cable Requirements

The cable pair used for connecting the DC terminals at the rear of the 8-slot chassis must be:

• Type STO wire

• minimum size 26 AWG

• Supplied with #8 ring terminal lugs for terminal connection

• Connected to a fault current protected 48VDC power feed.

90

Installing the ORCA 8-Slot Chassis

The 8-slot gateway should be installed with a listed fuse rated with a minimum of 60 V, and a maximum of 15 A. The

DC supply source should be electrically isolated from any

AC sources, and must have a reliable ground connection.

Connecting DC Power

Caution

Installation must be performed by a qualified service person skilled in the installation and connection of power distribution systems to ORCA class equipment who is knowledgeable of applicable municipal electrical code requirements.

Caution

The ground strap of the gateway should be attached first to the terminal marked with this international ground symbol.

Caution

Before initiating this procedure, ensure that the main power cord(s) or cable(s) are not connected to the main power source and cannot carry a voltage potential until after this procedure is complete.

Caution

If the ORCA unit is to be configured for two redundant pairs of power modules, the installation site should provide two independent DC power mains circuits to provide redundancy in the power mains source. Should one DC power mains circuit fail, the other circuit and its associated power module will continue to provide power to the 8-slot unit.

1. Remove the DC terminal block cover from the gateway’s

DC input terminal block A/B to allow access to the #8 screw terminals.

2. Connect the positive side of the 48VDC power feed to the screw terminal labeled “BAT RTN (+)”, and the negative side to the terminal labeled “-48VDC (–)”. Ring terminal

91

ORCA BTX-Series ORCA Gateway Hardware Manual

lugs are recommended to ensure a secure connection.

Allow no frayed ends or exposed uninsulated wire. See

Figure 29.

Figure 29. DC Power Connectors

3. Replace the DC terminal block cover to prevent accidental contact with the terminal screws.

4. Repeat the above procedure for terminal block C/D if redundant power supplies are being utilized.

5. A pair of cable clamps are provided to facilitate strain relief of the power cables and to position the cables in a less intrusive location. Use a #2 Phillips screw driver to remove the strain relief clamps to the left of the DC connectors by removing their mounting screws.

6. Spread and place the strain relief clamp over each cable.

7. Reattach the strain relief clamps. Reposition the cable clamps and cables on chassis as necessary for optimal cable routing as shown in Figure 30.

92

Cable Clamps

Installing the ORCA 8-Slot Chassis

Terminal Block Covers

Earth Ground

Figure 30. Connecting DC Power

AC Power Cable Options

The AC power cables used for connection to the 8-slot chas-

sis (see Figure 31 on page 95) are available as shown in

Table 4 on page 94.

93

ORCA BTX-Series ORCA Gateway Hardware Manual

Table 4. AC Power Cable Options

Nuera P/N

249-005

249-006

249-008

249-024

Plug Type

CEE 7/7

“Schuko”

BS1362

AC3112

NEMA5-15P

Connecting AC Power

Country

Western Europe

UK

Australia

US/Canada

Caution

Installation must be performed by a qualified service person skilled in the installation and connection of power distribution systems to ORCA class equipment who is knowledgeable of applicable municipal electrical code requirements.

Caution

The ground strap of the gateway should be attached first to the terminal marked with this international ground symbol.

Caution

Before initiating this procedure, ensure that the main power cord(s) or cable(s) are not connected to the main power source and cannot carry a voltage potential until after this procedure is complete.

Caution

If the 8-slot gateway is to be configured for two (redundant) pairs of power modules, the installation site should provide two independent AC power mains circuits to provide redundancy in the power mains source. Should one AC power mains circuit fail, the other circuit and its associated power module will continue to provide power to the ORCA unit.

94

Installing the ORCA 8-Slot Chassis

1. Use a #2 Phillips screw driver to remove the strain relief clamps to the left of the AC connectors by removing their

mounting screws. See Figure 31 on page 95.

ESD Connector

Cable Clamps

Caution

Caution

Earth Ground

Figure 31. AC Power Connections

Before initiating this procedure, ensure that the main power cord(s) or cable(s) are not connected to the main power source and cannot carry a voltage potential until after this procedure is complete.

The ground strap of the gateway should be attached first to the terminal marked with this international ground symbol.

2. Spread and place the strain relief clamp over each cable.

3. Firmly insert both AC power cables into their respective receptacles on the back panel of the 8-slot chassis.

4. Use a #2 Phillips screw driver to reattach the strain relief clamps. Reposition the cable clamps and cables on chassis as necessary for optimal cable routing. See Figure 32 on page 96.

95

ORCA BTX-Series ORCA Gateway Hardware Manual

.

96

Figure 32. Connecting AC Power

Signal Cables

Caution

To ensure compliance to electro-magnetic interference (EMI) standards, signal cables should implement two layers of cable shielding (foil and braid) with 360 degree contact to connectors.

ORCA cables are optionally provided with the gateways.

Connector types vary depending on gateway configuration and existing ancillary equipment types.

Gateway system-module connector types include DB9(M),

DB15(F), DB25(M), DB26(F), and RJ45(F) connectors.

Ancillary equipment connector types can vary with the

ORCA site. Use cables with appropriate connector types to suit required interface types. For specific information about

available ORCA cables, see "Cables and Connectors" on page

161.

All ORCA signal cables connect at the rear of the chassis.

Use cable run and bend radius information gathered during the site survey to run appropriate lengths of signal cables between the gateway and ancillary equipment. Be sure to fasten cable anchor screws and clamps.

Installing the ORCA 8-Slot Chassis

Applying Power

Caution

Power should only be applied to the gateway after a thorough inspection of all connections made. Allow no frayed ends or exposed uninsulated wire. Ensure that the ORCA unit power switches are in the Off (0) position.

Energize the ORCA site DC or AC power mains by moving the respective circuit breaker actuators to their On (1) position.

Apply power to the 8-slot chassis by moving power switches for both power module pairs to their On (1) position.

Observe that the chassis fans, power supplies, and circuit card modules indicate green LEDs. The gateway’s power-on

self-test (POST) initiates. See Figure 33.

Power Switches

Figure 33. Applying Power

97

ORCA BTX-Series ORCA Gateway Hardware Manual

Power-On Self-Test

The 8-slot gateway’s power-on self-test is a ROM-based program that ensures proper initialization of the gateway. Status indicating LEDs present on each system module transition in sequence from blue, blinking yellow (Power On

Self Test), to green (online).

If a slot configuration exists for each installed module, the module is programmed automatically. Use the Nuera Configurator or NueraView to configure the slot and place the module online.

Signal Cables

ORCA cables are optionally provided with the ORCA gateway. Connector types vary depending on the ORCA gateway configuration and existing ancillary equipment types.

ORCA 21-slot gateway connector types include DB-9M, DB-

15F, DB-25M, and RJ-45F connectors.

Ancillary equipment connector types can vary with the application. Use cables with appropriate connector types to suit required interface types. For specific information about

available ORCA gateway cables, see "Cables and Connectors" on page 161.

All gateway signal cables connect at the rear of the ORCA chassis. Use cable run and bend radius information gathered during the site survey to run appropriate lengths of signal cables between the ORCA gateway and ancillary equipment. Be sure to fasten cable anchor screws and clamps.

98

6

C

ONFIGURATION

This chapter describes the configuration functions performed through the ORCA gateway’s console port. It also provides specific instructions for configuring a gateway using console port commands.

The Console Port

The console part plays a small yet crucial part of bringing an

ORCA gateway online in a network. The port is located on the CMX card. It is a DB9 (M) serial port, and is intended to connect a computer directly into the gateway to assign basic configuration information.

Once a computer has been connected to the port, a terminal emulation program, such as Procomm Plus

TM

, should be used to access the gateway. Use the settings below to correctly configure the emulation program:

• 9600 bps (ANSI ASCII format)

• Parity: None

• Bits: 8

• Stop bits: 1

The following network settings must be configured or the gateway will not function:

99

ORCA Gateway Hardware Manual

• ethernet subnet mask

• default network gateway

• ethernet IP address.

Configuring these settings, specifically the IP address, will trigger the storage initialization process, which requires the gateway to be power-cycled. When the gateway comes back on-line, the new settings will be intact.

See “Ethernet Commands” on page 104 for more information

on how to configure these settings.

Console Port Commands

This section presents the complete list of ORCA gateway commands that you can enter through the unit’s console port. These console port commands serve to configure the gateway initially. Once the ORCA gateway is functional, the remainder of the configuration is performed through either the ORCA Configurator or a SNMP network management system (like NueraView).

100

Configuration

SNMP Community String Commands

SNMP community strings allows you to set low-level security for an ORCA gateway. With community strings, you can assign names to all your ORCA gateways. That name will be embedded in every header packet the gateway sends out. When an ORCA gateway and the Nuera PC workstation have community strings enabled, they will both embed the same name in their messages, and will verify the name in the header, throwing away any packets from nodes that do not contain the configured community string. The community string setting defaults to public. If this default setting is changed using the console port commands, the corresponding community string pop-up in NueraView needs to be altered to match.

There are two community string commands:

manager community show, and

manager community that are described below.

MANAGER COMMUNITY SHOW

Displays the current community string name listed for the

ORCA gateway.

MANAGER COMMUNITY <STRING>

Parameters

<STRING>

specify the designation you wish the ORCA gateway to be identified by.

101

ORCA Gateway Hardware Manual

MANAGER COMMUNITY <INDEX> <STRING> <R/RW>

This command is applicable to the RDT-Series gateways.

RDT gateways support up to four community strings using the following parameters:

Parameters

<INDEX>

Specifies one of five community strings where <INDEX> is 1,2,3, 4 or 5.

<STRING>

Specifies the designation you wish the ORCA RDT gateway to be identified by. Specify a string of up to 32 alphanumeric characters.

<R/RW>

This parameter is used to grant read-only, or read-write privileges to the gateway accessed by the specified community string.

102

Configuration

Packet Sniffing Debug Commands

The debug command sets up the ORCA gateway to send debug strings to a remote host. The remote host needs to be running a packet-sniffing program to read and log the messages. This command is intended to be used for debugging and troubleshooting purposes.

DEBUG OUTPUT <SYSTEM|CARD> <IPADDR> MASK FFFFFFFF

The debug output command configures the gateway to start sending the debug messages. The debug output command must be used with the mask option. Mask refers to bitmap masking. It is recommended to use the FFFFFFFF masking definition. This option will send all generated debug messages to the remote packet sniffer.

Parameter

<SYSTEM|CARD>

Choose between the system and card operands. Select

system

if you wish to see the debug messages sent from the CM card and all the UPM3 cards in the box. Select

card

if you wish to see the debug messages sent from the CM card only. To see messages from the secondary

CM card, you must plug into the console port on the secondary card and use the debug output command to configure that card separately.

<IPADDR>

Specify the decimal IP address of the remote system that runs the packet sniffer. For example, 120.43.254.2.

This address is assigned locally by your network administrator. Use UDP port 1301 for all debugging traffic.

DEBUG SHOW

The debug show command lists the current debug settings on the gateway.

103

ORCA Gateway Hardware Manual

Ethernet Commands

The ethernet command group provides LAN configuration parameters for the ORCA gateway. There are four ethernet commands:

ethernet default,

ethernet ip,

ethernet mask, and

ethernet show.

ETHERNET DEFAULT <1|2|3|4> <IPADDR>

Sets the IP address of the ORCA gateway or router that the

ORCA chassis uses as a default gateway. When the unit sends IP messages to a destination that is not on its subnet, these messages are directed to the gateway device for forwarding to the appropriate network.

Parameters

<1|2|3|4>

Specify the default gateway device. Multiple default gateways are not currently supported; therefore, you must specify 1.

<IPADDR>

Specifies the decimal IP address of the gateway device.

For example, 120.43.254.2. This address is assigned locally by your network administrator.

ETHERNET IP <IPADDR>

Sets the IP address of the active control module (CM) in an

ORCA gateway.

104

Note

Configuration

Parameter

<IPADDR>

Specifies the decimal IP address of the ORCA gateway.

For example, 120.43.254.2. This address is assigned locally by your network administrator.

ETHERNET MASK <IPMASK>

Sets the identifier for a network subnet, which shares a network address with other portions of the network and is distinguished by a subnet number. The subnet may be a physically independent network.

Parameter

<IPMASK>

Specifies the ORCA gateway’s internet subnet mask number. This address is assigned locally by your network administrator. For example, 255.255.255.0.

ETHERNET SHOW

Displays the current ethernet settings for the ORCA gateway.

The active CM's IP address, the subnet mask, and the default gateway can all be viewed from the NMS, but can only be changed from the console. During installation, set these parameters from the console before contacting the unit with

NueraView.

105

ORCA Gateway Hardware Manual

Help Command

The help command displays a list of all available ORCA gateway console port commands. See Figure 34.

HELP OR ?

ETHERNET DEFAULT {1|2|3|4} <xxx.xxx.xxx.xxx> (decimal)

ETHERNET IP <xxx.xxx.xxx.xxx> (decimal)

ETHERNET SHOW

HELP

PSW <password>

QUIT

VERSION

Figure 34. Help Command Display

Password Command

Establishes a single-level security scheme for an ORCA gateway.

PSW <PASSWORD>

Parameter

<PASSWORD>

Specify a maximum of 30 alphanumeric characters.

Quit Command

The quit command ends an ORCA gateway console session and returns the display to the Enter Password prompt.

After a console session has been ended, a password must be entered to begin a new console session.

106

Configuration

Always conclude a terminal session by executing the quit command. This prevents accidental or unauthorized use of a command that might disrupt communication or interrupt operation of the ORCA gateway.

QUIT

Shelf ID Show Command

The shelfid show command displays the current and the previous chassis ID as well as the slot in which the active

CM is (or was). For example, Current: <shelf 1e, slot

e> Previous: <shelf 1e, slot e>

.

SHELFID SHOW

Storage Initialization Command

The storage init command deletes all configurational settings from the gateway and resets it with the factory default settings. After entering this command, you are prompted to wait approximately 15 seconds until another prompt appears requesting you to power cycle the gateway.

Caution

You must not power cycle until prompted to do so. Power cycling too soon can result in an undefined configuration, which can cause irreparable damage to the gateway.

STORAGE INIT

107

ORCA Gateway Hardware Manual

Version Command

VERSION

The version command displays the number and date of the

Nuera ORCA release that is currently running on the control module (CM).

Nuera Configurator and Nuera-

View

Now that the basic configuration is finished, continuing configuration is done using the Nuera Configurator. Refer to the appropriate software manual to learn how to use the

Configurator to configure and monitor an ORCA gateway.

108

7

ORCA G

ATEWAY

M

AINTE

-

NANCE

This chapter presents maintenance procedures for the

ORCA gateway and its components. All card assemblies, power modules, and fan modules, and software can be replaced on site, as explained in this chapter. In addition, the fan filters and power supplies require periodic cleaning.

For service to other parts and chassis components, contact

Nuera or your authorized service provider to have an ORCA gateway serviced properly.

Power Precautions

Caution

Electric Shock Hazard: Before servicing an ORCA gateway, remove all connections to AC/DC power line and public telephone network lines. Contact the Nuera TAC or your authorized service provider if you have any questions regarding this procedure.

When performing maintenance or repair procedures on an

ORCA gateway that require accessing the internal assembly or cable ports, observe the following precautions to avoid possible injury:

ORCA Gateway Hardware Manual

• Always unplug the AC power cord and any connections to the public telephone network before removing the cover from an ORCA gateway.

• Be aware that certain power supply surfaces (including heat sinks) could be at a high voltage potential.

Caution

Electrostatic Discharge: When performing maintenance or repair procedures on an ORCA gateway, note that all of the internal assemblies and cable ports on the rear panel are susceptible to damage from Electrostatic Discharge (ESD).

To reduce the possibility of damage to these devices, always observe standard ESD handling precautions, including (but not limited to) the following:

• Avoid touching circuitry or conductive components of the gateway or its subassemblies.

• Place the gateway and all subassemblies on a grounded anti-static mat whenever maintenance is performed.

• Use an approved personal grounding device (such as a wrist strap) at all times when handling these products.

• Use only approved anti-static containers when shipping or moving any of these products.

Failure to observe these precautions could result in serious damage to these products with either immediate or latent operational failure or performance degradation. ESDrelated failures due to improper handling may affect the coverage under your warranty.

Caution

Proper Resistance: To prevent rapid dissipation of any static charge and to protect service personnel from electric shock, a minimum of 1M

(Megohm) series resistance is required between service personnel and the ground connection. Many commercial products meet this requirement; any of these are acceptable. Please consult Nuera if additional information is required.

110

ORCA Gateway Maintenance

Gateway Status

It is possible for all ORCA card modules to be removed and replaced without disconnecting power to the gateway.

Dual CM clusters are present in a chassis to guard against a service outage. Upon detection of a failed module in a control cluster, the UPM3/UPM4 and HST cards automatically switch to the backup control cluster.

Because each control cluster includes a HUB2 and a HUB2X card, the ORCA gateway provides dual 100Base-T buses to ensure redundancy in the event of a 100Base-T failure on the primary cluster’s HUB2/HUB2X.

You can monitor module operation in three ways:

• ORCA network management system

• SNMP trap monitoring

• LED indicators

The first alternative requires the use of the Nuera Configurator, which is included with your gateway purchase. The second requires NueraView, a more advanced software tool.

For more information on using either software package, refer to the software manual.

Card LED Indicators

This section describes the LED indicators that appear on

ORCA gateway modules. For more information on ORCA alarm and status indicators, see the software manual.

All ORCA gateway modules (HUB2, HUB2X, CM, CMX,

UPM3, UPM4, HST, and HSTX) have LEDs that signal the operational condition of the associated card. These LEDs

111

ORCA Gateway Hardware Manual

and their associated conditions are described in Table 5,

“LEDs: All Cards,” on page 136.

Power Module LED Indicators

The ORCA power module provides two (one on the 8-slot chassis) front-panel status LEDs that indicate power input and output condition. A green output LED indicates that the power module output is in regulation. A red LED indicates a power supply malfunction. If neither LED is lit, the power module has lost connection to its main power feed.

Fan Module LED Indicators

ORCA fan modules are equipped with a front-panel, twocolor LED status indicator. Normal function displays a green LED indication. A red LED indicates that the fan is not rotating. If neither LED is lit, the fan module has lost connection to the power supply rail.

Power Module Maintenance

21-Slot Chassis Power Modules

Two power modules are installed at the bottom of an ORCA

21-slot chassis (see Figure 35 on page 113). In normal operation, the power load is shared equally by both power modules. Each module is designed to individually sustain power to the ORCA gateway in case one power module fails.

Either module can be removed by switching module power

Off, disengaging the locking handle, and pulling directly out from the front of the 21-slot chassis. As a safety precaution, the locking handle is designed to force the module power switch to its Off (0) position.

112

Ganged Power Switch

1 0 1 0

AC POWER

ORCA Gateway Maintenance

Fan Handle and Status LEDs

Locking Mechanism

Figure 35. ORCA Power Module

To fully disengage the ORCA gateway from all power, it is necessary to disconnect the power connections from the back of the chassis. This is only required when all current must be removed from the gateway.

Hot-Swap Procedure

Once you have received notification of a power supply failure, either through NueraView, the Nuera Configurator, or by observing the red (Alarm) LED, use the following procedure to remove the faulty supply and insert a new power unit into the system.

Caution

Caution

Disconnect power from the faulted power module by moving the ganged dual power switch to its Off (0) position.

Energy hazards exist at the rear of the power bay. Avoid making contact.

113

ORCA Gateway Hardware Manual

1. Ensure that power is disconnected from the faulted power module by moving the ganged dual power switch to its Off (0) position. As a safety precaution, the locking handle is designed to force the module power switch to its Off (0) position.

2. Disengage the spring-loaded locking handle by pushing the top of the handle vertically downward to release the locking mechanism. Rotate the handle outward, releasing the power module from its locked position.

3. Firmly grasp the faulty power module by its disengaged locking handle and remove it half-way by pulling straight outward.

Caution

The power supply is heavy. Make sure to support the bottom of the power supply while pulling the unit out of the chassis.

4. Move locking handle back to its locked (detent) position, and slide the power module out of the ORCA chassis.

5. With its locking handle disengaged, align the replacement power module in its guide slots and slide inward to engage its rear guide pins.

6. Engage locking handle.

7. Apply power to the replacement power module by moving its ganged dual power switch to its On (1) position.

8. Verify that the replacement power module displays a green LED.

Cleaning the Power Supply Fan Filter

ORCA gateway air filters must be cleaned periodically to ensure continued adequate air flow. In a normal environment, the filter should be cleaned at least every six months.

In a high-dust environment, it may have to be cleaned as often as once every month. If the air filter is not properly maintained, it may clog the air flow and cause the power supply to overheat and to shut down.

114

ORCA Gateway Maintenance

To clean the air filter, refer to Figure 36 and perform the following steps:

Figure 36. Servicing the Power Supply Air Filter

1. Be careful not to dislodge particles into the unit when removing the air filter (described in step 2).

2. Remove the air filter from the unit by snapping the filter housing off the back of the unit and removing the filter from the housing.

3. Wash the air filter in a solution of mild detergent and water.

4. Allow the filter to dry, reinstall it in the housing, and reattach the housing by pressing it back into the rear of the unit.

5. Ensure that the filter-housing locking tabs are engaged.

115

ORCA Gateway Hardware Manual

To service the filter in the 8-slot chassis, refer to Figure 37

and use the following procedure:

ESD

1

8

CM

HUB

CM

HUB

UPM

UPM

UPM

UPM

Filter

Housing

Filter

Element

Figure 37. 8-Slot Chassis Filter Maintenance

1. Be careful not to dislodge particles into the unit when removing the air filter (described in step 2).

2. Remove the air filter from the unit by snapping the filter housing off the right front of the unit and removing the filter from the housing.

3. Wash the air filter in a solution of mild detergent and water.

4. Allow the filter to dry, reinstall it in the housing, and reattach the housing by pressing it back into the front of the unit.

5. Ensure that the filter-housing locking tabs are engaged.

116

ORCA Gateway Maintenance

8-Slot Chassis Power Modules

A maximum of four, minimum of two power modules are installed at the top of an ORCA 8-slot chassis. In normal operation, the power load is shared equally by all the modules. The 8-slot chassis is designed to run on four power supplies. To have a fully redundant system, all four power supplies must be installed.

Any of the modules can be removed by loosening the screws and first pushing on the black extraction lever, then pulling it straight out to pry the module out of its housing.

Hot-Swap Procedure

Once you have received notification of a power supply failure by observing the red (Alarm) LED, remove the faulty supply and insert a new power unit into the system, following the directions above. It is neither necessary nor recommended that you disconnect power from the rear of the power bay. Verify that the replacement power module displays a green LED.

Fan Module Maintenance

21-Slot Chassis Ventilation

Given the complexity of the internal circuitry of an ORCA gateway, maintaining operating temperatures within acceptable levels is critical. Cooling is provided by two fan modules at the top of the ORCA gateway, which cool the card modules, and by integral fans within the two power supplies. Ensure that air intake and exhaust areas are never obstructed during gateway operation.

117

ORCA Gateway Hardware Manual

Each module can be removed by loosening its four captive thumbscrews and pulling directly outward from the front of the unit. A handle is provided for this purpose.

Handle

118

Status LED Captive Screws

Figure 38. ORCA Fan Module

Hot-Swap Procedure

Once you have received notification of a fan module failure, either through the Nuera Configurator, NueraView, or by observing the red (Alarm) LED, use the following procedure to remove the faulty fan and insert a new fan unit in the system.

Caution

Removing an ORCA gateway fan module alters the airflow characteristics of the ORCA gateway chassis. Operating an

ORCA gateway in this condition can cause overheating. To avoid potential damage or loss of service, ensure that fan removal or replacement is performed in less than five minutes.

1. Ensure that the replacement fan module is ready for insertion.

2. Turn the four captive thumbscrews on the failed module counter-clockwise to disengage locking tabs.

3. Remove the failed fan module by grasping its handle and pulling straight outward.

4. Align replacement fan module in its guide slot and gently slide it inward to engage its rear guide pins.

5. Fasten module locking tabs by turning all four captive

ORCA Gateway Maintenance

thumbscrews clockwise until they are finger tight.

8-Slot Chassis Ventilation

Given the complexity of the internal circuitry of an ORCA

BTX, maintaining operating temperatures within acceptable levels is critical. Cooling is provided by two fan trays at either side of the ORCA BTX, which cool the card modules.

Fan Tray

Each tray can be removed by loosening the captive screws on the front of the unit and pulling the tray straight out from the chassis as shown in Figure 39.

Captive

Screws

8

ESD

1

CM

HUB2

CM

HUB2

UPM3

UPM3

UPM3

UPM3

Fan Tray

Figure 39. Fan Tray Replacement, 8-Slot Chassis

119

ORCA Gateway Hardware Manual

LED Indicators

ORCA 8-slot chassis fan trays are equipped with a frontpanel, bi-color LED status indicator. Normal function displays a green LED indication. A red LED indicates that one or more of the fans in the tray are not rotating. If the LED is not lit, the fan module has lost connection to the -12V power supply rail.

Hot-Swap Procedure

Once you have received notification of a fan tray failure by observing the red (Alarm) LED, remove the faulty fan tray and insert a new fan tray in the system, following the directions above.

Note

Individual fan components of the fan tray cannot be fixed or replaced by the user. If any component of the fan tray fails, the entire tray must be replaced. Faulty fan trays can be sent back to Nuera to be serviced.

Caution

Removing an ORCA 8-slot fan tray alters the airflow characteristics of the ORCA 8-slot chassis. Operating an ORCA gateway in this condition can cause overheating. To avoid potential damage or loss of service, ensure that fan removal or replacement is performed in less than five minutes.

120

ORCA Gateway Maintenance

Card Maintenance

This section explains how to install, remove, and hot-swap

ORCA gateway cards (modules). It also covers how to move configured CM cards between active gateways.

Caution

The HUB2X-1000Base-SX is a Class 1 laser product.

Do not stare directly into the laser beam or view it directly with optical instruments.

Because invisible radiation may be emitted from the aperture of the port when no fiber cable is connected, avoid exposure to radiation and do not stare into open apertures.

Unterminated optical connectors can emit invisible laser radiation. The lens in the human eye focuses all the laser power on the retina, so even a low power laser could permanently damage the eye if it is focused directly on the laser source.

Installing Cards

ORCA gateway cards are designed to fit snugly within the chassis. This ensures that, once installed, card modules remain in place and provide reliable service in the most demanding environments.

When placing a card into the chassis, use the following procedures.

Note

When installing new cards, it is recommended that the cards be installed into the card slots in an incremental fashion, rather than randomly staggering the cards throughout the chassis.

121

ORCA Gateway Hardware Manual

Front Card Installation

1. Ensure the black ejector tabs at the front of the replacement card are in the unlocked position as shown in Figure 40.

Figure 40. Ejector Tabs in Unlocked Position

2. Place the bottom edge of the card into the bottom card guide slot. Notice the metal ESD clip shown in Figure 42 on page 124 located approximately.5” (12mm) from the opening of the channel. The edge of the card must be inserted into the channel outbound of this clip.

3. Place the top edge of the card into the corresponding top card guide slot as shown in Figure 41 on page 123.

122

ORCA Gateway Maintenance

Figure 41. Aligning Card in Guide Slot

4. Gently push and pull the card in an up-and-down rocking motion. (Do NOT move the card from side to side.

This action may damage the card.) The leading edge of the card must slide in its guide slots past the ESD clip located in the bottom guide slot and into the chassis toward the midplane. See Figure 42 on page 124.

123

ORCA Gateway Hardware Manual

Midplane

Bottom

Guide

Slots

ESD Clips Locking Rail

Figure 42. Card Slots (Showing ESD Clips)

Ensure that the guide pins on the card’s trailing edge are properly aligned as shown in Figure 43 on page 125.

5. Slowly push the card into its corresponding midplane connectors until the black ejector tabs at the trailing edge of the card (top and bottom) make contact with the upper and lower aluminum locking rails as shown in Figure 43 on page 125.

124

Locking Rail

ORCA Gateway Maintenance

Guide Pin

ESD Clip

Locking Rail

Figure 43. Aligning Guide Pins

6. Push the ejector tabs to the locked position to secure them into the locking rail as shown in Figure 44 on page

126. This action fully engages the card’s contacts into the midplane connectors.

125

ORCA Gateway Hardware Manual

Captive Screw

126

Captive Screw

Figure 44. Ejector Tabs in Locked Position

7. Fasten the module’s top and bottom captive anchor screws firmly using a small screwdriver. Screw locations are shown in Figure 44. Do not overtighten.

Rear Card Installation

Use the same procedure presented in “Front Card Installation” on page 122; however, be aware that the top and bottom guide slots for rear-mounted cards do not have ESD clips. Be sure to reconnect rear card cabling after module replacement.

ORCA Gateway Maintenance

Removing Cards

Caution

When removing ORCA gateway card modules, ensure that the module’s top and bottom captive anchor screws are completely loose. Do not use force when installing or removing

ORCA cards. The precise tolerances require that you use finesse rather than excessive force!

To remove either a front or rear card from an ORCA gateway chassis, use the following procedure and observe the following precautions:

• If the card to be removed is a rear card, you must disconnect its cabling prior to removal.

• Ensure that the module’s top and bottom captive anchor screws are completely loose.

• Set the ejector tabs to the open position.

1. Use a small screwdriver to loosen the upper and lower captive anchor screws located behind the upper and lower ejection tabs of the card to be replaced. Screw location is shown in Figure 45 on page 128.

127

ORCA Gateway Hardware Manual

Captive Screws

Figure 45. Locating Upper and Lower Captive Screws (Lower Shown)

2. Eject the card to be replaced by pushing both ejector tabs vertically outward until the card disengages from the midplane.

3. Because the side-by-side positioning of the cards in the chassis prevents you from grasping the card by its backplane, you must pull the card out using its ejector tabs.

See Figure 46 on page 129.

128

ORCA Gateway Maintenance

Caution

Figure 46. Removing Card

Do NOT rock the card in the card channel. Use equal force on the top and bottom ejector tabs and pull the card straight out of the chassis.

Swapping CM Cards Between Gateways

Whenever you move a Control Module (CM) card from one

ORCA gateway chassis within your application to another

ORCA gateway chassis, the new chassis will have a different shelf ID. This causes a shelf ID mismatch to occur. This section provides information about what you must do to resolve this situation.

Standby Mode

If a CM card with a shelf ID mismatch arbitrates to standby mode in a new chassis, its configuration is automatically ini-

129

ORCA Gateway Hardware Manual

tialized (storage initialization), its flash memory is updated with the current shelf ID, and it registers with the active

CM card in the new chassis. Therefore in this instance, you do not need to make any modifications.

Active Mode

If a CM card with a shelf ID mismatch arbitrates to active mode in a new chassis, it will not perform the following tasks:

• Activate the ethernet connection

• Register UPM3/UPM4 modules or the standby CM module

• Communicate with the network management system

LED Alarm Indication

In this situation, the console port runs, and the LEDs flash a pattern to indicate this non-functional mode. The LEDs alternate between the two following flash patterns:

• Red On, Green Off, Yellow On

• Red Off, Green On, Yellow Off

Clearing the Alarm

To clear this alarm mode:

1. Connect a PC to the console port located on the ORCA

CMX module.

2. Launch a terminal communications program.

3. From the console prompt, enter a valid decimal IP address for the card:

ETHERNET IP nnn.nnn.nnn.nnn

Note

You can reassign the current IP address or use a new one.

130

Note

ORCA Gateway Maintenance

4. You will be prompted to proceed. Answer yes to continue, or no to cancel. Be aware that continuing will erase any configuration information currently held in the CM module.

5. Wait until prompted, then turn off power to the ORCA gateway, and turn it back on.

The IP addresses of the UPM3/UPM4s and Standby CM are cleared and automatically reassigned based on their slot location. For example, the IP address of the UPM3/

UPM4 in slot 3 is assigned as Active CM IP address +1; the UPM3/UPM4 in Slot 4 is assigned as Active CM IP

address +2. The Standby CM IP address is assigned as

Active CM IP address +12.

When the IP address is updated and a shelf ID mismatch exists, the configuration is automatically initialized, and the flash memory is updated with the current shelf ID.

If two CM cards reside in the new chassis when the gateway is turned on, and one possesses the current shelf ID and the other does not, the one with the current shelf ID arbitrates to active mode, and the other arbitrates to standby mode.

For more information about alarms, see the software manual provided with the gateway.

Hot-Swapping Cards

An ORCA gateway module can be hot-swapped when its blue LED is lit. Failed boards indicate “blue” by an automatic, software-controlled process that systematically removes them from service. ORCA gateway modules can also be forced “blue” by invoking an NMS-controlled command called Virtual Eject. ORCA gateway modules can also be forced “blue” by disengaging the lower ejection tab on the module.

Forcing a module “blue” using the ejection tabs will affect service.

131

ORCA Gateway Hardware Manual

Once you have received notification of a board failure, either through the NMS or by observing the blue LED, use the following procedure to remove the faulty card and insert a new

card into the system. See "Removing Cards" on page 127 for

more information.

Caution

This procedure involves handling electrostatic sensitive devices. Special care must be taken to avoid damage. Observe the following precautions:

• Use a grounded wrist strap when handling the module

• Avoid touching circuitry or conductive components.

• Place the module on an anti-static mat once it is removed from the chassis.

• Use an approved anti-static bag and shipping container

1. Connect a grounding wrist strap attached to your wrist to the ESD connector located on the back right position of the ORCA gateway chassis.

2. Loosen the set screw for the module to be removed

3. Flip the lower ejector tab on the failed module, or issue the Virtual Eject command from the NMS. Ensure that the module to be replaced shows a blue LED indication.

4. For rear cards, use a small screw driver to loosen all cable anchor screws from existing connectors and disconnect all cables from the module, if any.

5. Disengage both ejection tabs from the module to be replaced.

6. Slide the module straight outward, and place in an antistatic container or on a grounded work surface.

7. Remove the replacement module from its anti-static container.

8. Carefully align the replacement module into its guide slots in the ORCA gateway chassis, and insert it gently to engage the rear guide pins.

132

ORCA Gateway Maintenance

9. Move both ejector tabs to their locked position and tighten the set screws.

10. Reconnect all cables to their proper connectors.

11. Fasten all cable anchor screws.

12. Remove wrist strap.

If a slot configuration exists for the slot containing the replacement module, the module is programmed automatically. Its LEDs transition in sequence from blue, yellow

(Power On Self Test), red (if no configuration exists), to green (online).

After replacement, if no configuration exists for the slot, the module indicates red (present, but not configured). Use the gateway NMS to configure the slot and render the module online.

Upgrading an ORCA Gateway

Upgrading an ORCA gateway generally requires the use of the Nuera Configurator or NueraView. Upgrading procedures that involve these software packages are found in your software manual.

Specific release upgrade procedures may be found in the release notes on the Nuera CD.

Upgrading the Embedded Code

The embedded code is the software that resides on the card modules, the software that runs the ORCA gateway. When this software needs to be updated, the new embedded code must be downloaded from a networked PC through the

Nuera Configurator or NueraView. The embedded code is first downloaded to the CM modules, then propagated to the

UPM and HST modules from the CM modules. This process

133

ORCA Gateway Hardware Manual

is called “downloading code.” The exact procedure is found in the accompanying software manual.

Nuera handles embedded code upgrades in a number of different ways. Usually updates are available through the

Nuera Communications website, while point-release upgrades are on CD only. Contact your Nuera representative upgrade to the latest version of embedded code.

Upgrading Card Modules

To upgrade an ORCA gateway’s card modules, you will need the new card, compatible embedded software, and upgraded

Nuera Configurator or NueraView software. Check the software manual for the current hardware and software dependances.

To install the new card, follow the procedures in “Card

Maintenance” on page 121 to insert the card into the chas-

sis. The card will not be recognized by the system until the embedded code is upgraded. The procedure for upgrading the embedded code is in the software manual. Then, to configure the card, the configuration software, Nuera Configurator or NueraView, must be updated. This procedure is also in the software manual. Check with your Nuera representative to acquire the correct components and software.

134

8

T

ROUBLESHOOTING

This chapter contains information that can help you solve problems that may occur while installing and using your

ORCA gateway. For information about ORCA alarms and traps, see the software manual.

System LEDs

This section presents information about ORCA system indicators. The ORCA gateway provides status information through LEDs associated with individual components and also through the Nuera Configurator and NueraView. For information about system status in either set of software, see the software manual.

Card Modules

All ORCA gateway modules (HUB2, HUB2X, CM(3), CMX,

UPM3, UPM4, UPMX, HST, HSTX) have LEDs that signal the operational condition of the associated card. These LEDs and their associated conditions are described in the tables below.

135

ORCA Gateway Hardware Manual

Status Indicators

Table 5. LEDs: All Cards

Condition LED Color Card/Position

Internal Link Green HUB2 (Top)

External

Link

Green

Green

HUB2 (Top)

HUB2 (Top)

Indicates

The internal ethernet link between the active HUB2,

CM, and UPM3/UPM4 is functioning properly.

The external ethernet link from the active HUB2,

HUB2X, and external hub or router is functioning properly.

Packets are being exchanged over the internal link.

Internal

Activity

External

Activity

Link

Green

Green

HUB2 (Top) Packets are being exchanged over the external link.

Transmit

Sync (1, 2, or 3)

Alrm (1, 2, or 3)

Line (1, 2, or

3)

Alarm

Green

Green

Yellow

Green

Red

UPM3,UPM4,

CM, HST

(Top)

UPM3, UPM4,

CM, and HST

(Top)

HST (Top)

HST (Top)

The ethernet link to the active HUB2 is functioning properly. (For the HUB2, this signifies that the link out of the

HUB2X is transmitting.)

The corresponding card is transmitting packets to the ethernet segment.

The port has been configured from the Nuera Configurator and is online, receiving a signal.

Indicates test status. Will light during loopback test.

HSTX The HSTX is detecting a receive signal over the DS3 link.

The corresponding card is in an alarm condition.

Normal

Test

Swap Ready

Green

Yellow

Blue

All

(Bottom)

All

(Bottom)

All

(Bottom)

All

(Bottom)

The corresponding card is operational and functioning properly.

The corresponding card is performing a power up Built-

In-Test (BIT) or has been instructed to perform a diagnostic test. This LED remains illuminated as long as any test routines are being performed. Exception: standby

CM, HST, HSTX, and HUB2 will always show a solid yellow LED.

The corresponding card is ready to be hot swapped.

136

Troubleshooting

Table 5. LEDs: All Cards

Condition

TFTP Transfer

LED Color

Red, Green,

Yellow

Card/Position

Active CM

UPM3, UPM4,

HST

Indicates

When code is being transferred from a PC to the active

CM, the LEDs rapidly cycle red, green, yellow on the active CM.

Configuring

Standby CM

Red, Green,

Yellow

Active CM,

Standby CM

When code is being transmitted from the active CM to a

UPM3, UPM4, or HST, the LEDs rapidly cycle red, green, yellow on the UPM3 or HST and the CM.

When code is being transmitted from the active CM to the standby host, the LEDs on the active CM cycle yellow, green, red, while the LEDs on the standby CM will cycle red, green, yellow. These appear much slower than the other TFTP transfers.

While the Active CM is configuring the Standby CM, the

LEDs on the Standby CM will rapidly cycle red, green, yellow in the same pattern that is seen during code transfer.

The Standby CM, CMX, HUB2, and HUB2X yellow LED lights continuously.

UPM3, HST

Removal

Red,Yellow

Green, Blue

UPM3, UPM4,

HST

If Virtual Eject is used, the red, yellow and green LEDs turn Off. The blue LED then illuminates indicating that the UPM3, UPM4, or HST is ready for removal. If the

UPM3, UPM4, or HST is removed immediately, all pending traffic is interrupted.

Error Indicators

Table 6. LEDs: Error Indicators

Condition

Non-fatal

Error

LED Color Card/Position

Red All

Software

Fatal Error

FEC-14

Error

Machine

Check

Blue, Red

All LEDs

Red

All Rear

All

All

Indicates

The affected card has a non-fatal error condition that can be read via the NMS. The red LED lights continuously.

The affected card has a fatal software error condition that can be read via the NMS. Rear card LEDs indicate continuous blue and flashing red.

A Forward Error Correction fault has occurred. All LEDs blink.

A Machine Check operation is in progress. The affected module indicates a repeated sequence of 2 red blinks.

137

ORCA Gateway Hardware Manual

Table 6. LEDs: Error Indicators

Condition

Software

Emulation

Exception

LED Color Card/Position

Red All

Indicates

An attempt was made to execute an illegal instruction.

The affected module indicates a repeated sequence of

16 red blinks.

TLB Data

Miss Exception

Red

TLB Data

Error Exception

20 Red

Blinks

The MPC860 processor has detected a TLB Data Miss exception. The affected module indicates a repeated sequence of 18 red blinks.

The MPC860 processor has detected a TLB Data Error exception. The affected module indicates a repeated sequence of 20 red blinks.

MPC860

Exception

Shelf ID Mismatch

Illegal MAC

Address

Red

Red, Green,

Yellow

CM

Green, Blue UPM3, UPM4,

CM, and HST

The affected module has detected an MPC860 exception error. The affected module’s red LED blinks continuously. See Chapter 7 of the MPC860 PowerQUICC

User’s Manual for the list of exceptions.

A CM has a shelf ID stored in flash memory that is different than the shelf ID of the current chassis. The affected module indicates a repeated alternating sequence of red On, green Off, yellow On, and red Off, green On, yellow Off. The module enters a non functional state.

The affected module indicates an alternating sequence of green and blue blinking. This pattern indicates an uninitialized or illegal MAC address on a UPM3,UPM4,

HST, or CM.

ORCA Power Modules

Table 7. LEDs: Power Modules

Condition

Normal

Alarm

Disconnect

LED Color

Green

Red

None

The ORCA power module provides two front-panel status

LEDs that indicate power input and output condition. These

LEDs and their associated conditions are described in Table

7.

Indicates

The power module output is in regulation

A power supply malfunction

The power module has lost connection to its main power feed

138

Troubleshooting

ORCA Fan Modules

Table 8. LEDs: Fan Modules

Condition

Normal

Alarm

Disconnect

LED Color

Green

Red

None

ORCA fan modules are equipped with a front-panel, twocolor LED status indicator. These LEDs and their associated conditions are described in Table 8.

Indicates

The power module output is in regulation

The fan is not rotating

The fan module has lost connection to the -12V power supply rail

System Alarms

If any of the modules fail, an alarm is sent to the Nuera Configurator or NueraView (if the software is connected to the gateway). These alarms are discussed in detail in the software manual.

Getting Help

If, after installing and configuring your Nuera equipment, you cannot establish communications to or from the unit, carefully review the information in this book and in the other ORCA books prior to calling Technical Assistance Center (TAC).

Checklist

Ensure that you have checked the following possibilities:

1. Configuration of the console port. Check that the baud rate of your terminal matches the preset settings of the

139

ORCA Gateway Hardware Manual

Nuera units being installed.

2. Reset the equipment. When cycling power, be sure to leave the power off for a minimum of 30 seconds before reapplying power to the unit.

3. Review the ORCA gateway commands. See “Console

Port Commands” on page 100.

4. Check your software version. To ensure that all our customers have the latest enhancements and product features, Nuera ships every new or factory-upgraded unit with the latest software version. Therefore, whenever you are installing or reinstalling units into your system, check each unit to verify that all units are equipped with identical software versions.

Last Resort

If your problem persists after carefully reviewing the information in this book and in the other ORCA books, contact either your product representative or a service representative at Nuera’s Technical Assistance Center. Prior to calling, ensure that you have assembled all the pertinent data that will assist in resolving your problem. These items include:

• A detailed description of your problem

• A complete listing of your system components and configuration. Include your unit’s serial number and the software version number it is running

• A narrative of the actions you performed prior to the problem

• A list of all system messages posted by your unit.

Your Nuera service representative will advise you as to the appropriate course of action.

Contacts

Address:

Nuera Communications

140

10445 Pacific Center Court

San Diego, CA 92121 USA

Telephone:

1-800-966-8372, Extension 1391

1-858-625-2400

Troubleshooting

141

ORCA Gateway Hardware Manual

142

Appendix A

S

PECIFICATIONS

All gateway specifications are subject to change without notice.

21-slot Chassis Specifications

Voice

Channels Echo Cancellation

Each voice channel in an ORCA gateway system meets or exceeds ITU G.168 recommendations for near-end echoes delayed by up to 54ms. The exceptions to G.168 are throughput delay, phase reversal, and tone disabler.

The echo canceller provides approximately 40dB of echo attenuation. The residual echo is further attenuated to imperceptible levels by a non-linear processing function.

This is also referred to as NLP, center clipper, or residual echo suppressor. The NLP as well as the echo canceller can be disabled via configuration without interruption of voice processing.

Performance of an echo canceller is also a function of the echo return loss (ERL) provided by the 2-wire/4-wire hybrid. The echo canceller can operate with ERL values as low as 6dB. Typical convergence time of the echo canceller is less than 1 second and occurs at the beginning of the first active speech interval.

ORCA Gateway Hardware Manual

Signaling

Currently supports out-of-band signaling.

Voice Levels

Supports Rx and Tx gain adjustments on all voice channels from -16 db to +7 db.

The voice ports on the gateway can use automatic gain control on a port-by-port basis. When enabled, the gain on each port is kept in the optimum range of the vocoder to provide optimal voice quality.

Fax III

Supports Group III FAX protocols V.17, V.21, V.27, and

V.29 at baud rates up to 14.4 Kbps. Maximum FAX rate can be configured independently of the voice rate.The maximum rate is selectable by the user. Supports auto fallback, and tolerates network delays of up to 1 second.

Voice

Compression

Gateways use silence suppression and low-bit-rate voice

(LBRV) compression techniques to achieve compression ratios as high as 20:1. Gateways support the following voice compression algorithms on a per-channel basis:

Vocoder

PCM/G.711

ECELP

G.723.1

G.726

G.729/G.729A

GSM EFR

Rate

64Kbps

4.8, 7.4, 9.6Kbps

5.3, 6.3Kbps

32Kbps

8Kbps

12.2Kbps

Table 9. 21-Slot Chassis Supported Voice Compression Algorithms

DS3 Port

Interface

Located on the HSTX-DS3 card. It supported up to 3 DS3 connections per bridge module, which splits the signals for

144

Console

Port

Interface

Alarm Port

Interface

Ethernet

Port

Gigabit

Ethernet

Port

Specifications

input into the HSTX-DS3 card. RX and TX cables are separate 75-ohm BNC connectors.

• Line Code: B3ZS only

• Line Rate: 44.736 MB/s

• Termination: 75 Ohm

• Line Type (framing): M13 or C-bit Parity

• Line Length: short (0 to 68 m), and long haul

Located on CMX card. A single serial port is provided with a male DB9 connector. Only RS232 electrical levels are supported. The console port is asynchronous only, and supports the following characteristics:

• 9600 bps (ANSI ASCII format)

• Parity: None

• Bits: 8

• Stop bits: 1

Located on CMX card. A single port is provided with a female DB15 connector. This port supports contact closure generation for external alarm indication and supports contact closure detection from external devices.

There are three levels of alarm generation and three levels of detection (critical, major, and minor). Each level is supported by separate conductors.

Located on the HUB2X card. The 100Base-T ethernet port on the HUB2X card is IEEE 803.2 compliant and interfaces to 100Base-T.

Located on the HUB2X card. The gigabit optical ethernet port on the HUB2X card is based on the Physical Medium

Dependent (PMD) sub-layer and baseband medium, type

1000Base-SX (long wavelength laser) of IEEE 802.3z. The interface is designed for 1.25GBit/s data rate. The transceiver is capable of driving lines of 2 to 260 meters using

145

ORCA Gateway Hardware Manual

62.5um multi-mode fiber or 2 to 550 meters using 50um multi-mode fiber. The optical port uses 850nm wavelength and is a Class 1 FDA and IEC laser product.

Caution

Class 1 laser product.

Do not stare directly into the laser beam or view it directly with optical instruments.

Because invisible radiation may be emitted from the aperture of the port when no fiber cable is connected, avoid exposure to radiation and do not stare into open apertures.

Caution

146

AC Line

Requirements

DC Line

Requirements

With a line voltage of 120V

~

, the line requirements are:

90–125V

~

, 14A maximum.

With a line voltage of 220V

~

, the line requirements are:

180-250V

~

, 6.5A maximum.

(11.5A nominal current @ 110V

220V

~

, 5.7A nominal current @

~, circuit breaker/fuse minimum rating 15 A. Recommended branch wire 14 AWG minimum.)

Use only single-phase, line-to-neutral AC voltage for power input.

–42 to –60V

– – –

, 30A

Specifications

(24.5A nominal current @ –48V, circuit breaker/fuse minimum rating 30A. Recommended branch wire 10 AWG minimum.)

Input Power

Consumption

(Maximum)

Base unit (with CM3 and HUB2X-1000Base-SX)*: 578W

Base unit (with CM3 and HUB2X-100Base-T)*: 569W

CM card:

CM3 card:

6.5W

12.1W

CMX card:

HUB2 card:

10.5W

27W

HUB2X-100Base-T card:

HUB2X-1000Base-SX card

9.5W

18.3W

UPM3 card: 20W

UPMX card: 10W

HST card:

HSTX card:

14W

10W

* Worst-case fully-loaded system and power supply efficiency adds a maximum of 420W lost in supply conversion.

Power supply efficiency (min): 62%

147

ORCA Gateway Hardware Manual

Caution

Internal

Fault

Current

Protection AC Power Supply:

Internal circuit breaker, 30A

DC Power Supply:

Internal circuit breaker, 70A

Caution

148

Environmental

0° to 40° C (32° to 104° F), (operating ambient)

-5° to 50° C (23° to 122° F), (short term)*

-20° to 80° C (-4° to -176° F), (non-operating with uncontrolled humidity)

5–85% relative humidity, non-condensing

5–90% short term*, not to exceed 0.024 kg (0.0529 lb.) water per kg (2.1046 lbs) of dry air

95% relative humidity at 40° C (104° F).

*Short Term refers to a period of not more that 96 consecutive hours and a total of not more than 15 days in a single year. In other words, a total of 360 hours in any given year, but no more than 15 occurrences during that one-year period.

Size

Weight

Altitude

Specifications

28" H x 17.5" W x 19.5" D overall.

(71.1 CM H x 44.5 CM W x 49.5 CM D)

Compatible with fixed-shelf rack mounting or NEBS-compliant environmental cabinet.

150 lbs (68.2 kg)

60 m (196.85 ft) below sea level and 4000 m (13,123.20 ft) above sea level.

8-slot Chassis Specifications

Voice

Channels Echo Cancellation

Each voice channel in an ORCA gateway system meets or exceeds ITU G.168 recommendations for near-end echoes delayed by up to 54ms. The exceptions to G.165 are throughput delay, phase reversal, and tone disabler.

The echo canceller provides approximately 40dB of echo attenuation. The residual echo is further attenuated to imperceptible levels by a non-linear processing function.

This is also referred to as NLP, center clipper, or residual echo suppressor. The NLP as well as the echo canceller can be disabled via configuration without interruption of voice processing.

Performance of an echo canceller is also a function of the echo return loss (ERL) provided by the 2-wire/4-wire hybrid. The echo canceller can operate with ERL values as low as 6dB. Typical convergence time of the echo canceller is less than 1 second and occurs at the beginning of the first active speech interval.

Signaling

GR-303, V5.2, NCS.

149

ORCA Gateway Hardware Manual

Voice Levels

Supports Rx and Tx gain adjustments on all voice channels from -16 db to +7 db.

The voice ports can use automatic gain control on a portby-port basis. When enabled, the ports input are kept in the optimum range of the vocoder to provide optimal voice quality.

Fax III

Supports Group III FAX protocols V.17, V.21, V.27, and

V.29 at baud rates up to 14.4 Kbps. Maximum FAX rate can be configured independently of the voice rate.The maximum rate is selectable by the user. Supports auto fallback, and tolerates network delays of up to 1 second.

Voice

Compression

ORCA units use silence suppression and low-bit-rate voice

(LBRV) compression techniques to achieve compression ratios as high as 20:1. BTX-Series units support the voice compression algorithms on a per-channel basis shown in

Table 10.

Vocoder

PCM3/G.711

G.726

Rate

64Kbps

32Kbps

Table 10. 8-Slot Chassis Supported Voice Compression Algorithms

T-1 Port For the UPMX card T1 port

Up to four T1 connections per UPMX card are available through a single DB-25 male connector. Each T1 port can support either a DSX-1 or DS-1 physical interface with the following general specifications:

Line Code: AMI, B8ZS

Line Rate (DSX-1): 1.544Mbps ±50 bps

150

E-1 Port

Specifications

Line Rate (DS-1): 1.544Mbps ±200bps network timed

Termination:

Framing:

100Ω resistive

D4, ESF

Line length:

(to 6000 feet) short (0–655 ft) and long haul

Line buildout:

Error Detection:

0, -7.5, -15, -22 dB

CRC-6

Alarm Indication: TR-TSY-000191

For the UPMX card E1 port

Up to four E1 connections per UPMX card are available through a single DB-25 male connector. Each E1 port provides a 2.048Mbps CEPT interface with the following general specifications:

Line Code:

Line Rate:

G.703 HDB3

(CEPT)2.048Mbps ±35 bps

Termination:

Framing:

Line length:

Line buildout:

75Ω/120Ω resistive

ITU-T G.704 and G.732

Short haul (0–655 ft)

0, -7.5, -15, -22 dB

Error Detection: CRC-4

Alarm Indication: G.732

151

ORCA Gateway Hardware Manual

Console

Port

Interface

Alarm Port

Interface

Serial Port

Ethernet

Port

Located on CMX card. A single serial port is provided with a male DB9 connector. Only RS232 electrical levels are supported. The console port is asynchronous only, and supports the following data rates:

• 9600 bps (ANSI ASCII format)

• Parity: None

• Bits: 8

• Stop bits: 1

Located on CMX card. A single port is provided with a female DB15 connector. This port supports contact closure generation for external alarm indication and supports contact closure detection from external devices.

There are three levels of alarm generation and three levels of detection (critical, major, and minor). Each level is supported by separate conductors.

Located on the UPMX card. There are two serial ports on this card that are not supported in this release.

Located on the HUB2X card. The 100Base-T ethernet port on the HUB2X card is IEEE 803.2 compliant and interfaces to 100Base-T.

Caution

152

AC Line

Requirements

With a line voltage of 120V

~

, the line requirements are:

90–125V

~

, 6A maximum.

With a line voltage of 220V

~

, the line requirements are:

180-250V

~

, 3A maximum.

DC Line

Requirements

Input Power

Consumption

(Maximum)

Specifications

(5A nominal current @ 110V

~,

2.5A nominal current @

220V

~

, circuit breaker/fuse minimum rating 15A. Recommended branch wire 14 AWG minimum.)

–42 to –60 V

– – –

, 13A maximum.

(10A nominal current @ –48V, circuit breaker/fuse minimum rating 15A. Recommended branch wire 14 AWG minimum.)

Base unit (with UPM3s)*:

Base unit (with UPM4s)*:

305.5W

305.5W

CM card:

CMX card:

HUB2 card:

HUB2X-100Base-T card:

UPM3 card:

UPM4 card:

UPMX card:

6.5W

10.5W

27W

9.5W

20W

20W

10W

* Worst-case fully-loaded system and power supply efficiency adds a maximum of 177W lost in supply conversion.

Power supply efficiency (min): 62%

153

ORCA Gateway Hardware Manual

Caution

Internal

Fault

Current

Protection AC Power Supply:

Internal circuit breaker, 10A

DC Power Supply:

Internal circuit breaker, 15A

Caution

Environmental

Size

Weight

Altitude

ORCA 8-slot chassis is engineered to be compliant with

NEBS standards GR-1089-CORE and GR-63-CORE.

10.75" H x 17.5" W x 13.5" D overall.

(37.31 CM3 H x 44.45 CM3 W x 34.29 CM3 D)

Compatible with fixed-shelf rack mounting or NEBS-compliant environmental cabinet.

45.3 lbs (20.55 kg)

60 m (196.85 ft) below sea level and 4000 m (13,123.20 ft) above sea level.

154

Appendix B

R

EPLACEMENT

P

ARTS

ORCA gateway replacement parts, assemblies, and cables can be purchased from your Nuera authorized service provider. The tables in this appendix list the part numbers for field-replaceable items.

For the latest information (including prices) on the parts described in this appendix, consult your Nuera representative or see the most recent edition of the Nuera Global Pric-

ing List (299-184).

ORCA Gateway Hardware Manual

Replacement Assemblies

Table 11. Replacement Assemblies

Description

Control Module (CM)

CM Transition Module (CMX)

HUB2 Module (HUB2)

HUB2-1000Base-SX Transition Module (HUB2X-1000Base-SX)

HUB2-100Base-T Transition Module (HUB2X-100Base-T)

Power Supply Module, 90–240 VAC

Power Supply Module, -48 VDC

UPM3 Module (UPM3)

UPM4 Module (UPM4)

UPM Transition Module (UPMX) T1

UPM Transition Module (UPMX) E1 75

UPM Transition Module (UPMX) E1 120

HST Module (HST)

HSTX/DS3 Module (HSTX)

HSTX Bridge Module

Fan Assembly

Filler Plate, Single, Wide

Filler Plate, 2-Wide

Filler Plate, 3-Wide

Front Door Assy

Part Number

504-103-12

504-088

504-164

504-163

504-163-01

245-058

245-059

504-233

504-300

504-100-07

504-100-08

504-100-09

504-166

504-187-01

504-238

504-114

404-059

404-095

404-060

404-151

Note

The ORCA 21-slot chassis main chassis assembly is not a

field-replaceable item. Contact Nuera field service personnel for warranty repair instructions.

156

Replacement Parts

Power Cables

Chassis Type

21-Slot Chassis

8-Slot Chassis

Cable Description

EU

USA/Canada

CEE 7/7 “Schuko”, Western Europe

BS1362, UK

AC3112, Australia

NEMA5-15P, US/Canada

Part Number

504-159

504-160

249-005

249-006

249-008

249-024

Documentation

Table 12. Documentation

Publications

ORCA Gateway Hardware Manual

ORCA GX-Series Software Manual

ORCA RDT-8g Software Manual

ORCA RDT-8v Software Manual

Part Number

299-335-1nn

299-193-5nn

299-297-5nn

299-298-5nn

ORCA Connecting Cables

Table 13. Connecting Cables

Cable Description

RJ45 (M)-RJ45 (M) 100Base-T Standard Cable

10 ft.

25 ft.

Optical 1000Base-SX SC Duplex

DS3 BNC 75 ohm Cable

6 in.

10 ft.

25 ft.

50 ft.

100 ft.

DB25 (F)-to-RJ45 (M) (4x)

10 ft.

25 ft.

DB25 (F) Telco Straight-to-Open

10 ft.

25 ft.

DB25 (F)-to-DB25 (F)

10 ft.

25 ft.

Part Number

504-172-010

504-172-025

292-201

504-264-0.5

504-264-010

504-264-025

504-264-050

504-264-100

504-121-010

504-121-025

504-124-010

504-124-025

504-146-010

504-146-025

157

ORCA Gateway Hardware Manual

Table 13. Connecting Cables

DB25 (F) to RJ45 Adaptor 504-087

DS3/HST Redundancy Kit

This upgrade kit contains 2 HST modules, 2 HSTX/DS3 modules, 1 HSTX Bridge module, and 12 6-inch BNC 75ohm cables.

Table 14. DS3/HST Redundancy Kit Part Number

Kit Description

DS3/HST Redundancy Kit

Part Number

504-270

CMX Card Console Port Cables

Table 15. CMX Card Console Port Cables

Cable Description

DB9(F) DTE to DB25(F) DTE, RS232

10 ft.

25 ft.

DB9(F) DTE to DB25(M) DTE, RS232

10 ft.

25 ft.

DB9(F) DTE to DB25(F) DCE, RS232

10 ft.

25 ft.

DB9(F) DTE to DB25(M) DCE, RS232

10 ft.

25 ft.

DB9(F) DTE to DB9(F) DTE, RS232 Null Modem

10 ft.

25 ft.

DB9 (F) DTE to DB25 (M) DCE, RS232 to RS485

5 ft.

10 ft.

Part Number

500-074-010

500-074-025

500-075-010

500-075-025

500-078-010

500-078-025

500-079-010

500-079-025

500-252-010

500-252-025

501-350-005

501-350-010

For ORCA connecting cables, descriptions, part numbers,

and pinout information, see "Cables and Connectors" on page 161.

158

Replacement Parts

159

ORCA Gateway Hardware Manual

160

Appendix C

C

ABLES AND

C

ONNECTORS

The cables required to connect the ORCA gateway ports vary depending on the application and the physical configuration of the ORCA gateway. This section lists the cables and connectors of the ORCA gateway base unit. These include:

CMX

• Console port DB9 (M) connectors

• Alarm port DB15 (F) connectors

HUB2X

• Ethernet port 1000Base-SX optical connector (GX-

Series only)

• Ethernet port 100Base-T RJ45 connector

HSTX

• DS3 BNC 75-ohm Telco connector

UPMX

• Telco port DB25 connector

• Two serial port DB26 connectors (not supported)

ORCA Gateway Hardware Manual

Note

Cabling can be purchased from Nuera as an optional product, purchased from another vendor, or fabricated by the customer.

CMX Ports

CMX

DB9 (M)

DB15 (F)

Figure 47. CMX Card Ports

CMX port cables attach to either of the following ORCA ports:

• DB9 (M) console port

• DB15 (F) alarm port

Console Port

Each CMX card provides one DB9 (M) console port connection and a single alarm port connection made through a

DB15 (F) connector.

162

Cables and Connectors

Console Port Connector

The CMX console port connector is a DB9 (M) as shown in

Figure 48 on page 163. This port functions as an RS232 DTE interface for console port operation utilizing asynchronous data signals only. No modem control signals are used.

DB9 Male, DTE Connector

Pin 1 Pin 2 Pin 3 Pin 4 Pin 5

Pin 6 Pin 7 Pin 8 Pin 9

Figure 48. CMX Console Port Connector Pin Assignments

Console Port Pin Assignments

Figure 49 shows the CMX console port DB9 (M) connector pin assignments. When running a PC emulation program such as ProComm Plus with hardware flow control turned off, only pins 2, 3, and 5 are required.

3

4

1

2

5

6

7

Receive Data

Transmitted Data

Signal Ground

8

9

Protective Ground

Figure 49. CMX Console Port Connector Pin Assignments

163

ORCA Gateway Hardware Manual

Console Port Cables

This section lists the cables available to attach to this connector in Table 16, and subsequently describes each cable.

Table 16. Console Port Cables

Available Cables

DB9 (F) DTE-to-DB25 (F) DTE, RS232

10 ft.

25 ft.

DB9 (F) DTE-to-DB25 (M) DCE, RS232

10 ft.

25 ft.

DB9 (F) DTE-to-DB25 (F) DCE, RS232

10 ft.

25 ft.

DB9 (F) DTE-to-DB25 (M) DCE, RS232

10 ft.

25 ft.

DB9 (F) DTE-to-DB9 (F) DTE, RS232, Null Modem

10 ft.

25 ft.

DB9 (F) DTE-to-DB25 (M) DCE, RS232 to RS485

5 ft.

10 ft.

Part Number

500-074-010

500-074-025

500-075-010

500-075-025

500-078-010

500-078-025

500-079-010

500-079-025

500-252-010

500-252-025

501-350-005

501-350-010

164

Cables and Connectors

DB9 (F) DTE-to-DB25 (F or M) DTE, RS232

DB9

Female

1

2

3

4

5

6

7

8

9

DTE:

Connect to

ORCA

DB25 Male or Female

N/C

2

7

N/C

3

5

N/C

20

1

DTE

Data Carrier Detect

Receive Data

Transmitted Data

Data Terminal Ready

Signal Ground

Data Set Ready

Request to Send

Clear to Send

Protective Ground

Figure 50. DB9 (F) DTE-to-DB25 (F or M) DTE, RS232 (500-074/075)

DB9 (F) DTE-to-DB25 (F or M) DCE, RS232

DB9

Female

1

2

5

6

7

8

3

4

9

DTE:

Connect to

ORCA

DB25 Male or Female

N/C

3

2

20

7

6

4

5

1

DCE

Data Carrier Detect

Receive Data

Transmitted Data

Data Terminal Ready

Signal Ground

Data Set Ready

Request to Send

Clear to Send

Protective Ground

Figure 51. DB9 (F) DTE-to-DB25 (F or M) DCE, RS232 (500-078/079)

165

ORCA Gateway Hardware Manual

DB9

Female

1

2

3

4

5

6

7

8

9

DTE:

Connect to

ORCA

DB9 (F) DTE-to-DB9 (F) DTE, RS232, Null Modem

DB9

Female

1 No Connection

3 Transmitted Data

2

6

Receive Data

Data Set Ready

5

4

8

Signal Ground

Data Terminal Ready

Clear to Send

7

9

DTE

Request to Send

Protective Ground

Figure 52. DB9 (F) DTE-to-DB9 (F) DTE, RS232, Null Modem (500-252)

DB9 (F) DTE-to-DB25 (M) DCE, RS232 to RS485

DB9

Female

5

6

7

3

4

1

2

8

9

DTE:

Connect to

ORCA

DB25

Male

N/C

3

2

20

7

6

4

5

1

DTE

Data Carrier Detect

Receive Data

Transmitted Data

Data Terminal Ready

Signal Ground

Data Set Ready

Transmit Data

Clear to Send

Protective Ground

Figure 53. DB9 (F) DTE-to-DB25 (M) DCE, RS232 to RS485 (501-350)

166

Cables and Connectors

Alarm Port

Alarm Port Connector

The CMX alarm port connector is a DB15 (F) as shown in

Figure 54. This enables external alarm indicators to activate upon alarm conditions.

DB15 Female DCE

Pin 8 Pin 1

Pin 15

Figure 54. CMX Console Alarm Port Connector

Pin 9

167

ORCA Gateway Hardware Manual

Alarm Port Pin Assignments

Figure 55 shows the CMX alarm port DB15 (F) connector pin assignments.

3

4

1

2

5

6

9

10

7

8

Alarm Power

Major In

Alarm Return

Chassis Ground

Chassis Ground

Critical NC

Major NC

Minor NC

Critical In

Minor In

11

12

13

14

Alarm Return

Chassis Ground

Critical Normally Open

Major Normally Open

15

Minor Normally Open

Figure 55. CMX Alarm Port Connector Pin Assignments

Alarm Port Cable

The alarm port DB15 (F) connector is located on the CMX card, which is accessible from the rear of the gateway.

This section lists the cables available to attach to this connector in Table 17, and subsequently describes each cable.

Table 17. Alarm Port Cables

Available Cables

DB15 (M)-to-DB15 (M), CMX Alarm Cable

5 ft.

10 ft.

Part Number

504-149-005

504-149-010

168

Cables and Connectors

DB15 (M)-to-DB15 (M), CMX Alarm Cable

HOSTX

ALARM

CONNECTOR

HOSTX

ALARM

CONNECTOR

Note:

Color coding shown is Nuera proprietary. User-fabricated

cables need not match this convention.

DB15(MALE)

ALARM POW ER TO ALARM RETURN 1

ALARM POW ER TO ALARM RETURN 3

CRITICAL OUT NO TO CRITICAL IN 13

CRITICAL OUT NO TO CRITICAL IN 9

MAJOR OUT NO TO MAJOR IN 14

MAJOR OUT NO TO MAJOR IN 2

MINOR OUT NO TO MINOR IN 15

MINOR OUT NO TO MINOR IN 10

CHASSIS GROUND 5

CHASSIS GROUND 12

CHASSIS GROUND 4

WHITE/BLUE

BLUE/WHITE

WHITE/ORANGE

ORANGE/WHITE

WHITE/GREEN

GREEN/WHITE

WHITE/BROWN

BROWN/WHITE

WHITE/SLATE

SLATE/WHITE

RED/BLUE

BLUE/RED

RED/ORANGE

ORANGE/RED

RED/GREEN

GREEN/RED

RED/BROWN

BROWN/RED

RED/GREY

GREY/RED

BLACK/BLUE

BLUE/BLACK

BLACK/ORANGE

ORANGE/BLACK

BLACK/GREEN

GREEN/BLACK

DB15(MALE)

3

1

9

13

2

14

10

15

5

12

4

FOIL

BRAID

BRAID

FOIL

Figure 56. DB15 (M)-to-DB15 (M), CMX Alarm Cable (504-149)

169

ORCA Gateway Hardware Manual

HUB2X Ports

HUB2X-100Base-T

RJ-45

Figure 57. HUB2X-100Base-T Card Ports

The HUB2X-100Base-T card provides an RJ-45 ethernet connection.

RJ-45 Ethernet Port

The RJ-45 ethernet port on the HUB2X-100Base-T card enables external LAN connections to ORCA gateway’s internal buses.

170

Cables and Connectors

RJ-45 Ethernet Connector and Pin Assignments

The HUB2X 100Base-T port connector is an RJ-45 (F). This connector and its pin assignments are shown in Figure 58.

1 2 3 4 5 6 7 8

5

6

7

8

2

3

4

Rx Ring

Rx Tip

NC

Tx Ring

Tx Tip

NC

NC

Protective

Ground

Figure 58. HUB2X-100Base-T Card RJ-45 Connector and Pin

Assignments

RJ-45 Ethernet Port Cables

This section lists the cables available to attach to this connector in Table 18, and subsequently describes each cable.

Table 18. RJ-45 Ethernet Port Cables

Available Cables

100Base-T Standard, Straight RJ-45

10 ft.

25 ft.

Part Number

504-172-010

504-172-025

171

ORCA Gateway Hardware Manual

100Base-T Standard, Straight RJ45

PIN 8

SHIELD

CONNECTED

TO RJ48 AT

THIS END

PIN 1

"A" END

(SHIELDED)

"B" END

PIN 1

PIN 8

RJ48(MALE) "A" END

WIRE CHART

DRAIN WIRE

1

2

5

4

3

6

7

8

FOIL

RJ48(MALE) "B" END

WHT/ORG

ORG

WHT/GRN

GRN

WHT/BLU

BLU

WHT/BRN

BRN

7

8

5

4

3

6

DRAIN WIRE NC

1

2

Figure 59. 100Base-T Standard, Straight RJ45 (504-172)

172

Cables and Connectors

HUB2X-1000Base-SX

RJ45

OPTICAL

Figure 60. HUB2X1000Base-SX Card Ports

The HUB2X-1000Base-SX card provides:

• an RJ-45 ethernet connection, and

• an optical ethernet connection.

Optical Ethernet Port

The ethernet ports on the HUB2X-1000Base-SX card enable external LAN connections to ORCA gateway’s internal buses, with multiple throughput options.

173

ORCA Gateway Hardware Manual

Optical Connector

The HUB2X optical port connector is an SC connector. This connector is shown in Figure 61.

TX RX

Figure 61. HUB2X Card Optical Connector

The ethernet port RJ-45 connector on the HUB2X-

1000Base-SX is identical to the one on the HUB2X-100Base-

T card. It is located on the bottom of the card.

174

HSTX Ports

Cables and Connectors

HSTX

75 ohm BNC

Figure 62. HSTX Card Ports

Each HSTX card provides three Rx DS3 BNC 75-ohm connections and three Tx DS3 BNC 75-ohm connections.

BNC Port

The BNC ports on the HSTX provide the DS3 interface for the ORCA gateway.

175

ORCA Gateway Hardware Manual

BNC Connector

The DS3 BNC connector is shown below.

Figure 63. HSTX DS3 BNC Port Connector

BNC Port Cable

This section lists the cables available to attach to this connector in Table 19, and subsequently describes each cable.

Table 19. 75-ohm BNC Port Cables

DS3 BNC 75-ohm Cable

Available Cables

6 in.

10 ft.

25 ft.

50 ft.

100 ft.

Part Number

504-264-0.5

504-264-010

504-264-025

504-264-050

504-264-100

176

DS3 BNC 75-ohm Cable

Cables and Connectors

Figure 64. DS3 BNC 75-ohm Cable (504-264)

UPMX Ports

UPMX

DB25 (M)

DB26 (F)

DB26 (F)

Figure 65. UPMX Card Ports and Connectors

Each UPMX card provides four T1/E1 connections through a

DB25 (M) connector.

177

ORCA Gateway Hardware Manual

Telco Port

Telco Port Connector

The physical interface for each is a single DB25 (M) connector over which all spans are available. The connector is shown in Figure 66 on page 178.

DB25 Male DCE

Pin 1 Pin 13

Pin 14 Pin 25

Figure 66. UPMX Card DB25 Connector

These ports provide subscriber-side termination of voice packet streams.

Each T1/E1 port can support either a DSX-1 or a DS-1 physical interface.

Telco Port Pin Assignments

Figure 67 on page 179 shows the telco port DB25 (M) connector pin assignments.

178

Cables and Connectors

UPMX DB25 Connector

20

21

22

23

24

25

13

14

15

16

17

18

19

10

11

12

6

7

8

9

4

5

1

2

3

Figure 67. UPMX Card DB25 T1 Interface Pin Assignments

DB25 Port Cables

The T1 port DB25 (M) connector is located on the UPMX T1 card, which is accessible from the rear of the gateway. This

NC

Rx In Tip

Tx Out Tip (1)

NC

Rx In Tip (2)

Tx Out Tip (2)

NC

Tx Out Tip (3)

NC

Rx In Tip (4)

Tx Out Tip (4)

NC

Rx In Ring (1)

Tx Out Ring (1)

NC

Rx In Ring (2)

Tx Out Ring (2)

NC

Rx In Ring (3)

Tx Out Ring (3)

NC

Rx In Ring (4)

Tx Out Ring (4)

NC

179

ORCA Gateway Hardware Manual

section displays the cables available to attach to this connector.

This section lists the cables available to attach to this connector in Table 20, and subsequently describes each cable.

Table 20. DB25 Port Cables

Available Cables

ORCA DB25 (F)-to-RJ45 (M) (4x)

10 ft.

25 ft.

ORCA DB25 (F) Telco Straight-to-Open

10 ft.

25 ft.

ORCA DB25 (F)-to-ORCA DB25 (F)

10 ft.

25 ft.

ORCA DB25 (F)-to-RJ45 Adaptor

Part Number

504-121-010

504-121-025

504-124-010

500-124-025

504-146-010

504-146-025

504-087

180

ORCA DB25 (F)-to-RJ45 (M) (4x)

Cables and Connectors

Note:

Color coding shown is Nuera proprietary. User-fabricated

cables need not match this convention.

DB25(F) ORCA

Rxin_Ring_1 14

Rxin_Tip_1 2

Txout_Ring_1 15

Txout_Tip_1 3

BLUE

ORANGE

YELLOW

BLACK

RJ45-A

4 A

5 A

1 A

2 A

Rxin_Ring_2 17

Rxin_Tip_2 5

Txout_Ring_2 18

Txout_Tip_2 6

Rxin_Ring_3 20

Rxin_Tip_3 8

Txout_Ring_3 21

Txout_Tip_3 9

Rxin_Ring_4 23

Rxin_Tip_4 11

Txout_Ring_4 24

Txout_Tip_4 12

BLUE

ORANGE

YELLOW

BLACK

BLUE

ORANGE

YELLOW

BLACK

BLUE

ORANGE

YELLOW

BLACK

RJ45-B

4 B

5 B

1 B

2 B

RJ45-C

4 C

5 C

1 C

2 C

RJ45-D

4 D

5 D

1 D

2 D

Figure 68. ORCA DB25 (F)-to-RJ45 (M) (4x) (504-121)

181

ORCA Gateway Hardware Manual

ORCA DB25 (F) Telco Straight-to-Open

Note:

Color coding shown is Nuera proprietary. User-fabricated

cables need not match this convention.

DB25(F) ORCA COLOR/TRACER

Rxin_Ring_1 14

Rxin_Tip_1 2

Txout_Ring_1 15

Txout_Tip_1 3

Rxin_Ring_2 17

Rxin_Tip_2 5

Txout_Ring_2 18

Txout_Tip_2 6

Rxin_Ring_3 20

Rxin_Tip_3 8

Txout_Ring_3 21

Txout_Tip_3 9

Rxin_Ring_4 23

Rxin_Tip_4 11

Txout_Ring_4 24

Txout_Tip_4 12

BRAID

FOIL

BL/WH

WH/BL

OR/WH

WH/OR

GRN/WH

WH/GRN

BR/WH

WH/BR

SL/WH

WH/SL

BL/RED

RED/BL

OR/RED

RED/OR

GRN/RED

RED/GRN

Figure 69. ORCA DB-25 (F) Telco Straight-to-Open (504-124)

182

ORCA DB25 (F)-to-ORCA DB25 (F)

Cables and Connectors

ORCA

CONNECTOR

ORCA

CONNECTOR

Note:

Color coding shown is Nuera proprietary. User-fabricated

cables need not match this convention.

DB25(F) DB25(F)

Rxin_Ring_1 14

Rxin_Tip_1 2

Txout_Ring_1 15

Txout_Tip_1 3

Rxin_Ring_2 17

Rxin_Tip_2 5

Txout_Ring_2 18

Txout_Tip_2 6

Rxin_Ring_3 20

Rxin_Tip_3 8

Txout_Ring_3 21

Txout_Tip_3 9

Rxin_Ring_4 23

Rxin_Tip_4 11

Txout_Ring_4 24

Txout_Tip_4 12

BLUE/WHITE

WHITE/BLUE

ORANGE/WHITE

WHITE/ORANGE

GREEN/WHITE

WHITE/GREEN

BROWN/WHITE

WHITE/BROWN

SLATE/WHITE

WHITE/SLATE

BLUE/RED

RED/BLUE

ORANGE/RED

RED/ORANGE

GREEN/RED

RED/GREEN

FOIL

BRAID

BRAID

FOIL

Figure 70. ORCA DB25 (F)-to-ORCA DB25 (F) (504-146)

15 Tx_Ring_1

3 Tx_Tip_1

14 Rx_Ring_1

2 Rx_Tip_1

18 Tx_Ring_2

6 Tx_Tip_2

17 Rx_Ring_2

5 Rx_Tip_2

21 Tx_Ring_3

9 Tx_Tip_3

20 Rx_Ring_3

8 Rx_Tip_3

24 Tx_Ring_4

12 Tx_Tip_4

23 Rx_Ring_4

11 Rx_Tip_4

183

ORCA Gateway Hardware Manual

ORCA DB25 (F) to RJ45 Adaptor

Figure 71. ORCA DB25 (F) to RJ45 Adaptor (504-087)

184

Appendix D

R

EGULATORY

I

NFORMATION

This appendix presents pertinent regulatory information for the following countries: United States, Canada, and those in the European Union.

United States FCC Notice

This equipment complies with Part 68 of the FCC rules. On the top panel of this equipment is a label that contains, among other information the FCC registration number for this equipment. You must, upon request, provide this information to your telephone company.

In addition, the telephone company may request the following information:

Type of Interface

Service Order Code(SOC)

Facility Interface Code (FIC)

T1

6.0F

04DU9-BN/DN/1KN/1SN/1ZN

An FCC-compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or premises wiring

ORCA Gateway Hardware Manual

using a compatible modular jack which is Part 68 compliant.

See Installation Instructions for details.

If the terminal equipment UPMX 504-100-01 causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But if advance notice is not practical, the telephone company will notify you as soon as possible.

You will be informed of your right to file a complaint with the FCC.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

If you experience trouble with this telephone equipment, please contact Nuera Communications Technical Assistance

Center (TAC) in the USA at 10445 Pacific Center Court, San

Diego, CA 92121 for information on obtaining service or repair. If the equipment is causing harm to the telephone network, the telephone company may request you to disconnect the equipment until the problem is resolved.

There are no user-serviceable parts in this equipment.

This equipment may not be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state tariffs.

Industry Canada Notice

The Industry Canada label identifies certified equipment.

This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal

Equipment Technical Requirements document(s). The

186

Regulatory Information

department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions might not prevent degradation of service in some situations.

A representative designated by the supplier should coordinate repairs to certified equipment. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

WARRANTY AND REPAIR SERVICE CENTER:

Company Name:___________________

Street Address_____________________

City, State, Zip Code:________________

County:_____________________________

Phone:_______________________________

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

187

ORCA Gateway Hardware Manual

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference in which case the user will be required to correct the interference at his own expense.

188

Regulatory Information

AFFIDAVIT FOR THE CONNECTION

OF CUSTOMER-PROVIDED COMMUNICATIONS SYSTEMS

NOT SUBJECT TO PART 68 OF THE FCC RULES

For work performed in the certified territory of _____________________________________

(Telco's name)

State of _____________________ County of __________________________________,

I,__________________________, __________________________________________

(Your name) (Business address and phone) representing ____________________________________, a telephone customer located at

(Name of firm)

______________________________________________________________________,

(Address and phone) and being duly sworn, do state as follows:

1. I have responsibility for the operation and maintenance of the customer-provided communications system(s) not subject to Part 68 of the FCC Rules which is (are) to be connected to the telephone network as listed in section (3) below.

2. The said communications system(s) will be connected through FCC registered or grandfathered terminal equipment, systems, or protective circuitry which assures that all of the requirements of FCC Part 68, with the sole exception of signal power level, are met at the telephone interface.

3. The telephone line(s) to which the equipment in (2) above will be connected to, or arranged for connection to, is (are):

___________________ ___________________ ___________________

___________________ ___________________ ___________________

___________________ ___________________ ___________________

4. I attest that all operations associated with the establishment, maintenance and adjustment of the indicated communications system(s) will be made such that the signal power at the telephone network interface within the frequency range of 200 – 4000 Hz continuously complies with Part 68 of the FCC Rules.

5. I attest that the operator(s) maintainer(s) and/or installer(s) of the said communications system(s) responsible for the establishment, maintenance, and adjustment of the voice frequency signal power present at the telephone network interface has more than six months of on-the-job experience in the installation of telephone equipment or is a professional engineer and has read and understands the installation procedures of the equipment.

NOTARY:

__________________________________

Signature

__________________________________

Date

189

ORCA Gateway Hardware Manual

190

B

IBLIOGRAPHY

This appendix provides a brief, annotated bibliography of publications that provide information relevant to the understanding of the design and management of the ORCA communications platform.

Hardware Specifications

“CompactPCI 2.0, R2.1 cPCI Specification”, PICMG. Rogers Communications, Wakefield, MA, September, 1997.

CompactPCI is a high-performance industrial computer platform based on the standard PCI electrical specification in rugged Eurocard packaging, with a high-quality 2mm metric pin and socket connector.

CompactPCI is suited for telecommunications, computer telephony, real-time machine control, industrial automation, real-time data acquisition, instrumentation, military systems and other applications requiring high speed computing and modular and robust packaging design. The CompactPCI specification defines both 3U (100 x 160mm) and

6U (233 x 160mm) card formats for modular, rack-based systems.

Version 2.1 incorporates many additions and clarifications over the previous Version 1.0 that was released in November 1995. Enhancements in the CompactPCI 2.1 specification include:

• Clarified/corrected interrupt routing

• IEEE1101.10 enhanced Eurocard mechanics

• Adoption of a consistent method for rear panel I/O connections as defined by the IEEE 1101.11 Draft specification

191

ORCA Gateway Hardware Manual

• Rear panel I/O drawings and pin assignments provided

• Geographic addressing defined that allows a card to read its slot ID

• Physical vs. logical slot addresses defined

• The concept of bus segments vs. backplanes

• Pull-up resistor now required on boards implementing

GNT#

• Backplane and board decoupling requirements clarified

• Backplane termination requirements illustrated

• Updated mechanical drawings

• Dedicated clock routing and other provisions for future hot swap

• 32-bit trace lengths for 64-bit and 32-bit systems

Revision 2.1 of the specification provides features useful to telecom, including geographic addressing, standardized rear panel I/O connection methods, and mechanics that address tough international safety and emissions standards.

“CompactPCI 2.1, R1.0 cPCI Hot Swap Specification”, PICMG.

Rogers Communications, Wakefield, MA, August, 1998.

This document details how to implement the "hot swapping" of components in CompactPCI systems; that is, the capability of removing and replacing components without turning off the system. Hot Swap capability is increasingly important in systems used for applications such as telecommunications, which require that the system be operational at some level continuously. CompactPCI is a high-performance industrial computer platform based on the standard PCI electrical specification in rugged Eurocard packaging, with a high-quality 2mm metric pin and socket connector.

The new CompactPCI Hot Swap Specification defines pin sequencing and other enabling hardware technologies, as well as the software architecture required to support live insertion and extraction of boards in a running CompactPCI system. The new specification was approved in July 1998 by

PICMG's Executive membership. Copies are presently being distributed to all members of the organization.

192

Bibliography

The Hot Swap specification is also available to non-members for a nominal fee

The Hot Swap Specification provides a framework for designing CompactPCI Hot Swap components (boards, backplanes, ICs, platforms, etc.). This framework gives vendors some flexibility to choose the features appropriate for their products, and still operate with all other CompactPCI components (Hot Swap and non-Hot Swap).

“CompactPCI 2.5 R1.0 cPCI Computer Telephony Specification”,

PICMG. Rogers Communications, Wakefield, MA, April, 1998.

This document defines the utilization of CompactPCI userdefinable pins for the computer telephony functions of a standard TDM (Time Division Multiplexed) bus, telephony rear I/O, 48 Volts DC and ringing distribution in a 6U chassis environment. CompactPCI is a high-performance industrial computer platform based on the standard PCI electrical specification in rugged Eurocard packaging, with a highquality 2mm metric pin and socket connector.

The Computer Telephony Specification extends the capabilities of the CompactPCI architecture to support specific application needs of the industry:

• Hot swappable TDM bus on J4 complying with the ECTF

H.110 specification

• Two and four wire I/O of J5 for analog and digital telephony

• Frame grounding techniques based on IEEE 1101.11

• Sub-bus and front panel keying

• Geographical slot addressing and shelf enumeration

This specification provides guidance for backplane/chassis vendors, CT card vendors, and CT system integrators, so as to promote multi-vendor interoperability and the design of open, standards based components and systems.

193

ORCA Gateway Hardware Manual

Network Management Publications

Leinwand, Allan; Conroy, Karen. Network Management: A

Practical Perspective 2nd Edition. Addison-Wesley Publishing Company, 1996. ISBN 0-201-60999-1

Comer, Douglas. Internetworking With TCP/IP: Principles,

Protocols, and Architecture 2nd Edition. Englewood Cliffs,

New Jersey: Prentice-Hall, 1988. ISBN 0-13-470154-2

Rose, Marshall T. The Simple Book: An Introduction to Man-

agement of TCP/IP-based Internets. Englewood Cliffs, New

Jersey: Prentice-Hall, 1989. ISBN 0-13-812611-9

Murray, James. Windows NT SNMP 1st Edition. O’Reilly &

Associates Publishing, 1998. ISBN 1-56592-338-3

Hewlett Packard Publications

HP OpenView Network Node Manager Installation

Quick Start

This book contains instructions about installing and configuring NNM.

Welcome to Network Node Manager

An overview of NNM, its features, and its capabilities.

Managing Your Network with HP OpenView Network

Node Manager

This book contains detailed information to help network administrators configure, maintain, and troubleshoot

NNM.

194

Bibliography

Guide to Scalability and Distribution for Network

Node Manager

This advanced book outlines steps you need to take to deploy NNM across multiple management stations within your organization. It contains specific configuration procedures for using the scaling and distribution features of NNM. These features are important when the size of your organization’s network exceeds the resources of one NNM management station. They enable you to divide the work load among multiple management stations, yet share the network management information, as needed.

195

ORCA Gateway Hardware Manual

196

W

ARRANTY

Nuera's standard warranty is one year from the date of shipment and is verified by serial number of the system. Any defective component will be replaced or repaired at no charge during this period. An advance replacement will be sent or on-site repair performed at Nuera's discretion, at no charge, if any equipment fails within the first

90 days of shipment. After that period, and for the reminder of the warranty, defective modules will be repaired at Nuera and then returned to the customer.

Once the warranty has expired, the components can either be returned to Nuera for repair, or an advance replacement can be provided. The repair and advanced replacement pricing are described in Table 21 and Table 22.

O

UT OF

W

ARRANTY

R

EPAIRS

Out of Warranty Repairs are described in Table 21.

Table 21. Out of Warranty Repairs

Part No.

Number of Units

800-027-063 ORCA GX / RDT component

Discount List Price

F

500

In order to exercise your rights to repair under this warranty, you must first contact

Nuera to obtain a repair authorization (RA) number. If you must return the unit to

Nuera for repair while the unit is under warranty, Nuera will pay the cost of shipping it to and from Nuera.

E

XTENDED

W

ARRANTY

The standard warranty period can be extended up to five years (in one year increments), with an optional extended warranty. The extended warranty requires a maintenance plan of equal duration and must be purchased within the initial 90 day standard warranty period.

The Extended Warranty is described in Table 22.

Table 22. Extended Warranty

Part No.

800-027-069

Description

Extended warranty provides repair of all components during the 12 month period of the plan.

Discount

F

List Price

2% of list price (including all hardware and software) per year

ORCA Gateway Hardware Manual

S

OFTWARE

L

ICENSE

A

GREEMENT

Any software product, including any documentation relating to or describing such software (hereafter collectively called “Software”), provided by Nuera is furnished to you for installation and use on a single computer. The Software may not be copied, in whole or in part, except for archival purposes, to replace a defective copy, or for program error verification.

You may not reverse engineer, decompile, or disassemble the Software, except to the extent such foregoing restriction is expressly prohibited by applicable law.

Unless earlier terminated by Nuera as herein provided, the term of each paid-up license shall expire at such time as you discontinue use of the applicable Software on the single processor specified above but otherwise shall be without restriction as to time.

The Software (including any images, applets, photographs, animations, video, audio, music, and text incorporated into the Software) is owned by Nuera or its suppliers and is protected by United States copyright laws and international treaty provisions.
