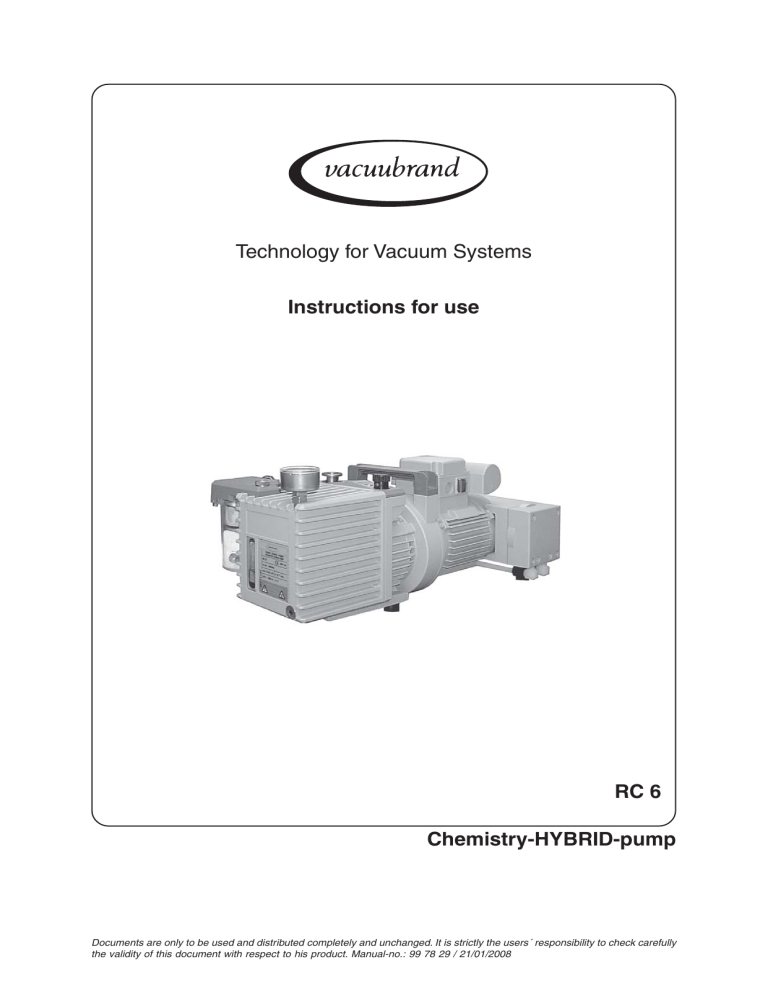

RC 6 Chemistry Hybrid Pump

RC 6 Chemistry Hybrid Pump

page 1 of 29

Technology for Vacuum Systems

Instructions for use

RC 6

Chemistry-HYBRID-pump

Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully the validity of this document with respect to his product. Manual-no.: 99 78 29 / 21/01/2008

page 2 of 29

Dear customer,

Your VACUUBRAND HYBRID pump should support you for a long time without trouble and with maximal power. Thanks to our long practical experience we have much information how you could ensure powerful application and personal safety. Please read these instructions for use before the initial operation of your pump.

VACUUBRAND pumps are the result of many years of experience in construction and practical operation of these pumps combined with the latest developments in material and manufacturing technology.

Our quality maxim is the ”zero fault principle”:

Every pump, leaving our company, is tested intensively including an endurance run of 60 hours. Therefore also faults, which occur rarely, are identified and can be eliminated immediately.

The achievement of the specifications after the endurance run is tested for every pump.

Every VACUUBRAND pump achieves the specifications. We feel obliged to this high quality standard.

We know that the vacuum pump can not take a part of your real work and hope that our products contribute to an effective and trouble-free realisation of your work.

Yours

VACUUBRAND GMBH + CO KG

After sales service:Contact your local dealer or call (++49) 9342/808-193.

Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully the validity of this document with respect to his product. Manual-no.: 99 78 29 / 21/01/2008

page 3 of 29

Contents

Safety information! .................................................................................................... 4

Technical data............................................................................................................ 8

Use and operation ................................................................................................... 10

Oil change ................................................................................................................ 15

Replacing diaphragms and valves......................................................................... 18

Accessories ............................................................................................................. 23

Troubleshooting ...................................................................................................... 24

Notes on return to the factory ................................................................................ 26

Health and safety clearance form .......................................................................... 27

Attention! Important notes!

Not permitted! Misuse may cause damage.

Caution! Hot surface!

Isolate equipment from mains.

Note.

Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully the validity of this document with respect to his product. Manual-no.: 99 78 29 / 21/01/2008

page 4 of 29

Safety information!

Remove all packing material, remove the product from its packing-box, remove protective covers from inlet and outlet ports and keep. Inspect the equipment.

If the equipment is damaged, notify the supplier and the carrier in writing within three days; state the item number of the product together with the order number and the supplier’s invoice number. Retain all packing material for inspection.

Do not use the equipment if it is damaged.

If the equipment is not used immediately, replace the protective covers. Store the equipment in suitable conditions.

The pump is delivered without oil filling. Fill in oil before operating the pump

(see section ”Oil change”)!

Read and comply with this manual before installing or operating the equipment.

☞ Transport the pump at the provided handle.

Use the equipment for the intended use only, i. e. for generation of vacuum in vessels designed for that purpose.

Prevent any part of the human body from coming in contact with the vacuum.

☞ Comply with notes on correct vacuum and electrical connections.

☞ Adopt suitable measures to avoid that liquids flow on or into the pump motor when assembling or disassembling vacuum connections at the pump. Risk of corrosion

and/or short circuit!

☞ Take care when connecting and deconnecting the vacuum tube.

☞ Make sure that the individual components are only connected, combined and operated according to their design and as indicated in the instructions for use.

Comply with national safety regulations and safety requirements concerning the use of vacuum and electrical equipment and adopt precautionary measures.

☞ Ensure that the equipment is suitable for the intended operation.

☞ Provide a firm level platform for the equipment and check that the system to be evacuated is mechanically stable and that all fittings are secure.

Attention: Flexible elements tend to shrink when evacuated.

The main on/off switch is located sidewise at the terminal box.

☞ Equipment must be connected only to a suitable fused and protected electrical

supply and a suitable earth point (recommended slow-blow fuse according to voltage supply, see ”Technical data”). Failure to connect the motor to ground may result in deadly electrical shock.

☞ The supply cable may be fitted with a moulded European IEC plug or a plug suitable for your local electrical supply. If the plug has been removed or has to be removed, the cable will contain wires colour coded as follows: green or green and yellow: earth; blue or white: neutral; brown or black: live.

☞ Check that mains voltage and current conform with the equipment (see rating plate).

☞ If the equipment is brought from cold environment into a room for operation, allow the equipment to warm up (pay attention to water condensation on cold surfaces).

☞ Ensure that installation is in compliance with limitations from the degree of protection, see section ”Technical Data”.

☞ Pay attention to the maximum permitted ambient temperature and make sure ventilation is adequate.

Do not permit any uncontrolled pressurizing (e. g. make sure that the exhaust pipeline cannot get blocked). If you have an exhaust-isolation valve, make sure that you cannot operate the equipment with the valve closed. Risk of bursting!

☞ Ensure that the system design does not allow the exhaust pipeline to get blocked.

☞ Avoid overpressure of more than 0.1 bar at the pump outlet.

☞ The diameter of the inlet and outlet pipeline should be at the least as large as the diameter of the pump connection pipelines.

Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully the validity of this document with respect to his product. Manual-no.: 99 78 29 / 21/01/2008

page 5 of 29

Due to the high compression ratio of the pumps, generated pressure at the outlet port might be higher than the maximum permitted pressure compatible with the mechanical stability of the system.

☞ Comply with maximum permitted pressures and pressure differences.

Pay attention to symbol ”hot surfaces” on the equipment (according to IEC 1010 recommendation).

☞ Adopt suitable measures to prevent any danger arising from the formation of hot surfaces or electric sparks.

☞ Make sure ventilation is adequate if pump is installed in a housing or if ambient temperature is elevated.

To the best of our knowledge the equipment is in compliance with the requirements of the applicable EC-directives and harmonized standards (see ”Declaration of conformity”) with regard to design, type and model, especially directive IEC 1010. This directive gives in detail conditions, under which the equipment can be operated safely

(see also IP degree of protection).

☞ Adopt suitable measures in case of differences, e. g. using the equipment outdoors, installation in altitudes of more than 1000 m above mean sea level, conductive pollution or dewiness.

The pumps have no approval for operation in or for pumping of potentially explosive atmospheres.

If pumping different substances, purge the pump with inert gas prior to changing the pumped media in order to pump out residues and to avoid reactions of the pumped substances with each other with and the pump material. Ensure that the materials of the wetted parts are compatible with the pumped substances, see section ”Technical data”.

Take into consideration interactions and chemical reactions of the pumped media.

The pumps are not suitable for pumping substances which may form deposits inside the pump.

☞ If there is a danger of the formation of deposits in the pump chamber (check inlet and outlet of the pump) inspect the pump chamber regularly and clean if necessary.

The pumps are not suitable to pump unstable substances and substances which react explosively under impact (mechanical stress) and/or when being exposed to

elevated temperatures without air.

The pumps are not suitable to pump self inflammable substances, substances which are inflammable without air and explosive substances.

The pumps are not suitable for pumping dust and have no approval for operation below ground.

Ensure that the materials of the wetted parts are compatible with the pumped substances, see section ”Technical data”.

☞ If residues can occur or if aggressive or condensable substances may enter the product, install suitable protection (e.g. gas washing bottle).

☞ Use cold trap if pumping aggressive or corrosive fluids.

☞ Adopt suitable measures to prevent the release of dangerous, explosive, corrosive or polluting fluids.

☞ Use inert gas for gas ballast or ventilation if necessary.

☞ Take adequate precautions to protect people from the effects of dangerous substances (chemicals, thermal decomposition products of fluoroelastomers), wear appropriate safety-clothing and safety glasses.

☞ Observe applicable regulations when disposing of chemicals which may be contaminated by pumped substances.

Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully the validity of this document with respect to his product. Manual-no.: 99 78 29 / 21/01/2008

page 6 of 29

☞ The user must take suitable precautions to prevent any formation of explosive mixtures in the expansion chamber or at the outlet. In case of a diaphragm crack, mechanically generated sparks, hot surfaces or static electricity may ignite these mixtures.

Important note on working with condensable vapours:

☞ Before commencing evacuation, allow pump to reach operating temperature and do not permit vapour inlet pressure to exceed the permitted maximum. Open gas ballast valve in case of pumping huge amounts of vapour.

Check oil level and condition of oil at regular intervals.

In case of excess temperature the motor is shut down by an embedded thermal

cutout in the winding. Manual reset is necessary. Switch off pump or isolate the equipment from mains. Determine and eliminate cause of failure. Let pump cool down sufficiently before switching on again.

☞ Avoid heat supply (e.g. due to process gases).

☞ Ensure sufficient air admittance if pump is installed in a housing.

Ensure that in case of failure the pump and the vacuum system always will turn into a safe status.

☞ Failure of the pump (e. g. due to power failure) must not lead to a critical dangerous situation under any circumstances.

☞ Comply especially with notes on operation and use and maintenance.

☞ Operating the pump, stand still of the pump or operating the air admittance valve must not lead to a critical or dangerous situation under any circumstances.

Under normal conditions, pump oils and lubrications are not toxic and their use entails no danger. Certain hazards are, however, associated with some of these products.

The following precautions must be adopted during use and operation in order to meet health and safety requirements.

Adopt precautionary measures (e. g. wear appropriate safety-clothing and protective goggles) to avoid excessive contact with the skin and possible skin irritations

(including dermatitis).

Do not inhale or swallow. Maintain adequate levels of hygiene and cleanliness.

Ensure that the pump location is well ventilated and that possible toxic effects of certain vapours are avoided.

☞ Use suitable collecting and disposing systems if necessary.

☞ Observe all relevant statutory requirements and regulations concerning the storage and disposal of oils.

Even if the medium pumped is air or an inert gas, the discharge from rotary vane pumps contains small quantities of oil vapour and crack products. These substances are contaminating particularly in closed spaces or in absence of adequate ventilation.

☞ Install oil mist filter and discharge gases and vapours according to regulations.

The dependability and operatability of the pump is not guaranteed if other-make filters are used.

The discharge from the pump invariably contains the evacuated gas or vapours!

☞ Prevent any dangerous reactions with oil or vapours or the impermissible or dangerous occurrence of emissions.

Use only oil of the recommended type.

Other oils or operating fluids may cause dangers or damage of the pump.

Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully the validity of this document with respect to his product. Manual-no.: 99 78 29 / 21/01/2008

page 7 of 29

Use special oils for the pump if:

☞ The pump operates in the vicinity of potential ignition sources.

☞ Oxygen or other flammable gases account for a large proportion of the evacuated gases.

Attention: Do not allow oils to be poured into or enter the drainage system or other bodies of water. Spillage can cause accidents! Use suitable means for removing spilt oil.

☞ Observe all relevant statutory requirements and regulations concerning the use, storage and disposal of oil.

Use only genuine spare parts and accessories.

☞ Otherwise safety and performance of the equipment as well as the electromagnetic compatibility of the equipment might be reduced.

Possibly the CE mark or the C/US conformity becomes void if not using genuine spare parts.

Ensure that maintenance is done only by suitable trained and supervised techni-

cians. Ensure that the maintenance technician is familiar with the safety procedures which relate to the product processed by the vacuum system and that the equipment, if necessary, is appropriately decontaminated before starting maintenance.

Comply with local and national safety regulations.

Wear parts have to be replaced regularly. In case of normal wear the lifetime of the diaphragms and valves is > 10000 operating hours. Bearings have a typical durability of 40000 h. Motor capacitors have a typical durability in the range of 10000 to 40000 h depending strongly on the operation conditions like ambient temperature, humidity or load.

☞ Check every capacitor regularly by measuring its capacity and estimating its operation time. Exchange old capacitors early enough to prevent a failure. If an overaged motor capacitor fails it might get hot and even melt and may cause a flame to form which could be dangerous for persons and equipment in the vicinity. The capacitors have to be replaced by an electrician.

Isolate equipment from mains and wait two minutes before starting maintenance to allow the capacitor to discharge.

➨ Before starting maintenance, wait two minutes after isolating the equipment from mains to allow the capacitors to discharge.

Ensure that the pump cannot be operated accidentally. Never operate the pump

if covers or other parts of the pump are disassembled. Never operate a defective or damaged pump.

Attention: The pump might be contaminated with process chemicals which have been pumped during operation. Ensure that the pump is decontaminated before maintenance and take adequate precautions to protect people from the effects of dangerous substances if contamination has occurred.

☞ Wear appropriate safety-clothing when you come in contact with contaminated components. Avoid any contamination of pumped substances or of the environment.

☞ Before starting maintenance vent the pump, isolate the pump and other components from the vacuum system. Allow sufficient cooling of the pump. Drain condensate, if applicable.

In order to comply with law (occupational, health and safety regulations, safety at work law and regulations for environmental protection) vacuum pumps, components and measuring instruments returned to the manufacturer can be repaired only when certain procedures (see section ”Notes on return to the factory”) are followed.
