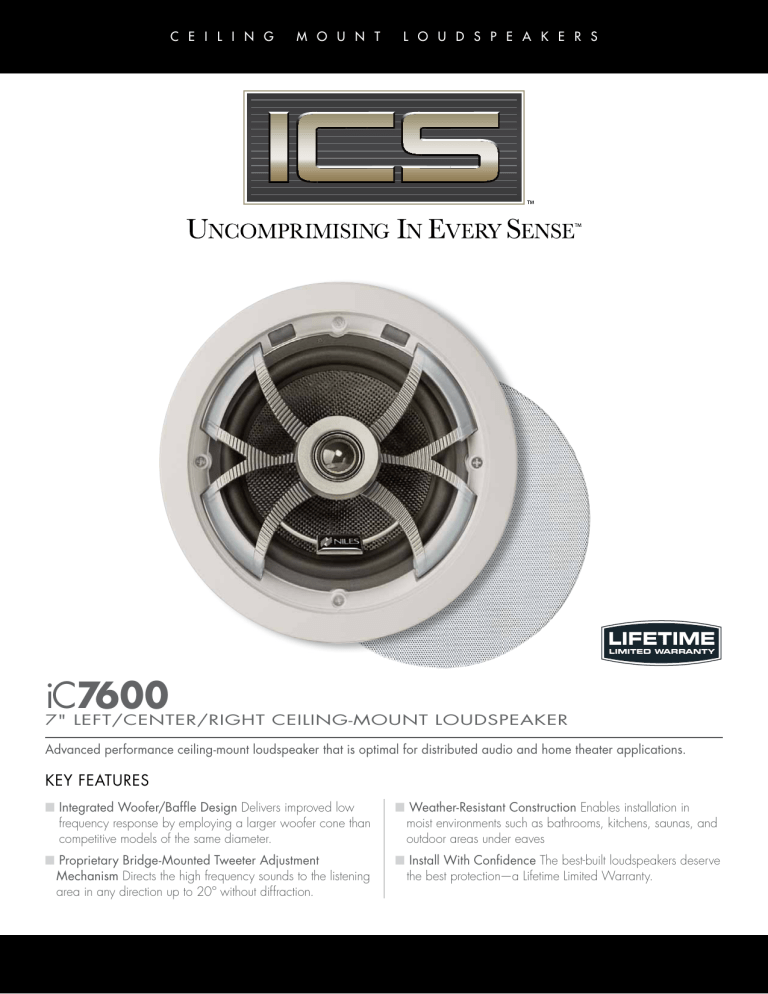

iC7600
C e i l i n g
M o u n t
L o u d s p e a k e r s
LIFETIME
LIMITED WARRANTY
iC7600
7" Left/Center/Right Ceiling-Mount Loudspeaker
Advanced performance ceiling-mount loudspeaker that is optimal for distributed audio and home theater applications.
Key Features
■ Integrated Woofer/Baffle Design Delivers improved low
frequency response by employing a larger woofer cone than
competitive models of the same diameter.
■ Weather-Resistant Construction Enables installation in
moist environments such as bathrooms, kitchens, saunas, and
outdoor areas under eaves
■ Proprietary Bridge-Mounted Tweeter Adjustment
Mechanism Directs the high frequency sounds to the listening
area in any direction up to 20º without diffraction.
■ Install With Confidence The best-built loudspeakers deserve
the best protection—a Lifetime Limited Warranty.
PRODU
C
T
DETAI
L
S
iC7600
7" Left/Center/Right Ceiling-Mount Loudspeaker
Features
• Integrated baffle/frame assembly increases the cone area for deeper bass than
competitive speakers of the same diameter
• 7" interlaced glass fiber woofer cone with butyl rubber surround is lightweight
yet extremely rigid for deeper, more powerful bass
• 1" fluid-cooled Teteron dome tweeter provides ultra-wide sound dispersion
and smooth high frequency response
®
• Proprietary bridge-mounted tweeter adjustment mechanism focuses the high
frequency sounds in any direction up to 20º without diffraction
iC7600
7" Left/Center/Right Loudspeaker
• Three-position tweeter level control
FG01640
• Paintable, flush-mount MicroPerf™ aluminum grille
Packaged in pairs with round MicroPerf™ Grilles
• Weather-resistant construction enables installation in wet environments and
outdoors under eaves
Related Products
CM700 BKT New
Construction Bracket
FG01308
Specifications
• Recommended amplifier power: 10 - 150 watts
• Impedance: 8 ohm nominal; 6 ohm minimum
CM700 Hole Cover
FG01309
• Frequency response: 55 Hz to 21 kHz +/ -3 dB
Dimensions
CE6 Metal Loudspeaker
Enclosure
FG00944
• Frame dimensions (with grille): 9-1/4" (23.5 cm) diameter
• Hole cutout dimensions: 8" (20.3 cm) diameter
• Depth behind ceiling (5/8" drywall): 4-3/8" (11 cm)
Warranty
• Lifetime Limited
©2010 Niles Audio Corporation. All Rights Reserved. Niles, the Niles logo and Blending High Fidelity and Architecture are registered trademarks
of Niles Audio Corporation. MicroPerf and TCC are trademarks of Niles Audio Corporation. All other trademarks are the property of their respective owners. CS0313A
WWW.INTELLICONTROL.COM
Specifications subject to change without notice.
