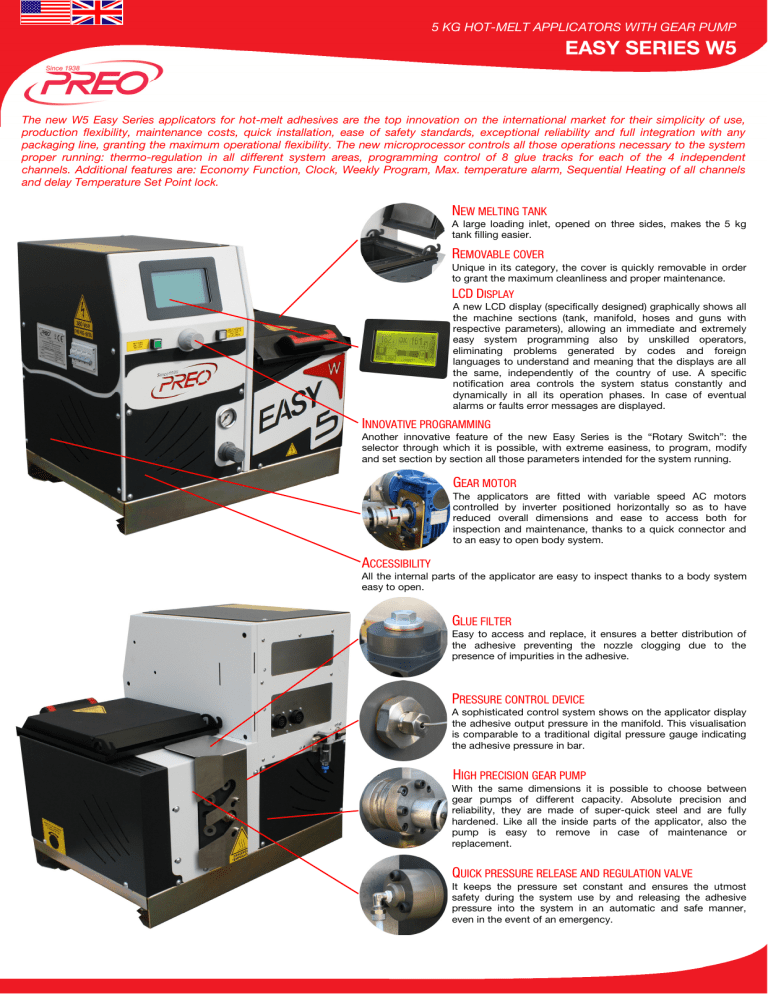

easy series w5
5 KG HOT-MELT APPLICATORS WITH GEAR PUMP
EASY SERIES W5
The new W5 Easy Series applicators for hot-melt adhesives are the top innovation on the international market for their simplicity of use,
production flexibility, maintenance costs, quick installation, ease of safety standards, exceptional reliability and full integration with any
packaging line, granting the maximum operational flexibility. The new microprocessor controls all those operations necessary to the system
proper running: thermo-regulation in all different system areas, programming control of 8 glue tracks for each of the 4 independent
channels. Additional features are: Economy Function, Clock, Weekly Program, Max. temperature alarm, Sequential Heating of all channels
and delay Temperature Set Point lock.
NEW MELTING TANK
A large loading inlet, opened on three sides, makes the 5 kg
tank filling easier.
REMOVABLE COVER
Unique in its category, the cover is quickly removable in order
to grant the maximum cleanliness and proper maintenance.
LCD DISPLAY
A new LCD display (specifically designed) graphically shows all
the machine sections (tank, manifold, hoses and guns with
respective parameters), allowing an immediate and extremely
easy system programming also by unskilled operators,
eliminating problems generated by codes and foreign
languages to understand and meaning that the displays are all
the same, independently of the country of use. A specific
notification area controls the system status constantly and
dynamically in all its operation phases. In case of eventual
alarms or faults error messages are displayed.
INNOVATIVE PROGRAMMING
Another innovative feature of the new Easy Series is the “Rotary Switch”: the
selector through which it is possible, with extreme easiness, to program, modify
and set section by section all those parameters intended for the system running.
GEAR MOTOR
The applicators are fitted with variable speed AC motors
controlled by inverter positioned horizontally so as to have
reduced overall dimensions and ease to access both for
inspection and maintenance, thanks to a quick connector and
to an easy to open body system.
ACCESSIBILITY
All the internal parts of the applicator are easy to inspect thanks to a body system
easy to open.
GLUE FILTER
Easy to access and replace, it ensures a better distribution of
the adhesive preventing the nozzle clogging due to the
presence of impurities in the adhesive.
PRESSURE CONTROL DEVICE
A sophisticated control system shows on the applicator display
the adhesive output pressure in the manifold. This visualisation
is comparable to a traditional digital pressure gauge indicating
the adhesive pressure in bar.
HIGH PRECISION GEAR PUMP
With the same dimensions it is possible to choose between
gear pumps of different capacity. Absolute precision and
reliability, they are made of super-quick steel and are fully
hardened. Like all the inside parts of the applicator, also the
pump is easy to remove in case of maintenance or
replacement.
QUICK PRESSURE RELEASE AND REGULATION VALVE
It keeps the pressure set constant and ensures the utmost
safety during the system use by and releasing the adhesive
pressure into the system in an automatic and safe manner,
even in the event of an emergency.
5 KG HOT-MELT APPLICATORS WITH GEAR PUMP
EASY SERIES W5
TECHNICAL SPECIFICATIONS
GENERAL SPECIFICATIONS
ADHESIVE TYPOLOGY AND VISCOSITY
OPERATING TEMPERATURE
HOSE/GUN CONNECTIONS
TANK CAPACITY
MELTING RATE
WEIGHT (EMPTY)
MACHINE DIMENSIONS (L X H X W MM)
TANK OPENING DIMENSIONS (MM)
TANK
MANIFOLD
WARM-UP TIME
FASTENING
hot-melt up to 70.000 Cps
50°C÷210°C (120°F÷410°F) standard version - 50°C÷230°C (120°F÷450°F) HT high temperature version
2, 4 (fitting thread 1/2"x20 UNF)
5 kg (11 lb)
6 kg/h (depending on used adhesive)
54 kg (119 lb)
540 x 615 x 460 mm
178 x 160 mm
internally coated with PTFE scratch-resistant non-stick treatment, heated gills, quick drain valve and removable cover
coated with hard oxidation treatment and glue filter integrated
35’÷40’ starting from ambient temperature (0°C÷45°C (32°F÷113°F)
buttonhole for M8 screws
ELECTRICAL SPECIFICATIONS
VOLTAGE
POWER CONSUMPTION
1/N/PE AC 230 V ±10% 50/60 Hz, 3/N/PE AC 400 V ±10% 50/60 Hz
2,4 kW (11 A) (no hoses and guns)
MICROPROCESSOR SPECIFICATIONS
TEMPERATURE CONTROL
MICROPROCESSOR TYPOLOGY
FUNCTIONS
SAFETY
OPTIONS
PT100 ±0,5°C (1°F) – RTD or Ni120 (on request)
by graphic interface with LCD display 240x128 pixels LED back lighted and rotary switch programming selector
Economy, Clock, Weekly Program, Maximum Temperature Alarm, Sequential Heating Zones
by-pass safety valve, over-temperature automatic protection, emergency stop input alarm, glue pressure release
low level sensor, quick pressure release valve and flow regulation, integrated glue pattern control, automatic granule feeder
GEAR PUMP SPECIFICATIONS
PUMP TYPE
PUMP MAXIMUM SPEED
MAXIMUM PUMP RATE
MOTOR SPECIFICATIONS
MAXIMUM WORKING PRESSURE
gear single flow
3,0-7,0 cc/rev (80 rpm)
14 kg/h (3,0 cc/rev pump) - 33 kg/h (7,0 cc/rev pump) (depending on used adhesive)
0,25 kW variable speed reduction gear 1:20 inverter-controlled
55 bar
© Copyright 2011 PREO SRL - All rights reserved - Subject to change without advanced notice - Printed in Italy - Edition EN-110 EASY W05 - 14/09/2011
PREO S.r.l.
Via Alessandro Volta, 7 • 20094 Corsico (MI) • Italia
tel. (+39) 02 48601260 • fax (+39) 02 4503323
www.preo.it • [email protected][email protected]
