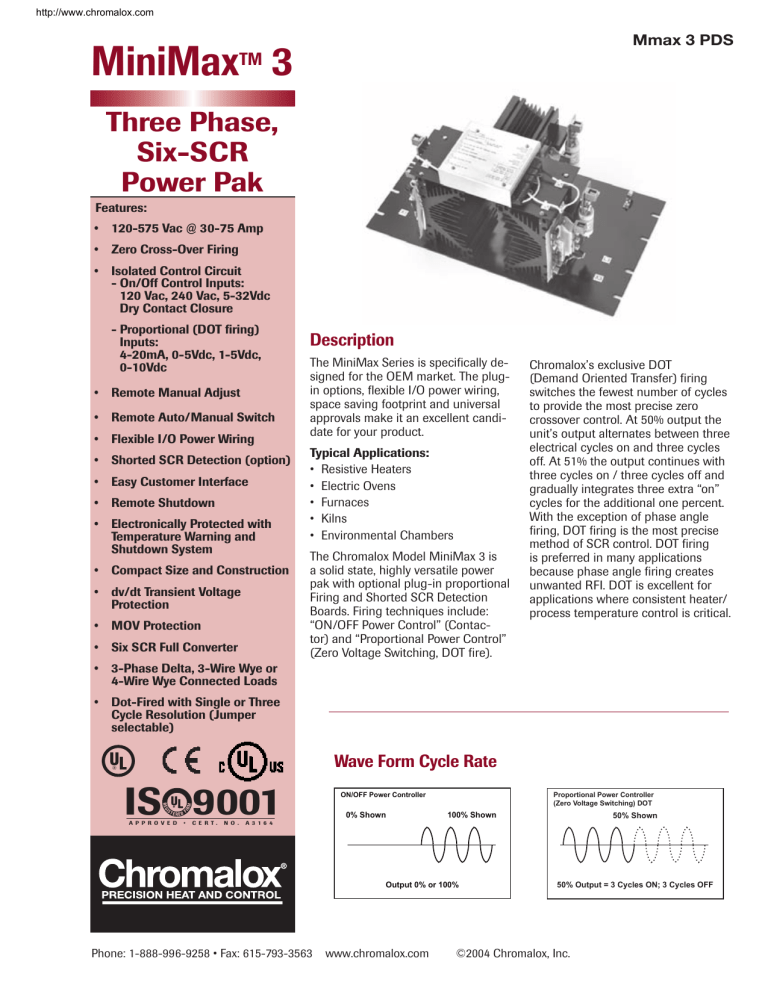

http://www.chromalox.com
Mmax 3 PDS
MiniMaxTM 3
Three Phase,
Six-SCR
Power Pak
Features:
•
120-575 Vac @ 30-75 Amp
•
Zero Cross-Over Firing
•
Isolated Control Circuit
- On/Off Control Inputs:
120 Vac, 240 Vac, 5-32Vdc
Dry Contact Closure
- Proportional (DOT firing)
Inputs:
4-20mA, 0-5Vdc, 1-5Vdc,
0-10Vdc
•
Remote Manual Adjust
•
Remote Auto/Manual Switch
•
Flexible I/O Power Wiring
•
Shorted SCR Detection (option)
•
Easy Customer Interface
•
Remote Shutdown
•
Electronically Protected with
Temperature Warning and
Shutdown System
•
Compact Size and Construction
•
dv/dt Transient Voltage
Protection
•
MOV Protection
•
Six SCR Full Converter
•
3-Phase Delta, 3-Wire Wye or
4-Wire Wye Connected Loads
•
Dot-Fired with Single or Three
Cycle Resolution (Jumper
selectable)
Description
The MiniMax Series is specifically designed for the OEM market. The plugin options, flexible I/O power wiring,
space saving footprint and universal
approvals make it an excellent candidate for your product.
Typical Applications:
• Resistive Heaters
• Electric Ovens
• Furnaces
• Kilns
• Environmental Chambers
The Chromalox Model MiniMax 3 is
a solid state, highly versatile power
pak with optional plug-in proportional
Firing and Shorted SCR Detection
Boards. Firing techniques include:
“ON/OFF Power Control” (Contactor) and “Proportional Power Control”
(Zero Voltage Switching, DOT fire).
Chromalox’s exclusive DOT
(Demand Oriented Transfer) firing
switches the fewest number of cycles
to provide the most precise zero
crossover control. At 50% output the
unit’s output alternates between three
electrical cycles on and three cycles
off. At 51% the output continues with
three cycles on / three cycles off and
gradually integrates three extra “on”
cycles for the additional one percent.
With the exception of phase angle
firing, DOT firing is the most precise
method of SCR control. DOT firing
is preferred in many applications
because phase angle firing creates
unwanted RFI. DOT is excellent for
applications where consistent heater/
process temperature control is critical.
Wave Form Cycle Rate
IS 9001
A P P R O V E D
•
C E R T.
N O .
ON/OFF Power Controller
0% Shown
Proportional Power Controller
(Zero Voltage Switching) DOT
100% Shown
50% Shown
A 3 1 6 4
Output 0% or 100%
Phone: 1-888-996-9258 • Fax: 615-793-3563
www.chromalox.com
50% Output = 3 Cycles ON; 3 Cycles OFF
©2004 Chromalox, Inc.
http://www.chromalox.com
MiniMax 3 Power Pak
Solid State Six SCR Power Controls for Two Types of Applications
ON/OFF Control (Solid State Contactor)
Capable of directly replacing a three-phase mechanical contactor for maintenance-free operation. With true zero voltage
switching RFI (Radio Frequency Interference) is virtually eliminated. The MiniMax 3 provides LED’s for visual indication of
the controller operation.
L1
L2
L3
Instrument
Power
Customer Interface
*Shorted SCR
Indicator
Shorted SCR Indicator
Enable / Disable
Remote
Shutdown
Heatsink Hi Temp
Indicator
*FUSE
*FUSE
*FUSE
Off/On Control
Inputs: 5 - 32 V.D.C.
120 - 240 V.A.C.
Or Contact Closure.
X2
X1
X3
3 Phase Load
Proportional Power Controller
This proportional power controller utilizes the “Zero Voltage Switching” technique to modulate power for a wide range of
resistive loads. Output power modulation is accomplished by Chromalox’s exclusive Demand Oriented Transfer (DOT) system which virtually eliminates RFI. Thermal cycling and heater degradation are minimized with the system’s fast response
time.
L1
L2
L3
Instrument
Power
Remote
Manual
Remote
Shutdown
Shorted SCR
Indicator
Shorted SCR Indicator
Enable / Disable
Customer Interface
Heatsink Hi Temp
Indicator
*FUSE
*FUSE
*FUSE
(+)
(-)
* See Note
X1
* Inputs:
X2
X3
Temp
Control
4-20 mA
1-5 VDC
0-5 VDC
(+)
(-)
0-10 VDC
Manual/Auto switch
Manual Adj Control
3 Phase Load
2
• 1382 Heil Quaker Blvd. • LaVergne, TN 37086 • PH: 1-888-996-9258 • www.chromalox.com
http://www.chromalox.com
MiniMax 3 Power Pak
Specifications
Control Inputs
Accepts all of the following as standard:
Resolution (Prop.) ..................... Better than 0.1%
Line Voltage ................................... 120-575 Vac
On/Off Control
Signal Input
Load Current Rating ................. 30, 50, 75 Amp
120 Vac ±10%
230 Vac ±10%
5-32Vdc
Contact Closures
Ambient Temperature .............. 0-50˚C (32-122˚F)
SCR Capability ............................. Dielectric withstand
capability 1500V RMS min.
Proportional Control
Signal Input
Input Impedance
4-20mA.............................................250 Ohms
1-5Vdc..............................................10k Ohms or greater
0-5Vdc..............................................10k Ohms or greater
0-10Vdc............................................10k Ohms or greater
Optional:
Remote Manual Adjust
Auto/Manual Switch
Instrument Power ...................... 120 or 230 Vac
50/60 Hz
Surge Rating ................................. Typically fifteen (15) times
nominal RMS rating for
8.3 milliseconds
Isolation ........................................... SCR’s isolation 2500V
Input-output isolation 1500V
Heatsink .......................................... Ground potential
High Temperature........................MOSFET Switch
Indicator Output
100mA @ instrument power
Shorted SCR ................................. MOSFET Switch
Indicator Output
100mA @ instrument power
Output Voltage ............................. 0-99% RMS line voltage
(Eo=Vsupply -1.5V SCR
forward drop)
Mechanical Features
Safety Features
•
LED Indication of Firing
Personnel Safety
•
Customer Control Connections made on a
Plug-In Screw Type Terminal Block
•
Optional Remote Manual and Auto/Manual Switch
•
Heatsink Mounted Temperature Sensor
• Ground Potential Heat Sink
• SCR to Heat Sink Isolation
Equipment/Process Safety
• Input to Output Isolation
Electrical Features
• Transient Overvoltage Protection, (dv/dt)
•
PIV 1200V Min at 480 Vac
PIV 1400V Min at 575 Vac
• I2t Fusing for SCR Protection
•
Isolated Semiconductor Power Blocks are used an all
Current Ratings
• Remote Shutdown
•
I2T Fusing
• Shorted SCR Detection (optional)
• 1382 Heil Quaker Blvd. • LaVergne, TN 37086 • PH: 1-888-996-9258 • www.chromalox.com
3
http://www.chromalox.com
MiniMax 3 Power Pak
Shorted SCR Detection Option
The MiniMax 3, with the shorted SCR detection circuit, will
monitor the output of the SCRs. If one fails shorted, the output
will be activated and the LED on the circuit board will light. The
LED indicates which phase has the shorted SCR.
Phase LED’s
Shorted SCR Indicator
(customer supplied)
Mounting Dimensions
MiniMax 3 Open
Height
D
Length
Depth
Amps
H
L
D
30
10
14
7.75
50
10
14
7.75
75
10
14
9.5
L
H
Ordering Information
Model
SCR Power Pack
Mmax3
3 Phase Six SCR Power Controller Complete with Lugs and I2T Fusing
Code
1
2
3
4
Control Configuration
On/Off Standard (Accepts: 120 Vac, 240 Vac, 5-32Vdc, Dry Contact Closure)
On/Off Standard with Shorted SCR Detection
Proportional Control, DOT Firing (Accepts: 4-20mA, 1-5Vdc, 0-5-Vdc, 0-10Vdc)
Proportional Control, DOT Firing with Shorted SCR Detection
Code
01
02
03
Current at 50˚C (104˚F) Ambient
30 Amp
50 Amp
75 Amp
Code Line Voltage
1
2
120 - 480 Vac
575 Vac2
Code Instrument Power
1
120 to 240 Vac 50/60Hz
Code
0
1
Mmax3-
3
01
1
1
0
1) SCR fusing is for semiconductor protection only, not wire protection.
2) Fuses are supplied loose for 575 Vac applications.
3) Potentiometer supplied loose for customer mounting.
Note:
Storage Temperature 14ºF to 158ºF (-10ºC to 70ºC).
CE Application requires filters.
4
Remote Manual Adjust/Auto Manual Switch
None
Pot with 0-100% dial and local/Remote Switch,
Single Turn 1K ohm Potentiometer
(Proportional control only)
Typical Model Number
Chromalox Part Numbers
0005-60056 — Line filter, three phase, 440VAC
0005-60057 — Line filter, 120-230VAC
CE application requires filter.
