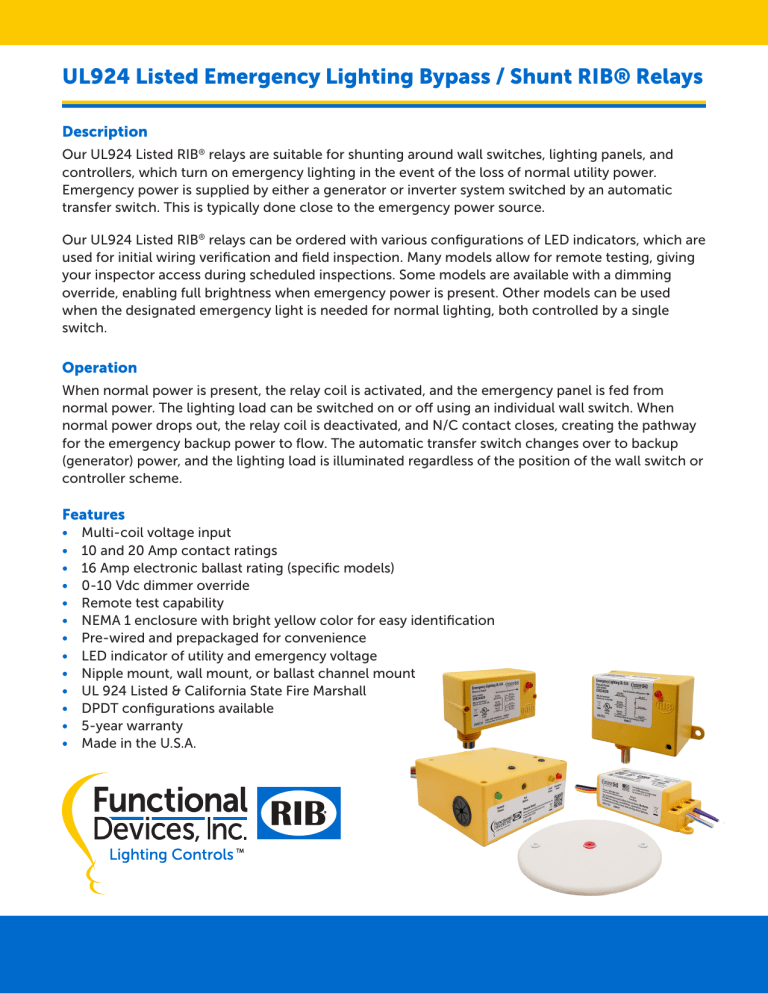

UL924 Listed Emergency Lighting Bypass / Shunt RIB® Relays

UL924 Listed Emergency Lighting Bypass / Shunt RIB® Relays
UL924 Listed Emergency Lighting Bypass / Shunt RIB® Relays
Description
Our UL924 Listed RIB® relays are suitable for shunting around wall switches, lighting panels, and
controllers, which turn on emergency lighting in the event of the loss of normal utility power.
Emergency power is supplied by either a generator or inverter system switched by an automatic
transfer switch. This is typically done close to the emergency power source.
Our UL924 Listed RIB® relays can be ordered with various configurations of LED indicators, which are
used for initial wiring verification and field inspection. Many models allow for remote testing, giving
your inspector access during scheduled inspections. Some models are available with a dimming
override, enabling full brightness when emergency power is present. Other models can be used
when the designated emergency light is needed for normal lighting, both controlled by a single
switch.
Operation
When normal power is present, the relay coil is activated, and the emergency panel is fed from
normal power. The lighting load can be switched on or off using an individual wall switch. When
normal power drops out, the relay coil is deactivated, and N/C contact closes, creating the pathway
for the emergency backup power to flow. The automatic transfer switch changes over to backup
(generator) power, and the lighting load is illuminated regardless of the position of the wall switch or
controller scheme.
Features
• • • • • • • • • • • • • Multi-coil voltage input
10 and 20 Amp contact ratings
16 Amp electronic ballast rating (specific models)
0-10 Vdc dimmer override
Remote test capability
NEMA 1 enclosure with bright yellow color for easy identification
Pre-wired and prepackaged for convenience
LED indicator of utility and emergency voltage
Nipple mount, wall mount, or ballast channel mount
UL 924 Listed & California State Fire Marshall
DPDT configurations available
5-year warranty
Made in the U.S.A.
ESRT
Wireless Key Fob Transmitter
Remote Tester for Use with Radio Frequency-Enabled UL924 Emergency Bypass / Shunt Relays
Remote Testing of Emergency Lighting
ESRT
Emergency
Lighting
Emergency
Bypass / Shunt
Relay with Remote
Test Capability
Emergency
Power
SPECIFICATIONS
Battery:
Expected Battery Life:
Operate Time:
Dimensions:
Frequency:
Radio Certifications:
CR2032, 3V, Lithium
2 years
500 mS
2.30˝ x 1.40˝ x .50˝
315 MHz
FCC Part 15 (USA),
IC (Canada)
310 South Union Street
•
Russiaville, IN 46979
Emergency
Transfer
Yel
Notes:
» Control one or more radio frequency-enabled
ESR relays with a single transmitter
» Typical transmission distance:
Up to 50 feet indoors
» For use with models with -RF suffix
» Refer to page 4 for more information.
SW
Coil
Blu
Normal
Power
•
800.888.5538
•
www.functionaldevices.com/lighting-controls
071117
ESRU1C*
Blu
N/C
Wht/Blk
120 Vac
Wht/Blu
10-30 Vac/dc
Yel
Comm
Wht/Yel
Comm
Org
N/O
ESRU1S-NC*
(1)
Wht/Blk 120 Vac
Wht/Blu
10-30 Vac/dc
CLOSED AUTO
Org
Wht/Yel
Comm
Wht/Blu
24 Vac/dc
Yel
Comm
Wht/Yel
Comm
Org
N/O
^ (1)
ESR2402SB-NC
Wht/Brn
208-277 Vac
CLOSED AUTO
Wht/Yel
Comm
Org
Org
ESR2401D*
Wht/Blu
24 Vac/dc
Blu N/C
Yel Comm
Org N/O
Gry N/C
Wht/Yel
Comm
Wht/Blu
24 Vac/dc
Blu N/C
Org N/O
Gry N/C
Wht/Yel
Comm
Wht/Blu
10-30 Vac/dc
Yel
Comm
Wht/Yel
Comm
Org
N/O
ESRH1S-NC*
(1)
Wht/Brn 208-277 Vac
Wht/Blu
10-30 Vac/dc
CLOSED AUTO
Org
Wht/Yel
Comm
CONTACT RATINGS
20 A Resistive, 277 Vac
20 A Ballast NO, 120/277 Vac
10 A Ballast NC, 120/277 Vac
10 A Tungsten NO, 120 Vac
2 A Tungsten NC, 120 Vac
1 HP, 120 Vac
2 HP, 277 Vac
770VA Pilot Duty, 120Vac
1110VA Pilot Duty, 277Vac
COIL INPUT RATINGS
24 Vdc @ 32 mA max
30 Vdc @ 42 mA max
24 Vac @ 75 mA max
208-277 Vac @ 62 mA max
CONTACT RATINGS
20 A Resistive, 277 Vac
10 A Ballast NC, 120/277 Vac
2 A Tungsten NC, 120 Vac
1 HP, 120 Vac
2 HP, 277 Vac
770VA Pilot Duty, 120Vac
1110VA Pilot Duty, 277Vac
COIL INPUT RATINGS
22 mA @ 24 Vdc
29 mA @ 24 Vac, 50-60Hz
28 mA @ 120 Vac, 50-60Hz
Comm
10-30 Vac/dc
120 Vac
CONTACT RATINGS
10A General Use, 277 Vac
10A Resistive, 30Vdc
1/2 HP @ 120/240Vac, N/O
1/3 HP @ 120/240Vac, N/C
B300 Pilot Duty
N/O
N/C
10-30 Vac/dc
Comm
N/O
ESR01P^
Wht/Blk
120 Vac
Blu N/C
Yel Comm
Gry N/C
ESR02P^
Wht/Brn
208-277 Vac
Prp Comm
Brn N/O
CONTACT RATINGS
20 Amp Resistive @ 300 Vac
20 Amp Resistive @ 28 Vdc
20 Amp Ballast @ 277-480 Vac
15 Amp Resistive @ 600 Vac
770 VA Pilot Duty @ 120 Vac
1158 VA Pilot Duty @ 240 Vac
1110 VA Pilot Duty @ 277 Vac
1640 VA Pilot Duty @ 480 Vac
3 HP @ 480-600 Vac
2 HP @ 240-277 Vac
1 HP @ 120 Vac
COIL INPUT RATINGS
208-277 Vac, 95 mA
Blu N/C
Yel Comm
Org N/O
Gry N/C
Brn N/O
COIL RATINGS
10-30Vdc @ 18mA max or
10-30Vac, 60Hz @ 50mA max
120Vac, 60Hz @ 25mA
CONTACT RATINGS
15A Res., 28 Vdc or 150 Vac
10A Res., 120/240/277 Vac
480 VA Pilot Duty, 240/277 Vac
480 VA Ballast, 277 Vac
600 W Tungsten NO, 120 Vac
240 W Tungsten NC, 120 Vac
1/3 HP Motor NO, 120/240 Vac
1/4 HP Motor NO, 277 Vac
1/6 HP Motor NC, 120/240 Vac
1/8 HP Motor NC, 277 Vac
COIL INPUT RATINGS
120 Vac, 95 mA
Org N/O
Wht/Brn
208-277 Vac
Prp Comm
CONTACT RATINGS
15A Res., 28 Vdc or 150 Vac
10A Res., 120/240/277 Vac
480 VA Pilot Duty, 240/277 Vac
480 VA Ballast, 277 Vac
600 W Tungsten NO, 120 Vac
240 W Tungsten NC, 120 Vac
1/3 HP Motor NO, 120/240 Vac
1/4 HP Motor NO, 277 Vac
1/6 HP Motor NC, 120/240 Vac
1/8 HP Motor NC, 277 Vac
Comm
Comm
Wht/Blk
120 Vac
COIL INPUT RATINGS
22 mA @ 24 Vdc
29 mA @ 24 Vac, 50-60Hz
32 mA @ 208-277 Vac, 50-60Hz
N/C
ESRMNU1C
CONTACT RATINGS
10A General Use, 277 Vac
10A Resistive, 30Vdc
1/2 HP @ 120/240Vac, N.O.
1/3 HP @ 120/240Vac, N.C.
B300 Pilot Duty
CONTACT RATINGS
10 A Res., 277 Vac
240 W N/C Tungsten, 120 Vac
1/6 HP N/C, 120/240 Vac
1/8 HP N/C, 277 Vac
480 VA Ballast, 277 Vac
480 VA Pilot Duty, 277 Vac
COIL RATINGS
10-30Vdc @ 18mA max or
10-30Vac, 60Hz @ 50mA max
120Vac, 60Hz @ 25mA
*
120 Vac
COIL INPUT RATINGS
10-30Vdc @ 18 mA max or
10-30 Vac, 50-60Hz @ 50mA max
208-277 Vac, 50-60Hz @ 35mA
Org
ESRMU1C*
Brn N/O
Yel Comm
COIL INPUT RATINGS
10-30Vdc @ 18 mA max or
10-30 Vac, 50-60Hz @ 50mA max
208-277 Vac, 50-60Hz @ 35mA
CONTACT RATINGS
10A Res. @ 277 Vac or 28 Vdc
480 VA @ 240/277 Vac Pilot
480 VA @ 277 Vac Ballast
600 W Tungsten @ 120 Vac N/O
240 W Tungsten @ 120 Vac N/C
TV-5 @ 120 Vac N/O
TV-2 @ 120 Vac N/C
1/3 HP @ 120/240 Vac N/O
1/4 HP @ 277 Vac N/O
1/6 HP @ 120/240 Vac N/C
1/8 HP @ 277 Vac N/C
Blu
N/C
Wht/Brn
208-277 Vac
Prp Comm
ESR2402D*
Wht/Brn
208-277 Vac
CONTACT RATINGS
10 A Res., 277 Vac
240 W N/C Tungsten, 120 Vac
1/6 HP N/C, 120/240 Vac
1/8 HP N/C, 277 Vac
480 VA Ballast, 277 Vac
480 VA Pilot Duty, 277 Vac
COIL INPUT RATINGS
24 Vdc @ 32 mA max
30 Vdc @ 42 mA max
24 Vac @ 75 mA max
208-277 Vac @ 62 mA max
Blu
N/C
Wht/Brn
208-277 Vac
Wht/Blk
120 Vac
COIL INPUT RATINGS
10-30Vdc @ 18 mA max or
10-30 Vac, 50-60Hz @ 50mA max
120 Vac, 50-60Hz @ 25mA
ESRH1C*
Org
ESR2402B^
Wht/Blu
24 Vac/dc
COIL INPUT RATINGS
10-30Vdc @ 18 mA max or
10-30 Vac, 50-60Hz @ 50mA max
120 Vac, 50-60Hz @ 25mA
CONTACT RATINGS
10A Res. @ 277 Vac or 28 Vdc
480 VA @ 240/277 Vac Pilot
480 VA @ 277 Vac Ballast
600 W Tungsten @ 120 Vac N/O
240 W Tungsten @ 120 Vac N/C
TV-5 @ 120 Vac N/O
TV-2 @ 120 Vac N/C
1/3 HP @ 120/240 Vac N/O
1/4 HP @ 277 Vac N/O
1/6 HP @ 120/240 Vac N/C
1/8 HP @ 277 Vac N/C
Prp Comm
Brn N/O
CONTACT RATINGS
20 Amp Resistive @ 300 Vac
20 Amp Resistive @ 28 Vdc
20 Amp Ballast @ 277-480 Vac
15 Amp Resistive @ 600 Vac
770 VA Pilot Duty @ 120 Vac
1158 VA Pilot Duty @ 240 Vac
1110 VA Pilot Duty @ 277 Vac
1640 VA Pilot Duty @ 480 Vac
3 HP @ 480-600 Vac
2 HP @ 240-277 Vac
1 HP @ 120 Vac
ESR2401B^
Wht/Blk
120 Vac
Blu
N/C
Wht/Blu
24 Vac/dc
Yel
Comm
Wht/Yel
Comm
Org
N/O
Wht/Brn
208-277Vac
POWER INPUT
Wht/Brn
Blu N/C
Yel Comm
CONTROL
INPUT
Comm
Prp Comm
N/O
Comm
N/C
24 Vac/dc
N/O
Comm
20 Amp Res @ 28 Vdc
20 Amp Res @ 300 Vac
15 Amp Res @ 600 Vac
1 HP @ 120 Vac
2 HP @ 240/277 Vac
3 HP @ 480/600 Vac
20 Amp ballast @ 277/480 Vac
A600 Pilot Duty
Brn N/O
ESRM2401D*
120 Vac
ESRU2C*
Wht/Blk 120 Vac
Blu N/C
Wht/Blu 10-30 Vac/dc
Yel Comm
CONTACT RATINGS
Org N/O
Gry N/C
5-25Vac/dc
CONTROL INPUT RATINGS
.4 mA @ 5Vdc
.9 mA @ 10Vdc
1 mA @ 12Vdc
2 mA @ 24Vdc
3 mA @ 24 Vac
(NON POLARIZED)
Comm
N/C
COIL INPUT RATINGS
36 mA @ 30Vdc
40 mA @ 30Vac
31 mA @ 120Vac
CONTACT RATINGS
10A General Use, 277 Vac
10A Resistive, 30Vdc
1/2 HP @ 120/240Vac, N.O.
1/3 HP @ 120/240Vac, N.C.
B300 Pilot Duty
Wht/Yel Comm
Org N/O
Wht/Red 120 Vac
Gry N/C
Gry/Wht 10-30 Vac/dc
Purp Comm
Wht/Purp Comm
Brn N/O
CONTACT RATINGS
10A Res. @ 277 Vac or 28 Vdc
480 VA @ 240/277 Vac Pilot
480 VA @ 277 Vac Ballast
600 W Tungsten @ 120 Vac N/O
240 W Tungsten @ 120 Vac N/C
1/3 HP @ 120/240 Vac N/O
1/4 HP @ 277 Vac N/O
1/6 HP @ 120/240 Vac N/C
1/8 HP @ 277 Vac N/C
COIL INPUT RATINGS
20 mA @ 10-30 Vdc
55 mA @ 10-30 Vac, 60 Hz
28 mA @ 120 Vac, 60 Hz
CONTACT RATINGS
20 A Resistive, 277 Vac
20 A Ballast NO, 120/277 Vac
10 A Ballast NC, 120/277 Vac
10 A Tungsten NO, 120 Vac
2 A Tungsten NC, 120 Vac
1 HP, 120 Vac
2 HP, 277 Vac
770VA Pilot Duty, 120Vac
1110VA Pilot Duty, 277Vac
^ (1)
COIL INPUT RATINGS
24 Vdc @ 32 mA max
30 Vdc @ 42 mA max
24 Vac @ 75 mA max
120 Vac @ 42 mA max
ESR2401SB-NC
Wht/Blk 120 Vac
Wht/Blu
24 Vac/dc
CONTACT RATINGS
20 A Resistive, 277 Vac
10 A Ballast NC, 120/277 Vac
2 A Tungsten NC, 120 Vac
1 HP, 120 Vac
2 HP, 277 Vac
770VA Pilot Duty, 120Vac
1110VA Pilot Duty, 277Vac
CLOSED AUTO
Org
Wht/Yel
Comm
Org
ESRM2402B^
Comm
Comm
24 Vac/dc
208-277 Vac
N/C
ESRM2402SB^
Selectable Jumper Wire
Comm
24 Vac/dc
CLOSED
AUTO
208-277 Vac
Not
Used
ESR24P^
Blu N/C
Wht/Yel
24 Vac/dc
Yel Comm
Org N/O
Gry N/C
Prp Comm
Wht/Yel
24 Vac/dc
Brn N/O
ESRTE01P^
Wht/Blk
Blu N/C
120Vac
POWER INPUT
Yel Comm
Wht/Blk
COIL INPUT RATINGS
24 Vdc @ 32 mA max
30 Vdc @ 42 mA max
24 Vac @ 75 mA max
208-277 Vac @ 62 mA max
CONTACT RATINGS
20 A Resistive, 277 Vac
20 A Ballast NO, 120/277 Vac
10 A Ballast NC, 120/277 Vac
10 A Tungsten NO, 120 Vac
2 A Tungsten NC, 120 Vac
1 HP, 120 Vac
2 HP, 277 Vac
770VA Pilot Duty, 120Vac
1110VA Pilot Duty, 277Vac
N/O
Org N/O
Gry N/C
5-25Vac/dc
Prp Comm
CONTROL
INPUT
Brn N/O
Comm
ESRTE02P^
COIL INPUT RATINGS
24 Vdc @ 32 mA max
30 Vdc @ 42 mA max
24 Vac @ 75 mA max
120 Vac @ 42 mA max
ESRH2C*
Wht/Brn 208-277 Vac
Blu N/C
Wht/Blu 10-30 Vac/dc
Yel Comm
Wht/Yel Comm
Org N/O
Wht/Org 208-277 Vac
Gry N/C
Gry/Wht 10-30 Vac/dc
Purp Comm
Wht/Purp Comm
Brn N/O
COIL INPUT RATINGS
24 Vdc @ 32 mA max
30 Vdc @ 42 mA max
24 Vac @ 75 mA max
208-277 Vac @ 62 mA max
CONTACT RATINGS
20 A Resistive, 277 Vac
20 A Ballast NO, 120/277 Vac
10 A Ballast NC, 120/277 Vac
10 A Tungsten NO, 120 Vac
2 A Tungsten NC, 120 Vac
1 HP, 120 Vac
2 HP, 277 Vac
770VA Pilot Duty, 120Vac
1110VA Pilot Duty, 277Vac
COIL INPUT RATINGS
24 Vac @ 125 mA max or
20-30 Vdc @ 70 mA max
CONTACT RATINGS
20A Res. @ 28 Vdc
20A Res. @ 300 Vac
15A Res. @ 600 Vac
20A Ballast @ 277/480 Vac
1 HP @ 120 Vac
2 HP @ 240/277 Vac
3 HP @ 480/600 Vac
770VA Pilot 120 Vac
1158VA Pilot @ 240 Vac
1109VA Pilot @ 277 Vac
1640VA Pilot @ 480 Vac
600 Vac Heavy Pilot Duty
CONTROL INPUT RATINGS
.4 mA @ 5Vdc
.9 mA @ 10Vdc
1 mA @ 12Vdc
2 mA @ 24Vdc
3 mA @ 24 Vac
(NON POLARIZED)
CONTACT RATINGS
20 Amp Res @ 28 Vdc
20 Amp Res @ 300 Vac
15 Amp Res @ 600 Vac
1 HP @ 120 Vac
2 HP @ 240/277 Vac
3 HP @ 480/600 Vac
20 Amp ballast @ 277/480 Vac
A600 Pilot Duty
CONTACT RATINGS
10A Res. @ 277 Vac or 28 Vdc
480 VA @ 240/277 Vac Pilot
480 VA @ 277 Vac Ballast
600 W Tungsten @ 120 Vac N/O
240 W Tungsten @ 120 Vac N/C
1/3 HP @ 120/240 Vac N/O
1/4 HP @ 277 Vac N/O
1/6 HP @ 120/240 Vac N/C
1/8 HP @ 277 Vac N/C
COIL INPUT RATINGS
20 mA @ 10-30 Vdc
55 mA @ 10-30 Vac, 60 Hz
39 mA @ 208-277 Vac, 60 Hz
*FOR SUPPLY CONNECTIONS USE #14AWG WIRES OR LARGER RATED FOR AT LEAST 75°C(167°F).
^FOR SUPPLY CONNECTIONS USE #12AWG WIRES OR LARGER RATED FOR AT LEAST 75°C(167°F).
(1)
Standard model has N/C contact configuration, if -NC present. N/O contact configuration, if -NC not present.
Refer to Label on -MNC & N/O models for wiring.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
