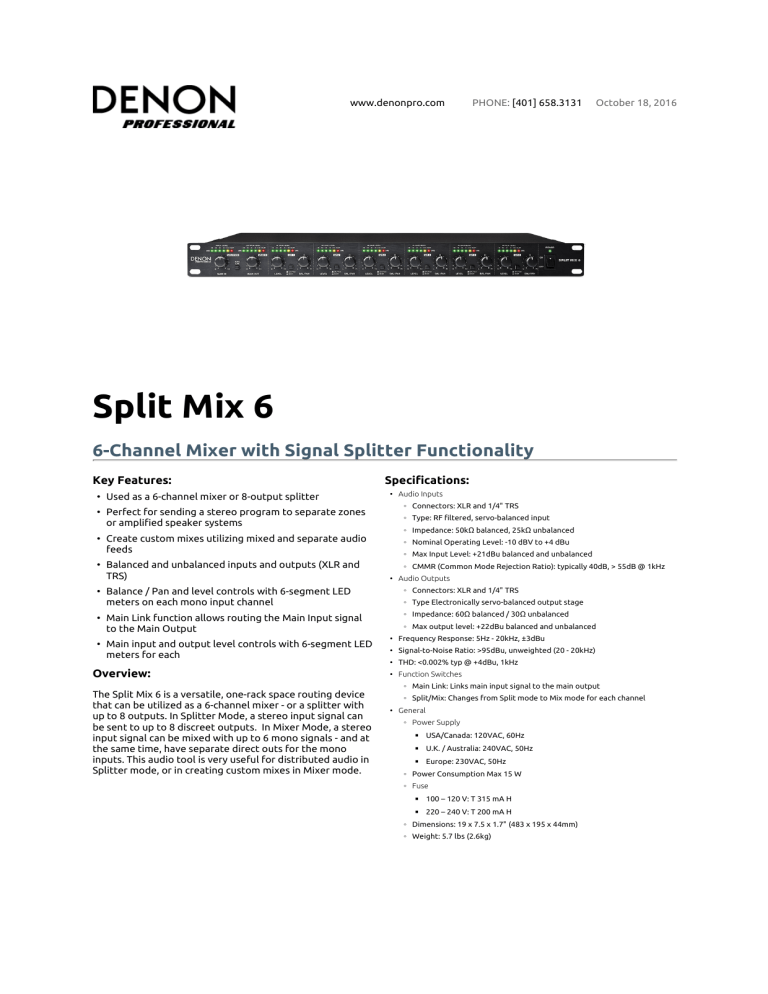

Split Mix 6
www.denonpro.com
PHONE: [401] 658.3131
October 18, 2016
Split Mix 6
6-Channel Mixer with Signal Splitter Functionality
Key Features:
• Used as a 6-channel mixer or 8-output splitter
• Perfect for sending a stereo program to separate zones
or amplified speaker systems
• Create custom mixes utilizing mixed and separate audio
feeds
• Balanced and unbalanced inputs and outputs (XLR and
TRS)
Specifications:
• Audio Inputs
◦ Connectors: XLR and 1/4" TRS
◦ Type: RF filtered, servo-balanced input
◦ Impedance: 50kΩ balanced, 25kΩ unbalanced
◦ Nominal Operating Level: -10 dBV to +4 dBu
◦ Max Input Level: +21dBu balanced and unbalanced
◦ CMMR (Common Mode Rejection Ratio): typically 40dB, > 55dB @ 1kHz
• Audio Outputs
• Balance / Pan and level controls with 6-segment LED
meters on each mono input channel
◦ Connectors: XLR and 1/4" TRS
• Main Link function allows routing the Main Input signal
to the Main Output
◦ Impedance: 60Ω balanced / 30Ω unbalanced
• Main input and output level controls with 6-segment LED
meters for each
Overview:
The Split Mix 6 is a versatile, one-rack space routing device
that can be utilized as a 6-channel mixer - or a splitter with
up to 8 outputs. In Splitter Mode, a stereo input signal can
be sent to up to 8 discreet outputs. In Mixer Mode, a stereo
input signal can be mixed with up to 6 mono signals - and at
the same time, have separate direct outs for the mono
inputs. This audio tool is very useful for distributed audio in
Splitter mode, or in creating custom mixes in Mixer mode.
◦ Type Electronically servo-balanced output stage
◦ Max output level: +22dBu balanced and unbalanced
• Frequency Response: 5Hz - 20kHz, ±3dBu
• Signal-to-Noise Ratio: >95dBu, unweighted (20 - 20kHz)
• THD: <0.002% typ @ +4dBu, 1kHz
• Function Switches
◦ Main Link: Links main input signal to the main output
◦ Split/Mix: Changes from Split mode to Mix mode for each channel
• General
◦ Power Supply
◾ USA/Canada: 120VAC, 60Hz
◾ U.K. / Australia: 240VAC, 50Hz
◾ Europe: 230VAC, 50Hz
◦ Power Consumption Max 15 W
◦ Fuse
◾ 100 – 120 V: T 315 mA H
◾ 220 – 240 V: T 200 mA H
◦ Dimensions: 19 x 7.5 x 1.7" (483 x 195 x 44mm)
◦ Weight: 5.7 lbs (2.6kg)
