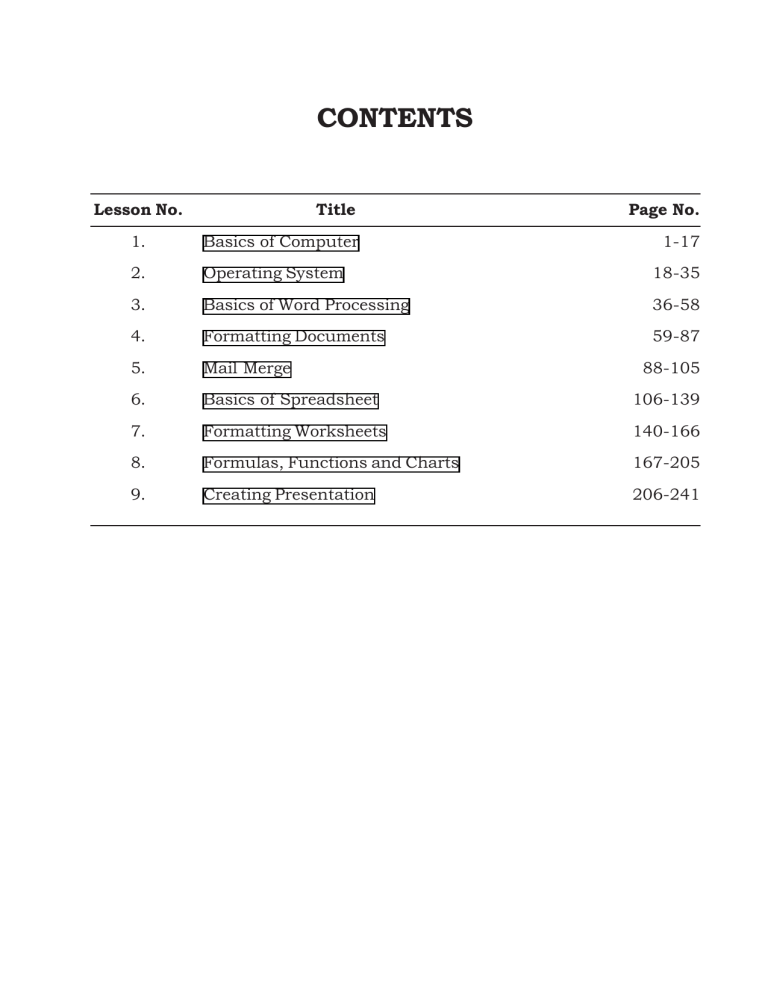

CONTENTS

Lesson No.

Title

1.

2.

Basics of Computer

Operating System

3.

4.

Basics of Word Processing

Formatting Documents

5.

6.

7.

8.

9.

Mail Merge

Basics of Spreadsheet

Formatting Worksheets

Formulas, Functions and Charts

Creating Presentation

Page No.

1-17

18-35

36-58

59-87

88-105

106-139

140-166

167-205

206-241

1.

2.

3.

4.

5.

6.

7.

8.

9.

SYLLABUS

Basics of Computer

Ø Input and Output Devices

Ø System Software and Application Software

Ø

Computer Language

Ø Compiler and Assembler

Operating System

Ø Desktop Elements

Ø Locating Files and Folders

Ø Changing System Setting

Ø File Management in Windows

Ø

Installation of Software and Hardware

Basics of Word Processing

Ø

Starting Word Program

Ø Word Screen Layout

Ø Typing Screen Objects

Ø Managing Documents

Ø Protecting and Finding Documents

Formatting Documents

Ø Working with text

Ø

Formatting Paragraphs

Ø Creating Bulleted and Numbered Lists

Ø Spelling and Grammar

Mail Merge

Ø Types of document in Mail merge

Ø Creating data Source

Ø Creating Mailing Labels

Ø

Merging Data into Main Document

Basics of Spreadsheet

Ø

Selecting, Adding and Renaming Worksheets

Ø Modifying a Worksheet

Ø Resizing Rows and Columns

Ø Workbook Protection

Formatting Worksheets

Ø Formatting Toolbar

Ø Formatting Cells

Ø

Formatting Columns and Rows

Ø Protect and Unprotect Worksheets

Formulas, Functions and Charts

Ø Copying a Formula

Ø Types of Functions

Ø Types of Charts

Ø Auto shapes and Smart art

Creating Presentation

Ø Creating Slides

Ø

Slide Sorter View

Ø Changing Slide Layouts

Ø Moving Between Slides

1

Basics of Computer

1.1

INTRODUCTION

In this lesson we present an overview of the basic design of a computer system: how the different parts of a computer system are organized and various operations performed to perform a specific task. You would have observed that instructions have to be fed into the computer in a systematic order to perform a specific task. Computer components are divided into two major categories, namely, hardware and software. In this lesson we will discuss about hardware, i.e., the machine itself and its connected devices such as monitor, keyboard, mouse etc., as well as software that makes use of hardware for performing various functions.

1.2 OBJECTIVES

After going through this lesson you would be able to: l explain basic organization of computer system l explain different types of input and output devices l l l define Software and its classification distinguish between system software and application software describe computer language and its classification

Basics of Computer :: 1

2 :: Data Entry Operations

1.3 WHAT IS A COMPUTER?

Computer is a device that transforms data into meaningful information. Data can be anything like marks obtained by you in various subjects. It can also be name, age, sex, weight, height, etc. of all the students in a class.

Computer can also be defined in terms of functions it can perform. A computer can i) accept data, ii) store data, iii) process data as desired, and iv) retrieve the stored data as and when required and v) print the result in desired format.

The major characteristics of a computer are high speed, accuracy, diligence, versatility and storage.

1.3.1 Computer Organisation

The block diagram of computer is shown in Fig. 1.1.

Memory Unit

Input unit

Control Unit

Arithmetic

Logic Unit

Output unit

Fig. 1.1 Block diagram of Computer Organisation

The computer performs basically five major operations of functions irrespective of their size and make. These are 1) it accepts data or instruction by way of input, 2) it stores data, 3) it can process data as required by the user, 4) it gives results in the form of output, and 5) it controls all operations inside a computer. We discuss below each of these operations.

1.

Input: this is the process of entering data and programs into the computer system.

2.

3.

4.

5.

Control Unit (CU): The process of input, output, processing and storage is performed under the supervision of a unit called 'Control Unit'. It decides when to start receiving data, when to stop it, where to store data, etc. It takes care of step

-by-step processing of all operations in side the computer.

Memory Unit: Computer is used to store data and instructions.

Arithmetic Logic Unit (ALU): The major operations performed by the ALU are addition, subtraction, multiplication, division, logic and comparison.

Output: This is the process of producing results from the data for getting useful information.

The ALU and the CU of a computer system are jointly known as the central processing unit (CPU). You may call CPU as the brain of any computer system.

INTEXT QUESTIONS

1.

2.

3.

What are the five basic operations performed by the computer?

Define ALU, CU and CPU.

Choose the correct answer.

(a) The task of performing arithmetic and logical operations is called:

(i) ALU (ii) editing (iii) storage (iv) Output

(b) The ALU and CU jointly are known as

(i) RAM (ii) ROM (iii) CPU (iv) None of above

(c) The process of producing results from the data for getting useful information is called:

(i) output (ii) input (iii) processing (iv) storage

1.4 PERIPHERAL DEVICES

Peripheral devices are connected to the computer externally.

These devices are used for performing some specific functions.

Peripheral devices are as follows:

1.

Input Devices

2.

3.

Output Devices

Other Peripherals

Basics of Computer :: 3

4 :: Data Entry Operations

Disk drives

Monitor

Mouse

Keyboard

Fig. 1.2 Different peripheral devices of Computer

1.5 INPUT DEVICES

Input devices accept data and instructions from the user.

Following are the examples of various input devices, which are connected to the computer for this purpose.

1.

Keyboard

2.

3.

4.

5.

Mouse

Light Pen

Optical/magnetic Scanner

Touch Screen

6.

7.

Microphone for voice as input

Track Ball

1.5.1 Keyboard

A keyboard (as shown in figure 1.3) is the most common input device. Several kinds of keyboards are available, but they resemble each other with minor variations. The keyboard in most common use is the QWERTY board.

Generally standard keyboard has 104 keys. In these keyboards, the cursor control keys are duplicated to allow easier use of the numeric pad.

Fig. 1.3 Keyboard

Monitor

Disk drives

Mouse

1.5.2 Mouse

A mouse is an electro-mechanical, hand-held device (as shown in figure 1. 4). It is used as a pointer. It can perform functions like selecting menu commands, moving icons, resizing windows, starting programs, and choosing options.

Basics of Computer :: 5

Fig. 1.4 Mouse

The most common mouse uses an internal, magnetically coated ball, to detect the movement of the mouse across a flat surface, usually a desktop. Now a days Optical or laser mouse is used to detect the movement. All windows based applications today are designed to work with a mouse. A mouse is used to replace hard

-to-remember key combinations with easier "Point and Click" actions. However, it cannot substitute all keyboard operations.

It can be alternative for commands based operations.

1.5.3 Light pen

An input device that utilizes a light-sensitive detector to select objects on a display screen.

A light pen is similar to a mouse (as shown in figure 1.5), except that with a light pen you can move the pointer and select objects on the display screen by directly pointing to the objects with the pen.

1.5.4 Optical Scanner

Fig. 1.5 Light Pen

These devices are used for automatic data collection. The devices of this category completely eliminate manual input of data. For example, the bar-code reader is actually just a special type of image scanner. An image scanner translates printed

6 :: Data Entry Operations

images into an electronic format that can be stored in a computer’s memory, and with the right kind of software, one can alter a stored image. Another example of scanner is optical character recognition (OCR) device, used by banks to convert the scanned image of a typed or printed page into text that can be edited on the computer.

Fig. 1.6 Scanner

1.5.5 Touch Screen

Touch panel displays and pads are now being offered as alternatives to keyboard. Here the input can be given through the computer screen, that accepts the input through monitor; users touch electronic buttons displayed on the screen or they may use light pen.

Fig. 1.7 Touch Screen Monitor

1.5.6 Microphone

Microphone is an input device, which takes voice as input. The voice communication is more error-prone than information through keyboard. There are two types of microphones available

(as shown in figure 1.8):

1.

2.

Desktop Microphone

Hand held Microphone

Fig. 1.8 Desktop microphone and Hand-held Microphone

1.5.7 Track Ball

Trackball, a pointing device, is a mouse lying on its back (as shown in figure 1. 9).

To move the pointer, you rotate the ball with your thumb, your fingers, or the palm of your hand. There are usually one to three buttons next to the ball, which you use just like mouse buttons.

Fig. 1.9 Track Ball

The advantage of trackballs over mouse is that the trackball is stationary so it does not require much space to use it. In addition, you can place a trackball on any type of surface, including your lap. For both these reasons, trackballs are popular pointing devices for portable computers.

1.6 OUTPUT DEVICES

Output devices return processed data that is information, back to the user. Some of the commonly used output devices are:

1.

2.

3.

4.

Monitor (Visual Display Unit)

Printers

Plotter

Speakers

1.6.1 Monitor

Out of all the output devices, monitor (as shown in figure

1.10) is perhaps the most important output device because people interact with this device most intensively than others. Computer information is displayed,

Fig. 1.10 CRT and LCD Monitor visually with a video adapter card and monitor. Information processed within the CPU, that needs to be visually displayed, is sent to video adapter. The video adapter converts information from the format used, in the same manner as a television displays information sent to it by a cable service.

Basics of Computer :: 7

8 :: Data Entry Operations

Two basic types of monitors are used with microcomputers, which are as follows:

1.

2.

CRT

LCD

Cathode Ray Tube (CRT): CRT or Cathode Ray Tube Monitor is the typical monitor that you see on a desktop computer. It looks a lot like a television screen, and works the same way. This type uses a large vacuum tube, called cathode ray tube (CRT).

Liquid Crystal Displays (LCD): This type of monitors are also known as flat panel monitor. Most of these employ liquid crystal displays (LCDs) to render images. These days LCD monitor are very popular.

When people talk about the capabilities of various monitors, one critical statistic is the resolution of the monitor. Most monitors have a resolution of at least 800 x 600 pixels. High-end monitors can have resolutions of 1024 x 768 pixels or even 1280 x 1024 pixels. Thus monitors are available either in low resolution or in high resolution.

1.6.2 Printer

After a document is created on the computer, it can be sent to a printer for a hard copy (printout). Some printers offer special features such as colored and large page formats. Some of the most commonly used printers are:

1.

2.

Laser Printer

Ink Jet Printer

3.

4.

Dot Matrix Printer

Line Printer

Laser Printer: A laser printer produces high quality print that one normally finds in publishing. It is extremely fast and quiet. Moreover, the operation of a laser printer is easy with automatic paper loading and no smudging or messing up of ink ribbons. The fastest laser printer

Fig. 1.11 Laser Printer

can print up to 200 pages per minute in monochrome (black and white) and up to 100 pages per minute in colour.

Ink-Jet Printer: An ink-jet printer creates an image directly on paper by spraying ink through as many as 64 tiny nozzles. Although the image it produces is not generally quite as sharp as the output of a laser printer, the quality of ink-jet images is still high.

In general, ink-jet printer offers an excellent middle ground between dot

Fig. 1.12 Ink-Jet Printer matrix and laser printer. Like laser printer, an ink-jet printer is quiet and convenient, but not particularly fast.

Typically, an ink-jet printer is more expensive than a dot-matrix printer, but costs only half as much as a laser printer.

Dot Matrix Printer: The dot matrix printer was very popular at one point of time. It is a very versatile and inexpensive output device. In dot matrix printer the print head physically "hits" the paper through the ribbon and produces text (or images) by combinations of dots; hence the name dot matrix printer. Its speed is measured in characters per second

(CPS). Although it is less expensive, it is louder, slower and produces lower print quality.

Line Printer: A line printer is generally used with large computer systems to produce text based data processing reports. Line printers are high-speed printers with speeds ranging anywhere from 100 to about 3800 lines per minute.

In the past, print quality on line printers was not high. Developments in technology are improving the print quality on line printers. These are in the cost range of lacs of Rupees.

Fig. 1.13 Dot Matrix

Printer

Fig. 1.14 Line Printer

Basics of Computer :: 9

10 :: Data Entry Operations

1.6.3 Plotter

A plotter is a special kind of output device that, like a printer, produces images on paper, but does so in a different way. Plotters are designed to produce large drawings or images, such as construction plans for buildings or blueprints for mechanical objects. A plotter can be connected to the port normally used by a printer.

An array of different colored pens in a clip rack and a robotic arm is part of plotter. The instructions that a plotter receives from a computer consist of a color, and beginning and ending coordinates for a line. With that information, the plotter picks up the appropriate pen through its arm, positions it at the beginning coordinates drops the pen down to the surface of the paper and draws to the ending coordinates. Plotters draw curves by creating a sequence of very short straight lines.

Plotters usually come in two designs:

1.

2.

Flat Bed: Plotters of small size to be kept on table with restriction of paper size.

Drum: These plotters are of big size using rolls of paper of unlimited length.

Fig. 1.15 Flat bed and Drum Plotter

1.6.4 Speaker

Speakers (as shown in figure 1.16) are another type of output device, which allow you to listen to voice like music, and conversation with people.

Fig. 1.16 Speaker

INTEXT QUESTION

4.

Write True or False for the following:

(a) Mouse is an output device.

(b) OCR stands for Optical Content Reader.

(c) LCD Monitor is used in notebook computer.

(d) Speed of DOT Matrix Printer is measured in

Characters Per Second.

(e) Plotters are used to produce high quality drawings and images, such as construction plans for buildings or blueprints for mechanical objects.

1.7 SOFTWARE

As you are aware, computer cannot do anything on its own. It is the user who instructs computer; what to do, how to do and when to do. In order to perform any task, you have to give a set of instructions in a particular sequence to the computer. These sets of instructions are called Programs. Software refers to a set of programs that makes the hardware perform a particular set of tasks in particular order. Software can be classified mainly into following categories and sub-categories are shown in

Figure 1.17.

Software

System Software Application Software

Basics of Computer :: 11

Operating

System Utilities

Generalized

Packages

Fig. 1.17 Classification of Software

Customized

Packages

12 :: Data Entry Operations

1.7.1 System Software

When you switch on the computer the programs stored in ROM are executed which activates different units of your computer and makes it ready for you to work on it. This set of programs can be called system software.

System softwares are sets of programs, responsible for running the computer, controlling various operations of computer systems and management of computer resources. Operating

System (OS) falls under this category.

An operating system is a system software that provides an interface for a user to communicate with the computer, manages hardware devices (disk drives, keyboard, monitor, etc), manages and maintains disk file systems and supports application programs. Some popular Operating systems are UNIX, Windows and Linux.

Although operating system provides all the features users need to use and maintain their systems, inevitably, they still do not meet everyone’s expectations. This has led to another type of system software called "Utilities". These are programs that bridge the gap between the functionality of an OS and the needs of users.

Utility programs are a broad category of software such as compress (zip)/uncompress (unzip) files software, anti virus software, split and join files software, etc.

1.7.2 Application Software

Application software is a set of programs, which are written to perform specific tasks, for example: An application package for managing library known as library information system is used to manage information of library such as: keeping book details, account holder details, book issue details, book return details etc. Another application package for managing student details is called student’s information system, manages student’s roll no, name, parents name, address, class, section, processing of examination results etc. Application software can be broadly classified into two types:

(a) Generalized packages

(b) Customized packages

Generalized Packages

These are user friendly softwares written to cater to user’s very general needs such as preparing documents, drawing pictures, database to manage data/information, preparing presentations, play games etc.

It is a group of programs that provide general purpose tools to solve specific problems. Some of the generalized packages are listed below: l l l

Word Processing Software(for preparing documents): Word

Perfect, MS-Word, OpenOffice.org Writer

Spreadsheets (Data Analysis): Lotus Smart suites, MS-

Excel, OpenOffice.org Calc, Apple Numbers

Presentations : Presentation Graphics, MS-PowerPoint,

OpenOffice.org Impress l

Database Management System: MS-Access, OpenOffice.org Base,

MS-SQL Server, ORACLE l

Graphics Tools: Paint shop pro, Adobe Photoshop

Customized Packages

These are the applications that are customized (or developed) to meet the specific requirements of an organization/institution. For

Example: Student information details, Payroll packages, inventory control etc.

These packages are developed using high-level computer language.

1.8 COMPUTER LANGUAGES

Languages are a means of communication. Normally people interact with each other through a language. On the same pattern, communication with computers is carried out through a language. This language is understood both by user and the machine. Just as every language like English, Hindi has its grammatical rules; every computer language is bound by rules known as SYNTAX of that language. The user is bound by that syntax while communicating with the computer system.

Basics of Computer :: 13

14 :: Data Entry Operations

Computer languages are broadly classified as:

1. Low Level Language:

The term low level means closeness to the way in which machine understand. The low level languages are: a. Machine Language:

This is the language (in the form of 0’s and 1’s, called binary numbers) understood directly by the computer. It is machine dependent. It is difficult to learn and even more difficult to write programs.

b. Assembly Language:

This is the language where the machine codes comprising of 0’s and 1’s are substituted by symbolic codes (called mnemonics) to improve their understanding. It is the first step to improve programming structure.

Assembly language programming is simpler and less time consuming than machine level programming, it is easier to locate and correct errors in assembly language than in machine language programs. It is also machine dependent. Programmers must have knowledge of the machine on which the program will run.

2. High Level Language

You know that low level language requires extensive knowledge of the hardware since it is machine dependent. To overcome the limitation, high level language has been evolved which uses normal English like, easy to understand statements to solve any problem. Higher level languages are computer independent and programming becomes quite easy and simple.

Various high level languages are given below: l

BASIC (Beginners All Purpose Symbolic Instruction Code):

It is widely used, easy to learn general purpose language.

Mainly used in microcomputers in earlier days.

l l l l

COBOL (Common Business Oriented language): A standardized language used for commercial applications.

FORTRAN (Formula Translation): Developed for solving mathematical and scientific problems. One of the most popular languages among scientific community.

C: Structured Programming Language used for all purpose such as scientific application, commercial application, developing games etc.

C++: Popular object oriented programming language, used for general purpose.

1.9 COMPILER AND ASSEMBLER

As you know that High Level language is machine independent and assembly language though it is machine dependent yet mnemonics that are being used to represent instructions are not directly understandable by machine. Hence to make the machine understand the instructions provided by both the languages,

Compiler and Assembler are required to convert these instructions into machine language.

The software (set of programs) that reads a program written in high level language and translates it into an equivalent program in machine language is called as Compiler.

The program written by the programmer in high level language is called source program and the program generated by the compiler after translation is called as object program.

Source Program

(Higher Level Language)

Compiler

Object Program

(Machine Language)

Fig. 1.18 Compiler

The software (set of programs) that reads a program written in assembly language and translates it into an equivalent program in machine language is called as Assembler.

Basics of Computer :: 15

16 :: Data Entry Operations

Source Program

(Assembling Language)

Assembler

Object Program

(Machine Language)

Fig. 1.19 Assembler

INTEXT QUESTION

5.

Write True or False for the following:

(a) Operating System (OS) is an Application Software.

(b) High level languages are easy to program than low level language.

(c) Computer language FORTRAN is used to solve

Scientific and Mathematical problems.

(d) C is an object oriented programming language.

(e) Compiler converts high level languages into machine language.

1.10 WHAT YOU HAVE LEARNT

A computer is useful only when it interacts with the external devices such as keyboard, mouse, monitor, speaker, which are called as peripheral devices. In this lesson we have discussed in details about major peripheral devices of a computer system.

You have learnt that only hardware does not do anything of its own without the help of software. Hence we have explained in details about software, its types and the computer languages used to prepare the software.

1.11 TERMINAL QUESTIONS

1.

2.

3.

What is a computer? Draw a block diagram to illustrate the basic organisation of a computer system and explain the functions of various units.

What is an input device? Briefly describe varioius important input devices.

Discuss two basic types of monitors CRT and LCD.

4.

5.

6.

7.

What is a software? Discuss its various categories with the help of diagram.

Distinguish between system and application software.

Write short notes on:

(a) Laser Printer

(b) High level language

(c) Compiler

(d) Plotter

Write a note on Computer language and its classification.

3.

4.

5.

1.12 FEEDBACK TO INTEXT QUESTIONS

1.

2.

The five basic operations that a computer performs are input, storage, processing, output and control.

ALU : Arithmetic Logic Unit

CU :

CPU :

Control Unit

Central Processing Unit

(a) i (b) iii (c) i

(a) False (b) False (c) True (d) True (e) True

(a) False (b) True (c) True (d) False (e) True

Basics of Computer :: 17

18 :: Data Entry Operations

2

Operating System

2.1 INTRODUCTION

The operating system in these days uses a graphical user interface (GUI). Here you do not have to remember all the commands by heart. The commands are visible on the monitor as icons. The most popular operating system available today is

‘Windows’.

The Windows operating system has evolved over time in the form of Windows 95, Windows 98 and Windows 2000. Currently windows XP, Windows Vista and Windows 7 are in use. In this lesson we will explain the main features of Widows XP.

2.2 OBJECTIVES

l l l

After going through this lesson you would be able to: explain the features of Windows XP explain various icons and their features define file management

Fig. 2.1

2.3 ELEMENTS OF WINDOWS XP

2.3.1 Logging On

When the computer system loaded with Windows XP is started, it will present a log-in screen to log on to windows or to network, if the system is part of a computer network.

To be able to log on, do the following

1.

Enter the password (if it is password protected)

2.

click on the a key or hit the Enter key

Fig. 2.2

2.4 XP DESKTOP ELEMENTS

Start Menu

When clicked on the start button, menu as follows appears on the screen giving all the available options to start using the

Windows.

Operating System :: 19

20 :: Data Entry Operations

Fig. 2.3

Overview of the options:

Task

All Programs

My Documents

My Recent Documents

My Picture

My Music

Control Panel

Printers and Faxes

Help and Support

Search

Description

Displays a list of installed program, which a user can start or use

Displays a list of document used by the current user

Displays a list of recently used document by the current user

Displays a list of picture/photos used by the current user

Displays a list of music/songs used by the current user

Displays a list of utility configure the computer system and install software and hardware

Displays a list of currently installed printers and faxes in the current computer system

Start the XP help and support program to find how to do a task in windows

Helps the user to find Displays a list of document used by the current user files, folder, and other networked computer and shared resources.

Run

Log Off

Turn Off Computer

Start a application program or execute a DOS command

Log off the currently logged in user of the system

Close currently opened program, log of the current user and switch off the computer system.

Task Bar

When you start the computer system, then start and task bar appears on the bottom of the screen and by default remains visible when Windows is running.

Whenever a program is run or a window is opened, an icon representing the program appears on the taskbar. To switch between windows or program, click on the icon representing the window on the task bar. When the program or window is closed, the icon disappears from the task bar.

Fig. 2.4

Start a Program

To start a program to the followings;

1.

2.

3.

Click on the Start Button

Click on the All Programs

Point to the desired folder say “Accessories” and select the desired program to run such as ‘Paint’

Quitting a Program

To quit a program, select the close button (×) in the upper-right corner of the window OR

Click on File menu and select ‘Close’ option.

Getting Help

Online help and support provided is of great help in using and learning windows. One can get help a specific topic or current task is being executed. To start help l l click on the Start button click on ‘Help and Tutorial’ option

Operating System :: 21

22 :: Data Entry Operations

A list of help and support topics and online tutorial is displayed on the screen. One can use the tabs in the screen to search for the desired information in several ways.

Fig. 2.5

l l l l

Click on a topic or task to know more about how to get the job done or type in a search word to locate the help on a specific topic.

Click on the ‘Index’ tab to locate specific topic listed alphabetically and the follow the instructions displayed on the screen.

Click on ‘Favourites’ tab to add Help Topics, search results to your Favourites list to make them easy to locate in the future

Click on ‘History’ to pick from a list of Help and Support pages that you have read in the past.

l l

Click on’ Support’ to get various kind of online support such as Microsoft online support, News Group on Windows.

Click on ‘Option’ to configure the help and support center as per your requirement.

To close Help and Support windows, select the close button (×) in the upper-right corner of the window.

Locating Files and Folders

If you don’t know where a document or folder is located, you can use the Search companion to locate it in the local storage such as Hard Disk, CD or in the network drive (if the system is part of a network). The Indexing Service provided by the Search maintains an index of all the files on your computer, making searches faster.

To search for a file or folder

1.

2.

3.

4.

Click Start, and click on Search.

Select All files and folders from the left hand side of the windows.

Type the name of the file or folder in part or full, or type a word or phrase that exists in the file to be searched.

If you do not know either piece of information select one or more of the remaining options: l

In Look in, click the drive, folder, or network you want to search.

Operating System :: 23

Fig. 2.6

24 :: Data Entry Operations

5.

l

Click on When was it modified? to look for files that were created or modified on or between specific dates.

l l

To look for files of a specific size, click on What size is it? Select a size.

Click on More advanced options to specify additional search criteria.

Once you finish specifying the search criteria, click on

Search to locate the file.

Similarly you can search for specific information on

Internet, or people in your address book, search for a printer or a computer on your network.

Changing System settings

By using Control Panel’s tools you can customize the way

Windows look and work! Also you can install new hardware, add and remove (install/uninstall) software programs, change the look and feel of your desktop and much more. It also includes a number of administrative tools in Administrative Tools option for better administration of Windows in terms of User Management,

Event viewer, Component Service etc.

To start Control Panel and use the available tool, do the following; l

Click on ‘Start’ l l

Click on ‘Control Panel’

Select the desired tool to use

For example to create a new or modify the settings for an existing user click on ‘User Account’ icon in the control panel.

Using My Computer

My Computer displays the contents of floppy, hard disk, CD-

ROM, and network drives. One can also search for and open files and folders, and use options in Control Panel to modify computer’s settings.

l

To use My Computer, click on Start, and then click on My

Computer.

Fig. 2.7

Display the storage Contents l l l

To see what’s on your hard disk, under Hard Disk Drives, double-click the drive you want to see such as C:, D: etc.

To find a file or folder on a CD-ROM, or other media, under

Devices with Removable Storage, double-click on the respective storage media you want to see.

To find a file in a folder, under Files Stored on This

Computer, double-click a folder.

2.5 FILE MANAGEMENT IN WINDOWS

File management in windows can be done through Windows explorer or My Computer. Windows Explorer displays the hierarchical list of files, folders, and storage drives (both fixed and removable) on your computer. It also lists any network drives that have been mapped to as a drive letters on your computer.

Windows Explorer can be used to copy, move, rename, and search for files and folders. For example, to copy a file, you can

Operating System :: 25

26 :: Data Entry Operations

open a folder that contains the desired file to be copied or moved, and then just drag and drop the file to target folder or drive.

Fig. 2.8

When files or folders are deleted from hard disk, Windows places them in the Recycle Bin, where they can be retrieved, until the

Recycle Bin is made empty. Files or folders deleted from a removable storage media such as network drive are permanently deleted and are not sent to the Recycle Bin.

2.5.1 Using Windows Explorer

To open Windows Explorer, l

Click on Start,

Point to All Programs, l l

Point to Accessories, and then click on Windows Explorer

Coping or Moving a file or Folder using My Document l

Click on Start, and then click on My Documents.

l

Fig. 2.9

Click the file or folder to be copied. More than one file or folder can be copied at a time.

Fig. 2.10

Operating System :: 27

28 :: Data Entry Operations

l l l l l

To select more than one file or folder, click the first file or folder, press and hold down SHIFT key, and then click the file or folder.

To select non-consecutive files or folders, press and hold down CTRL key, and then click each of the files or folders to be copied.

Under Edit, select Copy.

Select the target drive or folder to which you want to copy the files

Under Edit, select Paste to copy the desired file or folder to the target drive.

Fig. 2.11

2.5.2 View file details

1.

2.

3.

Click on Start, and then click on My Documents

Double-click the folder that contains the files to be viewed.

On the View menu, click Details.

4.

It will display all the details about the files such as Name,

Type, size etc.

2.5.3 Coping and moving files using Explorer

l l

Click Start, point to All Programs, point to Accessories, and then click Windows Explorer.

Make sure the destination for the file or folder you want to move is visible.

Operating System :: 29

l l l l

Fig. 2.12

Drag the file or folder to the destination.

If you drag an item while pressing the right mouse button, you can move, copy, or create a shortcut to the file in its new location.

To copy the item instead of moving it, press and hold down

CTRL while dragging.

If you drag an item to another disk, it is copied, not moved.

To move the item, press and hold down SHIFT while dragging.

30 :: Data Entry Operations

l

Dragging a program to a new location creates a shortcut to that program. To move a program, right-click and then drag the program to the new location. You must be logged on as an administrator to move a program.

1.

2.

3.

4.

2.5.4 Create a new folder

1.

2.

3.

4.

5.

Click on Start, and then click on My Documents

Under File, click New and select Folder.

A new folder is displayed with the default name, New

Folder.

Type a name for the new folder, and then press ENTER.

A new folder can also be created by right-clicking a blank area in a folder window or on the desktop, pointing to New, and then clicking Folder.

2.5.5 Rename a file or folder

Click on Start, and then click on My Documents

Click on the file or folder you want to rename.

Under File, click Rename.

Type the new name, and then press ENTER key.

l

File or folder can also be renamed by right-clicking it and then clicking Rename.

2.5.6 Delete a file or folder

1.

2.

3.

4.

5.

Click on Start, and then click on My Documents

Click on the file or folder you want to delete.

Under File, click Delete.

Files or folders can also be deleted by right-clicking the file or folder and then clicking Delete.

Deleted files or folders are stored in the Recycle Bin, till they are permanently removed from the Recycle Bin.

6.

7.

To retrieve a deleted file, double-click the Recycle Bin icon on the desktop. Right-click on the file to retrieved, and then click Restore.

To permanently delete a file, press and hold down SHIFT and drag it to the Recycle Bin.

Operating System :: 31

Fig. 2.13

2.6 INSTALL SOFTWARE/HARDWARE

Windows provides a quick and easy way to install new software.

Add or Remove Programs utility in Control Panel help to manage programs and components on the computer system computer.

Using it one can install software packages such as Microsoft Word or Access etc. from a CD-ROM, or a network drive, or add or remove Windows updates and new features from the Internet. This can also be used to add or remove Windows components which are not included in the original installation.

32 :: Data Entry Operations

Fig. 2.14

1.

2.

3.

2.6.1 Install Software

l l l l

Click Start, click Control Panel,

Double-click Add or Remove Programs.

Click on Add New Programs, and then select the source where the software to be installed is located such as CD or

Floppy drive

Follow the instructions on your screen to install the software.

2.6.2 Change or remove software

Click Start, click Control Panel,

Double-click Add or Remove Programs.

Click on Change or Remove Programs, and then select the program you want to change or remove.

l

To change a program, click on Change button.

l

To remove a program, click on Remove button.

2.6.3 Add new features from Windows Update

1.

2.

3.

4.

Click Start, click Control Panel,

Double-click Add or Remove Programs.

Click Windows Update.

Follow the instructions to locate and install new Windows features or updates

2.6.4 Add or remove a Windows component

To be able to use this feature of Windows, the user must log in as an administrator or a member of the Administrators group.

Operating System :: 33

1.

2.

3.

Fig. 2.15

Click Start, click Control Panel,

Double-click Add or Remove Programs.

Follow the instructions in the Windows Components Wizard.

34 :: Data Entry Operations

2.6.5 Install Hardware

Windows can helps you set up new hardware component such as sound card, video card or network card etc. to your computer.

1.

2.

3.

Fig. 2.16

Click Start, click Control Panel,

Double-click Add Hardware.

Follow the instructions on the screen.

INTEXT QUESTIONS

1.

2.

Write True or False for the following:

(a) Deleted Files or folders are stored in the recycle bin.

(b) Under Edit menu you can rename the file.

(c) Windows provides a quick and easy way to install new software.

Fill in the blanks:

(a) Under file, click ................. and select folder.

(b) If you drag an item while pressing the ............... you can create a shortcut to the file.

(c) When you start the computer system, the task bar appears .............. on the screen.

(d) When files or folders are deleted from ...............

windows places them in the recycle bin.

(e) To select non-consecutive file or folder press and hold down ................. key.

2.7 WHAT YOU HAVE LEARNT

In this lesson you learnt about important features of Windows XP.

Now you are in a position to locate a file or folder and use windows explorer to manage files. Moreover, you can install software and hardware in the system. You can change system settings also.

2.8 TERMINAL QUESTIONS

1.

2.

3.

4.

5.

List out various steps to search for a file or folder.

Describe the following

(a) Recycle bin

(b) Task bar

(c) Quitting a program

(d) File Management in Windows

Write down the steps to delete a file or folder from the computer.

What are the steps to install software in the computer.

Write down various steps to rename a file or folder.

2.9 FEEDBACK TO INTEXT QUESTIONS

1.

2.

(a) True

(a) Right mouse button

(d) Hard disk

(b) False

(b) Right

(e) CTRL key

(c) True

(c) Bottom

Operating System :: 35

36 :: Data Entry Operations

3

Basics of Word Processing

3.1 INTRODUCTION

Word processing is an application program that allows you to create letters, reports, newsletters, tables, form letters, brochures, and Web pages. Using this application program you can add pictures, tables, and charts to your documents. You can also check spelling and grammar.

In this lesson, we will learn Word 2007 and use its features, tools and techniques. All Professional Documents will be discussed using this package only.

3.2 OBJECTIVES

After going through this lesson you would be able to: l define features of Word 2007 l l explain basic menu details of Word 2007 create, save and print new Word document l l protect a word document quickly and efficiently manage word files and their printing

Basics of Word Processing :: 37

3.3 MAIN FEATURES OF WORD PROCESSING

The main features are: l

You can create professional documents fast, using builtin and custom templates.

l l

You can easily manage large documents using various features like the ability to create table of contents, index, and cross-references.

You can work on multiple documents simultaneously l l l

With the help of mail merge, you can quickly create merge documents like mass mailings or mailing labels.

AutoCorrect and AutoFormat features catch typographical errors automatically and allow you to use predefined shortcuts and typing patterns to quickly format your documents.

The print zoom facility scales a document on different paper sizes, and allows you to print out multiple pages on a single sheet of paper.

l l

The nested tables feature supports putting one table inside another table.

You can export and save your word documents in PDF and

XPS file format.

3.4 FEATURES OF WORD 2007

MS Word 2007 has useful features and tools introduced to produce professionally created documents. Some of these features are discussed below.

You can easily create, format, edit professional-looking user document using comprehensive set of easy to use tools provided by MS Word. It uses the MS Office Fluent user Interface concept.

This interface uses a new component called Ribbon to group the tools by task, within task by sub tasks and related commands that are used more frequently. The new user result oriented interface presents the tools to you in a more organised and efficient manner, which are easy to locate.

38 :: Data Entry Operations

1.

Fig. 3.1

Tabs are more task oriented such as Home, Insert, Page

Layout

Within each tab, the related sub-tasks are grouped together 2.

3.

Related command button 1 are also grouped together to execute a command or to display a command menu

The MS Word 2007 provides a lot of pre-formatted template to produce documents, reports etc. While using the pre-formatted template, you can select already available cover page, header and footer to give the documents a professional look without spending much time in formatting a new one.

MS Word 2007 also provides features for creating chart and diagram which include three-dimensional shapes, transparency, drop shadows, and other effects. This helps create highly professional documents with flexibility in representing data more efficiently and professionally.

Using MS Word 2007 digital signature feature, you can ensure the authenticity, integrity, and origin of the document. The same can be done either by adding an invisible digital signature to a document, or inserting a Microsoft Office Signature Line, which capture a visible representation of a signature along with a digital signature.

Similarly, before sharing a document which is in its final form with others, you can use MS Word 2007 “Mark As Final” features to protect the document from any changes. “Mark as Final” command makes the document “read-only” making the typing, editing and proofing command disabled. But just to remember,

Basics of Word Processing :: 39

“Mark As Final” is a security feature as anyone can edit a document that is marked as final by turning off Mark as Final.

MS Word 2007 also provides the feature and tools to export your document to either PDF (Portable Document Format) or XPS

(XML Paper Specification) format.

3.5 STARTING MS WORD PROGRAM

You can start your Word program different ways. One way is using Start button:

1.

2.

Click on the Start button.

will see Word screen on the monitor.

Fig. 3.2

40 :: Data Entry Operations

You can also start your MS Word program by double clicking on

Microsoft Word icon, which lies on the Microsoft Office Shortcut

Bar (MOSB).

3.6 WORD SCREEN LAYOUT

The Word screen (Window) contains a number of objects such as

Tabs, Menus, Sub menus, short-cut commands etc. We will describe the Word’s default screen layout (Fig. 3.1) here.

Fig. 3.3 Screen Layout

3.6.1 Menus

If you are familiar with previous versions of Word, when you begin to explore Word 2007, you will notice a significant change in the menu structure, look and feel. The features in Word 2007 display as various tabs such as Home, Insert, Page Layout, References etc. To view all sub tasks/options (expanded form) in each menu, you must click the required option. For example, the images in Figure 3.4 show the Border menu in collapsed form

(Figure 3.4a) and in expanded form (Figure 3.4b).

Basics of Word Processing :: 41

Fig. 3.4a Collapsed menu Fig. 3.4b Expanded menu

Shortcut Menus

These features allow you to access various

Word commands faster than using the options on the menu bar. When the menu is expanded, the shortcut menu is displayed with short-cut command option for each of the short-cut menu item. The options on this menu will vary depending on the sub-task that was clicked or selected. For example, the shortcut menu on the side is produced by selecting or expanding the Border option of the paragraph sub-task of the Home Tab from the Tab bar.

Fig. 3.5

The shortcut menus are helpful because they display only those options that can be applied to the item that was selected and, therefore, prevent searching through the many menu options.

3.6.2 Toolbars

MS Word 2007 provides a customized quick access toolbar to organize the tools available for easy and fast access of the commands. Many toolbars displaying shortcut buttons are also available to make editing and formatting quicker and easier. The toolbars that are already displayed on the screen are checked.

To add/modify simply click on the “More Commands” option which will display the following menu for customized selection of tools as per your requirement.

42 :: Data Entry Operations

Fig. 3.6

Fig. 3.7

Basics of Word Processing :: 43

3.6.3 Rulers

The rulers display horizontal and vertical scales that reflect the width and height of your typing area. The horizontal scale is invaluable when you want to quickly set tabs, margins, and indents. Select the View tab on the main MS word 2007 screen to be able to select/deselect the Ruler/Gridlines and other options.

Fig. 3.8

3.6.4 Typing Screen Objects

The open area below the rulers and toolbars is writing or typing area. There are certain objects that are a permanent part of the typing area. These are: (a) Insertion Point, (b) Mouse Pointer, and

(c) End-of-Document Marker.

(a) Insertion Point: The black vertical blinking line is the insertion point that is initially at the top left side of the

44 :: Data Entry Operations

typing area. It indicates the place where your typing is inserted into the document. As you type, the blinking line continuously moves along towards right inserting in that line whatever is typed. When the up, down, left, or right arrows of the keyboard is used, the insertion point moves accordingly. When you move and place the cursor any where in the text and click, the insertion point shifts to that place from its current location indicating that it is ready to accept your typing.

(b) Mouse Pointer: When you move the mouse around in the typing area, the mouse pointer is in the shape of a thin Ibeam. As you move the mouse near the menu bar and toolbars, the mouse pointer becomes a pointing arrow. If you move the mouse pointer to some existing piece of text and click the mouse, you will see the insertion point in that spot of the text.

(c) End-of-Document Marker: The horizontal line (like a short underline) at the end of the document (seen only when

Word is in Normal view) is called end-of-document marker.

This marker lets you know where the end of document occurs.

3.6.5 Vertical and Horizontal Scrollbars

The typing area is bordered on the right side by the vertical scroll bar with a scroll button and arrows. The single down arrow scrolls through the document line by line. The double down arrow allows you to move to the top of the next page. The double up arrow allows you to move to the top of the previous page. The double down arrow allows you to move to the top of the next page. You can also drag the vertical scroll button up and down the scroll bar to move up and down through the document.

The first bar along the bottom of the typing area is the horizontal scroll bar. To see the text that is off the right side of the screen, use the left arrow button. To see the text that is off the left side of the screen, use the right arrow button. You can also drag the horizontal scroll button to move left or right of the document.

In Word 2007, the options such as view documents and zoom is also available on the bottom bar for easy access.

Basics of Word Processing :: 45

Fig. 3.9

INTEXT QUESTIONS

1.

State True or False

(a) Shortcut menu feature allows access to various Word commands faster than using options on the menu bar.

(b) In the collapsed menu, all the commands will be displayed.

(c) For both Show and Hide Rules, the command is View

→Ruler.

(d) The black vertical blinking line in the typing area in a word document is the insertion point.

(e) The use of Scrollbars is to set margins in a document.

46 :: Data Entry Operations

2.

3.

4.

To view shortcut menu, we need to:

(a) Click the mouse

(b) Right click the mouse

(c) First click and then right click the mouse

Horizontal scale is useful to quickly set:

(a) Margins

(b) Tabs

(c) Indents

(d) All of the above

What is the command to start the Word Program using Start button?

3.7 MANAGING DOCUMENTS

This section of the lesson explains how to open a new/ existing document, save a document, print a document, working with multiple documents, protecting a document, finding a document, and closing a opened document. There are several ways to create new documents, open existing documents, and

Fig. 3.10

save documents in Word. Click on the Office Button to use one the following.

3.7.1 Create a New Document

To open a new document, follow one of the following methods:

1.

Click the New Document button on the menu bar.

2.

Press CTRL+N keys on the keyboard.

Basics of Word Processing :: 47

3.7.2 Open an Existing Document

Click on the office 2007 button at the top left corner of your screen to open an existing document, follow one of the following methods:

1.

Click the Open File button on the menu bar.

2.

Press CTRL+O keys on the keyboard.

3.

Each of the above method will show the

Open dialog box. Choose the file and click the Open button.

3.7.3 Save a New/Existing Document

To save a new/existing document that is opened, follow one of the following methods:

1.

2.

Click the Save button on the menu bar.

Press CTRL+S keys on the keyboard.

If the document is already named and saved earlier, it will simply save the document. On the other hand, if the file is a new document then it will prompt you by opening Save As dialog box.

Select the folder where you want to place your document in Save In: box, type the name of the document in File Name: box, and then click OK.

You can also save a new document by choosing

Fig. 3.11

above actions in Save As dialog box.

3.7.4 Working on Multiple Documents

Several documents can be opened simultaneously if you are typing or editing multiple documents simultaneously. All open documents can be arranged under the View Tab.

Office 2007

Button

Fig. 3.12

48 :: Data Entry Operations

3.7.5 Protecting a Document

You can protect your document from being accidentally changed its format and text or from other users to get access to it.

Protecting a Document from Accessing

If you want to protect a document from other users accessing to it, give a password to your file. Follow the steps given below:

1.

command on the menu bar. The Save As dialog box appears. Move the cursor on the Tools tab on the down left side of Save As dialog box and click. A submenu will appear (see Figure 3.13).

2.

3.

Fig. 3.13

Click on General Options. The Save dialog box opens. You will see two boxes: Password to open and Password to modify.

Type a password in Password to open box. (A password can include up to 15 character case-sensitive letters, numerals, spaces and symbols. As you type the password,

Word displays an asterisk (*) for each character you type.)

Basics of Word Processing :: 49

4.

Click OK . The

Confirm Password dialog box appears

(see Save dialog box and Confirm

Password dialog box in Figure 3.14).

Retype the password you typed earlier.

Click OK on Confirm

Password dialog box and then click OK on

Save dialog box and then click OK on Save

As dialog box.

5.

When you open the

Fig. 3.14

file again next time it will ask you to type the password (see Figure 5.7b).

Remember, you will not be able to open that file without the password. Also, don’t forget that the passwords are case sensitive; that is, ‘XYZ’ and ‘xyz’ are two different passwords.

Protecting a Document from Accessing (Read Only)

With this feature you can have double protection to your document. Some times you yourself may accidentally change the format of your document. You can protect your document from being accidentally changed its format as well as from other users accessing it.

Protecting a Document as Read Only Document

If you want your document be protected only for accidental changes in the format, follow the steps given below:

1.

2.

command on the menu bar. The Save As dialog box appears. Move the cursor on the Tools tab on the down left side of Save As dialog box and click. A submenu will appear.

Click on General Options. The Save dialog box opens. You

50 :: Data Entry Operations

3.

will see Read only recommended check box at the left side bottom of the Save dialog box.

Check-mark (√) the

Read only recommended check box. Click OK on Save dialog box and then click

OK on Save as dialog box.

Next time when you open the document after giving password it will prompt you with a message ‘Open as read-only?. If you accidentally make changes and then try to save the

Fig. 3.15

document, the file will not be saved. Instead, you will be prompted by a message ‘This file is read-only’.

If you want to make changes to a document remove the check mark by clicking on Read-only recommended box, which lies below Password to open box under Save dialog box.

Modifying a Password Given to Protect a Document

If you suspect that some one knows your password and you want to change it, modify it by typing present password in Password to open: box and new password in Password to modify: box in the Save dialog box.

Protect a Document for Track changes, Comments, and Forms

Some times you may feel that your document should be reviewed by others to improve the document’s contents. The reviewers of your document can suggest some changes or comments without modifying the original document. After the review, if you wish that the changes were necessary you can incorporate them.

Basics of Word Processing :: 51

Fig. 3.16

Track changes: Selecting this option from the Review Tab and

Tracking sub-task, let other users to change the document but highlights all changes so that you can track changes. While a document is protected for track changes, you cannot turn off change tracking nor can you accept or reject track changes.

3.7.6 Find Documents

When you forgot the name of a file, but you remember a few letters in a word that may be in the file name, use Open dialog box. Word will search through the list of files in the selected folder or device for your particular file. For example, if your file name is ‘Annual paper’ you can type the letters annual. Word will locate this file.

Follow these steps to find files:

1.

2.

3.

Select Office Button Open command on the menu bar. The

Open dialog box will be displayed.

In Look in: box, select the folder or click where you suspect your file will be located. Type few letters you remember that match with file name in File Name: box (Remember you can type upper case or lower case letters, since search is not case sensitive). If the typed letters are beginning letters of your file name, the file name will appear in the File Name: box. Click Open to open the document.

If you don’t see your file name appearing in the File Name: box as you type, move the cursor on the Tools tab on the top right side of Open dialog box. If the typed letters in the File

Name: box matches with some part of your file name, all the file names matching with your typed letters along with other files will appear in Name box in the Open dialog box. If you trace your file in the box, double-click on the file name or select

52 :: Data Entry Operations

the file name and then click Open in Find dialog box to open the document.

3.7.7 Close a Document

Fig. 3.17

command on the menu bar or click the Close icon if it is visible on the Standard toolbar.

3.8 PRINTING DOCUMENTS

While printing a document you have the following options in Print dialog box: (see Figure 3.18).

1.

2.

3.

4.

Name of the printer (if you have more than one printers).

Choose paper size, orientations, resolution etc. by pressing

Properties button.

Print the entire document or only current page or specific pages

Print a draft copy, which omits graphics to allow faster printing.

5.

Number of copies to be printed, etc.

Basics of Word Processing :: 53

Fig. 3.18

3.8.1 Printing a Document

To print a document or selected pages follow the steps given below:

1.

2.

Open the document to be printed.

3.

The Print dialog box will open. Select the Options like print range, Number of copes, Printer name etc. See that printer is switched on and the paper is available in the printer tray.

Click OK.

3.8.2 Printing a Document on a Different Paper Size

You might have created a document using some selected paper size. You may want to print that document in a different paper size or multiple pages in a single sheet of paper without disturbing the general format. You can do it using Zoom feature

54 :: Data Entry Operations

in Print dialog box. Follow the steps given below to resize your document to fit into a new paper size.

If you want to print a document in a different paper size, follow the steps given below:

1.

2.

Open the document to be printed.

3.

4.

The Print dialog box will open. Select the Options like print range, Number of copes, Printer name etc. See that printer is switched on and the paper is available in the printer tray.

Select the appropriate paper size in Scale to paper size: under Zoom in Print dialog box.

Click OK.

3.8.3 Printing a Document’s Multiple Pages in a Single

Sheet of Paper

If you want to print multiple pages of a document in a single sheet of paper, follow the steps given below:

1.

2.

Open the document to be printed.

3.

4.

The Print dialog box will open. Select the Options like print range, Number of copies, Printer name etc. See that printer is switched on and the paper is available in the printer tray.

Select the appropriate paper size in Pages per sheet: under

Zoom in Print dialog box.

Click OK.

3.9 EXIT WORD PROGRAM

When finished your work in Word and closing all the files, you can

→ command on the menu bar.

3.10 KEYBOARD SHORTCUTS

Keyboard shortcuts can save time and the effort of switching from the keyboard to the mouse to execute simple commands. Print

Basics of Word Processing :: 55

this list of Word keyboard shortcuts and keep it by your computer for a quick reference.

Action

Open a file

New file

Close a file

Save As

Save

Print Preview

Print

Show/Hide paragraph symbols

Spelling and grammar

Help

Find

Replace

Go To

Select all - entire document

Select from cursor to beginning of line

Select from cursor to end of line

Go to beginning of line

Go to end of line

Go to beginning of document

Go to end of document

Cut

Copy

Paste

Undo

Redo

Format painter

Left alignment

Center alignment

Right alignment

Justified

Key Stroke

CTRL+O

CTRL+N

CTRL+W

F12

CTRL+S or SHIFT+F12

CTRL+F2

CTRL+P

CTRL+*

F7

F1

CTRL+F

CTRL+H

CTRL+G

CTRL+A

SHIFT+Home

SHIFT+END

HOME

END

CTRL+Home

CTRL+End

CTRL+X

CTRL+C

CTRL+V

CTRL+Z

CTRL+Y

CTRL+SHIFT+C

CTRL+L

CTRL+E

CTRL+R

CTRL+J

56 :: Data Entry Operations

Delete previous word

Apply bulleted list

Indent

Page break

Font face

Font size

Bold

Italics

Underline

Double underline

Word underline

All caps

Change case

Subscript

Superscript

Make web hyperlink

Go to next cell

Go to previous cell

Go to beginning of column

Highlight to beginning of column

Go to end of column

Highlight to end of column

Go to beginning of row

Highlight to beginning of row

Go to end of row

Highlight to end of row

Column break

Copyright ©

Date field

Go to footnotes

Show/Hide ¶

Thesaurus

Note:

A plus sign indicates that the keys need to be pressed at the same time.

CTRL+Backspace

CTRL+SHIFT+L

CTRL+M

CTRL+Enter

CTRL+SHIFT+F

CTRL+SHIFT+P

CTRL+B

CTRL+I

CTRL+U

CTRL+SHIFT+D

CTRL+SHIFT+W

CTRL+SHIFT+A

SHIFT+F3

CTRL+=

CTRL+SHIFT+=

CTRL+K

Tab

SHIFT+Tab

ALT+PageUp

ALT+SHIFT+PageUp

ALT+PageDown

ALT+SHIFT+PageDown

ALT+Home

ALT+SHIFT+Home

ALT+End

ALT+SHIFT+End

CTRL+SHIFT+Enter

ALT+CTRL+C

ALT+SHIFT+D

ALT+CTRL+F

CTRL+SHIFT+8

SHIFT+F7

Basics of Word Processing :: 57

INTEXT QUESTIONS

5.

6.

7.

8.

What are the shortcuts key using keyboard for opening a new document?

What is the command on the menu bar to save?

(a) a new file, (b) existing file

What are the steps to print a document on a different paper size in Print dialog box.

State True or False.

(a) Window menu allows you to work with two documents simultaneously.

(b) It is not necessary to give a password to protect a file from reviewers.

(c) Selecting Tracked changes command in Protect

Document dialog box do not let others to change the document.

3.11 WHAT YOU HAVE LEARNT

In this lesson you learnt about various features of MS-word like create, print, format. You are now in a position to move text from one place to another and apply different font and character styles.

You can also protect your document using different commands.

3.12 TERMINAL QUESTIONS

1.

2.

3.

4.

5.

Write any two uses of rulers in Word Program.

What is a mouse pointer?

What is an end-of-document marker?

Explain the steps in renaming a document.

What are the steps in protecting a document from accessing?

58 :: Data Entry Operations

6.

7.

8.

How do you modify a password given to protect a document?

What are the steps in printing a document’s multiple pages in a single sheet of paper?

Write any three options available in the Print dialog box.

2.

3.

4.

5.

6.

3.13 FEEDBACK TO INTEXT QUESTIONS

1.

7.

8.

(a) True

(b) False

(c) True

(d) True

(e) False

(b) (right click the mouse)

(d) (all of the above)

Programs→Microsoft Word

CTRL+N keys

(a) File→Save As,

(b) File→Save

Select the appropriate paper size in Scale to paper size: under Zoom and then click OK.

(a) True

(b) False

(c) False

4

Formatting Documents

4.1 INTRODUCTION

This lesson covers various features of entering, editing, copying text, moving text from one place to another in the document, creating bulleted and numbered lists, creating and applying styles, and spelling and grammar corrections that are important to enrich your document. Also, enriching a document’s appearance is Word’s speciality. Word’s formatting features allow you to create beautiful documents without doing much more than typing headings and text. Word will do the rest. Word 2007 offers a great amount of formatting options: multiple typefaces and point sizes; easy-to-apply character styles such as bold, italic, normal, single and double spaces;underline; subscript and superscript; and paragraph formats such as alignment, spacing and indentation.

You will be introduced to some of these features in this lesson.

4.2 OBJECTIVES

l l l

After going through this lesson you would be able to: define basic text processing tips explain spelling and grammar features change character and paragraph formats

Formatting Documents:: 59

60 :: Data Entry Operations

l l use page formatting create bulleted and numbered lists

4.3 WORKING WITH TEXT

While using Word 2007, there are certain concepts, menu flow, tips, and commands you should learn. This section deals with most common word concepts, tips, and commands you should know regardless your skills in using Word 2007 program. When you open word 2007 the following menu will appear on your monitor.

Fig. 4.1

4.3.1 Typing Text

To enter text, just start typing in the text area! As you type the text will appear where the blinking cursor is located and will move from left to right. Unlike with a typewriter, you need not press

ENTER key at the end of each line, the characters automatically shifted to next line. Word continues to let your text wrap (move to the next continuous line) around until you are ready to start a new paragraph. To break a continuous line and move to a new paragraph, Press ENTER key at the end of a paragraph.

4.3.2 Inserting Text

To insert the text in an existing document, follow the steps given below:

1.

Move the cursor by using the arrow buttons on the keyboard or positioning the mouse and clicking the left button where you want to insert the text. The keyboard shortcuts listed below are also helpful when moving through the text of a document:

Beginning of the line HOME

End of the line END

2.

Top of the document CTRL+HOME

End of the document CTRL+END

Type the text you want to insert.

4.3.3 Spacebar and Tabs

Use the spacebar as a separator for your words and sentences.

Don’t use the spacebar to move the insertion point across a line of text - known as “spacing across a line”. If you press the spacebar, word will make additional spaces, which you will then have to delete. Avoid using the spacebar to create columns of text. Instead you can use the Tab key.

4.3.4 Paragraph Markers

You may find it easier to type when you can see the returns, spaces, and tabs in your document. If so, click on the Show/

Hide button on the Standard toolbar to display the marks. Click on the Symbol again to hide them.

4.3.5 Selecting (Highlighting) Text

To change any attributes of text it must be highlighted first. Select the text by dragging the mouse over the desired text while keeping the left mouse button depressed, or hold down the SHIFT key on the keyboard while using the arrow buttons to highlight the text. The shortcuts for selecting a portion of the text are:

Formatting Documents:: 61

a.

b.

c.

Fig. 4.2

Whole word: double-click within the word

Whole paragraph: triple-click within the paragraph

Several words or lines: drag the mouse over the words, or hold down SHIFT key while using the arrow keys

62 :: Data Entry Operations

d.

e.

Entire document: choose Edit→Select All command on the menu bar, or press CTRL+A keys.

Deselect the text by clicking anywhere outside of the selection on the page or press an arrow key on the keyboard.

4.3.6 Deleting Text

Use the BACKSPACE and DELETE keys on the keyboard to delete text. Backspace will delete the text to the left of the cursor and Delete will erase the text to the right. To delete a large selection of text, highlight it using any of the methods outlined above and press the DELETE key.

4.3.7 Replacing Text

Word can combine the steps of deleting unwanted text, positioning the insertion point, and inserting replacement text.

To replace text, follow the steps given below:

1.

Select the text to be removed as explained above.

2.

Start typing the new text. Observe that the new text is replacing the selected text.

You can also replace the text by selecting the text, then deleting it using DELETE key, and then start typing new text.

4.3.8 Click and Type

This feature allows you to insert text any where in a page. Move the cursor in a page where you want to insert the text. Doubleclick and start typing. Click and Type is also useful for inserting tables, charts and other graphics in a blank area of a document.

When you insert an item, Click and Type automatically formats the item according to where you insert it.

4.3.9 Formatting Text

Using the Formatting toolbar is the easiest way to change many attributes of text. If the toolbar as shown below is not displayed on the screen, select Home Tab. Under Home Tab you can select desired Formatting commands under Font, Paragraph subtask as per the diagram given below.

Font Menu

Numbered and bulleted lists

Increase/

Decrease

Indent

Formatting Documents:: 63

Bold, Italics and l l l l l

Underline

Left, center, right justification

Fig. 4.3

Font Face - Font is the basic typeface in which your words are displayed. Font comes in families such as Times New

Roman or Ariel. Each font family has a specific way of formatting individual letters. Click the arrowhead to the right of the font name box in the under Font Formatting subtask menu to view the list of fonts available. Scroll down to the font you want and select it by clicking on the name once with the mouse.

Font Size - It determines how large each letter will appear.

The font size is measured in points (1/72 of an inch). Click on the white part of the font size box in the Font Formatting subtask menu to enter a value for the font size or click the arrowhead to the right of the box in the Formatting toolbar to view a list of font sizes available. Select a size by clicking on it once. A font size of 10 or 12 is best for paragraphs of text.

Font Style - Font style determines the emphasis or weight that the letters have when they are displayed. Each font can be displayed as bold, italicize, and underline.

Alignment - Text can be aligned to the left, center, or right side of the page or it can be justified across the page.

Numbered and Bulleted Lists - Lists are explained in detail later in this lesson.

64 :: Data Entry Operations

l

Increase/Decrease Indent - Change the indentation of a paragraph in relation to the side of the page.

l l

Outside Border - Add a border around a text selection.

Highlight Color - Use this option to change the color behind a text selection. The color shown on the button is the last color used. To select a different color, click the arrowhead next to the image on the button.

l

Text Color - This option changes the color of the text. The color shown on the button is the last color chosen. Click the arrowhead next to the button image to select another colour.

The Font Dialog Box

The Font dialog box allows you to choose from a larger selection of formatting using Home-Font Formatting sub task menu is the easiest way to format text. If you cannot format text using this subtask and click on the down arrow key located at the lower right side on the subtask menu to access the Font dialog box.

Fig. 4.4

Format Painter

A handy feature for formatting text is the Format Painter located on the home Tab under Clipboard subtask menu. For example, if you have formatted a paragraph heading with a certain font face, size, and style and you want to format another heading the same way, you do not need to manually add each attribute to the new headline. Instead, use the Format Painter by following these steps:

1.

2.

Place the cursor within the text that contains the formatting you want to copy.

Click the Format Painter button in the standard toolbar.

Notice that your pointer now has a paintbrush beside it.

3.

Highlight the text you want to add the same format to with the mouse and release the mouse button.

To add the formatting to multiple selections of text, double-click the Format Painter button instead of clicking once. The format painter then stays active until you press the ESC key to turn it off.

INTEXT QUESTIONS

1.

2.

3.

What will happen to the cursor when you use the following keyboard shortcuts?

(a) HOME, (b) END, (c) CTRL+HOME, (d) CTRL+END

What are the shortcuts for selecting?

(a) a whole word, (b) whole paragraph, (c) several words or lines, (d) entire document

State True or False

(a) It is a good practice to insert many spaces you need to move a text across a line.

(b) We can use BACKSPACE key to delete smaller selection of text.

(c) Ariel is a style menu name.

(d) The font size is measured in points.

Formatting Documents:: 65

66 :: Data Entry Operations

4.4 FORMATTING PARAGRAPHS

In Word 2007, a paragraph is any amount of text, graphics, object or other items that are followed by a paragraph mark. A paragraph mark is inserted each time while pressing the ENTER key. In order to change the formatting of a paragraph, select the paragraph and then apply the formats you want apply. Paragraph formats affect the entire paragraph and new paragraphs keep the formatting of the preceding paragraph. Paragraph marks store the format of each paragraph. If the paragraph mark is deleted, the text in that paragraph becomes part of the next paragraph.

You can format a paragraph by placing the cursor within the click on the down arrow on the lower right side of the subtask menu. This will display the following menu for you to choose the paragraph formatting.

Fig. 4.5

Fig. 4.6

4.4.1 Line Markers

To insert a new line mark in the same paragraph, press

SHIFT+ENTER keys. This action pushes the text down to the next line, but does not create a new paragraph.

To modify the appearance of paragraphs, use the Ruler, the

Formatting toolbar and the Paragraph dialog box or one of Word’s paragraph formatting shortcut key combinations. The various ways in which the paragraph formatting can be done is described in the following subsections:

4.4.2 Centering, Right Alignment and Left Alignment

By default, the text in Word is left aligned. But these alignments can be changed as described earlier.

4.4.3 Indenting Text

Indenting a paragraph enables it to set off from other text.

l

To indent paragraphs automatically, drag the top half of the triangular indent marker of the horizontal ruler to the right of the desired position.

Formatting Documents:: 67

68 :: Data Entry Operations

l l

To increase or decrease indents by one Tab stop, use the Increase Indent or Decrease Indent button on the Formatting toolbar.

To create a hanging indent (that indents all lines but the first line of a paragraph), drag the top half of the triangular indent marker in the horizontal ruler to the left of the desired position.

4.4.4 Tab Stops

By default, the tab Stops are set at 0.5-inch intervals from the left

Paragraphs sub task menu and click on the down arrow located near lower right corner to display the paragraphs formatting submenu. Now click on the Tabs button located on the lower left corner to display the tabs submenu. The Tab dialog box appears.

Type the length of the tab in inches in the box under Tab stop position of Tabs dialog box. Click on OK. The insertion point can be moved to the next tab stop in the current paragraph by pressing the Tab key.

You can also use the horizontal ruler to set a tab stop at a particular position or to change the way text lines up at a tab stop by simply moving the cursor to a place on the horizontal ruler and clicking.

Fig. 4.7

To set tab stops:

1.

2.

Select the paragraph in which you want to set or change tab stops.

To set or change the tab alignment, click the

Tab Alignment button at the far left of the horizontal ruler until the tab alignment is the way you want to be.

To Select the respective Tabs click on:

Left-aligned tab stops

Centred tab stops

Right-aligned tab stops

Decimal tab stops

To move a tab stop, point to the tab marker and drag it to a new position. To clear a tab stop, drag the tab marker off the ruler.

Also, you can set precise measurements for tab stops by using the Tabs command on the Format menu (see the Tabs dialog box

Figure).

The spacing between the default Tab Stops can also be changed but this will affect only the active document. To do this, type or select the distance you want between the tab stops in the Default

Tab Stops box and then click the OK button in the Tabs dialog box.

4.4.5 Line Spacing

Line Spacing determines the height of each line of text in the paragraph. The default (single line spacing) depends on the size of the font characters. Individual line spacing is easy to change.

down arrow located near lower right corner to display the paragraphs formatting submenu.. The Paragraph dialog box appears. The Indents and Spacing tab of the Paragraph dialog box provides a drop-down under Line spacing: for simple but effective control of the space between lines under most

Formatting Documents:: 69

70 :: Data Entry Operations

circumstances. The preview area demonstrates the relative effect of single, one-and-a-half and double line spacing. Single spacing causes 12-point line spacing, 1½ line spacing is 18 points and double spaced lines will be 24 points apart.

Fig. 4.8

All these line spacing settings can be made by choosing the appropriate options from the Line spacing menu in the

Paragraph dialog box.

When you use these choices, Word will compensate for graphics, superscript and large or small type sizes.

4.4.6 Paragraph Spacing

Word enables each paragraph to give unique before and after spacing if you wish. The spacing settings can be in points (pt), inches (in), centimetres (cm) or lines (li). Headings often have different spacing requirements for body text. For instance, you may require different before and after spacing designs for figures and figure captions as well. Also you can have unique spacing

specifications as part of a style, making it easy to keep the look of your documents consistent.

Formatting Documents:: 71

down arrow located near lower right corner to display the paragraphs formatting submenu. The Paragraph dialog box appears. Use drop down submenu in Before: and After: under

Spacing of the Paragraph dialog box to set the paragraph spacing.

The advantages of using the Paragraph command are:

1.

2.

3.

4.

5.

Spacing before and after paragraphs does not change the point size of your text.

You can use different spacing combinations for different purposes.

You can make precise adjustments to the spacing between the various text elements. For example, you can use paragraph spacing to clarify the relationship between headings and body text.

If the paragraph is moved or deleted, its spacing goes with it. The paragraph doesn’t leave behind extra blank lines.

If you include spacing in the paragraph styles you use to format text, Word adds the space along with the other formatting. You need not add blank lines manually.

4.4.7 Borders and Shading

You can add borders, to any side of a paragraph, and you can add background shading. You can also add borders and shading to ordinary text and to the paragraphs in table cells and frames.

button to display Border and Shading submenu. The Borders and Shading dialog box appears. Click on the appropriate borders box after selecting Borders tab to select border, select Paragraph under Apply to: drop down submenu, click OK. To shade a paragraph, click on Shading tab in Borders and Shading dialog box, select appropriate shade under Fill, and select Paragraph under Apply to: drop down submenu, click OK.

72 :: Data Entry Operations

Fig. 4.9

INTEXT QUESTIONS

4.

5.

6.

The shortcut key to insert a new line:

(a) ENTER

(b) SHIFT+ENTER

(c) ALT+ENTER

By default, the Tab stops are set at:

(a) 0.3 inch intervals

(b) 0.4 inch intervals

(c) 0.5 inch intervals

State True or False

(a) Single line spacing causes 18 points

(b) Using Standard toolbar, you can have up to 4 columns in a paragraph

(c) Format Painter button on the Standard toolbar is useful in applying a style.

(d) Heading 1 is a default style

4.5 BULLETED AND NUMBERED LISTS

Bulleted lists and Numbered lists are often used to bring main points to a reader’s attention.

4.5.1 Creating a Bulleted and Numbered Lists

To create a bulleted or numbered list, use the list features provided by Word. In this section you will learn how to create and format bulleted and numbered lists.

1.

Click the Bulleted List button or Numbered List button on the formatting toolbar.

2.

3.

Type the first entry and press ENTER. This will create a new bullet or number on the next line. If you want to start a new line without adding another bullet or number, hold down the SHIFT key while pressing ENTER.

Continue to type entries and press ENTER twice when you are finished typing to end the list.

Use the Increase Indent and Decrease Indent buttons on the formatting toolbar to create lists of multiple levels.

You can also type the text first, highlight the section, and press the Bulleted List or Numbered List buttons to add the bullets or numbers.

4.5.2 Creating Nested Lists

To create a nested list, such as a numbered list inside of a bulleted list, follow these steps:

1.

Type the list and increase the indentation of the items that will make up the nested list by clicking the Increase Indent button for each item.

Formatting Documents:: 73

74 :: Data Entry Operations

2.

Highlight the items and click the Numbered List button on the formatting toolbar.

4.5.3 Formatting Bulleted and Numbered Lists

The bullet image and numbering format can be changed by using the Bullets and Numbering dialog box.

1.

Highlight the entire list to change all the bullets or numbers, or Place the cursor on one line within the list to change a single bullet.

2.

menu on the main tab bar or by right-clicking within the list and selecting Bullets or Numbering command from the shortcut menu as per requirement.

3.

4.

Fig. 4.10

Select the list style from one of the choices given, or click the Picture... button to choose a different icon. Click the

Numbered tab to choose a numbered list style.

Click OK when finished.

4.6 COPYING TEXT AND MOVING (CUTTING) TEXT

Part of editing process of text is copying or moving text to other locations of your document. You can use the copy and cut commands to avoid retyping text in your document. This section deals with the use of clipboard in copying and moving text within a document or other documents.

4.6.1 The Use of Clipboard Copying Text and Moving

(Cutting) Text

When you copy or cut text, the text is stored in an area of memory called clipboard and can be pasted back into the document or into any other document. The last 12 elements that were cut or

copied are placed onto Word’s clipboard. You can view the

→ task menu command on the menu bar.

Place the mouse arrow over each element in the clipboard to view the contents of each item and click on an element to add its contents to the document. Click Paste All to add all of the items to the document at once. Click the Clear Clipboard button (the icon with an “X” over the clipboard image) to clear the contents of the clipboard.

4.6.2 Moving (Cutting) Text

Moving text means to remove (cut) the selected text from one location and insert it in another location. To move text follows the steps given below:

1.

2.

Select the text that will be moved.

3.

menu bar, or click the Cut button on the standard tool bar, or press CTRL+X keys. This will move the text to a clipboard.

To paste cut text , move the cursor to the location you task menu command on the menu bar, click the Paste button on the standard toolbar, or press CTRL+V keys.

To move a small amount of text a short distance, the drag-anddrop method may be quicker. Highlight the text you want to move, click the selection with the mouse, drag the selection to the new location, and release the mouse button.

4.6.3 Copying Text

Copying means to make a copy of the selected text and insert in another location, leaving the original text unchanged. To copy text, follow the steps given below:

1.

Select the text that will be moved.

Formatting Documents:: 75

76 :: Data Entry Operations

2.

menu bar, or click the Cut button on the standard tool bar, or press CTRL+X keys. This will move the text to a clipboard.

3.

menu bar, click the Copy button on the standard toolbar, or press CTRL+C keys to copy the text to the clipboard.

4.7 SPELLING AND GRAMMAR

The spelling and grammar checkers check for misspelled words or grammar errors. The red wavy lines will appear underneath misspelled words. The green wavy lines will appear underneath grammatical errors. This section deals with the concepts and commands of spelling and grammar corrections of your document.

Word will automatically check for spelling and grammar errors as you type unless you turn this feature off. Spelling errors are noted in the document with a red underline. Grammar errors are indicated by a green underline.

Fig. 4.11

To use the spelling and grammar checker, follow these steps:

1.

2.

3.

Select button from the main tab bar or press F7 button on the key board.

The Spelling and Grammar dialog box will notify you of the first mistake in the document and misspelled words will be highlighted in red.

If the word is spelled correctly, click the Ignore button or click the Ignore All button if the word appears more than once in the document.

2.

3.

Fig. 4.12

4.

5.

If the word is spelled incorrectly, choose one of the suggested spellings in the Suggestions box and click the

Change button or Change All button to correct all occurrences of the word in the document. If the correct spelling is not suggested, enter the correct spelling in the

Not In Dictionary box and click the Change button.

If the word is spelled correctly and will appear in many documents you type (such as your name), click the Add button to add the word to the dictionary so that it will no longer appear as a misspelled word.

As long as the Check Grammar box is checked in the Spelling and Grammar dialog box, Word will check the grammar of the document in addition to the spelling. If you do not want the grammar checked, remove the checkmark from this box.

Otherwise, follow these steps for correcting grammar:

1.

If Word finds a grammar mistake, it will be shown in the box as the spelling errors. The mistake is highlighted in green text.

Several suggestions may be given in the Suggestions box.

Select the correction that best applies and click Change.

If no correction is needed (Word is often wrong more than it is right), click the Ignore button.

Formatting Documents:: 77

78 :: Data Entry Operations

4.8 PAGE FORMATTING

In this section, you will learn designing pages suiting to your needs. For instance, the page setup options which included paper size and page orientation etc. are normally set either by you or by default at the beginning of the opening a new document. These options are available under Page Layout tab and can easily be changed at any time according to your needs.

Fig. 4.13

4.8.1 Page Margins

There are two methods by which you can change the page margins of your document: (a) using ruler and (b) using Page

Setup dial box.

(a) Using Ruler

1.

Move the mouse over the area where the white ruler changes to grey.

2.

3.

Fig. 4.14

When the cursor becomes a double-ended arrow, click with the mouse and drag the margin indicator to the desired location.

Release the mouse when the margin is set.

(b) Using Page Set-up Dialog Box

The margins can also be changed using the Page Setup dialog box:

1.

2.

3.

4.

5.

Select Page Layout Tab and click on the command on the menu bar and choose the Margins button under Page

Setup sub task group to display the margin dialog box.

There are six predefined margins namely Normal, Narrow,

Moderate, Wide, Mirrored, Office 2003 Default available for you to select. Either you can select any one of them as per the requirement or click on the Customised Margins button to enter margin values in the Top, Bottom, Left, and

Right boxes. The Preview window will reflect the changes.

If the document has Headers and/or Footers, the distance this text appears from the edge of the page can be changed.

To apply the changes to the whole document click on the drop-down arrow next to the Apply to: list box and change the option to Whole document if it do not appear.

Click OK when finished.

Formatting Documents:: 79

Fig. 4.15

80 :: Data Entry Operations

4.8.2 Page Size and Orientation

Change the orientation of a page within the Page Setup dialog box.

1.

and choose from the available the Letter, Legal or A4 size as per requirement. Should need to look at more options, click on the More Paper Sizes from the size sub task.

2.

Fig. 4.16

Select the proper paper size from the drop-down menu.

Fig. 4.17

3.

Change the orientation from Portrait or Landscape by selecting the corresponding button under Orientation subtask in Page Layout in main tab bar.

Zoom in to the page

Fig. 4.18

1.

2.

Zoom dialog box will appear on the screen. Check-mark the many pages: box under Zoom to in the Zoom dialog box.

Click OK.

You will see displaying multiple pages of your document on the screen. Select the pages to change the orientation.

3.

4.

Setup, and click on the Paper Size tab.

Then click on the orientation option

(Landscape or

Portrait) you need for those selected pages.

Select Apply to: option in the dropdown box as

Selected text. Click on OK when finished.

Fig. 4.19

4.8.3 Headers and Footers

A header is text that is added to the top margin of every page such as a document title or page number and footer is text added to the bottom margin. Follow these steps to add or edit headers and footers in the document:

Formatting Documents:: 81

Fig. 4.20

82 :: Data Entry Operations

1.

2.

3.

main tab bar. Click on the Header or Footer option as per the requirement (Fig. 4.21).

On selecting Header option, header toolbar will appear and the top of the page will be highlighted as shown below (Fig.

4.22).

Type the heading in the Header box. You may use many of the standard text formatting options such as font face, size, bold, italics, etc.

Fig. 4.21

Fig. 4.22

Similarly you can select the designated command for Footer (Fig.

4.23) and customized it as per requirement.

Formatting Documents:: 83

Fig. 4.23

4.8.4 Page Numbers

Follow these instructions to add page numbers to a document.

1.

2.

3.

Page Numbers from the main tab bar and the following dialog box will appear.

Select the

Position of the page numbers by choosing “Top of page” or “Bottom of page” from the

Position dropdown menu.

Click OK when finished.

Fig. 4.24

Fig. 4.25

84 :: Data Entry Operations

Changing Start Value of Page Numbers in a Document or in a

Particular Section of a Document

To change the starting value of page numbers of a document, follow the steps given below:

1.

2.

3.

Place the cursor on a page of the document. (If your document consist two or more sections, you may have to place the cursor on a page in that particular section to change the page numbers from the beginning page of that section.).

Select InsertPage Numbers subtask on the main tab and the Page Numbers dialog box appears.

Uncheck Show number on first page and click on Format in Page Numbers dialog box. The Page Number Format dialog box appears (Fig. 4.26).

4.

Fig. 4.26

At the bottom of the Page Number Format dialog box, click on the Start at option box and increase or decrease the page number value or simply type a number in the Start at box.

5.

Click OK to close Page Number Format dialog box and then click OK to close Page Numbers dialog box.

4.8.5 Inserting a Page Break

When you are typing along and reach the bottom of a page in a

Word document, a page break will be inserted automatically. The paper size will determine where automatic page breaks occur. If you wish to end one page and start another page before the natural page breaks, you should not press the ENTER key repeatedly in order to move to the next page. Instead, follow one of the ways given below:

1.

Position the insertion point at the line where the page bar. The Break dialog box appears (Fig. 4.27). Check-mark

Page breaks under Break types in Break dialog box. Click

OK to insert a page break.

Formatting Documents:: 85

Fig. 4.27

2.

Position the insertion point at the line where the page should end. Press CTRL+ENTER keys to insert a page break.

4.8.6 Deleting a Page Break

The easiest way to delete page breaks is to find and remove the extra page break indicator in the document. To do this switch over to Normal view, click on the Page Break line and press

DELETE key to remove the page break.

86 :: Data Entry Operations

INTEXT QUESTIONS

7.

The—————————command in the menu bar is used to access the Bullets and Numbering dialog box.

8.

9.

What is the difference between copying text and moving text?

To view the elements on a clipboard, you select—————

—————command from the menu bar.

10.

State True or False

(a) Choosing Edit→ Copy command on the menu bar and pressing CTRL+C keys are different actions.

(b) You cannot use Custom dictionary to remove a word.

(c) You can select synonyms of a word from shortcut menu by right click.

(d) The Spelling and Grammar checker can be activated by pressing F7 key on the keyboard.

4.9 WHAT YOU HAVE LEARNT

In this lesson you learnt about various features of formatting text.

Now you are in a position to move text from one place to another, and apply different font and character styles. Also you can apply the grammer and spell-check features of MS-word.

2.

3.

4.

5.

6.

7.

4.10 TERMINAL QUESTIONS

1.

What is the command in the menu bar to change text to Title

Case?

Explain the steps in inserting a symbol.

What is a font face? Mention any two font families.

How do you set line spacing in a paragraph?

Write the steps for moving text.

Write the steps for copying text.

What is the use of AutoCorrect feature in Word?

4.11 FEEDBACK TO INTEXT QUESTIONS

1.

2.

(a) Beginning of the line

(b) End of the line

(c) Top of the document

(d) End of the document

(a) Double-click within the word

(b) Triple-click within the paragraph

(c) Drag the mouse over the words, or hold down SHIFT key while using the arrow keys

3.

4.

5.

or press CTRL+A keys.

(a) False, (b) True, (c) False, (d) True

(b) (SHIFT + ENTER keys)

(c) 0.5 inch intervals

6.

7.

8.

(a) False, (b) True, (c) True, (d) False

Format→Bullets and Numbering

Copying means to make a copy of the selected text and insert in another location, leaving the original text unchanged. Moving text means to remove the selected text from one location and insert it in another location.

9.

View→Toolbars→Clipboard

10.

(a) False, (b) False, (c) True, (d) True

Formatting Documents:: 87

88 :: Data Entry Operations

5

Mail Merge

5.1 INTRODUCTION

A common word processing task is to produce periodic mailings to send to different people or agencies connected to you or your profession or your business. The mailings features in Word can help you to organize your address data, get it into a document, and print it out in the desired format. The main uses of Word’s

Mail Merge features are: l l l

You can merge a list of names and addresses to a single letter that can be sent to different people in their names and addresses.

You can create categories, a single letter with variable information fields in it, or labels.

You can also produce merged documents such as directory lists, invoices, print address lists, or print addresses on envelopes and mailing labels.

5.2 OBJECTIVES

After going through this lesson you would be able to: l to create form letters, mailing labels, envelopes l l to organize the address data and merging it into a generic document, and printing the resulting personalized documents to customize a mail merge

5.3 TYPES OF DOCUMENTS IN MAIL MERGE

Mail Merge requires three types of documents:

(a) Main Document : In a Mail Merge operation, the personalized document (such as, a standard letter, or envelope, or mailing label) is known as the main document.

It is the document containing the text and graphics that stay the same for each version of the merged document - for example, the return address and body of a form letter.

(b) Data Source: Data source is a file that contains the names and addresses or any other information that vary with each version of a mail-merge document. For example, a list of names and addresses for a form letter you want to send to a list of clients or other people.

(c) Merge Document: When you merge the main document with data source, a third document called merge document will be produced. The merge document can be merged to the screen to view letters along with addresses; or directly to the printer to print the letters along with addresses and print addresses on envelopes or labels; or save as some other file that can be used later for printing. Inserting the data or information from the data source in the main document creates the merge document. For example, insert the merge field «City» in a letter document to have

Word insert a city name, such as “New Delhi” that is stored in the City data field.

Mail Merge or Mailings feature in Word 2007 is available in Main

Tab bar. Click on the ‘Mailings’ tab on the main tab bar to activate the mailings features and tools, which comprises subtask such as “Create”, “Start Mail Merge”, “Write & Insert Fields”,

“Preview Results” and “Finish & Merge”

Mail Merge :: 89

Fig. 5.1

90 :: Data Entry Operations

5.4 MAIL MERGE WIZARD

Fig. 5.2

The Mail Merge wizard guides you through the process of doing a mail merge. This involves creating and editing main document; creating a new data file opening an existing data file; and merging the data fields with main document. To use from the main tab bar. Then select Step by Step Mail Merge

Wizard option on the subtask bar.

The Mail Merge Wizard menu will appear on the screen. This will help you to create mail merge documents in customised step manner. The Wizard has

6 steps to create a mail merge document.

Fig. 5.3

5.4.1 Select Document

Type

In this section you will learn how to select a main document using Mail Merge Wizard.

Selecting a Document Type is the first step towards creating a mail merger document.

Using this option you can choose the type of main document such as Letters, E-Mail

Messages, Envelopes, Labels, Directory.

Most often the standard document type used is Letter. However, it can also be a mailing label, an envelope etc. To create a simple letter with variable (current) date, follow these steps:

When you select Letters type, you can use this letter to send to a group of people with a

Fig. 5.4

personalised letter that is received by different people in that group with different address.

Select Letters from the options given in the Select Document type box and click on the “Next: Starting document” located on the lower end of the Wizard dialog box to move to the next step.

5.4.2 Select Starting Document

1.

The 2 nd step in the process is to select starting document under Letters option. There are three options available.

Use the current document: This is to use the current document shown and use the mail merge features to add recipients address or information. This is suitable when you already have letter draft for the purpose and just want to add address of the recipients to the letter.

Mail Merge :: 91

Fig. 5.5

Start from a Template: Similarly if you don’t have a drafted letter for use, you can choose for ready to use mail merge template already available with Word

2007. These templates can be customised as per your requirement.

Start from existing document: If you already have a document available with you, you can select the exiting mail merge document and make necessary changes to the content of the letter and/ or recipients.

Fig. 5.6

92 :: Data Entry Operations

Let us select “Start from a Template” and the select a blank document. When you select this option, Mail Merge Wizard will display the following sub menu option to select a template. Here you can select various templates that suit your requirement or you can select a blank document to create your own customised letter. Let us select “Blank Document” to create our own customised letter.

2.

Leave some space (approximately 6 to 7 lines by pressing

ENTER key) to insert addresses through merge fields later.

Do not type any thing in this space. We will learn how to insert addresses from data source through data fields later in this unit. You can also insert fields anywhere in the body of the letter. The following Figure shows an example of form letter created to send the letters to all the students admitted for DIT programme offered by National Institute of Open

School. We have left some space below the date to insert name address fields of students. The enrolment number field also can be inserted at ‘Your enrolment number is ‘ later when data source is ready.

Type the body of the letter.

Fig. 5.7

Save your document.

5.4.3 Creating a Data Source

The 3 rd

step in Mail Merge Wizard is to select a list of recipients or address to whom the drafted letter will be addressed and dispatch.

If you do not have existing database information, you must create your own data source of the fields of information that will be inserted into the letter or any other main document. For example, a Mail Merge letter you have created earlier might require that you have the following fields in address list of students as data source: Name,

Address1, Address2, City,

State, and PIN Code.

Fig. 5.8

In this lesson, you will learn how to create a data source using

Mail Merge Wizard using a Word table or importing your Excel

Worksheet.

(a) Creating a Data Source Using Mail Merge Helper

You can use the Mail Merge Wizard to create a Microsoft Word, Excel or

Access database data source.

Follow these steps to create a data source using Mail Merge Wizard:

Open a new blank document if you have not yet created the main document or open your existing main document.

1.

2.

3.

Select “Type a new list” from the “Select Recipients”

Fig. 5.9

dialog box in step 3 of the Mail Merge Wizard and then select “Create” option.

A dialog box appears to create a list with new set of data such as Title, First Name, Last Name, Company Name and

Address Line 1 and so on.

You can start entering data to the respective field as per your requirement directly into the displayed New Address

List dialog box.

Mail Merge :: 93

94 :: Data Entry Operations

4.

5.

6.

7.

Should you want to

C u s t o m i s e

Columns the filed in the new address list to remove or add any other field as new your requirement, click on the customised button located on the lower right side of the New Address

List dialog box.

Fig. 5.10

This will display a list of available data field to which you can add a customised data filed, delete or rename an exiting data field in the list. Once done click on the “OK” button.

When you finish specifying the required data fields to the new address list, click OK. The Save As dialog box appears.

Locate the folder that you want to save the data source in, type a file name, and then click Save As in the Save As dialog box. The file will be saved with an extension name

.mdb (Microsoft Database).

(b) Editing Existing Data Records

To edit the existing data records in the data source file, follow these steps:

1.

2.

3.

Open the data source file and then select Use an exiting list option from the Select Recipients dialog box displayed in step 3 of the Mail Merger Wizard. The toolbar will appear on the screen.

Now click on the Browse option to display the Select Data

Source dialog box. Now search the folder where you have stored the data file which you want to use and the click on

Open button to access the data file.

You can open various data file format such as Access database, Excel files, Word File, Rich Text format etc.

4.

5.

6.

7.

Fig. 5.11

Once the data file is selected, based of the type of data file is selected, Mail Merger will ask you to define how to distinguish between data fields and data record.

Once it is done, the data file will be loaded in to Mail Merger and you can now click on Edit Recipient List button to be able to edit the list as per your requirement.

To locate a data record that you want to change, move to the record number you want change its contents by clicking the arrow keys or typing the record number; or click Find, and then search for information that you know the record contains.

Edit the records that you want to change and save the changes.

(c) Creating a Data Source Using Word Table

In fact, the Mail Merge Wizard guides you step by step through setting up a Word table that contains your names, addresses, and other data. Instead of taking advantage of Mail Merge Wizard, you can also create a data source by entering field names and data directly in a Word table. Follow these steps to do this:

1.

2.

3.

Insert a table by selecting tab Insert

Table command on the main tab bar and create a table as given below.

Type the data field names on the top row of the table. Start typing the data records from the second row.

When you finish entering all the data records, save the table as a Word document. Your data source document is ready.

Mail Merge :: 95

96 :: Data Entry Operations

(d) Using Excel Worksheet to Create a Data Source

You can also use Excel program to create a data source. Follow these steps do this.

1.

2.

Start Excel program. Open Worksheet.

3.

Type the data field names on the top row of the worksheet.

Start typing the data records from the second row.

When you finish entering all the data records, save the worksheet.

4.

5.

Select the data field names and data records you typed in the worksheet, and then click on Copy button in the standard toolbar. Close the file and then exit Excel program.

Open Word program. Open a new document and then click on Paste button. The data will be copied to word document in a table form. Save the document. Your data source document is ready.

5.4.4 Merging Documents

Once if you have created your main document and data source document, the next two steps in mail merge are to insert merge fields in the main document and then merge data in the main document.

To merge the fields in the main document you may have to do some editing in the main document. Follow these steps as defined in the step 4 of the Mail Merge Wizard to do this:

1.

Click on the location of your letter where you want the addresses to be displayed and then

2.

Select Address Book option on the dialog box displayed in step 4 of the Mail Merge Wizard. The Mail Merge Wizard displays the Insert Address Blok dialog box.

3.

Fig. 5.12

Using Insert Address Block you can select the individual address field to be inserted into the main letter.

4.

Fig. 5.13

After you complete the main document and insert all of the merge fields, click on the Office Button to save Save As option. Now select “Word Document” to save the file as a

Word 2007 document or Select “Word 97-2003 Document” to save it as Word 97 or 2003 compatible ducument. Name the document, and then click Save. Now your main document will work as merge document.

Mail Merge :: 97

98 :: Data Entry Operations

5.4.5 Merging the Data into the Main Document

Merging the data into the main document is the last step of the

Mail Merge Wizard. Click on the << or >> button to display the preview of the main letter with address data before you close the merge document and take the printout of the letter.

Fig. 5.14

Once finished click on the “Next: Complete the Merge” option on the dialog box to complete the merging process.

Fig. 5.15

5.5 CREATING MAILING LABELS BY MERGING AN

ADDRESS LIST

If you have already created a data source (say address list) as explained earlier, it is easier to merge this address list with your

main document that can be used as mailing labels.

1.

Create the Main Document: Click on New on the Standard toolbar. Then select Mailings

Start Mail Merge subtask on the main tab bar. Under sub task Start Mail Merge, select Labels. The Microsoft Word will display the Label

Options dialog box.

Mail Merge :: 99

2.

3.

4.

5.

Fig. 5.16

In the Label Options dialog box, select the type of printer and labels you want to use, and then click OK. (If the type of labels that you want to use is not listed in the Product number box, you can create your own custom labels.). Click on the New Label button to create a customized label as per the requirement.

Open the Data Source: Once you finished selecting the label type and format for use, it is now time to select the data source from where the data will get added to the labels.

In the main tab bar, under Mailings tab, click Select

Recipients, and then click on Type New List or Use

Existing List or Select from Outlook Contacts depending on whether you want to create new address list or use and exiting one.

Select Use Existing List to display the Select Data Source dialog box. Browse to the location where you have created your data source (address list), and then click Open button.

You can open various data file format such as Access database, Excel files, Word File, Rich Text format etc.

100 :: Data Entry Operations

6.

7.

Fig. 5.17

Once the data file is selected, based of the type of data file is selected, Mail Merger will ask you to define how to distinguish between data fields and data record.

Once it is done, the data file will be loaded in to Mail Merger and you can now click on Edit Recipient List button under the sub task Start Mail Merge to be able to edit the list as per your requirement.

8.

To locate a data record that you want to change, move to the record number you want change its contents by clicking the arrow keys or typing the record number; or click Find, and then search for information that you know the record contains.

9.

Edit the records that you want to change and save the changes.

10.

Select Mailings

Write & Insert Fields sub-task and click on the Insert Merge Field to insert merge fields where you want to merge addresses from the data source to be inserted on the labels document. Click Insert Merge Field and then click the field name you want to be inserted and click OK. The selected data field or filename will get inserted on to the labels document and you can continue selecting the entire set of data field name you want to appear on the label document.

Fig. 5.18

11.

Merge the Data into the Main Document: In the Mailings tab bar, click on the Preview Results to display the merged labels with actual data from the selected data source before the labels are printed. This will help you to view the label as they will get printed and take any corrective measures if required before the labels are finally printed. You can also move around the set if data fields to preview all the labels using < and > button available under Preview Results subtask.

Fig. 5.19

12.

Merge the data with the document. If you want to send the merged labels directly to a printer, click Finish & Merge sub-task under Mailings tab, and then click Print

Documents.

13.

The merged labels will be printed and will look like

Fig. 5.20

Mail Merge :: 101

102 :: Data Entry Operations

5.6 CREATING ENVELOPES BY MERGING AN

ADDRESS LIST

If you have already created a data source (say address list) as explained earlier, it is easier to merge this address list with your envelopes so that you can directly print the addresses in the envelopes (instead of printing the address labels on stickers and then sticking them on the envelopes) for mailing purpose. You can do this in 4 steps:

1.

Create the Main Document:

Click New Blank Document on the Standard toolbar. Select

Mailings

Start Mail Merge subtask on the main tab bar.

Under sub task Start Mail

Merge, select Envelopes. The

Microsoft Word will display the

Envelop Options dialog box.

2.

On the Envelope Options tab, select the envelope size you

Fig. 5.21

want from a variety of predefined sizes given under

Envelope size: drop down box, and adjust the address format and position on the envelope. (If the envelope size that you want to use is not listed in the Envelope size: box, you can create your own custom envelope by selecting

Custom size under Envelope size: drop down box in the

Envelope Options dialog box.) Click on the Printing

Options tab, and make sure that the selected envelope feed options are correct for your printer, and then click OK.

3.

Open the Data Source: Once you finished selecting the label type and format for use, it is now time to select the data source from where the data will get added to the labels. In the main tab bar, under Mailings tab, click Select

Recipients, and then click on

Type New List or Use Existing

List or Select from Outlook

Contacts depending on whether

Fig. 5.22

4.

5.

you want to create new address list or use and exiting one.

Select Use Existing List to display the Select Data Source dialog box. Browse to the location where you have created your data source (address list), and then click Open button.

You can open various data file format such as Access database,

Excel files, Word File, Rich Text format etc.

Mail Merge :: 103

Fig. 5.23

6.

7.

8.

9.

Once the data file is selected, based of the type of data file is selected, Mail Merger will ask you to define how to distinguish between data fields and data record.

Once it is done, the data file will be loaded in to Mail Merger and you can now click on Edit Recipient List button to be able to edit the list as per your requirement.

To locate a data record that you want to change, move to the record number you want change its contents by clicking the arrow keys or typing the record number; or click Find, and then search for information that you know the record contains.

Edit the records that you want to change and save the changes.

10.

In Mailings Tab under Write & Insert Fields sub-task, click on the Insert Merge Field to insert merge fields where you want to merge addresses from the data source to be inserted on the labels document. Click Insert Merge Field and then click the field name you want to be inserted and click OK. The selected data field or filename will get inserted on to the envelope and you can continue selecting the entire set of data field name you want to appear on the envelope document.

104 :: Data Entry Operations

Fig. 5.24

11.

Merge the Data into the Main Document: In the Mailings tab bar, click on the Preview Results to display the merged labels with actual data from the selected data source before the labels are printed. This will help you to view the label as they will get printed and take any corrective measures if required before the labels are finally printed. You can also move around the set if data fields to preview all the labels using < and > button available under Preview Results sub-task.

Fig. 5.25

12.

Merge the data with the document. If you want to send the merged labels directly to a printer, click Finish & Merge sub-task under Mailings tab, and then click Print Documents.

Fig. 5.26

INTEXT QUESTIONS

1.

2.

3.

4.

What is the difference between main document and merge document in Main Merge?

In Mail Merge, a data source can be created using ———

—— or—————.

You can merge the data records to—————— or ———.

To send the merged documents for electronic mailing, it is necessary that your computer has the ————— connection.

5. State True or False a. Using Word’s Mail Merge features you can merge address list in a single letter that can be sent to different people but you cannot insert variable fields in the body text of the letter.

b. It is not possible to send the merged documents for fax without

Fax machine connected to your computer.

c. The data records created in a worksheet using Excel cannot be used as a data source for Mail Merge.

5.7 WHAT YOU HAVE LEARNT

In this lesson you learnt about the use of mail-merge in MS-Word environment. Now you can merge a list of names and addresses to a single letter that can be sent to different people in their names and address. Secondly, you can create categories, a single letter with variable information fields in it, or labels. Finally, you can produce merged documents such as directory lists, invoices and address lists, Print addresses print on envelopes or mailinbg labels.

2.

3.

4.

5.

6.

5.8 TERMINAL QUESTIONS

1.

Briefly explain the following: (a) Main document, (b) Data source, and (c) Merge document.

Write any two features of Mail Merge.

Explain steps in creating a main document for form letter.

Write steps in editing existing data records in Main Merge.

How do you create a data source using Word table?

Write steps in using Excel worksheet as a data source for your Mail Merge.

2.

3.

4.

5.

5.9 FEEDBACK TO INTEXT QUESTIONS

1.

In a Mail Merge operation, the personalized document (such as a letter) is called as the main document. When you merge the main document with data source, a third document called merge document will be produced.

Mail Merge Helper or Word Table.

A new document or printer.

Internet

(a) False (b) True (c) False

Mail Merge :: 105

106 :: Data Entry Operations

6

Basics of

Spreadsheet

6.1 INTRODUCTION

A spreadsheet is a large sheet having data and information arranged in rows and columns. As you know, Excel is one of the most widely used spreadsheet applications. It is a part of

Microsoft Office suite. Spreadsheet is quite useful in entering, editing, analysing and storing data. Arithmatic operations with numerical data such as addition, subtraction, multiplication and division can be done using Excel. You can sort numbers/ characters according to some given criteria (like ascending, descending etc.) and use simple financial, mathematical and statistical formulas.

6.2 OBJECTIVES

l l l

After going through this lesson you would be able to: l l explain the basic features of MS Excel 2007 set up pages and their printing modify a worksheet enter and edit data in a worksheet work on keyboard shortcuts

6.3 FEATURES OF SPREADSHEETS

There are a number of features that are available in Excel to make your task easier. Some of the main features are:

1.

2.

3.

4.

5.

6.

7.

8.

9.

AutoSum - helps you to add the contents of a cluster of adjacent cells.

List AutoFill - automatically extends cell formatting when a new item is added to the end of a list.

AutoFill - allows you to quickly fill cells with repetitive or sequential data such as chronological dates or numbers, and repeated text. AutoFill can also be used to copy functions. You can also alter text and numbers with this feature.

AutoShapes toolbar will allow you to draw a number of geometrical shapes, arrows, flowchart elements, stars and more. With these shapes you can draw your own graphs.

Wizard - guides you to work effectively while you work by displaying various helpful tips and techniques based on what you are doing.

Drag and Drop - it will help you to reposition the data and text by simply dragging the data with the help of mouse.

Charts - it will help you in presenting a graphical representation of your data in the form of Pie, Bar, Line charts and more.

PivotTable - it flips and sums data in seconds and allows you to perform data analysis and generating reports like periodic financial statements, statistical reports, etc. You can also analyse complex data relationships graphically.

Shortcut Menus - the commands that are appropriate to the task that you are doing will appear by clicking the right mouse button.

6.4 FEATURES OF MS EXCEL 2007

(a) Results-oriented user interface

The new results-oriented user interface makes it easy for you to work in Microsoft Office Excel. Commands and features that were often buried in complex menus and toolbars are now easier to find on task-oriented tabs that contain logical groups of commands and features. Many dialog boxes are replaced with

Basics of Spreadsheet :: 107

108 :: Data Entry Operations

drop-down galleries that display the available options, and descriptive tooltips or sample previews are provided to help you choose the right option.

(b) More rows and columns, and other new limits

The grid of Excel 2007 is having 1,048,576 rows and 16,384 columns. Thus it provides a user with 1,500% more rows and

6,300% more columns than the Microsoft Office Excel 2003. The last column in Excel 2007, is XFD instead of IV in Excel 2003. The number of cell references per cell is increased to limit as maximum available memory. The formatting types are also increased to unlimited number in the same workbook as compared to the earlier limit of four thousand types of formatting.

(c) Office themes and Excel styles

By the help of a specific style, in Excel 2007, the data can be quickly formatted in the worksheet by the help of a theme. You can share themes across other releases of Office 2007 e.g. Word

2007, Power point 2007.

Applying a theme: Themes are used to make great-looking documents. A theme is defined as a predefined set of colors, lines, fonts and fills effects. Theme can be applied to a specific item like tables, charts or it can also be applied to entire workbook.

Using styles: A predefined theme based format is called style.

It can be applied to change the appearance of Excel charts, tables,

PivotTables, diagrams or shapes. Styles can be customized to meet user specific requirements. It is important to note that in case of charts you cannot create your own styles, but you can use preexisting styles.

(d) Rich conditional formatting

It is easy to use and apply conditional formats. A few tricks are required to observe the relationships in data, which helps to great extent for analysis purposes.

Important data trends and exceptions can be easily observed by the help of implementation and management of multiple

conditional formatting rules which apply rich visual formatting in the form of data bars, gradient colors, and icon sets to data that meets those rules.

(e) Easy formula writing

Some improvements that make formula writing much easier are as given below

Resizable formula bar: To prevent the formulas to cover the other data in worksheet, the formula bar automatically resizes to accommodate complex, long formulas. More levels of nesting can be used to write longer formulas as an enhanced feature of earlier versions of Excel.

Function AutoComplete: Function AutoComplete feature helps to write the proper formula syntax more quickly. It helps in detecting the functions that you want to use and helps in completing the formula.

Structured references: Excel 2007 provides structured references to refer the named ranges and tables in a formula. This is in addition to the cell references, like D1 and A1C1.

Easy access to named ranges: You can organize, update and handle multiple named ranges in a central location by the help of Excel 2007. This helps you to work on your worksheet, interpret its data and formulas.

(f) Improved sorting and filtering

Enhanced filtering and sorting techniques of Excel can be used to arrange worksheet data more quickly to find the desired answers. In Excel 2007 you can sort data by color and by more than 3 levels.

You can also filter data by color or by dates, display more than

1000 items in the AutoFilter drop-down list, select multiple items to filter, and filter data in PivotTables.

Basics of Spreadsheet :: 109

110 :: Data Entry Operations

6.5 STARTING EXCEL

1.

2.

3.

Click on (with the help of mouse) the Start button on the

Taskbar at the bottom left corner of the Screen

Highlight the All Programs item. The program menu will open.

Select Microsoft Office from the list of programs. (these steps are shown Figure 6.1)

4.

Click on Microsoft Excel.

Symbolically these actions are shown below.

2007

commands from your menu bar.

Microsoft

Excel 2007

Fig. 6.1

Throughout the text of your lessons on MS Excel we will be showing the symbol→to indicate the direction (steps) you have to follow.

You can also start Excel 2007 through run menu as shown below in figure 6.2.

Basics of Spreadsheet :: 111

Fig. 6.2

Type excel in the open text box and click OK button. It will start

MS Excel 2007.

112 :: Data Entry Operations

6.6 EXCEL WORKSHEET

Excel allows you to create worksheets much like paper ledgers that can perform automatic calculations. Each Excel file is a workbook that can hold many worksheets. The worksheet is a grid of columns (designated by letters) and rows (designated by numbers). The letters and numbers of the columns and rows

(called labels) are displayed in gray buttons across the top and left side of the worksheet. The intersection of a column and a row is called a cell. Each cell on the spreadsheet has a cell address that is the column letter and the row number. Cells can contain text, numbers, or mathematical formulas.

Fig. 6.3

6.6.1 Selecting, Adding and Renaming Worksheets

The worksheets in a workbook are accessible by clicking the worksheet tabs just above the status bar. By default, three worksheets are included in each workbook. One can add more worksheet in a workbook also. To do that

Insert a new worksheet

To quickly insert a new worksheet at the end of existing worksheets

Click the Insert Worksheet tab as shown below (encircled with blue circle)

Basics of Spreadsheet :: 113

New Worksheet

Fig. 6.4

To insert a new worksheet before an existing worksheet,

Select the worksheet before which you want to insert a new worksheet then follow steps as

1.

2.

3.

4.

Select Home tab

Click cells Group

Click Insert

Click Insert Sheet

Say if you want to insert a new worksheet before a sheet name

Physics

114 :: Data Entry Operations

Fig. 6.5

A new sheet by the name sheet1 is added before the work sheet named Physics.

Alternative Method to Insert a new worksheet

Right click on the sheet before which you want to insert a new sheet

Select Insert Option from Pop up Menu

Basics of Spreadsheet :: 115

Fig. 6.6

116 :: Data Entry Operations

To rename a worksheet

1.

To rename a worksheet follow the steps as

2.

3.

4.

Right click on the worksheet tab which you want to rename

Select rename from the Pop Up menu

Type new name for the Worksheet (Chemistry in our example)

Fig. 6.7

6.7 SELECTING CELLS AND RANGES

To enter data into your worksheet you must first have a cell or range selected. When you open an Excel worksheet, cell A1 is already active. An active cell will appear to have a darker border around it than other cells on the worksheet. The simplest way to select a cell is with your mouse pointer. Move your mouse to the desired cell and click on it with right button. Whatever you type goes into the cell. To select a range of cells, click on one cell, hold down the left mouse button and drag the mouse pointer to the last cell of the range you want to select. You can also use keyboard shortcuts given at the end of this lesson for selecting cells.

Another way to select particular range of cells is

1.

2.

Go to Name Box

Select range by typing (A1:C5)

3.

4.

Press Enter

All the cells between range A1 to C5 will be selected.

Steps are explained pictorially as

Basics of Spreadsheet :: 117

118 :: Data Entry Operations

Fig. 6.8

6.8 NAVIGATING THE WORKSHEET

You can advance through your worksheet by rows with the vertical scrollbar or by columns with the horizontal scrollbar.

When you click and drag the thumb tab on the scrollbar, a Screen

Tip will appear alongside the bar identifying the row or column to which your view is advancing.

Move or scroll through a worksheet

We can scroll through worksheet by different ways. One can use mouse, scroll bar or arrow keys to move between cells and to different areas of the worksheet.

To move between cells on a worksheet, click any cell or use the arrow keys. When you move to a cell, it becomes the active cell.

Scroll and zoom by using the mouse

Some mouse devices and other pointing devices, such as the

Microsoft IntelliMouse pointing device, have built-in scrolling and zooming capabilities that you can use to move around and zoom in or out on your worksheet or chart sheet (chart sheet: A sheet in a workbook that contains only a chart. A chart sheet is beneficial when you want to view a chart or a PivotChart report separately from worksheet data or a PivotTable report.). You can also use the mouse to scroll in dialog boxes that have drop-down lists with scroll bars.

6.9 DATA ENTRY

You can enter various kinds of data in a cell.

1.

Numbers: Your numbers can be from the entire range of numeric values: whole numbers (example, 25), decimals

(example, 25.67) and scientific notation (example,

0.2567E+2). Excel displays scientific notation automatically if you enter a number that is too long to be viewed in its entirety in a cell. You may also see number signs (# # # # #

#) when a cell entry is too long. Widening the column that contains the cell with the above signs will allow you to read the number.

2.

3.

Text: First select the cell in which data has to be entered and type the text. Press ENTER key to finish your text entry.

The text will be displayed in the active cell as well as in the

Formula bar. If you have numbers to be treated as text use an apostrophe (‘) as the first character. You cannot do calculations with these kind of data entry.

Date and Time: When you enter dates and times, Excel converts these entries into serial numbers and kept as background information. However, the dates and times will be displayed to you on the worksheet in a format opted by you.

Basics of Spreadsheet :: 119

120 :: Data Entry Operations

4.

Data in Series: You can fill a range of cells either with the same value or with a series of values with the help of

AutoFill.

6.10 EDITING DATA

Editing your Excel worksheet data is very easy. You can edit your data by any of the following ways:

1.

Select the cell containing data to be edited. Press F2. Use

Backspace key and erase the wrong entry. Retype the correct entry.

2.

Select the cell and simply retype the correct entry.

3.

4.

If you want only to clear the contents of the cell, select the cell and press Delete key.

To bring back the previous entry, either click on Undo or use keyboard shortcuts CTRL+Z.

6.11 CELL REFERENCES

Each worksheet contains a number of columns and rows. Each cell of the worksheet has a unique reference. For example, A8, refers to the cell containing column number A and row number 8.

6.12 FIND AND REPLACE DATA IN A WORKSHEET

You may want to locate a number or text that is already typed in also locate your data and replace with new data with Home

Fig. 6.9

6.13 MODIFYING A WORKSHEET

6.13.1 Insert Cells, Rows, Columns and Delete Cells

Insert blank cells on a worksheet l l l l

Select the cell or the range (range: Two or more cells on a sheet. The cells in a range can be adjacent or nonadjacent.) of cells where you want to insert the new blank cells. Select the same number of cells as you want to insert. For example, to insert five blank cells, you need to select five cells.

On the Home tab, in the Cells group, click the arrow next to Insert, and then click Insert Cells.

You can also right-click the selected cells and then click Insert on the shortcut menu.

In the Insert dialog box, click the direction in which you want to shift the surrounding cells.

Insert rows on a worksheet

1.

2.

Do one of the following: l l l

To insert a single row, select the row or a cell in the row above which you want to insert the new row. For example, to insert a new row above row 5, click a cell in row 5.

To insert multiple rows, select the rows above which you want to insert rows. Select the same number of rows as you want to insert. For example, to insert three new rows, you need to select three rows.

To insert nonadjacent rows, hold down

CTRL while you select nonadjacent rows.

On the Home tab, in the Cells group, click the arrow next to Insert, and then click Insert

Sheet Rows.

Insert columns on a worksheet

1.

Do one of the following: l

To insert a single column, select the column or a cell in the column immediately to the right of where you

Basics of Spreadsheet :: 121

122 :: Data Entry Operations

2.

l want to insert the new column. For example, to insert a new column to the left of column B, click a cell in column B.

To insert multiple columns, select the columns immediately to the right of where you want to insert columns. Select the same number of columns as you want to insert. For example, to insert three new columns, you need to select three columns.

l

To insert nonadjacent columns, hold down CTRL while you select nonadjacent columns.

On the Home tab, in the Cells group, click the arrow next to Insert, and then click Insert

Sheet Columns.

Delete cells, rows, or columns

1.

Select the cells, rows, or columns that you want to delete.

2.

On the Home tab, in the Cells group, do one of the following: l

To delete selected cells, click the arrow next to Delete, and then click Delete

Cells.

l

To delete selected rows, click the arrow next to Delete, and then click Delete

Sheet Rows.

3.

l

To delete selected columns, click the arrow next to

Delete, and then click Delete Sheet Columns.

If you are deleting a cell or a range of cells, in the Delete dialog box, click Shift cells left, Shift cells up, Entire row, or Entire column.

6.13.2 Resizing Rows and Columns

Set a column to a specific width

1.

2.

Select the column or columns that you want to change.

On the Home tab, in the Cells group, click

Format.

3.

4.

Under Cell Size, click Column Width.

In the Column width box, type the value that you want.

Change the column width to fit the contents

1.

2.

3.

Select the column or columns that you want to change.

On the Home tab, in the Cells group, click

Format.

Under Cell Size, click AutoFit Column Width.

To quickly autofit all columns on the worksheet, click the Select All button and then doubleclick any boundary between two column headings.

Match the column width to another column

1.

2.

3.

4.

Select a cell in the column.

On the Home tab, in the Clipboard group, click

Copy, and then select the target column.

On the Home tab, in the Clipboard group, click the arrow below Paste, and then click Paste

Special.

Under Paste, select Column widths.

Change the width of columns by using the mouse

Do one of the following: l l l

To change the width of one column, drag the boundary on the right side of the column heading until the column width changes to the desiredsize that you want.

To change the width of multiple columns, select the columns that you want to change, and then drag a boundary to the right of a selected column heading.

To change the width of columns to fit the contents, select the column or columns that you want to change, and then doubleclick the boundary to the right of a selected column heading.

Basics of Spreadsheet :: 123

124 :: Data Entry Operations

l

To change the width of all columns on the worksheet, click the Select All button, and then drag the boundary of any column heading.

Set a row to a specific height

1.

Select the row or rows that you want to change.

2.

3.

On the Home tab, in the Cells group, click

Format.

Under Cell Size, click Row Height.

3.

4.

Change the row height to fit the contents

1.

Select the row or rows that you want to change.

2.

In the Row height box, type the value that you want.

On the Home tab, in the Cells group, click

Format.

Under Cell Size, click AutoFit Row Height.

To quickly autofit all rows on the worksheet, click the Select All button and then double-click the boundary below one of the row headings.

Change the height of rows by using the mouse

Do one of the following: l l l l

To change the row height of one row, drag the boundary below the row heading until the row is the height that you want.

To change the row height of multiple rows, select the rows that you want to change, and then drag the boundary below one of the selected row headings.

To change the row height for all rows on the worksheet, click the Select All button, and then drag the boundary below any row heading.

To change the row height to fit the contents, double-cl

6.13.3 Move or copy entire cells

When you move or copy a cell, Excel moves or copies the entire cell, including formulas and their resulting values, cell formats, and comments.

1.

2.

Select the cells that you want to move or copy.

On the Home tab, in the Clipboard group, do one of the following:

3.

4.

l

To move cells, click Cut . Keyboard shortcut or CTRL+X.

l

To copy cells, click Copy . Keyboard shortcut or

CTRL+C.

Select the upper-left cell of the paste area.

On the Home tab, in the Clipboard group, click Paste .

Or CTRL+V.

Move or copy entire cells by using the mouse

By default, drag-and-drop editing is turned on so that you can use the mouse to move and copy cells.

1.

Select the cells or range of cells that you want to move or copy.

2.

Do one of the following: l

To move a cell or range of cells, point to the border of the selection. When the pointer becomes a move pointer , drag the cell or range of cells to another location.

l

To copy a cell or range of cells, hold down CTRL while you point to the border of the selection. When the pointer becomes a copy pointer , drag the cell or range of cells to another location.

Insert moved or copied cells between existing cells

1.

2.

Select the cell or range of cells that contains the data that you want to move or copy.

On the Home tab, in the Clipboard group, do one of the following: l

To move the selection, click Cut . or press CTRL+X.

l

To copy the selection, click Copy . or press CTRL+C.

Basics of Spreadsheet :: 125

126 :: Data Entry Operations

3.

Right-click the upper-left cell of the paste area, and then click Insert Cut Cells or Insert Copied Cells on the shortcut menu.

4.

In the Insert Paste dialog box, click the direction in which you want to shift the surrounding cells.

Prevent copied blank cells from replacing data

1.

2.

Select the rangeof cells that contains blank cells.

On the Home tab, in the Clipboard group, click Copy

Keyboard shortcut You can also press

CTRL+C.

Select the upper-left cell of the paste area.

3.

4.

On the Home tab, in the Clipboard group, click the arrow below Paste , and then click Paste

Special.

5.

Select the Skip blanks check box.

Move or copy the contents of a cell

.

1.

2.

Double-click the cell that contains the data that you want to move or copy.

In the cell, select the characters that you want to move or copy.

To select the contents of a cell

In the cell

Do this

Double-click the cell, and then drag across the contents of the cell that you want to select.

In the formula bar Click the cell, and then drag across the contents of the cell that you want to select in the formula bar.

By using the keyboard Press F2 to edit the cell, use the arrow keys to position the insertion point, and then press SHIFT+ARROW key to select the contents.

3.

4.

On the Home tab, in the Clipboard group, do one of the following: l

To move the selection, click Cut .

l

To copy the selection, click Copy .

In the cell, click where you want to paste the

characters, or double-click another cell to move or copy the data.

5.

6.

On the Home tab, in the Clipboard group, click Paste

Press ENTER.

Copy cell values, cell formats, or formulas only

.

When you paste copied data, you can do any of the following: l

Convert any formulas in the cell to the calculated values without overwriting the existing formatting.

l l

1.

2.

3.

4.

l l l

Paste only the cell formatting, such as font color or fill color

(and not the contents of the cells).

Paste only the formulas (and not the calculated values).

Select the cell or range of cells that contains the values, cell formats, or formulas that you want to copy.

On the Home tab, in the Clipboard group, click Copy .

Select the upper-left cell of the paste area or the cell where you want to paste the value, cell format, or formula.

On the Home tab, in the Clipboard group, click the arrow below Paste , and then do one of the following:

To paste values only, click Paste Values.

To paste cell formats only, click Paste Special, and then click Formats under Paste.

To paste formulas only, click Formulas.

Drag and Drop

If you are moving the cell contents only a short distance, the dragand-drop method may be easier. Simply drag the highlighted border of the selected cell to the destination cell with the mouse.

Freeze Panes

If you have a large worksheet with column and row headings, those headings will disappear as the worksheet is scrolled. By using the Freeze Panes feature, the headings can be visible at all times.

Basics of Spreadsheet :: 127

128 :: Data Entry Operations

1.

2.

3.

Click the label of the row below the row that should remain frozen at the top of the worksheet.

Fig. 6.10

Freeze panes has been added to row 2 in the image above. Notice that the row numbers skip from 1 to 11. As the worksheet is scrolled, rows 1 will remain stationary while the remaining rows will move. Following similar steps you can Freeze or Unfreeze selected columns.

Fig. 6.11

Unfreeze Panes option will come only if the respective panes are already Freeze.

6.14 PAGE BREAKS

To set page breaks within the worksheet, select the row you want to appear just below the page break by clicking the row’s label.

Break. Excel will start a new page from the row selected.

Basics of Spreadsheet :: 129

Fig. 6.12

130 :: Data Entry Operations

6.15 PAGE SETUP

Select File→Page Setup from the menu bar to format the page, set margins, and add headers and footers.

1.

Page: The page option allows you to set the paper size, orientation of the data, scaling of the area, print quality, etc.

Select the Orientation under the Page tab in the Page Setup window to make the page Landscape or Portrait. The size of the worksheet on the page can also be formatted using

Scaling. To force a worksheet to print only one page wide so that all the columns appear on the same page, select Fit to 1 page(s) wide.

Fig. 6.13

2.

Margins: Change the top, bottom, left, and right margins by selecting Margins from the page setup group of age

Layout Tab. Enter values in the header and footer fields to indicate how far from the edge of the page this text should appear. Check the boxes for centering horizontally or vertically on the page.

Basics of Spreadsheet :: 131

Fig. 6.14

There are three predefined margin settings. You can choose from them or you can also customize the margins as shown by the following diagram.

Fig. 6.15

132 :: Data Entry Operations

3.

Add or change the header or footer text for a worksheet in

Page Layout view

1.

Click the worksheet to which you want to add headers or footers, or that contains headers or footers that you want to change.

2.

Add or change the header or footer text: For worksheets, you can work with headers and footers in Page Layout view.

For other sheet types, such as chart sheets or for embedded charts, you can work with headers and footers in the Page

Setup dialog box.

3.

On the Insert tab, in the Text group, click Header & Footer.

Do one of the following:

4.

5.

l l

To add a header or footer, click the left, center, or right header or footer text box at the top or at the bottom of the worksheet page.

To change a header or footer, click the header or footer text box at the top or at the bottom of the worksheet page that contains header or footer text, and then select the text that you want to change.

Type the text that you want.

To close the headers or footers, click anywhere in the worksheet, or press ESC.

Sheet tab has the option to select the area to be printed

(that is, range of cells). Check Gridlines if you want the gridlines dividing the cells to be printed on the page. If the worksheet is several pages long and only the first page includes titles for the columns, select Rows to repeat at top to choose a title row that will be printed at the top of each page.

Fig. 6.16

6.16 PRINT PREVIEW

Print preview helps to view the worksheet before the final printout is taken. It helps to edit the worksheet if required as per the need.

The steps to see the print view of document

1.

Select Print from Office Button .

2.

3.

Select print

Click Print Preview.

Basics of Spreadsheet :: 133

134 :: Data Entry Operations

Fig. 6.17

Click the buttons like Next and Previous with respect to Print

Preview Tab. Select the Zoom button to view the pages closer.

Make page layout modifications needed by clicking the Page

Setup button. Click Close to return to the worksheet or Print to continue printing.

6.17 PRINT

To print the worksheet, select Print from Office Button .

Fig. 6.18

1.

2.

3.

4.

Print Range - Select either all pages or a range of pages to print.

Print What - Select selection of cells highlighted on the worksheet, the active worksheet, or all the worksheets in the entire workbook.

Copies - Choose the number of copies that should be printed. Check the Collate box if the pages should remain in order.

Click OK to print.

6.18 FILE OPEN, SAVE AND CLOSE

(A) You can open an existing File by several methods:

1.

Go to windows explorer and find out the file you want to open. Double-click on the file.

2.

Start MS Excel. Click on office button on the dropdown menue click 'open'. select the file you want to open from the pop-up menu.

(B) When you have finished your work on the file you can save it by either clicking on the 'file save' icon at the top left

Basics of Spreadsheet :: 135

136 :: Data Entry Operations

down menu.

(C) When you are saving the worksheet for the first time follow the steps given below:

1.

2.

3.

Click office button

Select 'file save as'on the drop-down menu.

On the pop-up menu select the location where you want to save the file.

4.

5.

Type the file name

Click on 'save'in the pop-up menu.

(D) When your work is finished and it has been saved properly:

Select Print from Office Button

1.

2.

Select (Click) Close Command to close your file

Select (Click) Exit Excel Command to exit from MS

Excel

Fig. 6.19

6.19 WORKBOOK PROTECTION

Set a password for a workbook

1.

2.

3.

4.

5.

6.

7.

8.

Click the Microsoft Office Button , and then click Save

As.

Click Tools, and then click General Options.

Do one or both of the following: l

If you want reviewers to enter a password before they can view the workbook, type a password in the

Password to open box.

l

If you want reviewers to enter a password before they can save changes to the workbook, type a password in the Password to modify box.

If you don’t want content reviewers to accidentally modify the file, select the Read-only recommended check box.

When opening the file, reviewers will be asked whether or not they want to open the file as read-only.

Click OK.

When prompted, retype your passwords to confirm them, and then click OK.

Click Save.

If prompted, click Yes to replace the existing workbook.

INTEXT QUESTIONS

1.

Write True or False for the following statements

(a) To modify a preset header or footer click the custom header and custom footer buttons.

(b) Autofill helps you to add the contents of a cluster of adjacent cells.

(c) Charts features help you in presenting a graphical representation of data.

(d) Click the edit button to print the worksheet.

(e) Pivot table allows you to perform data analysis.

Basics of Spreadsheet :: 137

138 :: Data Entry Operations

2.

Fill in the blanks

(a) When the active document is protected the command name changes to ________________ workbook.

(b) Select __________________ from the menu bar to view how the worksheet will look when printed.

(c) _________ toolbar allows to draw a number of geometrical shapes, arrows, flow chart elements etc.

(d) Check ______________ if you want the gridlines dividing the cells to be printed on the page.

6.20 WHAT YOU HAVE LEARNT

In this lesson you learnt about starting Excel and working on a worksheet. You can select a cell or a range of cells. Also you can enter data in a worksheet. You can define the size of a page by going to page set up and insert a page break. You have learnt about page-preview which gives an idea on how the print out will look like.

6.21 TERMINAL QUESTIONS

1.

2.

3.

4.

5.

6.

7.

8.

What are the main features of MS Excel?

Differentiate between a worksheet and a workbook?

What are the different types of data that can be entered into worksheet cells?

Explain three different ways you protect your workbook.

How do you find a single number or name you want in a large worksheet containing thousands of numbers and names? Is it possible to replace a name or number with some other name or number? How?

How do you select a single cell, a single column, a single row, a cluster of cells, and a entire worksheet?

Difference between Move cells and Copy cells

What are the different features available in Page setting command?

8.

Explain the different features available in Print command?

10.

Define the following:

(a) Navigating worksheet

(b) Editing data

(c) Insert cells and rows

(d) Drag and drop

(e) Workbook protection

6.22 FEEDBACK TO INTEXT QUESTIONS

1.

2.

(a) True (b) False (c) True

(a) Unprotect

(d) gridlines

(d) False (e) True

(b) Print preview (c) Autoshapes

Basics of Spreadsheet :: 139

140 :: Data Entry Operations

7

Formatting Worksheets

7.1 INTRODUCTION

Excel makes available numerous formatting options to give your worksheet a polished look. You can change the size, colour and angle of fonts, add colour to the borders and backgrounds of cells, and have the format of a cell change, based on its value.

You will see that some of the formatting features in MS Excel are same as you have used in MS Word.

7.2 OBJECTIVES

After going through this lesson you would be able to: l use autoformat features l l l format data and worksheets use format painter use formulas and functions

7.3 USING FORMATTING TOOLBAR

Formatting helps to make our work more presentable. It also helps the viewer/reader to understand the worksheet more easily with respect to its purpose.

There are three locations where the Excel 2007 formatting tools are available.

1.

In the home tab

2.

3.

In the mini toolbar that appears when you right click a range or a cell

In the format cells dialog box.

7.3.1 Home Tab and the Formatting Tools

Home tab provides the quick access to the most commonly used options with respect to the formatting requirements. You can select a cell or a range and then use the tool as per the need like

Font, Alignment or Number groups. To understand the proper and best use of such tools, only way is to use them and experience their effect. Some of the controls are further expandable like drop-down lists etc. If you see some small arrow along with a button. The button will expand to display the available choices.

Formatting Worksheets :: 141

Fig. 7.1

7.3.2 In the Mini Toolbar

Shortcut menu appears when you right click a cell or a range selection. A mini toolbar also appears above the shortcut menu.

The Mini toolbar contains controls for common formatting: l

Font type l

Font Size

142 :: Data Entry Operations

l l l l l l l l l l l l l l l

Decrease Font

Increase Font

Accounting Number Format

Comma Style

Font Color

Format Painter

Bold

Italic

Center

Percent Style

Borders

Merge And Center

Increase Decimal

Decrease Decimal

Fill Color

Figure 7.2 below shows the Shortcut Menu. It gets displayed when you right click a cell.

Fig. 7.2

7.3.3 Using the Format Cells dialog box

Although most of the formatting related requirements gets fulfilled by the controls available on the Home tab of the Ribbon, some special types of formatting are fulfilled by using Format cells dialog box.

This dialog box allows to apply more or less any type of formatting style and number formatting. The formats selected from Format

Cells Dialog box will be effective to the cells which are selected at the time.

To use Format Cells dialog box, select the cell or a range to apply formatting. Now choose any of the following methods l l

Press the combination of Ctrl+1, i.e., Control key and numeric 1 key.

Click the dialog box launcher in Home → Font, Home

→ Alignment, or Home → Number. A small downwordpointing arrow icon will be displayed to the right. In the

Excel Ribbon, these arrow marks are known as dialog box launcher.

Formatting Worksheets :: 143

l l

Fig. 7.3

Choose Format Cells from the shortcut menu after you

Right-click the selected cell or range.

Click the More command in some of the drop-down controls in the Ribbon. For example, the Home →

Number→ General → More Number Formats… drop-down

144 :: Data Entry Operations

includes an item named More Number Formats, as shown below

Fig. 7.4

Fig. 7.5

There are six tabs in Format Cells dialog box: Number,

Alignment, Font, Border, Patterns, and Protection.

7.4 FORMATTING CELLS USING DIALOG BOX

7.4.1 Number tab

The data type can be selected from the options on this tab. Select the range you would like to format and click on one of the

Category number as shown in Figure 7.2 to apply that style to your numbers. Select General if the cell contains text and number and it does not have any specific number format. If you select

Number Category you can represent numbers as integers, decimals with number of decimal as option etc. For example, if you want to restrict the number of decimals to 2, choose Number

Category and then decimal places as 2. You may try the other options in your computer.

Formatting Worksheets :: 145

146 :: Data Entry Operations

7.4.2 Alignment tab

These options allow you to change the position and alignment of the data with the cell. The Format Cells dialog box offers you more options than the alignment buttons on the Formatting toolbar.

For example, you can change the orientation of the text.

7.4.3 Font tab

All of the font attributes are displayed in this tab including font face, size, style, and effects. Using Formatting toolbar you can bold, italicize, and underline your cell entries. For even more formatting options you can use the Format Cells dialog box.

7.4.4 Border and Pattern tabs

You can use the Formatting toolbar for adding borders, cell shading, and font colour. These buttons are actually tear-off palettes. When you click on the picture portion of the button, the format of the picture displayed will be applied to the contents of the cell(s) you have selected in the worksheet. You can change the picture displayed on the button by clicking on the button’s small drop-down arrow to access the palette of samples from which to choose.

Follow these steps to apply a border and colour to a selection using the options in the Format Cells dialog box.

1.

2.

3.

4.

box.

Select the Border tab.

In the Presets area, choose None, Outline, or Inside to specify the location for the border.

Choose any of the following options for the border: l

In the Border area, click on any of the buttons to toggle its border.

l l

Choose the border’s line style in the Style area.

If necessary, select a colour for the border in the

Color Palette.

5.

6.

Select the Patterns tab, and then choose any of the following options: l l

Select a colour for the background of the selection in the Color palette.

If necessary, select a pattern for the background of the selection in the Pattern palette.

Choose OK to apply the border and colour.

7.4.5 Dates and Times

If you enter the date “January 1, 2001” into a cell on the worksheet, Excel will automatically recognize the text as a date and change the format to “1-Jan-01”. To change the date format, select the Number tab from the Format Cells window. Select

“Date” from the Category box and choose the format for the date from the Type box. If the field is a time, select “Time” from the

Category box and select the type in the right box. Date and time combinations are also listed. Press OK when finished.

Formatting Worksheets :: 147

Fig. 7.6

148 :: Data Entry Operations

7.5 FORMATTING COLUMNS AND ROWS

Sometimes the contents of the columns do not fit in its width. So, to adjust them within the width of the column, we can use AutoFit feature. As you can observe, in the column C, the column header is not fully visible.

Fig. 7.7

l l

Steps to AutoFit Columns

l

Click on Column Header/or any other cell in the column to change its width

Click Home tab

Select format from the cells group on the ribbon.

l

Fig. 7.8

Click on AutoFit Column Width

l

Fig. 7.9

See the effect, the column C is showing full contents i.e.

Chemistry.

Formatting Worksheets :: 149

l l

Fig. 7.10

Similarly you can apply AutoFit for row also.

l

Click on Row Header/or any other cell in the Row to change its Height

Click Home tab

Select format from the cells group on the ribbon.

150 :: Data Entry Operations

l

Fig. 7.11

Click on AutoFit Row Height

Fig. 7.12

l

See the effect, the Row 6 is showing full contents, i.e.,

Anurag.

Another way of automatically adjusting columns and rows is by way of best fit. To do this:

1.

Place your pointer on or near the right edge of a column header of the column you wish to adjust. Notice that in this area your pointer changes to a double-headed arrow.

Fig. 7.13

2.

Double click your pointer, and the column to the left of it will automatically adjust to fit the data entries within it.

Similarly, pointing to a row header changes pointer to a doubleheaded arrow. Double clicking results in a best fit (taller or shorter rows).

Hide Selected Column(s) or Row(s)

Hide - Hides the selected column(s) or row(s), though the data is still there. Hiding column(s) or row(s) will help you to prevent unwanted changes. To hide a column, follow these steps:

1.

Select the column you want to hide by clicking on the column header. Say you want to hide column C, i.e., column representing the marks in chemistry.

Formatting Worksheets :: 151

Fig. 7.14

152 :: Data Entry Operations

Right Click on the Column to hide and click on the Hide option.

Fig. 7.15

See the following figure (Fig. 7.16). Column C is not visible.

Fig. 7.16

Unhide Selected Column(s) or Row(s)

To unhide the column follow these steps:

1.

Select the visible range of columns that includes the hidden column(s).

Formatting Worksheets :: 153

2.

Fig. 7.17

Now Right Click on the selected Columns. Select Unhide from the pop-up menu.

Fig. 7.18

154 :: Data Entry Operations

3.

You can observe, the Column C is visible again.

Fig. 7.19

You can follow the same procedures to Hide and Unhide rows.

7.6 FORMATTING WORKSHEETS USING CELL

STYLES AND APPLYING STYLES

l l

Excel 2007 provides cell styles to quickly format a cell by choosing from predefined styles. Styles help to give a professional look to your worksheets. In Excel, all styles are cell styles. However, a defined style can be applied to an entire worksheet. Cell styles can include any of the formatting that can be applied to a cell using the options available. We can also define our own cell styles.

Select the cells to apply a style on.

Choose Home tab. From Styles group, Click on Cell Styles.

Here we have chosen Heading1. See the effect.

Fig. 7.20

Fig. 7.21

A few of the effects are discussed below

1.

2.

3.

Comma - Adds commas to the number and two digits beyond a decimal point.

Comma [0] - Comma style that rounds to a whole number.

Currency - Formats the number as currency with a dollar sign, commas, and two digits beyond the decimal point.

Formatting Worksheets :: 155

156 :: Data Entry Operations

4.

5.

6.

Currency [0] - Currency style that rounds to a whole number.

Normal - Reverts any changes to general number format.

Percent - Changes the number to a percent and adds a percent sign.

l l

7.6.1 Deleting Styles

Right click on the style (say if you want to remove Bad Style)

Choose delete l

Fig. 7.22

You can observe, the Bad style is deleted as shown in the following figure.

Fig. 7.23

7.7 FORMAT PAINTER

A handy feature on the standard toolbar for formatting text is the

Format Painter. If you have formatted a cell with a certain font style, date format, number format, border, and other formatting options, and want to format another cell or group of cells the same way, place the cursor within the cell containing the formatting you want to copy. Click the Format Painter button in the clipboard group of Home tab(notice that your pointer now has a paintbrush beside it). Highlight the cells you want to apply the same formatting. The formatting will change accordingly.

Also, to copy the formatting to many groups of cells, double-click the Format Painter button. The format painter remains active until you press the ESC key to turn it off.

Formatting Worksheets :: 157

Fig. 7.24

7.8 AUTOFORMAT

Excel’s AutoFormat feature uses table styles, which are predefined collections of number formats, fonts, cell alignments, patterns, shading, column widths, and row heights to have a polished look of ranges of cells you specify. You can use these styles as-is or over rule some of their characteristics.

Excel has many preset table formatting options. Add these styles by following these steps:

1.

Highlight the cells that will be formatted.

158 :: Data Entry Operations

Fig. 7.25

2.

Ribbon. It will show many predefined Table formats.

Fig. 7.26

3.

Fig. 7.27

Select any one format. Here we have selected fourth table format (with green background) from the Dark category of formats. It will show the following dialog box. Check My

Table has headers check box and click OK.

Fig. 7.28

Formatting Worksheets :: 159

160 :: Data Entry Operations

See the effect of the formatting in the figure given below. Also, observe Table Tools Design tab with Ribbon showing multiple groups. You can change the style by clicking on the predefined table format in the Table Styles group

Fig. 7.29

7.9 HIDING/UNHIDING WORKSHEETS

l l

Hiding a Worksheet

Right click on the sheet tab which you want to hide

Choose Hide option from the context menu, as shown below l

Fig. 7.30

To unhide the hidden sheet, right click on the any of the visible sheets. Unhide Dialog will appear. Choose the sheet from the list to unhide. In our case only one sheet is displayed to unhide.

Fig. 7.31

Following Figure shows the sheet1 also.

Fig. 7.32

Formatting Worksheets :: 161

162 :: Data Entry Operations

7.10 PROTECT AND UNPROTECT WORKSHEETS

To protect worksheet

You can protect your worksheet against unauthorized editing. For this you can give password protection to your worksheet contents.

Steps to protect worksheet

l l

Select Home tab.

Click Format in cells group.

l

Fig. 7.33

Choose Protect sheet from Drop Down Menu. Protect sheet dialog box will appear. Enter password to protect sheet.

Reenter same password in the confirm password dialog box.

l

Fig.7.34

Now if you try to make any change in the worksheet, following dialog box will appear.

Fig. 7.35

To Unprotect worksheet

You can unprotect your worksheet to edit it.

Steps to unprotect worksheet l l

Select Home tab.

Click Format in cells group.

Formatting Worksheets :: 163

164 :: Data Entry Operations

l

Choose Unprotect sheet from Drop Down Menu. Unprotect sheet dialog box will appear. Enter password to unprotect sheet. Password must be same as used for protecting the worksheet. Press OK.

Fig. 7.36

INTEXT QUESTIONS

1.

Write True or False for the following statements.

(a) Format cells dialog box offers you more option than the alignment buttons on the formatting toolbar.

(b) Click Edit to perview the formatting changes on the worksheet.

(c) If the field is a time select "time" from the category box.

(d) To unhide the column select format column unhide from the menu bar.

(e) Choose Edit style to display the style dialog box.

2.

Fill in the blanks

(a) Modify the attributes by clicking the _______ button.

(b) In Excel all styles are _______________.

(c) Hiding columns or rows will help you to ___________ unwanted changes.

(d) If the tool bar is not already visible on the screen select

____________.

(e) To change the data format select the ___________ from the format cells window.

Formatting Worksheets :: 165

7.11 WHAT YOU HAVE LEARNT

In this lesson you learnt about various tools available in Excel to format a worksheet. You can align text and change font size, style and effects. Also you learnt how to put a border or shade to the text in the cells selected by you. Also you learnt about applying style to a worksheet and modify the style.

2.

3.

4.

5.

7.12 TERMINAL QUESTIONS

1.

6.

7.

8.

What is Format Painter? When do you think Format Painter is useful in Excel?

Explain different preset styles available in Excel.

Explain steps to create a new style.

How to copy styles from one open workbook file to another?

What are the different tabs available in Format Cells dialog box?

What are the different features available in:

(a) Number tab, (b) Border tab and (c) Patterns tab in

Excel’s Format Cells dialog box?

How do you: (a) Hide a column, (b) Unhide a column, (c)

Hide a worksheet, (d) Unhide a worksheet?

How do you resize your worksheet columns or rows?

166 :: Data Entry Operations

7.13 FEEDBACK TO INTEXT QUESTIONS

1.

2.

(a) True

(d) True

(a) modify

(b)

(e)

(b)

False

False cell styles

(c)

(c) prevent/protect worksheet from

True

(d) view toolbar formatting

(e) number tab

Formulas, Functions and Charts :: 167

8

Formulas, Functions and Charts

8.1 INTRODUCTION

In this leson you can enter formula and functions and perform mathematical calcualtions. You will also be able to create charts and graphics using the data. You can specify methametical relationship between the numbers using the formula. Formulas are used for simple addition, subtraction, multiplication and division as well as for complex calculations. Functions are built in formulaes. The users have to provide cell references and addresses only. These are called arguments of the function and are given between the left and right parenthesis.

8.2 OBJECTIVES

After going through this lesson you would be able to: l use formulaes to get the desired result l insert and edit picture from a file l l l use functions create varioius charts draw graphics using clip art.

168 :: Data Entry Operations

8.3 FORMULAS AND FUNCTIONS

To manipulate data and to extract useful information from Excel worksheets, formulas and worksheet functions play very important role. In Excel, formulas are used to calculate results from the worksheet data. When there is some change in the data, such formulas automatically calculate the updated results with no extra efforts on the part of the user. There is a new feature introduced by Excel 2007, which enables you to create formulas which use columns names from a table, when you are working with table. This feature helps the user to make formulas much easier to read.

A formula can have any or all of the following elements l

Must begin with the 'equal to' = sign.

l

Mathematical operators, such as + (for addition) and / (for division) and logical operators such as <, > l l

References of cell (including named ranges and cells)

Text or Values l

Functions related to the worksheets, for example SUM or

AVERAGE

The current cell in which you have entered a formula will display the result after the formula is completely entered. Also, when you select or click on a cell which is having some formula, the formula will appear in the formula bar.

In Excel 2007, the formulas are available in the Formulas Tab. If you click on the Formulas tab, you can see the corresponding ribbon display with available formulas, as shown below.

Formula

Bar

Fig. 8.1

Following are a few examples of formulas:

Formulas, Functions and Charts :: 169

Fig. 8.2

In the above example, in the cell F3, just type = B3+C3+D3+E3.

It will return sum of the marks in physics, chemistry, maths and

English.

Fig. 8.3

170 :: Data Entry Operations

Copying a formula

In above exaple just drag the handle and bring down to cover the remaining cells in the column total. This will automatically copy the formula and calculate the corresponding sum of the respective rows of the other students.

Fig. 8.4

Some other examples of formulaes:

If A1 = 2, B1 = 3, C1 = 4, D1 = 5 then

(i) = B1 * C1 will give result as 3 * 4 = 12

(ii) = A1 * B1 – C1 + D1 will give result as 2 * 3 – 4 + 5 = 7

(iii) = ((A1 * B1) + C1)/D1 will give result as ((2 * 3) + 4)/5

= (6 + 4)/5 = 10/5 = 2

Auto sum feature

The sum of cell values can also be done with the help of AutoSum feature also.

l l l

Following steps explains how to do that.

Click on the cell F3.

Select the Formulas tab

Click AutoSum from the function library group.

Formulas, Functions and Charts :: 171

l

Select Sum l

Press Enter

Alternatively, you can write = SUM(B3:E3) in the Cell F3 to get the sum of the Physics, Chemistry, Maths and English marks.

Pictorial illustration is shown below:

Fig. 8.5

Apart from sum there are other functions also, like average, Count

Numbers, Max, Min and many other Functions.

172 :: Data Entry Operations

Fig. 8.6

Sum ( ) : Adds all the numbers in a range of cells.

Syntax SUM(number1,number2, ...)

Maximum number of arguments can be 255 i.e. number1, number2 ... number255.

Sum function is having different forms. You can choose as per your need.

Fig. 8.7

SUMIF(range, criteria, sum_range) : This form of sum functions is used to add the cells with respective to a given criteria.

Range : A group of adjacent cells

Formulas, Functions and Charts :: 173

Cells within a range must be numbers or names, arrays, or references which are having numbers. In sumif function the blank and text values are ignored.

Criteria: It can be a number, expression, or text to define which cells will be considered for the addition e.g. criteria can be fixed as 12, “12”, “>12”, or “mangoes”.

Sum_range: These are the actual cells to be added if their corresponding cells in range match criteria. In case the sum_range is avoided, then the cells in range are both evaluated by criteria and added if they match criteria.

Example

E3

In above examples, the function SUMIF adds only those values in the cells (B3, E3) which are greater than 99. i.e., it will add the values from cells D3 and E3 only and hence the result is 100 +

100 = 2000

Fig. 8.8

174 :: Data Entry Operations

Average function ( ) : It helps you to get the average of the numbers. It returns the average (arithmetic mean) of the arguments.

Syntax : AVERAGE(number, number2,...)

Maximum number of arguments can be 255 i.e. number1, number2 ... number255.

Fig. 8.9

Min function ( ) : It helps you to get the minimum of the numbers.Returns the smallest number in a set of values. Syntax

MIN(number1,number2,...)

Maximum number of arguments can be 255 i.e. number1, number2 ... number255

Fig. 8.10

Formulas, Functions and Charts :: 175

Max function ( ) : It helps you to get the maximum of the numbers. Returns the largest number in a set of values. Syntax

MAX(number1,number2,...)

Maximum number of arguments can be 255 i.e. number1, number2 ... number255.

Fig. 8.11

Now drag the handle of cells G3,H3,I3,J3 to cover each row of the respective column. You can see the corresponding functions are automatically copied in the respective columns and automatically values are calculated. See the figure below.

Fig. 8.12

331 0 82.75

77 88

176 :: Data Entry Operations

l l

To use more functions

l

Select Formula Tab

Choose AutoSum from function library group, from formula ribbon

Click on More Functions… as shown below.

Fig. 8.13

When you click on more functions, a dialog box will appear as shown below. You can choose a function as per your need by the help of following dialog box.

Fig. 8.14

Formulas, Functions and Charts :: 177

8.4 CHARTS

Charts allow you to present data entered into the worksheet in a visual format using a variety of graph types. Before you can make a chart, you must first enter data into a worksheet. This section explains how you can create simple charts from the data.

Formatted charts come in various types for diverse goals, ranging from columns to pies, from lines to surfaces, etc.

8.4.1 Types of Chart

Microsoft Office Excel 2007 provides various types of charts to help you to display data in different ways as per the need of the viewers. You can create a new chart or can change the existing chart, from the wide range of chart subtypes available for each type of available chart types as given below

Column Charts

This type of chart is used to compare values across categories.

They give very effective results to analyze the data of the same category on a defined scale.

Line Charts

Data represented in columns or rows in a worksheet can be plotted with the help of line chart. Line charts can be used to display continuous data over time with respect to a common scale. Thus Line Charts are best suitable for viewing data trends at equal intervals of time. The horizontal axis is used to represent the category data and all the value data is distributed uniformly along the vertical axis.

Pie charts

In a situation where one has to show the relative proportions or contributions to a whole, a pie chart is very useful. In case of pie chart only one data series is used. Small number of data points

178 :: Data Entry Operations

adds more to the effectiveness of pie charts. Generally there should be maximum five or six data points or slices in a pie chart.

If the points are more in number then it becomes very difficult to interpret the chart.

Also, it is very important to note that the values of to be used in the pie chart must be all positive. If there are some negative values, in that case the negative values will be automatically converted in to positive values, this will be desired.

Bar Charts

Bar charts are used to show comparisons between individual items. To make a bar chart the data should be arranged in the form of rows and columns on a worksheet.

Area Charts

The data which is arranged in the form of rows or columns on a worksheet can be plotted in an area chart. Area charts are used to highlight the degree of a change over time. Area charts are also used to draw attention to the total value across a trend.

XY (Scatter) charts

XY charts are also known by other names like scatter grams or scatter plots. The point of difference between XY charts and other types of charts is that in XY charts both axes display values i.e.

they have no category axis. Such type of charts is generally used to show the relationship among two variables.

Stock charts

Stock chart can be used to plot data arranged in columns or rows in a particular order on a worksheet. As the name is self explanatory, this chart is used to demonstrate the fluctuations with respect to stock market prices. Even scientific data can be

Formulas, Functions and Charts :: 179

plotted by stock chart, e.g., the fluctuation of daily or periodic temperature. The data must be arranged in a correct order to generate stock charts. Say, for example to make a simple highlow-close stock chart one should organize his/her data with High,

Low and Closed entered as the headings of the columns in the respective order.

Surface charts

Such type of chart is used in situations where both categories and data series are numeric values. This type of chart is useful in situations where the optimum combinations are found among the two sets of data. Data should be arranged in columns or rows in a worksheet can be plotted in s surface chart. The colors and patterns indicate the areas which are in the same range of set of values, as it happens in case of a topographic map.

Doughnut charts

The conditions to draw doughnut charts is that the data has to be in the form of rows or columns. As in the case of a pie chart, the doughnut chart illustrate the relationship of parts to a whole, but it is able to get more than one data series.

Bubble charts

A bubble chart can be used to plot the data values which are arranged in the columns of a worksheet so that x values are listed in the first column and matching y values and bubble size values are listed in adjacent columns.

Radar charts

The radar charts compare the aggregate values of a number of data series. Radar chart can be plotted with the data which is arranged in columns or rows on a worksheet.

180 :: Data Entry Operations

8.4.2 Components of a Chart

Y Axis Title

Y Axis

Value

X Axis

Categor y

Vertical Major Grid

Chart Title

Horizontal Major Grid

Data

X Axis

Title

Tick

Mark

Legend

Fig. 8.15

Chart Title - A title given to the whole chart.

X-Axis Title - A title given to the X-axis data range.

Y-Axis Title - A title given to the Y-axis data range.

X-Axis Category - These are the categories of the data which have been plotted. These are taken from the first column or first row of your data range.

Y-Axis Value - This is the data range marked to plot the data series.

Formulas, Functions and Charts :: 181

Data Labels - The values of the data series plotted.

Legends - Specifies the colour, symbol or pattern used to mark data series.

Tick Mark - These marks are used to show the scaling of X-axis and Y-axis.

Grid Lines - Displays lines at the major intervals on the category

(x) axis and/or Y-axis

How to Draw a Chart in Excel 2007

In Microsoft Excel 2007 chart wizard is removed and also not brought back in Excel 2010 also. Instead the ribbon is provided as a new place to get your chart related needs full filled. The buttons on the Insert tab of the ribbon are just the starting point to make a chart. After we get the ribbon it becomes very simple to start making a chart. Whenever we click on some component of chart, we observe that the Chart Tools are displayed to the ribbon. Three additional tabs which provide a variety of chart design, layout and formatting options, will also be added.

First, the Layout tab, is used to add all sorts of elements related to chart or change the way they are shown in the chart. Second, the format tab is used to apply special effects which were not available in the earlier versions of the Excel, such as the bevel effect etc. It may be little difficult to be acquainted with this new type of chart interface, but once you start working, you’ll be proud to show off your professional looking results.

It is worth mentioning that you can right click on an element of the chart for quick access to specific features with respect to that particular element e.g. if you right click on any chart axis, you will get Format Axis dialog box.

Following steps are given to draw a Chart

1.

Enter data in the work sheet: Suppose you entered data as given in Fig. 8.16.

182 :: Data Entry Operations

2.

Fig. 8.16

Now select data range: By using the mouse high light the range of data you want to take (see Fig. 8.17).

3.

Fig. 8.17

Click Insert Tab and select a chart type from the chart group

4.

Fig. 8.18

Select the sub type of chart

Fig. 8.19

Fig. 8.20

Formulas, Functions and Charts :: 183

184 :: Data Entry Operations

5.

Select the Title of the chart a.

To give a title to a chart, click on the chart. Now you can see layout tab available. Click on Layout tab.

b.

Choose(click) on chart title option available in the

Label group

Fig. 8.21

Fig. 8.22

c.

Click on the chart title and write a title.

Formulas, Functions and Charts :: 185

6.

Fig. 8.23

Give a name to X-Axis

Click on Layout tab. Then select Axis Titles from Labels

Group. Select Primary Horizontal Axis Title, as shown below.

Fig. 8.24

186 :: Data Entry Operations

Fig. 8.25

Now, click on the Axis Title and write an X-axis title.

Fig. 8.26

Follow the same steps to give a title to Y-axis.

Fig. 8.27

Fig. 8.28

Formulas, Functions and Charts :: 187

188 :: Data Entry Operations

Editing of a Chart

1.

How to change the legend position

Click on Layout tab. Then click on Legend option available in Labels Group.

Now choose a position to show legend.

Fig. 8.29

2.

Fig. 8.30

How to change the position of the Data Labels

Click on Layout tab. Then click on Data Label option available in Labels Group.

Now choose a format to display data labels

Formulas, Functions and Charts :: 189

Fig. 8.31

3.

Fig. 8.32

How to show Data Tables Along with Chart, with or without Legend Keys

Click on Layout tab. Then click on Data Table option available in Labels Group.

Now choose a style to display data table

190 :: Data Entry Operations

Fig. 8.33

Fig. 8.34

Above diagram show the data table with legend option.

4.

How to Hide/Unhide Grid Lines (Horizontal and Vertical)

Click on Layout tab. In the Axis Group, click on Gridlines option then choose Primary Horizontal Grid Lines. Now select appropriate style from the available options (None,

Major Gridlines, Minor Gridline, Major and Minor Gridlines)

Formulas, Functions and Charts :: 191

Fig. 8.35

No Horizontal Major

Grid Lines

Fig. 8.36

Follow the same steps for Vertical Grid Lines also, as shown below.

a) Click on Layout tab. In the Axis Group, click on Gridlines option then choose Primary Vertical Grid Lines.

192 :: Data Entry Operations

b) Now select appropriate style from the available options

(None, Major Gridlines, Minor Gridline, Major and Minor

Gridlines)

Fig. 8.37

Vertical Grid lines for

Major Units are added

Fig. 8.38

8.4.3 Resizing the Chart

To resize the chart, click on its border and drag any of the eight black handles to change the size. Handles on the corners will

Formulas, Functions and Charts :: 193

resize the chart proportionally while handles along the lines will stretch the chart.

8.4.4 Moving the Chart

Select the border of the chart, hold down the left mouse button, and drag the chart to a new location. Elements within the chart such as the title and labels may also be moved within the chart.

Click on the element to activate it, and use the mouse to drag the element to move it. Microsoft Excel automatically sizes titles with respect to the size of the text. One can move titles with the mouse but, cannot resize them.

8.4.5 Copying the Chart to Microsoft Word

A finished chart can be copied into a Microsoft Word document or power point slide. Select the chart and click Copy. Open the destination document in Word or a slide in power point and click

Paste.

8.5 GRAPHICS – AUTOSHAPES AND SMART ART

The AutoShapes feature of Excel 2007 allows you to draw a number of geometrical shapes, arrows, flow chart elements, stars, and more on the worksheet.

The steps to activate and use AutoShapes are

1.

Click on Insert Tab.

2.

From Illustrations Group, Click on Shapes

Fig. 8.39

194 :: Data Entry Operations

Now Select the which you want to insert.

Fig. 8.40

Fig. 8.41

Formulas, Functions and Charts :: 195

Different categories of AutoShapes available in Excel 2007. We will briefly discuss some of the here.

1.

Lines - After clicking the Lines button on the AutoShapes toolbar, draw a straight line, arrow, or double-ended arrow from the first row of options by clicking the respective button. Click in the worksheet where you would like the line to begin and click again where it should end. To draw a curved line or freeform shape, select curved lines from the menu, click in the worksheet where the line should appear, and click the mouse every time a curve should begin. End creating the graphic by clicking on the starting end or pressing the ESC key. To scribble, click the last button in the second row, click the mouse in the worksheet and hold down the left button while you draw the design.

Let go of the mouse button to stop drawing.

2.

Connectors - These lines can be used to connect flow chart elements.

3.

Basic Shapes - Click the Basic Shapes button on the

AutoShapes toolbar to select from many two- and threedimensional shapes, icons, braces, and brackets. Use the drag-and-drop method to draw the shape in the worksheet. When the shape has been made, it can be resized using the open box handles and other adjustments specific to each shape can be modified using the yellow diamond handles.

4.

Block Arrows - Select Block Arrows to choose from many types of two- and three-dimensional arrows. Drag-anddrop the arrow in the worksheet and use the open box and yellow diamond handles to adjust the arrowheads.

5.

Flow Chart - Choose from the flow chart menu to add flow chart elements to the worksheet and use the lines menu to draw connections between the elements. We have drawn a flowchart using lines, flow chart elements and connectors.

6.

Stars and Banners - Click the button to select stars, bursts, banners, and scrolls.

196 :: Data Entry Operations

7.

Call Outs - Select from the speech and thought bubbles, and line call outs. Enter the call out text in the text box that is made.

Smart Art Graphics

Visual representation of information and ideas is called SmartArt

Graphics. They can be used to quickly, easily and effectively communicate a message. The facility to create a SmartArt Graphic is available in MS Excel 2007. You can copy and paste SmartArt graphics as images into other programs such as Word and

Powerpoint.

To create a SmartArt graphic, one has to choose a type for example, Process, Cycle, Hierarchy or Relationship. A type represents a category of SmartArt graphic. Each type is having several different types of layouts.

Steps to Create a SmartArt

1.

2.

Click on Insert Tab.

From Illustrations Group, Click on SmartArt

Fig. 8.42

Formulas, Functions and Charts :: 197

3.

Fig. 8.43

Now choose a category (Say Hierarchy) and click OK.

4.

Fig. 8.44

Now you can enter the values as shown below. To enter values just click on the component where you want to enter text and write the text.

198 :: Data Entry Operations

Fig. 8.45

You can apply different effects on the SmartArt, by the help of

Design tab. Click on SmartArt. The Design tab will be visible with its ribbon. Select appropriate group from the ribbon and apply the desired effects.

Formulas, Functions and Charts :: 199

Fig. 8.46

8.5.1 Adding Clip Art

Clip is a single media file, including sound, animation, art or movie.

Steps to insert a Clip Art

1.

2.

3.

4.

Click on Insert Tab.

From Illustrations Group, Click on Clip Art

Then Select a Collection and press Go Button

Click on a clip from the collection

200 :: Data Entry Operations

Fig. 8.47

Fig. 8.48

Fig. 8.49

5.

Clip will be inserted in the worksheet.

Formulas, Functions and Charts :: 201

6.

Fig. 8.50

To edit the clip, Just click on the clip. This will display

Format tab. Choose the relevant group from the ribbon of

Format tab and do the necessary changes.

Fig. 8.51

8.5.2 Inserting and Editing a Picture from a File

Follow these steps to add a picture, photo or graphic from an existing file:

202 :: Data Entry Operations

1.

2.

Click on Insert Tab.

From Illustrations Group, Click picture.

3.

Fig. 8.52

Now select a picture from the location of the picture (where you have stored the picture) and press enter or click on insert button.

4.

Fig. 8.53

The picture is added on the excel sheet. Click on the picture to activate Format tab as shown below along with

Formulas, Functions and Charts :: 203

its ribbon showing groups like Adjust, Picture Styles,

Arrange and Size. Use any of the groups to make necessary changes in the picture appearance.

Fig. 8.54

INTEXT QUESTIONS

1.

2.

Write True or False for the following statements

(a) Format picture displays all the images properties in a separate window.

(b) Activate the image you wish to edit by clicking on it once with the mouse.

(c) Line charts show the proportion of each component value to the total value in a data series.

(d) Pie charts are useful to compare the trends over time.

Fill in the blanks

(a) Each autoshape can be rotated by first clicking

__________ button on the drawing tool bar.

(b) More __________ effects can be changed using the picture toolbar.

204 :: Data Entry Operations

(c) ___________ displays all the image properties in a separate window.

(d) _______________ show the relative contributions that each data series takes up.

(e) You have to enter the name of the chart and titles for

_____________.

8.6 WHAT YOU HAVE LEARNT

In this lesson you learnt about the creation of charts and graphics.

On the basis of data entered in a worksheet you can create a bar chart, line chart or pie chart, you can add title, legend, data labels and grid lines to the chart. Moreover, you learnt about autoshapes and clip art also.

8.7 TERMINAL QUESTIONS

1.

2.

3.

What is the importance of charts and graphics in providing information?

Briefly explain any five different components of a chart?

Explain the process of creating a chart using Chart Wizard dialog box.

4.

5.

6.

7.

Briefly explain the following: a.

Bar charts, b.

Pie charts,

List any four features of Chart Formatting toolbar.

How do you copy a chart to Word created in Excel 2007?

List any five categories of AutoShapes in Excel.

8.

You are asked to prepare a flow chart. What kind of

AutoShapes you would like to use?

9.

Explain the steps in adding a Clip Art to your worksheet?

10.

How do you add a photo or graphic to your worksheet from existing file?

Formulas, Functions and Charts :: 205

11.

What is the main differences between (a) a column chart and (b) a bar chart.

12.

Write a note on SmartArt.

8.8 FEEDBACK TO INTEXT QUESTIONS

1.

2.

(a) True

(b) True

(c) False

(d) False

(a) free rotate

(b) picture

(c) format picture

(d) Area charts

(e) X,Y axes

206 :: Data Entry Operations

9

Creating Presentation

9.1 INTRODUCTION

Whenever you appear in front of one or more people to present your ideas, deliver speech, give classroom lecture, organize computer conference, etc., you have a presentation. The basic purpose of any presentation is communication. To communicate effectively, you must state your facts in a simple, concise and interesting manner. Any presentation consists of four basic elements: you, your audience, your message and your tools.

In this lesson you will learn to create a presentation using

Microsoft PowerPoint 2007 which is a complete presentation software. Even if you are not a multimedia expert, PowerPoint helps you create slides and present exciting slide shows.

PowerPoint provides you helpful suggestions on the layout, design, and formats of your slides.

9.2 OBJECTIVES

After going through this lesson you would be able to: l define the basic features of PowerPoint

l l l l l l create presentations generate slides and add text to slides insert charts and graphics add sound and animation effects save and print presentations run a slide show

9.3 STARTING A POWERPOINT PROGRAM

It enhances your presentations with pictures, sound effects, tables and charts. The main features of PowerPoint are:

PowerPoint gives you several ways to create a presentation.

Creating slides is the root of all your work with PowerPoint.

You can get your ideas across with a series of slides.

Adding text will help you put your ideas into words.

The multimedia features makes your slides sparkle. You can add clip art, sound effects, music, video clips etc.

Preparing a presentation is easy in PowerPoint. Once if you have created slides, you can put them in order, time your slide show, and present them to your audience.

You can start your PowerPoint program in different ways. One way is using Start button:

1.

2.

Click on the Start button.

few seconds you will see PowerPoint screen on the monitor

(Fig. 9.2).

Creating Presentation :: 207

208 :: Data Entry Operations

Fig. 9.1

9.4 CREATING PRESENTATIONS

When you start your PowerPoint Program, you see a Blank presentation.

Office Btton

Fig. 9.2

Note: In PowrePoint 2007 Office button replaces the File menu of other programs and the bar below the title bar is known as the

Ribbon ( Menu and Tool bars of some other programs).

Ribbon consist of a number of Tabs (Home, Insert, ….) . Tabs are designed to be task oriented

Groups within each Tab break a task into subtasks

Command button in each group carry out a command or display a menu of commands.

You can also go to Office button on the top left corner of the page and click on New. You can choose a blank presentation from the page displayed.

Creating Presentation :: 209

Fig. 9.3

9.4.1 Installed templates

Select the Installed templates tab and then select the desired template. The Installed template provides templates and ideas

210 :: Data Entry Operations

for a variety of presentation types. Select the template you want and move through the wizard by clicking ↓ button or the scrollbar after making necessary choices. Choose the type of presentation you would like and click on Create when finished.

Your presentation is ready for show.

Fig. 9.4

9.4.2 Design Template

Click on the Installed Themes box to select the Design Template you want to use. A number of template names will appear in the white box. These Installed Themes give you different backgrounds and text formatting to begin your presentation.

Preview each design by highlighting the template name on the list.

Press Create after you have chosen the design.

Fig. 9.5

9.4.3 Blank Presentations

Select the Blank Presentation to open a Blank Presentation. You can choose this option to start a new presentation from scratch if you have a new approach or if none of the templates suit your needs.

Creating Presentation :: 211

212 :: Data Entry Operations

Fig. 9.6

Slide Layouts

Once you have chosen a blank form for your new presentation, the first slide of your presentation appears. You can right click on the site to choose the layout you want. There are nine different slide layouts from which to choose. You simply make your selection and click on it. Each choice described below, dictates how your completed slides will appear.

1.

Title Slide: This option is useful for beginning a presentation; use this slide if you want to include subtitles or smaller text underneath a title.

2.

3.

4.

5.

6.

7.

Fig. 9.7

Title and Content: Anytime you need to make to list of things that fall underneath a general subject, choose this layout.

Section Header: This option is useful for making a major section within the presentation

Two Content: This is a useful option for putting different elements or text boxes.

Comparison: This is a useful option for doing pro/con lists.

Title Only: This option is great for the beginning of a presentation. No subtitles are included in this layout

Blank: Use this layout if you want a blank slide formatted according to the master Slide.

Creating Presentation :: 213

214 :: Data Entry Operations

8.

9.

Content with caption:

Picture with caption: Use this option to place title over one linked object.

9.4.4 Selecting the content

There are six types of elements shown inside the text box you can select from the contents within the slide

4.

5.

6.

1.

2.

3.

Insert table

Insert chart

Insert SmartArt Graphic

Insert picture from file

Insert Clip Art

Insert Media Clip

Fig. 9.8

9.4.5 Open an Existing Presentation

Select the Open tab from the Office button to open an existing presentation. Select the folder the file is located in from the Look in: drop-down menu and highlight the file on the list. Click Open to open the presentation.

Creating Presentation :: 215

Fig. 9.9

9.5 VIEWING SLIDES

PowerPoint consists of multiple views to help you in the creation and presentation of your slides. These views are Normal, Slide

Sorter, and Slide Show. The first two views are for creating your presentation and the last one is for presentation of slide show.

You can access these views by clicking the respective view buttons at the bottom right of the PowerPoint window. Or select the View and then the respective command on the menu bar. For

Normal command on the menu bar.

216 :: Data Entry Operations

9.5.1 Normal View

The Normal View divides the screen into three sections: the main window, where the current slide is displayed; the outline pane on the left; and the notes pane at the bottom. This is where you will do most of your work. You can resize each pane by clicking its border and dragging it to the size that you want it to be. To access Normal view, click on Normal view button at the bottom

→ menu bar.

Previous slide

Next slide

Normal Slide sorter Slide show

9.5.2 Slide Sorter View

Fig. 9.10

A small image of each slide is displayed on Slide Sorter View.

Slides can easily be ordered and sorted using this view. You can also use this view to add special effect, such as the transactions that occur when each new slide appears. To access Slide Sorter view, click on Slide Sorter view button at the bottom left of the

Fig. 9.11

9.5.3 Slide Show View

The Slide Show View is the view to use when you preview your presentation to make sure every thing is in place, or when you deliver a presentation to an audience. Because all sounds, animations, hyperlinks, and action settings of your presentation will be working, you can see exactly how your show will turn out.

To access Slide Show view, click on Slide Show button at the

→ on the menu bar.

9.6 DESIGN TIPS

Although, PowerPoint provides you with some very powerful tools to give excellent presentations, making the wrong design choices

Creating Presentation :: 217

218 :: Data Entry Operations

can defeat all your efforts. Making the right decisions is not difficult. By following the guidelines below, you can prepare best slides.

1.

2.

3.

4.

5.

Use contrasting colors for the text and the background so the text will be easy to read.

Use font size large enough to be seen from the back of the room where the presentation will be held. A font size of 24point or larger is recommended.

Use short phrases and sentences to convey your message.

Use simple slide transitions. Too many different transitions will distract your audience from the subject of the presentation.

Avoid cluttering the slides with too much text or graphics.

Your audience should hear what you have to say and not be distracted by a busy screen.

6.

Keep text simple and easy to read by not using many different text effects such as bold, italics, underlining, larger font size for emphasis within a sentence, or a different font all on the same slide.

9.7 WORKING WITH SLIDES

Slides are the building blocks of your presentation. You can also create or use layouts and designs, add notes and create handouts, and customize the look of your slides. You can create new slides by inserting them into your show. When you create a new slide, you can use any of the nine layouts available (Section

9.3.3) in the New Slide dialog box or choose a blank slide. Once you have created a new slide, you can insert various elements such as text, pictures, graphs, tables etc.

9.7.1 Applying a Design Template

To add a design template or change the existing one, select Design tag on the Ribbon. Select the template by clicking on it.

9.7.2 Changing Slide Layouts

command on the menu bar. The Slide Layout dialog box appears with nine layouts. Click on one of the layout thumbnail images to apply.

Fig. 9.12

Fig. 9.13

Creating Presentation :: 219

220 :: Data Entry Operations

9.7.3 Inserting and Editing the Existing Slides as Your

New Slides

You can insert slides and then edit them from other files; Cut,

Copy and Paste slides; and duplicate slides.

Click on Home → New Slide and select on Duplicate Selected

Slides, Slides From Outline… or Reuse Slides…

Fig. 9.14

Slides from Outline… provides a way to create slides from text file outlines. You can use this feature to create a group of slides that contain a lot of text. You can also create new slides by typing text in the outline pane. To access the Insert Outline dialog box, select Home → New Slide → Slides from Outline command on the menu bar.

Duplicate Selected Slides gives you a duplicate of a slide when you need to create similar slides. To insert a copy of the current slide after the current slide, choose the slide you want to duplicate, and then Right click for the Duplicate Slide command on the menu bar or press CTRL+SHIFT+D keys.

Creating Presentation :: 221

Fig. 9.15

You can also cut/copy and paste slides by selecting the whole slide.

9.7.4 Reordering Slides

To reorder a slide in Slide Sorter View, simply click on the slide you wish to move and drag it to the new location. In Normal or

Outline View, click on the slide in the slide pane and move and drag the slide to a new location.

222 :: Data Entry Operations

9.7.5 Hide Slides

If you do not want a slide to appear during the slide show, but do not want to delete the slide as it may be used later, the slide can be hidden by right clicking on the slide in the slide pane and selecting Hide. You can unhide a hidden slide in a similar manner.

Fig. 9.16

9.7.6 Moving Between Slides

You can move from one slide to another slide by using the following tools:

Scroll Bars: Use the Scroll Bars to move from one slide to another slide or through the text that is displayed in the notes pane and the outline pane.

Next Slide and Previous Slide Buttons: The Next Slide and

Previous Slide buttons move you to the next slide or previous slide in a slide show. These buttons, indicated by a double-arrow, are located at the bottom of the vertical scroll bar.

Creating Presentation :: 223

Fig. 9.17

Using Outline Pane: Change to Outline view and then click on the slide that you want to view. You can move around in the outline pane by using your mouse, or by using up and down arrow keys.

INTEXT QUESTIONS

1.

State True or False.

(a) In both Normal view and Outline view you can see: current slide, slide outline, and notes.

Previous slide

Next slide

224 :: Data Entry Operations

2.

3.

4.

(b) Using the contrasting colors for the text and background to slides is not a good practice.

(c) While preparing slides use long phrases sentences to convey your message.

How many slide layouts are available in New Slide dialog box?

(a) 7 (b) 9 (c) 14, (d) 17

The PowerPoint dialog box is useful to create a new presentation using:

(a) Installed templates

(b) Open

(c) Installed Themes and Blank Presentation

(d) both (a) and (c) above

Which of the following views is shown in the presentation of slides in a conference?

(a) Slide view

(b) Slide Sorter view

(c) Outline view

(d) Slide Show view

9.8 WORKING WITH TEXT

You can work with text to communicate your ideas to your audience. PowerPoint gives you several ways to insert, edit, and format text for your presentations.

9.8.1 Inserting Text

You can insert text by using the outlining or inserting text boxes.

Outline Text: The outline text can be used to create slides of a similar nature. By using the Outlining toolbar, you can create heads, lists, and paragraphs. PowerPoint uses the format of your outline to correctly insert text in a slide. Heading 1 becomes the title of a slide, heading 2 becomes the first line of the text box,

and so on. When you select a predefined layout and switch over to Outline view as explained earlier, you can see the Outline text options on the left side window. To choose Outlining toolbar, select the Outline pane next to the slide pane on left side below the menu bar.

Text Boxes: The text boxes are the way that PowerPoint puts text on a slide. When you create a slide, and use a specific slide layout, the slide will have one or more text boxes in it. Simply click on the existing text to add new text.

Creating Presentation :: 225

Box command on the menu bar and then draw the text box with the mouse at a place where you want to insert the text box.

If you want to resize a text box, follow the steps given below:

1.

Select the text box you wish to resize by clicking on it with the mouse. A border with eight handles will appear around the text box. The four handles on the corners will resize the length and width of the box at once while the handles on the sides will resize only in one direction.

2.

Click one of the handles as per your requirement and drag it with the mouse. Release the mouse button when it is the size you want to be. Move the text box by clicking and dragging the thick dotted border with the mouse.

If you want to delete a text box from a template, simply click the border of the text box, and then press the DELETE key on the keyboard.

9.8.2 Formatting Text

Format Fonts : Select the text that will be formatted by highlighting the text either on the outline or on the slide. You can highlighted selection and select the Font menu from the popup shortcut menu. Select a font face, size, style, effect, and color from the Font dialog box.

226 :: Data Entry Operations

Fig. 9.18

Replace Fonts: Design templates have a preset font that you may want to change or you may want to change the font used on for the entire presentation for a number of reasons. This can be accomplished quickly using the Replace Fonts feature. Select

→ font you want to Replace from the first drop-down menu and the font it should be replaced With from the second menu, and click the Replace button.

Fig. 9.19

Line Spacing: Change the amount of space between lines in a menu bar.

l

Line spacing - Select the amount of vertical space between lines. A value of "1" is equal to single spacing and "2" is double spacing. Values between and above these numbers are valid as well.

Creating Presentation :: 227

228 :: Data Entry Operations

Change Case: Change the case of the characters in a paragraph

→ without having to retype the text.

l l l

Fig. 9.20

Sentence case - Capitalizes the first letter of the first word in each sentence.

Lowercase and Uppercase - Changes the case of all the letters.

Title case - Capitalizes the first letter of every word and reduces the rest to lowercase.

l

Toggle case - The opposite of Title case, it makes the first letter of every word lowercase and capitalizes the remaining letters.

Bulleted Lists on Design Templates: Bulleted lists allow you to clearly display the main points of your presentation on slides. The text boxes on design templates already include bulleted lists.

Click the placeholder on the slide to begin adding text and press the ENTER key to return to the next line and add a new bulleted item. To go to the next line without adding another bullet, hold down the SHIFT key while pressing ENTER.

Bulleted List from a Text Box: If you are not creating a bulleted list from an existing placeholder on a design template, or if you would like to add an additional bulleted list, follow these steps to create a new list:

1.

2.

Box from the menu bar.

"Draw" the text box on the slide by holding down the left mouse button while you move the mouse until the box is the size you want it.

3.

4.

5.

6.

Paragraph menu bar.

Change the Size of the bullet by changing the percentage in relation to the text.

Choose a color for the bullet from the Color menu. Click

More Colors for a larger selection.

Select one of the bullet types shown and click OK. Or click the Picture button to view the Picture Bullet window.

Select one of the bullets and click OK. Or click the

Character button to select any character from the fonts on the computer. Select a symbol font such as Wingdings or

Webdings from the Bullets from drop-down menu for the best selection of icons. Click on the characters in the grid to see them larger. Click OK when you have chosen the bullet you want to use.

Creating Presentation :: 229

230 :: Data Entry Operations

Fig. 9.21

Fig. 9.22

Bulleted Lists and New Slides from an Outline: In Normal or

Outline view, text can easily be entered in the outline window and new slides are automatically added. Follow the steps below to become familiar with adding slide content in Outline view:

1.

2.

Next to the Slide 1 icon, type the title of the slide. The text you type beside the slide icons will be the large-type titles on each slide.

Press ENTER key to type the next line. This will automatically create a new slide. To create a bulleted list for the first slide, press the TAB key or ALT+SHIFT+Right

Arrow keys to demote the selection to a bulleted list item.

3.

4.

5.

Continue entering text for the bulleted list, pressing ENTER key at the end of each line to create a new bullet.

Create a multilevel list by executing the above action again to create a bulleted sublist. Press ALT+SHIFT+Left Arrow keys to return to the original list.

Continue creating new slides and bulleted lists by using the above actions until the presentation is completed. Use the formatting instructions below to format the lists.

If there is more than one bulleted list on the slide, the lists will be designated by numbers enclosed in black boxes. The example below shows the slide created from the outline on the left. The bulleted list on the left side of the slide is labeled list "1" on the outline and the list on the right is labeled list "2". When typing the outline, begin typing in the new list by pressing CTRL+ENTER keys.

Numbered List: Follow these steps to create a numbered list:

1.

Create a text box.

2.

3.

Numbering from the menu bar.

Click the Numbered tab at the top of the Bullets and

Numbering window.

4.

5.

6.

Change the size of the numbers by changing the percentage in relation to the text.

Choose a color for the numbers from the Color menu. Click

More Colors for a larger selection.

Change the Start at value if the numbers should not begin with 1.

7.

Select one of the seven list types shown and click OK.

Creating Presentation :: 231

232 :: Data Entry Operations

Fig. 9.23

Fig. 9.24

9.8.3 Text Box Properties

You can change the colors, borders, and backgrounds of a text box with help of the Format AutoShape dialog box.

1.

2.

3.

4.

5.

6.

7.

8.

Activate the textbox by clicking on it, and then select

Format Shape command on the menu bar. The Format

Shape dialog box appears.

Under the Fill menu, you can choose the color that will fill the background of the text box. Check the

Semitransparent box if you want the slide background to show through the color.

Select Line color that will surround the box with Solid or

Gradient for the color of the line.

Select Line Style for the Style or Weight for the thickness of the line and a Dashed property if the line should not be solid.

Select Shadow for pre-set shadow styles for your text box

Select 3D Format and 3D Rotation for 3D effect for your text box

Change the text layout from Text Box tab to reposition the text within the text box.

Click Close to add the changes to the text box.

9.8.4 Adding Notes

From Normal View, notes can be added to the slide. These notes will not be seen on your presentation, but they can be printed out on paper along with the slide the notes refer to by selecting

Print What: Notes Pages on the Print menu.

Creating Presentation :: 233

Fig. 9.25

234 :: Data Entry Operations

9.8.5 Spell Check

PowerPoint provides many ways to make sure that the text in your presentations is correct. You can check spelling, catch style errors, and use custom dictionaries.

Correct the spelling in the presentation by selecting

F7 key on the keyboard.

1.

2.

3.

4.

5.

The spell checker will prompt you to make corrections of the first word that is spelled wrong.

If the word is spelled correctly, click Ignore or Ignore All if the same word appears several times during the presentation. If this word will appear in many presentations

(such as your name), click Add to add the word to the dictionary and you won't be prompted by a misspelling again.

If the word is spelled wrong, highlight one of the Suggestions or type your own revision in the Change to box. Click

Change to correct this occurrence of the word or Change

All to correct all occurrences of the word in the presentation.

Click Close to abort the spelling check early.

When the spell checker has read through the entire presentation, you will be prompted by a window telling you that the spelling check is complete. Click OK.

9.9 SAVING AND PRINTING

You can save your presentation slides as a file in a folder. You can also save the slides as Web page so that you can post them on Internet. Printing is similar to what you have done in Word and Excel. Remember to set up your page before saving or printing your presentation slides.

9.9.1 Page Setup

options for printing the presentation slides. Select the format the printed slides will be used for from the

Slides drop-down menu.

Creating Presentation :: 235

Fig. 9.26

9.9.2 Save as File

To save your presentation slides as a file, select Office

→ the Save button on the toolbar on top. The Save As dialog box appears. Choose the folder and drive that your file will be located, type the name of the file, and then click Save in the Save As dialog box.

236 :: Data Entry Operations

9.9.3 Save as Web Page

Fig. 9.27

command on the menu bar as explained earlier. However, if you want to post PowerPoint presentations on the Internet, you may want to save them as Web pages so that the visitors to your web site can view the presentation even if they do not have PowerPoint

Web Page command from the drop down. Choose your web page directory on the network from the Look in: drop-down menu and name the file in the File name: box. Click Save to save the presentation in web format.

Fig. 9.28

9.9.4 Print

the presentation. The Print dialog box appears. Choose the following options in the Print box.

Print range - Select All to print all the slides in the presentation,

Current slide to print only the current slide, or enter slide numbers in the Slides field to print only certain slides.

Copies - Enter the number of copies of each slide specified in

Print range and check the Collate box if necessary.

Creating Presentation :: 237

238 :: Data Entry Operations

Print What l l

Slides - prints a full-page slide on each page.

Handouts - prints as many slides as you designate on each page.

l

Notes Page - prints one slide with that slide's notes on each page l

Outline view - prints the outline of the presentation

Click OK to print.

Fig. 9.29

9.10 CLOSE A DOCUMENT

To close the current presentation slides file, select Office

any unsaved changes, you will be prompted to save the file before closing.

9.11 EXIT POWERPOINT PROGRAM

When finished your work in PowerPoint and closed all the files, you can quite the PowerPoint program by selecting Office

9.12 KEYBOARD SHORTCUTS

Keyboard shortcuts can save time and the effort of switching from the keyboard to the mouse to execute simple commands. Print this list of Power Point keyboard shortcuts and keep it by your computer for a quick reference.

Creating Presentation :: 239

Note:

A plus sign indicates that the keys need to be pressed at the same time.

240 :: Data Entry Operations

INTEXT QUESTIONS

5. (i) How do you move from one slide to another slide?

(a) Using Scroll bars

(b) Using Next Slide and Previous slide buttons

(c) Using outline pane

(d) All of the above

(ii) How do you insert text in a slide?

(a) Using outline text

(b) Inserting text boxes

(c) Right clicking

(d) (a) and (b) above

(iii) You can add notes to your slides from:

(a) Slide Sorter view

(b) Normal view

(c) Slide Show view

(d) (a) and (b)

(iv) Text can be easily inserted into the slides using:

(a) Normal view

(b) Outline view

(c) Slide Sorter view

(d) (a) and (b) above

9.13 WHAT YOU HAVE LEARNT

In this lesson you learnt about the creation of a PowerPoint presention. You can create a presentation through Autocontent

Wizard or Design Template or blank presentation. The first two types allow you to present text in a standard format. On the other hand, Blank Presentation is more flexible and you can make your own design. After creation of the presentation slides, you can go for a slide show and also take a print out.

9.14 TERMINAL QUESTIONS

1.

2.

3.

4.

5.

6.

7.

Explain any three features of PowerPoint.

Explain any one method of creating a presentation.

Write two ways of changing the view to slide show view.

Explain steps in inserting a text box in a slide.

How do you change the amount of space between lines in a text box?

How do you insert picture bullets in slides?

How do you add notes to your slides?

9.15 FEEDBACK TO INTEXT QUESTIONS

1.

2.

3.

(a) True, (b) False, (c) False

(c) 9

(d) Installed Themes, Installed Templates and Blank

Presentation

4.

(d) Slide Show View

5. (i) (d) Using Scroll bars, using Next Slide and Previous Slide buttons, and using Outline pane.

(ii) (d) Using Outline text and inserting text boxes.

(iii) (b) Normal View.

(iv) (d) Normal view and Outline view.

Creating Presentation :: 241

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
