Solatube® Brighten Up® Series
Solatube® 160 DS /290 DS Square Kit
Installation Instructions

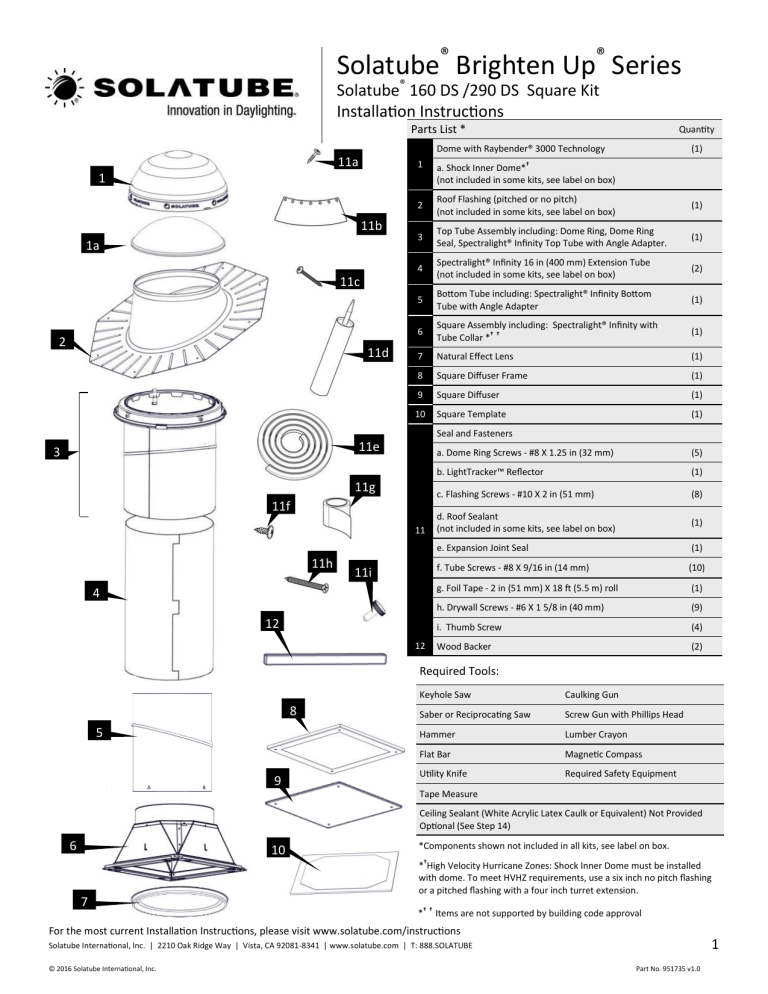

Parts List *
Quantity
Dome with Raybender® 3000 Technology
11a
1
1
11b
1a
11d
a. Shock Inner Dome*
(not included in some kits, see label on box)
2
Roof Flashing (pitched or no pitch)
(not included in some kits, see label on box)
(1)
3
Top Tube Assembly including: Dome Ring, Dome Ring
Seal, Spectralight® Infinity Top Tube with Angle Adapter.
(1)
4
Spectralight® Infinity 16 in (400 mm) Extension Tube
(not included in some kits, see label on box)
(2)
5
Bottom Tube including: Spectralight® Infinity Bottom
Tube with Angle Adapter
(1)
6
Square Assembly including: Spectralight® Infinity with
Tube Collar *† †
(1)
7
Natural Effect Lens
(1)
8
Square Diffuser Frame
(1)
9
Square Diffuser
(1)
10
Square Template
(1)
11c
2
(1)
†
Seal and Fasteners
11e
3
11g
11f
11
11h
11i
4
12
12
a. Dome Ring Screws - #8 X 1.25 in (32 mm)
(5)
b. LightTracker™ Reflector
(1)
c. Flashing Screws - #10 X 2 in (51 mm)
(8)
d. Roof Sealant
(not included in some kits, see label on box)
(1)
e. Expansion Joint Seal
(1)
f. Tube Screws - #8 X 9/16 in (14 mm)
(10)
g. Foil Tape - 2 in (51 mm) X 18 ft (5.5 m) roll
(1)
h. Drywall Screws - #6 X 1 5/8 in (40 mm)
(9)
i. Thumb Screw
(4)
Wood Backer
(2)
Required Tools:
8
5
9
Keyhole Saw
Caulking Gun
Saber or Reciprocating Saw
Screw Gun with Phillips Head
Hammer
Lumber Crayon
Flat Bar
Magnetic Compass
Utility Knife
Required Safety Equipment
Tape Measure
Ceiling Sealant (White Acrylic Latex Caulk or Equivalent) Not Provided
Optional (See Step 14)
6
10
*Components shown not included in all kits, see label on box.
*†High Velocity Hurricane Zones: Shock Inner Dome must be installed
with dome. To meet HVHZ requirements, use a six inch no pitch flashing
or a pitched flashing with a four inch turret extension.
7
*† † Items are not supported by building code approval
For the most current Installation Instructions, please visit www.solatube.com/instructions
1
Solatube International, Inc. | 2210 Oak Ridge Way | Vista, CA 92081-8341 | www.solatube.com | T: 888.SOLATUBE
© 2016 Solatube International, Inc.
Part No. 951735 v1.0
WARNING
Do not proceed with the installation until you have read the entire instructions, including these warnings. (Use of materials or methods not authorized by Solatube International will result in an invalid warranty.)
Solatube International, Inc. (seller) assumes no responsibility or obligation whatsoever for the failure of an architect, contractor, installer, or building owner
to comply with all applicable laws, ordinances, building codes, electrical codes, energy codes, fire and safety codes and requirements, roof warranties and
adequate safety precautions. Installation of this product should be attempted only by individuals skilled in the use of the tools and equipment necessary for
installation. Protect yourself and all persons and property during installation. If you have any doubt concerning your competence or expertise, consult a qualified
expert before proceeding.
Install at your own risk!







Solatube product installations may be dangerous and include the potential for death, personal injury and property damage. The hazardous conditions
include but are not limited to the following:
During installation, the Solatube Daylighting System’s reflective tubes may focus sunlight, causing intense heat or fire. Remove protective film only
after the parts have been installed. Prior to and during installation, do not leave tubes in contact with
combustible materials or unattended,
especially near direct sunlight. Avoid skin burns.
Solatube Daylighting System and Solar Star products may have sharp edges. Always wear leather or canvas gloves while handling and installing products.
Solatube product installations require climbing and working at dangerous heights, including on ladders, scaffolding, roofs and in attic spaces. Risk of
death, personal injury and property damage may result from a fall, or from falling objects. Use extreme caution to minimize risk of
accidental injury,
including, but not limited to the following procedures:
 Clear area below your work space of all people, animals and other items.
 Avoid working on surfaces that are slippery or wet.
 Use foot-wear with excellent traction.
 Use only strong, well supported ladders.
 Work only in calm dry weather.
 When in the attic, ensure that your weight is supported at all times with structurally sound framing; drywall material is not designed to carry
a person’s weight.
To reduce the risk of fire, electric shock, and personal injury, basic safety precautions should always be followed when using electric tools, including
always wearing safety goggles or other suitable eye protection, and ensuring work area is clear of all electrical wires, gas pipes, water pipes, and other
obstacles.
When working in the attic or other dusty areas, use of a mask or respirator is recommended to avoid lung irritation. Attic spaces may be dark, confined,
and subject to extreme temperatures. Beware of sharp protruding objects. Do not attempt installation without having someone within range of your
voice or close enough to come to your aid if necessary.
Solatube products are not designed to withstand the weight of a person, tools or other objects. Walking or placing objects on the system could cause
personal injury and property damage. If the product is damaged, the structural capacity may be weakened; therefore the system should be repaired
immediately. For safe installation and use, do not deviate from these installation instructions.
Additional support is recommended for long vertical and all horizontal tube runs. Review local building requirements and consult with
appropriate
building code official for proper material and placement of additional support. Avoid galvanic reaction (corrosion) if dissimilar metals are used.
Electrical Components

Before installing, servicing, or cleaning unit, switch power off at service panel and lock service panel to prevent power from becoming switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device such as a tag to the service panel.
Re-Roofing

Solatube products require special care if removed for re-roofing. In order to ensure proper removal and re-installation, please contact your
International representative.
Solatube
Please refer to the installation tips for the appropriate product below:
Daylighting Systems Installation Tips
These instructions are a step-by-step guide for the installation of a Solatube Daylighting System in the following conditions. For other roof types,
please contact your Solatube International representative for additional information.
Built Up Flat Roof - Single Ply/Membrane - Asphalt Shingle - Low/No Pitched - Pitched Prefabricated Curbs - Metal Roof Panels
For the most current Installation Instructions, please visit www.solatube.com/instructions
2
Solatube International, Inc. | 2210 Oak Ridge Way | Vista, CA 92081-8341 | www.solatube.com | T: 888.SOLATUBE
© 2016 Solatube International, Inc.
Part No. 951735 v1.0
Daylighting Systems Installation Tips (Continued)







Allow at least 2-3 hours for the installation, particularly if this is your first installation.
During the day, turn off all the lights in the room to see how much natural light comes in through the windows, and determine the best position for the
Solatube Daylighting System. To light a specific area, place the system over the area, not in the center of the room. This will prevent the desired area
from being shaded by tall objects in the room.
Measure the distance between the roof and the ceiling. If you don’t have enough tubing, contact your Solatube International representative for
additional tubing.
Avoid roof locations shaded by trees, ridges and chimneys, or near water channels or valleys. Also avoid roof areas with obstructions such as fire
sprinklers, HVAC equipment, gas, water or drain pipes, air ducts or flues and make sure that the roof is adequate to endure an installation without
damaging its waterproofing properties or weakening the building structure.
All adhesives, seals and tapes are recommended to be applied to a clean and dry surface at a minimum of 70°F (21°C) for maximum performance.
Foil tape contains a pressure sensitive adhesive and pressure must be applied at all seams for proper bonding. Foil tape is not intended for use as
structural support of the extension tubes. For structural integrity use manufacturer supplied fasteners on all overlapping extension tube joints.
Uninstalled product that is stored and exposed to excessive heat and or humidity can experience damage. Store product prior to installation in a cool
dry place.
Daylight Dimmer Installation Tips


Install Solatube Daylight Dimmer only on a properly aligned Solatube Daylighting System.
Use only UL recognized components approved for this listing.
Light Add-On Kit Installation Tips








This product is to be installed by qualified electricians only. Disconnect power before installation.
“FOR USE IN NON-FIRE-RATED INSTALLATIONS ONLY.”
Thermally protected “TYPE IC” (insulation may contact housing).
“ACCESS ABOVE CEILING REQUIRED.”
“SUITABLE FOR DAMP LOCATIONS.” Use only as a component of Solatube Daylighting System products.
“MIN. 60°C SUPPLY CONDUCTORS.”
Intended for installation with ½ in (12.7mm) minimum spacing from the fixture to cavity surfaces (side wall and overhead building member) and 1 in
(25.4mm) minimum spacing to adjacent fixtures.
Blinking light may indicate improper lamp wattage or type, or insulation is too close to fixture, or other condition causing overheating.
Caution



Risk of fire and electrical shock. Most dwellings built before 1985 have supply wire rated 60° C.
To reduce the risk of fire, use only:
 Fluorescent Lamps, Medium Base - 23 Watt Maximum, Maximum Overall Length (MOL) 4 3/4 in (120 mm)
 Compact Fluorescent (4 Pin Quad Tube) 26 Watt only
Minimum thickness of metal tubing is 0.018 in (0.47mm)
Ventilation Add-On Kit Installation Tips
See Ventilation Add-On Kit installation instructions for tips.
Solar Star Attic Ventilation Installation Tips



Keep Solar Star solar panels covered until product is mounted and sealed to roof. Cover solar panel whenever motor, fan, or unit is to be serviced.
Fan blade is controlled by the solar panel and may become operational when panel is exposed to sunlight.
Solar Star products are designed for general ventilation purposes only. Do not exhaust any hazardous materials or gases such as flammable,
explosive or incendiary materials.
Solar Star products have an unguarded fan blade. Do not use Solar Star products in areas that are easily accessible.
Caution

Carbon monoxide may be drawn into a house or attic space with the operation of Solar Star products if fuel-burning equipment is not serviced or
monitored regularly. Carbon monoxide (CO) is a colorless, odorless gas that can be hazardous to your health and may cause death. Fuel-burning
equipment must have proper ventilation, Solar Star products are not designed to provide ventilation for fuel-burning products.
For the most current Installation Instructions, please visit www.solatube.com/instructions
3
Solatube International, Inc. | 2210 Oak Ridge Way | Vista, CA 92081-8341 | www.solatube.com | T: 888.SOLATUBE
© 2016 Solatube International, Inc.
Part No. 951735 v1.0
1
Mark Ceiling and Roof Location Between Joists and Rafters Using Nails. Cut Ceiling Hole.
Minimum clearance of 5 3/8 in (140 mm) for 160 DS and 7 3/8 in (190 mm) for 290 DS between nail hole center and joist.
Nail
Roof
b
160 DS
5 3/8 in (140 mm)
Nail
290 DS
7 3/8 in (190 mm)
Ceiling
a
2
Center on Nail and Trace Inside Flashing Base
Cut Roof Opening
3
1/2 in (12.7 mm)
Cut Line; 1/2 in
(13 mm) Outside
Traced Line
Nail
4
Remove Roof Shingles
Traced Line
5
Set Flashing
b
Roof Underlayment
Roof Underlayment
a
Roof Sealant
(3/8
For the most current Installation Instructions, please visit www.solatube.com/instructions
4
Solatube International, Inc. | 2210 Oak Ridge Way | Vista, CA 92081-8341 | www.solatube.com | T: 888.SOLATUBE
© 2016 Solatube International, Inc.
Part No. 951735 v1.0
6
Fasten Flashing to Roof and Replace Shingles
7
Align Dome Ring and Flashing Holes
9
Remove and Tape Top Tube
Roof Underlayment
Flashing Screw
a
b
8
10
Align Top Tube Angle with Ceiling Opening
Fasten Top Tube to Flashing*
11
Dome Ring Screw
Tape all seams.
Dome Installation
Reflective side of LightTracker™ Reflector faces South in Northern
Hemisphere (North in Southern Hemisphere). Align and snap
dome into place engaging all four snaps.
a
LightTracker™
Reflector
c
a
Shock Inner
Dome for HVHZ
Remove Protective Liner
Remove Protective Liner
*For HVHZ dip screw threads in sealant
b
b
For the most current Installation Instructions, please visit www.solatube.com/instructions
5
Solatube International, Inc. | 2210 Oak Ridge Way | Vista, CA 92081-8341 | www.solatube.com | T: 888.SOLATUBE
© 2016 Solatube International, Inc.
Part No. 951735 v1.0
Mark Ceiling Joists Using Template. Cut Ceiling Hole.
12
Separate Template
Tape Template
b
a
d
Ceiling
Trace with Pencil
c
290 DS
14 1/2 in x 14 1/2 in
(368 mm x 368 mm)
160 DS
10 1/2 in x 10 1/2 in
(267 mm x 267 mm)
e
Template
13
Insert Wood Backers and Fasten to Ceiling
Drywall Screw
Wood Backer
a
Install fasteners close
to edge of opening
c
b
14
Install Transition Box and Bottom Tube
Align Bottom Tube angle and measure rube run.
Minimum Overlap
at Tube Seams
1 1/2 in (38 mm)
Roof Underlayment
b
a
Minimum Overlap
at Tube Seams
1 1/2 in (38 mm)
Tube length
measurements
should be equal.
For the most current Installation Instructions, please visit www.solatube.com/instructions
6
Solatube International, Inc. | 2210 Oak Ridge Way | Vista, CA 92081-8341 | www.solatube.com | T: 888.SOLATUBE
© 2016 Solatube International, Inc.
Part No. 951735 v1.0
Assemble Tube Run
15
Use notches to create a tapered tube.
Apply pressure to
tape for proper
bonding
Minimum Overlap at
Tube Seams
1 1/2 in (38 mm)
Remove Protec-
d
a
c
b
Expansion Joint
Seal
e
Make final adjustment on bottom tube
and align angle with top tube.
Tube Screw
16
f
Install Tube Run
Remove assembly to tape and fasten all seams and joints.
Tube Screw
Tape Angle
b
Tape bottom tube to transition
Tape Angle
a
For the most current Installation Instructions, please visit www.solatube.com/instructions
7
Solatube International, Inc. | 2210 Oak Ridge Way | Vista, CA 92081-8341 | www.solatube.com | T: 888.SOLATUBE
© 2016 Solatube International, Inc.
Part No. 951735 v1.0
17
Install Tube Run and Fasten
Use drywall screws to fasten to ceiling.
a
Drywall screw
b
18
Install Effect Lens and Diffuser
Remove Protective Liner
a
b
19
Install Diffuser
Align diffuser frame with transition box and install thumb screws.
Diffuser Frame
Square
Just Frost
Diffuser Lens
Square
Optiview
Diffuser Lens
Assembly
Thumb Screw
For the most current Installation Instructions, please visit www.solatube.com/instructions
8
Solatube International, Inc. | 2210 Oak Ridge Way | Vista, CA 92081-8341 | www.solatube.com | T: 888.SOLATUBE
© 2016 Solatube International, Inc.
Part No. 951735 v1.0
20
Now you can enjoy the benefits of your Solatube Daylighting System and the high
performance, natural lighting it provides.
Please refer to the Brighten Up Series Main Set of Instructions
(P/N 951780) for additional accessories and Flashing options.
For the most current Installation Instructions, please visit www.solatube.com/instructions
9
Solatube International, Inc. | 2210 Oak Ridge Way | Vista, CA 92081-8341 | www.solatube.com | T: 888.SOLATUBE
© 2016 Solatube International, Inc.
Part No. 951735 v1.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
