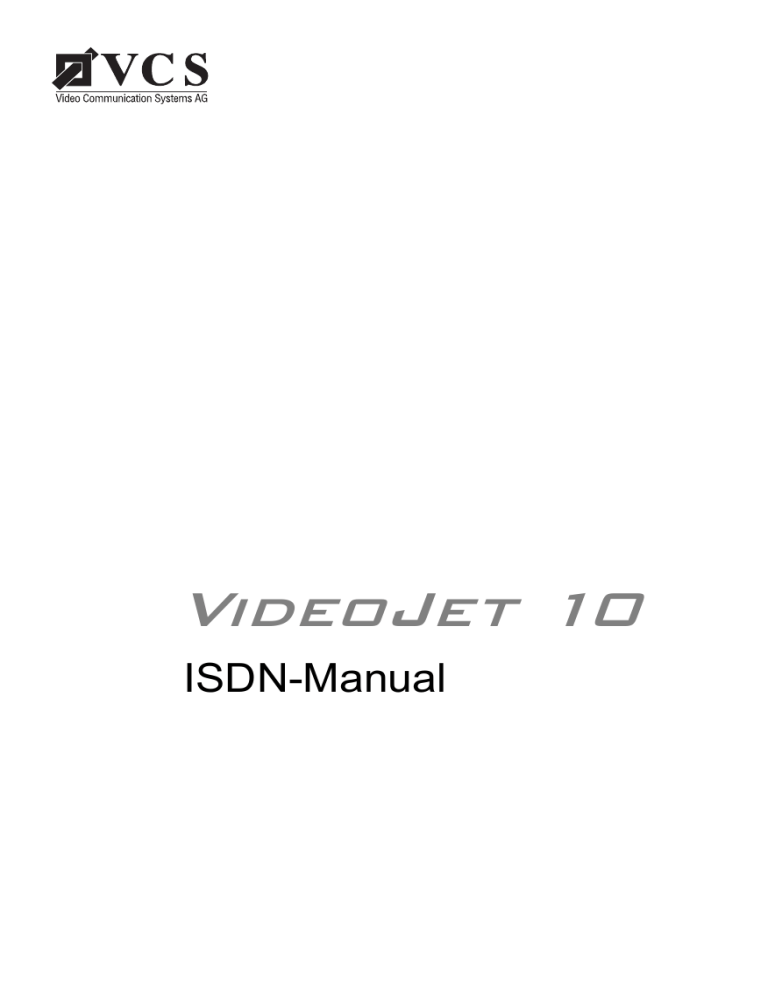

VideoJet 10
ISDN-Manual
Copyright
This manual is the intellectual property of VCS and is protected by
copyright. All rights are reserved. No part of this document may be
reproduced or transmitted for any purpose, by whatever means, be
they electronic or mechanical, without the express written permission of VCS.
Edition: Mai 2004 (Version 2.0)
© Copyright 2004 VCS Video Communication Systems AG
Note
This manual was compiled with the greatest of care and all information double checked. At the time of printing the description was
complete and correct. Because of the further development of products, the content of the manual might change without prior notice.
VCS will not be liable for damage which is directly or indirectly due
to errors, incompleteness, or discrepancies between the manual
and the product described.
Trade marks
All names used in this manual for hardware and software are very
probably registered trade marks and must be treated as such.
Contents
Chapter 1
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EU Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rating plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
3
4
4
5
Chapter 2
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical shock hazard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Repairs and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
7
8
8
Chapter 3
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Supplied components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Configuration requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operational requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Functional overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Rear panel connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
ISDN basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Chapter 4
ISDN-configuration with web browser . . . . . . . . . . . . . . . . .
ISDN basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuration page: Alarm connections . . . . . . . . . . . . . . . . . .
Configuration page: ISDN/PPP settings . . . . . . . . . . . . . . . . . .
Function test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VideoJet 10 ISDN
17
17
18
24
25
1
Contents
Chapter 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Operation with MS Internet Explorer . . . . . . . . . . . . . . . . . . . . . 27
Storing snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Storing video sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Harddisk activity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Playback of recorded sequences . . . . . . . . . . . . . . . . . . . . . . . 35
Back-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Hardware connections between VideoJet units . . . . . . . . . . . . 39
Operation with Software-Decoder . . . . . . . . . . . . . . . . . . . . . . . 42
Chapter 6
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Faults – possible causes and remedy . . . . . . . . . . . . . . . . . . . . 43
LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
2
VideoJet 10 ISDN
1
Preface
These Installation and Operating Instructions are intended for persons authorised to install and operate the VideoJet 10 ISDN. International, national and any relevant regional regulations relating to
electronics must be observed at all times. This manual explains
only specifics of the VideoJet 10 ISDN and is to be used as an
addendum to the manual of the VideoJet 10. Confer to the latter for
all basic installation and operation instructions not mentioned here.
Conventions
In this manual, the following symbols and notations are used to
draw attention to special situations:
Warning! or Attention!
This symbol indicates that failure to follow the safety instructions
given may directly endanger people, cause damage to the system
or to other equipment. The symbol represents a direct threat of danger.
Note
This symbol indicates tips and notes that make using the device
easier and more convenient.
Note
This symbol indicates that you might have to find out special information to be able to make the settings or start up the system correctly.
VideoJet 10 ISDN
3
Preface
The following typographic conventions are used in this manual:
Configuration
Window and menu names, parameters and
buttons
[Enter], [C]
Key names
[Ctrl] + [C]
Two or more keys that are pressed simultaneously.
ping
Command line input and output
Intended use
The Network Video Server VideoJet 10 ISDN serves to transmit
video, audio and control signals via data networks (Ethernet LAN,
Internet, ISDN). It is designed for use in CCTV systems. The connection of an external alarm generator allows various functions to
be triggered automatically. Other applications are not permitted.
In the event of questions concerning the use of the server which are
not answered in this manual, please contact:
VCS Video Communication Systems AG
Forchheimer Straße 4
D – 90425 Nürnberg
Phone +49 (0) 911 9 34 56-0
Fax +49 (0) 911 9 34 56-66
[email protected]
EU Guidelines
The Network Video Server VideoJet 10 ISDN complies with the
specifications of European Guidelines 89/336 (Electromagnetic
Compatibility) and 73/23, amended by 93/68 (Low-Voltage Guideline).
4
VideoJet 10 ISDN
Preface
Rating plate
For exact identification, you will find the model designation and
serial number on the rating plate on the bottom of the housing.
Please note this information here before installation in order to have
it to hand in the event of queries or spare parts orders.
VideoJet 10 ISDN
5
Preface
6
VideoJet 10 ISDN
Safety information
2
Electrical shock hazard
z Never attempt to connect the unit to any power network other
than the one for which it was intended.
z Use only the mains lead supplied.
z Do not open the housing.
z Disconnect the power supply unit from the mains power supply
and from all other devices if a fault occurs.
z Only install the power supply and the server in a dry place pro-
tected from wheather.
z If you are uncertain about the safe operation of the unit, shut it
down immediately and secure it to prevent any unauthorised
start-up. Safe operation is no longer possible, for example,
– if damage is visible to the unit or the cables,
– if the unit no longer operates correctly,
– if the server has been exposed to rain or moisture,
– if objects have penetrated inside the unit,
– after long storage under improper conditions or
– after heavy demands during transport.
Have the system checked by VCS in such cases.
VideoJet 10 ISDN
7
Safety information
Installation and operation
z All applicable electrical codes and regulations must be observed
and followed at all times during the installation.
z Before installing or operating the system, ensure that you have
read and understood the documentation for other equipment
connected to the unit, e.g. cameras. These contain important
safety notices and information concerning permissible applications.
z Perform only the installation and operating work described in this
manual. All other work beyond this may lead to injuries to persons and damage to the system or other equipment.
Repairs and maintenance
z Never open the housing of the VideoJet 10 ISDN. The unit con-
tains no parts which you can repair or replace.
z Never open the housing of the power supply unit. The power
supply unit contains no parts which you can repair or replace.
z Ensure that only qualified, specialist personnel (electrical techni-
cians) are permitted to carry out maintenance or repair work.
8
VideoJet 10 ISDN
Product Description
3
Supplied components
z Network Video Server VideoJet 10 ISDN incl. plug-in power pack
z RS232 Null modem cable and ISDN cable
z Brief description “First Steps” German/English
z Software and handbook on CD-ROM
System requirements
z Computer with Windows 98/2000/XP operating system and
access to network and
z Web browser Microsoft Internet Explorer (version 5.5 or higher)
or free serial interface port and terminal program
Configuration requirements
z Computer with Windows 98/2000/XP operating system and
access to network and
z Web browser Microsoft Internet Explorer (version 5.5 or higher)
or decoder software, e.g. VIDOS from VCS
Note
Make sure the graphic card is set to a color depth of 16 or 32 Bit
and the Microsoft Virtual Machine is installed on your computer.
VideoJet 10 ISDN
9
Product Description
Operational requirements
z Computer with Windows 98/2000/XP operating system and
access to network and
z Web browser Microsoft Internet Explorer (version 5.5 or higher)
or decoder software, e.g. VIDOS from VCS
or
z VideoJet 10 ISDN acting as receiver and video monitor
Note
Make sure the graphic card is set to a color depth of 16 or 32 Bit
and the Microsoft Virtual Machine is installed when displaying video
on a computer monitor.
Functional overview
Network
video server
The VideoJet 10 ISDN is a network video server. Its primary function is to decode and encode video, audio and control data for
transmission over an IP network. Using the ISDN interface data
transfer over corresponding telephone networks is possible. Via the
CompactFlash interface the device can be integrated seamlessly
into any wireless LAN using a corresponding card. Because it uses
existing networks, rapid and simple integration into CCTV installations via local networks can be achieved.
Two units, i.e. a VideoJet 10 ISDN as transmitter and a VideoJet 10
ISDN as receiver, can form a stand alone system for data transfer
without a PC. The system can be extended to include additional
transmitters and receivers so that video images from one transmitter can be simultaneously received on a number of receivers.
10
VideoJet 10 ISDN
Product Description
Receiver
VCS MPEG-4 hardware receiver or a computer with installed decoding software, e.g. VIDOS from VCS or with the installed web
browser Microsoft Internet Explorer, can be used as a receiver.
Video encoding
The VideoJet 10 ISDN operates with the video compression standard MPEG-4. Thanks to efficient encoding, the data bit rate
remains low even with high image quality and, in addition, can be
matched into the local environment within wide limits.
Dual Encoding
With Dual Encoding the incoming datastream can be encoded with
the help of two different profiles simultaneously which can be set
individually. Thus two datastreams are created suiting different
needs, e.g. one for local recording and one for transmission over
ISDN.
Multicast
In suitably configured networks, simultaneous transmission in real
time to a number of receivers is possible using the Multicast function. A requirement here is the implementation of the UDP and
IGMP protocols on the network.
Remote control
For the remote control of external equipment, e.g. remote pan and
tilt heads or motorized zoom lenses, the control data is transmitted
via the bidirectional serial interface of the VideoJet 10 ISDN. This
interface is also available for the transmission of transparent data.
Configuration
Configuration of the VideoJet 10 ISDN can be carried out using a
browser via the local network (Intranet) or from the Internet.
Similarly, firmware updates and rapid loading of equipment configurations are also possible.
Recording/
playback
You can save live pictures recorded by the unit as files on the hard
disk of your computer. The video pictures are stored in MPEG format and can, for example, be replayed with the VCS MPEG Player
included in the delivery. All recordings can be stored locally, too,
using a CompactFlash-card or a MicroDrive.
VideoJet 10 ISDN
11
Product Description
Snapshots
Individual video frames (snapshots) can be called up in JPEG format by the VideoJet 10 ISDN, stored on the computer hard drive or
can be displayed in a separate browser window.
Back-up
Can be accomplished from either the livepage or directly from the
Media-Replay mode through a simple mouse click.
12
VideoJet 10 ISDN
Product Description
Summary
The main functions of the VideoJet 10 ISDN can be summarized as
follows:
z Video, audio and data transmission via IP data nets
z Dual Encoding with two individually set profiles
z Multicast function for simultaneous transmission to a number of
receivers
z Analog BNC composite video input (PAL/NTSC) (transmitter)
z Analog BNC composite video output (PAL/NTSC) (receiver)
z One audio input/output (mono)
z Video and audio encoding to the international standard MPEG-4
z Integrated Ethernet interface (10/100 Base-T)
z Integrated ISDN interface
z CompactFlash interface for memory card or wireless LAN card
z Two transparent bidirectional data channels via serial interface
ports RS232/RS422/RS485 and RS232
z Remote control of all internal functions via TCP/IP
z Password protection to prevent unauthorized connection or
alterations to configuration
z Closed contact input for external sensor (e.g. door contact)
z Closed contact output for external equipment (e.g. lights or
acoustic alarms)
z Event driven automatic connection setup (e.g. on switch-on and
with alarms)
z Rapid and user friendly configuration via web browser
z Firmware update through flash memory
z Comfortable configuration upload
VideoJet 10 ISDN
13
Product Description
Rear panel connectors
1 BNC socket Video In (transmitter) or Video Out (receiver)
for video source or for an analog video monitor
2 Slide switch 75 Ω (transmitter)
for termination of the video input
3 Bidirectional audio interface Audio I/O
3.5 mm stereo jack for connection of a loudspeaker or an audio
source (mono line)
4 Serial interface port COM2: RS232
9-pin sub-D socket (m) for control data transmissions (protocol
RS232)
5 Serial interface port COM1: RS232/485
9-pin sub-D socket (m) for control data transmissions
(protocols RS232, RS422 and RS485) and for configuration
using terminal software
6 LED Power
flashes yellow when ready
14
VideoJet 10 ISDN
Product Description
Front panel
7 CompactFlash interface
drive for CompactFlash cards and MicroDrives
8 Screw clamp ALARM I/O
for connection of alarm sensors or switches and for switching of
external devices (e.g. lamps)
9 RJ45 Ethernet connector
for connecting to the network
10 RJ45 ISDN connector
for connecting to the ISDN line
11 Socket Power
mains cable connector
12 Reset button for return to the default settings
13 LED I – lights up red with active alarm
14 LED O – lights up green when the relay is switched
15 LED L – lights up green when connected to the network
16 LED T – flashes yellow when data packages are transmitted
17 LED B1 – lights up orange with 1- and 2-channel connection
18 LED B2 – lights up orange with 2-channel connection
VideoJet 10 ISDN
15
Product Description
16
VideoJet 10 ISDN
ISDN-configuration with
web browser
4
ISDN basics
ISDN means Integrated Digital Services Network and describes a
telecommunications service which is supported worldwide.
Data is forwarded over the existing lines as before, not, however, in
the form of continuously varying analog signals, but digitally. Digital
video from your VideoJet 10 ISDN does not have to be converted
to the analog medium by a modem.
To transmit data over ISDN, most frequently, the so-called PPP protocol is used, (Point-to-Point Protocol).
Every ISDN basic connection (S0 connection) consists of three
channels:
z 2 B-channels
z 1 D-channel
B-channel channel bundling
Data transmission takes place over the B-channels (voice, text,
data). Each B-channel has a data transmission rate of 64 kBit/s.
Since you have two B-channels, you can make telephone calls
simultaneously from two different telephones.
The VideoJet 10 ISDN can combine both B-channels in order to
transmit data to just one opposite terminal using the collective
capacity of both B-channels. Naturally, you must pay for the use of
both channels; your data transmission, however, takes half the time
it would need using just one channel.
D-channel
The D-channel transfers all control data regarding the respective
ISDN connection with a data transmission rate of 16 kBit/s. Such
information includes, e. g. the identification of the caller (Calling
VideoJet 10 ISDN
17
ISDN-configuration with web browser
Party’s Number) and the party called (Called Party’s Number) by
the dial numbers.
Dial numbers MSN
Normally, you receive three dial numbers with an ISDN basic connection (in Germany), the so-called MSNs (Multiple Subscriber
Number). The MSN is a complete telephone number without a prefix. If three dial numbers are not enough for you, you can usually
request more MSNs from your telephone provider.
Configuration page: Alarm connections
Options are provided to specify the behavior of the VideoJet 10
ISDN in the event of an alarm. The VideoJet 10 ISDN, for example,
can establish a connection to a predefined telephone number or IP
address (VideoJet 10 ISDN receiver or PC with receiver software)
automatically.
18
VideoJet 10 ISDN
ISDN-configuration with web browser
You can store up to 10 destinations and assign them to 10 different
alarm connections which are configurable to your needs.
Phone list
destinations
Like a telephone book this section gives a list of all destinations
entered together with information on the parameter settings for the
respective entry. You can store up to 10 destinations to be connected in case of an alarm, edit and delete them.
)
Click the button Add. The window Add a destination list entry is
opened and you create a new list entry.
or
)
Mark a list entry and click the button Edit. The window Edit a destination list entry is opened and you can edit the settings for the
chosen entry.
)
)
)
Make the necessary settings.
Save the changes you have made by clicking the Apply button or
Stop any changes from being activated by clicking on the Cancel
button.
or
)
Mark a list entry and click the button Delete. The chosen list entry
is deleted.
In the windows Add a destination list entry resp. Edit a destination list entry you can set the following parameters:
Phone entry name
Enter a unique name for each entry here for easy identification. The
name can consist of up to 13 characters.
Medium type for connection
Choose the type of medium to be used for the connection:
z LAN
for connections over Ethernet LAN
z WLAN
for connections over wireless LAN
z ISDN 1B
for ISDN connections over one B-channel with 64 kBit/s
VideoJet 10 ISDN
19
ISDN-configuration with web browser
z ISDN 2B
for ISDN connections over two B-channels with 128 kBit/s
Phone entry index number
The index number is generated automatically and can not be
changed.
Dial up phone number
Enter here the phone number for connections over ISDN.
Destination IP address
Enter here the IP address of the receiver. Make sure to use the correct IP address regarding the chosen medium type for connection.
Remote login name
When the remote device is protected with a password you must
enter the corresponding password level service, user or live here.
When you use ISDN PPP and the remote device is not protected
with a password you have to insert default as remote login name.
Note
Find more information on password protection and password levels
in the manual of the respective device.
Remote login password
Enter here the corresponding password for the remote device if
necessary.
When you use ISDN PPP enter the remote login name here again.
Encoder for connection
Choose here which of the two encoder of the VideoJet 10 ISDN is
to be the source for the alarm connection.
Alarm connection
list
20
You can programme up to 10 alarm connections that are listed in
this section together with information on the parameter settings for
each entry. In case of an alarm, a connection is established to the
first available remote device out of the assigned destinations.
VideoJet 10 ISDN
ISDN-configuration with web browser
)
Click the button Add. The window Add new alarm entry is opened
and you can create a new list entry.
or
)
Mark a list entry and click the button Edit. The window Edit alarm
entry is opened and you can edit the settings for the chosen entry.
)
)
)
Make the necessary settings.
Save the changes you have made by clicking the Apply button or
Stop any changes from being activated by clicking on the Cancel
button.
or
)
Mark a list entry and click the button Delete. The chosen list entry
is deleted.
In the windows Add new alarm entry resp. Edit alarm entry you
can set the following parameters:
Alarm connection entry name
Enter a unique name for each entry here for easy identification. The
name can consist of up to 13 characters.
Alarm entry index number
The index number is generated automatically and can not be
changed. In the Alarm connection state section each list entry
regarding this alarm connection is headed by this index number.
Start time range for alarm
You can schedule periods for the alarm connection entry to be
active. Enter here day, hour and minute as start time for this period.
Stop time range for alarm
You can schedule periods for the alarm connection entry to be
active. Enter here day, hour and minute as stop time for this period.
Note
00:00 as start time means the period starts with the first second of
the chosen day; 23:59 as stop time means the period stops with the
last second of the chosen day.
VideoJet 10 ISDN
21
ISDN-configuration with web browser
Alarm trigger sources
You can choose out of seven alarm trigger sources, more than one
choice is possible:
z Master alarm
Connection setup is triggered by master alarm.
z Alarm input
Connection setup is triggered by an external alarm input.
z LAN loss
Connection setup is triggered by loss of the LAN connection.
z WLAN loss
Connection setup is triggered by loss of the wireless LAN connection.
z Motion alarm
Connection setup is triggered by motion alarm.
z Video loss
Connection setup is triggered by loss of the video signal.
z Unified picture
Connection setup is triggered by too little contrast in the video
picture.
Alarm activation type
Here you can specify the behavior of the VideoJet 10 ISDN regarding the connection setup.
Select the parameter Auto-connection if you want a constant connection independent of special alarms.
With the parameter Follows trigger a connection is established as
long as one of the defined triggers is active and will be cut off automatically when the alarm stops.
With the parameter Alarm connection a connection is established
with the triggering of an alarm and is only be cut off manually either
from the remote device or locally.
Connection destinations
You can enter up to five destinations and define the contact behavior. The destinations are contacted one after the other until a connection is established successfully:
22
VideoJet 10 ISDN
ISDN-configuration with web browser
z Connection list entry:
Choose here the desired destination. The list automatically provides all phone entry names stored in the Phone list destinations section.
z Redials:
Enter the number of redials that are to be made before trying the
next destination for connection setup.
z Continue after:
Choose here the period after which a new attempt for connection
setup is to be started.
Number of retry all connections
Choose here how many times the entire list is to be executed.
Alarm connection
state
In this section information on the state of alarm connections is listed
automatically. Each status message is headed by the index number
of the regarding alarm entry for easy identification.
ISDN connections This section shows whether an ISDN connection is set up and what
type of connection is established.
ISDN channels
When an ISDN connection over one B channel is established, the
B1 button is marked, in case of a two B channels connection the B2
button is marked.
You can easily cut any ISDN connection clicking the button Disconnect ISDN in order to avoid unneccessary costs.
VideoJet 10 ISDN
23
ISDN-configuration with web browser
Configuration page: ISDN/PPP settings
In the section PPP configuration you can set the parameters for
point-to-point connections over ISDN.
ISDN MSN number
When using ISDN connections the device must be assigned an
MSN (Multi Subscript Number). This number is the correct telephone number of the device, i.e. only incoming calls addressing this
number will be answered by the device.
With the default setting 0 all incoming calls will be answered by the
device.
PPP server IP address
Enter here the IP address for PPP connections over ISDN. The
entered IP address is the address assigned to the VideoJet 10
ISDN when the connection is established. The following IP address
is assigned to the remote device. In this example (see screenshot)
for any PPP ISDN connection 192.168.0.10 is the IP address of the
VideoJet 10 ISDN and 192.168.0.11 is the one for the remote
device.
24
VideoJet 10 ISDN
ISDN-configuration with web browser
Function test
The VideoJet 10 ISDN provides a number of configuration possibilities. Therefore you should check it operates correctly after installing and configuring.
It is only possible to ensure that the VideoJet 10 ISDN will operate
correctly in an alarm situation this way.
Check for the following features:
z the VideoJet 10 ISDN can be remotely dialled up
z the VideoJet 10 ISDN transmits the required data
z the VideoJet 10 ISDN reacts to alarm events in accordance with
the configuration
z where applicable, that the control of peripheral equipment is
possible
VideoJet 10 ISDN
25
ISDN-configuration with web browser
26
VideoJet 10 ISDN
5
Operation
Operation with MS Internet Explorer
The reception of live video images sent from the VideoJet 10 ISDN
is possible on a computer with Microsoft Internet Explorer installed
(version 5.5 or higher).
Note
In order to decode live video images, the required special ActiveX
control must be installed on the computer. The latest version of the
ActiveX control can be obtained from VCS customer service or from
the Internet via the download site under www.vcs.com.
Instructions for the operation of the web browser will be found under
the online help of the web browser.
System
requirements
z Microsoft Internet Explorer (version 5.5 or higher)
z Monitor resolution 1024 × 768 pixels
z Access to network (Intranet or Internet)
Note
Make sure the graphic card is set to a color depth of 16 or 32 Bit
and the Microsoft Virtual Machine is installed on your computer.
MPEG decoder
installation
If no video images are displayed when MPEG-4 is selected, installation of a current MPEG decoder is probably necessary. Suitable
software for this can be found on the supplied program CD from
VCS.
VideoJet 10 ISDN
27
Operation
)
Insert the CD into the CD-ROM drive of the computer. The CD
runs automatically. If the CD does not start automatically, open the
root directory of the CD in Windows Explorer and double click on
MPEGAx.exe.
)
Follow the onscreen instructions.
Establishing
the dial-up
connection
To connect a PC to the VideoJet 10 ISDN over a dial-up connection
you need to integrate an ISDN adapter to your PC and install the
appropriate drivers.
For better performance the adapter should be able to use both Bchannels.
Note
For information on adapters and drivers please refer to the documentation released by the respective manufacturer.
Before you can set up a dial-up PPP connection to the VideoJet 10
ISDN you need to perform the following steps (with MS Windows
XP):
28
)
)
Open the Network connections window.
)
As Network Connetion Type choose Connect to the network at
my workplace.
)
)
As Network Connection choose Dial-up connection.
)
)
)
Enter a name for the connection.
)
Enter default both as user name and as password.
Click on Create a new connection to add a new network connection using the New Connection Wizard.
Activate the necessary drivers for the ISDN-channels of your connection, e.g. NDIS Wan CAPI driver.
Enter the telephone number of the VideoJet 10 ISDN.
Finish the New Connection Wizard. The window Connection
with... will be opened.
VideoJet 10 ISDN
Operation
)
Check the telephone number and click on the button Dial to connect to the VideoJet 10 ISDN.
The connection is established. To see the live video you have to use
the web browser:
)
)
Start up the web browser.
For the URL, enter the PPP server IP address of the VideoJet 10
ISDN. If the IP address refers to a transmitter the Livepage with the
video image will be displayed.
If the connection is not established, the selected transmitter is
already occupied with a different destination. Depending upon network configuration and individual units, a maximum of five receivers
can receive images simultaneously from one transmitter.
Detailed information on receivers you find starting on page 39.
Note
The dial-up connection is not cut by closing the browser window!
In order to avoid unnecessary costs you have to tear down the
ISDN connection manually clicking on the respective icon of your
PC when you don’t need the connection any more.
VideoJet 10 ISDN
29
Operation
Image quality
With established connections, the video image is displayed in the
middle of the browser window. Depending upon configuration, other
information may also appear in the display (see chapter 5 of the
VideoJet 10 manual).
The VideoJet 10 ISDN provides either a live image (MPEG-4 format) or single video frames in JPEG format.
)
Click on the link MPEG-4 in the navigation bar at the top of the
screen in order to display or decode the video sequences in the corresponding image format
or
)
click on the link M-JPEG in the navigation bar at the top of the
screen in order to display or decode the single video frames in the
corresponding image format.
)
Above the video image, click on one of the links 352x288 or
704x576, to display the image in the selected resolution.
Alarm
In the event of an alarm, the alarm symbol is displayed in red along
with the video image. The display of alarms and other details
depends on the configuration of the unit (see chapter 5 of the
VideoJet 10 manual).
Output
Depending upon configuration, equipment can be switched by the
relay of the VideoJet 10 ISDN (e.g. a floodlight or door opener).
)
30
To activate the relay output, click on the relay symbol beside the
video image. The symbol will be displayed in red when the relay is
activated.
VideoJet 10 ISDN
Operation
Control functions
Possibilities for the control of peripheral equipment
(e.g. pan and tilt heads) are dependent upon the
installed equipment type and on the configuration
of the VideoJet 10 ISDN.
If a controlled unit is connected to a VideoJet 10
ISDN and configured, the active elements for the
control of the peripheral unit (e.g. a dome camera)
will be displayed alongside the video image.
Panorama view
Using a Sony camera EVI-D100 or EVI-D30/31 you can display a
panorama of the site. To do so the parameter Panorama view on
live page resp. Show panorama view on the Livepage configuration page has to be activated (see chapter 5 of the VideoJet 10
manual).
Each time the Livepage is called up automatically a panorama of
the site consisting of 5 snapshots is generated and displayed above
the live picture.
The snapshots can be updated anytime by clicking into the pictures
with the right mouse button and selecting Start scan.
VideoJet 10 ISDN
31
Operation
The update can be canceled by selecting Stop scan out of the
same menu.
32
VideoJet 10 ISDN
Operation
Storing snapshots
It is possible to store individual images from the current video
sequence in the Livepage in JPEG format on the computer hard
drive.
)
Image resolution
Click on the symbol Snapshot. The image will be stored. The storage location is specified during configuration of the unit (see
chapter 5 of the VideoJet 10 manual).
Individual images can be displayed at different resolutions when the
snapshot is taken entering a command into the Internet address
field. To do so just append the corresponding parameter to the command snap.jpg:
snap.jpg?JpegSize=XS
128 × 96 pixels
snap.jpg?JpegSize=S
176 × 144 pixels
snap.jpg?JpegSize=M
352 × 288 pixels
snap.jpg?JpegSize=XL
704 × 576 pixels
Without this additional parameter, the image size will be 352 × 288
pixels.
)
In the field for the Internet address (URL), enter the IP address of
the VideoJet 10 ISDN, followed by the command /snap.jpg
(for example: http://192.168.0.12/snap.jpg).
)
Press the return key on the computer. A single frame image will be
displayed in a new window.
)
Using the mouse onscreen, press the right mouse button and select
the command Save image as... .
)
Store the single image in the required format under a new name.
VideoJet 10 ISDN
33
Operation
Storing video sequences
You can store video sequences either on the hard drive of your
computer or locally on the device. For the local recording via the
CompactFlash interface you can use standard CompactFlash cards
or MicroDrives with a capacity of up to 1 GB. The video sequences
are stored in MPEG format.
)
Click on the symbol MPEG Recording to start recording a video
sequence. The storage location depends on the configuration of the
VideoJet 10 ISDN (see chapter 5 of the VideoJet 10 manual).
The recording starts immediately. While storing the red dot
in the symbol MPEG Recording is blinking.
)
Click on the symbol MPEG Recording once more to stop the
recording.
Note
Use the VCS MPEG Player to display the recorded video
sequences. You can find the latest version of the MPEG Player on
the supplied software CD. It is also available from your VCS service
centre or from the Internet via the download site under
www.vcs.com.
For further information on installing the MPEG decoder see
page 27.
Image resolution
34
Video sequences will be recorded with the resolution specified for
the encoder that is chosen as source for the Livepage video (see
chapter 5 of the VideoJet 10 manual).
VideoJet 10 ISDN
Operation
Harddisk activity
When a program is running in the background to make an automatic recording on the storage medium of the VideoJet 10 ISDN,
the
hard disk symbol changes to act as an indicator.
The hard disk symbol is animated to show that recording is in
progress. When recording is not taking place then the symbol
remains still:
Playback of recorded sequences
To play back recorded video sequences click on the Media-Replay
link available on the Livepage or Expert Mode page at the top of the
screen.
VideoJet 10 ISDN
35
Operation
Choosing the
sequence
First you have to select under Partition name the partition the
recorded sequence is on.
All sequences stored on the selected partition will be listed. For
each sequence you will see a recorded order number, the start and
stop times of the recording, the length of the recording, and the
number and type of alarms captured during the sequence.
Click on any of the listed sequences to start the playback of that
recording in the viewing window.
Playback control
Below the video window you can see a time slice for easy orientation. After loading the HDD-Replay page the blue bar is showing the
current day, week and year and a time scale with two-hours interval.
When a special sequence was selected the regarding time section
is shown in the lower bar, the selected sequence is symbolized by
a blue mark with a green border. The yellow slider gives the position
of the currently replayed picture within the sequence.
The time slice provides various possibilities to navigate within and
inbetween the sequences:
36
)
Change the time section displayed by clicking on the << or >> button or by moving the blue bar to the left or to the right with the
mouse button held down.
)
Change the graduation by clicking on the ’Zoom-in’ or ’Zoom-out’
symbol. Select between intervals of three days, one day, two hours,
five minutes or one minute.
)
Select another sequence for replay by clicking in the corresponding
blue mark. The green border will signify the active sequence.
)
You can start the replay also by positioning the mouse on the yellow
strip, clicking on the mouse button and holding it down while moving
the strip on the video bar to the time position you desire. Detailed
information on date and time is provided by the indicator below the
video bar.
VideoJet 10 ISDN
Operation
You can control playback of the sequence using the buttons below
the video window.The buttons have the following functions:
Jump to the beginning of the video recording,
jump to the previous alarm
Fast rewind,
rewind in intervals of 0.5 sec (only in Pause mode)
Stop
Play
Pause
Fast forward,
forward frame by frame (only in Pause mode)
Jump to the end of the video recording,
jump to the next alarm
With the slider you can control
the velocity of replay. 100%
gives regular velocity, lower values decelerate, higher values accelerate.
Red strips on the video bar indicate alarm activations. You can
quickly jump to the alarm activations using the control buttons or the
yellow slider.
VideoJet 10 ISDN
37
Operation
Back-up
You can save video recordings that are on the storage medium of
the VideoJet 10 ISDN directly to the hard drive of your computer as
back-up.
First choose which sequence you would like to save to your computers hard drive as described above. The following buttons are for
recording information directly to your computers hard drive:
Back-up of a sequence directly to the hard drive of your
computer
Back-up of a snapshot to the hard drive of your computer
)
Start the playback of the sequence you want to back-up as a whole
or in parts.
)
Click on the symbol for back-up of a sequence. Storing starts at
once and is indicated by slowly blinking of the symbol on the button.
)
Click on the symbol for back-up of a sequence once more to stop
recording.
You can repeat the procedure several times within a sequence if
you want to back-up several sections out of a longer sequence.
)
Click on the button for snapshots to store individual video frames
out of the sequence replayed to the hard drive of your computer.
The snapshots taken will be displayed immediately in the area to
the left.
The location of the recordings on the hard drive can be selected in
the settings of the VideoJet 10 ISDN (see chapter 5 of the VideoJet
10 manual).
38
VideoJet 10 ISDN
Operation
Hardware connections
between VideoJet units
A VideoJet 10 ISDN with connected camera as a transmitter and a
VideoJet 10 ISDN with connected monitor as a receiver can be
linked together simply over an ISDN network or a Wireless LAN. It
is thus possible to link large distances with little installation or
cabling effort.
Installation
With the appropriate configuration the VideoJet 10 ISDN units can
automatically establish a connection with each other. This assumes
that, as a minimum, they are linked into a closed network. To install
the units proceed as follows:
)
Connect the units into the closed network using Ethernet cables,
ISDN connections or a Wireless LAN card.
)
Connect power to the units.
Note
Make sure the units are configured for the characteristics of the network environment and that the transmitting unit, under the parameter Dial up phone number, is set for the telephone number of the
receiver (see page 20).
Connection setup
It is possible to configure the connection using a Terminal software
or by appropriate configuration via the alarm input. After a brief
pause, the live image from the camera will be displayed on the connected monitor.
Note
It is only possible to establish the connection using the alarm input
if the settings on the configuration page Alarm connections are
set properly (see page 18).
VideoJet 10 ISDN
39
Operation
)
Activate the alarm input,
or
)
start the terminal program (see chapter 4 of the VideoJet 10 manual); enter the command I to switch to the IP menu.
)
In the IP menu enter the command r to change the remote IP
address and enter the IP address of the device that is to be connected.
)
In the IP menu enter the command a to activate the automatic connection set up.
As an alternative you can set up a connection using the Microsoft
Internet Explorer:
)
)
Start up the web browser.
For the URL, enter the IP address of the VideoJet 10 ISDN receiver.
The Decoder connection page will be displayed.
After the start the VideoJet 10 ISDN receiver automatically scans
the network for available transmitters.
)
40
Select a transmitter out of the Address list. A JPEG snapshot of the
chosen video source will be displayed in the Preview window.
VideoJet 10 ISDN
Operation
)
Click on Connect -> to start the display on the connected monitor.
A JPEG snapshot of the connected video source will be displayed
in the Monitor window.
The buttons on top of the Monitor window allow easy navigating
comparable to the Internet Explorer:
)
Click on the arrow buttons to switch between connections that had
already been established during the session.
)
)
Click on the button with the red cross to cut off existing connections.
)
Click on the button with the house symbol to reestablish the connection that was active when the web page was loaded.
Terminate
connection
Click on the button with the green arrows to refresh the JPEG snapshot in the Monitor window.
Termination of the connection is possible with the aid of the terminal
program or with the web browser.
)
Start the terminal program (see chapter 4 of the VideoJet 10 manual); enter the command I
to switch to the IP menu.
)
In the IP menu enter the command a to deactivate the automatic
connection set up,
or
)
)
start up the web browser.
)
Click on the button with the red cross on the top of the Monitor window to stop the display on the connected monitor.
For the URL, enter the IP address of the VideoJet 10 ISDN receiver.
The startpage will be displayed.
VideoJet 10 ISDN
41
Operation
Operation with Software-Decoder
The video server VideoJet 10 ISDN in association with the program
VIDOS comprises a powerful systems solution.
VIDOS is a program for the operation, control and administration of
CCTV installations (e.g. surveillance systems) at remote locations.
It runs under the Windows operating system. It primarily provides
decoding of video, audio and control data received from a remote
transmitter.
During operation of a VideoJet 10 ISDN with VIDOS, a multiplicity
of
operating and configuration options are offered. For details, see the
documentation provided with the software.
42
VideoJet 10 ISDN
6
Appendix
Faults – possible causes and remedy
If a fault can not be cleared, please contact the Customer Service
from VCS ([email protected]).
The version numbers of the internal processors can be shown on a
special page. Note this information before contacting the Customer
Service.
)
In the address field of the browser behind the IP address of the unit,
enter /version.htm (e.g. 192.168.0.12/version.htm).
)
Make a note of all details or print out the page.
The following table is intended to help identify reasons for malfunctions and, where possible, to suggest remedies.
Problem
Possible causes
Suggested remedy
The device doesn’t
accept an incoming
ISDN call.
Faulty MSN.
Check the MSN.
VideoJet 10 ISDN
43
Appendix
LEDs
The VideoJet 10 ISDN video server is equipped with several LEDs
which indicate the operating status and can give indications of possible faults:
Power
Not lit:
Device is switched off.
Flashing green:
Device is switched on.
Lit red (temporary): Device is starting.
Lit red (permanent): Device is out of order.
Flashing green/red: Upload failed.
I
Lit red:
Alarm input activated.
Not lit:
Alarm input inactive.
Lit green:
Relay switched.
Not lit:
Relay inactive (rest state).
Lit green:
Physical connection to the network
established.
Not lit:
No network connection.
Flashing yellow:
Data transmission via the network.
Not lit:
No data transmission.
B1
Lit orange:
With 1- and 2-channel ISDN connection.
B2
Lit orange:
With 2-channel ISDN connection.
O
L
T
44
VideoJet 10 ISDN
Appendix
Glossary
A few brief explanations of the most important terms and abbreviations from the field of communications technology can be found
below.
10/100 Base-T
IEEE 802.3 specification for 10 or 100 Mbit/s
Ethernet
ARP
Address Resolution Protocol
Baud rate
Data tramsmission rate
bit/s
Bit per second, the actual data rate
CIF
Common Intermediate Format, video format with
352 × 288 pixels
DHCP
Dynamic Host Configuration Protocol: Protocol
for dynamic allocation of IP addresses
DNS
Domain Name Service
FTP
File Transfer Protocol
Full duplex
Simultaneous data transmission in both directions
G.711, G.728
Standard audio coding algorithms defined
by ITU-T
H.224
Standardized protocol for data communication
and remote control
H.261
Standard motion video coding algorithm defined
by ITU-T
HTTP
Hypertext Transfer Protocol
HTML
Hypertext Markup Language
Hub
Multiplexer to connect a number of Ethernet units
to a 10 BASE-T segment
ICMP
Internet Control Message Protocol
ID
Identification: machine readable number or name
IEEE
Institute of Electrical and Electronics Engineers
IGMP
Internet Group Membership(management) Protocol
VideoJet 10 ISDN
45
Appendix
46
Internet protocol
The main protocol used in the Internet. Forms in
conjunction with the Transfer Control Protocol
(TCP) the TCP/IP
IP
See Internet Protocol
IP address
A 4-byte number uniquely defining each unit on
the Internet. Usually written in dotted-decimal
notation with periods separating the bytes
ISDN
Integrated Services Digital Network
ISP
Internet Service Provider
JPEG
Procedure to encode still images (Joint Photographic Experts Group)
kBit/s
Kilobit per second, the actual data rate
LAN
See Local area network
Local area network
A communications network serving users within
a limited geographical area, such as a building or
a campus, controlled by a network operating system and using a transport protocol.
MAC
Media Access Control
MPEG-1
Video compression standard, initially hardwaredependent, now also possible with software.
MPEG-2
Enhanced video compression standard, highlevel compression facilitates images with studio
quality, meanwhile established as broadcasting
standard.
MPEG-4
Further development of MPEG-2, used for transmission of audiovisual data with very low transfer
rates (e.g. via Intenet).
MSN
Multiple Subscriber Number
NAT
See Network Address Translator
Netmask
A mask that explains which part of an IP address
is the network address and which part comprises
the host address. It is usually expressed in dotted-decimal notation, e.g. 255.255.255.192
Network address
translator
A proposal for IP address reuse, where the local
IP address is mapped to a globally unique
address.
VideoJet 10 ISDN
Appendix
Parameter
Values used for the configuration of the network
system
A video picture that has been digitized at a given
resolution
PPP
See Point-to-point protocol
Point-to-point
protocol
A protocol suite for transmitting datagrams over
serial Point-to-Point links
QCIF
Quarter CIF, video format with 176 × 144 pixels
Server push
A continuous stream send from the transmitter to
the web browser
SNMP
Simple Network Management Protocol
Subnet mask
See Netmask
TCP
Transfer Control Protocol
UDP
User Datagram Protocol
URL
Uniform Resource Locator
UTP
Unshielded Twisted Pair
V.24, RS-232
A list of definitions for the transmission between
DTE and DCE
WAN
See Wide area network
Wide area network
A long distance link used to extend or connect
remotely located local area networks
Wireless LAN,
WLAN
Radio linked local area network
VideoJet 10 ISDN
47
Appendix
Specifications
Operating voltage
12 ... 24 V DC, power supply included
Power consumption
approx. 10 W
Network interface
Ethernet 10/100 Base-T
auto sensing, RJ45;
RF-interface 802.11b via CF card
interface
Data rate
9.6 kBit/s ... 4 MBit/s (MPEG-4)
Audio data rate
80 kBit/s
Audio sampling rate
8 kHz
Video standards
PAL, NTSC
Video resolution
704 × 576 pixels
704 × 288 pixles
352 × 288 pixels
176 × 144 pixels
Overall delay
100 ms
Video coding protocols
ISO/IEC 14496 (MPEG-4)
Audio coding protocols
G.711; 300 Hz - 3.4 kHz
Network protocols
RTP, RTCP, UDP, TCP, IP, HTTP,
IGMP, ICMP, ARP, SNMP
Video input (sender only)
1 × BNC jack 0.7 - 1.2 Vp-p,
75 Ohm switchable, PAL/NTSC
Video output (receiver only) 1 × BNC jack 1.0 Vp-p,
75 Ohm, PAL/NTSC
48
Audio input
1 × mono line, stereo jack 3.5 mm,
1 Vp-p, 50 kOhm
Audio output
1 × mono line, stereo jack 3.5 mm,
1 Vp-p, 60 mW, min. 8 Ohm
Data interfaces
1 × RS232/RS422/RS485,
bidirectional, 9-pin sub-D,
1 × RS232, 9-pin sub-D
VideoJet 10 ISDN
Appendix
Alarm input
1 × clamp (non-isolated closure contact type), max. 24 V, max. activation
resistance 10 Ohm
Analog sensor input
0 - 5 VDC (e.g. temperature sensor)
Relay output
1 × clamp, 30 Vp-p, 1 A
ISDN interface
RJ45, S0-Basic-rate
Storage media
CompactFlash card type I and II,
Microdrive
LED displays
5 × LED (Power, Alarm In, Alarm Out,
Link, Traffic)
Operating conditions
temperature: 0 ... +50 °C
relative humidity: 20 ... 80 %,
non-condensing,
altitude 0 ... 3,000 m
Storage conditions
temperature: –20 ... +60 °C
relative humidity: 0 ... 95%,
non-condensing,
max. altitude 10,000 m
Regulations
CE: IEC 60950; UL 1950; J 60950;
AS/NZS 3548; EN 55103-1, -2;
EN 55130-4; EN 55022; EN 55024;
EN 61000-3-2, EN 61000-3-3;
FCC 47 CFR Ch. 1 Part 15
Dimensions (w × h × d)
143 × 33 × 135 mm
5.63 × 1.3 × 5.31 inches
Weight
approx. 400 g (without power supply)
VideoJet 10 ISDN
49
Appendix
50
VideoJet 10 ISDN
Index
A
ActiveX 27
B
Back-up 38
B-channel 17, 19
Browser window 30
Buttons 37
C
Connection 29
Conventions 3
D
D-channel 17
Display recorded video sequences 34
E
Electromagnetic Compatibility 4
F
Front panel 15
Function test 25
Functional overview 10
VideoJet 10 ISDN
51
Index
I
Identification 5
Image resolution 33, 34
Installation 8
ISDN 17
L
Live video images 27
Low-Voltage Guideline 4
M
Main functions 13
Maintenance 8
MPEG Playe 34
MSN 18
Multicast Function 11
O
Operation 7
P
PPP 17, 20
R
Rear panel 14
Receiver 11
Regulations 3
Remote control 11
Repair 8
Requirements 9
52
VideoJet 10 ISDN
Index
S
snap.jpg 33
Specifications 48
Symbols 3
T
Test 25
Typographic conventions 4
U
URL 29, 40, 41
VideoJet 10 ISDN
53
Index
54
VideoJet 10 ISDN
VideoJet 10 ISDN
55
VCS Video Communication Systems AG
Forchheimer Straße 4 , 90425 Nürnberg Germany
Phone: +49 911 93456 0 Fax: +49 911 93456 66
http://www.vcs.com
ID-Nr.: 2925/0504/e/1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
