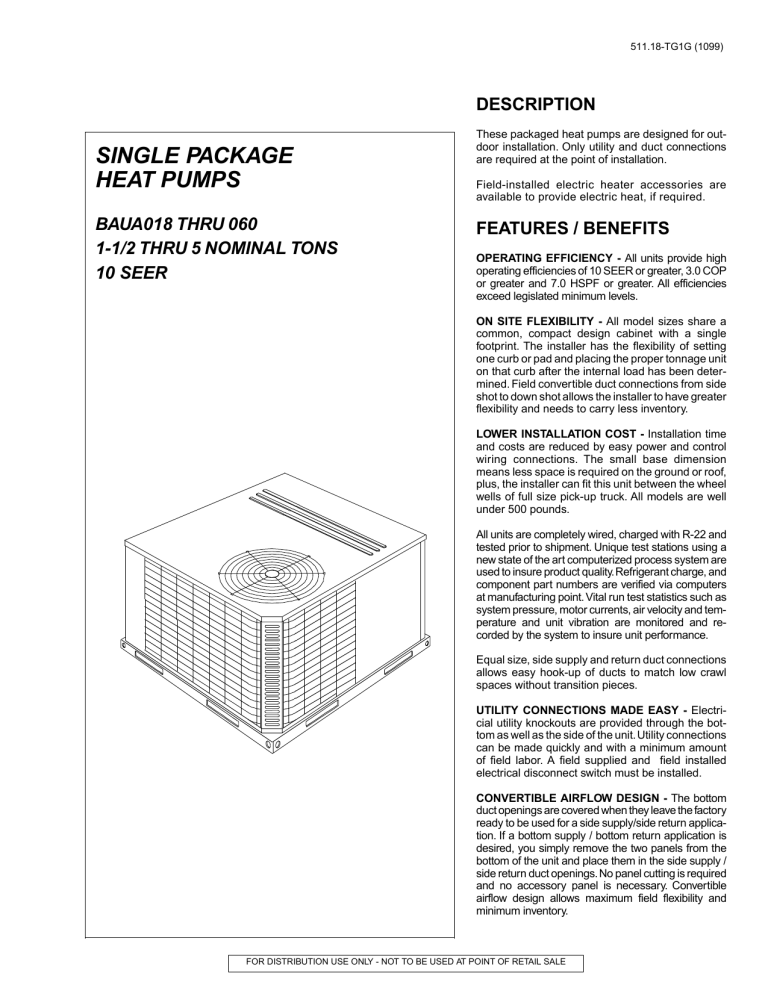

SINGLE PACKAGE

HEAT PUMPS

BAUA018 THRU 060

1-1/2 THRU 5 NOMINAL TONS

10 SEER

DESCRIPTION

These packaged heat pumps are designed for outdoor installation. Only utility and duct connections are required at the point of installation.

Field-installed electric heater accessories are available to provide electric heat, if required.

FEATURES / BENEFITS

OPERATING EFFICIENCY - All units provide high operating efficiencies of 10 SEER or greater, 3.0 COP or greater and 7.0 HSPF or greater. All efficiencies exceed legislated minimum levels.

ON SITE FLEXIBILITY - All model sizes share a common, compact design cabinet with a single footprint. The installer has the flexibility of setting one curb or pad and placing the proper tonnage unit on that curb after the internal load has been determined. Field convertible duct connections from side shot to down shot allows the installer to have greater flexibility and needs to carry less inventory.

LOWER INSTALLATION COST - Installation time and costs are reduced by easy power and control wiring connections. The small base dimension means less space is required on the ground or roof, plus, the installer can fit this unit between the wheel wells of full size pick-up truck. All models are well under 500 pounds.

All units are completely wired, charged with R-22 and tested prior to shipment. Unique test stations using a new state of the art computerized process system are used to insure product quality. Refrigerant charge, and component part numbers are verified via computers at manufacturing point. Vital run test statistics such as system pressure, motor currents, air velocity and temperature and unit vibration are monitored and recorded by the system to insure unit performance.

Equal size, side supply and return duct connections allows easy hook-up of ducts to match low crawl spaces without transition pieces.

UTILITY CONNECTIONS MADE EASY - Electricial utility knockouts are provided through the bottom as well as the side of the unit. Utility connections can be made quickly and with a minimum amount of field labor. A field supplied and field installed electrical disconnect switch must be installed.

CONVERTIBLE AIRFLOW DESIGN - The bottom duct openings are covered when they leave the factory ready to be used for a side supply/side return application. If a bottom supply / bottom return application is desired, you simply remove the two panels from the bottom of the unit and place them in the side supply / side return duct openings. No panel cutting is required and no accessory panel is necessary. Convertible airflow design allows maximum field flexibility and minimum inventory.

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

2

511.18-TG1G

STANDARD FEATURES and BENEFITS - continued

CONDENSATE PAN - A non-corrosive, long-lasting, watertight pan is positioned below the evaporator coil to collect and drain all condensate. Less collection of stagnate condensate will build-up. The condensate pan conforms to ASHRAE 62-89 standards (Ventilation for Acceptable Indoor Air Quality).

condenser coil muffle the normal fan motor and compressor operating sounds. The unique formed base pan also aids in sound alterations with it’s "Super-Structure" design. This design strategically places embossments in the pan for optimum strength and rigidity.

CONDENSATE DRAIN - The heavy duty,

3

4

inch NPTI copper connection is more tolerable during installation and is more durable over time. The connection is rigidly mounted to assure proper fit and leak tight seal.

FAN SYSTEM - All models operate over a wide range of design conditions with a 3-speed direct-drive fan motor. These units easily match all types of applications and provides greater on site flexibility to match comfort requirement.

DURABLE FINISH - With a heavy duty cabinet made of powder-painted, galvanized steel the neutral color blends into surrounding areas. The powered paint, provides a better paint to steel bond, which resists corrosion and rust creep. The special primer formulas and glossy earth tone finish insure less fading when exposed to sunlight and offers a more attractive on site appearance. This paint finish exceeds

ASTM-B117 standards for 750 hours salt spray rating, the highest in the industry.

SIMPLE CONTROL CIRCUIT - A low voltage printed circuit board contains a low voltage terminal strip. The electrical control box is not located in the compressor compartment. All wiring internal to the unit is color/number coded.

CONTROLS - Reliable time-temperature defrost control provides defrost including field selectable time periods between cycles (30, 60 and 90 minutes). factory set at 30 minutes.

Defrost control also provides an "X" terminal to provide a 24 volt signal for room thermostat "LED" indication of unit lockout, plus built in 5 minute anti-short cycle protection.

FULL PERIMETER BASE RAILS - The easily removable base rails provide a solid foundation for the entire unit and protects the unit during shipment. The rails provide fork lift access from all sides, and rigging holes are also provided so that an overhead crane can be used to place the units on a roof. On applications when the unit is placed on a pad, the base will keep the unit off the pad to deter corrosion. On applications where height is limited, the 2

3

8

inch high base rails may be removed on location.

PROTECTED COMPRESSOR - The compressor is internally protected against high pressure and temperature. This is accomplished by the simultaneous operation of high pressure relief valve and a temperature sensor which protect the compressor if undesirable operating conditions occur.

EXCLUSIVE COIL DESIGN - Grooved copper tubes and enhanced aluminum fin construction improves heat transfer for maximum efficiency and durability.

MORE ATTRACTIVE APPEARANCE - A single piece "Water

Shed" top cover containing a top discharge condenser fan arrangement requires less square footage on installation and provides a wider variety of installations. The one piece design adds greater water integrity. Rounded corners with water drip edges add to the attractive appearance. The cabinet panels have a non-fibrous insulation that reduces insulation fibers into conditioned area.

LOW MAINTENANCE - Long life, permanently lubricated condenser and evaporator fan motor bearings need no annual maintenance adding greater reliability to the unit. Blower assembly can be easily removed for cleaning by the unique

"Slip Track" slide-out blower assembly.

TOP DISCHARGE - The top discharge condenser fan does not disrupt neighboring areas and does not dry-out vegetation surrounding the unit. The warm air from the top mounted fan is blown up away from the structure and any landscaping. This allows compact location on multi-unit applications.

SECURED SERVICE ACCESS PORTS - Protected, externally mounted, re-usable service access ports are provided on both the high and low lines for ease of evacuating and charging the system.

OUTDOOR COIL GRILLE - A multi-piece totally enclosed, rigidly mounted outdoor coil grille provides protection from objects and personal after installation and provides protection during transit and installation.

EASY SERVICE ACCESS - A large, single hinged panel covers the electrical controls and makes servicing easy. The blower compartment has an additional large panel with a built-in handle tab. Removing this panel will allow the blower assembly to slide-out for easy removal for maintenance and ease of trouble shooting.

LOW OPERATING SOUND LEVEL - The upward air flow carries the normal operating noise up and away from the living area. The rigid top panel effectively isolates any motor sound.

Isolator mounted compressor and the rippled fins of the

REPLACEMENT PARTS - The installer has no need to carry an inventory of unique parts or needs special training to replace any of the components parts for these units. All are easily obtained from Source 1 or other major part houses.

Unitary Products Group

511.18-TG1G

FIELD-INSTALLED ACCESSORIES

ECONOMIZER DOWN DISCHARGE / SUPPLY KIT - Modulating integrated economizer provides simultaneous operation between the mechanical cooling and economizer operation. Independent blade design insures proper control and less than 1% leak rate. Includes hood and mesh bird screen filter integrated into the hood, dry bulb sensor and relief damper. Separate field accessories of single enthalpy and dual enthalpy are also available.

SINGLE ENTHALPY SENSOR - Sensor replaces dry bulb sensor standard in economizer kit. Provides improved economizer operation by sensing the dry bulb temperature from outdoors plus the enthalpy content of the outdoor air.

DUAL ENTHALPY SENSOR - Additional sensor to single enthalpy sensor. Sensor senses both the return air temperature dry bulb and humidity in conjunction with the single enthalpy to determine the most economical mix. Single En-

thalpy sensor also required.

UPGRADE PRESSURE PACKAGE - Contains screw in type

High pressure, Low Pressure/Loss of Charge switch, freeze protection switch and lockout relay. Switches are placed onto existing scharder ports located in the unit by furnished adapters. When abnormal conditions are sensed through the pressure switches, the unit will lock out preventing any further operation until reset or problem is corrected. Package agency approved.

HAIL GUARD KIT - Kit contains protected grilles made of expanded aluminum grilles with full perimeter 1-1/2 inch frame. Sloped hoods are also included to assure maximum protection.

FILTER / FRAME KIT (Single Phase only) - Kit contains the necessary hardware to field install return air filters into the base unit. Pre-cut filter racks and appropriate cleanable standard size filters are shipped in one kit. (1" filter is supplied) This kit is available for single phase horizontal or vertical duct application only. Standard in all 3 Phase models.

MOTORIZED FRESH AIR DAMPER - Designed for duct mounted side supply/return and unit mounted down supply/return applications. Damper capable of providing 0% thru

50% of outdoor air (field supplied). Closes on power loss, includes hood and screen assembly.

RECTANGLE TO ROUND ADAPTERS - Kit includes one supply and one return air rectangle to round duct adapter. Adapters are preformed and designed to fit over current duct openings on the base unit. Transition is from15" square to 14" round.

ROOF CURBS - NRCA approved curbs provide proper fit to base unit for rooftop installations. Curbs are designed to be assembled through hinge pins in each corner. Kit also provides seal strip to assure a water tight seal. Eight and 14 inch high roof curbs are available.

MANUAL OUTDOOR DAMPER - Provides 0% thru 50% outdoor air capability (field adjustable). Designed for duct mounted side supply/return applications. Includes hood and screen assembly.

WALL THERMOSTAT - The units are designed to operate with

24-volt electronic and electro-mechanical thermostats. All units can operate with single stage heat / single stage cool thermostats - with or without the economizer.

LOW AMBIENT KIT - Kit provides necessary hardware to convert unit to operate in cooling cycle down to 0° F. Standard unit operation 45° F.

TRANSFORMER KIT (Single Phase only) - Kit provides necessary hardware to provide single phase models from factory furnished 40 VA transformer capability to 75 VA transformer capability.

ELECTRIC HEATERS - Each heater package provides easy installation of electric heat strips. Slide in design with plug in harness and agency approved. Heaters are available from 5.0

KW sizes and are designed for single point and dual connections.

TABLE OF CONTENTS

Description .......................................................................... 1

Features and Benefits.................................................. 1 & 2

Field-installed Accessories ................................................. 3

Ratings ................................................................................ 4

Physical Data ...................................................................... 4

Cooling Capacities - BUA018 ............................................. 5

Cooling Capacities - BUA024 ............................................. 6

Cooling Capacities - BUA030 ............................................. 7

Cooling Capacities - BUA036 ............................................. 8

Cooling Capacities - BUA042 ............................................. 9

Cooling Capacities - BUA048 ........................................... 10

Cooling Capacities - BUA060 ........................................... 11

Heating Capacities - BUA018 & 024................................. 12

Heating Capacities - BUA030 & 036................................. 13

Heating Capacities - BUA042 & 048................................. 14

Heating Capacities - BUA060 ........................................... 15

Application Data................................................................ 15

Additional Static Pressure Resistance ..............................15

Side and Bottom Supply Air Blower Performance ............16

Field Wiring Diagram.........................................................17

Electrical Data (basic unit) ................................................17

Electrical Data (cooling / electric heat) .............................18

Unit Dimensions ................................................................19

Center of Gravity ...............................................................20

Clearances ........................................................................20

Typical Applications ...........................................................21

Roof Curb Dimensions ......................................................22

Roof Curb Application .......................................................22

Typical Wiring Diagram (208/230-1-60) ............................23

Typical Wiring Diagram (208/230-3-60) ............................24

Typical Wiring Diagram (460-3-60 & 575-3-60).................25

Typical Wiring Diagram Notes ...........................................26

Typical Wiring Diagram Legend ........................................26

Mechanical Specification ......................................... 27 & 28

Unitary Products Group 3

511.18-TG1G

BACK AND BOTTOM

RETURN AIR

AND SUPPLY AIR

DUCT OPENING

DIRECT DRIVE

CONDENSER

FAN MOTOR

HIGHLY EFFICIENT ENHANCED

COPPER TUBE/ALUMINUM FIN

INDOOR COIL

HIGHLY EFFICIENT

ENHANCED COPPER

TUBE/ALUMINUM FIN

OUTDOOR COIL

4

DECORATIVE

PROTECTIVE

COIL GUARD

HIGH VOLTAGE

TERMINAL BLOCK

LOW VOLTAGE

TERMINAL BLOCK

LONG LASTING

POWDER PAINT

FINISH EARTH

TONE COLOR

HIGH EFFICIENCY

COMPRESSOR

RIGIDLY

MOUNTED

3-SPEED DIRECT DRIVE

BLOWER MOTOR WITH

SLIDE-OUT BLOWER ASSEMBLY

HEAVY GAUGE

REMOVABLE

BASE RAILS

RATINGS

MODEL

BUA

018

024

030

036

042

048

060

COOLING

CAPACITY

80 / 67-95

°

F

MBH

18.5

23.8

SEER

10.2

11.0

29.8

36.0

41.0

48.0

57.5

10.2

10.6

10.2

10.0

10.0

HSPF

SOUND

RATING

(dbels)

NET HEATING CAPACITY

@ 47

°

F @ 17

°

F

AVAILABLE ELECTRIC HEAT

NOMINAL CAPACITY KW

6.6

7.0

7.0

7.0

7.0

7.0

7.0

83

83

79

79

77

75

79

MBH

18.5

23.8

29.0

36.0

41.5

47.0

58.5

COP

3.0

3.0

3.0

3.0

3.0

3.0

3.0

MBH

9.3

12.1

14.7

19.2

20.8

22.0

35.0

COP

2.0

2.0

2.0

2.0

2.0

2.0

2.0

SINGLE PHASE

5.0, 7.5

5.0. 7.5. 10.0

5.0, 7.5, 10.0, 15.0

5.0, 7.5, 10.0, 15.0

5.0, 7.5, 10.0, 15.0

THREE PHASE

N / A

N / A

N / A

10.0, 15.0

10.0, 15.0

10.0, 15.0, 20.0, 25.0

10.0, 15.0, 20.0, 25.0

10.0, 15.0, 20.0, 25.0

10.0, 15.0, 20.0, 25.0

SEER = Seasonal Energy Efficiency Ratio - the total cooling output in BTU’s during a normal annual usage period for cooling divided by the total electric power input in watt-hours during the

same period.

COP = Coefficient of Performance - the total heating capacity provided by the refrigeration system, including circulating fan heat but excluding supplementary resistance (BTU’s per hour)

divided by the total electric input (watts) x 3.412.

HSPF = Heating Seasonal Performance Factor - the total heating output during a normal annual usage period for heating divided by the total electric power input during the same period.

(Based on Region IV minimum design heating requirement).

PHYSICAL DATA

MODELS

INDOOR

BLOWER

CENTRIFUGAL BLOWER (Dia. x Wd. in.)

FAN MOTOR HP (Three Speed)

ROWS DEEP

INDOOR

COIL

FINS PER INCH

FACE AREA (Sq. Ft.)

PROPELLER DIA. (in.)

OUTDOOR

FAN

FAN MOTOR HP

NOM. CFM TOTAL

ROWS DEEP

OUTDOOR

COIL

FINS PER INCH

CHARGE

FILTER

FACE AREA (Sq. Ft.)

REFRIGERANT 22 (lbs./oz.)

FACE AREA (Sq. Ft. / Qty. / Size)

COMPRESSOR HERMETIC Type, (Qty. = 1)

018

9 X 6

1

2

2

15

4.38

22

1

4

1,800

1

20

8.3

4 / 12

Recip

024

10 X 8

1

2

2

13

4.38

22

1

4

1.800

1

20

11.7

5 / 12

Recip

030

10 X 8

1

2

3

13

4.38

22

1

4

1,800

1

BUA

036

10 x 8 11 X 10 11 X 10 11 X 10

3

4

3

4

3

4

1

3 3 3 3

15

4.38

22

1

4

2,400

1

042

15

4.38

22

1

4

2,400

1

20

11.7

20

11.7

20

11.7

7 / 8 5 / 5

4.28 / 2 / 14" x 22"

5 / 5

Recip Recip Recip

048

16

5.62

22

1

4

2,800

1

16

16.4

9 / 0

Scroll

060

16

5.62

22

1

4

2,800

1

20

16.4

10 / 0

Scroll

Unitary Products Group

511.18-TG1G

COOLING CAPACITIES -

1-1/2 TON (BUA018)

Temperature of Air on

Outdoor Coil

85 °F

Air On Indoor Coil

450 CFM

WB

°

F

525 CFM

WB

°

F

600 CFM

WB

°

F

675 CFM

WB

°

F

750 CFM

WB

°

F

72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57

Net Cap

MBH

20.5 19.2 16.8 17.4 21.4 19.9 17.5 18.1 22.2 20.7 18.2 18.8 22.6 21.1 18.5 19.1 23.0 21.4 18.8 19.4

Total Power

Input kW

1.84 1.81 1.80 1.79 1.87 1.84 1.83 1.81 1.89 1.87 1.86 1.84 1.92 1.89 1.88 1.86 1.94 1.92 1.90 1.89

86 11.9 14.9 16.8 17.4 13.2 16.6 17.5 18.1 14.6 18.2 18.2 18.8 15.6 19.4 18.5 19.1 16.7 20.7 18.8 19.4

83 10.6 13.6 16.0 16.4 11.7 15.0 17.1 17.6 12.8 16.4 18.2 18.8 13.6 17.4 18.5 19.1 14.4 18.4 18.8 19.4

80 9.3 12.3 14.8 15.1 10.2 13.5 16.2 16.5 11.1 14.7 17.6 18.0 11.6 15.4 18.2 18.7 12.2 16.2 18.8 19.4

77 8.0 11.1 13.5 13.8 8.7 12.0 14.7 15.0 9.3 12.9 15.8 16.2 9.6 13.5 16.2 16.7 10.0 14.0 16.6 17.2

95 °F

74 6.7

9.8 12.2 12.5 7.1 10.5 13.1 13.5 7.6 11.2 14.1 14.5 7.6 11.5 14.2 14.7 7.7 11.7 14.3 15.0

71 8.5 10.9 11.3

9.0 11.6 12.0

9.4 12.3 12.7

9.5 12.2 12.7

9.5 12.1 12.7

68 7.2

9.6 10.0

7.5 10.1 10.5

7.7 10.6 11.0

7.5 10.2 10.7

7.3

9.9 10.5

Net Cap

MBH

Total Power

Input kW

19.4 17.5 15.0 15.0 20.3 18.3 15.7 15.7 21.2 19.1 16.4 16.4 21.7 19.6 16.8 16.8 22.2 20.1 17.2 17.2

1.98 1.94 1.90 1.90 2.01 1.97 1.92 1.93 2.03 1.99 1.94 1.95 2.06 2.02 1.97 1.98 2.09 2.04 1.99 2.00

86 11.4 14.2 15.0 15.0 12.8 15.8 15.7 15.7 14.2 17.5 16.4 16.4 15.5 18.8 16.8 16.8 16.7 20.1 17.2 17.2

83 10.1 12.9 14.8 14.8 11.3 14.3 15.6 15.6 12.5 15.8 16.4 16.4 13.5 17.0 16.8 16.8 14.5 18.3 17.2 17.2

80 8.9 11.6 13.6 13.6 9.8 12.8 15.0 15.0 10.7 14.0 16.4 16.4 11.5 15.0 16.8 16.8 12.2 16.0 17.2 17.2

77 7.6 10.3 12.3 12.3 8.3 11.3 13.4 13.5 9.0 12.3 14.6 14.6 9.5 13.0 14.8 14.8 10.0 13.8 14.9 15.0

74 6.3

9.0 11.0 11.0 6.7

9.8 11.9 11.9 7.2 10.5 12.9 12.9 7.5 11.0 12.8 12.8 7.8 11.6 12.7 12.7

71 7.7

9.7

9.7

8.3 10.4 10.4

8.8 11.1 11.1

9.0 10.8 10.8

9.3 10.5 10.5

68 6.5

8.4

8.4

6.7

8.9

8.9

7.0

9.4

9.4

7.0

8.8

8.8

7.1

8.2

8.3

Net Cap

MBH

Total Power

Input KW

18.0 15.9 13.9 13.8 18.7 16.5 14.4 14.3 19.4 17.1 14.9 14.8 19.9 17.5 15.3 15.2 20.4 17.9 15.7 15.6

2.11 2.04 1.99 2.00 2.14 2.07 2.02 2.03 2.17 2.10 2.05 2.05 2.20 2.13 2.08 2.08 2.23 2.16 2.11 2.12

86 10.9 13.4 13.9 13.8 12.3 14.8 14.4 14.3 13.6 16.3 14.9 14.8 14.9 17.1 15.3 15.2 16.2 17.9 15.7 15.6

105 °F

115 °F

125 °F

83 9.6 12.1 13.6 13.5 10.7 13.5 14.3 14.2 11.9 14.9 14.9 14.8 12.9 16.0 15.3 15.2 13.9 17.0 15.7 15.6

80 8.3 10.9 12.3 12.2 9.2 12.0 13.6 13.5 10.1 13.2 14.9 14.8 10.9 14.2 15.3 15.2 11.7 15.2 15.7 15.6

77 7.0

9.6 11.0 10.9 7.7 10.5 12.1 12.0 8.4 11.4 13.2 13.1 8.9 12.2 13.3 13.2 9.5 13.0 13.4 13.3

74 5.8

8.3

9.7

9.7

6.2

9.0 10.6 10.5 6.6

9.7 11.4 11.3 6.9 10.2 11.3 11.2 7.2 10.8 11.2 11.1

71 7.0

8.5

8.4

7.5

9.1

9.0

7.9

9.7

9.6

8.2

9.3

9.2

8.5

9.0

8.9

68 5.7

7.2

7.1

6.0

7.6

7.5

6.2

7.9

7.8

6.2

7.3

7.2

6.3

6.7

6.6

Net Cap

MBH

16.6 14.2 12.7 12.5 17.1 14.6 13.1 12.9 17.6 15.0 13.5 13.3 18.1 15.4 13.8 13.6 18.5 15.8 14.2 13.9

Total Power

Input kW

2.23 2.13 2.09 2.09 2.26 2.17 2.13 2.12 2.30 2.20 2.16 2.16 2.34 2.24 2.19 2.19 2.38 2.27 2.23 2.23

86 10.4 12.7 12.7 12.5 11.7 13.9 13.1 12.9 13.0 15.0 13.5 13.3 14.3 15.4 13.8 13.6 15.6 15.8 14.2 13.9

83 9.1 11.4 12.4 12.2 10.2 12.8 12.9 12.7 11.3 14.1 13.5 13.3 12.3 14.9 13.8 13.6 13.4 15.8 14.2 13.9

80 7.8 10.1 11.1 10.9 8.7 11.3 12.3 12.1 9.5 12.4 13.5 13.3 10.3 13.4 13.8 13.6 11.1 14.5 14.2 13.9

77 6.5

8.9

9.8

9.6

7.1

9.7 10.8 10.6 7.8 10.6 11.8 11.5 8.3 11.4 11.8 11.6 8.9 12.2 11.9 11.7

74 5.2

7.6

8.5

8.3

5.6

8.2

9.3

9.1

6.0

8.9 10.0 9.8

6.3

9.4

9.9

9.6

6.7 10.0 9.7

9.5

Net Cap

MBH

Total Power

InputkW

71 6.3

7.2

7.0

6.7

7.7

7.5

7.1

8.3

8.0

7.4

7.9

7.6

7.8

7.5

7.2

68 5.0

5.9

5.8

5.2

6.2

6.0

5.4

6.5

6.3

5.4

5.9

5.6

5.5

5.2

5.0

15.2 12.5 11.6 11.3 15.5 12.7 11.8 11.5 15.8 13.0 12.1 11.7 16.2 13.3 12.4 12.0 16.6 13.6 12.7 12.3

2.4

2.2

2.2

2.2

2.4

2.3

2.2

2.2

2.4

2.3

2.3

2.3

2.5

2.3

2.3

2.3

2.5

2.4

2.4

2.3

86 9.8 12.0 11.6 11.3 11.1 12.9 11.8 11.5 12.4 13.8 12.1 11.7 13.7 13.7 12.4 12.0 15.0 13.6 12.7 12.3

83 8.6 10.7 11.1 10.8 9.6 12.0 11.6 11.3 10.7 13.3 12.1 11.7 11.7 13.9 12.4 12.0 12.8 14.5 12.7 12.3

80 7.3

9.4

9.8

9.6

8.1 10.5 10.9 10.6 8.9 11.6 12.1 11.7 9.8 12.6 12.4 12.0 10.6 13.7 12.7 12.3

77 6.0

8.1

8.5

8.3

6.6

9.0

9.4

9.1

7.2

9.8 10.3 10.0 7.8 10.6 10.4 10.0 8.3 11.4 10.4 10.1

74 4.7

6.8

7.3

7.0

5.1

7.4

7.9

7.6

5.4

8.1

8.6

8.2

5.8

8.6

8.4

8.0

6.1

9.2

8.2

7.8

71 5.6

6.0

5.7

5.9

6.4

6.1

6.3

6.8

6.5

6.6

6.4

6.0

7.0

6.0

5.6

68 4.3

4.7

4.4

4.4

4.9

4.6

4.6

5.1

4.7

4.6

4.4

4.1

4.7

3.7

3.4

= These capacities are net capacities - indoor fan heat deducted.

ALL SENSIBLE CAPACITY

Unitary Products Group 5

6

511.18-TG1G

COOLING CAPACITIES -

2 TON (BUA024)

Temperature of Air on

Outdoor Coil

85 °F

Air On Indoor Coil

600 CFM

WB

°

F

700 CFM

WB

°

F

800 CFM

WB

°

F

900 CFM

WB

°

F

1,000 CFM

WB

°

F

72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57

Net Cap

MBH

25.3 23.1 20.8 20.8 26.4 24.1 21.7 21.6 27.4 25.0 22.5 22.5 28.1 25.6 23.1 23.0 28.7 26.2 23.6 23.5

Total Power

Input kW

2.21 2.18 2.14 2.12 2.26 2.23 2.18 2.16 2.30 2.27 2.22 2.20 2.33 2.30 2.25 2.22 2.35 2.32 2.27 2.25

86 15.1 18.8 20.8 20.8 16.7 20.9 21.7 21.6 18.4 22.9 22.5 22.5 19.9 24.5 23.1 23.0 21.4 26.2 23.6 23.5

83 13.4 17.1 20.1 20.6 14.7 18.8 21.3 21.5 16.1 20.6 22.5 22.5 17.3 22.0 23.1 23.0 18.5 23.5 23.6 23.5

80 11.6 15.4 18.4 18.9 12.7 16.8 20.0 20.6 13.8 18.2 21.7 22.3 14.6 19.4 22.6 22.9 15.5 20.5 23.6 23.5

77 9.9 13.7 16.7 17.2 10.7 14.8 18.0 18.6 11.4 15.9 19.4 20.0 12.0 16.7 20.0 20.3 12.5 17.5 20.6 20.5

95 °F

74 8.2 12.0 14.9 15.4 8.7 12.8 16.0 16.5 9.1 13.6 17.1 17.6 9.3 14.0 17.3 17.6 9.5 14.5 17.6 17.6

71 10.3 13.2 13.7

10.8 14.0 14.5

11.2 14.7 15.3

11.4 14.7 14.9

11.5 14.6 14.6

68 8.6 11.5 12.0

8.7 12.0 12.5

8.9 12.4 13.0

8.7 12.0 12.3

8.6 11.7 11.6

Net Cap

MBH

Total Power

Input kW

24.3 21.6 19.3 19.3 25.2 22.4 20.0 20.0 26.0 23.2 20.6 20.7 26.5 23.6 21.0 21.1 26.9 24.0 21.4 21.4

2.37 2.32 2.26 2.24 2.42 2.37 2.31 2.29 2.47 2.42 2.36 2.34 2.50 2.44 2.38 2.36 2.53 2.47 2.40 2.39

86 14.7 18.2 19.3 19.3 16.3 20.2 20.0 20.0 18.0 22.2 20.6 20.7 19.4 23.1 21.0 21.1 20.9 24.0 21.4 21.4

83 13.0 16.5 19.1 19.2 14.3 18.2 19.9 20.0 15.6 19.8 20.6 20.7 16.8 21.2 21.0 21.1 17.9 22.6 21.4 21.4

80 11.3 14.8 17.4 17.5 12.3 16.2 19.0 19.1 13.3 17.5 20.5 20.7 14.1 18.5 20.9 21.1 14.9 19.6 21.4 21.4

77 9.6 13.1 15.7 15.8 10.3 14.1 16.9 17.1 11.0 15.2 18.2 18.3 11.4 15.9 18.3 18.4 11.9 16.6 18.4 18.5

74 7.9 11.4 14.0 14.1 8.2 12.1 14.9 15.1 8.6 12.8 15.9 16.0 8.8 13.2 15.6 15.7 8.9 13.6 15.4 15.5

71 9.7 12.3 12.4

10.1 12.9 13.0

10.5 13.5 13.7

10.6 13.0 13.1

10.7 12.4 12.5

68 8.0 10.6 10.7

8.1 10.9 11.0

8.2 11.2 11.3

7.9 10.3 10.4

7.7

9.4

9.5

Net Cap

MBH

Total Power

Input kW

22.2 19.5 17.9 17.9 23.0 20.2 18.5 18.4 23.7 20.8 19.1 19.0 24.1 21.2 19.4 19.4 24.6 21.6 19.8 19.8

2.53 2.45 2.41 2.39 2.58 2.51 2.46 2.44 2.64 2.56 2.51 2.49 2.67 2.59 2.54 2.52 2.70 2.62 2.57 2.54

86 13.9 17.3 17.9 17.9 15.5 18.8 18.5 18.4 17.1 20.3 19.1 19.0 18.6 21.0 19.4 19.4 20.1 21.6 19.8 19.8

105 °F

115 °F

125 °F

83 12.2 15.6 17.6 17.6 13.5 17.3 18.4 18.3 14.8 19.0 19.1 19.0 16.0 19.9 19.4 19.4 17.1 20.9 19.8 19.8

80 10.4 13.9 15.9 15.9 11.5 15.3 17.5 17.5 12.5 16.6 19.0 19.0 13.3 17.7 19.4 19.4 14.1 18.8 19.8 19.8

77 8.7 12.2 14.2 14.2 9.4 13.2 15.4 15.4 10.1 14.3 16.7 16.7 10.6 15.1 16.8 16.7 11.1 15.8 16.8 16.8

74 7.0 10.5 12.5 12.5 7.4 11.2 13.4 13.4 7.8 12.0 14.4 14.3 8.0 12.4 14.1 14.1 8.2 12.9 13.9 13.8

71 8.8 10.8 10.8

9.2 11.4 11.4

9.6 12.0 12.0

9.8 11.4 11.4

9.9 10.9 10.8

68 7.1

9.1

9.1

7.2

9.4

9.4

7.3

9.7

9.7

7.1

8.8

8.8

6.9

7.9

7.8

Net Cap

MBH

20.2 17.4 16.6 16.4 20.8 17.9 17.0 16.9 21.3 18.4 17.5 17.3 21.8 18.8 17.9 17.7 22.3 19.2 18.3 18.1

Total Power

Input kW

2.69 2.59 2.56 2.53 2.75 2.64 2.61 2.58 2.80 2.70 2.67 2.64 2.84 2.73 2.70 2.67 2.87 2.77 2.73 2.70

86 13.0 16.4 16.6 16.4 14.7 17.4 17.0 16.9 16.3 18.4 17.5 17.3 17.8 18.8 17.9 17.7 19.3 19.2 18.3 18.1

83 11.3 14.7 16.2 16.0 12.7 16.4 16.8 16.7 14.0 18.1 17.5 17.3 15.2 18.7 17.9 17.7 16.3 19.2 18.3 18.1

80 9.6 13.0 14.4 14.3 10.6 14.4 16.0 15.8 11.7 15.8 17.5 17.3 12.5 16.9 17.9 17.7 13.4 18.0 18.3 18.1

77 7.9 11.3 12.7 12.6 8.6 12.4 14.0 13.8 9.3 13.4 15.2 15.0 9.9 14.2 15.2 15.1 10.4 15.1 15.3 15.1

74 6.2

9.6 11.0 10.9 6.6 10.3 11.9 11.8 7.0 11.1 12.8 12.7 7.2 11.6 12.6 12.4 7.4 12.1 12.3 12.1

Net Cap

MBH

Total Power

Input kW

71 7.9

9.3

9.2

8.3

9.9

9.8

8.8 10.5 10.3

8.9

9.9

9.7

9.1

9.3

9.2

68 6.2

7.6

7.5

6.3

7.9

7.7

6.4

8.2

8.0

6.3

7.3

7.1

6.1

6.4

6.2

18.1 15.4 15.2 14.9 18.5 15.7 15.6 15.3 19.0 16.1 16.0 15.7 19.4 16.5 16.3 16.0 19.9 16.9 16.7 16.4

2.8

2.7

2.7

2.7

2.9

2.8

2.8

2.7

3.0

2.8

2.8

2.8

3.0

2.9

2.9

2.8

3.0

2.9

2.9

2.9

86 12.2 15.5 15.2 14.9 13.9 16.0 15.6 15.3 15.5 16.6 16.0 15.7 17.0 16.7 16.3 16.0 18.5 16.9 16.7 16.4

83 10.5 13.8 14.7 14.4 11.8 15.5 15.3 15.0 13.2 17.2 16.0 15.7 14.4 17.4 16.3 16.0 15.6 17.6 16.7 16.4

80 8.8 12.1 13.0 12.7 9.8 13.5 14.5 14.2 10.8 14.9 16.0 15.7 11.7 16.1 16.4 16.0 12.6 17.3 16.7 16.4

77 7.1 10.4 11.3 11.0 7.8 11.5 12.5 12.2 8.5 12.6 13.7 13.3 9.1 13.4 13.7 13.4 9.6 14.3 13.8 13.4

74 5.4

8.7

9.5

9.3

5.8

9.4 10.4 10.1 6.2 10.2 11.3 11.0 6.4 10.8 11.1 10.7 6.6 11.3 10.8 10.5

71 7.0

7.8

7.6

7.4

8.4

8.1

7.9

9.0

8.7

8.1

8.4

8.1

8.3

7.8

7.5

68 5.2

6.1

5.8

5.4

6.4

6.1

5.6

6.7

6.3

5.5

5.7

5.4

5.3

4.8

4.5

= These capacities are net capacities - indoor fan heat deducted.

ALL SENSIBLE CAPACITY

Unitary Products Group

511.18-TG1G

COOLING CAPACITIES -

2-1/2 TON (BUA030)

Temperature of Air on

Outdoor Coil

85 °F

Air On Indoor Coil

750 CFM

WB

°

F

875 CFM

WB

°

F

1,000 CFM

WB

°

F

1,125 CFM

WB

°

F

1,250 CFM

WB

°

F

72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57

Net Cap

MBH

32.5 29.3 26.4 26.0 33.4 30.2 27.1 26.7 34.4 31.1 27.9 27.5 35.7 32.3 29.0 28.6 37.1 33.5 30.1 29.7

Total Power

Input kW

2.94 2.85 2.76 2.74 3.02 2.93 2.84 2.81 3.11 3.02 2.92 2.89 3.15 3.06 2.96 2.93 3.20 3.10 3.01 2.98

86 19.5 23.9 26.4 26.0 21.4 26.2 27.1 26.7 23.4 28.4 27.9 27.5 25.7 31.0 29.0 28.6 28.1 33.5 30.1 29.7

83 17.4 21.8 25.7 26.0 18.9 23.6 26.8 26.7 20.4 25.5 27.9 27.5 22.4 28.0 29.0 28.6 24.4 30.4 30.1 29.7

80 15.2 19.6 23.5 23.9 16.4 21.1 25.3 25.7 17.5 22.6 27.1 27.5 19.1 24.6 28.6 28.6 20.7 26.7 30.1 29.7

77 13.1 17.5 21.4 21.7 13.9 18.6 22.8 23.2 14.6 19.7 24.2 24.6 15.8 21.3 25.3 25.3 16.9 22.9 26.4 26.0

95 °F

74 10.9 15.4 19.2 19.6 11.3 16.1 20.2 20.6 11.7 16.8 21.2 21.7 12.5 18.0 22.0 22.0 13.2 19.2 22.7 22.2

71 13.2 17.1 17.5

13.5 17.7 18.1

13.9 18.3 18.8

14.7 18.6 18.6

15.5 19.0 18.5

68 11.1 15.0 15.3

11.0 15.2 15.6

10.9 15.4 15.8

11.3 15.3 15.3

11.8 15.2 14.8

Net Cap

MBH

Total Power

Input kW

30.9 27.3 24.3 24.5 31.7 27.9 24.9 25.1 32.4 28.6 25.5 25.7 33.0 29.2 26.0 26.2 33.7 29.7 26.5 26.7

3.14 3.02 2.92 2.94 3.22 3.09 3.00 3.01 3.29 3.17 3.07 3.09 3.36 3.23 3.13 3.15 3.43 3.30 3.19 3.21

86 18.4 23.0 24.3 24.5 20.3 25.3 24.9 25.1 22.2 27.5 25.5 25.7 24.2 28.6 26.0 26.2 26.2 29.7 26.5 26.7

83 16.3 20.9 24.2 24.3 17.8 22.7 24.9 25.0 19.3 24.6 25.5 25.7 20.9 26.6 26.0 26.2 22.5 28.5 26.5 26.7

80 14.2 18.7 22.0 22.2 15.3 20.2 23.8 23.9 16.4 21.7 25.5 25.7 17.6 23.3 26.0 26.2 18.8 24.8 26.5 26.7

77 12.0 16.6 19.9 20.1 12.8 17.7 21.3 21.4 13.5 18.8 22.6 22.8 14.3 19.9 22.7 22.9 15.1 21.1 22.8 22.9

74 9.9 14.5 17.8 17.9 10.2 15.2 18.7 18.9 10.6 15.9 19.7 19.9 11.0 16.6 19.4 19.5 11.3 17.4 19.0 19.2

71 12.3 15.6 15.8

12.6 16.2 16.4

12.9 16.8 17.0

13.3 16.1 16.2

13.6 15.3 15.5

68 10.2 13.5 13.6

10.1 13.7 13.8

10.0 13.9 14.0

10.0 12.7 12.9

9.9 11.6 11.8

Net Cap

MBH

Total Power

Input kW

28.5 24.8 22.5 22.6 29.1 25.3 23.0 23.0 29.7 25.9 23.5 23.5 30.3 26.4 23.9 24.0 30.8 26.9 24.4 24.4

3.31 3.17 3.08 3.10 3.40 3.25 3.16 3.17 3.48 3.33 3.23 3.25 3.54 3.39 3.29 3.31 3.60 3.44 3.35 3.36

86 17.6 21.9 22.5 22.6 19.5 23.6 23.0 23.0 21.5 25.3 23.5 23.5 23.5 26.1 23.9 24.0 25.5 26.9 24.4 24.4

105 °F

115 °F

125 °F

83 15.5 19.8 22.2 22.3 17.0 21.7 22.8 22.9 18.5 23.5 23.5 23.5 20.1 24.9 23.9 24.0 21.7 26.3 24.4 24.4

80 13.4 17.6 20.1 20.1 14.5 19.1 21.8 21.8 15.6 20.6 23.5 23.5 16.8 22.2 23.9 24.0 18.0 23.8 24.4 24.4

77 11.2 15.5 17.9 18.0 12.0 16.6 19.2 19.3 12.7 17.7 20.6 20.6 13.5 18.9 20.6 20.6 14.3 20.0 20.6 20.7

74 9.1 13.4 15.8 15.8 9.4 14.1 16.7 16.8 9.8 14.8 17.6 17.7 10.2 15.6 17.3 17.3 10.6 16.3 16.9 17.0

71 11.2 13.7 13.7

11.6 14.2 14.2

11.9 14.7 14.8

12.2 14.0 14.0

12.6 13.2 13.2

68 9.1 11.5 11.6

9.0 11.7 11.7

9.0 11.8 11.9

8.9 10.6 10.7

8.9

9.5

9.5

Net Cap

MBH

26.1 22.4 20.7 20.6 26.5 22.7 21.1 21.0 27.0 23.1 21.4 21.3 27.5 23.6 21.8 21.8 28.0 24.0 22.2 22.2

Total Power

Input kW

3.49 3.32 3.24 3.25 3.57 3.40 3.32 3.33 3.66 3.48 3.40 3.41 3.71 3.54 3.45 3.46 3.77 3.59 3.50 3.51

86 16.8 20.8 20.7 20.6 18.7 22.0 21.1 21.0 20.7 23.1 21.4 21.3 22.7 23.6 21.8 21.8 24.7 24.0 22.2 22.2

83 14.7 18.7 20.2 20.2 16.2 20.6 20.8 20.8 17.8 22.5 21.4 21.3 19.4 23.2 21.8 21.8 20.9 24.0 22.2 22.2

80 12.5 16.5 18.1 18.0 13.7 18.1 19.8 19.7 14.8 19.6 21.4 21.3 16.0 21.1 21.8 21.8 17.2 22.7 22.2 22.2

77 10.4 14.4 16.0 15.9 11.2 15.5 17.2 17.2 11.9 16.7 18.5 18.4 12.7 17.8 18.5 18.4 13.5 19.0 18.5 18.4

74 8.3 12.3 13.8 13.8 8.6 13.0 14.7 14.6 9.0 13.7 15.6 15.5 9.4 14.5 15.2 15.1 9.8 15.3 14.8 14.7

Net Cap

MBH

Total Power

Input kW

71 10.1 11.7 11.6

10.5 12.2 12.1

10.8 12.7 12.6

11.2 11.9 11.8

11.5 11.1 11.0

68 8.0

9.6

9.5

7.9

9.6

9.6

7.9

9.7

9.7

7.9

8.5

8.5

7.8

7.3

7.3

23.7 19.9 18.9 18.7 24.0 20.1 19.1 18.9 24.2 20.4 19.4 19.2 24.7 20.8 19.7 19.5 25.2 21.2 20.1 19.9

3.7

3.5

3.4

3.4

3.8

3.6

3.5

3.5

3.8

3.6

3.6

3.6

3.9

3.7

3.6

3.6

3.9

3.7

3.7

3.7

86 16.0 19.7 18.9 18.7 17.9 20.3 19.1 18.9 19.9 20.9 19.4 19.2 21.9 21.1 19.7 19.5 23.9 21.2 20.1 19.9

83 13.9 17.6 18.3 18.1 15.4 19.5 18.8 18.6 17.0 21.4 19.4 19.2 18.6 21.6 19.7 19.5 20.2 21.7 20.1 19.9

80 11.7 15.5 16.1 16.0 12.9 17.0 17.7 17.6 14.0 18.5 19.4 19.2 15.2 20.1 19.7 19.5 16.4 21.7 20.1 19.9

77 9.6 13.3 14.0 13.8 10.4 14.5 15.2 15.0 11.1 15.6 16.4 16.2 11.9 16.8 16.4 16.2 12.7 17.9 16.4 16.2

74 7.5 11.2 11.9 11.7 7.8 11.9 12.7 12.5 8.2 12.7 13.5 13.3 8.6 13.4 13.1 12.9 9.0 14.2 12.6 12.4

71 9.0

9.7

9.6

9.4 10.2 10.0

9.8 10.6 10.4

10.1 9.8

9.6

10.5 8.9

8.7

68 6.9

7.6

7.4

6.9

7.6

7.5

6.8

7.7

7.5

6.8

6.4

6.2

6.8

5.2

5.0

= These capacities are net capacities - indoor fan heat deducted.

ALL SENSIBLE CAPACITY

Unitary Products Group 7

8

511.18-TG1G

COOLING CAPACITIES -

3 TON (BUA036)

Temperature of Air on

Outdoor Coil

85 °F

Air On Indoor Coil

900 CFM

WB

°

F

1,050 CFM

WB

°

F

1,200 CFM

WB

°

F

1,350 CFM

WB

°

F

1,500 CFM

WB

°

F

72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57

Net Cap

MBH

37.1 33.9 30.2 29.4 39.8 36.4 32.4 31.5 42.5 38.9 34.6 33.7 44.4 40.6 36.1 35.2 46.3 42.3 37.7 36.6

Total Power

Input kW

3.62 3.49 3.41 3.40 3.67 3.54 3.46 3.45 3.72 3.59 3.51 3.49 3.78 3.65 3.57 3.55 3.84 3.71 3.62 3.61

86 22.5 28.4 30.2 29.4 25.3 31.9 32.4 31.5 28.2 35.4 34.6 33.7 30.7 38.5 36.1 35.2 33.3 41.5 37.7 36.6

83 19.9 25.8 30.2 29.4 22.3 28.9 32.4 31.5 24.7 31.9 34.6 33.7 26.8 34.5 36.1 35.2 28.8 37.1 37.7 36.6

80 17.3 23.2 27.6 27.5 19.3 25.8 30.7 30.6 21.2 28.4 33.8 33.7 22.8 30.5 35.7 35.2 24.3 32.6 37.7 36.6

77 14.8 20.7 25.0 25.0 16.2 22.8 27.7 27.6 17.7 24.9 30.3 30.2 18.8 26.5 31.7 31.2 19.9 28.1 33.2 32.2

95 °F

74 12.2 18.1 22.5 22.4 13.2 19.8 24.6 24.5 14.2 21.4 26.8 26.7 14.8 22.6 27.8 27.2 15.4 23.7 28.7 27.7

71 15.5 19.9 19.8

16.7 21.6 21.5

17.9 23.3 23.2

18.6 23.8 23.2

19.2 24.3 23.2

68 13.0 17.3 17.3

13.7 18.6 18.5

14.4 19.8 19.7

14.6 19.8 19.2

14.7 19.8 18.8

Net Cap

MBH

Total Power

Input kW

36.3 31.3 27.5 26.9 38.8 33.5 29.4 28.8 41.4 35.7 31.4 30.7 43.1 37.2 32.7 32.0 44.9 38.7 34.1 33.3

3.84 3.70 3.62 3.62 3.88 3.75 3.67 3.66 3.93 3.80 3.71 3.71 4.00 3.86 3.77 3.77 4.06 3.92 3.83 3.83

86 22.6 27.1 27.5 26.9 25.5 30.5 29.4 28.8 28.4 34.0 31.4 30.7 31.2 36.3 32.7 32.0 34.0 38.7 34.1 33.3

83 20.0 24.5 27.5 26.9 22.5 27.5 29.4 28.8 24.9 30.5 31.4 30.7 27.2 33.3 32.7 32.0 29.5 36.0 34.1 33.3

80 17.4 22.0 25.5 25.0 19.4 24.5 28.4 27.8 21.4 27.0 31.4 30.7 23.2 29.3 32.7 32.0 25.1 31.6 34.1 33.3

77 14.9 19.4 23.0 22.4 16.4 21.4 25.4 24.8 17.9 23.5 27.9 27.2 19.3 25.3 28.7 28.0 20.6 27.1 29.6 28.8

74 12.3 16.8 20.4 19.9 13.4 18.4 22.4 21.8 14.4 20.0 24.4 23.7 15.3 21.3 24.7 24.0 16.1 22.6 25.1 24.4

71 14.3 17.8 17.3

15.4 19.4 18.7

16.5 20.9 20.2

17.3 20.7 20.0

18.2 20.6 19.9

68 11.7 15.3 14.7

12.3 16.3 15.7

13.0 17.4 16.7

13.3 16.8 16.1

13.7 16.2 15.4

Net Cap

MBH

Total Power

Input kW

32.4 27.9 25.1 23.7 34.8 29.9 27.0 25.5 37.1 32.0 28.8 27.2 38.7 33.3 30.0 28.3 40.2 34.6 31.2 29.5

4.06 3.90 3.85 3.84 4.10 3.95 3.89 3.89 4.15 3.99 3.94 3.93 4.22 4.06 4.00 4.00 4.29 4.13 4.07 4.07

86 21.0 25.8 25.1 23.7 23.9 28.4 27.0 25.5 26.9 31.1 28.8 27.2 29.5 32.9 30.0 28.3 32.1 34.6 31.2 29.5

105 °F

115 °F

125 °F

83 18.5 23.2 25.1 23.7 20.9 26.2 27.0 25.5 23.4 29.3 28.8 27.2 25.5 31.3 30.0 28.3 27.6 33.3 31.2 29.5

80 15.9 20.6 23.1 21.8 17.9 23.2 26.0 24.5 19.9 25.8 28.8 27.2 21.5 27.9 30.0 28.3 23.2 30.1 31.2 29.5

77 13.3 18.1 20.5 19.2 14.8 20.2 22.9 21.5 16.4 22.3 25.3 23.7 17.5 24.0 26.0 24.3 18.7 25.6 26.7 25.0

74 10.8 15.5 18.0 16.7 11.8 17.2 19.9 18.4 12.9 18.8 21.8 20.2 13.5 20.0 22.0 20.4 14.2 21.2 22.3 20.5

71 12.9 15.4 14.1

14.1 16.9 15.4

15.3 18.3 16.7

16.0 18.1 16.4

16.7 17.8 16.0

68 10.4 12.8 11.5

11.1 13.8 12.4

11.8 14.8 13.2

12.0 14.1 12.4

12.2 13.3 11.6

Net Cap

MBH

28.5 24.5 22.8 20.5 30.7 26.4 24.5 22.1 32.9 28.3 26.3 23.7 34.3 29.4 27.3 24.7 35.6 30.5 28.4 25.6

Total Power

Input kW

4.27 4.10 4.07 4.07 4.32 4.14 4.12 4.12 4.37 4.19 4.16 4.16 4.44 4.26 4.23 4.23 4.52 4.33 4.30 4.30

86 19.5 24.5 22.8 20.5 22.4 26.4 24.5 22.1 25.3 28.3 26.3 23.7 27.8 29.4 27.3 24.7 30.2 30.5 28.4 25.6

83 16.9 21.9 22.8 20.5 19.4 25.0 24.5 22.1 21.8 28.1 26.3 23.7 23.8 29.3 27.3 24.7 25.7 30.5 28.4 25.6

80 14.4 19.3 20.6 18.6 16.3 22.0 23.5 21.2 18.3 24.6 26.3 23.7 19.8 26.6 27.3 24.7 21.3 28.6 28.4 25.6

77 11.8 16.8 18.1 16.1 13.3 18.9 20.4 18.1 14.8 21.1 22.8 20.2 15.8 22.6 23.3 20.7 16.8 24.2 23.9 21.1

74 9.2 14.2 15.5 13.5 10.3 15.9 17.4 15.1 11.3 17.6 19.3 16.7 11.8 18.7 19.4 16.7 12.3 19.7 19.4 16.7

Net Cap

MBH

Total Power

Input kW

71 11.6 12.9 10.9

12.9 14.4 12.1

14.1 15.8 13.2

14.7 15.4 12.7

15.2 14.9 12.2

68 9.1 10.4 8.4

9.8 11.3 9.0

10.6 12.3 9.7

10.7 11.4 8.7

10.7 10.5 7.7

24.7 21.1 20.4 17.4 26.7 22.8 22.1 18.8 28.7 24.5 23.7 20.2 29.8 25.5 24.6 21.0 30.9 26.4 25.5 21.7

4.5

4.3

4.3

4.3

4.5

4.3

4.3

4.3

4.6

4.4

4.4

4.4

4.7

4.5

4.5

4.5

4.7

4.5

4.5

4.5

86 18.0 23.2 20.4 17.4 20.8 24.3 22.1 18.8 23.7 25.4 23.7 20.2 26.0 25.9 24.6 21.0 28.3 26.4 25.5 21.7

83 15.4 20.6 20.4 17.4 17.8 23.8 22.1 18.8 20.2 26.9 23.7 20.2 22.0 27.3 24.6 21.0 23.8 27.7 25.5 21.7

80 12.8 18.0 18.2 15.5 14.8 20.7 21.0 17.8 16.7 23.4 23.7 20.2 18.0 25.3 24.6 21.0 19.4 27.2 25.5 21.7

77 10.3 15.5 15.6 12.9 11.7 17.7 17.9 14.8 13.2 19.9 20.2 16.7 14.1 21.3 20.6 17.0 14.9 22.7 21.0 17.3

74 7.7 12.9 13.1 10.3 8.7 14.7 14.9 11.8 9.7 16.4 16.7 13.2 10.1 17.3 16.7 13.0 10.4 18.2 16.6 12.8

71 10.3 10.5 7.8

11.6 11.9 8.8

12.9 13.2 9.7

13.3 12.7 9.0

13.8 12.1 8.3

68 7.8

7.9

5.2

8.6

8.8

5.7

9.4

9.7

6.2

9.4

8.7

5.0

9.3

7.6

3.9

= These capacities are net capacities - indoor fan heat deducted.

ALL SENSIBLE CAPACITY

Unitary Products Group

511.18-TG1G

COOLING CAPACITIES -

3-1/2 TON (BUA042)

Temperature of Air on

Outdoor Coil

85 °F

Air On Indoor Coil

1,050 CFM

WB

°

F

1,225 CFM

WB

°

F

1,400 CFM

WB

°

F

1,575 CFM

WB

°

F

1,750 CFM

WB

°

F

72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57

Net Cap

MBH

39.6 36.8 33.1 30.6 43.3 40.3 36.2 33.4 46.9 43.7 39.2 36.3 47.7 44.4 39.9 36.8 48.4 45.1 40.5 37.4

Total Power

Input kW

4.15 4.05 3.98 4.01 4.17 4.07 4.00 4.03 4.19 4.09 4.02 4.05 4.33 4.22 4.14 4.18 4.46 4.35 4.27 4.30

86 24.9 30.8 33.1 30.6 28.4 35.0 36.2 33.4 31.9 39.3 39.2 36.3 34.4 42.2 39.9 36.8 37.0 45.1 40.5 37.4

83 21.9 27.8 32.7 30.6 24.9 31.5 36.0 33.4 27.8 35.2 39.2 36.3 29.8 37.6 39.9 36.8 31.8 40.0 40.5 37.4

80 18.9 24.8 29.7 28.9 21.3 28.0 33.5 32.6 23.8 31.1 37.3 36.3 25.1 33.0 38.9 36.8 26.5 34.8 40.5 37.4

77 15.9 21.8 26.7 25.9 17.8 24.4 30.0 29.0 19.7 27.0 33.2 32.2 20.5 28.3 34.3 32.2 21.3 29.6 35.3 32.2

95 °F

74 12.9 18.8 23.8 22.9 14.3 20.9 26.5 25.5 15.6 23.0 29.2 28.1 15.9 23.7 29.6 27.5 16.1 24.3 30.1 27.0

71 15.8 20.8 19.9

17.3 22.9 22.0

18.9 25.1 24.0

19.0 25.0 22.9

19.1 24.9 21.8

68 12.8 17.8 16.9

13.8 19.4 18.4

14.8 21.0 19.9

14.4 20.3 18.2

13.9 19.6 16.5

Net Cap

MBH

Total Power

Input kW

38.5 34.6 30.5 28.0 41.6 37.4 33.0 30.2 44.8 40.3 35.4 32.5 45.5 40.9 36.0 33.0 46.2 41.5 36.5 33.5

4.34 4.25 4.15 4.18 4.40 4.31 4.20 4.24 4.46 4.37 4.26 4.30 4.58 4.49 4.38 4.42 4.71 4.61 4.50 4.54

86 24.6 30.7 30.5 28.0 27.6 34.3 33.0 30.2 30.6 38.0 35.4 32.5 33.1 39.7 36.0 33.0 35.6 41.5 36.5 33.5

83 21.6 27.7 30.5 28.0 24.0 30.8 33.0 30.2 26.5 33.9 35.4 32.5 28.4 36.2 36.0 33.0 30.4 38.6 36.5 33.5

80 18.6 24.7 29.4 26.9 20.5 27.2 32.4 29.7 22.4 29.8 35.4 32.5 23.8 31.6 36.0 33.0 25.2 33.4 36.5 33.5

77 15.6 21.7 26.4 23.9 17.0 23.7 28.9 26.2 18.4 25.7 31.4 28.4 19.1 27.0 31.3 28.4 19.9 28.2 31.3 28.3

74 12.6 18.7 23.4 21.0 13.4 20.2 25.3 22.7 14.3 21.6 27.3 24.4 14.5 22.3 26.7 23.7 14.7 23.0 26.1 23.1

71 15.7 20.4 18.0

16.6 21.8 19.1

17.5 23.2 20.3

17.7 22.0 19.1

17.8 20.9 17.9

68 12.7 17.4 15.0

13.1 18.3 15.6

13.5 19.1 16.2

13.0 17.4 14.4

12.5 15.7 12.7

Net Cap

MBH

Total Power

Input kW

35.6 31.0 27.9 25.3 38.4 33.5 30.1 27.3 41.2 35.9 32.3 29.3 41.7 36.4 32.7 29.7 42.3 36.9 33.1 30.1

4.62 4.50 4.42 4.46 4.68 4.56 4.47 4.51 4.74 4.61 4.53 4.57 4.87 4.74 4.66 4.70 5.01 4.88 4.79 4.83

86 23.4 29.0 27.9 25.3 26.5 31.9 30.1 27.3 29.6 34.8 32.3 29.3 32.0 35.8 32.7 29.7 34.4 36.9 33.1 30.1

105 °F

115 °F

125 °F

83 20.4 26.0 27.9 25.3 23.0 29.2 30.1 27.3 25.5 32.3 32.3 29.3 27.3 33.9 32.7 29.7 29.2 35.5 33.1 30.1

80 17.4 23.0 26.3 23.9 19.4 25.6 29.3 26.6 21.4 28.2 32.3 29.3 22.7 29.9 32.7 29.7 24.0 31.6 33.1 30.1

77 14.4 20.0 23.3 20.9 15.9 22.1 25.8 23.1 17.3 24.2 28.2 25.2 18.0 25.3 28.1 25.1 18.7 26.4 27.9 24.9

74 11.5 17.0 20.3 17.9 12.3 18.6 22.2 19.5 13.2 20.1 24.1 21.1 13.4 20.6 23.4 20.4 13.5 21.2 22.7 19.7

71 14.1 17.4 14.9

15.0 18.7 16.0

16.0 20.0 17.1

16.0 18.8 15.8

16.0 17.5 14.5

68 11.1 14.4 11.9

11.5 15.1 12.5

11.9 15.9 13.0

11.3 14.1 11.1

10.8 12.3 9.2

Net Cap

MBH

32.6 27.4 25.3 22.7 35.1 29.5 27.2 24.4 37.5 31.6 29.1 26.1 38.0 31.9 29.4 26.4 38.4 32.3 29.7 26.7

Total Power

Input kW

4.91 4.75 4.69 4.73 4.96 4.80 4.74 4.79 5.02 4.86 4.80 4.84 5.17 5.00 4.94 4.98 5.32 5.15 5.08 5.13

86 22.3 27.4 25.3 22.7 25.4 29.5 27.2 24.4 28.5 31.6 29.1 26.1 30.8 31.9 29.4 26.4 33.2 32.3 29.7 26.7

83 19.3 24.4 25.3 22.7 21.9 27.6 27.2 24.4 24.4 30.8 29.1 26.1 26.2 31.5 29.4 26.4 28.0 32.3 29.7 26.7

80 16.3 21.4 23.3 20.9 18.3 24.1 26.2 23.5 20.3 26.7 29.1 26.1 21.5 28.3 29.4 26.4 22.7 29.9 29.7 26.7

77 13.3 18.4 20.3 17.9 14.8 20.5 22.7 20.0 16.3 22.6 25.0 22.0 16.9 23.6 24.8 21.7 17.5 24.6 24.5 21.5

74 10.3 15.4 17.3 14.9 11.2 17.0 19.1 16.4 12.2 18.5 20.9 17.9 12.2 19.0 20.1 17.1 12.3 19.4 19.3 16.3

Net Cap

MBH

Total Power

Input kW

71 12.4 14.3 11.9

13.4 15.6 12.9

14.5 16.8 13.9

14.3 15.5 12.4

14.2 14.1 11.0

68 9.4 11.3 8.9

9.9 12.0 9.4

10.4 12.8 9.8

9.7 10.8 7.8

9.0

8.9

5.8

29.7 23.8 22.7 20.0 31.8 25.5 24.3 21.5 33.9 27.2 25.9 22.9 34.2 27.4 26.1 23.1 34.5 27.7 26.3 23.3

5.2

5.0

5.0

5.0

5.2

5.1

5.0

5.1

5.3

5.1

5.1

5.1

5.5

5.3

5.2

5.3

5.6

5.4

5.4

5.4

86 21.1 25.7 22.7 20.0 24.3 27.1 24.3 21.5 27.5 28.4 25.9 22.9 29.7 28.0 26.1 23.1 32.0 27.7 26.3 23.3

83 18.1 22.7 22.7 20.0 20.8 26.0 24.3 21.5 23.4 29.3 25.9 22.9 25.1 29.2 26.1 23.1 26.7 29.1 26.3 23.3

80 15.2 19.8 20.3 17.9 17.2 22.5 23.1 20.4 19.3 25.2 25.9 22.9 20.4 26.6 26.1 23.1 21.5 28.1 26.3 23.3

77 12.2 16.8 17.3 14.9 13.7 18.9 19.6 16.9 15.2 21.1 21.8 18.8 15.8 22.0 21.5 18.4 16.3 22.9 21.1 18.0

74 9.2 13.8 14.3 11.9 10.2 15.4 16.0 13.3 11.1 17.0 17.8 14.7 11.1 17.3 16.8 13.8 11.1 17.6 15.9 12.8

71 10.8 11.3 8.9

11.8 12.5 9.8

12.9 13.7 10.7

12.7 12.2 9.1

12.4 10.7 7.6

68 7.8

8.3

5.9

8.3

8.9

6.2

8.8

9.6

6.6

8.0

7.5

4.5

7.2

5.5

2.4

= These capacities are net capacities - indoor fan heat deducted.

ALL SENSIBLE CAPACITY

Unitary Products Group 9

511.18-TG1G

COOLING CAPACITIES -

4 TON (BUA048)

Temperature of Air on

Outdoor Coil

85 °F

Air On Indoor Coil

1200 CFM

WB

°

F

1400 CFM

WB

°

F

1600 CFM

WB

°

F

1800 CFM

WB

°

F

2000 CFM

WB

°

F

72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57

Net Cap

MBH

53.1 48.6 44.5 43.1 54.8 50.1 45.9 44.5 56.4 51.6 47.4 45.9 57.7 52.8 48.4 46.9 58.9 53.9 49.4 47.8

Total Power

Input KW

4.76 4.68 4.55 4.56 4.89 4.81 4.67 4.69 5.03 4.94 4.80 4.82 5.12 5.03 4.89 4.91 5.21 5.13 4.98 5.00

86 31.3 38.8 44.5 43.1 34.7 42.8 45.9 44.5 38.1 46.8 47.4 45.9 41.5 50.3 48.4 46.9 44.9 53.9 49.4 47.8

83 27.9 35.4 41.7 41.9 30.7 38.8 44.5 43.9 33.4 42.2 47.4 45.9 36.2 45.6 48.4 46.9 39.0 49.1 49.4 47.8

80 24.5 32.0 38.3 38.5 26.6 34.7 41.6 41.8 28.7 37.5 44.9 45.2 30.9 40.3 47.1 46.5 33.0 43.1 49.4 47.8

77 21.1 28.5 34.8 35.1 22.6 30.7 37.5 37.8 24.1 32.8 40.2 40.5 25.6 35.0 41.8 41.2 27.1 37.1 43.4 41.9

95 °F

74 17.6 25.1 31.4 31.7 18.5 26.6 33.5 33.8 19.4 28.2 35.6 35.9 20.2 29.7 36.5 35.9 21.1 31.2 37.5 35.9

71 21.7 28.0 28.2

22.6 29.4 29.7

23.5 30.9 31.2

24.4 31.2 30.6

25.2 31.5 30.0

68 18.3 24.6 24.8

18.6 25.4 25.7

18.8 26.2 26.5

19.0 25.9 25.3

19.2 25.5 24.0

Net Cap

MBH

Total Power

Input KW

49.6 45.3 41.4 40.0 51.4 47.0 42.9 41.4 53.3 48.7 44.4 42.9 54.5 49.8 45.5 43.9 55.8 51.0 46.6 45.0

5.12 4.98 4.90 4.88 5.27 5.12 5.04 5.03 5.42 5.27 5.19 5.18 5.53 5.38 5.30 5.28 5.64 5.49 5.40 5.39

86 29.4 36.9 41.4 40.0 32.8 41.1 42.9 41.4 36.3 45.3 44.4 42.9 39.7 48.2 45.5 43.9 43.1 51.0 46.6 45.0

83 25.9 33.5 38.8 38.8 28.8 37.1 41.6 40.8 31.6 40.6 44.4 42.9 34.4 44.1 45.5 43.9 37.1 47.6 46.6 45.0

80 22.5 30.1 35.3 35.3 24.7 33.0 38.8 38.8 26.9 36.0 42.3 42.3 29.1 38.8 44.4 43.6 31.2 41.6 46.6 45.0

77 19.1 26.6 31.9 31.9 20.7 29.0 34.8 34.8 22.3 31.3 37.6 37.6 23.8 33.5 39.1 38.3 25.2 35.7 40.6 39.0

74 15.7 23.2 28.5 28.5 16.6 24.9 30.7 30.7 17.6 26.6 33.0 33.0 18.4 28.2 33.8 33.0 19.3 29.7 34.6 33.0

71 19.8 25.1 25.1

20.9 26.7 26.7

22.0 28.3 28.3

22.9 28.5 27.7

23.7 28.7 27.1

68 16.4 21.7 21.7

16.8 22.6 22.7

17.3 23.6 23.6

17.5 23.2 22.4

17.8 22.7 21.1

Net Cap

MBH

Total Power

Input KW

46.0 41.9 38.8 36.8 47.5 43.3 40.0 38.0 49.0 44.6 41.3 39.2 50.0 45.6 42.1 40.0 51.0 46.5 43.0 40.9

5.60 5.43 5.32 5.27 5.76 5.58 5.47 5.42 5.91 5.74 5.62 5.56 6.02 5.84 5.73 5.67 6.13 5.95 5.83 5.77

86 28.3 35.7 38.8 36.8 31.6 39.3 40.0 38.0 34.9 43.0 41.3 39.2 38.2 44.7 42.1 40.0 41.4 46.5 43.0 40.9

105 °F

115 °F

125 °F

83 24.8 32.3 36.9 36.0 27.5 35.7 39.1 37.6 30.2 39.1 41.3 39.2 32.8 42.0 42.1 40.0 35.4 44.8 43.0 40.9

80 21.4 28.9 33.4 32.6 23.5 31.7 36.7 35.8 25.6 34.5 39.9 38.9 27.5 37.1 41.5 39.9 29.5 39.7 43.0 40.9

77 18.0 25.4 30.0 29.2 19.5 27.6 32.6 31.7 20.9 29.8 35.3 34.2 22.2 31.8 36.2 34.6 23.5 33.7 37.0 34.9

74 14.6 22.0 26.6 25.7 15.4 23.6 28.6 27.7 16.2 25.1 30.6 29.6 16.9 26.4 30.8 29.3 17.5 27.8 31.1 28.9

71 18.6 23.2 22.3

19.5 24.6 23.6

20.5 25.9 24.9

21.1 25.5 23.9

21.8 25.1 23.0

68 15.2 19.8 18.9

15.5 20.5 19.6

15.8 21.3 20.3

15.8 20.2 18.6

15.8 19.2 17.0

Net Cap

MBH

42.4 38.5 36.2 33.7 43.6 39.6 37.2 34.6 44.7 40.6 38.1 35.5 45.5 41.3 38.8 36.1 46.3 42.0 39.4 36.7

Total Power

Input KW

6.08 5.89 5.75 5.65 6.24 6.04 5.90 5.80 6.40 6.20 6.05 5.95 6.51 6.30 6.15 6.05 6.62 6.41 6.25 6.15

86 27.2 34.5 36.2 33.7 30.4 37.6 37.2 34.6 33.5 40.6 38.1 35.5 36.6 41.3 38.8 36.1 39.7 42.0 39.4 36.7

83 23.8 31.1 35.0 33.3 26.3 34.4 36.5 34.4 28.9 37.6 38.1 35.5 31.3 39.8 38.8 36.1 33.7 42.0 39.4 36.7

80 20.3 27.7 31.5 29.8 22.3 30.3 34.6 32.7 24.2 32.9 37.6 35.5 26.0 35.4 38.5 36.1 27.8 37.8 39.4 36.7

77 16.9 24.2 28.1 26.4 18.2 26.3 30.5 28.6 19.5 28.3 32.9 30.9 20.7 30.0 33.2 30.8 21.8 31.8 33.5 30.8

74 13.5 20.8 24.7 23.0 14.2 22.2 26.5 24.6 14.9 23.6 28.2 26.2 15.4 24.7 27.9 25.5 15.8 25.9 27.5 24.8

Net Cap

MBH

Total Power

Input KW

71 17.4 21.3 19.6

18.2 22.4 20.5

19.0 23.6 21.5

19.4 22.6 20.2

19.9 21.6 18.9

68 14.0 17.9 16.1

14.1 18.4 16.5

14.3 18.9 16.9

14.1 17.2 14.9

13.9 15.6 12.9

38.9 35.1 33.6 30.6 39.7 35.9 34.3 31.2 40.5 36.6 35.0 31.8 41.0 37.1 35.4 32.2 41.5 37.5 35.9 32.6

6.6

6.3

6.2

6.0

6.7

6.5

6.3

6.2

6.9

6.7

6.5

6.3

7.0

6.8

6.6

6.4

7.1

6.9

6.7

6.5

86 26.1 33.3 33.6 30.6 29.1 35.8 34.3 31.2 32.2 36.6 35.0 31.8 35.1 37.1 35.4 32.2 38.0 37.5 35.9 32.6

83 22.7 29.9 33.1 30.5 25.1 33.0 34.0 31.2 27.5 36.1 35.0 31.8 29.7 37.1 35.4 32.2 32.0 37.5 35.9 32.6

80 19.2 26.5 29.6 27.1 21.0 29.0 32.4 29.6 22.8 31.4 35.0 31.8 24.4 33.6 35.4 32.2 26.0 35.9 35.9 32.6

77 15.8 23.1 26.2 23.7 17.0 24.9 28.4 25.6 18.2 26.8 30.5 27.5 19.1 28.3 30.2 27.1 20.1 29.9 29.9 26.7

74 12.4 19.6 22.8 20.2 12.9 20.9 24.3 21.5 13.5 22.1 25.9 22.8 13.8 23.0 24.9 21.8 14.1 23.9 24.0 20.7

71 16.2 19.4 16.8

16.8 20.3 17.5

17.4 21.2 18.1

17.7 19.6 16.4

18.0 18.0 14.7

68 12.8 16.0 13.4

12.8 16.2 13.4

12.8 16.5 13.5

12.4 14.3 11.1

12.0 12.0 8.8

= These capacities are net capacities - indoor fan heat deducted.

ALL SENSIBLE CAPACITY

10 Unitary Products Group

511.18-TG1G

COOLING CAPACITIES -

5 TON (BUA060)

Temperature of Air on

Outdoor Coil

85 °F

Air On Indoor Coil

1500 CFM

WB

°

F

1750 CFM

WB

°

F

2000 CFM

WB

°

F

2100 CFM

WB

°

F

2200 CFM

WB

°

F

72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57

Net Cap

MBH

64.1 58.6 52.4 52.6 65.4 59.8 53.5 53.6 66.7 60.9 54.5 54.7 66.0 60.3 54.0 54.1 65.3 59.7 53.4 53.5

Total Power

Input KW

5.52 5.49 5.37 5.44 5.68 5.65 5.52 5.60 5.84 5.81 5.68 5.75 5.95 5.92 5.79 5.87 6.06 6.03 5.90 5.98

86 37.2 47.6 52.4 52.6 41.0 52.3 53.5 53.6 44.9 57.0 54.5 54.7 46.0 58.3 54.0 54.1 47.1 59.5 53.4 53.5

83 32.9 43.4 50.7 41.3 36.0 47.3 52.6 53.0 39.0 51.2 54.5 54.7 39.8 52.1 54.0 54.1 40.5 53.0 53.4 53.5

80 28.6 39.1 46.4 47.1 30.9 42.2 50.1 50.9 33.2 45.4 53.9 54.7 33.6 45.9 53.6 54.1 34.0 46.4 53.4 53.5

77 24.3 34.8 42.1 42.8 25.9 37.2 45.1 45.8 27.4 39.6 48.0 48.8 27.4 39.7 47.4 47.9 27.4 39.8 46.8 47.0

95 °F

74 20.0 30.5 37.8 38.5 20.8 32.1 40.0 40.8 21.5 33.7 42.2 43.0 21.2 33.5 41.2 41.7 20.8 33.3 40.3 40.4

71 26.2 33.6 34.2

27.1 35.0 35.7

27.9 36.4 37.2

27.3 35.0 35.5

26.7 33.7 33.8

68 22.0 29.3 30.0

22.0 29.9 30.6

22.1 30.5 31.3

21.1 28.8 29.3

20.2 27.2 27.3

Net Cap

MBH

Total Power

Input KW

60.1 54.6 50.2 49.2 61.5 55.8 51.4 50.3 63.0 57.1 52.6 51.5 63.9 58.0 53.4 52.3 64.9 58.9 54.2 53.0

6.00 5.90 5.81 5.77 6.19 6.09 5.99 5.95 6.37 6.27 6.17 6.12 6.49 6.38 6.28 6.24 6.60 6.50 6.39 6.35

86 35.5 46.0 50.2 49.2 39.5 51.1 51.4 50.3 43.6 56.1 52.6 51.5 45.1 57.5 53.4 52.3 46.6 58.9 54.2 53.0

83 31.2 41.8 48.6 47.7 34.5 46.0 50.6 49.6 37.8 50.3 52.6 51.5 38.9 51.7 53.4 52.3 40.0 53.2 54.2 53.0

80 26.9 37.5 44.3 43.4 29.4 41.0 48.4 47.4 31.9 44.5 52.6 51.5 32.7 45.5 53.4 52.3 33.5 46.6 54.2 53.0

77 22.6 33.2 40.0 39.1 24.4 35.9 43.4 42.4 26.1 38.6 46.7 45.6 26.5 39.3 47.2 46.1 26.9 40.1 47.6 46.5

74 18.4 28.9 35.8 34.8 19.3 30.9 38.3 37.3 20.3 32.8 40.9 39.8 20.3 33.2 41.0 39.9 20.4 33.5 41.1 39.9

71 24.6 31.5 30.6

25.8 33.3 32.3

27.0 35.1 34.0

27.0 34.8 33.7

27.0 34.5 33.4

68 20.4 27.2 26.3

20.7 28.2 27.2

21.1 29.2 28.2

20.8 28.6 27.5

20.4 27.9 26.8

Net Cap

MBH

Total Power

Input KW

56.1 50.2 46.6 45.4 57.5 51.4 47.8 46.5 58.9 52.7 48.9 47.6 59.7 53.4 49.6 48.3 60.5 54.1 50.3 48.9

6.56 6.43 6.35 6.32 6.75 6.62 6.53 6.51 6.94 6.80 6.71 6.69 7.06 6.92 6.83 6.80 7.18 7.04 6.94 6.92

86 34.5 44.3 46.6 45.4 38.4 48.2 47.8 46.5 42.3 52.2 48.9 47.6 43.7 53.1 49.6 48.3 45.1 54.1 50.3 48.9

105 °F

115 °F

125 °F

83 30.3 40.0 45.7 44.6 33.4 44.1 47.3 46.1 36.5 48.1 48.9 47.6 37.5 49.3 49.6 48.3 38.5 50.6 50.3 48.9

80 26.0 35.8 41.5 40.4 28.3 39.0 45.2 44.0 30.7 42.2 48.9 47.6 31.3 43.1 49.6 48.3 32.0 44.0 50.3 48.9

77 21.7 31.5 37.2 36.1 23.3 33.9 40.1 38.9 24.8 36.4 43.1 41.8 25.1 36.9 43.4 42.1 25.4 37.4 43.7 42.4

74 17.4 27.2 32.9 31.8 18.2 28.9 35.1 33.9 19.0 30.6 37.3 36.0 18.9 30.7 37.2 35.9 18.8 30.9 37.2 35.8

71 22.9 28.6 27.5

23.8 30.0 28.8

24.7 31.5 30.2

24.5 31.0 29.7

24.3 30.6 29.3

68 18.7 24.3 23.2

18.8 25.0 23.8

18.9 25.6 24.3

18.3 24.8 23.5

17.8 24.0 22.7

Net Cap

MBH

52.0 45.8 43.1 41.6 53.4 47.0 44.2 42.7 54.8 48.2 45.3 43.8 55.4 48.8 45.9 44.3 56.1 49.3 46.4 44.8

Total Power

Input KW

7.13 6.96 6.89 6.88 7.32 7.15 7.07 7.06 7.51 7.34 7.26 7.25 7.64 7.46 7.38 7.37 7.76 7.58 7.50 7.49

86 33.6 42.6 43.1 41.6 37.3 45.4 44.2 42.7 41.1 48.2 45.3 43.8 42.3 48.8 45.9 44.3 43.5 49.3 46.4 44.8

83 29.3 38.3 42.9 41.6 32.3 42.1 44.1 42.7 35.2 45.8 45.3 43.8 36.1 46.9 45.9 44.3 37.0 47.9 46.4 44.8

80 25.0 34.1 38.6 37.3 27.2 37.0 42.0 40.6 29.4 40.0 45.3 43.8 29.9 40.7 45.9 44.3 30.4 41.4 46.4 44.8

77 20.8 29.8 34.3 33.0 22.2 32.0 36.9 35.5 23.6 34.2 39.5 38.0 23.7 34.5 39.7 38.1 23.9 34.8 39.8 38.3

74 16.5 25.5 30.0 28.8 17.1 26.9 31.9 30.5 17.7 28.3 33.7 32.2 17.5 28.3 33.5 31.9 17.3 28.3 33.3 31.7

Net Cap

MBH

Total Power

Input KW

71 21.2 25.8 24.5

21.9 26.8 25.4

22.5 27.8 26.3

22.1 27.3 25.7

21.7 26.7 25.2

68 16.9 21.5 20.2

16.8 21.7 20.3

16.7 22.0 20.5

15.9 21.1 19.6

15.2 20.2 18.6

48.0 41.4 39.5 37.8 49.3 42.6 40.6 38.9 50.7 43.7 41.7 40.0 51.2 44.1 42.1 40.4 51.6 44.5 42.5 40.7

7.69 7.49 7.42 7.43 7.89 7.68 7.61 7.62 8.08 7.87 7.80 7.81 8.21 8.00 7.92 7.93 8.34 8.12 8.05 8.06

86 32.7 40.9 39.5 37.8 36.2 42.6 40.6 38.9 39.8 43.7 41.7 40.0 40.9 44.1 42.1 40.4 42.0 44.5 42.5 40.7

83 28.4 36.6 39.5 37.8 31.2 40.1 40.6 38.9 34.0 43.6 41.7 40.0 34.7 44.1 42.1 40.4 35.5 44.5 42.5 40.7

80 24.1 32.3 35.7 34.3 26.1 35.1 38.7 37.1 28.2 37.8 41.7 40.0 28.5 38.3 42.1 40.4 28.9 38.8 42.5 40.7

77 19.8 28.1 31.4 30.0 21.1 30.0 33.7 32.1 22.3 31.9 35.9 34.2 22.3 32.1 35.9 34.2 22.3 32.2 35.9 34.2

74 15.5 23.8 27.2 25.7 16.0 25.0 28.6 27.0 16.5 26.1 30.0 28.3 16.1 25.9 29.7 28.0 15.8 25.6 29.4 27.6

71 19.5 22.9 21.4

19.9 23.6 22.0

20.3 24.2 22.5

19.7 23.5 21.8

19.1 22.8 21.1

68 15.2 18.6 17.1

14.8 18.5 16.9

14.5 18.4 16.7

13.5 17.3 15.6

12.5 16.3 14.5

= These capacities are net capacities - indoor fan heat deducted.

ALL SENSIBLE CAPACITY

Unitary Products Group 11

511.18-TG1G

HEATING CAPACITIES -

1-1/2 TON (BUA018)

RETURN AIR CAP

CFM

OUTDOOR AIR TEMPERATURE,

°

F (72% RH)

°

F & KW -10 0 10 20 30 40

MBH 5.024

6.289

7.836

9.728

12.041

14.869

55

KW 1.062

1.160

1.257

1.354

1.451

1.548

450

600

750

70

80

55

70

80

55

70

80

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

4.297

1.199

3.080

1.261

6.412

1.072

5.685

1.209

4.468

1.271

7.000

1.066

6.273

1.203

5.056

1.265

5.562

1.297

4.345

1.359

7.677

1.170

6.950

1.307

5.733

1.369

8.265

1.164

7.538

1.301

6.321

1.363

7.109

1.394

5.892

1.456

9.224

1.267

8.497

1.404

7.280

1.466

9.812

1.261

9.085

1.398

7.868

1.460

9.001

1.491

7.784

1.553

11.116

1.364

10.389

1.501

9.172

1.563

11.704

1.358

10.977

1.495

9.760

1.557

11.314

1.588

10.097

1.650

13.429

1.461

12.702

1.598

11.485

1.660

14.017

1.455

13.290

1.592

12.073

1.654

14.142

1.685

12.925

1.747

16.257

1.558

15.530

1.695

14.313

1.757

16.845

1.552

16.118

1.689

14.901

1.751

50

18.326

1.645

17.599

1.782

16.382

1.844

19.714

1.655

18.987

1.792

17.770

1.854

20.302

1.649

19.575

1.786

18.358

1.848

60

22.553

1.742

21.826

1.879

20.609

1.941

23.941

1.752

23.214

1.889

21.997

1.951

24.529

1.746

23.802

1.883

22.585

1.945

HEATING CAPACITIES -

2 TON (BUA024)

RETURN AIR CAP

CFM

OUTDOOR AIR TEMPERATURE,

°

F (72% RH)

°

F & KW -10 0 10 20 30 40

MBH 6.195

7.735

9.640

11.996

14.910

18.513

55

600

800

1,000

70

80

55

70

80

55

70

80

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

1.227

4.898

1.342

3.414

1.402

7.803

1.233

6.506

1.348

5.022

1.408

9.523

1.253

8.226

1.368

6.742

1.428

1.380

6.438

1.495

4.954

1.555

9.343

1.386

8.046

1.501

6.562

1.561

11.063

1.406

9.766

1.521

8.282

1.581

1.532

8.343

1.647

6.859

1.707

11.248

1.538

9.951

1.653

8.467

1.713

12.968

1.558

11.671

1.673

10.187

1.733

1.685

10.699

1.800

9.215

1.860

13.604

1.691

12.307

1.806

10.823

1.866

15.324

1.711

14.027

1.826

12.543

1.886

1.837

13.613

1.952

12.129

2.012

16.518

1.843

15.221

1.958

13.737

2.018

18.238

1.863

16.941

1.978

15.457

2.038

1.989

17.216

2.104

15.732

2.164

20.121

1.995

18.824

2.110

17.340

2.170

21.841

2.015

20.544

2.130

19.060

2.190

50

22.970

2.142

21.673

2.257

20.189

2.317

24.578

2.148

23.281

2.263

21.797

2.323

26.298

2.168

25.001

2.283

23.517

2.343

These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.

60

28.481

2.294

27.184

2.409

25.700

2.469

30.089

2.300

28.792

2.415

27.308

2.475

31.809

2.320

30.512

2.435

29.028

2.495

12 Unitary Products Group

HEATING CAPACITIES -

2-1/2 TON (BUA030)

RETURN AIR CAP

CFM

OUTDOOR AIR TEMPERATURE,

°

F (72% RH)

°

F & KW -10 0 10 20 30 40

MBH 8.239

10.151

12.469

15.280

18.687

22.817

55

KW 1.515

1.673

1.832

1.990

2.148

2.306

750

1,000

1,250

70

80

55

70

80

55

70

80

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

7.038

1.690

5.302

1.802

10.209

1.530

9.008

1.705

7.272

1.817

11.402

1.552

10.201

1.727

8.465

1.839

8.950

1.848

7.214

1.960

12.121

1.688

10.920

1.863

9.184

1.975

13.314

1.710

12.113

1.885

10.377

1.997

11.268

2.007

9.532

2.119

14.439

1.847

13.238

2.022

11.502

2.134

15.632

1.869

14.431

2.044

12.695

2.156

14.079

2.165

12.343

2.277

17.250

2.005

16.049

2.180

14.313

2.292

18.443

2.027

17.242

2.202

15.506

2.314

17.486

2.323

15.750

2.435

20.657

2.163

19.456

2.338

17.720

2.450

21.850

2.185

20.649

2.360

18.913

2.472

21.616

2.481

19.880

2.593

24.787

2.321

23.586

2.496

21.850

2.608

25.980

2.343

24.779

2.518

23.043

2.630

50

27.824

2.465

26.623

2.640

24.887

2.752

29.794

2.480

28.593

2.655

26.857

2.767

30.987

2.502

29.786

2.677

28.050

2.789

511.18-TG1G

60

33.893

2.623

32.692

2.798

30.956

2.910

35.863

2.638

34.662

2.813

32.926

2.925

37.056

2.660

35.855

2.835

34.119

2.947

HEATING CAPACITIES -

3 TON (BUA036)

RETURN AIR CAP

CFM

OUTDOOR AIR TEMPERATURE,

°

F (72% RH)

°

F & KW -10 0 10 20 30 40

MBH 9.144

11.465

14.209

17.452

21.284

25.814

55

900

1,200

1,500

70

80

55

70

80

55

70

80

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

2.186

8.834

2.451

7.285

2.596

13.075

2.156

12.765

2.421

11.216

2.566

15.343

2.156

15.033

2.421

13.484

2.566

2.314

11.155

2.579

9.606

2.724

15.396

2.284

15.086

2.549

13.537

2.694

17.664

2.284

17.354

2.549

15.805

2.694

2.442

13.899

2.707

12.35

2.852

18.14

2.412

17.83

2.677

16.281

2.822

20.408

2.412

20.098

2.677

18.549

2.822

2.570

17.142

2.835

15.593

2.980

21.383

2.540

21.073

2.805

19.524

2.950

23.651

2.540

23.341

2.805

21.792

2.950

2.698

20.974

2.963

19.425

3.108

25.215

2.668

24.905

2.933

23.356

3.078

27.483

2.668

27.173

2.933

25.624

3.078

2.826

25.504

3.091

23.955

3.236

29.745

2.796

29.435

3.061

27.886

3.206

32.013

2.796

31.703

3.061

30.154

3.206

50

31.167

2.955

30.857

3.220

29.308

3.365

35.098

2.925

34.788

3.190

33.239

3.335

37.366

2.925

37.056

3.190

35.507

3.335

These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.

60

37.494

3.083

37.184

3.348

35.635

3.493

41.425

3.053

41.115

3.318

39.566

3.463

43.693

3.053

43.383

3.318

41.834

3.463

Unitary Products Group 13

511.18-TG1G

HEATING CAPACITIES -

3-1/2 TON (BUA042)

RETURN AIR CAP

CFM

OUTDOOR AIR TEMPERATURE,

°

F (72% RH)

°

F & KW -10 0 10 20 30 40

MBH 9.904

12.549

15.725

19.537

24.114

29.608

55

1,050

1,400

1,750

70

80

55

70

80

55

70

80

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

2.419

8.570

2.700

6.102

2.904

14.531

2.415

13.197

2.696

10.729

2.900

15.133

2.562

13.799

2.843

11.331

3.047

2.565

11.215

2.846

8.747

3.050

17.176

2.561

15.842

2.842

13.374

3.046

17.778

2.708

16.444

2.989

13.976

3.193

2.711

14.391

2.992

11.923

3.196

20.352

2.707

19.018

2.988

16.550

3.192

20.954

2.854

19.620

3.135

17.152

3.339

2.858

18.203

3.139

15.735

3.343

24.164

2.854

22.830

3.135

20.362

3.339

24.766

3.001

23.432

3.282

20.964

3.486

3.004

22.780

3.285

20.312

3.489

28.741

3.000

27.407

3.281

24.939

3.485

29.343

3.147

28.009

3.428

25.541

3.632

3.150

28.274

3.431

25.806

3.635

34.235

3.146

32.901

3.427

30.433

3.631

34.837

3.293

33.503

3.574

31.035

3.778

50

36.204

3.296

34.870

3.577

32.402

3.781

40.831

3.292

39.497

3.573

37.029

3.777

41.433

3.439

40.099

3.720

37.631

3.924

These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.

60

44.121

3.443

42.787

3.724

40.319

3.928

48.748

3.439

47.414

3.720

44.946

3.924

49.350

3.586

48.016

3.867

45.548

4.071

HEATING CAPACITIES -

4 TON (BUA048)

RETURN AIR CAP

CFM

OUTDOOR AIR TEMPERATURE,

°

F (72% RH)

°

F & KW -10 0 10 20 30 40

MBH 17.108

20.080

23.566

27.654

32.449

38.073

55

1,200

1,600

2,000

70

80

55

70

80

55

70

80

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

3.178

15.640

3.687

14.678

3.982

18.660

3.077

17.192

3.586

16.230

3.881

21.227

3.138

19.759

3.647

18.797

3.942

3.283

18.612

3.792

17.650

4.087

21.632

3.182

20.164

3.691

19.202

3.986

24.199

3.243

22.731

3.752

21.769

4.047

3.388

22.098

3.897

21.136

4.192

25.118

3.287

23.650

3.796

22.688

4.091

27.685

3.348

26.217

3.857

25.255

4.152

3.493

26.186

4.002

25.224

4.297

29.206

3.392

27.738

3.901

26.776

4.196

31.773

3.453

30.305

3.962

29.343

4.257

3.598

30.981

4.107

30.019

4.402

34.001

3.497

32.533

4.006

31.571

4.301

36.568

3.558

35.100

4.067

34.138

4.362

3.702

36.605

4.211

35.643

4.506

39.625

3.601

38.157

4.110

37.195

4.405

42.192

3.662

40.724

4.171

39.762

4.466

50

44.669

3.807

43.201

4.316

42.239

4.611

46.221

3.706

44.753

4.215

43.791

4.510

48.788

3.767

47.320

4.276

46.358

4.571

These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.

60

52.406

3.912

50.938

4.421

49.976

4.716

53.958

3.811

52.490

4.320

51.528

4.615

56.525

3.872

55.057

4.381

54.095

4.676

14 Unitary Products Group

HEATING CAPACITIES -

5 TON (BUA060)

RETURN AIR CAP

CFM

OUTDOOR AIR TEMPERATURE,

°

F (72% RH)

°

F & KW -10 0 10 20 30 40

MBH 19.316

23.261

27.902

33.364

39.79

47.351

55

KW 3.57

3.829

4.088

4.347

4.606

4.865

1,500

2,000

2,500

70

80

55

70

80

55

70

80

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

MBH

KW

18.491

4.061

15.362

4.358

23.164

3.624

22.339

4.115

19.21

4.412

24.796

3.754

23.971

4.245

20.842

4.542

22.436

4.32

19.307

4.617

27.109

3.883

26.284

4.374

23.155

4.671

28.741

4.013

27.916

4.504

24.787

4.801

27.077

4.579

23.948

4.876

31.75

4.142

30.925

4.633

27.796

4.93

33.382

4.272

32.557

4.763

29.428

5.06

32.539

4.838

29.41

5.135

37.212

4.401

36.387

4.892

33.258

5.189

38.844

4.531

38.019

5.022

34.89

5.319

38.965

5.097

35.836

5.394

43.638

4.66

42.813

5.151

39.684

5.448

45.27

4.79

44.445

5.281

41.316

5.578

46.526

5.356

43.397

5.653

51.199

4.919

50.374

5.41

47.245

5.707

52.831

5.049

52.006

5.54

48.877

5.837

50

56.247

5.124

55.422

5.615

52.293

5.912

60.095

5.178

59.27

5.669

56.141

5.966

61.727

5.308

60.902

5.799

57.773

6.096

511.18-TG1G

60

66.714

5.383

65.889

5.874

62.76

6.171

70.562

5.437

69.737

5.928

66.608

6.225

72.194

5.567

71.369

6.058

68.24

6.355

APPLICATION DATA

MODEL

MINIMUM AIR FLOW

(CFM)

MAXIMUM AIR FLOW

(CFM)

COOLING

HEATING

COOLING

HEATING

MINIMUM OPERATING TEMPERATURE IN COOLING MODE

(AMBIENT,

°

F)

MINIMUM MIXED AIR IN COOLING MODE

(RETURN AIR, DB

°

F/WB

°

F)

MINIMUM MIXED AIR IN HEATING MODE

(RETURN AIR,

°

F)

018

450

450

750

750

45

024

600

600

1,000

1,000

030

750

750

1,250

1,250

BUA

036

900

900

1,500

1,500

042

1,050

1,050

1,750

1,750

048

1,200

1,200

2,000

2,000

060

1,500

1,500

2,500

2,500

68 / 57 68 / 57 68 / 57 68 / 57 68 / 57 68 / 57 68 / 57

55

45

55

45

55

45

55

45

55

45

55

45

55

ADDITIONAL STATIC PRESSURE RESISTANCE

RESISTANCE, IWG

DISCRIPTION

CFM

Wet Indoor coil

500 600 700 800 900 1,000 1,100 1,200 1,300 1,400 1,500 1,600 1,700 1,800 1,900 2,000

0.01

0.01

0.01

0.02

0.02

0.03

0.03

0.04

0.04

0.04

0.04

0.04

0.05

0.05

0.06

0.07

Economizer

Filter/Frame Kit

Electric Heat

0.00

0.00

0.00

0.01

0.01

0.01

0.01

0.02

0.03

0.04

0.05

0.06

0.07

0.07

0.08

0.08

0.01

0.02

0.02

0.02

0.02

0.02

0.03

0.03

0.03

0.03

0.04

0.05

0.05

0.06

0.06

0.07

0.02

0.03

0.03

0.03

0.04

0.04

0.05

0.06

0.07

0.08

0.09

0.10

0.01

0.11

0.11

0.12

NOTE: 1. Deduct these resistance values from the available external static pressure shown in the respective Blower Performance Table.

2. The pressure thru the economizer is greater for 100% outdoor air then for 100% return air. If the resistance of the return air duct system is less then 0.25 IWG, the unit will deliver

less CFM during full economizer operation.

Unitary Products Group 15

511.18-TG1G

SIDE AND BOTTOM SUPPLY AIR BLOWER PERFORMANCE

230/460/575 volts

.10

.20

.30

EXTERNAL STATIC PRESSURE - IWG

.40

.50

.60

.70

.80

MODEL NO.

BUA

MOTOR

SPEED

.90

1.00

1.10

018

024

030

036

042

048

060

HI

MED

LOW

HI

MED

LOW

HI

MED

LOW

HI

MED

LOW

HI

MED

LOW

HI

MED

LOW

HI

MED

LOW

-

-

-

-

-

900

-

-

-

-

-

290

-

-

-

-

-

850

-

-

-

-

-

287

-

-

702

-

-

800

-

-

220

-

-

243

-

-

641

-

-

760

-

-

206

-

-

220

-

1200

900

-

390

280

-

1134

850

-

397

267

-

1068

800

-

368

243

-

1002

-

-

367

-

-

654

536

-

935

697

-

936

-

-

233

183

-

338

238

668

541

-

-

867

843

401

209

-

-

322

183

652

-

-

-

800

-

386

-

-

-

304

-

-

339

-

1200 640

897

-

322

-

1100

800

-

620

304

-

-

-

-

987

733

-

987

-

-

-

-

-

507

286

-

507

-

-

-

-

-

873

867

-

873

-

-

-

-

-

493

268

-

493

-

-

-

-

-

760

-

-

760

-

-

-

-

1462

-

-

526

-

-

1400

-

-

506

-

1472

1337

-

647

486

-

1394

1275

-

626

467

1414

1297

1167

617

495

440

1317

1199

1100

688

465

414

1219

1102

1012

660

435

387

1116

985

-

533

397

-

1013

-

-

507

-

-

-

-

-

-

-

-

-

-

1680

-

-

607

-

-

1608

-

-

584

-

1673

1630

-

830

660

1697

1566

1425

740

594

528

1580

1439

1320

706

558

496

1463

1322

1214

672

522

464

1339

1182

1050

640

476

420

1216

-

-

608

-

-

910

-

-

480

-

-

1092

-

-

576

-

-

-

-

-

480

-

-

480

-

-

-

1876

1544

-

792

620

-

1829

1508

-

772

610

-

1783

1472

-

753

600

1947

1736

1436

882

733

590

1867

1668

1375

857

706

573

1786

1599

1313

832

680

557

1706

1531

1252

807

653

540

1637

1434

-

782

622

-

1569

1337

-

757

591

-

1500

1240

-

732

560

-

-

-

-

-

2499

2242 1090 2201 1053 2161 1017 2120

1290

980

2391

2041

1233

927

2283

2454 1163 2387 1117 2320 1070 2229 1023 2137

1962

1177

977

873

2175 1120

2046

1883

930

820

2067 1080 1958

1950

1797

887

787

1854

1711

1040 1850 1000

843

753

1758

1625

800

720

NOTE: Above data includes allowances for a dry indoor coil and no filters. For additional pressure drops, refer to the “Additional Static Pressure Resistance” table.

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

208 volts

MODEL NO.

BUA

MOTOR

SPEED

.10

.20

.30

EXTERNAL STATIC PRESSURE - IWG

.40

.50

.60

.70

.80

.90

1.00

1.10

018

024

030

036

042

048

060

HI

MED

LOW

HI

MED

LOW

HI

MED

LOW

HI

MED

LOW

HI

MED

LOW

HI

MED

LOW

HI

MED

LOW

741

-

-

-

-

810

-

-

226

-

-

261

-

-

686

-

-

765

-

-

212

-

-

240

-

-

632

-

961

720

-

-

198

-

351

219

-

690

577

-

902

675

-

231

185

-

321

198

689

659

453

-

841

627

374

210

165

-

305

215

593

487

-

-

751

-

361

188

-

-

290

-

497

-

-

990

720

-

347

-

-

468

274

-

-

-

-

888

660

-

-

-

-

456

257

-

-

-

-

786

-

-

-

-

-

444

-

-

NOTE: Above data includes allowances for a dry indoor coil and no filters. For additional pressure drops, refer to the “Additional Static Pressure Resistance” table.

-

-

-

684

-

-

-

1080

810

-

351

261

-

1021

766

-

341

240

-

961

-

-

331

-

-

902

-

-

321

-

1171

841

-

604

306

-

1080

781

-

486

280

-

980

-

-

468

-

-

888

-

-

456

-

-

786

-

-

444

-

-

-

-

-

-

-

-

-

1465

1316

-

631

473

-

1395

1260

-

512

455

1440

1325

1204

608

492

438

1381

1255

1148

581

473

420

1273

1167

1069

656

446

396

1185

1079

990

530

419

372

1097

952

911

604

392

348

1004

-

-

480

-

-

912

-

-

456

-

-

-

-

-

-

-

-

-

1679 867

-

1674

1612

-

614

1728

1590

646 1449

725

590

526

1633

1506

697

567

1377 504

1527

1400

666

636

1282 476

1422

1296

636

602

1188 447

1317

1190

1093

606

470

418

1205

1063

-

676

428

-

1094

-

-

547

-

-

-

-

-

-

1694

-

690

1385 520

1982

1662

1349

870

673

1939

1629

510 1312

850

657

500

1897

1597

830

640

1276 490

1813

1542

800

623

1235 480

1728

1486

-

770

607

-

1644

1431

-

740

590

-

1559

1336

-

707

563

-

1474

1240

-

673

537

-

1389

-

-

640

-

-

2450 1213 2366 1165 2282 1117 2198 1068 2114 1020 1989

2339 1170 2275 1118 2211

1929 940 1877 903 1824

1067 2147

867 1772

1015 2083

830 1720

963

793

2019

1667

912

757

1955

1615

860

720

1854

1586

993 1864

824

706

1753

1557

967

788

691

1739 940

1652

1528

752

677

-

-

-

-

-

-

-

-

-

432

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

16 Unitary Products Group

FIELD WIRING DIAGRAM

THERMOSTAT

** = Minimum wire size of 18 AWG

wire shuold be used for all field

installed 24 volt wire.

**

UNIT TERMINAL STRIP

NOTE:

HEAT ANTICIPATOR

SHOULD BE SET AT 0.25

AMPS FOR ALL MODELS.

PROGRAMABLE

THERMOSTAT ONLY

*

W 2

W 1

24 VOLT TRANSFORMER

* = Only required on units with

supplemental electric heat.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can

cause improper and dangerous operation. Verify proper operation after servicing.

CONTROL WIRING

511.18-TG1G

REFER TO ELECTRICAL DATA

TABLES TO SIZE THE DISCON-

NECT

POWER WIRING

REFER TO ELECTRICAL DATA

TABLES TO SIZE THE DISCON-

NECT

ELECTRICAL DATA

(BASIC UNIT)

MODEL

BUA

POWER

SUPPLY

VOLTAGE

LIMITATIONS

MIN.

MAX.

COMPRESSOR

RLA LRA

OUTDOOR

FAN

MOTOR,

FLA

018 208/230-1-60 187

024 208/230-1-60 187

030 208/230-1-60 187

036 208/230-1-60 187

042 208/230-1-60 187

048 208/230-1-60 187

060 208/230-1-60 187

036 208/230-3-60 187

042 208/230-3-60 187

048 208/230-3-60 187

060 208/230-3-60 187

036

042

460-3-60

460-3-60

414

414

048

060

036

042

048

060

460-3-60

460-3-60

575-3-60

575-3-60

575-3-60

575-3-60

414

414

518

518

518

518

253

253

253

253

253

253

253

253

253

253

253

504

504

504

504

630

630

630

630

9.0

11.2

12.0

17.3

20.5

120.0

24.4

140.0

28.9

165.0

10.9

78.0

14.1

110.0

14.1

105.0

16.0

125.0

5.8

7.1

7.1

8.0

4.5

5.8

5.6

6.4

48.0

60.0

73.0

94.0

40.0

54.0

55.0

67.0

32.0

44.0

44.0

50.0

1.1

1.1

1.1

1.1

1.1

1.5

1.5

1.1

1.1

1.5

1.5

0.6

0.6

0.8

0.8

0.4

0.4

0.6

0.6

= Utilization Range “A” in accordance with ARI Standard 110.

= Dual element, time delay type.

7.0

1.8

1.8

2.0

3.5

1.5

1.5

1.6

2.8

SUPPLY

AIR

BLOWER

MOTOR,

FLA

2.6

2.6

2.6

3.5

3.5

4.0

7.0

3.5

3.5

4.0

MINIMUM

CIRCUIT

AMPACITY

15

20

15

15

40

15

15

15

15

25

35

40

50

60

MAX.

FUSE

SIZE,

AMPS

20

25

25

30

30

28.5

9.6

11.2

11.7

14.3

7.6

9.1

9.3

11.4

14.9

17.7

18.7

26.2

30.2

36.0

44.6

18.2

22.2

23.1

15

20

15

15

40

15

15

15

15

MAX.

HACR

BREAKER

SIZE,

AMPS

20

25

25

35

40

50

60

25

30

30

UNIT

POWER

FACTOR

TRANSFORMER

SIZE (VA)

.96

.96

.96

.96

.96

.96

.96

.96

.96

.96

.96

.96

.96

.96

.96

.96

.96

.96

.96

75

75

75

75

75

75

75

75

75

40

40

40

40

40

40

40

75

75

75

Unitary Products Group 17

511.18-TG1L

ELECTRICAL DATA

(HEAT PUMP / ELECTRIC HEAT)

ELECTRIC HEAT

CORRECTION

FACTORS

NOMINAL VOLTAGE

240

480

600

VOLTAGE

208

230

460

575

KW CAP.

MULTIPLIER

.75

.92

.92

.92

POWER

SUPPLY

COMPRESSOR OUTDOOR

FAN

RLA LRA

MOTOR

FLA

SUPPLY

AIR

BLOWER

MOTOR,

FLA

ELECTRIC HEAT ACCESSORY

MODEL NO.

KW

TOTAL

AMPS

MINIMUM

CIRCUIT

AMPACITY

MAX.

FUSE

SIZE,

AMPS

MAX.

HACR

BREAKER

SIZE

018 208/230-1-60

024 208/230-1-60

030 208/230-1-60

036 208/230-1-60

042 208/230-1-60

048 208/230-1-60

060 208/230-1-60

036 208/230-3-60

042 208/230-3-60

048 208/230-3-60

060 208/230-3-60

036

042

048

060

460-3-60

460-3-60

460-3-60

460-3-60

9.0

11.2

14.7

14.7

0.0

17.3

17.3

0.0

20.5

20.5

0.0

24.4

28.9

10.9

14.1

14.1

16.0

5.8

7.1

7.1

8.0

48.0

60.0

73.0

73.0

0.0

94.0

94.0

0.0

120.0

120.0

0.0

140.0

165.0

78.0

110.0

105.0

125.0

40.0

54.0

55.0

67.0

1.1

1.1

1.1

1.1

0.0

1.1

1.1

0.0

1.1

1.1

0.0

1.5

1.5

1.1

1.1

1.5

1.5

0.6

0.6

0.8

0.8

2.6

2.6

2.6

2.6

0.0

3.5

3.5

0.0

3.5

3.5

0.0

4.0

7.0

3.5

3.5

4.0

7.0

1.8

1.8

2.0

3.5

2NH04500506

2NH04500706

2NH04500506

2NH04500706

2NH04501006

2NH04500506

2NH04500706

2NH04501006

2NH04501506

2ND04501506

2NH04500506

2NH04500706

2NH04501006

2NH04501506

2ND04501506

2NH04500506

2NH04500706

2NH04501006

2NH04501506

2ND04501506

2NH04501006

2NH04501506

2NH04502006

2NH04502506

2NH04501006

2NH04501506

2NH04502006

2NH04502506

2NH04501025

2NH04501525

2NH04501025

2NH04501525

2NH04501025

2NH04501525

2NH04502025

2NH04502525

2NH04501025

2NH04501525

2NH04502025

2NH04502525

2NH04501046

2NH04501546

2NH04501046

2NH04501546

2NH04501046

2NH04501546

2NH04502046

2NH04502546

2NH04501046

2NH04501546

2NH04502046

2NH04502546

1

2

1

2

2

1

2

2

2

2

1

2

2

2

2

1

2

2

2

2

2

2

2

2

2

2

2

2

1

1

1

1

1

1

2

2

1

1

2

2

1

1

1

1

1

1

2

2

1

1

2

2

7.5/10.0

36.1/41.7

45.1/52.1

3.8/5.0 *

5.6/7.5 *

7.5/10.0 *

11.3/15.0 *

18.1/20.8

27.1/31.3

36.1/41.7

54.2/62.5

52.8/56.3

64.1/69.3

75.4/82.3

97.9/108.4

3.8/5.0

18.1/20.8

52.8/56.3

7.5/10.0

36.1/41.7

45.1/52.1

7.5/10.0 *

11.3/15.0 *

15.0/20.0 *

18.8/25.0 *

7.5/10.0 *

11.3/15.0 *

15.0/20.0 *

18.8/25.0 *

7.5/10.0 *

11.3/15.0 *

7.5/10.0 *

11.3/15.0 *

7.5/10.0 *

11.3/15.0 *

15.0/20.0 *

18.8/25.0 *

7.5/10.0 *

11.3/15.0 *

15.0/20.0 *

18.8/25.0 *

3.8/5.0 *

5.6/7.5 *

3.8/5.0 *

5.6/7.5 *

7.5/10.0 *

3.8/5.0 *

5.6/7.5 *

7.5/10.0 *

11.3/15.0 *

18.1/20.8

27.1/31.3

18.1/20.8

27.1/31.3

36.1/41.7

18.1/20.8

27.3/31.3

36.1/41.7

54.2/62.5

37.5/41.0

48.8/54.0

40.7/44.2

52.0/57.2

63.3/70.2

44.7/48.2

56.0/61.2

67.3/74.2

89.8/100.3

3.8/5.0

18.1/20.8

44.7/48.2

7.5/10.0

36.1/41.7

45.1/52.1

3.8/5.0 *

5.6/7.5 *

7.5/10.0 *

11.3/15.0 *

18.1/20.8

27.1/31.3

36.1/41.7

54.2/62.5

48.8/52.3

60.1/65.3

71.4/78.3

93.9/104.4

3.8/5.0

18.1/20.8

48.8/52.3

10.0 **

15.0 **

10.0 **

15.0 **

10.0 **

15.0 **

20.0 **

25.0 **

10.0 **

15.0 **

20.0 **

25.0 **

36.1/41.7

54.2/62.5

72.2/83.3

90.3/104.2

36.1/41.7

54.2/62.5

72.2/83.3

90.3/104.2

81.1/88.1

103.7/114.1

126.3/140.2

148.8/166.2

89.8/96.7

112.3/122.8

134.9/148.8

157.5/174.8

20.8/24.1

31.3/36.1

20.8/24.1

31.3/36.1

20.8/24.1

31.3/36.1

41.7/48.1

52.1/60.1

20.8/24.1

31.3/36.1

41.7/48.1

52.1/60.1

12.8

18.0

12.0

18.0

12.0

18.0

24.1

30.1

12.0

18.0

24.1

30.1

44.3/48.3

57.3/63.3

48.3/57.3

61.3/67.3

49.2/53.2

62.2/68.2

75.3/83.3

88.3/98.3

54.6/58.6

67.6/73.6

80.7/88.7

93.7/103.7

24.6

32.2

26.2

33.8

26.7

34.2

41.7

49.3

29.4

36.9

44.4

51.9

= Dual element, time delay type. * = KW listed is for 240 volts, use table at top of page for 208 or 230 volts.

= Standard circuit breakers may be used in Canada and on applications ** = KW listed is for 480 volts, use table at top of page for 460 volts.

over 60 amps where the heaters are separately fused. *** = KW listed is for 600 volts, use table at top of page for 575 volts.

50/60

60/70

70/80

80/90

100/110

60/70

50/60

90/100

110/125

150/150

150/175

100/110

125/125

150/150

175/175

45/50

60/70

50/60

70/70

50/60

70/70

80/90

90/100

60/60

70/80

90/90

100/110

25

35

30

35

30

35

45

50

30

40

45

60

40/45

50/60

45/50

60/60

70/80

50/50

60/70

70/80

90/110

50/50

50/60

60/60

70/70

80/80

100/110

60/60

50/60

60/70

70/80

80/90

100/110

60/70

50/60

90/100

110/125

150/150

150/175

100/110

125/125

150/150

175/175

45/50

60/70

50/60

70/70

50/60

70/70

80/90

90/100

60/60

70/80

90/90

100/110

25

35

30

35

30

35

45

50

30

40

45

60

40/45

50/60

45/50

60/60

70/80

50/50

60/70

70/80

90/110

50/50

50/60

60/60

70/70

80/80

100/110

60/60

18 Unitary Products Group

511.18-TG1G

ELECTRICAL DATA

(HEAT PUMP / ELECTRIC HEAT)

(Continued)

036

042

048

060

POWER

SUPPLY

COMPRESSOR OUTDOOR

RLA LRA

FAN

MOTOR

FLA

SUPPLY

AIR

BLOWER

MOTOR,

FLA

575-3-60

575-3-60

575-3-60

575-3-60

4.5

5.8

5.6

6.4

32.0

44.0

44.0

50.0

0.4

0.4

0.6

0.6

1.5

1.5

1.6

2.8

ELECTRIC HEAT ACCESSORY

MODEL NO.

KW

TOTAL

AMPS

MINIMUM

CIRCUIT

AMPACITY

MAX.

FUSE

SIZE,

AMPS

MAX.

HACR

BREAKER

SIZE

2NH04501058

2NH04501558

2NH04501058

2NH04501558

2NH04501058

2NH04501558

2NH04502058

2NH04502558

2NH04501058

2NH04501558

2NH04502058

2NH04502558

1

1

2

2

2

2

1

1

1

1

1

1

10.0 ***

15.0 ***

10.0 ***

15.0 ***

10.0 ***

15.0 ***

20.0 ***

25.0 ***

10.0 ***

15.0 ***

20.0 ***

25.0 ***

9.6

14.4

9.6

14.4

9.6

14.4

19.2

24.1

9.6

14.4

19.2

24.1

19.6

25.6

21.1

27.2

21.3

27.3

33.3

39.3

23.4

29.5

35.5

41.5

25

30

40

45

25

30

35

40

20

30

25

30

25

30

35

40

25

30

40

45

20

30

25

30

= Dual element, time delay type. * = KW listed is for 240 volts, use table at top of page for 208 or 230 volts.

= Standard circuit breakers may be used in Canada and on applications ** = KW listed is for 480 volts, use table at top of page for 460 volts.

over 60 amps where the heaters are separately fused. *** = KW listed is for 600 volts, use table at top of page for 575 volts.

ELECTRIC HEAT

CORRECTION

FACTORS

NOMINAL VOLTAGE

240

480

600

VOLTAGE

208

230

460

575

KW CAP.

MULTIPLIER

.75

.92

.92

.92

Unitary Products Group 19

511.18-TG1G

UNIT DIMENSIONS

HIGH VOLTAGE CONN.

7

8

" DIA. KNOCKOUT

HIGH VOLTAGE CONN.

1

31

32

" DIA. KNOCKOUT

LOW VOLTAGE CONN.

7

8

“ DIA. KNOCKOUT

SIDE SUPPLY

AIR OPENING

SIDE RETURN

AIR OPENING

49

1

8

(OVERALL)

LOW VOLTAGE CONN.

7

8

“ DIA. KNOCKOUT

FRONT

2

3

8

"A"

COMPRESSOR

SERVICE ACCESS

COMPARTMENT PANEL

(OVERALL)

UNIT SIZE

018 - 042

048 - 060

DIMENSION

“A”

33

1

2

41

1

2

REFRIGERANT

CONNECTIONS

ELECTRICAL/FILTER

SERVICE ACCESS

COMPARTMENT PANEL

HIGH VOLTAGE CONN.

1

23

64

" DIA. KNOCKOUT

28

1

4

22

1

4

17

1

4

3

3

4

2

1

2

17

1

4

22

1

4

28

1

4

FRONT

1

1

2

4

1

2

47

1

4

(OVERALL)

UNIT CONDENSATE

CONNECTION

3

4

“ NPTI

(TRAP REQUIRED)

HIGH VOLTAGE

CONN. 1

31

32

“ x

7

8

" DIA.

KNOCKOUT

All dimensions are in inches. They are subject to change without notice. Certified dimensions will be provided upon request.

20

43

1

2

40

1

2

26

3

4

CONDENSATE

DRAIN

3

4

“ NPTI

6

22

1

2

OUTDOOR

COIL

14

1

2

SIDE SUPPLY

AIR OPENING

28

3

8

14

1

2

3

3

8

BACK

SIDE RETURN

AIR OPENING

BOTTOM SUPPLY

AIR OPENING

1

3

4

15

28

9

16

15

2

3

8

14

1

2

3

1

2

1

3

4

1

3

4

15

4

3

1

2

BOTTOM RETURN

AIR OPENING

Unitary Products Group

CENTER OF GRAVITY

D

CENTER OF GRAVITY

C

FRONT

OF

UNIT

A

49

1

8

25

B

22

47

1

4

511.18-TG1G

BUA

UNIT

SIZE

018

024

030

036

042

048

060

SHIPPING

WEIGHT

350

350

360

367

394

445

490

OPERATING

WEIGHT

345

345

355

362

389

440

485

CORNER WEIGHTS

A B C D

103 92 73 82

95 92 80 83

98 94 82 85

100 96 84 87

107 103 90 93

121 117 102 105

133 129 112 116

CLEARANCES

Front

UNIT CLEARANCES

(Minimum)

12"

Back 0"

Left Side (Filter Access) 24"

Right Side

Below Unit

24"

Above Unit

0"

36" (For Condenser

Air Discharge)

Units may be installed on combustible floors made from wood or class A,

B or C roof covering material.

Units must be installed outdoors. Overhanging structures or shrubs

should not obstruct outdoor air discharge outlet.

NOTE: FOR UNITS APPLIED WITH A ROOF CURB, THE

MINIMUM CLEARANCE MAY BE REDUCED FROM 1

INCH TO 1/2 INCH BETWEEN COMBUSTIBLE ROOF

CURB MATERIAL AND THE SUPPLY DUCT.

FLEXIBLE

DUCT

COLLAR

3

MINIMUM CLEARANCE

OF 1" ALL SIDES FOR THE FIRST 3

OF DUCT

FOR 20 & 25 KW. ZERO INCHES THEREAFTER.

FOR ALL OTHER HEATERS, ZERO INCH

CLEARANCE ALL SIDES FOR ENTIRE LENGTH

OF DUCT.

Unitary Products Group 21

511.18-TG1G

TYPICAL APPLICATIONS

TYPICAL SLAB ON GROUND INSTALLATION

RETURN AIR

DUCT

SUPPLY AIR

DUCT

FIELD SUPPLIED

DISCONNECT SWITCH

LOCATED TO REAR OF UNIT

TO POWER SUPPLY

CONTROL WIRING

TO INDOOR

THERMOSTAT

FIELD SUPPLIED

DISCONNECT SWITCH

MOUNTED ON UNIT

TYPICAL ROOF CURB INSTALLATION

22

TO POWER SUPPLY

CONTROL WIRING

TO INDOOR THERMOSTAT

ROOF CURB

INSTALLATION

REAR DUCT

ROOF CURB

INSTALLATION

BOTTOM DUCT

RETURN AIR

DUCT

SUPPLY AIR

DUCT

SLAB ON GROUND

INSTALLATION

Unitary Products Group

ROOF CURB DIMENSIONS

(8" roof curb also available)

42

3

4

40

3

4

3

1

2

17

5

8

1

OPENING FOR

RETURN AIR DUCT

17

1

4

4

43

1

4

45

1

4

22

OPENING FOR

SUPPLY AIR DUCT

14

511.18-TG1G

1

FRONT

WOOD NAILER

INSULATED

PANELS

RECOMMENDED DUCT SIZE

SUPPLY AIR DUCT

RETURN AIR DUCT

17

1

8

" x 21

1

2

"

17

1

8

" x 16

3

4

"

ROOF CURB APPLICATION

3

4

" x 1" WIDE GASKETING FOR CURB FRAME

AND ALL DUCT SUPPORT SURFACES

UNIT BASE

WOOD NAILER

8" MIN. ABOVE FINISHED ROOF

CURB FRAME

INSULATION

1"

14"

UNIT BASE RAIL

COUNTERFLASHING

CANT STRIP

INSULATION AND ROOFING MATERIAL

ROOF DECK AND ROOFING MATERIAL

Unitary Products Group 23

511.18-TG1G

TYPICAL WIRING DIAGRAM

(208/230-1-60 POWER SUPPLY)

24 Unitary Products Group

TYPICAL WIRING DIAGRAM

(230-3-60 POWER SUPPLY)

511.18-TG1G

Unitary Products Group 25

511.18-TG1G

TYPICAL WIRING DIAGRAM

(460-3-60 & 575-3-60 POWER SUPPLY)

26 Unitary Products Group

TYPICAL WIRING DIAGRAM NOTES (See page 23, 24 and 25)

511.18-TG1G

TYPICAL WIRING DIAGRAM LEGEND (See page 23, 24 and 25)

Unitary Products Group 27

Supersedes: 511.18-TG1L, F, & C (598)

Subject to change without notice. Printed in U.S.A.

Copyright

by Unitary Products Group 199. All rights reserved.

511.18-TG1G (1099)

Unitary Products Group

5005 York Drive

Norman, Oklahoma 73069

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
