rc clock with projector

rc clock with projector
CMOS: SPL031A-112A, LCD-265, 2 X AA Battery
Projector: LCD-222
Suitable Model: C-873AMB, C-873ADB
PANTONE: 445C

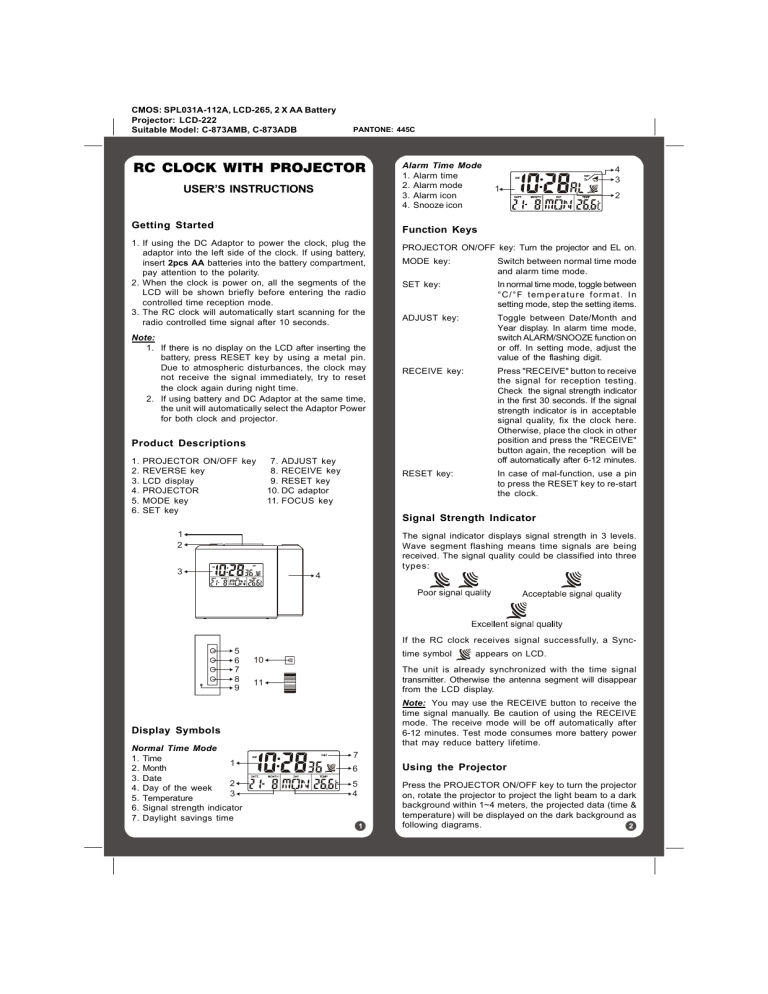

RC CLOCK WITH PROJECTOR
USER’S INSTRUCTIONS
Getting Started
Alarm Time Mode
1. Alarm time
2. Alarm mode
3. Alarm icon
4. Snooze icon
1
2
Function Keys
1. If using the DC Adaptor to power the clock, plug the
adaptor into the left side of the clock. If using battery,
insert 2pcs AA batteries into the battery compartment,
pay attention to the polarity.
2. When the clock is power on, all the segments of the
LCD will be shown briefly before entering the radio
controlled time reception mode.
3. The RC clock will automatically start scanning for the
radio controlled time signal after 10 seconds.
Note:
1. If there is no display on the LCD after inserting the
battery, press RESET key by using a metal pin.
Due to atmospheric disturbances, the clock may
not receive the signal immediately, try to reset
the clock again during night time.
2. If using battery and DC Adaptor at the same time,
the unit will automatically select the Adaptor Power
for both clock and projector.
PROJECTOR ON/OFF key: Turn the projector and EL on.
MODE key:
Switch between normal time mode
and alarm time mode.
SET key:
In normal time mode, toggle between
°C/°F temperature format. In
setting mode, step the setting items.
ADJUST key:
Toggle between Date/Month and
Year display. In alarm time mode,
switch ALARM/SNOOZE function on
or off. In setting mode, adjust the
value of the flashing digit.
RECEIVE key:
Press "RECEIVE" button to receive
the signal for reception testing.
Check the signal strength indicator
in the first 30 seconds. If the signal
strength indicator is in acceptable
signal quality, fix the clock here.
Otherwise, place the clock in other
position and press the "RECEIVE"
button again, the reception will be
off automatically after 6-12 minutes.
RESET key:
In case of mal-function, use a pin
to press the RESET key to re-start
the clock.
Product Descriptions
1.
2.
3.
4.
5.
6.
4
3
PROJECTOR ON/OFF key
REVERSE key
LCD display
PROJECTOR
MODE key
SET key
7. ADJUST key
8. RECEIVE key
9. RESET key
10. DC adaptor
11. FOCUS key
Signal Strength Indicator
1
2
The signal indicator displays signal strength in 3 levels.
Wave segment flashing means time signals are being
received. The signal quality could be classified into three
types:
3
4
If the RC clock receives signal successfully, a Sync5
6
7
8
9
time symbol
10
11
Note: You may use the RECEIVE button to receive the
time signal manually. Be caution of using the RECEIVE
mode. The receive mode will be off automatically after
6-12 minutes. Test mode consumes more battery power
that may reduce battery lifetime.
Display Symbols
Normal Time Mode
1. Time
1
2. Month
3. Date
2
4. Day of the week
3
5. Temperature
6. Signal strength indicator
7. Daylight savings time
appears on LCD.
The unit is already synchronized with the time signal
transmitter. Otherwise the antenna segment will disappear
from the LCD display.
7
6
Using the Projector
5
4
Press the PROJECTOR ON/OFF key to turn the projector
on, rotate the projector to project the light beam to a dark
background within 1~4 meters, the projected data (time &
temperature) will be displayed on the dark background as
following diagrams.
Setting the Alarm
LCD
Projected data
Note:
1. Press the PROJECTOR ON/OFF key once, EL
back light and the projection last for 5 seconds.
2. Press the PROJECTOR ON/OFF key for 3 seconds,
EL back light lasts for 5 seconds and the projection
keeps on for 30 minutes unless pressing
PROJECTOR ON/OFF key again.
3. The rotated angle of the projector is ±90º.
4. Press the
key to reverse the projected data.
5. Adjust the quality of the projected data by adjusting
the FOCUS key.
Manually Setting the Time and Date
If the clock does not receive the time signal successfully,
you can set the clock manually.
1. Press "SET" key for 2 seconds until HOUR digit
flashing.
1. In the Normal Time Display, press "MODE" key to
enter the Alarm Time Mode.
2. Hold "SET" key for 2 seconds until HOUR digit flashing.
3. Press "ADJUST" key to increase the setting value.
4. Press "SET" key again to step the setting items. The
sequence will be: Hour > Minute.
5. Press "MODE" key to exit the setting mode.
ALARM mode
HOUR setting
MINUTE setting
Using the Alarm and Snooze Function
1. Set the Alarm time as described in the previous section.
2. Activate the Alarm by pressing the "ADJUST" key so
that the bell icon "
" appears.
3. Activate the Snooze by pressing the "ADJUST" key
so that the snooze icon "Zz" appears.
4. To de-activate the Alarm and Snooze, press the
"ADJUST" key until both icons disappear.
2. Press "ADJUST" key to increase the value of the
flashing digit.
Note: When the snooze function is activated, the alarm
will automatically start again after 4 minutes, total 4 times
then not sound again until the next day. The alarm duration is
120 seconds.
3. Press "SET" key again to step the setting items. The
setting sequence will be:
Hour > Minute > Second > 12/24Hr > Date > Month >
Year > Day language.
Battery Replacement
4. Press ADJUST key to select the day language
GB = English
FR = French DE = German
ES = Spanish
IT = Italian
5. Press "MODE" key to exit the setting mode.
NORMAL display
HOUR setting
MINUTE setting
SECOND setting
LANGUAGE setting
YEAR setting
12/24Hr setting
MONTH setting
Under battery operation, when the low battery indicator
“ ” displayed, replace with two new AA size battery. Pay
attention to the battery polarity.
IMPORTANT
Make sure you read the instructions before operating this
delicate clock. We have this sophisticated instrument for
the best reception performance, the signal transmitted
from Germany or UK Atomic Clock transmitter will be
affected under certain situations. We suggest you note the
following points:
1. It is strongly recommended to start this clock at night
time and let the clock receive signal automatically
during midnight.
2. Always place the unit away from interfering sources
such as TV set, computer, etc..
3. Avoid placing the unit on or next to metal plate.
4. Closed area such as airport, basement, tower block, or
factory is not recommended.
5. Do not start reception on a moving article such as
vehicle or train.
DATE setting
About the Daylight Savings Time (DST)
The clock has been programed to automatically switch
when daylight savings time is in effect. Your clock will
show "DST" during the summer.
P17873A00010
