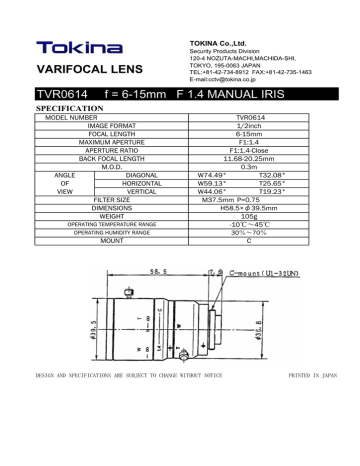

TOKINA Co.,Ltd.
VARIFOCAL LENS
TVR0614
Security Products Division
120-4 NOZUTA-MACHI,MACHIDA-SHI,
TOKYO, 195-0063 JAPAN
TEL:+81-42-734-8912 FAX:+81-42-735-1463
E-mail:[email protected]
f = 6-15mm F 1.4 MANUAL IRIS
SPECIFICATION
MODEL NUMBER
IMAGE FORMAT
FOCAL LENGTH
MAXIMUM APERTURE
APERTURE RATIO
BACK FOCAL LENGTH
M.O.D.
ANGLE
DIAGONAL
OF
HORIZONTAL
VIEW
VERTICAL
FILTER SIZE
DIMENSIONS
WEIGHT
OPERATING TEMPERATURE RANGE
OPERATING HUMIDITY RANGE
TVR0614
1/2inch
6-15mm
F1:1.4
F1:1.4-Close
11.68-20.25mm
0.3m
W74.49°
T32.08°
W59.13°
T25.65°
W44.06°
T19.23°
M37.5mm P=0.75
H58.5×㱢39.5mm
105g
-10㷄䌾45㷄
MOUNT
&'5+)0#0&52'%+(+%#6+105#4'57$,'%661%*#0)'9+6*176016+%'
30䋦䌾70䋦
C
24+06'&+0,#2#0
