Toro 3150-Q Specification

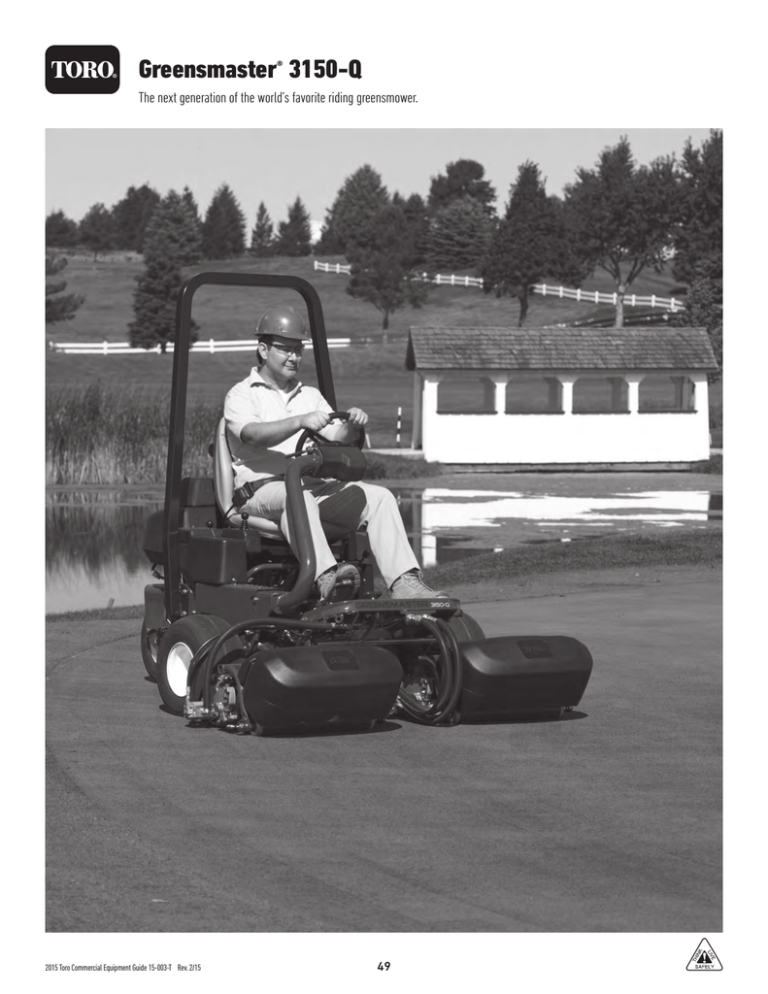

Greensmaster® 3150-Q The next generation of the world’s favorite riding greensmower. 2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15 49 Greensmaster® 3150-Q Specifications* GREENSMASTER 3150-Q, MODEL 04358 ENGINE FUEL CAPACITY TRACTION DRIVE GROUND SPEED 18 hp (13.4 kW) @3600 rpm, Briggs & Stratton gasoline engine, governed to 2850 rpm high idle, 1650 rpm low idle. Air-cooled. ® 7 gallon (26.5 liter) capacity; unleaded gasoline. Hydraulic piston pump, closed loop system. 2WD Parallel Hydrostatic or 3WD Series Parallel piston pump closed loop system. Foot pedal forward and reverse; infinitely variable. Forward-mowing speed is variable from 2-5 mph (3.2-8 km/h), adjusted by stop on pedal mechanism. Mow speed setting does not affect transport speed. Maximum Greensmaster 3150-Q transport speed is 8.8 mph (14.4 km/h), may be reduced by adjusting stop in footrest pan without affecting mow speeds. Reverse is 2.5 mph (4.0 km/h) maximum. TURF COMPACTION IMPLEMENT DRIVE STEERING 8-10 psi (dependent on tire pressure) with operator and cutting units down. CONTROLS/GAUGES Raise/lower-mow lever (joystick). Functional control lever (neutral, mow, transport). Foot operated traction drive and brakes. Hour meter. Hand operated throttle and choke. Mechanical engine speed control. 12-volt lead acid, group size U1, with 300 minimum cold cranking amps at 0° F and 34 minutes reserve capacity at 85° F/25 amps draw. 16 amp alternator. Ignition switch/key. Seat switch. Harness terminals and fuse slot available for optional lights installation. Three tires: Three 18 x 10.5-8, 4-ply pneumatic tubeless demountable and interchangeable with smooth tread. 8-12 psi front; 8-15 psi rear. Optional Traction Tire (4-ply): P/N 119-3516. ELECTRICAL FEATURES TIRES/WHEELS/PRESSURE BRAKES HYDRAULIC OIL LEAK DETECTION SOUND LEVEL OVERALL DIMENSIONS WIDTH OF CUT REEL SPEED BACKLAPPING CUTTING UNIT SUSPENSION ROPS CERTIFICATION WARRANTY Single gear pump, mono valve block, series reel drive to 3 motors. Power steering. Adjustable steering wheel tilt and a 5-position steering arm tilt. Two 6" (15.2 cm) drum type. 7.5 gallon (28.4 liter) tank with internal baffle. 1.0 gallon (3.8 liter) auxiliary tank. Equipped with Turf Guardian™ leak detection system. 82 dB(A) at operator’s ear under normal conditions. Wheel Tread: 49.5" (149.9 cm), Wheel Base: 47" (119 cm), Length: 90" (229 cm), Width: 69.7" (177 cm) w/reels, Height: 74.5" (189 cm), Weight: 1,087 lbs. (493 kg). 59" (150 cm) Approximately 1975 RPM at 2850 engine RPM. Adjustable. Standard equipment. Cutting units are completely free-floating, each attaching to the tractor by direct pull links and lifted by a centered lift arm. Baskets are supported by carrier frames that are ground following. Cutting unit floatation is unaffected by basket content. Grass baskets are all interchangeable and accessible from the front of the machine. Roll Over Protection System standard. Certified to meet ANSI specification B71.4-2012 and European CE standards with appropriate kits installed. Two-year limited warranty. Refer to the Operator’s Manual for further details. 8 BLADE DPA CUTTING UNITS, 04618 11-BLADE DPA CUTTING UNITS, 04619 14-BLADE CUTTING UNITS, 04624 TRACTOR HEIGHT OF CUT (HOC) RANGE REEL WELDMENT REEL BEARINGS These cutting units will mount on any Toro riding Greensmaster (excluding Greensmaster TriFlexTM 33xx/34xx series). Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is .062"-.297" (1.6-7.5 mm). With high HOC kit, range is .285-1" (7.3-25.4 mm). Effective HOC may vary depending on turf conditions and bedknife installed. Reels are 5" (13 cm) in diameter, 21" (53.3 cm) in length. High carbon steel blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for diameter and concentricity, and relief ground. Two stainless steel ball bearings, 30 +/-.1 mm inside diameter slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut. MAINTENANCE REEL DRIVE FRAME AGGRESSIVENESS BEDKNIFE BEDKNIFE ADJUSTMENT No grease zerks, sealed bearing design eliminates daily maintenance. FRONT & REAR ROLLERS Front: Not included with cutting unit, purchased separately. Option between full, narrow-spaced and wide-spaced Wiehle roller. Rear: Steel full, 2" (5.1 cm) diameter with sealed bearings and through-shaft. The reel weldment shaft is a 1.375" (35 mm) diameter tube with internally splined threaded insert. Precision machined, die-cast aluminum cross member with two bolt-on die-cast aluminum side plates. Aggressiveness stays constant throughout the life of the reel. Patented design. Replaceable single edged EdgeMaxTM Microcut Bedknife is standard. Dual screw, indexed “click” adjustment to the reel; detents corresponding to .0007" (.018 mm) bedknife movement for each position. GRASS SHIELD Non-adjustable shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions. TOTAL WEIGHT 8-blade: 72 lbs. (32.7 kg) with aluminum Wiehle Roller. 11-blade: 75 lbs. (34 kg) with aluminum Narrow Wiehle Roller. 14-blade: 78 lbs. (35 kg) with aluminum Wiehle Roller. *Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features. Consult your local Toro Distributor. 2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15 50 The Greensmaster 3150-Q is manufactured in Tomah, WI ISO 9002 Certified Plant. Greensmaster® 3150-Q Accessories* GREENSMASTER 3150-Q ACCESSORIES TRACTION UNIT ACCESSORIES CUTTING UNIT & REEL OPTIONS BEDKNIFE & BEDBAR OPTIONS 04476 3-Wheel Drive Kit 04618 8-Blade Cutting Unit 93-4262 Microcut Bedknife 04479 Thatching Reel (Set of 1) 04619 11-Blade Cutting Unit 93-4263 Tournament Bedknife 04494 Greens Spiker Kit 04624 14-Blade Cutting Unit 93-4264 Low Cut Bedknife 04495 Greens Tri-Roller Kit 119-4103 8-Blade Reel (Individual) 94-6392 High Cut Bedknife 30707 Armrest Kit 121-6651 8-Blade Reel, Heavy-Duty (Individual) 63-8600 Fairway Bedknife 119-3516 Traction Tires 119-4104 11-Blade Reel (Individual) 108-4303 Extended Microcut Bedknife 04554 Light Kit 127-2202 14-Blade Reel (Individual) 108-4302 Extended Tournament Bedknife 130-6536 Hydraulic Oil Cooler Kit 115-1880 EdgeMaxTM Microcut Bedknife (Standard) 108-6472 Traction Speed Control Kit GROOMER OPTIONS 115-1881 EdgeMaxTM Tournament Bedknife Spark Arrestor Screen 04709 Groomer Drive (LH) (Set of 1) 112-7475 EdgeMaxTM Fairway Bedknife 115-4510 Bimini Folding Shade 04712 Groomer Reel, Spring Steel (Set of 1) 106-2648-01 Bedbar (Standard) 100-6442 2WD Weight Kit 04713 Groomer Brush (Set of 1) 99-3794-03 Aggressive Bedbar 99-1645 3WD Weight Kit 04274 Greens Perfection Brush – Soft 115-4754 Wireless Hour Meter 04275 Greens Perfection Brush – Stiff 106-2643 Groomer Pull Link Kit 04744 Grooming Reel - Thin Blade (Set of 1) 104-6540 THATCHING REEL ACCESSORIES 04626 Front Narrow Wiehle Roller (set of 3) 04627 Front Wide Wiehle Roller (set of 3) 04625 Front Full Roller (set of 3) 125-5303 Front Narrow Wiehle Roller Scraper 04628 Solid Steel Roller Kit (front Wiehle & rear steel rollers) 125-5304 Front Wide Wiehle Roller Scraper 117-6840 Thin dynaBLADE, (1.2mm Thickness) (Individual) Regular dynaBlade, (2mm Thickness) (Individual) Replacement Kit, 1.2mm dynaBlade (36 Blades) Replacement Kit, 2mm dynaBlade (36 Blades) 125-5305 Front Full Roller Scraper 04629 Anti-Bobbing Roller 121-6675 Spring Steel Kit 115-7377 Front Narrow Wiehle Roller Scraper Brush 71-1550 Cast Iron Rear Wiehle Roller 121-6674 Blade, Spring Steel 115-7378 Front Wide Wiehle Roller Scraper Brush 107-3514 Steel Wide Wiehle Roller 121-9525 Thatching Reel Quick Change Kit 115-7379 Front Full Roller Scraper Brush 121-4675 Extended Wiehle Roller 115-7380 Front Narrow Wiehle Roller Scraper Comb 04258 Extended Narrow Wiehle Roller 115-7381 Front Wide Wiehle Roller Scraper Comb 119-2157 Bio-Hydraulic Fluid, 5 gal. (18.9 L) 04267 Narrow Wiehle Roller (for paspalum) 115-7382 Front Full Roller Scraper Comb 119-2158 Bio-Hydraulic Fluid, 55 gal. (208.2 L) 107-3510 Steel Narrow Wiehle Roller 115-7383 Rear Roller Scraper 108-1178 Premium Hydraulic Fluid, 5 gal. (18.9 L) 120-9595 Steel Rear Roller (standard) 121-2260 Adjustable Rear Roller Scraper 108-1177 Premium Hydraulic Fluid, 55 gal. (208.2 L) 125-5180 DPA Rear Roller Extension Kit Premium Engine Oil SAE 30, 5 gal. (18.9 L) High Height of Cut Kit 04646 108-1197 120-9600 Spring Loaded Rear Roller Scraper (Set of 3) Anti-Bobbing Roller Scraper Kit Premium Engine Oil SAE 30, 55 gal. (208.2 L) Split Full Front Roller 107-9561 108-1196 04249 04250 Split Narrow Wiehle Roller 04726 Rotating Rear Roller Brush (LH) (Set of 1) 04399 Turf Evaluator 125-5610 Paper – Reel 125-5611 Shim – Reel 94-9010 Height of Cut Bar Assembly ROLLER OPTIONS 117-6824 119-1128 SCRAPER OPTIONS 117-6839 BIO-HYDRAULIC FLUID / HYDRAULIC FLUID / OIL TOOLS *Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features. Consult your local Toro Distributor. 2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15 51 The Greensmaster 3150-Q is manufactured in Tomah, WI ISO 9002 Certified Plant.
