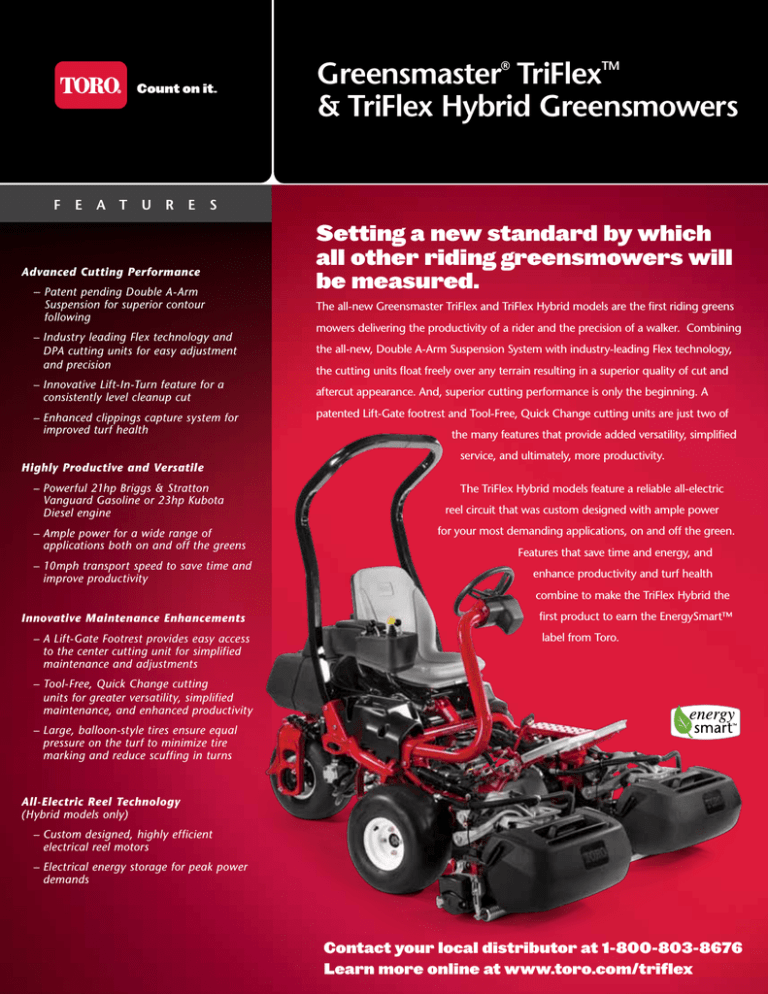

Greensmaster TriFlex
& TriFlex Hybrid Greensmowers
®
f
e
a t
u
r
e
s
Advanced Cutting Performance
TM
– P atent pending Double A-Arm
Suspension for superior contour
following
– Industry leading Flex technology and
DPA cutting units for easy adjustment
and precision
– Innovative Lift-In-Turn feature for a
consistently level cleanup cut
– E nhanced clippings capture system for
improved turf health
Highly Productive and Versatile
– P owerful 21hp Briggs & Stratton
Vanguard Gasoline or 23hp Kubota
Diesel engine
– A
mple power for a wide range of
applications both on and off the greens
–1
0mph transport speed to save time and
improve productivity
Setting a new standard by which
all other riding greensmowers will
be measured.
The all-new Greensmaster TriFlex and TriFlex Hybrid models are the first riding greens
mowers delivering the productivity of a rider and the precision of a walker. Combining
the all-new, Double A-Arm Suspension System with industry-leading Flex technology,
the cutting units float freely over any terrain resulting in a superior quality of cut and
aftercut appearance. And, superior cutting performance is only the beginning. A
patented Lift-Gate footrest and Tool-Free, Quick Change cutting units are just two of
the many features that provide added versatility, simplified
service, and ultimately, more productivity.
The TriFlex Hybrid models feature a reliable all-electric
reel circuit that was custom designed with ample power
for your most demanding applications, on and off the green.
Features that save time and energy, and
enhance productivity and turf health
combine to make the TriFlex Hybrid the
Innovative Maintenance Enhancements
first product to earn the EnergySmart™
– A Lift-Gate Footrest provides easy access
label from Toro.
to the center cutting unit for simplified
maintenance and adjustments
–T
ool-Free, Quick Change cutting
units for greater versatility, simplified
maintenance, and enhanced productivity
– L arge, balloon-style tires ensure equal
pressure on the turf to minimize tire
marking and reduce scuffing in turns
All-Electric Reel Technology
(Hybrid models only)
–C
ustom designed, highly efficient
electrical reel motors
– E lectrical energy storage for peak power
demands
Contact your local distributor at 1-800-803-8676
Learn more online at www.toro.com/triflex
Greensmaster TriFlex & TriFlex Hybrid Specifications*
®
TM
GREENSMASTER 3300
TriFlex, MODEL 04510
ENGINE
FUEL CAPACITY
TRACTION DRIVE
GROUND SPEED
CUTTING UNIT drive
STEERING
ELECTRICAL SYSTEM
Briggs & Stratton® Vanguard®, 21 HP (13.4 kW), 2-cylinder, air cooled,
gasoline engine, governed to 2920 high idle, 1650 rpm low idle.
Displacement: 38.3 cu-in. (627 cc)
Gauges
TIRES/WHEELS/PRESSURE
BRAKES
Hydraulic oil
GREENSMASTER 3400
TriFlex, MODEL 04520
GREENSMASTER 3420
TriFlex Hybrid, MODEL 04540
Kubota D902, 23.5 HP (17.5 kW), 3-cylinder, liquid cooled, diesel engine,
governed to 2880 high idle, 1560 rpm low idle. Displacement: 55.0 cu-in.
(902 cc) Radiator: cooled with a 12-volt electric fan
®
6 gallons (22.7 liter) capacity.
2WD parallel hydrostatic or 3WD series-parallel piston pump closed loop system. Foot pedal forward and reverse; infinitely variable.
Forward-mowing speed is variable from 0-5 mph (0-8 km/h), adjusted by stop on pedal mechanism. Mow speed setting does not affect
transport speed. Maximum Greensmaster TriFlex transport speed is 10 mph (16.1 km/h), may be reduced by adjusting stop in footrest pan
without affecting mow speeds. Reverse is 3 mph (4.8 km/h) maximum.
Single gear pump, mono valve
block, series reel drive to 3 reel
motors.
48V-5400 watt air-cooled brushless
permanent magnet generator in parallel
with 48V 9Ah battery set powers three
48V- 1100 watt brushless permanent
magnet reel motors.
Single gear pump, mono valve
block, series reel drive to 3 reel
motors.
48V-5400 watt air-cooled brushless
permanent magnet generator in parallel
with 48V 9Ah battery set powers three
48V- 1100 watt brushless permanent
magnet reel motors.
Power steering. No-tool quick adjust steering arm position, with arm motion allowing a wide range of operator sizes. Steering cylinder has a
through shaft design for accurate straight line steering.
12-volt lead acid, group size U1, with 300 minimum cold cranking
amps at 0° F and 34 minutes reserve capacity at 85° F/25 ampsdraw.
50 amp alternator. Ignition switch/key. Seat switch. Harness terminals
and fuse slot available for optional lights installation.
48-VOLT SYSTEM FOR
ELECTRIC REELS
CONTROLS
GREENSMASTER 3320
TriFlex Hybrid, MODEL 04530
Maintenance-free 12-volt battery with 585 minimum cold cranking
amps at 0° F (-17.7° C) and 95 minutes minimum reserve capacity at
85° F (29.4° C) 60 amp alternator, circuit fused at 60 amps. Ignition
switch/key. Seat switch. High temperature engine shut down.
Harness terminals, fuse slot, and console switch location available
for optional lights installation.
4-12V 9Ah sealed, maintenance-free,
VRLA batteries. 48-volt system is isolated
from 12-volt including the frame/chassis.
N/A
N/A
4-12V 9Ah sealed, maintenance-free,
VRLA batteries. 48-volt system is isolated
from 12-volt including the frame/chassis.
Ignition: Off/Run/Start. Throttle: Low - High Idle. Choke (AC only): Open /Closes choke plate. Parking Brake: Off - On. Traction Pedal: Rev/Neutral/Forward
Joystick: Raises/lowers reels also tap off feature for clean up pass. Functional Control Lever sets neutral/mow/transport limits for traction pedal.
Diagnostic Light: Indicates system faults to assist in resolving issues.
Fuel and hydraulic sight gauges,
hour meter. Low oil pressure
warning light.
Fuel and hydraulic sight gauges,
hour meter. Low oil pressure
warning light.
Fuel and hydraulic sight gauges, hour meter.
Low oil pressure warning light, alternator
warning light (on if not charging), glow plug
indicator, high engine temperature.
Fuel and hydraulic sight gauges, hour meter.
Low oil pressure warning light, alternator
warning light (on if not charging), glow plug
indicator, high engine temperature.
Three, 19 x 10.5 x 8, 4-ply rating pneumatic tubeless demountable. Smooth tread. Tire pressure recommended: 12 - 18 psi front and rear.
Hand-actuated parking brake lever with two 6” (15.2 cm) diameter drum brakes mounted on the front wheel motors.
6.8 gallon (25.7 liter) tank
5.5 gallon (20.8 liter) tank
Equipped with Turf Guardian Leak
Detection System. System sounds an
alarm and turns on a warning light with
the loss of 3 to 5 ounces of hydraulic oil.
Optional
6.8 gallon (25.7 liter) tank
5.5 gallon (20.8 liter) tank
TM
leak detection
SOUND LEVEL
OVERALL DIMENSIONS
Weight
width of cut
Ground clearance
cutting unit Suspension
quick connect cutting units
reel speed
Backlapping
optional accessories
CERTIFICATION
WARRANTY
80 dB(A) at operator’s ear under normal conditions.
84 dB(A) at operator’s ear under normal conditions.
Wheel Tread: 50.5" (128.3 cm)
Wheel Base: 47" (119 cm)
Length: 98" (249 cm)
Width: 70.62" (179 cm) w/reels
Height: 80.83" (205 cm)
Wheel Tread: 50.5” (128.3 cm)
Wheel Base: 47” (119 cm)
Length: 98” (249 cm)
Width: 70.84” (180 cm) w/reels
Height: 80.83” (205 cm)
Wheel Tread: 50.5” (128.3 cm)
Wheel Base: 48.6” (123 cm)
Length: 98” (249 cm)
Width: 70.62” (179 cm) w/reels
Height: 80.83” (205 cm)
Wheel Tread: 50.5” (128.3 cm)
Wheel Base: 48.6” (123 cm)
Length: 98” (249 cm)
Width: 70.84” (180 cm) w/reels
Height: 80.83” (205 cm)
1161 lbs. (526 kg)
1257 lbs. (570 kg)
1286 lbs. (586 kg)
1406 lbs. (638 kg)
59" (150 cm)
4.5” (11.4 cm)
Double A-arm suspension utilizing sealed ball joints allows free cutting unit motion in pitch, roll, and yaw. The basket is directly mounted to the
cutting unit displacing weight evenly over both cutting unit rollers eliminating the carrier frame, roller and pull links.
Quick connect/disconnect feature for both the reel drive motor and cutting unit. No tools required.
Approximately 2050 RPM at 2850 engine RPM. Adjustable.
Standard equipment.
Canopy, verticutters, greens rollers, dethatchers, dew whip holder, oil cooler.
Certified to meet ANSI specification B71.4 - 2004 and European CE standards.
Two-year limited warranty. Refer to the Operator’s Manual for further details.
*Specifications and design subject to change without notice.
The Greensmaster TriFlex is manufactured in
Tomah, WI ISO 9002 Certified Plant.
Greensmaster TriFlex & TriFlex Hybrid Specifications
®
TM
*
8-BLADE DPA CUTTING UNITS, 04613
TRACTOR
HEIGHT OF CUT
(HOC) RANGE
REEL WELDMENT
REEL BEARINGS
MAINTENANCE
REEL DRIVE
FRAME
AGGRESSIVENESS
BEDKNIFE
11-BLADE DPA CUTTING UNITS, 04614
14-BLADE CUTTING UNITS, 04615
These cutting units will mount on the Greensmaster 3XXX series.
Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is
.062"-.297" (1.6-7.5 mm). With high HOC kit, range is .285-1" (7.3-25.4 mm). Effective HOC may vary depending on turf
conditions and bedknife installed.
Reels are 5" (13 cm) in diameter, 21" (53.3 cm) in length. High carbon steel blades are welded to 5 stamped steel spiders, and heat treated to
RC 48-54 hardness. The reel is ground for diameter and concentricity, and backgrind.
Two stainless steel ball bearings, 30 +/-.1 mm inside diameter slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers
for added protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut.
No grease zerks, sealed bearing design eliminates daily maintenance.
The reel weldment shaft is a 1.375" (35 mm) diameter tube with internally splined threaded insert.
Precision machined, die-cast aluminum cross member with two bolt-on die-cast aluminum side plates.
Aggressiveness stays constant throughout the life of the reel. Patented design.
Replaceable single edged, high carbon steel bedknife austempered to RC 55-58, fastened to a machined cast iron bedbar with 13 screws. EdgeMax
Microcut Bedknife is standard on all cutting units.
TM
BEDKNIFE ADJUSTMENT
Dual screw, indexed “click” adjustment to the reel; detents corresponding positively to .0007" (.018 mm) bedknife movement for
each position.
FRONT & REAR ROLLERS
Front: Aluminum Wiehle , 2.5" (6.4 cm) diameter with sealed bearings and through-shaft. Option between full, narrow-spaced and
wide-spaced roller. Rear: Steel full, 2" (5.1 cm) diameter with sealed bearings and through-shaft.
®
GRASS SHIELD
Non-adjustable shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.
TOTAL WEIGHT
8-blade: 80 lbs. (30.4 kg) with aluminum Wiehle Roller.
14-blade: 86 lbs. (39 kg) with aluminum Wiehle Roller.
11-blade: 83 lbs. (37.7 kg) with aluminum Wiehle Roller.
GREENSMASTER triflex ACCESSORIES
TRIFLEX TRACTION UNIT ACCESSORIES
TRIFLEX DPA CUTTING UNITS
TRIFLEX DPA CUTTING UNIT ACCESSORIES
04714
3WD Kit
04613
8-Blade Cutting Unit
04710
Groomer Drive
04715
Leak Detector
04614
11-Blade Cutting Unit
04711
Groomer Reel, Carbide
04717
Light Kit
04615
14-Blade Cutting Unit
04712
Groomer Reel, Spring Steel
04718
Seat Kit, Standard
04713
Groomer Brush
04719
Seat Kit, Premium
04724
Rotating Rear Roller Brush
115-1880
EdgeMax Microcut Bedknife
115-1881
EdgeMax Tournament Bedknife
93-4262
Microcut Bedknife
(HOC Range 1.58mm - 3.18mm)
93-4263
Tournament Bedknife
(HOC Range 0.32mm - 6.35mm)
TRIFLEX DPA CUTTING UNIT ROLLERS
04625
Full Roller DPA
04626
Narrow Wiehle Roller DPA
04627
Wide Wiehle Roller DPA
92-7307
Armrest Kit - Standard
119-7105
Armrest Kit - Premium
119-1691
Hydraulic Oil Cooler Kit:Gas
117-9314
Hydraulic Oil Cooler Kit: Diesel
04628
Solid Steel Roller Kit (Front Wide
Wiehle, Rear Full)
119-7129
2WD Weight Kit (ANSI compliance)
04629
Anti Bobbing Roller - DPA (Front and Rear)
120-5750
3WD Weight Kit (ANSI compliance)
107-9561
93-4264
104-6540
Spark Arrestor Kit (Gas)
Anti Bobbing Roller - Scraper Kit
(Front and Rear)
Low Cut Bedknife
(HOC Range 6.35mm and higher)
120-1951
Spark Arrestor Kit (Diesel)
114-4630
DPA Rear Roller Adjustment Kit
94-6392
Bedknife – High Cut
2” Rear Wiehle Roller (cast iron)
Extended Microcut Bedknife
Dew Whip Holder
71-1550
108-4303
119-7138
Extended Tournament Bedknife
115-4510
Canopy
Rear Roller Extension Kit
108-4302
Bedknife – Fairway
119-1715
Utility Bag Kit
High Height of Cut Kit (.35 - .94)
63-8600
99-3794-03
DPA Bedbar (aggressive – optional)
106-2648-01
DPA Bedbar (less aggressive –
standard equipment)
*Specifications and design subject to change without notice.
112-9294
TBD
The Greensmaster TriFlex is manufactured in
Tomah, WI ISO 9002 Certified Plant.
Greensmaster TriFlex & TriFlex Hybrid Accessories*
®
TM
GREENSMASTER triflex ACCESSORIES
TRIFLEX DPA CUTTING UNIT ROLLER SCRAPERS /
BRUSHES / COMBS
04725
Rear Roller Scraper
108-6468
Front Wiehle Roller Scraper - Narrow
110-3961
Front Wiehle Roller Scraper - Wide
110-3962
Front Roller Scraper - Full
115-7377
Front Wiehle Roller Scraper Brush - Narrow
115-7378
Front Wiehle Roller Scraper Brush - Wide
115-7379
Front Roller Scraper Brush - Full
110-3966
Front Wiehle Roller Scraper Comb - Narrow
110-3967
Front Wiehle Roller Scraper Comb - Wide
110-3968
Front Roller Scraper Comb - Full
112-9353
Rear Roller Scraper - Adjustable
*Specifications and design subject to change without notice.
OPTIONAL TRIFLEX ACCESSORIES
04720
Thatching Reel Kit - TriFlex
119-1128
Individual dynaBLADE, 2mm thickness
117-6824
Individual dynaBLADE, 1.2mm thickness
117-6839
Replacement dynaBLADE kit,
1.2mm thickness (36 blades)
117-6840
Replacement dynaBLADE kit,
2mm thickness (36 blades)
95-5943
Thatching Reel - Rear Roller
95-1600
Thatching Rear Roller Scraper for 95-5943
TBD
Greens Tri-Roller Kit - TriFlex
TBD
Greens Spiker Kit - TriFlex
TRIFLEX SERVICE KITS
30042
30043
400 hour filter Maintenance Kit Greensmaster TriFlex 3300/3320
400 hour filter Maintenance Kit Greensmaster TriFlex 3400/3420
The Greensmaster TriFlex is manufactured in
Tomah, WI ISO 9002 Certified Plant.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
