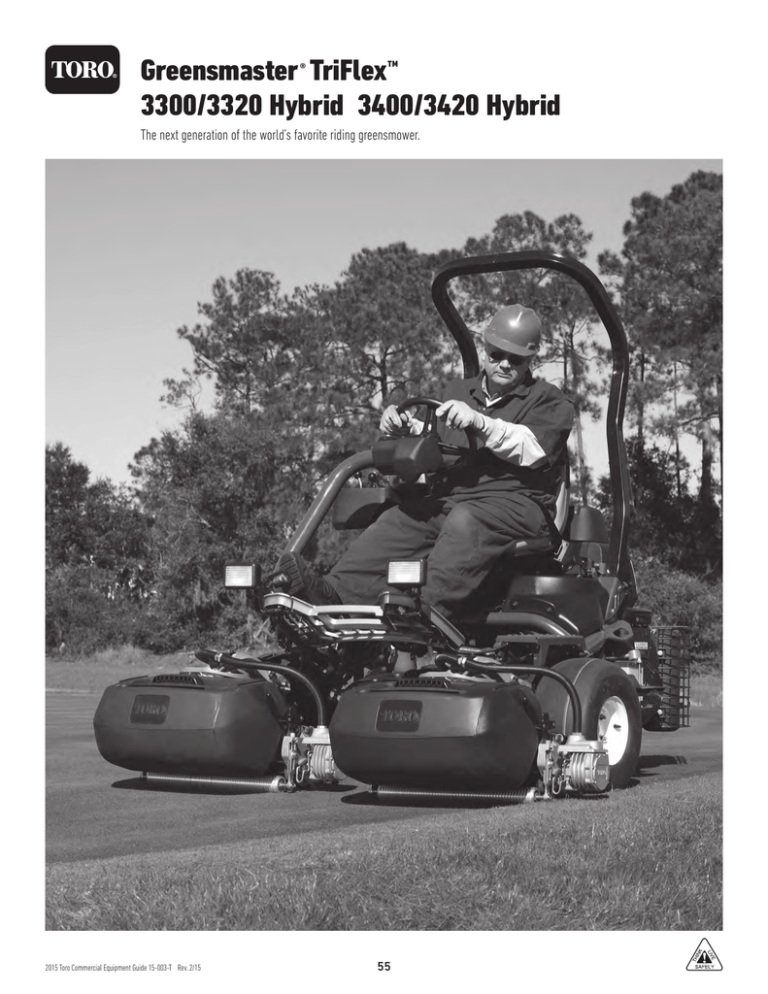

Greensmaster ® TriFlex™
3300/3320 Hybrid 3400/3420 Hybrid
The next generation of the world’s favorite riding greensmower.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
55
Greensmaster® TriFlexTM 3300/3320/3400/3420
Specifications*
GREENSMASTER 3300
TriFlex, MODEL 04510
ENGINE
FUEL CAPACITY
TRACTION DRIVE
GROUND SPEED
CUTTING UNIT DRIVE
STEERING
ELECTRICAL SYSTEM
48-VOLT SYSTEM FOR
ELECTRIC REELS
CONTROLS
GAUGES
TIRES/WHEELS/PRESSURE
BRAKES
HYDRAULIC OIL
LEAK DETECTION
SOUND LEVEL
OVERALL DIMENSIONS
WEIGHT
WIDTH OF CUT
GROUND CLEARANCE
CUTTING UNIT SUSPENSION
QUICK CONNECT CUTTING
UNITS
REEL SPEED
BACKLAPPING
OPTIONAL ACCESSORIES
CERTIFICATION
WARRANTY
GREENSMASTER 3320
TriFlex Hybrid, MODEL 04530
GREENSMASTER 3400
TriFlex, MODEL 04520
GREENSMASTER 3420
TriFlex Hybrid, MODEL 04540
Briggs & Stratton® Vanguard®, 21 HP (13.4 kW) @ 3600 rpm, 2-cylinder,
air cooled, gasoline engine, governed to 2920 high idle, 1650 rpm low idle.
Displacement: 38.3 cu-in. (627 cc)
Kubota® D902, Tier 4i, 24.8 HP (18.5 kW) @ 3600 rpm, 3-cylinder, liquid cooled,
diesel engine, governed to 2880 high idle, 1560 rpm low idle. Displacement:
55.0 cu-in. (902 cc) Radiator: cooled with a 12-volt electric fan
6 gallons (22.7 liter) capacity.
6 gallons (22.7 liter) capacity. Biodiesel ready up to B20
2WD parallel hydrostatic or 3WD series-parallel piston pump closed loop system. Foot pedal forward and reverse; infinitely variable.
Forward-mowing speed is variable from 0-5 mph (0-8 km/h), adjusted by stop on pedal mechanism. Mow speed setting does not affect transport speed. Maximum
Greensmaster TriFlex transport speed is 10 mph (16.1 km/h), may be reduced by adjusting stop in footrest pan without affecting mow speeds. Reverse is 3 mph (4.8
km/h) maximum.
48V-5400 watt air-cooled brushless
permanent magnet generator
48V-5400 watt air-cooled brushless permanent
Single gear pump, valve block, series
in parallel with 48V 9Ah battery
magnet generator in parallel with 48V 9Ah battery
Single gear pump, valve block, series
reel drive to 3 reel motors.
set powers three 48V- 1100 watt
set powers three 48V- 1100 watt brushless
reel drive to 3 reel motors.
brushless permanent magnet reel
permanent magnet reel motors.
motors.
Power steering. No-tool quick adjust steering arm position with power assist, with arm motion allowing a wide range of operator sizes. Steering cylinder has a
through shaft design for accurate straight line steering.
Maintenance-free 12-volt battery with 585 minimum cold cranking amps at
12-volt lead acid, group size U1, with 300 minimum cold cranking amps at 0° F
0° F (-17.7° C) and 95 minutes minimum reserve capacity at 85° F (29.4° C)
and 34 minutes reserve capacity at 85° F/25 ampsdraw.
60 amp alternator, circuit fused at 60 amps. Ignition switch/key. Seat switch.
50 amp alternator. Ignition switch/key. Seat switch. Harness terminals and fuse
High temperature engine shut down. Harness terminals, fuse slot, and console
slot available for optional lights installation.
switch location available for optional lights installation.
4-12V 9Ah sealed, maintenance-free,
4-12V 9Ah sealed, maintenance-free, VRLA batteries.
VRLA batteries. 48-volt system is
N/A
48-volt system is isolated from 12-volt including the
N/A
isolated from 12-volt including the
frame/chassis.
frame/chassis.
Ignition: Off/Run/Start. Throttle: Low - High Idle. Choke (AC only): Open /Closes choke plate. Parking Brake: Off - On. Traction Pedal: Rev/Neutral/Forward
Joystick: Raises/lowers reels also tap off feature for clean up pass. Functional Control Lever sets neutral/mow/transport limits for traction pedal.
Diagnostic Light: Indicates system faults to assist in resolving issues (04510 & 04520). InfoCenterTM Diagnostics (04530 & 04540).
Fuel and hydraulic sight gauges.
Fuel and hydraulic sight gauges.
InfoCenter™: Onboard LCD display
InfoCenter™: Onboard LCD display shows
Fuel and hydraulic sight gauges,
shows gauges, alerts/faults, service
gauges, alerts/faults, service reminders,
hour meter. Low oil pressure warning
reminders, electrical system
Fuel and hydraulic sight gauges,
electrical system diagnostics, low oil
light, alternator warning light (on if
diagnostics, low oil pressure,
hour meter. Low oil pressure warning
pressure, alternator, engine hours, engine
not charging), glow plug indicator,
alternator, engine hours, engine rpm,
light.
rpm, voltage, functional control status,
high engine temperature.
voltage, functional control status,
parking brake applied, reel speed setting,
parking brake applied, reel speed
backlap control.
setting, backlap control.
Three, 19 x 10.5 x 8, 4-ply rating pneumatic tubeless and demountable. Smooth tread. Tire pressure recommended: 12 - 18 psi front and rear.
Hand-actuated parking brake lever with two 6” (15.2 cm) diameter drum brakes mounted on the front wheel motors.
6.8 gallon (25.7 liter) tank
5.5 gallon (20.8 liter) tank
Equipped with Turf GuardianTM Leak
Detection System. System sounds an
alarm and turns on a warning light
with the loss of 3 to 5 ounces of
hydraulic oil.
Optional
80 dB(A) at operator’s ear under normal conditions.
6.8 gallon (25.7 liter) tank
5.5 gallon (20.8 liter) tank
84 dB(A) at operator’s ear under normal conditions.
Wheel Tread: 50.5" (128.3 cm)
Wheel Base: 47" (119 cm) Length:
98" (249 cm)
Width: 70.62" (179 cm) w/reels
Height: 80.83" (205 cm)
Wheel Tread: 50.5” (128.3 cm)Wheel
Base: 47” (119 cm)Length: 98”
(249 cm)
Width: 70.84” (180 cm) w/reels
Height: 80.83” (205 cm)
Wheel Tread: 50.5” (128.3 cm) Wheel
Base: 48.6” (123 cm) Length: 98”
(249 cm)
Width: 70.62” (179 cm) w/reels
Height: 80.83” (205 cm)
Wheel Tread: 50.5” (128.3 cm)Wheel
Base: 48.6” (123 cm)Length: 98”
(249 cm)
Width: 70.84” (180 cm) w/reels
Height: 80.83” (205 cm)
1161 lbs. (526 kg)
1257 lbs. (570 kg)
1286 lbs. (586 kg)
1406 lbs. (638 kg)
59" (150 cm)
4.5” (11.4 cm)
Double A-arm suspension utilizing sealed ball joints allows free cutting unit motion in pitch, roll, and yaw. The basket is directly mounted to the cutting unit
displacing weight evenly over both cutting unit rollers eliminating the carrier frame, roller and pull links.
Quick connect/disconnect feature for both the reel drive motor and cutting unit. No tools required.
Approximately 2050 RPM at 2850 engine RPM. Adjustable.
Standard equipment.
Canopy, verticutters, greens rollers, dethatchers, dew whip holder, oil cooler.
Certified to meet ANSI specification B71.4 - 2004 and European CE standards.
Two-year limited warranty. Refer to the Operator’s Manual for further details.
*Specifications and design subject to change without notice. Products depicted in this literature are for
demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments
and safety features. Consult your local Toro Distributor.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
56
The Greensmaster® TriFlexTM is manufactured in
Tomah, WI ISO 9002 Certified Plant.
Greensmaster® TriFlexTM 3300/3320/3400/3420
Accessories*
8-BLADE DPA CUTTING UNITS, 04613
DPA CUTTING UNITS
HEIGHT OF CUT
(HOC) RANGE
REEL WELDMENT
REEL BEARINGS
11-BLADE DPA CUTTING UNITS, 04614
14-BLADE CUTTING UNITS, 04615
These cutting units will fit on the Greensmaster TriFlex Series.
Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is .062"-.297" (1.6-7.5 mm). With high HOC kit,
range is .285-1" (7.3-25.4 mm). Effective HOC may vary depending on turf conditions and bedknife installed.
Reels are 5" (13 cm) in diameter, 21" (53.3 cm) in length. High carbon steel blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for
diameter and concentricity, and relief grind.
Two stainless steel ball bearings, 30 mm inside diameter slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added
protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut.
MAINTENANCE
REEL DRIVE
FRAME
AGGRESSIVENESS
BEDKNIFE
BEDKNIFE ADJUSTMENT
No grease zerks, sealed bearing design eliminates daily maintenance.
FRONT & REAR ROLLERS
Front: Not included with cutting unit, purchased separately. Option between full, narrow-spaced and wide-spaced Wiehle roller.
Rear: Steel full, 2" (5.1 cm) diameter with sealed bearings and through-shaft.
The reel weldment shaft is a 1.375" (35 mm) diameter tube with internally splined threaded insert.
Precision machined, die-cast aluminum cross member with two bolt-on die-cast aluminum side plates.
Aggressiveness stays constant throughout the life of the reel. Patented design.
Replaceable single edged, EdgeMaxTM Microcut Bedknife is standard on all cutting units.
Dual screw, indexed “click” adjustment to the reel; detents correspond to .0007" (.018 mm) bedknife movement for each position.
GRASS SHIELD
Non-adjustable shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.
TOTAL WEIGHT
8-blade: 80 lbs. (30.4 kg) with aluminum Wiehle Roller. 11-blade: 83 lbs. (37.7 kg) with aluminum Wiehle Roller.
14-blade: 86 lbs. (39 kg) with aluminum Wiehle Roller.
*Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products
offered for sale may vary in use, design, required attachments and safety features. Consult your local Toro Distributor.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
57
The Greensmaster® TriFlexTM is manufactured in
Tomah, WI ISO 9002 Certified Plant.
Greensmaster® TriFlexTM 3300/3320/3400/3420
Accessories*
GREENSMASTER TRIFLEX ACCESSORIES
TRIFLEX TRACTION UNIT ACCESSORIES
TRIFLEX DPA CUTTING UNITS
TRIFLEX DPA CUTTING UNIT ACCESSORIES
04714
3WD Kit
04613
8-Blade Cutting Unit
04710
Groomer Drive, Forward
04730
Leak Detector
04614
11-Blade Cutting Unit
04260
Groomer Drive, Counter Rotating
04554
Light Kit
04615
14-Blade Cutting Unit
04711
Groomer Reel, Carbide
04718
Seat Kit, Standard
04712
Groomer Reel, Spring Steel
04719
Seat Kit, Premium
04713
Groomer Brush, Spiral
92-7307
Armrest Kit - Standard
04625
Full Roller DPA
04274
Greens Perfection Brush, Soft
119-7105
Armrest Kit - Premium
04626
Narrow Wiehle Roller DPA
04275
Greens Perfection Brush, Stiff
119-1691
Hydraulic Oil Cooler Kit (Gas)
04627
Wide Wiehle Roller DPA
04724
Rotating Rear Roller Brush – RH
117-9314
Hydraulic Oil Cooler Kit (Diesel)
04249
Full Split Roller
04744
Grooming Reel, Thin Blade (set of 1)
2WD Weight Kit (Gas) (ANSI compliant)
04250
Wiehle Split Roller
115-1880
EdgeMaxTM Microcut Bedknife
121-6665
2WD Weight Kit (Diesel) (ANSI compliant)
04628
Solid Steel Roller Kit (Front Wide Wiehle, Rear Full)
115-1881
EdgeMaxTM Tournament Bedknife
120-5750
3WD Weight Kit (Gas) (ANSI compliant)
04629
Anti Bobbing Roller - DPA (Front and Rear)
Spark Arrestor Kit (Gas)
2” Rear Wiehle Roller (cast iron)
93-4262
104-6540
71-1550
120-1951
Spark Arrestor Kit (Diesel)
125-5180
Rear Roller Extension Kit
119-7138
Dew Whip Holder
120-9600
High Height of Cut Kit (.35 - .94)
Canopy
Extended Wiehle Roller
93-4264
115-4510
04258
Microcut Bedknife
(HOC Range 1.58mm - 3.18mm)
Tournament Bedknife
(HOC Range 3.2mm - 6.35mm)
Low Cut Bedknife
(HOC Range 6.35mm and higher)
119-1715
Utility Bag Kit
04267
Narrow Wiehle Roller (for paspalum)
94-6392
Bedknife – High Cut
115-4754
Wireless Hour Meter
108-4303
Extended Microcut Bedknife
108-4302
Extended Tournament Bedknife
63-8600
Bedknife – Fairway
119-7129
OPTIONAL TRIFLEX ACCESSORIES
TRIFLEX DPA CUTTING UNIT ROLLERS
TRIFLEX DPA CUTTING UNIT ROLLER SCRAPERS /
BRUSHES / COMBS
04646
Rear Roller Scraper (Spring Loaded)
125-3503
Front Wiehle Roller Scraper - Narrow
125-3504
Front Wiehle Roller Scraper - Wide
125-3505
Front Roller Scraper - Full
115-7377
Front Wiehle Roller Scraper Brush - Narrow
115-7378
Front Wiehle Roller Scraper Brush - Wide
115-7379
Front Roller Scraper Brush - Full
115-7380
Front Wiehle Roller Scraper Comb - Narrow
115-7381
Front Wiehle Roller Scraper Comb - Wide
93-4263
99-3794-03
DPA Bedbar, Aggressive (optional)
106-2648-01
DPA Bedbar, Less Aggressive (standard
equipment)
112-7475
EdgeMaxTM Fairway Bedknife
04720
Thatching Reel - TriFlex (set of 1)
119-1128
Individual dynaBLADE, 2mm thickness
117-6824
Individual dynaBLADE, 1.2mm thickness
117-6839
117-6840
Replacement dynaBLADE kit, 1.2mm
thickness (36 blades)
Replacement dynaBLADE kit, 2mm
thickness (36 blades)
121-6674
Individual Spring Steel Blade
121-6675
Replacement Spring Steel Blade Kit (36
pcs)
04722
Greens Tri-Roller - TriFlex (set of 1)
115-7382
Front Roller Scraper Comb - Full
04723
Greens Spiker - TriFlex (set of 1)
107-9561
Anti Bobbing Roller - Scraper Kit (Front and Rear)
119-2157
Bio-Hydraulic Fluid, 5 gal. (18.9 L)
121-2260
Rear Roller Scraper - Adjustable
119-2158
Bio-Hydraulic Fluid, 55 gal. (208.2 L)
108-1178
Premium Hydraulic Fluid, 5 gal. (18.9 L)
108-1177
Premium Hydraulic Fluid, 55 gal. (208.2 L)
121-6393
Premium Engine Oil SAE 30, 5 gal. (18.9 L)
121-6392
Premium Engine Oil SAE 30, 55 gal. (208.2 L)
04399
Turf Evaluator
125-5610
Paper – Reel
125-5611
Shim – Reel
94-9010
Height of Cut Bar Assembly
TRIFLEX SERVICE KITS
30042
30043
400 hour filter Maintenance Kit Greensmaster TriFlex 3300 / 3320
400 hour filter Maintenance Kit Greensmaster TriFlex 3400 / 3420
BIO-HYDRAULIC FLUID / HYDRAULIC FLUID / OIL
TOOLS
*Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products
offered for sale may vary in use, design, required attachments and safety features. Consult your local Toro Distributor.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
58
The Greensmaster® TriFlexTM is manufactured in
Tomah, WI ISO 9002 Certified Plant.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
