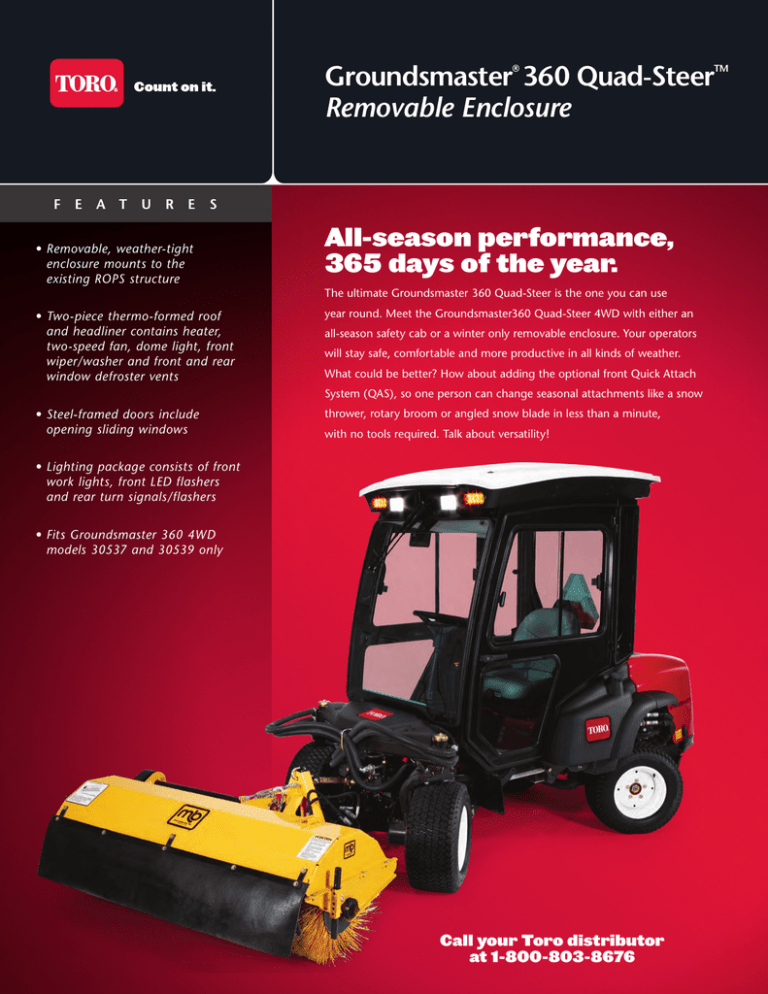

Groundsmaster 360 Quad-Steer
Removable Enclosure
®
f
e
a t
u
r
e
s
•R
emovable, weather-tight
enclosure mounts to the
existing ROPS structure
All-season performance,
365 days of the year.
The ultimate Groundsmaster 360 Quad-Steer is the one you can use
•T
wo-piece thermo-formed roof
and headliner contains heater,
two-speed fan, dome light, front
wiper/washer and front and rear
window defroster vents
year round. Meet the Groundsmaster360 Quad-Steer 4WD with either an
all-season safety cab or a winter only removable enclosure. Your operators
will stay safe, comfortable and more productive in all kinds of weather.
What could be better? How about adding the optional front Quick Attach
System (QAS), so one person can change seasonal attachments like a snow
• S teel-framed doors include
opening sliding windows
thrower, rotary broom or angled snow blade in less than a minute,
with no tools required. Talk about versatility!
• L ighting package consists of front
work lights, front LED flashers
and rear turn signals/flashers
• F its Groundsmaster 360 4WD
models 30537 and 30539 only
Call your Toro distributor
at 1-800-803-8676
TM
Groundsmaster 360 Removable Enclosure & All-Season Cab Specifications*
®
Groundsmaster 360, 4wd – Removable enclosure (31220)
For use on Models 30537, 30539
Groundsmaster 360 – Factory installed Safety CAB
models 30540, 30542
ROLLOVER PROTECTION
Mounts to existing ROPS structure
ROPS certified
REAR MOUNTED SMV SIGN
Yes
Yes
HEAT
Yes
Yes
AIR CONDITIONING
No
Yes
TEMPERED CURVED
WINSHEILD
Yes
Yes
FRONT WIPER/WASHER
Yes
Yes
OPENING REAR WINDOW
Yes
Yes
OPENING SIDE WINDOWS
Sliding
Yes
INTERIOR MIRROR
Yes
Yes
INTERIOR DOME LIGHT
Yes
Yes
FRONT AND REAR
DEFROST VENTS
Yes
Yes
FAN SPEEDS
2
3
WORK LIGHTS
Front only
Optional kit (114-5610) for front and rear lights
ROAD LIGHTS
Front LED flashers, and rear turn signals/flashers
Optional kit (30517) includes headlights, front flashers and
rear red/amber flashers and turn signals
Yes
Permanent installation
Removeable
Yes
30537, 30539
30540, 30542
QUICK-CONNECT
COUPLERS FOR HEATER
HOSES AND ELECTRIC
HOOKUP
PERMANENT
Groundsmaster 360
APPLICABLE MODELS
Available Seasonal Attachments
Snowthrower
(Erskine Attachments)
Angled Snow Blade
(MB Companies)
©2011 The Toro Company
8111 Lyndale Ave. S.
Bloomington, MN 55420-1196
Printed in the U.S.A.
*Specifications subject to change. Please contact your Toro distributor for details.
Rotary Broom
(MB Companies)
Powered V-Plow
(MB Companies)
Fixed V-Plow
(Toro)
