Toro INFINITY 34/54 Series Golf Sprinkler Parts Catalogue

Toro INFINITY 34/54 Series Golf Sprinkler Parts Catalogue

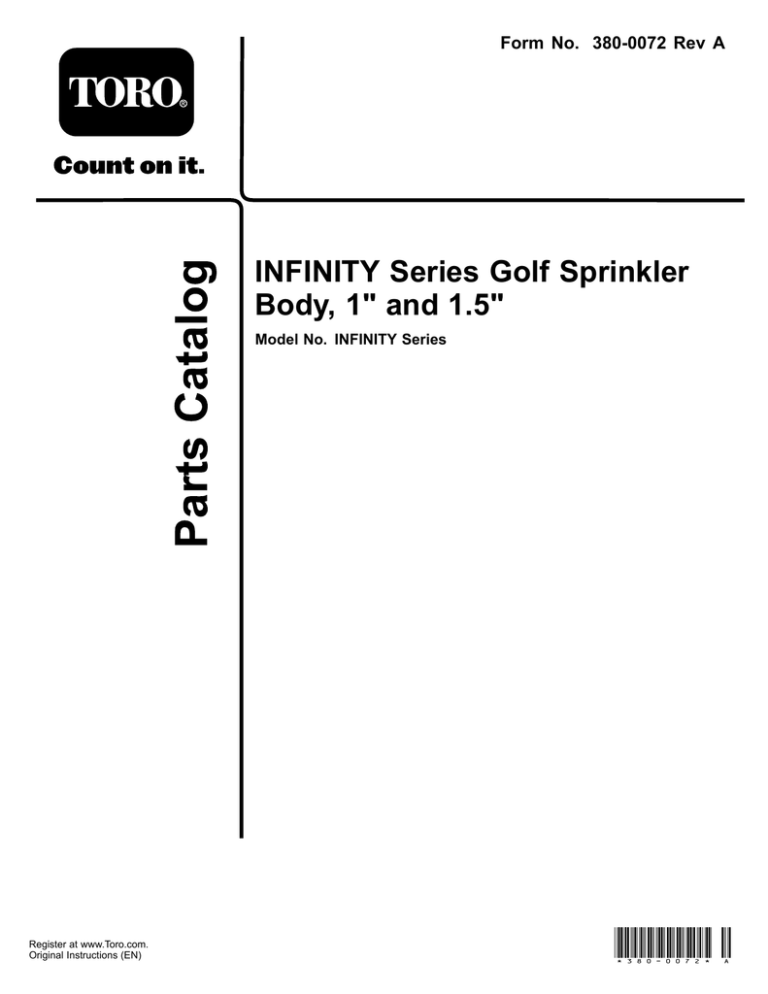

Parts Catalog
Form No. 380-0072 Rev A
Register at www.Toro.com.
Original Instructions (EN)
INFINITY Series Golf Sprinkler
Body, 1" and 1.5"
Model No. INFINITY Series
*380-0072* A
Ordering Replacement Parts
For example, a wheel assembly might be identified by
reference number 6, the tire by 6:1, the valve by 6:2, and
the wheel by 6:3. When you order the assembly identified
by reference number 6, you receive all parts identified by
reference numbers 6:1,6:2, and 6:3. However, you may
also order any part individually. Reference numbers of this
type appear in illustration and in parts lists.
To order replacement parts, please supply the part number,
the quantity, and the description of each part desired.
Understanding Reference Numbers
Each identified part in an illustration has a reference
number. The reference number for a part also appears in
the parts list, along with other information about the part.
This catalog uses two special reference number formats,
one to indicate parts in a service assembly and another to
indicate the quantity of a given part in an illustration.
Reference Numbers Indicating Quantity
In an illustration, if a reference number indicates more than
one part, the reference number has the form nX y. The n
represents the quantity of the part, the X is the multiplication
symbol, and the y represents the reference number.
Service Assembly Reference Numbers
Parts in service assemblies have reference numbers in the
form a:b. The a represents the reference number of the
entire service assembly and the b represents a sequential
number unique to each part within the service assembly.
For example, in an illustration, the reference number 2X 37
means that two of the parts identified by reference number
37 are indicated.
List of Abbreviations
AR: as required
HLH: hex lag head
PTO: power-take-off
ASM: assembly
HOC: height-of-cut
RH: right hand
BBC: blade brake control
HSBH: hex socket button head
ROPS: roll-over protection system
BHTF: button head thread forming
HSFH: hex socket flat head
RRB: rear roller brush
CARR: carriage
HSH: hex socket head
SFH: slotted fillister head
CCW: counter clockwise
HWH: hex washer head
SHH: slotted hex head
CW: clockwise
SHWH: slotted hex washer head
DEG: degrees
HWHTF: hex washer head thread
forming
DPA: Dual Point Adjustment
HYD: hydraulic
SQH: square head
ECM: electronic control module
LH: left hand
SRH: slotted round head
EXT: external
LP: Liquefied Petroleum Gas
STD: standard
FH: flat head
LPG: Liquefied Petroleum Gas
TAP: self tapping
GA: gauge
NI: nylon insert
TTH: torx truss head
HD: heavy-duty
NPTF: national pipe thread fine
HF: hex flange
PFH: phillips flat head
HH: hex head
PPH: phillips pan head
HHF: hex head flange
PPHTF: phillips pan head thread
forming
HHFTF: hex head flange thread
forming
HJ: hex jam
PRH: phillips round head
PTH: phillips truss head
2
SPH: slotted pan head
Contents
INFINITY Series 1 Inch Golf Sprinkler Body. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
INFINITY Series 1.5 Inch Golf Sprinkler Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
© 2014—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
3
Contact us at www.Toro.com.
Printed in the USA.
All Rights Reserved
INFINITY Series 1 Inch Golf Sprinkler Body
380-0072A
4
1
INFINITY Series 1 Inch Golf Sprinkler Body (continued)
Ref.
1
1
2
3
4
4
4
4
4
5
6
7
7
7
Part Number Qty. Description
118-1840
1 Marker, Blank
118-3029
1 Marker, Laser Etched
118-1813
1 Cover
4102001
6 Screw, Tap, 10-16 X 1.25
118-1826
1 Pilot Valve, Spike-Guard
Solenoid
118-1982
1 Pilot Valve W/O Solenoid
118-1983
1 Pilot Valve W/ Nickel Plated
Spike-Guard Solenoid
118-1984
1 Pilot Valve W/ Dc Latching
Solenoid
118-1985
1 Pilot Valve W/ 600/700
Solenoid
118-1815
1 Retainer, Check Valve
118-1827
1 Check Flow Assy., Vih
Communication
118-0248
1 Solenoid, 600/700 Series
(Red & Black Wires)
102-3443
1 Solenoid-Low Wattage,
W/Surge Protection (Black
Wires)
102-3444
1 Solenoid-Low Wattage,
W/Surge Protection, Nickel
Plated (Red Wires)
Ref.
7
7
8
9
10
11
12
13
14
15
Part Number Qty. Description
102-2709
1 Solenoid Assy., 24Vdc,
Latching (Red W/ White
Stripe And Black Wires)
118-0841
1 Gdc Module, 1-Station, Golf
Body With Solenoid
118-3031
1 Body, W/ Comp, 1" Acme
364-1164
1 Plug, Cable Access
89-4702
1 Snap Ring, Valve
102-0623
1 Cylinder Assy., El & No/Com
102-6411
1 Spring, Valve, El/No, Silver
35-9646
1 Filter Assy., Metering, El, Nc
89-1054
1 Piston Assy., El & Nc
(Include Item 13)
102-0784
1 Rock Screen, 1"
118-3651
1 Wire Splice Kit (Includes 2
Gel Caps And 2 Wire Nuts)
■●
995-80
1
Nut Driver, 1/2 (For Check
Flow Assembly) ■ ●
■ Not illustrated
● SERVICE ITEMS
5
380-0072A
INFINITY Series 1.5 Inch Golf Sprinkler Body
380-0072A
6
1
INFINITY Series 1.5 Inch Golf Sprinkler Body (continued)
Ref.
1
1
2
3
4
4
4
4
4
5
6
7
7
7
Part Number Qty. Description
118-1840
1 Marker, Blank
118-3029
1 Marker, Laser Etched
118-1813
1 Cover
4102001
6 Screw, Tap, 10-16 X 1.25
118-1826
1 Pilot Valve, Spike-Guard
Solenoid
118-1982
1 Pilot Valve W/O Solenoid
118-1983
1 Pilot Valve W/ Nickel Plated
Spike-Guard Solenoid
118-1984
1 Pilot Valve W/ Dc Latching
Solenoid
118-1985
1 Pilot Valve W/ 600/700
Solenoid
118-1815
1 Retainer, Check Valve
118-1827
1 Check Flow Assy., Vih
Communication
118-0248
1 Solenoid, 600/700 Series
(Red & Black Wires)
102-3443
1 Solenoid-Low Wattage,
W/Surge Protection (Black
Wires)
102-3444
1 Solenoid-Low Wattage,
W/Surge Protection, Nickel
Plated (Red Wires)
Ref.
7
7
8
9
10
11
12
13
14
15
Part Number Qty. Description
102-2709
1 Solenoid Assy., 24Vdc,
Latching (Red W/ White
Stripe And Black Wires)
118-0841
1 Gdc Module, 1-Station, Golf
Body With Solenoid
118-3030
1 Body, W/ Comp, 1.5" Acme
364-1164
1 Plug, Cable Access
3-3304
1 Snap Ring, Valve
102-0626
1 Cylinder Assy., El And
No/Com
102-6411
1 Spring, Valve, El/No, Silver
35-9645
1 Filter Assy., Metering, El &
Nc
102-5101
1 Piston Assy., El
102-6065
1 Rock Screen, 1.5"
118-3651
1 Wire Splice Kit (Includes 2
Gel Caps And 2 Wire Nuts)
■●
995-80
1
Nut Driver, 1/2 (For Check
Flow Assembly) ■ ●
■ Not illustrated
● SERVICE ITEMS
7
380-0072A
