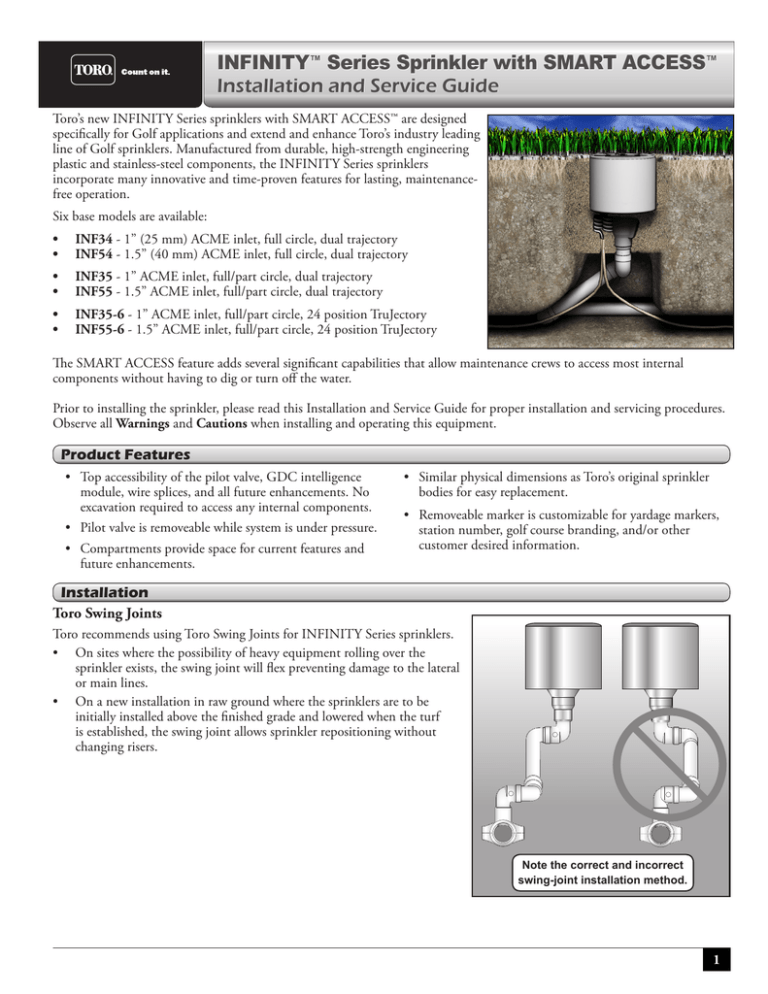

INFINITY™ Series Sprinkler with SMART ACCESS™
Installation and Service Guide
Toro’s new INFINITY Series sprinklers with SMART ACCESS™­­ are designed
specifically for Golf applications and extend and enhance Toro’s industry leading
line of Golf sprinklers. Manufactured from durable, high-strength engineering
plastic and stainless-steel components, the INFINITY Series sprinklers
incorporate many innovative and time-proven features for lasting, maintenancefree operation.
Six base models are available:
•
•
INF34 - 1” (25 mm) ACME inlet, full circle, dual trajectory
INF54 - 1.5” (40 mm) ACME inlet, full circle, dual trajectory
•
•
INF35 - 1” ACME inlet, full/part circle, dual trajectory
INF55 - 1.5” ACME inlet, full/part circle, dual trajectory
•
•
INF35-6 - 1” ACME inlet, full/part circle, 24 position TruJectory
INF55-6 - 1.5” ACME inlet, full/part circle, 24 position TruJectory
The SMART ACCESS feature adds several significant capabilities that allow maintenance crews to access most internal
components without having to dig or turn off the water.
Prior to installing the sprinkler, please read this Installation and Service Guide for proper installation and servicing procedures.
Observe all Warnings and Cautions when installing and operating this equipment.
Product Features
• Top accessibility of the pilot valve, GDC intelligence
module, wire splices, and all future enhancements. No
excavation required to access any internal components.
• Pilot valve is removeable while system is under pressure.
• Compartments provide space for current features and
future enhancements.
• Similar physical dimensions as Toro’s original sprinkler
bodies for easy replacement.
• Removeable marker is customizable for yardage markers,
station number, golf course branding, and/or other
customer desired information.
Installation
Toro Swing Joints
Toro recommends using Toro Swing Joints for INFINITY Series sprinklers.
• On sites where the possibility of heavy equipment rolling over the
sprinkler exists, the swing joint will flex preventing damage to the lateral
or main lines.
• On a new installation in raw ground where the sprinklers are to be
initially installed above the finished grade and lowered when the turf
is established, the swing joint allows sprinkler repositioning without
changing risers.
Note the correct and incorrect
swing-joint installation method.
1
ACME Thread Notes
The ACME thread golf sprinkler body requires an ACME thread swing joint for connection to the piping system. The ACME
swing joint has an o-ring on the exit fitting that provides a water-tight seal inside the sprinkler body when properly assembled.
!
CAUTION: With the ACME fitting, do not use thread sealants such as
Teflon™ tape or pipe dope.
! Important! For ease of assembly and to ensure proper sealing, moisten the
o-ring with clean water just prior to installation.
To Install Sprinklers:
Screw the sprinkler body clockwise onto the ACME swing joint exit fitting until
it stops. No further adjustment is required.
! CAUTION: Leakage between the swing joint exit fitting and the
sprinkler body may indicate that the o-ring is improperly seated, missing,
damaged and/or the sprinkler body is not completely installed.
If leakage is observed, perform the following procedure:
1. Shut off and relieve system water pressure.
2. Remove the sprinkler from the swing joint fitting.
3. Verify that the o-ring is undamaged and is properly seated in the o-ring
groove. (Replace the o-ring if necessary.)
Moisten the o-ring with water, reinstall the sprinkler, repressurize the system
and check for leakage.
2
Sprinkler Body
O-Ring
ACME Thread
Swing Joint
Exit Fitting
Unpacking the Sprinkler
1
3
2
Remove the retaining screw.
Lift the cover.
Remove accessory kit.
Waterproof Wire Splices
!
CAUTION: All wire splices and field connections must be waterproofed to prevent short circuit to ground and
subsequent controller damage.
This type of waterproofed wire splice is for use with solid and/or stranded wire connections.
1 - 3 #12
1 - 4 #14
2 - 5 #16
2 - 5 #18
1 #10 w/ 1-4 #18
1 #12 w/ 1-4 #18
2 #12 w/ 1 or 2 #18
1 #14 w/ 1-4 #18
3 #14 w/ 1 or 2 #18
Steps
1. Strip wires (12-16 gauge) 7/16” (11 mm)
2. Pre-twisting is unneccessary. Hold stripped wires together with ends even (Figure 1). Lead stranded wires slightly.
Align any frayed strands or conductors.
3. Firmly push wire into connector and screw connector clockwise onto wire until tight (Figure 1).
4. Insert the splice to the bottom of the sealant filled tube (Figure 2).
5. Position wires into wire channels (Figure 3). Wipe away any sealant around opening and conductors.
6. Close lid ensuring latch is secured (Figure 4).
Figure 1
Figure 2
Figure 3
Figure 4
3
Sprinkler Wiring Connections
Connecting Communication Cable to the INFINITY Series with GDC Module
The GDC system provides a coded DC signal over a polarity sensitive color coded communication cable that requires correct
connections to ensure proper operation. The GDC system also employs a daisy chain communication network where all
sprinklers, except the last one on a wire run, will have one cable coming in from the Gateway or closer sprinkler and another
going out to the next sprinkler.
1. If using jacketed cable, remove ~20” (508
mm) of shielding from communication
cable(s).
2. Route wires through the access grommet in
the bottom of the sprinkler compartment.
Provide a service loop below the sprinkler
to allow for height adjustment and future
servicing. (See Figure 1.)
Figure 1
Figure 2
access
grommet
3. Pull cable(s) out the top of the sprinkler
approximately 6˝ (152 mm). (See Figure 2.)
4. Strip 12-16 gauge wires 7/16˝ (11 mm) of
insulation. (See Figure 2.)
5. Connect the white cable wire(s) and the white
GDC module wire with a wire nut and install
into a waterproof grease cap (both provided).
(See Figure 3.)
service loops
Figure 3
6. Repeat for the black wire(s). (See Figure 3.)
7. Fold and tuck the cable connections into the
compartment pocket.
8. Record GDC module address and reference to
site location. Remove the 2 additional address
labels from the accessory kit. Affix one to the
cover for temporary future reference and the
other to the location identification form for
entry at the central controller.
9. Replace cover and install the three (3) cover
screws (from accessory kit). Tighten to 25
in/lb. (34,6 kilogram force meters) max or
medium torque and low speed setting on a
battery-powered screw-driver.
4
wire nut
spare screw
address label
grease cap
Connecting Control Wires to the INFINITY Series with Satellite
The field satellite controllers provide a 24 VAC
signal to the sprinklers typically using individual
wires. Connections to the sprinkler solenoid in
these systems are not polarity sensitive and do
not require specific wire connections. Typically
the “common” wire from the controller is daisychained to multiple sprinklers with one wire
coming in from the satellite or closer sprinkler
and the other going on to the next sprinkler. The
station output “hot” wire typically connects to a
single sprinkler but can also be daisy-chained to
multiple sprinklers depending upon the control
system capabilities.
1. Route all wire(s) through the access grommet
in the bottom of the sprinkler compartment
providing a service loop below the sprinkler
to allow for height adjustment and future
servicing. (See Figure 1.)
2. Pull all wire(s) out the top of the sprinkler
approximately 6˝ (152 mm). (See Figure 2.)
3. Remove 7/16˝ (11 mm) of the insulation from
all of the control wires. (See Figure 2.)
4. Connect the “common” wire(s) to one of the
solenoid wires with a wire nut and install into
a waterproof grease cap (both provided).
(See Figure 3.)
5. Repeat for the station output “hot” wire(s).
(See Figure 3.)
6. Fold and tuck the wire connections into the
compartment pocket.
7. Replace cover and install the three (3) cover
screws (from accessory kit). Tighten to 25 in/
lb. (34,6 kilogram force meters) max or
medium torque setting on a battery-powered drill.
Figure 1
Figure 2
access
grommet
service loops
Figure 3
wire nut
grease cap
Final Adjustments
Adjust the swing joint to bring the top of the sprinkler
flush to grade. Back fill with clean porous material that
promotes drainage. Tamp the soil around the sprinkler to
compact the soil and prevent settling.
service loops
sand
Toro swing joint
mainline/lateral
5
Table 1: Recommended System Fill Rate
Pipe Size
Flow
Velocity
Pipe Size
Flow
Velocity
inch
cm
GPM
LPM
ft/sec
m/sec
inch
cm
GPM
LPM
ft/sec
m/sec
1/2
1.3
2
7.6
1.60
0.49
3
7.6
45
170.3
1.86
0.57
3/4
1.9
3
11.4
1.92
0.59
4
10.1
75
283.9
1.87
0.57
1
2.5
5
18.9
1.50
0.46
6
15.2
150
567.8
1.73
0.53
1-1/4
3.1
10
37.9
1.86
0.57
8
20.2
250
946.3
1.70
0.52
1-1/2
3.8
10
37.9
1.41
0.43
10
25.4
450
1703.0
1.97
0.60
2
5.0
20
75.7
1.80
0.55
12
30.5
500
1893.0
1.55
0.47
2-1/2
6.4
30
113.6
1.84
0.56
On - Off - Auto
For normal operation, the Selector should be set to AUTO.
1
ON
OFF
AUTO
Sprinkler will operate immediately.
Sprinkler will not operate even when solenoid is activated.
Normal operation. Sprinkler will operate when solenoid is activated
according to the irrigation schedule.
Turn Selector to
appropriate setting.
Changing the Sprinkler’s Pressure Setting
The sprinkler pilot valve can be set to four different pressure settings: 50, 65, 80, or 100 psi (3,5, 4,6, 5,6, or 7,0, kg/cm2
respectively). The sprinkler pilot valve pressure is preset to the customer’s specifications.
To change the setting:
To Remove Pilot Valve Assembly, follow steps on page 9.
6
1.
Loosen adjustment knob.
2.
Move knob to desired pressure setting.
3.
Tighten adjustment knob.
Service
The INFINITY Series sprinklers are designed to provide the user trouble-free operation for many years without scheduled
maintenance. If it becomes necessary to disassemble the sprinkler to correct a malfunction or replace a component, all internal
parts of the sprinkler can be accessed from the top. Some special tools are required for disassembly and/or maintenance of the
sprinkler and are available from your Toro dealer.
To Remove the Lid
1
2
Remove the top three (3) screws.
Lift the cover.
To Remove the Marker
Every Toro INFINITY Series Sprinkler comes with a removable identification “marker”. This marker can be customized with
yardage numbers, company logos, and more. Contact your Toro distributor for information regarding markings.
1
2
Push the three marker tabs inward.
Separate from cover.
7
To Service the GDC Module
The GDC module has wires running directly to the solenoid. Replacement requires cutting and splicing wires.
Use water-proof wire splices to make all connections (see page 3).
1
3
2
Cut black and white Control wires.
Dispose of old Module.
Slide out Module.
Cut red and black Solenoid wires.
Strip 7/16” (11 mm) wire from
Solenoid and Control wire endings.
5
4
6
Module wires are in pairs.
Black to black and
red with white stripe to same.
Get new Module*, 4 wire nuts,
and 4 grease caps.
7
Black and white attach to black and
white Control wires.
Insert all wire nuts into
grease caps and snap closed.
Insert all wire ends into wire nuts.
*
8
Remember to record new
Module address for re-entry at
the Central Controller!
!
Put Module and all wiring carefully
back into sprinkler body.
8
Replace the cover and
secure all 3 screws to
25 inch/pounds of torque.
Operating the INFINITY™
sprinkler without the cover or
with loose or missing cover
screws may shorten the expected
service life of the sprinkler.
To Service the Pilot Valve
The pilot valve can be replaced while the system is under pressure. Remove the pilot valve for service.
1
2
Remove screw securing
pilot valve assembly.
Carefully slide assembly out.
Refer to Figure 1 for pilot valve service issues.
1. Unthread solenoid (17), unthread thumbnut (7), and remove
locator (6).
Figure 1
2. Remove diaphragm assembly (1), piston (2), spring (3), traveling
adjuster (4), pressure adjuster (5) and o-ring (11).
3. Remove selector shaft (10) and plunger assembly (12). (The selector
shaft retains the plunger in the valve body.)
4. Thoroughly clean and inspect all parts. Ensure threads are clean on
solenoid and PV body prior to assembly. Replace damaged parts
as necessary and reassemble in reverse order. Improper solenoid
assembly or cross-threading may result in damage to PV body and/or
malfunctions.
Pilot Valve Parts Breakout
1. 118-1825
2. 102-2469
3. 102-2235
4. 102-2236
5. 102-2237
6. 102-2606
7. 343-4441
8. 118-3711
9.1-2035
10. 102-4831
11. 360-0220
12. 118-1740
13. 118-0248
13. 102-3443
13. 102-3444
13. 102-2709
13. 118-0841
14. 4102001
15. 118-1816
16.2-9654
Diaphragm, Welded
Piston, PV, adjustable
Spring, adjustable PV
Nut, traveling
Adjuster, PV
Locator, Pressure Setting
Nut, Thumb
PV, Body, Infinity
O-ring
Selector, PV, red (included item 9)
O-ring
Plunger
Solenoid, Standard
Solenoid, SPIKE GUARD
Solenoid, Nickel plated, SPIKE GUARD
Solenoid, DC Latching
GDC Module w/ DC Latching Solenoid
Screw, #10 x 1”, Tapping, SS
Housing, Pilot Valve
O-ring
9
To Replace the Pilot Valve Solenoid
There are two Step 1s, depending on which version of the INFINITY Series sprinkler is being serviced.
1
1
With Intelligence Module:
Cut solenoid red with white stripe
and black wires.
3
2
Without Intelligence Module:
Cut black and white Control wires.
4
Unscrew old solenoid and dispose.
Flush plunger area with clean
water. Screw on new solenoid.
5
Solenoid to Intelligence Module:
twist red-to-red and black-to-black.
Strip 7/16” (11 mm) wire
from each ending.
6
Put pilot assembly and wiring
carefully back into sprinkler body
and secure with screw.
10
Solenoid to Satellite Control wires:
Match wire colors with previous
installation.
Insert all ends into wire nuts.
Insert all wire nuts into
grease caps and snap closed.
To Remove the Sprinkler Riser Assembly
1
2
3
995-83
Insert the multipurpose tool
into slot of riser cap.
Tilt tool back to lock it in.
4
Pull up riser and grasp firmly.
6
5
Insert multipurpose tool
into snap ring slot.
With multipurpose tool,
push seal retainer down hard to
release snap ring.
Twist and remove snap ring.
Carefully remove the riser
assembly. The spring will push
against your hand.
7
118-0954
Insert the “hold up” tool into nozzle
notch and riser spring collar.
11
For INF34 and INF54 Sprinklers (Full Circle only)
2
Figure 8
Refer to Figure 8 for the following procedure.
1
3
1. Grasp return spring (14) and riser (16) firmly and hold in place
while removing nozzle base (4). Turn nozzle base assembly
counter-clockwise to remove.
5
6
15
4
2. Carefully release tension from return spring.
3. Remove spring and seal retainer/o-ring assembly (12 and 13).
10 9
16
8
7
4. Remove riser screen (19) by turning it counterclockwise with edge
of multi-purpose tool (P/N 995-83) or tips of snap ring pliers
(P/N 995-100).
7
11
5. Remove o-ring (15) from top of riser assembly.
6. Remove drive assembly (17) and stator (18) from riser assembly
by carefully pressing on end of threaded shaft.
7. Using a 5/8” nut driver (P/N 995-99), unscrew main nozzle
(10) from nozzle housing (8). The riser cap (3) must still be
attached to the nozzle base assembly (4), or the nozzle housing
(8) will turn instead of the main nozzle.
12
17
13
18
19
8. Using a 5/16” nut driver (P/N 995-105), unscrew intermediate
nozzle ­­­­­­­­­(6) and inner nozzle (5) and plugs (7) from the nozzle
base assembly.
14
9. Thoroughly clean and inspect all parts and replace as necessary.
During reassembly, ensure snap ring is correctly installed and
fully seated in snap ring groove. Use the Multipurpose tool to
assist in proper placement.
For INF35 and INF55 Sprinklers (Full/Partial Circle)
Figure 9
Refer to Figure 9 for the following procedure.
2
1. Remove riser screen (17) by turning it counterclockwise
with edge of multi-purpose tool (P/N 995-83) or tips of
snap ring pliers (P/N 995-100).
2. Remove the variable stator (16) from riser assembly.
3. Loosen the drive assembly retaining screw (14) six or
seven turns and pull the drive assembly (15) using a pair
of pliers.
!
CAUTION: When removing or installing the drive
assembly, do not use the turbine to pull the drive
assembly. Use the drive assembly body to extract it out.
Failure to comply may cause separation of the drive
assembly components.
12
7
12
11
9
13
4
15
5
14
16
4. Using a 5/8” nut driver (P/N 995-99), unscrew main
nozzle (9) from nozzle base assembly.
6. Thoroughly clean and inspect all parts and replace as
necessary.
8
10
3
During reassembly, ensure drive assembly is properly
aligned with the retaining screw.
5. Using a 5/16” nut driver (P/N 995-105), unscrew the
inner (8), intermediate (7) nozzles, and plug (12).
1
17
6
To Install the INF35 and INF55 Sprinkler Riser Assemblies
1
2
Insert the “hold up” tool into nozzle
notch and riser spring collar.
4
3
Note locations of alignment
notch and rib.
5
Press retainer / o-ring assembly
down below snap ring groove.
Put snap ring, stepped side up,
around riser body.
Center the ratchet ring on the
alignment notch and insert riser.
6
Push snap ring down
until it “snaps” into place.
The multipurpose tool can help.
Remove “hold up” tool and lower
riser to retracted position.
To Install the INF34 and INF54 Sprinkler Riser Assembly
To install the INF34 and/or the INF54, follow the steps above except for the steps 2 and 3; those are not necessary.
13
To Service the Main Valve and Rock Screen
!
WARNING: To service the main valve, the water supply to sprinkler must be shut off and any residual water bled
off.
WARNING
NEVER STAND OR LEAN OVER THE SPRINKLER WHILE THE IRRIGATION SYSTEM IS
BEING FILLED, DURING MANUAL OR AUTOMATIC OPERATION, OR WHEN PERFORMING
SPRINKLER SERVICE PROCEDURES. DIRECT CONTACT WITH IRRIGATION SPRAY, A FAILED
OR IMPROPERLY INSTALLED SPRINKLER CONNECTION, OR SPRINKLER COMPONENTS
FORCIBLY EJECTED UPWARD UNDER PRESSURE CAN CAUSE SERIOUS INJURY.
The riser assembly must be removed from the sprinkler body to service the main valve. See page 11 to remove riser assembly.
1
2
3
995-100
Place the manual selector
into the ON position to ensure
water is off and pressure relieved.
5
4
Then grasp snap ring at “hooks”
and squeeze together.
7 - Service the Rock Screen
Using the pliers,
remove the rock screen.
Clean or replace as necessary.
14
Use long pliers to push down on
center of valve cylinder.
You will need long pliers
(part number 995-100).
6
Grab the hook that is furthest out
and pull up while twisting.
8
Using the pliers, press the rock
screen back into position.
Using the pliers,
remove main valve assembly.
To Reinstall Main Valve
Use the valve insertion tool. There are two sizes of the tool depending on the size of the sprinkler inlet.
• 118-1843 is the 1.5” (40 mm) valve insertion tool
• 118-1844 is the 1” (25 mm) valve insertion tool
1
3
2
“Step” side of ring faces up.
Ring “hooks” are hooked
around insertion tool prongs.
Load snap ring onto insertion tool.
Trigger is in “down” position.
4
Insert valve assembly.
7
Align valve communication port
with notch on insertion tool.
Load valve assembly onto tool.
5
6
Align the tool handle, the snap ring,
and the valve with the notch in body.
Push tool down completely then pull
up on “trigger” to release the snap
ring.
8
Remove tool.
Replace riser assembly.
(See page 13 for full procedure.)
The snap ring will “snap!” into groove when properly installed. Remove insertion tool and check snap ring to confirm
that it is fully seated in groove.
15
Flushing the Sprinkler
1. With sprinkler operating, carefully step down on center of cap several times. Water will flow around riser and flush out debris.
2. Cycle sprinkler on and off several times to check for proper retraction. Cap should be even with top of body flange when fully retracted. If
riser sticks in up position, check for debris lodged between riser and body. Flush out all debris. Remove riser assembly if necessary.
Troubleshooting Guide
Problem
Sprinkler will not turn on.
Cause
No 24 VAC to solenoid assembly.
Debris in pilot valve assembly.
Selector cam in “OFF” position.
Pilot valve solenoid inoperative.
Pilot valve plunger movement restricted.
No water supply from main valve.
Sprinkler will not shut off.
Constant 24 VAC from controller
Selector cam in “ON” position.
Debris in pilot valve assembly.
Leak in pilot valve assembly.
Plugged supply screen on piston.
Plunger movement restricted.
Valve cylinder misaligned with sprinkler
body communication tube.
Foreign object keeping valve from seating.
Sprinkler will not rotate.
Head sticks up
Poor distribution pattern
Damaged piston seal or piston assembly.
Debris wedged between stator and turbine.
Drive assembly defective.
Nozzle base assembly defective.
Dirt in riser assembly.
Damaged or missing return spring.
Damaged riser.
Nozzle plugged with debris.
Nozzle orifice damaged.
Low operating pressure.
Solution
Measure voltage with a Digital Volt Meter.
Check wiring and controller program.
Disassemble and remove all debris.
(See Servicing Pilot Valve, page 9.)
Set to “AUTO” position.
Remove and replace solenoid.
Inspect, clean, and/or replace.
Debris in control tube, main valve assembly, and/or
communication passages in body. Flush thoroughly.
Check for voltage using a DVM. If voltage is present,
disconnect wire. If sprinkler closes, service controller.
Refer to Controller Service Manual.
Set to “OFF” position.
Disassemble and remove all debris.
(See Servicing Pilot Valve, page 14.)
Replace pilot valve assembly.
Clean or replace screen on main valve piston.
Inspect and clean or replace.
Remove valve assembly and install correctly.
Remove, clean, and check for valve damage.
Replace if necessary.
Replace valve assembly.
Remove obstruction.
Replace drive assembly.
Replace nozzle base assembly.
Flush out. (See top of this page.)
Replace spring.
Replace riser.
Clean or replace nozzle.
Replace nozzle.
Determine why system is overloaded and correct.
Toro Warranty and Support
The Toro Company and its affiliate, Toro Warranty Company, pursuant to an agreement between them, jointly warrants, to the owner, against defects in
material and workmanship for a period of three years from the date of purchase. (Five years if Toro Swing Joint installed with sprinkler.) Neither The Toro
Company nor Toro Warranty Company is liable for failure of products not manufactured by them, even though such products may be sold or used in
conjunction with Toro products.During such warranty period, we will repair or replace, at our option, any part found to be defective. Return the defective
part to the place of purchase. Our liability is limited solely to the replacement or repair of defective parts. There are no other express warranties. This
warranty does not apply where equipment is used, or installation is performed, in any manner contrary to Toro’s specifications and instructions, nor where
equipment is altered or modified. Neither The Toro Company nor Toro Warranty Company is liable for indirect, incidental or consequential damages in
connection with the use of equipment, including but not limited to: vegetation loss, the cost of substitute equipment or services required during periods of
malfunction or resulting non-use, property damage or personal injury resulting from installer’s negligence.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
All implied warranties, including those of merchantability and fitness for use, are limited to the duration of this express warranty. Some states do not allow
limitations of how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights and you may
have other rights which vary from state to state.
16 © 2014 The Toro Company, Golf Division • www.toro.com • 1-877-345-8676
Form Number 373-0798 Rev. B
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
