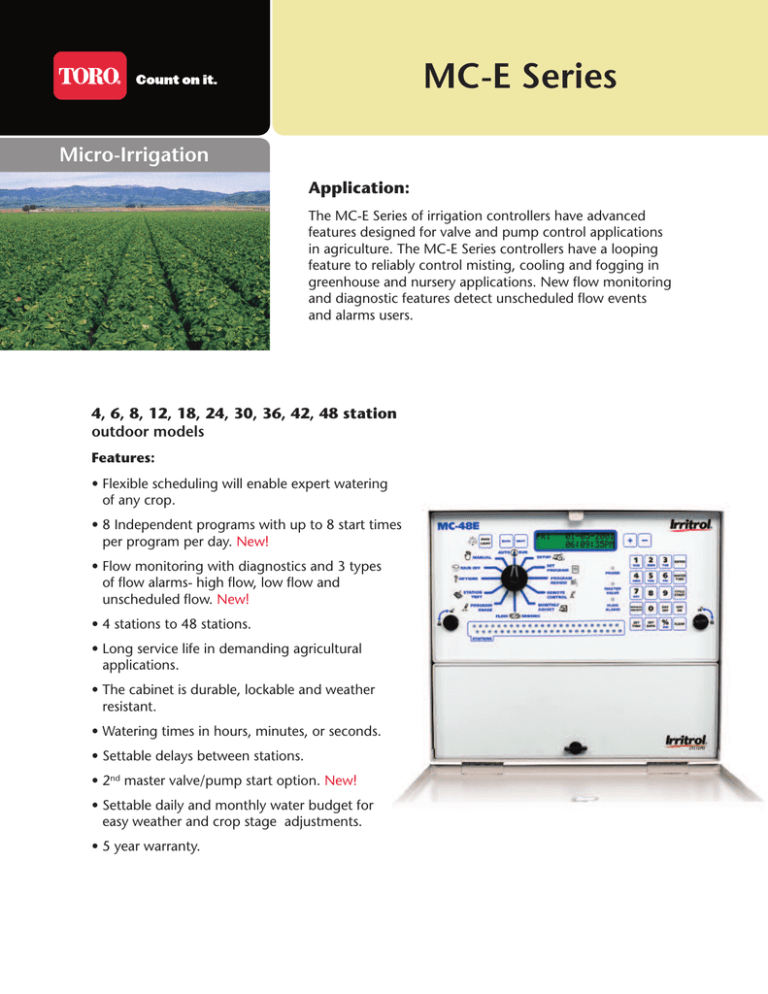

Toro MC-E Series Specification
MC-E Series
Micro-Irrigation
Application:
The MC-E Series of irrigation controllers have advanced
features designed for valve and pump control applications
in agriculture. The MC-E Series controllers have a looping
feature to reliably control misting, cooling and fogging in
greenhouse and nursery applications. New flow monitoring
and diagnostic features detect unscheduled flow events
and alarms users.
4, 6, 8, 12, 18, 24, 30, 36, 42, 48 station
outdoor models
Features:
• Flexible scheduling will enable expert watering
of any crop.
• 8 Independent programs with up to 8 start times
per program per day. New!
• Flow monitoring with diagnostics and 3 types
of flow alarms- high flow, low flow and
unscheduled flow. New!
• 4 stations to 48 stations.
• Long service life in demanding agricultural
applications.
• The cabinet is durable, lockable and weather
resistant.
• Watering times in hours, minutes, or seconds.
• Settable delays between stations.
• 2nd master valve/pump start option. New!
• Settable daily and monthly water budget for
easy weather and crop stage adjustments.
• 5 year warranty.
MC-E Series
Operation Specifications
• Watering day cycles per program
- Any days of the week
- Odd or Even date watering
- Day intervals from 1–60 days
• Station run times
- 0–59 seconds in 1-second increments
- 1 minute to 24 hours in 1-minute increments
• Global Water Budget & Monthly water budget
- 0% to 255% in 1%-increments
New Added Features
Electrical Specifications
• Looping on all 8 programs New!
• Transformer input: 120V ac, 60 Hz
• Backlit, 2-line 32 character LCD display
• Transformer output: 24V ac, 2.08 amps
• Selectable irrigation off days (up to 10) for events
such as harvest, spraying or holidays
• Maximum output per station: 1.24 amp
• Terminals for flow sensor, stop sensor (rain switch),
start program sensor activated by temperature or
other sensing device New!
• Maximum output to valves: 24VAC, 1.8 Amps
Dimensions
4–12 station models
18–48 station models
• Program overlap or start time “stacking”
Height: 9 /4" (248mm)
Height: 12" (305mm)
• Internal power supply to hold time/date up
to 48 hours ( no battery required)
Width: 10 /2" (267mm)
Width: 14 1/4" (362mm)
Depth: 4 1/4" (108mm)
Depth: 4 3/4" (121mm)
• Password protection option for secure programming
3
1
• Master valve/pump start option available
for each station
Time Tested Features
• 16 day programmable calendar
• Up to 11 starts per day
Example:
How To Order:
A - MC - XE
• Loops have adjustable start time, stop time
and delays between loops
• Programmable Irrigation Off days
• Diagnostic circuit breaker
• “All-station-test” program
• Non volatile memory retains the program
during power outage and surges
• Two stage surge protection
• Battery backup for 30 days
• Self diagnostic circuit breaker
The Toro Company
Micro-Irrigation Business
1588 N. Marshall Avenue, El Cajon, CA 92020-1523, USA
Tel: +1 (800) 333-8125 or +1 (619) 562-2950
Fax: +1 (800) 892-1822 or +1 (619) 258-9973
www.toromicroirrigation.com
ALT058 rev.B 1/08
Model
A-MC-4E
A-MC-6E
A-MC-8E
A-MC-12E
A-MC-18E
A-MC-24E
A-MC-30E
A-MC-36E
A-MC-42E
A-MC-48E
Number of
Stations
4
6
8
12
18
24
30
36
42
48
