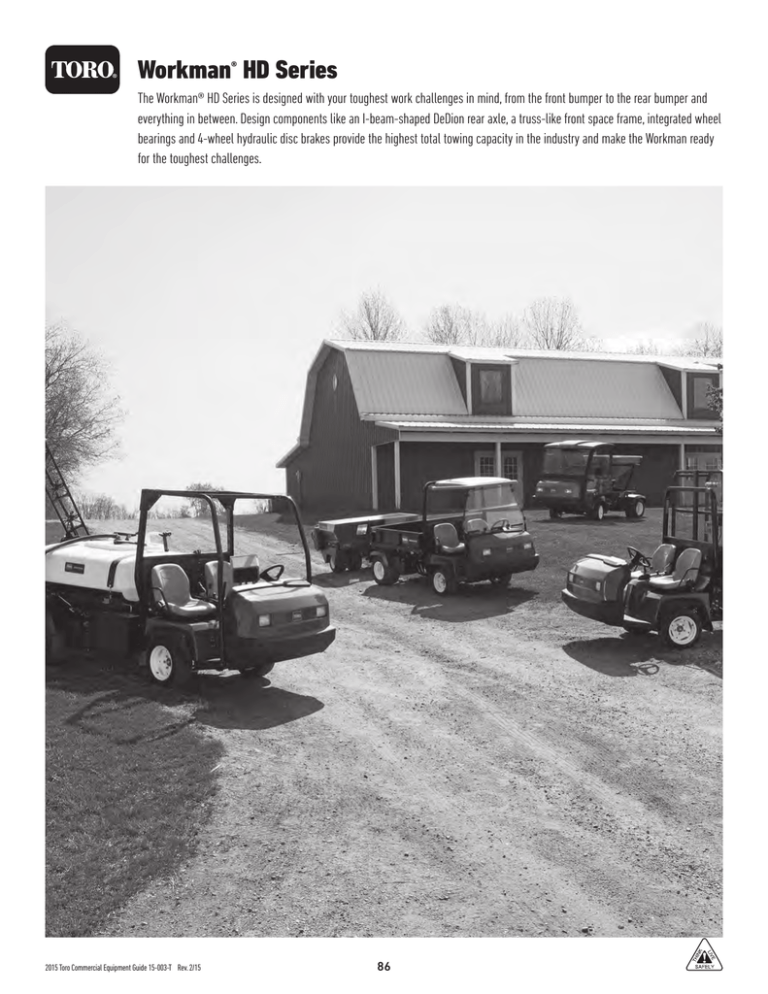

Workman® HD Series
The Workman® HD Series is designed with your toughest work challenges in mind, from the front bumper to the rear bumper and
everything in between. Design components like an I-beam-shaped DeDion rear axle, a truss-like front space frame, integrated wheel
bearings and 4-wheel hydraulic disc brakes provide the highest total towing capacity in the industry and make the Workman ready
for the toughest challenges.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
86
Workman HD Series Specifications*
®
ENGINE
WORKMAN HDX, NO BED, MODEL 07383
WORKMAN HDX, W/BED, MODEL 07384
WORKMAN HDX W/BED, MODEL 07384TC
WORKMAN HDX - 4WD, MODEL 07386
WORKMAN HDX - 4WD, MODEL 07386TC
WORKMAN HDX - D MODEL 07385
WORKMAN HDX - D MODEL 07385TC
WORKMAN HDX - D - 4WD, MODEL 07387
WORKMAN HDX - D - 4WD, MODEL 07387TC
WORKMAN HD, MODEL 07369
Kubota® 972 EFI, 32.5 hp (24.2 kw), 4-cycle, liquidcooled, 962 cc, 3-cylinder overheated camshaft,
counterbalanced gasoline engine. Governed maximum
of 32.5 hp at 3600 rpm. Rear engine location direct
coupled to a transaxle. 12-volt electric starter. Fuel
Injected is a closed loop system with oxygen sensor to
adjust air/fuel ratio and manifold pressure sensor to
adjust for altitude. Full pressure lubrication with spinon oil filter. Meets all EPA & CARB emission standards
Kubota 902D, 3-cylinder, inline vertical, 4-cycle,liquid
cooled, counterbalanced diesel engine, 23.3 hp
(18.5kw); governed to a maximum speed of 3600
rpm. 58.0 cu. in (950 cc) displacement. Rear engine
location. Direct couple to transaxle. 12-volt electric
starter. Full pressure lubrication with spin-on oil filter.
Meets EPA Tier IV compliance. Biodiesel ready for use
up to B-20 (20% biodiesel and 80% petrol blend).
Meets all EPA & CARB emission standards.
Kohler Model CH23, 2-cylinder, 4-cycle,
air-cooled engine. 23 hp (17.2 kW) at 3600
rpm governed to a maximum speed of 3600
rpm by an internal governor. 41.1 cu. in. (674
cc) displacement. Electronic ignition. Rear
engine location direct coupled to a transaxle.
12-volt electric starter. Full pressure
lubrication with spin-on oil filter. Meets all
EPA & CARB emission standards.
Fuel and coolant temperature gauges. Hour meter.
Oil pressure, glow plug and battery charge indicator
lights. Tachometer and speedometer.
Fuel gauge, hour meter, oil pressure warning
light and battery charge indicator light.
Tachometer / speedometer optional.
CLUTCH 7.5" (19cm) clutch and pressure plate
Fuel and coolant temperature gauges. Hour meter. Oil
INSTRUMENTATION pressure, check engine and battery charge indicator
lights. Tachometer and speedometer.
ALTERNATOR 60 amp with electronic regulator
25 amp with electronic regulator
20” x 9” - 12, 6-ply rating, turf tread
TIRES Front:
Rear: 24” x 12” - 12, 6-ply rating, turf tread
radiator with 10 fins per inch dual pass. Right side mounted with removable screen for debris cleaning.
COOLING SYSTEM Aluminum
Thermal controlled DC electric fan.
AIR CLEANER Remote mounted, heavy-duty 2-stage air cleaner with evacuator valve.
Fan forced air.
Large capacity, dual element.
CLEARANCE CIRCLE 2WD Inside = 32 in (81 cm); Outside = 194 in (493 cm)
CLEARANCE CIRCLE 4WD Inside = 100 in (254 cm); Outside = 300 in (726 cm)
N/A
FUEL CAPACITY 6 gallons (22.7 liters)
FUEL PUMP 12V internally regulated 42 psi in-tank
Electronic pump
Diaphragm pump
FUEL FILTER In tank filter sock. 10 micron polyester depth.
Combination fuel filter / water separator with a 30
micron filtration and 50 mesh suction screen in tank.
In-line 40 micron filter and 50 mesh suction
screen in tank.
Standard, button on dash on 07385TC & 07387TC.
Optional on 07385 & 07387.
Optional
85 db(A)**
80 db(A)**
Model 07383: 1623 lbs (738 kg)
Model 07384: 1951 lbs (887 kg)
Model 07384TC: 2725 lbs (1238 kg)
Model 07386: 2010 lbs (914 kg)
Model 07386TC: 2784 lbs (1265 kg)
Model 07385: 1956 lbs (889 kg)
Model 07385TC: 2730 lbs (1240 kg)
Model 07387: 2015 lbs (916 kg)
Model 07387TC: 2789 lbs (1268 kg)
Model 07369: 1848 lbs (840 kg)
Model 07383: 1623 lbs (738 kg)
Model 07384: 1951 lbs (887 kg)
Model 07384TC: 2032 lbs (924 kg)
Model 07386: 2010 lbs (914 kg)
Model 07386TC: 2091 lbs (950 kg)
Model 07385: 1956 lbs (889 kg)
Model 07385TC: 2037 lbs (926 kg)
Model 07387: 2015 lbs (916 kg)
Model 07387TC: 2096 lbs (953 kg)
Model 07369: 1848 lbs (840 kg)
Model 07384:3249(1477kg)
Model07384TC:3168(1440kg)
Model 07386:3190 (1450kg)
Model 07386TC:3109 (1413kg)
Model 07385:3244 lbs. (1475 kg)
Model 07385TC:3163 lbs. (1438 kg)
Model 07387: 3185 lbs. (1448 kg)
Model 07387TC: 3104 lbs. (1411 kg)
Model 07369: 3352 lbs. (1524 kg)
Model 07384: 2849 lbs (1295 kg)
Model 07385: 2844 lbs.(1293 kg)
Model 07385TC: 2763 lbs. (1256 kg)
Model 07387: 2785 lbs. (1266 kg)
Model 07387TC: 2704 lbs. (1229 kg)
Model 07369: 2952 lbs. (1342 kg)
button on dash on 07384TC & 07386TC.
HORN Standard,
Optional on 07383, 07384 & 07386.
SOUND LEVEL 75 db(A)**
VEHICLE SHIPPING WEIGHT
VEHICLE ACTUAL
WEIGHT W/O FUEL
TOTAL CAPACITY
CARGO BED CAPACITY W/200 Model 07384TC: 2768 lbs (1258 kg)
LB. OPERATOR AND 200 LB.
PASSENGER Model 07386: 2790 lbs (1268 kg)
Model 07386TC: 2709 lbs (1231 kg)
*Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.
Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.
**At operator's ear; 3600 rpm with bed and sides installed.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
87
The Workman HD utility vehicle is manufactured
in Tomah, WI ISO 9002 Certified Plant.
Workman® HD Series Specifications* (continued)
SPECIFICATIONS COMMON TO WORKMAN HD SERIES VEHICLES
FRONT SUSPENSION
REAR SUSPENSION
BATTERY
TRANSMISSION
3RD GEAR HIGH LOCKOUT
DIFFERENTIAL LOCK
4WD SYSTEM
FRAME
STEERING
2-POST ROPS
BRAKES
HYDRAULICS
LIGHTS
SEAT BELTS / SEATS
Independent system with dual “A” frame control arms, dual coil springs and dual shock absorbers with anti-sway bar. Provides 5 3/4” travel.
DeDion rear axle (weight carrying axle) suspension independent of transaxle with dual leaf springs and dual shock absorbers. Provides 3” travel.
12-volt, group 26, with 540 cold cranking amps at 0 degrees F (-18 degrees C).
Rear transaxle directly connected to engine, twin axle drive. 3-speed synchromesh (forward speeds only), h-shift pattern with
high-low range providing 6 forward speeds and 2 in reverse. Transmission housing doubles as hydraulic reservoir with outlet screen and external filter.
Interlock key switch that prevents engine from running in 3rd gear, high range HDX-D. Limits engine RPM to 2,200 in 3rd gear high range (HDX gas).
Manual engage rear differential lock.
Fully automatic on-demand, bi-directional system. Uses dual bi-directional clutches. In event of rear tire slippage, clutches transmit power proportionally to front
wheel with highest traction.
Steel space frame front frame and C-channel rear frame.
Hydraulic power steering with with steering valve coupled to hydraulic cylinder with thru shaft. Maximum steering angle is 70 degrees on 2WD and 50 degrees on
4WD.
2-post rollover protective structure and protective back panel bolted to ROPS.
4-wheel hydraulic disk brake system. 9 1/2” disk with hydraulic service brakes using twin piston floating calipers. Parking brake uses mechanical cable actuated
caliper on rear wheels.
4 gpm (15 lpm) gear pump provides hydraulic flow for power steering and lift in series. Lift control valve with quick disconnects for dual lift cylinders or for
attachments when quick disconnects are switched. 8 quart total capacity.
Twin halogen headlights and dual taillights actuated by switch on dash. Dual brake lights actuated by brake pedal.
Lap seat belts standard. Bucket seats with adjustable slides to allow for various seat positions. Hip restraint tubes welded to seat mounting straps.
CONTROLS
Throttle, brake and clutch pedals. Gear shifter, differential lock, parking brake, high-low range shifter and hydraulic lift levers.
INTERLOCK
To start engine, clutch pedal must be depressed and remote hydraulic lever must be in neutral position. If installed, high flow hydraulics and rear PTO must be
disengaged / switched off.
SAFETY SUPPORT
GROUND CLEARANCE
REAR TOW HITCH
7-gauge steel channel stores behind seat and fits over extended lift cylinder to prevent accidental lowering of bed.
7” (18 cm) with no load.
Steel hitch bracket bolted to rear DeDion axle. Mounting plate provides mounting hole for pin or ball hitch and incorporates two safety chain mounting holes.
Maximum tongue weight of 600 lbs (272 kg). Maximum trailer weight of 3500 lbs (1587 kg). Trailers over 1500 lbs. require trailer brakes. (Electric Brake Kit available
through parts, 117-4837).
Forward Speeds:
GROUND SPEED
Reverse Speeds:
WARRANTY
Standard Tires, Gear 1/2/3
7.6/11.5/19.8 mph (12.2/18.5/31.9 km/h)
2.9/4.5/7.7 mph (4.7/7.2/12.5 km/h)
7.1 mph (11.6 km/h)
2.8 mph (4.5 km/h)
Overall Length
127.6 in (324 cm) w/o bed
130 in (330 cm) w/ full bed
DIMENSIONS
CERTIFICATIONS
High Range
Low Range
High Range
Low Range
Overall Width
64.7 in (164.3 cm)
Overall Height (Top of ROPS)
75.8 in (192.5 cm)
Certified to meet SAE J2258. Certified to meet ISO/DIS 21299 for ROPS. Engine meets all applicable emission standards per the manufacturer. Certified to meet the CE
Machinery Directive.
Two-year limited warranty. See Operator’s Manual for further details.
*Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.
Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
88
The Workman HD utility vehicle is manufactured
in Tomah, WI ISO 9002 Certified Plant.
Workman® HD Series Specifications*
(continued)
WORKMAN VEHICLE ACCESSORIES
FULL AREA FLAT BED Welded steel diamond plate flat bed that mounts to vehicle frame. Dimensions: 54.7 x 64.5 in (139 x 164 cm). Weight: 218 lbs (99 kg).
FULL FLAT BED SIDE KIT Long bed side panels, front panel and tailgate with a fixed pivot.
steel diamond plate flat bed. Has (4) corner stake pockets for enhancing specialty mount applications. Dimensions: 21.5 x 54.7 in (55 x 139 cm).
1/3 FLAT BED Welded
Weight: 55 lbs (25 kg)
1/3 FLAT BED STAKE SIDE KIT Formed 14-gauge steel stake sides for use with 1/3 flat bed.
2/3 FLAT BED Welded steel diamond plate flat bed. Dimensions: 48.1 x 54.7 in (122 x 139 cm). Weight: 161 lbs (73 kg)
2/3 FLAT BED SIDE KIT Short bed side panels, front panel and tailgate with a fixed pivot for use with 2/3 flat bed. Optional tailgate release PN 92-1220.
FULL FLAT BED FOLD DOWN Hinged side panels, front panel and tailgate can be folded down independently for use with full flat bed. Dimensions: 64.5 x 54.7 x 11 in (164 x 139 x 28 cm) outside.
SIDE KIT 20 cu ft (.570 cu m) capacity. Weight = 109 lbs (49 kg)
8 gpm (30.3 liter) at 2000 psi hydraulic flow in a separate circuit to power certain attachments and accessories (standard on TC models).
HIGH FLOW HYDRAULICS KIT Provides
Note: Model 07369 cannot run High Flow Hydraulics Kit.
200 GALLON SPRAYER 200 gallon (757 liter) low profile tank sprayer with diaphragm pump and detatchable control box. Three-section, 18.5 ft (5.6 m) open boom system.
VICON SPREADER Pendulum action spreader with polyester hopper. 14.1 cu. ft. (.396 cu. m.), 750 lbs (340.5 kg) capacity. Spread width is 3 - 46 ft. (1 - 14 m).
cu. ft. (.504 cu. m), 1450 lbs (541 kg) capacity conveyor belt style topdresser hydraulically driven by remote hydraulics. 60 in (152 cm) spread width.
TOPDRESSER 1800 18
Workman bed lift cylinders raise topdresser. Spring load metering gate.
cu. ft. (.7 cu. m) capacity conveyor belt style topdresser towed by Workman vehicle. Textured belt, oscillating axles and all wheel drive.
TOPDRESSER 2500 25
Electrically activated hydraulic brakes.
PROPASSTM 200 TOPDRESSER 21 cu. ft. / 0.54 cu. m) struck (25 cu. ft. / 0.71 cu. m heaped) capacity spin style topdresser. Tow-behind or bed mount versions.
PRO FORCETM DEBRIS BLOWER Tow-behind, self-contained engine-driven debris blower operated with a hand-held wireless RF controller. Bed mount kit available.
elevating, scissor-lift work platform with 600 lb (272 kg) lift capacity that can be raised from 38 in (96.5 cm) to 98 in (249 cm).
1/3 VERTICAL LIFT An
Slope indicator for safe operation. Removable over-ride key for lift controls.
HARD CAB Deluxe hard cab, ROPS and CE certified. Vented front glass windshield, interior dome light and a 2-speed windshield wiper. Optional heater and mirrors available.
CAB SLIDING WINDOW DOOR Door kit for deluxe hard cab. Operator door has a sliding window for ventilation and ability to access exterior elements such as an identification badge security entry.
KIT Passenger door has solid window.
CAB SOLID WINDOW DOOR KIT Door kit for deluxe hard cab. Operator and passenger doors have solid windows.
CAB REAR VIEW MIRROR KIT Externally mounted to the cab frame, operator and passenger side rear view mirrors for enhancing all around visibility.
CANOPY Durable, high-density polyethylene canopy with drainage outlets for moisture runoff.
FOLDING WINDSHIELD Clear high-impact modified acrylic material with fold down capability.
BRAKE & SIGNAL KIT Consists of turn signal lights for both corners in the front and rear of vehicle and brighter beam headlights.
WORK LIGHT KIT Consists of (2) front facing and (1) rear facing work lights all mounted on top of ROPS bar.
ROPS SIGNAL LIGHT KIT Consists of (2) double amber warning lights and (2) single red tail lights all for mounting on top of ROPS bar. Requires either a “Right Side” or “Left Side” light kit.
automatic tailgate release when dumping from cargo bed and resets automatically upon lowering of bed. Works on full or 2/3 bed with full sides.
AUTOMATIC TAILGATE RELEASE Provides
Does not work with folding side kit.
REAR PTO KIT Rear mounted, 540 RPM, PTO shaft mechanically driven by transaxle.
and speed limit control that provides constant RPM for stationary attachments or a controlled maximum speed for applications such as spraying or spreading
HAND THROTTLE Throttle
(mechanical – HDX/HD & electric – HDX gas models).
SPARK ARRESTOR Fits onto end of tailpipe.
PLASTIC BED LINER A rugged, weatherproof one-piece plastic liner and separate tailgate liner that will protect either a full are bed with sides or a 2/3 bed with sides.
for extending the air intake system from underneath the cargo bed to a position slightly above the ROPS shield behind the passenger position of the vehicle.
HIGH AIR INTAKE KIT Kit
Recommended for dusty work applications.
REAR VIEW MIRROR KIT A single 8 1/2” (21.6 cm) convex mirror with mounting capability on either the operator or passenger side of the vehicle.
*Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual Products offered
for sale may vary in use, design, requirements and safety features. Consult your local Toro Distributor. “Cushman” is a registered trademark of Ransomes.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
89
The Workman HD utility vehicle is manufactured
in Tomah, WI ISO 9002 Certified Plant.
Workman® HD Series Specifications* (continued)
WORKMAN VEHICLE ACCESSORIES
2” RECEIVER HITCH KIT Provides a 2” square receiver to enable a “drawbar” hitch.
TRAILER BRAKE Kit provides a controller which plugs into Workman vehicle and a positive wire to assist the hook up of customer supplied electric trailer brakes.
WIRING KIT
TRAILER SIGNAL Kit provides electrical wire for Workman vehicle to enable easy hook up to customer supplied trailer signal and brake lights.
WIRING KIT
REMOTE HYDRAULIC MANIFOLD KIT Hydraulic manifold kit that provides to ability to switch hydraulics between cargo bed actuation and remote port usage via use of a opertor panel mounted switch.
REMOTE HYDRAULIC FLOAT KIT Hydraulic float kit that enables both hydraulic lifting and “float” in the down position. Required when using a Deere TC125 sweeper.
4WD MANUAL CONTROL Allows auto 4WD to be turned off.
4 POST ROPS CANOPY KIT Canopy for use with 4-post ROPS kit.
4 POST ROPS KIT Connects standard 2-post ROPS to 4-post ROPS. Required with 200-gallon sprayer.
HEATER KIT Heater for use with cab. Adjustable temperature and 2-speed fan (excludes HD).
BACK UP ALARM KIT Provides an audible alarm when vehicle is in reverse.
Multi Pro® WM – 200-Gallon Sprayer Specifications*
SPRAYER SPECIFICATIONS
SOLUTION TANK
High-density, impact-resistant polyethylene with large 16” (41cm) fill well, tapered bottom and
sump with drain.
RATED CAPACITY
200 gallons (757 liters).
SPRAY PUMP
AGITATOR
CONTROLS
Hardi 363/10.0, 6-diaphragm positive displacement w/1” (2.5cm) input shaft; input speed 0~540
rpm; Flow rate 49gpm (185.5 lpm) @ 40psi (540 rpm).
4, side- mounted jet agitation nozzles for full tank agitation.
Spray pump control switch, agitator jet switch, rate switch, individual boom On/Off switches, boom
actuator switches, indicator lights on pump, agitation and boom switches, throttle lock.
OPEN BOOMS (STANDARD)
BOOM ASSEMBLY
BOOM ACTUATORS
SPRAY NOZZLES
18.5’ three section, triangular truss style open booms.
Heavy Duty hydraulic lift actuators with nitro-steel plated shafts; 1-3/4” Bore
x 10.06” Stroke.
Eleven nozzles turrets, triple turret mount, quick-disconnect with diaphragm
check valves.
MULTI PRO WM ACCESSORIES
CLEANLOADTM EDUCTOR KIT
FRESH WATER RINSE KIT
ELECTRIC HOSE REEL KIT
PRO FOAMTM MARKING KIT
ULTRA SONIC BOOMTM KIT
COVERED BOOM KIT
AIR INDUCTION TURBO TWIN
JET NOZZLES
CONTACT & SYSTEMIC NOZZLES
This on-board mixing station allows rapid and safe loading of any chemical without the need to first mix into a slurry Incorporates a built-in bottle wash nozzle and
has an optional suction lance to pull in powdered or liquid products from their container. Stores within the width of the machine.
Simplifies and automates the triple-rinse process, saving hours and hours of clean up time.
150’ (45.7 m) of hose for hand or walk spraying applications. Convenient electric powered rewind. Spray gun has an adjustable nozzle from stream to fan.
Foam dollops ensure accurate parallel path tracking. Select foam independently or both simultaneously.
New sonar sensors automatically maintain proper spray height over undulating turf.
Extends 12” (30.5 cm) below the boom to minimize chemical drift in breezy conditions while retaining full boom system functionality.
Exclusive to Toro in the 0.8gpm (3.02 lpm), 1.0 gpm (3.79 lpm) and 1.5gpm (5.68 lpm) sizes, for exceptional contact coverage.
See complete nozzle listing in the Multi Pro Nozzle Selection Brochure – available for download on toro.com
WARNING
THE WORKMAN® IS AN OFF-HIGHWAY VEHICLE, AND IS
NOT DESIGNED, EQUIPPED, OR MANUFACTURED FOR
USE ON PUBLIC STREETS, ROADS OR HIGHWAYS.
*Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual Products offered for sale
may vary in use, design, requirements and safety features. Consult your local Toro Distributor. “Cushman” is a registered trademark of Ransomes.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
90
The Workman utility vehicle is manufactured
in Tomah, WI ISO 9002 Certified Plant.
Workman® HDX Auto Specifications*
WORKMAN HDX AUTO, MODEL 07390 / 07390TC
ENGINE 28 hp (14.9 kW) Kohler LH775 Twin-cylinder, liquid-cooled electronic fuel injection
®
DISPLACEMENT 747cc
FUEL Gasoline
COOLING Liquid
TRANSMISSION Variable speed transmission with forward high-low range and reverse featuring Toro SpeedContr'l™
MAXIMUM SPEED Forward low range 11 mph (17.7 km/h), Forward high range 20 mph (32.2 km/h), Reverse 13 mph (20.9 km/h)
automatic on-demand, bi-directional system. Uses dual bi-directional clutches. In event of rear tire slippage, clutches transmit power proportionally to front
4WD MODEL Fully
wheel with highest traction.
BASE MACHINE WEIGHT HDX Auto 2WD: 1,905 lbs (866 kg)
(INCLUDES BED) HDX Auto 4WD: 1,935 lbs (880 kg)
TOTAL PAYLOAD CAPACITY
Auto 2WD: 3,295 lbs (1498 kg)
(INCLUDING TWO, 200LB HDX
HDX Auto 4WD: 3,265 lbs (1484 kg)
PASSENGERS)
CARGO BED CAPACITY
Auto 2WD: 2,895 lbs (1316 kg)
(ASSUMES TWO, 200LB HDX
HDX Auto 4WD: 2,865 lbs (1303 kg)
PASSENGERS)
(324 cm) without bed;
LENGTH 127.6”
130” (330 cm) with bed
WIDTH 64.7” (164.3 cm)
HEIGHT 75.8” (192.5 cm) to top of ROPS
Inside = 32” (81 cm); Outside = 194” (493 cm)
CLEARANCE CIRCLE 2WD
4WD Inside = 100” (254 cm); Outside = 300” (726 cm)
GROUND CLEARANCE 7” (18 cm) with no load
DIFFERENTIAL LOCK Electronic switch to engage rear differential lock
FRONT SUSPENSION Independent suspension with dual A-frame control arms, dual coil springs and dual shock absorbers with anti-sway bar. Provides 5.75” (14.6 cm) travel.
REAR SUSPENSION DeDion rear axle (weight carrying axle) suspension independent of transaxle with dual leaf springs and dual shock absorbers. Provides 3” (7.6 cm) travel.
BRAKES 4-wheel hydraulic disc brake system
to meet SAE J2258. Certified to meet ISO/DIS 21299 for ROPS. Engine meets all applicable emission standards per the manufacturer.
CERTIFICATIONS Certified
Certified to meet the CE Machinery Directive.
WARRANTY Two-year limited warranty. See Operator’s Manual for further details.
600 lbs (272 kg) tongue weight
TOW HITCH 3,500 lbs (1587 kg) trailer weight
Trailers over 1,500 lbs (680 kg) require trailer brakes
*Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.
Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
91
The Workman HD utility vehicle is manufactured
in Tomah, WI ISO 9002 Certified Plant.
Workman® HDX Auto Specifications* (continued)
WORKMAN HDX AUTO ACCESSORIES
FULL AREA FLAT BED Welded steel diamond plate flat bed that mounts to vehicle frame. Dimensions: 54.7 x 64.5 in (139 x 164 cm). Weight: 218 lbs (99 kg).
FULL FLAT BED SIDE KIT Long bed side panels, front panel and tailgate with a fixed pivot.
steel diamond plate flat bed. Has (4) corner stake pockets for enhancing specialty mount applications. Dimensions: 21.5 x 54.7 in (55 x 139 cm).
1/3 FLAT BED Welded
Weight: 55 lbs (25 kg)
1/3 FLAT BED STAKE SIDE KIT Formed 14-gauge steel stake sides for use with 1/3 flat bed.
2/3 FLAT BED Welded steel diamond plate flat bed. Dimensions: 48.1 x 54.7 in (122 x 139 cm). Weight: 161 lbs (73 kg)
2/3 FLAT BED SIDE KIT Short bed side panels, front panel and tailgate with a fixed pivot for use with 2/3 flat bed. Optional tailgate release PN 92-1220.
FULL FLAT BED FOLD DOWN Hinged side panels, front panel and tailgate can be folded down independently for use with full flat bed. Dimensions: 64.5 x 54.7 x 11 in (164 x 139 x 28 cm) outside.
SIDE KIT 20 cu ft (.570 cu m) capacity. Weight = 109 lbs (49 kg)
HIGH FLOW HYDRAULICS KIT Provides 8 gpm (30.3 liter) at 2000 psi hydraulic flow in a separate circuit to power certain attachments and accessories (standard on TC models).
200 GALLON SPRAYER 200 gallon (757 liter) low profile tank sprayer with diaphragm pump and detatchable control box. Three-section, 18.5 ft (5.6 m) open boom system.
VICON SPREADER Pendulum action spreader with polyester hopper. 14.1 cu. ft. (.396 cu. m.), 750 lbs (340.5 kg) capacity. Spread width is 3 - 46 ft. (1 - 14 m).
cu. ft. (.504 cu. m), 1450 lbs (541 kg) capacity conveyor belt style topdresser hydraulically driven by remote hydraulics. 60 in (152 cm) spread width.
TOPDRESSER 1800 18
Workman bed lift cylinders raise topdresser. Spring load metering gate.
cu. ft. (.7 cu. m) capacity conveyor belt style topdresser towed by Workman vehicle. Textured belt, oscillating axles and all wheel drive.
TOPDRESSER 2500 25
Electrically activated hydraulic brakes.
PROPASSTM 200 TOPDRESSER 21 cu. ft. / 0.54 cu. m) struck (25 cu. ft. / 0.71 cu. m heaped) capacity spin style topdresser. Tow-behind or bed mount versions.
PRO FORCETM DEBRIS BLOWER Tow-behind, self-contained engine-driven debris blower operated with a hand-held wireless RF controller. Bed mount kit available.
elevating, scissor-lift work platform with 600 lb (272 kg) lift capacity that can be raised from 38 in (96.5 cm) to 98 in (249 cm).
1/3 VERTICAL LIFT An
Slope indicator for safe operation. Removable over-ride key for lift controls.
HARD CAB Deluxe hard cab, ROPS and CE certified. Vented front glass windshield, interior dome light and a 2-speed windshield wiper. Optional heater and mirrors available.
kit for deluxe hard cab. Operator door has a sliding window for ventilation and ability to access exterior elements such as an identification badge security entry.
CAB SLIDING WINDOW DOOR KIT Door
Passenger door has solid window.
CAB SOLID WINDOW DOOR KIT Door kit for deluxe hard cab. Operator and passenger doors have solid windows.
CAB REAR VIEW MIRROR KIT Externally mounted to the cab frame, operator and passenger side rear view mirrors for enhancing all around visibility.
CANOPY Durable, high-density polyethylene canopy with drainage outlets for moisture runoff.
FOLDING WINDSHIELD Clear high-impact modified acrylic material with fold down capability.
BRAKE & SIGNAL KIT Consists of turn signal lights for both corners in the front and rear of vehicle and brighter beam headlights.
WORK LIGHT KIT Consists of (2) front facing and (1) rear facing work lights all mounted on top of ROPS bar.
ROPS SIGNAL LIGHT KIT Consists of (2) double amber warning lights and (2) single red tail lights all for mounting on top of ROPS bar. Requires either a “Right Side” or “Left Side” light kit.
automatic tailgate release when dumping from cargo bed and resets automatically upon lowering of bed. Works on full or 2/3 bed with full sides.
AUTOMATIC TAILGATE RELEASE Provides
Does not work with folding side kit.
and speed limit control that provides constant RPM for stationary attachments or a controlled maximum speed for applications such as spraying or
HAND THROTTLE Throttle
spreading.
SPARK ARRESTOR Fits onto end of tailpipe.
PLASTIC BED LINER A rugged, weatherproof one-piece plastic liner and separate tailgate liner that will protect either a full are bed with sides or a 2/3 bed with sides.
for extending the air intake system from underneath the cargo bed to a position slightly above the ROPS shield behind the passenger position of the vehicle.
HIGH AIR INTAKE KIT Kit
Recommended for dusty work applications.
REAR VIEW MIRROR KIT A single 8 1/2” (21.6 cm) convex mirror with mounting capability on either the operator or passenger side of the vehicle.
*Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.
Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
92
The Workman HD utility vehicle is manufactured
in Tomah, WI ISO 9002 Certified Plant.
Workman® HDX Auto Specifications* (continued)
WORKMAN HDX AUTO ACCESSORIES
2” RECEIVER HITCH KIT Provides a 2” square receiver to enable a “drawbar” hitch.
TRAILER BRAKE WIRING KIT Kit provides a controller which plugs into Workman vehicle and a positive wire to assist the hook up of customer supplied electric trailer brakes.
TRAILER SIGNAL WIRING KIT Kit provides electrical wire for Workman vehicle to enable easy hook up to customer supplied trailer signal and brake lights.
manifold kit that provides to ability to switch hydraulics between cargo bed actuation and remote port usage via use of a operator panel
REMOTE HYDRAULIC MANIFOLD KIT Hydraulic
mounted switch.
REMOTE HYDRAULIC FLOAT KIT Hydraulic float kit that enables both hydraulic lifting and “float” in the down position. Required when using a Deere TC125 sweeper.
4WD MANUAL CONTROL Allows auto 4WD to be turned off.
4 POST ROPS CANOPY KIT Canopy for use with 4-post ROPS kit.
4 POST ROPS KIT Connects standard 2-post ROPS to 4-post ROPS. Required with 200-gallon sprayer.
HEATER KIT Heater for use with cab. Adjustable temperature and 2-speed fan (excludes HD).
BACK UP ALARM KIT Provides an audible alarm when vehicle is in reverse.
*Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.
Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
93
The Workman HD utility vehicle is manufactured
in Tomah, WI ISO 9002 Certified Plant.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
