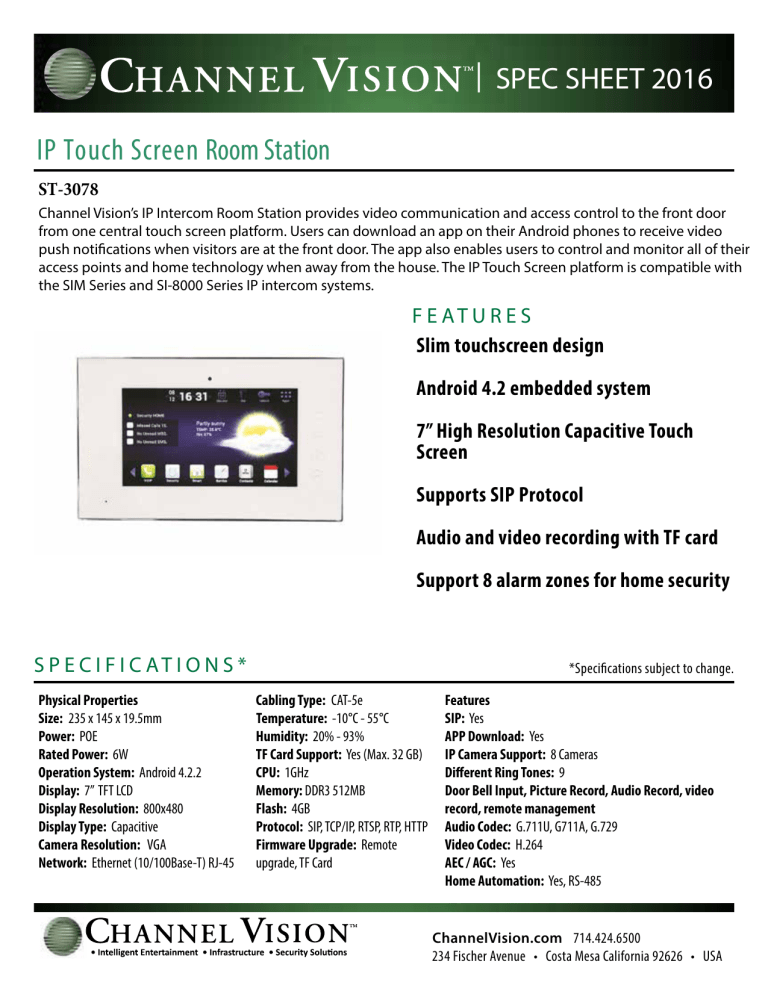

| SPEC SHEET 2016
IP Touch Screen Room Station
ST-3078
Channel Vision’s IP Intercom Room Station provides video communication and access control to the front door
from one central touch screen platform. Users can download an app on their Android phones to receive video
push notifications when visitors are at the front door. The app also enables users to control and monitor all of their
access points and home technology when away from the house. The IP Touch Screen platform is compatible with
the SIM Series and SI-8000 Series IP intercom systems.
F E AT U R E S
Slim touchscreen design
Android 4.2 embedded system
7” High Resolution Capacitive Touch
Screen
Supports SIP Protocol
Audio and video recording with TF card
Support 8 alarm zones for home security
S P E C I F I C AT I O N S *
Physical Properties
Size: 235 x 145 x 19.5mm
Power: POE
Rated Power: 6W
Operation System: Android 4.2.2
Display: 7” TFT LCD
Display Resolution: 800x480
Display Type: Capacitive
Camera Resolution: VGA
Network: Ethernet (10/100Base-T) RJ-45
*Specifications subject to change.
Cabling Type: CAT-5e
Temperature: -10°C - 55°C
Humidity: 20% - 93%
TF Card Support: Yes (Max. 32 GB)
CPU: 1GHz
Memory: DDR3 512MB
Flash: 4GB
Protocol: SIP, TCP/IP, RTSP, RTP, HTTP
Firmware Upgrade: Remote
upgrade, TF Card
Features
SIP: Yes
APP Download: Yes
IP Camera Support: 8 Cameras
Different Ring Tones: 9
Door Bell Input, Picture Record, Audio Record, video
record, remote management
Audio Codec: G.711U, G711A, G.729
Video Codec: H.264
AEC / AGC: Yes
Home Automation: Yes, RS-485
ChannelVision.com 714.424.6500
234 Fischer Avenue • Costa Mesa California 92626 • USA
