Toro Sand Pro 3040 (08703) Specification

Toro Sand Pro 3040 (08703) Specification
Sand Pro® 3040 & 5040

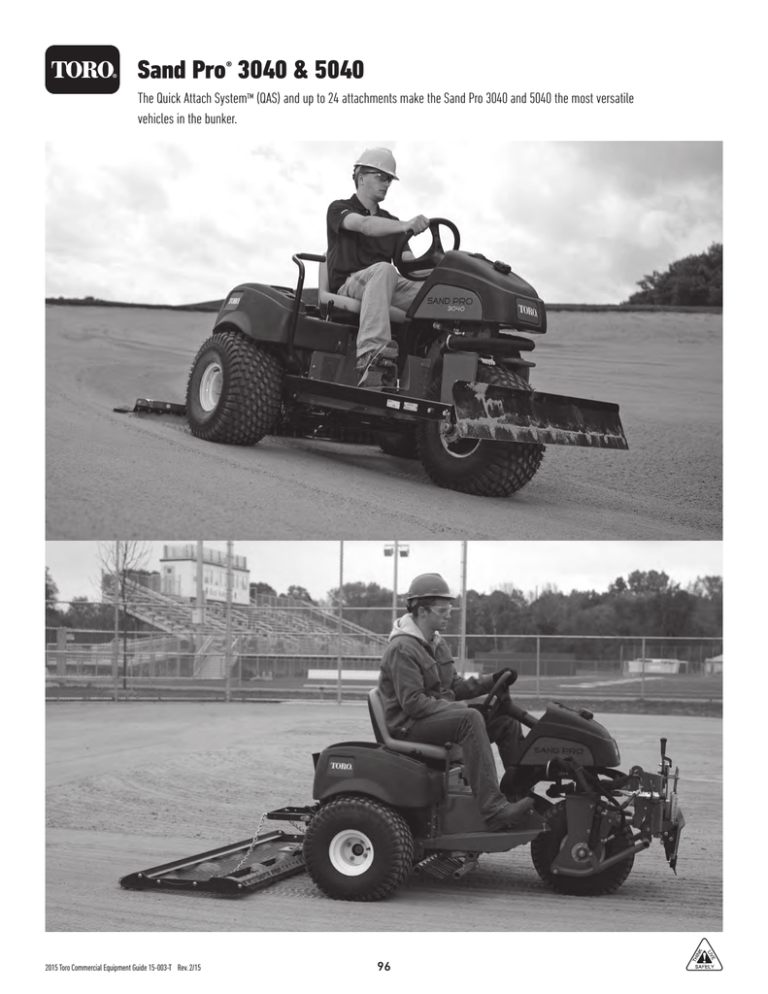

The Quick Attach SystemTM (QAS) and up to 24 attachments make the Sand Pro 3040 and 5040 the most versatile
vehicles in the bunker.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
96
Sand Pro® 3040 & 5040 Specifications*
SAND PRO 3040, MODEL 08703
ENGINE
AIR CLEANER SYSTEM
FUEL CAPACITY
SAND PRO 5040, MODEL 08705
Vanguard®, V-twin cylinder, 4-cycle, OHV, air-cooled, gas engine with cast iron sleeves. 16 hp (11.9 kW) at
3600 rpm. Displacement: 29.3 cu. in. (480 cc). Oil capacity: 1.75 quart (1.8 liter). Electronic ignition. Full
pressure lubrication, oil filter. Base mounted engine and pump with 4 isolation mounts.
Vanguard®, V-twin cylinder, 4-cycle, OHV, air-cooled, gas engine with cast iron sleeves. 18 hp (13.4 kW) at
3600 rpm. Displacement: 34.8 cu. in. (570 cc). Oil capacity: 1.75 quart (1.8 liter). Electronic ignition. Full
pressure lubrication, oil filter. Base mounted engine and pump with 4 isolation mounts.
Remote mounted 3-phase Donaldson® air cleaner.
5.0 gallon (18.9 liter) of unleaded gasoline.
TRACTION DRIVE
Direct driven hydrostatic variable displacement piston pump to 3 hydraulic motors for 3WD. Large, front mounted hydraulic cooler and fan. Foot pedal control,
forward/reverse. Patented Series/Parallel hydraulic traction system keeps three wheels working together, virtually eliminates spin-outs.
GROUND SPEED
HYDRAULIC OIL
TIRES/WHEELS
MAIN FRAME
BRAKES
STEERING
Infinitely variable 0-10 mph (16 km/h) forward; 4.3 mph (6.9 km/h) reverse.
CONTROLS/GAUGES
SEAT
ELECTRICAL
FEATURES
POWER
DIMENSIONS
GROUND CLEARANCE
WEIGHT
WARRANTY
5.0 gallon (18.9 liter) system capacity. Nylon reservoir to reduce corrosion. 10 (nominal) micron replaceable cartridge.
Three 22 x 11.00-8 pneumatic tubeless tires on demountable, interchangeable wheels. Tire pressure: 4-6 psi (27.5 kPa).
Tricycle vehicle with welded rectangular tubular steel frame construction. Rear engine placement.
Dynamic braking through the hydrostatic transmission and hand actuated brake lever.
Manual front wheel steering. 15" (38 cm) diameter steering wheel. Double lubed for life gearbox.
Hydraulic power steering. 15" (38 cm) diameter steering wheel.
Hand operated choke, throttle, and hydraulic control for raising/lowering with float. Foot
pedal controls traction forward/reverse speed. Rear hydraulic lift and lower controls.Gauges:
hour meter.
Hand operated choke, throttle, and hydraulic control for raising/lowering with float. Foot pedal
controls traction forward/reverse speed. Front and rear hydraulic lift and lower controls. Gauges:
hour meter.
High-back cushion seat w/drain hole. 4" front-back adjustment w/additional 1.75" mounting adjustment. (arm rests optional)
12-volt battery, 15 amp., 300 CCA @ 0° F, 12-volt electric starter. Dash mounted ignition
switch with key. Neutral interlock switch, seat switch. Also provisions for light kit.
12-volt battery, 15 amp., 300 CCA @ 0° F, 12-volt electric starter. Fender mounted ignition switch
with key. Neutral interlock switch, seat switch, also provisions for light kit.
97 dB(A) under normal operating conditions.
Width: 58" (147 cm), Length: 67.5" (171.5 cm), Height: 45.25" (114.9 cm), Wheelbase: 42.75" (108 cm)
6.0" (15.2 cm)
Net weight (less fluids): 930 lbs. (421.8 kg).
Two-year limited warranty. Refer to the Operator’s Manual for further details. Briggs & Stratton® provides a two-year commercial engine warranty and a lifetime Magnetron® warranty.
FRONT ATTACHMENTS
FRONT LIFT FRAME ASSEMBLY
HYDRAULIC FLEX BLADE
MANUAL BLADE
Front Quick Attach System mounting assembly and hydraulic components. Used on Sand Pro 5040 only. Model 08713.
TM
Hydraulic QAS flex blade is designed for leveling, packing, and smoothing uneven areas in one pass. Model 08712.
Available for SP5040 only (requires Front Lift Frame Assembly – 08712)
Standard 40” (102 cm) width steel blade. Spring balanced manual blade is used for leveling uneven areas and pushing up bunkers after washouts (cannot be used
when 08712 is installed). Model 08714.
Blade extension available to increase blade width to 60” (152 cm) for leveling out larger uneven areas. PN 115-5646.
FRONT & REAR QAS ATTACHMENTS
BUNKER PUMP
BUNKER PUMP REMOTE
DISCHARGE KIT
LIP BROOM
TURF PLOW
Throws water up to 40’ (12 m) and can pump 95 gal/min (360 l/min). Adjustable throw direction and angle. Requires Rear Remote Hydraulics (08781) for rear QAS
mount. Requires Front Lift Frame Assembly (08712), Rear Remote Hydraulics (08781) and Front Remote Hydraulics for front QAS mount (on SP5040 only) Model 08765.
An available 50’ (15 m) discharge hose allows the QAS Bunker Pump to be removed and dropped into hard to reach areas.
PN 115-2084.
Eliminates the task of manually maintaining infield lips. Removes ridge buildup by sweeping material back into the infield. Mounts to front QAS (SP5040) and rear
QAS (SP3040 & 5040). Requires Front Lift Frame Assembly– 08712 for front attachment (on SP5040 only)
Lip Broom available from Rahn Industries at www.rahngroomer.com or 1-800-298-1707.
The 64” Turf Plow is a great tool for removing aeration cores from greens, clearing snow from walkways, cart paths and even sports fields. It is lightweight and
features a rounded lower lip that is gentle on turf. The Turf Plow fits both Sand Pro 3040 and 5040.
Turf Plow is available from Nordic Plow at nordicplow.com
MID-MOUNT ATTACHMENTS
MID-MOUNT ASSEMBLY
WEEDER TINE TOOLBAR
LEVELING BLADE
SOLID TINE TOOLBAR
CARBIDE TINE TOOLBAR
SPRING TINE TOOLBAR
EDGER
Base mounting assembly for mid-mount toolbars with spring-loaded regulation to allow relief if obstruction is hit. Model 08731.
Ideal for removing weeds and grass from less maintained bunkers and fields (requires Mid-Mount Assembly – 08731). Model 08732.
Attaches to any mid-mount toolbar to quickly level out large areas. Foot operated latch allows operator to lower leveling blade independently from the other midmount toolbar. PN 108-8496.
Used for general scarifying applications. Rotate teeth to maximize tine life (requires Mid-Mount Assembly – 08731). Model 08734.
Use in the harshest conditions and for extended life –15 carbide tines included (requires Mid-Mount Assembly – 08731). Model 08735.
Use for light to moderate scarifying and daily maintenance in bunkers and on premium fields (requires Mid-Mount Assembly – 08731). Model 08733.
Maintains the grass edge of the outfield near the infield skin or warning track. Easily renovate ballfields by removing overgrown turf and infield lip build-up.
Significantly reduces labor required for infield edging (requires Rear Remote Hydraulics – 08781). Model 08766.
*Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.
Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
97
The Sand Pro 2020 is manufactured
in Tomah, WI ISO 9002 Certified Plant.
Sand Pro® 3040 & 5040 Accessories*
REAR QAS ATTACHMENTS
TOOTH RAKE
WEIGHT KIT FOR TOOTH RAKE
TOOTH RAKE BROOM
PIVOTING TROWELS KIT
Designed to lightly scarify, pack, smooth and groom in one pass. Use in dry or wet conditions and can improve the condition of neglected sports fields. Model 08751.
SPRING RAKE
Leaf rake assembly designed to be used alone or in combination with the tooth rake (08751) to achieve desired appearance. Great for wet conditions and collecting
debris in groomed areas (if used independently, requires QAS A-Frame Assembly, 108-9427). Model 08752.
DRAG MAT CARRIER SYSTEM
COCO DRAG MAT
STEEL DRAG MAT
NAIL DRAG
SEGMENTED GROOMING BROOM
REPLACEMENT SEGMENTED
GROOMING BROOM
WEIGHT KIT FOR SEGMENTED
GROOMING BROOM
GROOMING BRUSH
SYNTHETIC TURF BRUSH
GREENS BRUSH
SPRING TINE KIT
MAGNET ATTACHMENT
SYNTHETIC TURF CONDITIONER
QAS FINISH GRADER
RAHN GROOMER
QAS SPIKER
QAS DEBRIS BLOWER
BASIC DRAG MAT SYSTEM
Additional weight for the Tooth Rake attachment to improve performance in coarse or wet conditions. Set of 5 weights. PN 115-4333.
75” (190 cm) Brush – Attaches behind the Tooth Rake (08751) for a smoother finish. Model 08816.
This kit allows independent outside trowels to pivot and rake across the entire turn which eliminates unraked teardrop – Attaches to Tooth Rake (08751). PN 119-7158.
QAS-mounted carrier frame with hydraulic lifter allows operator to raise and lower drag mats without ever leaving the operator seat. 72” (183 cm) width. Model 08756.
Quickly produces a premium finish on dry, level surfaces (requires Drag Mat Carrier System - 08756). Model 08758.
Designed to for more rugged surfaces to quickly groom and finish. Use on wet or dry sand surfaces (requires Drag Mat Carrier System - 08756). Model 08757.
Pivots to follow the contours of uneven field surface. Use to scarify, loosen, or weed before smoothing. Easily adjust nail pattern and depth. Accepts up to a 40D common nail. Model 08761.
Designed to minimize top surface disruption, to maximize firmness, and provide a smooth finished look in contoured bunkers. Model 08753.
Replacement grooming broom with stiffer bristles. PN 110-8182.
Additional weight for Segmented Grooming Broom to improve performance in coarse or wet conditions. Set of 4 weights. PN 112-0025.
Designed to groom and level synthetic turf fields. Designed to brush in topdressing and stand-up turf on greens and tees – (requires Synthetic Turf Brush Kit,
PN 119-7107 or Greens Brush Kit, PN 119-7108). Model 08794.
For use with Turf Groomer, 08794. PN 119-7107.
For use with Turf Groomer, 08794. PN 119-7108.
Use to help stand-up and decompact synthetic turf. For use with Turf Groomer, 08794. PN 119-7109.
Use to collect ferrous debris on synthetic field. For use with Turf Groomer, 08794. PN 119-2827.
Stainless spring steel brushes loosen infill from compacted synthetic turf fields. Use to scarify, loosen, or weed infields. Use to groom beaches and rocky trails. Model 08790.
Use to level and/or scarify large areas. Includes box plow and scarifier with spring load regulation to allow relief if obstruction is hit. Model 08754.
The Rahn GL650 Infield Groomer levels uneven playing fields, helping to prevent ridge build up while creating a safer, more consistent infield. The triple row broom
is perfect for finishing the playing surface and can be stored upright for easy transport. The 2-way leveling system provides both a lock and float position to match
infield conditions
Rahn Groomer available from Rahn Industries at www.rahngroomer.com or 800-298-1707.
Use for spiking greens and other formal turf to increase air flow for healthier turf. Model 08755.
High powered blower designed to quickly clear debris from groomed and unwanted areas. Hydraulically-powered, 2000 rpm fan speed – 2700 cfm @ 81 mph (2700
cfm @ 130 kph). Requires Rear Remote Hydraulics - 08781. Model 08759.
Basic Drag Mat System, Model 112-1424 (requires 108-9427 & 110-1375)
ACCESSORIES
QAS A-FRAME ASSEMBLY
400-HOUR FILTER
MAINTENANCE KIT
REAR REMOTE HYDRAULICS
FRONT REMOTE HYDRAULICS
VARIABLE ORIFICE KIT
LIGHT KIT
SPEED CONTROL KIT
HITCH/TOW BAR
FRONT WEIGHT KIT
Can attach Spring Rake 08752 to be used independently. PN 108-9427.
Includes 9 engine oil filters, 2 hydraulic oil filters and 2 air filters. Model 30035.
Quick-connect design allows rear-powered attachments to be connected in under a minute. Model 08781.
Quick-connect design allows front-powered attachments to be connected in under a minute. Model 08782.
Slows hydraulic lift and lower for increased precision and accuracy when using hydraulically-powered attachments. PN 112-1433.
Front and rear flood lights improve operator visibility during low natural light operation. PN 110-1314.
Adjustable speed check trains operators to groom at the desired speed while allowing the traction unit to operate in transport speed between tasks without any
adjustments or levers. PN 110-1371.
Converts the traction unit to a utility vehicle to transport materials or trailers. Attaches to QAS A-Frame or 108-9427 for quick removal. PN 110-1375.
50 lb (22.7kg) – allows the Spiker or Rahn® Groomer attachments without the Front Lift Frame Assembly attached to meet ANSI compliance. PN 100-6442.
OPTIONAL TIRES
SMOOTH TIRE
TURF TIRE
Includes individual tire, wheel and stem valve assembly. Typically used on greens. PN 112-0034.
Turf tread tire. PN 94-6126.
*Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.
Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.
2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15
98
The Sand Pro 3040 & 5004 are manufactured
in Tomah, WI ISO 9002 Certified Plant.
