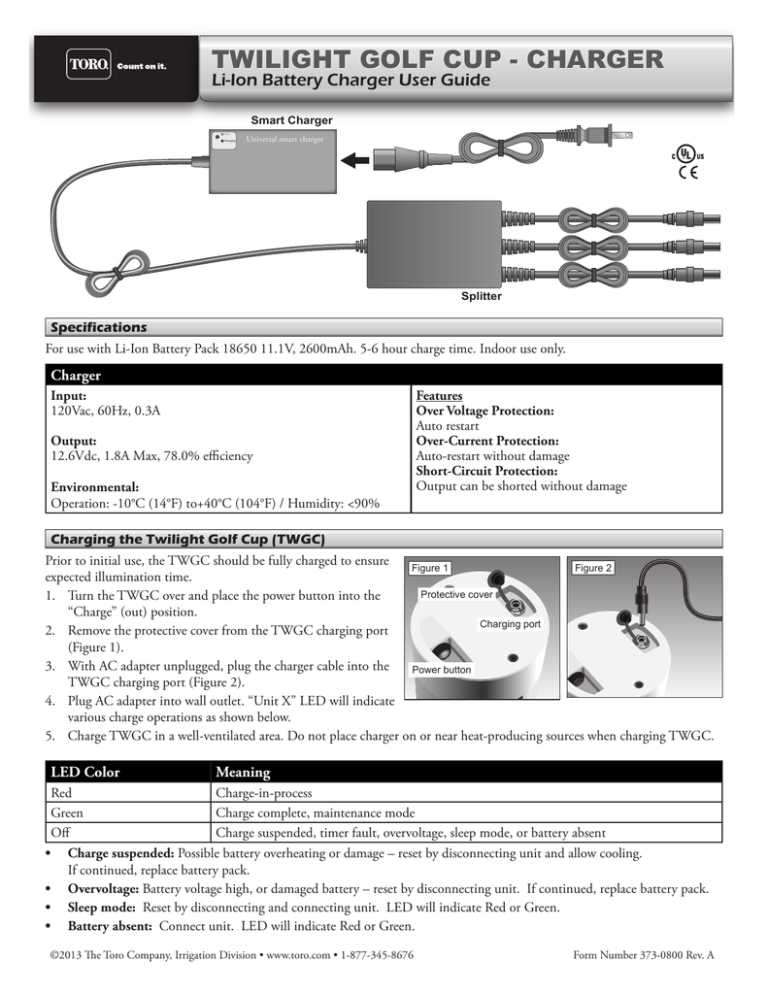

TWILIGHT GOLF CUP - CHARGER
Li-Ion Battery Charger User Guide
Smart Charger
Full
Charging
Universal smart charger
Splitter
Specifications
For use with Li-Ion Battery Pack 18650 11.1V, 2600mAh. 5-6 hour charge time. Indoor use only.
Charger
Input:
120Vac, 60Hz, 0.3A
Output:
12.6Vdc, 1.8A Max, 78.0% efficiency
Environmental:
Operation: -10°C (14°F) to+40°C (104°F) / Humidity: <90%
Features
Over Voltage Protection:
Auto restart
Over-Current Protection:
Auto-restart without damage
Short-Circuit Protection:
Output can be shorted without damage
Charging the Twilight Golf Cup (TWGC)
Prior to initial use, the TWGC should be fully charged to ensure
Figure 2
Figure 1
expected illumination time.
Protective cover
1. Turn the TWGC over and place the power button into the
“Charge” (out) position.
Charging port
2. Remove the protective cover from the TWGC charging port
(Figure 1).
3. With AC adapter unplugged, plug the charger cable into the
Power button
TWGC charging port (Figure 2).
4. Plug AC adapter into wall outlet. “Unit X” LED will indicate
various charge operations as shown below.
5. Charge TWGC in a well-ventilated area. Do not place charger on or near heat-producing sources when charging TWGC.
LED Color
Meaning
Red
Charge-in-process
Green
Charge complete, maintenance mode
Off
Charge suspended, timer fault, overvoltage, sleep mode, or battery absent
• Charge suspended: Possible battery overheating or damage – reset by disconnecting unit and allow cooling.
If continued, replace battery pack.
• Overvoltage: Battery voltage high, or damaged battery – reset by disconnecting unit. If continued, replace battery pack.
• Sleep mode: Reset by disconnecting and connecting unit. LED will indicate Red or Green.
• Battery absent: Connect unit. LED will indicate Red or Green.
©2013 The Toro Company, Irrigation Division • www.toro.com • 1-877-345-8676
Form Number 373-0800 Rev. A
