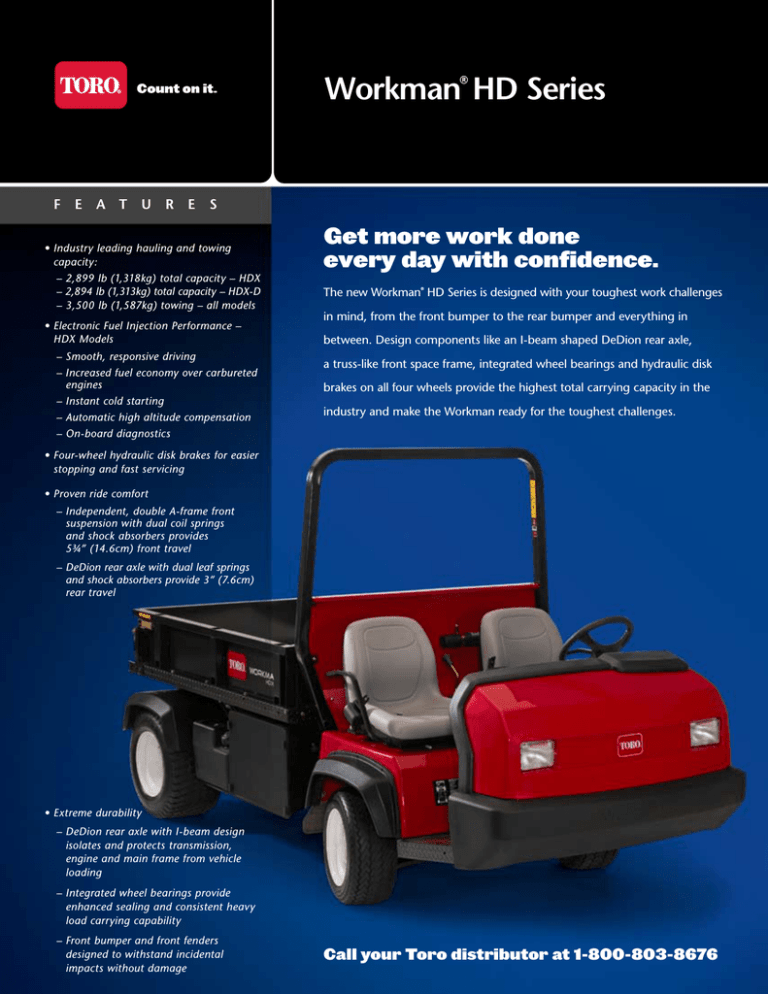

Workman HD Series
®
f
e
a t
u
r
e
s
• I ndustry leading hauling and towing
capacity:
– 2,899 lb (1,318kg) total capacity – HDX
– 2,894 lb (1,313kg) total capacity – HDX-D
– 3,500 lb (1,587kg) towing – all models
• E lectronic Fuel Injection Performance –
HDX Models
– Smooth, responsive driving
– I ncreased fuel economy over carbureted
engines
– Instant cold starting
– A utomatic high altitude compensation
Get more work done
every day with confidence.
The new Workman HD Series is designed with your toughest work challenges
®
in mind, from the front bumper to the rear bumper and everything in
between. Design components like an I-beam shaped DeDion rear axle,
a truss-like front space frame, integrated wheel bearings and hydraulic disk
brakes on all four wheels provide the highest total carrying capacity in the
industry and make the Workman ready for the toughest challenges.
– On-board diagnostics
• F our-wheel hydraulic disk brakes for easier
stopping and fast servicing
• Proven ride comfort
– I ndependent, double A-frame front
suspension with dual coil springs
and shock absorbers provides
5¾” (14.6cm) front travel
– DeDion rear axle with dual leaf springs
and shock absorbers provide 3” (7.6cm)
rear travel
• Extreme durability
–D
eDion rear axle with I-beam design
isolates and protects transmission,
engine and main frame from vehicle
loading
– I ntegrated wheel bearings provide
enhanced sealing and consistent heavy
load carrying capability
– F ront bumper and front fenders
designed to withstand incidental
impacts without damage
Call your Toro distributor at 1-800-803-8676
Workman HD/HDX Series Specifications
®
WORKMAN HDX, NO BED, MODEL 07366
WORKMAN HDX, W/BED, MODEL 07367
WORKMAN HDX W/BED, MODEL 07367TC
WORKMAN HDX - 4WD, MODEL 07370
WORKMAN HDX - 4WD, MODEL 07370TC
WORKMAN HDX - D, MODEL 07368
WORKMAN HDX - D, MODEL 07368TC
WORKMAN HDX - D - 4WD, MODEL 07371
WORKMAN HDX - D - 4WD, MODEL 07371TC
ENGINE
B&S Daihatsu 950G EFI, 31.5 hp (23.4 kw),
4-cycle, liquid-cooled, 950 cc, 3-cylinder,
overhead camshaft, counterbalanced gasoline
engine. Mechanical governor regulates to a
maximum of 32 hp at 3600 rpm. Rear engine
location direct coupled to a transaxle. 12-volt
electric starter. Fuel Injection is a closed loop
system with oxygen sensor to adjust air/fuel
ratio and manifold pressure sensor to adjust for
altitude. Full pressure lubrication with spin-on oil
filter. Exhaust emissions meet 2010 EPA, CARB
and California Blue Sky regulation.
B&S Daihatsu 950D, 3-cylinder, inline vertical,
4-cycle, liquid cooled, counterbalanced diesel
engine. 24 hp (17.9 kw); governed to a maximum
speed of 3600 rpm. Mechanical centrifugal
governor. 58.0 cu. in. (950 cc) displacement. Rear
engine location. Direct couple to transaxle. 12volt electric starter. Full pressure lubrication with
spin-on oil filter. Meets EPA Tier IV compliance.
Kohler Model CH23, 2-cylinder, 4-cycle,
air-cooled engine. 23 hp (17.2 kW) @ 3600 rpm
governed to a maximum speed of 3600 rpm
by an internal governor. 41.1 cu. in. (674 cc)
displacement. Electronic ignition. Rear engine
location direct coupled to a transaxle. 12-volt
electric starter. Full pressure lubrication with
spin-on oil filter. Meets exhaust and evaporative
emissions for 2010 EPA and CARB.
CLUTCH
6.7” (17 cm) clutch and pressure plate
6.7” (17 cm) clutch and pressure plate
6.7” (17 cm) clutch and pressure plate
Fuel and coolant temperature gauges. Hour
meter. Oil pressure, check engine and battery
charge indicator lights. Tachometer and
speedometer.
Fuel and coolant temperature gauges. Hour
meter. Oil pressure, glow plug and battery charge
indicator lights. Tachometer and speedometer.
Fuel gauge, hour meter, oil pressure warning light
and battery charge indicator light. Tachometer /
speedometer optional.
60 amp with electronic regulator
60 amp with electronic regulator
25 amp with electronic regulator
Front: 20” x 9” - 12, 6-ply rating, turf tread
Rear: 24” x 12” - 12, 6-ply rating, turf tread
Front: 20” x 9” - 12, 6-ply rating, turf tread
Rear: 24” x 12” - 12, 6-ply rating, turf tread
Front: 20” x 9” - 12, 6-ply rating, turf tread
Rear: 24” x 12” - 12, 6-ply rating, turf tread
WORKMAN HD, MODEL 07369
®
INSTRUMENTATION
ALTERNATOR
TIRES
®
®
Aluminum radiator with 10 fins per inch dual pass. Right side mounted with removable screen for
debris cleaning. Thermal controlled DC electric fan.
Fan forced air.
Remote mounted, heavy-duty 2-stage air cleaner with evacuator valve.
Large capacity, dual element.
CLEARANCE CIRCLE 2WD
Inside = 32 in (81 cm); Outside = 194 in (493 cm)
Inside = 32 in (81 cm); Outside = 194 in (493 cm)
Inside = 32 in (81 cm); Outside = 194 in (493 cm)
CLEARANCE CIRCLE 4WD
Inside = 100 in (254 cm); Outside = 300 in (726 cm)
Inside = 100 in (254 cm); Outside = 300 in (726 cm)
N/A
6.5 gallon (24.6 liter)
6.5 gallon (24.6 liter)
6.5 gallon (24.6 liter)
12V internally regulated 42 psi in-tank
Mechanical pump
Diaphragm pump
FUEL FILTER
In tank filter sock. 10 micron polyester depth.
Combination fuel filter / water separator with
a 30 micron filtration and 50 mesh suction screen
in tank.
In-line 40 micron filter and 50 mesh suction
screen in tank.
HORN
Standard, button on dash on 07367TC &
07370TC. Optional on 07366, 07367 & 07370.
Standard, button on dash on 07368TC &
07371TC. Optional on 07368 & 07371.
Optional
75 db(A)*
85 db(A)*
80 db(A)*
COOLING SYSTEM
AIR CLEANER
FUEL CAPACITY
FUEL PUMP
SOUND LEVEL
Model 07366: 1623 lbs (738 kg)
VEHICLE SHIPPING
WEIGHT
Model 07367: 1951 lbs (887 kg)
Model 07367TC: 2725 lbs (1238 kg)
Model 07370: 2010 lbs (914 kg)
Model 07370TC: 2784 lbs (1265 kg)
Model 07366: 1623 lbs (738 kg)
VEHICLE ACTUAL
WEIGHT W/O FUEL
Model 07367: 1951 lbs (887 kg)
Model 07367TC: 2032 lbs (924 kg)
Model 07370: 2010 lbs (914 kg)
Model 07370TC: 2091 lbs (950 kg)
TOTAL CAPACITY
CARGO BED CAPACITY
Model 07368: 1956 lbs (889 kg)
Model 07368TC: 2730 lbs (1240 kg)
Model 07371: 2015 lbs (916 kg)
Model 07371TC: 2789 lbs (1268 kg)
Model 07368: 1956 lbs (889 kg)
Model 07368TC: 2037 lbs (926 kg)
Model 07371: 2015 lbs (916 kg)
Model 07369: 1848 lbs (840 kg)
Model 07371TC: 2096 lbs (953 kg)
Model 07367: 2899 lbs (1318 kg)
Model 07368: 2894 lbs (1315 kg)
Model 07367TC: 2818 lbs (1281 kg)
Model 07368TC: 2813 lbs (1279 kg)
Model 07370: 2840 lbs (1291 kg)
Model 07371: 2835 lbs (1289 kg)
Model 07370TC: 2759 lbs (1254 kg)
Model 07371TC: 2754 lbs (1252 kg)
Model 07367: 2499 lbs (1136 kg)
Model 07368: 2494 lbs (1134 kg)
Model 07367TC: 2418 lbs (1099 kg)
Model 07368TC: 2413 lbs (1097 kg)
Model 07370: 2440 lbs (1109 kg)
Model 07371: 2435 lbs (1107 kg)
Model 07370TC: 2359 lbs (1072 kg)
Model 07371TC: 2354 lbs (1070 kg)
Specifications subject to change. Please contact your Toro distributor for details.
* At operator’s ear; 3600 rpm with bed and sides installed.
Model 07369: 1848 lbs (840 kg)
Model 07369: 3002 lbs (1364 kg)
Model 07369: 2602 lbs (1183 kg)
Workman HD/HDX Series Specifications (continued)
®
SPECIFICATIONS COMMON TO WORKMAN HD SERIES VEHICLES
FRONT SUSPENSION
REAR SUSPENSION
BATTERY
TRANSMISSION
3RD HIGH LOCKOUT
DIFFERENTIAL LOCK
4WD SYSTEM
FRAME
STEERING
2-POST ROPS
BRAKES
HYDRAULICS
LIGHTS
SEAT BELTS / SEATS
Independent system with dual “A” frame control arms, dual coil springs and dual shock absorbers with anti-sway bar. Provides 5 3/4” travel.
DeDion rear axle (weight carrying axle) suspension independent of transaxle with dual leaf springs and dual shock absorbers. Provides 3” travel.
12-volt, group 26, with 540 cold cranking amps at 0 degrees F (-18 degrees C).
Rear transaxle directly connected to engine, twin axle drive. 3-speed synchromesh (forward speeds only), h-shift pattern with high-low range providing
6 forward speeds and 2 in reverse. Transmission housing doubles as hydraulic reservoir with outlet screen and external filter.
Interlock key switch that prevents engine from running in 3rd gear, high range.
Manual engage rear differential lock.
Fully automatic on-demand, bi-directional system. Uses dual bi-directional clutches. In event of rear tire slippage, clutches transmit power proportionally to
front wheel with highest traction.
Steel space frame front frame and C-channel rear frame.
Hydraulic power steering with with steering valve coupled to hydraulic cylinder with thru shaft. Maximum steering angle is 70 degrees on 2WD
and 50 degrees on 4WD.
2-post rollover protective structure and protective back panel bolted to ROPS.
4-wheel hydraulic disk brake system. 9 1/2” disk with hydraulic service brakes using twin piston fix mount calipers. Parking brake uses mechanical cable
actuated caliper on rear wheels.
4 gpm (15 lpm) gear pump provides hydraulic flow for power steering and lift in series. Lift control valve with quick disconnects for dual lift cylinders or for
attachments when quick disconnects are switched. 8 quart total capacity.
Twin halogen headlights and dual taillights actuated by switch on dash. Dual brake lights actuated by brake pedal.
Lap seat belts standard. Bucket seats with adjustable slides to allow for various seat positions. Hip restraint tubes welded to seat mounting straps.
CONTROLS
Throttle, brake and clutch pedals. Gear shifter, differential lock, parking brake, high-low range shifter and hydraulic lift levers.
INTERLOCK
To start engine, clutch pedal must be depressed and remote hydraulic lever must be in neutral position. If installed, high flow hydraulics and rear PTO must
be disengaged / switched off.
SAFETY SUPPORT
GROUND CLEARANCE
REAR TOW HITCH
7-gauge steel channel stores behind seat and fits over extended lift cylinder to prevent accidental lowering of bed.
7” (18 cm) with no load.
Steel hitch bracket bolted to rear DeDion axle. Mounting plate provides mounting hole for pin or ball hitch and incorporates two safety chain mounting holes.
Maximum tongue weight of 600 lbs (272 kg). Maximum trailer weight of 3500 lbs (1587 kg). Trailers over 1500 lbs. require trailer brakes.
Forward Speeds:
GROUND SPEED
Reverse Speeds:
WARRANTY
Standard Tires, Gear 1/2/3
7.6/11.5/19.8 mph (12.2/18.5/31.9 km/h)
2.9/4.5/7.7 mph (4.7/7.2/12.5 km/h)
7.1 mph (11.6 km/h)
2.8 mph (4.5 km/h)
Overall Length
127.6 in (324 cm) w/o bed
130 in (330 cm) w/ full bed
DIMENSIONS
CERTIFICATIONS
High Range
Low Range
High Range
Low Range
Overall Width
64.7 in (164.3 cm)
Overall Height (Top of ROPS)
75.8 in (192.5 cm)
Certified to meet SAE J2258. Certified to meet ISO/DIS 21299 for ROPS. Engine meets all applicable emission standards per the manufacturer. Certified to
meet the CE Machinery Directive.
Two-year limited warranty. See Operator’s Manual for further details.
Specifications subject to change. Please contact your Toro distributor for details.
Workman HD/HDX Series Accessories
®
WORKMAN VEHICLE ACCESSORIES
FULL AREA FLAT BED
FULL FLAT BED SIDE KIT
1/3 FLAT BED
1/3 FLAT BED
STAKE SIDE KIT
2/3 FLAT BED
2/3 FLAT BED SIDE KIT
FULL FLAT BED FOLD
DOWN SIDE KIT
Welded steel diamond plate flat bed that mounts to vehicle frame. Dimensions: 54.7 x 64.5 in (139 x 164 cm). Weight: 218 lbs (99 kg).
Long bed side panels, front panel and tailgate with a fixed pivot.
Welded steel diamond plate flat bed. Has (4) corner stake pockets for enhancing specialty mount applications. Dimensions: 21.5 x 54.7 in (55 x 139 cm).
Weight: 55 lbs (25 kg)
Formed 14-gauge steel stake sides for use with 1/3 flat bed.
Welded steel diamond plate flat bed. Dimensions: 48.1 x 54.7 in (122 x 139 cm). Weight: 161 lbs (73 kg)
Short bed side panels, front panel and tailgate with a fixed pivot for use with 2/3 flat bed. Optional tailgate release PN 92-1220.
Hinged side panels, front panel and tailgate can be folded down independently for use with full flat bed. Dimensions: 64.5 x 54.7 x 11 in (164 x 139 x 28 cm)
outside. 20 cu ft (.570 cu m) capacity. Weight = 109 lbs (49 kg)
HIGH FLOW HYDRAULICS KIT
Provides 8 gpm (30.3 liter) at 2000 psi hydraulic flow in a separate circuit to power certain attachments and accessories (standard on TC models).
200 GALLON SPRAYER
200 gallon (757 liter) low profile tank sprayer with diaphragm pump and detatchable control box. Three-section, 18.5 ft (5.6 m) open boom system.
VICON SPREADER
Pendulum action spreader with polyester hopper. 14.1 cu. ft. (.396 cu. m.), 750 lbs (340.5 kg) capacity. Spread width is 3 - 46 ft. (1 - 14 m).
TOPDRESSER 1800
18 cu. ft. (.504 cu. m), 1450 lbs (541 kg) capacity conveyor belt style topdresser hydraulically driven by remote hydraulics. 60 in (152 cm) spread width.
Workman bed lift cylinders raise topdresser. Spring load metering gate.
TOPDRESSER 2500
25 cu. ft. (.7 cu. m) capacity conveyor belt style topdresser towed by Workman vehicle. Textured belt, oscillating axles and all wheel drive.
Electrically activated hydraulic brakes.
1/3 VERTICAL LIFT
An elevating, scissor-lift work platform with 600 lb (272 kg) lift capacity that can be raised from 38 in (96.5 cm) to 98 in (249 cm).
Slope indicator for safe operation. Removable over-ride key for lift controls.
HARD CAB
CAB SLIDING WINDOW
DOOR KIT
CAB SOLID WINDOW
DOOR KIT
CAB REAR VIEW MIRROR KIT
CANOPY
FOLDING WINDSHIELD
Deluxe hard cab, ROPS and CE certified. Vented front glass windshield, interior dome light and a 2-speed windshield wiper.
Optional heater and mirrors available.
Door kit for deluxe hard cab. Operator door has a sliding window for ventilation and ability to access exterior elements such as an identification badge
security entry. Passenger door has solid window.
Door kit for deluxe hard cab. Operator and passenger doors have solid windows.
Externally mounted to the cab frame, operator and passenger side rear view mirrors for enhancing all around visibility.
Durable, high-density polyethylene canopy with drainage outlets for moisture runoff.
Clear high-impact modified acrylic material with fold down capability.
LIGHT KIT “RIGHT SIDE”
Consists of turn signal lights for both corners in the front and rear of vehicle and brighter beam headlights.
Headlights are directionally set for right hand driving and passing.
LIGHT KIT “LEFT SIDE”
Consists of turn signal lights for both corners in the front and rear of vehicle and brighter beam headlights.
Headlights are directionally set for left hand driving and passing.
WORK LIGHT KIT
ROPS SIGNAL LIGHT KIT
HEAVY DUTY POWER
LIFT HOLSTER HITCH
Consists of (2) front facing and (1) rear facing work lights all mounted on top of ROPS bar.
Consists of (2) double amber warning lights and (2) single red tail lights all for mounting on top of ROPS bar. Requires either a “Right Side” or “Left Side” light kit.
Hydraulically-powered lift hitch for rear mounted 2 point arm attachments, including those requiring mechanical down pressure or “float”. Lift capacity: 500
lbs (249 kg). Requires heavy-duty hitch frame.
HEAVY DUTY HITCH
FRAME
Heavy duty hitch frame made of steel plate and tubular construction. Designed for use with heavy duty power lift hoster hitch.
AUTOMATIC
TAILGATE RELEASE
Provides automatic tailgate release when dumping from cargo bed and resets automatically upon lowering of bed. Works on full or 2/3 bed with full sides.
Does not work with folding side kit.
REAR PTO KIT
HAND THROTTLE
SPARK ARRESTOR
PLASTIC BED LINER
HIGH AIR INTAKE KIT
REAR VIEW MIRROR KIT
Rear mounted, 540 RPM, PTO shaft mechanically driven by transaxle.
Mechanical throttle and speed limit control that provides constant RPM for stationary attachments or a controlled maximum speed for applications such as
spraying or spreading.
For Daihatsu engines. Fits onto end of tailpipe.
A rugged, weatherproof one-piece plastic liner and separate tailgate liner that will protect either a full are bed with sides or a 2/3 bed with sides.
Kit for extending the air intake system from underneath the cargo bed to a position slightly above the ROPS shield behind the passenger position of
the vehicle. Recommended for dusty work applications.
A single 8 1/2” convex mirror with mounting capability on either the operator or passenger side of the vehicle.
Specifications subject to change. Please contact your Toro distributor for details.
Workman HD/HDX Series Accessories
®
(continued)
WORKMAN VEHICLE ACCESSORIES
5TH WHEEL HITCH KIT
2” RECEIVER HITCH KIT
A 5th wheel hitch assembly with a rubber-mounted 2” ball hitch and electric brake controller used to tow Cushman GA60 Aerator and similar implements.
Provides a 2” square receiver to enable a “drawbar” hitch.
TRAILER BRAKE
WIRING KIT
Kit provides a controller which plugs into Workman vehicle and a positive wire to assist the hook up of customer supplied electric trailer brakes.
TRAILER SIGNAL
WIRING KIT
Kit provides electrical wire for Workman vehicle to enable easy hook up to customer supplied trailer signal and brake lights.
REMOTE HYDRAULIC
MANIFOLD KIT
Hydraulic manifold kit that provides to ability to switch hydraulics between cargo bed actuation and remote port usage via use of a opertor panel
mounted switch.
REMOTE HYDRAULIC
FLOAT KIT
Hydraulic float kit that enables both hydraulic lifting and “float” in the down position. Required when using a Deere TC125 sweeper.
©2009 The Toro Company
8111 Lyndale Ave. S.
Bloomington, MN 55420-1196
Printed in the U.S.A.
Specifications subject to change. Please contact your Toro distributor for details.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
