VHF 30-300 MHz BASE STATION

VHF 30-300 MHz BASE STATION

VHF 30-300 MHz BASE STATION

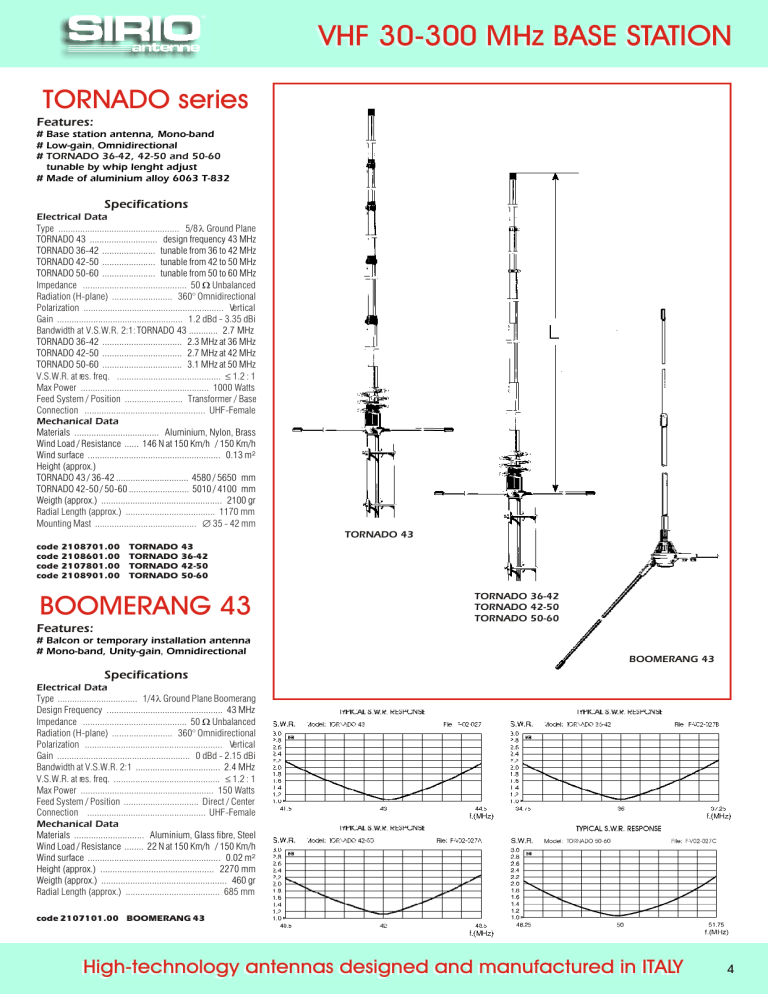

TORNADO series

Features:

#

#

Base station antenna, Mono-band

Low-gain, Omnidirectional

# TORNADO 36-42, 42-50 and 50-60

t

# unable by whip lenght adjust

Made of aluminium alloy 6063 T-832

Electrical Data

Specifications

Type .................................................. 5/8 l Ground Plane

TORNADO 43 ............................ design frequency 43 MHz

TORNADO 36-42 ...................... tunable from 36 to 42 MHz

TORNADO 42-50 ...................... tunable from 42 to 50 MHz

TORNADO 50-60 ...................... tunable from 50 to 60 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization .......................................................... Vertical

Gain .................................................... 1.2 dBd - 3.35 dBi

Bandwidth at V.S.W.R. 2:1: TORNADO 43 ............ 2.7 MHz

TORNADO 36-42 ................................. 2.3 MHz at 36 MHz

TORNADO 42-50 ................................. 2.7 MHz at 42 MHz

TORNADO 50-60 ................................. 3.1 MHz at 50 MHz

Max Power ..................................................... 1000 Watts

Feed System / Position ........................ Transformer / Base

Connection .................................................. UHF-Female

Mechanical Data

Materials ................................... Aluminium, Nylon, Brass

Wind Load / Resistance ...... 146 N at 150 Km/h / 150 Km/h

Wind surface ....................................................... 0.13 m²

Height (approx.)

TORNADO 43 / 36-42 .............................. 4580 / 5650 mm

TORNADO 42-50 / 50-60 ......................... 5010 / 4100 mm

Weigth (approx.) .................................................. 2100 gr

Radial Length (approx.) ..................................... 1170 mm

Mounting Mast ..........................................

35 - 42 mm

code 2108701.00 TORNADO 43 code 2108601.00 TORNADO 36-42 code 2107801.00 TORNADO 42-50 code 2108901.00 TORNADO 50-60

BOOMERANG 43

Features:

# Balcon or temporary installation antenna

# ,

Electrical Data

Specifications

Type ................................. 1/4 l Ground Plane Boomerang

Design Frequency .

............................................... 43 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain ....................................................... 0 dBd - 2.15 dBi

Bandwidth at V.S.W.R. 2:1 ................................... 2.4 MHz

Max Power ....................................................... 150 Watts

Feed System / Position ............................... Direct / Center

Connection ................................................. UHF-Female

Mechanical Data

Materials ............................. Aluminium, Glass fibre, Steel

Wind Load / Resistance ........ 22 N at 150 Km/h / 150 Km/h

Wind surface ....................................................... 0.02 m²

Height (approx.) ............................................... 2270 mm

Weigth (approx.) .................................................... 460 gr

Radial Length (approx.) ....................................... 685 mm

code 2107101.00 BOOMERANG 43

TORNADO 43

TORNADO 36-42

TORNADO 42-50

TORNADO 50-60

BOOMERANG 43

High-technology antennas designed and manufactured in ITALY

4

GPA 40-70

Features:

#

#

#

#

Base station antenna, Mono-band

Unity-gain, Omnidirectional

Tunable by whip lenght adjust

Made of aluminium alloy 6063 T-832

# Side mast mounting allowed by optional

bracket FT-2 code 2510004.00 (pag. 59)

Specifications

Electrical Data

Type .................................................. 1/4 l Ground Plane

Frequency Range ...................... tunable from 40 to 70 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) .................. Beamwidth at -3 dB = 86°

Radiation angle deg. ..................................................... 0°

Polarization ......................................................... Vertical

Gain ....................................................... 0 dBd - 2.15 dBi

Bandwidth at V.S.W.R. 2:1 .................... 3.7 MHz at 40 MHz

£

Max Power ...................................................... 1000 Watts

Feed System / Position ............................... Direct / Center

Connection .................................................. UHF-Female

Mechanical Data

Materials ..................... Aluminium, Chromed Brass, Nylon

Wind Load / Resistance .......... 85 N at 150 Km/h / 150 Km/h

Wind Surface ....................................................... 0.07 m²

Height (approx.) ............................................... 3200 mm

Weight (approx.) .................................................... 935 gr

Radial Length (approx.) ..................................... 1800 mm

code 2101401.00

VHF 30-300 MHz BASE STATION

Mounting and tuning instructions

TYPICAL TUNING DIAGRAMS*

5

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

GPA 66-108

Features:

#

#

#

#

Base station antenna, Mono-band

Unity-gain, Omnidirectional

Tunable by whip lenght adjust

Made of aluminium alloy 6063 T-832

# Side mast mounting allowed by optional

bracket FT-2 code 2510004.00 (pag. 59)

Specifications

Electrical Data

Type ................................................... 1/4 l Ground Plane

Frequency Range .................... tunable from 66 to 108 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) .................. Beamwidth at -3 dB = 86°

Radiation angle deg. .................................................... 0°

Polarization ......................................................... Vertical

Gain ....................................................... 0 dBd - 2.15 dBi

Bandwidth at V.S.W.R. 2:1 .................... 6.5 MHz at 66 MHz

£

Max Power ....................................................... 500 Watts

Feed System / Position ............................... Direct / Center

Connection ................................................... UHF-Female

Mechanical Data

Materials ..................... Aluminium, Chromed Brass, Nylon

Wind Load / Resistance ......... 54 N at 150 Km/h / 150 Km/h

Wind Surface ....................................................... 0.05 m²

Height (approx.) ............................................... 1930 mm

Weight (approx.) .................................................... 700 gr

Radial Length (approx.) ..................................... 1080 mm

code 2101501.00

VHF 30-300 MHz BASE STATION

Mounting and tuning instructions

TYPICAL TUNING DIAGRAMS*

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

6

VHF 30-300 MHz BASE STATION

GP 66-78 LB

GP 76-88 LB

UP-GRADED Features:

# More protection against the worst

weather conditions

# New radials locking system “screw-on”

# Stainless steel hardware

# New feeding system design

# New connectors availables: standard

“UHF” female with gold plated central pin

or “N” female with gold plated central pin

and teflon insulator

Ø

Features:

#

#

#

Base station antenna, Wide-band

Unity-gain, Omnidirectional

Protection from static discharges

DC-Ground

# Made of anodized aluminium alloy

# Side mast mounting allowed by optional

bracket FT-2 code 2510004.00 (pag. 59)

Specifications

Electrical Data

Type ....................................... 1/4 l Folded Ground Plane

£

GP 66-78 LB .................................................. 66-78 MHz

GP 76-88 LB .................................................. 76-88 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) ................... Beamwidth at -3 dB = 78°

Radiation angle deg. .................................................... 0°

Polarization ......................................................... Vertical

Gain ....................................................... 0 dBd - 2.15 dBi

Bandwidth at V.S.W.R. 2:1

GP 66-78 LB ......................................................... 12 MHz

GP 76-88 LB ......................................................... 14 MHz

£

Max Power ..................................................... 1000 Watts

Feed System / Position ............ Direct DC-Ground / Center

Connection

GP xxx LB/ UHF ............................................. UHF-Female

GP xxx LB/N ...................................................... N-Female

Mechanical Data

Materials ....... Anodized Aluminium, Nylon, Stainless Steel

Wind Load / Resistance

GP 66-78 LB ........................ 98 N at 150 Km/h / 130 Km/h

GP 76-88 LB ........................ 85 N at 150 Km/h / 130 Km/h

Wind Surface

GP 66-78 LB ....................................................... 0.09 m²

GP 76-88 LB ....................................................... 0.07 m²

Height (approx.)

GP 66-78 LB .................................................... 1640 mm

GP 76-88 LB .................................................... 1400 mm

Weight (approx.)

GP 66-78 LB ....................................................... 1930 gr

GP 76-88 LB ....................................................... 1710 gr

Radial Length (approx.)

GP 66-78 LB .................................................... 1160 mm

GP 76-88 LB .................................................... 1030 mm

code 2105601.00 GP 66-78 LB/UHF code 2105701.00 GP 76-88 LB/UHF code 2105601.00/N GP 66-78 LB/N code 2105701.00/N GP 76-88 LB/N

UP

NE

W

-GR

AD

MO

DE

ED

L

Mounting instructions

7

High-technology antennas designed and manufactured in ITALY

CX 4 m

Features:

# Base station antenna, Low-gain

# Mono-

#

customer's frequency

#

DC-Ground

# Made of aluminium alloy 6063 T-832

Specifications

Electrical Data

Type ................................................. 3/4 l Coaxial J-Pole

Frequency Range at V.S.W.R.

£

2:1

CX 4-71 ......................................................... 70-74 MHz

CX 4-75 ......................................................... 73-77 MHz

CX 4-79 ......................................................... 77-81 MHz

CX 4-83 ......................................................... 81-85 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) .................. Beamwidth at -3 dB = 60°

Radiation angle deg. .................................................... 3°

Polarization ......................................................... Vertical

Gain ....................................................... 2 dBd - 4.15 dBi

Bandwidth at V.S.W.R. 2:1 ...................................... 4 MHz

£

Max Power ........................................................ 500 Watts

Feed System / Position ..................... Gamma Match / Base

Connection .................................................. UHF-Female

Mechanical Data

Materials ............ Aluminium, Nylon, Stainless Steel, Brass

Wind Load / Resistance ......... 97 N at 150 Km/h / 150 Km/h

Wind Surface ....................................................... 0.08 m²

Height (approx.)

CX 4-71 ........................................................... 2975 mm

CX 4-75 ........................................................... 2890 mm

CX 4-79 ........................................................... 2725 mm

CX 4-83 .......................................................... 2605 mm

Weight (approx.)

CX 4-71 .............................................................. 1600 gr

CX 4-75 .............................................................. 1500 gr

CX 4-79 .............................................................. 1500 gr

CX 4-83 .............................................................. 1400 gr

code 2104301.00 CX 4-71 code 2104401.00 CX 4-75 code 2104501.00 CX 4-79 code 2104601.00 CX 4-83

VHF 30-300 MHz BASE STATION

Mounting instructions

High-technology antennas designed and manufactured in ITALY

8

VHF 30-300 MHz BASE STATION

GP 87-108 LB

GP 108-136 LB

UP-GRADED Features:

# More protection against the worst

weather conditions

# New radials locking system “screw-on”

# Stainless steel hardware

# New feeding system design

# New connectors availables: standard

“UHF” female with gold plated central pin

or “N” female with gold plated central pin

and teflon insulator

Ø

Features:

#

#

#

Base station antenna, Wide-band

Unity-gain, Omnidirectional

Protection from static discharges

DC-Ground

# Made of anodized aluminium alloy

# Side mast mounting allowed by optional

bracket FT-2 code 2510004.00 (pag. 59)

Specifications

Electrical Data

Type ....................................... 1/4 l Folded Ground Plane

Frequency Range

£

GP 108-136 LB ................................... RX 108-136 MHz;

£

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) .................. Beamwidth at -3 dB = 78°

Radiation angle deg. .................................................... 0°

Polarization ......................................................... Vertical

Gain ....................................................... 0 dBd - 2.15 dBi

Bandwidth at V.S.W.R. 2:1

GP 108-136 LB ............... ..................................... 22 MHz

£

Max Power ..................................................... 1000 Watts

Feed System / Position ............. Direct DC-Ground / Center

Connection

GP xxx LB/UHF .............................................. UHF-Female

GP xxx LB/N ...................................................... N-Female

Mechanical Data

Materials ....... Anodized Aluminium, Nylon, Stainless Steel

Wind Load / Resistance

GP 87-108 LB ....................... 67 N at 150 Km/h / 160 Km/h

GP 108-136 LB ..................... 56 N at 150 Km/h / 160 Km/h

Wind Surface ....................................................... 0.05 m²

Height (approx.)

GP 87-108 LB .................................................. 1190 mm

GP 108-136 LB .................................................. 890 mm

Weight (approx.)

GP 87-108 LB ................................................... 1500 gr

GP 108-136 LB ................................................... 1310 gr

Radial length (approx.)

GP 87-108 LB .................................................. 1200 mm

GP 108-136 LB .................................................. 655 mm

code 2105801.00 GP 87-108 LB/UHF code 2101901.00 GP 108-136 LB/UHF code 2105801.00/N GP 87-108 LB/N code 2101901.00/N GP 108-136 LB/N

UP

NE

W

-GR

AD

MO

DE

ED

L

Mounting instructions

9

High-technology antennas designed and manufactured in ITALY

VHF 30-300 MHz BASE STATION

GP 160 LB

UP-GRADED Features:

# More protection against the worst

weather conditions

# New radials locking system “screw-on”

# Stainless steel hardware

# New feeding system design

# New connectors availables: standard

“UHF” female with gold plated central pin

or “N” female with gold plated central pin

and teflon insulator

Ø

Features:

#

#

#

Base station antenna, Wide-band

Unity-gain, Omnidirectional

Protection from static discharges

DC-Ground

# Made of anodized aluminium alloy

# Side mast mounting allowed by optional

bracket FT-2 code 2510004.00 (pag. 59)

Specifications

Electrical Data

Type ....................................... 1/4 l Folded Ground Plane

£

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) .................. Beamwidth at -3 dB = 78°

Radiation angle deg. .................................................... 0°

Polarization ......................................................... Vertical

Gain ....................................................... 0 dBd - 2.15 dBi

Bandwidth at V.S.W.R. 2:1 ..................................... 30 MHz

£

Max Power ..................................................... 1000 Watts

Feed System / Position ............. Direct DC-Ground / Center

Connection

GP 160 LB/UHF ............................................ UHF-Female

GP 160 LB/N ..................................................... N-Female

Mechanical Data

Materials ....... Anodized Aluminium, Nylon, Stainless Steel

Wind Load / Resistance .......... 43 N at 150 Km/h / 160 Km/h

Wind Surface ....................................................... 0.04 m²

Height (approx.) .................................................. 700 mm

Weight (approx.) ................................................... 1150 gr

Radial lenght (approx.) ......................................... 520 mm

code 2102001.00 GP 160 LB/UHF code 2102001.00/N GP 160 LB/N

UP

NE

W

-GR

AD

MO

DE

ED

L

Mounting instructions

High-technology antennas designed and manufactured in ITALY

10

GPA 108-136

Features:

#

#

#

#

Base station antenna, Mono-band

Unity-gain, Omnidirectional

Tunable by whip lenght adjust

Made of aluminium alloy 6063 T-832

# Side mast mounting allowed by optional

bracket FT-2 code 2510004.00 (pag. 59)

Specifications

Electrical Data

Type .................................................. 1/4 l Ground Plane

Frequency Range .................. tunable from 108 to 136 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) .................. Beamwidth at -3 dB = 86°

Radiation angle deg. .................................................... 0°

Polarization ......................................................... Vertical

Gain ....................................................... 0 dBd - 2.15 dBi

Bandwidth at V.S.W.R. 2:1 ................ 12.2 MHz at 108 MHz

£

Max Power ....................................................... 500 Watts

Feed System / Position ............................... Direct / Center

Connection .................................................. UHF-Female

Mechanical Data

Materials ..................... Aluminium, Chromed Brass, Nylon

Wind Load / Resistance ......... 35 N at 150 Km/h / 150 Km/h

Wind Surface ....................................................... 0.03 m²

Height (approx.) ............................................... 1185 mm

Weight (approx.) .................................................... 565 gr

Radial Length (approx.) ....................................... 650 mm

code 2108501.00

VHF 30-300 MHz BASE STATION

Mounting and tuning instructions

TYPICAL TUNING DIAGRAMS*

11

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

GPA 135-175

Features:

#

#

#

#

Base station antenna, Mono-band

Unity-gain, Omnidirectional

Tunable by whip lenght adjust

Made of aluminium alloy 6063 T-832

# Side mast mounting allowed by optional

bracket FT-2 code 2510004.00 (pag. 59)

Specifications

Electrical Data

Type .................................................. 1/4 l Ground Plane

Frequency Range .................. tunable from 135 to 175 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) .................. Beamwidth at -3 dB = 86°

Radiation angle deg. .................................................... 0°

Polarization ......................................................... Vertical

Gain ....................................................... 0 dBd - 2.15 dBi

Bandwidth at V.S.W.R. 2:1 ................... 13 MHz at 135 MHz

£

Max Power ....................................................... 300 Watts

Feed System / Position ............................... Direct / Center

Connection .................................................. UHF-Female

Mechanical Data

Materials ..................... Aluminium, Chromed Brass, Nylon

Wind Load / Resistance ......... 29 N at 150 Km/h / 180 Km/h

Wind Surface ....................................................... 0.03 m²

Height (approx.) ................................................. 960 mm

Weight (approx.) .................................................... 520 gr

Radial Length (approx.) ....................................... 520 mm

code 2101601.00

VHF 30-300 MHz BASE STATION

Mounting and tuning instructions

TYPICAL TUNING DIAGRAMS*

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

12

GP 3-F

Features:

#

# Low

#

#

Base station antenna, Omnidirectional

-gain, Mono-band

#

Suitable for land and marine service

Tunable by whip cutting

Protection from static discharges

DC-Ground

# White fiberglass conic whip and radials

# Side mast mounting allowed by optional

bracket FT-3 code 2511301.00 (pag. 59)

Specifications

Electrical Data

Type .................................................. 5/8 l Ground Plane

Frequency Range .................. tunable from 135 to 175 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) .................. Beamwidth at -3 dB = 68°

Radiation angle deg. .................................................. 25°

Polarization ......................................................... Vertical

Gain .................................................... 1.5 dBd - 3.65 dBi

Bandwidth at V.S.W.R. 2:1 .................. 4.8 MHz at 135 MHz

£

Max Power ....................................................... 200 Watts

Feed System / Position ....... Transformer DC-Ground / Base

Connection .................................................. UHF-Female

Mechanical Data

Materials ...................... Fibreglass, Chromed Brass, Nylon

Wind Load / Resistance ......... 23 N at 150 Km/h / 150 Km/h

Wind Surface ....................................................... 0.02 m²

Height (approx.) ................................................ 1335 mm

Weight (approx.) .................................................... 585 gr

Radial Length (approx.) ....................................... 470 mm

Mounting Mast ............................................

Æ

25-30 mm

code 2108020.00

VHF 30-300 MHz BASE STATION

Mounting and tuning instructions

TYPICAL TUNING DIAGRAMS*

13

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

GP 3-E

Features:

#

# Low

#

#

Base station antenna, Omnidirectional

-gain, Mono-band

#

Suitable for land and marine service

Tunable by whip lenght adjust

Protection from static discharges

DC-Ground

# Made of aluminium alloy 6063 T-832

# Side mast mounting allowed by optional

bracket FT-3 code 2511301.00 (pag. 59)

Specifications

Electrical Data

Type .................................................. 5/8 l Ground Plane

Frequency Range .................. tunable from 135 to 175 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) ................... Beamwidth at -3 dB = 67°

Radiation angle deg. .................................................. 18°

Polarization ......................................................... Vertical

Gain .................................................... 1.5 dBd - 3.65 dBi

Bandwidth at V.S.W.R. 2:1 .................. 6.7 MHz at 135 MHz

£

Max Power ....................................................... 200 Watts

Feed System / Position ....... Transformer DC-Ground / Base

Connection .................................................. UHF-Female

Mechanical Data

Materials ................................. Aluminium, Copper, Nylon

Wind Load / Resistance ......... 28 N at 150 Km/h / 150 Km/h

Wind Surface ....................................................... 0.02 m²

Height (approx.) ............................................... 1480 mm

Weight (approx.) .................................................... 570 gr

Radial Length (approx.) ....................................... 530 mm

Mounting Mast ............................................

Æ

25-30 mm

code 2101801.00

VHF 30-300 MHz BASE STATION

Mounting and tuning instructions

TYPICAL TUNING DIAGRAMS*

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

14

GP 6-E

Features:

#

# Medium

#

#

Base station antenna, Omnidirectional

-gain, Mono-band

#

Suitable for land and marine service

Tunable by whip cutting

Protection from static discharges

DC-Ground

# Made of aluminium alloy 6063 T-832

# Side mast mounting allowed by optional

bracket FT-3 code 2511301.00 (pag. 59)

Specifications

Electrical Data

Type ................................ 2 x 5/8 l Ground Plane Colinear

Frequency Range .................. tunable from 140 to 175 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) .................. Beamwidth at -3 dB = 30°

Radiation angle deg. ................................................. 3.6°

Polarization ......................................................... Vertical

Gain .................................................... 3.8 dBd - 5.95 dBi

Bandwidth at V.S.W.R. 2:1 .................. 5.2 MHz at 140 MHz

£

Max Power ....................................................... 200 Watts

Feed System / Position ....... Transformer DC-Ground / Base

Connection .................................................. UHF-Female

Mechanical Data

Materials ..................... Aluminium, Chromed Brass, Nylon

Wind Load / Resistance ......... 46 N at 150 Km/h / 120 Km/h

Wind Surface ....................................................... 0.04 m²

Height (approx.) ............................................... 3060 mm

Weight (approx.) .................................................... 750 gr

Radial Length (approx.) ....................................... 530 mm

Mounting Mast ............................................

Æ

25-30 mm

code 2108101.00

VHF 30-300 MHz BASE STATION

Mounting and tuning instructions

TYPICAL TUNING DIAGRAMS*

15

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

GPF 21-N

Features:

#

# Low

#

#

Base station antenna, Mono-band

-gain, Omnidirectional

#

Suitable for land and marine service

Tunable by whip cutting

Protection from static discharges

DC-Ground

# Stainless steel hardware and radials

# Equipped with anodized aluminium

bracket for an easy side mast installation

# High quality whip made of brass and

copper protected by fiberglass tube

Specifications

Electrical Data

Type .................................................. 5/8 l Ground Plane

Frequency Range .................. tunable from 135 to 175 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) .................. Beamwidth at -3 dB = 80°

Radiation angle deg. .................................................. 28°

Polarization ......................................................... Vertical

Gain .................................................... 1.5 dBd - 3.65 dBi

Bandwidth at V.S.W.R. 2:1 .................. 5.6 MHz at 135 MHz

£

Max Power ....................................................... 200 Watts

Feed System / Position ........ Transformer DC-Ground / Base

Connection .................................... N-Female Gold Plated

Mechanical Data

Materials ..... Fibreglass, Aluminium, Brass, Stainless Steel

Wind Load / Resistance ......... 55 N at 150 Km/h / 200 Km/h

Wind Surface ...................................................... 0.05 m²

Height (approx.) ................................................ 1730mm

Weight (approx.) .................................................. 1200 gr

Radial Length (approx.) ....................................... 495 mm

Mounting Mast ............................................

Æ

35-54 mm

code 2109720.00

VHF 30-300 MHz BASE STATION

Mounting and tuning instructions

TYPICAL TUNING DIAGRAMS*

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

16

GPF 22-N

Features:

#

#

#

#

Base station antenna, Mono-band

Medium-gain , Omnidirectional

#

Suitable for land and marine service

Tunable by whip cutting

Protection from static discharges

DC-Ground

# Stainless steel hardware and radials

# Equipped with anodized aluminium

bracket for an easy side mast installation

# High quality whip made of brass and

copper protected by fiberglass tube

Specifications

Electrical Data

Type ................................ 2 x 5/8 l Ground Plane Colinear

Frequency Range .................. tunable from 140 to 175 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) .................. Beamwidth at -3 dB = 33°

Radiation angle deg. .................................................... 0°

Polarization ......................................................... Vertical

Gain .................................................... 3.8 dBd - 5.95 dBi

Bandwidth at V.S.W.R. 2:1 ..................... 4 MHz at 140 MHz

£

Max Power ....................................................... 200 Watts

Feed System / Position ....... Transformer DC-Ground / Base

Connection .................................... N-Female Gold Plated

Mechanical Data

Materials ..... Fibreglass, Aluminium, Brass, Stainless Steel

Wind Load / Resistance ......... 95 N at 150 Km/h / 150 Km/h

Wind Surface ...................................................... 0.08 m²

Height (approx.) ................................................ 3230mm

Weight (approx.) .................................................. 1630 gr

Radial Length (approx.) ....................................... 495 mm

Mounting Mast ............................................

Æ

35-54 mm

code 2109820.00

VHF 30-300 MHz BASE STATION

Mounting and tuning instructions

TYPICAL TUNING DIAGRAMS*

17

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

SA 22-N

Features:

# Base station antenna

# Omnidirectional

# Medium

#

-gain

# Mono-band

Protection from static discharges

DC-Ground

# Perfect protection against the worst

weather conditions

# Stainless steel hardware and radials

# Fiberglass whip made of two conic

sections jointed by ABS parts for

distortion free radiation diagram

# Equipped with anodized aluminium

bracket for an easy side mast installation

Specifications

Electrical Data

Type ................................ 2 x 5/8 l Ground Plane Colinear

Design frequency ............................................... 145 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) .................. Beamwidth at -3 dB = 35°

Radiation angle deg. ................................................. -14°

Polarization ......................................................... Vertical

Gain .................................................... 3.6 dBd - 5.75 dBi

Bandwidth at V.S.W.R. 2:1 ...................................... 6 MHz

£

Max Power ....................................................... 200 Watts

Feed System / Position ....... Transformer DC-Ground / Base

Connection ..................................... N-Female Gold Plated

Mechanical Data

Materials ............ Fibreglass, Stainless Steel, Brass, Nylon

Wind Load / Resistance ......... 81 N at 150 Km/h / 160 Km/h

Wind Surface ...................................................... 0.07 m²

Height (approx.) ............................................... 2790 mm

Weight (approx.) .................................................. 1220 gr

Radial Length (approx.) ....................................... 495 mm

Mounting Mast ............................................

Æ

35-54 mm

code 2106220.00

VHF 30-300 MHz BASE STATION

Mounting instructions

High-technology antennas designed and manufactured in ITALY

18

CX 2 m

Features:

# Base station antenna, Mono-band

# Low -gain, Omnidirectional

# Factory tunable according to specific

customer's frequency (minimum order

100 pcs)

# Protection from static discharges

DC-Ground

# Made of aluminium alloy 6063 T-832

Specifications

Electrical Data

Type ................................................. 3/4 l Coaxial J-Pole

£

CX 145 ...................................................... 144-148 MHz

CX 152 ...................................................... 150-154 MHz

CX 156 ...................................................... 156-160 MHz

CX 160 ...................................................... 160-164 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) ................... Beamwidth at -3 dB = 68°

Radiation angle deg. ................................................... 0°

Polarization ......................................................... Vertical

Gain ........................................................ 2 dBd - 4.15 dBi

Bandwidth at V.S.W.R. 2:1

CX 145 ............................................................. 7.45 MHz

CX 152 ............................................................... 7.1 MHz

CX 156 .................................................................. 6 MHz

CX 160 ............................................................... 8.1 MHz

£

Max Power ....................................................... 250 Watts

Feed System / Position ..................... Gamma Match / Base

Connection .................................................. UHF-Female

Mechanical Data

Materials .......................... Aluminium, Brass, Steel, Nylon

Wind Load / Resistance ......... 51 N at 150 Km/h / 180 Km/h

Wind Surface ....................................................... 0.04 m²

Height (approx.)

CX 145 ............................................................. 1535 mm

CX 152 ............................................................. 1480 mm

CX 156 ............................................................. 1410 mm

CX 160 ............................................................. 1375 mm

Weight (approx.) .................................................. 1000 gr

Mounting Mast ............................................

Æ

35-42 mm

code 2102201.00 CX 145 code 2103901.00 CX 152 code 2102301.00 CX 156 code 2102401.00 CX 160

VHF 30-300 MHz BASE STATION

Mounting instructions

19

High-technology antennas designed and manufactured in ITALY

GPA 170-230

Features:

#

#

#

#

Base station antenna, Mono-band

Unity-gain, Omnidirectional

Tunable by whip lenght adjust

Made of aluminium alloy 6063 T-832

# Side mast mounting allowed by optional

bracket FT-2 code 2510004.00 (pag. 59)

Specifications

Electrical Data

Type .................................................. 1/4 l Ground Plane

Frequency Range .................. tunable from 170 to 230 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) .................. Beamwidth at -3 dB = 86°

Radiation angle deg. .................................................... 0°

Polarization ......................................................... Vertical

Gain ....................................................... 0 dBd - 2.15 dBi

Bandwidth at V.S.W.R. 2:1 ................... 19 MHz at 170 MHz

£

Max Power ....................................................... 300 Watts

Feed System / Position ............................... Direct / Center

Connection .................................................. UHF-Female

Mechanical Data

Materials ..................... Aluminium, Chromed Brass, Nylon

Wind Load / Resistance .......... 24 N at 150 Km/h / 180 Km/h

Wind Surface ....................................................... 0.02 m²

Height (approx.) ................................................. 760 mm

Weight (approx.) .................................................... 480 gr

Radial Length (approx.) ........................................ 410 mm

code 2105001.00

VHF 30-300 MHz BASE STATION

Mounting and tuning instructions

TYPICAL TUNING DIAGRAMS*

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

20

CX 220

CX 260

Features:

# Base station antenna, Omnidirectional

# Low -gain , Mono-band

# Factory tunable according to specific

customer's frequency (minimum order

100 pcs)

# Protection from static discharges

DC-Ground

# Made of aluminium alloy 6063 T-832

Specifications

Electrical Data

Type ................................................. 3/4 l Coaxial J-Pole

£

CX 220 ...................................................... 216-229 MHz

CX 260 ...................................................... 250-266 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Radiation (E-plane) .................. Beamwidth at -3 dB = 60°

Radiation angle deg. ................................................... -2°

Polarization ......................................................... Vertical

Gain ....................................................... 2 dBd - 4.15 dBi

Bandwidth at V.S.W.R. 2:1

CX 220 ................................................................ 13 MHz

CX 260 ................................................................ 16 MHz

£

Max Power ....................................................... 200 Watts

Feed System / Position ..................... Gamma Match / Base

Connection ...................................................... N-Female

Mechanical Data

Materials .......................... Aluminium, Brass, Steel, Nylon

Wind Load / Resistance ......... 36 N at 150 Km/h / 180 Km/h

Wind Surface ...................................................... 0.03 m²

Height (approx.)

CX 220 ............................................................ 1100 mm

CX 260 .............................................................. 950 mm

Weight (approx.) ................................................... 630 gr

Mounting Mast ............................................

Æ

35-42 mm

code 2106101.00 CX 220 code 2106001.00 CX 260

VHF 30-300 MHz BASE STATION

Mounting instructions

21

High-technology antennas designed and manufactured in ITALY

VHF 30-300 MHz MOBILE

TURBO 2000

Low Band

Features:

#

# Unity

#

#

Mobile antenna, Mono-band

-gain, Omnidirectional

Tunable by whip cutting

Protection from static discharges

DC-Ground

# 17/7 PH tapered stainless steel whip

# 90° inclination and adjustable whip,

detachable for car-washes access

# Magnetic mount version available

Specifications

Electrical Data

Type .................................................... 1/4 l Base Loaded

Frequency Range

A type ................................ tunable from 29.0 to 32.5 MHz

B type ................................ tunable from 32.5 to 37.0 MHz

C type ................................ tunable from 37.0 to 43.0 MHz

D type ................................ tunable from 42.5 to 51.5 MHz

E type ................................ tunable from 51.5 to 67.5 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain ................................................... 0 dB ref to l/4 whip

Bandwidth at V.S.W.R. 2:1

A type .............................................. 1.2 MHz at 29.0 MHz

B type .............................................. 1.8 MHz at 32.5 MHz

C type .............................................. 2.1 MHz at 37.0 MHz

D type .............................................. 3.1 MHz at 42.5 MHz

E type .............................................. 7.5 MHz at 51.5 MHz

Max Power ....................................................... 250 Watts

Feed System / Position ....... Transformer DC-ground / Base

Connection

TURBO 2000 PL Low Band ............................... UHF-Male

TURBO 2000 Low Band .................. NE-TURBO connection

Cable Length / Type ............ 4 m / RG 58 (TURBO 2000 only)

Mechanical Data

Materials ................. Stainless Steel 17/7 PH, Nylon, Brass

Height (approx.) Both models .............................. 1430 mm

Weigth (approx.) .................................................... 530 gr

Mounting Hole .................

Æ

12.5

mm (TURBO 2000 only)

code 2213006.40 TURBO 2000 Low Band code 2213006.43 TURBO 2000 PL Low Band

A 29.0-32.5 MHz

B 32.5-37.0 MHz

C 37.0-43.0 MHz

D 42.5-51.5 MHz

E 51.5-67.5 MHz

TYPICAL TUNING DIAGRAMS*

A type

B type

C type

D type

Mounting instructions

E type

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

S.W.R.

3.0

2.8

2.6

2.4

2.2

2.0

1.8

1.6

1.4

1.2

1.0

46.5

TYPICAL S.W.R. RESPONSE

Model: TURBO 2000 Low Band E

51.5

File: F-V11-037E

56.5

f.(MHz)

High-technology antennas designed and manufactured in ITALY

32

VHF 30-300 MHz MOBILE

MICRO 43

Features:

#

Mobile antenna, Mono-band

# Unity -gain, Omnidirectional

# 90° inclination and adjustable whip,

detachable for car-washes access

# Magnetic mount version available

Specifications

Electrical Data

Type ................................................... 1/4 l Base Loaded

Design Frequency ................................................. 43 MHz

Impedance .......................................... 50 W Unbalanced

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain ................................................... 0 dB ref to l/4 whip

Bandwidth at V.S.W.R. 2:1 ................................... 2.5 MHz

Max Power .......................................................... 30 Watts

Feed System / Position .................................. Direct / Base

Standard Mount ................................................... “CE-S”

Cable Length / Type ........................................ 4 m / RG 58

Mechanical Data

Materials .............. Stainless Steel 17/7 PH, Nylon, Copper

Height (approx.) ................................................. 550 mm

Weigth (approx.) .................................................... 260 gr

Mounting Hole .................................................

Æ

10 mm

code 2210806.38 MICRO 43

TITANIUM 43

Features:

# Mobile antenna, Mono-band

# Unity -gain, Omnidirectional

# 17/7 PH tapered stainless steel whip

# 180° inclination and adjustable whip,

detachable for car-washes access

# Wide range of optional mounting bases

available

# Magnetic mount version available

Specifications

Electrical Data

Type .................................................... 1/4 l Base Loaded

Design Frequency ................................................ 43 MHz

Impedance .......................................... 50

W

Unbalanced

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain ................................................... 0 dB ref to l/4 whip

Bandwidth at V.S.W.R. 2:1 ................................... 3.6 MHz

Max Power:.......................................................... 100 Watts

Feed System / Position .................................. Direct / Base

Standard Mount ......................................................... “N”

Cable Length / Type ........................................ 4 m / RG 58

Mechanical Data

Materials .............. Stainless Steel 17/7 PH, Nylon, Copper

Height (approx.) ............................................... 1090 mm

Weigth (approx.) .................................................... 400 gr

Mounting Hole ..............................................

Æ

12.5

mm

code 2210906.02 TITANIUM 43

MICRO 43 TITANIUM 43

33

High-technology antennas designed and manufactured in ITALY

SM 66-88

SMA 66-88

Features:

# Mobile antenna, Mono-band

# Unity -gain, Omnidirectional

# Tunable by whip cutting

# Factory tunable according to specific

customer's frequency

# SM 66-88 Black fiberglass conic whip

SMA 66-88 17/7 PH tapered stainless

steel whip

# 180° inclination and adjustable whip,

detachable for car-washes access

# Black chrome version available

# Magnetic mount version available

Specifications

Electrical Data

Type ....................................................................... 1/4 l

Frequency Range ...................... tunable from 66 to 88 MHz

Impedance .......................................... 50 W Unbalanced

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain .................................................. 0 dB ref. to l/4 whip

Bandwidth at V.S.W.R. 2:1

SM 66-88 ........................................... 7.9 MHz at 66 MHz

SMA 66-88 ......................................... 9.7 MHz at 66 MHz

Max Power ....................................................... 100 Watts

Feed System / Position .................................. Direct / Base

Standard Mount ......................................................... “S”

Cable Length / Type ........................................ 5 m / RG 58

Mechanical Data

Materials

SM 66-88 ................... Glass Fibre, Chromed Brass, Nylon

SMA 66-88 ....................... Stainless Steel 17/7 PH, Nylon

Height (approx.)

SM 66-88 ........................................................ 1085 mm

SMA 66-88 ...................................................... 1200 mm

Weigth (approx.) .................................................... 380 gr

Mounting Hole ..................................................

Æ

19 mm

code 2209624.28 SM 66-88 S mount code 2209624.32 SM 66-88 SL mount code 2209605.28 SMA 66-88 S mount code 2209605.32 SMA 66-88 SL mount

VHF 30-300 MHz MOBILE

“S” mount

“SL” mount

SM 66-88

TYPICAL TUNING DIAGRAMS*

SMA 66-88

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

34

MG 75

MGA 75 C

Features:

# Mobile antenna, Mono-band

# Unity -gain, Omnidirectional

# Tunable by whip cutting

# Factory tunable according to specific

customer's frequency

# Supplied with a strong stainless steel

spring

# MG 75 Black fiberglass conic whip

MGA 75 C 17/7 PH tapered stainless steel

whip

# 180° inclination and adjustable whip,

detachable for car-washes access

Specifications

Electrical Data

Type ....................................................................... 1/4 l

Frequency Range ...................... tunable from 66 to 88 MHz

Impedance .......................................... 50 W Unbalanced

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain .................................................. 0 dB ref. to l/4 whip

Bandwidth at V.S.W.R. 2:1 .

....................... 9 MHz at 66 MHz

V.S.W.R. at res. freq.

Max Power ....................................................... 100 Watts

Feed System / Position .................................. Direct / Base

Standard Mount ......................................................... “S”

Cable Length / Type ........................................ 5 m / RG 58

Mechanical Data

Materials

MG 75 .......................... Glass Fibre, Chromed Brass, Nylon

MGA 75 C .. Stainless Steel 17/7 PH, Nylon, Chromed Brass

Height (approx.)

MG 75 .............................................................. 1110 mm

MGA 75 C ......................................................... 1210 mm

Weigth (approx.)

MG 75 .................................................................. 500 gr

MGA 75 C ............................................................. 420 gr

Mounting Hole .................................................

Æ

19 mm

code 2205824.28 MG 75 S mount code 2205824.32 MG 75 SL mount code 2205905.28 MGA 75 C S mount code 2205905.32 MGA 75 C SL mount

VHF 30-300 MHz MOBILE

“S” mount

“SL” mount

MG 75

TYPICAL TUNING DIAGRAMS*

MGA 75 C

35

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

VHF 30-300 MHz MOBILE

SKB 140-175 1/4

Features:

# Mobile antenna, Mono-band

# Unity -gain, Omnidirectional

# Tunable by whip cutting

# Factory tunable according to specific

customer's frequency

# Rigid whip, detachable for car-washes access

# Magnetic mount version available

CELL-MAG code 2510202.06

SKB 115-175 1/4 .................. tunable from 115 to 175 MHz

SKB 140-175 1/4 .................. tunable from 140 to 175 MHz

SKB 115-175 1/4 ............................. 10.5 MHz

SKB 140-175 1/4 ............. ................. 12 MHz at 140 MHz

V.S.W.R. at res. freq. .....

£

Cable Length / Type ........................................ 5 m / RG 58

Mechanical Data

SKB 115-175 1/4 ................................................ 680 mm

SKB 140-175 1/4 ................................................ 525 mm

Mounting Hole .........................................

Æ

14 or 18 mm

code 2213206.48 SKB 115-175 1/4 code 2209706.48 SKB 140-175 1/4

“CELL-MAG” mount

Ø 41mm

# Mobile antenna, Mono-band

# Unity -gain, Omnidirectional

# Tunable by whip cutting

# Factory tunable according to specific

customer's frequency

# 90° inclination and adjustable whip,

detachable for car-washes access

Frequency Range .................. tunable from 140 to 230 MHz

SKB 115-175 1/4

SKB 140-175 1/4

Bandwidth at V.S.W.R. 2:1 ................... 14 MHz at 140 MHz

Cable Length / Type ........................................ 5 m / RG 58

Mechanical Data

Materials ... Stainless Steel 17/7 PH, Nylon, Chromed Brass

Mounting Hole .................................................

Æ 19 mm

High-technology antennas designed and manufactured in ITALY

36

VHF 30-300 MHz MOBILE

37

TURBO VHF 135-175

Features:

#

# Low

#

#

Mobile antenna, Mono-band

-gain, Omnidirectional

Tunable by whip cutting

Protection from static discharges

DC-Ground

# 17/7 PH tapered stainless steel whip

# 90° inclination and adjustable whip,

detachable for car-washes access

# Magnetic mount version available

Electrical Data

Specifications

Type ....................................................................... 5/8 l

Design Frequency .................. tunable from 135 to 175 MHz

Impedance .......................................... 50

W

Unbalanced

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain ................................................. 1.5 dB ref to l/4 whip

Bandwidth at V.S.W.R. 2:1 ...................... 6 MHz at 135 MHz

Max Power ........................................................ 150 Watts

Feed System / Position ........ Transformer DC-ground / Base

Connection

TURBO VHF 135-175 ...................... NE-TURBO connection

TURBO VHF 135-175 PL ................................... UHF-Male

Cable Length / Type ............. 4 m / RG 58 (TURBO VHF only)

Mechanical Data

Materials .................. Stainless Steel 17/7 PH, Nylon, Brass

Height (approx.) ................................................ 1470 mm

Weigth (approx.) .................................................... 540 gr

Mounting Hole ..................

Æ

12.5

mm (TURBO VHF only)

code 2212906.40 TURBO VHF code 2212906.43 TURBO VHF PL

MGA 140-175

Features:

# Mobile antenna, Mono-band

# Unity -gain, Omnidirectional

# Tunable by whip cutting

# Supplied with a strong stainless steel

spring

# 180° inclination and adjustable whip,

detachable for car-washes access

Specifications

Electrical Data

Type ........................................................................ 1/4 l

Design Frequency ................. tunable from 140 to 175 MHz

Impedance .......................................... 50

W

Unbalanced

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain ................................................... 0 dB ref to l/4 whip

Bandwidth at V.S.W.R. 2:1 .................... 16 MHz at 140 MHz

Max Power:.......................................................... 100 Watts

Feed System / Position .................................. Direct / Base

Standard Mount ......................................................... “S”

Cable Length / Type ........................................ 5 m / RG 58

Mechanical Data

Materials .............. Stainless Steel 17/7 PH,Chromed Brass

Height (approx.) .................................................. 543 mm

Weigth (approx.) .................................................... 400 gr

Mounting Hole ..................................................

Æ

19 mm

code 2213805.28 MGA 140-175 S mount code 2213805.32 MGA 140-175 SL mount

TURBO VHF 135-175

Mounting instructions

“S” mount

MGA 140-175

High-technology antennas designed and manufactured in ITALY

HP 2000

HP 2000 C

HP 140-175

Features:

# Mobile antenna, Mono-band

# Low -gain, Omnidirectional

# Suitable for fitting on magnetic mounts,

angular connectors, or portable

transceiver

# HP 140-175 Tunable by whip cutting

# Protection from static discharges

DC-Ground

# 17/7 PH tapered stainless steel whip

# 90° tiltable whip and detachable for

car-washes access

# Magnetic mount version available

Specifications

Electrical Data

Type

HP 2000 .................................................................. 1/2 l

HP 2000 C ....................................................... C-Loaded

HP 140-175 ............................................................ 5/8 l

Frequency Range

HP 2000, HP 2000 C ................ design frequency 145 MHz

HP 140-175 ....................... tunable from 139.3 to 175 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain

HP 2000, HP 140-175 .................... 1.5 dB ref. to l/4 whip

HP 2000 C ......................................... 2 dB ref. to l/4 whip

Bandwidth at V.S.W.R. 2:1

HP 2000 ............................................................. 5.5 MHz

HP 2000 C .......................................................... 20 MHz

HP 140-175 ................................... 6.6 MHz at 139.3 MHz

V.S.W.R. at res. freq.

Max Power ........................................................ 150 Watts

Feed System / Position ....... Transformer DC-Ground / Base

Connector Type ............................................... UHF-Male

Mechanical Data

Materials ... Stainless Steel 17/7 PH, Nylon, Chromed Brass

Height (approx.)

HP 2000 ........................................................... 1050 mm

HP 2000 C ........................................................ 1410 mm

HP 140-175 ..................................................... 1435 mm

Weigth (approx.) .................................................... 320 gr

code 2210105.05 HP 2000 code 2210205.05 HP 2000 C code 2213405.05 HP 140-175

HP 2000

HP 140-175

VHF 30-300 MHz MOBILE

“HP-AC/U” mount

HP 2000 C

High-technology antennas designed and manufactured in ITALY

38

SM 2

SMA 2

Features:

# Mobile antenna, Mono-band

# Low -gain, Omnidirectional

# Tunable by whip cutting

# Factory tunable according to specific

customer's frequency

# SM 2 Black fiberglass conic whip

SMA 2 17/7 PH tapered stainless steel

whip

# Supplied with a strong stainless steel

spring

# 180° inclination and adjustable whip,

detachable for car-washes access

# Black chrome version available

# Magnetic mount version available

Specifications

Electrical Data

Type ....................................................................... 5/8 l

Frequency Range .................. tunable from 140 to 175 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain ............................................... 1.5 dB ref. to l/4 whip

Bandwidth at V.S.W.R. 2:1

SM 2 ........................

........................ 5.3 MHz at 140 MHz

SMA 2 ......................

........................ 6.5 MHz at 140 MHz

Max Power ....................................................... 100 Watts

Feed System / Position ......................... Transformer / Base

Standard Mount ......................................................... “S”

Cable Length / Type ......................................... 5 m / RG 58

Mechanical Data

Materials

SM 2 ............................ Glass Fibre, Stainless Steel, Nylon

SMA 2 ............................... Stainless Steel 17/7 PH, Nylon

Height (approx.)

SM 2 ................................................................ 1345 mm

SMA 2 .............................................................. 1440 mm

Weigth (approx.) .................................................... 350 gr

Mounting Hole ..................................................

Æ

19 mm

code 2205024.28 SM 2 S mount code 2205024.32 SM 2 SL mount code 2205105.28 SMA 2 S mount code 2205105.32 SMA 2 SL mount

VHF 30-300 MHz MOBILE

“S” mount

“SL” mount

SM 2

TYPICAL TUNING DIAGRAMS*

SMA 2

39

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

SM 4

SMA 4

Features:

# Mobile antenna, Mono-band

# Unity -gain, Omnidirectional

# Tunable by whip cutting

# Factory tunable according to specific

customer's frequency

# SM 4 Black fiberglass conic whip

SMA 4 17/7 PH stainless steel cylindrical

whip

# 180° inclination and adjustable whip,

detachable for car-washes access

# Black chrome version available

# Magnetic mount version available

Specifications

Electrical Data

Type ....................................................................... 1/4 l

Frequency Range .................. tunable from 140 to 175 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain .................................................. 0 dB ref. to l/4 whip

Bandwidth at V.S.W.R. 2:1

SM 4 ........................

......................... 11 MHz at 140 MHz

SMA 4 ......................

......................... 16 MHz at 140 MHz

V.S.W.R. at res. freq.

Max Power ....................................................... 100 Watts

Feed System / Position .................................. Direct / Base

Standard Mount ......................................................... “S”

Cable Length / Type ......................................... 5 m / RG 58

Mechanical Data

Materials

SM 4 ..................................... Glass Fibre, Chromed Brass

SMA 4 ................. Stainless Steel 17/7 PH, Chromed Brass

Height (approx.)

SM 4 .................................................................. 500 mm

SMA 4 ................................................................ 540 mm

Weigth (approx.) .................................................... 200 gr

Mounting Hole .................................................

Æ

19 mm

code 2205224.28 SM 4 S mount code 2205224.32 SM 4 SL mount code 2205305.28 SMA 4 S mount code 2205305.32 SMA 4 SL mount

VHF 30-300 MHz MOBILE

“S” mount

“SL” mount

SM 4

TYPICAL TUNING DIAGRAMS*

SMA 4

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

40

VHF 30-300 MHz MOBILE

SKA 140-175 5/8

Features:

# Mobile antenna, Mono-band

# Low -gain, Omnidirectional

# Tunable by whip cutting

# 17/7 PH stainless steel whip

# 180° inclination and adjustable whip,

detachable for car-washes access

# Magnetic mount version available

Electrical Data

Specifications

Type ....................................................................... 5/8 l

Frequency Range .................. tunable from 138 to 175 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain ............................................... 1.5 dB ref. to l/4 whip

Bandwidth at V.S.W.R. 2:1 ..................... 6 MHz at 138 MHz

Max Power ....................................................... 100 Watts

Feed System / Position ......................... Transformer / Base

Standard Mount ......................................................... “S”

Cable Length / Type ........................................ 5 m / RG 58

Mechanical Data

Materials ............. Stainless Steel 17/7 PH, Chromed Brass

Height (approx.) ............................................... 1440 mm

Weigth (approx.) .................................................... 280 gr

Mounting Hole ..................................................

Æ

19 mm

code 2206706.29 SKA 140-175 5/8 S mount code 2206706.33 SKA 140-175 5/8 SL mount

MAG 160 5/8

Features:

# Mobile antenna, Mono-band

# Low -gain, Omnidirectional

# Suitable for fitting on magnetic mounts,

angular connectors, or portable

transceiver

# MAG 160 5/8 SPRING is supplied with a

strong stainless steel spring

# Tunable by whip cutting

# 17/7 PH stainless steel whip

# Black chrome version available

# Magnetic mount version available

Electrical Data

Specifications

Type ....................................................................... 5/8 l

Frequency Range ................... tunable from 140 to 175 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain ............................................... 1.5 dB ref. to l/4 whip

Bandwidth at V.S.W.R. 2:1 ..................... 6 MHz at 140 MHz

Max Power ....................................................... 100 Watts

Feed System / Position ......................... Transformer / Base

Connector Type ............................................... UHF-Male

Mechanical Data

Materials ... Stainless Steel 17/7 PH, Chromed Brass, Nylon

Height (approx.) ............................................... 1390 mm

Weigth (approx.) .................................................... 160 gr

code 2430505.05 MAG 160 5/8 code 2431705.05 MAG 160 5/8 SPRING

SKA 140-175 5/8 MAG 160 5/8 MAG 160 5/8 SPRING

41

High-technology antennas designed and manufactured in ITALY

Features:

# Suitable for fitting on magnetic mounts,

angular connectors, or portable

transceiver

# Unity -gain, Omnidirectional, Mono-band

# Tunable by whip cutting

# Factory tunable according to specific

customer's frequency

# MAG 144 PL 17/7 PH stainless steel

cylindrical whip

# PL 144 M Supplied with a strong

stainless steel spring, 17/7 PH tapered

stainless steel whip

# Magnetic mount version available

Frequency Range .................. tunable from 140 to 175 MHz

W

£

£

Connector Type ............................................... UHF-Male

Mechanical Data

code 2430205.05 MAG 144 PL code 2431505.05 PL 144 M

VHF 30-300 MHz MOBILE

* Diagrams are recommended to be used as a guide and fine tuning by means of SWR-meter

High-technology antennas designed and manufactured in ITALY

42

VHF 30-300 MHz MARINE

MARINER 43 S2

Features:

# Marine antenna

#

, Mono-band

Unity-gain, Omnidirectional

# Designed to work without Ground Plane

# Protection from static discharges

DC-Ground

# Perfect protection against the worst

weather conditions

# Stainless steel hardware

# High quality white fiberglass tapered whip

# 180° inclination and adjustable whip

Electrical Data

Specifications

Type .................................................... 1/4 l Base Loaded

Design frequency .............................................

.... 43 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain ......................................................... 0 dBd, 2.15 dBi

Bandwidth at V.S.W.R. 2:1 ................................... 6.7 MHz

Max Power ......................................................... 50 Watts

Feed System / Position ....... Transformer DC-ground / Base

Connector Type ............................................ UHF-Female

Mechanical Data

Materials ..................... Glass Fibre, Chromed Brass, Nylon

Height (approx.) ............................................... 1420 mm

Weigth (approx.) .................................................... 455 gr

code 2304020.85 MARINER 43 S2

TA 43

TA 43 INOX

Features:

# Marine antenna

#

, Mono-band

Unity-gain, Omnidirectional

# Designed to work without Ground Plane

# Perfect protection against the worst

weather conditions

# Provided with stainless steel bracket for

an easy installation on mast top

# Stainless steel hardware

# TA 43 High quality whip made of brass

and copper protected by fiberglass tube

# TA 43 INOX 17/7 PH tapered stainless

steel whip

Electrical Data

Specifications

Type .................................................... 1/4 l Base Loaded

Design frequency ...............................................

.. 43 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain ........................................................ 0 dBd, 2.15 dBi

Bandwidth at V.S.W.R. 2:1

................................... 6.7 MHz

Max Power ......................................................... 50 Watts

Feed System / Position ....... Transformer DC-ground / Base

Connector Type ............................................ UHF-Female

Mechanical Data

Materials .......... Glass Fibre,17/7 PH Stainless Steel, Nylon

Height (approx.) ............................................... 1070 mm

Weigth (approx.) .................................................... 380 gr

code 2304320.80 TA 43 code 2304305.80 TA 43 INOX

MARINER 43 S2 TA 43 TA 43 INOX

High-technology antennas designed and manufactured in ITALY

52

VHF 30-300 MHz MARINE

53

SB 43 M

Features:

# Marine antenna

#

, Mono-band

Unity-gain, Omnidirectional

# Designed to work without Ground Plane

# Perfect protection against the worst

weather conditions

# Chrome-plated brass ferrule

# Supplied with white coaxial cable

RG-58 C/U directly connected

# Stainless steel hardware

# High quality whip made of brass and

copper protected by fiberglass tube

# Wide range of optional mounting bases

Electrical Data

Specifications

Type ....................................................................... 3/8 l

Design frequency .............................................

.... 43 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain ........................................................ 0 dBd, 2.15 dBi

Bandwidth at V.S.W.R. 2:1 .................................... 12 MHz

Max Power ......................................................... 50 Watts

Feed System / Position ....... Transformer DC-ground / Base

Standard Mount ................................................ “M3-OT”

Cable Length / Type ................................ 7 m / white RG 58

Mechanical Data

Materials ..................... Glass Fibre, Chromed Brass, Nylon

Height (approx.) ............................................... 2600 mm

Weigth (approx.) .................................................. 1720 gr

code 2304220.84 SB 43 M

CRUISER 43

Features:

# Marine antenna

#

, Mono-band

Unity-gain, Omnidirectional

# Designed to work without Ground Plane

# Protection from static discharges

DC-Ground

# Perfect protection against the worst

weather conditions

# Supplied with white coaxial cable

RG-58 C/U directly connected

# Stainless steel hardware

# High quality white fiberglass tapered whip

# 180° inclination and adjustable whip

Electrical Data

Specifications

Type .................................................... 1/4 l Base Loaded

Design frequency ...............................................

.. 43 MHz

Radiation (H-plane) ......................... 360° Omnidirectional

Polarization ......................................................... Vertical

Gain ........................................................ 0 dBd, 2.15 dBi

Bandwidth at V.S.W.R. 2:1 ................................... 8.3 MHz

Max Power ......................................................... 50 Watts

Feed System / Position ....... Transformer DC-ground / Base

Standard Mount ................................................ “M8-NY”

Cable Type / Length ................................ 5 m / white RG 58

Mechanical Data

Materials ..................... Glass Fibre, Chromed Brass, Nylon

Height (approx.) ................................................ 1505 mm

Weigth (approx.) .................................................... 720 gr

code 2304120.83 CRUISER 43

SB 43 M CRUISER 43

High-technology antennas designed and manufactured in ITALY

CRUISER VHF

Features:

# Marine antenna

# Mono-band

# Unity-gain

# Omnidirectional

# Designed to work without Ground Plane

# Perfect protection against the worst

weather conditions

# Supplied with white coaxial cable

RG-58 C/U directly connected

# Stainless steel hardware

# High quality white fiberglass conic whip

# 180° inclination and adjustable whip

Frequency Range at V.S.W.R. 2:1 ........... 154-162.6

MHz

Bandwidth at V.S.W.R. 2:1 ................................... 8.6 MHz

£

Cable Length / Type ............................ 5.5 m / white RG 58

Mechanical Data

Materials ..................... Glass Fibre, Chromed Brass, Nylon

VHF 30-300 MHz MARINE

High-technology antennas designed and manufactured in ITALY

54

VHF 30-300 MHz MARINE

MARINER 160 S2

MARINER 160 S3

Features:

# Marine antenna , Mono-band

# Omnidirectional

# MARINER 160 S2 Unity -gain,

MARINER 160 S3 Low-gain

# Designed to work without Ground Plane

# Protection from static discharges

DC-Ground

# Stainless steel hardware

# High quality white fiberglass whip

Electrical Data

Specifications

Type

MARINER 160 S2 .................................................... 1/2 l

MARINER 160 S3 ................................. 2 x 1/2 l Colinear

MARINER 160 S2 ....................................... 155-162 MHz

MARINER 160 S3 .................................... 155-160.6

MHz

Radiation (H-plane) ........................ 360 °Omnidirectional

Radiation (E-plane)

MARINER 160 S2 ..................... Beamwidth at -3 dB = 60°

MARINER 160 S3 ..................... Beamwidth at -3 dB = 35°

Radiation angle deg.

MARINER 160 S2 ........................................................ 23°

MARINER 160 S3 ..................................................... -14°

Polarization ......................................................... Vertical

Gain

MARINER 160 S2 ...................................... 0 dBd, 2.15 dBi

MARINER 160 S3 ...................................... 2 dBd, 4.15 dBi

Bandwidth at V.S.W.R. 2:1

MARINER 160 S2 ................................................ 6.7 MHz

MARINER 160 S3 ................................................ 5.6

MHz

Max Power ........................................................ 100 Watts

Feed System / Position ........ Transformer DC-ground / Base

Connector Type ............................................ UHF-Female

Mechanical Data

Materials ..................... Glass Fibre, Chromed Brass, Nylon

Height (approx.)

MARINER 160 S2 ................................................ 900 mm

MARINER 160 S3 ............................................... 2020 mm

Weigth (approx.)

MARINER 160 S2 ................................................... 420 gr

MARINER 160 S3 ................................................... 530 gr

code 2300320.82 MARINER 160 S2 code 2301620.82 MARINER 160 S3

MARINER 160 S2 MARINER 160 S3

55

MARINER 160 S2 MARINER 160 S3

High-technology antennas designed and manufactured in ITALY

Features:

# Marine antenna

# Unity-gain, Omnidirectional

# Designed to work without Ground Plane

# Protection from static discharges

DC-Ground

an easy installation on mast top

# Stainless steel hardware

# SB 1 S High quality whip made of brass

and copper protected by fiberglass tube

# SB 2 S 17/7 PH tapered stainless steel

whip

, Mono-band

# Perfect protection against the worst

weather conditions

# Provided with stainless steel bracket for

an easy installation on mast top

# Stainless steel hardware

£

MHz

Bandwidth at V.S.W.R. 2:1 ................................... 9.1 MHz

Connection .................................................. UHF-Female

Mechanical Data

Materials

code 2300420.80 SB 1 S code 2301120.80 SB 2 S

VHF 30-300 MHz MARINE

High-technology antennas designed and manufactured in ITALY

56

Features:

# Marine antenna

# Low

, Mono-band

-gain, Omnidirectional

# Designed to work without Ground Plane

# Protection from static discharges

DC-Ground

# Perfect protection against the worst

weather conditions

# Provided with stainless steel bracket for

an easy installation on mast top

# Stainless steel hardware

# High quality whip made of brass

and copper protected by fiberglass tube

# SB 3 S Supplied with white coaxial cable

RG-58 C/U directly connected

SB 3 U ................................................. 155.8-160.1

MHz

SB 3 S/... ............................................. 155.5-160.5

MHz

SB 3 U .............................

................................... 4.3 MHz

Cable Length/Type ... 5,18 or 25 m / white RG 58 (SB 3 S only)

Mechanical Data

Materials ..................... Glass Fibre, Chromed Brass, Nylon

code 2300520.80 SB 3 U code 2300620.80 SB 3 S/5 ( 5 m cable) code 2300720.80 SB 3 S/18 (18 m cable) code 2301020.80 SB 3 S/25 (25 m cable)

VHF 30-300 MHz MARINE

57

High-technology antennas designed and manufactured in ITALY

SB 6 M

Features:

# Marine antenna

# Omnidirectional

# SB 3 M Low

, Mono-band

# Designed to work without Ground Plane

# Protection from static discharges

DC-Ground

-gain, SB 6 M Medium-gain

# Protection from static discharges

DC-Ground

# Chrome-plated brass ferrule

# Stainless steel hardware

# High quality whip made of brass and

copper protected by fiberglass tube

# Supplied with white coaxial cable

RG-58 C/U directly connected

# Wide range of optional mounting bases

SB 3 M .................................................... 155.5-160 MHz

SB 6 M .................................................... 155-160.4

MHz

Bandwidth at V.S.W.R. 2:1 SB 3 M ....................... 4.5 MHz

SB 6 M ....................... 5.4 MHz

£

£

SB 6 M ................... 7 m / white RG 58

Mechanical Data

code 2300820.83 SB 3 M code 2300920.84 SB 6 M

VHF 30-300 MHz MARINE

High-technology antennas designed and manufactured in ITALY

58

ACCESSORIES & SPARE PARTS

“S” Mount Type

Frequency Range: from DC to 300 MHz

Overall Size:

Æ

42 mm

“S” Chrome .................................. 2501002.01

“S” Black .................................... 2501002.02

“SL” Mount Type

Frequency Range: from DC to 500 MHz

Overall Size:

Æ

39 mm

“SL” Chrome ................................ 2501102.01

“SL” Black ................................... 2501102.02

“SL-S” Mount Type

Frequency Range: from DC to 500 MHz

Overall Size:

Æ

39 mm

“SL-S” Black ............................... 2501102.04

“ML” Mount Type

Frequency Range: from DC to 1000 MHz

Overall Size:

Æ

30mm

“ML” ........................................... 2501202.06

“ABN” Trunk Mount

Material: Painted Steel

ABN Black .................................... 2504105.00

“TRUNK TOP 2” Mount

DV/PL Chrome ............................. 2504406.12

DV/PL Black ................................ 2504407.13

PL-3/8 Chrome ............................ 2504406.14

PL-3/8 Black ............................. 2504407.14

“KF” Gutter Mount

Material: Painted Zinc

KF Black ...................................... 2504205.00

KF Black 3/8 + PL + Cable .......... 2504205.03

“Screw & Bolt”

Materials: Brass and Zinc, Chrome plated

Chrome ....................................... 2506206.00

Black .......................................... 2506207.00

“Wing Bolt”

Materials: Brass, Chrome plated

Chrome ....................................... 2506306.00

Black .......................................... 2506307.00

“Safety Set”

Materials: Brass and Zinc, Chrome plated

Chrome ....................................... 2506506.00

Black .......................................... 2506507.00

“FT-2” Fixing Bracket

Weight (approx.): 1100 gr

Material: Galvanized Steel

FT-2 Universal .............................. 2510004.00

“FT-3” Fixing Bracket

Weight (approx.): 350 gr

Material: Anodized aluminium, Stailess steel

FT-3 ............................................ 2511301.00

“M-1” Marine Bracket

Dimension L x W x H : 38 x 64 x 98 mm

Weight (approx.): 120 gr

Material: Stainless Steel

M-1 Marine Bracket ..................... 2503503.00

59

“M-3” Marine Mount

Connection: standard 1”x14 threads

Dimension L x W x H : 60 x 95 x 130 mm

Weight (approx.): 860 gr

Materials: Chromed Brass, Stainless steel hardware

M-3 OT Marine Mount .................. 2503606.00

“M-8” Marine Mount

Connection: standard 1”x14 threads

Dimension L x W x H : 70 x 105 x 130 mm

Weight (approx.): 250 gr

Materials: Nylon, Stainless steel hardware

M-8 NY Marine Mount ................... 2503301.00

“M-10” Marine Mount

Connection: standard 1”x14 threads

Fixing diameter: 1”

Weight (approx.): 600 gr

Materials: Chromed Brass, Stainless steel hardware

M-10 OT Marine Mount ................. 2503406.00

High-technology antennas designed and manufactured in ITALY

Photo: MAG 145 3/8

(with DV-joint connection)

“MAG H 12” Magnet Mount

MAG H 12 PL ............................... 2502502.05

ACCESSORIES & SPARE PARTS

“MAG 125” Magnet Mount

MAG 125 PL ................................ 2502602.05

“HP MAG H 12 PL” Magnet

Mount

“HP MAG 125 PL” Magnet

Mount

“HP-AC/U” Angular

Connector

High-technology antennas designed and manufactured in ITALY

60

ACCESSORIES & SPARE PARTS

SMA-male

Crimp type for RG 58, CO 100 ...... 30.SMA001.00

Crimp type for RG 174, RG 316 .... 30.SMA002.00

SMA-female

Crimp type for RG 58, CO 100 ...... 30.SMA003.00

Crimp type for RG 174, RG 316 .... 30.SMA004.00

BNC-male

Crimp type for RG 58, CO 100 ....... 30.BNC001.00

TNC-male

Crimp type for RG 58, CO 100 ....... 30.TNC001.00

N-male

Crimp type for RG 58, CO 100 .......... 30.N001.00

N-female

Crimp type for RG 58, CO 100 .......... 30.N002.00

FME-male

Crimp type for RG 58, CO 100 ....... 30.FME001.00

Crimp type for RG 174, RG 316 .... 30.FME005.00

FME-female

Crimp type for RG 58, CO 100 ....... 30.FME002.00

Crimp type for RG 174, RG 316 .... 30.FME003.00

FME-m / UHF-m adaptor

Code ........................................... 30.AD002.00

FME-m / Mini UHF-m adaptor

Code ........................................... 30.AD004.00

FME-m / BNC-m adaptor

Code ........................................... 30.AD005.00

FME-m / N-m adaptor

Code ........................................... 30.AD006.00

Type

RG 58 C/U

CO 100

RG 174

RG 316/U

COAXIAL CABLES Data

Impedance

50

W

50

50

W

W

50

W

External diameter

4.95 mm

4.95 mm

2.8 mm

2.5 mm

Color

Black

White

Black

Brown

Cable

Freq. 25

MHz

RG 58 C/U

CO 100

RG 174

RG 316/U

7

5

13

12

50

MHz

10

7

18

17

100

MHz

15

10

27

26

200

MHz

21

14

39

38

Attenuation dB for 100 m

300

MHz

26

17

48

47

400

MHz

30

20

56

55

500

MHz

34

23

64

62

800

MHz

44

29

84

80

1

GHz

50

33

95

91

1.6

GHz

66

42

124

118

1.8

GHz

70

45

133

126

2.0

GHz

76

48

141

134

2.2

GHz

78

50

150

141

2.4

GHz

86

53

159

149

2.5

GHz

87

54

162

152

3.0

GHz

98

60

184

169

61

High-technology antennas designed and manufactured in ITALY

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
