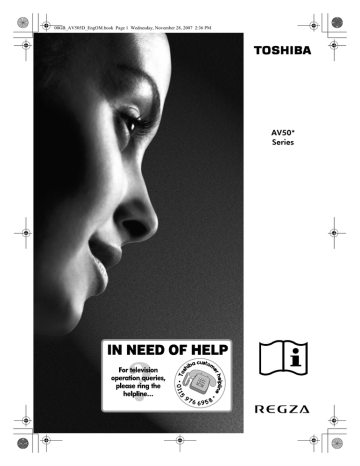

00GB_AV505D_EngOM.book Page 1 Wednesday, November 28, 2007 2:36 PM
AV50*
Series
00GB_AV505D_EngOM.book Page 2 Wednesday, November 28, 2007 2:36 PM
00GB_AV505D_EngOM.book Page 3 Wednesday, November 28, 2007 2:36 PM
Contents
SETTING UP
Digital on-screen information and
Programme Guide ............................................. 26
Information ................................................... 26
Guide ........................................................... 26
Digital settings – parental control ........................ 27
Setting the PIN .............................................. 27
Mode ............................................................ 27
Digital settings – other features ........................... 28
Selecting favourite programmes ..................... 28
Locking programmes ..................................... 28
Encrypted programmes .................................. 28
Audio languages ........................................... 29
Subtitles ........................................................ 29
Reset TV ........................................................ 29
Common interface ......................................... 29
Digital settings – software upgrade ...................... 30
Version ......................................................... 30
Auto Upgrade ............................................... 30
Searching for new software ........................... 30
Input selection and AV connections ...................... 31
Input selection ............................................... 31
INPUT signal selection ................................... 31
HDMI1 audio ................................................ 32
Lip Sync Latency ............................................ 32
Safety Precautions ..................................................4
Installation and important information ....................5
The remote control .................................................6
Inserting batteries and effective range of the
remote ..........................................................6
Connecting external equipment ..............................7
Connecting an HDMI™ or DVI device to the HDMI
input ...................................................................8
To connect an HDMI device ..............................8
To connect a DVI device ...................................8
Connecting a computer ..........................................9
To connect a PC to the HDMI terminal ..............9
Using the controls ................................................10
Switching on ..................................................10
Using the remote control ...............................10
Using the controls ..........................................10
TUNING THE TELEVISION
Tuning Digital television .......................................11
Tuning for the first time ..................................11
Digital auto tuning .......................................12
Analogue switch-off .....................................12
Digital programme sorting ............................13
Digital manual tuning ...................................13
Tuning Analogue mode ........................................14
Quick Setup ...................................................14
Manual tune ..................................................15
Programme skip ............................................16
Sorting programme positions .........................17
Using Auto tuning ..........................................17
TEXT SERVICES
Analogue text services .......................................... 33
Selecting modes ............................................ 33
Text information ............................................ 33
Navigating pages using Auto. ........................ 33
Navigating pages using LIST .......................... 33
Control buttons ............................................. 34
Digital interactive services ................................... 34
CONTROLS AND FEATURES
General controls ...................................................18
Selecting programme positions ......................18
The Time Display – analogue only ................18
Stereo and Bilingual transmissions .................18
Sound controls .....................................................18
Volume controls and mute sound ...................18
Bass, Treble and Balance ...............................18
Bass boost .....................................................18
Dual – analogue only ...................................18
Stable sound® ................................................18
Widescreen viewing ..............................................19
Picture controls .....................................................21
Picture position – analogue only ...................21
Backlight .......................................................21
Picture preferences ........................................22
Black stretch ..................................................22
MPEG NR – Noise Reduction ..........................22
DNR – Digital Noise Reduction .......................22
Colour temperature .......................................22
3D Colour management ................................23
Base colour adjustment ..................................23
Active Backlight Control .................................23
Cinema mode ................................................23
Automatic format (Widescreen) ......................23
4:3 stretch .....................................................24
Blue screen ....................................................24
Side panel adjustment ...................................24
Picture still .....................................................24
Panel lock ............................................................24
The timers ............................................................25
Programme timer – digital only .....................25
Sleep timer ....................................................25
PROBLEM SOLVING
Questions and Answers ........................................ 35
INFORMATION
Notes ................................................................... 38
Specifications and accessories .............................. 40
3
00GB_AV505D_EngOM.book Page 4 Wednesday, November 28, 2007 2:36 PM
SETTING UP
Safety Precautions
DO NOT REMOVE ANY FIXED COVERS AS THIS WILL
EXPOSE DANGEROUS AND 'LIVE' PARTS.
This equipment has been designed and manufactured
to meet international safety standards but, like any
electrical equipment, care must be taken to obtain the
best results and for safety to be assured. Please read
the points below for your own safety. They are of a
general nature, intended to help with all electronic
consumer products and some points may not apply to
the goods you have just purchased.
THE MAINS PLUG IS USED AS A DISCONNECTING
DEVICE AND THEREFORE SHOULD BE READILY
OPERABLE.
Do not
DO NOT obstruct the ventilation openings of the
Air Circulation
equipment with items such as newspapers, tablecloths,
curtains, etc. Overheating will cause damage and
shorten the life of the equipment.
Leave more than 10cm clearance around the television
to allow adequate ventilation. This will prevent
overheating and possible damage to the television.
Dusty places should also be avoided.
DO NOT allow electrical equipment to be exposed to
dripping or splashing or objects filled with liquids, such
as vases, to be placed on the equipment.
DO NOT place hot objects or naked flame sources,
such as lighted candles or nightlights on, or close to
equipment. High temperatures can melt plastic and
lead to fires.
Heat Damage
Damage may occur if the television is left in direct
sunlight or near a heater. Avoid places subject to
extremely high temperatures or humidity. Place in a
location where the temperature remains between 5°C
(41°F) min. and 35°C (94°F) max.
DO NOT use makeshift stands and NEVER fix legs with
wood screws. To ensure complete safety, always fit the
manufacturers’ approved stand, bracket or legs with
the fixings provided according to the instructions.
DO NOT leave equipment switched on when it is
unattended, unless it is specifically stated that it is
designed for unattended operation or has a standby
mode. Switch off by withdrawing the plug, make sure
your family know how to do this. Special arrangements
may need to be made for people with disabilities.
Mains Supply
The mains supply required for this equipment is 220240v AC 50/60Hz. Never connect to a DC supply or
any other power source. DO ensure that the television
is not standing on the mains lead.
DO NOT cut off the mains plug from this equipment,
this incorporates a special Radio Interference Filter, the
removal of which will impair its performance. In the
UK, the fuse fitted in this plug is approved by ASTA or
BSI to BS1362. It should only be replaced by a correctly
rated and approved type and the fuse cover must be
refitted.
IF IN DOUBT PLEASE CONSULT A COMPETENT
ELECTRICIAN.
DO NOT continue to operate the equipment if you are
in any doubt about it working normally, or it is
damaged in any way – switch off, withdraw the mains
plug and consult your dealer.
WARNING – excessive sound pressure from
earphones or headphones can cause hearing loss.
ABOVE ALL – NEVER let anyone, especially
children, push or hit the screen, push anything
into holes, slots or any other openings in the
case.
NEVER guess or take chances with electrical
equipment of any kind – it is better to be safe
than sorry.
Do
DO read the operating instructions before you attempt
to use the equipment.
DO ensure that all electrical connections (including the
mains plug, extension leads and inter-connections
between pieces of equipment) are properly made and
in accordance with the manufacturers’ instructions.
Switch off and withdraw the mains plug before making
or changing connections.
DO consult your dealer if you are ever in doubt about
the installation, operation or safety of your equipment.
DO be careful with glass panels or doors on
equipment.
4
00GB_AV505D_EngOM.book Page 5 Wednesday, November 28, 2007 2:36 PM
SETTING UP
Installation and important information
Where to install
Locate the television away from direct sunlight and
strong lights, soft, indirect lighting is recommended for
comfortable viewing. Use curtains or blinds to prevent
direct sunlight falling on the screen.
Sturdy tie
(as short as possible)
Place on a sturdy platform, the mounting surface should
be flat and steady. It should be secured to the wall
with a sturdy tie using the clip on the back of the
stand, or secured to the platform using the fixing
strap located underneath the table top stand, this
will prevent it from falling over.
Clip
Clip
The LCD display panels are manufactured using an
extremely high level of precision technology, however
sometimes some parts of the screen may be missing
picture elements or have luminous spots. This is not a
sign of a malfunction.
Side View
Clip
Top View
Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break
or damage the screen, and that small items cannot be inserted into slots or openings in the case.
Please take note
EXCLUSION CLAUSE
Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:
i) fire;
ii) earthquake;
iii) accidental damage;
iv) intentional misuse of the product;
v) use of the product in improper conditions;
vi) loss and/or damage caused to the product whilst in the possession of a third party;
vii) any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out in the owner’s
manual;
viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with
associated equipment;
Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited
to the following, loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or
misuse of the product.
NOTE: A Toshiba wall bracket or stand, where available, must be used. If a non Toshiba wall bracket or stand is used the product’s
BEAB approval will become void and the equipment is then used at the consumers own risk.
• The digital reception function of this television is only effective in the countries listed in the “COUNTRY SET UP” section of the
“DIGITAL MENU”. Depending on country/area, some of this television's functions may not be available. Reception of future
additional or modified services can not be guaranteed with this television.
• If stationary images generated by 4:3 broadcasts, text services, channel identification logos, computer displays, video games, on
screen menus, etc. are left on the television screen for any length of time they could become conspicuous, it is always advisable
to reduce both the brightness and contrast settings.
• Very long, continuous use of the 4:3 picture on a 16:9 screen may result in some retention of the image at the 4:3 outlines, this
is not a defect of the LCD TV and is not covered under the manufacturers warranty. Regular use of other size modes (eg:
Superlive) and varying the “side panel” brightness (if available on the model) will prevent permanent retention.
5
00GB_AV505D_EngOM.book Page 6 Wednesday, November 28, 2007 2:36 PM
SETTING UP
10 When using menus press U (up), u (down), I (left) and
i (right) to move the cursor on the screen. Q to confirm
your selection
The remote control
Simple at-a-glance reference of your remote
control.
11 To alter the volume
12 To change programme positions and text pages
13 Selectable picture preferences
2
14 Widescreen viewing
1
15 To display on-screen information
16 To call up text services in analogue mode and interactive
services in digital mode
17 When in TV mode:
r
Still picture
s
Stereo/bilingual transmissions
SUBTITLE
Digital Subtitles
D
Time display
3
4
7
5
6
8
9
When using the Programme Guide:
Z – 24 hours
z + 24 hours
CC – 1 page
cc + 1 page
18 Text and interactive service control buttons
10
12
11
13
15
14
16
Inserting batteries and effective range of
the remote
Remove the back cover to reveal
the battery compartment and
make sure the batteries are
inserted the right way round.
Suitable battery types for this
remote are AAA, IEC R03 1.5V.
Do not combine a used, old
battery with a new one or mix
battery types. Remove dead batteries immediately to prevent
acid from leaking into the battery compartment. Dispose of
them in a designated disposal area. Warning: batteries must
not be exposed to excessive heat such as sunshine, fire or the
like.
17
18
The performance of the remote control will deteriorate beyond
a distance of five metres or outside an angle of 30 degrees
from the centre of the television. If the operating range
becomes reduced the batteries may need replacing.
1
For On/Standby mode
2
To mute the sound
3
Number buttons
4
To return to the previous programme
5
To select input from external sources, analogue or digital
TV
6
To switch between TV, Radio and Favourite programmes
when in digital mode
7
To display the digital on-screen Programme Guide
8
On-screen Menus
9
To exit Menus
6
00GB_AV505D_EngOM.book Page 7 Wednesday, November 28, 2007 2:36 PM
SETTING UP
Connecting external equipment
Before connecting any external equipment, turn off all main power switches. If there is no switch
remove the mains plug from the wall socket.
HDMI™ INPUT
SOCKETS
VIDEO INPUT (EXT4)
COMPONENT VIDEO INPUT (EXT3)
SCART 2 (EXT2)
SCART 1 (EXT1)
FIXING STRAP
*a decoder could
be Digital Satellite or
any other compatible
decoder.
CABLE HOLDER
MEDIA REC.
decoder*
media recorder
TV
IN/OUT
The cable holder can
be used for aerial, media
recorder and audio cables.
Do not use as a handle and
remove all cables before
moving the television.
SAT
Aerial cables: - - - - - - - - - - - - - - - - - - - - - -
NOTE: Although this television is able to connect to HDMI
equipment it is possible that some equipment may not operate
correctly.
Connect the aerial to the socket on the rear of the television.
If you use a decoder* and/or a media recorder it is essential
that the aerial cable is connected through the decoder and/or
through the media recorder to the television.
A wide variety of external equipment can be connected
to the back of the television, therefore the relevant
owners manuals for all additional equipment must be
referred to.
SCART leads: . . . . . . . . . . . . . . . . . . . . . . . . . .
Connect the video recorder IN/OUT socket to the television.
Connect the decoder TV socket to the television. Connect the
media recorder SAT socket to the decoder MEDIA REC. socket.
We recommend SCART 1 for a decoder and SCART 2 for a
media recorder.
Before running Auto tuning put your decoder and media
recorder to Standby.
If connecting S-VIDEO equipment, set the INPUT for EXT2.
See page 31.
The phono sockets alongside the COMPONENT VIDEO INPUT
sockets will accept L and R audio signals.
If the television automatically switches over to monitor external
equipment, return to normal television by pressing the desired
programme position button. To recall external equipment,
press o to select between DTV, EXT1, EXT2, EXT3, EXT4,
HDMI1, HDMI2 or ATV.
The phono sockets alongside the VIDEO INPUT socket will
accept L and R audio signals.
HDMI™ (High-Definition Multimedia Interface) is for use with
a DVD, decoder or electrical equipment with digital audio and
video output. It is designed for best performance with 1080i
high-definition video signals but will also accept and display
VGA, 480i, 480p, 576i, 576p and 720p signals.
HDMI, the HDMI logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing, LLC.
7
00GB_AV505D_EngOM.book Page 8 Wednesday, November 28, 2007 2:36 PM
SETTING UP
Connecting an HDMI™ or DVI
device to the HDMI input
To connect a DVI device
Connect an HDMI-to-DVI adapter cable (HDMI type A
connector) to HDMI1 terminal and audio cables to the HDMI1
Audio socket (see illustration).
• The recommended HDMI-to-DVI adapter cable length is 6.6
ft (2m).
• An HDMI-to-DVI adapter cable transfers video only.
Separate analog audio cables are required.
• See “HDMI1 audio” on page 32.
The HDMI input on your television receives digital
audio and uncompressed digital video from an
HDMI source device, or uncompressed digital video
from a DVI (Digital Visual Interface) source device.
This input is designed to accept HDCP (High-Bandwidth
Digital-Content Protection) program material in digital form
from EIA/CEA-861-D–compliant [1] consumer electronic
devices (such as a set-top box or DVD player with HDMI or DVI
output). For acceptable video signal formats, see page 9.
NOTE:
• Some early HDMI equipment may not work properly with
your latest HDMI TV, due to the adoption of a new standard.
• Supported Audio format: Linear PCM, sampling rate 32/
44.1/48kHz.
To connect an HDMI device
Connect an HDMI cable (type A connector) to the HDMI
terminal.
Audio cable for HDMI to
television connection
(not supplied)
For proper operation, it is recommended that you use an HDMI
cable with the HDMI Logo (
).
• HDMI cable transfers both video and audio. Separate analog
audio cables are not required (see illustration).
• See “HDMI1 audio” on page 32.
HDMI-to- DVI adapter Cable
DVI device
VIDEO
DVI / HDCP
OUT
AUDIO
L
R
IN
OUT
L
R
NOTE:
To ensure that the HDMI or DVI device is reset properly, it is
recommended that you follow these procedures:
• When turning on your electronic components, turn on the
television first, and then the HDMI or DVI device.
• When turning off your electronic components, turn off the
HDMI or DVI device first, and then the television.
HDMI cable
HDMI device
VIDEO
L
AUDIO
R
HDMI OUT
IN
OUT
L
R
To view the HDMI device video, press the o to select HDMI1
or HDMI2 mode.
[1] EIA/CEA-861-D compliance covers the transmission of uncompressed
digital video with high-bandwidth digital content protection, which is
being standardized for reception of high-definition video signals. Because
this is an evolving technology, it is possible that some devices may not
operate properly with the television.
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
8
00GB_AV505D_EngOM.book Page 9 Wednesday, November 28, 2007 2:36 PM
SETTING UP
Connecting a computer
With the HDMI connection, you can watch your computer’s display on the television and hear the sound
from the televisions speakers.
To connect a PC to the HDMI terminal
When connecting a PC to the HDMI terminal on the television, use an HDMI-to DVI adapter cable and analog audio cables.
If connecting a PC with an HDMI terminal, use an HDMI cable (type A connector). Separate analog cables are not necessary (see
page 8).
the back of your television
Computer
HDMI-to-DVI adapter cable
Audio cable for PC to
television connection
(not supplied)
For acceptable PC signal formats, see “Acceptable video or PC singnals through HDMI terminals”.
NOTE: The edges of the images may be hidden.
Acceptable video or PC signals through HDMI terminals
Format
Resolution
V. Frequency
H. Frequency
Pixel Clock Frequency
480i
576i
720 × 480i
720 × 576i
59.940/60.000Hz
50.000Hz
15.734/15.750kHz
15.625kHz
27.000/27.027MHz
27.000MHz
480p
576p
720 × 480p
720 × 576p
59.940/60.000Hz
50.000Hz
31.469/31.500kHz
31.250kHz
27.000/27.027MHz
27.000MHz
1080i
1080i
1920 × 1080i
1920 × 1080i
59.940/60.000Hz
50.000Hz
33.716/33.750kHz
28.125kHz
74.176/74.250MHz
74.250MHz
720p
720p
1280 × 720p
1280 × 720p
59.940/60.000Hz
50.000Hz
44.955/45.000kHz
37.500kHz
74.176/74.250MHz
74.250MHz
VGA
640 × 480p
59.940/60.000Hz
31.469/31.500kHz
25.175/25.200MHz
9
00GB_AV505D_EngOM.book Page 10 Wednesday, November 28, 2007 2:36 PM
SETTING UP
Using the controls
Whilst all the necessary adjustments and controls for the television are made using the remote control, the
buttons on the television may be used for some functions.
COMMON INTERFACE
The Common Interface
is for a Conditional
Access Module (CAM).
Contact a service
provider.
Headphone jack
GREEN LED - Active standby (digital only)
Switching on
RED LED – Standby
GREEN LED – Power on
Standby
Using the controls
If the RED LED is unlit check that the mains plug is connected
to the power supply. If the picture does not appear press 1 on
the remote control, it may take a few moments.
To put the television into Standby press 1 on the remote
control, the GREEN active standby LED will appear (see
‘Software Upgrade’ section) next to the RED for a few moments
then disappear. To view the television press 1 again. The
picture may take a few seconds to appear.
To alter the volume press – 2 +.
To alter the programme position press b p B.
Press MENU and I, i, U or u to control the sound and picture
options.
Press MENU to finish.
To select the external input, press o until the appropriate
input source is selected as described on page 31.
Please always refer to the owner’s manual of the equipment to
be connected for full details.
Using the remote control
Press M on the remote control to see the menus.
In digital mode the menu bar at the top of the screens will
show three different topics shown in symbols. As each symbol
is selected by pressing the I or i button on the remote control,
its respective options will appear below.
Please note: Inserting the headphone plug will mute the sound
from all speakers.
In analogue mode the menu appears as a list of five topics.
As each symbol is selected by pressing I or i on the navigation
ring on the remote control, its respective options will appear
below.
To use the options press the U and u button on the remote
control to move up and down through them and Q, I or i to
select the required choice. Follow the on-screen instructions.
The functions of each menu are described in detail throughout
the manual.
10
00GB_AV505D_EngOM.book Page 11 Wednesday, November 28, 2007 2:36 PM
TUNING THE TELEVISION
Tuning Digital television
When the search is complete the television will
automatically select programme one.
Before switching on the television put your decoder
and media recorder to Standby if they are
connected.
To set up the television use the buttons on the
remote control as detailed on page 6.
The AUTO TUNING screen will display the total
number of services found.
AUTO TUNING
94 programmes found
58 TV
27 Radio
9 Text
Press OK to watch programme
Tuning for the first time
a
Prog. Name
Press the 1 button, the LOCAL OPTIONS screen will
appear. This screen will appear the first time that the
television is switched on and each time the television
is reset.
UK
Language
ENGLISH
Audio Language
ENGLISH
Subtitles
e
OFF
Local Time Settings
BBC ONE
34
GOOD
2
BBC TWO
34
GOOD
3
ITV1
31
GOOD
4
Channel 4
31
POOR
5
Five
48
GOOD
6
ITV2
31
POOR
Change
Page Up
LOCAL OPTIONS
Country
0
Type UHF Quality
1
Watch
Page Down
Sort
Use u or U to move through the list to select a
programme then press Q to view.
NOTE: The time will be set automatically by
transmission but can be advanced or decreased by up
to 3 hours using Local Time Settings.
Continue
b
Press u to highlight Country and I or i to select. The
television will now tune the stations for your country.
c
Using u highlight Language, then I or i to select.
d
Press Q to start tuning.
The AUTO TUNING screen will appear and the
television will start to search for available stations. The
progress bar will move along the line.
You must allow the television to complete the
search.
AUTO TUNING
Progress
Prog. Name
Type UHF Quality
70
CBBC Channel
34
GOOD
87
Community
21
POOR
EXIT Cancel
11
00GB_AV505D_EngOM.book Page 12 Wednesday, November 28, 2007 2:36 PM
TUNING THE TELEVISION
You must allow the television to complete the
search.
Digital auto tuning
NOTE: As new services are broadcast it will be necessary to retune the television in order to view them.
When the search is complete the Auto tuning screen
will display the total number of services found.
Auto tuning will completely re-tune the television and can be
used to up date the channel list.
It is recommended that Auto tuning is run periodically to
ensure that all new services are added. All current
programmes and settings, i.e. favourites and locked
programmes, will be lost.
a
b
AUTO TUNING
94 programmes found
58 TV
27 Radio
9 Text
Press OK to watch programme
Prog. Name
Press M, the SETUP MENU will appear.
Use u to highlight Auto tuning. Press Q.
A screen will appear warning that previous digital
programmes and settings will be deleted.
Press Q to continue with the Auto tuning.
WARNING
c
YES
Select
MENU Cancel
34
GOOD
2
BBC TWO
34
GOOD
3
ITV1
31
GOOD
4
Channel 4
31
POOR
5
Five
48
GOOD
6
ITV2
31
POOR
Watch MENU Back
Page Down
Sort
Use u or U to move through the list to select a
programme then press Q to view.
Analogue switch-off
The television will start to search for all available
stations.
AUTO TUNING
Progress
Prog. Name
BBC ONE
Change
Page Up
! All previous digital programmes and
settings will be deleted.
Continue?
Type UHF Quality
1
Type UHF Quality
70
CBBC Channel
34
GOOD
87
Community
21
POOR
This is a digital television which is integrated to allow the use
of both digital and analogue services. However, during the
lifetime of this set it is very likely that analogue services will
be switched off to allow for more new digital services.
This ‘switch-off’ will happen in a number of phases, which will
be advertised in your area well in advance. It is recommended
that at each phase the television is re-tuned to ensure that
existing and new digital services can be viewed without
disruption (see the 'Auto tuning' section).
EXIT Cancel
12
00GB_AV505D_EngOM.book Page 13 Wednesday, November 28, 2007 2:36 PM
TUNING THE TELEVISION
Digital programme sorting
Digital manual tuning
This feature is available for service engineers or can be
used for direct channel entry if the multiplex channel
is known.
NOTE: When the television is switched off the mode being
viewed at the time will automatically be selected when the
television is switched back on.
a
The station order may be changed to suit personal
preference. Press M, the SETUP MENU will appear
on screen.
b
Use u to move down through the list and highlight
Programmes. Press Q.
a
Select Manual tuning from the SETUP MENU and
press Q.
b
Enter the multiplex number using the number buttons
and then press Q. The television will automatically
search for that multiplex.
When the multiplex is found any channels not currently
on the programme list will be added and the
programme information at the top of the screen will be
updated.
SETUP MENU
TV Setup
OK
Local Options
OK
Auto tuning
OK
Manual tuning
OK
Programmes
OK
MENU Back
c
c
EXIT Watch TV
With the list of stations now showing use u or U to
highlight the station you want to move and press i.
The selected station will be moved to the right of the
screen.
PROGRAMMES
Prog.
Name
1
BBC ONE
2
BBC TWO
3
ITV1
4
Channel 4
5
Five
6
ITV2
Sort
Page Up
Store
MENU Back EXIT Watch TV
Page Down
d
Use u or U to move through the list to your preferred
position. As you do so the other stations will move to
make room.
e
Press I to store your move. Repeat as necessary, then
press P.
13
Repeat as necessary. Press P to finish.
00GB_AV505D_EngOM.book Page 14 Wednesday, November 28, 2007 2:36 PM
TUNING THE TELEVISION
Tuning Analogue mode
f
The station order may be changed using the Manual
tuning screen (see the analogue ‘Sorting programme
positions’ section).
Quick Setup
The Quick Setup feature will tune all analogue channels
currently available in the area. To put the television into ATV
mode press the o button then use U or u to select ATV.
a
Select ATV mode. The Quick Setup screen will
appear.
Quick Setup
Select your language.
Language
EXIT
English
Watch TV
OK
Next
b
Using I or i select your language, then press Q.
c
Then press I or i to select your country.
d
To start Auto tuning press Q.
Auto tuning
Searching
Channel : C22
EXIT
e
Station : BBC1
Stop
The search will begin for all available stations.
The slide bar will move along the line as the search
progresses.
You must allow the television to complete the
search.
When the search is complete the television will
automatically select programme position 1 and the
Manual tuning screen will appear.
Manual tuning
Prog.
Station
1
C22
BBC1
2
C28
BBC2
3
C25
ITV
4
C32
CH4
5
C68
6
C69
Select
MENU Back
OK
Channel
Sort
EXIT
Use u or U to move through the list to select a
programme then press P to view.
Watch TV
14
00GB_AV505D_EngOM.book Page 15 Wednesday, November 28, 2007 2:36 PM
TUNING THE TELEVISION
a
Manual tune
The television can be tuned-in manually using Manual
tuning. For example: if the television cannot be connected to
a media recorder/decoder with a SCART lead or to tune-in a
station on another System.
Use I and i to move across the screen and select any of these
Manual Tune options.
System
I
Store
MENU Back
A
C 60
0
V C R
OK
EXIT
Watch TV
UK
Auto tuning
OK
Manual tuning
OK
AV connection
OK
Picture position
8
1
Programme:
The number to be pressed on the remote control.
2
System:
Specific to certain areas.
3
4
English
Country
MENU
1 2 3 4 5 6 7
1/2
SET UP
Language
Manual tuning
0
Press M and using I or i select the SET UP menu,
with u highlight Manual tuning, press Q to select.
b
OK
Back
Watch TV
EXIT
Use U or u to highlight the programme position
required e.g. we suggest Prog. 0 for a media recorder.
Manual tuning
Prog.
Colour system:
Factory set to Auto, should only be changed if problems
are experienced, i.e. NTSC input from external source.
Programme skip:
8 means nothing has been stored or the facility to skip
the channel is ON. See page 16.
OK
5
Channel:
The channel number on which a station is being broadcast.
6
Search:
Search up and down for a signal.
7
Manual fine tuning:
Only used if interference/weak signal is experienced. See
page 35.
8
Station:
Station identification. Use the U or u and I or i buttons to
enter up to seven characters.
Channel
Station
0
C60
1
C22
BBC1
2
C28
BBC2
3
C25
ITV
4
C32
CH4
5
C69
Select
Back
Sort
MENU
Watch TV
EXIT
Different Channel numbers may be displayed.
To allocate a programme position on the television for a
decoder and media recorder: turn the decoder on, insert a
pre-recorded film in the media recorder and press PLAY, then
manually tune.
c
Press Q to select. If the programme is skipped,
Programme skip must be removed before storing.
Manual tuning
System
0
I
A
Store
MENU Back
C 60
0
OK
EXIT
Watch TV
d
Press i to select System and use U or u to change if
required.
e
Then press i to select Search.
f
Press U or u to begin the search. The search symbol
will flash.
Manual tuning
Search: Up
0
I
Store
MENU Back
A
C 60
OK
15
EXIT
Watch TV
0
00GB_AV505D_EngOM.book Page 16 Wednesday, November 28, 2007 2:36 PM
TUNING THE TELEVISION
g
h
Each signal will show on the television, if it is not your
media recorder, press U or u again to restart the
search.
When your media recorder signal is found, press i to
move along to Station. With U, u, I and i put in the
required characters, e.g. VCR.
Programme skip
To prevent certain programmes from being viewed, the
programme position can be skipped. The remote control must
be removed as the channels will still be available using the
number buttons. Programmes can then be watched as normal
using the controls on the television, but the television will not
show the skipped programme position.
a
Manual tuning
Select Manual tuning from the SET UP menu.
Station
0
I
A
C 60
0
Manual tuning
V C R
Prog.
OK
Store
Back
MENU
i
j
EXIT
Watch TV
Press Q to store.
Repeat for each programme position you want to
tune or, press M to return to the list of channels and
select the next number to tune.
k
Press P when you have finished.
l
To name external equipment, e.g. DVD on EXT2, press
o to select o2, then select Manual setting from the
SET UP menu.
m
Press i to select Label then using U, u, I and i put in
the required characters.
A
C22
BBC1
2
C28
BBC2
3
C25
ITV
4
C32
CH4
5
C68
6
C69
Select
MENU Back
Sort
EXIT
Watch TV
b
Use U or u to highlight the programme position to be
skipped and press Q to select.
c
Press i to select Programme skip.
d
Use U or u to turn Programme skip on.
Press Q.
8 on the screen indicates a skipped programme
position.
Label
EXT2
Station
1
OK
Manual setting
Store
MENU Back
Channel
D V D
Manual tuning
Programme skip : On
OK
EXIT
Watch TV
1
I
Store
MENU Back
A
C 22
0
B B C 1
OK
PLEASE NOTE
This television has direct channel entry if the channel
numbers are known.
Select the Manual tuning screen in Step 3. Enter
the Programme number, the System, then C for
standard (terrestrial) channels or S for cable
channels and the Channel number. Press Q to
store.
e
EXIT
Watch TV
Press M and repeat from Step 2 or press P.
Each programme position has to be individually
selected. To turn Programme skip off, repeat the
procedure for each position.
Skipped programme positions cannot be selected by
> and < or by the controls on the television, but
can still be accessed by the number buttons on the
remote control.
16
00GB_AV505D_EngOM.book Page 17 Wednesday, November 28, 2007 2:36 PM
TUNING THE TELEVISION
Sorting programme positions
Using Auto tuning
Channels may be moved and stored on the programme position
of your choice.
a
Select Manual tuning from the SET UP menu.
b
With the list of stations now showing use U or u to
highlight the station you want to move and press i.
a
SET UP
Manual tuning
1
2
Channel
Station
C22
C28
BBC1
UK
Auto tuning
OK
Manual tuning
OK
AV connection
OK
Picture position
MENU
C25
ITV
4
C32
CH4
5
C68
6
C69
Store
MENU Back
c
d
EXIT
English
Country
BBC2
3
1/2
Language
The selected station will be moved to the right of the
screen.
Prog.
To set up the television using Auto tuning, press M
and use I or i to select the SET UP menu.
OK
EXIT
Watch TV
b
Press u to highlight Language and I or i to select.
c
Using u highlight Country, then I or i to select. The
television will now tune the stations for your country.
d
Press u to highlight Auto tuning, then press Q.
Watch TV
Use U or u to move through the list to your preferred
position. As you do so the other stations will move to
make room.
Back
Auto tuning
! Previous settings will be lost !
Press EXIT for no change.
Press OK to start Auto tune.
Press I to store your move.
Repeat as necessary, then press P.
MENU
e
Back
EXIT
Watch TV
To start Auto tuning press Q.
You must allow the television to complete the search.
When the search is complete the television will automatically
select programme position 1. This may not be a clear picture,
so the station order can be changed (see ‘Sorting programme
positions’ section).
17
00GB_AV505D_EngOM.book Page 18 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
General controls
c
In analogue mode, press M and I or i to select
SOUND.
Selecting programme positions
To select a programme position use the numbered buttons on
the remote control.
1/2
SOUND
Programme positions can also be selected using > and <.
Dual
Dual 1
To revert to the previous programme position press
Bass
0
Treble
0
.
To display on-screen information i.e. programme position,
input mode or stereo/mono signal, press
. Press again to
cancel.
Balance
0
Stable sound
On
Bass boost
The Time Display – analogue only
MENU
d
The time display facility allows the current (text service) time to
be seen on the television screen.
Press D whilst watching a normal television broadcast to
see a time display from the broadcaster. It will remain on
screen for about 5 seconds.
Stereo and Bilingual transmissions
Volume controls and mute sound
Volume
Press Y or y to adjust the volume.
The sound controls are accessible in digital and analogue
modes, as are most of the televisions features.
a
In digital mode, press M and using u highlight TV
Setup then press Q.
b
Use I or i to select SOUND.
Press u to highlight Bass, Treble or Balance and I or
i to change the setting.
a
In the SOUND menu press u to highlight Bass boost.
Use I or i to select On.
b
Then press u to highlight Bass boost level and using
I or i adjust to suit your preference.
Dual – analogue only
If a programme or film is being broadcast with a soundtrack in
more than one language, the DUAL feature allows selection
between them.
a
Press M and select the SOUND menu.
b
Use u to highlight Dual then press I or i to choose
between Dual 1 or Dual 2.
Sound Mute
Press
once to turn the sound off and again to cancel.
Bass, Treble and Balance
Watch TV
Bass boost
Bilingual… Bilingual transmissions are rare. If they are
transmitted the word Dual will display. Choose the required
programme number and if the word Dual appears press
s to select Dual 1, Dual 2 or Mono.
Sound controls
On
EXIT
Bass boost enhances the depth of the sound on the TV
speakers. The difference will only be noticeable on sound with
a strong bass.
If stereo or dual language broadcasts are transmitted the word
Stereo or Dual will appear on the screen each time programme
positions are changed, disappearing after a few seconds. If the
broadcast is not in stereo the word Mono will appear.
Stereo… Press s to select Stereo or Mono.
Back
Stable sound®
The Stable Sound feature limits high volume levels on the TV
speakers, preventing the extreme changes in volume that can
occur when channels are changed or a programme switches to
a commercial.
a
Select the SOUND menu.
b
Use u to highlight Stable sound then press I or i to
select On or Off.
18
00GB_AV505D_EngOM.book Page 19 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
Widescreen viewing
Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats.
Press
repeatedly to select between 4:3, Super Live 1, Cinema 1, Subtitle, 14:9, Wide, Super Live 2,
Cinema 2 and PC.
SUPER LIVE 1
This setting will enlarge a 4:3 image
to fit the screen by stretching the
image horizontally and vertically,
holding better proportions at the
centre of the image. Some distortion
may occur.
SUPER LIVE 2
If a ‘side panel format’ signal is
being received this setting will
enlarge the image to fit the screen by
stretching the image horizontally
and vertically, holding better
proportions at the centre of the
image. Some distortion may occur.
CINEMA 1
When watching ‘letterbox format’
films/video tapes, this setting will
eliminate or reduce the black bars at
the top and bottom of the screen by
zooming in and selecting the image
without distortion.
CINEMA 2
When watching ‘all sides panel
format’ films/video tapes, this setting
will eliminate or reduce the black
bars at all sides of the screen by
zooming in and selecting the image
without distortion.
SUBTITLE
When subtitles are included on a
letterbox format broadcast, this
setting will raise the picture to ensure
that all the text is displayed.
SUBTITLE
19
00GB_AV505D_EngOM.book Page 20 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
14:9
WIDE
Use this setting when watching a
14:9 broadcast.
Use this setting when watching a
widescreen DVD, widescreen video
tape or a 16:9 broadcast (when
available). Due to the range of
widescreen formats (16:9, 14:9,
20:9 etc.) black bars may be visible
on the top and bottom of the screen.
4:3
Use this setting to view a true 4:3
broadcast.
PC
When using a PC connected via HDMI
this setting will show the picture
without over scan, i.e. WYSIWYG.
This option is only available when
watching 1080i or 720p source via
HDMI.
Press
and a list of all the widescreen formats will appear on screen.
Use U and u to highlight the required format and Q to select.
PC
Wide
Super Live 2
Cinema 2
4:3
Super Live 1
Cinema 1
Subtitle
Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio)
for the purposes of public display or commercial gain may infringe on copyright laws.
20
14:9
00GB_AV505D_EngOM.book Page 21 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
Picture controls
Backlight
Most of the picture controls and functions are
available in both digital and analogue modes. To
access the required menus when in digital mode:
press M and using u select TV Setup, press Q
then I or i to select the desired menu.
PLEASE NOTE: features not available in digital
mode will be greyed out. To access the required
menus when in analogue mode: press M and use
I or i to select the desired menu.
Adjusting the Backlight can improve the clarity of the screen
when viewing.
a
Picture position – analogue only
In the SET UP menu press u until Picture position is
highlighted.
SET UP
Language
Picture settings
OK
3D Colour management
Off
Base colour adjustment
The picture position may be adjusted to suit personal preference
and can be particularly useful for external inputs.
a
In the PICTURE menu press u to select Picture
settings, then press Q.
1/2
Active Backlight Control
On
Cinema mode
On
MENU
Back
EXIT
Watch TV
b
In the Picture settings menu press u to select
Backlight.
c
Press I or i to adjust.
English
Picture settings
1/2
Country
UK
Auto tuning
OK
Backlight
100
Manual tuning
OK
Contrast
100
AV connection
OK
Brightness
50
Picture position
OK
Colour
50
Tint
0
MENU
Back
EXIT
Watch TV
0
Sharpness
b
Press Q to view the options available for the picture
format that has been selected.
c
Press U and u to select an option, then I or i to adjust
the settings.
The options alter depending on the widescreen format
chosen and when viewing connected equipment.
In Cinema 2:
Picture position
Horizontal position
0
Vertical position
0
Reset
MENU
OK
Back
EXIT
Watch TV
To return to the original factory settings select Reset in
the Picture position menu and press Q.
21
MENU
Back
EXIT
Watch TV
00GB_AV505D_EngOM.book Page 22 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
Picture preferences
MPEG NR – Noise Reduction
This television offers the choice of personalising the picture
style. Press
to view the different styles available:
When watching a DVD the compression may cause some words
or picture elements to become distorted or pixelated.
Using the MPEG NR feature reduces this effect by smoothing
out the edges.
Dynamic, Standard and Movie are preset options and effect
many features/settings within the television, User setting
stores your own settings as detailed below:
a
Picture settings
1/2
Backlight
100
Contrast
100
Brightness
50
Colour
50
Tint
0
Sharpness
MENU
b
a
Select Picture settings from the PICTURE menu.
DNR – Digital Noise Reduction
DNR enables you to ‘soften’ the screen representation of a
weak signal to reduce the noise effect.
0
Back
EXIT
Select MPEG NR from the Picture settings menu. Use
I or i to select a setting to suit your preference.
a
Select DNR from the Picture settings menu.
b
Use I or i to select between Auto., Low, Middle,
High and Off. The differences may not always be
noticeable (for the best result use lower settings as
picture quality can be lost if the setting is too high).
Watch TV
Use I or i to adjust the Contrast, Brightness, Colour,
Tint and Sharpness.
Colour temperature
Black stretch
Black Stretch increases the strength of dark areas of the
picture which improves the definition.
a
Colour Temperature increases the ‘warmth’ or ‘coolness’ of a
picture by increasing the red or blue tint.
a
In the Picture settings menu press u until Black
Stretch is highlighted.
Picture settings
In the Picture settings menu press u until Colour
Temperature is highlighted.
Picture settings
2/2
On
Black stretch
On
MPEG NR
Low
MPEG NR
Low
DNR
Low
DNR
Low
Colour Temperature
Cool
Colour Temperature
Cool
MENU
MENU
b
2/2
Black stretch
Back
EXIT
Watch TV
b
Press I or i to select between On and Off. The effect
depends on the broadcast and is most noticeable on
dark colours.
22
Back
EXIT
Watch TV
Press I or i to select between Natural, Warm and
Cool to suit your preference.
00GB_AV505D_EngOM.book Page 23 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
3D Colour management
Active Backlight Control
When 3D Colour management is selected it allows the ‘Base
colour adjustment’ feature to become available.
When Active Backlight Control is activated it will
automatically optimise the backlighting levels for dark scenes.
a
a
In the PICTURE menu press u to select Active
Backlight Control.
b
Press I or i to select On or Off.
In the PICTURE menu press u to select 3D Colour
management.
Cinema mode
Picture settings
3D Colour management
On
Base colour adjustment
OK
Active Backlight Control
On
Cinema mode
On
Back
MENU
b
OK
If there are lines or jagged edges in the film or programme
being viewed, selecting Cinema mode can help correct this by
smoothing out the picture.
Watch TV
EXIT
a
In the PICTURE menu press u to select Cinema
mode.
b
Press I or i to select On or Off.
Press I or i to select On or Off.
NOTE: When a DVD with subtitles is being played this
mode may not work correctly.
Base colour adjustment
Automatic format (Widescreen)
The Base colour adjustment feature allows the adjustment of
individual colours to suit personal preference. This can be useful
when using an external source.
a
In the PICTURE menu press u to select Base colour
adjustment, then press Q.
b
Press U or u to select an option, then i to adjust the
settings.
When this television receives a true Widescreen picture and
Auto format is On, it will automatically be displayed in
Widescreen format, irrespective of the television’s previous
setting.
a
Press M and I or i to select the FUNCTION menu.
Base colour adjustment
Hue
+2
Red
Saturation
+6
c
Teletext
Auto.
Green
0
0
0
Panel lock
Blue
0
0
0
Auto format
On
Yellow
0
0
0
4:3 stretch
Off
Magenta
0
0
0
Blue screen
On
Cyan
0
0
0
Side panel
Reset
MENU
FUNCTION
Brightness
+4
MENU
OK
Back
EXIT
Watch TV
b
Press I or i to select Hue, Saturation or Brightness,
then press U or u to adjust the settings as required.
Red
Hue
Saturation
Brightness
0
0
0
To return to the original factory settings select Reset
and press Q.
23
Back
Off
1
EXIT
Watch TV
Press u to highlight Auto format, then I or i to select
On or Off.
00GB_AV505D_EngOM.book Page 24 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
Panel lock
4:3 stretch
When 4:3 stretch is activated the size switching system changes
4:3 programs into a full screen picture.
Panel lock disables the buttons on the television. All buttons on
the remote control can still be used.
a
In the FUNCTION menu press u to highlight 4:3
stretch.
a
b
Press I or i to select On or Off.
From the FUNCTION menu select Panel lock and
choose On or Off using I or i.
Blue screen
FUNCTION
Teletext
When Blue screen is selected the screen will turn blue and the
sound will be muted when no signal is received.
a
b
In the FUNCTION menu press u to highlight Blue
screen.
On
Auto format
On
4:3 stretch
Off
Blue screen
On
1
Side panel
Press I or i to select On or Off.
MENU
Side panel adjustment
The Side panel feature lightens or darkens the band each side
of the screen when in 4:3 or 14:9 format. This helps prevent
image retention of the band and can also make viewing in
bright or dark conditions more comfortable.
a
In the FUNCTION menu press u until Side panel is
highlighted.
b
Press I or i to adjust.
Back
EXIT
Watch TV
When Panel lock is On, a reminder will appear when the
buttons on the television are pressed. If the standby button
is pressed the television will switch off and can only be
brought out of standby by using the remote control.
Picture still
This feature is used to hold a still image on the screen.
a
Auto.
Panel lock
Press r to hold an image on the screen, press r
again to cancel.
24
00GB_AV505D_EngOM.book Page 25 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
The timers
e
Programme timer – digital only
This feature will set the television to go to a specific channel at
a certain time. It can be used to view a particular programme,
or by setting the mode to daily or weekly, can be used to view a
series of programmes.
a
When all the details have been entered press Q to
save the timer.
PLEASE NOTE: When a timed programme is about to start, an
information screen will appear offering the option of watching
or cancelling the programme. The menus and other channels
will not be available during the timed programme unless the
programme timer is cancelled.
Sleep timer
Press M and I or i to select the TIMER MENU.
The television can be set to turn itself Off after a certain time.
a
Press M and I or i to select the TIMER menu.
TIMER MENU
Programme Timers
OK
TIMER
Sleep timer
MENU Back
01:30
EXIT Watch TV
b
Press u to select Programme Timers, then press Q
to select.
c
Press u to select the first programme to be timed, then
press Q. The SET TIMER menu will now appear on
screen.
d
Press U and u to go through the list adding the details
of the programme to be timed by using the number
buttons and I and i to make selections.
MENU
Date
Mon, 11 Dec 2006
Start Time
c
Press P to finish.
d
To cancel the Sleep timer, enter zero in above setting.
12.30
Repeat
ONCE
Subtitles
NONE
Audio Language
0 - 9 Enter Number
1
11/12
12:00
End Time
ENGLISH
Save Timer
Watch TV
Press u to select Sleep timer. Use the number buttons
to set the required time. For example, to switch the
television off in one and a half hours enter 01:30, or
press i/I to increase/decrease in steps of 10 minutes.
SET TIMER
Channel 4
EXIT
b
11:36 Mon, 11 Dec
Programme
Back
MENU Cancel
25
00GB_AV505D_EngOM.book Page 26 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
Digital on-screen
information and Programme
Guide
e
When viewing in digital mode, the on-screen
information and programme guide give access to
programme details for all available channels.
a
Guide
Information
a
ALL PROGS
BBC ONE
BBC TWO
ITV1
Channel 4
Five
ITV2
BBC THREE
BBC FOUR
ITV3
SKY THREE
UKTV History
More 4
11:36 Mon, 11 Dec
ALL PROGS
11:30 King of the Hill
12:00 News at Noon
… ENTERTAINMENT
24 minutes left
That’s What She Said: Hank in uncomfortable with his
new colleague’s innuendo, and Dale tries to give up
smoking. [S]
Showing also
Watch
Page Up
To see details of any of the other channels currently
available, press U and u to scroll up and down the
channel list. As the channel is selected details of the
programme currently being broadcast will appear.
c
Pressing the YELLOW button will activate Showing
also, giving details of programmes which have started
on other channels.
d
To record the following programme, with the
information guide showing, press i. The Tune option
in the bottom section of the screen will change to
Record, press Q. The SET TIMER screen will appear.
11:30
To Buy or Not
Schools:
My Life For Sale
12:30
Bargain Hunt
Schools: Tes Sch The Daily Po Working L
This Morning
ER
Trisha Godd
Vanessa’s
King of The H News at Noo Headland
Five News
Home and A Brainteas
The Montel Will
This is BBC THREE
This is BBC FOUR
Faith
Monday
12:00
Judge Jud Coronation S Emmerda
This is BBC THREE
This is BBC FOUR
Where the Heart is
Rumpole of th
Tunisia, Egypt Animal Airpo Pop Years 2
The Re-Inventors
Seven Wonders of the In
H Deal or No Deal
Countdown
War of
Press I or i for information of other programmes
scheduled for the channel selected.
c
For details of other channels currently available, press
U and u to scroll up and down the channel list. As the
channel is selected details of the programme currently
being broadcast will appear, then press I or i.
d
For information on a highlighted programme press
. To set the timer for that programme press the
BLUE button to bring up the Programme timers
menu.
NOTE: Recording can be set from both the
information screen and guide. In order for the
recording operation to work the media recorder must
be AV link compatible.
11:36 Mon, 11 Dec
Channel 4
12:00-12:30
Mon, 11 Dec
e
SET TIMER
Start Time
12:00
End Time
12:30
Repeat
ONCE
Subtitles
NONE
Audio Language
0 - 9 Enter Number
ENGLISH
Save Timer
More info EXIT Watch TV TV/FAV Change progs
Page Down
Timers
b
News at Noon
004
11:36 Mon, 11 Dec
11:00
ITV Playalong: Izi starting in 4 minutes on ITV Play…
Tune EXIT Watch TV
TV/FAV Change progs
Page Down
Showing Also
Languages
Page Up
b
Select the on-screen guide by pressing GUIDE, the
guide screen will appear highlighting details of the
channel and programme currently being viewed. This
may take a few moments to appear.
To Buy or Not to Buy
Select information by pressing
, the information
screen will appear giving details of the channel and
programme currently being viewed.
Channel 4
Five
ITV2
BBC THREE
BBC FOUR
The details of the programme will have been added to
the screen. Press Q to save.
MENU Cancel
26
Press z to move the Guide forward by 24 hours,
press Z to go back. Pressing ccor CC will move the
Guide forwards or backwards a page at a time.
00GB_AV505D_EngOM.book Page 27 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
Digital settings – parental
control
Mode
This feature locks various menus to prevent the television being
retuned or the settings being overridden.
In order to prevent viewing of unsuitable films and
programmes, channels and menus can be locked.
These can then only be accessed with a security
code PIN when in digital mode.
a
In the PARENTAL CONTROL menu press u to select
Mode.
PARENTAL CONTROL
Mode
Setting the PIN
ON
Change Pin
a
Press M and i to select the FEATURE MENU.
MENU Back
b
FEATURE MENU
Parental Control
OK
Favourites
ALL PROGS
Common Interface Slot
NO MODULE
OK
Software Upgrade
MENU Back
EXIT Watch TV
b
Use u to select Parental Control then press Q.
c
Press u to highlight Change Pin then press Q.
PARENTAL CONTROL
Mode
ON
Change PIN
OK
MENU Back
d
EXIT Watch TV
Using the number buttons enter a four digit number,
when these have been entered the screen will ask you
to confirm them by entering them again.
DEFINE PIN NUMBER
New PIN
– – – –
Confirm PIN
0 - 9 Enter PIN
EXIT Watch TV
Use I or i to choose between ON, LOCK MENU,
LOCK INSTALL and OFF.
When menus that have been locked are now selected
they will only become available when the PIN is
entered.
OK
Favourite and Locked Programmes
OK
EXIT Exit
The PIN number is now set. To activate put the
television into standby.
27
00GB_AV505D_EngOM.book Page 28 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
Digital settings – other
features
Locking programmes
Locked Programmes stops the viewing of digital channels,
they can only be accessed by entering the PIN.
Selecting favourite programmes
a
From the FEATURE MENU press u to select Favourite
and Locked Programmes.
Favourite Programmes creates a list of the digital channels
that are watched most. Four lists can be created, these can be a
mixture of television, text and radio channels.
b
Press i repeatedly to select the Locked Programme
list.
c
Use U and u to go through the list of channels
pressing Q to select the ones required, a padlock will
appear in the box.
a
From the FEATURE MENU press u to select Favourite
and Locked Programmes.
FAVOURITE AND LOCKED PROGRAMMES
Prog.
Type Name
-3
-4
FAVOURITE AND LOCKED PROGRAMMES
BBC ONE
2
BBC TWO
3
ITV1
1
BBC ONE
4
Channel 4
2
BBC TWO
5
Five
3
ITV1
6
ITV2
4
Channel 4
5
Five
6
ITV2
Select
MENU Back
Page Up
Page Down
b
Fav-1 -2
1
Prog.
Select all
Select
MENU Back
Page Up
Page Down
c
Press i to select List 2. Follow the same procedure to
make the selection. When all favourites have been
selected press M to return to the FEATURE MENU.
d
Use u to highlight Favourites and I or i to select
between ALL, TV, RADIO, FAV-1 and FAV-2. The
number of favourites available depends on how many
lists have been created.
FEATURE MENU
Parental Control
OK
Favourite and Locked Programmes
Software Upgrade
MENU Back
e
-3
-4
Lock all
Unlock all
d
Press P and put the television into standby.
e
When the television is switched back on and any of the
channels in the Locked Programme list are selected
the PIN must be entered before they can be accessed.
Encrypted programmes
Selecting Encrypted Programmes allows all encrypted
programmes to be shown in the programme list even if they are
not available to select.
a
In the FEATURE MENU press U or u to select
Encrypted Programmes.
b
Use I or i to select ON or OFF.
NOTE: CAMs (Conditional Access Modules) are
available from service providers (see 'Common
Interface' section)
OK
FAV-1
Common Interface Slot
Fav-1 -2
Deselect all
Use U and u to go through the list of channels
pressing Q to select the ones required, a tick will
appear in the box.
Favourites
Type Name
NO MODULE
OK
EXIT Watch TV
Press P.
Using the B P b buttons will now only access those
channels in Favourite List 1 when FAV-1 is selected.
28
00GB_AV505D_EngOM.book Page 29 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
Audio languages
Common interface
This feature allows a programme or film to be viewed with a
choice of soundtrack language, provided they are currently
being broadcast.
The Common Interface Slot, situated on the back of the
television, enables the insertion of a CAM (Conditional Access
Module) and card. These are purchased from a service provider
and allow additional subscription broadcasts to be viewed. For
information see a service provider.
a
In the SETUP MENU press u to select Local Options.
b
Press Q, then press U and u to highlight Audio
Language.
a
Insert the CAM and card into the Common Interface
Slot, following the instructions provided with the CAM.
A box will appear on screen to confirm that the CAM is
loaded.
b
In the FEATURE MENU press U or u to select
Common Interface Slot.
c
Details of the CAM should now be available. Use Q
to select it.
LOCAL OPTIONS
Country
UK
Local Options
ENGLISH
Audio Language
ENGLISH
Subtitles
OFF
Local Time Settings
MENU Back
c
11:19
EXIT Watch TV
Use I or i to select an option.
NOTE: If more than one soundtrack is available, use
s to select between them.
Subtitles
This feature will show subtitles on the bottom of the screen in the
selected language provided they are being broadcast.
a
In the LOCAL OPTIONS menu press u to select
Subtitles.
b
Use I or i to select an option.
Reset TV
Selecting Reset TV will delete all stored digital channels and
settings. The television will return to factory settings and then
auto tune.
a
In the SETUP MENU press u until Reset TV is
highlighted.
b
Press Q to select. A screen will appear warning that
all digital settings will be lost, press Q to continue.
The Welcome screen will appear, press Q to
continue, the television will then auto tune.
29
00GB_AV505D_EngOM.book Page 30 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
Digital settings – software
upgrade
Searching for new software
If preferred, software upgrades can be searched for manually
using Search for New Software.
a
Version
In the SOFTWARE UPGRADE menu press U or u to
select Search for New Software.
This feature can be used to check the version of software
currently installed.
a
SOFTWARE UPGRADE
From the FEATURE MENU press U or u to select
Software upgrade. Press Q.
Version
0.5
Auto upgrade
OFF
Search for New Software
MENU Back
FEATURE MENU
Favourite and Locked Programmes
OK
Favourites
ALL PROGS
Common Interface Slot
NO MODULE
Software Upgrade
Encrypted Programmes
MENU Back
b
OK
OK
EXIT Watch TV
Press Q. The television will automatically start
searching for a software upgrade, the progress bar will
move along the line.
SEARCHING FOR NEW SOFTWARE
OFF
Searching for a new software upgrade for
this TV.
EXIT Watch TV
Searching
b
Press U or u to select Version. Use I or i to select.
When the software has been updated there will be a
choice of two versions available.
EXIT Stop
If an upgrade is found the television will automatically
start downloading, if not a screen will appear stating
that an upgrade is unavailable.
SOFTWARE UPGRADE
Version
0.5
Auto upgrade
ON
Search for New Software
MENU Back
NO UPGRADE AVAILABLE
! There is no upgrade available at
this time.
OK
EXIT Watch TV
Continue
Auto Upgrade
If Auto upgrade is selected the software will automatically
update as each version becomes available, provided the
television is on or in standby. If the television is on, a screen
prompt will appear showing the software download taking
place.
a
In the SOFTWARE UPGRADE menu press U or u to
select Auto upgrade.
b
Use I or i to select ON or OFF.
30
00GB_AV505D_EngOM.book Page 31 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
Input selection and AV
connections
INPUT signal selection
This specifies the type of signal going into SCART 2 (EXT2) on
the back of the television. Please refer to the manufacturers
instructions for the connected equipment.
Defining the INPUT and OUTPUT sockets so that
the television recognises connected equipment.
See page 7 for a clear view of the back connection
recommendations.
a
In the SET UP menu press u until AV connection is
highlighted, then press Q.
Most media recorders and decoders send a signal through the
SCART lead to switch the television to the correct Input socket.
Alternatively press the external source selection button o
until the picture from connected equipment is shown.
SET UP
Language
This button must be used to view equipment connected using
the COMPONENT VIDEO INPUT (EXT3) and the VIDEO INPUT
(EXT4).
An S in the display e.g.o2S (EXT 2S), indicates the input is set
for an S-Video signal.
Country
UK
Auto tuning
OK
Manual tuning
OK
AV connection
OK
Picture position
MENU
Input selection
b
Use the Input Selection if the television does not switch over
automatically.
a
At any time by pressing o a list will appear on screen
showing all stored programmes and external
equipment. Use U and u to highlight and Q to
select.
Back
OK
EXIT
Watch TV
With I or i select either AV or S-VIDEO as the
required input for EXT2.
AV connection
HDMI1 audio
Digital
Lip Sync
EXT2 input
DTV
1
2S
3
4
HDMI1
HDMI2
ATV
1/2
English
MENU
Back
AV
EXIT
Watch TV
If the colour is missing try the alternative setting.
HDMI™ displays equipment connected to Input HDMI
on the back of the television. It is designed for best
performance with 1080i high definition signals.
31
00GB_AV505D_EngOM.book Page 32 Wednesday, November 28, 2007 2:36 PM
CONTROLS AND FEATURES
HDMI1 audio
Lip Sync Latency
If the connected HDMI source does not support digital audio,
plug the audio cable into HDMI1 (AUDIO) on the back of the
television (as shown in the ‘Connecting an HDMI™ or DVI device
to the HDMI input’ section), then use the HDMI1 audio
settings.
Lip Sync can synchronize the sound and picture. This feature is
only available when equipment compatible with Lip Sync is
connected via HDMI.
a
In the SET UP menu press u until AV connection is
highlighted, then press Q.
SET UP
Language
UK
OK
Manual tuning
OK
AV connection
OK
Picture position
b
b
Using I or i select On or Off.
1/2
Auto tuning
Back
In the AV connection menu press u to highlight Lip
Sync.
English
Country
MENU
a
OK
EXIT
Watch TV
In the AV connection menu press u to highlight
HDMI1 audio and using I or i select Auto, Digital or
Analogue.
AV connection
HDMI1 audio
Digital
Lip Sync
On
EXT2 input
AV
MENU
Back
EXIT
Watch TV
If the sound is missing select an alternative setting.
NOTE: HDMI1 supports digital and analogue sound,
HDMI2 is digital sound only.
Certain formats of DVD disk may not output from this
TV (32/44.1/48kHz and 16/20/24 bits are
acceptable).
HDMI, the HDMI logo, and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing,
LLC.
32
00GB_AV505D_EngOM.book Page 33 Wednesday, November 28, 2007 2:36 PM
TEXT SERVICES
Analogue text services
Navigating pages using Auto.
This television has a multi-page text memory, which
takes a few moments to load. It offers two Modes
of viewing text – Auto. will display Fastext, if
available. LIST will store your four favourite pages.
If Fastext is available four coloured titles will appear at the
base of the screen.
To access one of the four given subjects, press the relevant
coloured button on the remote control.
For further information on your particular text system(s), see
the broadcast text index page or, consult your local Toshiba
dealer.
Selecting modes
The text character set will be automatically chosen by the
language setting in the SET UP menu.
a
Select Teletext from the FUNCTION menu.
b
With I or i choose Auto. or LIST then press P.
Navigating pages using LIST
The four coloured choices at the bottom of the screen are
numbers – 100, 200, 300 and 400, which have been
programmed into the television’s memory. To view these
pages press the relevant coloured buttons.
To change these stored pages press the relevant coloured
button and enter the 3 digit number. This number will change
in the top left of the screen and in the coloured highlight.
FUNCTION
Teletext
Panel lock
Off
Auto format
On
4:3 stretch
Off
Blue screen
On
Back
If Q is not pressed the selection will be forgotten when text is
cancelled.
Other pages may be viewed by entering the 3 digit page
number – but DO NOT press Q or these pages will be stored.
1
Side panel
MENU
Press Q to store. The bars at the bottom of the screen will
flash white. Whenever Q is pressed all four page
numbers showing at the bottom will be stored and the
previous ones will be lost.
Auto.
EXIT
Watch TV
Text information
The
button:
To view text services press
. Press again to
superimpose the text over a normal broadcast picture and
again to return to normal viewing. Programmes cannot be
changed until text is cancelled.
The first text page shown will be the initial page.
Any text page can be accessed by entering the 3 digit page
number using the numbered buttons, pressing the coloured
buttons or pressing > to advance to the next page and < to
go back to the previous page.
NOTE: While viewing text services, the on-screen menu will
not appear when you press M.
Sub-pages
If there are sub-pages they will automatically load into
memory without changing the page on screen.
To access the sub-pages press l then use > and < to view
them. A bar with numbers will appear on the side of the
screen.
The sub-page you are viewing will be highlighted and, as the
television loads any additional sub-pages the colour of the
numbers will change, indicating that these pages have been
loaded.
These sub-pages will remain available to view until another
page is chosen or, in normal TV mode, the channel is changed.
33
00GB_AV505D_EngOM.book Page 34 Wednesday, November 28, 2007 2:36 PM
TEXT SERVICES
Digital interactive services
Control buttons
Below is a guide to the functions of the remote control text
buttons.
k To display the index/initial page:
Press k to access the index/initial page. The one displayed is
dependant on the broadcaster.
To display a page of text:
Press
to display text. Press again to superimpose
text over a normal picture. Press again to return to normal
television viewing. Programmes cannot be changed until this
has been done.
l To access sub-pages:
For use with U and u to view sub-pages when available.
The digital interactive services are the up-to-date
way of viewing service information, using
computer-style formats, incorporating pictures and
interactive views.
They offer high quality on-screen images with multicolour
photographic still images, advanced text and graphics and are
user-friendly. These services are free to anyone with a digital
television, however, they are not available for all digital
stations and are dependant on the broadcaster.
a
Ensure that digital mode has been selected. Press
, it may take a few moments to load.
b
To navigate the pages and use the pull-down menus,
use the coloured buttons and U, u, I and i as
directed.
c
Press
A To reveal concealed text:
To discover the solutions on quiz and joke pages press the A
button.
B To hold a wanted page:
At times it is convenient to hold a page of text. Press B and
B will appear in the top left of the screen. The page will be
held on screen until the button is pressed again.
C To enlarge the text display size:
Press C once to enlarge the top half of the page, press again
to enlarge the bottom half of the page. Press again to revert to
normal size.
D To select a page whilst viewing a normal
picture:
Enter the page number then press D , a normal picture
will be displayed. The television will indicate when the page is
present by displaying the page number at the top of the
screen. Press
to view the page.
To display news flashes:
Select the news flash page for the chosen text service (see the
index page of text service). Press D . The news flashes
will be displayed as and when they are broadcast. Press
D again to cancel the display.
The news flash page must be cancelled before changing
programmes.
Remember to cancel text before
changing channels - press the
button twice.
34
again at any time to cancel.
00GB_AV505D_EngOM.book Page 35 Wednesday, November 28, 2007 2:36 PM
PROBLEM SOLVING
Questions and Answers
Q
A
Q
A
Why is the VCR/DVD picture in black and white?
a
Select the Manual tuning menu. Highlight the station
and press Q, then press i to select Manual fine
tuning.
b
Using U or u adjust to get the best picture and sound.
Press Q and then P.
Below are the answers to some of the most
common queries.
For more information go to www.toshiba.co.uk
Q
A
Q
A
Why is there no sound or picture?
Check the television is not in standby mode. Check the
mains plug and all mains connections.
There is a picture, but why is there little or no
colour?
When using an external source, for instance, a poor
quality video tape, if there is little or no colour,
improvements may sometimes be achieved. The
colour is factory set to Auto to automatically display
the best colour system.
Check the correct input has been chosen, S-VIDEO or
AV. See AV connections page 31.
What else can cause a poor analogue picture?
Interference or a weak signal. Try a different television
station. Manual fine tuning may help.
Manual tuning
Manual fine tuning
To check that you have the best colour:
1
a
With the external source playing, select Manual
setting from the SET UP menu.
Q
A
Q
A
Q
A
Manual setting
Colour system: Auto
EXT2
Store
MENU Back
A
V C R
OK
EXIT
Watch TV
b
With U or u choose between Auto, PAL, SECAM,
NTSC 4.43 or 3.58.
Q
A
Why doesn’t the video/DVD being played show on
screen?
Q
A
Q
A
I
Store
MENU Back
A
C 22
+2
B B C 1
OK
Make sure the VCR or DVD player is connected to the
television as shown on page 7, then select the correct
input by pressing o.
Why is there a good video picture but no sound?
Check all lead connections.
Why is there a picture but no sound?
Check the volume has not been turned down or that
sound mute has not been selected.
35
EXIT
Watch TV
Why don’t the controls on the front of the television
work?
Check that Panel lock is not ON.
Why doesn’t the remote control work?
Check the batteries aren’t dead or inserted incorrectly.
Why is there a message permanently on the screen?
Remove it by pressing
.
00GB_AV505D_EngOM.book Page 36 Wednesday, November 28, 2007 2:36 PM
PROBLEM SOLVING
Q
A
Q
A
Q
A
Q
A
Q
A
Q
A
Q
A
Q
A
Q
A
Q
A
Why is the DTV main menu unavailable?
Another mode is selected. Press o to select DTV.
Why are some of the menus locked?
Q
A
Lock Menu has been enabled (see 'Parental Controls'
page).
Why is the digital channel locked?
The channel has been selected in Locked
Programmes (see 'Digital Settings' section).
Why can only certain digital channels be viewed?
A Favourite list has been selected (see 'Favourite
Programmes' section), set the feature to ALL PROGS
or change channels by using the number buttons.
Why are some of the digital subscription channels
unavailable?
Your subscription needs upgrading. Contact your
service provider.
Why is the soundtrack in English when a different
audio language has been selected?
The programme is currently being broadcast with an
English soundtrack only.
Why is there incorrect or no sound when in DTV
mode?
Press s to check if the hard of hearing option has
been selected.
What can be done if the PIN number has been
forgotten?
Use the Master PIN code of 1276, then change to a
number of your choice. Ensure that no-one else can
use the Master PIN by removing the Owner’s Manual.
Why when digital subtitles have been selected are
they not showing on screen?
Subtitles are not currently being transmitted by the
broadcaster.
36
Why is there no digital text service?
The digital programme being viewed is not
broadcasting digital text. Try another digital
programme.
Why are there problems with analogue text?
Good performance of text depends on a good strong
broadcast signal. This normally requires a roof or loft
aerial. If the text is unreadable or garbled, check the
aerial. Go to the main index page of the text service
and look for the User Guide. This will explain the basic
operation of text in some detail. If further information
is needed on how to use text see the text section.
Q
A
Why are there no analogue text sub-pages?
Q
A
Why are the four coloured text numbers visible but
no text?
There are none broadcast or they have not yet loaded.
Press the l button to access.
(See text section).
Text has been selected whilst viewing an external
source i.e. DVD or VCR. No text will appear on screen
or a box may appear stating no information is
available. Select a broadcasting channel and press
to access.
00GB_AV505D_EngOM.book Page 37 Wednesday, November 28, 2007 2:36 PM
PROBLEM SOLVING
Q
A
Why does the GREEN Active Standby LED
sometimes take longer to go out?
Q
A
Why are the colours wrong when an NTSC source is
played?
When put into standby the television’s active standby
will automatically search all available channels for
downloads, provided Auto upgrade is On. The time
it takes to do this may vary.
Connect the source via a SCART lead and play.
Select Manual setting from the SET UP menu.
Manual setting
Colour system: Auto
EXT2
OK
Store
Back
MENU
A
V C R
EXIT
Watch TV
a
Set the Colour to Auto and exit.
b
Go to the Picture settings menu and adjust the tint.
Q
A
Why don't the devices connected via HDMI operate
properly?
Make sure to use cables with the HDMI logo
(see page 8).
Some early HDMI equipment may not work properly
with the latest HDMI TV products, due to new standard
adoption. Try Lip Sync setting to Off.
37
00GB_AV505D_EngOM.book Page 38 Wednesday, November 28, 2007 2:36 PM
INFORMATION
Notes
For your own records
Cleaning the screen and cabinet…
Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary
polishes or solvents on the screen or cabinet as this may cause damage.
Disposal…
The following information is only for EU-member states:
The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.
38
00GB_AV505D_EngOM.book Page 39 Wednesday, November 28, 2007 2:36 PM
INFORMATION
For your own records
39
00GB_AV505D_EngOM.book Page 40 Wednesday, November 28, 2007 2:36 PM
INFORMATION
Specifications and
accessories
DVB-T Broadcast systems/channels
UK
UHF 21-68
Stereo
Broadcast systems/channels
PAL-I
UHF UK21-UK69
France
VHF 05-10 (VHF 01-05) PAL-B/G
UHF 21-69
UHF E21-E69
VHF E2-E12, S1-S41
Germany
VHF 05-12
UHF 21-69
SECAM-L
UHF F21-F69
VHF F1-F10, B-Q
Austria
VHF 05-12
UHF 21-69
SECAM-D/K UHF R21-R69
VHF R1-R12
Switzerland VHF 05-12
UHF 21-69
Italy
VHF 05-12 (D,E,F,G,H,H1,H2)
UHF 21-69
Spain
UHF 21-69
Nederlands VHF 05-12
UHF 21-69
Sweden
VHF 05-12
UHF 21-69
Finland
VHF 05-12
UHF 21-69
Greece
VHF 05-12
UHF 21-69
Nicam
2 carrier system
Visible Screen Size Model 32
(approx.)
37
42
80cm
94cm
107cm
Display
16:9
Sound output
(at 10% distortion)
Main 10W + 10W
Power consumption Model 32
as specified in
37
EN60107-1 : 1997
42
137W
169W
217W
Standby (approx.)
Model 32
37
42
0.9W
0.9W
0.9W
Dimensions
(approx.)
Model 32 55cm (H) 80cm (W) 22cm (D)
37 62cm (H) 91cm (W) 25cm (D)
42 68cm (H) 101cm (W) 26cm (D)
(Height dimension includes foot stand)
Weight (approx.)
Model 32
37
42
14.3kg
17.5kg
22.0kg
Headphone socket
3.5mm stereo
Accessories
Remote control
2 batteries
(AAA, IEC R03 1.5V)
Video Input PAL, SECAM, NTSC 3.58/4.43
External connections
EXT1
Input/Output 21-pin SCART
RGB, A/V
EXT2
Input/Output 21-pin SCART
A/V, S-video
EXT3
Input
Phono jacks
Phono jacks
Y, PB/CB, PR/CR
Audio L + R
EXT4
Input
Phono jack
Phono jacks
Video
Audio L + R
HDMI 1/2
Input
HDMI™ (Audio LIP SYNC supported)
HDMI1 Audio
Phono jacks
Audio L + R
DVB is a registered trademark of the DVB Project
Printed on recycled paper. 100% Chlorine free.
?
© Toshiba Information Systems (U.K.) Limited
All rights reserved.
Reproduction in whole or part without written permission is strictly prohibited.
For television
operation queries
,
please ring the
helpline…
Toshiba Information Systems (U.K.) Limited
Consumer Products Division,
European Service Centre,
Admiralty Way, Camberley,
Surrey, GU15 3DT, UK
Specification is subject to change without notice.
40
00GB_AV505D_EngOM.book Page 41 Wednesday, November 28, 2007 2:36 PM
License Information
used with
Toshiba Televisions
00GB_AV505D_EngOM.book Page 42 Wednesday, November 28, 2007 2:36 PM
Information
The software pre-installed in TOSHIBA Digital Televisions consists of multiple, independent software
components. Each software component is copyrighted by TOSHIBA or a third party.
The TOSHIBA Digital Television uses software components that are distributed as freeware under a
third-party end-user license agreement or copyright notice (hereinafter referred to as a “EULA”). Some
EULAs require that the source code of the applicable component be disclosed as the condition for distributing
the software component in executable format.
You can check the software components subject to such EULA requirements on the following Home
Page:
URL: http://tesc.toshiba.co.uk/Web/Website.nsf/ContentFrameSet?OpenFrameset
In addition, some of the software components which are used in TOSHIBA Digital Televisions include the
software that are made or developed originally by Toshiba. These software and accompanied documents are
copyrighted by TOSHIBA, and protected by Copyright Act, an international treaty’s articles and other
governing laws.
The software components which are made or developed originally by TOSHIBA and not subject to EULAs
are not a target of source code offering.
TOSHIBA provides a warranty for the TOSHIBA Digital Television you have purchased under conditions
set forth by TOSHIBA.However, some of the software components distributed under an EULA are made
available for use by the user on the assumption that they are not copyrighted or warranted by TOSHIBA or
any third party. These software components are licensed to the user free of charge and therefore are not
covered by a warranty within the scope of the applicable laws. These software components are not subject
to any copyrights or other third-party rights and are provided in “as is” condition without any warranty,
whether express or implied. “Warranty” here includes, but not limited to, an implied warranty for
marketability or fitness for specific uses. All risks associated with the quality or performance of these software
components are assumed by the user. TOSHIBA shall not be liable whatsoever for any cost of repair or
correction or other incidental expense incurred in connection with a defect found in any of these software
components. Unless specified under the applicable laws or in a written agreement, a party who changes or
redistributes the software with consent from the copyright holders or based on the aforementioned licenses
shall not be held liable whatsoever for any loss arising from the use of or inability to use such software. The
same applies even when the copyright holders or relevant third parties have been informed of the possibility
of such loss. “Loss” here includes normal, special, incidental and indirect loss (including, but not limited to,
the loss of data or its accuracy; loss incurred by the user or any third party; and interface incompatibility with
other software). Please read each EULA for details on the use conditions and items that must be observed
regarding these software components.
The table below lists the software components pre-installed in TOSHIBA Digital Televisions, which are
subject to EULAs. The user should read the applicable EULAs carefully before using these software
components. The EULAs are exhibited in their original text (English) as exactly written by the respective
parties other than TOSHIBA.
Pre-Installed Software
EULA
Linux Kernel
Busybox
Exhibit A
uClibc
Exhibit B
ZBOOT
Exhibit C
00GB_AV505D_EngOM.book Page 43 Wednesday, November 28, 2007 2:36 PM
Exhibit A
GNU GENERAL PUBLIC LICENSE Version 2, June 1991
Copyright © 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not
allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast,
the GNU General Public License is intended to guarantee your freedom to share and change free software
– to make sure the software is free for all its users. This General Public License applies to most of the Free
Software Foundation’s software and to any other program whose authors commit to using it. (Some other
Free Software Foundation software is covered by the GNU Library General Public License instead.) You can
apply it your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses
are designed to make sure that you have the freedom to distribute copies of the free software (and charge
for this service if you wish), that you receive source code or can get it if you want it, that you can change the
software or use pieces of it in new free programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask
you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute
copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the
recipients all the rights you have. You must make sure that they too, receive or can get the source code. Also
you must show them these terms so they know their rights.
We protect your right with two steps: (1) copyright the software, and (2) offer you this license which gives
you legal permission to copy, distribute and/or modify the software.
Also, for each author’s protection and ours, we want to make certain that everyone understands that
there is no warranty for this free software. If the software is modified by someone else and passed on, we
want its recipients to know that what they have is not the original, so that any problems introduced by others
will not reflect on the original authors’ reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that
redistributors of a free program will individually obtain patent license, in effect making the program
proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use
or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING,
DISTRIBUTION AND MODIFICATION
0. This license applies to any program or other work which contains a notice placed by the copyright holder
saying it may be distributed under the terms of this General Public License. The “Program”, below, refers
to any such program or work, and a “work based on the Program” means either the program or any
derivative work under copyright law: that is to say, a work containing the Program or a portion of it,
either verbatim or with modifications and/or translated into another language. (Hereinafter, translation
is included without limitation in the terms “modification”.) Each licensee is addressed as “you”.
00GB_AV505D_EngOM.book Page 44 Wednesday, November 28, 2007 2:36 PM
Activities other than copying, distribution and modification are not covered by this License; they are
outside its scope. The act of running the program is not restricted, and the output from the Program is
covered only if its contents constitute a work based on the Program (independent of having been made
by running the program). Whether that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any
medium, provided that you conspicuously and appropriately publish on each copy an appropriate
copyright notice and disclaimer of warranty; keep intact all notices that refer to this License and to the
absence of any warranty; and give any other recipients of the Program a copy of this License along with
the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer
warranty protection in exchange for a fee.
2. You may modify your copy or copies of the program or any portion of it, thus forming a work based on
the program, and copy and distribute such modifications or work under the terms of Section 1 above,
provided that you also meet all of these condition:
a) You must cause the modified files to carry prominent notices stating that you changed the files
and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is
derived from the Program, or any part there of, to be licensed as a whole at no charge to all third
parties under the terms of the this License.
c) If the modified Program normally reads commands interactively when run, you must cause it,
when started running for such interactive use in the most ordinary way, to print or display an
announcement including an appropriate copyright notice and a notice that there is no warranty
(or else, saying that you provide a warranty) and that users may redistribute the program under
these conditions, and telling the user how to view a copy of this License. (Exception: if the program
itself is interactive but does not normally print such an announcement, your work based on the
program is not required to print such an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not
derived from the program, and can be reasonably considered independent and separate works in
themselves, then this License, and its terms, do not apply to those sections when you distribute them as
separate works. But when you distribute the same sections as part of a whole which is a work based on
the Program, the distribution of the whole must be on terms of this License, whose permissions for other
licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by
you; rather, the intent is to exercise the right to control the distribution of derivative and collective works
based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a
work based on the Program) on a volume of a storage or distribution medium does not bring the other
work under the scope of this License.
3. You may copy and distribute the program (or a work based on it, under Section 2) in object code or
executable form under the terms of Sections 1 and 2 above provided that you also do one of the
following:
a) Accompany it with the complete corresponding machine-readable source code, which must be
distributed under the terms of Sections 1 and 2 above on a medium customarily used for software
interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge
no more than your cost of physically performing source distribution, a complete
machine-readable copy of the corresponding source code, to be distributed under the terms of
Sections 1 and 2 above on a medium customarily used for software interchange; or,
00GB_AV505D_EngOM.book Page 45 Wednesday, November 28, 2007 2:36 PM
c)
Accompany it with the information you received as to the offer to distribute corresponding source
code. (This alternative is allowed only for noncommercial distribution and only if you received the
program in object code or executable form with such an offer, in accord with subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an
executable work, complete source code means all the source code for all modules it contains, plus any
associated interface definition files, plus the scripts used to control compilation and installation of the
executable. However, as a special exception, the source code distributes need not include anything that
is normally distributed (in either source or binary form) with the major components (compiler, kernel,
and so on) of the operating system on which the executable runs, unless that component itself
accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place,
then offering equivalent access to copy the source code from the same place counts as distribution of
the source code, even though third parties are not compelled to copy the source along with the object
code.
4. You many not copy, modify, sublicense, or distribute the program except as expressly provided under
this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will
automatically terminate your rights under this License. However, parties who have received copies, or
rights, from you under this License will not have their licenses terminated so long as such parties remain
in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants
you permission to modify or distribute the Program or its derivative works. These actions are prohibited
by law if you do not accept this License. Therefore, by modifying and distributing the Program (or any
works based on the Program), you indicate your acceptance of this License to do so, and all its terms and
conditions for copying, distributing or modifying the Program or works based on it.
6. Each time you redistribute the Program (or any works based on the Program), the recipient automatically
receives a License from the original licensor to copy, distribute or modify the Program subject to these
terms and conditions. You may not impose any further restrictions on the recipient’s exercise of the rights
granted herein. You are not responsible for enforcing compliance by third parties to this License.
7. If as a consequence of a court judgement or allegation of patent infringement or for any other reason
(not limited to patent issues), conditions are imposed on you (whether by court order, agreement or
otherwise) that contradicts the conditions of the License, they do not excuse you from the conditions of
this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License
and any other pertinent obligations, then as a consequence you may not distribute the Program at all.
For example, if a patent license would not permit royalty-free redistribution of the Program by all those
who receive copies directly or indirectly through you, then the only way you could satisfy both it and this
License would be to refrain entirely from distribution of the Program. If any portion of this section is held
invalid or unenforcable under any particular circumstances, the balance of the section is intended to
apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this
section to induce you to infringe any patent to other property right claims or to contest validity of any
such claims; this section has the sole purpose of protecting the integrity of the free software distribution
system, which is implemented by public license practices. Many people have made generous
contributions to the wide range of software distributed through that system in reliance upon consistent
application of that system; it is up to the author/donor to decide if he or she is willing to distribute
software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this
License.
00GB_AV505D_EngOM.book Page 46 Wednesday, November 28, 2007 2:36 PM
8. If the distribution and/or use of the program is restricted in certain countries either by patents or by
copyrighted interfaces, the original copyright holder who places the Program under this License may add
an explicit geographical distribution limitation excluding those countries, so that distribution is permitted
only in or among countries not thus excluded. In such case, this License incorporates the limitation as if
written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the general Public License
from time to time. Such new versions will be similar in spirit to the present version, but may differ in
detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this
License which applies to it and “any later version”, you have the option of following the terms and
conditions either of that version or of any later version published by the Free Software Foundation. If the
Program does not specify a version number of this License, you may choose any version ever published
by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions
are different, write to the author to ask for permission. For software which is copyrighted by the Free
Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this.
Our decision will be guided by the two goals of preserving the free status of all derivatives of our free
software and of promoting the sharing and use of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE
PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN
WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS”
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE
ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU, SHOULD THE
PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR
CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY
COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE
PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO
USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED
INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO
OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
00GB_AV505D_EngOM.book Page 47 Wednesday, November 28, 2007 2:36 PM
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it be of the greatest possible use to the public, the best way to
achieve this is to make it free software which everyone can redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start of each source
file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright”
line and a pointer to where the full notice is found.
<One line to give the program’s name and a brief idea of what it does.>
Copyright © 19yy <name of author>
This program is free software; you can redistribute it and/or modify is under the terms of the GNU
General Public License as published by the Free Software Foundation; either version 2 of the
License, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY;
without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this program; if
not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA
02111-1307 USA.
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, make it output a short notice like this when it starts in an interactive mode.
Gnomovision version 69, Copyright © 19yy name of author Gnomovision comes with
ABSOLUTELY NO WARRANTY; for details type "show w". This is free software, and you are
welcome to redistribute it under certain conditions; type "show c" for details.
The hypothetical commands "show w" and "show c" should show the appropriate parts of the General Public
License. Of course, the commands you use may be called something other than "show w" and "show c"; they
could even be mouse-clicks or menu items – whatever suits your program.
You should also get your employer (if you works as a programmer) or your school, if any, to sign a "copyright
disclaimer" for the program; if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the 'Gnomovision' (which makes passes
at compilers) written by James Hacker.
<signature of Ty Coon>, 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit incorporating your program into proprietary programs. If your
program is a subroutine library, you may consider it more useful to permit linking proprietary applications
with the library. If this is what you want to do, use the GNU Library General Public License instead of this
License.
00GB_AV505D_EngOM.book Page 48 Wednesday, November 28, 2007 2:36 PM
Exhibit B
GNU LESSER GENERAL PUBLIC LICENSE Version 2.1, February 1999
Copyright © 1991, 1999 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not
allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public
License, version 2, hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast,
the GNU General Public Licenses are intended to guarantee your freedom to share and change free software
– to make sure the software is free for all its users.
This License, the Lesser General Public License, applies to some specially designated software packages
– typically libraries – of the Free Software Foundation and other authors who decide to use it. You can use
it too, but we suggest you first think carefully about whether this license or the ordinary General Public
License is the better strategy to use in any particular case, based on the explanations below.
When we speak of free software, we are referring to freedom of use, not price. Our General Public
Licenses are designed to make sure that you have the freedom to distribute copies of free software (and
charge for this service if you wish); that you receive source code or can get it if you want it; that you can
change the software or use pieces of it in new free programs; and that you are informed that you can do
these things.
To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or
to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you
distribute copies of the library or if you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must give the
recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source
code. If you link other code with the library, you must provide complete object files to the recipients, so that
they can link them with the library after making changes to the library and recompiling it. Also you must
show them these terms so they know their rights.
We protect your rights with a two step method: (1) we copyright the library, and (2) we offer you this
license which gives you legal permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that there is no warranty for the free library.
Also, if the library is modified by someone else and passed on, the recipients should know that what they
have is not the original version, so that original authors’ reputation will not be affected by problems that
might be introduced by others.
Finally, software patents pose a constant threat to the existence of any free program. We wish to make
sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license
from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must
be consistent with the full freedom of use specified in this license.
Most GNU software, including some libraries, is covered by the ordinary GNU General Public License.
This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite
different from the ordinary General Public License. We use this license for certain libraries in order to permit
linking those libraries into non-free programs.
00GB_AV505D_EngOM.book Page 49 Wednesday, November 28, 2007 2:36 PM
When a program is linked with a library, whether statically or using a shared library, the combination of
the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public
License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser
General Public License permits more lax criteria for linking other code with the library.
We call this license the "Lesser" General Public License because it does Less to protect the user’s freedom
than the ordinary General Public License. It also provides other free software developers Less of an
advantage over competing non-free programs. These disadvantages are the reason we use the ordinary
General Public License for many libraries. However, the Lesser license provides advantages in certain special
circumstances.
For example, on rare occasions, there may be a special need to encourage the widest possible use of a
certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed
to use the library. A more frequent case is that a free library does the same job as widely used non-free
libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the
Lesser General Public License.
In other cases, permission to use a particular library in non-free programs enables a greater number of
people to use a large body of free software. For example, permission to use the GNU C Library in non-free
programs enables many more people to use the whole GNU operating system, as well as its variant, the
GNU/Linux operating system.
Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that
the user of a program that is linked with the Library has the freedom and the wherewithal to run that
program using a modified version of the Library.
The precise terms and conditions for copying, distribution and modification follow. Pay close attention
to the difference between a "work based on the library" and a "work that uses the library". The former
contains code derived from the library, whereas the latter must be combined with the library in order to run.
GNU LESSER GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING,
DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library or other program which contains a notice placed
by the copyright holder or other authorised party saying it may be distributed under the terms of this
Lesser General Public License (also called "this License"). Each licensee is addressed as “you”.
A "library" means a collection of software functions and/or data prepared so as to be conveniently linked
with application programs (which use some of those functions and data) to form executables.
The “Library”, below, refers to any such software library or work which has been distributed under these
terms. A “work based on the library” means either the Library or any derivative work under copyright
law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications
and/or translated straightforwardly into another language. (Hereinafter, translation is included without
limitation in the terms “modification”.)
Each licensee is addressed as “you”.
"Source code" for a work means the preferred form of the work for making modifications to it. For a
library, complete source code means all source code for all modules it contains, plus any associated
interface definition files, plus the scripts used to control compilation and installation of the library.
Activities other than copying, distribution and modification are not covered by this License; they are
outside its scope. The act of running a program using a library is not restricted, and output from such a
program is covered only if its contents constitute a work based on the Library (independent of the use of
the Library in a tool for writing it). Whether that is true depends on what the Library does and what the
program that uses the Library does.
00GB_AV505D_EngOM.book Page 50 Wednesday, November 28, 2007 2:36 PM
1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in
any medium, provided that you conspicuously and appropriately publish on each copy an appropriate
copyright notice and disclaimer of warranty; keep intact all notices that refer to this License and to the
absence of any warranty; and distribute a copy of this License along with the Library.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer
warranty protection in exchange for a fee.
2. You may modify your copy or copies of the program or any portion of it, thus forming a work based on
the Library, and copy and distribute such modifications or work under the terms of Section 1 above,
provided that you also meet all of these condition:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files
and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the
terms of this License.
c) If a facility in the modified Library refers to a function or a table of data to be supplied by an
application program that uses the facility, other than as an argument passed when the facility is
invoked, then you must make a good faith effort to ensure that, in the event an application does
not supply such function or table, the facility still operates, and performs whatever part of its
purpose remains meaningful.
(For example, a function in a library to compute square roots has a purpose that is entirely
well-defined independent of the application. Therefore, Subsection 2d requires that any
application-supplied function or table used by this function must be optional: if the application
does not supply it, the square root function must still compute square roots.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not
derived from the Library, and can be reasonably considered independent and separate works in
themselves, then this License, and its terms, do not apply to those sections when you distribute them as
separate works. But when you distribute the same sections as part of a whole which is a work based on
the Library, the distribution of the whole must be on terms of this License, whose permissions for other
licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by
you; rather, the intent is to exercise the right to control the distribution of derivative and collective works
based on the Library.
In addition, mere aggregation of another work not based on the Library with the Library (or with a work
based on the Library) on a volume of a storage or distribution medium does not bring the other work
under the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a
given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they
refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version
than version 2 of the ordinary GNU General Public License has appeared, then you can specify that
version instead if you wish.) Do not make any other change in these notices.
Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General
Public License applies to all subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of the Library into a program that is not a
Library.
00GB_AV505D_EngOM.book Page 51 Wednesday, November 28, 2007 2:36 PM
4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code
or executable form under the Sections 1 and 2 above provided that you accompany it with the complete
corresponding machine readable source code, which must be distributed under the terms of sections 1
and 2 above on a medium customarily used for software interchange.
If distribution of object code is made by offering access to copy from a designated place, then offering
equivalent access to copy the source code from the same place satisfies the requirement to distribute the
source code, even though third parties are not compelled to copy the source along with the object code.
5. A program that contains no derivative of any portion of the Library, but is designed to work with the
library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in
isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.
However, linking "work that uses the Library" with the Library creates an executable that is a derivative
of the Library (because it contains portions of the Library), rather than a "work that uses the Library". The
executable is therefore covered by this License. Section 6 states terms for distribution of such
executables.
When a "work that uses the Library" uses material from a header file that is part of the Library, the object
code for the work may be a derivative work of the Library even though the source code is not. Whether
this is true is especially significant if the work can be linked without the Library, or if the work is itself a
library. The threshold for this to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data structure layouts and accessors, and small
macros and small inline functions (ten lines or less in length), then the use of the object file is
unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code
plus portions of the Library will still fall under Section 6.)
Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under
the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not
they are linked directly with the Library itself.
6. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with
the Library to produce a work containing portions of the Library, and distribute that work under terms of
your choice, provided that the terms permit modification of the work for the customer’s own use and
reverse engineering for debugging such modifications.
You must give prominent notice with each copy of the work that the Library is used in it and that the
Library and its use are covered by the License. You must supply a copy of this License. If the work during
execution displays copyright notices, you must include the copyright notice for the Library among them,
as well as a reference directing the user to the copy of this License. Also, you must do one of these things:
a) Accompany the work with the complete corresponding machine-readable source code for the
Library including whatever changes were used in the work (which must be distributed under
Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the
complete machine-readable "work that uses the Library", as object code and/or source code, so
that the user can modify the Library and then relink to produce a modified executable containing
the modified Library. (It is understood that the user who changes the contents of definitions files
in the Library will not necessarily be able to recompile the application to use the modified
definitions.)
b) Use a suitable shared library mechanism for linking the Library. A suitable mechanism is one that
(1) uses at run time a copy of the library already present on the user’s computer system, rather
than copying library functions into the executable, and (2) will operate properly with a modified
version of the library, if the user installs one, as long as the modified version is
interface-compatible with the version that the work was made with.
00GB_AV505D_EngOM.book Page 52 Wednesday, November 28, 2007 2:36 PM
c)
Accompany the work with a written offer, valid for at least three years, to give the same user the
materials specified in Subsection 6a, above, for a charge no more than the cost of performing this
distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer
equivalent access to copy the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent
this user a copy.
For an executable, the required form of the "work that uses the Library" must include any data and utility
programs needed for reproducing the executable from it. However, as a special exception, the materials
to be distributed need not include anything that is normally distributed (in either source or binary form)
with the major components (compiler, kernel, and so on) of the operating system on which the
executable runs, unless that component itself accompanies the executable.
It may happen that this requirement contradicts the license restrictions of other proprietary libraries that
do not normally accompany the operating system. Such a contradiction means that you cannot use both
them and the Library together in an executable that you distribute.
7. You may place library facilities that are a work based on the Library side-by-side in a single library
together with other library facilities not covered by this License, and distribute such a combined library,
provided that the separate distribution of the work based on the Library and of the other library facilities
is otherwise permitted, and provided that you do these two things:
a) Accompany the combined library with a copy of the same work based on the Library, uncombined
with any other library facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the
Library, and explaining where to find the accompanying uncombined form of the same work.
8. You many not copy, modify, sublicense, link with or distribute the Library except as expressly provided
under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library
is void, and will automatically terminate your rights under this License. However, parties who have
received copies, or rights, from you under this License will not have their licenses terminated so long as
such parties remain in full compliance.
9. You are not required to accept this License, since you have not signed it. However, nothing else grants
you permission to modify or distribute the Library or its derivative works. These actions are prohibited by
law if you do not accept this License. Therefore, by modifying and distributing the Library (or any works
based on the Library), you indicate your acceptance of the License to do so, and all its terms and
conditions for copying, distributing or modifying the Library or works based on it.
10. Each time you redistribute the Library (or any works based on the Library), the recipient automatically
receives a License from the original licensor to copy, distribute, link with or modify the Library subject to
these terms and conditions. You may not impose any further restrictions on the recipient’s exercise of
the rights granted herein. You are not responsible for enforcing compliance by third parties with this
License.
00GB_AV505D_EngOM.book Page 53 Wednesday, November 28, 2007 2:36 PM
11. If, as a consequence of a court judgement or allegation of patent infringement or for any other reason
(not limited to patent issues), conditions are imposed on you (whether by court order, agreement or
otherwise) that contradicts the conditions of this License, they do not excuse you from the conditions of
this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License
and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For
example, if a patent license would not permit royalty-free redistribution of the Library by all those who
receive copies directly or indirectly through you, then the only way you could satisfy both it and this
License would be to refrain entirely from distribution of the Library.
If any portion of this section is held invalid or unenforcable under any particular circumstances, the
balance of the section is intended to apply and the section as a whole is intended to apply in other
circumstances.
It is not the purpose of this section to induce you to infringe any patents to other property right claims
or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of
the free software distribution system which is implemented by public license practices. Many people have
made generous contributions to the wide range of software distributed through that system in reliance
upon consistent application of that system; it is up to the author/donor to decide if he or she is willing
to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this
License.
12. If the distribution and/or use of the program is restricted in certain countries either by patents or by
copyrighted interfaces, the original copyright holder who places the Library under this License may add
an explicit geographical distribution limitation excluding those countries, so that distribution is permitted
only in or among countries not thus excluded. In such case, this License incorporates the limitation as if
written in the body of this License.
13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public
License from time to time. Such new versions will be similar in spirit to the present version, but may differ
in detail to address new problems or concerns. Each version is given a distinguishing version number. If
the Library specifies a version number of this License which applies to it and “any later version”, you have
the option of following the terms and conditions either of that version or of any later version published
by the Free Software Foundation. If the Library does not specify a license version number, you may
choose any version ever published by the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are
incompatible with these, write to the author to ask for permission. For software which is copyrighted by
the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions
for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of
our free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO
THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY
OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS
TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE
DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
00GB_AV505D_EngOM.book Page 54 Wednesday, November 28, 2007 2:36 PM
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY
COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY
AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE
LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE
OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH
ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it be of the greatest possible use to the public, we recommend
making it free software that everyone can redistribute and change. You can do so by permitting redistribution
under these terms (or, alternatively, under the terms of the ordinary General Public License).
To apply these terms, attach the following notices to the library. It is safest to attach them to the start of
each source file to most effectively convey the exclusion of warranty; and each file should have at least the
“copyright” line and a pointer to where the full notice is found.
<One line to give the library’s name and a brief idea of what it does.>
Copyright © 19yy <name of author>
This library is free software; you can redistribute it and/or modify is under the terms of the GNU
Lesser General Public License as published by the Free Software Foundation; either version 2 of
the License, or (at your option) any later version.
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without
even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See
the GNU Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public License along with this library;
if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 021111307 USA.
Also add any information on how to contact you by electronic and paper mail.
You should also get your employer (if you works as a programmer) or your school, if any, to sign a "copyright
disclaimer" for the library, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the library 'Frob' (a library for tweaking
knobs) written by James Random Hacker.
<signature of Ty Coon>, 1 April 1990
Ty Coon, President of Vice
That’s all there is to it!
00GB_AV505D_EngOM.book Page 55 Wednesday, November 28, 2007 2:36 PM
Exhibit C
/* zlib.h--interface of the 'zlib' general purpose compression library
version 1.2.3, July 18th, 2005
Copyright © 1995-2005 Jean-loup Gailly and Mark Adler
This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held
liable for any damages arising from the use of this software.
Permission is granted to anyone to use this software for any purpose, including commercial applications, and
to alter it and redistribute it freely, subject to the following restrictions:
1.
2.
3.
The origin of this software must not be misrepresented; you must not claim that you wrote the original
software. If you use this software in a product, an acknowledgement in the product documentation
would be appreciated but is not required.
Altered source versions must be plainly marked as such, and must not be misrepresented as being the
original software.
This notice may not be removed or altered from any source distribution.
Jean-loup Gailly
Mark Adler
*/
[email protected]
[email protected]
00GB_AV505D_EngOM.book Page 56 Wednesday, November 28, 2007 2:36 PM
Printed on recycled paper. 100% Chlorine free.
VX1A00080900
