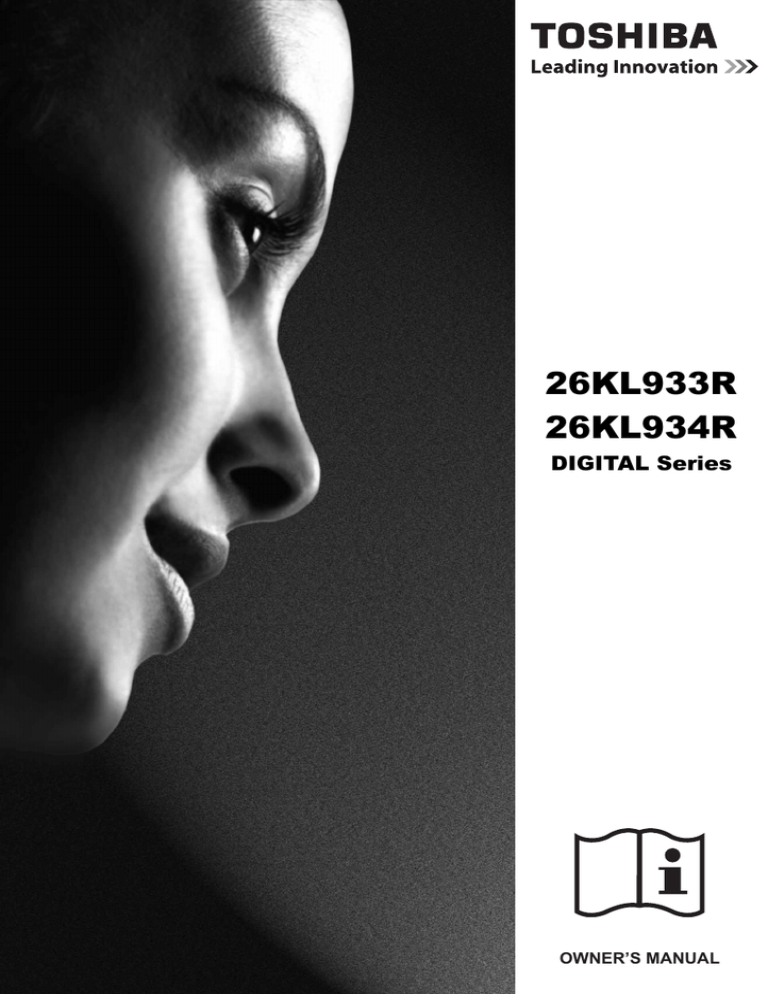

26KL933R
26KL934R
DIGITAL Series
OWNER’S MANUAL
Contents
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 1
English
Safety Precautions ................................................. 3 Viewing Info Banner, Electronic Programme
Air Circulation ..................................................... 3 Guide .................................................................... 20
Viewing Info Banner.......................................... 20
Heat Damage...................................................... 3
Electronic Programme Guide............................ 20
Mains Supply ...................................................... 3
Warning ............................................................. 3 Language Selection .............................................. 21
Language Settings ............................................ 21
Do ....................................................................... 3
Preferred ....................................................... 21
Do not ................................................................. 3
Current .......................................................... 21
Installation and Important Information .................... 4
EXCLUSION CLAUSE........................................ 4 Digital Settings - Parental Control, Menu Lock, Set
Important safety information .................................. 5 PIN........................................................................ 22
Viewing Parental Control Menu ........................ 22
Removing the pedestal stand ............................. 7
Menu Lock ........................................................ 22
The Remote Control ............................................... 8
Child Lock ......................................................... 22
Inserting Batteries and Effective Range of the
Set PIN ............................................................. 22
Remote Control................................................... 8
Configuring Picture Settings ................................. 23
Connecting External Equipment ............................. 9
Configuring Picture Settings ............................. 23
Connecting an HDMI® or DVI Device to the HDMI
Picture Mode..................................................... 23
Input...................................................................... 10
Contrast ............................................................ 23
To Connect an HDMI Device ............................ 10
Brightness ......................................................... 23
To Connect a DVI Device.................................. 10
Sharpness......................................................... 23
To Connect a Computer .....................................11
Colour ............................................................... 23
Connecting a DVD Player......................................11
Power Save Mode ............................................ 23
Connecting to a DVD Player via YPbPr .............11
Backlight (optional) ........................................... 23
Connecting a Computer.........................................11
Noise Reduction ............................................... 23
Connecting a USB Memory .................................. 12
Advanced Settings ........................................ 23
Connect a USB Memory ................................... 12
Reset ................................................................ 24
USB Memory Connection ................................. 12 Changing Picture Format...................................... 25
Power Save Mode ................................................ 13 Configuring PC Picture Settings ........................... 26
Environmental Information ............................... 13
PC Picture Settings (*) ...................................... 26
Controlling the TV ................................................. 14
PC Position ....................................................... 26
Switching on ..................................................... 14
Autoposition ...................................................... 26
Using the Remote Control ................................ 14
H Position ......................................................... 26
Using the Controls and Connections on the TV ... 14
V Position.......................................................... 26
Initial Installation .................................................. 15
Dot Clock .......................................................... 26
Auto Tuning .......................................................... 16
Phase................................................................ 26
Auto Tuning....................................................... 16 Configuring Sound Settings .................................. 27
Manual Tuning, Analogue Fine Tuning ................. 17
Configuring Sound Settings .............................. 27
Operating Sound Settings Menu Items ............. 27
Digital Aerial Manual Search............................. 17
Volume .............................................................. 27
Digital Cable Manual Search ............................ 17
Equalizer (Only for speaker) ............................. 27
Analogue Manual Search ................................. 17
Balance (Only for speaker) ............................... 27
Analogue Fine Tune.......................................... 17
Headphone ....................................................... 27
General Operation ................................................ 18
Sound Mode ..................................................... 27
Stereo and Bilingual Transmissions.................. 18
AVL ................................................................... 27
Displaying Subtitles .......................................... 18
Dynamic Bass ................................................... 27
Viewing Main Menu .......................................... 18
Digital Out ......................................................... 27
Controlling Volume and Muting Sound ............. 18
Selecting Programme Positions........................ 18 Settings Menu Operation, Conditional Access ..... 28
Configuring Your TV’s Settings ......................... 28
Standby Notifications ........................................ 18
Viewing Settings Menu ..................................... 28
Channel List, Sorting Programmes, Programme
Locking ................................................................. 19
Conditional Access ........................................... 28
Language .......................................................... 28
Viewing Channel List ........................................ 19
Parental ............................................................ 28
Moving a Channel ............................................. 19
Timers ............................................................... 28
Deleting a Channel ........................................... 19
Date/Time Settings ........................................... 28
Renaming a Channel ........................................ 19
Sources............................................................. 28
Locking a Channel ............................................ 19
English - 1 -
07.05.2012 11:41:41
English
Other Settings ................................................... 28
Using a Conditional Access Module ................. 28
Setting Timers, Setting Date/Time ........................ 29
Timers ............................................................... 29
Setting Sleep Timer .......................................... 29
Setting Programme Timers ............................... 29
Configuring Date/Time Settings ........................ 29
Source Settings, Other Controls ........................... 30
Configuring Source Settings ............................. 30
Input Selection .................................................. 30
Configuring Other Settings - General ............... 30
Operation .......................................................... 30
Menu Timeout ................................................... 30
Scan Encrypted Channels ............................... 30
Blue Background .............................................. 31
Software Upgrade ............................................. 31
Application Version ........................................... 31
Hard of Hearing ................................................ 31
Audio Description.............................................. 31
Auto TV Off ....................................................... 31
Broadcast Type ................................................. 31
Standby Search (*) .......................................... 31
E-Pop ................................................................ 31
Teletext language.............................................. 31
USB Media Browser ............................................. 32
Manual Start ..................................................... 32
Auto Start .......................................................... 32
Playing MP3 Files ............................................. 33
Viewing JPEG Files .......................................... 33
Slideshow Feature ............................................ 34
Video Playback ................................................. 34
Media Browser Settings .................................... 35
To Close the Media Player ................................ 35
Analogue Text Services ........................................ 36
Analogue Text Services .................................... 36
Using Text Button -TEXT .................................. 36
Acessing Sub-Pages ........................................ 36
Revealing Concealed Text ................................ 36
Holding a Page ................................................. 36
To display an initial page................................... 36
Appendix A: PC Input Typical Display Modes....... 37
Appendix B: AV and HDMI Signal Compatibility
(Input Signal Types).............................................. 38
Appendix C: Supported File Formats for USB
Mode..................................................................... 39
Appendix D: PIN Information ............................... 39
Specifications and Accessories ............................ 40
License Information .............................................. 41
Questions and Answers ........................................ 42
English - 2 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 2
07.05.2012 11:41:43
Safety Precautions
Air Circulation
Do not
Leave more than 10cm clearance around the television to
allow adequate ventilation. This will prevent overheating
and possible damage to the television. Dusty places should
also be avoided.
DON’T remove any fixed cover as this may expose dangerous voltages.
Heat Damage
Damage may occur if the television is left in direct sunlight
or near a heater. Avoid places subject to extremely high
temperatures or humidity, or locations where the temperature
is likely to fall below 5°C (41°F).
Mains Supply
The set should be operated only from a 220-240 V AC 50 Hz
outlet. DO ensure that the television is not standing on the
mains lead. DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the
removal of which will impair its performance. It should only be
replaced by a correctly rated and approved type. IF IN DOUBT
PLEASE CONSULT A COMPETENT ELECTRICIAN.
Warning
To prevent the spread of fire, keep candles or other open
flames away from this product at all times.
English
This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own
safety. They are of a general nature, intended to help with all electronic consumer products and some points may not apply
to the goods you have just purchased.
DON’T obstruct the ventilation openings of the equipment
with items such as newspapers, tablecloths, curtains, etc.
Overheating will cause damage and shorten the life of the
equipment.
DON’T allow electrical equipment to be exposed to dripping
or splashing or objects filled with liquids, such as vases, to
be placed on the equipment.
DON’T place hot objects or naked flame sources, such as
lighted candles or nightlights on, or close to equipment. High
temperatures can melt plastic and lead to fires.
DON’T use makeshift stands and NEVER fix legs with wood
screws. To ensure complete safety, always fit the manufacturers’ approved stand, bracket or legs with the fixings provided
according to the instructions.
DON’T leave equipment switched on when it is unattended,
unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by
withdrawing the plug, make sure your family know how to do
this. Special arrangements may need to be made for people
with disabilities.
DON’T continue to operate the equipment if you are in any
doubt about it working normally, or it is damaged in any way switch off, withdraw the mains plug and consult your dealer.
WARNING - excessive sound pressure from earphones or
headphones can cause hearing loss.
ABOVE ALL - NEVER let anyone, especially children,
push or hit the screen, push anything into holes, slots
or any other openings in the case.
NEVER guess or take chances with electrical equipment
of any kind - it is better to be safe than sorry.
Do
DO read the operating instructions before you attempt to
use the equipment.
DO ensure that all electrical connections (including the mains
plug, extension leads and interconnections between pieces
of equipment) are properly made and in accordance with the
manufacturers’ instructions. Switch off and withdraw the mains
plug before making or changing connections.
THE MAINS PLUG IS USED AS A DISCONNECTING
DEVICE AND THEREFORE SHOULD BE READILY OPERABLE.
Note : Interactive video games that involve shooting
a “gun” type of joystick at the on-screen target may
not work with this TV.
DO consult your dealer if you are ever in doubt about the
installation, operation or safety of your equipment.
DO be careful with glass panels or doors on equipment.
English - 3 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 3
07.05.2012 11:41:43
Installation and Important Information
Where to install
English
Sturdy tie
(as short
as possible)
P Clip
* Button and stand
style is dependent on
model.
P Clip
“P” Clip position on TV is dependent on model.
Locate the television away from direct sunlight and strong
lights. Soft, indirect lighting is recommended for comfortable
viewing. Use curtains or blinds to prevent direct sunlight
falling on the screen.
Place the TV on a stable, level surface that can support the
weight of the TV. In order to maintain stability and prevent
it falling over, secure the TV to a wall using a sturdy tie to
the clip on TV.
Install the P Clip under the stand as shown in the above illustration.
The LCD display panels are manufactured using an extremely high level of precision technology; however, sometimes
some parts of the screen may be missing picture elements
or have luminous spots. This is not a sign of a malfunction.
Make sure the television is located in a position where it cannot
be pushed or hit by objects, as pressure will break or damage
the screen. Also, please be certain that small items cannot be
inserted into slots or openings in the case.
Avoid using chemicals (such as air refreshers, cleaning
agents, etc.) on or near the TV pedestal. Studies
indicate that plastics may weaken and crack over time
from the combination effects of chemical agents and
mechanical stress (such as weight of TV). Failure to follow these
instructions could result in serious injury and/or permanent
damage to TV and TV pedestal.
Cleaning the screen and cabinet…
Turn off the power, and clean the screen and cabinet with a
soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this
may cause damage.
Please take note
The digital reception function of this television is only effective in the countries listed in the “Country” section
during the first time installation menu. Depending on country/area, some of this television’s functions may not
be available. Reception of future additional or modified services can not be guaranteed with this television.
If stationary images generated by 4:3 broadcasts, text services, channel identification logos, computer displays,
video games, on screen menus, etc. are left on the television screen for any length of time, they could become
conspicuous. It is always advisable to reduce both the brightness and contrast settings.
Very long, continuous use of the 4:3 picture on a 16:9 screen may result in some retention of the image at
the 4:3 outlines. This is not a defect of the LCD TV and is not covered under the manufacturer’s warranty.
Regular use of other size modes will prevent permanent retention.
EXCLUSION CLAUSE
Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:
i)
fire;
ii)
earthquake;
iii)
accidental damage;
iv)
intentional misuse of the product;
v)
use of the product in improper conditions;
vi)
loss and/or damage caused to the product whilst in the possession of a third party;
vii)
any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out in the
owner’s manual;
viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with
associated equipment;
Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not
limited to the following, loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.
English - 4 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 4
07.05.2012 11:41:43
Important safety information
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
Headphone Warning
English
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
Loud music can damage your hearing irreversibly. Do not set the volume to a high level when listening through
headphones, particularly for extended listening periods.
Information for the DVB-T function
• Any function relative to the digital television (with the DVB logo) is available only within the country or area
where such signals are transmitted. Verify with the salesperson if it is possible to receive a DVB-T signal in
the zone where you live.
• Even if the television conforms to the DVB-T specifications, the compatibility to future digital DVB-T
transmissions is not guaranteed.
• Some digital television functions may not be available in some countries.
• The DVB-T system present in this device is FTA (Free to air).
• DVB is a registered trademark of the DVB Project. This logo indicates that the product is compliant with
European Digital Broadcasting.
Possible Adverse Effects on LCD Screen
If a fixed (non-moving) pattern remains on the LCD screen for long periods of time, the image can become
permanently retained on the LCD TV panel and cause subtle but permanent ghost images. This type of
damage is NOT COVERED BY YOUR WARRANTY. Never leave your TV on for long periods of time while it
is displaying the following formats or images:
• Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.
• Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on
a normal (4:3) display (Black bars at top and bottom of screen); or viewing normal style (4:3) media on a
widescreen (16:9) display (Black bars on left and right sides of screen).
IMPORTANT INFORMATION
TV Installation
If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling.
Many injuries, particularly to children, can be avoided by taking simple precautions such as:
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the
furniture and the television to a suitable support.
• Not standing the television on cloth or other materials placed between the television and supporting
furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its controls.
Place the TV on a stable, level surface that can support the weight of the TV. In order to maintain stability
and prevent it from falling over, secure the TV to a wall using a sturdy tie to the clip on the back of the table
top stand.
This unit has been produced according to all current safety regulations. The following safety tips should safeguard users
against careless use and the dangers related to such use.
• Although this unit has been carefully manufactured and rigorously checked prior to leaving the factory as with all electrical
appliances, it is possible for problems to develop. If you notice smoke, an excessive build-up of heat or any other unexpected
phenomena, you should disconnect the plug from the mains power socket immediately.
• Ensure that the unit is sufficiently ventilated! Never place it next to or underneath curtains!
• This set should only be connected to a 220-240V AC 50Hz mains power supply. Do not attempt to connect it to any other
type of supply.
• The socket outlet must be installed near the equipment and is easily accessible.
English - 5 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 5
07.05.2012 11:41:44
Important safety information (continued)
English
• Do not open this unit. An attempt to repair the unit by a
non-expert could be dangerous and potentially cause a fire
hazard. All repairs must be carried out by qualified service
personnel only.
• Keep away from rodents. Rodents (and also cockatiels)
enjoy biting electric flexes. They can cause a short circuit
(fire hazard!) and receive a fatal electric shock.
• Always hold the plug when disconnecting the unit from
the socket outlet. Do not pull on flex. The flex can become
overloaded and cause a short circuit.
• Use a soft, dry cloth to clean the unit.
• Set up unit so that no one will trip over the flex.
• This unit is recommended to be installed on shock-free
benches in order to avoid any danger from falling.
• Take note that toddlers can pull the unit down from a table or
cupboard by means of its flex. Children can hurt themselves
when doing this.
• The unit shall not be exposed to dripping or splashing, and
no objects filled with liquids, such as vases, shall be placed
on the apparatus.
• Liquids spilled into the unit can cause serious damage.
Switch the set off and disconnect the mains power supply,
then consult a qualified service person before attempting to
use the unit again.
• Moisture condensation occurs, for example, when you pour
a cold drink into a glass on a warm day and drops of water
form on the outside of the glass. In the same way, moisture
may condense on this unit’s internal optical pick-up lens, one
of the most crucial internal parts of the unit.
• Moisture condensation occurs in the following situations:
- When you move the unit from a cold place to a warm
place.
- When you use the unit in a room where the heater was
just turned on.
• Do not use the unit near heat sources. The casing and flex
could be damaged by the intensity of the heat.
- When you use the unit in an area where cold air from an air
conditioner directly hits the unit.
• The screen is made of glass and can break if damage is done
to it. Be careful when collecting sharp edged glass splitters.
- When you use the unit in a humid place.
• If you intend to wall mount the unit, contact the shop where
you purchased the unit for advice, and leave the installation
work to professionals. Improper installation can cause
damage and/or injuries.
• When installing the set on a wall, allow at least 10 cm
clearance between the rear of the set and the wall. Clearance
of less than 10 cm will obstruct the vents and cause
overheating to the interior of the set, resulting in faults or
damage to the set.
• Taking fall-prevention measures
- If these measures are not taken, the unit can fall and cause
damage and/or injuries.
• Never use the unit when moisture condensation may
occur.
• Using the unit when moisture condensation exists may
damage its own internal parts and discs. Connect the power
cord of the unit to the wall outlet, turn on the unit, remove the
disc, and leave it for two or three hours. After two or three
hours, the unit will warm up and moisture will be evaporated.
Leaving the TV connected to the wall outlet will help prevent
moisture condensation in the unit.
• Never place hot objects or open flame sources, such as
lighted candles or night lights, on or close to the TV. High
temperatures can melt plastic and lead to fires.
- Contact the shop where you purchased the unit to obtain
full details of the measures.
• When a TV stand is used,
- Ensure the unit is fully on the stand and placed in the
centre.
- Do not leave the stand doors open. You could be hurt as
a result of the unit falling or breaking, or your fingers being
caught or jammed. Take extra precautions if you have
children.
• Avoid placing the unit on any surfaces that may be subject
to vibrations or shocks.
• To protect the unit during a thunder storm, unplug the AC
power cord and disconnect the aerial.
Caution: Do not touch the aerial connector.
• When you leave your home for a long period of time, unplug
the AC power cord for safety.
• The unit becomes warm when in operation. Do not place
any covers or blankets on the unit in order to prevent
overheating.
The ventilation holes should not be blocked. Do not set up
near radiators. Do not place in direct sunshine.
• When placing on a shelf, allow at least 10 cm clearance
space around the whole unit.
English - 6 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 6
07.05.2012 11:41:44
Removing the pedestal stand
English
When using a Wall Bracket
Please use a wall bracket appropriate for the size and weight of the LCD TV.
• Two people are required for installation.
• To install a wall-mount from another manufacturer.
(1) Unplug and remove any cables and/or other component connectors from the rear of the TV.
(2) Carefully lay the front of the unit face down on a flat, cushioned surface such as a quilt or blanket.
(3) Follow the instructions provided with your wall bracket. Before proceeding, make sure the appropriate
bracket(s) are attached to the wall and the back of the TV as described in the instructions provided with the
wall bracket.
(4) Always use the screws supplied or recommended by the wall mount manufacturer.
Note :
• The bracket shown above is a sample image. The bracket and fixings are not supplied with the TV.
• A brick wall should not be used.
Removing the pedestal stand
(1) Carefully lay the front of the unit face down on a flat, cushioned surface with the stand hanging over the
edge.
(2) Remove the screws.
(3) After the screws are removed, hold the pedestal stand in place,then remove the pedestal stand and the
plastic moulding from the TV by removing away from the TV.
NOTE: Extreme care should always be used when removing the pedestal stand to avoid damage to the LCD
panel.
For 26KL933 and 26KL934 models
Note: Follow wall bracket instructions to fit TV to bracket. It is recommended to use screws provided.
English - 7 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 7
07.05.2012 11:41:44
The Remote Control
English
Simple at-a-glance reference of your remote control.
Standby/ On mode
Operation LED
Switch to TV or DVD mode
Subtitle on/off
Teletext
Freeze Picture
Mono-Stereo / Dual I-II
To select TV
programme number
Analogue/Digital broadcasts
AV / Source
Audio description
Programme guide
MENU On/Off
Quick Settings
OK / Confirm
Navigation Buttons
Return to previous menu
Exit menu
Info
To alter the volume
To change channels
Reveal (in TXT mode)
To mute the sound
Hold Page (in TXT mode)
Teletext Controls
Note: Buttons that are not indicated
on the remote control illustration are
not functional in TV mode.
Inserting Batteries and Effective Range of the Remote Control
Remove the back cover to reveal the battery compartment and make sure
the batteries are inserted the right way round. Suitable battery types for this
remote are AAA, IEC R03 1.5V.
Do not combine a used, old battery with a new one or mix battery types.
Remove dead batteries immediately to prevent acid from leaking into the
battery compartment. Dispose of them in a designated disposal area.
Warning: Batteries must not be exposed to excessive heat such as sunshine,
fire or the like.
The performance of the remote control will deteriorate beyond a distance
of five metres or outside an angle of 30 degrees from the IR receiver. If the
operating range becomes reduced the batteries may need replacing.
English - 8 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 8
07.05.2012 11:41:57
Connecting External Equipment
English
Before connecting any external equipment, remove the mains plug from the wall socket.
Side View
COMMON INTERFACE
The Common Interface is
for a Conditional Access
Module (CAM).
USB Input
RGB/PC
Input
Aerial/Cable
Input
DIGITAL AUDIO
Socket
YPbPr
5Vdc
Max:500mA
YPbPr Input
SIDE AV
HDMI Input
Sockets
SIDE AV Input
MODE
o
Headphone
Menu Wheel
SCART
Socket
* a decoder
could be Digital
Satellite, Free to
Air or any other
compatible
decoder.
decoder*
TV
Aerial cable:...........................................................
Connect the aerial to the ANT. socket on the rear of the TV.
SCART lead:..........................................................
If you use a decoder* or a media recorder, it is essential
that the scart cable is connected to the TV.
Before running first time installation, any connected devices
need to be set to standby mode.
The DIGITAL AUDIO socket enables the connection of a
suitable surround sound system.
A wide variety of external equipment can be connected to the
TV; therefore, the relevant owner’s manuals for all additional
equipment must be referred to for exact instructions.
If the TV automatically switches over to monitor external
equipment, return to normal TV by pressing the desired programme position button. To recall external equipment, press
button repeatedly to switch between sources.
Regardless of source’s property, audio output from the DIGITAL AUDIO socket cannot be copied.
HDMI® (High-Definition Multimedia Interface) is for using
with a DVD decoder or other equipment with digital audio and
video output. It is designed for best performance with 1080i
and 1080p high-definition video signals but will also accept
and display VGA, 480i, 480p, 576i, 576p and 720p signals.
PC format signals will also be displayed.
NOTE: Although this TV is able to connect to HDMI equipment,
it is possible that some equipment may not operate correctly.
English - 9 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 9
07.05.2012 11:41:58
Connecting an HDMI® or DVI Device to the HDMI Input
English
The HDMI inputs on your TV receive digital audio and
uncompressed digital video from an HDMI source device
or uncompressed digital video from a DVI (Digital Visual
Interface) source device.
These inputs are designed to accept HDCP (High-Bandwidth
Digital-Content Protection) programme material in digital form
from EIA/CEA-861-D–compliant [1] consumer electronic
devices (such as a set-top box or DVD player with HDMI
or DVI output).
To Connect a DVI Device
Connect an HDMI-to-DVI adaptor cable (HDMI type A connector) to the HDMI input socket and audio cables to the RED
and WHITE SIDE AV AUDIO inputs (see illustration).
• The recommended HDMI-to-DVI adaptor cable length is
6.6 ft (2m).
• An HDMI-to-DVI adaptor cable transfers video only.
Separate analogue audio cables are required.
NOTE:
SIDE AV Input
SIDE AV
• Some early HDMI equipment may not work properly with
your latest HDMI TV.
• Supported Audio format: Linear PCM, sampling rate
32/44.1/48kHz.
To Connect an HDMI Device
Side Audio/Video
Connection Cable
(Supplied)
Connect an HDMI cable (type A connector) to the HDMI terminal. For proper operation, it is recommended that you use
).
an HDMI cable with the HDMI Logo (
HDMI Input
Sockets
• If your HDMI connection is capable of 1080p and/or
your TV is capable of refresh rates greater than 50Hz, you
will need a Category 2 cable. Conventional HDMI/DVI cable
may not work properly with this mode.
• HDMI cable transfers both video and audio. Separate
analogue audio cables are not required (see illustration).
• To view the HDMI device video, press
HDMI1 or HDMI2.
Audio Cable
(Not supplied)
button to select
HDMI to DVI
Adapter Cable
(not supplied)
NOTE:
To ensure that the HDMI or DVI device is reset properly, it is
recommended that you follow these procedures:
• When turning on your electronic components, turn on the
TV first, and then the HDMI or DVI device.
HDMI Input
Socket
(Back)
• When turning off your electronic components, turn off the
HDMI or DVI device first, and then the TV.
HDMI device
English - 10 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 10
07.05.2012 11:42:02
Connecting a Computer
Connecting a DVD Player
Connecting to a DVD Player via YPbPr
With either an RGB/PC or an HDMI connection, you can watch
your computer’s display on the TV and hear the sound from
the TV’s speakers.
Some DVD players are connected through
COMPONENT SOCKETS (YPbPr). In this case,
you must use the supplied Component YPbPr video
connection cable for enabling connection. First, plug
the single jack of the cable to the TV’s YPbPr socket
(side). Afterwards, insert your YPbPr cable’s (not
supplied) connectors into the plural part of the supplied
YPbPr video connection cable (see illustration below).
Colours of the connected jacks should match.
When connecting a PC to the RGB/PC input on TV, use an
analogue RGB (15-pin) computer cable and use the SIDE
AV socket with a PC audio cable (not supplied) for audio
connection, using the supplied Side AV connection cable’s
RED and WHITE inputs (see illustration).
PC VGA Cable
(not supplied)
RGB/PC Input
(back)
To enable audio connection, use the supplied Side AV
connection cable. First, plug single jack of the cable
to the Side AV Input of the TV. Afterwards, insert your
DVD player’s audio cable’s connectors into the plural
part of the supplied Side AV connection cable (see
illustration below). Colours of the connected jacks
should match.
or
SIDE AV
Side Audio/Video
Connection Cable
(supplied)
SIDE AV Input
English
To Connect a Computer
PC Audio Cable
(not supplied)
To use a PC, set the monitor output resolution on the PC
before connecting it to the TV. To display the optimum picture,
use the PC setting feature.
Video Connection
YPbPr
Connection
Cable
(supplied)
NOTE:
• Depending on the DVD’s title and the specifications
of the PC on which you are playing the DVD-Video,
some scenes may be skipped or you may not be
able to pause during multiangle scenes.
Audio Connection
DVD Player
To RED & WHITE inputs
Side AV
• Some PC models cannot be connected to this TV.
An adaptor is not needed for computers with a
compatible mini D-sub15-pin terminal.
YPbPr
Video
Cable
(Not supplied)
Side AV Input
Side AV
Connection cable
(supplied)
Audio Cable
(Not supplied)
English - 11 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 11
07.05.2012 11:42:07
Connecting a USB Memory
English
Connect a USB Memory
• You can connect a USB memory to your TV by using
the USB input of the TV. This feature allows you to
display/play music, photo or video files stored in a
USB memory.
• It is possible that certain types of USB devices (e.g.
MP3 Players) may not be compatible with this TV.
• You may back up your files before making any
connections to the TV set in order to avoid any
possible data loss. Note that manufacturer will not
be responsible for any file damage or data loss.
• Do not pull out USB memory while playing a file.
CAUTION: Quickly plugging and unplugging USB
devices, is a very hazardous operation. Especially,
do not repeatedly quickly plug and unplug the drive.
This may cause physical damage to the USB player
and especially the USB device itself.
USB Memory Connection
• • Plug your USB memory to the USB input of the
TV.
SIDE VIEW
USB
USB memory
NOTE: The USB socket has limited functionality, and Toshiba can
take no responsibility for damage to other connected equipment.
English - 12 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 12
07.05.2012 11:42:08
Power Save Mode
English
Environmental Information
• This television is designed to consume less energy to save environment.
You not only help to save the environment but also can save money by reducing electricity bills, thanks to the
energy efficiency feature of this TV. To reduce energy consumption, you should take the following steps:
You can use Power Save Mode setting, located on page 28. If you set Power Save Mode as On, the TV will
switch to energy-saving mode and luminance level of TV set will be decreased to optimum level. Note that
some picture settings will be unavailable to be changed when the TV is in Power Save Mode.
When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce
energy consumption.
• Disconnect power when going away for longer time.
Note that annually, using the TV set in Power Save Mode has more power efficiency than disconnecting the TV
from the mains plug instead of keeping stand-by mode. Therefore it is highly recommended to activate Power
Save Mode setting to reduce your annual power consumption. And also it is recommended to disconnect the
TV from the mains plug to save energy more when you do not use.
• Please helps us to save environment by following these steps.
• This television is designed to consume less energy.
• Harmful substances and contents that are dangerous to health, are eliminated in its design.
• This product is designed to endure longer and it is subject to recycling at the end of its service life.
When the TV reaches the end of its service life, dispose the product in accordance with the proper recycling
process as explained on page 46.
Repair Information
Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact
your local dealer, where you have purchased this TV for further information.
English - 13 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 13
07.05.2012 11:42:08
Controlling the TV
English
A wide variety of external equipment can be connected via the sockets located on the side and back of the
TV. Whilst all the necessary adjustments and controls for the TV are made using the remote control, the
button on the left side of the TV may be used for some functions.
5Vdc
Max:500mA
IR receiver
YPbPr
Standby LED
SIDE AV
Up Direction
MODE
o
Programme / Volume /
AV / Standby On
selection switch
Down Direction
Switching on
Using the Remote Control
If the standby LED is unlit, check that the mains plug is con-
Press the MENU button on the remote control to see the
menus.
nected to the power and press the middle of the
button
on the left side of the TV to switch the television on. Then the
LED lights up in green. If the picture does not appear, press
button on the remote control; it may take a few moments.
To put the television into Standby, press
button on the
button again.
remote control. To view the television, press
The picture may take a few seconds to appear.
Note: The active Standby LED may appear for a few moments
when the TV is switched off.
For energy saving:
Turning the TV off at its mains supply, or un-plugging it, will
cut energy use to nearly zero for all TV’s. This is recommended when the TV is not being used for a long time, e.g.
when on holiday.
Reducing the brightness of the screen will reduce energy use.
Energy efficiency cuts energy consumption and thus saves
money by reducing electricity bills.
NOTE: Putting the TV into standby mode, will reduce energy
consumption, but will still draw some power.
The main menu appears as a group of icons each for a menu
option. Press the Left or Right button to select a topic.
In sub menu screen mode the menu appears as a list. Press
the Up or Down button to select a topic.
To use the options press the Up and Down buttons on the
remote control to move up and down through them and OK
button, Left or Right buttons to select the required choice.
Follow the on screen instructions. The functions of each menu
are described in detail throughout the manual.
Using the Controls and Connections on the TV
Using the menu wheel on the side of the TV:
To change volume: Press the middle button until the
volume level OSD appears. Increase the volume by
pushing the button up. Decrease the volume by pushing
the button down.
To change channel: Press the middle button until the
channel information banner appears. Scroll through the
stored channels by pushing the button up or down
To change source: Press the middle button until the
source list appears. Scroll through the available sources
by pushing the button up or down.
To turn the TV off: Press the middle of the button down
and hold it down for a few seconds, the TV will turn into
standby mode.
Please always refer to the owner’s manual of the equipment
to be connected for full details.
English - 14 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 14
07.05.2012 11:42:08
Initial Installation
English
Before switching on the TV, put your decoder and media recorder to Standby if they are connected and
ensure the aerial is connected to your TV. To set up the TV, use the buttons on the remote control as
detailed on page 13.
IMPORTANT: Ensure that the aerial is connected and
a Common Interface module is not inserted before
switching on the TV for the first time installation.
1. Connect the mains plug and switch the TV to on
using the side control switch. If the TV does not
switch on, press any numbered or
button on
the remote control, then the language selection
menu will be displayed. This screen will appear
the first time that the TV is switched on and each
time the TV is reset.
6. Select Yes button by using Left or Right button
and press OK button to continue. Afterwards, the
following OSD will be displayed on the screen:
7. If you select Cable option, the following screen
will be displayed:
2. By pressing Up or Down button, highlight the
language you want to set and press OK button.
The following message will be displayed next:
3. By pressing Left or Right button, select the
country you want to set and press Down button
to highlight the Search Type option. Use Left or
Right to set the desired search type. Available
search types are digital only, analog TV only
and full.
4. When set, Down buton to select Teletext
Language. Use Left or Right button to select
desired Teletext Language.
5. Press OK button on the remote control to continue
and the following message will be displayed on
the screen:
8. You can select frequency ranges from this
screen. For highlighting lines you see, use Up or
Down button. You can enter the frequency range
manually by using the numeric buttons on the
remote control. Set Start and Stop Frequency as
desired by using numeric buttons on the remote
control. After this operation, you can set Search
Step as 8000 kHz or 1000 kHz. If you select
1000 kHz, the TV will perform search process
in a detailed way. Searching duration will thus
increase accordingly. When finished, press OK
button to start automatic search.
9. If you select Aerial option from the Search Type
screen, the television will search for broadcasts.
10. The Auto tuning screen will appear and the
television will start to search for available stations.
The progress bar will move along the line. You
must allow the television to complete the search.
The following OSD will be displayed on the screen
and the television will search for the selected
broadcasts:
English - 15 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 15
07.05.2012 11:42:09
Initial Installation - continued
Auto Tuning
English
Auto Tuning
As new services are broadcast, it will be necessary to
retune the television in order to view them.
• Auto Tuning will completely retune the television
and can be used to update the channel list. It is
recommended that Auto Tuning is run periodically
to ensure that all new services are added. All current
channels and settings, i.e. locked channels, will
be lost.
Note: You can press MENU button to cancel.
After the available stations are stored, Channel List
will be displayed on the screen. If you like the sort
channels, according to the LCN, please select Yes
and then press OK button (if available).
• Press MENU button on the remote control and select
Install and Retune by using Left or Right button.
Press OK button and the following menu screen
will be displayed.
• Select Automatic Channel Scan (Retune) by using
Up or Down button and press OK button. Automatic
Channel Scan options will be displayed. You can select
options by using Up or Down and OK buttons.
Auto Channel Scan Menu Operation
Digital: Searches and stores aerial DVB stations.
• Press OK button to quit channel list and watch TV.
Analogue: Searches and stores analogue stations.
Note:
Full: Searches and stores both analogue and aerial
DVB stationsres both analogue and cable DVB
stations.
Do not turn off the TV while initializing first time
installation.
Keep the menu of Store Mode Disabled and do not
change it, when using at home.
• Whenever you select an automatic search type and
press OK button, a confirmation screen will appear
on the screen. To start installation process, select
Yes, to cancel select No by using Left or Right
and OK button.
• After auto channel scan type is set and selected
and confirmed, installation process will start and
progress bar will move along. Press MENU button
to cancel process. In such a case, located channels
are not stored. The television will start to search for
all available stations. You must allow the television
to complete the search.
English - 16 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 16
07.05.2012 11:42:10
Manual Tuning, Analogue Fine Tuning
The television can be tuned-in manually using Manual Search feature.
English
Digital Aerial Manual Search
Analogue Manual Search
The feature is available for service engineers or
can be used for direct channel entry if the multiplex
channel is known.
The television can be tuned-in manually. For example:
if the television cannot be connected to a media
recorder/decoder with a SCART lead or to tune-in a
station on another System.
• Select Manual channel scan from the Install and
Retune menu and press OK.
After selecting search type as Digital Aerial, you
can enter the multiplex or frequency number using
the numeric buttons and press OK button to search.
• Enter the multiplex number using the numeric
buttons. The television will automatically search
for that multiplex. When the multiplex is found any
channels not currently on the programme list will be
added and the programme information at the top of
the screen will be updated.
• Repeat as necessary.
Digital Cable Manual Search
• In cable manual scan, you can enter frequency,
modulation, symbol rate and network channel scan
options. After selecting search type as Digital Cable,
you can set the desired options and press OK button
to search.
To allocate a programme position on the television
for a decoder and media recorder: turn the decoder
on, insert a pre-recorded film into the media recorder
and press PLAY, then manually tune.
After selecting search type as Analogue, you can
use Up or Down button to highlight an item and then
press Left or Right button to set an option.
Enter the channel number or frequency using the
numeric buttons. You can then press OK button
to search. When the channel is located, any new
channels that are not on the list will be stored.
Analogue Fine Tune
• Select Analogue Fine Tune from the Install and
Retune menu by using Up or Down and OK
buttons. Analogue fine tune screen will be displayed.
Analogue Fine Tune feature will not be available
if there are no analogue channels, only digital
channels and external sources stored.
• Use Left or Right button to set Fine Tune. When
finished, press OK button.
English - 17 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 17
07.05.2012 11:42:11
General Operation
English
Stereo and Bilingual Transmissions
Standby Notifications
If stereo or dual language broadcasts are transmitted, the
word Stereo or Dual will appear on the screen each time positions are changed, disappearing after a few seconds. If the
broadcast is not in stereo, the word Mono will appear.
If the TV switches off while in No Signal mode, the
following on-screen message will be displayed on the
next switch-on:
Stereo… Press
. to select Stereo or Mono.
Bilingual… Bilingual transmissions are rare. If they are
transmitted, the word Dual will be displayed. Choose the
required programme number, and if the word Dual appears,
press
. to select Dual 1, Dual 2 or Mono.
For DTV broadcasts
To view current language and for changing to an
alternative language (if available), press AD. button.
Available options will be listed.
If the TV switches off owing to the auto power down
feature, the following on-screen message will be
displayed on the next switch-on:
Displaying Subtitles
In digital broadcasts, this feature will show subtitles
on the screen in the selected language provided they
are being broadcast.
Press SUBTITLE button to activate available
subtitles. Press SUBTITLE button again to turn off
subtitles.
Viewing Main Menu
• Press MENU button on the remote control to view
main menu.
Controlling Volume and Muting Sound
Volume
Press
or
button on the remote control to
adjust the volume. Move the menu wheel on the TV
up or down to change the volume.
Sound Mute
Press “ ” button once to turn the sound off and
again to cancel.
Selecting Programme Positions
To select a programme position use the numeric
buttons on the remote control. To change the channels
using the menu wheel on the TV, first press the middle
of the menu wheel and the channel info bar appears.
Now move the menu wheel up or down to scroll
between the stored channels.
Programme positions can also be selected using P+
or P- button.
Press
button to display the on-screen information
i.e. programme position, stereo/mono signal and
picture format.
English - 18 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 18
07.05.2012 11:42:11
Channel List, Sorting Programmes, Programme Locking
Viewing Channel List
The channel order may be changed to suit your personal
preference.
• Select Channel List from the main menu and press
OK button. The following menu will be displayed:
English
You can view stored channels and sort them by using the Channel List feature.
will be displayed. Select Yes if you want to move the
channel and press OK.
• Selected channel is now moved.
Deleting a Channel
You can press GREEN button to tag/untag all
channels; YELLOW button to tag/untag channel.
• Select the channel that you want to delete and select
Delete option. Press OK button to continue.
• Select Edit Channel List to manage all stored
channels. Use Up or Down and OK buttons to select
Edit Channel List.
• A warning screen will appear. Select Yes to delete,
select No to cancel. Press OK button to continue.
Renaming a Channel
• Select the channel that you want to rename and
select Edit Name option. Press OK button to
continue.
• Pressing Left or Right button moves to the previous/
next character. Pressing Up or Down button
changes the current character. Pressing the numeric
buttons ‘0...9’ replaces the highlighted character with
the characters printed above the button one by one
as the button is pressed.
• When finished, press OK button to save. Press
MENU to cancel.
• Press Up or Down button for selecting a channel.
You can press
or
button to move page up or
page down.
• To watch a specific channel, highlight it by using Up
or Down button. Afterwards press OK button.
• Press BLUE button to view filtering options.
• Press MENU button to exit.
Note: The channels listed are mixed at the channel
list. Channel types can be differentiated by the icons
next to them: DTV (digital tv), HD (HD TV) , ATV
(Analogue TV) ,TV (TV), RD (Radio), encrypted, lock,
and at the favourite list. Listed channels can also be
sorted by using the active channel list filter.
Moving a Channel
• Highlight the desired channel by using Up or Down
button.
Locking a Channel
You can press GREEN button to tag/untag all
channels; YELLOW button to tag/untag a single
channel.
• Select the channel that you want to lock by using
Up or Down button.
• Select Lock option by using Left or Right button.
Press OK button to continue.
• You will be asked to enter parental control PIN. Enter
the PIN number.
Note: Default PIN is set to 0000.
• Press OK button when the desired channel is
highlighted to lock/unlock the channel. Lock symbol
will be displayed next to the selected channel.
• Select Move option in the channel list and press
OK button.
• Edit Number screen will be displayed. Enter the
desired channel number by using the numeric
buttons on the remote control. If there is a previously
stored channel on that number, a warning screen
English - 19 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 19
07.05.2012 11:42:11
Viewing Info Banner, Electronic Programme Guide
English
Viewing Info Banner
• • Press button. The information screen will appear
giving details of the channel and programme
currently being viewed.
• • To set the timer for a selected programme, press
OK button to select Timers menu.
• • Press YELLOW button to switch to timeline view.
• • Press GREEN button to list the schedule.
• • Press BLUE button to display filtering options.
• • Whenever you change channel, the TV displays the
broadcast picture along with an information banner at
the bottom of the screen (available only in DTV mode).
This will remain on the screen for a few seconds.
Note: There are alternative views of EPG screen.
Button functions will be displayed at the bottom of
the menu screen.
• • If the selected channel is locked, you must enter the
correct four numeric code to view the channel. “Enter
PIN” will be displayed on the screen in such a case:
• • Enter the 4-digit PIN number to continue.
Note: Factory set default PIN code is 0000. It is not
available for France country setting.
Electronic Programme Guide
• • Select the on-screen guide by pressing GUIDE
button, the guide screen will appear highlighting
details of the channel and programme currently
being viewed. This may take a few moments to
appear.
• • For information on a highlighted programme, press
button.
• • For details of other programmes currently available,
press navigation buttons to scroll up and down
or scroll left/right through the list. As channels are
selected, details of the programme currently being
broadcast will appear.
English - 20 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 20
07.05.2012 11:42:11
Language Selection
English
Language Settings
Using this menu you can adjust the preferred language
settings.
• Press MENU button and select Settings by using
Left or Right button.
• Select Language from setup menu and press OK to
view this menu. Press the RETURN button on the
remote control to exit.
Preferred
These settings will be used if available. Otherwise the
current settings will be used.
Audio: by pressing Left or Right button change the
audio language.
Subtitle: alter the subtitle language with Left or
Right button. The chosen language will be seen in
subtitles.
Teletext: changes the preferred teletext language.
Guide: By pressing Left or Right button change the
guide language.
Current
Audio: if audio language is supported, change the
audio language by pressing Left or Right button.
Subtitle: if subtitle is backed up, alter the subtitle
language with Left or Right button. The chosen
language will be seen in subtitles.
English - 21 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 21
07.05.2012 11:42:12
Digital Settings - Parental Control, Menu Lock, Set PIN
English
You can view or set parental preferences of your TV.
Viewing Parental Control Menu
Child Lock
Press MENU button and select the Settings by using
Left or Right button. Press OK button to view Settings
menu. Use Up or Down button to highlight Parental
and press OK to continue:
Press MENU button and select settings by using
Left or Right button. Press OK to continue. Use Up
or Down to select parental and then press OK to
continue. Enter the pin number. Child Lock disables
the menu wheel on the television. All buttons on the
remote control can still be used.
Set PIN
• A dialogue box asking for the lock key will be
displayed. The default key is set to 0000. Enter
the PIN.
• If it is incorrect, “Wrong PIN” OSD will be displayed.
If it is correct, the Parental Control menu will be
displayed:
• Use Up or Down buttons to select Set PIN option.
Press OK to display the Set PIN window.
• Use numeric buttons to enter new pin number. You
will need to input your new pin a second time for
verification purposes.
• After typing correct PIN numbers, PIN number will
be changed.
Note: The factory default pin number is 0000, if you
change the pin number make sure you write it down
and keep it safe.
Menu Lock
In Menu lock you can set locking for All menus, or the
Installation menu to restrict access to these menus.
If the menu lock is disabled, there will be free access
to the menu system.
• Use Up or Down buttons to go to Menu Lock
option. Use Left or Right buttons to choose Menu
Lock Mode.
OFF : All menus are unlocked.
ALL MENUS : All Menus are accessible only with
the correct lock key. So the user cannot add, delete,
rename, channels, cannot set timers.
INSTALLATION MENU: Installation menu is locked.
So the user can’t add channels.
Note: Factory set default PIN code is 0000. It is not
available for France country setting.
English - 22 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 22
07.05.2012 11:42:12
Configuring Picture Settings
English
You can configure picture settings of your TV by using Picture Settings menu.
Configuring Picture Settings
Brightness
You can use different picture settings in detail. You
can customize current picture mode settings as
desired. For example, you can change items such as,
Brightness, Contrast, Colour, Sharpness and Hue.
Sets the brightness value for the screen. Press
MENU button and select Picture by using Left or
Right button. Press Up or Down button to select
Brightness.
Press MENU button and select Picture by using Left
or Right button. Press OK button to view Picture
Settings menu.
Sharpness
Sets the sharpness value for the objects displayed on
the screen. Press MENU button and select Picture by
using Left or Right button. Press Up or Down button
to select Sharpness.
Colour
Sets the colour value, adjusting the colours. Press
MENU button and select Picture by using Left or
Right button. Press Up or Down button to select
Colour.
Power Save Mode
Enables or disables the power save mode. Use Up
or Down button to select Power Save Mode. Press
Left or Right button to set Power Save Mode as On
or Off. See the section, Environmental Information in
this manual for further information on Power Save
Mode.
Operating Picture Settings Menu Items
• Press Up or Down button to highlight a menu
item.
Note: The backlight function will be inactive if Power
Save Mode is set to on.
Backlight (optional)
This setting controls the backlight level and it can be
set to Auto, Maximum, Minimum and Medium.
• Use Left or Right button to set an item.
• Press MENU button to exit.
Picture Mode
This TV offers the choice of personalising the picture
style. Cinema, Game, Dynamic and Natural are preset
options and affect settings within the TV. Press MENU
button and select Picture by using Left or Right
button. Press Up or Down button to select Mode.
• In the Picture Settings menu, press Up or Down
button to select Mode. Press Left or Right button to
select the picture mode you prefer.
Contrast
Sets the lightness and darkness values of the screen.
Press MENU button and select Picture by using Left
or Right button. Press Up or Down button to select
Contrast.
Note: Backlight can not be activated in VGA or
Media Browser mode or while picture mode is set
as Game.
Noise Reduction
Sometimes some words or picture elements may
become distorted or pixelated. Using the Noise
Reduction feature reduces this effect by smoothing out
the edges. Press MENU button and select Picture by
using Left or Right button. Press Up or Down button
to select Noise Reduction.
Advanced Settings
Some additional controls in the picture menu are
grouped under the title Advanced Settings. To
view or change, first press Up or Down button
to select Advance Settings. Press OK button to
view. Advanced Settings menu controls are as the
following:
English - 23 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 23
07.05.2012 11:42:12
Configuring Picture Settings - continued
English
Colour Temp: Colour Temperature increases the
‘warmth’ or ‘coolness’ of the picture by increasing the
red or blue tint.
Picture Zoom: Sets the picture size to Auto,16:9,
Subtitle,14:9, 14:9 Zoom, 4:3, Panoramic or Cinema.
Press MENU button and select Picture by using Left
or Right button. Press Up or Down button to select
Picture Zoom.
Full Mode (optional): If you connect a device via
HDMI or YPbPr connectors and set 1080i/1080p
resolutions, Full Mode item will be visible.
HDMI True Black (optional): While watching from
HDMI source, this feature will be visible in the Picture
Settings menu.
You can use this feature to enhance blackness in the
picture. You can set this feature as “On” for activating
HDMI True Black mode.
Note: HDMI True Black On/Off feature functions only
when the HDMI device output is set to RGB.
Film Mode (optional): Films are recorded at a
different number of frames per second to normal
television programmes.Press “ ” or “ ” buttons to
select Film mode. Press “ ” or “ ” buttons to set
this feature Auto or Off. Turn this feature to Auto
when you are watching films to see the fast motion
scenes clearly.
Colour Shift: Adjust the desired colour tone. Press
MENU button and select Picture by using Left or
Right button. Press Up or Down button to select
Colour Shift.
Reset
This feature allows you to reset the current Picture
Settings to the default values. Press MENU button
and select Picture by using Left or Right button.
Press Up or Down button to select Reset and press
OK button.
Note: The reset function does not reset the settings for
Mode, Colour Temp, Noise Reduction, Picture Zoom
and HDMI True Black.
English - 24 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 24
07.05.2012 11:42:13
Changing Picture Format
16:9
Subtitle
Use this setting when watching a
widescreen DVD, widescreen video
tape or a 16:9 broadcast (when
available). Due to the range of
widescreen formats (16:9, 14:9 etc.)
black bars may be visible on the top
and bottom of the screen.
When subtitles are included on a
letterbox format broadcast, this
setting will raise the picture to ensure
that all the text is displayed.
14:9
This zooms up the wide picture (14:9
aspect ratio) to the upper and lower
limits of the screen
14:9 Zoom
This option zooms to the 14:9 picture.
4:3
Panoramic
Cinema
English
Press QUICK button repeatedly to open Settings menu, press “ ” button to select Picture Zoom menu then
press “ ” / “ ” buttons to select between Auto(*), 16:9, Subtitle, 14:9, 14:9 Zoom, 4:3, Panoramic or
Cinema.
Note: Using the special functions to change the size of the displayed image (i.e. changing the height/width
ratio) for the purposes of public display or commercial gain may infringe on copyright laws.
Note: You can shift to screen up or down by pressing “ ”/“ ” buttons while picture zoom is selected as
Panaromic, 14:9 Zoom, Cinema or Subtitle.
(*) When AUTO is selected, the aspect ratio of the screen is adjusted by the information provided by the
selected source (if available). The format being displayed in AUTO mode is completely independent of WSS
information which could be included in the broadcast signal or the signal from an external device.
Note: Auto mode will only be available in HDMI, YPbPr and DTV.
Use this setting to view a true 4:3
broadcast.
This stretches the left and right sides
of a normal picture (4:3 aspect ratio)
to fill the screen, without making the
picture appear unnatural.
The top and bottom of the picture are
slightly cut off.
This zooms up the wide picture
(16:9 aspect ratio) to the full
screen.
Note: Picture Zoom feature is not available for Radio channel and teletext screen.
English - 25 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 25
07.05.2012 11:42:13
Configuring PC Picture Settings
English
PC Picture Settings (*)
V Position
(*) While in VGA/PC mode, some items in Picture
menu will be unavailable. Instead, VGA mode settings
will be added to the Picture Settings while in VGA/
PC mode.
V (Vertical) Position shifts the image vertically towards
the top or bottom of the screen.
PC Picture controls
In the PC Position menu press the Down button until
V Position is highlighted.
Press the Left or Right button to adjust the value.
Contrast, Brightness and Colour Temperature
adjustments in this menu are identical to adjustments
defined in TV picture menu.
Select Reset and press OK button to reset the
adjustments.
Note:
button on
For switching to VGA/PC source, press
your remote control and select VGA/PC input.
Note that VGA/PC mode menu settings are available
only while the TV is in PC source.
PC Position
Select this to display PC position menu items.
Dot Clock
Dot Clock adjustment corrects the interference
that appear as vertical banding in dot intensive
presentations like spreadsheets or paragraphs or
text in smaller fonts.
• In the PC Position menu press the Down button
until Dot Clock is highlighted.
• Press the Left or Right button to adjust the value.
Phase
Depending on the resolution and scan frequency that
you input to the TV Set, you may see a hazy or noisy
picture on the screen. In such a case you can use this
item to get a clear picture by trial and error method.
• In the PC Position menu press the Down button
until Phase is highlighted.
• Press the Left or Right button to adjust the value.
Autoposition
If you shift the picture horizontally or vertically to an
unwanted position, use this item to put the picture into
correct place automatically.
• Select the PC Position option from the main menu.
Press OK to display the PC Position submenu.
• Press the Down button to highlight Autoposition
and then press the OK button.
H Position
H (Horizontal) Position shifts the image horizontally to
right hand side or left hand side of the screen.
• In the PC Position menu press the Down button
until H Position is highlighted.
• Press the Left or Right button to adjust the value.
English - 26 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 26
07.05.2012 11:42:14
Configuring Sound Settings
Configuring Sound Settings
Sound settings can be configured according to your
personal preferences.
Press MENU button and select Sound by using Left
or Right button. Press OK button to view Sound
Settings menu.
English
You can configure sound settings of your TV by using Sound Settings menu.
In equalizer menu, the preset can be changed to Music,
Movie, Speech, Flat, Classic and User. Press the
MENU button to return to the previous menu.
Note: Equalizer menu settings can be changed
manually only when the Equalizer Mode is in User.
Balance (Only for speaker)
This setting is used for emphasizing left or right speaker
balance.
• Press Left or Right button to change the level of the balance.
Balance level can be adjusted between -31 and +31.
Headphone
This setting is used to set the sound output when
headphones are connected.
• Press Up or Down button to select Headphone.
• Press Left or Right button to select Volume. Press
Right button to increase headphone volume level.
Press Left button to decrease headphone volume
level. Headphone volume level can be adjusted
between 0 and 63.
Operating Sound Settings Menu Items
• Press Up or Down button to highlight a menu
item.
• Use Left or Right button to set an item.
Sound Mode
This setting is used to set the sound mode. Higlight
Sound Mode by using Up or Down button. Press Left
or Right button to set.
You can select Mono, Stereo, Dual I or Dual II mode,
only if the selected channel supports that mode.
• Press MENU button to exit.
Volume
AVL
Press MENU button and select Sound by using Left
or Right button. Press OK button to continue.
Sometimes there can be large changes in volume when switching
fromaDTV5.1chtoaDTV2ch,anATVchannel,oranexternalinput.
Using the AVL feature reduces these volume differences.
Select Volume using Up or Down button and then use
Left or Right button to set volume level.
Equalizer (Only for speaker)
You can customize current sound mode settings. Select
the appropriate mode in accordance with the installation
location of the TV and adjust the equalizer on-screen as
desired. Press OK button to view equalizer submenu.
• In the Sound menu, press Up or Down to highlight AVL.
Press Left or Right button to set AVL as On or Off.
Dynamic Bass
Dynamic Bass is used to increase bass effect of theTV set.Press
MENU button and select Sound by using Left or Right button.
Press OK button to continue. Select Dynamic Bass using Up
or Down buttons and press Left or Right button to set.
Digital Out
This setting enables you to set Digital Out preference
as Compressed or PCM. You should set this feature
in accordance with the received broadcast’s content.
Press MENU button and select Sound by using Left or
Right button. Press OK button to continue.
Select Digital Out using Up or Down button and then
use Left or Right button.
English - 27 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 27
07.05.2012 11:42:14
Settings Menu Operation, Conditional Access
English
Configuring Your TV’s Settings
Other Settings
Detailed settings can be configured to suit your
personal preferences.
Viewing Settings Menu
Press MENU button and select Settings by using Left
or Right button. Press OK button to view Settings
menu.
Displays other setting options of the TV set.
Using a Conditional Access Module
The Common Interface Slot, situated on the side of the
television, enables the insertion of a CAM (Conditional
Access Module) and card. These are purchased from
a service provider and allow additional subscription
broadcasts to be viewed. For more information, see
a service provider.
IMPORTANT: Insert or remove the CI module only
when the TV is SWITCHED OFF.
• In order to watch certain digital channels, a
conditional access module (CAM) is necessary. This
module must be inserted in the CI slot of your TV.
• Obtain the Conditional Access Module (CAM) and
the viewing card by subscribing to a pay channel
company, then insert those to the TV using the
following procedure.
• Insert the CAM and then the viewing card to the
slot that is located in the terminal cover at the rear
side of the TV.
Operating Settings Menu Items
• Press Up or Down button to highlight a menu item.
• Press OK button to select an item.
• Press MENU button to exit.
Conditional Access
This setting controls conditional access modules
when available. Select Settings from the main menu
by using Left or Right button and press OK button.
Afterwards, use Up or Down button to set Conditional
Access. Press OK button to continue.
• The CAM should be correctly inserted, it is
impossible to insert fully if reversed. The CAM or
the TV terminal may be damaged if the CAM is
forcefully inserted.
Connect the TV to the mains supply, switch on and then
wait for few moments until the card is activated.
• When no module is inserted, “No Common Interface
module detected” message appears on the screen.
• Refer to the module instruction manual for details
of the settings.
Language
Viewing Conditional Access Menu (*)
Configures language settings. See page 26.
(*) These menu settings may change depending on
the service provider.
Parental
Configures parental settings. See page 27.
Timers
Sets timers for selected programmes. See page 34.
Date/Time Settings
Press MENU button and select Settings by using
Left or Right button. Press OK button to view
Settings menu. Use Up or Down button to highlight
Conditional Access and press OK to view menu
items.
You can configure date/time preferences by using this
menu screen. See page 34.
Sources
Enables or disables selected source options. See
page 35.
English - 28 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 28
07.05.2012 11:42:14
Setting Timers, Setting Date/Time
English
Timers
Editing a Timer
To view Timers menu, press MENU button and select
Settings by using Left or Right button. Press OK
button to view Settings menu. Use Up or Down button
to highlight Timers and press OK to continue:
• Select the timer you want to edit by pressing Up or
Down button.
• When finished with editing, press GREEN button to
save. You can press MENU button to cancel.
Setting Sleep Timer
Deleting a Timer
The television can be set to turn itself Off after a
certain length of time.
• Select the timer you want to delete by pressing Up
or Down button.
• Highlight Sleep Timer by using Up or Down
button.
• Press RED button.
• Use Left or Right button to set. The timer can be
programmed between Off and 2.00 hours (120
minutes) in steps of 30 minutes.
Setting Programme Timers
This feature will set the television to go to a specific
channel at a certain time. It can be used to view
a particular programme, or by setting the mode
to daily or weekly, can be used to view a series of
programmes.
• Select Yes by using Left or Right button to delete
the timer. Select No to cancel.
Configuring Date/Time Settings
You can configure date/time preferences by using
this menu screen.
• Select Date/Time in the Settings menu to configure
Date/Time settings. Press OK button.
Press Down button to set timers on an event.
Programme timer function buttons will be displayed
on the screen.
Note: That this feature will be available only when a
timer has been programmed.
Adding a Timer
• Press YELLOW button on the remote control to
add a timer. The following menu appears on the
screen:
Channel: Changes channel by using Left or Right.
Timer/Record Type: This feature is unavailable to
be set.
Date: Enter a date using the numeric buttons.
Start: Enter a starting time using the numeric
buttons.
End: Enter an ending time using the numeric
buttons.
Duration: Displays duration between the starting and
ending time.
Repeat: Sets a timer to be repeated as Once, Daily
or Weekly. Use Left or Right button to select an
option.
Use
or
button to highlight the Time Settings
Mode. Time Settings Mode is set using or button.
It can be set to AUTO or MANUAL.
When AUTO is selected, Date/Time and Time Zone
options will not be available to be set. If MANUAL
option is selected as the Time Zone can be altered:
• By pressing
or
button select Time Zone.
Use or button to change the Time Zone between
GMT-12 or GMT+13. Date/Time on the top of the
menu list will then change according to the selected
Time Zone.
Note: For countries without Digital channels, only the
Date and Time option will be displayed.
Change/Delete: Controls parental settings on timers.
• Press GREEN button to save the timer. Press RED
button to cancel.
English - 29 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 29
07.05.2012 11:42:14
Source Settings, Other Controls
English
Configuring Source Settings
Configuring Other Settings - General
You can enables or disable selected source options.
The TV will not switch to the disabled source options
when
button is pressed.
You can configure the settings of your TV. Select
Settings from main menu and press OK to view the
Settings menu. Press the MENU button on the remote
control to exit.
To view general configuration preferences, select
Other Settings in the Settings menu and press OK
button.
• Select Sources in the Settings menu and press
OK button.
• Press Up or Down buttons to select a source.
• Use Left or Right button to enable or disable the
selected source. Changes are automatically stored.
Input Selection
Operation
• Press Up or Down button to select an item.
Use the Input Selection window if the television
does not switch over to a connected source
automatically.
• Press OK button to view a sub-menu.
• Press
button on your remote control for directly
changing sources. Use the Up or Down button to
highlight an input and press Right button to select.
To set a specific display timeout for menu screens,
set a value for this option.
• Use Left or Right button to set an option.
Menu Timeout
In the Other Settings menu, select Menu Timeout
and choose 15 sec, 30 sec or 60 sec using Left or
Right button.
Scan Encrypted Channels
When this setting is on, search process will locate
the encrypted channels as well. If it is set as OFF
manually, encrypted channels will not be located
while in automatic search or manual search. Scan
Encrypted Channel feature will always be ON after
performing first time installation.
• In the Other Settings menu, use Up or Down button
to select Scan Encrypted.
• Press Left or Right button to set this function as
Yes or No.
English - 30 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 30
07.05.2012 11:42:15
Other Controls - continued
English
Blue Background
If the signal is weak or absent, the TV will automatically
change to a blue screen. To enable this, set Blue
Background to On.
• In the Other Settings menu, select Blue
Background and choose On or Off using Left or
Right button.
Software Upgrade
This feature helps to keep your TV updated. It works
automatically and searches for new information
when available. Note that this setting is inactive to
be modified.
To ensure that your TV always has the most updated
information, you can use this setting. In order for the
proper operation, please ensure that the TV is set to
standby mode.
• Highlight Audio Description by pressing Up or
Down button.
• Press OK button to enter Audio Description
submenu.
• Use Up or Down button to select Audio Description
setup and then press Left or Right button to set
this setting.
Auto TV Off
You can set the timeout value of auto off feature.
After the timeout value is reached and the TV is not
operated for selected time, the TV will go off. Press
MENU button and select Settings by using Left or
Right button. Press OK button to continue. Use Up
or Down button to select Other Settings and then
press OK button. Select Auto TV Off using Up or
Down button.
Broadcast Type
Press MENU button and select Settings by using Left
or Right button. Press OK button to continue. Use Up
or Down button to select Other Settings and then
press OK button. Select Broadcast Type using Up or
Down button and use Left or Right button to set.
You can enable or disable automatic upgrade by
setting Automatic Scanning option.
You can manually search for new software by
selecting Scan for upgrade.
Application Version
Displays the current application version.
Hard of Hearing
If the broadcaster enables any special signal
concerning the audio, you can set this setting as On
to receive such signals.
• Use Up or Down button to select Hard of Hearing
and then press Left or Right button to set this setting
as On or Off.
Audio Description
Audio description refers to an additional narration
track for blind and visually impaired viewers of
visual media, including television and movies. The
description narrator talks through the presentation,
describing what is happening on the screen during the
natural pauses in the audio (and sometimes during
dialogue, if deemed necessary). You can use this
feature, only if the broadcaster supports that additional
narration track.
When you set the desired broadcast type by using
Left or Right button, the TV will display the selected
broadcast type.
Standby Search (*)
(*) This setting is visible only when the Country option
is set to Denmark, Sweden, Norway or Finland.
If the Standby Search is set to On and the TV is in
standby mode, the TV will look for any changes in
the saved channels. Press MENU button and select
Settings by using Left or Right button. Press OK
button to continue. Use Up or Down button to select
Other Settings and then press OK button. Select
Standby Search using Up or Down button and use
Left or Right button to set.
E-Pop
If you set E-Pop to “enabled”, your TV’s features will
be illustrated on the top of the screen.
To deactivate this feature, please set to “disabled”.
Teletext language
Use this setting to set a preferred Teletext language.
Press MENU button and select Settings by using Left
or Right button. Press OK button to continue. Use Up
or Down button to select Language and then press
OK button. Select Teletext language using Up or
Down button and use Left or Right button to set.
English - 31 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 31
07.05.2012 11:42:15
USB Media Browser
English
This TV allows you to enjoy photo, music or video files stored on a USB memory
Manual Start
• To display Media Browser window, you can press
MENU button on the remote control and then select
Media Browser by pressing Left or Right button.
• You can also select Media Browser from the Quick
button menu.
• Only limited types of U3 USB device are supported.
Therefore, it is suggested not to use U3 USB for
playing Media Player.
• Non-supported characters will be replaced with a
square (□).
• Press OK button to continue. Media Browser menu
contents (depending on the contents of your USB
memory) will be displayed.
Auto Start
• When you plug a USB memory, the following menu
will be displayed.
You can play music, picture and video files from a
USB memory.
• To display All files in a list, select Settings tab and
change View Style to Folder. Then go back to main
media browser screen and you will see that now
All tab will be available. Select All tab and press
OK button.
Note:
Some USB compliant devices may not be supported.
If the USB memory is not recognized after power off/
on or First Time Installation, plug the USB memory
out and power off/on the TV set. Then plug the USB
memory in again.
• Do not use a USB Hub.
• You must obtain any required permission from
copyright owners to use copyright content.
Toshiba cannot and does not grant such permission.
• Depending on the file size and amount in your USB
memory, it may take some time for loading to view.
A message will display on-screen when loading files
from the USB memory.
English - 32 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 32
07.05.2012 11:42:15
USB Media Browser - continued
This TV allows you to enjoy photo, music or video files stored on a USB memory
English
Playing MP3 Files
Viewing JPEG Files
To play mp3 files from a USB memory, you can use
this menu screen.
To view photo files from a USB Memory, you can use
this menu screen. When you select Photos from the
main options, available image files will be filtered and
listed on this screen.
•
/
: Navigate menu
• Play (
button): Starts the playback.
• Stop (
button) : Stops playback.
• Pause (
playback.
button) : Pauses the selected
• RED button: Sorts files by Title, Artist or Album.
• Loop/Shuffle (GREEN button): Press once to
disable Loop. Press again to disable both Loop and
Shuffle. Press once more to enable only Shuffle.
Press again to enable all. You can follow the disabled
functions with the change of the icons.
• 0..9 (Numeric buttons): The TV will jump to the
file starting with the letter you input via the numeric
buttons on your remote control.
• Play This (OK button) : Plays the selected file.
• Previous/Next (Left/Right buttons) : Jumps to
previous or next file to play.
If you select a subtitle file and press OK button, you
can select or deselect that subtitle file. The following
menu will be displayed while playing a video file:
• Jump (Numeric buttons): Jump to selected file
using the numeric buttons.
• OK: Views the selected picture in full screen.
•
/
: Navigate menu
• Slideshow (
all images.
button): Starts the slideshow using
• GREEN button: Views images in thumbnails.
• RED button: Sorts files by date.
• YELLOW button: Change viewing style
• BLUE button: Changes media options.
• Yellow button: Change viewing style
• BLUE button: Changes media options.
Note: If the Viewing Style is set to Folder in Media
Browser Settings, Music folder will be displayed as
sorted and there is no need to sort files again by
pressing RED button.
English - 33 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 33
07.05.2012 11:42:15
USB Media Browser - continued
This TV allows you to enjoy photo, music or video files stored on a USB memory
English
Slideshow Feature
You can use this feature to display photos on your
TV.
• Pause (
• Continue (
button) : Pauses the slideshow.
button) : Continues the slideshow.
• Loop/Shuffle (GREEN button): Press once to
disable Loop. Press again to disable both Loop and
Shuffle. Press once more to enable only Shuffle.
Press again to enable all. You can follow the disabled
functions with the change of the icons.
AD (Play Preview): Displays selected file in a small
preview screen.
RED: Sorts files by name.
Play ( button) : Plays all media files starting with
the selected one.
YELLOW Button: Change viewing style
Loop/Shuffle (GREEN button): Press once to disable
Loop. Press again to disable both Loop and Shuffle.
Press once more to enable only Shuffle. Press again
to enable all. You can follow the disabled functions
with the change of the icons.
BLUE: Changes media options.
• Previous/Next (Left/Right buttons): Jumps to
previous or next file on slideshow.
• Rotate (Up/Down buttons): Rotates the image
using up/down buttons.
Play (
button): Starts the video playback.
Stop (
button): Stops the video playback.
• RETURN (Exit): Back to file list.
Pause (
•
Rewind (
button): Goes backward.
Forward (
button): Goes forward.
button: Displays help screen.
Video Playback
When you select Videos from Media Browser,
available video files will be filtered and listed on this
screen. You can use Up or Down button to select a
video file and press OK button to play a video.
button): Pause the video playback.
Subtitle/Audio (AD button): Sets subtitle/Audio.
Yellow: Opens subtitle time correction menu.
Ret/Back: Back to previous menu.
Note: If you set View Style from Media Browser
Settings menu as ‘Folder’, media browser main
selection screen will include All tab as well.
If you select a subtitle file and press OK button, you
can select or deselect that subtitle file.
Jump (Numeric buttons):The TV will jump to the
file starting with the letter you input via the numeric
buttons on your remote control.
Play This (OK button) : Plays the selected file.
/ : Navigate menu
Press OK to confim
Press BLUE button for clear
Press
button to switch back to previous menu.
Note:
You can set subtitles by using OK button before
starting the playback or by using AD button during
the playback. Selected subtitles may not be displayed
correctly in some cases.
In order to display movie subtitles correctly, you should
set a “Movie Subtitle” language. See the section,
“Movie Subtitle” in “Language Settings” for selecting
Movie Subtitle language.
Press RETURN button to switch back to previous
menu.
English - 34 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 34
07.05.2012 11:42:16
USB Media Browser - continued
This TV allows you to enjoy photo, music or video files stored on a USB memory
English
Media Browser Settings
You can set your Media Browser preferences by
using the Settings dialogue. Press Up or Down
button to highlight an item and use Left or Right
button to set.
View Style: Sets default browsing mode.
Slideshow Interval: Sets slide show interval time.
Show Subtitle: Sets subtitle enabling preference.
Subtitle Language: Sets supported subtitle
language.
Subtitle Position: Sets subtitle position as up or
down.
Subtitle Font Size: Sets subtitle font size (max.
54pt).
To Close the Media Player
• Press MENU button on the remote control.
English - 35 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 35
07.05.2012 11:42:17
Analogue Text Services
English
This television has a multi-page text memory, which takes a few moments to load.
Analogue Text Services
Revealing Concealed Text
Before using the text services, the required language
region must be chosen.
To discover the solutions on quiz and joke pages press
the
button.
• Select Language from the Settings menu.
Holding a Page
• Press the Left or Right button to choose the required
language region.
• After the Teletext language is selected, press MENU
button to exit.
At times it is convenient to hold a page of text. Press
OK and HOLD will appear in the top left of the screen.
The page will be held on screen until the button is
pressed again.
To display an initial page
Using Text Button -TEXT
• To view text services press TEXT. Press TEXT
again to superimpose text over a normal broadcast
picture.
Press RETURN to access an initial page. The one
displayed is dependant on the broadcaster.
• Press TEXT again to return to normal viewing.
• Programmes cannot be changed until text is
cancelled.
• The first text page shown will be the initial page.
• Any text page can be accessed by entering the 3
digit page number using the numbered buttons,
pressing the coloured buttons or pressing to
advance to the next page and to go back to the
previous page.
• Four coloured titles will appear at the base of the
screen. To access one of the four given subjects,
press the relevant coloured button on the remote
control.
• For further information on your particular text
system(s), see the broadcast text index page or,
consult your local Toshiba dealer.
Below is a guide to the functions of the remote control
text buttons.
Acessing Sub-Pages
If a text page has sub-pages, press and enter the subpage numbers 01,02,03 etc. which can be selected
using Left/ Right buttons at the bottom of the text page
under the coloured links.
English - 36 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 36
07.05.2012 11:42:17
Appendix A: PC Input Typical Display Modes
Your TV may not support different resolutions. Supported resolution modes are listed below.
If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.
Index
Resolution
Frequency
1
640x350
85 Hz
2
640x400
70 Hz
3
640x480
60Hz-66Hz-72Hz
-75Hz-85Hz
4
800x600
56Hz-60Hz-70Hz-72Hz
-75Hz-85Hz
5
832x624
75 Hz
6
1024x768
60Hz-66Hz-70Hz-72Hz
-75Hz
7
1152x864
60Hz-70Hz-75Hz
-85 Hz
8
1280x768
60 HzA
9
1280x768
60 HzB
10
1280x768
75Hz-85Hz
11
1280x960
60Hz-75Hz-85Hz
12
1280x1024
60Hz-75Hz-85Hz
13
1360x768
60 Hz
14
1400x1050
60 HzA
15
1400x1050
60 HzB
16
1400x1050
75Hz-85Hz
17
1400x900
65Hz-75Hz
18
1600x1200
60 Hz
19
1680x1050
60 Hz
20
1920x1080
60 HzA
21
1920x1080
60 HzB
22
1920x1200
60HzA
23
1920x1200
60Hz
English
The following table is an illustration of some of the typical video display modes. Some, due to the display
native resolution, are scaled automatically to enable correct image to be displayed.
English - 37 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 37
07.05.2012 11:42:17
Appendix B: AV and HDMI Signal Compatibility (Input Signal Types)
English
Source
Supported Signals
PAL 50/60
EXT
NTSC 60
(SCART)
RGB 50
RGB 60
Side AV
YPbPr
HDMI1
HDMI2
PAL 50/60
NTSC 60
480i
60Hz
480p
60Hz
576i
50Hz
576p
50Hz
720p
50Hz
720p
60Hz
1080i
50Hz
1080i
60Hz
1080p
50Hz
1080p
60Hz
480i
60Hz
480p
60Hz
576i
50Hz
576p
50Hz
720p
50Hz
720p
60Hz
1080i
50Hz
1080i
60Hz
1080p
24Hz
1080p
25Hz
1080p
30Hz
1080p
50Hz
1080p
60Hz
Note: In some cases a signal on the LCD TV may not be displayed properly. The problem may be an
inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such
a problem please contact your dealer and also the manufacturer of the source equipment.
English - 38 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 38
07.05.2012 11:42:17
Appendix C: Supported File Formats for USB Mode
Format
File
Extension
Video
Audio
.mpg, .mpeg
MPEG1, 2
MPEG Layer 1/2/3
Movie
.dat
MPEG1, 2
.vob
MPEG2
.mkv
H.264, MPEG1,2,4
EAC3 / AC3
.mp4
MPEG4, H.264
PCM/MP3
MPEG2, MPEG4
PCM/MP3
H.264
PCM
-
MPEG 1 Layer 1 / 2
(MP3)
.avi
Music
.mp3
.bmp
.sub
Subtitle
MPEG2
max 1920x1080 @ 30p 20Mbit/sec
max 1920x1080 @ 30p 20Mbit/sec
Baseline JPEG
.jpg .jpeg
Remarks
(Maximum resolution/Bit rate etc.)
32kbps ~ 320kbps(Bit rate)
32kHz ~ 48kHz(Sampling rate)
max WxH = 15360x8640
4147200bytes
Progressive JPEG
max WxH = 1024x768
6291456bytes
-
max WxH = 9600x6400
3840000bytes
-
.srt
English
Media
-
Appendix D: PIN Information
Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the
mains plug from the wall socket.
Signal information for Mini D-sub 15 pin connector
Pin No.
Signal name
Pin No.
Signal name
Pin No.
Signal name
1
R
6
Ground
11
NC
2
G
7
Ground
12
NC
3
B
8
Ground
13
H-sync
4
NC*
9
NC
14
V-sync
5
NC
10
Ground
15
NC
* NC = not connected
English - 39 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 39
07.05.2012 11:42:17
Specifications and Accessories
English
Broadcast Systems/Channels
DVB-T, MPEG2, DVB-T, MPEG4 HD
DVB-C, MPEG2, DVB-C, MPEG4
Video Input
Stereo
Nicam
External Connections
1-SCART 1
Input
2-SCART-S (via SCART 1) Input
3-YPbPr (via VGA)
Input
4-SIDE AV
Input
5-HDMI 1/2
Input
6-PC
Input
7-Digital Audio
Output
8-YPbPr
Input
USB Port
PAL, SECAM, NTSC 4.43
21-pin SCART
RGB, A/V
21-pin SCART
S-Video
Mini D-Sub 15-Pin Analogue
Side AV Cable input
Video + Audio L + R
Type A
Mini D-Sub 15-Pin Analogue
RGB Signal
S/PDIF
(Coaxial)
YPbPr Connection Jack
Media Browser Interface version: USB 2.0
USB Class: Mass storage
File System: FAT32
3.5mm stereo
Temperature 5°C - 35°C (41°F - 94°F)
Humidity 20 - 80% (non-condensing)
Remote control
2 batteries (AAA,IEC R03 1.5V)
8 screws
Side AV connection cable
YPbPr connection cable
Stand fixing cover
P Clip
2 Microphones
2 Microphone cables
Headphone Socket
Operating Conditions
Supplied Accessories
26KL933R-26KL934R
A
Energy Efficiency Class
66cm / 26”
Visible Screen Size (approx.)
On Mode Power Consumption (approx.) (*)
29W
Annual Power Consumption (approx.) (**)
42 kWh
< 0.50 W
Standby Power Consumption (approx.)
1366 x 768
Screen Resolution (pixels)
Display
16:9
Sound Output (at 10% distortion)
2x6
Power Consumption Model (approx.)
Weight
65W
TV with stand
8 kg
Gross weight
11 kg
TV without stand
6.9 kg
(*) Tested in accordance with IEC 62087-BD Ed. 2.0:2008 in default settings.
(**) Energy consumption 42 kWh per year, based on the power consumption of the television operating 4 hours
per day for 365 days. The actual energy consumption will depend on how the television is used.
Unit Dimensions (Approximate)
VESA Compliant for Simple Optional Wall Mounting
26KL933R
26KL934R
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
G (mm)
644.1
407.9
174.9
59.3
447
100
100
English - 40 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 40
07.05.2012 11:42:17
License Information
• DVB is a registered trademark of the DVB Project.
• [1] EIA/CEA-861-D compliance covers the transmission of uncompressed digital video with high-bandwidth
digital content protection, which is being standardized for reception of high-definition video signals.
Because this is an evolving technology, it is possible that some devices may not operate properly with the
television.
English
• HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
MP3 licence letter
MPEG Layer-3 audio coding technology licensed from Fraunhofer LLS and Thomson.
AVC licence letter
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFORIO LICENSE FOR THE PERSONAL
AND NON-COMMERCIAL USE OF A CONSUMER TO (I)ENCODE VIDEO IN COMPLIANCE WITH THE AVC
STANDARD (“AVC VIDEO”) AND/OR (II)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED
FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA,L.L.C. SEE
HTTP//WWW.MPEGLA.COM
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
Cleaning the screen and cabinet...
Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary
polishes or solvents on the screen or cabinet as this maycause damage.
Disposal...
The following information is only for EU-member states:
Disposal of products
The crossed out wheeIed dust bin symbol indicates that products must be collected and disposed of separately from
household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated
at the recycling centres.
The black bar indicates that the product was placed on the market after August 13, 2005.
By participating in separate collection of products and batteries, you will help to assure the proper disposal of
products and batteries and thus help to prevent potential negative consequences for the environment and human
health.
For more detailed information about the collection and recycling programmes available in your country, please
contact your local city office or the shop where you purchased the product.
Disposal of batteries and/or accumulators
EU
The crossed out wheeled dust bin symboI indicates that batteries and/or accumulators must be collected and
disposed of separately from household waste.
If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or
cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg)
and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.
Hg Cd Pb
By participating in separate collection of batteries, you will help to assure the proper disposal of products and
batteries and thus help to prevent potential negative consequences for the environment and human health. For more
detailed information about the coIIection and recycling programmes available in your country, please contact your
local city office or the shop where you purchased the product.
In conformity with the EEE Regulation.
English - 41 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 41
07.05.2012 11:42:18
Questions and Answers
Questions
English
Q
A
Q
A
Q
A
Q
A
Q
A
Q
A
Q
A
Q
A
Why is there no sound or picture?
Check the TV is not in standby mode.
Check the mains plug and all mains connections.
Why is there a picture but no sound?
Check the volume has not been turned down or
that sound mute has not been selected.
What can cause a poor picture?
Interference or a weak signal. Try a different TV
station.
Why doesn't the video/DVD being played show
on screen?
Make sure the VCR or DVD player is connected to
the TV as illustrated in the beginning chapters, then
select the correct input by pressing
.
Why is the VCR/DVD picture in black and white?
Check the correct input has been chosen.
Why is there a good video picture but no sound?
Check the SCART lead connection.
and
Answers
Q
A
Why is the sound only coming from one speaker
when stereo sound is selected?
Q
A
Why are there problems with analogue text
service?
Q
A
Q
A
Q
Q
Check the batteries aren't dead or inserted
incorrectly.
Check that CHILD LOCK is not selected.
Q
A
A
Why doesn't the remote control work?
Why don't the controls of the TV work?
A
Check that the balance in the SOUND menu hasn't
been set to one side.
Good performance of the analogue text depends
on a good strong broadcast signal. This normally
requires a roof or loft aerial. If the text is
unreadable or garbled, check the aerial. Go to the
main index page of the analogue text service and
look for the User Guide.
What is DVB-T?
Digital Video Broadcast via an aerial/antenna.
How are radio channels selected?
You can select them via the Channel List.
What can be done if the PIN number has been
forgotten?
Incase of password is forgotten, Please press
1,2,7,6 or 4,7,2,5 buttons from remote control
respectively in order to enter parental setting
menu. Define a new pin number in Set PIN section.
You will need to enter your new PIN a second time
for verification purposes.
Why are there horizontal stripes and/or blurred
images on the screen when in PC mode?
The Phase may need adjustment. Select PC
Settings and highlight Phase and adjust until the
picture is clear.
Why doesn't the TV OSD settings saved?
Ensure to turn off the power first before attempting
to unplug the AC cord. Otherwise, the settings may
not be saved.
English - 42 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 42
07.05.2012 11:42:18
Questions
Q
A
Why doesn't the Media Browser feature operate?
Make sure that USB memory is connected correctly.
Incorrect behaviour may occur with a USB Hub
connection.
Why is the digital channel locked?
Parental control is activated. Check parental settings.
Answers
Q
A
Why when digital subtitles have been selected
are they not showing on screen?
Q
A
Why is the soundtrack in English when a
different audio language has been selected?
Q
Why are some encrypted digital channels
unavailable?
Q
A
Your subscription needs upgrading. Contact your
service provider.
A
English
Q
A
and
Subtitles are not currently being transmitted by the
broadcaster.
The programme is currently being broadcast with
an English soundtrack only.
Why does the active standby LED sometimes
take longer to go out?
When put into standby, the TV's active
standby will automatically search all available
channels for downloads, provided Automatic
Download is enabled. The time taken to do this
may vary.
EU Conformity Statement
“This product is marked with “CE” and complies therefore with the applicable harmonized European standards listed
under the Low Voltage Directive 2006/95/EC and the EMC Directive 2004/108/EC.”
Responsible for CE-marking is TOSHIBA EUROPE GMBH
Hammfelddamm 8, D-41460 Neuss, Germany
This equipment corresponds to requirements of the Technical Regulation on limitation of usage of certain dangerous
substances in electrical and electronic equipment.
English - 43 -
01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(26155LED_1911UK)_NICKEL17_10077830_10078257.indd 43
07.05.2012 11:42:19
Features
Contents
English
Features ............................................................... 44
General Properties............................................ 44
Safety Information ................................................ 45
Notes on Discs ..................................................... 45
On handling discs ............................................. 45
On cleaning....................................................... 45
Notes on moisture condensation .......................... 46
Licence Notification .............................................. 46
How to Watch a DVD ............................................ 46
DVD Control Panel Buttons .................................. 46
Overview of the Remote Control .......................... 47
General Operation ................................................ 48
General Playback ................................................. 49
Basic Play ......................................................... 49
For your reference: ....................................... 49
Notes on Playback ............................................ 49
Using the Karaoke Mode ...................................... 49
Setup Menu Items ................................................ 50
Video Setup Page ............................................. 50
Tv Type ......................................................... 50
DivX® VOD .................................................... 50
Language Setup Page ...................................... 50
Osd Lang ...................................................... 50
Audio ............................................................. 50
Disc Menu ..................................................... 50
Subtitle .......................................................... 50
Preference Setup Page .................................... 50
Default .......................................................... 50
Downmix ....................................................... 50
Parental (Parental Level) .............................. 50
Password (Change Password) ..................... 50
Spdif Output .................................................. 51
Troubleshooting .................................................... 51
The picture quality is poor (DVD)...................... 51
Disc does not play ............................................ 51
Wrong OSD language....................................... 51
The language for the sound or subtitles on a DVD
cannot be changed ........................................... 51
Some functions (Angle, Zoom, etc.) do not
work .................................................................. 51
No picture ......................................................... 51
No sound .......................................................... 51
Distorted sound................................................. 51
No response from remote control ..................... 51
If nothing works................................................. 51
Definition of Terms ................................................ 52
Disc Types Compatible with This Unit .................. 53
Supported File Formats ........................................ 54
Specifications ....................................................... 54
General Properties
• DVD / CD / CD-R / CD-RW / MP3 / JPEG / MPEG
/ DivX® playback.
• Karaoke function
• NTSC/PAL playback (according to disc content)
• LPCM audio via coaxial digital audio output.
(optional)
• Multi-Audio (up to 8) support (According to disc
content)
• Multi-Subtitle (up to 32) support (According to disc
content)
• Multi-Angle (up to 9) support (According to disc
content)
• 8 level parental control
• Fast forward and rewind in 5 different speeds.
(2x, 4x, 8x, 16x, 32x)
• Slow motion playback in 4 different speeds.
(1/2x, 1/4x, 1/8x, 1/16x forward)
• Frame by frame forward playback.
• Search Mode
• Repeat
• Coaxial audio output (optional)
• Copied discs may be incompatible.
• Note
• This product may not support some MP3 recordings
due to differences in recording formats or disc
type.
• Please read the owner’s manual about MP3
playback.
• CD-R/CD-RW discs recorded by CD-DA method
can be played. Some CD-R/CD-RW discs may be
incompatible due to laser pick-up and disc design.
• DVD-R/RW discs recorded by DVD-Video method
can be played. Some DVD-R/RW discs may be
incompatible due to laser pick-up and disc design.
• Some discs may be incompatible with JPEG Viewer
function due to different recording format or condition
of the discs.
• For proper operation, only 12 cm discs must be
used.
English - 44 -
02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX_KARAOKE)_10077830_10078257.indd 44
07.05.2012 11:44:38
Safety Information
Notes on Discs
On handling discs
DVD Player is a class 1 laser product. However this
product uses a visible laser beam which could cause
hazardous radiation exposure. Be sure to operate the
player correctly as instructed.
• To keep the disc clean, handle the disc by its edge.
Do not touch the surface.
CLASS 1
LASER PRODUCT
• Do not stick paper or tape on the disc.
English
CAUTION
• If the disc is contaminated with any substance like
glue remove before using it.
RISK OF ELECTRIC SHOCK
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated “dangerous voltage” within
the product’s enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to people.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions
in the literature accompanying the
appliance.
• Do not expose the disc to direct sunlight or heat
sources such as hot air ducts, or leave it in a car
parked in direct sunlight as the temperature can rise
quickly and damage the disc.
• After playing, store the disc in its case.
On cleaning
• Before playing, clean the disc with a cleaning cloth.
Wipe the disc from the center out.
• Do not use solvents such as benzine, thinner,
commercially available cleaners or anti-static spray
intended for vinyl LPs.
English - 45 -
02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX_KARAOKE)_10077830_10078257.indd 45
07.05.2012 11:44:39
English
Notes on moisture
condensation
Moisture condensation damages the DVD video
player. Please read the following carefully.
Moisture condensation occurs, for example, when you
pour a cold drink into a glass on a warm day. Drops
of water form on the outside of the glass. In the same
way, moisture may condense on the optical pick-up
lens inside this unit, one of the most crucial internal
parts of the DVD video player.
Moisture condensation occurs during the
following cases:
This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights. Use of this copyright
protection technology must be authorized by Rovi
Corporation, and is intended for home and other
limited viewing uses only unless otherwise authorized
by Rovi Corporation. Reverse engineering and
disassembly are prohibited.
How to Watch a DVD
When placing a disc into the loader, labelled side of
the disc should be on the front:
• When you bring the unit directly from a cold place
to a warm place.
• When you use the unit in a room where you just
turned on the heater, or a place where the cold wind
from the air conditioner directly hits the unit.
• In summer, when you use the unit in a hot and
humid place just after you move the unit from an air
conditioned room.
• When you use the unit in a humid place.
Do not use the unit when moisture condensation
may occur.
If you use the unit in such a situation, it may damage
discs and internal parts. Remove the disc, connect
the power cord of the unit to the wall outlet, turn on
the unit, and leave it for two or three hours. After two
or three hours, the unit will have warmed up and
evaporated any moisture. Keep the unit connected
to the wall outlet and moisture condensation will
seldom occur.
Licence Notification
When TV set is turned on, first switch to DVD source
by using the
button on the remote control. Press
on the remote control, or directly press
button
at the side panel. If there is no disc inside the loader,
place a DVD first and then press .
DVD Control Panel Buttons
A. Disc loader
/
B.
Plays/pauses the disc. When DVD menu (root menu)
is active, this button functions as “button select”
(selects the highlighted item in menu) if this is not
prohibited by the disc.
C.
/
Stops playing disc / Ejects the disc.
Note:
DivX®, DivX Certified® and associated logos are trademarks of DivX®, Inc. and are used under license.
• While playing a file, you should press
three times to eject.
/
button
D. For connecting microphones using with the
karaoke function.
ABOUT DIVX VIDEO: DivX® is a digital video format
created by DivX®, Inc. This is an official DivX Certified®
device that plays DivX® video. Visit divx.com for more
information and software tools to convert your files
into DivX® video.
D
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified®
device must be registered in order to play purchased
DivX® Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX® VOD sec-tion in
your device setup menu. Go to vod.divx.com for more
information on how to complete your registration.
English - 46 -
02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX_KARAOKE)_10077830_10078257.indd 46
07.05.2012 11:44:39
Overview of the Remote Control
Switch to TV or DVD mode
Eject
Subtitle
Angle
Title Menu
Root Menu
(if available)
Audio language
of the disc
English
Operation LED
Standby/ On mode
Numeric Buttons
AV / Source
MENU On/Off
Quick Settings
OK / Confirm
Navigation Buttons
Exit menu
Setup menu
Return to Root menu
Jump
Info
To alter the volume
To mute the sound
Pause
Skip Next / Skip Previous
Rapid Reverse
Play
Zoom
Repeat
Rapid Advance
Stop
Title Menu
Root Menu
Note: Buttons that are not indicated
on the remote control illustration are
not functional in DVD mode.
English - 47 -
02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX_KARAOKE)_10077830_10078257.indd 47
07.05.2012 11:44:41
General Operation
English
You can operate DVD, movie CD, music or picture CD’s content by using the proper buttons on your remote
control. Below are main functions of commonly used remote control buttons.
Buttons on the
Remote Control
DVD
Playback
Movie
Playback
Picture Playback
Music Playback
Play
Play
Play
Play
Pause
Pause
Pause
Pause
Stop
Stop
Stop
Stop
/ Skip
backward/forward
e/f
/
/
ANGLE
SETUP
Skip
Previous / Next
backward/forward
Highlights a menu item. /
Shifts the zoomed picture left or right (if available).
X
Highlights a menu item. / Shifts the zoomed picture up or down (if available).
Rapid reverse / Rapid advance
Views the scene from
different angles
(if available).
X
X
Rapid reverse / Rapid
advance
X
X
Displays disc information / Displays DVD
setup menu during stop mode.
X
Displays disc information.
X
Audio language
MENU
Previous / Next
X
Displays disc information /
Displays DVD setup menu
during stop mode.
Displays disc information.
X
Displays main menu.
OK
Enter / View / Play
REPEAT
RETURN
Displays repeat options.
Returns back to the previous menu (if available).
ROOT
JUMP (*)
X
TITLE
Goes back to the root folder (if available).
Direct selection of scenes, time or file (track) number.
Subtitle on-off. Press repeatedly to switch
X
between subtitle options (if available).
Displays disc menu (if available).
X
X
ZOOM
Zooms picture. Press repeatedly to switch between zoom options.
X
SUBTITLE
+
[ + ]
[ + ]
+
+
+
+
+ X
X
Other Functions – Button Combinations
(During playback)
Slow forward.
Sets slow forward speed.
Sets slow reverse.
Sets rapid advance speed.
Sets rapid reverse speed.
Confirms stop command.
Press repeatedly to advance manually.
(*) You can switch to title by pressing numeric keys directly. You need to press 0 and then digit key to switch one digit
titles (example: to select 5, press 0 and 5).
English - 48 -
02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX_KARAOKE)_10077830_10078257.indd 48
07.05.2012 11:44:42
11. For your convenience:
General Playback
1. Press the
button.
2. Insert a disc to the loader.
The disc will be automatically loaded and play
commences if the disc does not have any menus
recorded on it.
12. Slide Show is disabled when the ZOOM mode
is on.
Using the Karaoke Mode
A menu may appear on the TV screen after a few
moments or the film may start immediately after the
introduction of the Film Company. This behaviour
depends on the disc content and may change.
Note:
Note: Steps 3 and 4 are available only when a menu
is recorded on the disc.
• Do not use the microphone other than provided.
3. Press navigation buttons or the numeric
button(s) to select the preferred title.
English
If you attempt to enter a number greater than the total
time of the current title, the time search box disappears
and “
Input Invalid” message appears on up-left
corner of screen.
Basic Play
• When Karaoke mode is used, Digital Audio out is
set to PCM.
• If you do not use the Karaoke, unplug the
microphone.
1. Connect the microphone into MIC inputs.
4. Press OK button.
Play of the selected items now starts.The played item
may be a motion picture, a still picture or another
submenu depending on the disc.
For your reference:
If an action corresponding to a button is prohibited,
” symbol will appear.
the “
Notes on Playback
1. No sound will be heard during Rapid advance
or Rapid reverse.
2. No sound will be heard during Slow motion play.
3. In some cases, the subtitle language is not
changed immediately to the selected one.
4. When the preferred language is not selected even
after pressing the button several times, it means
that the language is not available on the disc.
5. When the player is restarted or the disc is
changed, the subtitle selection is automatically
changed back to the initial settings.
2. Press DISPLAY button and select Preference tab
using Left or Right button. When a microphone is
connected, karaoke options will be available in the
Preference menu.
6. If a language is selected, not supported by the
disc, the subtitle language will automatically be
set to the disc’s priority language.
7. Usually a circulation will happen while switching
to another language, that is you can cancel
the subtitle by pressing SUBTITLE button a
number of times until “Subtitle Off” appears on
the screen.
3. Select Karaoke option and press OK to continue.
8. When the power is turned on or the disc is
removed, the language heard is the one
selected at the initial settings. If this language
is not recorded on the disc, only the available
language on the disc will be heard.
9. Some DVDs may not contain root and/or title
menus.
10. Reverse stepping is not available.
English - 49 -
02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX_KARAOKE)_10077830_10078257.indd 49
07.05.2012 11:44:42
4. You can set your preferences on this menu screen.
5. Press OK to open the following screen during
connecting the microphone.
Subtitle
English
You can select the default subtitle language if
supported by the DVD disc.
Preference Setup Page
M1: Microphone-1 volume control.
M2: Microphone-2 volume control.
Play: Playback volume control.
Echo: Sets echo level.
Setup Menu Items
Video Setup Page
Default
If you choose Reset and press OK button, the
factory-presets are loaded. Parental level and parental
password does not change.
Downmix
This mode can be selected when the DIGITAL AUDIO
socket of the TV is used.
Surround: Surround sound output.
Stereo: Two channels stereo.
Parental (Parental Level)
Tv Type
TV Type is only available as ‘PAL’. The TV set also
supports NTSC signal; however, the signal will be
converted to PAL when it appears on the screen.
DivX® VOD
DivX® VOD provides the convenience of streaming
video in terms of quality and performance.
Language Setup Page
Playing some DVDs can be limited depending on the
age of users. The “Parental Control” function allows
playback limitation level to be set by the parent.
Parental Level can be adjusted to one of the eight
levels. Level “8 Adult” adjustment let you watch all of
the DVD titles ignoring the DVD disc’s parental level.
You can watch the DVD discs, which has the same or
lower parental level than the player’s level only.
Password (Change Password):
Osd Lang
You can select the default OSD language of the
player menus.
Audio
You can select the default audio language if supported
by the DVD disc.
Disc Menu
Using this item you can change the current
password.
To change the password you will be prompted to
enter your old password. After you have entered
your old password, you can now enter the new 4-digit
password. Confirm password operation.
Note: Factory preset of the password is “0000”. You
have to enter XXXX digital password every time you
want to change the parental level. If you forget your
password please contact technical service.
You can select the DVD’s disc menu language among
these languages. Disc menu appears in the selected
language, if supported by the DVD disc.
English - 50 -
02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX_KARAOKE)_10077830_10078257.indd 50
07.05.2012 11:44:44
Some functions (Angle, Zoom, etc.) do
not work
Spdif Output
• Angle can only be changed when the angle symbol
is displayed.
No picture
English
• These functions are not available on the DVD.
• Have you pressed the correct buttons on the remote
control? Try once more.
You can set Spdif Output as RAW or PCM. If you
select PCM from Spdif Output in DVD menu and
play DVD with Dolby audio, you can get audio output
with two channels via the speakers and the DIGITAL
AUDIO socket. If you select RAW from Spdif Output
in DVD menu and play DVD with Dolby audio,
speakers will be muted and you can get 5+1 Dolby
audio via the DIGITAL AUDIO socket.
Troubleshooting
No sound
• Check the volume is set to an audible level.
• Make sure you have not switched the sound off
accidentally.
Distorted sound
• Check that the appropriate listening mode setting
is correct.
No response from remote control
The picture quality is poor (DVD)
• Make sure the remote control is in the correct
mode.
• Make sure the DVD disc surface is not damaged.
(Scratch, fingerprint, etc.)
• Check batteries are fitted correctly.
• Clean the DVD disc and try again.
• Change the batteries.
See instructions described in “Notes on Discs” to clean
your disc properly.
If nothing works
• Ensure that the DVD disc is in the loader with the
label facing front.
• A damp DVD disc or condensation may effect the
equipment. Wait for 1 to 2 hours in Standby to dry
the equipment.
If you have tried the above solutions and none seem
to work, try switching your TV off and on again. If this
does not work, contact your supplier or TV repair
technician. Never attempt to repair a defective TV
yourself.
Disc does not play
• No disc in the machine.
Place a disc into the loader.
• Disc incorrectly loaded.
Ensure that the DVD disc is in the loader with the
label facing front.
• Wrong type of disc. The machine cannot play CDROMS etc.
• The region code of the DVD must match the
player.
Wrong OSD language
• Select the language in the set-up menu.
The language for the sound or
subtitles on a DVD cannot be changed
• Multilingual sound and/or subtitles not recorded on
the DVD.
• Try to change the sound or subtitles using DVD’s title
menu. Some DVD’s do not allow the user to change
these settings without using the disc’s menu.
English - 51 -
02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX_KARAOKE)_10077830_10078257.indd 51
07.05.2012 11:44:44
LPCM
Definition of Terms
English
LPCM stands for Linear Pulse Code Modulation and
is digital audio.
Angle
Recorded onto some DVD discs are scenes, which
have been simultaneously shot from a number of
different angles (the same scene is shot from the
front, from the left side, from the right side, etc.). With
such discs, the ANGLE button can be used to view
the scene from different angles.
MPEG
Chapter Number
DivX®
These numbers are recorded on DVD discs. A title
is subdivided into many sections, each of which are
numbered, and specific parts of video presentations
can be searched quickly using these numbers.
DivX® is a digital video compression technology based
on MPEG4 and developed by DivX, Inc.
Short for Moving Picture Experts Group. This is an
international standard for compression of moving
images. On some DVDs digital audio has been
compressed and recorded in this format.
DVD
This refers to a high-density optical disc on which
high-quality pictures and sound have been recorded
by means of digital signals. Incorporating a new video
compression technology (MPEG2) and high-density
recording technology. DVD enables aesthetically
pleasing full-motion video to be recorded over long
periods of time (for instance, a whole movie can be
recorded).
DVD has a structure consisting of two 0.6-mm thin
discs, which are adhered to each other. Since the
thinner the disc, the higher the density at which the
information can be recorded, a DVD disc has a greater
capacity than a single 1.2 mm thick disc. Since the
two thin discs are adhered to each other, there is the
potential to achieve double-sided play sometime in
the future for even longer duration play.
Subtitles
These are printed lines appearing at the bottom of
the screen, which translate or transcribe the dialogue.
They are recorded on the DVD discs.
Time Number
This indicates the playtime, which has elapsed from
the start of a disc or a title. It can be used to find a
specific scene quickly. (Not all discs permit the time
search feature to be used. Availability is determined
by the disc’s manufacturer.)
Title Number
These numbers are recorded on DVD discs. When a
disc contains two or more movies, these movies are
numbered as title 1, title 2, etc.
Track Number
These numbers are assigned to the tracks, which are
recorded on Audio CDs. They enable specific tracks
to be located quickly.
English - 52 -
02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX_KARAOKE)_10077830_10078257.indd 52
07.05.2012 11:44:44
Disc Types Compatible with This Unit
R e c o r d in g
Ty p e s
D is c S iz e
English
D is c Ty p e s
(L o g o s )
C h a r a c t e r is tic s
DVD
DVD contains excellent sound and video
• due
to Dolby Digital and MPEG2 System
A u d io
+
V id e o
12 cm
A u d io
12 cm
screen and audio functions can be
• Various
easily selected through the on screen menu.
A U D IO -C D
LP is recorded as an analog signal with
• An
more distortion. CD is recorded as a Digital
Signal with better audio quality, less distortion
and less deterioration of audio quality
overtime.
D I G IT A L A U D I O
M P 3 -C D
READABLE
is recorded as a Digital Signal with
• Mp3
better audio quality, less distortion and
A u d io
(x x x x .m p 3 )
12 cm
V id e o
(s t ill p ic tu r e )
12 cm
is recorded as a Digital Signal with
• JPEG
better picture quality over time.
A u d io
+
V id e o
12 cm
& Audio with MPEG4 Compression
• Video
technology.
less deterioration of audio quality
over time.
P IC T U R E -C D
JR EPA DE
G
ABLE
D iv X
English - 53 -
02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX_KARAOKE)_10077830_10078257.indd 53
07.05.2012 11:44:44
Supported File Formats
English
Media
Format
File
Extension
.mpg/ .dat/
.vob
Movie
.avi
(optional)
MPEG1
MPEG Layer
1/2/3
(Maximum resolution/Bitrate etc.)
MPEG2
MPEG2
MPEG4
PCM/MP3
MS ISO
MPEG4
PCM/MP3
Support SP and ASP
PCM/MP3
DivX 3.11, 4.x, 5.x, 6.0
PCM
Sample Rate: 8k ~ 48kHz
MPEG4
-
Music
Audio
MS ISO
.divx
Remarks
Video
-
MPEG 1/2
.mp3
-
Bitrate: 64k~320kbps
WxH = 8902x8902 up to 77Mega-pixel
Baseline JPEG
Sample Rate: 8k ~ 48kHz,
Layer 1/2/3
(MP3)
Support format: 444/ 440/ 422/ 420/ Grayscale
.jpg
Progressive JPEG
Up to 4 Mega-pixel
Support format: 444/ 440/ 422/ 420/ Grayscale
.srt
Support Text File Format, but do not support
Picture File Format
.smi
External
Subtitles
.sub
(optional)
.ssa
This unit can only display a maximum of 14
Subtitles.
.ass
Note: It is not guaranteed that all DivX® formats are supported.
Specifications
DVD: SS/SL 12cm (DVD-5)
Types of Discs
Supported
CD-DA
SS/DL 12cm (DVD-9)
CD-R
DS/SL 12cm (DVD-10)
CD-RW
DS/DL 12cm (DVD-18)
MP3/JPEG
MPEG2 Video Standard Decoding (MPEG1 supported)
Full-Screen Video Display of 720 x 576 (PAL) & 720 x 480 (NTSC) pixels
Video Type
50 and 60 Hz frame refresh rates (PAL & NTSC)
Digital bitstream processing rate up to 108Mbits/sec
Line resolution more than 500 lines
Audio Type
Audio Output
MPEG Multichannel Decoding
LPCM
Analogue Outputs:
24 bit /48, 44.1kHz down-sampling DAC
Note: CD+G is not supported.
English - 54 -
02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX_KARAOKE)_10077830_10078257.indd 54
07.05.2012 11:44:45
If you wish to view the advanced functions but do not have access to a computer or
the internet then please contact your nearest owner's manual Helpline number from
the numbers shown below.
Country name locally
Österreich
Contact Number
0810 - 144 122 (7,3 ct/min aus dem Festnetz
Belgique / Belgie
България
Hrvatska
Κύπρος
Česká republika
Danmark
Eesti Vabariik
Suomen tasavalta
France
Deutschland
02 391 01 01
0294 21141
01 653 9737
22 872 111
323 204191
80 88 93 38
69 97 800
0800 77 35 03
09 69 32 64 84
0431 24 89 45 50
Gibralter
Ελληνική
Magyar Köztársaság
Ísland
Yisrā'el
Italia
Latvijas
Lietuvos
Luxembourg
Moldova
Nederlanden
Norge
Polska
Portugal
Republic of Ireland
România
Россия
Slovensko
España
Sverige
Schweiz / Suisse
Türkiye
U.K.
Україна
200 76334
210 9554298
23 428 870
00 45 80 88 93 38
03 953 5900
039 609 9301
00 372 69 97 800
00 372 69 97 800
00 32 2 391 01 01
00380 443 511 317
00 32 2 391 01 01
800 573 57
0 71 796 95 05
707 265 265
01 246 7780
021 3169 393
8 800 100 05 05
0042 323 204191
902 33 22 34
0201 70 16 00
0900 57 58 58 (CHF 1.49 / Min.)
0 212 340 6080
0844 856 0730
8(044) 351 13 17
der Telekom Austria, Mobil ggf. abweichend)
(Ortstarif, abweichender Mobilfunktarif moglich)
Please note the telephone number only applies to advanced owner's manual
enquiries and not general operation of the TV.
"Printed on Recycled Paper" "100% Chlorine free"
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
