Presence detector
EN
theRonda P360 KNX UP WH
2089000
theRonda P360 KNX UP GR
2089001

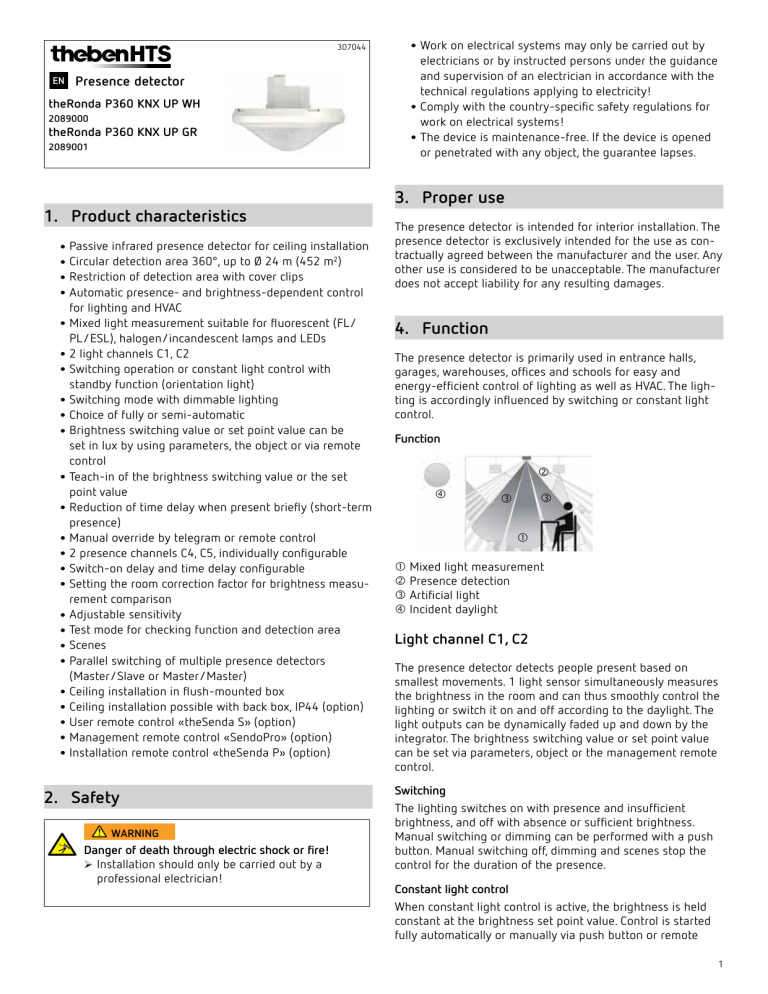

1. Product characteristics
••Passive infrared presence detector for ceiling installation
••Circular detection area 360°, up to Ø 24 m (452 m²)
••Restriction of detection area with cover clips
••Automatic presence- and brightness-dependent control
for lighting and HVAC
••Mixed light measurement suitable for fluorescent (FL/
PL/ESL), halogen/incandescent lamps and LEDs
••2 light channels C1, C2
••Switching operation or constant light control with
standby function (orientation light)
••Switching mode with dimmable lighting
••Choice of fully or semi-automatic
••Brightness switching value or set point value can be
set in lux by using parameters, the object or via remote
control
Teach-in of the brightness switching value or the set
point value
Reduction of time delay when present briefly (short-term
presence)
Manual override by telegram or remote control
2 presence channels C4, C5, individually configurable
Switch-on delay and time delay configurable
Setting the room correction factor for brightness measurement comparison
Adjustable sensitivity
Test mode for checking function and detection area
Scenes
Parallel switching of multiple presence detectors
(Master/Slave or Master/Master)
Ceiling installation in flush-mounted box
Ceiling installation possible with back box, IP44 (option)
User remote control «theSenda S» (option)
Management remote control «SendoPro» (option)
Installation remote control «theSenda P» (option)
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
2. Safety
WARNING
Danger of death through electric shock or fire!
¾¾
Installation should only be carried out by a
professional electrician!
••Work on electrical systems may only be carried out by
electricians or by instructed persons under the guidance
and supervision of an electrician in accordance with the
technical regulations applying to electricity!
Comply with the country-specific safety regulations for
work on electrical systems!
The device is maintenance-free. If the device is opened
or penetrated with any object, the guarantee lapses.
••
••
3. Proper use
The presence detector is intended for interior installation. The
presence detector is exclusively intended for the use as contractually agreed between the manufacturer and the user. Any
other use is considered to be unacceptable. The manufacturer
does not accept liability for any resulting damages.
4. Function
The presence detector is primarily used in entrance halls,
garages, warehouses, offices and schools for easy and
energy-efficient control of lighting as well as HVAC. The lighting is accordingly influenced by switching or constant light
control.
Function





 Mixed light measurement
 Presence detection
 Artificial light
 Incident daylight
Light channel C1, C2
The presence detector detects people present based on
smallest movements. 1 light sensor simultaneously measures
the brightness in the room and can thus smoothly control the
lighting or switch it on and off according to the daylight. The
light outputs can be dynamically faded up and down by the
integrator. The brightness switching value or set point value
can be set via parameters, object or the management remote
control.
Switching
The lighting switches on with presence and insufficient
brightness, and off with absence or sufficient brightness.
Manual switching or dimming can be performed with a push
button. Manual switching off, dimming and scenes stop the
control for the duration of the presence.
Constant light control
When constant light control is active, the brightness is held
constant at the brightness set point value. Control is started
fully automatically or manually via push button or remote
1
control. Manual switching off, dimming and scenes stop the
control for the duration of the presence.
Time delay
The minimum time delay can be set for all light channels
in the range of 30 seconds to 60 minutes. If someone goes
into an unoccupied room only briefly and leaves it within 30
seconds, then the light shuts off prematurely after 2 minutes
(short-term presence).
Standby
The standby function acts as an orientation light. After the
time delay expires, the lighting is set to the standby dimming value (1 - 25%). The standby time can be set between
30 s and 60 min or permanently. The lighting switches off
if the brightness level in the room exceeds the brightness
switching value/set point value. The lighting switches to the
standby dimming value automatically if the room brightness
falls below the brightness switching value/set point value.
The standby function can be activated or locked via an object.
In conjunction with a time switch, this allows energy-saving
solutions to be implemented.
Push button control
The lighting can be manually switched or dimmed at any time
via a push button. If the light is switched on manually, the
light will remain on during switching operation for at least
30 minutes provided people are present. It then switches off
when there is enough brightness. The light is forced off after
a preset time delay if the room was (previously) vacated. If
artificial lighting is switched off manually, the lighting remains
switched off as long as the room is occupied. The lighting
switches again automatically after the time delay has expired.
Fully or semi-automatic
Lighting control via the presence detector operates fully
automatically for increased comfort or semi-automatically for
greater energy savings. In «fully automatic» the lights switch
on and off automatically. In «semi-automatic», the lighting
must always be switched on manually. The lighting is switched off automatically.
Presence channel C4, C5
The presence channels are typically used for HVAC control.
According to the selection, a telegram will only be sent due
to presence, completely independently of the brightness and
after expiry of the switch-on delay. The time delay will be
restarted at every movement. The presence channel is not
influenced by push buttons.
Switch-on delay
The switch-on delay prevents instantaneous switching on.
The telegram is sent only on expiry of the switch-on delay,
provided that people are present at this time.
Time delay
The time delay enables delayed switching off of HVAC devices
and systems after the room is vacated.
If selected, a telegram can be sent after the expiry of the
presence time delay (once or cyclical).
5. Detection area
The circular detection area of theRonda presence detector covers a large detection area and permits a good room
coverage with many applications. Note that seated and
moving persons can be detected in differently-sized areas.
The recommended installation height is 2.0 m – 6.0 m. As
installation height increases, the sensitivity of the presence
detector decreases. Walking motions are necessary from installation heights of 3.5 m, and the detection areas of several
detectors should overlap in the marginal zones. The detection
range is reduced as the temperature increases.
Seated persons:
The details relate to smallest movements at table height
(approx. 0.8 m).
Moving persons:
At installation heights between 5 and 10 m, the extent and
distance between the active and passive zones increase.
r
t
r
t
Installamoving persons
tion height Frontal (r)
(A)
moving persons
Across (t)
seated persons (s)
2,0 m
28 m2
Ø6m
380 m2
Ø 22 m
20 m2
Ø5m
2,5 m
2
38 m
Ø7m
415 m
2
Ø 23 m
28 m
2
Ø6m
3,0 m
50 m2
Ø8m
452 m2
Ø 24 m
38 m2
Ø7m
3,5 m
2
50 m
Ø8m
452 m
2
Ø 24 m
38 m
4,0 m
50 m2
Ø8m
452 m2
Ø 24 m
–
–
5,0 m
50 m2
Ø8m
452 m2
Ø 24 m
–
–
6,0 m
50 m
2
Ø8m
452 m
2
Ø 24 m
–
–
10,0 m
50 m2
Ø8m
491 m2
Ø 25 m
–
–
2
Ø7m
All figures are guidance values.
2
Brightness measurement
The presence detector measures artificial light and daylight
that is reflected below the detector. The light measurement
area maps a rectangle of about 2 x 3.5 m at table height. The
installation location is the reference point for the lighting
level. If the brightness measurement is deactivated, the light
channel only switches depending on the presence.
Ceiling installation
A ceiling installation unit 73A is available for simplified ceiling
installation of the presence detector (see accessories). This
also ensures cord grip and contact protection. The installation
diameter is 72 mm (drill diameter 73 mm).
2m
Switching
Direct light influences the light measurement. The placement
of the floor lamps or suspended lighting directly below the
detector is to be avoided.
Constant light control
The detector must be positioned in such a way that it only
detects artificial light that it controls itself. Artificial light that
is controlled by other detectors, or manually switched work
lighting, influence the brightness measurement of the detector. Direct artificial light on the detector must be avoided.
Surface-mounted installation
A back box 110A, protection rating IP44, is available for surface mounted installation (see accessories).
Suitable lamps
The presence detector is designed for the operation of fluorescent, compact fluorescent, halogen and incandescent lamps
as well as LEDs.
6. Installation
Flush-mounted fitting
The presence detector is flush-mounted using a size 1 standard flush-mounting installation socket.
7. Start-up
1.Settings
All settings are made via ETS. See document «KNX manual
theRonda» (application description).
The «SendoPro 868-A» management remote control or
the installation remote control «theSenda P» are optionally
available for start-up support. The «SendoPro 868-A» can be
used to query, adjust and optimise the parameters. Parameters can only be adjusted with the «theSenda P». In this
sense, the remote controls serve as set-up aids. A range of
alterable parameters is available for adjustment with the
remote control (see chapter «Parameters via remote control»).
3
The response during operation can be changed via the remote
control‘s control commands.
2.Programming mode
The programming mode can be activated using the programming button on the back of the presence detector or, without
dismounting the presence detector, via the «SendoPro 868-A»
management remote control or «theSenda P» installation
remote control.



 Programming mode push button
 Mechanical safety lock
3.Setting the device to the factory setting
The presence detector is supplied with a factory setting. This
factory setting can be restored.
Activation
Description
Powerup
Hold down the programming button while
switching on bus voltage.
4.Operation mode
The theRonda P360 KNX knows 3 operating modes
Normal
• test-presence
•test-light
••
5.Switching behaviour
After the bus voltage is switched on or the parameters are
downloaded via the ETS, the detector first runs through the
start-up phase of 30 s, then it changes into normal operation.
An LED displays the current status.
1. Start-up phase (30 s)
••The LED flashes in one second intervals.
••Switching: Light outputs send an ON telegram regardless
of brightness
••Constant light control: control inactive, the lighting will
be dimmed up to the maximum (value telegram max.
control value).
When no one is present or there is sufficient brightness,
an OFF telegram is sent after 30 s (light off).
••
8. Parameters via remote control
The following parameters can be queried or changed via
the remote control for support during installation as well as
servicing:
Parameter
Description
Can be
Can be
Can be
queried
changed changed
SendoPro SendoPro theSenda
P
Brightness set
point value C1
Value range
in lux
x
x
Alternative
brightness set
point value C1
Value range
in lux
x
x
Brightness
measurement
value C1
Lux meter
brightness
value in lux
Brightness
actual value
C1
Measured
brightness
value in lux
Lighting time
delay
Value ranges
in seconds/
minutes
Detection sen- Value range in
sitivity (PIR)
levels
x
x
x
x
x
x
x
With the «SendoPro 868-A» management remote control,
parameters can be queried by sending values level-by-level
to the detector. If the sent values are below the set parameter, the LED illuminates briefly. If the sent values are equal or
above the set parameter, the LED flickers for 2 seconds.
This adjustment of parameters does not change the settings
in ETS.
9. Alterable parameters via remote control
1.Adjustment with the remote control
The parameters are sent to the presence detector with the
«SendoPro 868-A» management remote control or with «theSenda P» installation remote control via infra-red. Changed
parameters are immediately applied and used by the detector.
LED description
Flickering for 2 s
After activating the send function on the management remote
control or pressing the corresponding push button on the
theSenda P, the presence detector indicates the correct reception by flickering for 2 s.
2. Operation mode normal
••The detector is ready for operation (LED off).
••LED flashes rapidly
••For troubleshooting, see chapter «Troubleshooting»
3. In the event of malfunction
4
Lighting up briefly
The parameter/command sent from the remote control was
rejected by the presence detector. The command is not valid.
Check selected detector type and sent parameters with
management remote control.
2.Brightness switching value/set point value channel C1
light
The brightness switching value/set point value defines
the minimum desired brightness. The currently prevailing
brightness is measured below the presence detector. If the
prevailing brightness is below the switching value/set point
value, the light is switched on when a presence is detected (in
configuration type fully automatic).
Value range
Lux values with «SendoPro 868-A» management remote
control: 10-3000 lux
In the «theSenda P» installation remote control, the following values are available: 10, 15, 300, 500, 800 lux
The currently measured brightness value (lux) can be
adopted with the «SendoPro 868-A» management
remote control, with the teach-in control command or
with the «theSenda P» installation remote control via the
teach-in button. Values outside the permitted range will
automatically be set to the appropriate limit value.
••
••
••
- Deactivating the brightness measurement (the brightness has no influence)
- The light channels only switch according to presence/
absence.
Possible with «SendoPro 868-A» management remote
control or «theSenda P» installation remote control
Measurement
off
Button
3.Alternative brightness switching value/set point value
channel C1 light
The alternative brightness switching value/set point value
can be used to define a second, different brightness switching
/ set point value. For example, a day and night mode with
two different brightness levels can be set up in combination
with the brightness switching value/set point value channel
C1 light. The alternative brightness switching value/set point
value is activated or switched via bus object.
Value range
cf. 2. Brightness switching value/set point value channel C1
light
4.Room correction factor C1
The room correction factor is a measurement for the difference of the brightness measurement on the ceiling and the
work area. The brightness measurement value at the ceiling is
influenced by the installation location, light reception, position
of the sun, weather conditions, the reflection properties of the
room and the furniture.
The brightness measurement value of the corresponding lighting channel is adjusted to the conditions in the room using
the room correction factor and can therefore be adapted to
the lux meter value measured in the area below the presence
detector .
Brightness value at the ceiling
Room correction factor=
Brightness value on the work
surface
Please observe the «KNX manual theRonda» concerning
††
the calibration of light measurements or setting the room
correction factor.
The lux meter is placed on the work surface below the
sensor and the measured lux value is entered via the
management remote control «SendoPro 868-A», parameter «brightness measurement value C1».
The room correction factor is calculated from this automatically. Values between 0.05 and 2.0 are permitted.
Calculated or entered values outside the permitted range
will automatically be set to the appropriate limit value.
The calculated room correction factor will be applied immediately. For monitoring purposes, the room correction factor can
be queried via the object 8.
••
••
The room correction factor can be changed directly only
via the ETS. The standard value is 0.3 and is suitable for
most applications. Changes are only sensible in sharply
varying situations.
5.Lighting time delay
Value range
Adjustable values with «SendoPro 868-A» management remote control
30 s - 60 min
In the «theSenda P» installation remote control, the 30 s, 60 s, 2 min, 10
following values are available
min, 20 min, 60 min
6.Detection sensitivity
The detector has 5 sensitivity increments. The basic setting
is the middle increment (3). By selecting the test presence
operation mode, the set sensitivity increment is not changed.
With the «SendoPro 868-A» management remote control,
increments 1 to 5 can be selected and sent to the detector. With the «theSenda P» installation remote control, the
sensitivity can be reduced or increased by one increment with
every button press.
Increment
Sensitivity
1
very insensitive
2
insensitive
3
standard
4
sensitive
5
very sensitive
5
Control commands
The following control commands can be triggered with the
remote control:
Control
command
Description
Programming
mode
Activation of programming mode
Teach-in
channel C1
Can be
triggered
SendoPro
Can be
triggered
theSenda P
x
x
x
x
Master/Slave
query
Master/Slave
x
Switching
light
All lighting groups
can be switched
on and off.
x
x
Presence test
On/Off
x
x
Test light
On/Off
x
Restart
Restart detector
x
x
Teach-in
The currently measured brightness value will be accepted
as the brightness set point value. Transfer is made to the
currently active brightness setpoint value. That is, if the alternative brightness set point value is switched to, the currently
measured brightness value [lux] is transferred to the alternative brightness set point value via the teach-in command.
Values outside the permitted range will automatically be set
to the appropriate limit value.
Test mode
The theRonda P360 KNX has two test modes.
Presence test
Light test
••
••
1. Presence test
The presence test is used for checking the detection area and
the parallel switching.
Activation
End
Control command presence test «On» with the
management remote control «SendoPro 868-A» or
installation remote control «theSenda P» button
«Test». .
ON telegram via bus object (51).
The presence test can be activated anytime.
With subsequent restart:
Control command presence test «Off» via the «SendoPro 868-A» management remote control.
OFF telegram via bus object (51)
Power failure and thus power up
Automatically according to the time set with the ETS,
without restart:
Activation of light test with the «SendoPro 868-A»
management remote control.
Indication
of LED
status
channels
Description
On
When movement occurs, the LED goes on and channels C1, C2 switch on.
Off
After the movement stops, the LED is off and the
channels C1, C2 switch after approx. 10 s.
Test response
Deactivated brightness measurement, light output does
not react to brightness
The detector reacts as in configuration type fully automatic, even if semi-automatic is set.
The control type changes to switching if the control type
is set to constant light control. The light is not controlled.
Light «On» during motion; light «Off» during absence
Channels C1 and C2 light have a fixed time delay of 10 s.
The presence and room monitoring channels react
unchanged as in normal operation.
Commands and adjustable parameters
In the presence test, the following commands are possible
with «SendoPro 868-A» management remote control and
«theSenda P» installation remote control:
••
••
••
••
••
••
••Ending the presence test
••Activating the light test
••Changing detection sensitivity
The selected detection sensitivity (1 . . 5) is unchanged on
activation of the presence test. The sensitivity can be adjusted
during the test and will remain unchanged after completion
of the presence test. The presence detector performs a restart
after the end of the test mode.
2. Light test
The light test is used to check the brightness switching
value/set point value.
Activation
Control command presence test «On» via the «SendoPro 868-A» management remote control.
ON telegram via bus object (52).
The light test mode can be activated anytime.
End
With subsequent restart:
Control command light test «Off» via the «SendoPro
868-A» management remote control.
OFF telegram via bus object (52).
Power failure and thus power up
Automatically according to the time set in the ETS.
Without restart:
Activation of presence test with «SendoPro 868-A»
management remote control
LED display
Description
Flashing,
5 s On
0.3 s Off
The LED flashes as long as the light test is active.
Test response
The presence detector responds 100% like in normal operation, only the reaction to bright/dark is faster. This makes
it possible to test the brightness threshold and the adaptive
response. The control is also faster. All selected functions and
parameters remain unchanged.
6
Commands and adjustable parameters
The following commands are possible with the «SendoPro
868-A» management remote control in the light test mode:
End light test
Change brightness switching value/set point value channel C1 light
Activate presence test
The presence detector performs a restart after the end of the
test mode.
Dimensions diagrams
••
••
••
Do not use a pocket lamp to switch the presence
detector. The presence detector will learn this and
thereby distort the adaptive light thresholds and
hysteresis values.
In order to simulate this behaviour, the area below the presence
detector should be illuminated or the blinds operated. Reactivate
the light test for a new test.
Troubleshooting
Fault
Potential cause
Light does not
switch on or switches off if presence
is detected and in
darkness
Lux value is set too low; detector set on
semi-automatic; light was switched off
manually via push button or with remote
control; person not within detection range;
obstruction(s) interrupting detection; time
delay set too short.
Light stays on when
someone is present
despite sufficient
brightness
Lux value is set too high; light was recently
switched on manually via push button or by
remote control (wait 30 min during switching operation); detector is in test mode.
Light does not
switch off or light
switches on spontaneously when no
one is present
Wait for time delay (self-learning); thermal
sources of interference in the detection
area: fan heaters, incandescent lamps/
halogen spotlights, moving objects (e.g. curtains hanging in an open window).
Error flashing
(3 x per second)
Error in self-test;
Invalid parameter values in the detector
(see KNX manual theRonda P360 KNX
Chapter 2.4.2 Settings, parameter settings
with download).
Device not properly functional!
LED display
10.Technical data
Operating voltage
Bus voltage KNX, max. 30 V
Power consumption
approx. 8 mA / 9 mA with LED on
Type of installation
Ceiling installation; Flush/surface mounted or
ceiling installation
Recommended installation height
2.0 – 6.0 m (minimum height > 1.7 m)
(max. 10.0 m)
Detection area
horizontal
vertical
360°
150°
Maximum range
Ø 8 m (Mh. 3 m) / 50 m² radially moving
Ø 24 m (Mh. 3 m) / 452 m² tangentially moving
Setting range of
brightness switching
value/set point value
approx. 10 – 3000 lux / measurement OFF
Lighting time delay
30 s – 60 min
Presence time delay
10 s – 120 min
Presence switch-on
delay
10 s – 30 min / inactive
Standby dimming
value
1 – 25% of the lamp output
Standby time
30 s – 60 min / inactive / permanently on
All settings are remotely configurable
see KNX manual
Connection type
Plug-in terminals, type WAGO 243
LED
Description
Flashing at
one second
intervals
The presence detector is in the start-up phase.
Flickering
for 2 s
The command sent from the remote control via
infrared was accepted by the presence detector.
Lighting up
briefly
The command sent from the remote control via
infrared was rejected by the presence detector. The
command is not valid. Check the selected detector
type or parameters on the SendoPro.
Size of flush-mounted
box
Size 1, Ø 55 mm (NIS, PMI)
Protection rating
IP 20 (IP 40 installed)
Ambient temperature
-15 °C – +50 °C
Error flashing (3 x
per second)
Error flashing; The presence detector has found an
error.
CE Declaration of
Conformity
This device conforms to the safety regulations of
the EMC Directive 2004/108/EC
RCM compliance
This device is compliant with the ACMA guidelines
Flashing,
5 s On
0.3 s Off
The presence detector is in light test mode.
Lights up
or flickers
irregularly
The presence detector is in presence test mode
or "LED display movement" is activated. The LED
indicates the detection of movements.
7
Product overview
Type of
installation
Channel
Ceiling
installation
Colour
Type
Item number
2 Light | White
2 HVAC
theRonda P360
KNX UP WH
2089000
Ceiling
installation
2 Light | Grey
2 HVAC
theRonda P360
KNX UP GR
2089001
Ceiling
installation
2 Light | Special colour
2 HVAC in accordance
with customer
information
theRonda P360
KNX UP SF
2089003
Back box 110A GR
Item No.: 9070913
Details> www.theben.de/www.theben-hts.ch
DE (ceiling installation) box 73A
Item No.: 9070917
Details> www.theben.de/www.theben-hts.ch
Guarantee
ThebenHTS presence detectors are manufactured with the
utmost care and using state-of-the-art technology and are
quality-tested. Theben HTS AG therefore guarantees perfect
operation when used correctly. Should a fault occur, Theben
HTS AG will fulfil the guarantee within the scope of the general terms and conditions.
Please note in particular:
that the guarantee period lasts 24 months from the date
of manufacture.
that the guarantee is invalidated if you, or a third party,
make changes or undertake repairs to the devices.
that, insofar as the presence detectors are connected
to a software-controlled system, the guarantee for this
connection is only valid when the indicated interface
specification is complied with.
••
••
••
Covering clip for area restriction
Item No.: 9070921
Details> www.theben.de/www.theben-hts.ch
SendoPro 868-A
Item No.: 9070675
Details> www.theben.de/www.theben-hts.ch
We undertake to repair or replace as quickly as possible
all components of the delivered device that have become
defective or unusable through demonstrably poor material,
faulty construction or incomplete delivery up to the end of the
guarantee period.
Returns
In the event of a guarantee claim, please return the device to
the relevant dealer together with the delivery note and a brief
description of the fault.
theSenda S
Item No.: 9070911
Details> www.theben.de/www.theben-hts.ch
Industrial property rights
The design as well as hardware and software of these devices
are protected by copyright.
11.Accessories
Back box 110A WH
Item No.: 9070912
Details> www.theben.de/www.theben-hts.ch
theSenda P
Item No.: 9070910
Details> www.theben.de/www.theben-hts.ch
8
12.Contact
Switzerland
Theben HTS AG
Im Langhag 7b
8307 Effretikon
SWITZERLAND
Phone +41 52 355 17 00
Fax +41 52 355 17 01
Hotline
Phone +41 52 355 17 27
[email protected]
www.theben-hts.ch
All countries except Switzerland
Theben AG
Hohenbergstraße 32
72401 Haigerloch
GERMANY
Phone: +49 (0)7474/692-0
Fax: +49 (0)7474/692-150
Hotline
Phone: +49 (0)7474/ 692-369
[email protected]
www.theben.de
9
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
