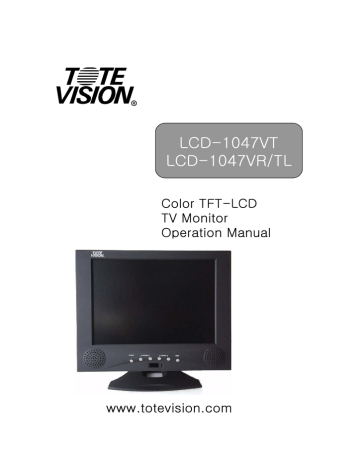

LCD-1047VT
LCD-1047VR/TL
Color TFT-LCD
TV Monitor
Operation Manual
www.totevision.com
LCD-1047VT/VR/TL
COLOR TFT-LCD TV Monitor
1. LCD-1047VT (stand alone unit)
2. LCD-1047TL (unit in flush mount kit)
3. LCD-1047VR (unit in rack kit)
OPERATION MANUAL
CONTENTS
SAFETY PRECAUTIONS
SUPPLIED ACCESSORIES
……………4,5
……………6
PREPARATION
Remote Control ………………………7
Cable Connection ……………………8
LOCATION OF USER CONTROLS
……9
BASIC OPERATION
……………………10
Monitor Installation
……………………11
OSD USAGE
…………………12
Basic OSD usage
Basic Setup …………………………12
……………………………13
PC Setup
TV & Video Setup ……………………14
…………………………15
OSD Setup
Before Calling for repair service ……16
SPECIFICATIONS
LCD-1047VT/VR/TL ……………………17
…………18
Available PC VGA Mode
Warranty Card
…………………………19
SAFETY PRECAUTIONS
Improper use can result in electric shock and/or fire. In order to prevent potential
danger, please observe the following instructions when installing, operating and
cleaning the product. To ensure your safety and prolong the service life of your color
TFT-LCD TV monitor product, please read the following precautions carefully before
using the product.
■ All operating instructions must be read and understood before the product
is operated.
■ These safety and operating instructions must be kept in a safe place for
future reference.
■ All warnings on the product and in the instructions must be observed
closely.
■ All operating instructions must be followed.
■ Do not use accessories not recommended by the manufacturer.
Use of inadequate accessories can result in accidents.
■ This product must be operated on a power source specified on the
specification label. If you are not sure of the type of power supply used
in your home, consult your dealer or local power company.
For units designed to operate on batteries or another power source,
refer to the operating instructions.
■ The power cords must be routed properly to prevent people from stepping
on them or objects from resting on them.
Check the cords at the electrical outlet and product.
■ If you plan to use a 12V DC power supply unit other than the AC adapter
supplied with the product, make sure the power supply unit provides stable
voltage with minimum fluctuations.
■ Do not overload AC outlets or extension cords.
Overloading can cause fire or electric shock.
■ Never insert an object into the product through vents or openings.
High voltage flows in the product, and inserting an object can cause
electric shock and/or short internal parts.
For the same reason, do not spill water or liquid on the product.
■ Do not attempt to service the product yourself.
Removing covers can expose you to high voltage and other dangerous
conditions. Request a qualified service person to perform servicing.
■ If any of the following conditions occurs, unplug the power cord from the
AC outlet, and request a qualified service person to perform repairs.
a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen
into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the
operating instructions.
Do not touch the controls other than those described in the operating
instructions.
4
SAFETY PRECAUTIONS (Continued)
Improper adjustment of controls not described in the instruction can cause
damage, which often requires extensive adjustment work by a qualified technician.
e. When the product has been dropped or damaged.
f. When the product displays an abnormal condition. Any noticeable
abnormality in the product indicates that the product needs servicing.
■ In case the product needs replacement parts, make sure that the service person
uses replacement parts specified by the manufacturer, or those with the same
characteristics and performance as the original parts.
Use of unauthorized parts can result in fire, electric shock and/or other danger.
■ Upon completion of service or repair work, request the service technician to
perform safety checks to ensure the product is in proper operating condition.
■ When mounting the product on a wall or ceiling, be sure to install the product
according to the method recommended by the manufacturer.
■ Unplug the power cord from the AC outlet before cleaning the product. Use a
damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.
■ Unplug the power cord from the AC outlet if you do not use the product for an
extended priod of time.
■ Do not use the product near water, such as bathtub, washbasin, kitchen sink,
laundry tub, swimming pool or in a wet basement.
■ Keep the product away from direct rays of the Sun-light.
■ Do not place the product on an unstable cart, stand, tripod or table. Placing the
product on an unstable base can cause the product to fall, resulting in serious
personal injuries as well as damage to the product. Use only a cart, stand,tripod,
bracket or table recommended by the manufacturer or sold with the product.
When mounting the product on a wall, be sure to follow the manufacturer's
instruction. Use only the mounting hardware recommended by the manufacturer.
■ When relocating the product placed on a cart, it must be moved with the utmost
care. Sudden stops, excessive force and uneven floor surface can cause the
product to fall from the cart.
■ The vents and other openings in the cabinet are designed for ventilation.
Do not cover or block these vents and openings since insufficient ventilation
can cause overheating and/or shorten the life of the product. Do not place the
product on a bed, sofa, rug or other similar surface, since they can block
ventilation openings. This product is not designed for built-in installation; do
not place the product in an enclosed place such as a bookcase or rack, unless
proper ventilation is provided or the manufacturer's instructions are followed.
■ The LCD panel used in this product is made of glass.
Therefore, it can break when the product is dropped or applied with impact. Be
careful not to be injured by broken glass pieces in case the LCD panel breaks.
■ Keep the product away from heat sources such as radiators, heaters, stoves
and other heat-generating products (including amplifiers).
■ The LCD Panel is a very high technology product with 786,432 thin film
transistors, giving you fine picture details. Occasionally, a few non-active pixels
may appear on the screen as a fixed point of blue, green or red.
Please note that this does not affect the performance of your product.
5
SUPPLIED ACCESSORIES
Please check to make sure the following accessories are included with this product.
TM390 ... XGA
LCD-2200VT
TM400
... SXGA
WSXGA
Color TFT-LCD
TV Monitor (NTSC)
Operation Manual
Operation Manual (x1)
Size AAA Battery (x2)
Remote Control (x1)
DESK Stand (x1)
Screws
Wall Mount Latch(x1)
PC VGA Cable (x1)
AC Adapter (x1)
PC Stereo Cable (x1)
AC Cord (x1)
6
PREPARATION
Remote Control
■ Use the remote control by pointing it towards the remote sensor window.
Objects between the remote control and sensor window may prevent proper
operation.
Cautions regarding use of remote control
!
■ Do not drop the remote control . In addition, do not expose the remote
control to liquids, and do not place in an area with high humidity.
■ Do not install or place the remote control under direct sunlight.
The heat may deform the unit.
■ The remote control may not work properly if the remote sensor window of
the main unit is under direct sunlight or strong lighting. In such case,
change the angle of the lighting or LCD TV monitor set, or operate the
remote control closer to the remote sensor window.
Batteries for Remote Control
If the remote control fails to operate the LCD TV Monitor functions, replace
the batteries in the remote control.
1 Open the battery cover.
2 Insert batteries (two Size-AAA batteries, Supplied with product).
■ Place batteries with their terminals corresponding to the (+) and (-)
indications in the battery compartment.
3 Close the battery cover
!
Cautions regarding batteries
Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to
follow the instructions below.
• Place batteries with their terminals corresponding to the (+) and (-) indications.
• Different types of batteries have different characteristics. Do not mix batteries of different
types.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of
new batteries and/or cause old batteries to leak chemicals.
• Remove batteries as soon as they are non-operable. Chemicals that leak from batteries
can cause a rash. If chemical leakage is found, wipe with a cloth.
• The batteries supplied with the product may have a shorter life expectancy due to storage
conditions.
• If the remote control is not used for an extended period of time remove batteries from the
remote control
7
PREPARATION (Continued)
Cable Connection
Rear view of main unit
1. BNC Video OUT is
passive loop out.
2. If BNC Video IN is
applied, RCA Video IN
will be disabled.
EXT. Speaker
KEY control
(option) BNC Video
IN & loop out
*RS-232
(option)
<Main board connectors>
ANALOG RGB
Y,
Pb,
Pr
S-VIDEO
PC SOUND
Power input
(DC 12V2A)
R
L
Sound IN
EXT. DC
IR IN
TV Antenna
VIDEO IN
AUDIO OUT
*VIDEO OUT
*VIDEO OUT is active output for VCR recording for TV or composite video
input. This can be used for a diversity antenna. If S-Video or component
input is selected, display of this output will be changed to black and white
because the color of the original input signal is already separated.
In PC mode you will get TV signal.
8
LOCATION OF USER CONTROLS
Control Panel (C/P) on the front of main unit
POWER ▼ VOL ▲
IR window
Power
Indicator
▼ CH ▲
Menu
Power
Decrease volume
Increase volume
Channel down / Move down
Channel up / Move up
Mode select/Menu
Remote control (R/C)
Auto Program
Sound mute
Select Under Scan
Power
Erase present Channel
Menu
Vol (▲)/(▼)
▲ Increase volume (up)
▼ Decrease volume (down)
Ch (▲)/(▼)
▲Selects next higher channel.
▼Selects next lower channel.
Channel select
Select input source
Auto Color
to set default Display setting
9
BASIC OPERATION
POWER
Available Mode
■ Yes / □ No
■ PC ■ Video ■ S-Video ■ TV
On / Off / Standby
■ by Control Panel (C/P)
1 Press the POWER button to turn on the main unit.
2 The power indicator lights green.
3 Press again the Power button to turn off.
IR Window
Power Indicator
■ by Remote Control (R/C)
1 Press the Power button to turn on the main unit.
2 Power indicator changes from red to green.
3 Press again the Power button then the power
indicator changes from green to red and main
unit turns into standby mode.
Switching PC / TV / VIDEO / S-VIDEO Mode
With Remote Control (R/C)
1 Press the SELECT to change input source.
From Control Panel (C/P)
1. Press the Menu key less than 2
sec. to select the next input source.
2. Press the MENU key more than 2
sec. to access menu on screen.
3. Press the Ch▲/▼ and Vol▲/▼ to move
the cursor to the desired selected source.
4 If you don't want to change source,
just leave it or press MENU Key.
10
Monitor Installation
1 Double click [Control Panel ] icon
from [My Computer] folder.
3 Select [Settings] in [Display Properties]
window.
4 Click [Advanced...].
Available Mode
■ Yes / □ No
■ PC □ Video □ S-Video □ TV
2 Double click [Display] icon from
[Control Panel] folder.
5 Select [Monitor] in the window shown
above.
6 Set [Refresh Frequency:] at 60Hz.
7 Finally, click [Properties].
11
BASIC OSD USAGE
Main Menu Screen
1 Press the Menu of R/C or C/P to display the OSD menu screen.
2 Press the Ch▲/▼ of R/C or C/P to move the cursor to desired menu icon.
3 Press the Sel of R/C or Menu of C/P to select the menu icon.
4 Press the Exit of R/C or select the Exit of OSD menu to disappear the main menu screen.
Note:
R/C - Remote Control & C/P - Control Panel
Available Mode
■ Yes / □ No
■ PC ■ Video ■ S-Video ■ TV
Basic Setup
Select item
Press the Vol▼ of R/C
or press the Ch▼ of C/P
Press the Vol▲ of R/C
or press the Ch▲ of C/P
1024x768 60Hz
OSD MENU
Color
Function
OSD Menu
Misc.
Sound
MISC.
Contrast
Brightness
Gamma
Color Temp
Color Adjust
1024x768 60Hz
Color
Function
OSD Menu
Misc.
Sound
H.Position
V.Position
Phase
Clock
Sharpness
Signal Source - PC, CVBS , S-Video, Y/Pb/Pr, TV
Display mode - Normal, Under Scan
Reset - YES, NO
SOUND
Sound
Volume
12
ON
OFF
Available Mode
■ Yes / □ No
■ PC □ Video □ S-Video □ TV
PC Setup
Press the Vol▼ of R/C
Press the Vol▲ of R/C
or press the Ch▲ of C/P
Selected item or press the Ch▼ of C/P
Color
1024x768 60Hz
Color
Function
OSD Menu
Misc.
Sound
Contrast
Brightness
Gamma
Color Temp
Color Adjust
1024x768 60Hz
Function
Color
Function
OSD Menu
Misc.
Sound
Color
Function
OSD Menu
Misc.
Sound
Move down
V-Position
H.Position
V.Position
Phase
Clock
Sharpness
1024x768 60Hz
AUTO Adjust
YES
AUTO color
YES
NO
NO
■ Automatically adjusted items are bellow
1) Frequency, 2) Phase
3) H-position of PC Setup
4) V-Position of PC Setup
5) Canceling Speaker Mute
Move up
Video
Video
Move left
Move right
H-Position
ideo
Vide
13
Available Mode
■ Yes / □ No
□ PC ■ Video ■ S-Video ■ TV
TV &Video Setup
Selected item
Press the Vol▼ of R/C
or press the Ch▼ of C/P
Channel
UP/DOWN
Edit
Add/Erase
Select
AUTO Search
Fine Tune
Under Scan
Press the Vol▲ of R/C
or press the Ch▲ of C/P
4
ADD
AIR
Erase
STD
YES
HRC
IRC
NO
-2
Normal Screen ..... The screen takes the source of 4:3 aspect
ratio as its full-sized regular picture. You may loose some of
the edge of the original image.
Under scan mode ...... This mode enables the user to display
100% of input image without hiding any image of Source. Video
will be displayed with small black border around the border.
Some video source which is non-standard format may break
the black border.
Normal Display
14
Under Scan
Available Mode
■ Yes / □ No
■ PC ■ Video ■ S-Video ■ TV
OSD Setup
Press the Vol▼ of R/C
Press the Vol▲ of R/C
or press the Ch▲ of C/P
Selected item or press the Ch▼ of C/P
Language
1 Press the Menu of R/C or C/P to select the Language.
The language select menu screen will appear.
2 Press the Vol▲/▼ of R/C or press the Ch▲/▼ of C/P to move
the cursor to the English or other.
3 Press the Vol ▲ of R/C or Menu of C/P to select the desired
language. Then press Exit to move to previous menu screen.
H-Position
move left the OSD menu box
move right the OSD menu box
■
V-Position
■
move down the OSD menu box
move up the OSD menu box
■
■
Background
Translucent
Opaque
Duration Time ■ The range of controlling the duration time of the OSD menu is from
5 sec. up to 30 sec. Default setting is 10 sec.
15
Before calling for repair service...
■ Before calling for repair service, check the following items for possible remedies to the
encountered symptoms.
Problem
Check below
Reference
Pages
There is no
picture or sound
(TV,Video,PC).
• Make sure the AC adapter is properly inserted in the
power outlet.
• Make sure the main power button of the main unit is on.
• Make sure the signal cables are securely connected.
• Make sure the power of an external input device is on.
• Make sure the input mode is set to proper mode.
• Fluorescent lamp may have reached the end of service life.
8
There is no
sound (TV,Video
PC).
• Make sure the volume is not set to minimum.
• Make sure the sound is not set to mute.
• Make sure the sound cables are securely connected.
9
9
8
There is no
picture or sound,
just noise(TV).
• Make sure the antenna cable is properly connected.
• Bad reception can be considered.
8
-
Picture is not
clear (TV).
• Make sure the antenna cable is properly connected.
• Bad reception can be considered.
8
-
Picture is not
clear (PC).
• Operate the Auto Adjust.
• Reset the Frequency and the Phase.
13
13
The picture is not
clear (Video).
• Check whether the Video Type is set up in the Video Setup
menu.
12,14
The picture is not
sharp (TV).
• The reception may be weak.
• The state of broadcast may also be bad.
• Make sure the antenna cable is securely connected.
The picture is
doubled or tripled
(TV).
• Make sure the antenna is facing the right direction.
• There may be reflected electric waves from mountains
or buildings.
There are stripes
on the screen or
color fade.
• Check this unit receiving interference from other devices.
Transmission antennas of radio broadcasting stations and
transmission antennas of amateur radios and cellular
phones may also cause interference.
• Use the unit as far apart as possible from devices that may
cause possible interference.
16
9
8
9
19
SPECIFICATIONS
LCD-1047VT/VR/TL
Color TFT-LCD TV Monitor
Resolution
Color
1024 * 768, XGA
Standard Color
262,144 Colors
Brightness
250 cd/m2(nit)
Contrast Ratio
450 : 1
Viewing Angle
H : 160 ˚
Panel
PC Signal
(Analog RGB)
Video / TV
Type
Amorphous Si TFT-LCD
Actual Display Size
210.4 * 157.8mm
Diagonal Length
10.4˝, 264.16mm
H-Frequency
30~61 KHz
V-Frequency
56~75 Hz
Signal Level
0.7Vp-p
Input Signal
Composite/ S-VIDEO/YPbPr / CATV(NTSC)
Color Signal Type
NTSC / PAL (Auto Sensing)
Sound Signal Type
YPbPr/CVBS/S-Video: Stereo, TV : mono
Power Voltage
Power Consumption
V : 160 ˚
AC100~240V, 50/60Hz, DC12V
Standard
Typ. 20Watt
Power Save Mode
Max. 3 Watt
Speaker (power option upon order)
Standard : 2x 2 Watts(VT/VR), 5W(TL),
Size
270 x 230 x 50 mm, without desk stand
Weight
W*H*D mm
2 Kg w/o accessories
17
SPECIFICATIONS
Available PC VGA Mode
VGA Input Signal
Resolution
V-Frequency
(Hz)
H-Frequency
(KHz)
Pixel Rate
(MHz)
Standard
Type
640 x 350
85
37.9
31.500
VESA Standard
640 x 400
85
37.9
31.500
VESA Standard
720 x 400
85
37.9
35.500
VESA Standard
60
31.5
25.175
Industry Standard
72
37.9
31.500
VESA Standard
75
37.5
31.500
VESA Standard
56
35.1
36.000
VESA Guidelines
60
37.9
40.000
VESA Guidelines
72
48.1
50.000
VESA Standard
75
46.9
49.500
VESA Standard
43
35.5
44.900
Industry Standard
60
48.4
65.000
VESA Guidelines
70
56.5
75.000
VESA Standard
75
60.0
78.750
VESA Standard
75
67.5
108.000
VESA Standard
640 x 480
VGA
XGA
1024 x 768
18
DOS
SVGA
800 x 600
1152 x 864
Remark
-
Warranty
ONE YEAR LIMITED WARRANTY
ToteVision warrants to the original purchaser that this product is free fromdefects in workmanship and material under normal use and
conditions for a period of 1 year fromthe date of original purchase, subject to the limitations below. Should service be required by reason of
any defect or malfunction during the warranty period, ToteVision will repair or at its discretion replace this product, without charge (except
for a $15.00 charge for handling, packing, return shipping, and subject to verification of the defect or malfunction), upon delivery of this
product to the Factory Service Center listed belowwith proof of date of purchase. During the warranty period ToteVision will repair or
replace, free of charge, defective units WHICHARE NOT DEFECTIVE DUE TOORDINARY WEARANDTEAR, USERABUSE,
OROTHERCAUSES NOT ARISINGOUT OF MANUFACTURER’S DEFECTS INMATERIALS ORWORKMANSHIP.
Before returning this product for service:
1. If it is necessary to pack the unit in other than original carton and protectors, please insure proper packaging for good protection.
2. Enclose a photocopy of your dated sales receipt, credit card statement, or other proof of the date of purchase, a description of your
complaint, your name, address and day time telephone number. (Do not use P.O. Box numbers since UPS cannot deliver to P.O. Boxes.)
Your warranty registration information must be on file in our office as a method of identification. If proof of original ownership is not in our
records, the repairs will be treated as “out-of-warranty” and your unit will be returned to you after you have paid for repair and handling
charges.
3. For “In Warranty repairs” enclose a check or money order payable to the order of ToteVision for the sumof $15.00 for return postage and
handling.
4. Ship the unit prepaid to the Factory Service Center listed below.
5. If your unit needs service after the warranty period has expired, ship it prepaid and insured to the Factory Service Center below. Enclose
a description of your complaint; your name, company name, address, and day time telephone number. You will be advised of estimated repair
charges.
NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover:
(i ) products which have been damaged by negligence, misuse, accidents, abuse, acts of God, or units which have been modified or repaired
by unauthorized persons,
(ii ) cracked or broken units or components or units damaged by excessive heat or cold, or units exposed to excessive UVlight.
(iii) products which have their serial numbers removed, altered or rendered illegible,
(iv) products that have cold cathode florescent tubes (CCFTs) that do not provide sufficient illumination,
(v) the cost of shipping this product to the Factory Service Center and its return to you.
No warranty, expressed or implied, as to merchantability or fitness for a particular use is made beyond this Limited Warranty. ToteVision
will not be liable for incidental or consequential damages or lost profits arising fromproduct defects or malfunctions. This warranty is valid
only in the United States of America and does not extend to owners of the product subsequent to the original purchaser. Any applicable
implied warranties are also limited to 1 year and ToteVision will not be liable for consequential damages. (Some states do no allow
limitations on implied warranties or exclusions of consequential damages, so that these restrictions may not apply to you.) This warranty
gives you specific legal rights, and you may also have other rights which vary fromstate to state.
As a precondition to receiving any of the benefits of this limited warranty, your completed warranty registration information must be
on file in our office. IF YOURINFORMATIONIS NOT ONFILE WITHUS, ALL WARRANTYCLAIMS WILL BE DENIED. TO
PROTECT YOURWARRANTY, MAIL YOURREGISTRATIONINFORMATIONTODAY! Submission of a unit determined to be not
defective will result in a charge to you for testing and handling the unit. Thoroughly test your unit before submitting it for warranty claim
repair.
Send unit to: TOTEVISIONSERVICE CENTER1319 Dexter Avenue N. # 020, Seattle, WA98109
For further information: call (206) 623-6000 or fax (206) 623-6609
_____________________________________________________________________________________________________
WARRANTY REGISTRATION
Protect your Warranty by completing and mailing this formto: ToteVision, 1319 Dexter Avenue N. # 020, Seattle, WA 98109
Model Number: _______________________Serial Number:
_______________________
Name: _____________________________________________________________________
Address:
____________________________________________________________________
City: ___________________________________ State: _______Zip:________________
Telephone number: (____________)_______________________________
Dealer: ______________________Dealer City: _____________________ State: _______________
Version 082203
19
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
