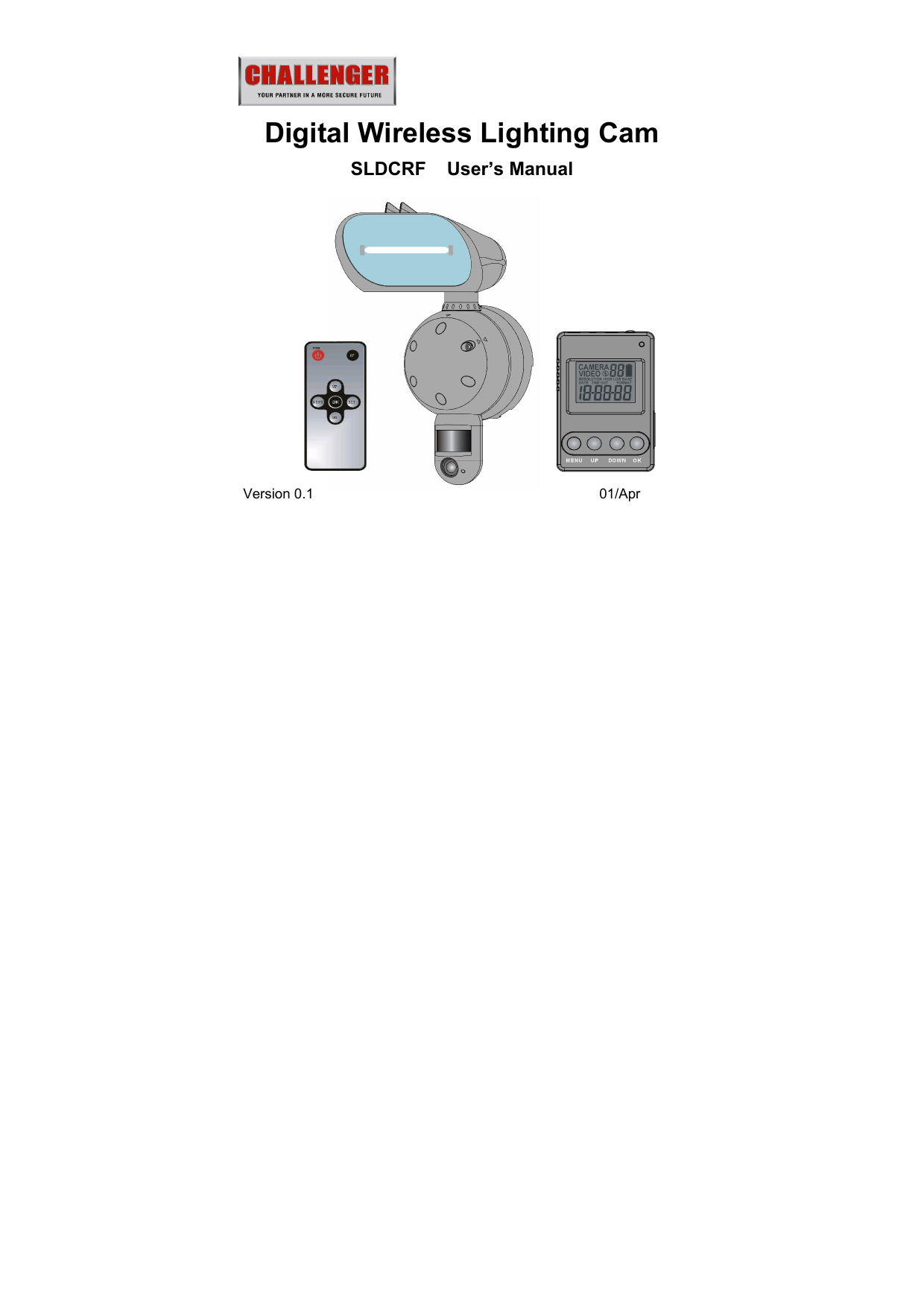

Challenger SLDCRF Engineer Manual

Digital Wireless Lighting Cam
SLDCRF User s Manual
Manual Contents:
A. Camera kit contents 3
B. SLDCRF overview 4
C. Mounting the camera 15
D. Setup Getting started 18
E. Program the parameters 23
F. Viewing images via PC and TV 30
G. Control receiver box by remote controller 35
H. Technical Specifications 36
I. General information and safety 37
J. FCC information 41
2
A. Camera kit contents
SLDCRF Digital Lighting Camera_Camera
SLDCRF Receiver box
SLDCRF Remote controller
USB Cable
AV out cable
AC/DC adaptor
CDROM, Content with SLDCRF Webcam driver
User Manual
3
B. SLDCRF overview
1. Front view of camera
4
Floodlight: It can be rotate and tilting to adjust the lighting area. The max rotation is +/-30 Deg, tilting angle is 10 Deg.
Flood light screw: Release to open the flood light case to replace the halogen lamp
Flood light cover: Open to replace lamp
Halogen lamp: For lighting purpose, please use the correct voltage and wattage of halogen light for this product. Halogen lamp R7S, Max power: 300W.
Front cover locker: Use to open or lock the front cover
Front cover
PIR: Passive Infrared movement sensor.
Cam Lens: This is the digital camera lens. Please use a soft cloth to clear if necessary,
TEST Indicator: It is a red LED to indicate the PIR detection coverage area.
Camera body: It can be rotate and tilting to adjust PIR detection area. The max rotation is +/-30 Deg, tilting angle is 30 Deg.
5
Wall mount bracket: Use to mount the SLDCRF to the wall by provided screws
EVA foam: Install between wall and wall mount bracket to prevent the water leaking.
2. Control panel view of camera
After open the front cover, you will find control panel as below
PAIR: It uses to matching pair with receiver box.
6
3. View of receiver box
7
MENU Button: Press to go tparameter settings.
UP/DOWN button: To program the camera parameters as Still image/Video/Resolutions/Date/Time/Video recording time/ Image and video capturing interval time
OK button: Press to confirm the settings.
SD memory card slot: To install a SD memory card.
Ensure card is unlocked and it firmly pushed in. Press again to release and remove.
POWER button: Press to turn on the power of Receiver box while it is power off.
DC 5V socket: Power source connector, connecting to provided AC/DC adaptor
AV OUT socket: Video and Audio signal output port, connecting to provided AV cable to TV
USB socket: To connect the USB cable from SLDCRF to PC to access the captured image/video.
Infrared receiver: To receive the remote control signal from REMOTE controller.
8
Operation indicator: Shows the operation status of
Camera and Receiver box.
Blinking: Indicating data is transmitting from camera to receiver box.
Light up: Indicating the SLDCRF is operating.
LCD display
CAMERA: Still image capture icon. Indicates your
SLDCRF will capture a single image.
9
VIDEO: Video-capturing icon. Indicating your SLDCRF is in video capturing mode and recording time will depend on the video recording time setting.
18-88-88: Image/video counter to show how many images or videos have been captured. And at parameter settings, it shows the Date and Time setting.
RESOLUTION HIGH: Indicates the SLDCRF is in highresolution still image capturing or video capturing.
RESOLUTION LOW: Indicates the SLDCRF is in Lowresolution still image capturing or video capturing.
DATE: Indicates the SLDCRF is in Date setting.
TIME: Indicates the SLDCRF is in Time setting.
TIME OUT: Indicates the SLDCRF is in Time interval setting.
FORMAT: Indicates the SLDCRF is in SD card Format setting.
10
4. View of Remote controller
11
POWER button: Press once to turn on the power of
Receiver box while power is off. Pressing and hold it 2 seconds to turn off the power of Receiver box while it is power on.
It is same function of POWER button on the receiver box.
AV button: When receiver box is connected to TV by provided AV cable, pressing and hold AV button 2 seconds to switch the receiver box to AV OUT mode from receiving mode.
SET button: Pressing and hold 2 seconds to switch the receiver box back to receiving mode
MENU Button: Press to go to parameter settings.
UP/DOWN button: To program the camera parameters as Still image/Video/Resolutions/Date/Time/Video recording time/ Image and video capturing interval time
OK button: Pressing to confirm the settings.
Infrared transmitter: To transmit remote control data from remote controller to receiver box.
12
5. Picture / Image Capacity
SD card
1G
2G
4G
High 1.3M
1280 x 800
2500
5000
10000
Low VGA
640 x 480
5000
10000
20000
Base CIF
384 x 240
10000
20000
40000
AVI VGA
10 seconds
200
400
800
NOTE: Picture / Image Capacity Chart shows the approximate number of images or video clips that can be stored based on the resolution setting and the size of memory card. These figures may vary depending on the amount of detail in the image.
Memory Options Up to 4GB SD card
Your SLDCRF wireless lighting camera is equipped with 32MB built in SDRAM memory. Please note that the built in memory is only for storage buffer and data processing buffer only, the captured image or video cannot store on internal memory, please install the memory card to memory card slot of receiver box. The memory card slot capable of accepting up to 4GB SD card (sold separately). With no memory card inserted into the
13
slot, the display will show Err to indicate non memory card installed. Also, it is not recommended that a card is inserted or removed during operation as this can cause malfunction.
14
C. Mounting the camera
Mount the SLDCRF to a solid surface more than ½ or 12.7mm thick in a secure location overseeing the area to monitor. We suggest you mount the camera between 2 meters off the ground with the camera pointing at a downward angle 15 degrees. Be sure to avoid mounting the camera facing east or west as the rising and setting of the sun may produce false triggers and overexposed images.
Ensure the front of your
SLDCRF is clear of any branches and other debris so your camera view or PIR sensor are not obscured.
15
1. Connect the SLDCRF to AC power.
Please make sure your SLDCRF is rated for your voltage before connection. Incorrect voltage will damage the camera.
BLUE WIRE FOR NEUTRAL
YELLOW / GREEN WIRE FOR EARTH
BROWN WIRE FOR LIVE
IMPORTANT
Observe correct wiring as failure to do so will damage unit and void warranty
We recommend using a supply that you can switch off if required. Once wired correctly, turn on the mains supply.
When connected, if the environmental brightness is not enough, the SLDCRF lamp will turn on for approximately
60 seconds. This 60 seconds to inform user leave the capturing area, then it is ready for operation and will begin recording images each time the motion sensor is triggered.
16
2. Replacing the halogen lamp.
CAUTION SLDCRF lamp will be very hot.
Always disconnect the power to your SLDCRF before opening.
Release the floodlight screw to open the floodlight cover.
Carefully remove the Halogen lamp it may be HOT.
Insert a new Halogen lamp making sure you do not touch the lamp with bare skin. Halogen Lamp : Max
300W R7S
Close the floodlight cover and screw together carefully.
17
D. Setup getting started
1. Connecting the power to receiver box
Place the receiver box at a desk or somewhere easy to access and easy for remote controller to access.
Plug the provided AC adaptor to wall AC outlet as below
Plug the small plug to receiver box DC 5V as below.
Please make sure the output voltage of AC outlet is correct to match the operation AC voltage of AC adaptor. The operation voltage of AC adaptor is 100
~ 240 volts.
18
2. Inserting SD card receiver box
SD cards must not contain any other images and you must ensure your SLDCRF receiver box is power off when adding or removing an SD memory card, and make sure the SD card is unlock. Failure to observe these rules may result in malfunction.
Inserting the SD memory card into the SD card slot completely and in the correct direction as shown on the inside of the housing.
DO NOT FORCE THE SD CARD
To remove the SD memory card by pushing the SD card in, and it will spring out, now pull out the card gently.
19
3. Matching pair of Camera with Receiver box
After mounting the SLDCRF Camera to wall properly.
Using the hex screw driver to release the screw from front cover, then turn front cover anti-clockwise and then take front cover off.
A PAIR button will be found on the control panel.
Press the POWER button of receiver box to turn on the receiver power.
Press UP, DOWN and OK button at the same time once within 30 seconds of power up.
The display of receiver box will show P10 and start counting down.
Press the PAIR button of camera once.
The display of receiver box will stop counting down and after 3 seconds, the operation indicator will turn on.
SLDCRF Camera is now matched pair with receiver box.
20
4. Testing the capturing area PIR coverage area
The testing is to make sure that the capturing and PIR coverage area is correct.
After completing above matching pair steps, connect the provided AV cable to AV OUT of receiver box and AV IN of TV as below
Changing the TV to play the AV
The TV will show live footage of camera.
Adjust the position of your SLDCRF if necessary, until the desired coverage area is achieved.
21
When you have completed the coverage area testing, please disconnect the AV cable from receiver box and
TV, or press the SET button from the remote control unit to switch receiver box back to capturing mode.
22
E. Program the parameters
1. Default Settings.
You can change the parameters on your SLDCRF from receiver box. The default values are shown below.
Setting
Time
Date
Image capture interval
Default
12:00
01:01:10
1 minute
HH:MM
MM:DD:YY
01-59
Resolution
Burst
Image capture method
Floodlight control
High
2P
Auto
High/Low/Base
1 - 3P
Video/Photo
Auto
Video recording time 10 seconds 05 - 60
Your SLDCRF can be used straight away but before use you may wish to change some or all of the settings see the next sections.
23
2. Set the Resolution
After power on the receiver box, press the SET button then MENU button within 30 seconds to enter programming.
If MENU button is not pressed within 30 seconds, camera will automatically enter PIR detection mode.
The first program setting is resolution.
After pressed the MENU button
The word RESOLUTION will be blinking on the display.
Press OK button to choose the selection.
Press the UP or DOWN button to select the desired resolution HIGH / LOW or BASE
And then press OK to save and exit to CAPTURING setting.
3. Set the capturing sequence
Set the Still Image Mode. Your SLDCRF can be programmed to shoot 1~3 pictures per triggering.
24
After exit the resolution setting, the word CAMERA will be blinking on the display
Press OK button to choose the selection.
Then the number of burst mode will now blink. Press the
UP or DOWN button to select the desired burst mode setting (1P to 3P of pictures per triggering).
The number of burst mode is 1P to 3P.
Press OK to save your selection and exit to TIME OUT settings.
Set the Video Mode: Your SLDCRF can program to record 5~60 seconds of video per triggering.
After pressing the MENU button, press UP button twice to enter video setting mode. The word VIDEO will be blinking on the display
Press the OK button and the video length in seconds will be blinking.
Press the UP or DOWN button to select the desired video length (from 5 seconds to 60 seconds in 5 second increments).
25
Press the OK button to save and exit to TIME OUT setting.
4. Set the Time out
The word TIME OUT will be blinking on the display
Press the OK button and the time out time will now blink.
Press the UP or DOWN button to increase or decrease the interval time value in minutes from 01 to 59 minutes.
Press the OK to save your selection and exit to Date &
Time setting.
5. Set the Date and Time: This SLDCRF uses the 24hr military time format.
The word TIME will be blinking on the display.
Press the OK button to enter minute setting first.
Minute digit will be blinking. Press UP or DOWN to increase or decrease the minute value (0 59)
Press OK to confirm the minute setting and enter hours setting.
Hour digit will be blinking. Press UP or DOWN to increase or decrease the hour value (00 23)
26
Press OK to confirm the hour setting and enter year setting.
Year digit will be blinking. Press UP or DOWN to increase or decrease the year value.
Once this is done, press OK and enter month setting.
Month digit will be blinking. Press UP or DOWN to increase or decrease the month value. (01 12)
Press OK to confirm the month setting and enter date setting.
Date digit will be blinking. Press UP or DOWN to increase or decrease the date value. (1 31)
Once this is done, press OK to save. You ll see the word
- dEL - blinking. Now press [MENU] to exit program setting and go back to status screen.
NOTE: Settings and images stored on internal memory may be lost in the event of a power failure.
Always ensure you reset your SLDCRF following a loss of power.
27
6. Deleting images without viewing screen
After pressing the MENU button, press DWON button once to enter the delete mode. The word - dEL blinking. is
Press the OK button to enter the DELETE & FORMAT menu.
Using the UP and DOWN buttons to select the desired function. NO-dl (No Delete), (d-ONE) Delete one, (d-ALL)
Delete ALL, or FORMAT.
Pressing the OK to confirm your selection.
If you choose to delete one picture at a time, (d-ONE), it will delete the last picture from the memory card,
Press MENU button to return the capturing mode, and you will find the image/video counter decreased one.
If you choose to delete all images (d-ALL), it will delete all images.
Press MENU button to return the capturing mode, and
28
you will find the image counter is return to 00000
If you choose to format your memory, it will erase all images. This feature is particularly useful if you don t want to look through the images one at a time.
To exit the delete setting, press UP or DN button to select NO-dl (No Delete) then press [MENU] to back to capturing mode.
29
F. Viewing images via PC and TV
You can connect directly to the receiver box of your
SLDCRF using the provided USB cable to PC.
Alternatively you can use a card reader or a digital camera to read the SD card.
When connected the SD card will show as a removable hard drive and you can use Windows Explorer to see your SLDCRF captured images or video. You can copy the images to your PC or delete them from your PC directly.
30
1. Viewing images via your receiver box directly on your
PC
Connect the provided USB cable to your PC
Press and hold the MENU button then plug the USB cable to USB socket of your receiver box, then release the MENU button
The receiver box of our SLDCRF will automatically change to USB mode and the display will show USb.
Your PC will setup automatically.
The SD memory card will now show on your computer as a removable drive.
Click the removable drive to open the file, an VIDEO file will be found under root directory
This VIDEO file contains all the captured images/videos by folder, and folder name is the date of created, and the image name is the captured time and sequence.
Now you can view all the captured image or video from your PC.
31
2. Viewing the image via your recevier box diectly on your
TV
Connect the provided AV cable to AV OUT of receiver box and AV IN of TV as below
Change the TV to view the AV Channel
Press the MENU button once to switch the receiver box to TV out mode.
The captured image/video files will be shown on the TV.
Press the UP or DOWN button to play the captured image or video.
32
3. Viewing a live image from SLDCRF
Your SLDCRF can also be used as a web cam
Please install the SLDCRF Webcam driver to your PC first.
Install the provided CDROM to your PC, and then click
SETUP. EXE to install the driver.
Connect the provided USB cable to your PC and other side to USB socket of your SLDCRF receiver box.
The receiver box of your SLDCRF will automatically change to web cam mode and the display will show
PCC
Your PC will setup the installed driver automatically.
Now you can use Windows application software to view a live image.
Viewing a live image from SLDCRF is only available for Win 2000, Win XP and Win Vista.
Note: If you are using a long USB cable or your computer s USB port is unable to provide enough power for the SLDCRF you may experience difficulties such as no operation, black and white or
33
poor picture quality. Please try a different USB port
or shorter cable.
34
G. Control the receiver box by remote controller
The Remote controller is a full operation infrared transmitter; you can use it to access the receiver box within 7 metre and +/- 12 deg.
All the buttons functions and operation are same as the button of receiver box, please refer to Program the
parameter section and view
of the remote controller
section to access the receiver box, and play the captured image/video.
The remote controller uses a button cell battery, please follow the figure on the back side of remote controller to replace the battery when battery is low.
35
H. Technical Specifications
1. System Requirements and Compatibility
Windows 2000/Me/XP/Vista/Win 7.
Live viewing is not support with Win 7.
Pentium 1GMHz or equivalent processor.
256MB SDRAM or above.
VGA Video Card with 32MB RAM minimum
Colour 32 bit or higher.
Sound Card.
An available CDROM driver and an available USB Port.
20GB free hard disc space.
If you have any questions regarding your PC
specifications please refer to your PC manufacturer.
36
2. Features and specification
PIR detection angle 52 Deg and detection range up to
9M.
Low Lux colour CMOS Image Sensor 1.3M pixels.
Max Resolution: 1.3M pixels, 1280 x 800 pixels.
2 Capture options: Still image 1P to 3P burst capturing, and video recording
Image performance for video stream:
20 fps at 640 x 480 pixels
Built in 32MB SDRAM for image buffer
Built in status LCD display on the receiver box
Built in SD card slot for SD memory card on the receiver box and support up to 4GB.
Automatic exposure control, white balance and sharpness
Auto Date & Time stamp on the captured image/video file and file name
High precision 4 piece glass lens with IR coating
Focusing: 1.5m (minimum) to Infinity
37
Effective viewing angle: 48 deg
Built in USB plug for PC access
Interface type: USB 1.1
Image format: JPG, Motion JPEG
Powered by AC 230V.
Floodlight tube is 300W, type R7S
Auto light sensor.
Infrared remote controller with full control buttons
Product measurements: H300 x W170 x T85mm. Weight
1.2Kg, SLDCRF Camera only.
Operating Environment: 14 to 104 deg F (-10 to 40 deg
C). 20-85% relative humidity, non-condensation.
38
I. General Information and safety
Storing conditions
Storage conditions: -20ºC to 55ºC, 20-85% R.H., noncondensing
Special care instructions.
The SLDCRF is designed only to be weather resistant.
Never attempt to immerse the unit in water or any other liquid. This will damage the unit and void the warranty.
Use a soft lens cloth for cleaning lens. Avoid touching lens with fingers.
Remove dirt or stains with a soft cloth dampened with water or mild detergent. Keep the SLDCRF in a dry and cool dust-free environment or container when it is NOT used.
Do not open the SLDCRF for unauthorised service. This could cause serious damage to the unit and will void your warranty.
This SLDCRF is a precision electronic device. Do not attempt to service this camera yourself, as opening or removing covers may expose you to dangerous voltage
39
points or other risks.
Do not touch the floodlight when the power is on, it is
extremely hot.
40
J. FCC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modification to this unit not expressly approved by the party responsible for compliance could void the user s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limited for Class B digital device, pursuant to Part 15 of the FCC Rules. Their limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
41
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
SLDCRF_R0.1.
42
43
Challenger Security Products
4 Arkwright Court
Fylde Industrial Estate
Blackpool
Lancashire
FY4 5DR
Tel: 01253 791888
Fax: 01253 791887
Email: [email protected]
Web: www.challenger.co.uk
44
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
