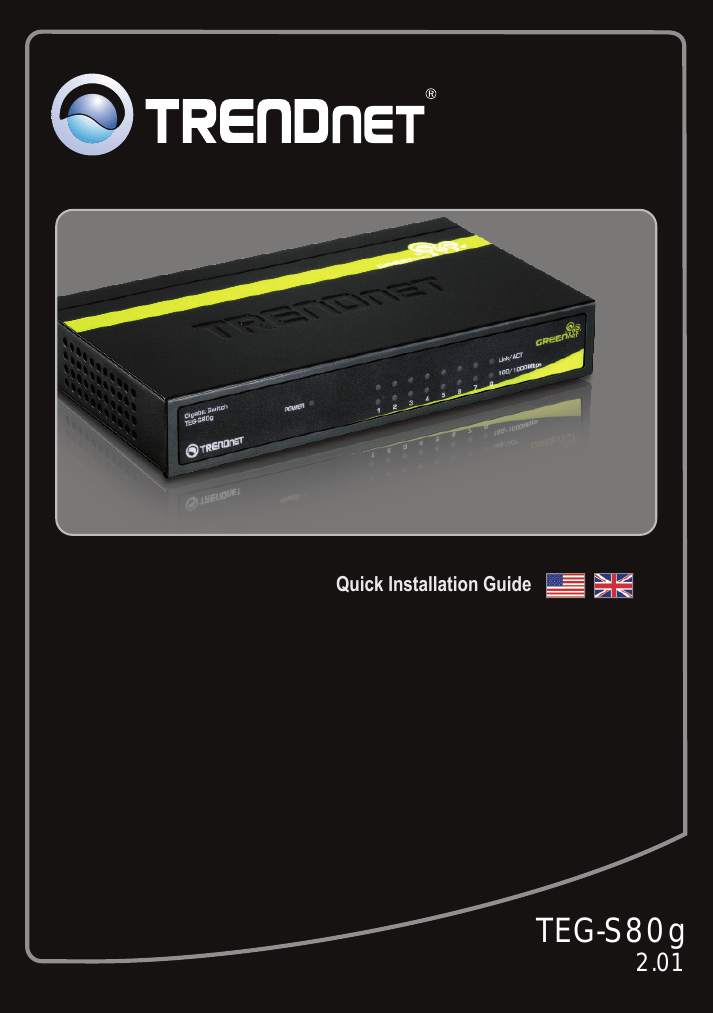

TRENDnet 8-Port User's Manual

Quick Installation Guide
TEG-S80g
2.01
Table of Contents
English
1. Before You Start
2. Hardware Installation
3. LEDs
1
1
3
4
Technical Specifications
Troubleshooting
5
6
Version 09.27.2010
1. Before You Start
Package Contents
TEG-S80g
?
?
Multi-Language Quick Installation Guide
?
Power Adapter (5V DC, 1A)
System Requirements
?
A computer with a network adapter installed
?
Cat-5e or Cat-6 Network Cable
The surface must support at least 1.5 Kg for the Switch
?
The power outlet should be within 1.82 meters (6 feet) of the Switch
?
Visually inspect the DC power jack to make sure that it is securely connected to
?
the power adapter
Make sure that there is proper heat dissipation from and adequate ventilation
?
around the Switch
Do not place heavy objects on the Switch
?
1
Application
1
Delivers less power
to unused ports
less power
on
on
on
on
2
Delivers less power
when devices are off
off
less power
3
Delivers less power
with shorter
cable lengths
GREENnet
Switch
20m
60m
100m
Full Power
Regular
Switch
20m
*Max power savings compared with standard TRENDnet switches.
2
60m
100m
2. Hardware Installation
1. Connect the Power Adapter to the TEG-S80g
and then to a power outlet.
2. Connect a CAT-5e or CAT-6 RJ-45 network
cable from the computer to an available
Ethernet port of the TEG-S80g.
3
3. LEDs
Power
Link/ACT
Green(Solid):
Link to another device.
Green(Blinking):
Activity is occurring from the link
Not Illuminated:
Nothing is detected on the port.
Green: Power is on
Not Illuminated: Power is off
100Mbps/1000Mbps
Green:
Connection for the port is 2000Mbps (Full)
Amber:
Connection for the port is 100/200Mbps (Full/Half)
Non Illunimated:
Connection for the port is 10/20Mbps (Half/Full) or
nothing is detected on the port.
4
Hardware
Standards
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3x Flow Control
IEEE 802.3az (draft 2.0)
Network Media
Ethernet: Cat. 3,4,5, up to 100m
Fast Ethernet: Cat. 5, up to 100m
Gigabit Ethernet: Cat. 5, 5e,6, up to 100m
Data Rate
Ethernet: 10Mbps/20Mbps (full-duplex)
Fast Ethernet: 100Mbps/200Mbps (half/full-duplex)
Gigabit Ethernet: 2000Mbps (full-duplex)
Protocol/Topology
CSMA/CD, Star
Power Consumption
Switch Fabric
Interface
3.5 Watts (max.)
16Gbps forwarding capacity
8 x 10/100/1000Mbps Auto-MDIX RJ-45 ports
Data RAM Buffer
128KBytes
Filtering Table
8K entries
Jumbo Frame Support
Diagnostic LEDs
9216Bytes
Power Adapter
5V DC, 1A external power adapter
Dimension
171 x 98 x 28mm (6.7 x 3.86 x 1.1 in)
Weight
450g (15.9 oz)
Temperature
Operating: 0° ~ 40° C (32° ~ 104° F)
Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
Max. 90% (non-condensing)
Certifications
FCC, CE
Power, Link/ACT, 100Mbps/1000Mbps
5
Troubleshooting
1. After connecting the Switch to a power outlet, the LEDs do not turn on.
Check the connection of the external power adapter to the TEG-S80g and the
power outlet. Also check that the power outlet is receiving power.
2. When I connect a computer to one of the ports on the Switch, the Power and
the Link/ACT LED is lit, but I am not getting Gigabit speeds.
1. Check the LEDs. If the 100/1000Mbps LED is amber, the computer's
connection speed is 100. If the 100/1000Mbps LED is off, the computer's
connection speed is 10Mbps.
2. Check the Ethernet Cable. Make sure you are using CAT-5e or CAT-6 Ethernet
Cables. Some CAT-5 cables are not rated to run in Gigabit.
3. Make sure that you have a Gigabit Ethernet adapter installed on your computer.
3. After I connect my PCs to the Switch, I am unable to share files.
1. Check the LEDs on the Switch. Make sure the Link/ACT LED is on.
2. Check the network cable. The minimum length of the cable is 1.5 meters and
the maximum length of the cable is 100 meters.
3. Disable any software firewall program.
4. Verify that you have file sharing enabled. Please contact your Operating System
support for more information.
4. After I connect my PCs to the Switch, I can only get onto the Internet from one
computer.
The Switch was not designed to share Internet between multiple computers. You
need to get an Internet router such as the TW100-S4W1CA.
5. Where is the uplink port located on the Switch?
Since all the ports on the Switch are Auto-MDIX, any of the ports can be used as
an uplink port.
If you still encounter problems or have any questions regarding the TEG-S80g please
contact Trendnet's Technical Support Department.
6
Limited Warranty
TRENDnet warrants its products against defects in material and workmanship, under normal
use and service, for the following lengths of time from the date of purchase.
TEG-S80g - 3 Years Limited Warranty
AC/DC Power Adapter, Cooling Fan and Power Supply carry a 1 year limited warranty
If a product does not operate as warranted during the applicable warranty period, TRENDnet
shall reserve the right, at its expense, to repair or replace the defective product or part and
deliver an equivalent product or part to the customer. The repair/replacement unit's warranty
continues from the original date of purchase. All products that are replaced become the
property of TRENDnet. Replacement products may be new or reconditioned. TRENDnet
does not issue refunds or credit. Please contact the point-of-purchase for their return policies.
TRENDnet shall not be responsible for any software, firmware, information, or memory data of
customer contained in, stored on, or integrated with any products returned to TRENDnet
pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to service the
product by any unauthorized service center. This warranty is voided if (i) the product has been
modified or repaired by any unauthorized service center, (ii) the product was subject to accident,
abuse, or improper use (iii) the product was subject to conditions more severe than those
specified in the manual.
Warranty service may be obtained by contacting TRENDnet within the applicable warranty
period and providing a copy of the dated proof of the purchase. Upon proper submission of
required documentation a Return Material Authorization (RMA) number will be issued. An RMA
number is required in order to initiate warranty service support for all TRENDnet products.
Products that are sent to TRENDnet for RMA service must have the RMA number marked on the
outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately
for safe shipment. Customers shipping from outside of the USA and Canada are responsible for
return shipping fees. Customers shipping from outside of the USA are responsible for custom
charges, including but not limited to, duty, tax, and other fees.
7
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS
WARRANTED ABOVE, THE CUSTOMER'S SOLE REMEDY SHALL BE, AT TRENDNET'S
OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE
EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME
FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION
MAINTENANCE OR USE OF TRENDNET'S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT
EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT,
IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR
MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO
EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL,
INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE
OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE
POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR,
REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDNET'S OPTION.
THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY
REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of California.
Some TRENDnet products include software code written by third party developers. These codes
are subject to the GNU General Public License ("GPL") or GNU Lesser General Public License
("LGPL").
Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section and look for
the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are
distributed WITHOUT WARRANTY and are subject to the copyrights of the developers.
TRENDnet does not provide technical support for these codes. Please go to
http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt for specific terms of
each license.
PWP05202009v2
8
Copyright ©2010. All Rights Reserved. TRENDnet.
