LP 33 Series
GE Consumer & Industrial
Power Protection
TM
gy
Dig it al E ner
LP Se rie s
TM
rgy
Digi tal EneLP S erie s
TM
Dig ita l E nergy
L P Se ri es
LPS3
3_04
0_UP
S_G
E_01
LP
S3
3_06
0-08
0_UP
S_
GE
LP
S3
3_10
0-12
0_ UP
_01
S_
GE
_01

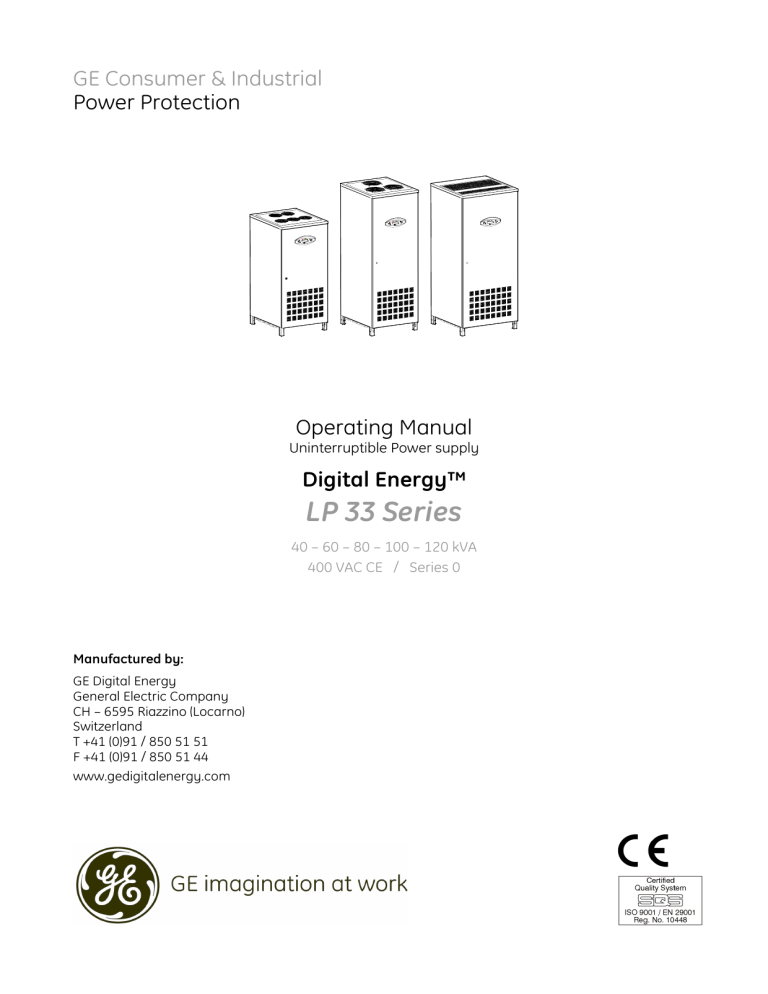

Operating Manual
Uninterruptible Power supply
Digital Energy™
LP 33 Series
40 – 60 – 80 – 100 – 120 kVA
400 VAC CE / Series 0
Manufactured by:
GE Digital Energy
General Electric Company
CH – 6595 Riazzino (Locarno)
Switzerland
T +41 (0)91 / 850 51 51
F +41 (0)91 / 850 51 44
www.gedigitalenergy.com
Model:
LP 33 Series / 40 – 60 – 80 – 100 – 120 kVA / Serie 0
Date of issue:
01.01.2005
File name:
OPM_LPS_33E_40K_M12_0GB_V010
Revision:
1.0
Identification No.
Up-dating
Revision
Concerns
Date
COPYRIGHT © 2005 by GE Consumer & Industrial
All rights reserved.
The information contained in this publication is intended solely for the purposes indicated.
The present publication and any other documentation supplied with the UPS system is not to be
reproduced, either in part or in its entirety, without the prior written consent of GE.
The illustrations and plans describing the equipment are intended as general reference only and are
not necessarily complete in every detail.
The content of this publication may be subject to modification without prior notice.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 2/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
Dear Customer,
We thank you for selecting our products
and are pleased to count you amongst
our very valued customers at GE.
We trust that the use of the LP 33 Series
Uninterruptible Power Supply system,
developed and produced to the highest
standards of quality, will give you
complete satisfaction.
Please read carefully the Operating
Manual, which contains all the necessary
information and describes all you need to
know about the use of the UPS.
Thank you for choosing GE !
Manufactured by:
Distributed by:
Your service contact:
g
GE Digital Energy
General Electric Company
CH – 6595 Riazzino (Locarno)
Switzerland
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 3/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
Table of contents
1
SAFETY RULES............................................................................................................................................... 6
1.1
1.2
2
GENERAL DESCRIPTION............................................................................................................................................................... 11
DESCRIPTION.............................................................................................................................................. 12
3.1
3.2
3.3
3.4
3.5
3.6
3.7
4
IMPORTANT SAFETY RULES...........................................................................................................................................................7
SAFETY SYMBOLS AND WARNINGS........................................................................................................................................ 10
INTRODUCTION.......................................................................................................................................... 11
2.1
3
PRINCIPAL DIAGRAM AND MAIN ELEMENTS DESCRIPTION......................................................................................... 12
OPERATION MODES....................................................................................................................................................................... 13
RPA PARALLEL SYSTEM ................................................................................................................................................................ 16
UPS PARALLELED ON THE SAME BATTERY.......................................................................................................................... 17
SERVICE AND TECHNICAL SUPPORT ...................................................................................................................................... 18
WARRANTY ........................................................................................................................................................................................ 18
RECYCLING AT THE END OF SERVICE LIFE........................................................................................................................... 19
INSTALLATION............................................................................................................................................ 20
4.1
TRANSPORT....................................................................................................................................................................................... 20
4.1.1
4.2
4.3
4.4
4.5
4.6
4.7
Power connection with common input mains for LP 33 Series / 40 - 60 - 80 kVA.............................................. 33
Power connection with common input mains for LP 33 Series / 100 - 120 kVA.................................................. 35
Power connection with separate input mains for LP 33 Series / 40 - 60 - 80 kVA (option)............................. 37
Power connection with separate input mains for LP 33 Series / 100 - 120 kVA (option)................................. 39
RPA system - Control bus connection .................................................................................................................................... 41
UPS FUNCTIONING AS FREQUENCY CONVERTER ............................................................................................................ 44
LAYOUT........................................................................................................................................................ 45
5.1
5.2
5.3
6
Fuse discrimination (co-ordination of breakers tripping)............................................................................................... 30
Fuse ratings ........................................................................................................................................................................................ 31
Input / output cable ratings ........................................................................................................................................................ 32
ELECTRICAL CONNECTION ......................................................................................................................................................... 33
4.8.1
4.8.2
4.8.3
4.8.4
4.8.5
4.9
Storage of the UPS .......................................................................................................................................................................... 22
Storage of the battery ................................................................................................................................................................... 23
PLACE OF INSTALLATION ............................................................................................................................................................ 24
VENTILATION AND COOLING..................................................................................................................................................... 27
UNPACKING ...................................................................................................................................................................................... 28
ELECTRICAL WIRING...................................................................................................................................................................... 29
4.7.1
4.7.2
4.7.3
4.8
Dimensions and weight................................................................................................................................................................. 21
DELIVERY ............................................................................................................................................................................................ 22
STORAGE ............................................................................................................................................................................................ 22
4.3.1
4.3.2
5
Page
LAYOUT LP 33 Series / 40 KVA.................................................................................................................................................. 45
LAYOUT LP 33 Series / 60 - 80 KVA......................................................................................................................................... 46
LAYOUT LP 33 Series / 100 - 120 KVA ................................................................................................................................... 47
SYSTEM HANDLING.................................................................................................................................... 48
6.1
6.2
CONTROL PANEL............................................................................................................................................................................. 48
COMMAND PUSH BUTTONS AND SWITCHES..................................................................................................................... 49
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 4/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
7
LCD SCREEN................................................................................................................................................ 50
7.1
7.2
METERING SCREENS (METERING) ............................................................................................................................................ 50
EVENT SCREENS (ALARM)............................................................................................................................................................ 52
7.2.1
7.2.2
7.2.3
7.3
MENU SCREENS (MENU) .............................................................................................................................................................. 59
7.3.1
8
PROCEDURES FOR SINGLE LP 33 Series............................................................................................................................... 64
8.1.1
8.1.2
8.1.3
8.1.4
8.1.5
8.1.6
8.2
SERIAL PORT J27 - RS232 ........................................................................................................................................................... 83
RELAY CARD ...................................................................................................................................................................................... 84
EPO (EMERGENCY POWER OFF)................................................................................................................................................ 85
OPTIONS ...................................................................................................................................................... 86
10.1
10.2
OPTIONS GENERAL VIEW ............................................................................................................................................................ 86
OPTIONS ASSEMBLY AND CONNECTION ............................................................................................................................. 87
10.2.1
GENERAL MAINTENANCE............................................................................................................................................................ 90
COOLING FAN MAINTENANCE .................................................................................................................................................. 90
BATTERY MAINTENANCE ............................................................................................................................................................. 90
SERVICE REQUIRED........................................................................................................................................................................ 91
NOTES .......................................................................................................................................................... 92
12.1
13
Customer Interface ......................................................................................................................................................................... 87
MAINTENANCE ........................................................................................................................................... 90
11.1
11.2
11.3
11.4
12
Parallel System start-up of the LP 33 Series........................................................................................................................ 72
Parallel UPS shutdown with load transfer on manual bypass (Q2)........................................................................... 74
Start-up following the operation on maintenance bypass (Q2) ................................................................................. 76
Shutdown of a single unit in a parallel system .................................................................................................................. 77
Start-up an additional unit in a parallel system ................................................................................................................ 78
Complete shutdown of a parallel system............................................................................................................................. 79
Restore to normal operation after “total off” ...................................................................................................................... 80
Restore to normal operation after “EPO – Emergency Power Off”............................................................................ 81
CUSTOMER INTERFACE ............................................................................................................................. 82
9.1
9.2
9.3
11
Start-up of the LP 33 Series......................................................................................................................................................... 64
UPS shutdown with load transfer on manual bypass (Q2) ........................................................................................... 66
Start-up following the operation on manual bypass (Q2) ............................................................................................. 68
Complete shutdown ....................................................................................................................................................................... 69
Restore to normal operation after “total off” ...................................................................................................................... 70
Restore to normal operation after “EPO – Emergency Power Off”............................................................................ 71
PROCEDURES FOR PARALLEL SYSTEM LP 33 Series........................................................................................................ 72
8.2.1
8.2.2
8.2.3
8.2.4
8.2.5
8.2.6
8.2.7
8.2.8
10
User parameters screen ............................................................................................................................................................... 60
OPERATION ................................................................................................................................................. 64
8.1
9
Alarms list ............................................................................................................................................................................................ 52
Messages list...................................................................................................................................................................................... 55
Event report LP 33 Series.............................................................................................................................................................. 58
NOTES FORM .................................................................................................................................................................................... 92
ANNEX.......................................................................................................................................................... 93
13.1
13.2
TECHNICAL DATA SHEET ............................................................................................................................................................. 93
SCHEMATICS..................................................................................................................................................................................... 93
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 5/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
1
SAFETY RULES
With this document, GE gives to the user all the necessary information about the correct use of the UPS.
Please read carefully this Operating Manual before installing or operating the UPS.
We recommend that this manual be kept next to the UPS for future references.
If any problems are encountered with the procedures contained in this manual, please contact the
nearest Service Centre before you proceed.
All UPS installation, maintenance and service work should be performed by qualified service personnel
only.
The KNOWLEDGE and the FULLY compliance of the safety instructions and the warning
contained in this manual are
THE ONLY CONDITION
to avoid any dangerous situations during installation, operation, maintenance work, and
to preserve the maximum reliability of the UPS system.
NOTE !
LP 33 Series / 40 - 60 - 80 - 100 - 120 kVA is a product for restricted sales
distribution to informed partners.
Installation restrictions or additional measures may be needed to prevent
disturbances.
While every care has been taken to ensure the completeness and accuracy
of this manual, GE assumes no responsibility or liability for any losses or
damages resulting from the use of the information contained in this
document.
GE
Refuses any responsibility in case of non-observance,
unauthorised alterations or improper use of the
delivered UPS.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 6/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
1.1
IMPORTANT SAFETY RULES
GENERAL
•
Move the UPS in an upright position in its original package to the final destination room.
•
To lift the cabinets, use a forklift or lifting belts with spreader bars.
•
Check for sufficient floor and elevator loading capacity.
•
Check carefully the integrity of the UPS equipment.
In case you note some visible damage, do not put the UPS under voltage, but contact the nearest
Service Centre.
•
WARNING: RISK OF ELECTRICAL SHOCK.
Apart the front hinged lockable doors, do not remove any covers, there are no user serviceable
parts inside.
•
After switching off takes 5 minutes for the DC capacitors to discharge because a lethally high
voltage remains at the terminals of the electrolytic capacitors.
•
All maintenance and service work should be performed by qualified service personnel.
•
The outlet-bars may be electrically live, even when the UPS is disconnected from the mains.
•
Dangerous voltages may be present during battery operation.
•
The battery protections must be removed before any maintenance or service work.
•
Be aware that the inverter can restart automatically after the utility voltage is restored.
INSTALLATION
•
This UPS must be installed and connected only by trained personnel.
•
Verify accurately during Commissioning and Maintenance of the UPS, for the following:
Damaged components, squeezed wires and cables, or not correctly inserted plugs.
•
After removing the sidewalls of the UPS, make sure that all earth connections when reassembling,
are correctly reattached.
•
This UPS is intended for use in a controlled indoor environment free of conductive contaminants
and protected against animals intrusion.
•
High earth leakage current: Earth connection essential before connecting to AC input.
•
Switching OFF the unit does not isolate the UPS from the mains.
•
Do not install the UPS in an excessively humid environment or near water.
•
Avoid spilling liquids on or dropping any foreign object into the UPS.
•
The unit must be placed in a sufficiently ventilated area; the ambient temperature should not
exceed 35°C (95°F).
•
Optimal battery life is obtained if the ambient temperature does not exceed 25°C (77°F).
•
It is important that air can move freely around and through the unit.
•
Do not block the air vents.
•
Avoid locations in direct sunlight or near heat sources.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 7/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
STORAGE
•
Store the UPS in a dry location; storage temperature must be within -25°C to 55°C (-13°F to 131°F).
•
If the unit is stored for a period exceeding 3 months, the batteries must be recharged periodically
(time depending on storage temperature).
BATTERY
•
The battery-voltage is dangerous for person’s safety.
•
When replacing the battery, use the same number, voltage (V) and capacity (Ah).
Do not connect battery strings of different type in parallel.
•
Proper disposal or recycling of the battery is required.
Refer to your local codes for disposal requirements.
•
Never dispose of battery in a fire: they may explode.
•
Do not open or mutilate battery: their contents (electrolyte) may be extremely toxic.
If exposed to electrolyte, wash immediately with plenty of water.
•
Avoid charging in a sealed container.
•
Never short-circuit the batteries.
•
When working with batteries, remove watches, rings or other metal objects, and only use insulated
tools.
WARNING !
The UPS contains hazardous voltages.
Observe carefully the safety instructions to prevent risk of
electrical shock.
Parallel version secured with RPA
When included in the text, this symbol refers to operation
needed only for parallel system.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 8/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
Safety instructions when working with battery
EXTERNAL BATTERY MUST BE INSTALLED AND CONNECTED TO THE UPS BY
QUALIFIED SERVICE PERSONNEL.
INSTALLATION PERSONNEL MUST READ THIS ENTIRE SECTION BEFORE HANDLING
THE UPS AND BATTERY.
DANGER!
Full voltage and current are always present at the battery terminals.
The battery used in this system can provide dangerous voltages, extremely high currents and
a risk of electric shock.
If the terminals are shorted together or to ground they may cause severe injury.
You must be extremely careful to avoid electric shock and burns caused by contacting battery
terminals or shorting terminals during battery installation.
Do not touch uninsulated battery terminals.
A qualified service person, who is familiar with battery systems and required precautions,
must install and service the battery.
The installation must conform to national and local codes.
Keep unauthorised personnel away from the battery.
The qualified service person must take these precautions:
1 Wear protective clothing, such as rubber gloves and boots and protective eye wear
Batteries contain caustic acids and toxic materials and can rupture or leak if mistreated.
Remove rings and metal wristwatches or other metal objects and jewelry.
Do not carry metal objects in your pockets where the objects can fall into the battery
cabinet.
2 Tools must have insulated handles and must be insulated so that they will not short battery
terminals.
Do not allow a tool to short between individual or separate battery terminals or to the
cabinet or rack.
Do not lay tools or metal parts on top of the battery, and do not lay them where they could
fall onto the battery or into the cabinet.
3 Install the battery as shown on the drawing provided with the battery.
When connecting cables, never allow a cable to short across a battery’s terminals, the
string of battery, or to the cabinet or rack.
4 Align the cables on the battery terminals so that the cable lug will not contact any part of
the cabinet or rack, even if the battery is moved.
Keep the cable away from any sharp metal edges.
5 Install the battery cables in such a way that the UPS or battery cabinet doors cannot pinch
them.
6 Do not connect the battery terminal to Ground.
If any battery terminal is inadvertently grounded, remove the source of the ground.
Contacting any part of a grounded battery can cause a risk of electric shock.
7 To reduce the risk of fire or electric shock, install the battery in a temperature and humidity
controlled indoor area, free of contaminants.
8 Battery system chassis ground (earth) must be connected to the UPS chassis ground
(earth).
If you use conduits, this ground conductor must be routed in the same conduit as the
battery conductors.
9 Where conductors may be exposed to physical damage, protect the conductors in
accordance with all applicable codes.
10 If you are replacing the battery or repairing battery connections, shut OFF the UPS and
remove the battery fuses.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 9/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
1.2
SAFETY SYMBOLS AND WARNINGS
Safety warnings
The text of this manual contains some warnings to avoid risk to the persons and to avoid damages to
the UPS system and the supplied critical loads.
The non-observance of the warnings reminding hazardous situations could result in human injury and
equipment damages.
Please pay attention to the meaning of the following warnings and symbols:
WARNING !
Referred to procedures or operations which could cause damages to the persons or
to the system, when not correctly operated.
NOTE !
Warns the user about important operations or procedures described in this manual.
Safety symbols
When the text includes one or more of the following symbols, that means exist a potentially hazardous
situations.
Please remind the meaning of each symbol.
CAUTION
Related to all the potentially hazardous situations which may result in injury.
DANGER OF PARTS ELECTRICALLY LIVE
Related to all the situation with potentially hazardous voltage.
DANGER OF EXPLOSION
Used to indicate conditions where exploding parts can cause serious injury.
DANGER OF CRUSHING
Used when moving the equipment due to the heavy weight.
DANGER OF OVERHUNG LOAD
Used when the equipment is lifted by a crane.
DO NOT TOUCH
Risk of parts with hazardous voltages or parts in movement.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 10/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
2
2.1
INTRODUCTION
GENERAL DESCRIPTION
The LP 33 Series Uninterruptible Power Supply (UPS) provides the energy supply for critical loads which
need a reliable, continuous free from voltage disturbances and frequency fluctuations supply.
In case the mains fails, or it exceeds the permitted tolerances, the energy to supply the load is furnished
by the battery with a backup time dependent on its capacity, until the mains recovers.
LP 33 Series is a truly VFI double conversion Uninterruptible Power Supply (UPS),
equipped with automatic bypass, where the load is normally supplied by the
inverter.
LP 33 Series can be configured, if chosen, for the ECO Mode permitting the
maximum energy saving.
The main typical performances of the LP 33 Series system are the following:
•
VFI (Voltage Frequency Independent) double conversion technology to provide an excellent
quality power supply.
•
Input power factor 0.98 (.
•
Input current THD <9% (<5% with optional).
•
Automatic bypass and manual bypass to improve reliability and maintenance.
•
Microprocessor controlled supervision.
•
Dual AC inputs (optional).
•
ECO Mode operation.
•
Compact and agreeable design expressly conceived for “Office environment”.
•
Low level acoustic sound, to avoid noise to the persons operating in the same environment.
•
Multi-language LCD screen.
•
Total battery management: SBM (Superior Battery Management)
•
Wide rectifier input voltage tolerance: 320 ÷ 460 VAC (phase - phase).
•
Wide rectifier input frequency tolerance: +/-10% (45 ÷ 55 for 50 Hz and 54 ÷ 66 for 60 Hz).
•
RPA (Redundant Parallel Architecture) up to 4 units.
•
GE Connectivity.
•
Compliance with European standard 50091-2.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 11/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
3
3.1
DESCRIPTION
PRINCIPAL DIAGRAM AND MAIN ELEMENTS DESCRIPTION
Fig. 3.1-1 UPS principal diagram
The Uninterruptible Power Supply System LP 33 Series can be divided into the following main elements:
Electronics
The UPS is designed with a microprocessor–controlled supervision and diagnostic system.
Communication between user and UPS is achieved by the front panel consisting of an LCD screen,
displaying the operation modes, the measurements and the events / alarms.
Rectifier
The rectifier converts the 3-phase mains voltage into a controlled and regulated DC-voltage, supply
power to the inverter and to charge the battery through the battery-charger.
Inverter
The inverter converts the DC voltage into a three-phase sinusoidal with constant amplitude and
frequency, which is completely independent from the AC-input voltage.
Automatic Bypass
The automatic bypass consists of a static semiconductor-switch (SSR: Static Switch Relay), used to
provide an uninterrupted transfer of the load from inverter to mains when operating in VFI (Voltage
Frequency Independent) Mode.
If chosen the ECO Mode, the SSM transfer the load from mains to inverter in case the utility fails.
Back-Feed Protection
All LP 33 Series UPS’s are equipped with an automatic system for the protection against voltage back
feeding towards Utility, through the Bypass (Applied Standard IEC 62040-1).
This protection works automatically by opening contactor K6 (in series with the thyristors of the static
switch) and eventually K7, and acts in case of internal defects of the system, or due to wrong
manipulations on the maintenance bypass Q2.
Manual Bypass
The manual bypass consists of a pair of manual switches Q1 and Q2, which allow the isolation of the
UPS from the load, while still supplying the load with power directly from the mains.
Battery
The battery, normally stored by the battery-charger, supplies the DC energy to inverter in the event of
mains failure.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 12/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
3.2
OPERATION MODES
This section describes the different possible operation modes of the UPS explaining the function of the
main modules of the UPS.
VFI (Voltage Frequency Independent) mode operation
Under normal conditions the load is
permanently powered by the inverter with
constant amplitude and frequency.
The rectifier, powered by the mains, supplies the
inverter and the battery-charger keeps the
battery fully charged.
Fig. 3.2-1 Energy flow in VFI Mode operation
The inverter converts the DC voltage in a new AC sine wave voltage with constant amplitude and
frequency independently from the input mains power.
ECO Mode operation
When the ECO Mode is selected, and the mains
power is available, the load is normally powered
through the automatic bypass.
When the mains voltage is detected out of the
prescribed tolerances, the load is automatically
transferred to the inverter.
When the mains recovers, the load returns to
the automatic bypass after a variable time
defined by the control unit.
Fig. 3.2-2 Energy flow in ECO Mode operation
The ECO Mode can be configured directly by the user for higher efficiency, considering the mains
reliability and criticality of the load.
The selection between the two operation modes “VFI Mode and ECO Mode”, or switching between
operation modes at required time, can be done through the UPS control panel (see Section 7.3.1-5).
In case of parallel system
ECO Mode cannot be enabled for RPA Parallel System.
Attention:
A single unit equipped with a RPA - Parallel board, must be considered as parallel, thus
disabling ECO Mode.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 13/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
Automatic bypass operation
In VFI (Voltage Frequency Independent) operation
mode, the load is permanently supplied by the
inverter but, in case of trouble on the inverter, or
when overload or short-circuit on the output
occur, if the mains voltage do not exceed the
admitted tolerances, the load is instantly
transferred to the mains through the automatic
bypass, taking advantage of the higher short
circuit power.
Fig. 3.2-3 Energy flow in automatic bypass operation
When the inverter recovers, the load will be re-transferred automatically to the inverter.
In case of parallel system
Each unit has its own bypass.
All the bypasses in the system work together, their control being managed in the same manner by
all units.
The units are continuously exchanging information before taking such decision.
In case the inverter of one unit fails, its bypass remains operating.
It is excluded only if the unit is separated from the common bus by opening its output switch Q1.
Mains recovery operation
As soon as the mains recovers, the rectifier starts
up automatically supplying the inverter and the
battery-charger recharges the battery.
In case the inverter has been shut down following
a complete discharge of the battery, when the
mains recovers the system start up
automatically.
Fig. 3.2-4 Energy flow at mains recovery operation
When the energy stored in the battery is sufficient to ensure a minimum time of operation with the
actual load, in case of a future mains failure, the load will be retransfered to inverter (if selected VFI
Mode).
In case of parallel system
When the AC input power recovers, the rectifiers will start up sequentially according to their
number in the parallel system in order to avoid an initial inrush current.
The inverters will start up automatically, but only when the battery has recharged enough for a
minimum runtime with the present load.
When enough inverters to supply the load have been restarted, the load will be transferred from
the automatic bypass back to the inverter bus-bars.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 14/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
Manual bypass operation
The manual bypass circuit consisting of Q1 and
Q2 manual switches, permits the transfer of the
load directly to the mains without interruption,
leaving the UPS galvanically separated from the
output load.
This type of operation is normally used when the
UPS system must be completely turned off for
maintenance or reparation.
Fig. 3.2-5 Energy flow in manual bypass operation
Mains failure operation
In the event of a mains power failure, the
rectifier and the battery-charger turn OFF,
while the inverter continues to supply the load
without interruption using the energy stored in
the battery.
During the battery discharge, the LCD screen
displays the remaining autonomy, based on the
battery capacity and the applied load.
Fig. 3.2-6 Energy flow during mains failure operation
In the event of an extended mains failure, before the battery is fully discharged, the alarm “stop
operation” warns the user that the UPS will start the shutdown procedures when the indicated time
expired (normally 3 minutes).
In case of parallel system
With parallel system for power capacity:
• With the bypass mains power available as the warning “battery low” occurs on one unit, after
timeout (selectable) the load is transferred to mains.
• With missing bypass mains power as the warning occurs on one unit, the system starts the
timeout (selectable) of “Stop operation” and then the output load shuts down.
With redundant parallel system:
• As the warning battery low occurs on one unit unnecessary to support the present load, after
timeout (selectable) this unit shuts down and the load is shared between the other units.
As the warning occurs on one unit necessary to support the present load, the system starts the
timeout (selectable) of “stop operation” and then the output load shuts down.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 15/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
3.3
RPA PARALLEL SYSTEM
The RPA (Redundant Parallel Architecture) allows to extend the unit to a parallel system with 2, 3, or 4
units LP 33 Series connected on the same bus, which ensure the highest reliability rate and increase the
power availability.
Mains Input
Parallel system for power capacity
Two or more units can be paralleled in order to achieve
output power superior to the maximum power
delivered by a single UPS unit.
The maximum total load shared between the n parallel
units can achieve the 100% of the installed nominal
power system.
In the event of one unit fails, the load will be suddenly
transferred to the mains by the bypass.
F2
F3
F4
LP 33 Series
LP 33 Series
LP 33 Series
LP 33 Series
1
2
3
4
RPA
Board
RPA
Board
RPA
Board
RPA
Board
LPS33_060-080_RPA system_GE_01
Parallel system for redundancy
The parallel system can be defined redundant only in
case the nominal power rating of n-1 units of n parallel
units is sufficient to supply the required load power.
The load in a parallel redundant system, is equally
shared by n units connected on the output bars.
F1
Load
Fig. 3.3-1 RPA system diagram
Should one of the parallel units trip off-line, the remaining (n-1) units will share the load maintaining the
applications protected by inverter until the normal situation restores.
Load sharing between parallel units
The control bus exchanging the data between the microprocessors of the paralleled units provide for a
constant proportional load sharing in every load condition.
Management and synchronisation of the parallel system
All the units are identical without master and slaves.
One unit is arbitrarily selected as the reference (the first unit connected on power bus) being this unit the
first synchronised with the mains voltage, and all the other units synchronise with the first one.
In case the reference unit fails or it is excluded from the parallel power bus any other unit will take over
the reference role.
The AC input power source of all the bypasses must be the same for all the units of the parallel system
excluding any phase shift between them.
Control bus of the parallel system
A high-speed serial bus, guarantees communication, synchronization and load sharing between the
UPS modules.
Each module controls it’s own function, while the Master (each unit can be Master) controls and
commands the status of the system.
NOTE !
No transformers, fuses or automatic circuit breakers should be inserted between the
unit’s output and the load common bus-bars.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 16/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
3.4
UPS PARALLELED ON THE SAME BATTERY
NOTE !
A parallel system with a Common Battery for two or more UPS, requires a particular
installation and adequate setting of some parameters, (accessible only through
password), and can therefore only be done by a qualified GE engineer.
Usually each UPS Unit runs with its own Battery.
In case of parallel units running with a Common Battery (max. 4 UPS - see Fig. 3.4-1), the sharing circuit
between the individual UPS is integrated in the communication bus of the system in order to assure an
equal sharing of the Rectifiers output currents.
Fig. 3.4-1 Diagram RPA system with UPS on common battery
1–
Rectifier
2–
Inverter
3–
Automatic Bypass
4–
Manual Bypass
5–
Mains Power
6–
Load Bus Bar
7–
External Battery Fuse
8–
Battery
Pay attention to the following recommendations:
•
The units delivered for this functioning mode needs a special parameters setting, so they must be
prepared in advance before the installation.
•
The installation must be performed only with the UPS system completely shut down.
•
The AC Rectifiers input power (5) must be the same, with clockwise phase rotation for each unit.
•
Each Rectifier must be set for the same floating DC voltage and the same Battery current limitation.
•
It is mandatory to install the fuses / MCB (7) on each line connecting the Rectifiers to the common
Battery for maintenance / safety reasons (see Section 4.7.2).
•
In case a unit must be powered down for maintenance, switch-OFF the concerned unit before open
the DC fuses / MCB on the Battery line (7).
•
It is recommended to connect an external NO free contact “Battery Fuses” to the UPS and to enable
the function by setting the parameter (see Section 7.1).
•
If an emergency generator set supplies the UPS, and the free contact “Generator ON” is connected
to the Customer Interface, connect a separate NO free contact on each parallel unit.
•
The parameters enabling the Battery test, both manual and automatic, must be set in the same
mode on all the units sharing a Common Battery.
•
Do not connect the temperature sensor for automatic battery floating voltage compensation.
•
Do not enable the function Boost charge.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 17/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
3.5
SERVICE AND TECHNICAL SUPPORT
Stamp of your local Service Centre (see page 3)
For any request of technical support please
contact your local Service Centre.
g
Serial Nr.
GE Digital Energy
6595 RIAZZINO (CH)
MADE IN SWITZERLAND
Model
Series
Product. Year
Input Freq.
Hz
Output Power
Output Freq.
Input Voltage
VAC: 3W + N + PE
Input Current
A
kVA at Pow. factor
Output Current
lag.
Hz
Output Voltage
VAC: 3W + N + PE
A
The requested data permitting
to identify your UPS are marked
on the identification label fixed
on the front of the cabinet,
behind the lower front door.
For fast and efficient Technical
Support
solutions,
please
mention the data marked on
the identification label.
ON
ON
OFF
OFF
ON
ON
OFF
OFF
Q2
ON
Q1
ON
OFF
OFF
LPS33_04
0-120_Lab
el identificat
ion_GE_01
LP 33 Series / 40 kVA
LP 33 Series / 60 & 80 kVA
LP 33 Series / 100 & 120 kVA
Fig. 3.5-1 Identification label
3.6
WARRANTY
GE, operating through its authorised agents, warrants that the standard products will be free of defects
in materials and workmanship for a period of 24 months (12 months for battery), after the date of the
invoice, or such other period as may be specified.
NOTE !
This warranty does not cover failures of the product which result from incorrect
installation, misuse, alterations by persons other than authorised agents, or
abnormal working conditions.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 18/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
3.7
RECYCLING AT THE END OF SERVICE LIFE
NOTE !
This product has been designed to respect the environment,
using materials and components respecting eco-design rules.
It does not contain CFCs (Carbon Fluor Clorid) or HCFCs (Halogen
Carbon Fluor Clorid).
GE, in compliance with environment protection
recommends to the User that the UPS equipment, at the
end of its service life, must be recovered conforming to
the local applicable regulations.
WARNING !
Leads contained in the batteries is a dangerous substance for the
environment, therefore it must be correctly recycled by
specialised companies!
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 19/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4
4.1
INSTALLATION
TRANSPORT
The UPS is fixed on transport socket suitable for forklift, which include a special layer of Ethafoam to
protect the equipment against the transport shock. Normally the UPS is packaged with carton box.
On request the equipment can be packaged in wooden case.
The UPS must be moved in upright position.
Do not tilt cabinets more than +/- 10° during handling.
Move the UPS in its original package to the final destination room.
Do not stack other package on top: they could damage the upper side of the cabinet.
NOTE !
When moving the UPS, pay attention to:
Forklift
FRAGILE
SENSITIVE
TO DAMPNESS
SENSITIVE
TO HEAT
SENSITIVE
TO FROST
Forklift
The UPS may be lifted with a forklift in upright
position from right and left side.
Take note of the centre of gravity marked on the
package.
NOTE !
Crane
Check for sufficient floor and elevator loading
capacity.
Transport UPS only in upright position.
Do not stack other package on top of the UPS.
Crane
If the UPS has to be lifted by crane, use suitable
carrying belts taking note of the centre of gravity
marked on the package.
Fig. 4.4-1 LP 33 Series lifting
Take all necessary precautions to avoid
damage to the cabinet while hoisting the UPS.
WARNING !
When loading / downloading and when
moving the UPS, it is forbidden:
When loading / downloading and when
moving the UPS, pay attention to:
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 20/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.1.1 Dimensions and weight
753mm
LP 33 Series / 40 kVA
725mm
1415mm
600mm
Dimensions (W x D x H)
600mm x 753mm x 1415mm
23.63” x 29.64” x 55.71”
UPS standard weight
220 Kg / 485 lbs
UPS floor loading
510 Kg/m2
UPS standard shipping
295 Kg / 651 lbs
LPS33_040_UPS dimensions_01
Fig. 4.1.1-1 Dimensions LP 33 Series / 40 kVA
753mm
600mm
725mm
LP 33 Series / 60 - 80 kVA
1815mm
Dimensions (W x D x H)
UPS standard weight
UPS floor loading
LPS33_060-080_UPS dimensions_01
Fig. 4.1.1-2 Dimensions LP 33 Series / 60 - 80 kVA
753mm
720mm
725mm
UPS standard shipping
1815mm
UPS standard weight
UPS floor loading
Fig. 4.1.1-3 Dimensions LP 33 Series / 100 - 120 kVA
60 kVA
80 kVA
280 Kg / 618 lbs
290 Kg / 640 lbs
60 kVA
80 kVA
644 Kg/m2
667 Kg/m2
60 kVA
80 kVA
355 Kg / 783 lbs
375 Kg / 827 lbs
LP 33 Series / 100 - 120 kVA
Dimensions (W x D x H)
LPS33_100-120_UPS dimensions_01
600mm x 753mm x 1815mm
23.63” x 29.64” x 71.46”
UPS standard shipping
720mm x 753mm x 1815mm
28.35” x 29.64” x 71.46”
100 kVA
120 kVA
400 Kg / 882 lbs
450 Kg / 993 lbs
100 kVA
120 kVA
760 Kg/m2
856 Kg/m2
100 kVA
120 kVA
500 Kg / 1103 lbs 550 Kg / 1213 lbs
NOTE !
The weight of each single piece is marked outside the package!
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 21/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.2
DELIVERY
When delivered, check carefully the package integrity and the physical conditions of the UPS
equipment.
In case of any damage sustained during transport, immediately inform the carrier and contact your
local Service Centre.
A detailed report of the damage is necessary for any insurance claim.
NOTE !
A damaged UPS must never be installed or connected to mains or battery!
4.3
STORAGE
The equipment is carefully packed for
transport and storage so that it is in a
perfect condition when eventually installed.
Never leave an UPS outside the building and
do not store the UPS one on top of the other.
It is recommended to store the UPS in its
original package in a dry, dust free room
and far away from chemical substances,
with temperature not exceeding -25°C to
55°C (-13°F to 131°F).
4.3.1 Storage of the UPS
Some important functions of the UPS, such as the customised functions, are defined by parameters
stored in a RAM memory.
The RAM is supplied by a small backup battery located on the Control Unit board.
If the storage time of the UPS exceeds 1 year, these functions should be verified by an authorised
Service Centre before putting the UPS into operation.
NOTE !
In case of storage of the UPS pay attention to:
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
FRAGILE
SENSITIVE
TO DAMPNESS
SENSITIVE
TO HEAT
SENSITIVE
TO FROST
Page 22/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.3.2 Storage of the battery
In case of extended storage, when the delivery includes maintenance free batteries, keep in mind that
they are subject to auto-discharging process.
To avoid permanent damages to the battery, you must observe the following instructions:
•
The storage time without charging the battery depends on the temperature of the storage ambient.
•
The optimal ambient temperature for the batteries is 20°C (68°F).
For storage temperature higher than 20°C (68°F), the storage time will decrease.
•
Each additional 10°C (18°F) over the nominal temperature of 20°C (68°F) will decrease the storage
time, without freshening charge, by half.
In case of a maintenance free battery, the storage time without charging the battery is
approximately:
6 months with storage temperature 20°C (68°F)
3 months with storage temperature 30°C (86°F)
2 months with storage temperature 35°C (95°F)
NOTE !
In case of battery storage pay
attention to:
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
FRAGILE
SENSITIVE
TO DAMPNESS
SENSITIVE
TO HEAT
SENSITIVE
TO FROST
Page 23/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.4
PLACE OF INSTALLATION
The UPS should be installed in a restricted area where only qualified personnel should be admitted.
The place of installation should be clean, dust-free, and provided with proper ventilation or airconditioning.
Verify for sufficient floor load capacity (see Section 4.1.1).
We strongly advice that the ambient temperature should not exceed 20° ÷ 25°C / 68° ÷ 77°F (max. 35°C
/ 95°F). See Section 4.5.
Positioning of the UPS LP 33 Series / 40 – 60 – 80 - 100 - 120 kVA
Min.
400mm / 16"
The rear panel of the UPS may be
mounted flush to a wall or other
structure.
TM
Digital Energy
LP Se ries
Digit al
Energy
TM
LP Se ries
LPS33_040-120_UPS disposition_GE_01
Min.
400mm / 16"
Min.
800mm / 32"
Min.
800mm / 32"
Fig. 4.4-1 Positioning LP 33 Series / 40 – 60 – 80 - 100 - 120 kVA
Clearance around the front of the unit
should be sufficient to enable free
passage of personnel with the doors
fully open, and to allow sufficient airflow
to the door vents.
To guarantee proper cooling air
exhaust, the recommended minimum
clearance between ceiling and top of
the UPS is 400 mm (16”).
A single-phase power outlet (230 VAC)
should be provided near the UPS for
connection of power tools, test
equipment or connectivity devices.
This outlet must be grounded.
The LP 33 Series UPS can radiate radio frequency energy.
Although some RFI (Radio Frequency Interference) filtering is inherent to the UPS there is no guarantee
that the UPS will not influence sensitive devices such as cameras and monitors that are positioned close
by.
If interference is expected, the UPS should be moved away from the sensitive equipment.
NOTE !
Operating temperature is very important for valve regulated battery (maintenance
free).
Operation at temperatures higher than 20°C (68°F) will reduce life expectancy.
Respect the prescription VDE 0510, those of the battery supplier and other local
standards.
The installation and cabling of the battery must be done by qualified people.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 24/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
195mm
167mm
154mm
126mm
LPS33_040-080_UPS view bottom_01
LPS33_100-120_UPS view bottom_01
Opening for input and output cable connections LP 33 Series
512mm
44mm
44mm
Fig. 4.4-2 LP 33 Series / 40 - 60 - 80 kVA – Opening on the bottom cabinet
39mm
632mm
39mm
Fig. 4.4-3 LP 33 Series / 100 - 120 kVA - Opening on the bottom cabinet
LP 33 Series opening is provided on the bottom of the UPS for the connection of input and output
cables.
Pay attention to the position of this opening, when choosing the placement of the UPS.
Fixing of the UPS cabinet LP 33 Series on the floor
The UPS cabinet is free standing and
normally does not require to be bolted to
the floor.
LPS33_040-120_UPS fixing_01
The UPS cabinet can be fixed however to
the floor by bolting it with the supporting
blocks to the floor.
Fig. 4.4-4 Fixing of the UPS cabinet on the floor
22mm
Ø 10mm
25.5mm
654mm
654mm
LPS33_040-080_UPS fixing_01
LPS33_100-120_UPS view bottom_01
Ø 10mm
45.5mm
536mm
32mm
Fig. 4.4-5 LP 33 Series / 40 - 60 - 80 kVA – UPS cabinet floor fixing points
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
45.5mm
27mm
656mm
27mm
Fig. 4.4-6 LP 33 Series / 100 - 120 kVA - UPS cabinet floor fixing points
Page 25/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
A disp
040_RP
LPS33_
_01
osition_GE
TM
Digital En ergy
LP Series
TM
Digital Energy
LP Series
TM
Digital Energy
LP Series
rgy
Digital EneLP Series
TM
3
2
1
4
Fig. 4.4-7 LP 33 Series / 40 kVA – RPA parallel system disposition
In case of parallel system, try to place the
UPS modules in sequence of their
numbers (marked on the packing).
_01
osition_GE
PA disp
060-080_R
LPS33_
If the units are positioned “side by side”,
the side panels must be mounted on all
units.
TM
Dig ita l Energy
L P Series
TM
Digital E nergy
L P Series
TM
Digital Energy
LP Series
TM
Dig ital Energy
L P Series
3
2
1
4
Fig. 4.4-8 LP 33 Series / 60 - 80 kVA – RPA parallel system disposition
_RPA
100-120
LPS33_
ion_GE_
disposit
01
Di gita l E
nergy
TM
LPS eries
TM
Digi tal Energy
i
LP Ser es
TM
Di gita l E nergy
LP Series
TM
Digi tal Energy
LP Se ries
1
2
3
4
Fig. 4.4-9 LP 33 Series / 100 - 120 kVA – RPA parallel system disposition
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 26/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.5
VENTILATION AND COOLING
The heat produced by the UPS is transferred to the environment by its internal blowers.
Airflow through the UPS
It is important that the cooling air can freely flow
through the air inlets and outlets of the UPS.
NOTE !
Do not put any object on the top of the
cabinet: it might obstruct the air flow.
Fig. 4.5-1 Airflow through the LP 33 Series
Heat evacuation from UPS room
The heat must be evacuated from the
environment with a proper cooling /
ventilation system provided by the
user.
Fig. 4.5-2 Heat evacuation from UPS room
Air volume and losses of the UPS
The approximate minimum air volume needed to evacuate the heat generated by the UPS, for inlet
temperature max. 35°C (95°F), for the standard version at inverter nominal load with PF = 0.8 lag. and
battery charged, are the following:
UPS model
Air volume
Losses
VFI Mode
ECO Mode
VFI Mode
ECO Mode
LP 33 Series / 40 kVA
725 m3/h
100 m3/h
2.48 kW
0.33 kW
LP 33 Series / 60 kVA
1010 m3/h
170 m3/h
3.45 kW
0.58 kW
LP 33 Series / 80 kVA
1450 m3/h
190 m3/h
4.97 kW
0.65 kW
LP 33 Series / 100 kVA
1815 m3/h
290 m3/h
6.21 kW
0.97 kW
LP 33 Series / 120 kVA
2175 m3/h
350 m3/h
7.45 kW
1.17 kW
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 27/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.6
UNPACKING
Move the equipment in it’s original packing, carton box or wooden case, until the place of installation
and remove the packing and the transport sockets only just before installing the UPS.
Procedure for the unpacking of the UPS:
• Make sure to have sufficient space around the
UPS before you start unpacking.
1
• Cut the two straps “A” fixing the carton box.
B
LPS33_040_Unpacking_02
y
Digi tal E nerg
LP Se ri es
TM
• Remove package “B”.
2
CEN
TE
of R
GR
AVIT
Y
CENTER
of
GRAVITY
• Remove the protection “C” outside the cabinet
and the accessories bag.
LPS33_040_Unpacking_02
C
rg y
Di gi t al EneLP S eries
T
M
• Use a forklift to raise the UPS from the floor.
3
• Remove the two wooden plates “E”.
E
D
Fig. 4.6-1 LP 33 Series unpacking sequence
Included in the delivery you can find the following parts:
• Control Bus cables (only for RPA parallel system)
• CD-ROM connectivity
• An accessories bag
NOTE !
A damaged UPS must never be installed or connected to mains or battery!
In case of any damage sustained during the transport, immediately inform the
shipping agent!
A detailed report of the damage is necessary for any indemnity claim.
Packing material recycling
GE, in compliance with environment protection, use only environmentally
friendly material.
UPS packing materials must be recycled in compliance with all applicable
regulations.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 28/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.7
ELECTRICAL WIRING
WARNING !
The connections to and from the UPS must be executed by QUALIFIED PERSONNEL
ONLY.
Refer to the “Safety prescriptions - Installation” described on Section 1.
The cabling of the UPS-system has to be done according to the power installed.
Exceptions are only allowed to suit local prescriptions.
For correct rating of fuses and cable sections for input mains, output load and battery, see data
indicated in sections 4.7.2 and 4.7.3.
Before connecting the UPS, verify that the mains voltage and frequency, the output load voltage, the
frequency and the battery data (cells number, floating voltage, autonomy) are according to the local
requirements.
Protection of the UPS mains input, must be exclusively with 3 pole breakers.
The UPS needs the connection of the Neutral to the input, to guarantee the function in TN mode.
Caution when using four-pole circuit breakers as protection to the load of the UPS.
A potential problem exists for situations with non-linear loads: the neutral current could be greater
than the phase currents.
Avoid to run the input cables in parallel with the output cables to prevent them from noise induction.
Mains Input
F1
F2
F3
F4
LP 33 Series
LP 33 Series
LP 33 Series
LP 33 Series
1
2
3
4
RPA
Board
RPA
Board
LPS33_060-080_RPA system_GE_01
RPA
Board
RPA
Board
In order to ensure a correct load sharing between the
parallel units, when the load is supplied by mains, it is
recommended to keep the cable size and length from
the input distribution board to the output bus-bar the
same for each parallel unit.
Mains Bypass input voltage must be the same for all
units, thus avoiding phase shift or phase rotation
problems.
Load
Fig. 4.7-1 RPA Parallel System
To avoid mutual induction effect, the input cables bust
be run in separate conduit from the output cables.
No transformers, fuses or automatic circuit breakers should be inserted
between the unit’s output and the load common bus-bars.
The delivery and installation of fuses and input / output connections of the UPS are at the
customer’s expense, unless agreed otherwise.
NOTE !
In case of non observance of the required minimum distances on both UPS sides (see
section 4.4) it is recommended to provide an additional length of the input/output
cables so that the UPS can be moved for maintenance purpose.
It is recommended to use flexible input/output conductors with suitable length to
admit a sufficient displacement.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 29/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.7.1 Fuse discrimination (co-ordination of breakers tripping)
In order to ensure the circuit selectivity in case of short- circuit at load level, special care must be
taken in choosing the fuse ratings installed in the output distribution.
When a short-circuit on the output occurs, if the mains voltage does not exceed the admitted
tolerances, the load is instantly transferred to the mains through the automatic bypass, taking
advantage of the higher short circuit power.
To ensure a correct co-ordination of the breakers tripping, the fuses supplying the bypass line must be
at least 1,6 time bigger than the largest fuse in the output distribution.
If the selectivity must be ensured also in case of mains failure (that means inhibit automatic bypass),
the largest fuse in the output distribution must be lower than 20% of the UPS rated current for each
phase.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 30/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.7.2 Fuse ratings
If ELCB breakers are prescribed to protect the input connections, consider the high leakage current
towards the earth generated by the noise-suppressor capacitors.
If strongly prescribed, the ELCB breakers should be the largest type suitable for non-linear current and
for delayed operation.
Common input Rectifier & Bypass
Separate input Rectifier & Bypass
(optional)
Fig. 4.7.2-2 Common input Rectifier & Bypass
Fig. 4.7.2-3 Separate input Rectifier & Bypass (optional)
UPS rating
Fuses AgL or equivalent MTCB
for mains voltages 3x380/220V, 3x400/230V, 3x415/240V
F1
F2
F3
F4 (external battery)
LP 33 Series / 40 kVA
3 x 63 A
3 x 63 A
3 x 63 A
3 x 80 A
LP 33 Series / 60 kVA
3 x 100 A
3 x 100 A
3 x 100 A
3 x 125 A
LP 33 Series / 80 kVA
3 x 125 A
3 x 125 A
3 x 125 A
3 x 160 A
LP 33 Series / 100 kVA
3 x 160 A
3 x 160 A
3 x 160 A
3 x 200 A
LP 33 Series / 120 kVA
3 x 200 A
3 x 200 A
3 x 200 A
3 x 250 A
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 31/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.7.3 Input / output cable ratings
Cable sizes indicated below, do not consider eventual line voltage drop.
NOTE !
The values given in the tables below do correspond to European Standards (EN) and
Swiss standards (SEV/ASE).
In any case the local standards must be respected.
Common input Rectifier & Bypass
Separate input Rectifier & Bypass
(optional)
Fig. 4.7.3-1 Common input mains
Fig. 4.7.3-2 Separate input mains (optional)
Cable sections A, B, C, D,E and K
recommended by EN - European Standards
UPS rating
A/B/C
D
2
LP 33 Series / 40 kVA
5 x 10 mm
LP 33 Series / 60 kVA
4 x 25 + 16 mm
LP 33 Series / 80 kVA
4 x 35 + 25 mm
LP 33 Series / 100 kVA
4 x 50 + 25 mm
LP 33 Series / 120 kVA
4 x 70 + 35 mm
UPS rating
E
K
2
5 x 10 mm
2
4 x 25 + 16 mm
2
4 x 35 + 25 mm
2
4 x 50 + 25 mm
2
4 x 70 + 35 mm
4 x 10 mm
2
4 x 25 mm
2
4 x 35 mm
2
4 x 50 mm
2
4 x 70 mm
2
2
4 x 16 mm
2
3 x 35 + 25 mm
2
2
3 x 50 + 25 mm
2
3 x 70 + 35 mm
2
3 x 120 + 70 mm
2
2
2
SEV/ASE cable sections recommended in Switzerland
A/B/C
D
2
LP 33 Series / 40 kVA
5 x 16 mm
LP 33 Series / 60 kVA
4 x 35 + 25 mm
LP 33 Series / 80 kVA
4 x 50 + 25 mm
LP 33 Series / 100 kVA
4 x 70 + 35 mm
LP 33 Series / 120 kVA
4 x 95 + 50 mm
E
K
2
5 x 16 mm
2
4 x 35 + 25 mm
2
4 x 50 + 25 mm
2
4 x 70 + 35 mm
2
4 x 95 + 50 mm
4 x 16 mm
2
4 x 35 mm
2
4 x 50 mm
2
4 x 70 mm
2
4 x 95 mm
2
2
3 x 25 + 16 mm
2
3 x 50 +25 mm
2
2
3 x 70 + 35 mm
2
3 x 95 + 50 mm
2
3 x 150 + 95 mm
2
2
2
NOTE !
According to EMC standards, the connection between the UPS and an external
battery must be done using a shielded cable!
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 32/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.8
ELECTRICAL CONNECTION
WARNING !
The connections to and from the UPS must be executed by QUALIFIED PERSONNEL
ONLY.
Refer to the “Safety prescriptions” described on Section 1.
4.8.1 Power connection with common input mains for LP 33 Series / 40 - 60 - 80 kVA
Common input mains
The UPS delivered in standard version has
common input mains.
Only one input line (F1) supplies both rectifier and
bypass input terminals.
Bear in mind that when the mains fuses are
opened there is a supply failure to the rectifier as
well as to the automatic bypass and manual
bypass.
Fig. 4.8.1-1 Common input mains
LPS33_060
-080_Conn
ection com
mon_02
LPS33_0
40_Conne
ction com
mo
n_01
A
A
ON
ON
ON
ON
OFF
OFF
OFF
D
OFF
C
D
B
Fig. 4.8.1-2 LP 33 Series / 40 kVA - Power IN / OUT connections
Access to the AC terminals
1 - Open the front door “A” of the UPS
cabinet.
2 - Remove the front panel “B”.
C
B
Fig. 4.8.1-3 LP 33 Series / 60 - 80 kVA - Power IN / OUT connections
3 - Cut an opening into rubber “C” to allow
cable passage.
4 - Fix the cables on profile “D” with the
enclosed cable ties.
NOTE !
For UPS correct operation, the input mains phase rotation must be clock-wise.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 33/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
X3
Load
X1
Mains 1
X4
0
PE
N1
L3-1
L2-1
L1-1
+
PE
-
PE
rate_02
N2
ction sepa
L3
_Conne
040-080
L1
LPS33_
L2
Battery
Fig. 4.8.1-4 Terminals for common input mains
X1 Mains 1 - Input mains connection
X3 Load - Output load connection
L1
L2
L3
N1
L1
L2
L3
N2
=
=
=
=
Rectifier + Bypass Phase L1
Rectifier + Bypass Phase L2
Rectifier + Bypass Phase L3
Mains Neutral
PE = Main Ground
=
=
=
=
Load Phase L1
Load Phase L2
Load Phase L3
Load Neutral
PE = Load Ground
Connect wire to the terminals by using appropriate tools and appropriate torque.
-0+
X4 Battery - External battery connection
LPS33_040-120_Connection battery_01
-
0
+
0
+
PE
=
=
=
=
Negative pole of the battery
Central point of battery blocks
Positive pole of the battery
Battery cabinet ground
Fig. 4.8.1-5 External battery connection
WARNING !
Before closing the “external battery fuses”, verify for correct polarity of the battery
connection.
NOTE !
To meet standards concerning electromagnetic compliance, the connection
between the UPS and external Battery must be done by using a shielded cable or
suitable shielded (metal) conduit!
This UPS is only designed to operate in a wye-configured electrical system with
a solidly grounded neutral.
If the UPS is equipped with an input transformer, the secondary of the
transformer must be wye-configured with neutral solidly grounded.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 34/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.8.2 Power connection with common input mains for LP 33 Series / 100 - 120 kVA
Common input mains
The UPS delivered in standard version has
common input mains.
Only one input line (F1) supplies both rectifier and
bypass input terminals.
Bear in mind that when the mains fuses are
opened there is a supply failure to the rectifier as
well as to the automatic bypass and manual
bypass.
Fig. 4.8.2-1 Common input mains
LPS33_10
0-120_Co
nnection
com
mon_01
A
Q2
D
ON
Q1
ON
OFF
OFF
C
B
Fig. 4.8.2-2 LP 33 Series / 100 - 120 kV - Power IN / OUT connections
Access to the AC terminals
1 - Open the front door “A” of the UPS
cabinet.
2 - Remove the front panel “B”.
3 - Cut an opening into rubber “C” to allow
cable passage.
4 - Fix the cables on profile “D” with the
enclosed cable ties.
NOTE !
For UPS correct operation, the input mains phase rotation must be clock-wise.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 35/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
X3
Load
X1
Mains 1
X4
Battery
N
L3
L2
L1
PE
PE
N1
L3-1
+
L2-1
0
PE
-
L1-1
mon_02
ection com
-080_Conn
LPS33_040
Fig. 4.8.2-3 Terminals for common input mains
X1 Mains 1 - Input mains connection
X3 Load - Output load connection
L1
L2
L3
N1
L1
L2
L3
N2
=
=
=
=
Rectifier + Bypass Phase L1
Rectifier + Bypass Phase L2
Rectifier + Bypass Phase L3
Mains Neutral
PE = Main ground
=
=
=
=
Load Phase L1
Load Phase L2
Load Phase L3
Load Neutral
PE = Load Ground
Connect wire to the terminals by using appropriate tools and appropriate torque.
-0+
X4 Battery - External battery connection
LPS33_040-120_Connection battery_01
-
0
+
0
+
PE
=
=
=
=
Negative pole of the battery
Central point of battery blocks
Positive pole of the battery
Battery cabinet ground
Fig. 4.8.2-4 External battery connection
WARNING !
Before closing the “external battery fuses”, verify for correct polarity of the
battery connection.
NOTE !
To meet standards concerning electromagnetic compliance, the connection
between the UPS and external Battery must be done by using a shielded cable or
suitable shielded (metal) conduit!
This UPS is only designed to operate in a wye-configured electrical system with
a solidly grounded neutral.
If the UPS is equipped with an input transformer, the secondary of the
transformer must be wye-configured with neutral solidly grounded.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 36/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.8.3 Power connection with separate input mains for LP 33 Series / 40 - 60 - 80 kVA
(option)
Separate input mains
On request, the UPS can be delivered for separate
input mains.
Two independent lines (F2 and F3) supply separately
the rectifier and the bypass inputs
With this configuration, when the rectifier-input fuses
are opened, the automatic bypass and the
maintenance bypass are supplied by the other line.
Fig. 4.8.3-1 Separate input mains (option)
LPS33_
LPS33_04
0_Conn
ection sep
060-080_C
onnection
separa
te_02
arate_01
A
A
ON
ON
OFF
OFF
D
C
ON
ON
OFF
OFF
C
D
B
B
Fig. 4.8.3-2 LP 33 Series / 40 kVA - Power IN / OUT connections
Fig. 4.8.3-3 LP 33 Series / 60 - 80 kVA - Power IN / OUT connections
Access to the AC terminals
1 - Open the front door “A” of the UPS cabinet.
3 - Cut an opening into rubber “C” to allow
cable passage.
2 - Remove the front panel “B”.
4 - Fix the cables on profile “D” with the
enclosed cable ties.
NOTE !
For UPS correct operation, the input mains phase rotation must be clock-wise.
NOTE !
Neutral of rectifier input and neutral of bypass input must be coming from the
same input bar.
Inside the UPS, neutrals N1 and N are connected together.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 37/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
X3
Load
X2
Mains 2
X1
Mains 1
X4
0
+
PE
N
L3-2
L2-2
L1-2
PE
N1
L3-1
L2-1
L1-1
PE
-
N2
02
separate_
L3
onnection
L1
40-080_C
LPS33_0
L2
Battery
Fig. 4.8.3-4 Terminals for separated input mains
X1 Mains 1
Rectifier input mains connection
L1-1
L2-1
L3-1
N1
PE
=
=
=
=
=
X2 Mains 2
Bypass input mains connection
Rectifier Phase L1
Rectifier Phase L2
Rectifier Phase L3
Mains Neutral
Main Ground
L1-2
L2-2
L3-2
N
=
=
=
=
Bypass Phase L1
Bypass Phase L2
Bypass Phase L3
Mains Neutral
X3 Load - Output load connection
L1 = Load Phase L1
L2 = Load Phase L2
L3 = Load Phase L3
N2 = Load Neutral
Connect wire to the terminals by using
appropriate tools and appropriate torque.
PE = Load Ground
-0+
X4 Battery - External battery connection
LPS33_040-120_Connection battery_01
-
0
+
0
+
PE
=
=
=
=
Negative pole of the battery
Central point of battery blocks
Positive pole of the battery
Battery cabinet ground
Fig. 4.8.3-5 External battery connection
WARNING !
Before closing the “external battery fuses”, verify for correct polarity of the
battery connection.
NOTE !
To meet standards concerning electromagnetic compliance, the connection
between the UPS and external Battery must be done by using a shielded cable or
suitable shielded (metal) conduit!
This UPS is only designed to operate in a wye-configured electrical system with
a solidly grounded neutral.
If the UPS is equipped with an input transformer, the secondary of the
transformer must be wye-configured with neutral solidly grounded.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 38/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.8.4 Power connection with separate input mains for LP 33 Series / 100 - 120 kVA (option)
Separate input mains
On request, the UPS can be delivered for separate
input mains.
Two independent lines (F2 and F3) supply separately
the rectifier and the bypass inputs
With this configuration, when the rectifier-input fuses
are opened, the automatic bypass and the
maintenance bypass are supplied by the other line.
Fig. 4.8.4-1 Separate input mains (option)
LPS33_
100-120
_Conne
ction sepa
rate_01
A
Q2
D
ON
Q1
ON
OFF
OFF
C
B
Fig. 4.8.4-2 LP 33 Series / 100 - 120 kV - Power IN / OUT connections
Access to the AC terminals
1 - Open the front door “A” of the UPS
cabinet.
2 - Remove the front panel “B”.
3 - Cut an opening into rubber “C” to allow
cable passage.
4 - Fix the cables on profile “D” with the
enclosed cable ties.
NOTE !
For UPS correct operation, the input mains phase rotation must be clock-wise.
Neutral of rectifier input and neutral of bypass input must be coming from the
same input bar.
Inside the UPS, neutrals N1 and N are connected together.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 39/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
X3
Load
X2
Mains 2
X1
Mains 1
X4
Battery
separate_
02
N2
L3
L2
L1
PE
N
L3-2
L2-2
L1-2
PE
N1
L3-1
+
L2-1
0
PE
-
L1-1
nection
0-080_Con
LPS33_04
Fig. 4.8.4-3 Terminals for separated input mains
X1 Mains 1
Rectifier input mains connection
L1-1
L2-1
L3-1
N1
PE
=
=
=
=
=
X2 Mains 2
Bypass input mains connection
Rectifier Phase L1
Rectifier Phase L2
Rectifier Phase L3
Mains Neutral
Main Ground
L1-2
L2-2
L3-2
N
=
=
=
=
Bypass Phase L1
Bypass Phase L2
Bypass Phase L3
Mains Neutral
X3 Load - Output load connection
L1 = Load Phase L1
L2 = Load Phase L2
L3 = Load Phase L3
N2 = Load Neutral
Connect wire to the terminals by using
appropriate tools and appropriate torque.
PE = Main Ground
-0+
X4 Battery - External battery connection
LPS33_040-120_Connection battery_01
-
0
+
0
+
PE
=
=
=
=
Negative pole of the battery
Central point of battery blocks
Positive pole of the battery
Battery cabinet ground
Fig. 4.8.4-4 External battery connection
WARNING !
Before closing the “external battery fuses”, verify for correct polarity of the
battery connection.
NOTE !
To meet standards concerning electromagnetic compliance, the connection
between the UPS and external Battery must be done by using a shielded cable or
suitable shielded (metal) conduit!
This UPS is only designed to operate in a wye-configured electrical system with
a solidly grounded neutral.
If the UPS is equipped with an input transformer, the secondary of the
transformer must be wye-configured with neutral solidly grounded.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 40/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.8.5 RPA system - Control bus connection
WARNING !
This operation must be performed by trained personnel before the initial start-up
(ensure that the UPS installation is completely powered down).
LPS33_06
0-080_RP
A
LPS33_04
0_RPA con
nec
connection
_01
tion_01.
A
C
D
C
D
A
ON
ON
OFF
OFF
B
ON
ON
OFF
OFF
B
Fig. 4.8.5-2 LP 33 Series / 60 - 80 kVA - Access to the RPA board
Fig. 4.8.5-1 LP 33 Series / 40 kVA - Access to the RPA board
Access to the RPA board
LPS33_
100-120
_RPA co
nn
1 - Open the front door “A” of
the UPS cabinet.
ection_01
2 - Remove the front panel “B”.
A
Q2
ON
Q2
C
D
ON
OFF
OFF
B
Fig. 4.8.5-3 LP 33 Series / 100 - 120 kVA - Access to the RPA board
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
3 - Remove with appropriate
tool the metallic window “C”
from the metal screen “D”.
NOTE !
Put in place the
front panel
“B”
paying attention to
not damaging the
control bus cables.
Page 41/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
LP 33 Series
LP 33 Series
LPS33_040-120_RPA connection_GE_02
1
P13
LP 33 Series
2
P34
P13
J4
J3
P34
4
P34
P13
J4
J3
P1
P1
LP 33 Series
3
P1
P34
P13
J4
J3
J4
J3
P1
Fig. 4.8.5-4 Bus connection RPA parallel system
Bus connection RPA parallel system
Connect the control bus cable between the parallel units as indicated in the diagram Fig. 4.8.5-4.
NOTE !
Provide that the connectors J3 and J4 are properly fixed with the included screws.
P13
LPS33_040-120_RPA connection_03
JP1
JP2
P34
J4
J3
P1
JP3
Fig. 4.8.5-5 Connection to board “P34 – Connector adapter RPA“
NOTE !
The jumper JP1 - JP2 - JP3 must be removed only on the intermediate units,
where the connectors J3 and J4 are both inserted.
Do not insert or remove J3 and J4 from the board “P34 - Connector adapter RPA”
when the parallel system is operating.
NOTE !
Connection and commissioning of an additional UPS to an existing parallel system,
must be performed by a service engineer from of your Service Centre.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 42/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
LPS33_
040_RPA
1
4
3
2
s
LP 33 Serie
Control bus location
RPA parallel system
_GE_03
s
LP 33 Serie
s
LP 33 Serie
s
LP 33 Serie
connection
Place the cables and
connect
them
as
indicated
in
the
diagram Fig. 4.8.56/7/8 following these
procedures:
P13
P13
P1
P13
P1
P13
ON
ON
P1
OFF
OFF
ON
ON
P1
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
• Fix the control bus
cables with the
appropriate
tiewrap “E”.
Fig. 4.8.5-6 LP 33 Series / 40 kVA - Control bus location RPA parallel system
LPS33_060
-080_RP
A connec
tion_GE
LP 33 Serie
LP 33 Serie
3
s
1
_03.
s
4
s
LP 33 Serie
2
s
LP 33 Serie
• Place the cables
between
the
parallel units in
separated
protected conduit
to avoid they could
be
accidentally
interrupted.
P13
P13
P1
P13
P1
P13
P1
P1
E
E
It is important to place
the units in sequence
of
their
assigned
number.
E
E
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
Fig. 4.8.5-7 LP 33 Series / 60 - 80 kVA - Control bus location RPA parallel system
LPS33_100
4
3
2
1
s
LP 33 Serie
s
LP 33 Serie
s
LP 33 Serie
s
LP 33 Serie
-120_RPA
P13
P13
P13
E
P13
E
E
E
Q2
Q2
ON
Q2
Q2
Q2
ON
Q2
ON
Q2
ON
Q2
The standard length of
the control bus cable
between two parallel
unit is 8 m / 26 ft
(higher
length
on
request = up to 15 m /
50 ft).
ON
OFF
ON
OFF
OFF
ON
OFF
Fig. 4.8.5-8 LP 33 Series / 100 - 120 kVA - Control bus location RPA parallel system
OPM_LPS_33E_40K_M12_0GB_V010.doc
_01
OFF
ON
OFF
OFF
OFF
Modifications reserved
connection
A unit number from P1 to
P4 is displayed on the
control panel.
This number is also
marked inside and
outside the packaging.
Maximal overall length
of bus connection,
between the first and
the last unit, should
not be longer than 45
m (345 ft).
Page 43/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
4.9
UPS FUNCTIONING AS FREQUENCY CONVERTER
When the UPS LP 33 Series is delivered as frequency converter (different output frequency with respect
to the input frequency), the automatic bypass and manual bypass functions are disabled.
Therefore the load cannot be transferred to mains in case of overload, short circuit, or inverter failure.
In cases where the UPS needs to be powered down for maintenance purposes, the critical load must
also be powered down during this time.
When the set-up parameters of the UPS are set for frequency converter, the ECO Mode operation is
automatically disabled.
The UPS delivered as frequency converter has the following differences:
•
Automatic bypass disabled by setting of dedicated parameter (access protected by password
reserved to service engineer).
•
The handle of the switch Q2 - manual bypass is removed to avoid accidental wrong manipulations.
•
Mains bypass disabled by removing the fuse F3 fitted on the board P2 – Power Supply.
WARNING !
In case a UPS delivered as frequency converter should be set on site for UPS
standard version, the operation must be performed by a qualified service
engineer.
Notices for installation:
•
For UPS with common AC input follows the standard procedure described in Section 4.8.1.
Notices for start up procedures:
•
Follow the standard procedure indicated in Section 8.1.
Notices for shutdown procedures:
•
Follow the standard procedure indicated in Section 8.1.
NOTE !
The inverter can be turned off only by pressing the push-button total off.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 44/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
5
LAYOUT
5.1
LAYOUT LP 33 Series / 40 kVA
TM
Digital Energy
LP Se ries
ON
ON
OFF
OFF
LP
S3
3_0
40_
U
LP
S
PS
_G
E_0
1
33_
040
_U
P
S_
02
Fig. 5.1-2 General view with open door
Fig. 5.1-1 General view
Fig. 5.1-4 Control panel
1
CI
SNMP
RPA
CI
RC
Q1
ON
OFF
OFF
LPS33_04
0_UPS_0
3
X4
X1
1
X2
X3
Fig. 5.1-3 General view without protection panels
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
UPS output switch
Q2
Manual bypass switch
RC
Relay card
SNMP
Q2
Customer Interface Board (optional)
Q1
RPA
ON
Opening for input and output of cables
RPA board (optional)
Advanced SNMP Card (optional)
X1
Terminals for common mains
connection (rectifier + bypass)
input
X2
Terminals for separate
connection (optional)
input
X3
Terminals for load output connection
X4
Terminals for external battery connection
mains
Page 45/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
5.2
LAYOUT LP 33 Series / 60 - 80 kVA
TM
Digital Energy
LP Seri es
ON
ON
OFF
OFF
LP
S
33_
060
-08
0_
LPS
UP
S_
GE
_01
33_
0 60
-08
0_U
PS
_02
Fig. 5.2-2 General view with open door
Fig. 5.2-1 General view
Fig. 5.2-4 Control panel
RPA
SNMP
CI
RC
Q2
Q1
1
CI
Opening for input and output of cables
Customer Interface Board (optional)
Q1
UPS output switch
Q2
Manual bypass switch
RC
Relay card
ON
ON
RPA
OFF
OFF
SNMP
LPS33_0
X4
X1
1
60-080_U
PS_03
X2 X3
Fig. 5.2-3 General view without protection panels
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
RPA board (optional)
Advanced SNMP Card (optional)
X1
Terminals for common mains
connection (rectifier + bypass)
input
X2
Terminals for separate
connection (optional)
input
X3
Terminals for load output connection
X4
Terminals for external battery connection
mains
Page 46/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
5.3
LAYOUT LP 33 Series / 100 - 120 kVA
TM
Digital Energy
LP Seri es
Q2
LPS
33_
100
LPS
-12
0_U
PS
_G
E_0
1
Fig. 5.3-1 General view
33_
100
-12
0_U
PS
_G
E
ON
Q1
ON
OFF
OFF
_02
Fig. 5.3-2 General view with open door
Fig. 5.3-4 Control panel
RPA
SNMP
1
CI
CI
RC
Q2
Q1
UPS output switch
Q2
Q2
Manual bypass switch
Q1
RC
Relay card
X1
1
SNMP
OFF
X2
00-120_U
PS_GE_
X3
Fig. 5.3-3 General view without protection panels
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
RPA board (optional)
ON
OFF
LPS33_1
X4
Customer Interface Board (optional)
Q1
RPA
ON
Opening for input and output of cables
03
Advanced SNMP Card (optional)
X1
Terminals for common mains
connection (rectifier + bypass)
input
X2
Terminals for separate
connection (optional)
input
X3
Terminals for load output connection
X4
Terminals for external battery connection
mains
Page 47/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
6
6.1
SYSTEM HANDLING
CONTROL PANEL
Warning
Metering
Alarm
Operation
+
Alarm
Menu
Digital Energy
TM
Enter
LP Series
LPS33_control panel_02
Fig. 6.1-1 Control panel
LCD screen
Shows the UPS system data, events messages and UPS setting.
The data is displayed on 4 rows, 20 characters each, allowing the operator to select
between 7 languages: English, German, French, Spanish, Italian, Finnish or Polish.
If there is no keypad activity during 1 minute the LCD screen will return to default
screen.
Metering
Shows electric parameters, operating statistics and some information screens (see
Section 7.1).
Alarm
Shows in chronological order, all the events occurred (alarms, messages,
commands, handling, etc.) and resets general alarm / buzzer (see Section 7.2).
Menu
Allows the user to adapt certain features of the UPS to his needs, to reset the
command total off, to test the LEDs panel, and to command the inverter ON/OFF (see
Section 7.3).
+
Scroll to following screen.
Entering in PARAMETER MENU/USER, allows to select the horizontal editable
position.
-
Entering in Alarm and Metering, scroll to previous screen.
Entering in menu allows to select the row including the needed command.
Enter
Confirms the selected command.
Entering in PARAMETER MENU/USER allows the user to change the parameters.
LED Alarm
(red)
It warns about the imminent inverter stop and the consequent load shutdown as
result of:
• the battery is fully discharged and the load cannot be transferred on mains
(default parameter = 3 min.).
• overtemperature (default = 3 min.) or overload condition (125%-10 min, 150%-1
min.) and the load cannot be transferred on mains.
LED Warning
(yellow)
When blinking, it means the UPS is in alert condition with the buzzer sounding.
The yellow LED will remain lit after pressing the key Alarm.
It remains lit also when the output switch Q1 is open or battery disconnected.
LED Operation
(green)
When lit, it means the UPS is correctly operating and the load is powered by the
inverter. When blinking, it means SERVICE REQUIRED
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 48/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
6.2
COMMAND PUSH BUTTONS AND SWITCHES
total off
Press simultaneously the keys “Alarm” and “-” on the
panel.
This will cause the opening of all contactors (K4, K6
and K7), shutdown of booster, Inverter, batterycharger and SSM.
In a parallel system pressing total off
on one unit all the units will shut
down.
NOTE !
Fig. 6.2-1 Command total off
Using the command total off, the load will
be immediately powered down.
To restart the unit, command total off must be
restored entering the screen
LAMP TEST
RESET TOTAL OFF
MENU/RESET TOTAL OFF
*
Q1 - UPS output switch
Q2 - Manual bypass switch
NOTE !
Do not switch ON Q1 and Q2 with
Inverter ON.
Fig. 6.2-2 Q1 and Q2 switches
NOTE !
Mains failure of long duration or low Battery voltage will cause the automatic
shutdown of the UPS, thus preventing damage to the Battery.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 49/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
7
LCD SCREEN
Shows the UPS system data, events messages and UPS setting.
The data is displayed on 4 rows, 20 characters each, allowing the operator to select between 7
languages: English, German, French, Spanish, Italian, Finnish and Polish.
If there is no keypad activity during 1 minute the LCD screen will return to default screen.
7.1
METERING SCREENS (Metering)
This menu allows, when the keypad Metering is pressed, to show on the LCD panel a series of screens
containing metering information about AC and DC parameters.
LP 33
60kVA P1
APPLICATION ON UPS
= 53%
SERVICE REQUIRED
4.
1. UPS family, nominal rating and for RPA: P + No. UPS.
2. Load status: application on UPS, on utility, supply off, manual
bypass (appl. on manual dev.) and ECO Mode.
3. The load amount as a percentage of the nominal load (referred
to the most loaded phase).
The signalling, combined with the green LED Operation blinking, is done only in case the respective
parameter (protected by password) has been enabled. See Section 11.4.
Udcp=400V Udcn=400V
Ubp=273V Ubn=273V O
Charge Level
= 100%
Autonomy
= 9min
1. Booster DC voltage + pole (Udcp) and – pole (Udcn).
2. Battery DC voltage + pole (Ubp), – pole (Ubn) and the status
SBM (Superior Battery Management).
The functionality of SBM can help to reduce the Battery
recharging time, and improve the lifetime of the Battery.
Beside the indication of the Battery voltage on the display, a letter shows, according to the table
below, the operational status of SBM:
Sigle
Status of charger
Charger voltage
Description
O
OFF
240 VDC
T
ON
Boost (294 VDC)
F
ON
Floating (273 VDC)
Battery charged
L
ON
Floating (273 VDC)
Normal charge
B
ON
Boost (294 VDC)
Boost charge
E
ON
Boost (294 VDC)
Battery equalization
Battery open circuit voltage
Boost charge with new Battery
Access to the Parameters for setting the SBM mode is password protected.
Please call your Service Centre.
3.
Battery charge level.
4.
Estimated battery backup time with actual load.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 50/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
MAINS
f=50.0Hz
U1=228V U2=230V
U3=229V
1.
2.
3.
4.
Mains input voltage information screen.
Mains input frequency.
Mains line voltage L1 and L2 phases.
Mains line voltage L3 phase.
RECTIFIER
f=50.0Hz
U1=228V U2=230V
U3=229V
1.
2.
3.
4.
Rectifier input voltage information screen.
Mains input frequency.
Input line voltage L1 and L2 phases.
Input line voltage L3 phase.
INVERTER:
U1=230V
U2=230V
U3=230V
Frequency = 50.0Hz
Synchronized
1.
2.
3.
4.
Inverter voltage information screen.
Output inverter line voltage L1, L2 and L3 phases
Output frequency.
Synchronisation status inverter with respect to mains.
LOAD ON PHASE
U1=230V I1=44A 51%
U2=230V I2=46A 53%
U3=230V I3=43A 50%
1.
2.
3.
4.
Load on output phases information screen.
Voltage, current and load percentage phase L1.
Voltage, current and load percentage phase L2.
Voltage, current and load percentage phase L3.
MISCELLANEOUS
Battery Temp. = +25°C
UPS Oper Time= 450h
INV Oper Time= 430h
1.
2.
3.
4.
Screen informing about the battery and time of operation.
Battery temperature.
Operating time (CPU powered) for the UPS (hours).
Operating time with inverter supplying the load (hours).
MAINS FAULTS STAT.
Minor
=
100
Major
=
150
Overloads
=
30
1.
2.
3.
4.
Screen informing about the quality of the input power.
The quantity of bypass mains out of tolerance faults.
The quantity of rectifier mains out of tolerance faults.
The total number of detected output overloads.
IDENTIFICATION
LP 33
60kVA P1
SW Version:
x.x
S/N: L0060-0105-0001
1.
2.
3.
4.
Screen containing the data identifying the unit.
UPS family, nominal rating and for RPA: P + no. UPS.
The software version implemented on the control board.
The serial number of the unit.
ECO MODE RATE
100%
NR FAST TRANSIENT
<2ms >2ms >5ms >10ms
25
10
7
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
3
Screen containing the statistic evaluation in % (100= good; 0= bad)
of the utility, for the ECO Mode operation.
4.
The number of fast transients occurred on the bypass utility on
the last seven days.
Page 51/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
7.2
EVENT SCREENS (Alarm)
Each of the following listed alarms or messages can be displayed on the LCD screen or transmitted to a
PC through the serial port RS232 or the SNMP card (optional).
Entering the Alarm mode, the LCD screen displays a sequence of screens corresponding to the last 256
alarms & events, each screen indicating:
01.01.2005
12:15:45
NR=255 Status=A588
4580: INVERTER AND
MAINS SYNCHRONIZED
1.
The exact date and time when the event occurred.
2.
The number (255 being the most recent) and status code.
3.
The software version implemented on control board and
explicit text description of the event.
7.2.1 Alarms list
Are defined alarms:
all the events which activate the LED Warning (yellow) and the buzzer in order
to alert the user about an abnormal situation.
Code
Alarm
Meaning
4000
SETUP VALUES
LOST
4001
REGULATION BOARD
FAILURE
4004
UPS
FAILURE
4100
RECTIFIER FUSES
FAILURE
Parameters are lost and have been replaced with default
values.
Voltage supply +/-15 VDC has been detected out of tolerance
on the P1 – Control board or the programmable circuits are
defective.
The master unit detected the slave unit missing on the
communication bus even though switch Q1 is still closed.
The trip indicator mounted on rectifier input fuses indicates a
blown fuse.
The rectifier is turned Off (K4 open) and the load will be
supplied by the battery.
K4 not closed despite a closing command being done.
The rectifier is switched OFF.
K4 not open despite an opening command being done.
The rectifier is switched OFF.
Rectifier input mains has been detected out of tolerance
(voltage, frequency or phase).
The battery has been discharged and reached “stop
operation” time-out (default 3 minutes), the inverter will be
shut down.
It restarts automatically only when the battery has recovered
energy to ensure min. a “stop operation” time to the actual
load.
Dangerous high UDC-Voltage.
Causes Inverter shutdown. Inverter restarts automatically
after return to normal floating voltage.
During battery test the DC voltage falls under the critical level.
If the boost voltage has not been reached within 24 hours,
then the charge voltage returns to floating voltage.
Battery test is stopped.
4102
4103
4110
K4 CLOSING
FAILURE
K4 OPENING
FAILURE
RECTIFIER MAINS
OUT OF TOLERANCE
4115
LOW BATTERY
VOLTAGE
4116
HIGH BATTERY
VOLTAGE
4118
BATTERY
FAULT
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 52/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
Code
Alarm
4130
TURN ON RECT.
OR SHUTDOWN UPS
4140
RECTIFIER
CONTROL FAILURE
4301
INVERTER
FUSES FAILURE
4304
K7 CLOSING
FAILURE
4305
K7 OPENING
FAILURE
4312
INV. VOLTAGE
OUT OF TOLERANCE
4320
ISMAX
DETECTION
4340
INVERTER
CONTROL FAILURE
4347
OSCILLATOR
FAILURE
4402
RECTIFIER
CANNOT BE TURNED ON
4404
K6 CLOSING
FAILURE
4405
K6 OPENING
FAILURE
4410
BYPASS MAINS
OUT OF TOLERANCE
4520
NO INVERTER
POWER
4530
LOAD LOCKED
ON MAINS
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Meaning
Rectifier and inverter are OFF.
The DC power supply is discharging the battery slowly.
Rectifier must be restarted or battery must be
disconnected in order to avoid damages.
Rectifier voltage hasn’t reached the set value.
Probably fault on regulation loop.
The DC capacitors are not equally charged (more of 50 VDC
of difference).
The rectifier is switched OFF.
Inverter output fuses blown.
Signalled by electronic detector.
Inverter can be started manually after replacement of
fuses.
K7 not closed despite a closing command being done.
Signalled by auxiliary contact.
Load will be supplied by mains.
K7 not open despite an opening command being done.
Signalled by auxiliary contact.
Load will be supplied by mains.
Inverter output voltage is out of the tolerances defined in
respective parameter (±10%).
Inverter is switched OFF.
Detection of inverter bridge (Is) current limitation cause
inverter OFF and automatic restart (message 320).
After 3 times inverter switches OFF for persistent Is max
detection in time.
Inverter switch OFF, and it can be restarted manually.
The slave oscillator is not synchronised with the master,
thus causing the shutdown of it’s inverter.
Auto calibration of the Inverters freerun frequency was not
possible.
The oscillator frequency of this unit is out of tolerance.
The rectifier cannot be turned on because the DC link
voltage has not reached the requested value.
K6 not closed despite a closing command being done.
Signalled by auxiliary contact.
The load cannot be supplied by electronic bypass.
K6 not open despite an opening command being done.
Signalled by auxiliary contact.
The mains bypass voltage is out of the tolerances (±10%).
K6 opens, synchronisation with mains is inhibited and
transfer to mains is blocked.
The load supplied by utility is over 100%.
The load remains blocked on utility as long as alarm
overload is active.
Load is locked on mains because 3 transfers on mains have
been detected in a short time (default 30 seconds).
Transfer will be free again after a time defined by
respective parameter (default 30 seconds).
Page 53/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
Code
Alarm
Meaning
4531
LOAD ON MAINS
BY ERROR DETECTOR
4563
EMERGENCY OFF
ACTIVATED
4570
OVERLOAD
4571
OVERLOAD:
LOAD ON MAINS
Load is transferred to mains because the error detector
detected a disturbance on the output voltage.
Alarm after detection of an Emergency Off from an
external safety device connected on Customer Interface.
Consequently K4, K6 and K7 open and shut down inverter,
booster and rectifier.
The UPS-System is in an overload condition >125% on
inverter, or >150% on mains.
A sequence of “stop operation” starts.
Time out depending on load quantity.
With mains bypass supply available and load >115%, the
load is transferred on mains.
Load will be transferred again automatically on inverter
when load will be <100%.
The voltages of mains and inverter are not synchronised,
which causes the opening of K6.
The battery temperature exceeds the value inserted in
parameter. Disabled with parameter (service only).
In case of utility failure, with the actual load, the
autonomy time would result below “stop operation” time
(default 3 minutes).
Battery voltage is at the lowest limit.
Shutdown of inverter until the battery voltage reaches the
value in respective parameter.
The load is locked on Inverter following 3 load transfers
within 30 seconds.
After time out of the value in respective parameter
(default 30 seconds), bypass will be free.
An overtemperature condition has been detected on
inverter.
Elapsed “stop operation” time, inverter shutdown.
With mains available, load is transferred on mains.
Load Off after time-out of “stop operation” for overload on
inverter or bypass (time depending on the % of overload).
Load Off after time-out of “stop operation” with missing
mains due to battery low voltage or overtemperature
condition.
INVERTER AND
MAINS NOT SYNCH.
BATTERY
OVERTEMPERATURE
4581
4697
4698
BATTERY POWER
INSUFFICIENT
4700
DC LOW
4900
LOAD LOCKED
ON INVERTER
4955
OVERTEMPERATURE
4998
LOAD OFF DUE TO
EXTENDED OVERLOAD
4999
LOAD OFF DUE TO
UBATT OR TEMP.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 54/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
7.2.2 Messages list
Are defined messages:
all the recorded events which are referred to the operation status coherent
with the normal situation of the UPS.
Code
Message
Meaning
4111
RECTIFIER
MAINS OK
4114
UPS SHUTDOWN
(LOW BATT VOLTAGE)
4119
BATTERY TEST
STARTED
4120
BATTERY TEST
STOPPED
Rectifier input mains is again within the admitted tolerance
(voltage, frequency and phase).
The UPS is in Load OFF status, resulting in Battery supply for
the power supply.
Should the Battery voltage decrease to a value below of the
one set in a parameter, then power supply will shutdown to
avoid damage to the Battery
Start of manual or automatic battery test.
Rectifier output voltage is decreased to the value defined by
respective parameter.
End battery test.
End of manual or automatic battery test.
Rectifier output voltage is restored to floating voltage.
Detection of persistent booster (Is) current limitation.
4141
4161
4162
ISMAX DETECTION
BOOSTER
RECTIFIER
ON
RECTIFIER
OFF
4163
GENERATOR
ON
4164
GENERATOR
OFF
4302
INVERTER
CANNOT BE
TURNED ON
4303
4361
4362
INVERTER
CANNOT BE
TURNED OFF
INVERTER
ON
INVERTER
OFF
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Rectifier received the command to switch ON.
Rectifier received the command to switch OFF for:
input mains out of tolerance / EPO / UDC max.
Customer Interface (X1 / 11, 22) received a Gen set ON
signalling.
Operating mode dependent on setting of respective
parameters.
Customer Interface (X1 / 11, 22) received a Gen set OFF
signalling.
Function bypass enabled dependent on setting of respective
parameter.
Inverter cannot be switched on because one of the following
conditions are still present:
- Overtemperature;
- Low battery voltage;
- Inverter fuses;
- Overload;
- K7 opening failure;
- High battery voltage;
- DC low;
- EPO (Emergency Power Off).
Inverter cannot be switched OFF, because the load cannot be
transferred on mains (voltage out of tolerance, not
synchronising, bypass blocked).
The command to start the inverter has been activated on the
control panel.
The command to switch OFF the inverter has been done by the
control panel or automatically for alarm detection.
Page 55/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
Code
Message
Meaning
4411
BYPASS MAINS
OK
COMMAND
LOAD OFF
NO BYPASS
POWER
MULTIPLE LOAD
TRANSFER
Bypass input mains is again within the admitted tolerance
(voltage, frequency and phase).
Disconnection of the load by opening K4, K6 and K7 for:
EPO / Total Off / Overload / Stop operation.
With the load supplied by electronic bypass, a mains failure or
K6 opening occurred.
2 transfers inverter-mains have been detected in a short time,
defined by respective parameter (default 30 seconds).
Transfer on mains not enabled due to settings of respective
parameters.
Contactor K6 is open.
Settings of respective parameters enable bypass transfer on
mains.
Contactor K6 can be closed.
Push-button Total Off behind the front door has been pressed,
with the output circuit breaker Q1 closed.
The auxiliary contact indicates that manual bypass Q2 has
been closed.
The auxiliary contact indicates that manual bypass Q2 has
been opened.
The control unit received a command to transfer the load on
mains.
The control unit received a command to transfer the load on
inverter.
End of the overload condition previously detected with alarm
4570.
The voltages of inverter and mains bypass are synchronised.
4500
4521
4534
4535
BYPASS
LOCKED
4536
BYPASS
FREE
4561
4562
4564
4567
4568
4572
4580
TOTAL
OFF
DETOUR
ON
DETOUR
OFF
COMMAND
LOAD ON MAINS
COMMAND
LOAD ON INVERTER
NO MORE
OVERLOAD
INVERTER AND
MAINS SYNCHRONIZED
4582
COMMAND NOT TO
SYNCHRONIZE
4583
COMMAND TO
SYNCHRONIZE
4600
COMMAND
UPS ON
4601
COMMAND UPS
STAND BY
4602
4603
4699
Q1
OPEN
Q1
CLOSED
BATTERY TEST
IMPOSSIBLE
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Command not to synchronise with mains has been done for:
mains bypass out of tolerance (4410) or setting respective
parameters.
Command to synchronise with mains has been done for:
mains BP OK (4410) or setting respective parameters.
The ECO Mode function has been disabled or the programmed
time is expired.
The UPS returns to VFI Mode supplying the load normally by
inverter.
The function ECO Mode is enabled, and according to the time
program the UPS will run in ECO Mode, supplying the load
normally by mains.
The auxiliary contact indicates that the output switch Q1 has
been opened.
The auxiliary contact indicates that the output switch Q1 has
been closed.
Not possible to start battery test (it is postponed) for:
- No mains rectifier or bypass;
- Battery not fully charged;
- Load is below 10% or above 80%.
Page 56/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
Code
4763
4764
Message
Meaning
REMOTE CONTROL
ON
Inverter can be started or shutdown by remote control.
Commands source can be chosen depending on the value of
respective parameter (password required):
0 = Only local panel.
1 = Only serial port on CI (TLC).
2 = Both.
REMOTE CONTROL
OFF
Inverter can be started or shutdown by remote control.
Commands source can be chosen depending on the value of
respective parameter (password required):
0 = Only local panel.
1 = Only serial port on CI (TLC).
2 = Both.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 57/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
7.2.3 Event report LP 33 Series
In case of failure or malfunction, before calling the nearest Service Centre please note the most
important identification data of your UPS and the most recent events displayed.
In order to make the diagnosis easier for our Diagnostic Centre we suggest you make a copy of this
page, fill it in with the requested data, and send it by fax.
LP 33 Series
User:
LP 33 Series /
.........................……………………………........…………...……………....…..
….…......
kVA
.........................……………………………........…………...……………....…..
UPS No.:
.……...... - .….…..... - ...….......
.........................……………………………........…………...……………....…..
Responsible:
........................……………………………………..…………………………..…………
.........................……………………………........…………...……………....…..
Date:
……... / ……... / ……...
Event No.
Code
255
254
253
252
Status
Date
Hour
Signature:
Series:
…….……..
....……………….....……..
Description of repair action taken:
..........................……………………………........…………………..........................………...................
..........................……………………………........…………………..........................………...................
..........................……………………………........…………………..........................………...................
251
..........................……………………………........…………………..........................………...................
250
..........................……………………………........…………………..........................………...................
249
248
247
246
245
244
Actual situation:
..........................……………………………........…………………..........................………...................
..........................……………………………........…………………..........................………...................
243
242
..........................……………………………........…………………..........................………...................
241
..........................……………………………........…………………..........................………...................
240
..........................……………………………........…………………..........................………...................
239
238
237
236
235
234
Remarks:
..........................……………………………........…………………..........................………...................
..........................……………………………........…………………..........................………...................
233
232
..........................……………………………........…………………..........................………...................
231
..........................……………………………........…………………..........................………...................
230
..........................……………………………........…………………..........................………...................
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 58/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
7.3
MENU SCREENS (Menu)
Pressing the menu keypad a series of screens will be displayed, permitting the user to set some
functions of the UPS, to restore the command total off, to perform the LEDs TEST, and to switch the
inverter ON/OFF.
1.
2.
UPS family, nominal rating and for RPA: P + No. UPS.
The operating mode of the UPS (UPS ON/OFF).
COMMAND MENU
INVERTER ON
*
INVERTER OFF
1.
2.
3.
Screen inverter command.
Inverter ON.
Inverter OFF.
(The visualisation of *, indicates the Inverter status).
LAMP TEST
RESET TOTAL OFF
1.
2.
Signalling LEDs test and buzzer test.
Restore the output supply following the command total off
(the asterisk * beside the text means that the command total
off has been activated with Q1 closed).
1.
3.
Screen parameters set-up for user and service.
Level 1: this first level not protected by password allows
the user to modify some parameters of the UPS
(see Section 7.3.1).
Level 2: access protected by password reserved for service
engineers.
LP 33
UPS ON
60kVA P1
PARAMETER MENU
LEVEL 1: USER
LEVEL 2: SERVICE
ALARMS
UPS FAILURE
CALL SERVICE
*
4.
1.
2.
3.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Screen indicating the presence of alarm condition and the
consequent operation mode.
UPS status: UPS shutdown due to UPS FAILURE (fuse blown) or
abnormal conditions for UPS (OVERTEMPERATURE or MAINS
FAILURE).
Action needed following the alarm condition CALL SERVICE or
output statement which can be APPLIC.
ON UTILITY if the output is powered by mains or
APPLIC. PROTECTED when the load is normally powered by
the inverter.
Page 59/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
7.3.1 User parameters screen
This screen allows the user to modify some parameters permitting to adapt some functions of the UPS
to his/her needs, described as follows.
This screen can be accessed by entering MENU/PARAMETER MENU/LEVEL 1: USER and confirming with
the key Enter.
PARAMETER MENU
LEVEL 1: USER
LEVEL 2: SERVICE
In PARAMETER MENU the buttons + / - / Enter perform the following functions:
+
This key allows to scroll forward to the next screen and, once the key Enter has been pressed,
to move the horizontal selection to the next editable position.
-
This key allows to move the selection to the next parameter and, once the key Enter has been
pressed, to change the value of the selected character by the underscore cursor.
Enter
Start the editing for the currently selected parameter.
1.
Date and time set-up
DATE AND TIME
D M Y
Date:
01.01.2005
Hour:
12:15:45
2.
1.
2.
Date and time setup.
D = Day
M = Month
3.
Date set-up:
the set value is thoroughly checked to be a
correct format “dd.mm.yyyy”.
4.
Time set-up:
the set value is thoroughly checked to be a
correct format “hh.mm.ss”.
The time is specified in 24 hour format.
1.
2.
Modem protocol set-up.
Y: enables or N: disables the modem call.
3.
Init:
Y = Year.
Modem protocol set-up
PROTOCOL SETUP
Modem enabled = N
Init=BEQV1X3&D0S0=2
Alarm=N
Delay=30s
this parameter presents the modem initialisation string.
It can be 39 characters long and considers that a blank
character terminates the string.
If no blank character is found then all 39 characters are
used
4. Alarm:
Y/N controls the automatic events signalling through modem.
If this parameter is set to Y (yes) the UPS itself will call the remote location when a new
event occurs.
Delay:
This parameter controls the delay between the occurrence of a new event and the
modem dialling.
It is useful because since the events typically do not occur isolated but in certain
sequences, you can eliminate the need for multiple dial-outs for such a sequence of
events.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 60/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
3.
Telephone numbers set-up
Tel1:
Tel1:
Tel1 enabled:
Tel2:
Tel2 enabled:
N
N
This parameter specifies a first tel. number to be used for
modem dial-out.
The telephone number has a maximum of 39 characters
and cannot contain intermediate blank.
If the desired number is shorter than 39 characters, finish
the string with blanks.
Tel1 enabled:
this parameter Y/N specifies if the first telephone number will be used for dial-out.
Tel2:
it records the second dial-out number.
Tel2 enabled:
this parameter Y/N specifies if the second telephone number will be used for dial-out.
Tel3:
it records the third dial-out number.
Tel3 enabled:
this parameter Y/N specifies if the third telephone number will be used for dial-out.
Tel4:
it records the fourth dial-out number.
Tel4 enabled:
this parameter Y/N specifies if the fourth telephone number will be used for dial-out.
4.
5.
LCD Display
LCD Display
UPS NAME: LP 33
1.
2.
LCD display screen.
UPS name: the user can choice the name of the UPS model
showed on the main page (11 digits).
Language = ENGLISH
4.
Language:
his parameter allows the choice of language
used to display the information.
Valid choices are English, German, French,
Spanish, Italian, Finnish and Polish.
Operation mode selection (VFI Mode or ECO Mode)
ECO MODE Y
d1 d2 d3 d4 d5 d6 d7
HOURS SELECTED
24 24 12 12 12 12 12
NOTE !
The ECO Mode can only be activated on single units.
1.
ECO Mode
This parameter (values Y / N) enables or disables the operation
in ECO Mode.
If the value is Y and the current time is in the interval for the current day, the ECO Mode is active.
The activation / disactivation of ECO Mode is indicated each time in the event list.
In order to check the inverter function, at least 1 minute of VFI Mode must be programmed during the
week (the Y / N parameter is automatically disabled if this condition is not satisfied).
In case this minimum time in VFI Mode is not respected, the ECO Mode will be disabled.
If the value is N, the UPS is normally operating in VFI / double conversion mode at all times.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 61/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
2.
d1 ÷ d7: Enabling time in function of weekdays.
For the weekdays from d1 to d7 (Saturday to Friday) the edit mode (edit day) allows to define time
intervals when the UPS is operating in ECO Mode.
The hour is given in 24-hour format.
These intervals are defined by:
ECM START:
the hour of the day after which the ECO Mode is enabled.
The ECO Mode is enabled until the following ECM STOP time is reached (the ECM
STOP time of the same day if this is later than the ECM START time, the ECM
STOP time of the following day otherwise).
ECM STOP:
the hour of the day before which the ECO Mode is enabled.
The ECO Mode is enabled starting from the preceding ECM START time (the ECM START time of the
same day if this is earlier than the ECM STOP time, the ECM START time of the previous day
otherwise).
Identical times for ECM START and ECM STOP mantain the existing mode only in case the previous
command was ECM START and the following command will be ECM STOP.
3.
HOURS SELECTED:
The number of ECO Mode hours per weekday (from d1 - Saturday to d7 Friday) is displayed in the operation mode parameter window (ceiling
value).
To better understand the ECO Mode programming modes, some typical examples are shown:
Example 1:
Weekday
For continuous ECO Mode set the ECM START times to 00:00 and the ECM STOP times
to 23:59 for all weekdays, but almost 1 day must have 1 minute of VFI programmation:
i.e d2 - Sunday 00:00 to 23:58).
d1 - Saturday
d2 - Sunday
d3 - Monday
d4 - Tuesday
ECM START
00:00
00:00
00:00
00:00
00:00
00:00
00:00
ECM STOP
23:59
23:58
23:59
23:59
23:59
23:59
23:59
Example 2:
Weekday
d5 - Wednesday d6 - Thursday
d7 - Friday
ECM STOP before ECM START.
ECM START 18:00, ECM STOP 06:00 for weekday d4 - Tuesday.
Means that on d4 - Tuesday the ECO Mode is active between 00:00 and 06:00 and
between 18:00 and 23:59.
d1 - Saturday
d2 - Sunday
d3 - Monday
d4 - Tuesday
ECM START
00:00
00:00
00:00
18:00
00:00
00:00
00:00
ECM STOP
23:59
23:59
23:59
06:00
23:59
23:59
23:59
Example 3:
Weekday
d5 - Wednesday d6 - Thursday
d7 - Friday
ECO Mode during the night and week-end.
If the ECO Mode must be enabled all nights (d3 - Monday ÷ d7 - Friday) between 18:00 in
the evening and 06:00 of the following morning and during all Saturday (d1) and Sunday
(d2), the corresponding parameters are:
d1 - Saturday
d2 - Sunday
d3 - Monday
d4 - Tuesday
ECM START
00:00
00:00
18:00
18:00
18:00
18:00
18:00
ECM STOP
23:59
23:59
06:00
06:00
06:00
06:00
06:00
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
d5 - Wednesday d6 - Thursday
d7 - Friday
Page 62/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
Example 4:
If the ECO Mode must be enabled on Monday (d3) and Tuesday (d4) between 18:00 in the
evening and 06:00 of the following morning, on Friday (d7) between 12:00 and 13:00,
during all Saturday (d1) and on Sunday (d2) until 20:00, the corresponding parameters
are.
Weekday
d1 - Saturday
d2 - Sunday
d3 - Monday
d4 - Tuesday
d5 - Wednesday d6 - Thursday
d7 - Friday
ECM START
00:00
00:00
18:00
18:00
00:00
00:00
12:00
ECM STOP
23:59
20:00
23:59
06:00
06:00
00:00
13:00
ECM START
ECM STOP
In dark colour are displayed the times with ECO Mode operation.
The arrows indicate the conditions given by the ECM START and ECM STOP times introduced with the
parameters.
Note that on day d6 - Tuesday the interval has length 0 (zero), therefore the ECO Mode e is not enabled
on this day.
An equivalent set of parameters for Example 4 is.
Example 5:
Weekday
d1 - Saturday
d2 - Sunday
d3 - Monday
d4 - Tuesday
d5 - Wednesday d6 - Thursday
d7 - Friday
ECM START
00:00
00:00
18:00
18:00
06:00
09:00
12:00
ECM STOP
23:59
20:00
18:00
06:00
06:00
09:00
13:00
ECM START
ECM STOP
The ECO Mode is active from 18:00 of weekday d3 - Monday until 06:00 of weekday d4 - Tuesday (as
indicated by the ECM STOP time of weekday d4 - Tuesday).
The ECM STOP time of weekday d3 - Monday has no effect as it is followed by the ECM STOP time of
weekday d4 - Tuesday.
It can be, without change of meaning, any time between 18:00 and 23:59.
Similarly, the ECO Mode is active from 18:00 of weekday d4 - Tuesday until 06:00 of weekday d5 Wednesday.
The ECM START time of weekday d5 - Wednesday has no effect as it is preceded by the ECM START time
of weekday d4 - Tuesday.
It can be, without change of meaning, any time between 00:00 and 06:00.
To avoid undesired ECO Mode operation, verify:
• Date and Time (first page of parameter).
• ECO Mode screen how many hours of ECO Mode operation have been selected for
each day of the week.
NOTE !
The ECO Mode becomes active only if the load is supplied from inverter.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 63/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
8
8.1
OPERATION
PROCEDURES FOR SINGLE LP 33 Series
8.1.1 Start-up of the LP 33 Series
Before connecting hazardous voltages, make sure that:
• The connection to the electrical system has been performed by qualified personnel;
• The equipment frame has been correctly grounded to the main earth;
• Make sure that mains input protection is removed;
• All the panels removed to allow the UPS connection have been correctly reinstalled;
• The UPS switches Q1 and Q2 are OFF (Pos. 0);
• The external battery fuses are removed.
This procedure must be performed for the first start-up following the installation, with the UPS
completely switched Off and not powered.
This procedure presupposes that the load is not yet supplied by the UPS system.
NOTE !
The UPS can be started-up using the battery supply in case the input mains should be
unavailable.
To avoid an incidental battery discharge, it is recommended to proceed to the UPS
start-up having the input mains available.
1.
Switch ON the mains power at the input distribution panel.
As a result the UPS performs a self-test and the LCD will show
the following screen:
EXECUTING MAINBOARD
SELF TEST
00000000000
SELF TEST OK!
NOTE !
In case the alarm “4410 - Mains bypass out of
tolerance” persists, check the phases rotation of
the input mains.
2.
Insert the external battery fuses.
Continue ►
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 64/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
3.
4.
Switch On the output switch Q1 (Pos. I).
The output will be supplied by the mains through the bypass.
Verify, selecting the screen METERING/Udcp and Udcn, that the
booster voltage has reached about 400 VDC.
Udcp=400V
Ubp=273V
Charge level
Autonomy
Switch On the inverter entering the screen:
MENU/COMMAND MENU/INVERTER ON
COMMAND MENU
INVERTER ON
*
INVERTER OFF
Some seconds later the load will be transferred on inverter
and the main screen will display: APPLICATION ON UPS
5.
LP 33
60kVA
APPLICAT. ON UTILITY
= 53%
Udcn=400V
Ubn=273V F
= 100%
= 900min
LP 33
60kVA
APPLICATION ON UPS
= 53%
Operation mode selection.
LP 33 Series is delivered normally selected for permanent VFI operation.
ECO Mode can be enabled and the ECO Mode START time & ECO Mode STOP time can be
programmed for each day of the week (see Section 7.3.1-5).
END OF PROCEDURE
NOTE !
Even if the UPS is delivered with the battery fully charged, they could be partially
discharged during transportation or storage.
It is recommended to recharge the battery during a few hours in order to provide the
complete battery energy stored to the load in the event of mains failure.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 65/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
8.1.2 UPS shutdown with load transfer on manual bypass (Q2)
The purpose of this procedure is to supply the load directly by mains through manual bypass Q2.
This procedure is normally performed when the UPS must be completely switched OFF for maintenance
or service purpose, performed by an authorised Service Centre.
NOTE !
This procedure must not be performed if the UPS is used as frequency converter.
1.
Switch OFF the inverter by entering the screen:
MENU/COMMAND MENU/INVERTER OFF
Attention: to switch OFF permanently the inverter the key
Enter must be pressed 2 times.
COMMAND MENU
INVERTER ON
INVERTER OFF
*
The output will be supplied by the mains through the automatic
bypass.
LP 33
60kVA
APPLICAT. ON UTILITY
= 53%
2.
Switch ON the maintenance bypass Q2 (Pos. I).
LP 33
60kVA
APPL. ON MANUAL DEV.
= 53%
3.
Switch OFF the output switch Q1 (Pos. 0).
4.
Perform the command total off.
5.
Remove the external battery fuses.
Continue ►
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 66/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
6.
7.
In order to discharge the DC link capacitors, start once more
the inverter through the screen:
MENU/COMMAND MENU/INVERTER ON
COMMAND MENU
INVERTER ON
*
INVERTER OFF
Remark:
INVERTER:
U1= 7V
U2= 7V
U3= 7V
Frequency = 50.0Hz
Synchronized
command INVERTER ON will be enabled only when
the inverter voltage of each phase decreases
below 7 VAC (about 30 seconds).
Before proceeding to step 7, check on the display panel that
the DC link voltage (both polarities) Udcp and Udcn has reached
the max. voltage of 5 VDC (about 30 seconds).
Udcp= 5V
Ubp=0V
Charge level
Autonomy
Switch OFF the inverter by entering the screen:
MENU/COMMAND MENU/INVERTER OFF
COMMAND MENU
INVERTER ON
INVERTER OFF
*
Udcn= 5V
Ubn=0V O
= 0%
= 0min
The load is now powered directly by mains through the manual bypass Q2.
END OF PROCEDURE
WARNING !
The UPS cabinet contains parts electrically live.
Apart from the front door, do not open any other part of the UPS.
NOTE !
With separate mains inputs, it’s possible to disconnect mains rectifier.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 67/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
8.1.3 Start-up following the operation on manual bypass (Q2)
This procedure presupposes that the load is powered by the manual bypass switch:
• The inverter is switched OFF;
• The manual bypass switch Q2 is switched ON (pos. I);
• The output switch Q1 is switched OFF (Pos. 0);
• The external battery fuses are removed.
NOTE !
This procedure must not be used if the UPS is used as frequency converter.
1.
Insert the external battery fuses.
2.
Switch ON the output switch Q1 (Pos. I).
3.
Only in case it has been previously activated (* present beside
the text RESET TOTAL OFF), restore the command total off by
entering the screen:
MENU/RESET TOTAL OFF
LED TEST
RESET TOTAL OFF
4.
Switch OFF the maintenance bypass Q2 (Pos. 0).
Verify, selecting the screen METERING/Udcp and Udcn, that the
booster voltage has reached about 400 VDC.
Udcp=400V
Ubp=273V
Charge level
Autonomy
5.
Switch ON the inverter by entering the screen:
MENU/COMMAND MENU/INVERTER ON
COMMAND MENU
INVERTER ON
*
INVERTER OFF
Some seconds later the load will be transferred on inverter and
the main screen will display: APPLICATION ON UPS
*
Udcn=400V
Ubn=273V F
= 100%
= 900min
LP 33
60kVA
APPLICATION ON UPS
= 53%
END OF PROCEDURE
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 68/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
8.1.4 Complete shutdown
As a result of this procedure the UPS is completely switched OFF and not powered.
NOTE !
This procedure involves all equipment powered by UPS, to be shut down.
1.
Perform the command total off.
2.
Switch OFF the output switch Q1 (Pos. 0).
3.
Remove the external battery fuses.
4.
In order to discharge the DC link capacitors, start once more
the inverter through the screen:
MENU/COMMAND MENU/INVERTER ON
COMMAND MENU
INVERTER ON
*
INVERTER OFF
Remark:
INVERTER:
U1= 7V
U2= 7V
U3= 7V
Frequency = 50.0Hz
Synchronized
command INVERTER ON will be enabled only when
the inverter voltage of each phase decreases
below 7 VAC (about 30 seconds).
Before proceeding to step 5, check on the display panel that
the DC link voltage (both polarities) Udcp and Udcn has reached
the max. voltage of 5 VDC (about 30 seconds).
Udcp= 5V
Ubp=0V
Charge level
Autonomy
5.
Switch OFF the inverter by entering the screen:
MENU/COMMAND MENU/INVERTER OFF
COMMAND MENU
INVERTER ON
INVERTER OFF
*
6.
Switch OFF the mains power at the AC input distribution panel.
Udcn= 5V
Ubn=0V O
= 0%
= 0min
END OF PROCEDURE
CAUTION !
If the above procedure is not completely performed, it could cause
serious damages to the UPS.
WARNING !
In case the procedure described on step “4 - discharge DC link capacitors” cannot be
completely performed, the DC capacitors could be charged with dangerous voltage
for about 15 minutes.
Wait until capacitors are completely discharged before starting the UPS again.
Apart from the front door, do not open any other part of the UPS.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 69/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
8.1.5 Restore to normal operation after “total off”
NOTE !
Make sure the UPS to be status of the activation of “total off”, i. e. Q1 closed, Q2 open
and external battery protection connected.
View of the panel after pressing the button “total off”:
•
All Contactors are open.
•
Booster, inverter and Static-Switch shutdown.
1.
Reset “total off”.
Restore the command “total off” by entering the screen:
MENU/RESET TOTAL OFF
LP 33
60kVA
APPLICAT. SUPPLY OFF
= 0%
LED TEST
RESET TOTAL OFF
*
The load is supplied by the mains through the automatic
bypass.
The booster starts automatically.
The LCD screen must display the status:
APPLICATION ON BYPASS
2.
Switch ON the inverter by entering the screen:
MENU/COMMAND MENU/INVERTER ON
The LCD screen must display the status:
APPLICATION ON UPS
LP 33
60kVA
APPLICATION ON BYPASS
= 53%
COMMAND MENU
INVERTER ON
*
INVERTER OFF
LP 33
60kVA
APPLICATION ON UPS
= 53%
END OF PROCEDURE
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 70/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
8.1.6 Restore to normal operation after “EPO – Emergency Power Off”
NOTE !
Make sure the UPS to be status of the activation of EPO, i. e. Q1 closed, Q2 open and
external battery protection connected.
View of the panel after pressing the button “EPO”:
•
All Contactors are open.
•
Booster, inverter and Static-Switch shutdown.
1.
Reset the button “EPO”.
Press Alarm, to reset alarm and buzzer.
LP 33
60kVA
APPLICAT. SUPPLY OFF
= 0%
01.01.2005
12:15:45
NR=255 Status=A588
4563: EMERGENCY OFF
ACTIVATED
2.
Reset the UPS by entering the screen:
MENU/COMMAND MENU/INVERTER OFF
COMMAND MENU
INVERTER ON
INVERTER OFF
*
The load is supplied by the mains through the automatic
bypass.
The booster starts automatically.
The LCD screen must display the status:
APPLICATION ON BYPASS
3.
Switch ON the inverter by entering the screen:
MENU/COMMAND MENU/INVERTER ON
LP 33
60kVA
APPLICATION ON BYPASS
= 53%
COMMAND MENU
INVERTER ON
*
INVERTER OFF
The load will be automatically transferred from mains to the
inverter.
The LCD screen must display the status:
APPLICATION ON UPS
LP 33
60kVA
APPLICATION ON UPS
= 53%
END OF PROCEDURE
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 71/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
8.2
PROCEDURES FOR PARALLEL SYSTEM LP 33 Series
8.2.1 Parallel System start-up of the LP 33 Series
Before connecting hazardous voltages, make sure that:
• The connection to the electrical system has been performed by qualified personnel;
• The equipment frame has been correctly grounded to the main earth;
• Make sure that mains input protection is removed;
• All the panels removed to allow the UPS connection have been correctly reinstalled;
• The UPS switches Q1 and Q2 are OFF (Pos. 0);
• The input fuses rectifier F1, F2, F3 and battery fuses F9, F10, F11 is removed.
This procedure must be performed for the first start-up following the installation, with all the units
completely switched Off and not powered.
This procedure presupposes that the load is not yet supplied by the UPS system.
NOTE !
The UPS can be started-up using the battery supply in case the input mains should be
unavailable.
To avoid an incidental battery discharge, it is recommended to proceed to the UPS
start-up having the input mains available.
1.
Switch ON the mains power for each unit at the input
distribution panel.
As a result each unit performs a self-test and the LCD will show
the following screen:
EXECUTING MAINBOARD
SELF TEST
00000000000
SELF TEST OK!
The LCD screen will display the number of the unit in the parallel
system (P1, P2, P3 or P4).
NOTE !
In case the alarm “4410 - Mains bypass out of
tolerance” persists, check the phases rotation of
the input mains.
2.
Insert the external battery fuses on each unit.
Continue ►
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 72/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
3.
Switch ON the output switch Q1 (Pos. I) on each unit.
When the last Q1 will be closed, the output will be supplied by
the mains through all bypass.
LP 33
60kVA P1
APPLICAT. ON UTILITY
= 53%
Verify, selecting the screen METERING/Udcp and Udcn, that the
booster voltage has reached about 400 VDC.
Udcp=400V
Ubp=273V
Charge level
Autonomy
4.
Switch ON the inverter on the first unit entering the screen:
MENU/COMMAND MENU/INVERTER ON
COMMAND MENU
INVERTER ON
*
INVERTER OFF
5.
Switch ON the inverter on the other units by entering the
screen: MENU/COMMAND MENU/INVERTER ON.
(Do not start the next inverter until the sequence of the
previous one ends – about 10 seconds).
COMMAND MENU
INVERTER ON
*
INVERTER OFF
Some seconds later the load will be transferred on inverter and
the main screen of each unit will display:
APPLICATION ON UPS
LP 33
60kVA P1
APPLICATION ON UPS
= 53%
Udcn=400V
Ubn=273V F
= 100%
= 900min
END OF PROCEDURE
NOTE !
Even if the UPS is delivered with the battery fully charged, they could be partially
discharged during transportation or storage.
It is recommended to recharge the battery during a few hours in order to provide the
complete battery energy stored to the load in the event of mains failure.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 73/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
8.2.2 Parallel UPS shutdown with load transfer on manual bypass (Q2)
The purpose of this procedure is to supply the load directly by mains through manual bypass Q2.
This procedure is normally performed when the UPS must be completely switched OFF for maintenance
or service purpose, performed by an authorised Service Centre.
1.
Switch OFF the inverter on each unit entering the screen:
MENU/COMMAND MENU/INVERTER OFF
Attention:
to switch OFF permanently the inverter the key
Enter must be pressed 2 times.
The output will be supplied by the mains through all automatic
bypass.
2.
Switch ON the maintenance bypass Q2 (I) on each unit.
3.
Switch OFF the output switch Q1 (0) on each unit.
4.
Perform the command total off on each unit.
5.
Remove the external battery fuses.
COMMAND MENU
INVERTER ON
INVERTER OFF
*
LP 33
60kVA P1
APPLICAT. ON UTILITY
= 53%
LP 33
60kVA P1
APPL. ON MANUAL DEV.
= 53%
Continue ►
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 74/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
6.
7.
In order to discharge the DC link capacitors, start once more
the inverter on each unit through the screen:
MENU/COMMAND MENU/INVERTER ON
COMMAND MENU
INVERTER ON
*
INVERTER OFF
Remark:
INVERTER:
U1= 7V
U2= 7V
U3= 7V
Frequency = 50.0Hz
Synchronized
command INVERTER ON will be enabled only when
the inverter voltage of each phase decreases
below 7 VAC (about 30 seconds).
Before proceeding to step 7, check on the display panel that
the DC link voltage (both polarities) Udcp and Udcn has reached
the max. voltage of 5 VDC (about 30 seconds).
Udcp= 5V
Ubp=0V
Charge level
Autonomy
Switch OFF the inverter on each unit entering the screen:
MENU/COMMAND MENU/INVERTER OFF
COMMAND MENU
INVERTER ON
INVERTER OFF
*
Udcn= 5V
Ubn=0V O
= 0%
= 0min
The load is now supplied directly from the mains through the manual switches Q2.
END OF PROCEDURE
WARNING !
The UPS cabinet contains parts electrically live.
Apart from the front door, do not open any other part of the UPS.
NOTE !
With separate mains inputs, it’s possible to disconnect mains rectifier.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 75/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
8.2.3 Start-up following the operation on maintenance bypass (Q2)
This procedure presupposes that the load is powered by the manual bypass switch:
• The inverter is switched OFF;
• The manual bypass switch Q2 is switched ON (Pos. I);
• The output switch Q1 is switched OFF (Pos. 0);
• The input fuses rectifier F1, F2, F3 and battery fuses F9, F10, F11 are removed.
1.
Insert the external battery fuses on each unit.
2.
Switch ON the output switch Q1 (Pos. I) on each unit.
3.
Only in case it has been previously activated (* present beside
the text RESET TOTAL OFF), restore the command “total off” on
any one of the units by entering the screen:
MENU/RESET TOTAL OFF
LED TEST
RESET TOTAL OFF
4.
Open the maintenance bypass switch Q2 (Pos. 0) on each
unit.
Verify, selecting the screen METERING/Udcp and Udcn, that the
booster voltage has reached about 400 VDC on each unit.
Udcp=400V
Ubp=273V
Charge level
Autonomy
5.
Switch ON the inverter on each unit entering the screen:
MENU/ COMMAND MENU /INVERTER ON
(Do not start the next inverter until the sequence of the
previous one ends – about 10 seconds).
COMMAND MENU
INVERTER ON
*
INVERTER OFF
The load will be automatically transferred from mains to the
inverters as the needed power requested from the applied load
is achieved on inverter side.
The main screen of each unit will display:
APPLICATION ON UPS
LP 33
60kVA P1
APPLICATION ON UPS
= 53%
*
Udcn=400V
Ubn=273V F
= 100%
= 900min
END OF PROCEDURE
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 76/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
8.2.4 Shutdown of a single unit in a parallel system
The purpose of this procedure is to separate one unit from the parallel system.
1.
Switch OFF the inverter only on this unit entering the screen:
MENU/COMMAND MENU/INVERTER OFF
Attention: to switch OFF permanently the inverter the key
Enter must be pressed 2 times.
2.
Switch OFF the output switch Q1 (0) only on this unit.
3.
Perform the command total off only on this unit.
4.
Remove the external battery fuses only on this unit.
5.
In order to discharge the DC link capacitors, start once more
the inverter only on this unit through the screen:
MENU/COMMAND MENU/INVERTER ON
COMMAND MENU
INVERTER ON
*
INVERTER OFF
Remark:
INVERTER:
U1= 7V
U2= 7V
U3= 7V
Frequency = 50.0Hz
Synchronized
command INVERTER ON will be enabled only when
the inverter voltage of each phase decreases
below 7 VAC (about 30 seconds).
COMMAND MENU
INVERTER ON
INVERTER OFF
*
Before proceeding to step 6, check on the display panel that
the DC link voltage (both polarities) Udcp and Udcn has reached
the max. voltage of 5 VDC (about 30 seconds).
Udcp= 5V
Ubp=0V
Charge level
Autonomy
6.
Switch OFF the inverter only on this unit entering the screen:
MENU/COMMAND MENU/INVERTER OFF
COMMAND MENU
INVERTER ON
INVERTER OFF
*
7.
Switch OFF the mains power only on this unit at the AC input distribution panel.
Udcn= 5V
Ubn=0V O
= 0%
= 0min
END OF PROCEDURE
WARNING !
In case the unit should be disconnected and removed from the operating system, the
operation must be performed by qualified persons.
If an intermediate unit must be disconnected from a parallel system pay attention
do not open the control bus: keep the plugs J3 and J4 connected to the board “P34 Connector adapter RPA” (see Section 4.8.5).
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 77/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
8.2.5 Start-up an additional unit in a parallel system
Before connecting hazardous voltages, make sure that:
• The connection to the electrical system has been performed by qualified personnel;
• The equipment frame has been correctly grounded to the main earth;
• Make sure that mains input protection is removed;
• All the panels removed to allow the UPS connection have been correctly reinstalled;
• The UPS switches Q1 and Q2 are OFF (Pos. 0);
• The external battery fuses are removed.
This procedure must be performed when the load is supplied by the other units of the UPS system and
an additional unit must be switched ON and connected to the parallel bus in order to share the load
with each other.
This unit must be completely switched OFF and not powered.
1.
Switch ON the mains power at the input distribution pane on
this unit.
As a result the UPS performs a self-test and the LCD will show
the following screen:
EXECUTING MAINBOARD
SELF TEST
00000000000
SELF TEST OK!
NOTE !
In case the alarm “4410 - Mains bypass out of tolerance” persists, check the phases
rotation of the input mains.
2.
Insert the external battery on this unit.
3.
Switch ON the output switch Q1 (Pos. I) on this unit.
4.
LP 33
60kVA P2
APPLICAT. ON UTILITY
= 53%
Verify, selecting the screen METERING/Udcp and Udcn, that the
booster voltage has reached about 400 VDC of this unit.
Udcp=400V
Ubp=273V
Charge level
Autonomy
Switch ON the inverter of this unit entering the screen:
MENU/COMMAND MENU/INVERTER ON
COMMAND MENU
INVERTER ON
*
INVERTER OFF
When the inverter will be synchronised, the unit will be
automatically connected with the parallel bus-bar and the
load will be shared with the other units.
The main screen of each unit will display:
APPLICATION ON UPS
Udcn=400V
Ubn=273V F
= 100%
= 900min
LP 33
60kVA P2
APPLICATION ON UPS
= 53%
END OF PROCEDURE
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 78/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
8.2.6 Complete shutdown of a parallel system
As a result of this procedure the parallel system is completely switched OFF and not powered.
NOTE !
This procedure involves all equipment powered by parallel system, to be shut down.
1.
Perform the command total off on any one of the units.
2.
Switch OFF the output switch Q1 (Pos. 0) on each unit.
3.
Remove the external battery fuses on each unit.
4.
In order to discharge the DC link capacitors, start once more
the inverter on each unit through the screen:
MENU/COMMAND MENU/INVERTER ON
COMMAND MENU
INVERTER ON
*
INVERTER OFF
Remark:
INVERTER:
U1= 7V
U2= 7V
U3= 7V
Frequency = 50.0Hz
Synchronized
command INVERTER ON will be enabled only when
the inverter voltage of each phase decreases
below 7 VAC (about 30 seconds).
Before proceeding to step 5, check on the display panel that
the DC link voltage (both polarities) Udcp and Udcn has reached
the max. voltage of 5 VDC (about 30 seconds).
Udcp= 5V
Ubp=0V
Charge level
Autonomy
5.
Switch OFF the inverter on each unit entering the screen:
MENU/COMMAND MENU/INVERTER OFF
COMMAND MENU
INVERTER ON
INVERTER OFF
*
6.
Switch OFF the mains power of each unit at the AC input distribution panel.
Udcn= 5V
Ubn=0V O
= 0%
= 0min
END OF PROCEDURE
CAUTION !
If the above procedure is not completely performed, it could cause
serious damages to the UPS.
WARNING !
In case the procedure described on step “4 - discharge DC link capacitors” cannot be
completely performed, the DC capacitors could be charged with dangerous voltage
for about 15 minutes.
Wait until capacitors are completely discharged before starting the UPS again.
Apart from the front door, do not open any other part of the UPS.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 79/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
8.2.7 Restore to normal operation after “total off”
NOTE !
Make sure the all units of the parallel system to be status of the activation of “total
off”, i. e. Q1 closed, Q2 open and external battery protection connected.
View of the panel after pressing the button “total off”:
•
All Contactors are open.
•
Booster, inverter and Static-Switch shutdown.
1.
Reset “total off” of the parallel system.
Restore the command “total off”, on any one of the units, by
entering the screen: MENU/RESET TOTAL OFF
LP 33
60kVA P1
APPLICAT. SUPPLY OFF
= 0%
LED TEST
RESET TOTAL OFF
*
The load is supplied by the mains through the automatic
bypass.
The booster starts automatically.
The LCD screen must display on all Units the status:
APPLICATION ON BYPASS
LP 33
60kVA P1
APPLICATION ON BYPASS
= 53%
2.
Switch ON the inverter on first unit by entering the screen:
MENU/COMMAND MENU/INVERTER ON
In case of sufficient output power, the output will transfer to
Inverter.
COMMAND MENU
INVERTER ON
*
INVERTER OFF
3.
Switch ON the inverter on the other units by entering the
screen: MENU/COMMAND MENU/INVERTER ON
(Do not start the next inverter until the sequence of the previous
one ends – about 10 seconds).
COMMAND MENU
INVERTER ON
*
INVERTER OFF
As soon as the output power of the inverters is sufficient to
supply the load, the output of the units with running inverter
will transfer to inverter.
The LCD screen must display on all Units the status:
APPLICATION ON UPS
LP 33
60kVA P1
APPLICATION ON UPS
= 53%
END OF PROCEDURE
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 80/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
8.2.8 Restore to normal operation after “EPO – Emergency Power Off”
NOTE !
Make sure the all units of the parallel system to be status of the activation of EPO, i. e.
Q1 closed, Q2 open and external battery protection connected.
View of the panel after pressing the button “EPO”:
•
All Contactors are open.
•
Booster, inverter and Static-Switch shutdown.
1.
Reset the button “EPO”.
Press Alarm, to reset alarm and buzzer.
LP 33
60kVA P1
APPLICAT. SUPPLY OFF
= 0%
01.01.2005
12:15:45
NR=255 Status=A588
4563: EMERGENCY OFF
ACTIVATED
2.
Reset all UPS by entering the screen:
MENU/COMMAND MENU/INVERTER OFF
The load is supplied by the mains through the automatic
bypass.
The booster starts automatically.
The LCD screen must display on all Units the status:
APPLICATION ON BYPASS
COMMAND MENU
INVERTER ON
INVERTER OFF
*
LP 33
60kVA P1
APPLICATION ON BYPASS
= 53%
3.
Switch ON the inverter on first unit by entering the screen:
MENU/COMMAND MENU/INVERTER ON
In case of sufficient output power, the output will transfer to
Inverter.
COMMAND MENU
INVERTER ON
*
INVERTER OFF
4.
Switch ON the inverter on the other units by entering the
screen: MENU/COMMAND MENU/INVERTER ON
(Do not start the next inverter until the sequence of the previous
one ends – about 10 seconds).
COMMAND MENU
INVERTER ON
*
INVERTER OFF
As soon as the output power of the inverters is sufficient to
supply the load, the output of the units with running inverter
will transfer to inverter.
The LCD screen must display on all Units the status:
APPLICATION ON UPS
LP 33
60kVA P1
APPLICATION ON UPS
= 53%
END OF PROCEDURE
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 81/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
9 CUSTOMER INTERFACE
Slot 3 (J5)
Slot 2 (J3)
Relay Card
(Slot 1 - J4)
J27 - RS232
ON
ON
O FF
O FF
ON
ON
OFF
OFF
Q2
ON
Q1
ON
OFF
O FF
LPS33_040
-120_UPS
J27-RC_01
LP 33 Series / 40 kVA
LP 33 Series / 60 & 80 kVA
LP 33 Series / 100 & 120 kVA
Fig. 9-1 Slot connectivity
LP 33 Series is supplied by a standard Serial Port J27 - RS232 (see Section 9.1) and a Relay Card
(see Section 9.2).
List of possible connectivity configurations on LP 33 Series
Slot 1 – J4
Slot 2 – J3
Slot 3 – J5
Slot 1 – J4 + Slot 2 – J3
Relay Card (standard)
Relay Card (standard)
Advanced SNMP Card
Relay Card (standard)
Advanced SNMP Card
(Optional)
(Optional)
Advanced SNMP Card
(Optional)
Customer Interface (optional)
Advanced SNMP Card
(Optional)
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Customer Interface (optional)
Page 82/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
9.1
SERIAL PORT J27 - RS232
LPS33_
040_UPS
Serial Port J27 - RS232 (sub - D, female 9 pin)
+j27_01
J27
ON
ON
Total remote management of the system using
new generation software JUMP (Java Universal
Management Platform) for system protection
and management of systems using GE UPS’s.
O FF
OFF
JUMP system is written in JAVA and supports
virtually all platforms having “JAVA Runtime
Environment” version 1.1 or higher.
Fig. 9.1-1 LP 33 Series / 40 kVA - Serial Port J27 – RS232
LPS33_
060-080_U
PS+j27_0
1
LPS33_1
00-120_U
J27
PS+j27_0
1
J27
ON
ON
O FF
OFF
Q2
Fig. 9.1-2 LP 33 Series / 60 - 80 kVA - Serial Port J27 – RS232
ON
Q1
ON
OFF
OFF
Fig. 9.1-3 LP 33 Series / 100 - 120 kVA - Serial Port J27 – RS232
The serial port J27 - RS232 is enabled on all the units of the parallel system.
Serial port J27 – RS232 connection to PC with RS232 1:1 cable DB9m – DB9f
Fig. 9.1-2 Serial port J27 - RS232 connection to PC
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 83/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
9.2
RELAY CARD
WARNING !
Connections described in this chapter shall be done only by a trained person or SERVICE
ENGINEERS.
The Relay Card, allows the programming of 4 output channels on dry contacts, which can be read on
either terminal J3 or plug J4 (sub - D - male 9 pin).
1
2
NO = Normally Open
C = Common
NC = Normally Closed
Voltage free contacts:
3
General alarm (NO)
4
Mains failure (NC)
5
C (common)
6
Load on mains (NO)
7
Stop operation
8
C (common)
9
Mains failure (NO)
Max.: 60VDC or 30VAC /0.5A
Min. signal level: 5VDC / 5mA
Fig. 9.2-1 Relay Card
Output signals on voltage-free contacts
On terminals J3 or J4 connector 4 of the following 28 signals can be selected from the display
(access only with password): MENU / PARAMETER MENU / LEVEL 2: SERVICE.
0 - No signal
15 - Battery discharge
1 - Buzzer
16 - Manual bypass ON
2 - General alarm (NO)
17 - Rectifier ON
3 - Load on mains
18 - Inverter ON
4 - Stop operation
19 - Battery boostcharge
5 - Load on inverter
20 - Battery earth fault
6 - Mains failure
21 - Battery fault
7 - DC overvoltage
22 - Relay input 1
8 - Low battery
23 - Relay input 2
9 - Overload
24 - Relay output ON
10 - Overtemperature
25 - Relay output OFF
11 - Inverter-mains not syncrony
26 - EPO (Emergency Power Off)
12 - Bypass locked
27 - ECO Mode ON
13 - Bypass mains failure
28 - General alarm (NC)
14 - Rectifier mains failure
NOTE !
The function GEN-ON is not available on the Relay Card.
In case this function is needed, the optional Customer Interface card must be installed
(see Section 10.2.1).
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 84/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
9.3
EPO (EMERGENCY POWER OFF)
WARNING !
Connections described in this chapter shall be done only by a trained person or SERVICE
ENGINEERS.
P1 - Control board
An external Emergency switch (NC - Normally Closed
voltage-free contact) can be connected on terminals X7 /
1, 2 of the P1 – Mainboard.
JP5
NOTE !
Check that the Jumper JP5 is not installed on
the P1 - Control board.
X7
1
2
ON
ON
OFF
O FF
LPS33_04
0_UPS+X
7+JP
In a parallel system a separate NC
(Normally Closed) contact must be
connected individually to each unit.
5_01
Fig. 9.3-1 LP 33 Series / 40 kVA - Terminals X7 - EPO
P1 - Control board
LPS33_0
LPS33_
60-080_UP
S+X7+JP
5_01
100-120
_UPS+X
7+JP5_01
P1 - Control board
X7
JP5
1
JP5
2
X7
ON
ON
OFF
1
OFF
2
Q2
Fig. 9.3-2 LP 33 Series / 60 - 80 kVA - Terminals X7 - EPO
ON
Q2
ON
OFF
OFF
Fig. 9.3-3 LP 33 Series / 100 - 120 kVA - Terminals X7 - EPO
When activated, this switch causes the immediate shutdown of booster, battery-charger, inverter; and
the contactors K4, K6 and K7.
NOTE !
This procedure could imply a load shutdown.
When the EPO has been activated, the system must be restored as following:
•
Press the push-button EPO (contact on X7 / 1, 2 is closed again).
•
Perform the command INVERTER OFF entering the screen:
MENU/COMMAND MENU/INVERTER OFF.
COMMAND MENU
INVERTER ON
INVERTER OFF
*
•
Start the inverter entering the screen:
MENU/COMMAND MENU/INVERTER ON.
COMMAND MENU
INVERTER ON
*
INVERTER OFF
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 85/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
10
OPTIONS
10.1 OPTIONS GENERAL VIEW
Mains Input
F1
F2
F3
F4
LP 33 Series
LP 33 Series
LP 33 Series
LP 33 Series
1
2
3
4
RPA kit
Redundant Parallel Architecture
RPA
Board
RPA
Board
Allows to extend the unit to a parallel system with 2, 3, or 4 units connected
on the same bus, which ensure the highest reliability rate and increase the
power availability without prior investments.
RPA
Board
LPS33_060-080_RPA system_GE_01
RPA
Board
Load
Battery Extension Packs
Extended run-time versions are equipped with additional batteries housed in
the UPS itself, to increase the back-up time of the UPS when the mains fails.
2
4
3
1
LPS33_OPT_C
abinets
battery_01
Additional battery cabinets
Depending on model the battery extensions can be housed in additional
cabinets with the same design of the UPS cabinet, delivered with the
necessary protection and connection material.
For extended run-time versions and additional cabinets see enclosed Data
Sheets.
10 11
9
8
7
6
5
4
3
2
1
12 13 14 15 16 17 18 19 20 21 22
1 2
SGT4000_customer interface_02
Customer Interface
The Customer Interface allows the client the exchange of information
(monitoring and control) with the following interfaces:
- Serial port RS232.
- 6 programmable output channels.
- 2 programmable input channels, of witch one for GEN-ON.
- EPO (Emergency Power Off).
Advanced SNMP Card
Simple Network Management Protocol
The Advanced SNMP Card is an Interface to the Ethernet Network, and
provides UPS information via the standard SNMP protocol.
The UPS can therefore be managed by a Network Management System (NMS)
or by our applications (for instance JUMP), which uses this information to
determine the state of the UPS in order to guarantee safe and orderly
shutdown of the server, when needed.
Connectivity Software
JUMP Software Suite / IRIS Service, etc.
Software application for the control and monitoring of the UPS.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 86/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
10.2 OPTIONS ASSEMBLY AND CONNECTION
WARNING !
The installation and cabling of the options must be performed by QUALIFIED
SERVICE PERSON.
10.2.1 Customer Interface
SGT4000_customer interface_01
Serial port J3 - RS232 (sub - D - female 9 pin)
The serial port J3 allows an advanced communication mode
between the UPS and any computer through the JUMP
protocol (Java Universal Management Platform).
The software is compatible with the most used operating
systems as: Novell, UNIX, VMS, Windows Platforms, Apple,
J3
3COM, LINUX, IBM LANserver e IBM AS/400.
Pin 2: TX (out)
Pin 3: RX (in)
Pin 5: GND
J2 (sub – D female 25p) – Output signals on voltage-free contacts
J2 / 1, 2, 3
J2 / 4, 5, 6
J2 / 7, 8, 9
J2 / 14, 15, 16
J2 / 17, 18, 19
J2 / 20, 21, 22
J2
JP3
12 13 14 15 16 17 18 19 20 21 22
1 2
10 11
9
8
7
6
5
4
3
Mains failure
Load on inverter
Stop operation
Load on mains
General alarm (NO)
Buzzer
Signals on terminals X1 and on connector J2 are in parallel and
therefore not separated galvanically from each other.
The programmable signals on X1 and J2 will be disabled with Q1
open, with the exception of the signals for:
16 – Manual bypass ON
25 – Relay output OFF
26 – EPO
24 – Relay output ON
X2
X1
X1 – Output signals on voltage-free contacts
X1 / 1, 2, 3
X1 / 4, 5, 6
X1 / 7, 8, 9
X1 / 12, 13, 14
X1 / 15, 16, 17
X1 / 18, 19, 20
NO, C, NC
NO, C, NC
NO, C, NC
NO, C, NC
NO, C, NC
NO, C, NC
Mains failure
Load on inverter
Stop operation
Load on mains
General alarm (NO)
Buzzer
1
2
NO, C, NC
NO, C, NC
NO, C, NC
NO, C, NC
NO, C, NC
NO, C, NC
X2 – Terminals EPO connection (Emergency Power Off)
Fig. 10.2.1-1 Customer Interface
X2 / 1, 2 (or J2 / 12, 25)
C = Common
NO = Normally Open
NC = Normally Closed
To enable this function, remove jumper JP3 on the Customer
Interface and the cable on the terminal X2 / 1, 2.
(See Fig. 10.2.1-1).
Verify if the cable on the terminal X7 / 1, 2 and jumper JP5 on the
P1 – Control board are OFF (see Fig. 10.2.1-3).
NC
EPO (Emergency Power Off)
Programmable functions on input contacts
X1/10, 21 or J2/10, 23
X1/11, 22 or J2/11, 24
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Programmable
Programmable / Generator ON (NO)
Page 87/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
Output signals on voltage-free contacts
On terminals X1 or J2 connector 6 of the following 28 signals can be selected from the display
(access only with password): MENU / PARAMETER MENU / LEVEL 2: SERVICE.
012345678910 11 12 13 14 -
No signal
Buzzer
General alarm (NO)
Load on mains
Stop operation
Load on inverter
Mains failure
DC overvoltage
Low battery
Overload
Overtemperature
Inverter-mains not syncrony
Bypass locked
Bypass mains failure
Rectifier mains failure
15 16 17 18 19 20 21 22 23 24 25 26 27 28 -
Battery discharge
Manual bypass ON
Rectifier ON
Inverter ON
Battery boostcharge
Battery earth fault
Battery fault
Relay input 1
Relay input 2
Relay output ON
Relay output OFF
EPO (Emergency Power Off)
ECO Mode ON
General alarm (NC)
Programmable functions on input contacts (X1 - J2)
Some UPS functions can be activated by parameters (access with password only) when an external
NO contact is closed on:
No function
Inverter OFF
Print all
Voltage free contacts:
Inverter On
Generator ON
Status relay
Max. DC / AC: 24V / 1.25A
IEC 60950 (SELV circuit)
Min. signal level: 5VDC / 5mA
Gen Set signalling
If an Emergency generator set supplies the UPS in case of utility failure and the generator is particularly
unstable in frequency, it should be suitable to install the signal “generator on” on terminals X1 / 11, 22
(Normally Open voltage-free contact) or on connector J2 / 11, 24 (see Fig. 10.2.1-1 / X1 and J2).
Since the Parameter for of the reading of the Generator function is password protected, call the nearest
Service Centre for it's activation.
When this contact closes, it causes the change of certain settable functions such as:
•
Enabling or disabling of synchronisation and consequently the load transfer to generator.
•
The battery recharge inhibition during the generator operation, or after what delay from generator
start the battery will start to be recharged.
Consult your nearest Service Centre for more information.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 88/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
EPO (Emergency Power Off)
An external Emergency switch (NC - Normally Closed voltage-free contact) can be connected on
terminals X2 / 1, 2 or connector J2 / 12, 25 of the Customer Interface (see Fig. 10.2.1-1 / X2 & J2).
P1 - Control board
J2
JP5
JP3
X2
7 18 19 20 21 22
1 2
10 11
9
8
7
X7
1
2
ON
ON
OFF
OFF
X1
Fig. 10.2.1-2 PCB Customer Interface
LPS33_
040_UP
S+X7+J
P5_01
Fig. 10.2.1-3 PCB P1 – Control board
NOTE !
To enable this function, remove jumper JP3 on the Customer Interface and the
cable on the terminal X2 / 1, 2 (see Fig. 10.2.1-2).
Verify if the cable on the terminal X7 / 1, 2 and jumper JP5 on the P1 – Control
board are OFF (see Fig. 10.2.1-3).
In a parallel system a separate NC (Normally Closed) contact must be connected
individually to each unit.
When activated, this switch causes the immediate shutdown of booster, battery-charger, inverter; and
the contactors K4, K6 and K7.
NOTE !
This procedure could imply a load shutdown.
When the EPO has been activated, the system must be restored as following:
•
Press the push-button EPO (contact on X2/1, 2 is closed again).
•
Perform the command INVERTER OFF entering the screen:
MENU/COMMAND MENU/INVERTER OFF.
COMMAND MENU
INVERTER ON
INVERTER OFF
*
•
Start the inverter entering the screen:
MENU/COMMAND MENU/INVERTER ON.
COMMAND MENU
INVERTER ON
*
INVERTER OFF
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 89/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
11
MAINTENANCE
WARNING !
All maintenance and service works must be performed by QUALIFIED SERVICE PERSON.
11.1 GENERAL MAINTENANCE
A UPS system, like other electrical equipment, needs periodic preventive maintenance.
A regular maintenance check of your installation guarantees higher reliability of your safe power
supply.
Preventive maintenance work on the UPS can be done only by trained Service technicians.
We therefore recommend you sign a Maintenance and Service contract with the local Service Centre
organisation.
11.2 COOLING FAN MAINTENANCE
The expected operational life of the cooling fans is approximately 40’000 hours of continuous
operation.
A high ambient temperature will shorten this operational life.
11.3 BATTERY MAINTENANCE
The service life of the battery is from 3 to 6 years, depending on the operating temperature and on the
number of discharge cycles.
The UPS LP 33 Series offers the possibility of SBM (Superior Battery Management).
The function SBM can be activated through a service Parameter.
The functionality of SBM reduces the Battery recharging time together with improved lifetime of the
Battery.
As a healthy battery is essential to the performance of the UPS, an automatic or manual battery test
can be performed regularly to ensure failsafe operation, in order to check if the battery can provide the
expected backup time in case of mains failure.
We recommend the battery test be performed at least every 1 month, especially if the battery is not
sufficiently discharged during normal operation.
Since the parameter enabling the battery test protected by user password, please contact your Service
Centre for more information.
Please consider that, if you did a full battery test to verify the full runtime of the battery, the charger
needs at least 8 hours to recharge the battery up to 90% of its capacity.
To guarantee that the battery is fully charged, the UPS system should be in operation for at least 12
hours every 3 months.
When the condition of the battery is critical, the warning signal will be activated (general alarm, buzzer
and alarm message “4118 - Battery fault”).
In this case the battery must be replaced as soon as possible.
Please contact your Centre Service.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 90/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
11.4 SERVICE REQUIRED
LP 33
20 kVA
APPLICATION ON UPS
= 53%
SERVICE REQUIRED
If this lamp lights up during the normal operation (service
parameter with password), the performances of the UPS remain the
same, but that means the unit has not been serviced for the last
20’000 hours by a qualified GE Service Engineer.
Some components of the UPS which need periodic maintenance, if not replaced, could cause a
reliability reduction of the supply system.
We highly recommend that you contact your Service Centre for preventive maintenance work.
NOTE !
Ask to your local Service Centre to submit the form of Preventive Maintenance
Contract suitable for your specific needs.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 91/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
12 NOTES
12.1 NOTES FORM
It is recommended to note in this section Notes, with date and short description all the operations
performed on the UPS, as: maintenance, components replacement, abnormal situations, etc. .
Date
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Description
Done by
Page 92/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
13
ANNEX
13.1 TECHNICAL DATA SHEET
Can be found in the final section and are listings of
the technical data of the UPS.
13.2 SCHEMATICS
These are included in the last section and include the
UPS functional drawings.
Modifications reserved
OPM_LPS_33E_40K_M12_0GB_V010.doc
Page 93/93
Operating Manual LP 33 Series / 40-60-80-100-120 kVA
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
