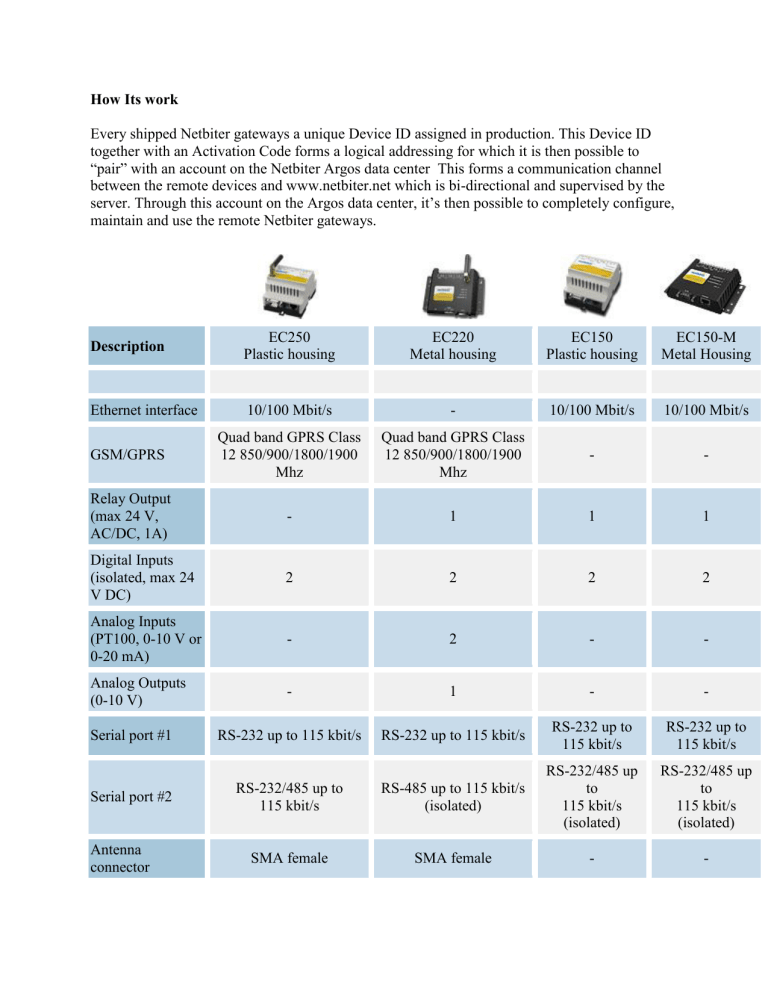

How Its work
Every shipped Netbiter gateways a unique Device ID assigned in production. This Device ID
together with an Activation Code forms a logical addressing for which it is then possible to
“pair” with an account on the Netbiter Argos data center This forms a communication channel
between the remote devices and www.netbiter.net which is bi-directional and supervised by the
server. Through this account on the Argos data center, it’s then possible to completely configure,
maintain and use the remote Netbiter gateways.
Description
EC250
Plastic housing
EC220
Metal housing
EC150
Plastic housing
EC150-M
Metal Housing
Ethernet interface
10/100 Mbit/s
-
10/100 Mbit/s
10/100 Mbit/s
GSM/GPRS
Quad band GPRS Class
12 850/900/1800/1900
Mhz
Quad band GPRS Class
12 850/900/1800/1900
Mhz
-
-
Relay Output
(max 24 V,
AC/DC, 1A)
-
1
1
1
Digital Inputs
(isolated, max 24
V DC)
2
2
2
2
Analog Inputs
(PT100, 0-10 V or
0-20 mA)
-
2
-
-
Analog Outputs
(0-10 V)
-
1
-
-
RS-232 up to 115 kbit/s
RS-232 up to 115 kbit/s
RS-232 up to
115 kbit/s
RS-232 up to
115 kbit/s
RS-232/485 up to
115 kbit/s
RS-485 up to 115 kbit/s
(isolated)
RS-232/485 up
to
115 kbit/s
(isolated)
RS-232/485 up
to
115 kbit/s
(isolated)
SMA female
SMA female
-
-
Serial port #1
Serial port #2
Antenna
connector
Wall mounting /
DIN-rail
NO / YES
YES / YES (optional)
NO / YES
YES / YES
(optional)
Mechanical
dimensions
90 x 70 x 58 mm
92 x 115 x 25 mm
90 x 70 x 58 mm
92 x 115 x 25
mm
Operating
temperature
-30 to +65°C
-30 to +65°C
-40 to +65°C
-40 to +75°C
Power supply
9-24 V DC
9-24 V DC
9-24 V AC/DC
9-24 V DC
Power
consumption
3W
2W
2W
2W
Certification
CE
CE
CE
CE
3 years
3 years
3 years
3 years
Guarantee
