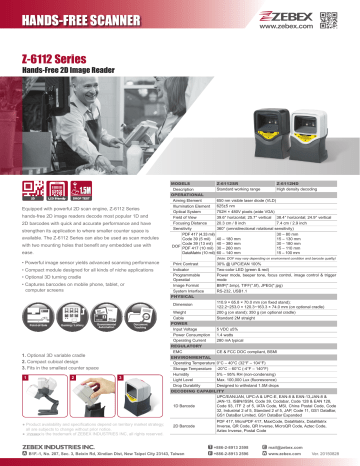

Zebex Z-6112 Datasheet

Zebex Z-6112 Datasheet
HANDS-FREE SCANNER
Z-6112 Series
Hands-Free 2D Image Reader
LCD Friendly
Equipped with powerful 2D scan engine, Z-6112 Series
hands-free 2D image readers decode most popular 1D and
2D barcodes with quick and accurate performance and have
strengthen its application to where smaller counter space is
available. The Z-6112 Series can also be used as scan modules
with two mounting holes that benefit any embedded use with
ease.
• Powerful image sensor yields advanced scanning performance
• Compact module designed for all kinds of niche applications
• Optional 3D turning cradle
• Captures barcodes on mobile phone, tablet, or
computer screens
MODELS
Description
OPERATIONAL
Aiming Element
Illumination Element
Optical System
Field of View
Focusing Distance
Sensitivity
PDF 417 (4.33 mil)
Code 39 (5 mil)
Code 39 (13 mil)
DOF PDF 417 (10 mil)
DataMatrix (10 mil)
Gaming / Lottery
Document
Tracking
Governmental
Automation
1. Optional 3D variable cradle
2. Compact cubical design
3. Fits in the smallest counter space
1
2
3
● Product availability and specifications depend on territory market strategy;
all are subjects to change without prior notice.
●
is the trademark of ZEBEX INDUSTRIES INC, all rights reserved.
Z-6112HD
High density decoding
650 nm visible laser diode (VLD)
625±5 nm
752H × 480V pixels (wide VGA)
39.6° horizontal; 25.7° vertical 38.4° horizontal; 24.9° vertical
7.4 cm / 2.9 inch
20.3 cm / 8 inch
360° (omnidirectional rotational sensitivity)
30 – 80 mm
40 – 180 mm
15 – 130 mm
40 – 380 mm
30 – 180 mm
30 – 260 mm
15 – 110 mm
60 – 140 mm
15 – 100 mm
(Note: DOF may vary depending on environment condition and barcode quality)
Print Contrast
Indicator
Programmable
Operatial
Image Format
System Interface
PHYSICAL
Dimension
Point-of-Sale
Z-6112SR
Standard working range
30% @ UPC/EAN 100%
Two-color LED (green & red)
Power mode, beeper tone, focus control, image control & trigger
mode
BMP(*.bmp), TIFF(*.tif), JPEG(*.jpg)
RS-232, USB1.1
110.9 × 65.8 × 70.0 mm (on fixed stand);
122.2~253.0 × 120.3~163.3 × 74.0 mm (on optional cradle)
200 g (on stand); 350 g (on optional cradle)
Standard 2M straight
Weight
Cable
POWER
Input Voltage
5 VDC ±5%
Power Consumption
1.4 watts
Operating Current
280 mA typical
REGULATORY
EMC
CE & FCC DOC compliant, BSMI
ENVIRONMENTAL
Operating Temperature 0°C – 40°C (32°F – 104°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Humidity
5% – 95% RH (non-condensing)
Light Level
Max. 100,000 Lux (fluorescence)
Drop Durability
Designed to withstand 1.5M drops
DECODING CAPABILITY
UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13,JAN-8 &
JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128,
1D Barcode
Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code
32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar,
GS1 DataBar Limited, GS1 DataBar Expanded
2D Barcode
A B1F.-1, No. 207, Sec. 3, Beixin Rd, Xindian Dist, New Taipei City 23143, Taiwan
PDF 417, MicroPDF 417, MaxiCode, DataMatrix, DataMatrix
Inverse, QR Code, QR Inverse, MicroQR Code, Aztec Code,
Aztec Inverse, Postal Code
T +886-2-8913 2598
F +886-2-8913 2596
E [email protected]
W www.zebex.com
Ver. 20150828
