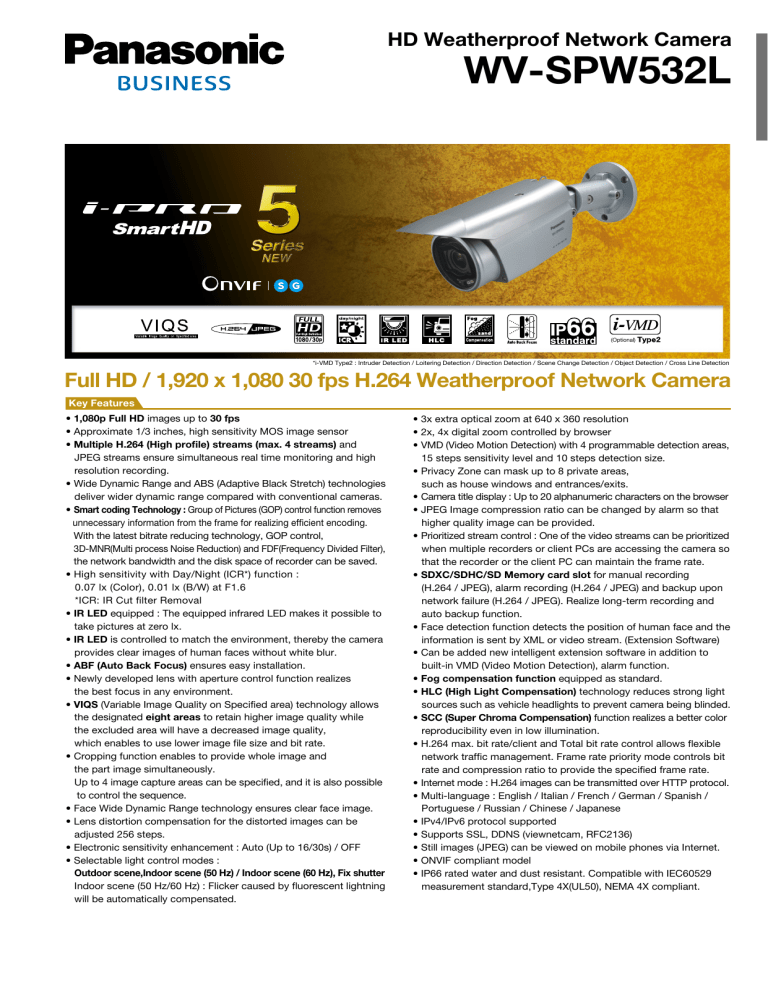

User manual | WV-SPW532L

HD Weatherproof Network Camera
WV-SPW532L
(Optional)
*i-VMD Type2 : Intruder Detection / Loitering Detection / Direction Detection / Scene Change Detection / Object Detection / Cross Line Detection
Full HD / 1,920 x 1,080 30 fps H.264 Weatherproof Network Camera
Key Features
• 1,080p Full HD images up to 30 fps
• Approximate 1/3 inches, high sensitivity MOS image sensor
• Multiple H.264 (High profile) streams (max. 4 streams) and
JPEG streams ensure simultaneous real time monitoring and high
resolution recording.
• Wide Dynamic Range and ABS (Adaptive Black Stretch) technologies
deliver wider dynamic range compared with conventional cameras.
• Smart coding Technology : Group of Pictures (GOP) control function removes
unnecessary information from the frame for realizing efficient encoding.
With the latest bitrate reducing technology, GOP control,
3D-MNR(Multi process Noise Reduction) and FDF(Frequency Divided Filter),
the network bandwidth and the disk space of recorder can be saved.
• High sensitivity with Day/Night (ICR*) function :
0.07 lx (Color), 0.01 lx (B/W) at F1.6
*ICR: IR Cut filter Removal
• IR LED equipped : The equipped infrared LED makes it possible to
take pictures at zero lx.
• IR LED is controlled to match the environment, thereby the camera
provides clear images of human faces without white blur.
• ABF (Auto Back Focus) ensures easy installation.
• Newly developed lens with aperture control function realizes
the best focus in any environment.
• VIQS (Variable Image Quality on Specified area) technology allows
the designated eight areas to retain higher image quality while
the excluded area will have a decreased image quality,
which enables to use lower image file size and bit rate.
• Cropping function enables to provide whole image and
the part image simultaneously.
Up to 4 image capture areas can be specified, and it is also possible
to control the sequence.
• Face Wide Dynamic Range technology ensures clear face image.
• Lens distortion compensation for the distorted images can be
adjusted 256 steps.
• Electronic sensitivity enhancement : Auto (Up to 16/30s) / OFF
• Selectable light control modes :
Outdoor scene,Indoor scene (50 Hz) / Indoor scene (60 Hz), Fix shutter
Indoor scene (50 Hz/60 Hz) : Flicker caused by fluorescent lightning
will be automatically compensated.
• 3x extra optical zoom at 640 x 360 resolution
• 2x, 4x digital zoom controlled by browser
• VMD (Video Motion Detection) with 4 programmable detection areas,
15 steps sensitivity level and 10 steps detection size.
• Privacy Zone can mask up to 8 private areas,
such as house windows and entrances/exits.
• Camera title display : Up to 20 alphanumeric characters on the browser
• JPEG Image compression ratio can be changed by alarm so that
higher quality image can be provided.
• Prioritized stream control : One of the video streams can be prioritized
when multiple recorders or client PCs are accessing the camera so
that the recorder or the client PC can maintain the frame rate.
• SDXC/SDHC/SD Memory card slot for manual recording
(H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon
network failure (H.264 / JPEG). Realize long-term recording and
auto backup function.
• Face detection function detects the position of human face and the
information is sent by XML or video stream. (Extension Software)
• Can be added new intelligent extension software in addition to
built-in VMD (Video Motion Detection), alarm function.
• Fog compensation function equipped as standard.
• HLC (High Light Compensation) technology reduces strong light
sources such as vehicle headlights to prevent camera being blinded.
• SCC (Super Chroma Compensation) function realizes a better color
reproducibility even in low illumination.
• H.264 max. bit rate/client and Total bit rate control allows flexible
network traffic management. Frame rate priority mode controls bit
rate and compression ratio to provide the specified frame rate.
• Internet mode : H.264 images can be transmitted over HTTP protocol.
• Multi-language : English / Italian / French / German / Spanish /
Portuguese / Russian / Chinese / Japanese
• IPv4/IPv6 protocol supported
• Supports SSL, DDNS (viewnetcam, RFC2136)
• Still images (JPEG) can be viewed on mobile phones via Internet.
• ONVIF compliant model
• IP66 rated water and dust resistant. Compatible with IEC60529
measurement standard,Type 4X(UL50), NEMA 4X compliant.
Specifications
(Camera mount bracket)
Wall mounting
Browser Cropping
GUI
Camera Control
Display Mode
Digital Zoom
Camera Title
Clock Display
Alarm Control
One Shot Capture
SD Memory Data Download
GUI / Setup Menu Language
System Log
Supported OS *2
Supported Browser
Network Network IF
Image Resolution
Transmission Mode
Frame Rate
Bit Rate/Client
H.264
*3
JPEG
Image quality
(Constant bit rate/Best effort)
Refresh interval
Transmission Type
Image Quality
Refresh interval
Transmission Type
Total Bit Rate
Supported Protocol
0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5s
Unicast / Multicast
10 steps
0.1 fps - 30 fps
(JPEG frame rate will be restricted when displaying both JPEG and H.264 images.)
Pull / Push
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP,
SNMP, DHCPv6, MLD, ICMP, ARP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP,
DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP
* Manufactured by Panasonic
(SD speed class 4 or higher)
* Use the SD memory card that
complies with UHS-1
(Ultra High Speed-1) in the case of
SD Speed Class 10.
Cellular Phone Compatibility
Mobile Terminal Compatibility
Alarm Source
Alarm Actions
Alarm
Alarm Log
Schedule
Monitor Output
(for adjustment)
Input /
Output
General
Safety
EMS
Power Source and
Power Consumption
Ambient Operating Temperature
Ambient Operating Humidity
Water and Dust Resistance
Dimensions
* Installing using the base bracket
Mass (approx.)
Finish
Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed,
backup on an optional SDXC/SDHC/SD memory card is available.)
Up to 14 users (Depends on network conditions)
H.264 recording :
Manual REC / Alarm REC (Pre/Post) / Schedule REC /
Backup upon network failure Compatible (JPEG only)
JPEG recording :
Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
Compatible SD (SDHC/SDXC) card:
Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB** model
*SDHC card, ** SDXC card (except miniSD card and microSD card)
JPEG image, AUX control (by access level)
iPad, iPhone, iPod touch (iOS 4.2.1 or later), AndroidTM mobile terminal
VMD, Command alarm
SDXC/SDHC/SD memory recording, E-mail notification,
HTTP alarm notification Indication on browser, FTP image transfer,
Panasonic protocol output
With SDXC/SDHC/SD memory card : Up to 50,000 logs for each SD memory card
Alarm / VMD / Access permission / H.264 recording / Scene file
VBS : 1.0 V [p-p]/75 Ω, composite, RCA jack
An NTSC or PAL signal can be outputted from camera
(either press the INITIAL SET switch quickly (within 1 second) or
use software to select either NTSC or PAL signal).
UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1
FCC (Part15 ClassA), ICES003 ClassA, EN55022 ClassB, EN55024
When IR LED is On
PoE (IEEE802.3af compliant) : DC 48 V / 190 mA / Approx. 9.12 W (Class 0 device)
–30 °C to +50 °C (–22 °F to 122 °F)
10 to 90 % (no condensation)
IP66, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X compliant
95 mm (W) x 99 mm (H) x 326 mm (L)
{3-3/4 inches (W) x 3-57/64 inches (H) x 1ft 27/32 inches (L)}
Approx. 1.4 kg {3.1 lbs}
Main body : Aluminum die cast, light gray
Front cover section clear part : Clear polycarbonate resin
*1 Converted value
*2 Refer to "Notes on Windows Vista® / Windows® 7 / Windows® 8 / Windows® 8.1" on the provided CD-ROM
for further information about system requirements for a PC and precautions when using Microsoft® Windows® 8.1
or Microsoft® Windows® 8 or Microsoft® Windows® 7 or Microsoft® Windows Vista®.
*3 Transmission for 4 streams can be individually set.
Part Names and Functions
Wire fitting
SD memory card slot
Safety wire
(accessory)
Name plate
Camera mount
bracket
Yaw lock screw
Sunshield
IR LED
PAN lock screw
Front cover
Camera
Camera arm
Zoom knob
MONITOR OUT jack
(Video Out terminal
Default: For NTSC monitor)
LINK indicator
TILT lock screw
ACT indicator
SD ERROR/AF indicator
SD MOUNT indicator
Auto focus (AF) button
INITIAL SET button(Initializing / NTSC
PAL switch button)
SD ON/OFF button
TELE
WIDE
* SDXC/SDHC/SD memory card is described as SD memory card.
Appearance
95(3-3/4")
3-ø5.5
ø75
68.4(2-11/16")
(685) (27")
11.5(7/16")
ø90(3-17/32")
Maximum Aperture Ratio
Focusing Range
Adjusting Angle Ceiling mounting
No. of Simultaneous Users
SDXC/SDHC/SD
Memory Card (Option)
99(3-57/64")
Lens
Day/Night (ICR)
Digital Noise Reduction
Video Motion Detection
Privacy Zone
VIQS
Camera Title (OSD)
Focus Adjustment
Lens Distortion Compensation
Vari Focal Length
Angular Field of View
FTP Client
83(3-9/32")
Wide Dynamic Range
Face wide dynamic range
Adaptive Black Stretch
Fog compensation
High light compensation(HLC)
AGC
Maximum shutter
Network
0°
IR LED Light
IR LED irradiation distance
White Balance
Light Control Mode
Shutter Speed
Approx. 1/3 type MOS image sensor
Progressive scan
5.35 mm (H) x 3.34 mm(V) {7/32 inches (H) x 1/8 inches (V)}
Color : 0.07 lx, BW : 0.01 lx (F1.6, Maximum shutter : Max. 1/30s, Gain : On(High))
BW : 0 lx (F1.6, Maximum shutter : Off(1/30 s), Gain : High, when the IR LED is lit)
Color : 0.005 lx, BW : 0.0007 lx (F1.6, Maximum shutter : Max. 16/30s, Gain : On(High)) *1
Off / Auto(High / Mid / Low)
Approx. 30 m {98.43 feet}
AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Outdoor scene / Indoor scene (50 Hz) / Indoor scene (60 Hz) / Fix shutter
OFF(1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1000,
1/2000, 1/4000, 1/10000
On / Off
On / Off (only when Wide Dynamic Range : On)
On / Off (only when Wide Dynamic Range : Off)
On / Off (only when Wide Dynamic Range / Adaptive black stretch : Off)
On / Off (only when Wide Dynamic Range / Adaptive black stretch : Off)
On (Low) / On(Mid), On(High) / Off
max. 1/1000 s, max. 1/500 s, max. 1/250 s, max. 1/100 s, max. 1/60 s,
max. 2/100 s, max. 2/120 s, max. 1/30 s, max. 2/30 s, max. 4/30 s,
max. 6/30 s, max. 10/30 s, max. 16/30 s
Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC)
High / Low
4 areas, Sensitivity : 15 steps, Detection size : 10 steps
Up to 8 zones
Up to 8 zones
Up to 20 characters (alphanumeric characters, marks)
ABF / MANUAL (Html only)
256 steps
2.8 mm – 10 mm {1/8 inches – 13/32 inches}
[16 : 9 mode] Horizontal : 31 ° (TELE) - 112 ° (WIDE)
Vertical : 17 ° (TELE) - 60 ° (WIDE)
[4 : 3 mode] Horizontal : 26 ° (TELE) - 91 ° (WIDE)
Vertical : 19 ° (TELE) - 67 ° (WIDE)
1 : 1.6 (WIDE) - 1 : 3.4 (TELE)
0.3 m - ∞
Horizontal : ±180° (PAN rotation part)
Vertical : 0° to 90° (TILT rotation part)
Yaw
: -190° to +100° (YAW rotation part)
Horizontal : ±90° (TILT rotation part)*
Vertical : ±90° (TILT rotation part)*
Yaw
: -190° to +100° (YAW rotation part)
Off / JPEG(1) / JPEG(2) / JPEG(3) / H.264(1) / H.264(2) / H.264(3) / H.264(4) / H.264(all)
Alarm action On/ Off
Brightness, AUX On / Off
Spot, Quad : Image from 16 cameras can be displayed in 4 different Quad
screens or 16 split screen (JPEG only). 20 characters camera title available.
1x, 2x, 4x controlled by browser GUI
Up to 20 alphanumeric characters
Time : 12H/24H, Date : 5 formats on the browser, Summer time (Manual)
Reset
A still picture will be displayed on a newly opened window.
Still or motion Images recorded in the SDXC/SDHC/SD memory card
can be downloaded.
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Up to 100 (Internal)
Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs
Microsoft® Windows® 8.1, Microsoft® Windows® 8,
Microsoft® Windows® 7,Microsoft® Windows Vista®
Windows® Internet Explorer® 11 (32 bit),
Windows® Internet Explorer® 10 (32 bit),
Windows® Internet Explorer® 9 (32 bit),
Windows® Internet Explorer® 8 (32 bit),
Windows® Internet Explorer® 7 (32 bit),
Safari, Google Chrome, Mozilla Firefox
10Base-T / 100Base-TX, RJ45 connector
•2 mega pixel [16 : 9](30 fps mode)
H.264(1), H.264(2)
1,920 x 1,080 / 1,280 x 720 / 640 x 360 / 320 x 180 / 160 x 90
H.264(3), H.264(4)
1,280 x 720 / 640 x 360 / 320 x 180 / 160 x 90
•2 mega pixel [4 : 3](30 fps mode)
H.264(1), H.264(2)
1,600 x 1,200 / 1,280 x 960 / 800 x 600 / VGA / 400 x 300 / QVGA / 160 x 120
H.264(3), H.264(4)
1,280 x 960 / 800 x 600 / VGA / 400 x 300 / QVGA / 160 x 120
•3 mega pixel [4 : 3](30 fps mode) * Used by super resolution technology
H.264(1), H.264(2)
2,048 x 1,536 / 1,280 x 960 / 800 x 600 / VGA / 400 x 300 / QVGA / 160 x 120
H.264(3), H.264(4)
1,280 x 960 / 800 x 600 / VGA / 400 x 300 / QVGA / 160 x 120
Constant bitrate / VBR / Framerate priority / Best effort / Advanced VBR
1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 6,144 /
8,192 / 10,240 / 12,288 / 14,336 / 16,384 / 20,480 / 24,576 / 30,720*/ 40,960* kbps
Low(Motion priority) / Normal / Fine(Image quality priority)
12
Camera Image Sensor
Scanning Mode
Scanning Area
Minimum Illumination
283(11-5/32")
(43)(1-11/16")
326(1ft 27/32")
Unit: mm (inches)
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– iPad, iPhone and iPod touch are registered trademarks of Apple Inc.
– Android is a trademark of Google Inc.
– “i-PRO SmartHD” logo is trademark or registered trademark of Panasonic Corporation.
– ONVIF and the ONVIF logo are trademarks of ONVIF Inc.
– All other trademarks identified herein are the property of their respective owners.
Important
– Safety Precaution: Carefully read the Important Information, Installation Guide and operating
instructions before using this product.
– Panasonic cannot be responsible for the performance of the network and/or other manufacturers'
products used on the network.
• Masses and dimensions are approximate.
• Specifications are subject to change without notice.
DISTRIBUTED BY:
http://security.panasonic.com
http://www.facebook.com/PanasonicNetworkCamera
(2A-156BA)

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
