HP Workstation zx6000

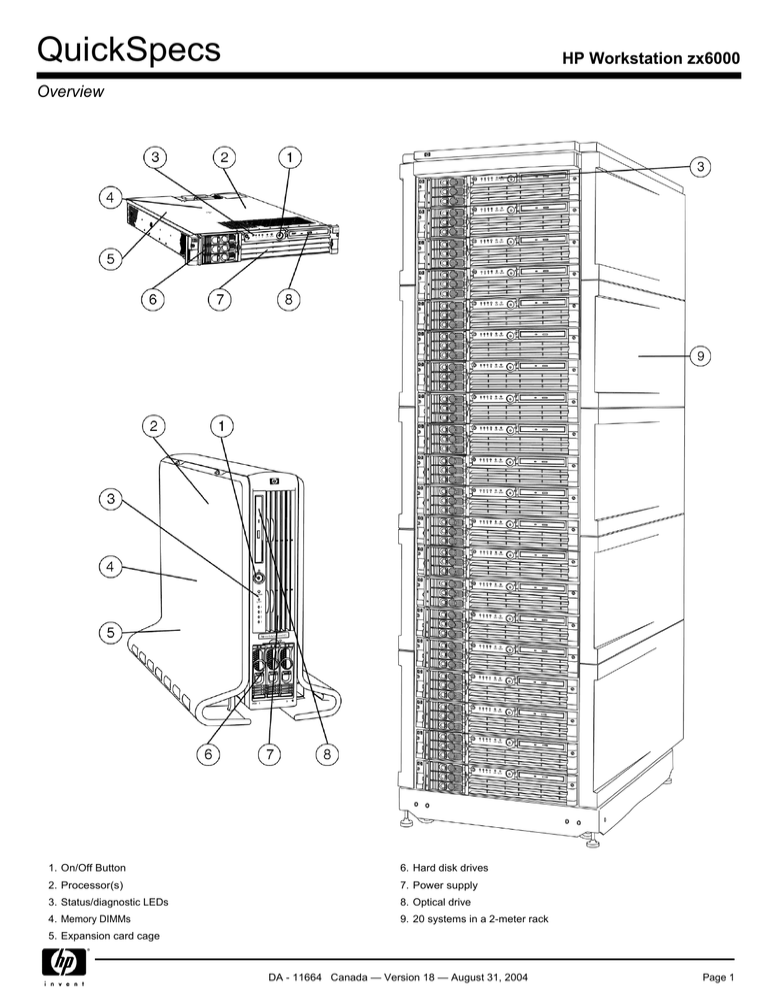

Overview
1. On/Off Button
6. Hard disk drives
2. Processor(s)
7. Power supply
3. Status/diagnostic LEDs
8. Optical drive
4. Memory DIMMs
9. 20 systems in a 2-meter rack
5. Expansion card cage
DA - 11664 Canada — Version 18 — August 31, 2004
Page 1
QuickSpecs
HP Workstation zx6000
Overview
At A Glance
Up to two Intel® Itanium 2 processors,
1.3GHz or 1.5GHz
Up to 6 MB L3 onboard cache
HP zx1 chipset with 400 MHz system bus
Support for three enterprise-class operating systems:
HP-UX 11i v2.0
Red Hat Linux Advanced Workstation 2.1
HP Linux Installation Kit
ECC PC2100 DDR-266 memory, expandable to 24 GB
Ultra320 SCSI hard drives, with up to 438 GB of internal storage
Choice of leadership graphics:
ATI RADEON 7000
ATI FireGL Z1-128p
NVIDIA Quadro4 980 XGL
ATI FireGL X1-256p
Integrated Ethernet adapters: Intel 82550C (10/100 Mbps) and Broadcom 5701 (10/100/1000 Mbps)
AGP 4X Pro50 graphics interface
Three available PCI slots
Four external bays (one slimline and three hot-pluggable)
DVD-ROM Slimline or DVD-ROM/CD-RW Combo Drive
Full Independent Software Vendor (ISV) certification and support for leading technical applications
Protected by HP Services, including a one-year limited warranty. For details, consult the Product Information Centre at 1-888-882-6672.
DA - 11664 Canada — Version 18 — August 31, 2004
Page 2
QuickSpecs
HP Workstation zx6000
Standard Features
Processor
Up to two Intel Itanium 2 processors – 1.3 GHz, or 1.5 GHz (400 MHz system bus)
Operating System
HP-UX 11i v2.0
Red Hat Linux Advanced Workstation 2.1
HP Linux Installation Kit
Cache Memory
3 MB L3 on-chip cache (1.3 GHz processor)
6 MB L3 on-chip cache (1.5 GHz processor)
Memory
Maximum of 24 GB ECC PC2100 DDR-266 memory (12 DIMMs)
Network Controller
Integrated Intel 82550C Wake-on-LAN 10/100 Mbps Ethernet Network Interface
Broadcom 5701 10/100/1000 Mbps Ethernet Network Interface
Expansion Slots
Expansion Bays
Storage
Interfaces
I/O (Total)
Four available slots
PCI - 32-bit/33 MHz
3 full-length 64-bit/133 MHz PCI-X
AGP 4X Pro 50
1 slot – 32-bit/66 MHz 1.5V 1.06 GB/s
(Total/Available)
4 total/2 available
External
Three hot-pluggable 3.5 inch bays
One slimline 5.25 inch bay
Removable Media
DVD+RW Slimline, DVD-ROM Slimline, or DVD-ROM/CD-RW Slimline Combo Drive
Hard Drive
36 GB or 146 GB Ultra320 SCSI (10K rpm)
36 GB or 73 GB Ultra320 SCSI (15K rpm)
USB 2.0 (1.1 compatible)
Four (2 front, 2 rear)
Serial
Two 9-pin DIN connectors (rear)
Ultra320 SCSI
Internal and external (rear) connectors
Network interface
Two RJ-45 connectors (rear)
Microphone Jack
1 (front)
Line-In Jack
1 (rear)
Line-Out Jack
1 (rear)
Graphics
Choose from:
ATI RADEON 7000
ATI FireGL Z1-128p (2 slots)
NVIDIA Quadro4 980 XGL
ATI FireGL X1-256p (2 slots)
Audio
AC97/16-bit stereo full-duplex
DA - 11664 Canada — Version 18 — August 31, 2004
Page 3
QuickSpecs
HP Workstation zx6000
Standard Features
Remote Management
Baseboard management controller (integrated) allows power and reset management, health management, event
logging and reporting, hardware and data protection, and highly available management console.
Management processor card (optional) manages resources, diagnostics, system repair, 2D graphics console, and
10/100Base-T LAN for out-of-band management.
Power Supply
650W maximum output
Optional hot-swap 2nd power supply for n+1 redundancy
Service and Support
Standard limited warranty: 1 year next business day onsite
Hardware support upgrades available: 3 Years Next Business Day Onsite, 3 Years Same Business Day Onsite, and
3 Years 24 x7 Onsite.
Telephone support upgrade available: 3 Years telephone support for LINUX operating system.
NOTE: Certain restrictions and exclusions may apply. For details, consult the Product Information Centre at 1-888882-6672.
DA - 11664 Canada — Version 18 — August 31, 2004
Page 4
QuickSpecs
HP Workstation zx6000
HP Workstation zx6000 Base System
HP Workstation zx6000 Base Unit (Partner Prime and Partner Direct)
DM487AV
HP Workstation zx6000 with 1.3 GHz Processor (HIP Partner)
A9664A
HP Workstation zx6000 with 1.5 GHz Processor (HIP Partner)
A9665A
DA - 11664 Canada — Version 18 — August 31, 2004
Page 5
QuickSpecs
HP Workstation zx6000
Standard Features Pre-Configured Regional Models
zx6000/2x900/2/36/
GL4/U
A9373BF#ABA
zx6000/2x900/2/36/
R7/U
A9372BF#ABA
zx6000/2x900/2/36/
R7/L
A9374DF#ABA
zx6000/2x900/2/36/
Q4980/L
A9375DF#ABA
zx6000 LEK/FldRk/
2x900/1G/36G/
DVD/Q2EX
A9680AF#ABA
Processor
Dual Intel Itanium 2 processors. 900 MHz
Cache Memory
1.5MB L3
Memory
2 GB ECC PC2100 DDR-266 (4x512 MB)
Optical Drive
DVD-ROM drive
Hard Drive
36 GB Ultra320 SCSI 10K rpm
Graphics
ATI Fire GL4
Mouse
HP scroll mouse
OS
HP-UX 11i TCOE
Processor
Dual Intel Itanium 2 processors. 900 MHz
Cache Memory
1.5MB L3
Memory
2 GB ECC PC2100 DDR-266 (4x512 MB)
Optical Drive
DVD-ROM drive
Hard Drive
36 GB Ultra320 SCSI 10K rpm
Graphics
ATI RADEON 7000
Mouse
HP scroll mouse
OS
HP-UX 11i TCOE
Processor
Dual Intel Itanium 2 processors. 900 MHz
Cache Memory
1.5MB L3
Memory
2 GB ECC PC2100 DDR-266 (4x512 MB)
Optical Drive
DVD-ROM drive
Hard Drive
36 GB Ultra320 SCSI 10K rpm
Graphics
ATI RADEON 7000
Mouse
HP scroll mouse
OS
Red Hat Linux Advanced Workstation 2.1
Processor
Intel Itanium 2 processor 900 MHz
Cache Memory
1.5 MB L3
Memory
2GB ECC PC2100 DDR-266 (4x512 MB)
Optical Drive
DVD-ROM drive
Hard Drive
36 GB Ultra320 SCSI 10K rpm
Graphics
NVIDIA Quadro4 980 XGL
Mouse
HP scroll mouse
OS
Red Hat Linux Advanced Workstation 2.1
Processor
Intel Itanium 2 processor 900 MHz
Cache Memory
1.5 MB L3
Memory
1GB ECC PC2100 DDR-266 (2x512MB)
Optical Drive
DVD-ROM drive
Hard Drive
36 GB Ultra320 SCSI 10K rpm
Graphics
NVIDIA Quadro2 EX
Mouse
HP scroll mouse
OS
Linux Enabled Kit
DA - 11664 Canada — Version 18 — August 31, 2004
Page 6
QuickSpecs
HP Workstation zx6000
Standard Features Pre-Configured Regional Models
zx6000 LEK/FdRk/
2x1.3/1G/36G/
DVD/Q2EX
A9680BF#ABA
Processor
Intel Itanium 2 processor 1.3 GHz
Cache Memory
3 MB L3
Memory
1GB ECC PC2100 DDR-266 (2x512MB)
Optical Drive
DVD-ROM drive
Hard Drive
36 GB Ultra320 SCSI 10K rpm
Graphics
NVIDIA Quadro2 EX
Mouse
HP scroll mouse
OS
Linux Enabled Kit
DA - 11664 Canada — Version 18 — August 31, 2004
Page 7
QuickSpecs
HP Workstation zx6000
Configure to order options (custom configurations)
When buying a basic system, you have many configuration options. Base System includes one processor, no RAM, no disk, Ultra320 SCSI, external
SCSI connector, 10/100/1000BT LAN, 10/100BT LAN, 2 serial, 4 USB, 1 AGP-4X slot, 3 PCI-X slots, and all required power cords.
HP-UX
Linux
HP workstation zx6000
base system
HP Workstation zx6000, Intel Itanium 2 processor, 1.3GHz 3.0MB cache
X
X
HP Workstation zx6000, Intel Itanium 2 processor, 1.5GHz 6.0MB cache
X
X
Second Processor
1.3GHz Intel Itanium 2 processor with 3.0MB integrated cache
X
X
1.5GHz Intel Itanium 2 processor with 6.0MB integrated cache
X
X
HP-UX 11i v2
X
Operating System
Red Hat Linux Advanced Workstation 2.1
Graphics Card
X
ATI RADEON 7000 (32 MB, dual display, AGP)
X
X
ATI FireGL Z1-128p (128MB, dual display, AGP 8X)
X
X
NVIDIA Quadro4 980 XGL (128 MB, dual display, AGP 8X)
ATI FireGL X1-256p (256 MB, dual display, AGP 8X)
X
X
X
512 MB PC2100 DDR SDRAM memory kit (2x256MB DIMMs)
X
X
1 GB PC2100 DDR SDRAM memory kit (2x512MB DIMMs)
X
X
2 GB PC2100 DDR SDRAM memory kit (2x1GB DIMMs)
X
X
4 GB PC2100 DDR SDRAM memory kit (2x2GB DIMMs)
X
X
HP p1230 22-inch (20.0-inch vis) Performance Natural-flat CRT Monitor
X
X
NOTE: ATI FireGL graphics cards occupy 2 physical slots in the system.
Memory
Monitors
HP L1925 19-inch TFT Flat Panel Display – Analog/Digital
Internal hard disks
(minimum 1, maximum 3)
Storage Controllers
X
X
HP L2035 20-inch TFT Flat Panel Display
Analog mode
only
X
HP L2335 23-inch TFT Widescreen Flat Panel Display
1600x1200 or
lower
resolution only
X
36 GB Ultra320 SCSI 10,000 rpm (hot plug)
X
X
36 GB Ultra320 SCSI 15,000 rpm (hot plug)
X
X
73 GB Ultra320 SCSI 15,000 rpm (hot plug)
X
X
146 GB Ultra320 SCSI 10,000 rpm (hot plug)
X
X
Ultra160 SCSI Adapter for HP-UX, 1 channel
X
Ultra160 SCSI Adapter for HP-UX, 2-channel
X
Ultra320 SCSI Drives
Fibre Channel Adapter for Linux - (no boot)
X
Fibre Channel Adapter, 2GB, for HP-UX
X
FWD SCSI Adapter, 2-channel (no boot)
X
Ultra160 SCSI Adapter for Linux, 1-channel
X
Ultra160 SCSI Adapter for Linux, 2-channel
X
DA - 11664 Canada — Version 18 — August 31, 2004
Page 8
QuickSpecs
HP Workstation zx6000
Configure to order options (custom configurations)
Optical Drive
Input Devices
Network Adapters
4.7GB DVD+RW, 4X Max, Slimline Drive
X
DVD-ROM Drive, 8X Max, Slimline, Carbon
X
X
CD-RW/DVD-ROM Combo Drive, 12X/8X Max, Slimline, Carbon
X
X
HP USB Keyboard Kit, includes USB scroll mouse
X
X
HP USB Keyboard Kit, includes USB 3-button mouse
X
X
HP USB scroll mouse
X
X
SpaceBall 5000, Serial Interface
X
X
USB to PS/2 Adapter
X
X
1000BaseTX PCI LAN Adapter for HP-UX (Required for HP-UX)
X
1000BaseSX (Fibre) PCI LAN Adapter for HP-UX
X
100BaseT PCI LAN Adapter for HP-UX (Does not support boot.)
X
100BaseT PCI LAN Adapter, Quad Port
X
HyperFabric2 PCI Fiber Adapter for HP-UX
X
1000BaseTX PCI LAN Adapter for Linux
X
1000BaseSX (Fibre) PCI LAN Adapter for Linux
X
LAN, MUX, 8-port (1.3 and 1.5GHz models only)
X
I/O and Networking Documentation kit
X
X
Management Processor
Card
HP Management Processor Card
X
X
Redundant Power Supply
Redundant Hotswap Power Supply
X
X
Rack and Tower Options
(must order 1)
Workstation Field Rack Kit
X
X
Workstation Factory Rack Kit
X
X
Workstation Tower Kit
X
X
DA - 11664 Canada — Version 18 — August 31, 2004
Page 9
QuickSpecs
HP Workstation zx6000
After market options/Standalone accessories
Second Processor
Intel Itanium 2, 1.3 GHz, 3.0 MB integrated cache
(must be same frequency as
Intel Itanium 2, 1.5 GHz, 6.0 MB integrated cache
primary processor)
Processor Upgrades
Operating System
HP-UX
Linux
X
X
A9666A
X
X
A9667A
Upgrade kit: Intel Itanium 2, 1.3 GHz, 3.0 MB integrated cache
X
X
A9666A
Upgrade kit: Intel Itanium 2, 1.5 GHz, 6.0 MB integrated cache
X
X
A9666A
Return credit for Intel Itanium 2, 1 GHz, 3.0 MB integrated cache
X
X
A7848AN
HP-UX 11i MTOE, License-to-use
X
B6867AA
HP-UX 11i TCOE, License-to-use
X
B6868AA
HP-UX 11i MTOE media kit
X
B9000AA
HP-UX 11i TCOE media kit
X
B9001AA
Linux Enablement Kit for HP Itanium-based workstation
X
T1502AA
Red Hat Linux Advanced WS for zx6000
X
T2381AA
Red Hat Linux Adv. WS for zx (0D1 only)
X
T2379AA
X
T2381AA
HP Linux Installation Kit
T2170A
Red Hat Linux Advanced Workstation for zx6000 License-to-use
Memory
Monitors
512MB PC2100 DDR SDRAM memory kit (2x256MB DIMMs)
X
X
A7840A
1GB PC2100 DDR SDRAM memory kit
(2x512MB DIMMs)
X
X
A7841A
2GB PC2100 DDR SDRAM memory kit
(2x1GB DIMMs)
X
X
A7842A
4GB PC2100 DDR SDRAM memory kit
(2x2GB DIMMs)
X
X
A7843A
HP p1230 22-inch (20.0-inch vis) Performance Natural-flat CRT
Monitor
X
X
P9613#ABA
HP L1925 19-inch TFT Flat Panel Display – Analog/Digital
X
X
P9626A#ABA
Analog mode
only
X
P9614A#ABA
1600x1200
or lower
resolution
only
X
P9615A#ABA
ATI RADEON 7000 (32 MB, dual display, AGP)
X
X
A8049B
ATI FireGL Z1-128p (128MB, dual display, AGP 8X)
X
X
A9654A
X
A9655A
X
A9653A
HP L2035 20-inch TFT Flat Panel Display
HP L2335 23-inch TFT Widescreen Flat Panel Display
Graphics
NVIDIA Quadro4 980 XGL (128 MB, dual display, AGP 8X)
ATI FireGL X1-256p* (256 MB, dual display, AGP 8X)
X
NOTE: ATI FireGL graphics cards occupy 2 physical slots in the system.
DA - 11664 Canada — Version 18 — August 31, 2004
Page 10
QuickSpecs
HP Workstation zx6000
After market options/Standalone accessories
Hard Drives
Storage Controllers
Ultra320 SCSI Drives
36 GB Ultra320 SCSI, 10,000 rpm, hot plug
X
X
A7835B
36 GB Ultra320 SCSI, 15,000 rpm, hot plug
X
X
A7836A
73 GB Ultra320 SCSI, 15,000 rpm, hot plug
X
X
A7838A
146 GB Ultra320 SCSI, 10,000 rpm, hot plug
X
X
A7839A
Ultra160 SCSI Adapter for HP-UX, 1-channel
X
A6828A
Ultra160 SCSI Adapter for HP-UX, 2-channel
X
A6829A
Fibre Channel Adapter, for Linux - No Boot
for 1.3GHx and 1.5GHz models only
Optical Drives
Network Adapters
X
Fibre Channel Adapter, 2GB, for HP-UX
X
FWD SCSI adapter, 2-channel (does not support boot)
X
AB234A
A6795A
A5159A
Ultra160 SCSI Adapter for Linux, 1-channel
X
A7059A
Ultra160 SCSI Adapter for Linux, 2-channel
X
A7060A
4.7GB DVD+RW, 4X Max, Slimline Drive
X
AB616A
DVD-ROM Drive, 8X Max, Slimline, Carbon
X
X
A7850A
CD-RW/DVD-ROM Combo Drive, 12X/8X Max, Slimline, Carbon
X
X
A7851A
1000BaseTX PCI LAN Adapter for HP-UX
X
1000BaseSX (Fibre) PCI LAN Adapter for HP-UX
X
A6847A
100BaseT PCI LAN Adapter for HP-UX
X
B5509BA
100BaseT PCI LAN Adapter, Quad Port
X
A5506B
HyperFabric2 PCI Fiber Adapter for HP-UX
X
A6386A
A6825A
1000BaseTX PCI LAN Adapter for Linux
X
A7061A
1000BaseSX (Fibre) PCI LAN Adapter for Linux
X
A7073A
LAN, MUX, 8-port (1.3 and 1.5GHz models only)
X
I/O and Networking Documentation kit
X
X
A520
Keyboard Kit, USB, PC-104/105, Carbon black; includes USB
keyboard and USB Scroll Mouse.
X
X
A7861C
USB to PS/2 adapter (allows the use of a PS/2 keyboard and mouse,
or KVM switch)
X
X
A7782A
SpaceBall 5000, Serial Interface
X
X
AB602A
Audio
Adaptor, PCI-1xU, Audio, FM801
X
X
A7784A
Management Processor
Card
HP Management Processor Card
X
X
A6875A
Redundant Power Supply
Redundant Hotswap Power Supply
X
X
A6874A
Rack and Tower Kits
Rack to Tower Conversion Kit
X
X
A8718A
Tower to Rack Conversion Kit
X
X
A8082A
Input Devices
DA - 11664 Canada — Version 18 — August 31, 2004
A6748A
Page 11
QuickSpecs
HP Workstation zx6000
Memory
ECC PC2100 DDR-266 memory
Memory must be installed in pairs of the same size. Memory upgrade kits come in pairs.
This chart does not represent all possible memory configurations.
Minimum Memory
512-MB (2x256-MB)
Maximum Memory
24-GB (12x2-GB)
Memory
Minimum
Maximum
Memory
Minimum
Maximum
512 MB
24 GB
512 MB
24 GB
Slot 1
256 MB
2 GB
Slot 7
Slot 2
256 MB
2 GB
Slot 8
Slot 3
Slot 4
Slot 5
Slot 6
2 GB
Slot 9
2 GB
Slot 10
2 GB
Slot 11
2 GB
Slot 12
2 GB
2 GB
2 GB
2 GB
2 GB
2 GB
DA - 11664 Canada — Version 18 — August 31, 2004
Page 12
QuickSpecs
HP Workstation zx6000
Storage
Drive Bay Locations
Drive Support
Quantity
Supported
Position
Supported
Controller
Slimline DVD+RW Drive
Up to 1
1
Integrated EIDE
Slimline DVD-ROM Drive
Up to 1
1
Integrated EIDE
Slimline DVD-ROM/CD-RW
Combo Drive
Up to 1
1
Integrated EIDE
Up to 3
2, 3, 4
Optional Ultra160 SCSI Controller or
Fibre Channel Adapter for Linux - no boot
Optical Drives
Hard Drives
Ultra320 SCSI Drives
1-inch
36 GB Ultra320 SCSI (10K
rpm)
73 GB Ultra320 SCSI (15K
rpm)
146 GB Ultra320 SCSI (10K
rpm)
Maximum Storage
Capacity
438 GB
(SCSI)
DA - 11664 Canada — Version 18 — August 31, 2004
Page 13
QuickSpecs
HP Workstation zx6000
Technical Specifications
System Unit
Tower Dimensions
(HxWxD)
19.5 x 11.7 x 26.5 in (49.5 x 29.7 x 67.3 cm)
Weight
(tower configuration)
Minimum Tower Configuration 49.4 lb (22.4 kg)
Maximum Tower Configuration 56.3 lb (25.5 kg)
Rack Dimensions (HxWxD) 3.4 x 19.0 x 26.8 in (8.6 x 48.3 x 68.1 cm)
EIA Units
2U (20 units possible per 2 meter rack)
Weight (rack configuration)
Minimum Rack Configuration
38.6 lb (17.5 kg)
Maximum Rack Configuration
49.0 lb (22.2 kg)
Input current (autoranging)
8.0A max @ 100-127V, 3.9A max @ 200-240V
Line Frequency
50- 60 Hz
Maximum Power Input
714 W
Operating
41° to 95° F (5° to 35° C)
Non-operating
-40° to 158° F (-40° to 70° C)
Humidity
(non-condensing)
Operating
15% to 80% relative
Maximum Altitude
(non-pressurized)
Operating
10,000 ft (3,048 m)
Non-operating
15,000 ft (4572 m)
Dimensions (HxWxD)
18.82 x 7.3 x 1.85 in (47.8 x 18.6 x 4.7 cm)
Weight
Approx.1.2 kg ± 0.1 kg
Electrical
Operating Voltage
+ 5VDC ± 5%
Power Consumption
60 mA maximum (with 3 LEDs on)
System Interface
USB connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
PC98
Functionally compliant
Languages
12 available
Keycaps
Standard profile design
Switch Actuation
55 g nominal peak force with tactile feedback
Switch Life
20 million keystrokes (using Hasco modified tester)
Switch Type
Contamination resistant membrane
Key Leveling Mechanism
For all double wide and greater length keys
Cable Length
2.9 m
PC98-99
Mechanically compliant
Acoustics
65 dBA for spacebar, 55 dBA for all others maximum
sound pressure level
Operating Temperature
41° to 95° F (5° to 35° C)
Non-operating Temperature
-40° to 140° F (-40° to 60° C)
Operating Humidity
10% to 80% (non condensing at ambient)
Non-operating Humidity
10% to 90% (non condensing at ambient)
Operating Shock
40 g, 6 surfaces
Non-operating Shock
80 g, 6 surfaces
Operating Vibration
2 g peak acceleration
Non-operating Vibration
4 g peak acceleration
Power Supply
Temperature
HP Keyboard
Mechanical
Environmental
DA - 11664 Canada — Version 18 — August 31, 2004
Page 14
QuickSpecs
HP Workstation zx6000
Technical Specifications
SpaceBall 5000
Dimensions (HxWxD)
3.0 x 6.0 x 8.4 in (7.6 x 15.2 x 21.3 cm)
Ball Diameter
2.2 in (5.6 cm)
Weight
2.1 lb (9.94 kg)
Features
Six degrees of freedom motion control through the X, Y, Z axis
(pitch, roll, yaw)
Device sensitivity adjustable to preference
Certified for leading CAD and DCC applications
Environmental
Mechanical
Operating Temperature
50° to 104° F (10° to 40° C)
Non-operating Temperature
43° to 140° F (6° to 60° C)
Operating Humidity
8% to 80% (non-condensing at ambient
Non-operating Humidity
5% to 80% (non-condensing at ambient)
Buttons
12 programmable (unshifted)
23 programmable (shifted)
Serial Specifications
System Requirements
Ball Force range
0.5 - 8.2N (1.8 - 29.5 oz)
Ball Torque range
0.085 - 0.33 oz-in. (6.91 Nmm)
Resolution
10 bits
Connector
9-pin D-subminiature receptacle (DB9S)
Cable Length
12.8 ft. (3.9 m)
Data rate
9600 bps
Flow control
Xon/Xoff
10 Megabytes free disk space for driver and plug-in installation
CD-ROM device required
Software Drivers
Unix drivers for HP-UX
Red Hat Linux
HP 3-Button Mouse
Regulatory Approvals
Compliant
UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark, TUV,
CISPR 22, EN 50082, IEC 1000 4-2, IEC 1000-4-3,
AS/NZS, VCCI, BSMI, C-Tick, PCI, MIC
Dimensions/Weight
Height
1.42 in (3.6 cm)
Length
4.17 in (10.7 cm)
Width
2.87 in (7.4 cm)
Weight
5.20 oz (150 g)
Operating Temperature
32° to 104° F (0° to 40° C)
Non-operating Temperature
-4° to 140° F (-20° to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s Maximum
Switch Life
1,000,000 operations (using Hasco modified tester)
Switch Type
Micro-switches
Tracking Mechanism Life
155 miles (250 km) at average speed of 10 in/s
Cable Length
6 ft (1.8 m)
PC98-99
Mechanically compliant
Compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, CTick
Environmental
Mechanical
Regulatory Approvals
DA - 11664 Canada — Version 18 — August 31, 2004
Page 15
QuickSpecs
HP Workstation zx6000
Technical Specifications
HP 2-button Scroll Mouse
Scroll Wheel
8 mm
Maximum Rotation Speed 30 mm/s
Switch Type
Light force micro-switch
Switch Life
1 million operations
Mechanical Life
Minimum 200,000 revolutions
Environmental
Operating Temperature
50° to 122° F (10° to 50° C)
Non-operating Temperature
-22° to 140° F (-30° to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Non-operating Humidity
20% to 80% (non condensing at ambient)
Operating Shock
40 g, 6 surfaces
Non-operating Shock
80 g, 6 surfaces
Operating Vibration
2 g peak acceleration
Non-operating Vibration
4 g peak acceleration
Operating Voltage
+ 5VDC ± 10%
Power Consumption
15mA
System Consumption
USB connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
PC98
Functionally compliant
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s Maximum
Acceleration
100 in/s
Switch Actuation
85 g nominal peak force
Switch Life
1,000,000 operations (using Hasco modified tester)
Cable Length
2m
PC98-99
Mechanically compliant
Electrical
Mechanical
Regulatory Approvals
LSI Logic Ultra320 SCSI
Bus architecture
Dual Channel host adapter Number of supported
devices
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C -Tick
PCI-X (backward compatible to PCI)
30
Interface protocol
64-bit PCI-X bus-master
Host bus transfer rate
Up to 133 MB/s
SCSI data transfer rate
Up to 640 MB/s
Bus width
64-bit (fits both 32-bit and 64-bit bus widths)
Internal SCSI connectors
Two 68-pin HD
External SCSI connector
Two 68-pin VHDCI
Total connectors
4
Plug and Play Support
Yes
Dimensions (H x L)
6.7 x 4.2 in (17.3 x 11.4 cm)
Approvals/
environmental
CE, VCCI, Canada, C-Tick, FCC class B, UL 94VO, BSMI, MIC
Operating system support Red Hat Enterprise Linux Workstation 3.0
DA - 11664 Canada — Version 18 — August 31, 2004
Page 16
QuickSpecs
HP Workstation zx6000
Technical Specifications
Ultra320 SCSI Hard Drives
146 GB, 10K rpm
Nominal Capacity
146.8 GB
Dimensions (HxWxD)
1.00 x 4.00 x 5.75 in (2.54 x 10.16 x 14.61 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track: 0.35 ms
Average: 4.7 ms
Full-stroke: 10.0 ms
Average rotational latency 2.99 ms
73 GB, 15K rpm
Rotational speed
10,000 rpm
Logical blocks
289,749,488
Operating temperature
41° to 131° F (5° to 55° C)
Nominal Capacity
73.4 GB
Dimensions (HxWxD)
1.00 x 4.00 x 5.75 in (2.54 x 10.16 x 14.61 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track: 0.35 ms
Average: 4.7 ms
Full-stroke: 10.0 ms
Average rotational latency 2.99 ms
36 GB, 15K rpm
Rotational speed
10,000 rpm
Logical blocks
289,749,488
Operating temperature
41° to 131° F (5° to 55° C)
Nominal Capacity
36.4 GB
Dimensions (HxWxD)
1.00 x 4.00 x 5.75 in (2.54 x 10.16 x 14.61 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track: 35 ms
Average: 4.7 ms
Full-stroke: 10.0 ms
Average rotational latency 2.99 ms
Rotational speed
15,000 rpm
Logical blocks
71,132,960
Operating temperature
41° to 131° F (5° to 55° C)
DA - 11664 Canada — Version 18 — August 31, 2004
Page 17
QuickSpecs
HP Workstation zx6000
Technical Specifications
36 GB, 10K
Nominal Capacity
36.4 GB
Dimensions (HxWxD)
1.00 x 4.00 x 5.75 in (2.54 x 10.16 x 14.61 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track: 35 ms
Average: 4.7 ms
Full-stroke: 10.0 ms
Average rotational latency 2.99 ms
HP 4.7GB DVD+RW Slimline Capacity
Drive
Dimensions (HxWxD)
Rotational speed
10,000 rpm
Logical blocks
71,132,960
Operating temperature
41° to 131° F (5° to 55° C)
4.7 GB DVD disc/700 MB CD disc
0.5 x 5.22 x 5.46 in (1.35 x 13.28 x 13.88 cm)
Weight
0.551 lb (250 g)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical (within 15 degrees)
Data Transfer Rates - Read Digital audio extraction
(minimum)
CD read
Up to 3,600 KB/s (24X)
DVD read
Up to 8,100 KB/s (8X)
Media and Formats - Read CD formats
Data Transfer Rates Write
1,200 KB/s (8X)
CD-DA (Red Book), CD-ROM (Modes 1 and 2 - Yellow
Book), CD-ROM XA (Mode 2, Forms 1 and 2), CD-I
(FMV), Photo CD (single and multi-session), Video CD,
CD-Text, CD Extra
CD media
Stamped, CD-R, CD-RW
DVD formats
DVD-ROM, DVD-Video (with application support)
DVD media
Stamped (single or dual layer, single sided), DVD+RW,
DVD+R
DVD+R write
5.54 MB/s (4X)
DVD+RW write or rewrite
3.32 MB/s (2.4X)
CD-R write
1200 KB/s (8X)
CD-R write
1800 KB/s (12X)
CD-R write
2,400 KB/s (10X)
CD-RW write
600 KB/s (4X)
CD-RW write
1500 KB/s (10X)
Media and Formats - Write CD formats
CD-DA (Red Book), CD-ROM (Modes 1 and 2 - Yellow
Book), CD-ROM XA (Mode 2, Forms 1 and 2), CD-I
(FMV), Photo CD (single and multi-session), Video CD,
CD-Text, CD Extra
CD media
CD-R, CD-RW
DVD formats
DVD-ROM, DVD-Video (with application support)
DVD media
DVD+RW, DVD+R
DA - 11664 Canada — Version 18 — August 31, 2004
Page 18
QuickSpecs
HP Workstation zx6000
Technical Specifications
Write Methods
Disc-at-once, track-at-once, incremental fixed and variable packet, random access
write (DVD+RW only), sequential write (DVD +R, +RW). Writing method is application
dependant.
Data Transfer Mode
ATA PIO mode 4-16.6-Mbps, ATA UltraDMA mode 2-33-Mbps (default)
Access Times
(typical)
DVD-ROM Single Layer Random
150 ms typical
CD-ROM Random
140 ms typical
CD-ROM Full stroke
200 ms typical
DVD-ROM
9.5 s typical (time from disk insertion to drive
ready)
CD-ROM
8.0 s typical (time from disk insertion to drive
ready)
Start-up Time (typical)
Stop Time (typical)
<9s
Write Buffer Size
2 MB (minimum)
Audio Output
16 bit data output
Through ATA interface
Volume Control
Software controlled
Temperature (Read)
41° to 122° F (5° to 50° C)
Humidity (Write)
41° to 113° F (5° to 45° C)
Operating Conditions
Approvals/
Environmental
UL 1950 (US and Canada), CE, FDA, FCC (B), TUV, C-TICK (B)
Operating Systems Supported
Red Hat LINUX Advanced Workstation version 2.1
Supplied Software
Ahead Nero Enterprise Edition, including the Nero5 Express basic user interface and
the Nero5 Burning ROM advanced user interface.
Slimline CD-RW/
DVD-ROM Combo Drive
Drive
Manual tray-load
Orientation
Horizontal or vertical
Interface Type
ATAPI
Dimensions
(W x H x D)
5.23 x 0.5 x 5.46 in (13.28 x 1.27 x 13.87 cm)
Disc Diametre
12 cm, 8 cm
Disc Thickness
1.2 mm
Track Pitch
1.6 µm (CD-ROM); 0.74 m m (DVD-ROM)
Disc Centre Hole Diametre 15 mm
Reference Scanning
Velocity
1.2 m/s (CD); 3.49 m/s (DVD SL); 3.84 m/s (DVD DL)
Read Only Disc
Parametres
Formats and Modes
Supported
CD-ROM—Mode 1; CD-ROM XA—Mode 2 (forms 1 and
2); CD digital audio; CD Extra; CD-I—Mode 2 (forms 1
and 2) and CD-I-Ready; Photo CD (single and multisession); video CD; DVD (single and doublelayer);
DVD-R 3.95 GB; DVD-R 4.7 GB; DVD-RW 4.7 GB;
DVD+ RW 4.7 GB
Capacity
550 MB (Mode 1, 12 cm); 650 MB (Mode 1, 12 cm); 630
MB (Mode 2, 12 cm); 740 MB (Mode 2, 12 cm); 700 MB
(CD-ROM 80 min); 180 MB (CD-ROM 8 cm) 4.7 GB
(DVD-5); 8.54 GB (DVD-9); 9.4 GB (DVD-10)
Block Size
Mode 1—2,048 and 2,352 bytes; mode 2, form
1—2,048; 2,328; 2,336; 2,340 and 2,352 bytes; mode
2, form 2—2,328; 2,336; 2,340 and 2,352 bytes; CDDA—2,352 and 2,368 bytes; DVD—2,048 bytes
Writeable Disc Parametres Disc Type
CD-R and CD-RW
Write Methods
Disc at Once, Track at Once, Session at Once,
Variable Packet, Fixed Packet
Format and Modes
CD-ROM (mode 1); CD-ROM XA (mode 2, forms 1 and
DA - 11664 Canada — Version 18 — August 31, 2004
Page 19
QuickSpecs
HP Workstation zx6000
Technical Specifications
Access Times (typical)
Data Transfer Rates
Supported
2); CD digital audio, CD-I (mode 2, forms 1 and 2);
video CD
Capacity
550 MB (Mode 1, 12 cm); 650 MB (Mode 1, 12 cm); 630
MB (Mode 2, 12 cm); 740 MB (Mode 2, 12 cm); 700 MB
(CD-ROM 80 min); 180 MB (8 cm)
Block Size
Mode 1—2,048 bytes; mode 2, form 1—2,048 and
2,352 bytes; mode 2, form 2—2,352 bytes; CD-DA
—2,353 bytes
Random DVD
< 130 ms
Random CD
< 110 ms
Full Stroke DVD
< 225 ms
Full Stroke CD
< 210 ms
Maximum – CD-R Write
3600 KB/s (24X CAV)
Sustained — CD-RW Write 1500 KB/s (10X CLV)
Minimum — CD-R Read
3600 KB/s (24X ZCLV)
Minimum — CD-ROM Read 3600 KB/s (24X CAV)
Minimum — DVD-ROM
Read
10800 KB/s (8X CAV)
Minimum — Digital Audio
Extraction
1200 KB/s (8X CLV)
Data Transfer Modes
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA mode 2 (16.7 MB/s)
Bus Rate
16.6 MB/s (burst) with DMA support
Cache Buffer
2 MB (minimum)
Startup Time (single)
< 9 seconds (typical)
Startup Time (multi-session) < 30 seconds (typical)
Stop Time
< 6 seconds
Power
Source
Four-pin, DC power receptacle
DC Power Requirement
5 VDC ± 5%—100 mV ripple p-p
DC Current
< 800 mA read (typical at Outer Diametre)
< 900 mA write (typical at Outer Diametre)
< 1600 mA (maximum excluding spike current
< 1 ms duration)
< 1600 mA (maximum excluding spike current < 1 ms
duration)
< 100 mA (low power mode)
< 70 mA (sleep mode)
Total Drive Power
(standby mode)
< 70 mA
Audio Output Level
0.7 – 0.9 Vrms
Configuration Jumper
Block
Cable select mode
Data Interface Connector
68-pin interface connector
Environmental
(all conditions noncondensing)
Temperature (operating)
41° to 122° F (5° to 50° C)
Relative Humidity
(operating)
10% to 80%
Maximum Wet Bulb
Temperature (operating)
84° F (29° C)
Certifications,
Requirements
Multi-read requirements, ACA AS/NZS 3548, ANSI C63.4–1992 CB Test Certificate for
IEC 60950, CFR 47 part 15, CSA C22.2 No. 60950, DHSS/FDA - 1040, EN55022,
EN55024, EN60 950:2000, IEC 68, 908, 61000-4, ISO 9660, 10149, 13346,TUV or VDE
EN60 950, UL 60950, ICES-003 class B, CE Mark
DA - 11664 Canada — Version 18 — August 31, 2004
Page 20
QuickSpecs
HP Workstation zx6000
Technical Specifications
Slimline DVD-ROM Drive
PCI-Universal audio card
Capacity
4.7 GB DVD disc/700 MB CD disc
Drive
Manual tray-load
Orientation
Horizontal or vertical
Dimensions
(W x H x D)
5.23 x 0.5 x 5.46 in (13.28 x 1.27 x 13.88 cm)
Weight
280g
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal (80 or 120 mm discs) or vertical (120 mm discs only)
Form Factor
12.7 mm Slim Line
Centre Hole Diametre
15 mm
Disc Diametre
120 mm and 80 mm
Disc Thickness
1.2 mm
Track Pitch
1.60 µm (CD), 0.74 µm (DVD)
Access Times (typical
reads, including settling)
Random
< 100 ms (CD),
< 125 ms (DVD)
Full stroke
< 175 ms (CD),
< 225 ms (DVD)
Audio Output Level
Line out
0.7 – 0.9 Vrms
Cache Buffer
128 KB/s (minimum)
Data Transfer Rate
(typical, including settling)
Sustained 24XCD-ROM
3.6 MB/s
Sustained 8X DVD
10.08 MB/s
MultiWord DMA Mode 2
16.6 MB/s
PIO Mode 4 (single burst)
16.6 MB/s
Start-up Time
< 15 seconds
Stop Time
< 4 seconds
Audio processor
Forte Media FM801-AU, with Stac 9721T & 9708T codecs, AC97 v2.1
Connectors
External
MIC in: 3.5mm phone
LINE IN: 3.5mm phone (stereo)
AUDIO OUT: 3.5mm phone (stereo)
Internal
CD IN: Molex SL or 4-pinbb
Supplied CD-ROM audio cable uses 4-pin connector
AUX IN: 4-pin
MODEM: 4-pin mono in/out
Configuration
Jumper-less: all configuration either automatic or under host software control
Dimensions
12.2cm:bulkhead face to rear edge
Length: 5.4 in (13.4 cm)
Height: 4.78 in (12.0 cm) 10.0cm clearance required above PCI connector if SL
connectors used
Thickness: 0.8 in (1.2 cm)
Weight
3.0 oz (85 g) card alone 1.5 lb (0.68 kg) in shipping carton
Power
3 watts max
Temperature
Operating
41° to 95° F (5° C to 35° C)
Non-operating
-40° to 158° F (-40° C to 70° C)
Operating
3.0 km
Non-operating
4.6 km
Altitude
Relative humidity
15% to 80%, non-condensing
PCI specifications
Version
PCI 2.1
Signaling
Voltage:3.3 or 5.0V (PCI Universal) rate:33 MHz
Width
32-bit
DA - 11664 Canada — Version 18 — August 31, 2004
Page 21
QuickSpecs
HP Workstation zx6000
Technical Specifications
Audio specifications
Interrupts
Shareable, system-managed
Channels
1 or 2 (mono or stereo) (5.1 surround channels not
supported)
Line-in
10 KW , 1.0V full-scale, linear, 20 Hz to 19,200 Hz, ± 1
dB
CD-in
47 KW, 1.0V full-scale, linear 20 Hz to
19,200 Hz, ± 1 dB
Line-out
10 KW, 1.0V full-scale 20 Hz to 19,200 Hz,
± 1 dB
Phone-out
5 KW , 60mW/channel,
linear 65 Hz to 19,200 Hz, ± 1 dB
Mic in
10 kW , 100mV full-scale,
curve 20 Hz to 19,200 Hz, ± 1 dB
Distortion
Line/CD In/Out: 0.02% THD
Mic In/Phone Out: 0.05% THD
Noise
Line/CD In: > 75 dB
Line Out: > 90dB
Sampling rates
8, 3x, 44.1 and 48 KHz, 1 or 2-channel
Encodings
CCITT A-law, CCITT µ-law
Headphone specifications Type
Kit contents
open-air (on-ear), with adjustable band, 27mm Mylar
drivers, anisotropic magnet
Weight
71g (2.5 oz.)
Channels
2 (stereo)
Impedance
32O
Sensitivity
94 dB SPL/1mW
Power handling
5 mW
Response
20-20,000 Hz
Distortion
3% THD
Cord
10 ft (3m), shielded, single-sided, straight (uncoiled)
Connector
3.5mm stereo phone plug
PCI-Universal audio card
Stereo headphones
CD-ROM-to-card audio cable
Signal-integrity clips
DA - 11664 Canada — Version 18 — August 31, 2004
Page 22
QuickSpecs
HP Workstation zx6000
Technical Specifications
100BaseT PCI LAN Adapter Dimensions (H x D)
B5509BA
Ethernet Controller
5.6 x 4.75 in (14.2 x 12.1 cm)
Digital 21143
Software Driver
btlan5 or btlan (for HP-UX 11i)
Data Transfer Rate
10 and 100mbps, half and full duplex
Max Bandwidth
200mbps
PHY
National DP83840
Device Support
One
Bus Type
2.1 PCI, 32-bit bus master, 33 MHz
Internal Connectors
Single RJ-45 port. Support for Category 5 UTP cable
Access Method
CSMA/CD, 10/100mbps, auto-negotiation
System Requirements
Available PCI slot (2.1 compliant)
Environmental
Operating Temperature
41° to 122° F (5° to 50° C)
Operating Humidity
5% to 85% non-condensing
Operating Altitude
10000 ft (3000 m) max
Power Requirements
+5 volts @ 5 amp. max
Operating System Support HP-UX 10.20 or later
Other
B5509BA: includes hardware, software (can be pre-installed with HP-UX operating
system and hardware platform or can come with an application CD as stand-alone
product), and the User's Guide
100BaseT PCI LAN Adapter Dimensions (H x D)
Quad Port
Ethernet Controller
A5506B
Software Driver
6.75 x 4.75 in (17.1 x 12.1 cm) to conform to PCI half length card specifications
Digital 21143
btlan
Data Transfer Rate
10 and 100mbps, half and full duplex
Max Bandwidth
800mbps
PHY
Level One LXT970ATC
Device Support
Up to 4
Bus Type
2.1 PCI, 64-bit bus master, 33 MHz
Internal Connectors
Four RJ-45 ports. Support for Category 5 UTP.
External Connectors
One 68-pin VHDCI
Access Method
CSMA/CD, 10/100mbps, auto-negotiation
System Requirements
Available PCI slot (2.1 compliant)
Environmental
Operating Temperature
41° to 122° F (5° to 50° C)
Operating Humidity
5% to 85% non-condensing
Operating Altitude
10000 ft (3000 m) max
Power Requirements
+5 volts @ 5 amp. max
Operating System Support HP-UX 10.20
HP-UX 11.00
HP-UX 11i
HP-UX 11.22
Other
A5506B: includes hardware and software (can be pre-installed with HP-UX operating
system and hardware platform or come with an application CD as stand-alone
product), and the User's Guide
DA - 11664 Canada — Version 18 — August 31, 2004
Page 23
QuickSpecs
HP Workstation zx6000
Technical Specifications
1000BaseTX PCI LAN
Adapter for HP-UX
A6825A
Dimensions
2.536 x 6.6 in (6.44 x 16.76 cm)
Connector
RJ-45
Controller
Digital 21143
O/S
HP-UX 11.0
HP-UX 11i v1
HP-UX 11i v1.6
Data rates supported
10/100/1000 Mbps
Compliance
CE Mark EMC directive 89/336/EEC & 92/31/EEC & 93/68/EEC
Low Voltage Directive 73/23/EEC and 93/68/EEC
CISPR 22:1993 / EN 55022:1994 Class B radiated emissions
EN 50082-1:1992
IEC 801-2:1991 / prEN 55024-2:1992 - 4kV CD, 8kV AD
IEC 801-3:1984 / prEN 55024-3:1991, 3 V/m
IEC 801-4:1998 / prEN 55024-4:1993, 0.5 kV Signal lines
FCC Part 15, Class B
GB 9254-1988
Bus architecture
64-bit/66 MHz PCI
Data path width
64-bit
Data transfer mode
Bus-master DMA
Interrupts
Interrupt-A, shareable, system-managed
Power requirement
1.5A @ 5Vdc max. (7.5W)
Boot ROM support
Yes
Network transfer rate
33MHz, 133MBytes/sec. burst, zero-wait-state bus-mastered DMA
10BASE-T (full-duplex) 20 Mbps
Environmental
Operating Temperature
32° to 131°F (0° to 55° C)
Operating Humidity
85% at 131° F (55° C)
Management capabilities
ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Intel PROset II utility
Kit contents
One PCI 10/100 LAN card, [DS1]
DA - 11664 Canada — Version 18 — August 31, 2004
Page 24
QuickSpecs
HP Workstation zx6000
Technical Specifications
ATI Radeon 7000 Graphics Form Factor
Card
Graphics Controller
ATX
ATI Radeon 7000 GPU
Bus Type
AGP 2x/4x Version 2.0 compliant
RAMDAC
300MHz Dual DACs. 165MHz TMDS for Digital Display
Memory
32MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
DB-15 analog and DVI-I analog/digital monitor outputs.
Dimensions
Single short form factor AGP/ATX card
Multi-monitor support
Dual Independent Display (VGA+DVI or VGA+VGA with DVI-to-VGA converter)
Additional product
features
AGP 2x/4x Version 2.0 compliant.
32MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
VESA 3 (flash ROM) BIOS
HydraVision Display Management Software
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC1/2B/2B+ Monitor support on all OS platforms
VESA Display Power Management support
ATI RADEON 7000 GPU
featuring
183 MHz engine clock rate
128-bit GPU engine
64-bit external frame buffer interface running at a clock rate of 183 MHz
VGA controller
Triangle Setup Engine
Texture Cache
Bilinear and Trilinear Texture filtering
Line and Edge Anti-aliasing
Specular Highlights
Z-Buffering and Double Buffering
High performance 2D rendering engine
DVD playback with integrated motion compensation and iDCT
Supported graphics APIs
OpenGL 1.2 and below
DirectX 8.0 and below
Available graphics drivers HP-UX and Red Hat Linux Advanced Workstation 2.1 for Itanium.
See http://www.hp.com/support/zx6000.
ATI RADEON 7000 display,
resolutions & refresh
rates
CRT Displays
Single CRT Display Resolution
Maximum Refresh Rate
Bits Per Pixel
640x480
800x600
1024x768
1152x864
1280x1024
1600x1200
1920x1080
1920x1200
1920x1440
2048x1536
200Hz
200Hz
200Hz
180Hz
140Hz
100Hz
90Hz
85Hz
75Hz
66Hz
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
Single CRT Display Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1280x1024
1600x1200
75Hz
75Hz
75Hz
75Hz
60Hz
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
Digital Displays
DA - 11664 Canada — Version 18 — August 31, 2004
Page 25
QuickSpecs
HP Workstation zx6000
Technical Specifications
ATI FireGL Z1-128p
Graphics Card
Form Factor
ATX
Graphics Controller
ATI FGL 9700 GPU
Bus Type
AGP-Pro50 1x/2x/4x/8x Version 3.0 compliant
RAMDAC
Dual 400MHz/30-bit
Memory
128 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
Dual DVI-I analog/digital monitor outputs
Slots required
Occupies 2 physical slots in the system
Dimensions
Single AGP/ATX card. 12.61 x 4.25 in (23.03 x 10.7 cm)
Multi-monitor support
Dual Screen output for resolutions up to 2x2048x1536x32 bit
Additional product
features
256 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
64 KB BIOS Serial Flash ROM, reprogrammable by SW, 3.3V only, no Jumpers
2D and 3D acceleration provided for 16-bit and 32-bit RGB? modes
Hardware cursor with full color alpha channel
16/32 bit Z buffer, 16/32 bit W-buffer, 8-bit stored alpha and 8-bit Stencil planes
Bus mastering support for 2D/3D display lists and local memory vertex list execution
Hardware lighting support for up to 8 lights
Bilinear, Trilinear and Anisotropic texturing
Cubic Environment and Perturbation Bump Mapping
Projective Texture, 3D Texture and Video Texture support
Full Scene Anti-Aliasing (FSAA) support with up to 6 subsamples
Video Engine supports YCrCb (4:2:2, 4:1:0, 4:2:0) to RGB conversion
Video scaling and up to 4x4 tap filtering supported for all YUV and RGB16/32 formats
Per pixel quad buffering on all screen resolutions
VESA compliant Stereoscopic Interface on MiniDin Connector
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP1x/2x/4x/8x Version 3.0 Sideband Addressing
compliant including:
AGP Texturing (Execute Mode)
AGP Read and AGP Write Support
8X Fast write support
FGL 9700 GPU featuring:
VGA controller supporting full standard feature set
2D Engine with 128-bit datapath processing multiple pixels per clock
PIXEL TAPESTRY III, 3D rendering engine utilizing 2 parallel pipelines with two texture
blending units each capable, of handling up to 8 texels in a single pass, delivering 2.4
Gigatexels/s fill rate
CHARISMA ENGINE III, geometry unit utilizing 4 vertex processing engines, capable of
executing two instructions per clock cycle each, thus yielding up to 200 million
transformed, clipped and lit triangles per second.
VIDEO IMMERSION III, industry leading video technology supporting MPEG 2
encode/decode
Dual independent display controllers with 4K x 4K address space each
256-bit external frame buffer interface providing memory bandwidth of up to 20 GB
per second
Supported graphics APIs
OpenGL 1.3 ICD with immediate mode support for all OGL primitive types
DirectX 8.1
Available graphics drivers HP-UX and Red Hat Linux Advanced Workstation 2.1 for Itanium.
See http://www.hp.com/support/zx6000.
DA - 11664 Canada — Version 18 — August 31, 2004
Page 26
QuickSpecs
HP Workstation zx6000
Technical Specifications
ATI FireGL Z1-128p display,
resolutions & refresh
rates
CRT Display (Single or Dual)
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1152x864
1280x960
1280x1024
1600x1000
1600x1024
1600x1200
1792x1344
1920x1080
1920x1200
2048x1536
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
76Hz
100Hz
100Hz
100Hz
100Hz
85Hz
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
Digital Display (Single or Dual)
Single CRT Display Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1280x1024
1600x1000
1600x1200
1920x1080
1920x1200
75Hz
75Hz
75Hz
75Hz
60Hz
60Hz
60Hz
60Hz
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
DA - 11664 Canada — Version 18 — August 31, 2004
Page 27
QuickSpecs
HP Workstation zx6000
Technical Specifications
NVIDIA Quadro4 980 XGL
Graphics Card
Form Factor
ATX
Graphics Controller
NVIDIA NV28GL GPU
Bus Type
AGP 8X Version 3.0 compliant
RAMDAC
Dual 350 MHz integrated
Memory
128 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Dimensions
AGP full height ATX card. 4.25 x 8.5 in (10.8 x 21.6 cm)
Multi-monitor support
Dual integrated display controllers supporting up to 1920x1440 @ 85Hz on both
displays
Additional product
features
Supported graphics APIs
AGP8xVersion 3.0 compliant including
Sideband Addressing
AGP Texturing (Execute Mode)
Fast writes support
128 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
NV28GL GPU featuring:
300 MHz engine clock rate
325 MHz memory clock rate
128-bit memory interface
VGA controller
4 parallel pixel pipelines
2 parallel geometry engines
nfiniteFX II programmable Vertex and Pixel Shader technology
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
Diamond exit rule line rasterization for improved line quality
3D Texture support
Occlusion Culling
Frame synchronization
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
OpenGL 1.3 ICD with immediate mode support for all OGL primitive types
DirectX 8
Available graphics drivers Red Hat Linux Advanced Workstation 2.1 for Itanium.
See http://www.hp.com/support/zx6000.
DA - 11664 Canada — Version 18 — August 31, 2004
Page 28
QuickSpecs
HP Workstation zx6000
Technical Specifications
NVIDIA Quadro4 980 XGL
display, resolutions &
refresh rates
Monitor 1, 2 Analog/Digital
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
240Hz/240Hz
8, 16, 24, 32
800x600
240Hz/200Hz
8, 16, 24, 32
1024x768
170Hz/140Hz
8, 16, 24, 32
1152x864
170Hz/100Hz
8, 16, 24, 32
1280x720
150Hz/120Hz
8, 16, 24, 32
1280x960
150Hz/85Hz
8, 16, 24, 32
1280x1024
150Hz/75Hz
8, 16, 24, 32
1600x900
120Hz/75Hz
8, 16, 24, 32
1600x1024
100Hz/72Hz
8, 16, 24, 32
1600x1200
120Hz/60Hz
8, 16
1600x1200
100Hz/60Hz
24, 32
1920x1080
100Hz/No Digital Display Support
8, 16
1920x1080
85Hz/No Digital Display Support
24, 32
1920x1200
100Hz/No Digital Display Support
8, 16
1920x1200
85Hz/No Digital Display Support
24, 32
1920x1440
85Hz/No Digital Display Support
8, 16
1920x1440
75Hz/No Digital Display Support
24, 32
2048x1536
75Hz/No Digital Display Support
8, 16
2048x1536
60Hz/No Digital Display Support
24, 32
DA - 11664 Canada — Version 18 — August 31, 2004
Page 29
QuickSpecs
HP Workstation zx6000
Technical Specifications
ATI FireGL X1-256p
Graphics Card
Form Factor
ATX
Graphics Controller
ATI FGL 9700 GPU
Bus Type
AGP-Pro50 1x/2x/4x/8x Version 3.0 compliant
RAMDAC
Dual 400MHz / 30-bit
Memory
256 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
Dual DVI-I analog/digital monitor outputs
Slots required
Occupies 2 physical slots in the system
Dimensions
Single AGP/ATX card. 9.06 x 4.25 in (23.01 x 10.8 cm)
Multi-monitor support
Dual Screen output for resolutions up to 2x2048x1536x32 bit
Additional product
features
256 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
64 KB BIOS Serial Flash ROM, reprogrammable by SW, 3.3V only, no Jumpers
2D and 3D acceleration provided for 16-bit and 32-bit RGB? modes
Hardware cursor with full color alpha channel
16/32 bit Z buffer, 16/32 bit W-buffer, 8-bit stored alpha and 8-bit Stencil planes
Bus mastering support for 2D/3D display lists and local memory vertex list execution
Hardware lighting support for up to 8 lights
Bilinear, Trilinear and Anisotropic texturing
Cubic Environment and Perturbation Bump Mapping
Projective Texture, 3D Texture and Video Texture support
Full Scene Anti-Aliasing (FSAA) support with up to 6 subsamples
Video Engine supports YCrCb (4:2:2, 4:1:0, 4:2:0) to RGB conversion
Video scaling and up to 4x4 tap filtering supported for all YUV and RGB16/32 formats
Per pixel quad buffering on all screen resolutions
VESA compliant Stereoscopic Interface on MiniDin Connector
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP1x/2x/4x/8x Version 3.0 Sideband Addressing
compliant including:
AGP Texturing (Execute Mode)
AGP Read and AGP Write Support
8X Fast write support
FGL 9700 GPU featuring:
VGA controller supporting full standard feature set
2D Engine with 128-bit datapath processing multiple pixels per clock
PIXEL TAPESTRY III, 3D rendering engine utilizing 2 parallel pipelines with two texture
blending units each capable, of handling up to 8 texels in a single pass, delivering 2.4
Gigatexels/s fill rate
CHARISMA ENGINE III, geometry unit utilizing 4 vertex processing engines, capable of
executing two instructions per clock cycle each, thus yielding up to 200 million
transformed, clipped and lit triangles per second.
VIDEO IMMERSION III, industry leading video technology supporting MPEG 2
encode/decode
Dual independent display controllers with 4K x 4K address space each
256-bit external frame buffer interface providing memory bandwidth of up to 20 GB
per second
Supported graphics APIs
OpenGL 1.3 ICD with immediate mode support for all OGL primitive types
DirectX 8.1
Available graphics drivers HP-UX and Red Hat Linux Advanced Workstation 2.1 for Itanium. See
http://www.hp.com/support/zx6000.
DA - 11664 Canada — Version 18 — August 31, 2004
Page 30
QuickSpecs
HP Workstation zx6000
Technical Specifications
ATI FireGL X1-256p display,
resolutions & refresh
rates
CRT Display (Single or Dual)
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1152x864
1280x960
1280x1024
1600x1000
1600x1024
1600x1200
1792x1344
1920x1080
1920x1200
2048x1536
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
76Hz
100Hz
100Hz
100Hz
100Hz
85Hz
16, 24
16, 24
16, 24
16, 24
16, 24
16, 24
16, 24
16, 24
16, 24
16, 24
16, 24
16, 24
16, 24
Digital Display (Single or Dual)
Single CRT Display Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1280x1024
1600x1000
1600x1200
1920x1080
1920x1200
75Hz
75Hz
75Hz
75Hz
60Hz
60Hz
60Hz
60Hz
16, 24
16, 24
16, 24
16, 24
16, 24
16, 24
16,24
16, 24
DA - 11664 Canada — Version 18 — August 31, 2004
Page 31
QuickSpecs
HP Workstation zx6000
Technical Specifications
HP p1230 22-inch CRT
Monitor
Tube Type
Diamondtron NF Aperture Grille CRT
Picture Tube Size
(diagonal)
22 in (55 cm)
Viewable Image Area
(diagonal)
20 in (51 cm)
Aperture Grille Pitch
0.24 mm
Screen Curvature
Flat
Horizontal Frequency (kHz) 30 to 140 kHz
Vertical Frequency (Hz)
50 to 160 Hz
Maximum Resolution
2048 x 1536 @ 85 Hz (GTF)
Recommended Resolution 1600 x 1200 @ 85 Hz or 1280 x 1024 @ 85 Hz
Preset VESA Graphic
Modes (non-interlaced)
1920 x 1440 @ 60 Hz, 75 Hz
1792 x 1344 @ 60 Hz, 75 Hz
1600 x 1200 @ 75 Hz, 85 Hz
1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz
1024 x 768 @ 75 Hz, 85 Hz
800 x 600 @ 75 Hz, 85 Hz
640 x 480 @ 60 Hz, 85 Hz
Preset MAC Mode
1152 x 870 @ 75 Hz
Preset VGA Mode
640 x 480 @ 60 Hz and 720 x 400 @ 70 Hz
Maximum Pixel Clock
Speed
420 MHz
User Programmable
Modes
15 (10 preset modes and 5 additional modes)
Anti-Glare
Yes
Anti-Static
Yes
Asset Control
Yes
Default Color
Temperature
9300 K
Buttons or Switches
OSD menu, brigthness, contrast, Super Bright, dual input, power on/off
Languages
English, Spanish, French, German, Italian, Japanese
User Controls
Brightness, contrast, pincushion, pincushion balance, trapezoid, tilt (rotation), color
temperature, degauss, parallelogram, individual color control, zoom, moiré
cancellation, convergence, corner purity, image control, language, OSD control,
factory reset
Plug and Play
Yes, DDC/CI compatible
Input Signal
Two 15-pin D-sub connections
Input Impedance
75 ohms
Sync Input
Separate sync (HSYNC/VSYNC)
Video Cable
Detachable 15-pin D-sub mini connector (included)
Video Cable Length
70 in (1.8 m); non-captive
Power Supply
Universal 100-120/220-240 VAC
Frequency
50/60 Hz
Maximum
135 watts
Power Saving
2 watts maximum
Off Mode
0 watts
Power Cable Length
70 in (1.8 m); non-captive
Dimensions (HxWxD)
Unpacked
(including pedestal)
19.1 x 19.5 x 18.8 in (48.6 x 49.5 x 47.7 cm)
Packaged
25.6 x 25.0 x 25.4 in (65.1 x 63.6 x 64.6 cm)
DA - 11664 Canada — Version 18 — August 31, 2004
Page 32
QuickSpecs
HP Workstation zx6000
Technical Specifications
Weight
HP L1925 19-inch TFT Flat
Panel Monitor
Unpacked
66.1 lb (30 kg)
Packaged
77.1 lb (35 kg)
Tilt Range
10° upward and 5° downward
Swivel Range
90°either side of center
Temperature – Operating
41° to 90° F (5° to 35° C) Non-condensing
Temperature –
Non-operating
-4° to 140° F (-20° to 60° C)
Humidity – Operating
10% to 90% non-condensing
Humidity –
Non-operating
10% to 90%
Altitude – Operating
0 to 7,200 ft (0 to 2,195 m)
Altitude –
Non-operating
0 to 30,000 ft (0 to 9,144 m)
Accessories Included
Power cable, video cable (D-sub to D-sub), documentation kit
User Guide Languages
English, French, German, Spanish, Italian, Dutch, Brazilian Portuguese, Danish,
Finnish, Greek, Japanese, Korean, Latin American Spanish, Norwegian, Polish,
Russian, Slovenian, Turkish, Swedish, Traditional Chinese, Simplified Chinese
Warranty Languages
English, French, Spanish, Brazilian Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish, Swedish, Bahasa Indonesian, Japanese,
Korean, T. Chinese, S. Chinese
Color
Carbon and silver
Certification and
Compliance
MPR-II (Low Emissions), TCO '03, Energy Star Compliant, UL Listing, ISO9241-3 VOT
Guidelines Approval, FCC Approval, CE Mark (including PFC), GS Mark
Compatibility
Compatible with platforms using the VESA standard video modes and HP Compaq
Business Desktops d500, d300, and d200 Series, Compaq Evo Desktops, HP
workstations, and HP Business Desktops d300 series.
Warranty
Limited three-year parts and repair labor, service provider labor, and on-site service.
Next business day advanced exchange direct replacement service available during
warranty period. Certain restrictions and exclusions apply.
Panel
Type
Thin film transistor (TFT)
Viewable Image Area
(diagonal)
19 in (48.25 cm) maximum viewable
Screen Opening (WxH)
14.9 x 11.9 in (37.8 x 30.3 cm)
Viewing Angle (typical)
170 degrees horizontal/170 degrees vertical
(10:1 minimum contrast ratio)
Brightness (typical)
Up to 250 nits (cd/m2)
Contrast Ratio (typical)
Up to 500:1 (typical)
Response Rate (typical)
<20 ms (typical rise + fall)
Pixel Pitch
0.294 mm
Colour Depth Support
16.7 million colours
Plug and Play
Yes (supports VESA DDC2B; PC2001 compliant)
Input Signal
Two connectors: one 15-pin mini D-sub analog VGA;
and one DVI-I (VGA analog or digital)
Input Impedance
75 ohms ± 2%
Sync Input
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
Video Cable
VGA and DVI-D
Video Cable Length
78 in (2.0 m)
Horizontal Frequency
30 to 82 kHz
Vertical Frequency
56 to 75 Hz
Video Input
Signal Interface/
Performance
DA - 11664 Canada — Version 18 — August 31, 2004
Page 33
QuickSpecs
HP Workstation zx6000
Technical Specifications
On Screen Display (OSD)
Controls
Power
Mechanical
Graphics Controller
Pixelworks 131
Native Resolution
[email protected] analog
1280x [email protected] digital
Maximum Resolution
(Analog)
[email protected] analog
Maximum Resolution
(Digital)
[email protected] analog
Preset VESA Graphic
Modes
(non-interlaced)
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
Preset MAC Mode
832 x 624 @ 75 Hz
1152 x 870 @75 Hz
Preset VGA Mode
640 x 480 @ 60 Hz, 72 Hz
Preset SUN Mode
[email protected]
Fail Safe Mode
Yes (limits out of range signal messages)
Maximum Pixel Clock
Speed
140 MHz
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
AssetControl
Yes (accessible on HP/Compaq desktops featuring
Intelligent Manageability)
Default Colour
Temperature
Yes (6500k, 9300k, Custom User)
Buttons or Switches
Power on/off; 4-button OSD; second level OSD buttons
include auto adjust and dual-input switch
Languages
English, Spanish, French, German, Dutch, Italian
User Controls
Size and Positioning
Contrast
Brightness
Clock, Clock Phase
Selectable Colour Temperature
Input Selection
Factory Reset
Individual Colour Contrast
Full-screen Resolution
Power Supply
Auto-ranging, 90 to 265 VAC; internal power supply,
47.5-63 Hz
Input Power
100 ~ 240 VAC
Nominal Current
1.5 A maximum
Frequency
50 ~ 60 Hz
Average
33 watts when displaying standard office software
Maximum
< 40 watts
Power Saving
< 2 watts
Off Mode
< 1 watts (switch off)
Power Cable Length
70 in (1.8 m); non-captive
Dimensions
(H x W x D)
Unpacked w/ stand
minimum height
14.8 x 16.4 x 8.2 in
(39.8 x 41.6 x 20.8 cm)
Unpacked w/ stand
maximum height
20 x 16.4 x 8.2 in
(50.8 x 41.6 x 20.8 cm)
Base Area (Footprint
d x w)
8.2 x 12.2 in
(20.8 x 30.9 cm)
DA - 11664 Canada — Version 18 — August 31, 2004
Page 34
QuickSpecs
HP Workstation zx6000
Technical Specifications
Weight
Environmental
Panel only (w/o stand)
(h x w x d)
13.5 x 16.4 x 2.6 in
(34.2 x 41.6 x 6.6 cm)
Packaged
26.0 x 26.0 x 26.0 in
(66.0 x 66.0 x 66.0 cm)
Unpacked w/ stand
17.6 lb (8 kg)
Unpacked w/o stand
12 lb (5.5 kg)
Packaged
23.5 l (10.7 kg)
Tilt Range
-5° to +20°
Swivel Range
± 45° horizontal swivel
Height Adjustable
Yes (4.3 in/110 mm adjustment range)
Pivot Rotation
Yes, 90 °
Base
Ships attached and is removable after installation
Temperature – Operating
41° to 95° F (5° to 35° C)
Temperature – Nonoperating
-4° to 140° F (-20° to 60° C)
Humidity – Operating
20% to 80%
Humidity – Non-operating
5% to 95%
Altitude – Operating
0 to 13,000 ft (0 to 4,000 m)
Altitude – Non-operating
0 to 40,000 ft (0 to 12,192 m)
Options
PC Comm Station
Communication/audio hub that includes two stereo
speakers (8 PMPO each), integrated microphone/dual
function headset (phone and PC support), and USB
port. Optional, part number 304251-008 (US) or
P8814A (EMEA).
Other
Accessories Included
VGA cable, DVI-D cable, user CD-ROM with Portrait
software
User Guide Languages
English
Warranty Languages
English
Colour
Carbon/Silver
VESA Mounting
Yes (swing arm/ wall mount not included; base is
shipped attached and must be removed for mounting
options)
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-ready
Yes
Certification and
Compliance
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE
Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant,
FCC Approval, German Ergonomic (TUV and GS Mark), ISO 9241-3,7,8 VDT
Guidelines, ISO 13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM Approval,
MIC Requirements (New Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko,
Demko, Semko), PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan
BSMI Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed,
VCCI Approvals.
Compatibility
VESA Video Signal Standard (VSIS) Compliant video cards have been tested and
proven compatible for use with the HP Flat Panel Monitor L1925. The HP L1925 has
been tested for use with all HP workstations.
NOTE: Features are subject to change without notice.
Service and Warranty
Limited three-year parts and repair labour, service provider labour, and on-site
service. Next Business Day advanced exchange direct replacement service available
during warranty period. Certain restrictions and exclusions apply. For details, contact
HP Customer Support at 970-635-1000 (USA) or 905-206-4663 (Canada).
DA - 11664 Canada — Version 18 — August 31, 2004
Page 35
QuickSpecs
HP Workstation zx6000
Technical Specifications
HP L2035 20-inch TFT Flat
Panel Monitor
Panel
Type
20-inch Active Matrix TFT (thin film transistor)
Viewable Image Area
(diagonal)
20.1 in (51 cm)
Screen Opening
(W x H)
16.2 x 12.17 in (41.1 x 30.9 cm)
Viewing Angle (typical)*
Up to 170° H/170° V (10:1 minimum contrast ratio)
Brightness (typical*
Up to 250 nits (cd/m2)
Contrast Ratio (typical)*
Up to 400:1
Response Rate (typical)*
16 ms (typical, rise + fall)
Pixel Pitch
0.255 mm
Color Depth Support
16.7 million colors
*All specifications are provided by the component manufacturers. Performance
specifications represent the highest specification of all HP's component
manufacturers' typical level specifications for performance. Actual performance may
vary either higher or lower.
On Screen Display
(OSD) Controls
Signal Interface/
Performance
Buttons or Switches
PiP (Picture in Picture), Input select, auto adjust, OSD
up, OSD down, OSD menu select, power
Languages
English, French, German, Spanish, Italian
User Controls
Brightness, contrast, positioning, color temperature,
individual color control, serial number display, full
screen resolutions, clock, clock phase, video picturein-picture (size and position), input selection (includes
separate direct access key for dedicated swap
between inputs 1 and 2), factory reset
Horizontal Frequency
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI input) (for
modes with pixel clock less than 157 MHz)
Vertical Frequency
48 to 85 Hz (VGA input); 30 to 92 KHz (DVI input) (for
modes with pixel clock less than 157 MHz)
Graphics Controller
Pixelworks PW171
Native Resolution
1600 x 1200 @ 60 Hz (recommended)
Preset VESA Graphic
Modes (non-interlaced)
1600 x 1200 @ 60 Hz, 75 Hz (VGA input)
1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 85 Hz
640 x 480 @ 60 Hz, 75 Hz, 85 Hz
Video Input
Text Mode
720 x 400 @ 70 Hz
Mac Mode
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
Sun Mode
1152 x 900 @ 66 Hz
Maximum Pixel Clock
Speed
202 MHz (VGA input); 162 MHz (DVI input)
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
Default Color
Temperature
6500 K
Plug and Play
Yes
Input Signal
Four connectors, including one 15-pin mini D-sub VGA,
one DVI-I (VGA analog and digital input), one
composite video, and one s-video
DA - 11664 Canada — Version 18 — August 31, 2004
Page 36
QuickSpecs
HP Workstation zx6000
Technical Specifications
Power
Mechanical
Input Impedance
75 ohms ± 10%
Sync Input
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
Video Cable
VGA to VGA; VGA to DVI-I; DVI-D to DVI-I
Video Cable Length
5.9 ft (1.8 m)
Input Power
Auto-Ranging, 90 to 132 VAC and 195 to 265 VAC;
internal power supply, 50 Hz/60 Hz
Frequency
47.5 to 63 Hz
Maximum
< 75 watts
Power Saving
< 5 watts
Power Cable Length
5.9 ft (1.8 m)
Dimensions (H x W x D)
Unpacked w/stand
17.36 to 20.9 x 17.8 x 8.27
in
(44.1 to 53.1 x 45.2 x 21.0
cm)
Unpacked w/o stand (head 14.29 x 17.8 x 3.19 in
only)
(36.3 x 45.2 x 8.1 cm)
Weight
Packaged
11.5 x 21.9 x 23.9 in
(29.2 x 55.6 x 60.6 cm)
Unpacked
With stand: 20.28 lb (9.2
kg);
Without stand: 12.35 lb
(5.6 kg)
Packaged
26.9 lb (12.2 kg)
Tilt Range
-5° to + 25° vertical
Swivel Range
-35° to + 35°
Height Adjustable
Yes, range 3.54 in (9.0 cm)
Pivot Rotation
Yes
Base
Attached
Temperature – Operating
46° to 95° F (10° to 35° C)
Temperature – Nonoperating
6° to 140° F (-10° to 60° C)
Humidity – Operating
20% to 80% non-condensing
Humidity – Non-operating
5% to 85%
Altitude – Operating
+12,000 ft
Altitude – Non-operating
+40,000 ft
Options
HP Desktop Access
Center
Sold separately, the HP Desktop Access Center
features integrated microphone/headset jacks, dual
function headset for phone/PC support, a MultiBay slot
for adding an optical drive (sold separately), and four
USB ports for easy integration of third-party digital
solutions; part number DK985A. For more information,
refer to the HP Desktop Access Center QuickSpecs.
Other
Accessories Included
VGA to VGA cable – connects the graphic card's VGA
analog connector to the monitor's input #1 (VGA
analog) connector
VGA to DVI-I cable – connects the graphic card's VGA
connector to the monitor's input #2 (DVI-I analog)
connector
DVI-D to DVI-I cable – connects the graphic card's DVID digital connector to the monitor's input #2 (DVI-I
digital) connector
User Guide Languages
English, B. Portuguese, French, LA Spanish, Korean,
S. Chinese, T. Chinese, Bahasa, Japanese, Danish,
Environmental
DA - 11664 Canada — Version 18 — August 31, 2004
Page 37
QuickSpecs
HP Workstation zx6000
Technical Specifications
Finnish, German, Norwegian, Spanish, Swedish,
Greek, Polish, Russian, Slovenian, Turkish
HP L2335 23-inch TFT
Widescreen Flat Panel
Display
Warranty Languages
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish, Swedish,
Bahasa Indonesian, Korean, T. Chinese, S. Chinese
Color
Carbonite/Silver
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
Certification and
Compliance
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE
Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant,
FCC Approval, German Ergonomic (TUV and GS Mark), ISO 9241-3,7,8 VDT
Guidelines, ISO 13406-2 Pixel Defect Guidelines, Mexican NOM Approval, MIC
Requirements (New Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko,
Demko, Semko), PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan
BSMI Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed,
VCCI Approvals.
Compatibility
Compatible with platforms using the VESA standard video modes and all HP
workstations.
Service and Warranty
Limited three years parts, labor, and on-site service, including backlight. Availability
varies by region. Certain restrictions and exclusions apply. Consult HP Customer
Service for details.
Panel
Type
23-inch Active Matrix TFT (thin film transistor)
Viewable Image Area
(diagonal)
23 in (58.4 cm)
Screen Opening
(W x H)
19.53 x 12.24 in (49.6 x 31.1 cm)
Viewing Angle (typical)*
Up to 170° H/170° V (10:1 minimum contrast ratio)
Brightness (typical)*
Up to 250 nits (cd/m2)
Contrast Ratio (typical)*
Up to 350:1
Response Rate (typical)*
25 ms (typical, rise + fall)
Pixel Pitch
0.258 mm
Colour Depth Support
16.7 million colours
* All specifications are provided by the component manufacturers. Performance
specifications represent the highest specification of all HP's component
manufacturers' typical level specifications for performance. Actual performance may
vary either higher or lower.
On Screen Display (OSD)
Controls
Signal Interface/
Performance
Buttons or Switches
PiP (Picture in Picture), Input Select, Auto Adjust, OSD
Up, OSD Down, OSD Menu Select, Power
Languages
English, French, German, Spanish, Italian
User Controls
Brightness, contrast, positioning, colour temperature,
individual colour control, serial number display, full
screen resolutions, clock, clock phase, video picturein-picture (size and position), input selection (includes
separate direct access key for dedicated swap
between inputs 1 and 2), factory reset
Horizontal Frequency
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI input) (for
modes with pixel clock less than 157 MHz)
Vertical Frequency
48 to 85 Hz (VGA and DVI input)
Graphics Controller
Pixelworks PW172
Native Resolution
1920 x 1200 @ 60 Hz (recommended)
Preset VESA Graphic
Modes (non-interlaced)
1920 x 1200 @ 60Hz
1600 x 1200 @ 60 Hz, 75 Hz
DA - 11664 Canada — Version 18 — August 31, 2004
Page 38
QuickSpecs
HP Workstation zx6000
Technical Specifications
1280 x 1024 @ 60 Hz, 75Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 75Hz
640 x 480 @ 60 Hz, 75 Hz
Video Input
Power
Mechanical
Text Mode
720 x 400 @ 70 Hz
Mac Mode
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
Sun Mode
1152 x 900 @ 66 Hz
Maximum Pixel Clock
Speed
202 MHz (VGA input); 162 MHz (DVI input)
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
Default Colour
Temperature
6500 K
Plug and Play
Yes
Input Signal
Five connectors, including one 15-pin mini D-sub VGA,
one DVI-I (VGA analog and digital input), one
composite video, one s-video, component video
Input Impedance
75 ohms ± 10%
Sync Input
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
Video Cable
VGA to VGA; VGA to DVI-I; DVI-D to DVI-I
Video Cable Length
5.9 ft (1.8 m)
Input Power
Auto-Ranging, 90 to 132 VAC and 195 to 265 VAC;
internal power supply, 50 Hz/60 Hz
Frequency
47.5 to 63 Hz
Maximum
< 100 watts
Power Saving
< 5 watts
Power Cable Length
5.9 ft (1.8 m)
Dimensions (H x W x D)
Unpacked
17.36 to 20.90 x 21.46 x
8.27 in
(44.1 to 53.1 x 54.5 x 21.0
cm)
Unpacked w/o stand
(head only)
14.57 x 21.46 x 3.35 in
(37.0 x 54.5 x 8.5 cm)
Unpacked
22.27 lb (10.1 kg)
Packaged
30.87 lb (14.0 kg)
Weight
Environmental
Tilt Range
-5° to + 25° vertical
Swivel Range
-35° to + 35°
Height Adjustable
Yes, range 3.54 in (9.0 cm)
Pivot Rotation
Yes
Base
Attached
Temperature –
Operating
46° to 95° F (10° to 35° C)
Temperature –
Non-operating
6° to 140° F (-10° to 60° C)
Humidity – Operating
20% to 80% non-condensing
Humidity –
5% to 85%
DA - 11664 Canada — Version 18 — August 31, 2004
Page 39
QuickSpecs
HP Workstation zx6000
Technical Specifications
Non-operating
Altitude – Operating
+12,000 ft
Altitude –
Non-operating
+40,000 ft
Options
HP Desktop Access
Centre
Sold separately, the HP Desktop Access Centre
Features integrated microphone/headset jacks, dual
function headset for phone/PC support, a MultiBay slot
for adding an optical drive (sold separately), and four
USB ports for easy integration of third-party digital
solutions; part number DK985A. For more information,
refer to the HP Desktop Access Centre QuickSpecs.
Other
Accessories Included
VGA to VGA cable – connects the graphic card's VGA
analog connector to the monitor's input #1 (VGA
analog) connector
VGA to DVI-I cable – connects the graphic card's VGA
connector to the monitor's input #2 (DVI-I analog)
connector
DVI-D to DVI-I cable – connects the graphic card's DVID digital connector to the monitor's input #2 (DVI-I
digital) connector
User Guide Languages
English, B. Portuguese, French, LA Spanish, Korean,
S. Chinese, T. Chinese, Bahasa, Japanese, Danish,
Finnish, German, Norwegian, Spanish, Swedish,
Greek, Polish, Russian, Slovenian, Turkish
Warranty Languages
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish, Swedish,
Bahasa Indonesian, Korean, T. Chinese, S. Chinese
Colour
Carbonite/silver
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
Certification and
Compliance
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE
Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant,
FCC Approval, German Ergonomic (TUV and GS Mark), ISO 9241-3,7,8 VDT
Guidelines, ISO 13406-2 Pixel Defect Guidelines, Mexican NOM Approval, MIC
Requirements (New Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko,
Demko, Semko), PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan
BSMI Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed,
VCCI Approvals.
Compatibility
Compatible with platforms using the VESA standard video modes and all HP
workstations.
Service and Warranty
Limited three years parts, labour, and on-site service, including backlight. Availability
varies by region. Certain restrictions and exclusions apply. Consult HP Customer
Service for details.
© Copyright 2003-2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft is a registered trademark of Microsoft Corporation in the U.S. and/or other countries. Intel and Pentium are registered trademarks of the Intel
Corporation in the U.S. and/or other countries. All other product names mentioned herein may be trademarks of their respective companies.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
DA - 11664 Canada — Version 18 — August 31, 2004
Page 40
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
