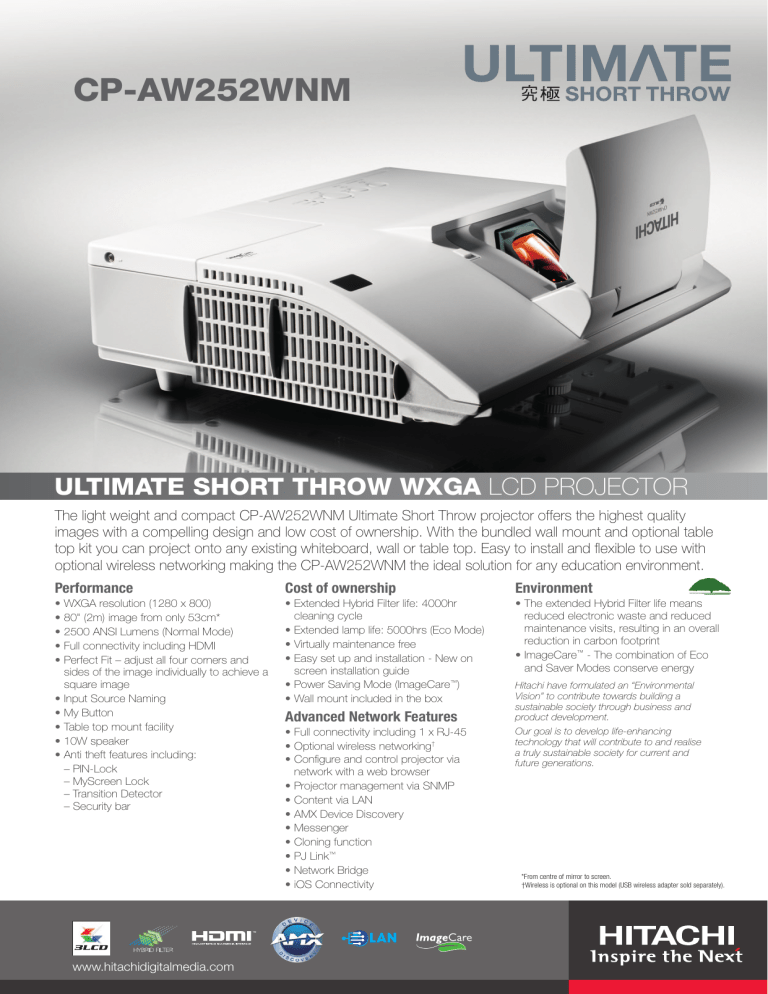

ULTIMATE SHORT THROW WXGA LCD Projector
The light weight and compact CP-AW252WNM Ultimate Short Throw projector offers the highest quality
images with a compelling design and low cost of ownership. With the bundled wall mount and optional table
top kit you can project onto any existing whiteboard, wall or table top. Easy to install and flexible to use with
optional wireless networking making the CP-AW252WNM the ideal solution for any education environment.
Performance
Cost of ownership
Environment
•WXGA resolution (1280 x 800)
•80" (2m) image from only 53cm*
•2500 ANSI Lumens (Normal Mode)
•Full connectivity including HDMI
•Perfect Fit – adjust all four corners and
sides of the image individually to achieve a
square image
•Input Source Naming
•My Button
•Table top mount facility
•10W speaker
•Anti theft features including:
– PIN-Lock
– MyScreen Lock
– Transition Detector
– Security bar
•Extended Hybrid Filter life: 4000hr
cleaning cycle
•Extended lamp life: 5000hrs (Eco Mode)
•Virtually maintenance free
•Easy set up and installation - New on
screen installation guide
•Power Saving Mode (ImageCare™)
•Wall mount included in the box
•The extended Hybrid Filter life means
reduced electronic waste and reduced
maintenance visits, resulting in an overall
reduction in carbon footprint
•ImageCare™ - The combination of Eco
and Saver Modes conserve energy
www.hitachidigitalmedia.com
Advanced Network Features
•Full connectivity including 1 x RJ-45
•Optional wireless networking†
•Configure and control projector via
network with a web browser
•Projector management via SNMP
•Content via LAN
•AMX Device Discovery
•Messenger
•Cloning function
•PJ Link™
•Network Bridge
•iOS Connectivity
Hitachi have formulated an “Environmental
Vision” to contribute towards building a
sustainable society through business and
product development.
Our goal is to develop life-enhancing
technology that will contribute to and realise
a truly sustainable society for current and
future generations.
*From centre of mirror to screen.
†Wireless is optional on this model (USB wireless adapter sold separately).
CP-AW252WNM
Optical
LCD panel
Resolution
Light output (brightness)
Colour light output (colour brightness)
Contrast ratio
Lens
Lamp Wattage
Lamp life
Focus distance
Distance to width ratio (:1)
Diagonal display size
Number of colours Keystone Technical Specifications
0.59" (1.5cm) P-Si TFT x3
WXGA (1280 x 800)
2500 ANSI Lumens (Normal Mode)/1600 ANSI Lumens (Eco Mode)
2500 ANSI Lumens (Normal Mode)/1600 ANSI Lumens (Eco Mode)
4000:1
Free shaped lens and motorised free shaped mirror
215 W
3000 Hours (Normal Mode)/5000 Hours (Eco Mode)*
0.4m~0.7m (from mirror top to screen plane)
0.3:1 (fixed)
60~100" (152~254cm)
8 Bit/colour, 16.7M colours
Fixed, 5.2:-1 upward shift, Normal at +68.3° projection angle
COMPATIBILITY
Computer compatibility
Composite/S-Video
Component Video
HDMI
Plug & Play
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+, SXGA, WSXGA+, UXGA (compressed), MAC 16”
NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43
525i(480i), 525p(480p), 625i(576i), 1125i([email protected]/60), 1125p([email protected]/60), 750p([email protected]/60)
1125i([email protected]/60), 750p([email protected]/60), 1125p([email protected]/60)
DDC2B
FEATURES
Wall mount
Table mount (optional)
USB Type B
HDMI
Computer In 2
2 x USB Type A
RJ-45 (LAN)
Computer In 1
Monitor Out
Microphone
Security Bar
Kensington Slot
Audio In 1/2
Control
(RS-232C)
S-Video
Composite Video
Audio In 3
Audio Out
a1
V
CONNECTIONS
a2
Digital input
Computer input
Monitor output
Video input
Audio input
Audio output
Control
USB
Wired network
Wireless network 16 x 10
b1
H
b2
Speakers
16W x 1 Mono
Basic functions
Freeze, Magnifying, Blank, Auto adjustment, Mirror reverse
image, Up-side down image, Auto signal search
Picture adjustments
Digital Zoom x 1.35, Equalising Digital Gamma Correction,
2-3 pull down for NTSC, Progressive Scan, Noise reduction,
Aspect selection 4:3/16:9/16:10/14:9/Native - dependant on
source, Equalising colour temperature adjustment, Perfect Fit
Digital keystone
Horizontal ±5°, Vertical ±5°
Advanced features
Drawing function (optional wireless tablet TB-1 required), My Screen,
My Memory, My Button by remote control, My Source, My Text, Picture
mode (8 modes), Source naming (English), Resolution setting,
Template, Saving mode, Audio pass through, Cloning, Audio sound
mixing, Audio out (standby) and monitor out/selectable source with
menu, Eco Mode (Normal, Eco, Intelligent Eco, Saver), Filter timer/
selectable interval time, PC-less Presentation (JPEG, PNG, BMP, GIF, AVI, MOV), Stand-by Audio, Template, On screen installation guide,
iOS Connectivity
Outward
Easy Lamp replace from Top, Rear intake air filter Power on & off
Direct on, Auto off, Auto eco mode Security systemsPIN Security Lock, Myscreen Password Lock, Transition Detector,
My Text Password Lock, Key Lock (key pad, remote control),
Kensington slot, Security bar, Lens door lock
Network
Configure and control projector via web browser, Failure and warning
alerts via e-mail, Scheduling, My Image (still image transfer display),
Displaying text data transferred via the network, Command Control via
network, Crestron RoomView® (not accessible through wireless
adapter), AMX Device Discovery, Projector management via SNMP,
PJ Link™, Network Bridge, Network Presentation (PC still picture
transfer), MAC address on side, USB Display
OSD languages options
33, including: English, French, German, Spanish, Italian, Norwegian,
Dutch, Japanese, Portuguese, Swedish, Russian, Finnish, Polish,
Turkey, Arabic, Czech, Danish, Hungarian, Romanian, Slovenian,
Croatian, Greek, Lithuanian, Estonian, Latvian
b2
1 x HDMI (HDCP compatible)
2 x 15-pin Mini D-sub
1 x 15-pin Mini D-sub
1 x RCA Jack (for composite), 1 x S-Video Jack,
2 x Component D-sub (shared with analogue computer in 1/2)
2 x Stereo Mini Jack, 1 x pair RCA (L/R), 1 x Microphone Jack
1 x pair RCA (L/R)
1 x 9-pin D-sub for RS232 control
2 x USB type A, 1 x USB type B
1 x RJ-45
Option, IEEE801.11b/g/n ready (optional wireless adapter required)
POWER
Power supply
Power consumption/standby b1
PHYSICAL
a1
Dimensions (W x H x D)
345 x 85 x 303mm (excluding feet and extrusions when mirror is closed)
Weight3.8Kg
Noise level
34dB (Normal Mode)/28dB (Eco Mode)
Ambient temperature
Operating 0°C~40°C, Storage -20°C~60°C
Air filter
Hybrid
a2
Miscellaneous
Throw distance (from the top of the lens)
Screen size H x V
(diagonal)
(m)(m)
60" (1.5m)
70" (1.8m)
80" (2.0m)
90" (2.3m)
100" (2.5m)
AC100-120V/220-240V, auto switching
310W (AC220-240V)/<0.35W
1.3
1.5
1.7
1.9
2.2
0.8
0.9
1.1
1.2
1.3
a1
(m)
0.120
0.188
0.256
0.324
0.392
a2
(m)
0.396
0.464
0.532
0.601
0.669
b1
(m)
0.295
0.332
0.369
0.407
0.444
b2
(m)
1.102
1.274
1.446
1.618
1.791
Lamp indicator light, power light, ceiling mount image, rear projection image, serial number label on side,
Tabletop use (optional stand is required)
CERTIFICATION
UL60950-1/ cUL, FCC Part15 subpart B class B, CE Marking: EN61000-3-2, EN61000-3-3,
EN55022(class B), EN55024(EMC directive), EN60950-1 (Low voltage directive), WEEE/RoHS,/ErP(lot6)
compliant, c-tick class B (Australia/New Zealand), GOST-R (Russia)
ACCESSORIES SUPPLIED
Remote control with batteries, RGB cable, power cord, cable cover, security label, user manual (detail &
concise), Application CD, Wall mount (HAS-K250), Adapter cover
OPTIONAL ACCESSORIES
Replacement lamp
Table top stand
Wireless pen tablet
Interactive camera unit USB wireless adapter
DT01381
TT-251
TB-1
IM-1
USB-WL-11N
Warranty
Projector warranty
Lamp warranty
3 Years
6 Months/5000 Hours**
HITACHI DIGITAL MEDIA, Hitachi Europe Ltd, Whitebrook Park, Lower Cookham Road, Maidenhead, Berkshire SL6 8YA UNITED KINGDOM
Tel: +44 (0)1628 585 000 Fax: +44 (0)1628 585 163 www.hitachidigitalmedia.com
*The stated lamp and filter life refers to the average life expected in ideal operating conditions with usage in accordance with the manual. The majority of, but not all lamps and filters should achieve this figure. **Where a lamp fails within warranty and a replacement lamp is taken, the warranty for the
replacement lamp will be a maximum of 6 months (dependent on warranty hours stated). HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. AMX and the AMX logo, and Device Discovery are all registered trademarks of AMX.
The specification above and photography is for reference only and may be subject to change.
