SI-A8W052140EU

SI-A8W052140EU

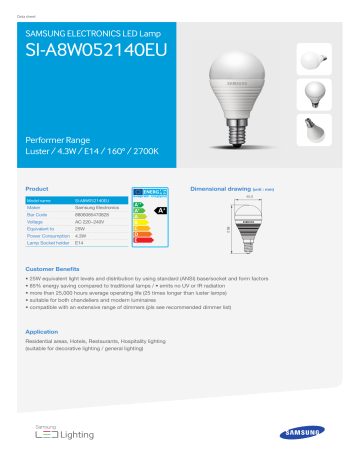

Data sheet
SAMSUNG ELECTRONICS LED Lamp
SI-A8W052140EU
Performer Range
Luster / 4.3W / E14 / 160° / 2700K
Product
Dimensional drawing (unit : mm)
SI-A8W052140EU
Maker
Samsung Electronics
Bar Code
8806085470828
Voltage
AC 220~240V
Equivalent to
25W
Power Consumption
4.3W
Lamp Socket holder
E14
45.0
88.0
Model name
Customer Benefits
• 25W equivalent light levels and distribution by using standard (ANSI) base/socket and form factors
• 85% energy saving compared to traditional lamps / • emits no UV or IR radiation
• more than 25,000 hours average operating life (25 times longer than luster lamps)
• suitable for both chandeliers and modern luminaires
• compatible with an extensive range of dimmers (pls see recommended dimmer list)
Application
Residential areas, Hotels, Restaurants, Hospitality lighting
(suitable for decorative lighting / general lighting)
SAMSUNG ELECTRONICS LED Lamp
SI-A8W052140EU
Specifications
Lighting Data
Model name
SI-A8W052140EU
Lumen output (lm)
Lamp efficacy (lm/W)
Frequency (Hz)
Input current (mA)
Power factor
CBCP (cd)
Lumen Maintenance Factor
Warm-up time
On/Off cycles
Beam angle (°)
Operating temperature (°C)
Average lifetime (hrs)
Color description
Color temperature (K)
CRI (Ra)
Diameter (mm)
Overall length (mm)
Starting time (s)
Dimmable
Weight (g)
Energy Efficiency Index
250
58
50/60
30
≧ 0.6
L70
Instant full light
200,000
160
-20~+40
25,000 (25.4 years*)
Warm White
2700
80
45.0
88.0
0.1
Yes
57
A+
Energy consumption
(kWh/1000h)
5
Certification
CE
(0~180)
24
(90~270)
20
16
12
(uni : cd)
90°
1m
24 lx
2m
6 lx
3m
2.6 lx
90°
60°
60°
30°
30°
0°
Light Distribution
Illuminance (lx)
Packaging Details
• Single Box (1pc) : 84mm×56mm×145mm / 100g
• Middle Box (6pc/box) : 264mm×121mm×153mm / 700g
• Outer carton (18pc/box) : 388mm×275mm×164mm / 2,650g
※Specifications are subject to change without notice.
* years : Average usage of 2.7hrs per Day
Dimmer Compatibility
Dimmer
Manufacturer
Model
Power
Input
Country/
Frequency Region
BERKER
PEHA
JUNG
JUNG
JUNG
BERKER
BTICINO
GIRA
BUSCH-JAEGER
BUSCH-JAEGER
BUSCH-JAEGER
BUSCH-JAEGER
BUSCH-JAEGER
GIRA
LEGRAND
SCHNEIDER
2873
433HAB
266GDE
211GDE
225NVDE
2866 10
A5702
0302 00/I01
2200U-503
2247U
6513U-102
2250U
6591U-101
0307/00
773617
PEK-4
20~500W
20~315W
60~600W
100~1000W
20~500W
20~500W
60~500W
60~600W
60~400W
500W
40~420W
600W
420W
60~400W
40-300W
60-600W
230~240V
230V
230~240V
230~240V
230~240V
230~240V
230V
230~240V
230V
230V
230V
230V
230V
230V
230V
230V
50Hz
50Hz
50Hz
50Hz
50Hz
50/60Hz
50Hz
50Hz
50Hz
50Hz
50Hz
50Hz
50/60Hz
50Hz
50Hz
50Hz
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
Dimming Level
@ 1 lamp (flux%)
Dimming Performance
@ Multi-­Lamps
Max
2 Lamp
Min
100%
25%
100%
91%
100%
36%
Not compatible
100%
25%
100%
30%
Not compatible
100%
19%
100%
12%
100%
30%
100%
65%
100%
21%
Not compatible
Not compatible
100%
1%
100%
43%
Note 1. Dimming Performance : Good(Dimming Coverage without flicker : 75% ↑), Working(41~74% ), Poor(40% ↓)
2. This result can only be used as reference. The result may vary according to actual field conditions.
3 Lamp
Good
Good
Poor
Poor
Working Working
Not compatible
Good
Good
Good
Good
Not compatible
Good
Good
Good
Good
Good
Good
Working Working
Good
Good
Not compatible
Not compatible
Good
Good
Good
Good
4 Lamp
5 Lamp
Good
Poor
Working
Good
Poor
Working
Good
Good
Good
Good
Good
Good
Good
Working
Good
Good
Good
Good
Working
Good
Good
Good
Good
Good
