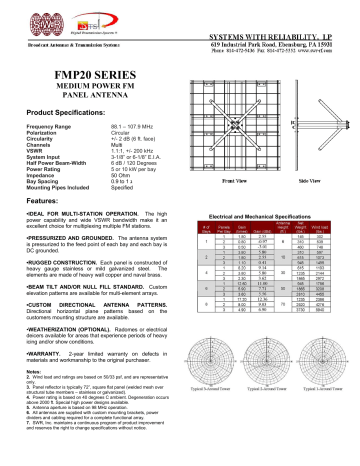

FMP20 SERIES
FMP20 SERIES
MEDIUM POWER FM
PANEL ANTENNA
Product Specifications:
Frequency Range
Polarization
Circularity
Channels
VSWR
System Input
Half Power Beam-Width
Power Rating
Impedance
Bay Spacing
Mounting Pipes Included
88.1 – 107.9 MHz
Circular
+/- 2 dB (6 ft. face)
Multi
1.1:1, +/- 200 kHz
3-1/8” or 6-1/8” E.I.A.
6 dB / 120 Degrees
5 or 10 kW per bay
50 Ohm
0.9 to 1 ‫ג‬
Specified
Features:
•IDEAL FOR MULTI-STATION OPERATION. The high
power capability and wide VSWR bandwidth make it an
excellent choice for multiplexing multiple FM stations.
•PRESSURIZED AND GROUNDED. The antenna system
is pressurized to the feed point of each bay and each bay is
DC grounded.
•RUGGED CONSTRUCTION. Each panel is constructed of
heavy gauge stainless or mild galvanized steel. The
elements are made of heavy wall copper and naval brass.
•BEAM TILT AND/OR NULL FILL STANDARD. Custom
elevation patterns are available for multi-element arrays.
•CUSTOM
DIRECTIONAL
ANTENNA PATTERNS.
Directional horizontal plane patterns based on the
customers mounting structure are available.
•WEATHERIZATION (OPTIONAL). Radomes or electrical
deicers available for areas that experience periods of heavy
icing and/or show conditions.
•WARRANTY.
2-year limited warranty on defects in
materials and workmanship to the original purchaser.
Notes:
2. Wind load and ratings are based on 50/33 psf, and are representative
only.
3. Panel reflector is typically 72”, square flat panel (welded mesh over
structural tube members – stainless or galvanized).
4. Power rating is based on 40 degrees C ambient. Degeneration occurs
above 2000 ft. Special high power designs available.
5. Antenna aperture is based on 98 MHz operation.
6. All antennas are supplied with custom mounting brackets, power
dividers and cabling required for a complete functional array.
7. SWR, Inc. maintains a continuous program of product improvement
and reserves the right to change specifications without notice.
Electrical and Mechanical Specifications
