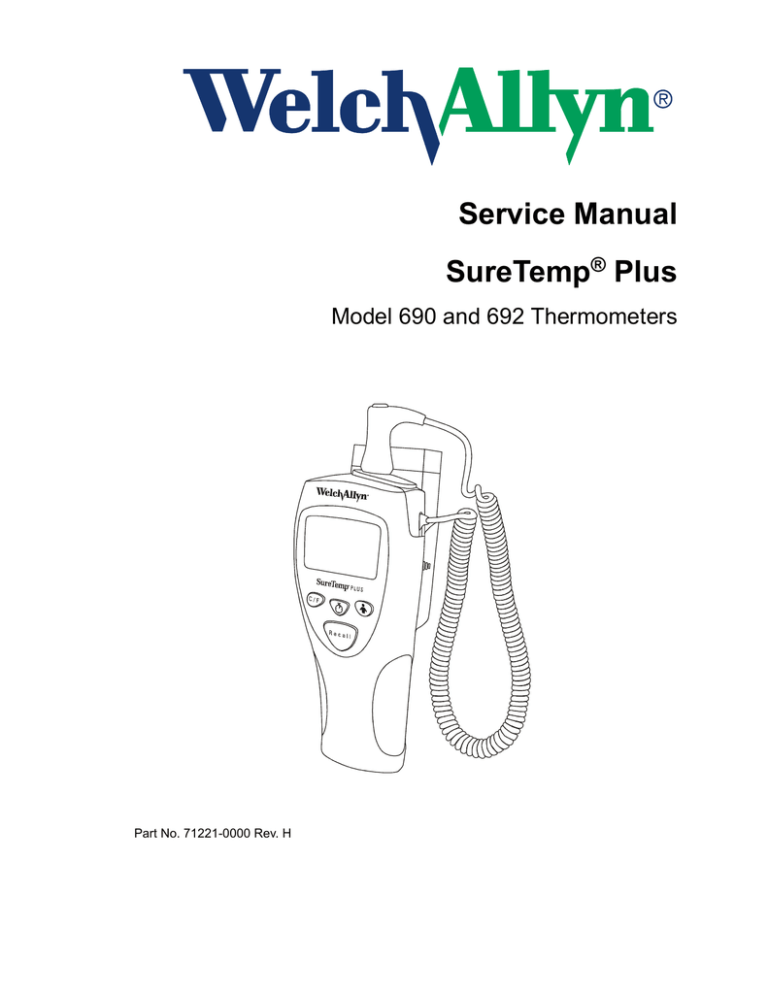

Service Manual
SureTemp® Plus
Model 690 and 692 Thermometers
Part No. 71221-0000 Rev. H
© 2012 Welch Allyn. All rights are reserved. To support the intended use of the product described in this
publication, the purchaser of the product is permitted to copy this publication, for internal distribution only,
from the media provided by Welch Allyn. No other use, reproduction, or distribution of this publication, or
any part of it, is permitted without written permission from Welch Allyn.
Welch Allyn assumes no responsibility for any injury to anyone, or for any illegal or improper use of the
product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or statement of intended use published in this manual.
Welch Allyn and SureTemp Plus are trademarks of Welch Allyn, Inc. All rights reserved.
CaviCide® is a registered trademark of Metrex Research Corporation (800) 841-1428.
Printed in the USA.
U.S. Patent 5,632,555; 6,000,846; 6,036,361; and 6,971,790. Additional U.S. and foreign
patents pending.
AGENCY APPROVALS
CERTIFIED TO: CAN/CSA STD C22.2 NO. 601.1
CONFORMS TO: IEC 60601-1, 60601-1-2, UL STD 2601-1
C
US
166292
WELCH ALLYN PTY LTD
5/38-46 SOUTH STREET
RYDALMERE
NSW 2116
AUSTRALIA
EMC Framework of Australia
The CE mark on this product indicates that the product has been tested to
and conforms with the provisions noted within the 93/42/EEC Medical
Device Directive.
Regulatory Affairs Representative
Welch Allyn Limited
Navan Business Park
Dublin Road
Navan, County Meath
Republic of Ireland
Table of Contents
Electromagnetic Immunity and Emissions Declaration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Immunity Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Emissions Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.1 About this Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.1.1 Related Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Technical Support and Service Centers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 Return Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Safety and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.5 Classifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2
Operating Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Basic System Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1.1
2.1.2
2.1.3
2.1.4
2.1.5
2.1.6
Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Probe well . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Probe covers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Wall Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Model Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Operating Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3.1 Instrument Reset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3.2 Power-On Self Test (POST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3.3 Low Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3.4 Predict Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3.5 Monitor Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3.6 Pulse Timer Mode (Model 692 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.3.7 Backlight (Model 692 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.3.8 Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.3.9 F/C Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.3.10 Temperature Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.3.11 Biotech Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.4 Instrument Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.4.1 Temperature Count Security Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.4.2 Instant-On Security Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3
Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.1 Six-Month Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.2 Twelve-Month Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 Standard Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4.1 Cleaning the Thermometer and Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4.2 Cleaning The Removable Probe Well. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.5 Replacing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
SureTemp® Plus Service Manual
i
3.6 Calibration Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.6.1 Cal-Key Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.6.2 Model 9600 Calibration Tester Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.6.3 Model 9600 Plus Calibration Tester Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.1 Types of Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.1.1
4.1.2
4.1.3
4.1.4
4.1.5
4.1.6
Battery Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Ambient Temperature Out of Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Patient Temperature Out of Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Probe Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Instrument Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Error Codes: Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.2 Field Serviceable Repairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.3 Field Serviceable Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5
Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.1 Technical Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.1.1
5.1.2
5.1.3
5.1.4
5.1.5
Appendix A
Appendix B
ii
Temperature Probes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Probe Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Low Battery Detection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Temperature Measurement and Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
71221-0000 Rev. H
Electromagnetic Immunity and Emissions Declaration
Immunity Standard
IEC Basic Standard
IEC 60601-1-2 2001
Electrostatic discharge IEC 61000-4-2
± 6kVc
± 8kVc
RF EMF Immunity IEC 61000-4-3
3/10 V/m
80 MHz-2.5GHz
Magnetic field IEC 61000-4-8
3A/m
150kHz-80MHz
Emissions Summary
The SureTemp® Plus model 690 and 692 thermometers are intended for use in the
electromagnetic environment specified below. The customer or the user of the model 690 and
692 should assure that it is used in such an environment.
Guidance and Manufacturer’s declaration - electromagnetic emissions
Emissions test
Compliance
RF emissions
CISPR 11
Group 1
Class B
Harmonic emissions
IEC 61000-3-2
Complies
Voltage fluctuations
and flicker emissions
IEC 61000-3-3
Complies
SureTemp® Plus Service Manual
Electromagnetic
environment-guidance
The SureTemp® Plus model
690 and 692 Thermometers
are suitable for use in all
establishments, including
establishments that are
connected to the public
low-voltage power supply
network.
1
1. General Information
1.1
About this Manual
This manual describes maintenance and troubleshooting procedures for the SureTemp® Plus
Model 690 and 692 Thermometers. Most topics and procedures described in this manual are
applicable to both products. Where there are differences, it is noted to which product the topic
refers.
1.1.1 Related Document
End-user operation of the Model 690 and 692 Thermometers is covered in the SureTemp®
Plus Model 690 and 692 Operator's Manual PN 71213-0000.
1.2
Technical Support and Service Centers
For information about any Welch Allyn product, call Welch Allyn Customer Support:
USA +1 800 535 6663
+ 1 315 685 4560
Canada +1 800 561 8797
European Call Center +353 46 90 67790
Germany +49 7477 9271 70
Latin America +1 305 669 9003
Singapore +65 6419 8100
United Kingdom +44 207 365 6780
1.3
Australia +61 2 9638 3000
+800 074 793
China +86 21 6327 9631
France +33 1 55 69 58 49
Japan +81 3 3219 0071
Netherlands +31 157 505 000
South Africa +27 11 777 7555
Sweden +46 85 853 6551
Return Procedure
Please contact Welch Allyn® Customer Care at (800) 535-6663 before returning a Model 690
or 692 Thermometer to the factory for service.
If you are authorized to return a thermometer to Welch Allyn:
1. Contact Welch Allyn and request a Return Material Authorization Number (RMA).
2. Repackage the thermometer carefully in its original box or any sturdy carton with enough
packing material to prevent damage. List the RMA # on the shipping label, along with the
authorized service center address listed in Section 1.2, Technical Support and Service
Centers.
3. Include a note that describes the problem, RMA number, return address, contact name,
telephone number, and any other necessary information. Ship the thermometer to the
authorized service center nearest you. See Section 1.2, Technical Support and Service
Centers.
1.4
Safety and Warnings
•
2
In order to obtain accurate and reliable temperature results and ensure patient safety, it is
important that this manual is read thoroughly prior to using the instrument. If you have any
technical or clinical questions concerning the thermometer’s use and/or care, please
contact the Welch Allyn Customer Service Department.
71221-0000 Rev. H
•
Use single-use Welch Allyn disposable probe covers to limit patient cross-contamination.
The use of any other probe cover may produce temperature measurement errors or result
in inaccurate readings.
•
Do not take a patient’s temperature without using a Welch Allyn disposable probe cover.
Doing so can cause patient discomfort, patient cross contamination, and erroneous
temperature readings.
•
Long-term continuous monitoring beyond three to five minutes is not recommended in any
mode.
•
Biting the probe tip while taking a temperature may result in damage to the probe.
•
Oral/axillary probes (blue ejection button at top of probe) and blue oral/axillary removable
probe wells are used for taking oral and axillary temperatures only. Rectal probes (red
ejection button) and red rectal removable probe wells are used for taking rectal
temperatures only. Use of the probe at the wrong site will result in temperature errors. Use
of the incorrect removable probe well could result in patient cross contamination.
•
To ensure patient safety and temperature measurement accuracy, use only accessories
and supplies recommended or supplied by Welch Allyn.
•
Equipment is not suitable for use in the presence of a flammable anesthetic mixture with
air or with oxygen or nitrous oxide.
•
The thermometer case, connectors, and probe are not waterproof. Do not immerse or drip
fluids on these items. Should this occur, dry the device with warm air. Check all operating
functions for proper operation.
•
Do not take an axillary temperature through patient’s clothing. Direct probe cover to skin
contact is required.
SureTemp® Plus Service Manual
3
1.5
•
The Welch Allyn SureTemp Plus thermometer consists of high quality precision parts.
Protect it from severe impact and shock. A qualified service technician must check any
SureTemp Plus thermometer which is dropped or damaged to ensure proper operation
prior to further use. Do not use the thermometer if you notice any signs of damage to the
probe or instrument. Contact the Welch Allyn Customer Service Department for
assistance.
•
Welch Allyn recommends that batteries are removed for long term storage since alkaline
batteries can deteriorate and leak over extended periods of time, and possibly cause
damage to the thermometer.
•
Do not autoclave. Please note the cleaning procedures described on page 14 of this
manual.
•
Do not use this instrument for any purpose other than that specified in this manual. Doing
so will invalidate the instrument’s warranty.
•
This thermometer complies with current required standards for electromagnetic
interference and should not present a problem to other equipment nor is it effected by
other devices. As a precaution, avoid using this device in close proximity to other
equipment.
Classifications
Type of protection against electric shock:
Degree of protection against
Internally powered equipment
Type BF applied part
electric shock:
Degree of protection against
Not protected
ingress of liquids:
Degree of safety in the
presence of flammable
Equipment not suitable for use with
flammable anesthetics
anesthetics:
Mode of operation:
4
Continuous
71221-0000 Rev. H
2. Operating Characteristics
2.1
Basic System Description
The Welch Allyn® SureTemp® Plus Model 690 and 692 thermometers are portable electronic
thermistor thermometers. Users can measure a patient's temperature in the oral, axillary, and
rectal body sites of adult, pediatric, and newborn patients.
Probe Cover Ejection Button
Probe
Box of Probe Covers
Thermometer
Removable Probe Well
LCD Display
Latching Probe
Connector
Celsius/Fahrenheit Toggle
Button
Battery Door/Probe
Cover Storage
Holder
Pulse Timer Button (M692 only)
Recall Button
Mode Selection Button
Figure 1: Model 692 Thermometer
The thermometer consists of six main components: the instrument, the probe, the removable
probe well, the probe cover, the batteries, and the wall mount.
2.1.1 Instrument
The instrument includes a removable probe well and detachable probe.
2.1.2 Probe
The detachable probes are available in short (standard) or long cord versions and include a
mechanical probe cover ejection mechanism, which is triggered by the user through a simple
finger press. The probes are designed for easy exchange in the clinical environment.
•
The short (standard) coiled cord probe stretches to approximately 4' and has a retracted
length of approximately 10".
•
The long version stretches to approximately 9’ and has a retracted length of
approximately 28".
SureTemp® Plus Service Manual
5
Four probe types are available and interchangeable on the thermometer:
1. A blue Oral/Axillary probe with a short (standard) coiled cord
2. A red Rectal probe with a short (standard) coiled cord
3. A blue Oral/Axillary probe with a long coiled cord
4. A red Rectal probe with a long coiled cord
2.1.3 Probe well
This unit has a removable probe well to allow for ease of cleaning and replacement. The blue
probe well is used with Oral and Axillary probes, and the red probe well is used with Rectal
probes.
2.1.4 Probe covers
The SureTemp® Plus Thermometers must use the standard Welch Allyn® thermistor probe
covers, Part No. 05031. The probe covers are compatible across all Welch Allyn® thermistorbased thermometers.
2.1.5 Batteries
The Model 690 and 692 thermometers use three standard alkaline AA batteries, which provide
longer life than standard AA batteries. No battery charging is available. The thermometer
display will indicate when the batteries need replacement.
2.1.6 Wall Mount
The wall holder is easily secured to a wall. A locking mechanism with a removable key for
securing the instrument is standard on the Model 692 Thermometer and is available as an
option for the Model 690. Through the use of available long cord probes, the thermometer may
be used without removing it from the wall holder.
6
71221-0000 Rev. H
2.2
Model Features
Features of the SureTemp® Plus Thermometer models (690 and 692) are listed below.
Table 2-1: Feature differences between Models 690 and 692
Feature
Model 692
Probe Cover Storage
X
X
F/C Conversion
X
X
Last Temperature Recall
X
X
Monitor Mode
X
X
Detachable Probe
X
X
Oral/Axillary/Rectal Modes on Each
Thermometer
X
X
Color-Coded Removable Probe Well
X
X
Optional
Standard
Wall-Holder
2.3
Model 690
Pulse Timer
X
Backlight
X
Security (Electronic)
X
On-Screen Labeling for Instrument
Identification
X
Operating Features
2.3.1 Instrument Reset
To perform a reset:
1. Remove the batteries from the instrument to reset the internal microprocessor electronics.
Follow the battery removal instructions in the Preventive Maintenance section (page 14).
2. Remove the probe and the probe well from the instrument. Then, unplug the probe
connector by depressing the locking tab and pulling on the connector body. DO NOT pull
on the cord.
3. While watching the display, install the batteries per the instructions in the Preventive
Maintenance section (page 14) and observe the Power-On Self Test described below.
2.3.2 Power-On Self Test (POST)
The self-test will check the internal microprocessor,
instrument electronics, and display for correct operation.
The instrument performs the self-test series following all
power-on or reset cycles. During the self test sequence
the thermometer displays all LCD segments for 2
seconds. Concurrently, the thermometer plays the
power-on audible notification and performs necessary
self-testing.
Figure 2: Model 690 and 692
Thermometer Displays
SureTemp® Plus Service Manual
7
Immediately following the LCD segment test, the software revision is displayed on the screen
for 2 seconds. At the end of the self-test, the display goes blank and the unit is ready to
operate.
2.3.3 Low Power Mode
The Low Power mode allows the thermometer to conserve power when it is not in use.
The unit will automatically enter the Low Power mode following one of these conditions:
1. After a final predicted temperature has been taken, the probe has not been returned to the
well, and the displayed temperature has been on the screen for 30 seconds.
2. When the instrument is in Monitor mode and the probe tip is out of the patient temperature
range (80 F to 110 F) for a period greater than 5 minutes.
3. At the completion of the Recall mode time-out of 5 seconds.
4. Whenever the probe is returned to the well and the probe is plugged into the thermometer.
5. Whenever the probe is unplugged from the thermometer.
6. Whenever the unit is in the Biotech mode and there are no button presses for 5 minutes.
The unit will exit Low Power mode when any button on the instrument is pushed or the probe
switch is activated. When the unit exits Low Power mode after the probe is removed from the
well, all LCD segments are displayed for approximately 2 seconds.
2.3.4 Predict Mode
Predict mode operation is the rapid mode of temperature taking. This is the default mode and
is automatically selected when the probe is withdrawn from the probe well. This mode
provides the clinical user with predictive temperature capability for obtaining oral, rectal,
pediatric axillary (17 years and younger), and adult axillary (18 years and older) temperatures.
If the mode is changed from Predict mode to Monitor mode during normal operation, it will
change back to Predict mode when the probe is returned to the probe well.
1. Upon withdrawal of the probe from its storage well, every segment on the display is
illuminated. The display will then show ORAL, ADULT AXILLARY, PED AXILLARY or
RECTAL, depending on the probe and mode selected. It will also display C or F. In the
upper left hand corner the ID will be displayed if one has been set (Model 692 only), and in
the lower right hand corner the battery icon will be displayed. At the same time that the
mode is displayed, a short beep will sound.
2. To change between the Oral, Adult Axillary, and Pediatric Axillary modes, press and
release the Mode button. Observe that the display changes between ORAL, ADULT
AXILLARY, and PED AXILLARY when the Mode button is pressed and released.
3.
When the correct mode has been selected load a probe cover and take a temperature.
Note: It is possible that the walking segments will start and stop several times before the
probe is inserted into the temperature site. This is acceptable and will not adversely
affect the temperature taken.
8
71221-0000 Rev. H
2.3.5 Monitor Mode
The Monitor mode provides continuous temperature monitoring capability. The recommended
wait time for a Monitor mode oral temperature and a Monitor mode rectal temperature is 3
minutes. The recommended wait time for a Monitor mode axillary temperature is 5 minutes.
The thermometer will automatically switch to Monitor mode under the following conditions:
1. If 60 seconds have passed since the thermometer was removed from the probe well.
2. If the instrument determines that room temperature is above 34.2C (93.5F).
3. If the thermometer is unable to predict an oral or axillary temperature after 20 seconds due
to improper technique or excessive probe movement.
In the normal Predict mode, with correct use, the patient’s oral temperature is displayed in
approximately 4 seconds. The instrument will beep to signal completion of the Predict mode
temperature cycle.
If the probe is left out of the storage well after completion of a Predict mode temperature, the
unit will shut down after 30 seconds and enter Low Power mode to conserve power. Replace
the probe in the storage well to prepare for the next temperature.
WARNING: Continuous monitoring for more than 3-5 minutes is not recommended
in any mode.
Place the instrument in Monitor mode by pressing and releasing the Mode button
after a predictive temperature is taken. This mode is indicated by an icon in the
upper section of the screen.
When the unit enters Monitor mode, by pressing the Mode button after a predictive
temperature is taken, it will emit two quick beeps. If the device enters Monitor mode for any of
the three reasons listed earlier in this section, one long beep will sound to indicate that the unit
has entered Monitor mode. The thermometer will not beep to indicate a final Monitor mode
temperature and Monitor mode temperatures will not be stored in memory.
Monitor mode is also useful in testing the accuracy of the combined probe/instrument system
when the probe is warmed to a known temperature, as with a Welch Allyn® Model 9600 or
9600 Plus Calibration Tester or in a circulating water bath.
Note: The instrument will shut off automatically if the probe temperature remains below
26.7C (80.0F) or above 43.3 C (110.0 F) for more than 5 minutes.
SureTemp® Plus Service Manual
9
2.3.6 Pulse Timer Mode (Model 692 only)
Pulse Timer mode is activated from Low Power or Recall mode by pressing the Pulse Timer
button. The display will then count up in seconds, and the unit will emit an audio beep at 0, 15,
30, 45 and 60 seconds. Pulse Timer mode terminates automatically after 60 seconds. The
thermometer then returns to Low Power mode. The Pulse Timer can be stopped at any time
during the 0-60 count by pressing the Pulse Timer button a second time. Pressing the Recall
button, connecting a probe, or removing the probe from the probe well will also terminate the
pulse timer.
2.3.7 Backlight (Model 692 only)
A backlight is provided by two high-efficiency amber LEDs, each supplied by a separate
ballast resistor. The backlight is turned on automatically in any mode except Low Power mode
and remains on. The backlight will automatically shut off when the unit goes into Low Power
mode.
2.3.8 Horn
The horn is a miniature piezoelectric speaker which produces the audible tones that signal
significant warning events to the user. The following audible signals will be played by the
thermometer.
Table 2- 2: SureTemp® Plus Audible Signals
Signal
Description
Sound
POWER ON
Batteries are inserted in the device.
Charge up sound. Sound starts at a low
frequency, increases in frequency, gets
shorter in duration between each frequency.
POWER OFF
Battery level is too low and the unit is shutting
down.
Charge down sound or losing power sound.
Sound starts at a high frequency, decreases in
frequency, gets longer durations between
each frequency.
COMPLETE
Successful completion of a predict
temperature or pulse timer.
Three quick beeps
OK
Start of Pulse Timer, Recall or Monitor mode
Two quick beeps
OK
Auto Monitor mode
One long beep
ERROR
Final temperature in error or Error mode
Two long beeps
CONFIRM
Any button press
One medium length beep
PULSE
Pulse Timer 15 second sound
One quick beep
SECURITY
Security State; i.e. device removed from
security holder while security enabled and
instant on = ON
Continuous series of beeps
READY
When probe is ready to insert into mouth (not
when probe removed from well).
One medium length beep
10
71221-0000 Rev. H
2.3.9 F/C Conversion
The temperature switches to F or C scale by pressing and releasing the C/F button. The
default temperature scale can be set to F or C in the biotech mode. A temperature must be
displayed on the screen to switch between F and C.
2.3.10 Temperature Recall
This mode displays the most recently completed predicted temperature.
Whenever the instrument is in Low Power or Pulse Timer mode, pressing and releasing the
Recall button on the front panel will cause the most recently predicted temperature to display
for 5 seconds. The unit will then automatically go into Low Power mode.
Pulling the probe from the well in Recall mode will start a predict cycle. To enter Biotech
mode, hold the Recall button down and then pull the probe from the well. Model 692 units
must be in the wall holder to enter Biotech mode.
Pressing the Pulse Timer button on the Model 692 thermometer will interrupt the temperature
recall function.
Note: No Monitor mode temperatures are saved for recall. When a temperature is recalled,
the mode in which it was obtained (Oral, Adult Axillary, Pediatric Axillary, or Rectal) is
displayed, regardless of the current mode the thermometer is in.
2.3.11 Biotech Mode
This mode is used to set and check special features of the thermometer listed in Table 2-1. All
Biotech mode settings are saved so they are not lost when the batteries are replaced.
1. Place the thermometer in the wall holder (Model 692 Only).
2. Press and hold the Recall button, while removing the probe from the probe well. Once the
probe is removed, release the Recall button.
3. Press and release the Recall button to move sequentially through the various program
categories. Changes within each category are made by pressing and releasing either the
Mode Selection or C/F button.
4. The Biotech mode control settings are stored in nonvolatile memory so that they are not
lost when the batteries are changed. The Biotech mode will automatically time out after 5
minutes of inactivity.
5. Replacing the probe into the probe well at any time will exit the Biotech mode and return
the unit to normal operation.
SureTemp® Plus Service Manual
11
The following features and selections are available in the Biotech mode.
Table 2- 3: Biotech Mode Features
Function
Setting
DEVICE VERSION
The display will show “X.X”, where “X.X” is the device software version number (i.e.
1.0). This is helpful when discussing operation with Welch Allyn Customer Care.
ALGORITHM
VERSION
The display should show “X.X” where “X.X” is the mode Software Version (i.e. 7.5).
This is helpful when discussing operation with Welch Allyn Customer Care.
ID
(Model 692 Only)
This section of the display is designed to store up to a seven digit alpha-numeric
thermometer ID. To store the thermometer's ID, press and release either the Mode
or the C/F button to change the value of the flashing digit. Press the Pulse Timer
button to move to the next digit.
DEFAULT MODE
You may choose between four settings as the default predictive mode: Oral, Adult
Axillary, Pediatric Axillary, and Last (last prediction). To change the default mode,
press and release the C/F button or the Mode Selection button to advance to the
next mode. This setting is retained in non-volatile memory when the batteries are
replaced.
UNITS DEFAULT
This section displays the temperature measurement scale. To change the
measurement scale from °F to °C, press and release the C/F button or Mode
Selection button. This setting is retained in non-volatile memory when the batteries
are replaced.
SITE INDICATION
Three options are available for mode indication: icon and words, words only, and
icon only. To change the setting, press and release the Mode Selection button or C/F
button to advance to the next type of indication. This setting is retained in nonvolatile memory when the batteries are replaced.
SECURITY COUNT
(Model 692 Only)
The anti-theft function uses a temperature counter that can be set at OFF, 25, 50,
100, or 200.
•
Press and release the Mode Selection button to select the desired security
count.
•
Press and release the C/F button to select descending security count option (i.e.
200, 100, 50, 25, OFF).
The instrument is set to the selected security count after the probe is returned to the
probe well. This setting is retained in non-volatile memory when the batteries are
replaced.
INSTANT ON
(Model 692 Only)
The thermometer can be set to alarm when removed from the wall holder. This
alarm can be disabled by the user by simultaneously pressing the Mode
Selection button while pulling the probe from the probe well. When this security
feature is set to ON and the thermometer is returned to the wall holder the
security feature is reactivated.
BATTERY
COUNTER
Predictive Temperature
Counter
To set this security feature, press and release the Mode Selection button or C/F
button to select ON (activated) or OFF (deactivated). This setting is retained in
non-volatile memory when the batteries are replaced.
This setting displays the current battery voltage with 10 mV resolution. The battery is
considered acceptable if it measures higher than 3.4 volts. A new battery should
produce 4.5 volts or more.
This setting displays the number of predictive temperature measurements that have
been completed (in 100's).
ERROR LOG
This setting displays the last 10 saved error messages in a last-in, first-viewed
sequence. This is helpful when discussing operation with Welch Allyn Customer
Care. If there are no error messages, the display shows EMPTY LOG.
CLEAR LOG
This setting appears if the thermometer has logged any error messages. Press and
release the Mode Selection button to select YES to clear the error log or NO to keep
the entries in the log.
12
71221-0000 Rev. H
2.4
Instrument Security
Security options include two different electrical security options that alarms after a user
designated number of temperatures is reached or when the unit is removed from the wall
holder (Model 692 only). A mechanical security option is also available to prevent removal of
the unit from the wall mount or mobile stand without a special tool. The design of the
SureTemp® Plus Thermometers allows a facility to apply magnetic or RF security tags to the
unit without adversely affecting the unit’s performance or functionality.
The SureTemp® Plus Model 692 Thermometer has two distinct anti-theft systems available
that are user selectable. Both systems require the use of a holder system with the
thermometer. This setting will be retained in non-volatile memory when the batteries are
replaced.
2.4.1 Temperature Count Security Feature
The Temperature Count security feature allows you to take a set number of temperature
readings before the instrument goes into the security alarm state. The selectable counts are
25, 50, 100, and 200. As the instrument nears the final reading, it will display SECURITY
COUNT as a warning, along with a number representing the last 5 temperature counts (i.e.,
5,4,3,2,1) remaining on the security counter.
When the instrument enters the alarm state, it beeps for approximately 10 seconds. At this
time, the instrument displays SEC on the LCD along with SECURITY COUNT in the ID field in
the upper left-hand corner of the screen. The instrument is then disabled. Returning the
instrument to the wall holder resets the security count. If the count is set to OFF, the
temperature count function is disabled and no security alarm will occur.
This setting is programmable through the Biotech mode (page 11).
2.4.2 Instant-On Security Feature
When the Instant-On security feature is activated, the instrument goes into the security alarm
state within five seconds after removal from the wall holder. When the instrument enters the
alarm state, it beeps continuously and displays SEC on the LCD. Pressing the Mode
Selection button while removing the probe from the probe well, within 30 seconds of the
instruments removal from the wall holder, clears the alarm and allows the instrument to
operate. Returning the instrument to the wall holder will reset the instant audio alarm.
The options for the Instant-On feature are ON and OFF. In the OFF setting, no security alarm
will sound.
This setting is programmable through the Biotech mode (page 11).
SureTemp® Plus Service Manual
13
3. Preventive Maintenance
The following preventive maintenance is recommended to maximize uninterrupted service
with the SureTemp® Plus Model 690 and 692 Thermometers.
3.1
Six-Month Maintenance
Units that are in service on a regular basis should have the following preventive maintenance
performed every six months:
1. Visually inspect the thermometer for any physical damage that might cause future product
failure.
2. Clean the unit per instructions in the Operator’s Manual supplied with the thermometer
and/or per the instructions below.
3.2
Twelve-Month Maintenance
For units in service on a regular basis, perform the Power-On Self Test and Model 9600 or
9600 Plus Calibration Testing procedure every 12 months. The preventive maintenance
procedure is located in the Model 9600 or 9600 Plus Operation Manual.
3.3
Standard Storage
Units which are stored for an extended period should have the following maintenance
performed every 12 months:
1. Remove the batteries before storage.
2. Reinstall the batteries and perform the Power-On Self Test and Model 9600 or 9600 Plus
Calibration Testing procedure found in the Model 9600 or 9600 Plus Operation Manual
before use.
3.4
Cleaning
3.4.1 Cleaning the Thermometer and Probe
•
Wipe the thermometer regularly with a cloth dampened with warm water and a mild
detergent solution.
•
As needed, clean the thermometer and probe with a 70% isopropyl alcohol solution, a
10% chlorine bleach solution, or a non-staining disinfectant.
WARNING: DO NOT immerse or soak the thermometer or probe in any type of fluid.
WARNING: DO NOT use steam, heat or gas sterilization on the thermometer or probe.
DO NOT autoclave the thermometer or the probe.
14
71221-0000 Rev. H
3.4.2 Cleaning The Removable Probe Well
•
Remove the probe well from the unit. Unplug the latching probe connector to prevent the
device from consuming battery power while you are cleaning the probe well.
•
Clean the inner surface of the probe well by swabbing the surface with a cloth dampened
with a mild detergent solution or a 70% isopropyl alcohol, a 10% chlorine bleach solution,
or a non-staining disinfectant.
•
Clean the probe well’s outer surface by swabbing or wiping the surface with one of the
solutions mentioned above.
•
Immerse the probe well in mild detergent solution as necessary for cleaning.
WARNING: DO NOT use hard or sharp objects to clean the probe well. This could
damage the probe well and cause the unit to not function properly.
WARNING: DO NOT use steam, heat or gas sterilization on the thermometer or probe.
DO NOT autoclave the probe well.
3.5
•
Thoroughly dry all surfaces before re-assembling the instrument.
•
Re-connect the latching probe connector to the thermometer. Ensure that the connector
snaps into place.
•
Re-install the probe well in the thermometer and snap the probe well into place.
•
Insert the probe into the well.
Replacing the Batteries
1. Remove the box of probe covers from the probe cover storage compartment on the back
of the unit.
2. Remove the probe and the probe well.
3. Press inward on the textured grips on each side of the assembly to remove the battery
door from the back of the unit.
4. Remove the three AA 1.5Vdc alkaline batteries and replace all three batteries with AA 1.5
Vdc alkaline batteries. Match the +/- polarity of each battery to the +/- symbols inside the
battery compartment.
WARNING: Use size AA 1.5 Vdc alkaline batteries only. Use of any other battery size or
type could damage the thermometer and cause personal injury.
5. Snap the probe cover storage assembly back into place.
6. Replace the probe and probe well.
Note: Remove the batteries, if the instrument is not used for an extended period of time, to
avoid possible damage to the thermometer due to battery leakage.
SureTemp® Plus Service Manual
15
3.6
Calibration Testing
Whenever the clinical accuracy of the thermometer is in question, verify the instrument
calibration. Your hospital biomedical department should establish a routine schedule for
verifying instrument calibration. It is recommended the unit be tested annually.
3.6.1 Cal-Key Verification
This method uses a fixed value to verify that the device is calibrated properly.
1. Remove any probe currently connected to the SureTemp® Plus Thermometer.
2. Connect the SureTemp® Plus Cal-Key (PN 06138-000).
3. Wait one minute for the device to enter Monitor mode and display the temperature.
4. The temperature should read 36.3 +/- 0.1ºC or 97.3 +/- 0.2ºF.
5. Remove the SureTemp® Plus Cal-Key.
6. Connect the original probe back to the device.
3.6.2 Model 9600 Calibration Tester Verification
This method is used to verify the calibration of the unit and probe pairing at two different
temperatures. Use a verified thermometer from the Cal-Key Verification (3.5.1) and a
functioning probe.
Caution: Store thermometers for testing in the same room as the 9600 Calibration Tester for
approximately 30 minutes prior to testing to allow for thermal accomodation.
1. Plug in the Model 9600 Calibration Tester.
2. Choose the 96.4ºF/35.8ºC temperature setting. It is important to use the lower
temperature setting first because the stabilization time from a high temperature to a low
temperature takes about 20 minutes. Stabilization from lower temperature to higher
temperature requires about four (4) minutes.
3. Wait for the Ready or green light to come on and stay on. This should take about six (6)
minutes.
4. Remove the probe from the well and clean it with either a 70% isopropyl alcohol solution,
a 10% chlorine bleach solution, or a non-staining disinfectant. Let the probe air dry. Do not
apply a probe cover. Place the thermometer in Monitor Mode. Refer to the thermometer’s
Operator’s Manual.
5. Lift the rubber flap on the 9600 and insert the probe fully into the small hole on top
of the 9600.
6. Wait 2 minutes for the probe temperature to fully stabilize. The temperature should read
between 96.1ºF/35.6ºC and 96.7ºF/36.0ºC.
7. Remove the probe from the small hole on top of the 9600 and replace it in the probe well.
8. Change the temperature setting to the 106ºF/41.1ºC setting.
9. Wait for the Ready or green light to come on and stay on. This should take about four (4)
minutes.
10. Pull the probe from the well, but do not load a probe cover. Place the thermometer in
Monitor Mode. Refer to the thermometer’s Operator’s Manual.
16
71221-0000 Rev. H
11. Lift the rubber flap on the Model 9600 Calibration Tester and insert the probe fully into the
small hole on top of the tester.
12. Wait two (2) minutes for the probe temperature to fully stabilize.
13. The temperature should read between 105.7ºF/40.9ºC and 106.3ºF/41.3ºC.
3.6.3 Model 9600 Plus Calibration Tester Verification
This method is used to verify the calibration of the unit and probe at three set point
temperatures 36.0ºC (96.8ºF), 38.5ºC (101.3ºF), 41.0ºC (105.8ºF). Use a verified
thermometer from the Cal-Key Verification (3.5.1) and a functioning probe.
Caution: Store thermometers for testing in the same room as the 9600 Plus Calibration Tester
for approximately 30 minutes prior to testing to allow for thermal accomodation.
1. Plug in the Model 9600 Plus Calibration Tester wall transformer to electrical power.
2. The 36.0ºC (96.8ºF) temperature setting is selected when the calibration tester is first
powered on.
If the calibration tester is all ready powered on, change the temperature setting on the
Model 9600 Plus Calibration Tester to 36.0ºC (96.8ºF) with the up/down arrow key
(temperature will scroll through the 3 settings).
It is important to use the lower temperature setting first because the stabilization time from
high temperature to low temperature takes about twenty (20) minutes. Stabilization time
from a lower temperature to a higher temperature takes about six (6) minutes.
3. Wait for the displayed temperature to stop blinking. The actual temperature displayed
blinks until the set temperature has stabilized.
4. Remove the probe from the thermometer well and clean it with either a 70% isoprophyl
alcohol solution, a 10% chlorine bleach solution, or a non-staining disinfectant. Let the
probe air dry for at least five minutes. Do not apply a probe cover. Place the thermometer
in Monitor Mode. Refer to the thermometer’s Operator’s Manual.
5. Rotate the dust cover down so the Thermistor Device Port is open/available, leaving the
Ear Device Port covered, and insert the probe fully into the small hole on top of the Model
9600 Plus Calibration Tester.
6. Wait for approximately one minute or until temperature on the thermometer is stable for
ten seconds. Compare the thermometer’s temperature reading to the 9600 Plus’
calibration set point temperature. If the temperatures are within + 0.1ºC (+ 0.2ºF), the
thermometer is within calibration.
7. Remove the probe from the probe well and place back into the thermometer probe well.
8. Test all available thermometers for calibration verification at the current calibration set
point temperature. Proceed to the next calibration set point temperature.
To scroll from one set point to the next, press and hold the temperature selection button
until a beep is heard. The newly selected set point appears in the upper left corner of the
LCD display. The device’s current temperature is displayed, will start to flash, and continue
flashing until the cavity reaches the equilibrium at the new set point.
9. When done testing all thermometers at all temperature set points, close the dust cover on
the Model 9600 Plus Calibration Tester.
SureTemp® Plus Service Manual
17
4. Troubleshooting
Verify your Biotech Mode settings (page 11) to verify your device is configured properly.
If the device accuracy is in question, refer to the Calibration section on page 16.
If the above two tests do not help or cannot be done, read through the following to help
diagnose the unit.
4.1
Types of Errors
Error indications fall into five major categories.
4.1.1 Battery Indications
Battery error occurs when the instrument detects the following:
Table 4- 1: Battery Indications
Display
Error
Indication
Battery below
operational range
(< 3.00v)
Blinking battery frame, b on main
display, arrow pointing down.
Battery above
operational range
(> 5.375v)
Blinking battery frame, b on main
display, arrow pointing up.
Battery Low
Warning
(> 3.0v & <= 3.4v)
Single blinking battery segment in
battery indicator.
Battery levels
Gradual decline in number of
segments showing in battery
indicator.
4.1.2 Ambient Temperature Out of Range
Ambient Temperature errors occur when the ambient probe temperature is
above 104.0° F or below 50.0° F. During an ambient temperature error, the
display in the temperature number field shows a capital “A” followed by a
blinking up or down arrow and a blinking thermometer bulb.
18
Sure Temp® Plus Service Manual
4.1.3 Patient Temperature Out of Range
Patient Temperature Out of Range errors occur when the patient
temperature is above 110.0° F or below 80.0° F. During this error, the
entire body (head, torso, and legs) displays by blinking with a solid up or
down arrow and a thermometer bulb.
4.1.4 Probe Errors
The probe or probe connector can generate errors. Probe errors are
displayed as a probe with an X through it and an error code in the
temperature field. In most cases this will represent a broken probe that
needs replacing and the code will tell what error was detected.
Temperature measuring is prohibited until the error is cleared.
4.1.5 Instrument Errors
Instrument Circuitry errors are generated from internal test failures.
Instrument errors are displayed as an instrument with an X through it and an
error code in the temperature field. In most cases this will represent a broken
instrument that needs replacing and the code will tell what error was
detected. Error code numbers are available in Biotech mode under Error Log
(see page 11).
71221-0000 Rev. H
19
4.1.6 Error Codes: Troubleshooting
The following table describes the error codes displayed on the thermometer, their
corresponding descriptions, and the actions to take to correct the error. If the unit fails to
operate properly after completing the suggested procedure listed in the following table, contact
Welch Allyn® Customer Care at 1-800-535-6663.
Table 4- 2: Error Codes: Troubleshooting
Error
Code
Description
Troubleshooting Steps
E0.1
Excessive Heater Energy
Try another predict cycle.
If the problem persists replace the probe or contact Welch
Allyn Customer Care.
E0.2
A/D Measurement out of
range error.
Make sure the temperature is within the operating range of
50ºF/10ºC and 104ºF/40ºC
If the problem persists replace the probe or contact Welch
Allyn Customer Care.
E0.4
Probe Over Temperature
(110ºF/43.3ºC)
Make sure the tip temperature is below 110ºF/43.3ºC.
If the problem persists replace the probe or contact Welch
Allyn Customer Care.
E0.5
No Probe Temperature Rise.
(The heater has no effect.)
Try another predict cycle.
If the problem persists replace the probe or contact Welch
Allyn Customer Care.
E0.6
Probe EEPROM read failure.
(Bad EEPROM handshake.)
Verify the batteries are fresh.
If the problem persists replace the probe.
E0.7
Probe EEPROM is
un-initialized.
Verify that the batteries are fresh.
If the problem persists replace the probe.
E0.8
EEPROM CRC Failure
(EEPROM is corrupted.)
Verify that the batteries are fresh.
If the problem persists contact Welch Allyn Customer Care.
E0.9
Bad probe calibration.
Replace with a calibrated probe.
E4.0
PTB measurement out of
range.
Try another predict cycle.
If the problem persists contact Welch Allyn Customer Care.
E4.1
RCAL measurement out of
range.
Try another predict cycle.
If the problem persists contact Welch Allyn Customer Care.
E4.2
Reference power supply
malfunction.
If the problem persists contact Welch Allyn Customer Care.
E4.3
Device EEPROM save
failure.
Verify that the batteries are fresh.
If the problem persists contact Welch Allyn Customer Care.
E4.4
Device EEPROM starting
handshake failure.
Verify that the batteries are fresh.
If the problem persists contact Welch Allyn Customer Care.
E4.5
Device EEPROM response
failure.
Verify that the batteries are fresh.
If the problem persists contact Welch Allyn Customer Care.
E4.6
Transmit failure to the
Device EEPROM.
Verify that the batteries are fresh.
If the problem persists contact Welch Allyn Customer Care.
E4.7
Can’t initialize the device
EEPROM
If the problem persists contact Welch Allyn Customer Care.
E4.8
Device was not calibrated
Replace the device with a calibrated device.
E5.0
Heater is not working
properly.
Try another cycle.
If the problem persists contact Welch Allyn Customer Care.
20
Sure Temp® Plus Service Manual
Table 4- 2: Error Codes: Troubleshooting
Error
Code
Description
Troubleshooting Steps
E5.2
Heater fail-safe failure.
Contact Welch Allyn Customer Care.
23
Host Interface Error
Try another predict cycle.
If the problem persists contact Welch Allyn Customer Care.
26
Invalid SureTemp mode
Try another predict cycle.
If the problem persists contact Welch Allyn Customer Care.
29
Battery Voltage Is Not Set
Try another predict cycle.
If the problem persists contact Welch Allyn Customer Care.
30
Prediction mode Is Not Set
Try another predict cycle.
If the problem persists contact Welch Allyn Customer Care..
71
Device EEPROM acquire
failure
Try another predict cycle.
If the problem persists contact Welch Allyn Customer Care.
72
Device EEPROM release
failure
Try another predict cycle.
If the problem persists contact Welch Allyn Customer Care.
73
DEVICES EEPROM invalid
pointer failure.
Try another predict cycle.
If the problem persists contact Welch Allyn Customer Care.
b^
Battery voltage too high.
Replace the batteries with batteries that provide less then 5.50
volts to the SureTemp® Plus.
bv
Battery voltage too low.
Replace the batteries with new batteries.
If problem does not go away and the batteries are known as
good (>= 3.1 volts applied) contact Welch Allyn Customer
Care.
A^!
Ambient temperature too
high.
Move into an area where the temperature is between 50ºF/
10ºC and 110ºF/43.3ºC and allow the thermometer to stabilize
to ambient temperature.
If problem persists replace the probe or contact Welch Allyn
Customer Care.
Av!
Ambient temperature too
low.
Move into an area where the temperature is between 50ºF/
10ºC and 110ºF/43.3ºC.
If the problem persists replace the probe or contact Welch
Allyn Customer Care.
Patient Temperature out of
range. < 80ºF/26.7ºC or >
110ºF/43.3ºC
Make sure the probe is positioned properly within the patient
body site, with good tissue contact, and/or verify the patient's
temperature is in the range.
Try another temperature cycle with the probe positioned
properly.
If the problem persists, replace the probe or contact Welch
Allyn Customer Care.
Note: If your thermometer is within the warranty period, you should return the unit to an
authorized service representative for servicing. Failure to do so will invalidate the
warranty.
71221-0000 Rev. H
21
4.2
Field Serviceable Repairs
The only operations that are performed by field personnel are calibration verification, probe or
probe well replacement, battery replacement, and unit replacement.
4.3
Field Serviceable Parts
The following parts are serviceable by qualified technicians.
Note: The following parts list is current as of the date of publication. Parts and part numbers
may change without notice. Check with Welch-Allyn® Customer Care prior to ordering
parts to verify you have current part number information.
Table 4- 3: Field Serviceable Parts
22
Part #
Description
01802-110
9600 Plus Calibration Tester
02891-000
Removable Probe Well (Blue)
02891-100
Removable Probe Well (Red)
02892-000
Probe and Well Kit (Incl. Probe) 4 ' Rectal
02892-003
Probe and Well Kit, 4’, Vet
02892-100
Probe and Well Kit (Incl. Probe) 9 ' Rectal
02892-103
Probe and Well Kit, 9’, Vet
02893-000
Probe and Well Kit (Incl. Probe) 4 ' Oral
02893-100
Probe and Well Kit (Incl. Probe) 9 ' Oral
05031-101
Disposable Probe Covers - 1000/Case
25261-0000
Housing, Front, M690-692
25262-0000
Housing, Rear, M690-692
25263-0000
Housing, Battery Door, M690/692
25278-0000
Cover, Serial Port
53009-000
Batteries AA Alkaline
71209-0000
Label, Front, M690/Green
71209-1000
Label, Front, M692/Blue
71210-0000
Label, Icon ID, M690/692, English
71221-0000
Technical, Manual, M690/692
71213-0000
Operators Manual (DFU)
716691
Switch Array, M690
716692
Switch Array, M692
83216-0000
Scr, Plastite, Phil,#2-28X.313L
Sure Temp® Plus Service Manual
5. Theory of Operation
5.1
Technical Overview
The SureTemp® Plus Model 690 and 692 are portable, battery powered thermistor-based
medical grade thermometers that perform oral, axillary, and rectal measurements using highspeed prediction modes.
The devices perform a power-on self test (POST) when battery power is applied. POST
checks the internal hardware, and tests the stored calibration values to verify that the factory
calibration is intact. When a thermometer probe is connected, the device reads data from the
probe to determine the type of probe and probe calibration values. The thermometer will go
into Low Power mode when inactive to maximize battery life.
A predict measurement cycle is initiated when a connected thermometer probe is pulled from
the probe well of the device. When the probe is pulled from the probe well the optical probe
detection switch wakes up the microprocessor and a measurement cycle begins. The device
pre-heats the probe tip (Oral and Axillary only) to create a stable thermal environment at the
probe tip. When the tip is applied to the patient the tip heater is turned off. The thermistor value
is monitored by the microprocessor and other internal circuitry. The microprocessor uses
internal modes to process the thermistor data and calculate a patient’s temperature. The
temperature data is then displayed to the user on the LCD. It is also possible to switch the
thermometer to Monitor mode, which displays real-time data from the thermistor.
The Model 692 thermometer includes a backlit LCD for viewing in low ambient light conditions
and a security mode that disables device operation when used outside the programmed
security parameters.
S u r e T e m p P lu s S y s te m
S y s te m
In p u ts
In te rn a l S y s te m
P r o b e D ig it a l
In te rfa c e
K e yp a d
B lo c k D ia g r a m
E E P R O M
S y s te m
O u tp u ts
S e c u r it y S w itc h
( 6 9 2 O n ly )
M ic r o p r o c e s s o r
C u s to m
L C D
O p t ic a l P r o b e
S w it c h
A n a lo g to D ig it a l
C o n v e r s io n
P O W E R
Q ty = 3 A A
B a t t e r ie s
B e e p e r
C O N D IT IO N IN G
R e g u la t e d A n a lo g
P o w e r S u p p ly
A n a lo g C ir c u it r y
P r o b e A n a lo g
In te rfa c e
S e r ia l I n t e r f a c e
( W e lc h A lly n
F a c t o r y U s e O n ly )
Figure 3:
71221-0000 Rev. H
Model 690 and 692 Thermometers System Block Diagram
23
5.1.1 Temperature Probes
Model 690 and 692 Thermometer probes are configured at the factory to be Oral/Axillary or
Rectal probe types.
The probe contains a thermistor, a heater resistor, and an EEPROM.
Table 5- 1: Probe Parts
Probe Part
Description
Thermistor
Heat Resistor
The Thermistor is used to sense patient temperature.
EEPROM
During calibration, the I2C SDA line is accessed via the probe connector and
SCL by a special probe connection that does not connect to the thermometer.
The thermometer reads the EEPROM via its 2-wire serial-only (VESA DDC1)
interface. The interface is guaranteed to work with VCC of 2.7 to 5.25 volts.
The heater is used to create a stable thermal environment at the tip of the
probe prior to applying the tip to the patient.
5.1.2 Probe Switch
The probe switch is an optical LED switch. It is arranged as an open circuit when the probe is
in the well, to save power. This causes a High-to-Low transition when the probe is pulled.
5.1.3 Power Supply
Power for the Model 690 and 692 is drawn from the three AA alkaline cells directly to the
circuit electronics, providing a peak voltage of 4.8V and an average voltage of 3.60 V. Under
normal use, battery life is expected to provide approximately 5,000 temperature
measurements for Model 692, and 6,000 temperature measurements for Model 690. This
number is based on a 22.2 ºC (72.0 F) ambient temperature, with the security features turned
off. Colder ambient temperatures, excessive security alarms, use of non-alkaline batteries,
and other usage patterns can reduce battery life. Instruments are shipped with fresh batteries,
but we cannot guarantee full life from the first set of batteries due to potential long storage
times between shipping and actual use. Battery life is also reduced by storage at elevated
temperatures.
The battery holder is interlocked to prevent reverse polarity. This is an important aspect of safe
operation of the unit.
5.1.4 Low Battery Detection
The Model 690 and 692 Thermometers include a low battery detector circuit, which shuts the
device off when the battery degrades below 3 volts. This ensures that erroneous temperature
readings are not given due to a low battery.
5.1.5 Temperature Measurement and Display
The thermometer probes incorporate negative temperature coefficient thermistors. When the
temperature of the probe is increased, its electrical resistance decreases.
Model 690 and 692 Thermometers use 20K thermistors, providing a resistance of
approximately 20 K at room temperature. At 37°C (patient temperatures) they are near 12
K. The change in resistance is nonlinear with temperature and an equation describing this
curve is programmed into the thermometer.
24
Sure Temp® Plus Service Manual
Appendix A
Specifications
Ambient Operating Temperature Range
50.0 F to 104.0 F (10.0 C to 40.0C)
Operating Altitude
-557 ft. to +16,000 ft / -170m to +4877m
Patient Temperature Range
80.0 F to 110.0 F (26.7 C to 43.3 C)
Temperature Predict Time*
Oral:
Approximately 4–6 secs.
Adult axillary (18 years and older):
Approximately 12–15 secs.
Pediatric axillary (17 years and younger):
Approximately 10–13 secs.
Rectal:
Approximately 10–13 secs.
Transport/Storage Temperature
-13°F to +131°F (-25°C to +55°C)
Calibration Accuracy
+/- 0.2 F (0.1 C) (Monitor Mode)
Humidity
15% to 95% non-condensing
Dimensions
8.46” x 3.18” x 2.43”
(215mm x 81mm x 62mm)
Weight
12.6 ounces/357 grams
Power
(3) 1.5Vdc AA batteries
Equipment Classification
Class 2 Device, Continuous Operation
Not AP or APG equipment
IPXØ
Not protected against the ingress of water.
* Predict time depends on probe placement and patient condition. Predict times do not include
tissue contact-detection time or time needed to place the probe into the measurement site.
71221-0000 Rev. H
25
Appendix B
Limited Warranty
THREE-YEAR LIMITED WARRANTY ON MODEL 692 AND TWO-YEAR
LIMITED WARRANTY ON MODEL 690 INSTRUMENTS
Instrumentation purchased new from Welch Allyn, Inc. (Welch Allyn) is warranted to be free
from original defects in material and workmanship under normal use and service for a period
of three years for Model 692 and a period of two years for Model 690 from the date of first
shipment from Welch Allyn. This warranty shall be fulfilled by Welch Allyn or its authorized
representative repairing or replacing at Welch Allyn’s discretion, any such defect, free of
charge for parts and labor.
Welch Allyn must be notified via telephone of any defective product and the item must be
immediately returned, with an RMA number provided by Welch Allyn, securely packaged and
postage prepaid to Welch Allyn. Loss or damage in shipment shall be at the purchaser’s risk.
Welch Allyn will not be responsible for loss associated with the use of any Welch Allyn product
that (1) has had the serial number defaced, (2) has been repaired by anyone other than an
authorized Welch Allyn Service Representative, (3) has been altered, (4) has been used in a
manner other than in accordance with the instructions, or (5) has been abused or exposed to
extreme environmental conditions.
ONE-YEAR LIMITED WARRANTY ON PROBES AND PROBE COVERS
Welch Allyn warrants probes and probe covers to meet Welch Allyn’s specifications for the
Product at the time of purchase and to be free from original defects in material and
workmanship under normal use and service for a period equal to one-year from the date of
first shipment of such Product to the customer by or on behalf of Distributor. Probe covers are
intended for single use only.
NINETY DAY LIMITED WARRANTY ON REMOVABLE PROBE WELLS
Removable probe wells (blue oral and red rectal) are warranted to be free from original defects
in material and workmanship under normal use and service for a period of ninety days from
the date of first shipment from Welch Allyn.
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY IMPLIED WARRANTY OR
MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, OR OTHER WARRANTY OF
QUALITY, WHETHER EXPRESSED OR IMPLIED. WELCH ALLYN WILL NOT BE LIABLE
FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE SALE,
USE, OR IMPROPER FUNCTIONING OF THE INSTRUMENTATION REGARDLESS OF
THE CAUSE. THE DAMAGES FOR WHICH WELCH ALLYN WILL BE RESPONSIBLE
INCLUDE, BUT ARE NOT LIMITED TO, LOSS OF REVENUE OR PROFIT, DOWNTIME
COSTS, AND LOSS OF USE OF THE INSTRUMENTATION.
26
Sure Temp® Plus Service Manual
4341 State Street Road
Skaneateles Falls, NY 13153
Tel: +1 800 535 6663
Fax: +1 315 685 3361
www.welchallyn.com
71221-0000 Rev H
