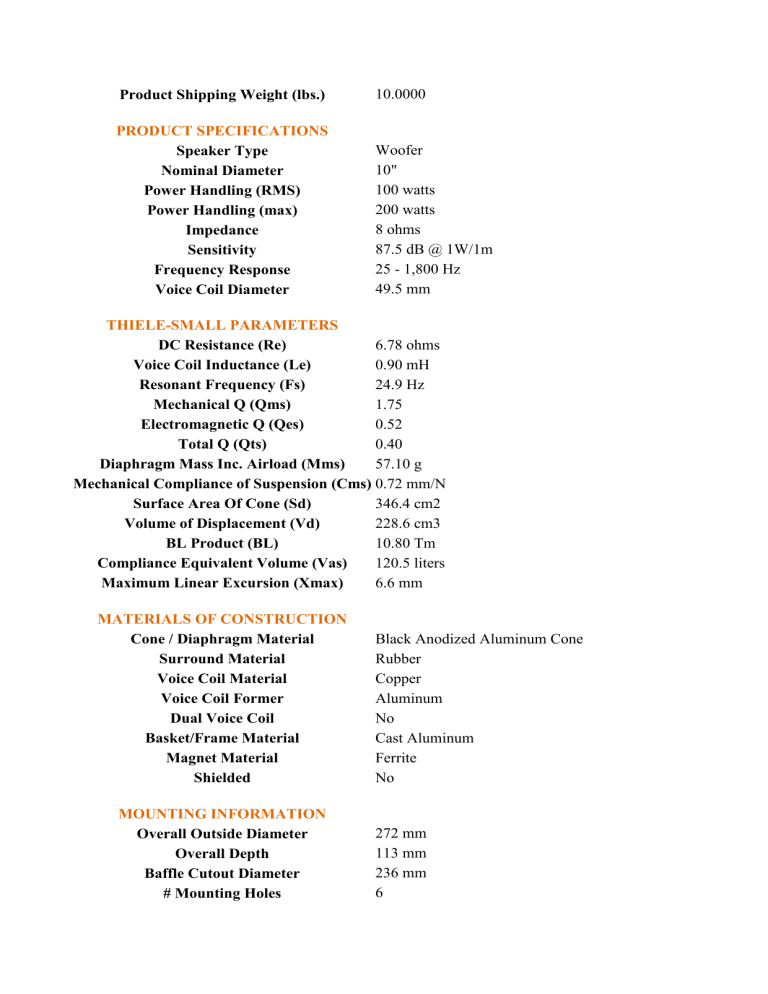

Product Shipping Weight (lbs.)
10.0000
PRODUCT SPECIFICATIONS
Speaker Type
Nominal Diameter
Power Handling (RMS)
Power Handling (max)
Impedance
Sensitivity
Frequency Response
Voice Coil Diameter
Woofer
10"
100 watts
200 watts
8 ohms
87.5 dB @ 1W/1m
25 - 1,800 Hz
49.5 mm
THIELE-SMALL PARAMETERS
6.78 ohms
DC Resistance (Re)
0.90 mH
Voice Coil Inductance (Le)
24.9 Hz
Resonant Frequency (Fs)
1.75
Mechanical Q (Qms)
0.52
Electromagnetic Q (Qes)
0.40
Total Q (Qts)
57.10 g
Diaphragm Mass Inc. Airload (Mms)
Mechanical Compliance of Suspension (Cms) 0.72 mm/N
346.4 cm2
Surface Area Of Cone (Sd)
228.6 cm3
Volume of Displacement (Vd)
10.80 Tm
BL Product (BL)
120.5 liters
Compliance Equivalent Volume (Vas)
6.6 mm
Maximum Linear Excursion (Xmax)
MATERIALS OF CONSTRUCTION
Cone / Diaphragm Material
Surround Material
Voice Coil Material
Voice Coil Former
Dual Voice Coil
Basket/Frame Material
Magnet Material
Shielded
MOUNTING INFORMATION
Overall Outside Diameter
Overall Depth
Baffle Cutout Diameter
# Mounting Holes
Black Anodized Aluminum Cone
Rubber
Copper
Aluminum
No
Cast Aluminum
Ferrite
No
272 mm
113 mm
236 mm
6
