Model No. IMTL15905.0
Serial No.
Find the serial number in the location
shown below. Write the serial number
in the space above for reference.

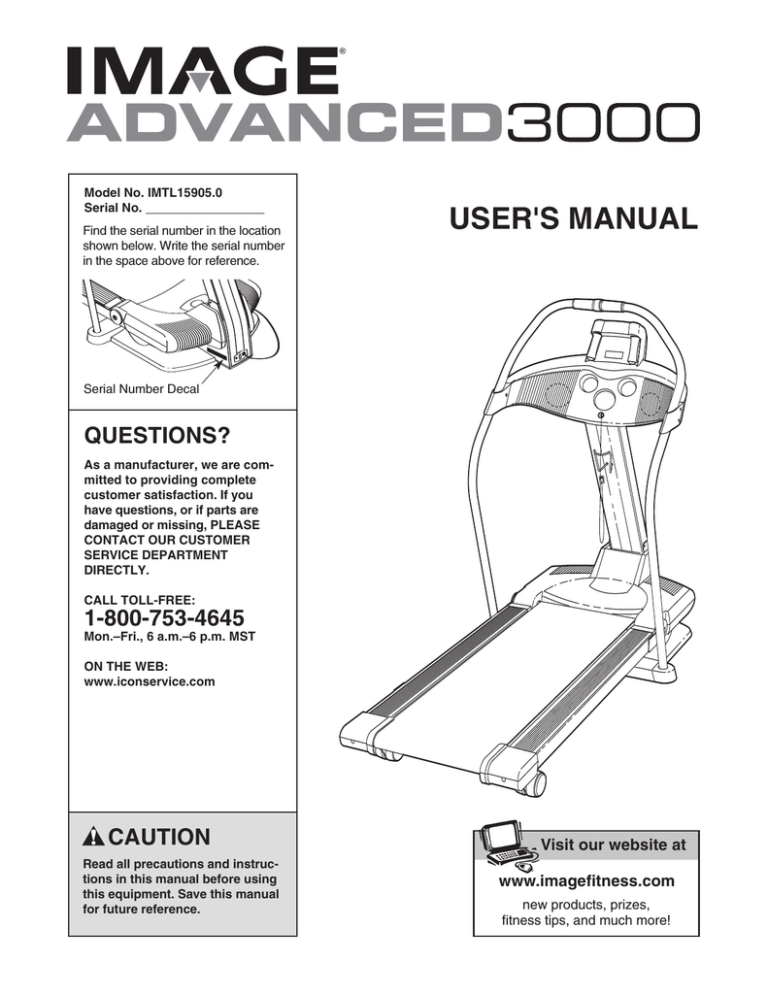

USER'S MANUAL
Serial Number Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. Visit
If you our website at
have questions, or if parts are
damaged or missing,
PLEASE
www.proform.com
CONTACT OUR CUSTOMER
new products, prizes,
SERVICE DEPARTMENT
fitness tips, and much more!
DIRECTLY.
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
CALL TOLL-FREE:
1-800-753-4645
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.iconservice.com
Visit our website at
Visit our website at
www.healthrider.com
www.jumpking.com
new products, prizes,
fitness tips, and much more!
new products, prizes,
fitness tips, and much more!
CAUTION
Visit our website at
Read all precautions and instructions in this manual
before using
www.nordictrack.com
this equipment. Save this manual
for future reference. new products, prizes,
fitness tips, and much more!
Visit our website at
www.imagefitness.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
HOW TO FOLD AND MOVE THE INCLINE TRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING is attached in the center of this manual.
IMAGE is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the Incline Trainer.
this manual and order part number 146148, or
see your local electronics store.
1. It is the responsibility of the owner to ensure
that all users of this incline trainer are adequately informed of all warnings and precautions.
12. Failure to use a properly functioning surge suppressor could result in damage to the control
system of the incline trainer. If the control system is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
2. Use the Incline Trainer only as described.
3. Place the Incline Trainer on a level surface,
with at least eight feet of clearance behind it
and two feet on each side. Do not place the
Incline Trainer on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the Incline Trainer.
13. Keep the power cord and the surge suppressor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the Incline
Trainer if the power cord or plug is damaged,
or if the Incline Trainer is not working properly. (See BEFORE YOU BEGIN on page 5 if
the Incline Trainer is not working properly.)
4. Keep the Incline Trainer indoors, away from
moisture and dust. Do not put the Incline
Trainer in a garage or covered patio, or near
water.
5. Do not operate the Incline Trainer where
aerosol products are used or where oxygen is
being administered.
15. Read, understand, and test the emergency
stop procedure before using the treadmill (see
OPERATION AND ADJUSTMENT on page 11).
6. Keep children under the age of 12 and pets
away from the Incline Trainer at all times.
16. Never start the Incline Trainer while you are
standing on the walking belt. Always hold the
handrails while using the Incline Trainer.
7. The Incline Trainer should not be used by persons weighing more than 300 pounds.
17. The Incline Trainer is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
8. Never allow more than one person on the
Incline Trainer at a time.
9. Wear appropriate exercise clothes when
using the Incline Trainer. Do not wear loose
clothes that could become caught in the
Incline Trainer. Athletic support clothes are
recommended for both men and women.
Always wear athletic shoes. Never use the
Incline Trainer with bare feet, wearing only
stockings, or in sandals.
18. The pulse sensor is not a medical device.
Various factors, including the user’s movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
19. Never leave the Incline Trainer unattended
while it is running. Always remove the key, unplug the power cord, and switch the reset/off
circuit breaker to the off position when the
Incline Trainer is not in use. (See the drawing
on page 5 for the location of the reset/off circuit breaker.)
10. When connecting the power cord (see page 11),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
20. Do not attempt to raise, lower, or move the
Incline Trainer until it is properly assembled.
(See ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE Incline Trainer on page 28.)
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the Incline Trainer.
11. Use only a single-outlet surge suppressor
that meets all of the specifications described
on page 11. To purchase a surge suppressor,
see your local IMAGE dealer or call the tollfree telephone number on the front cover of
3
21. Do not change the incline of the Incline
Trainer by placing objects under the Incline
Trainer.
buttons. However, when the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
26. Always remove iFIT.com CDs and videos from
your CD player or VCR when you are not
using them.
22. Use the upper body handles only at walking
speeds. Using the handles and not holding
the handrails may compromise your ability to
maintain your balance. Exercises using the
handles should be attempted only by experienced users.
27. Inspect and properly tighten all parts of the
Incline Trainer regularly.
28. Never insert or drop any object into any
opening.
23. When folding or moving the Incline Trainer,
make sure that the storage latch is fully
closed.
29.
DANGER: Always unplug the power
cord immediately after use, before cleaning
the Incline Trainer, and before performing the
maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
24. When using iFIT.com CDs and videos, an
electronic “chirping” sound will alert you
when the speed and/or incline of the Incline
Trainer is about to change. Always listen for
the “chirp” and be prepared for speed and/or
incline changes. In some instances, the speed
and/or incline may change before the personal trainer describes the change.
25. When using iFIT.com CDs and videos, you
can manually override the speed and incline
settings by pressing the speed and incline
30. The Incline Trainer is intended for in-home
use only. Do not use the Incline Trainer in a
commercial, rental, or institutional setting.
WARNING:
Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown here have been placed on your incline trainer. If a decal is missing, or
if it is not legible, please call the toll-free telephone number on the front cover of this
manual and order a free replacement decal. Apply the decal in the location shown. Note:
The decals may not be shown at actual size.
!
Crush Zone
Keep Children Away
Treadmill moves down
with force.
4
50%
BEFORE YOU BEGIN
Thank you for selecting the revolutionary IMAGE®
ADVANCED 3000 Incline Trainer. The ADVANCED
3000 Incline Trainer offers a selection of features designed to make your workouts at home more enjoyable
and effective. And when you’re not exercising, the
unique ADVANCED 3000 Incline Trainer can be folded
up, requiring less floor space.
model number and serial number before calling. The
model number of the incline trainer is IMTL15905.0.
The serial number can be found on a decal attached to
the incline trainer (see the front cover of this manual
for the location).
To avoid a registration fee for any service needed
under warranty, you must register the Incline
Trainer at www.iconservice.com/registration.
For your benefit, read this manual carefully before
you use the incline trainer. If you have questions
after reading this manual, please see the front cover of
this manual. To help us assist you, note the product
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Handgrip Pulse Sensor
Handrail
Upper Body Handles
Console
Latch Knob
Fan
Key/Clip
Water Bottle Holder*
Reset/Off
Circuit Breaker
Walking Belt
Power Cord
Foot Rail
Cushioned Walking Platform
Rear Roller
Adjustment Bolts
*No water bottle is included
5
w (123)–2
3/4” Tek Screw (58)–4
1/2” Silver Screw
(48)–1
Spacer Screw (60)–2
ASSEMBLY
To hire an authorized service technician to assemble the Incline Trainer, call toll-free 1-800-445-2480.
Assembly requires two persons. Set the Incline Trainer in a cleared area and remove all packing materials. Do
not dispose of the packing materials until assembly is completed.
Note: The underside of the Incline Trainer walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a
normal condition and does not affect Incline Trainer performance. If there is lubricant on top of the walking belt,
simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrench
and your own phillips screwdriver
and
wire cutters
. For help identifying the assembly hardware, see the hardware drawings below.
3/4” Tek Screw (94)–10
3/4” Screw (66)–5
Washer (97)–2
3/4” Bolt (60)–4
3” Bolt (98)–2
1” Bolt (55)–6
1. To protect the floor during assembly, place a sheet
of cardboard under the pallet as shown.
1
With the help of a second person, carefully raise the
Upright (110) to the position shown.
110
While the other person holds the Upright (110), firmly
tighten two 1” Bolts (55) into the lower end of the
Upright and the Upright Base (96).
115
Insert the Power Cord (85) through the hole in the
Upright Cover (115). Press the Upright Cover onto the
Upright (110). Make sure that the Upright Cover is
securely held by the clips along the opening in the
Upright. Tighten a 3/4” Screw (66) into the lower end of
the Upright Cover. Be careful not to over tighten the
3/4” Screw.
3/4” Tek Screw (44)–4
1” Tek Screw (82)–2
55
96
Short Console
Bolt (112)–2
85
Cardboard
Star Washer
(67)–8
Pallet
Extension Screw
(87)–4
3/4” Screw (7)–2
6
Pulse Bar Bolt (66)–4
66
2. Insert a Handrail (67) into the Upper Handrail (68) as
shown. The lower end of the Handrail should sit on the
Base Hood (105) as shown. (Note: It may be necessary to
twist the Handrail as you insert it. It may also be necessary to loosen the two Screws [3] several turns.) Next,
tighten two 3/4” Screws (66) into the Handrail. If you
loosened the Screws, retighten them.
2
68
3
66
67
Attach the other Handrail (not shown) to the left side of
the Incline Trainer in the same way.
105
3. Interlock the tabs on the Right Outer Cover (88) with the
tabs on the Right Inner Cover (65). Attach the Right Outer
Cover with two 3/4” Bolts (60) as shown
3
88
65
60
4. Interlock the tabs on the Left Outer Cover (61) with the
tabs on the Left Inner Cover (106). Attach the Left Outer
Cover with two 3/4” Bolts (60).
Remove the knob from the pin. Make sure that the collar and the spring are on the pin. Insert the threaded
end of the pin through the hole in the Left Inner Cover
(106) and the hole in the Left Outer Cover (61). Tighten
the knob back onto the pin.
4
Knob 60
61
106
Spring
Collar
Pin
7
5. With the help of a second person, carefully tip the Upright
Base (96) to the position shown.
5
Pallet
Remove the four indicated bolts and washers attaching
the pallet to the Upright Base (96). Discard the pallet,
bolts, and washers.
Bolts,
Washers
96
Bolts,
Washers
6. Attach the Upright Base Pad (103) and the six Base Pads
(93) to the bottom of the Upright Base (96) with ten 3/4”
Tek Screws (94) as shown.
6
103
94
93
94
94
93
96
93
94
94
93
94
94
93
8
94
93
7. Tighten two 3” Bolts (98) with two Washers (97) into the
bottom of the Upright Base (96) and the Handrails (67)
(only one Handrail is shown). Firmly tighten the Bolts.
7
With the help of a second person, carefully tip the Upright
Base (96) so it is flat on the floor. Remove the cardboard
from underneath the Upright Base.
98
97
96
67
98
97
8. Fold the Incline Trainer to the storage position (see HOW
TO FOLD THE INCLINE TRAINER FOR STORAGE on
page 28).
8
Slide the Right Wheel Bracket (59) into the slot in the
Right Rear Endcap (57). Align the holes in the Bracket
with the holes in the Frame (43). Attach the Bracket to the
Frame with two 1” Bolts (55).
57
59
Attach the Left Wheel Bracket (not shown) in the same
way.
43
55
9. Make sure that all parts are properly tightened before you use the Incline Trainer. Keep the included
allen wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 31). To protect
the floor or carpet from damage, place a mat under the Incline Trainer.
9
If you purchase the optional chest pulse sensor (see page 27), follow the steps below to install the receiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged.
1
Look under the Console Back (69) and locate the Access
Door (112) on the indicated side of the Incline Trainer.
Remove the Access Door Screw (72) and the Access
Door.
112
72
2. Connect the wire on the receiver (A) to the indicated wire
extending from the console. Hold the receiver so the
small cylinder is oriented as shown and is facing the
console. Attach the receiver to the plastic posts on the
Access Door (112) with the two included small screws.
3. See step 1 on page 9. Make sure that no wires are
pinched, and reattach the Access Door (112) to the
Console Back (69) with the Access Door Screw (72).
69
2, 3
Small
Screws
Wire
Discard the other wires included with the receiver.
69
A
Small
Cylinder
112
10
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The incline trainer is not compatible
with GFCI-equipped outlets.
Your incline trainer features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to the
walking belt or the walking platform. Such substances will deteriorate the walking belt and cause
excessive wear.
HOW TO PLUG IN THE POWER CORD
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
DANGER:
Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Your incline trainer, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your incline trainer being damaged, always use a
surge suppressor with your incline trainer (see
drawing 1 at the right). To purchase a surge suppressor, see your local IMAGE dealer or call the
toll-free telephone number on the front cover of
this manual and order part number 146148, or see
your local electronics store.
Grounding Pin
Grounded Outlet
Grounding Plug
2
Grounded Outlet Box
Adapter
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules. The
surge suppressor must be electrically rated for 120
volts AC and 15 amps. There must be a monitoring
light on the surge suppressor to indicate whether it
is functioning properly. Failure to use a properly
functioning surge suppressor could result in damage to the control system of the incline trainer. If
the control system is damaged, the walking belt
may change speed, accelerate or stop unexpectedly, which may result in a fall and serious injury.
Surge Suppressor
Lug
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is
grounded before using an adapter.
This product must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
11
CONSOLE DIAGRAM
Note: If there are sheets of
clear plastic on the console,
remove the plastic.
Clip
Key
FEATURES OF THE CONSOLE
stereo, portable stereo, computer, or VCR and play
special iFIT.com CD and video programs (iFIT.com
CDs and videocassettes are available separately).
IFIT.com CD and video programs automatically control
the speed and incline of the Incline Trainer as a personal trainer coaches you through every step of your
workout. High-energy music provides added motivation.
To purchase iFIT.com CDs or videocassettes, call
the toll-free telephone number on the front cover
of this manual.
The advanced console offers an impressive array of
features designed to help you get the most from your
exercise. When the manual mode of the console is selected, the speed and incline of the Incline Trainer can
be changed with the touch of a button. As you exercise, the console will provide continuous exercise feedback. You can even measure your heart rate using the
handgrip pulse sensor or the optional chest pulse sensor (see page 27).
With the Incline Trainer connected to your computer,
you can also go to our Web site at www.iFIT.com and
access iFIT.com programs directly from the internet.
See www.iFIT.com for more information.
The console also offers 5 speed programs and 10 incline programs. Each program automatically controls
the speed and incline of the Incline Trainer as it guides
you though an effective workout. You can even create
your own custom workout programs and store them in
memory for future use.
To use the manual mode of the console, follow the
steps beginning on page 13. To use a speed program
or an incline program, see page 16. To create and
use a custom program, see pages 18 and 19. To use
a pulse program, see page 20. To use an iFIT.com
CD or video program, see page 24. To use an
iFIT.com program directly from our Web site, see
page 26.
In addition, the console offers four pulse programs that
automatically adjust the speed and incline of the
Incline Trainer to keep your heart rate near a target
level while you exercise. Note: The pulse programs require the use of the optional chest pulse sensor.
Note: During the first few minutes that the Incline
Trainer is used, observe the alignment of the walking
belt, and align it if necessary (see page 31).
The console also features iFIT.com interactive technology. Having iFIT.com technology is like having a personal trainer in your home. Using the included audio
cable, you can connect the Incline Trainer to your home
12
HOW TO USE THE MANUAL MODE
CAUTION: Before operating the
console, read the following precautions.
1
• Do not stand on the walking belt when turning on the power.
See HOW TO TURN ON THE POWER at the left.
• Always wear the clip (see the drawing on
page 12) while operating the Incline Trainer.
2
• The pulse sensor is not a medical device.
Various factors, including the user’s movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
• To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids
on the console.
3
If the Start button or the
Speed + button is
pressed, the walking belt
will begin to move at 1
mph. As you exercise,
change the speed of the
walking belt as desired by pressing the Speed +
and – buttons. Each time a button is pressed, the
speed setting will change by 0.1 mph; if a button
is held down, the speed setting will change in increments of 0.5 mph.
Plug in the power cord.
See page 11.
Move the reset/off circuit breaker to the reset
position.
Locate the reset/off circuit breaker on the
Incline Trainer near the
power cord. Make sure
that the circuit breaker
is in the reset position.
3
Start the walking belt.
To start the walking belt, press the Start button,
the Speed + button, or one of the 1-Step Speed
buttons.
HOW TO TURN ON THE POWER
2
Select the manual mode.
When the key is
inserted, the manual mode will be
selected. If a program has been selected, press the
iFIT.com button
once or twice until a track appears in the matrix but
the iFIT.com indicator is not lit.
• Adjust the speed in small increments to
avoid sudden jumps in speed.
1
Insert the key into the console.
If one of the 1-Step Speed buttons is pressed, the
walking belt will gradually increase in speed until it
reaches the selected speed setting. Note: It may
take a few seconds for the walking belt to reach
the selected speed setting. The Incline Trainer is
designed so that the walking belt cannot move
at high speed while the Incline Trainer is at a
high incline level. Therefore, when you increase the speed, the incline may automatically
decrease.
Reset
Position
Attach the clip to the waistband of your clothes.
Stand on the foot rails of the Incline Trainer. Find
the clip attached to the key (see the drawing on
page 12), and slide the clip securely onto the
waistband of your clothes. Next, insert the key into
the console. Important: In an emergency situation, the key can be pulled from the console,
causing the walking belt to slow to a stop.
Test the clip by carefully taking a few steps
backward; if the key is not pulled from the
console, adjust the position of the clip.Then,
remove the key from the console.
To stop the walking belt, press the Stop button.
The time will begin to flash in the Time/Distance
display. To restart the walking belt, press the Start
button, the Speed + button, or one of the 1-Step
Speed buttons.
Note: Before the Incline Trainer is used, a
short break-in period is required. Adjust the
speed to 10 mph, let the Incline Trainer run for ten
minutes, and then press the stop button.
Note: To prevent damage to the walking platform,
always wear clean shoes when using the treadmill.
13
4
Change the incline of the Incline Trainer as
desired.
Fat Calories/Calories/
Pulse display—This
display shows the approximate numbers of
fat calories and calories
you have burned (see
FAT BURNING on page 33). The display will alternate between one value and the other every few
seconds, as shown by the indicators below the display. The display will also show your heart rate
when you use the handgrip pulse sensor or the
optional chest pulse sensor.
To change the incline of
the Incline Trainer,
press the Incline increase and decrease
buttons. Each time a
button is pressed, the
incline will change by 0.5%. To change the incline
setting quickly, press the 1-step Incline buttons.
Note: It may take a few seconds for the Incline
Trainer to reach the selected incline setting. The
Incline Trainer is designed so that it cannot be
adjusted to a high incline level while the walking belt is moving at high speed. Therefore,
when you increase the incline, the speed may
automatically decrease.
5
Time/Distance
display—When the
manual mode or the
iFIT.com mode is selected, this display will
show the elapsed time
and the distance that you have walked or run.
When a program is selected, the display will show
the time remaining in the program and the distance that you have walked or run. The display will
alternate between one value and the other every
few seconds, as shown by the indicators below the
display.
Follow your progress with the matrix and the
displays.
The matrix—
When the manual
mode or the
iFIT.com mode is
selected, the matrix will display a
track representing
1/4 mile. As you exercise, the indicators around the
track will light in succession until the entire track is
lit. The track will then darken and the indicators
will again begin to light in succession.
Speed/Pace display—
This display shows the
speed of the walking belt
and your walking or running pace, in minutes
per mile. The display will
alternate between one value and the other every
few seconds, as shown by the indicators above
and below the display. Note: Each time the incline
level changes, the display will show the incline
level.
The Training Zone
display—As you exercise, the Training Zone
display will show the
approximate intensity
level of your exercise.
For example, if five to
eight indicators are lit,
the Training zone display shows that your intensity
level is ideal for fat burning.
Note: The console can
display speed and distance in either miles or
kilometers. The word
“METRIC” will light below
the Time/Distance display when speed and distance are displayed in kilometers. To change the unit of measurement, first
hold down the Stop button while inserting the key
into the console. An “E” for English miles or an “M”
for metric kilometers will appear in the Speed/Pace
display. Press the Speed + button to change the
unit of measurement. When the desired unit of
measurement is selected, remove the key and
then reinsert it. Note: For simplicity, all instructions in this manual refer to miles.
Incline/Elevation
display—This display
shows the incline level
of the Incline Trainer
and the number of vertical feet you have
climbed. The display will alternate between one
value and the other every few seconds, as shown
by the indicators above and below the display.
Note: Each time the incline level changes, the display will show the incline level.
14
To reset the displays, press the Stop button, remove the key, and then reinsert the key.
6
8
CAUTION: Do not use the upper body handles
until you are comfortable using the Incline
Trainer without the upper body handles.
Measure your heart rate if desired.
To use the opMetal Contacts
tional chest pulse
sensor, see the instructions included
with the chest
pulse sensor. To
use the handgrip
pulse sensor, see
the instructions
below. Note: If there are sheets of clear plastic on
the metal contacts on the handgrip pulse sensor,
remove the plastic. If you use the optional chest
pulse sensor and the handgrip pulse sensor at the
same time, the console will not display your heart
rate accurately.
To use the upper
body handles, hold
one handle in each
hand, and pull the
handles as you
swing your arms
naturally at your
sides. Practice this
motion until it feels
comfortable.
Upper Body Handles
To increase or decrease
the resistance of the
upper body handles,
press the + and – buttons below the matrix.
Indicators above the buttons will light to show which of the four resistance
levels is selected.
To measure your heart rate, stand on the foot
rails and place your hands on the metal contacts
on the handgrip pulse sensor. Your palms must be
resting on the contacts closest to you, and your
fingers must be touching the contacts on the opposite side of the handgrip pulse sensor—avoid
moving your hands. When your pulse is detected,
the Pulse indicator above the Fat Calories/
Calories/Pulse display will light, one or two dashes
(– –) will appear in the display, and then your
heart rate will be shown. For the most accurate
heart rate reading, continue to hold the contacts for about 15 seconds.
7
Use the upper body handles if desired.
9
When you are finished exercising, stop the
walking belt and remove the key.
Step onto the foot rails, press the Stop button, and
adjust the incline of the Incline Trainer to the lowest
level. The incline must be at the lowest level
when the Incline Trainer is raised to the storage position or the Incline Trainer will be damaged. Next, remove the key from the console and
put it in a secure place. Note: If the displays and
indicators on the console remain lit after the
key is removed, the console is in the “demo”
mode. See page 27 and turn off the demo
mode.
Turn on the fans if desired.
To turn on the fans at low speed, press the button
near the left fan. To turn on the fans at high
speed, press the button a second time. To turn off
the fans, press the button a third time. Note: Any
time that the walking belt is stopped for a few minutes, the fans will automatically turn off.
When you are finished using the Incline
Trainer, switch the reset/off circuit breaker to
the off position and unplug the power cord.
15
3
HOW TO USE A SPEED PROGRAM OR AN
INCLINE PROGRAM
A moment after the button is pressed, the Incline
Trainer will automatically adjust to the first speed
and incline settings for the program. Hold the
handrails and begin walking.
The console offers 5 speed programs and 10 incline
programs. All 15 programs automatically control the
speed and the incline of the Incline Trainer as they
guide you through effective workouts. Speed programs
regulate the intensity of your exercise primarily by
varying the speed of the walking belt, although they
also vary the incline; incline programs primarily vary
the incline, although they also vary the speed.
Each program is divided into one-minute segments. One speed setting and one incline setting
are programmed for each segment. Note: The
same speed setting and/or incline setting may be
programmed for two or more consecutive segments.
Follow the steps below to use a speed program or an
incline program.
1
If a speed proCurrent Segment
gram is selected,
the speed setting
for the first segment will be
shown in the flashing Current
Segment column
of the matrix. (The
incline settings will not be shown in the matrix.)
The speed settings for the next seven segments
will be shown in the columns to the right. If an incline program is selected, the incline setting for
the first segment will be shown in the flashing
Current Segment column of the matrix. (The
speed settings will not be shown in the matrix.)
The incline settings for the next seven segments
will be shown in the columns to the right.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
13.
2
Press the Start button or the Speed + button to
start the program.
Select a speed program or an incline program.
To select a
speed program,
press the Speed
Programs/
Custom button repeatedly. As each
speed program is
selected, the Speed indicator will light and a profile
of the speed settings of the selected program will
scroll across the matrix.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound. If the speed and/or incline of the Incline Trainer is about to change, the
Speed/Pace display and/or the Incline/Elevation
display will flash to alert you. When the first segment ends, all speed settings or incline settings
will move one column to the left. The setting for the
second segment will then be shown in the flashing
Current Segment column and the Incline Trainer
will automatically adjust to the speed and incline
settings for the second segment. Note: If all of the
indicators in the Current Segment column are lit
after the settings have moved to the left, all settings will move downward so that only the highest
lit indicators appear in the matrix. If some of the indicators in the Current Segment column are not lit
when the settings move to the left again, all settings will move back up.
To select an incline program,
press the Incline
Programs/Pulse
button repeatedly.
As each incline
program is selected, the Incline indicator will light and a profile of
the incline settings of the selected program will
scroll across the matrix.
For a few seconds after a speed program or an incline program is selected, the maximum speed
setting for the program will flash in the Speed/
Pace display, and the maximum incline setting for
the program will flash in the Incline/Elevation display. The Time/Distance display will show how
long the program will last.
16
The program will continue until the setting for the
last segment is shown in the Current Segment
column and the last segment ends. The walking
belt will then slow to a stop.
6
See step 7 on page 15.
7
If the speed or incline setting is too high or too low
at any time during the program, you can manually
override the setting by pressing the Speed or
Incline buttons. However, when the next segment begins, the speed and/or incline will automatically change if a different setting is programmed for the next segment.
8
When you are finished exercising, remove the
key.
Step onto the foot rails and make sure that the incline of the Incline Trainer is at the lowest level.
The incline must be at the lowest level when
the Incline Trainer is raised to the storage position. Next, remove the key from the console and
put it in a secure place. Note: If the displays and
indicators on the console remain lit after the
key is removed, the console is in the “demo”
mode. See page 27 and turn off the demo
mode.
When you are finished using the Incline
Trainer, switch the reset/off circuit breaker to
the off position and unplug the power cord.
Follow your progress with the displays.
See step 5 on page 14.
5
Use the upper body handles if desired.
See step 8 on page 15.
To stop the program temporarily, press the Stop
button. The time will begin to flash in the
Time/Distance display. To restart the program,
press the Start button or the Speed + button. The
walking belt will begin to move at 1 mph. When the
next segment of the program begins, the Incline
Trainer will automatically adjust to the speed and
incline settings for the next segment. To end the
program, press the Stop button, remove the key,
and then reinsert the key.
4
Turn on the fans if desired.
Measure your heart rate if desired.
See step 6 on page 15.
17
Segment column of the matrix. (The incline settings will not be shown in the matrix.) To program
a speed setting and an incline setting for the first
segment, simply adjust the speed and incline of
the Incline Trainer as desired by pressing the
Speed and Incline buttons. Every few times a
Speed button is pressed, an additional indicator
will light or darken in the Current Segment column.
HOW TO CREATE A CUSTOM PROGRAM
If desired, you can create your own custom workout
programs and store them in memory for future use. Up
to four different programs can be stored at the same
time.
Follow the steps below to create a custom program.
1
During the last three seconds of the first segment,
both the Current Segment column and the column
to the right will flash, a series of tones will sound,
and the Speed/Pace display and the Incline/
Elevation display will flash. When the first segment
ends, the current speed setting and the current incline setting will be saved in memory, and all
speed settings in the matrix will move one column
to the left. The speed setting for the second segment will then be shown in the flashing Current
Segment column. Program a speed setting and an
incline setting for the second segment as described above.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
13.
2
Select one of the custom programs.
To select a custom program,
press the Speed
Programs/
Custom button repeatedly. As each
custom program is
selected, the Custom indicator will light and a profile
of the speed settings of the selected program will
scroll across the matrix. Note: If the custom program has not yet been defined, only three
columns of indicators will be lit in the matrix. If
more than three columns of indicators are lit,
see HOW TO USE A CUSTOM PROGRAM on
page 19.
3
Continue programming speed and incline settings
for as many segments as desired; custom programs can have up to forty segments. When you
are finished with your workout, press the Stop button twice. The speed and incline settings that you
have programmed and the number of segments
that you have programmed will then be saved in
memory.
4
Press the Start button or the Speed + button
and program the desired speed and incline
settings.
Follow your progress with the displays.
See step 5 on page 14.
5
A moment after the button is pressed, the walking
belt will begin to move. Hold the handrails and
begin walking.
Measure your heart rate if desired.
See step 6 on page 15.
6
See the matrix.
Each custom proCurrent Segment
gram is divided
into one-minute
segments. One
speed setting and
one incline setting can be programmed for
each segment. The speed setting for the first segment will be shown in the flashing Current
Turn on the fans if desired.
See step 7 on page 15.
7
Use the upper body handles if desired.
See step 8 on page 15.
8
When you are finished exercising, remove the
key.
See step 8 on page 17.
18
next several segments will be shown in the
columns to the right.
HOW TO USE A CUSTOM PROGRAM
Follow the steps below to use a custom program.
1
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash and a
tone will sound. If the speed and/or incline of the
Incline Trainer is about to change, the
Speed/Pace display and/or the Incline/Elevation
display will flash to alert you, and three tones will
sound. When the first segment ends, all speed
settings will move one column to the left. The
speed setting for the second segment will then be
shown in the flashing Current Segment column
and the Incline Trainer will automatically adjust to
the speed and incline settings for the second segment.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
13.
2
Select one of the custom programs.
To select a custom program,
press the Speed
Programs/
Custom button repeatedly. As each
custom program is
selected, the Custom indicator will light and a profile
of the speed settings of the selected program will
scroll across the matrix. Note: If only three
columns of indicators are lit in the matrix, see
HOW TO CREATE A CUSTOM PROGRAM on
page 18.
The program will continue until the speed setting
for the last segment is shown in the Current
Segment column and the last segment ends. The
walking belt will then slow to a stop.
If desired, you can redefine the program while
using it. To change the speed or incline setting
for the current segment, simply press the Speed
or Incline buttons. When the current segment ends,
the new setting will be saved in memory. To increase the length of the program, first wait until
the program ends. Then, press the Start button and
program speed and incline settings for as many additional segments as desired. When you have
added as many segments as desired, press the
Stop button twice. To decrease the length of the
program, press the Stop button twice at any time
before the program ends.
For a few seconds after a custom program is selected, the maximum speed setting for the program will flash in the Speed/Pace display, and the
maximum incline setting for the program will flash
in the Incline/Elevation display. The Time/Distance
display will show how long the program will last.
3
Press the Start button or the Speed + button to
start the program.
A moment after the button is pressed, the Incline
Trainer will automatically adjust to the first speed
and incline settings that you programmed previously. Hold the handrails and begin walking.
To stop the program at any time, press the Stop
button. The time will begin to flash in the
Time/Distance display. To restart the program,
press the Start button or the Speed + button. The
walking belt will begin to move at 1 mph. When the
next segment of the program begins, the Incline
Trainer will automatically adjust to the speed and
incline settings for the next segment.
Each program is divided into several one-minute
segments. One speed setting and one incline setting are programmed for each segment.
The speed setting
Current Segment
for the first segment will be
shown in the
flashing Current
Segment column
of the matrix.
(The incline settings are not
shown in the matrix.) The speed settings for the
4
Follow your progress with the displays.
See step 5 on page 14.
5
Measure your heart rate if desired.
See step 6 on page 15.
19
6
Turn on the fans if desired.
HOW TO USE A PULSE PROGRAM
See step 7 on page 15.
7
CAUTION:
Use the upper body handles if desired.
If you have heart problems, or if you are over 60 years of age and
have been inactive, do not use the pulse programs. If you are taking medication regularly,
consult your physician to find whether the
medication will affect your exercise heart rate.
See step 8 on page 15.
8
When you are finished exercising, remove the
key.
See step 8 on page 17.
The four pulse programs automatically adjust the
speed and incline of the Incline Trainer to keep your
heart rate near a target level while you exercise.
Follow the steps below to use a pulse program.
1
Put on the optional chest pulse sensor.
See the instructions included with the chest pulse
sensor.
2
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
13.
3
Select a pulse program.
To select a pulse
program, press
the Incline
Programs/Pulse
button repeatedly.
As each pulse program is selected,
the Pulse indicator will light and a profile of the heart
rate settings of the selected program will scroll
across the matrix.
4
Enter your age.
When a pulse program is selected,
the word “AGE”
will appear in the
Fat Calories/
Calories/Pulse display and the current age setting
will begin to flash in the Time/Distance display. If
you have already entered your age, simply press
the Start button (the program will not start at this
time). If you have not entered your age, press the
+ and – buttons below the matrix to enter your
age, and then press the Start button.
20
5
Enter a maximum speed setting.
matically increase or decrease to bring your heart
rate closer to the target heart rate. If the speed
reaches the maximum speed setting of the program (see step 5 on this page) and your heart rate
is still too far below the current target heart rate,
the incline of the Incline Trainer will also increase
to bring your heart rate closer to the target heart
rate.
After you have
entered your age,
the letters “SPd”
will appear in the
Fat Calories/
Calories/Pulse
display and the
maximum speed
setting of the program will begin to flash in the
Time/Distance display. If desired, press the + and
– buttons below the matrix to change the maximum speed setting.
6
The program will continue in this way until the target heart rate setting for the last segment is
shown in the Current Segment column and the
last segment ends. The walking belt will then slow
to a stop.
A moment after the button is pressed, the Incline
Trainer will automatically adjust to the first speed
and incline settings for the program. Hold the
handrails and begin walking.
If the speed or incline setting is too high or too low
at any time during the program, you can adjust the
setting with the Speed or Incline buttons. However,
each time the console compares your heart rate to
the target heart rate, the speed and/or incline of
the Incline Trainer may automatically change to
bring your heart rate closer to the target heart rate.
Each pulse program is divided into several oneminute segments. (The Time/Distance display will
show how long the program will last.) One target
heart rate setting is programmed for each segment. Note: The same target heart rate setting may
be programmed for two or more consecutive segments.
If your pulse is not detected during the program,
the letters “PLS” will flash in the Fat Calories/
Calories/Pulse display and the speed and incline
of the Incline Trainer may automatically decrease
until your pulse is detected. If this occurs, see the
instructions included with the optional chest pulse
sensor.
The target heart
Current Segment
rate setting for
the first segment
will be shown in
the flashing
Current Segment
column of the matrix. The target
heart rate settings
for the next seven segments will be shown in the
columns to the right.
To stop the program at any time, press the Stop
button. The time will begin to flash in the
Time/Distance display. To restart the program,
press the Start button or the Speed + button. The
walking belt will begin to move at 1 mph. When the
console compares your heart rate to the target
heart rate, the speed and/or incline of the Incline
Trainer will automatically change to bring your
heart rate closer to the target heart rate.
Press the Start button or the Speed + button to
start the program.
7
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound. In addition, the
Speed/Pace display and the Incline/Elevation display will flash. When the first segment ends, all
target heart rate settings will move one column to
the left. The target heart rate setting for the second segment will then be shown in the flashing
Current Segment column.
Follow your progress with the displays.
See step 5 on page 14.
8
Turn on the fans if desired.
See step 7 on page 15.
9
Use the upper body handles if desired.
See step 8 on page 15.
10
During each segment, the console will compare
your heart rate to the target heart rate. If your
heart rate is too far below or above the target
heart rate, the speed of the walking belt will auto-
When you are finished exercising, remove the
key.
See step 8 on page 17.
21
HOW TO CONNECT THE INCLINE TRAINER TO
YOUR CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CDs, the Incline Trainer must be
connected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
22 and 23 for connecting instructions. To use iFIT.com
videocassettes, the Incline Trainer must be connected to your VCR. See page 24 for connecting instructions. To use iFIT.com programs directly from
our Web site, the Incline Trainer must be connected
to your computer. See page 23.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the Incline Trainer near the power cord. Plug
the other end into the included adapter. Plug the
adapter into an AUDIO OUT jack on your stereo.
A
HOW TO CONNECT YOUR PORTABLE CD PLAYER
AUDIO OUT
RIGHT
AUDIO OUT
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the Incline Trainer near the power cord.
Plug the other end of the cable into the LINE OUT
jack on your CD player. Plug your headphones into
the PHONES jack.
A
PHONES LINE OUT
LINE OUT
PHONES
PHONES LINE OUT
LINE OUT
LEFT
RIGHT
LEFT
AUDIO OUT
Audio
Cable
Adapter
RIGHT
LEFT
A
B. Plug one end of the audio cable into the jack on the
front of the Incline Trainer near the power cord.
Plug the other end of the cable into the LINE OUT
jack on your stereo.
A
A
PHONES
B
Headphones
Audio
Cable
LINE OUT
LINE OUT
LINE OUT
Audio
Cable
A
B. Plug one end of the audio cable into the jack on the
front of the Incline Trainer near the power cord. Plug
the other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your CD player. Plug your
headphones into the other side of the Y-adapter.
A
B
B
C. Plug one end of the audio cable into the jack on the
front of the Incline Trainer near the power cord. Plug
the other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your stereo. Plug your
headphones into the other side of the Y-adapter.
B
B
PHONES
PHONES
C
PHONES
PHONES
PHONES
PHONES
3.5mm
Y-adapter
Audio
Cable
PHONES
Headphones
B
B
3.5mm
Y-adapter
Audio
Cable
C
C
Headphones
22
C
HOW TO CONNECT YOUR HOME STEREO
HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
Note: If your computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the Incline Trainer near the power cord.
Plug the other end of the cable into the included
adapter. Plug the adapter into the LINE OUT jack
on your stereo.
A. Plug one end of the audio cable into the jack on the
front of the Incline Trainer near the power cord.
Plug the other end of the cable into the LINE OUT
jack on your computer.
A
A
CD
LINE OUT
VCR
Amp
LINE OUT
CD
Audio
Cable
LINE OUT
VCR
Audio
Cable
Amp
Adapter
LINE OUT
LINE OUT
LINE OUT
A
B. Plug one end of the audio cable into the jack on the
front of the Incline Trainer near the power cord.
Plug the other end of the cable into the included
adapter. Plug the adapter into an RCA Y-adapter
(available at electronics stores). Next, remove the
wire that is currently plugged into the LINE OUT
jack on your stereo and plug the wire into the unused side of the RCA Y-adapter. Plug the RCA YCD
adapter into the LINE OUT jack on your stereo.
A
A
B. Plug one end of the audio cable into the jack on the
front of the Incline Trainer near the power cord.
Plug the other end of the cable into a 3.5mm Yadapter (available at electronics stores). Plug the Yadapter into the PHONES jack on your computer.
Plug your headphones or speakers into the other
side of the Y-adapter.
A
PHONES
B
PHONES
VCR
Amp
B
LINE OUT
CD
Audio
Cable
VCR
Amp
3.5mm
Y-adapter
B
LINE OUT
Headphones/Speakers
Audio
Cable
RCA
Y-adapter
B
Adapter
B
Wire removed from
LINE OUT jack
B
23
HOW TO CONNECT YOUR VCR
HOW TO USE AN IFIT.COM CD OR VIDEO
PROGRAM
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 23.
To use iFIT.com CDs or videocassettes, the Incline
Trainer must be connected to your portable CD player,
portable stereo, home stereo, computer with CD
player, or VCR. See HOW TO CONNECT THE INCLINE TRAINER TO YOUR CD PLAYER, VCR, OR
COMPUTER on pages 22 to 24. Note: To purchase
iFIT.com CDs or videocassettes, call the toll-free
telephone number on the front cover of this manual.
A. Plug one end of the audio cable into the jack on the
front of the Incline Trainer near the power cord.
Plug the other end of the cable into the included
adapter. Plug the adapter into the AUDIO OUT jack
on your VCR.
Follow the steps below to use an iFIT.com CD or video
program.
A
ANT. IN
VIDEO AUDIO
IN
1
RF OUT
CH
3 4
OUT
AUDIO OUT
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
13.
RIGHT
LEFT
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
3 4
OUT
Audio
Cable
Adapter
2
AUDIO OUT
RIGHT
To use an
iFIT.com CD or
video program,
first press the
iFIT.com button.
The iFIT.com indicator will light.
LEFT
A
B. Plug one end of the audio cable into the jack on the
front of the Incline Trainer near the power cord.
Plug the other end of the cable into the included
adapter. Plug the adapter into an RCA Y-adapter
(available at electronics stores). Next, remove the
wire that is currently plugged into the AUDIO OUT
jack on your VCR and plug the wire into the unused
side of the RCA Y-adapter. Plug the RCA Y-adapter
into the AUDIO OUT jack on your VCR.
3
A
VIDEO AUDIO
IN
RF OUT
CH
3 4
OUT
B
4
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
3 4
OUT
Adapter
B
Wire removed from
AUDIO OUT jack
B
AUDIO OUT
LEFT
Press the PLAY button on your CD player or
VCR.
A moment after the button is pressed, your personal trainer will begin guiding you through your
workout. Simply follow your personal trainer’s
instructions. Note: If the time is flashing in the
Time/Distance display, press the Start button or
the Speed + button on the console. The Incline
Trainer will not respond to a CD or video program
while the time is flashing in the Time/Distance display.
RCA Y-adapter
RIGHT
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
ANT. IN
Audio
Cable
Select the iFIT.com mode.
24
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the console may not detect the program signals.
During the CD or video program, an electronic
“chirping” sound will alert you when the speed
and/or incline of the Incline Trainer is about to
change. CAUTION: Always listen for the “chirp”
and be prepared for speed and/or incline
changes. In some instances, the speed and/or
incline may change before the personal trainer
describes the change.
• Make sure that the audio cable is properly
connected, that it is fully plugged in, and that
it is not wrapped around a power cord.
• If you are using your portable CD player and
the CD skips, set the CD player on the floor or
another flat surface instead of on the console.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
• See the instructions on page 32.
5
To stop the walking belt at any time, press the
Stop button on the console. The time will begin to
flash in the Time/Distance display. To restart the
walking belt, press the Start button or the Speed +
button. After a moment, the walking belt will begin
to move at 1 mph. When the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
Follow your progress with the displays.
See step 5 on page 14.
6
Measure your heart rate if desired.
See step 6 on page 15.
7
Turn on the fans if desired.
See step 7 on page 15.
When the CD or video program ends, the walking
belt will stop and the time will begin to flash in the
Time/Distance. Note: To use another CD or video
program, press the Stop button or remove the key
and go to step 1 on page 24.
8
Use the upper body handles if desired.
See step 8 on page 15.
9
Note: If the speed and/or incline of the Incline
Trainer does not change when a “chirp” is
heard:
When you are finished exercising, remove the
key.
See step 8 on page 17.
• Make sure that the iFIT.com indicator is lit and
that the time is not flashing in the Time/
Distance display. If the time is flashing, press
the Start button or the Speed + button on the
console.
CAUTION: Always remove iFIT.com CDs and
videocassettes from your CD player or VCR
when you are finished using them.
25
“chirping” sound will alert you when the speed
and/or incline of the Incline Trainer is about to
change. CAUTION: Always listen for the “chirp”
and be prepared for speed and/or incline
changes.
HOW TO USE A PROGRAM DIRECTLY FROM
OUR WEB SITE
To use programs from our Web site, the Incline Trainer
must be connected to your home computer. See HOW
TO CONNECT YOUR COMPUTER on page 23. In
addition, you must have an internet connection and
an internet service provider. A list of specific system
requirements is found on our Web site.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the program.
Follow the steps below to use a program from our
Web site.
1
To stop the walking belt at any time, press the
Stop button on the console. The time will begin to
flash in the Time/Distance display. To restart the
walking belt, press the Start button or the Speed +
button. After a moment, the walking belt will begin
to move at 1 mph. When the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the program.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
13.
2
Select the iFIT.com mode.
To use an
iFIT.com program
from our Web
site, first press
the iFIT.com button. The iFIT.com
indicator will light.
3
Go to your computer and start an internet
connection.
4
Start your web browser, if necessary, and go to
our Web site at www.iFIT.com.
5
Follow the desired links on our Web site to select a program.
When the program ends, the walking belt will stop
and the time will begin to flash in the Time/Distance
display. Note: To use another program, press the
Stop button and go to step 5.
Note: If the speed or incline of the Incline
Trainer does not change when a “chirp” is
heard, make sure that the iFIT.com indicator is
lit and that the time is not flashing in the
Time/Distance display. In addition, make sure
that the audio cable is properly connected, that
it is fully plugged in, and that it is not wrapped
around a power cord.
8
See step 5 on page 14.
Read and follow the on-line instructions for using a
program.
6
9
Follow the on-line instructions to start the
program.
Measure your heart rate if desired.
See step 6 on page 15.
10
When you start the program, an on-screen countdown will begin.
7
Follow your progress with the displays.
Turn on the fans if desired.
See step 7 on page 15.
Return to the Incline Trainer and stand on the
foot rails. Find the clip attached to the key and
slide the clip securely onto the waistband of
your clothes.
11
Use the upper body handles if desired.
See step 8 on page 15.
12
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking. During the program, an electronic
When you are finished exercising, remove the
key.
See step 8 on page 17.
26
THE INFORMATION MODE/DEMO MODE
THE OPTIONAL CHEST PULSE SENSOR
The console features an information mode that keeps
track of the total number of miles that the walking belt
has moved and the total number of hours that the
Incline Trainer has been operated. The information
mode also allows you to switch the console from miles
to kilometers. In addition, the information mode allows
you to turn on and turn off the demo mode.
An optional chest pulse sensor adds even more
features to the console. The chest pulse sensor provides
hands-free operation and enables you to use the console’s heart rate programs. To purchase the
chest pulse sensor, call the toll-free telephone
number on the front cover of this manual.
To select the information mode, hold down the Stop
button while inserting the key into the console. When
the information mode is selected, the following information will be shown:
The Incline/Elevation display
will show the total number of
miles or kilometers that the
walking belt has moved.
The Time/Distance display
will show the total number of
hours that the Incline Trainer
has been used.
An “E” for English miles or
an “M” for metric kilometers
will appear in the Speed/
Pace display. Press the
Speed + button to change
the unit of measurement.
IMPORTANT: The Fat Calories/Calories/Pulse display should be blank. If a “d” appears in the display,
the console is in the “demo” mode. This mode is intended to be used only when an Incline Trainer is displayed in a store. When the console is in the demo
mode, the power cord can be plugged in, the key can
be removed from the console, and the displays and indicators on the console will automatically light in a preset sequence; the buttons on the console cannot be operated. If a “d” appears in the display when the information mode is selected, press the Speed – button
so the display is blank.
To exit the information mode, remove the key.
27
HOW TO FOLD AND MOVE THE INCLINE TRAINER
HOW TO FOLD THE INCLINE TRAINER FOR STORAGE
Before folding the Incline Trainer, adjust the incline to
the lowest position. If this is not done, the Incline Trainer
may be permanently damaged. Remove the key and unplug
the power cord. CAUTION: You must be able to safely lift
45 pounds (20 kg) to raise, lower, or move the Incline
Trainer.
1. Hold the Incline Trainer with your hands in the location
shown by the arrow at the right. CAUTION: To decrease
the possibility of injury, bend your legs and keep your
back straight. As you raise the Incline Trainer, make
sure to lift with your legs rather than your back. Raise
the Incline Trainer about halfway to the vertical position.
2. Move your right hand to the position shown and hold the
Incline Trainer firmly. Using your left hand, pull the latch
knob to the left and hold it. Raise the Incline Trainer until
the latch pin is aligned with the indicated hole in the catch.
Insert the latch pin into the hole. Make sure that the
latch pin is fully inserted into the hole.
To protect the floor or carpet from damage, place a
mat under the Incline Trainer. Keep the Incline Trainer
out of direct sunlight. Do not leave the Incline Trainer
in the storage position in temperatures above 85°
Fahrenheit.
Knob
Hole
HOW TO MOVE THE INCLINE TRAINER
Before moving the Incline Trainer, convert the Incline Trainer
to the storage position as described above. Make sure that
the latch pin is fully inserted into the hole in the side of
the Incline Trainer.
1. Hold the handrails as shown and place one foot against a
wheel.
2. Tilt the Incline Trainer back until it rolls freely on the wheels.
Carefully move the Incline Trainer to the desired location.
Never move the Incline Trainer without tipping it back.
To reduce the risk of injury, use extreme caution
while moving the Incline Trainer. Do not attempt to
move the Incline Trainer over an uneven surface.
Wheels
3. Place one foot against a wheel, and carefully lower the
Incline Trainer until it is resting in the storage position.
28
Base
HOW TO LOWER THE INCLINE TRAINER FOR USE
1. Hold the upper end of the Incline Trainer with your right
hand as shown. Using your left hand, pull the latch knob to
the left and hold it. Pivot the Incline Trainer down until the
frame is past the pin on the latch knob.
Knob
2. Hold the Incline Trainer firmly with both hands, and lower
the Incline Trainer to the floor. To decrease the possibility of injury, bend your legs and keep your back
straight.
29
TROUBLESHOOTING
Most Incline Trainer problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 11). Use only a single-outlet surge suppressor that meets all of the specifications described on page 11. Important: The Incline Trainer is not
compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the
Incline Trainer frame near the power cord. If the
switch protrudes as shown, the circuit breaker has
tripped. To reset the circuit breaker, wait for five minutes and then press the switch to the reset position.
c
Reset
Tripped
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
for five minutes and then press the switch to the reset position.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the Incline Trainer still will not run, see the front cover of this manual.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Adjust the incline high enough to remove the two
Screws (3) and the two Belly Pan Screws (70) from
the locations shown. Do not remove the Screws
until you have removed the key from the console
and UNPLUGGED THE POWER CORD. Remove the
two Screws (3) and the two Belly Pan Screws (128).
a
70
Remove the four Screws (3) from the Hood (37), and
carefully remove the Hood.
3
37
3
3
30
Locate the Reed Switch (20) and the Magnet (8) on
the left side of the Pulley (7). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 1/8”. If necessary, loosen the Screw
(21), move the Reed Switch slightly, and then retighten
the Screw. Reattach the Hood (37), making sure that
the Screws (3, 70) are inserted into the same holes
from which they were removed. Run the Incline Trainer
for a few minutes to check for a correct speed reading.
1/8”
21
20
7
8
Top
View
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 11.
b. If the walking belt is overtightened, Incline Trainer performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both rear
roller adjustment bolts counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you should
be able to lift each side of the walking belt 3 to 4 inches
off the walking platform. Be careful to keep the walking
belt centered. Plug in the power cord, insert the key,
and run the Incline Trainer for a few minutes. Repeat
until the walking belt is properly tightened.
b
3”–4”
Rear Roller Adjustment Bolts
c. If the walking belt still slows when walked on, see the front cover of this manual.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, remove the key and
UNPLUG THE POWER CORD. If the walking belt
has shifted to the left, use the allen wrench to turn
the left rear roller bolt clockwise 1/2 of a turn; if the
walking belt has shifted to the right, turn the left
rear roller bolt counterclockwise 1/2 of a turn. Be
careful not to overtighten the walking belt. Plug in the
power cord, insert the key, and run the Incline Trainer
for a few minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn both rear roller bolts clockwise,
1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 3 to 4 inches off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insert the key, and carefully walk on the
Incline Trainer for a few minutes. Repeat until the
walking belt is properly tightened.
31
a
b
PROBLEM: The incline of the Incline Trainer does not change correctly or does not change when
iFIT.com CDs and videocassettes are used
SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, remove the key. After a few seconds, reinsert the key. The Incline Trainer will automatically rise to
the maximum incline level and then return to the minimum level. This will recalibrate the incline
system.
32
CONDITIONING GUIDELINES
WARNING:
Before beginning this
or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with preexisting health problems.
The pulse sensor is not a medical device.
Various factors, including the user’s movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your “training zone.” The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the
handgrip pulse sensor.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for en-
ergy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the
Incline Trainer until your heart rate is near the lowest
number in your training zone.
For maximum fat burning, adjust the speed and incline
of the Incline Trainer until your heart rate is near the
middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the Incline Trainer until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.
Training Zone Exercise—After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise—never
hold your breath.
A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
33
PART LIST—Model No. IMTL15905.0
R0905A
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
Key No. Qty.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
2
1
23
2
2
1
1
1
2
2
2
2
9
1
1
1
1
1
1
1
5
1
1
1
2
2
2
1
2
2
1
14
1
4
1
1
1
1
2
1
2
4
1
4
4
4
1
18
2
1
2
Description
Key No. Qty.
Foot Rail
Left Front Endcap
3/4” Screw
Frame Pivot Bolt
Rear Roller Washer
Motor Belt
Front Roller/Pulley
Magnet
Frame Pivot Nut
Frame Spacer
Idler Arm Washer
Frame Pivot Washer
Nut
Idler Arm Pulley
Idler Pulley Bolt
Idler Arm Bolt
Idler Arm Bushing
Idler Arm
Idler Arm Spring
Reed Switch
Small Screw
Sensor Clip
Lift Frame
Drive Motor
Motor Bolt
Lift Frame Pivot Bolt
Lift Frame Pivot Washer
Controller
Controller Screw
Warning Decal
Ferrite Clamp
1/2” Screw
Power Board
Plastic Stand-off
Electronics Bracket
Hood Cover
Hood
Belly Pan
Belt Guide
Right Front Endcap
Front Walking Platform Screw
Walking Platform Screw
Frame
Belt Guide Screw
Isolator
Isolator Bolt
Latch Catch
Misc. Screw
Endcap Plate
Left Rear Endcap
Rear Roller Adj. Bolt
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
34
2
4
4
6
1
1
1
1
4
1
1
1
1
1
2
2
1
1
6
22
1
2
2
1
1
1
6
4
2
6
2
4
1
1
1
2
1
1
2
1
1
6
10
1
1
2
2
2
2
1
1
Description
Rear Wheel
Rear Wheel Cover
Wheel Bolt
1” Bolt
Left Wheel Bracket
Right Rear Endcap
Rear Roller
Right Wheel Bracket
3/4” Bolt
Left Outer Cover
Latch Assembly
Static Warning Decal
Pulse Assembly
Right Inner Cover
Resistor Star Washer
Lower Handrail
Upper Handrail
Console
Belly Pan Screw
Screw
Access Door Screw
Upper Body Handle
Rope Guide Bracket
Top Housing
Walking Platform
Controller Wire
Pulley
Pulley Nut
Pulley Bolt
Inside Cover Bolt
Fan
Fan Screw
Key Clip
Power Cord Assembly
Resistor
Upright Pivot Bushing
Right Outer Cover
Upright Pivot Shaft
Upright Pivot Bolt
Controller Plate
Tension Motor Wire
Base Pad
3/4” Tek Screw
Upright Base Belly Pan
Upright Base
Washer
3” Bolt
Front Wheel
Incline Motor Bolt, Top
Incline Motor
Incline Wire Harness
Key No. Qty.
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
1
2
1
1
1
1
1
1
1
1
1
1
1
4
1
2
4
8
1
1
9
1
9
Description
Upright Base Pad
Incline Motor Bolt, Bottom
Base Hood
Left Inner Cover
Bottle Holder
Upright Cover, Back
Pulley Shaft
Upright
Bottle Holder Clamp
Access Door
Upper Body Mechanism
Resistance Motor
Upright Cover, Front
Small Star Washer
Small Nut
Upright Bolt
Small Nut
Front Endcap Screw
Walking Belt
Allen Wrench
Cable Tie
Releasable Tie
Tie Block
Key No. Qty.
126
127
128
129
130
131
132
133
134
135
#
#
#
#
#
#
#
#
#
1
1
1
4
16
2
1
1
1
1
1
1
1
1
1
1
1
2
1
Description
iFIT Cable
iFIT Jack
Latch Warning Decal
Belly Pan Clip
Upright Cover Clip
Long Endcap Screw
Console Warning Decal
Temp Sensor
Sensor Fastener
Resistor
46” Wire Harness
45” Console Wire Harness
14” Red Wire, 2F
12” Red Wire, 2F
14” White Wire, 2F
8” Green Wire, F/Ring
4” Green Wire, F/Ring
4” Blue Wire, M/F
User's Manual
#These parts are not illustrated
Specifications are subject to change without notice.
35
51
131
52
120
52
53 13
5
50
54
49
42
55
51
53
5
48
131
47
120
57
56
46
45
53
49
128
1
54
58
52
42
42
55
44
39
41
2
121
46
45
15
16
59
52
13
43
12
120
11
18
42
4
14
122
17
53
1
7
13
10
11
19
76
9
123
46
45
20
8
21
22
6
44
23
3
41
39
125
32
124
70
40
24
31
70
12
46
45
9
120
25
26
3
27
77
4
13
13
91
3
10
26
27
32
70
34
35
33
28
29
34
32
134
133
70
32
66
32
135
38
129
32
32
86
3
3
3
36
126
37
3
127
3
3
3
EXPLODED DRAWING—Model No. IMTL15905.0
R0905A
54
97
93
98
60
3
94
93
99
67
61
96
94
3
3
62
93
13
3
94
3
99
93
95 94
3
54
67
3
93
3
87
94
90
3
97
3
3
98
100
65
64
94
90
87
13
93
94
103
116
89
88
3
68
116
117
48
94
94
101
48
85
60
94
63
102
13
82
69
30
84
104
83
71
82
71
30
105
71
83
81
106
71
71
107
108
109
78
71
71
112 72
71
71
132
3
78
92
78
114
80
119
111
110
73
48
74
79
113
81
118
80
78
74
75
115
71
21
71
21
66
130
71
EXPLODED DRAWING—Model No. IMTL15905.0
R0905A
ORDERING REPLACEMENT PARTS
To order replacement parts, see the front cover of this manual. When ordering parts, please be prepared to give
the following information:
• the MODEL NUMBER OF THE PRODUCT (IMTL15905.0)
• the NAME OF THE PRODUCT (IMAGE ADVANCED 3000 Incline Trainer)
• the SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
• the KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on pages 34 and 35 and the
EXPLODED DRAWING attached in the center of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material under normal use and service conditions. The drive motor is warranted for the lifetime. Parts
and labor are warranted for one (1) year after the date of purchase.
This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to
replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customer’s responsibility. For inhome service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 234257 R0905A
Printed in USA © 2005 ICON IP, Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
