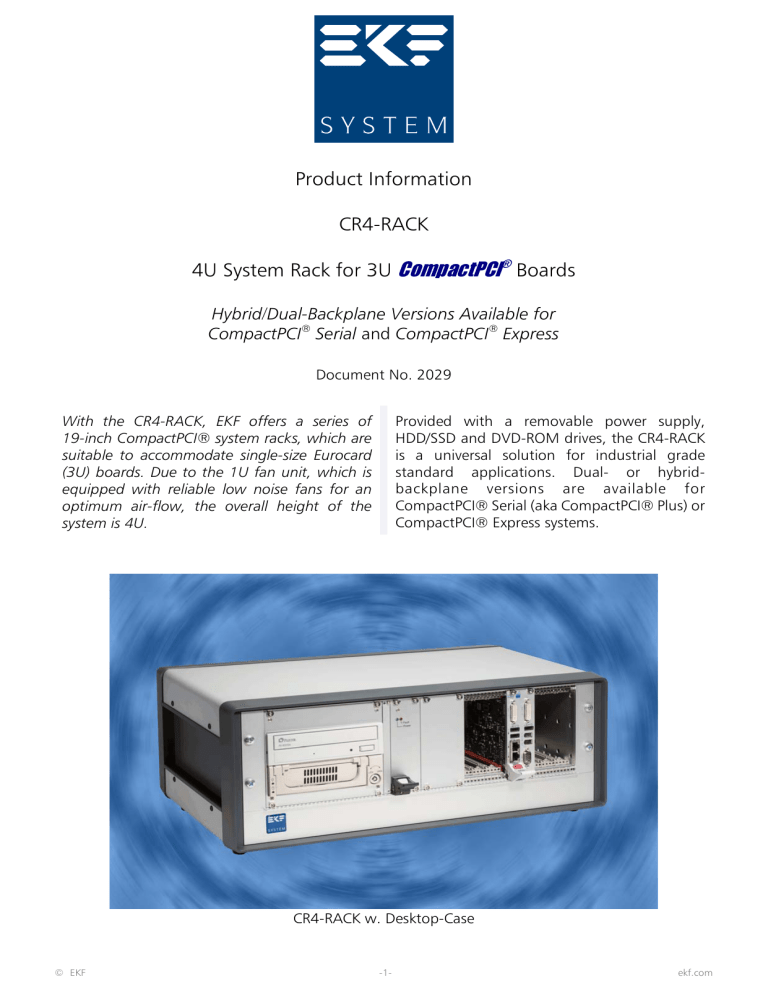

Product Information CR4-RACK 4U System Rack for 3U

Product Information CR4-RACK 4U System Rack for 3U
Product Information
CR4-RACK
4U System Rack for 3U CompactPCI® Boards
Hybrid/Dual-Backplane Versions Available for
CompactPCI® Serial and CompactPCI® Express
Document No. 2029
Provided with a removable power supply,
HDD/SSD and DVD-ROM drives, the CR4-RACK
is a universal solution for industrial grade
standard applications. Dual- or hybridbackplane versions are available for
CompactPCI® Serial (aka CompactPCI® Plus) or
CompactPCI® Express systems.
With the CR4-RACK, EKF offers a series of
19-inch CompactPCI® system racks, which are
suitable to accommodate single-size Eurocard
(3U) boards. Due to the 1U fan unit, which is
equipped with reliable low noise fans for an
optimum air-flow, the overall height of the
system is 4U.
CR4-RACK w. Desktop-Case
© EKF
-1-
ekf.com
CR4-RACK • CompactPCI System Rack für 3U Boards
Typically, the CR4 series of racks will be configured individually according to the customers needs (see
examples below). We can tailor any CompactPCI system to your special needs - turnkey ready! Please
contact [email protected] for an offer.
Custom Specific CR4-RACK
Half-Size 19-Inch CR4-RACK
© EKF
-2-
ekf.com
CR4-RACK • CompactPCI System Rack für 3U Boards
Cabinet w. CR4-RACK
© EKF
-3-
ekf.com
CR4-RACK • CompactPCI System Rack für 3U Boards
Wall Plate CR4-RACK
Closed Front Panel CR4-RACK
© EKF
-4-
ekf.com
CR4-RACK • CompactPCI System Rack für 3U Boards
Dual-Systems CR4-RACK
Multiple CPU CR4-RACK
© EKF
-5-
ekf.com
CR4-RACK • CompactPCI System Rack für 3U Boards
Drives Stacked on Top of CR4-RACK
© EKF
-6-
ekf.com
CR4-RACK • CompactPCI System Rack für 3U Boards
CR4-RACK w. Economy Power Supply
CR4-RACK w. Hybrid Backplane CPCI & CPCI Express
© EKF
-7-
ekf.com
CR4-RACK • CompactPCI System Rack für 3U Boards
Industrial Computers Made in Germany
